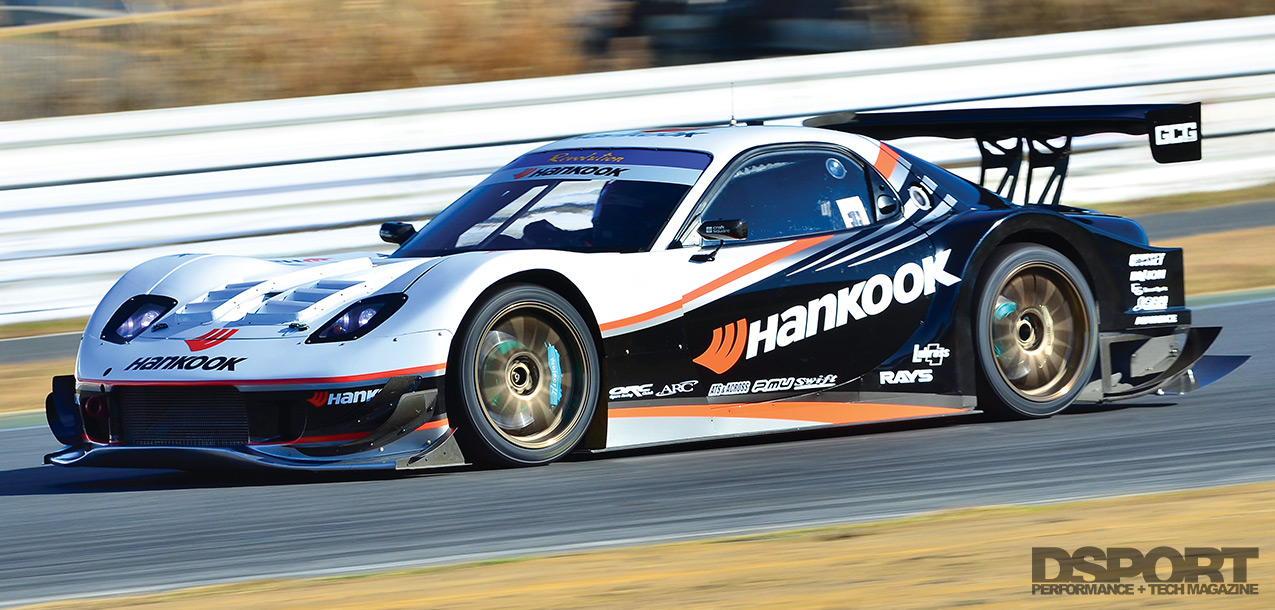

Aero-Tuned Mazda RX-7 Shaves Seconds With Aerodynamics

SPEC SHEET

VEHICLE
Year / Make / Model: 2004 Mazda RX-7 (TA-2)
Chassis Code: FD3S
Competition Class: Unlimited RWD
Vehicle Weight: 2,138 lbs. (Dry)
Peak Boost: 22 psi
Fuel: 100-octane

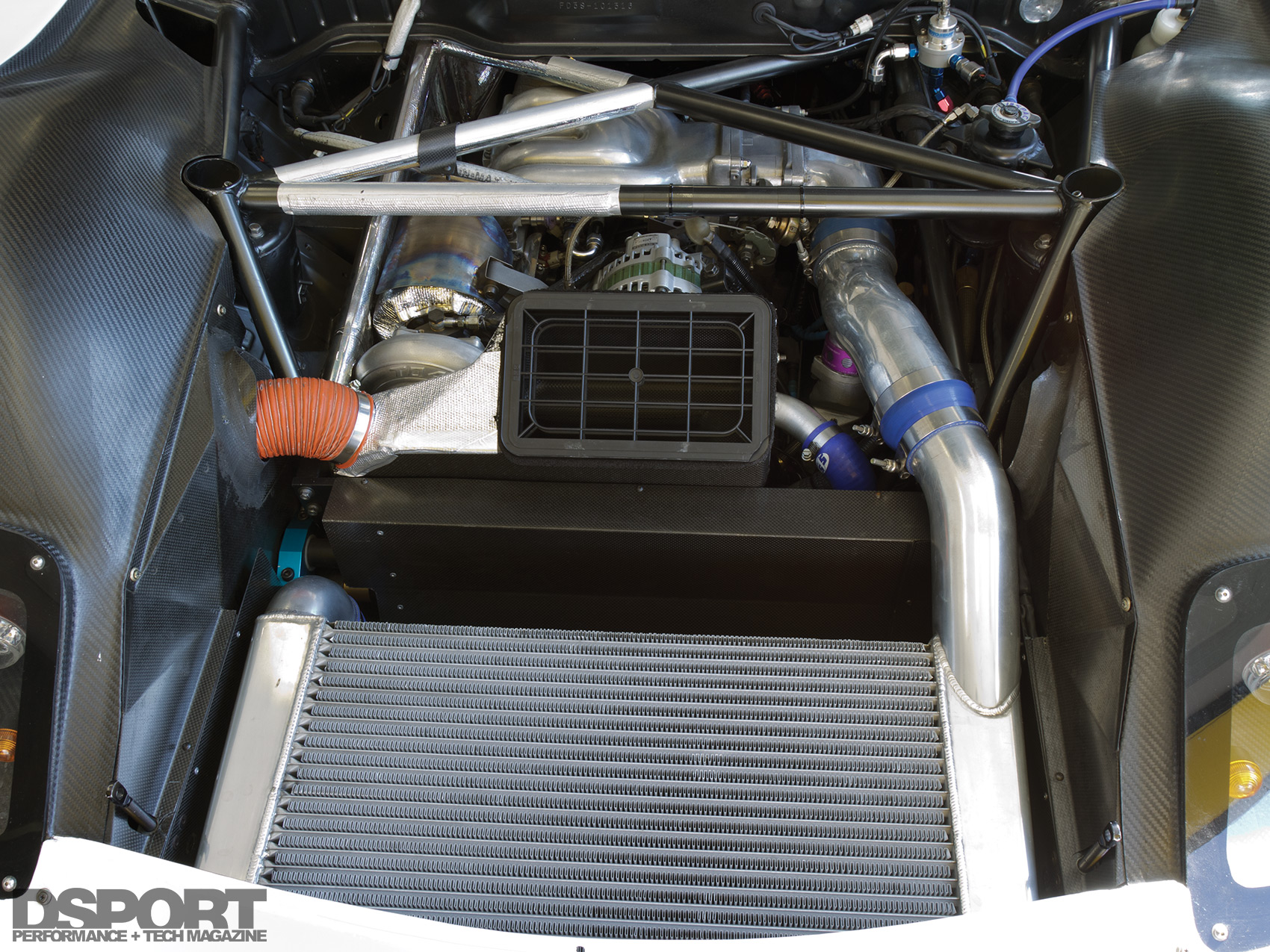

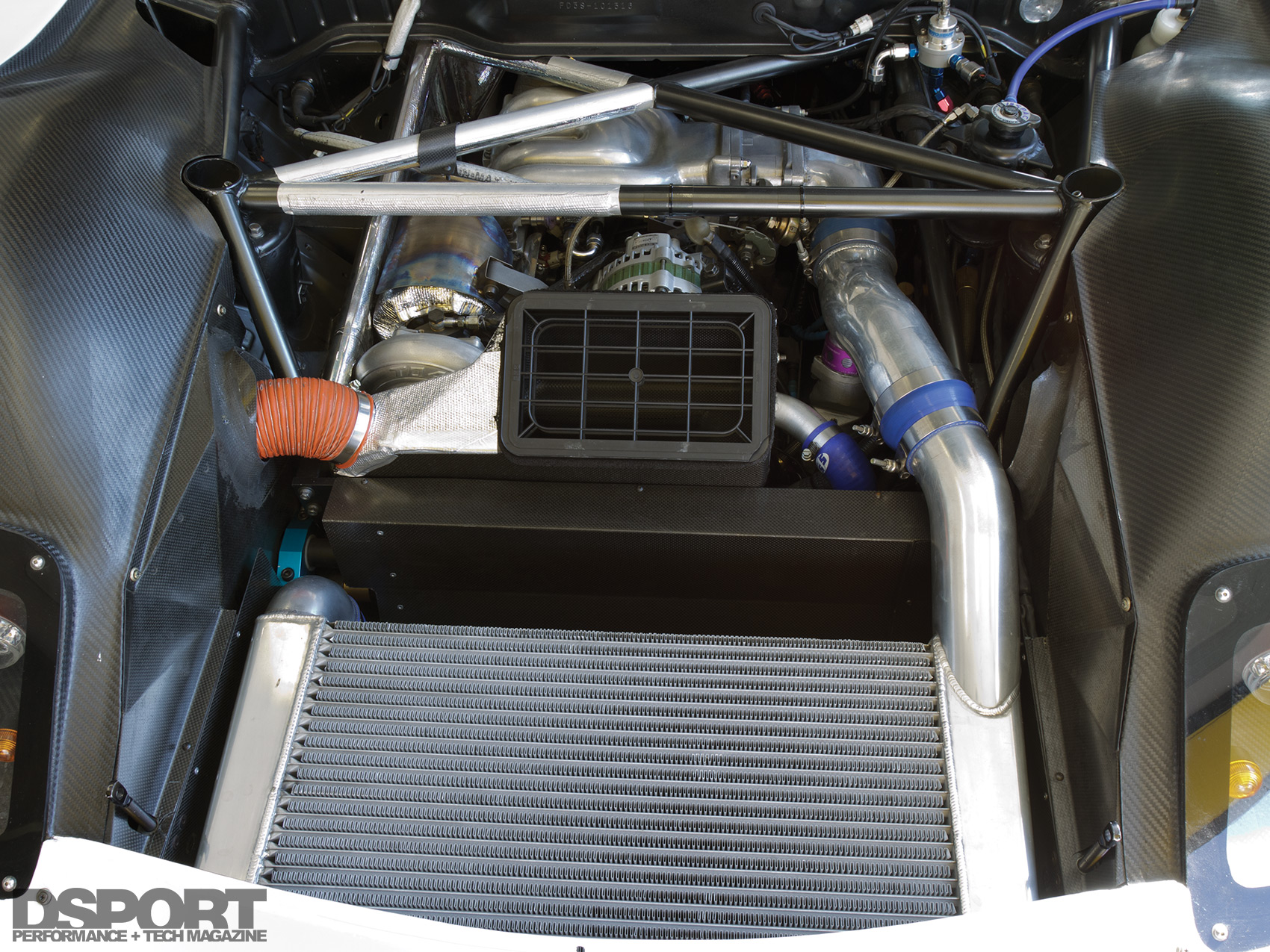

ENGINE
Engine Code: 13B-REW
Displacement (cc): 1,308cc
Peak Horsepower (@ RPM): 591 WHP
Engine Builder: Revolution Motoring
Block Modifications: Revolution Motoring Cross Porting
Pistons/Compression Ratio: 9.0:1 Compression; 3-piece Apex Seals

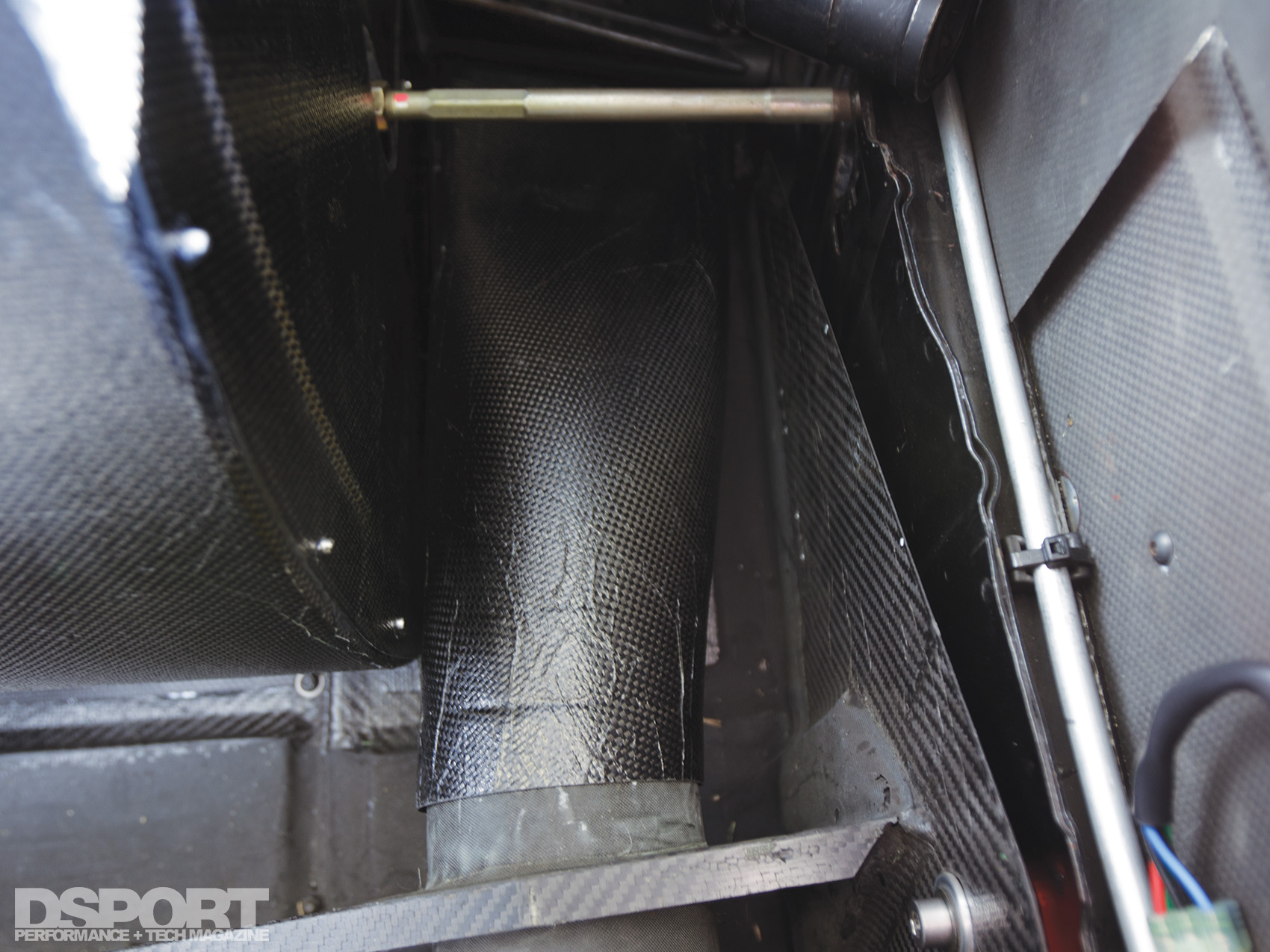

Air Induction System: Revolution Custom Dry Carbon-fiber Airbox
Fuel Injectors: 850cc/min (x2) Primary
800cc/min (x2) Secondary
Fuel Delivery System: Bosch 044 Fuel Pump (x2)
SARD Fuel Pressure Regulator
Revolution Fuel Surge Tank
Engine Management System: MoTeC M2R
Engine Management Tuner: Takashi Aoki
Boost Controller: MoTeC Boost Control Solenoid
Ignition System: MoTeC CDI
Wako Technical Plug Wires
Spark Plugs: NGK-R Spark Plugs
Exhaust Manifold: Revolution 50mm Exhaust Manifold
Exhaust System: Revolution 80mm Front Pipe
Revolution 80mm Titanium Exhaust
Wastegate: HKS GT-2 External Wastegate
Blow-Off Valve: GReddy Racing Blow Off Valve
Intercooler: ARC Intercooler
Cooling System: ARC Radiator
Revolution Air/Water Separator Tank
Oil System: ARC Oil Cooler
Fuel Cell: Custom Fuel Cell
TURBOCHARGER
Turbocharger: HKS T04Z
Frame: T04
Compressor Wheel Specs: 84mm Major, 66.7mm Inducer
Turbine Wheel Specs: 72.2mm Major, 64.7mm Exducer
Turbine Housing: 0.81 A/R
CHASSIS/DRIVELINE
Springs, F&R (Make & Rate): Swift Springs (25 kgf/mm, 16 kgf/mm)
Shocks, F&R (Make & Rate): Revolution Racing Dampers
Additional Suspension Components: Revolution Custom Double-wishbone Suspension
Transmission: Hewland 6-speed Sequential Transmission
Final Drive: 3.9:1
Clutch / Flywheel: Ogura Racing Clutch Triple-plate
Ogura Racing Flywheel
Differential(s) (Make & Type): ATS Carbon 1.5-way LSD

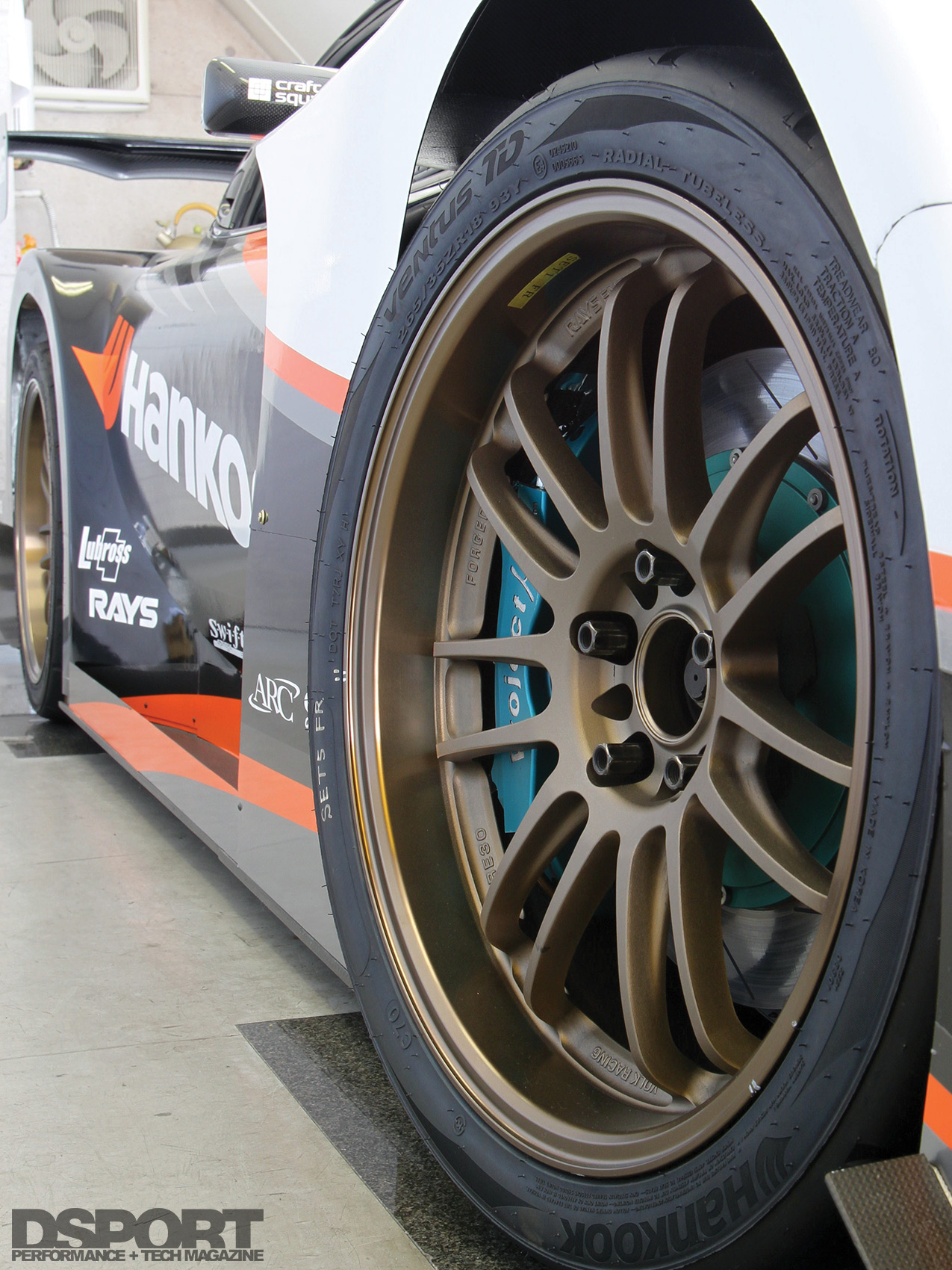

Wheels (Make, Size & Offset): Volk Racing RE30 18×9.5-inch +22 (F),
18×10.5-inch +18 (R)
Tires (Make & Size): Hankook Ventus Z221 265/35R18 (F)
295/30R18 (R)

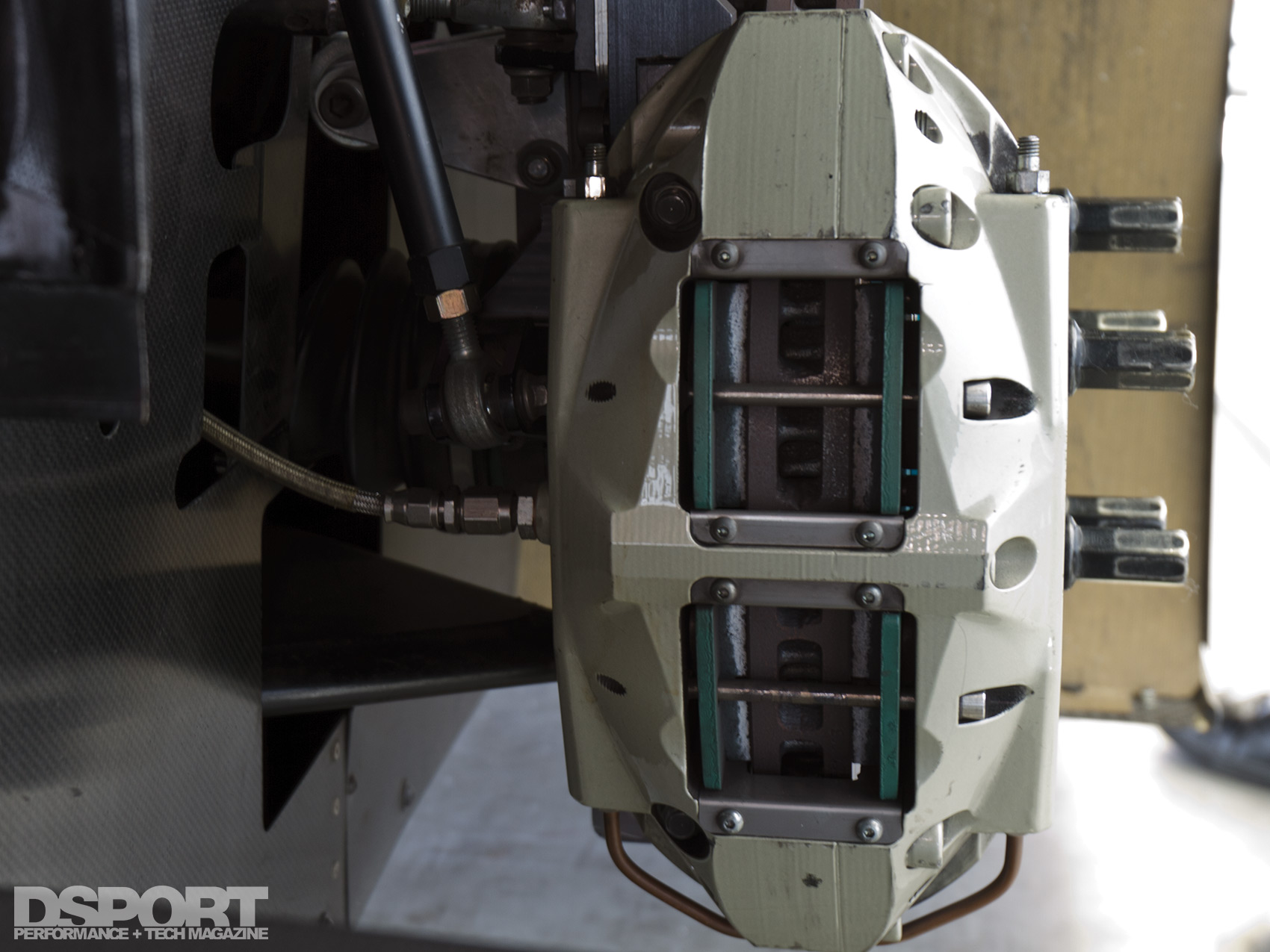

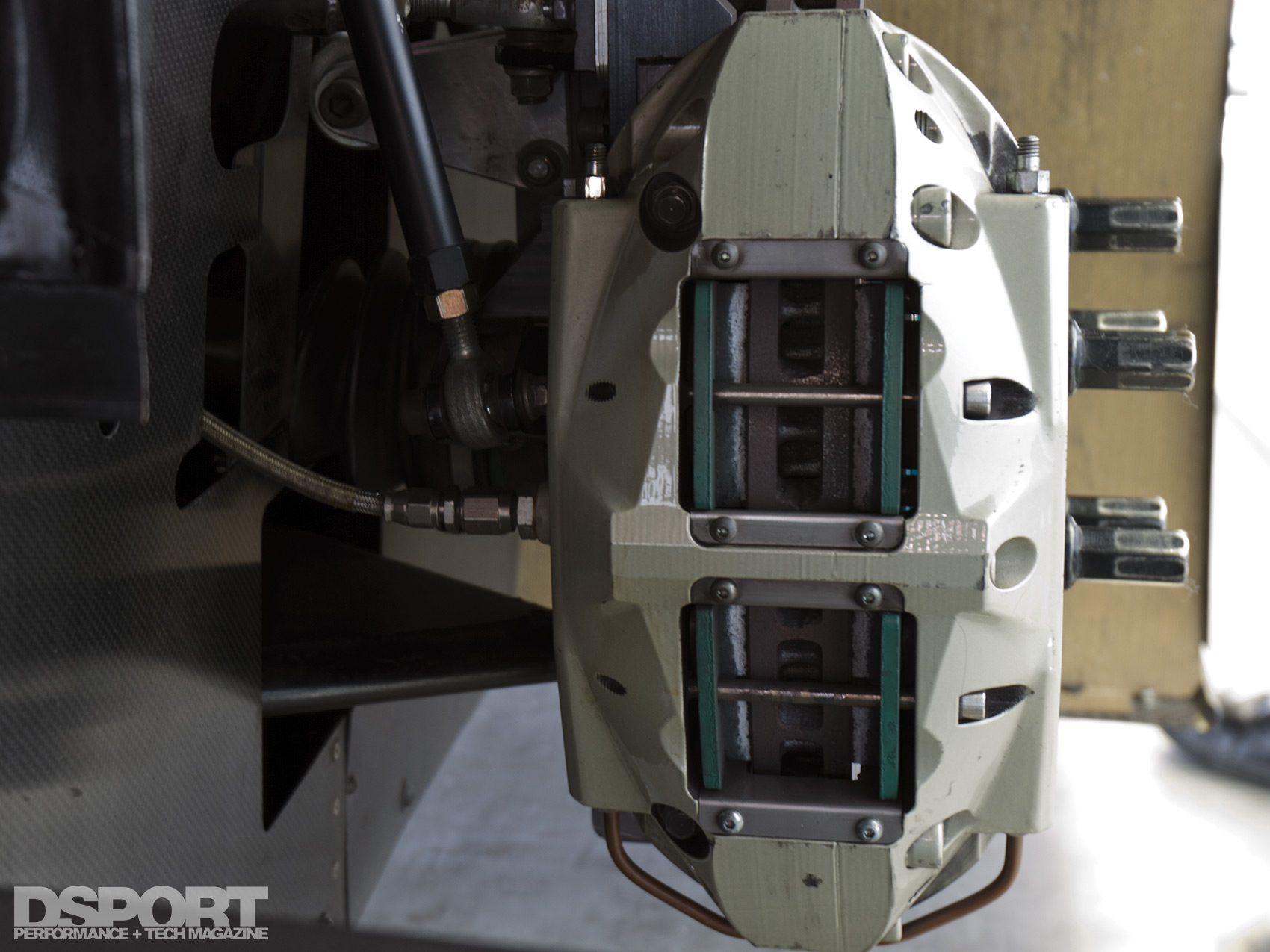

Brake Calipers: Project Mu 6-piston Calipers

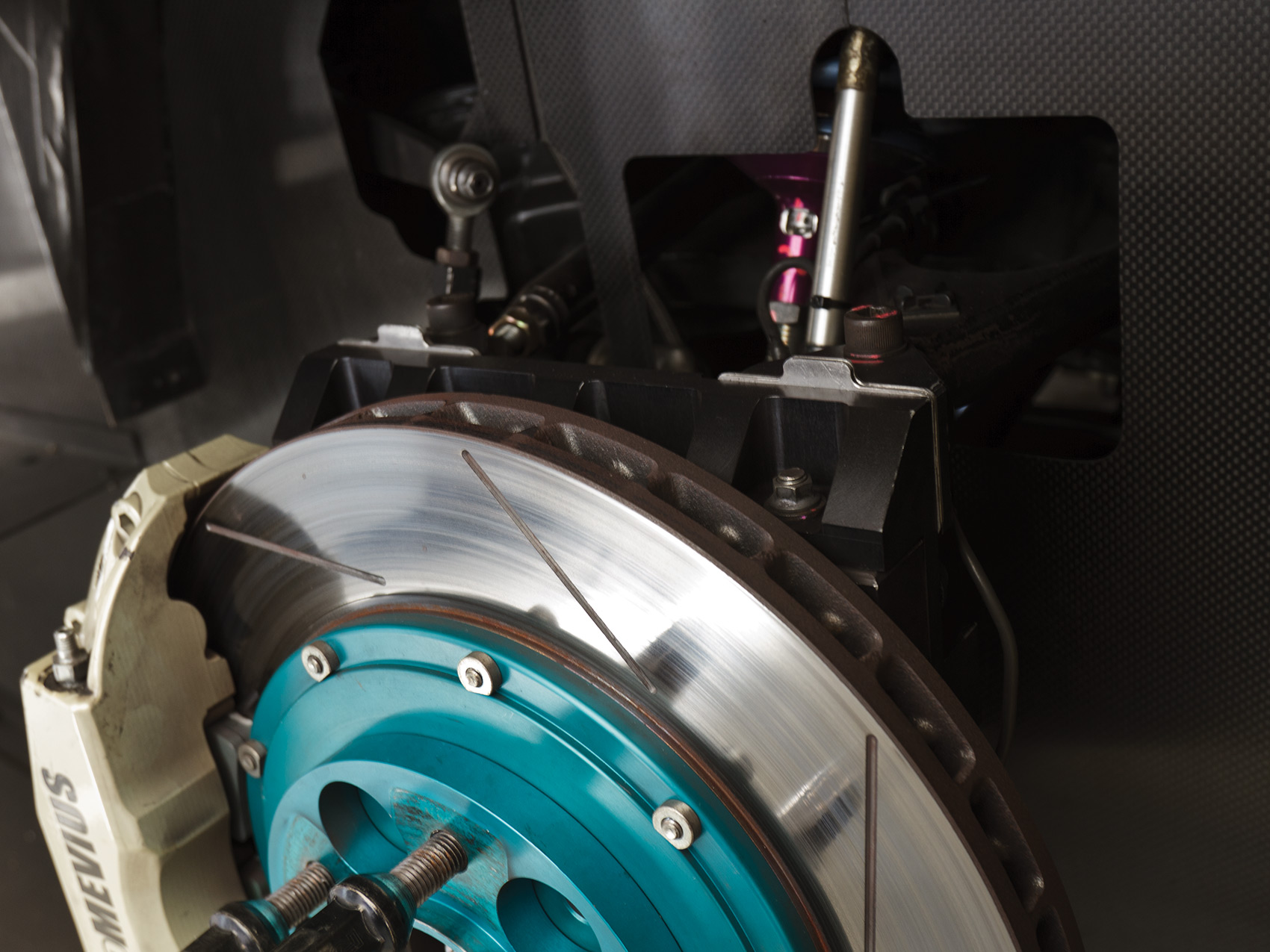

Brake Rotors: Project Mu Rotors, 355mm (F), 332mm (R)
Brake Pads: Project Mu 999 Brake Pads
Brake Lines: Stainless-steel Braided Lines
Etc: AP Racing Adjustable Pedal Box
AP Racing Brake Bias Adjuster
Roll Bar / Cage: Revolution Custom Chromoly Cage
Seats: Recaro Carbon-Kevlar Profi SPA
Harnesses: Takata 6-point Harness
Steering Wheel / Quick Release: Momo

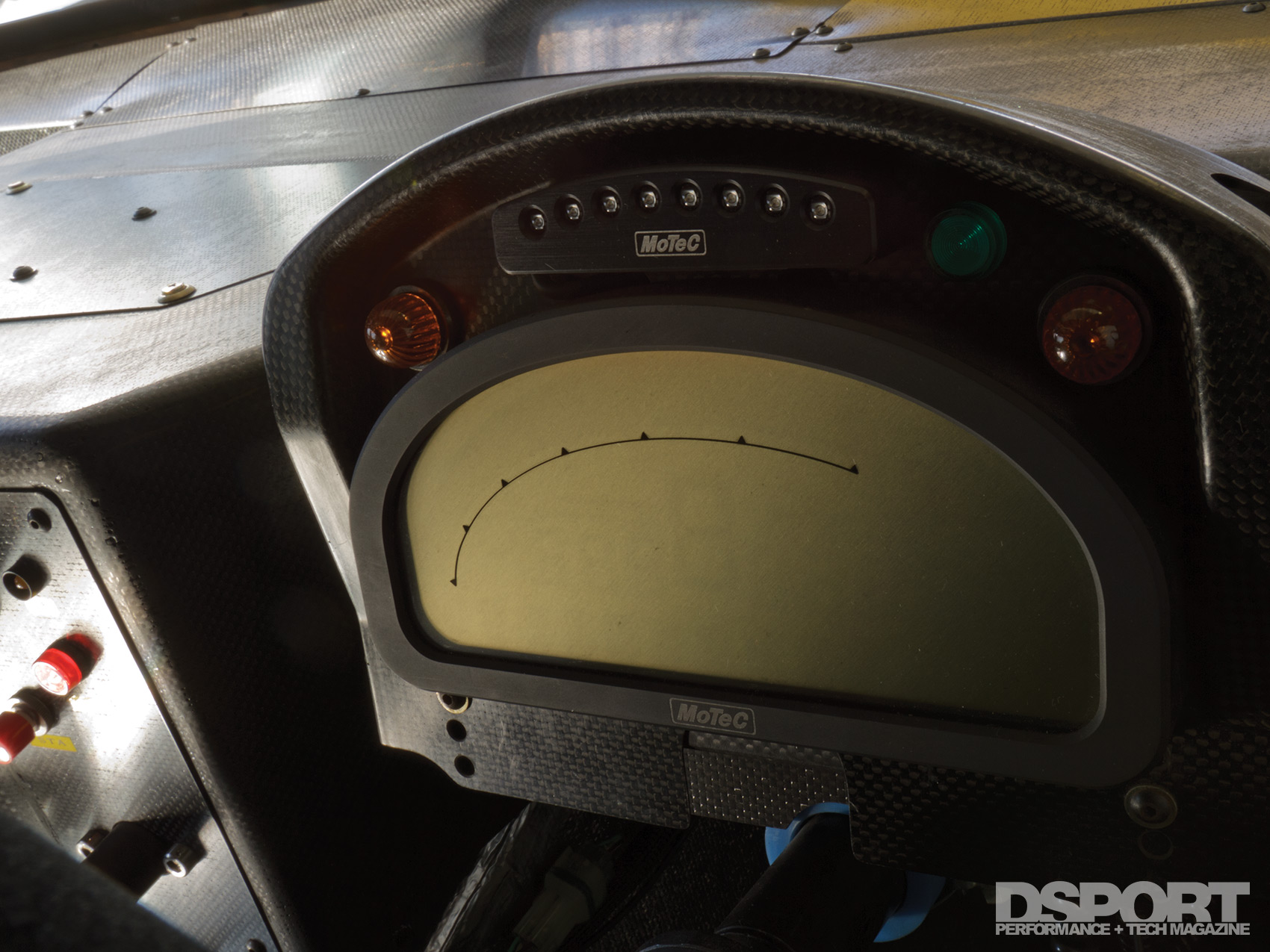

Gauges: MoTeC Display
Dashboard: Revolution Carbon-fiber Dash
Etc.: Revolution Carbon-fiber Center Console,
Transmission Tunnel, Floor
Revolution Custom Gear Selector and Linkage
EXTERIOR
Widebody Kit: RE Amemiya Custom Widebody Kit

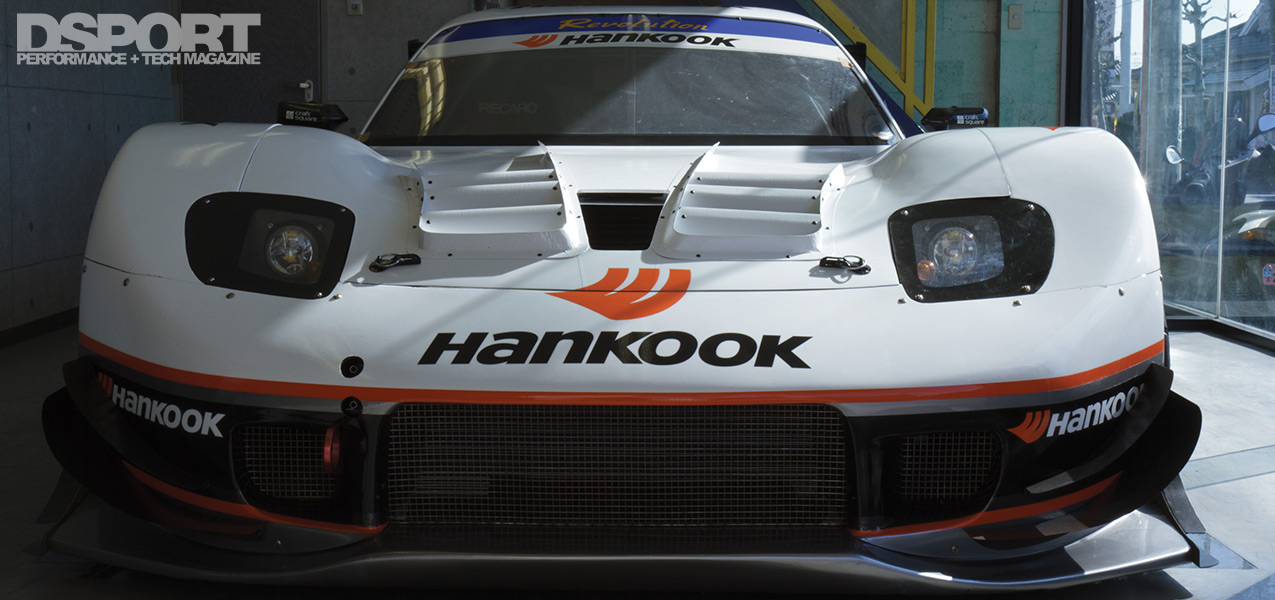

Front Bumper, Canards, Fenders (F&R),
Hood, Side Skirts, Doors: Revolution Dry Carbon-fiber

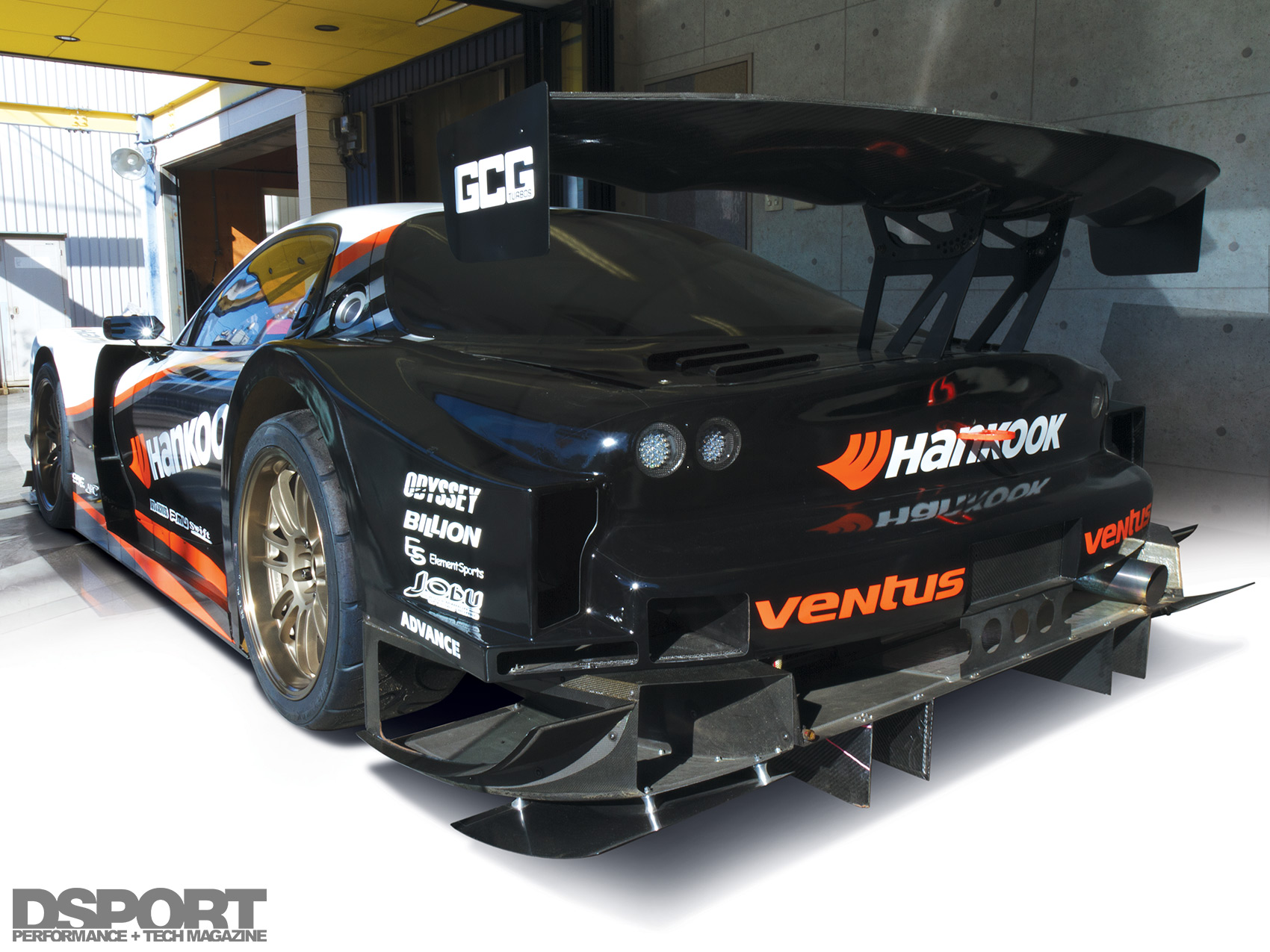

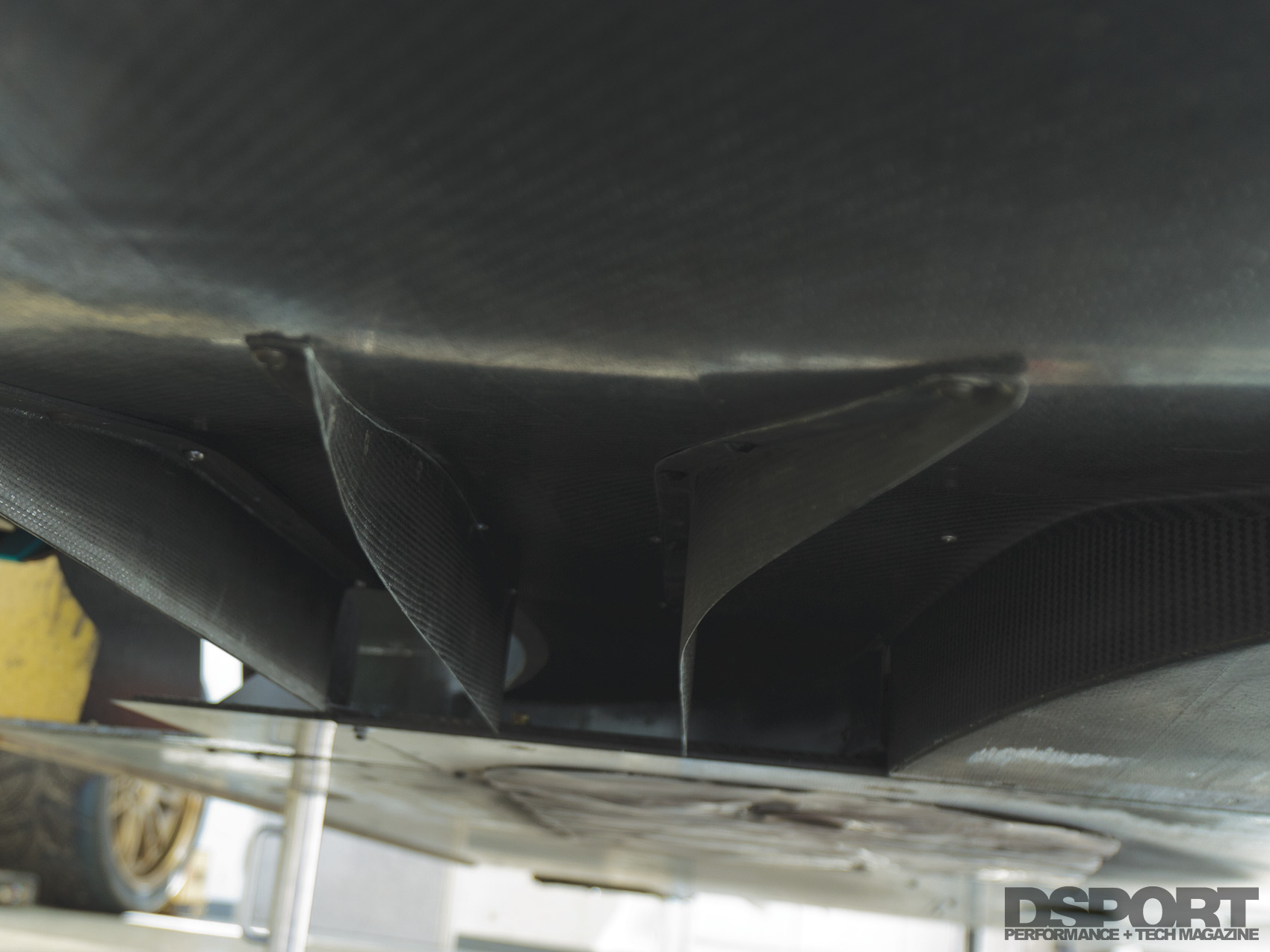

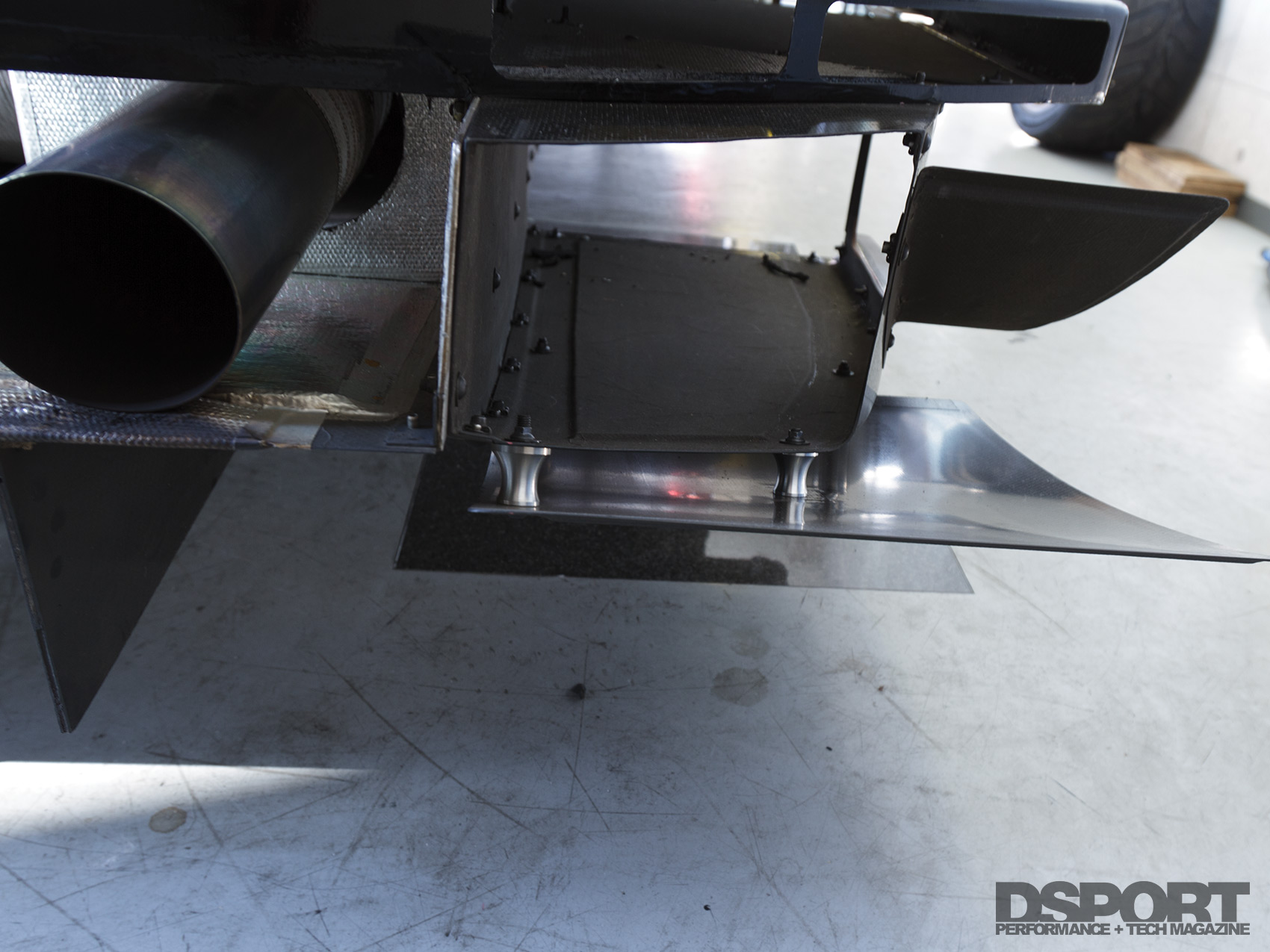

Diffuser, GT Wing: Revolution Dry Carbon-fiber
Mirrors: Craft Square Dry Carbon-fiber Mirrors
Headlights: Revolution Custom Headlights
Taillights: Revolution LED Taillights
