SP Series IntakeInjen Intake System for the FR-S/BRZ

QUICK FACTS

Positive

+ Highest Horsepower in 6,000-6,500 RPM range
+ Highest Horsepower in 5,000-5,500 RPM range
+ Highest Horsepower in 4,500-5,000 RPM range
+ Highest Horsepower in 4,000-4,500 RPM range
+ Second Highest Horsepower in 5,500-6,000 RPM range
+ Second Highest Horsepower in 3,500-4,000 RPM range

Negatives

– Steel air box is a bit heavy
– Sound tube deleted

Injen Intake System for the FR-S/BRZOverview: The Short Ram SP Series is a traditional, underhood air intake system that takes the place of your factory airbox and air filter, and the factory air intake tube. A synthetic dry filter media is used.

Analysis: The Injen SP Series intake system scored well from 3,500 RPM until redline. The OE mounting points are used to to secure the air box. Overall, a good fit but rubber mounts or grommets would be a nice addition.

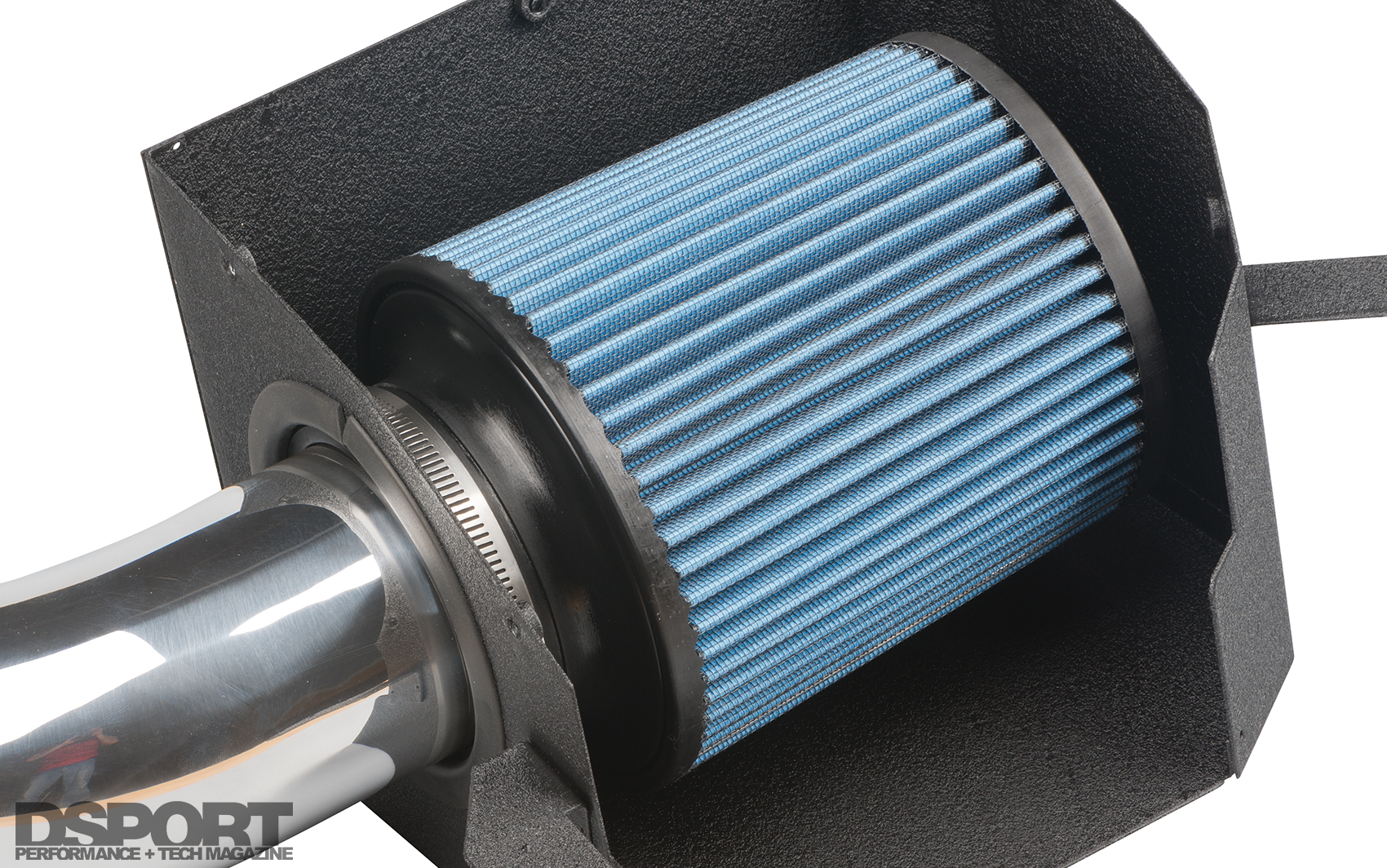

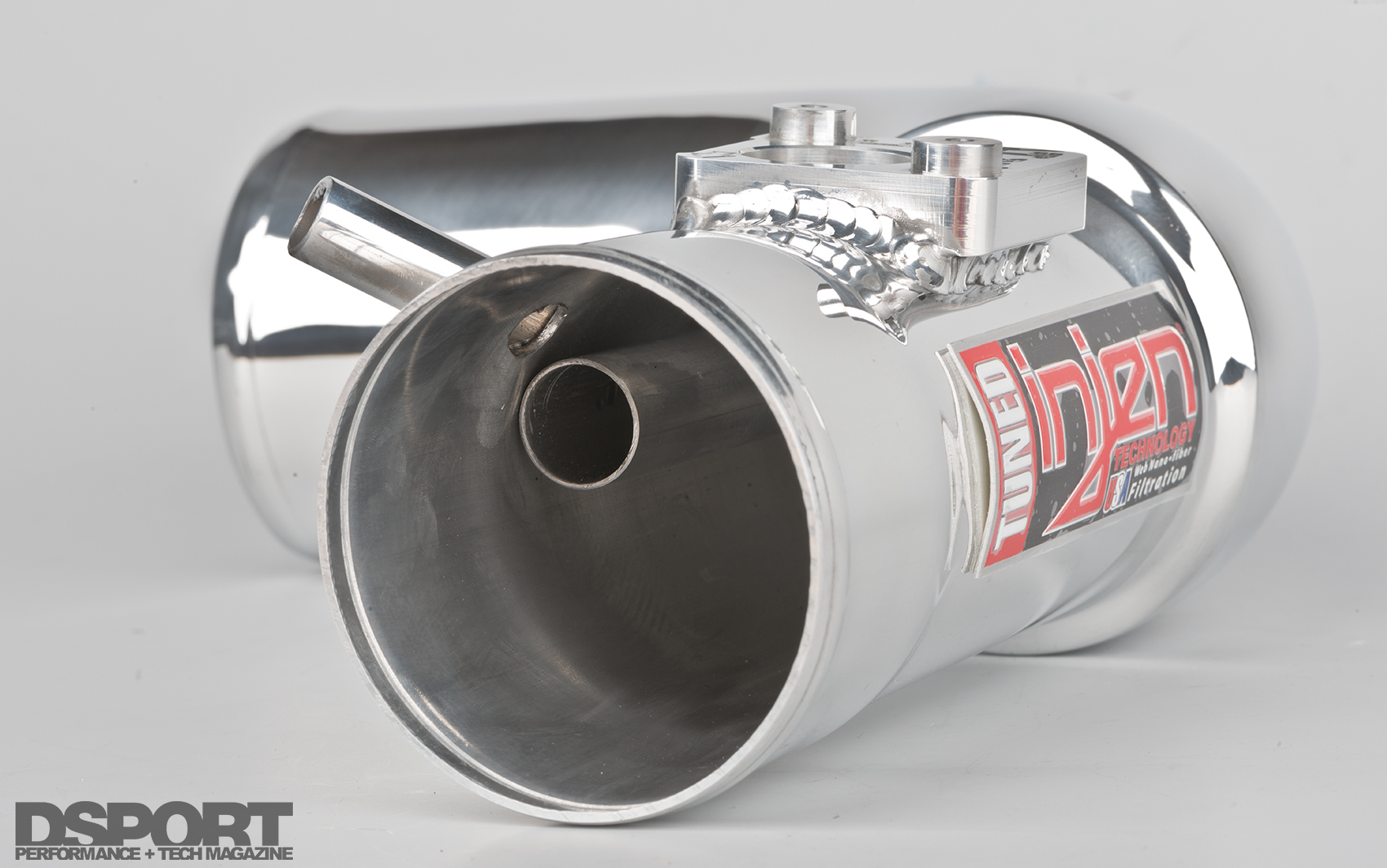

(Left) A calibration tube is used to optimize the MAF sensor signal. (Right) This box helps isolate the filter from heat in the engine compartment.

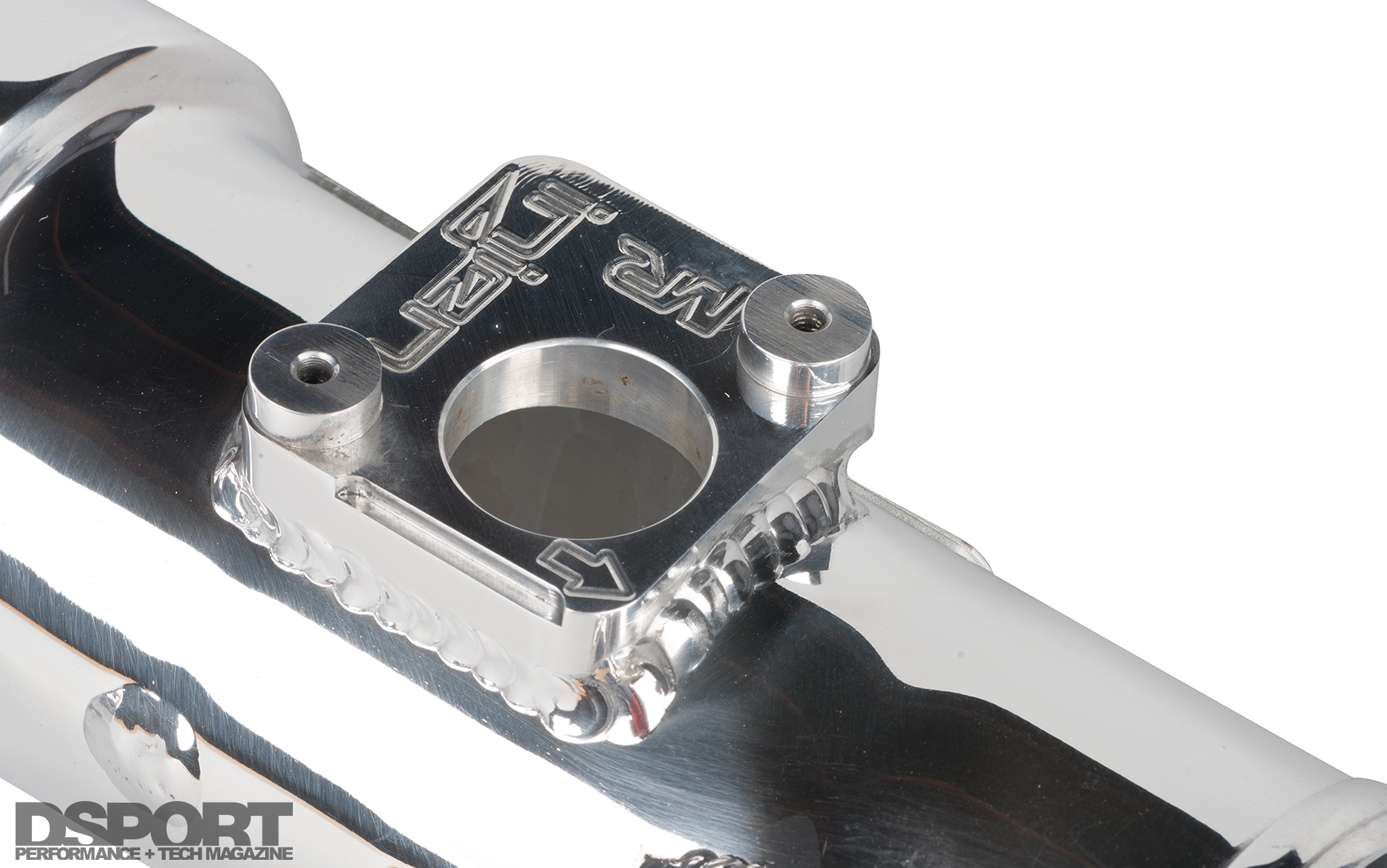

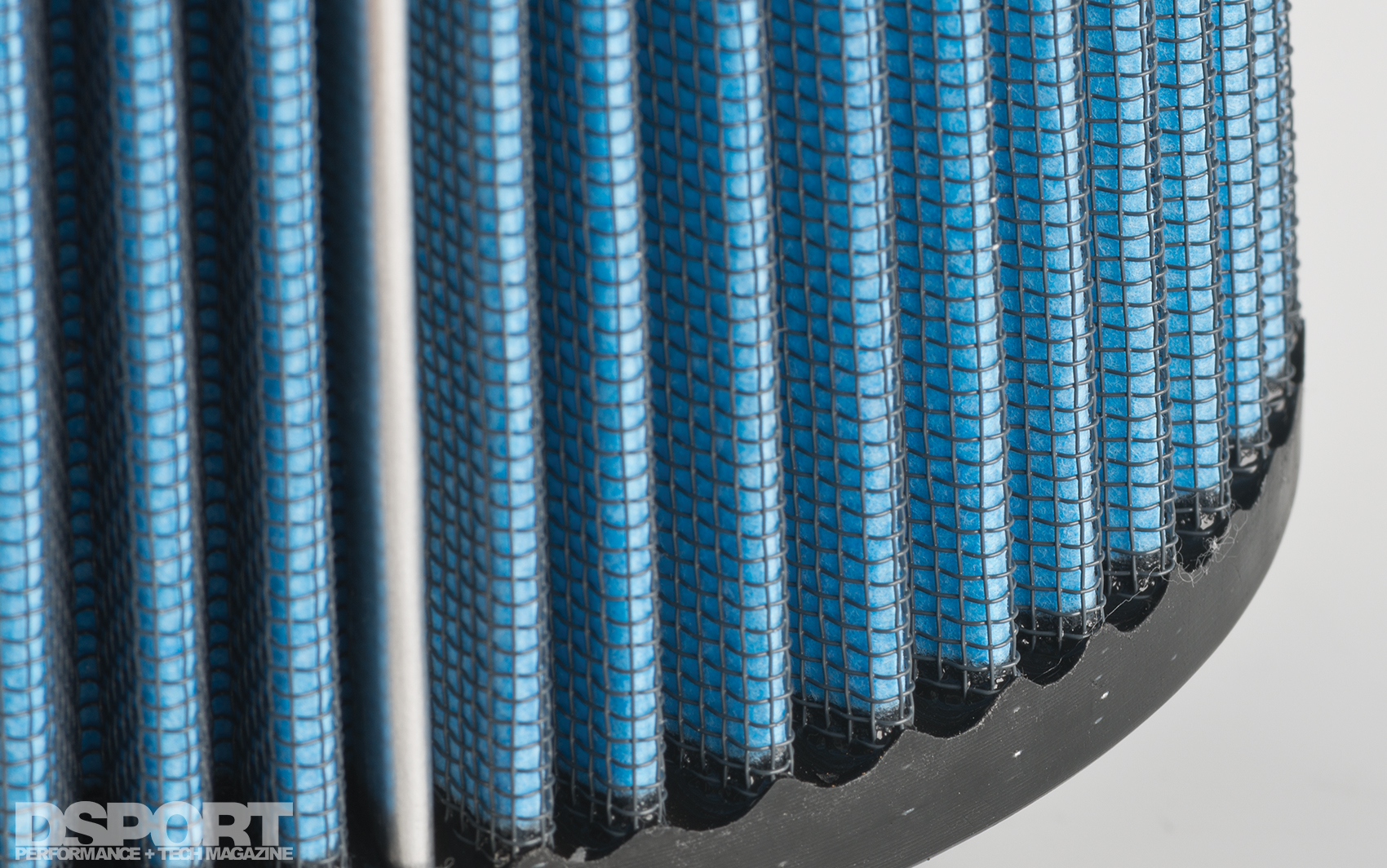

(Left) The Injen SP Intake provides a machined MAF sensor boss. (Right) The synthetic media with screen mesh

Injen Intake System for the FR-S/BRZ

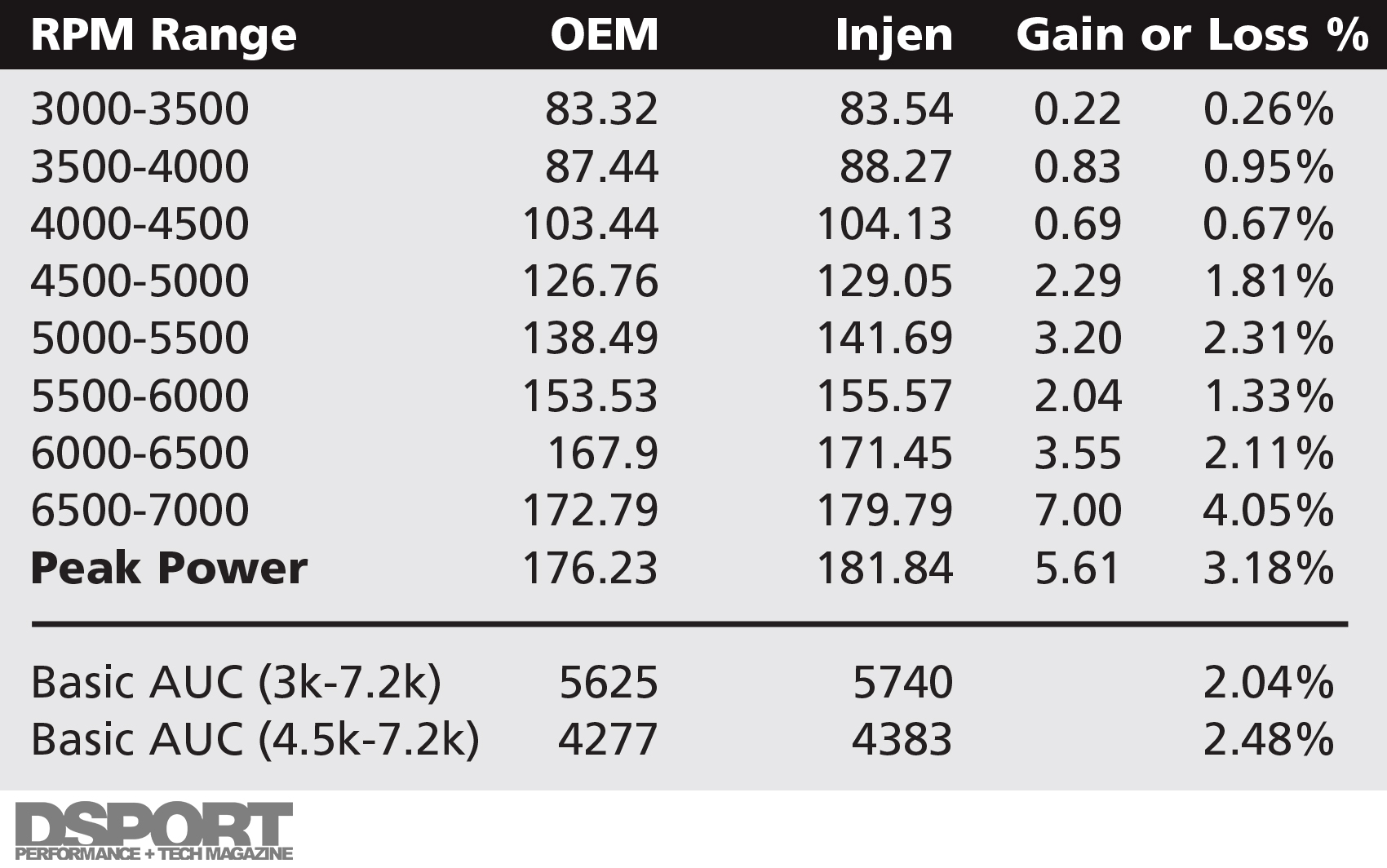

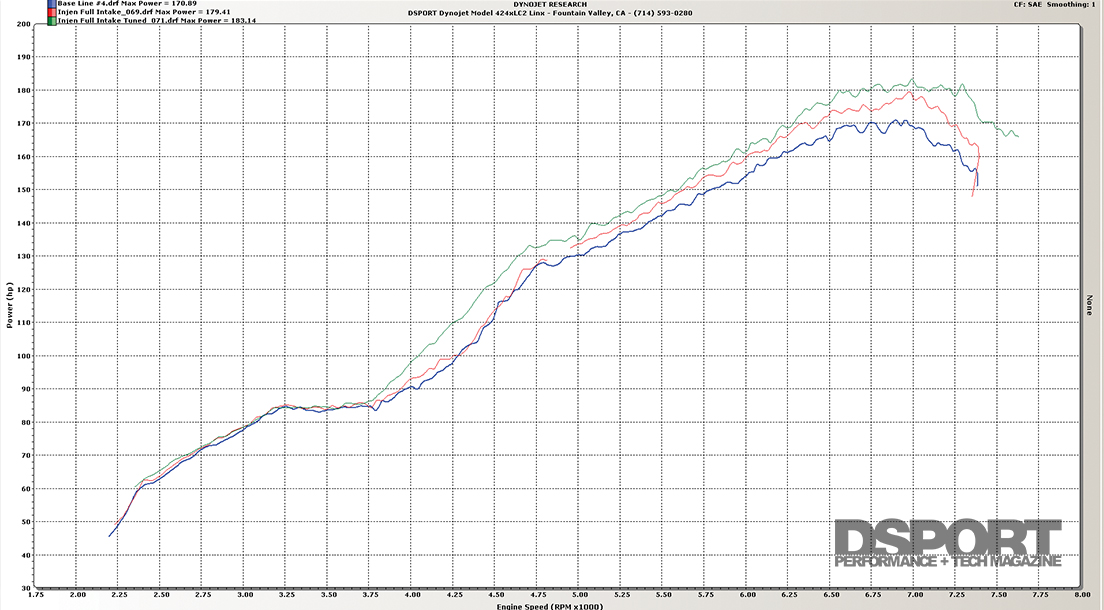

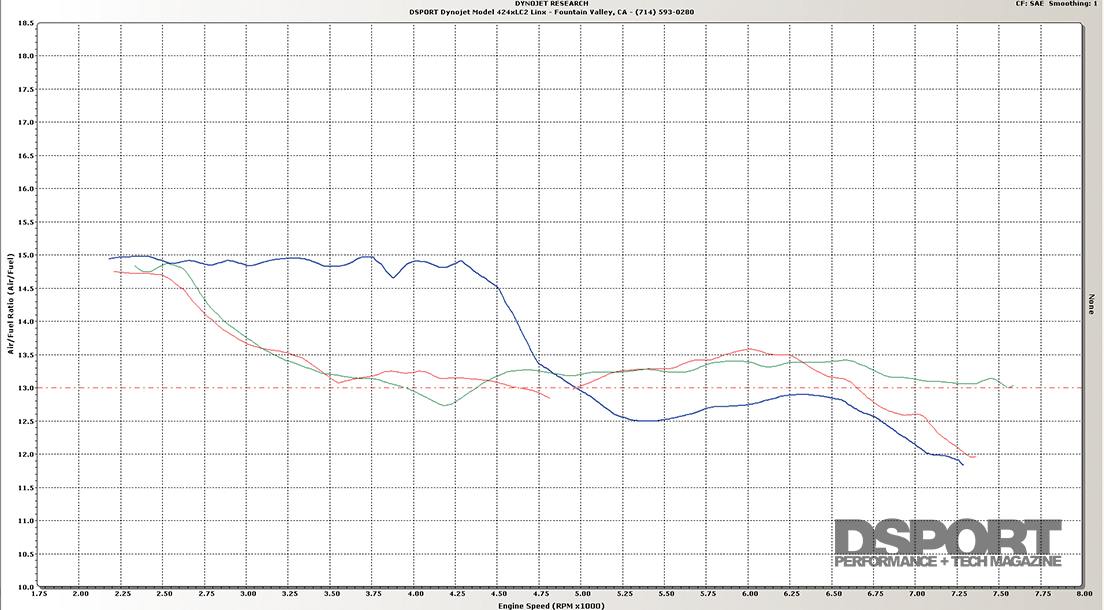

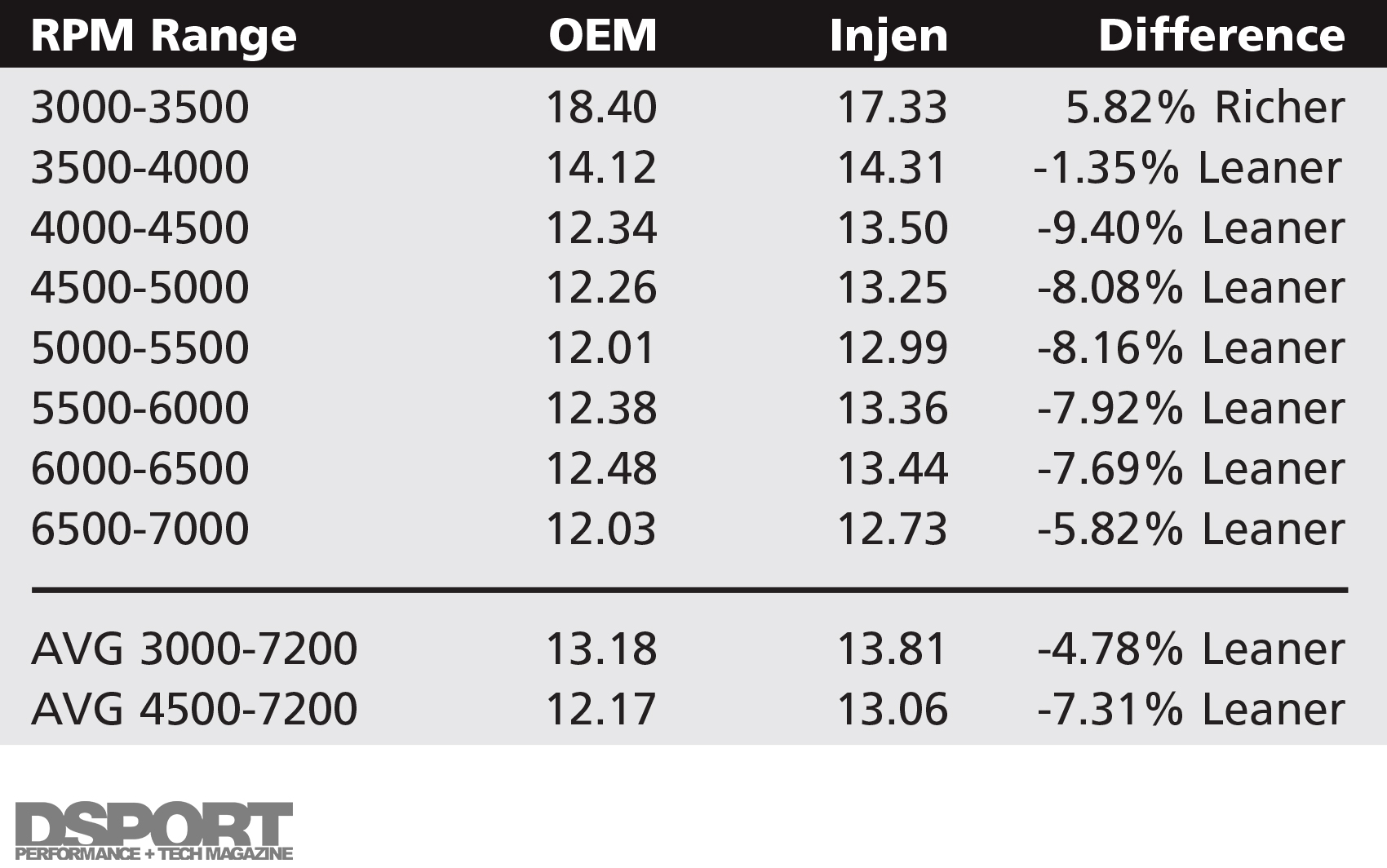

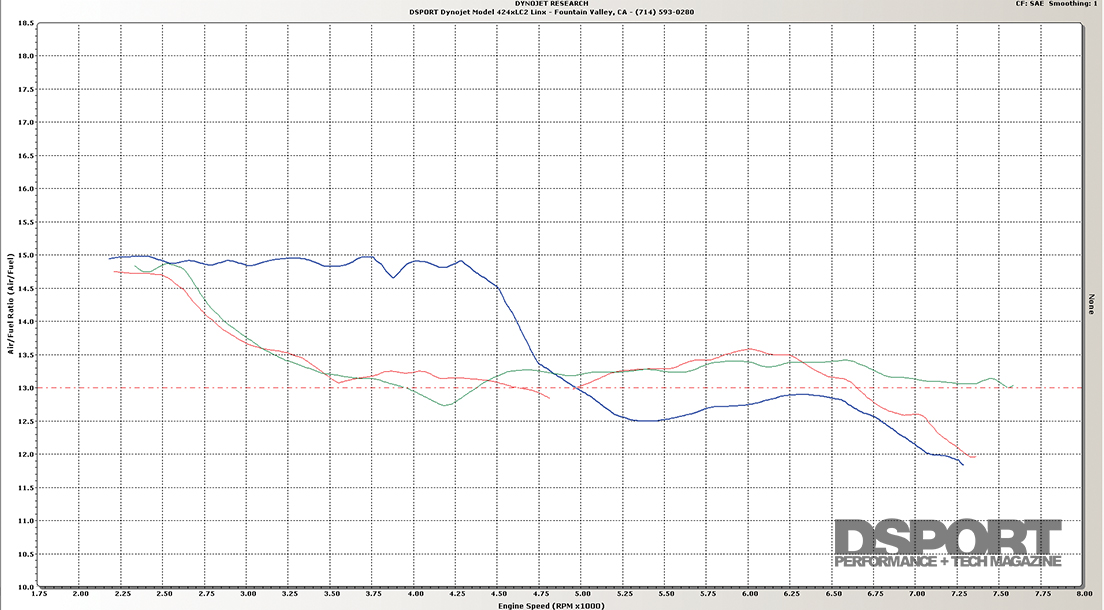

Average Horsepower + Average Air Fuel Ratio
