SPEC SHEET
| VEHICLE | |
|---|---|
| Year / Make / Model: |
2022 Subaru WRX |
| Chassis Code: |
VB |
| Competition Class: |
Street |
| Vehicle Weight: |
3,300lbs |
| Weight Bias (F/R): |
60/40 |
| Launch RPM: |
6,000 |
| Shift RPM: |
7,500 |
| Redline RPM: |
7,500 |
| Peak Boost: |
34psi |
| Fuel: |
E85 ethanol |
| ENGINE | |
|---|---|
| Engine Code: |
FA24 |
| Displacement (cc): |
2,387 |
| Bore & Stroke (mm): |
94.0 mm x 86.0 mm |
| Peak Horsepower: |
700 |
| Peak Torque: |
500lb.-ft. |
| Dyno Type: |
Mustang 500SE AWD |
| Engine Builder: |
IAG Performance |
| Compression Ratio: |
10.6:1 |
| Pistons: |
IAG Spec |
| Piston Rings: |
IAG Spec |
| Connecting Rods: |
IAG Spec |
| Crank: |
Stock |
| Bearings, Main and Rod: |
IAG Spec |
| Camshafts: |
Stock |
| Valves / Springs / Retainers: |
GSC |
| Cylinder Head Modifications: |
Stock |
| Cylinder Head Gasket: |
IAG Spec FireLock |
| Head / Main Studs: |
IAG Spec 14mm |
| Intake Manifold: |
OEM Subaru BRZ |
| Throttle Body: |
Stock |
| Exhaust Manifold: |
ETS turbo kit |
| Exhaust System / Downpipe: |
ETS |
| Muffler: |
ETS |
| Wastegate: |
Stock electronic |
| Blow-Off Valve: |
TiAL Q |
| Intercooler: |
AMS Performance |
| Fuel Injectors: |
Stock DI, Injector Dynamics 1050X PI |
| Fuel Pump(s): |
Walbro 486lph x 3 |
| Fuel Cell: |
Stock |
| Engine Management System: |
MoTeC M150 |
| Engine Management Tuner: |
Nate Silveri – TPG Tuning |
| Boost Controller: |
Stock |
| Ignition System: |
Stock |
| Spark Plugs: |
Stock NGK |
| Nitrous Oxide: |
N/A |
| Cooling System: |
Stock |
| Oil System: |
Stock |
| TURBOCHARGER | |
|---|---|
| Turbocharger: |
Garrett G35-1050 |
| Frame: |
G Series |
| Compressor Wheel Specs |
68mm IN / 84mm EX |
| Turbine Wheel Specs: |
68mm IN / 62mm EX |
| Turbine Housing: |
1.01 A/R Internal Gate V-Band |
| CHASSIS/DRIVELINE | |
|---|---|

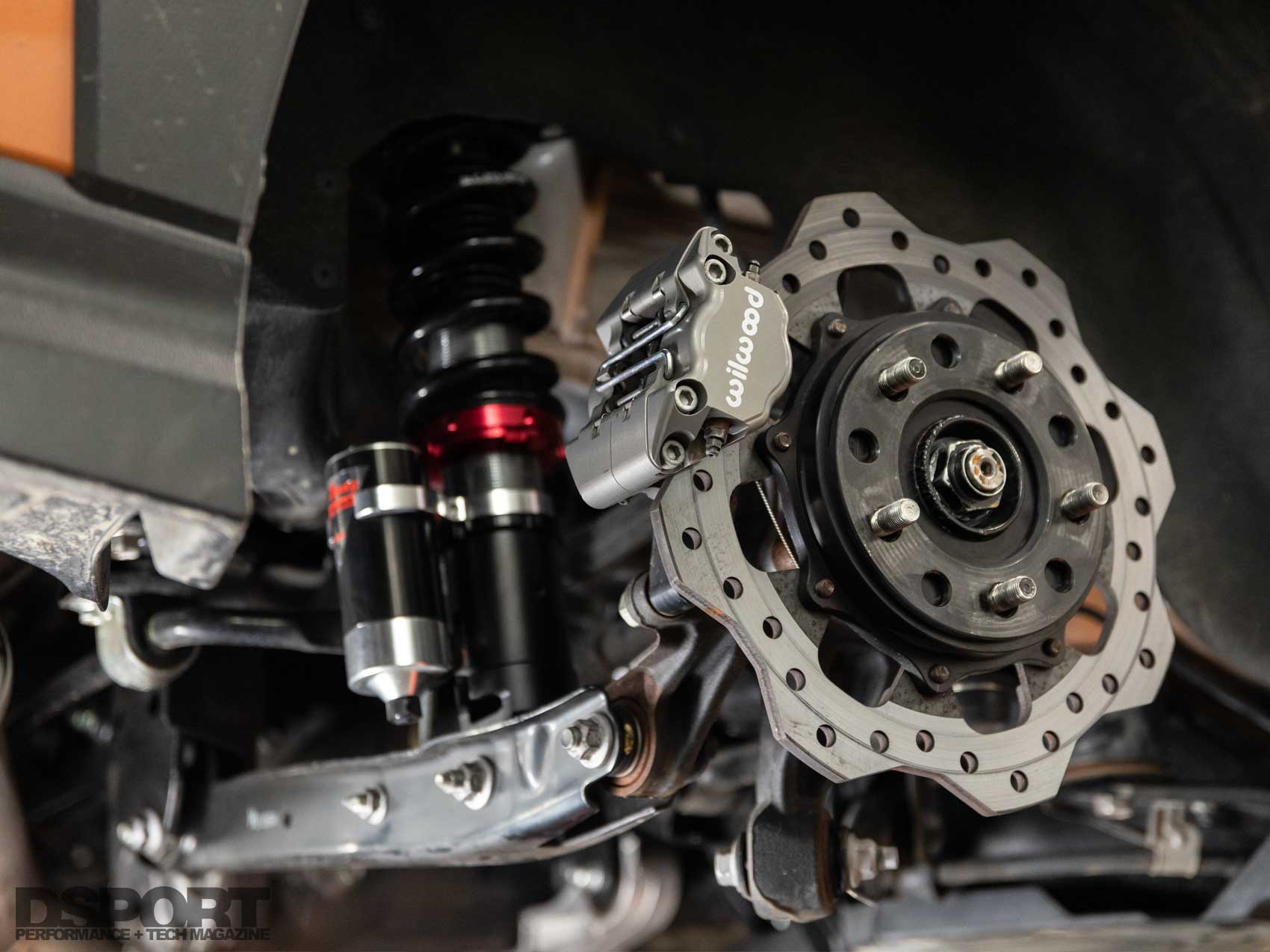

| Springs, F&R (Make & Rate): |
IIR Spec Silver |
| Shocks, F&R (Make & Rate): |
IIR Spec Silver |
| Transmission: |
ShepTrans Built STI 6-Speed |
| Final Drive: |
3.333 |
| Transmission Gearing: |
IAG / PPG Gearset |
| Clutch: |
IAG Triple Disc |
| Axles / Driveshaft: |
DSS Carbon |
