SPEC SHEET
| VEHICLE | |
|---|---|
| Year / Make / Model: | 1994 Mazda RX-7 |
| Chassis Code: | FD3S |
| Vehicle Weight: | 2,918 lbs. |
| Weight Bias (F/R): | 50/50 |
| Launch RPM: | 6,500 RPM |
| Shift RPM: | 8,500 RPM |
| Redline RPM: | 9,000 RPM |
| Peak Boost: | 28 psi |
| Fuel: | E85 |
| ENGINE | |
|---|---|

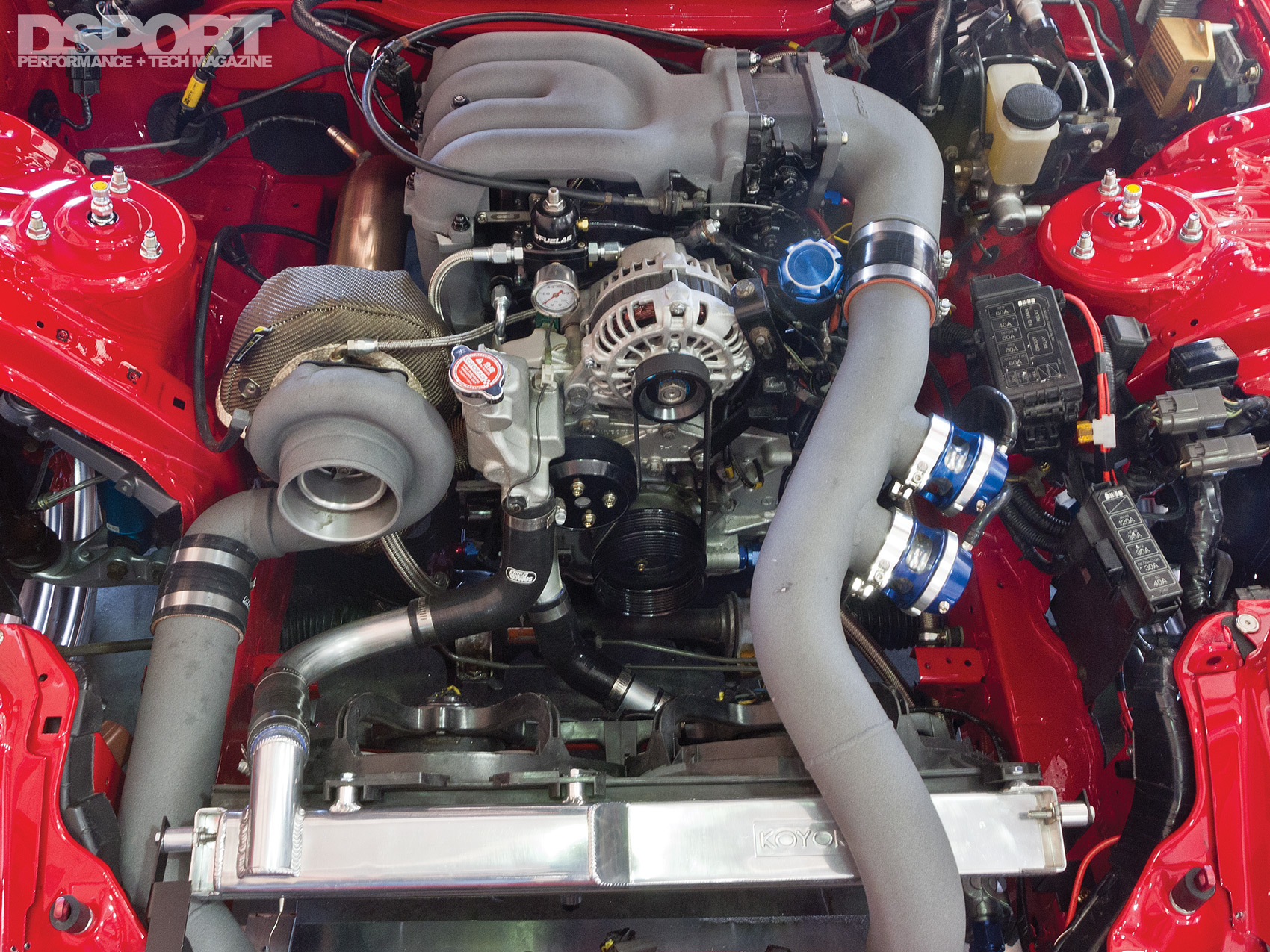

| Engine Code: | 13B-REW |
| Displacement (cc): | 1,308cc |
| Peak Horsepower (@ RPM): | 525 whp (est.) |
| Dyno Type: | Dyno Dynamics |
| Engine Builder: | Speed Tek, NY |
| Block Modifications: | Speed Tek Large Street Port |
| Machine Work: | Speed Tek, NY |
| Compression Ratio: | 9.4:1 |
| Intake Manifold / Throttle Body: | Xcessive Mfg. Lower Intake Manifold |
| Fuel Injectors: | Injector Dynamics ID1,000 (x4) |
| Fuel Delivery System: | Bosch 044 Motorsport Pumps (x2) |
| Engine Management System: | A’PEXi Power FC |
| Engine Management Tuner: | Anthony Maharaj |
| Boost Controller: | Turbosmart Eboost2 |
| Spark Plugs: | NGK BUR9EQP |
| Ignition System: | HKS Twin Power DLI |
| Spark Plugs: | NGK BUR9EQP |
| Exhaust Manifold: | Speed Tek Custom Built |
| Exhaust System / Downpipe: | Speed Tek Custom 3-inch Stainless Steel Downpipe, |
| 3-inch Aluminum Cat Back w/Turn Down Tip | |
| Wastegate: | Turbosmart Hypergate(x2) |
| Blow-Off Valve: | Turbosmart RacePort (x2) |
| Intercooler: | GReddy LS Intercooler |
| Cooling System: | KOYO Radiator |
| Oil System: | Custom Twin Oil Cooler |
| Etc.: | Rywire Chassis Harness |
| TURBOCHARGER | |
|---|---|
| Turbocharger: | Garrett GT3582 |
| Frame: | T4 |
| Compressor Wheel Specs: | 82mm Major, 61.4mm Inducer |
| Turbine Wheel Speds: | 68mm |
| Turbine Housing: | 1.06 A/R |
| CHASSIS/DRIVELINE | |
|---|---|
| Springs, F&R (Make & Rate): | AirREX Air Suspension System |
| Clutch / Flywheel: | ACT 6 Puck Sprung Hub w/ HD Pressure Plate |

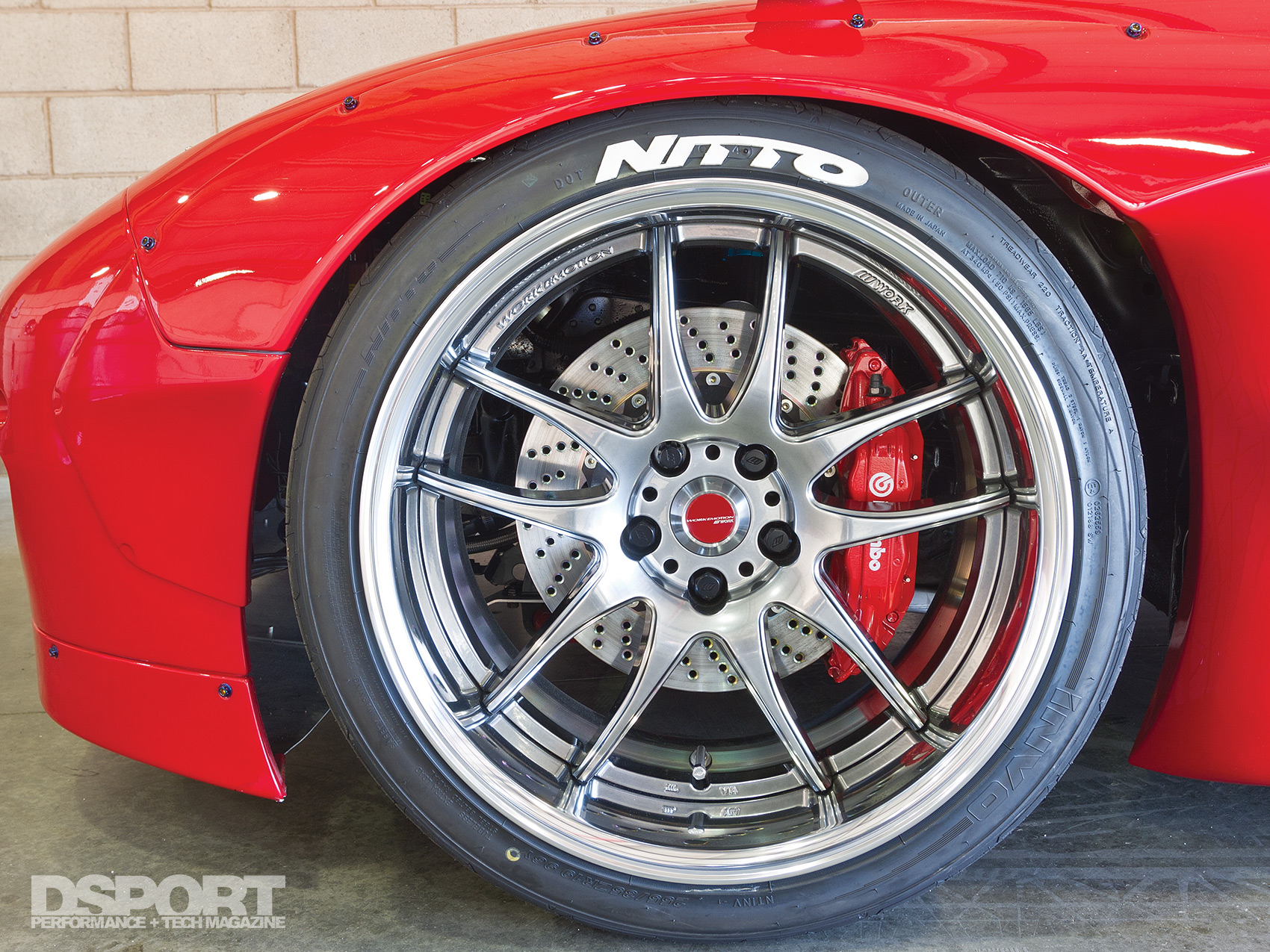

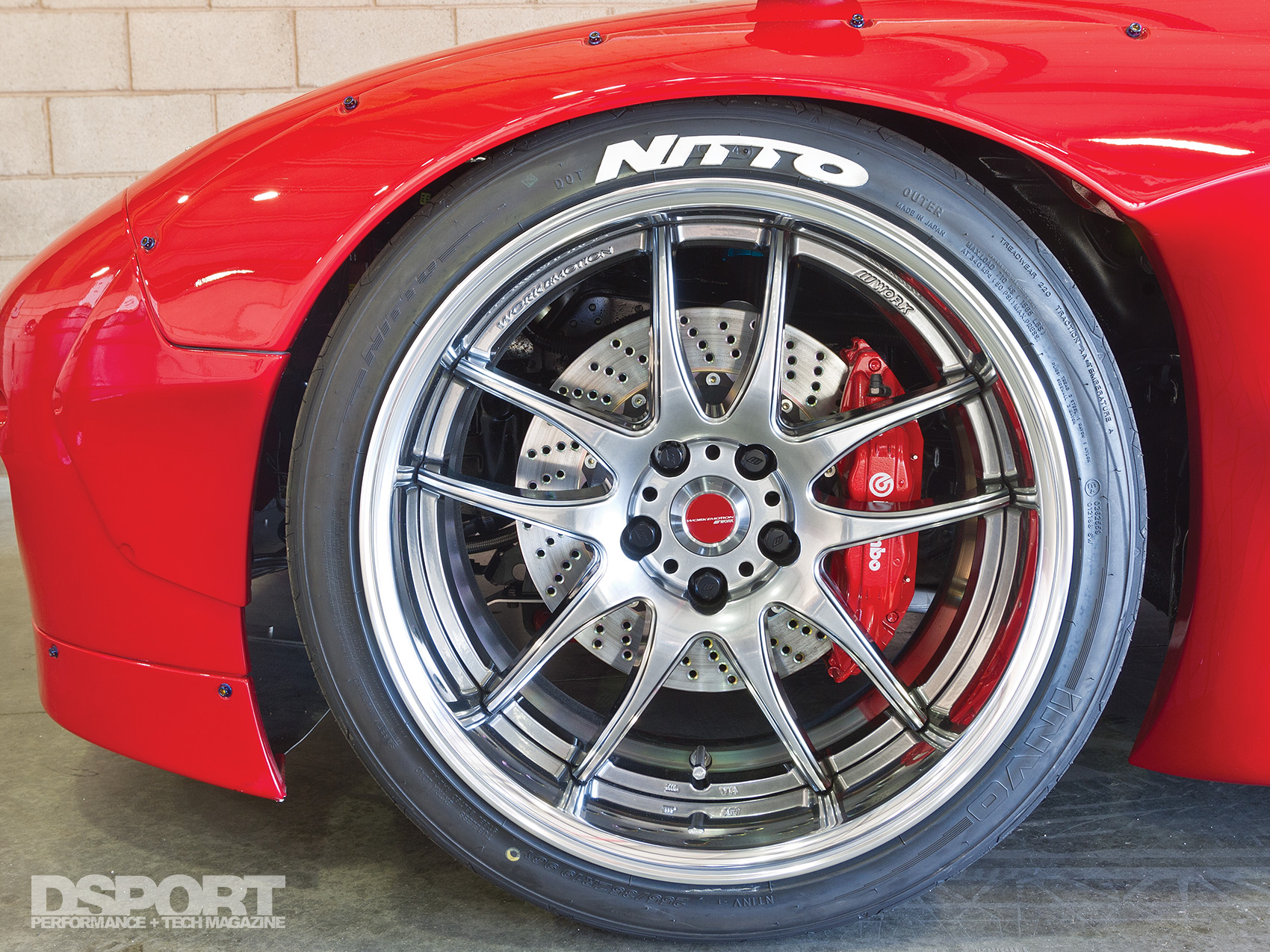

| Wheels (Make, Size & Offset): | WORK Wheels Emotion CR2P |
| 19×9.5-inch+10 (F) and 19×11-inch+44 (R) | |
| Tires (Make & Size): | Nitto INVO 255/35R19 (F) and 305/30R19 (R) |
| Brake Calipers (F&R): | Brembo GT Big Brake Kit (F) |
| Brake Rotors (Diameter, F&R): | Brembo Disk (F), Power Slot Disk (R) |
| Brake Pads (Front & Rear): | Brembo Pads |
| Brake Lines: | Brembo Stainless-steel Braided |

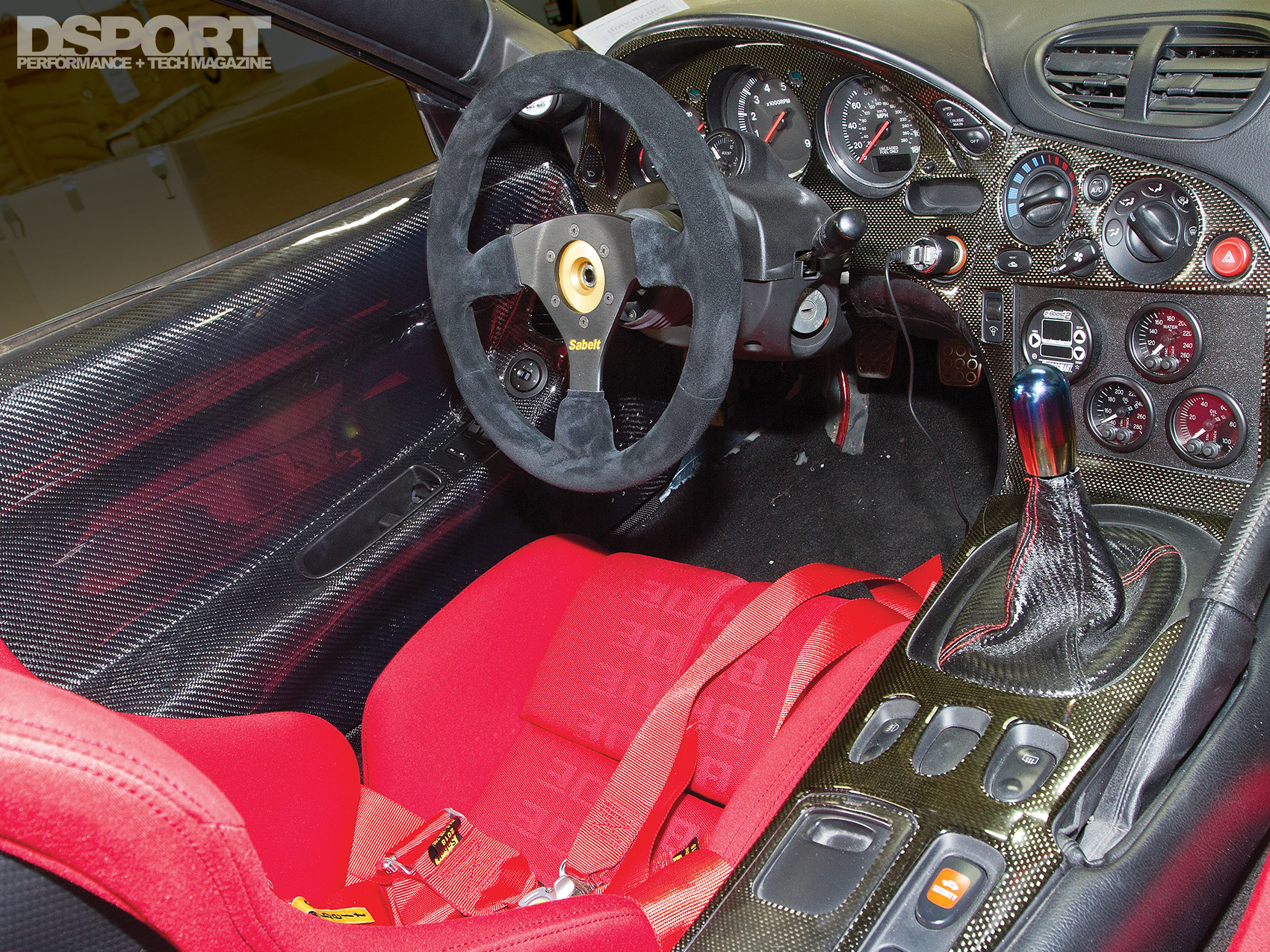

| INTERIOR | |
|---|---|

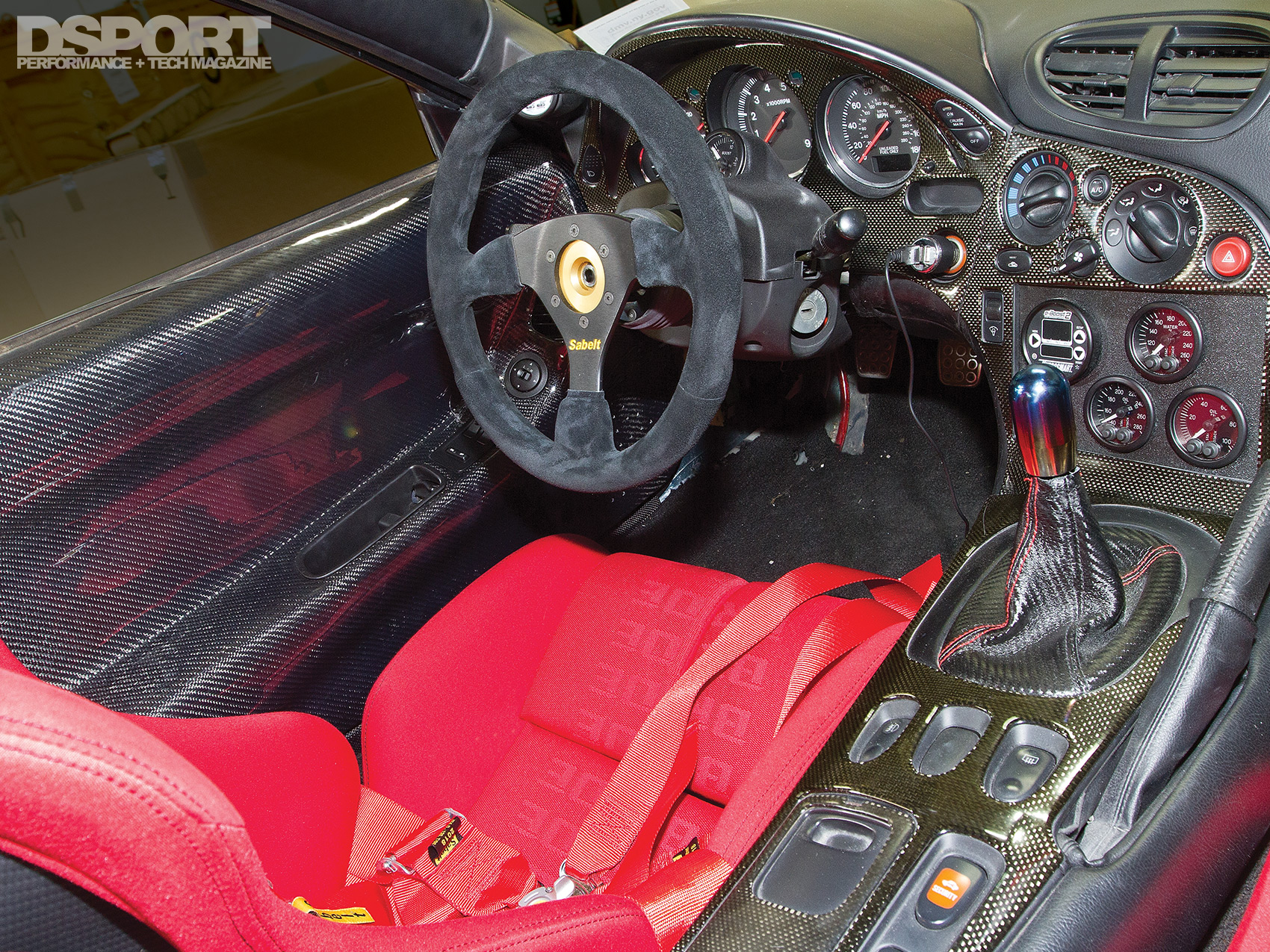

| Seats: | BRIDE VIOS III (driver) and Stradia II (passenger) |
| Harnesses: | Sabelt 6-point Harnesses |
| Steering Wheel / Quick Release: | Sabelt Suede Wrapped Steering Wheel |
| Gauges: | STACK PRO Boost, Air/Fuel, Oil Temp, Oil Pressure |
| EXTERIOR | |
|---|---|

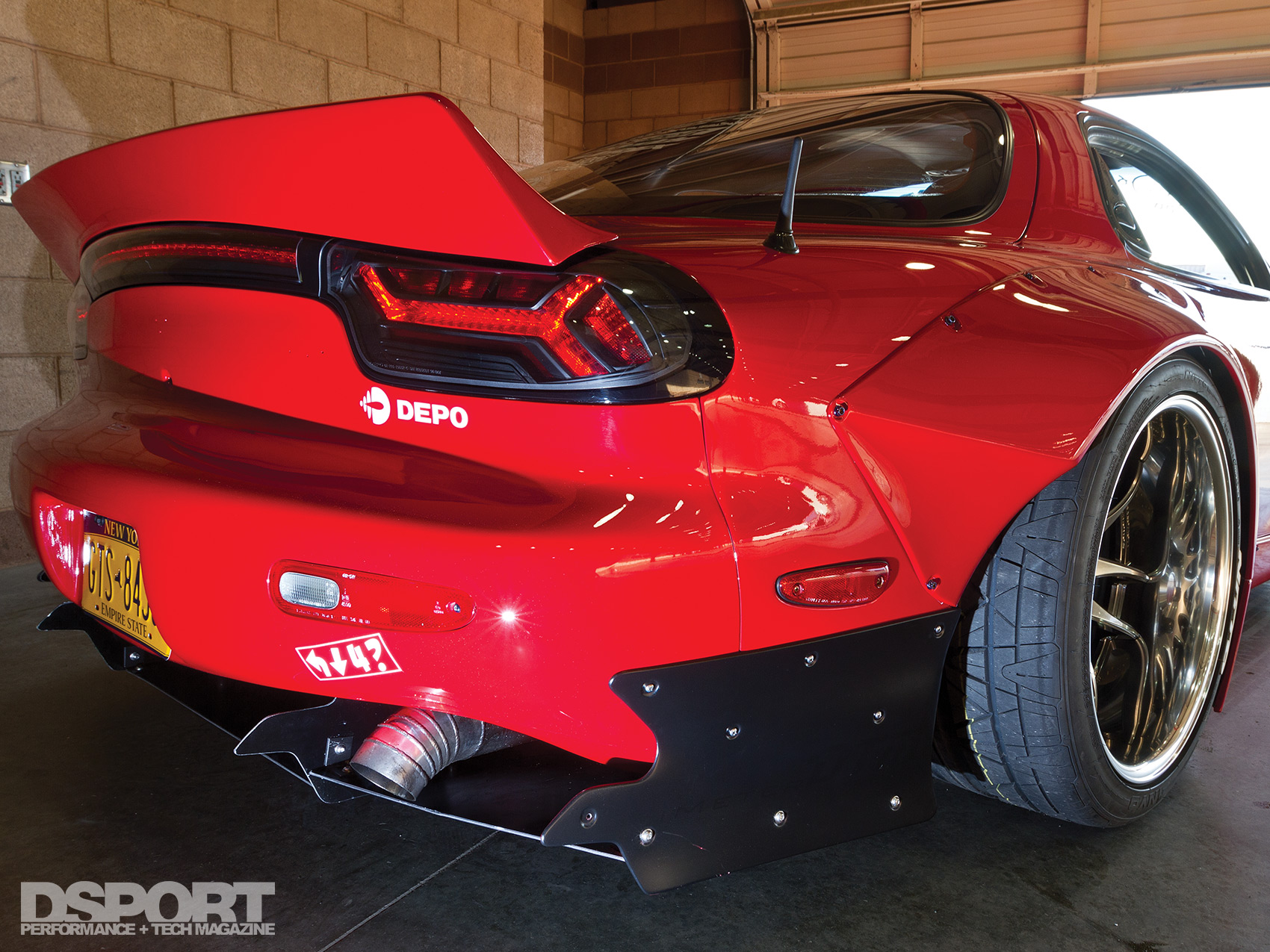

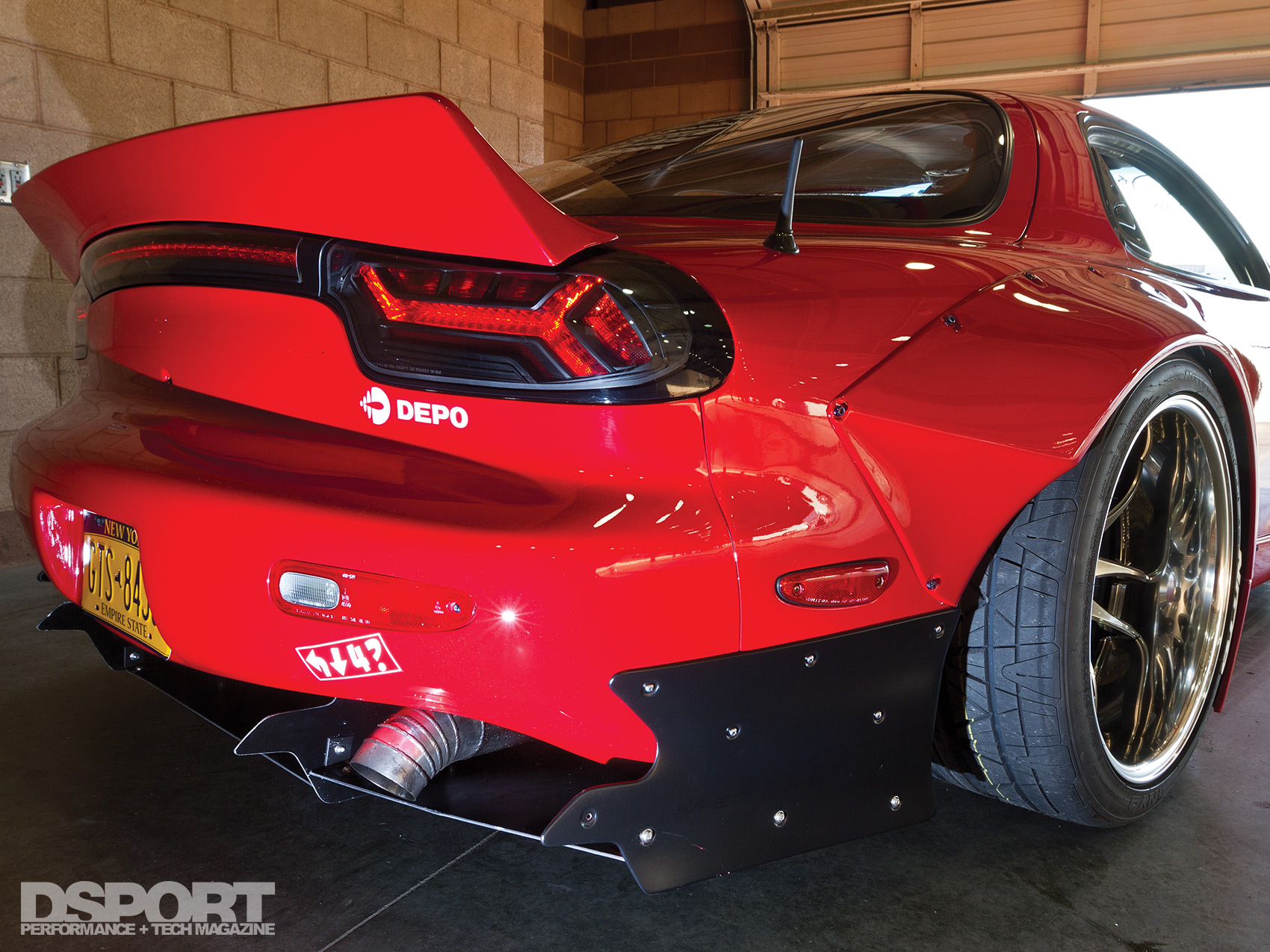

| Aero Kit and Diffuser: | TRA Kyoto Rocket Bunny |
| Hood: | RE Amemiya Hood |
| Headlights, Taillights: | EVO R |
| Mirrors: | EVO R Fender Mounted |
| Paint: | Vintage Red |
| Custom Body Work: | WD Ultimate Custom |
