SPEC SHEET

VEHICLE

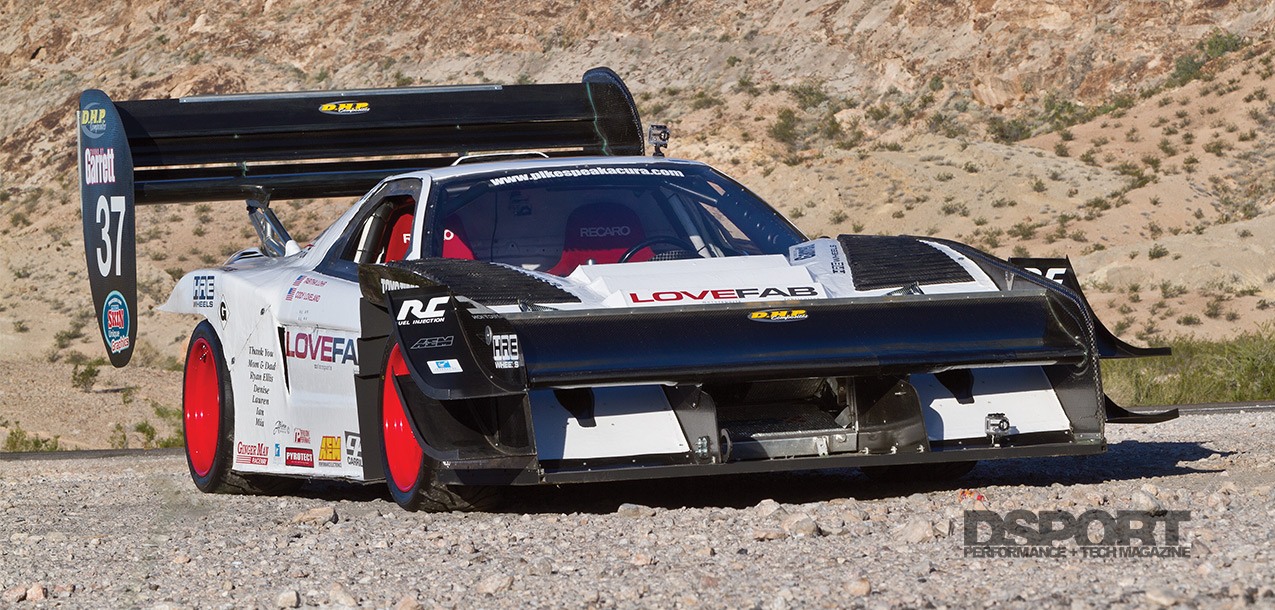

Year / Make / Model: 1991 Acura NSX
Chassis Code: NA1
Competition Class: Unlimited
Vehicle Weight: 2,450 lbs.
Weight Bias (F/R): 40/60
Launch RPM: 5,500 RPM
Shift RPM: 8,400 RPM
Redline RPM: 8,500 RPM
Peak Boost: 28 psi
Fuel: VP Racing Q16

ENGINE
Engine Code: C30A
Displacement (cc): 2,977.7cc
Bore & Stroke (mm): 90mm x 78mm
Peak Horsepower (@ RPM): 754.2WHP@7,900RPM
Peak Torque (@ RPM): 517.3WHP@7,550RPM
Dyno Type: Dyno Dynamics@Revolution Performance
Engine Builder: Code Loveland
Block Modifications: Dan Benson Signature Sleeves
Machine Work: CSR Motorsports
Pistons/Compression Ratio: CP Pistons, 9.0:1 Compression
Connecting Rods / Crank: Carillo Connecting Rods
Cylinder Head Gasket: Cometic
Head / Main Studs: ARP Head Studs
Intake Manifold / Throttle Body: LoveFab FI-spec Intake Manifold
BBK Throttle Body

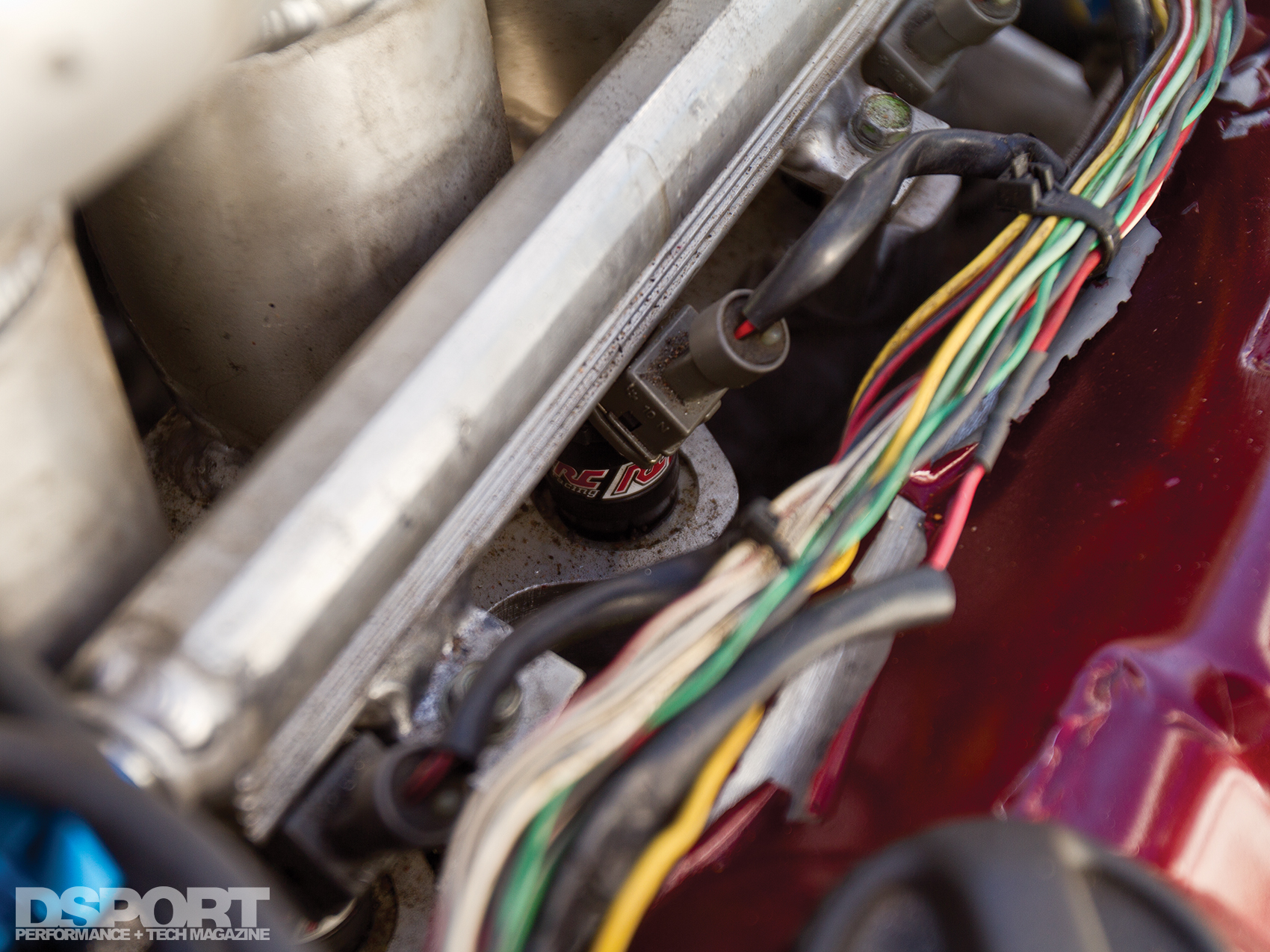

Fuel Injectors: RC Engineering 1,200 cc/min Injectors (x6)

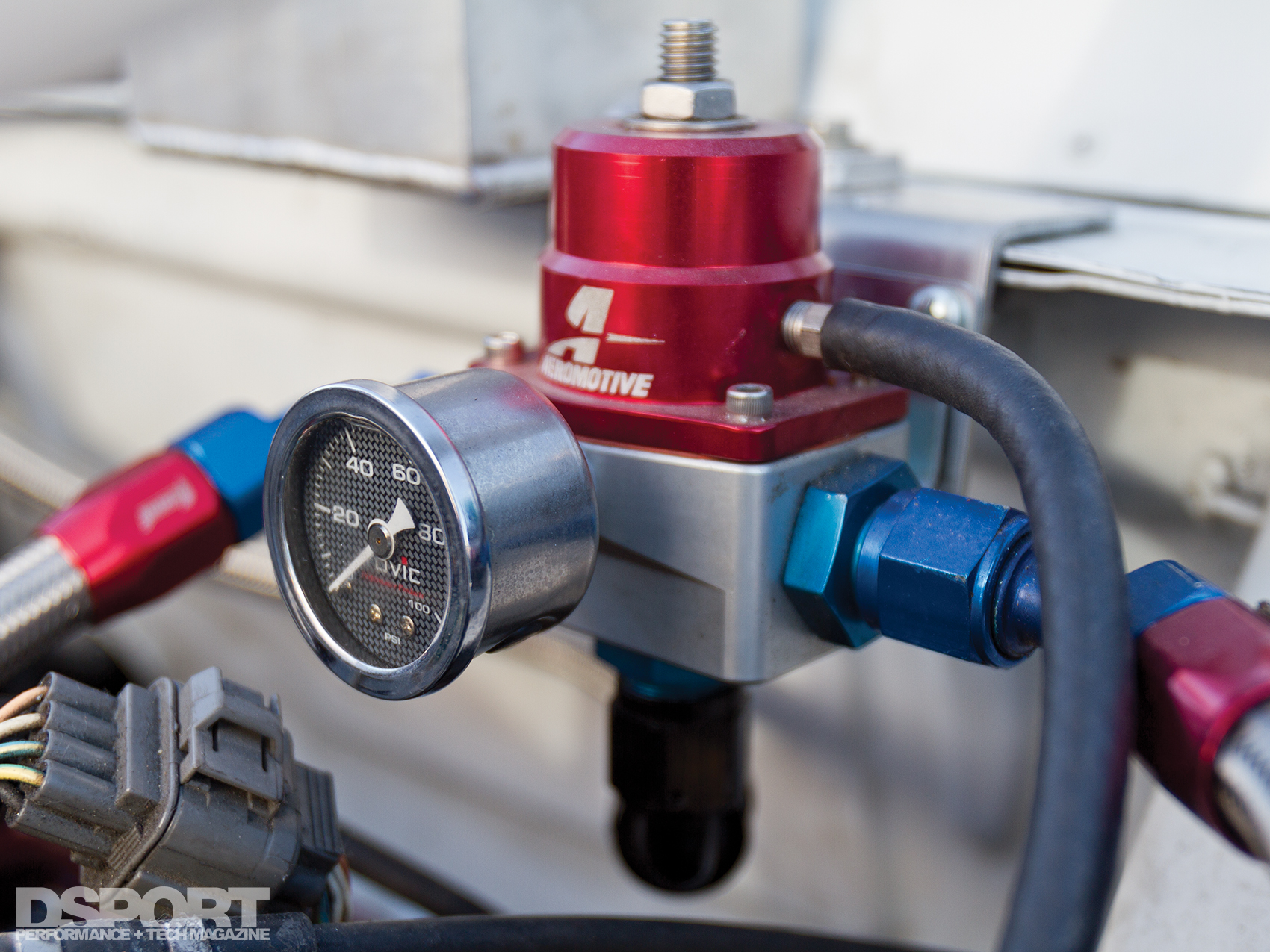

Fuel Delivery System: Aeromotive, Bosch, surge tank setup
Engine Management System: AEM EMS Series, V2
Engine Management Tuner: Cody Loveland
Boost Controller: AEM EMS VSS-based
Spark Plugs: NGK-R BKR7E

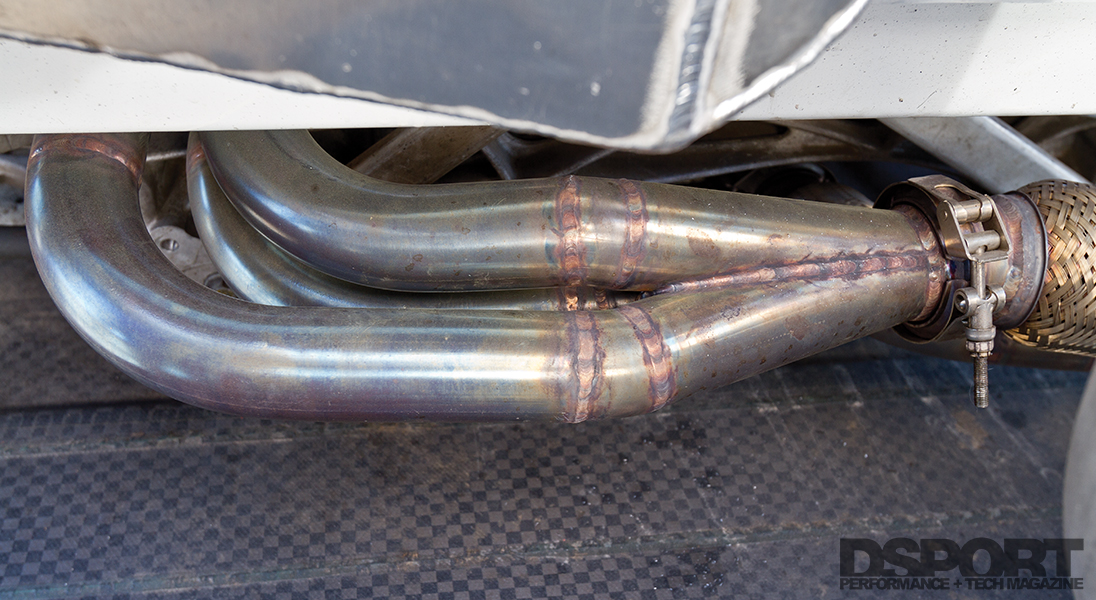

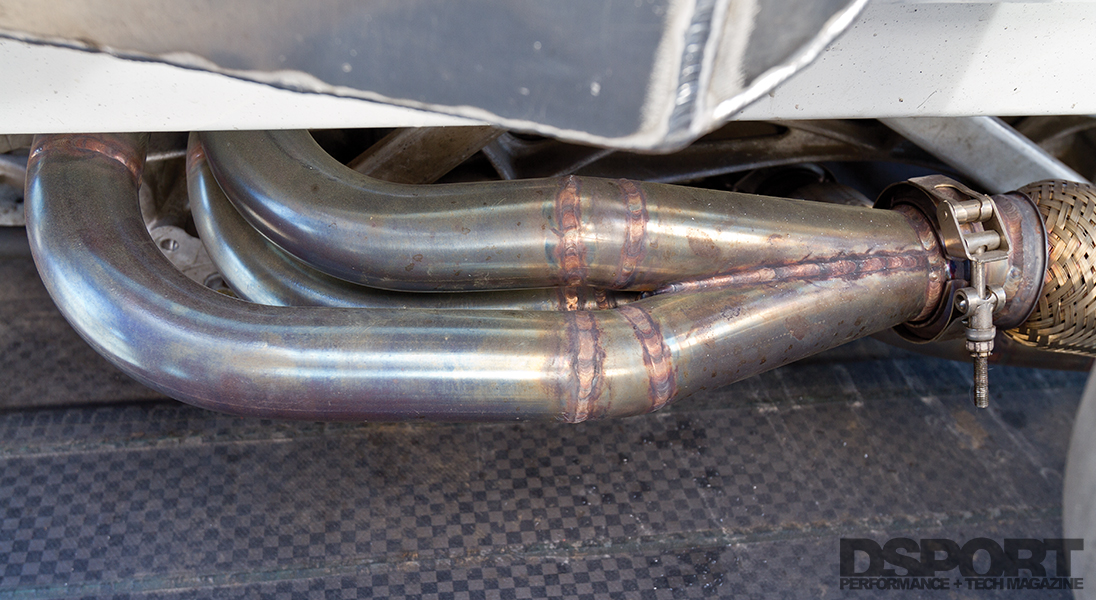

Exhaust Manifold: LoveFab FI-Spec
Exhaust System / Downpipe: LoveFab PPIHC-Spec

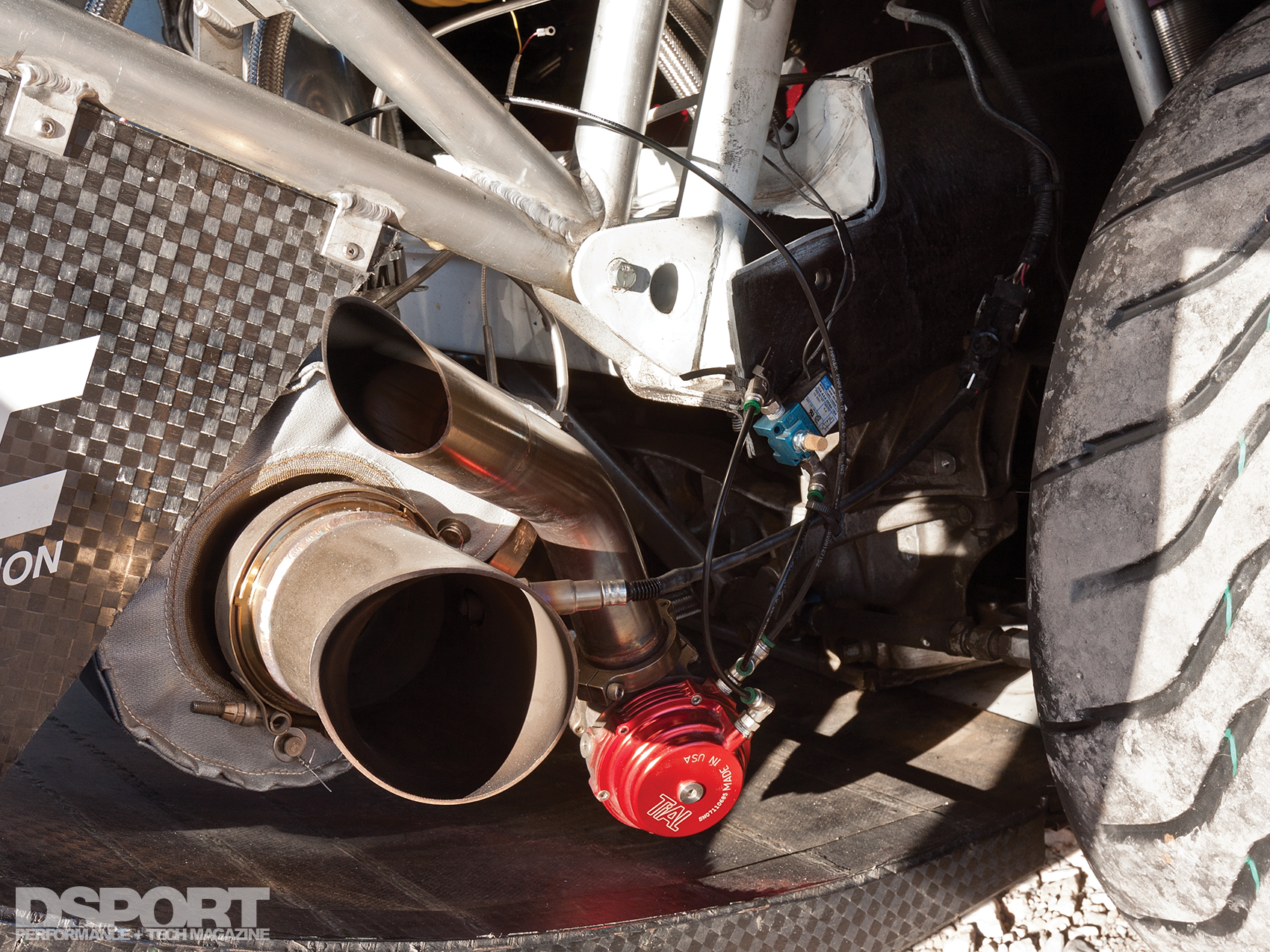

Wastegate: TiAL Sport MVR

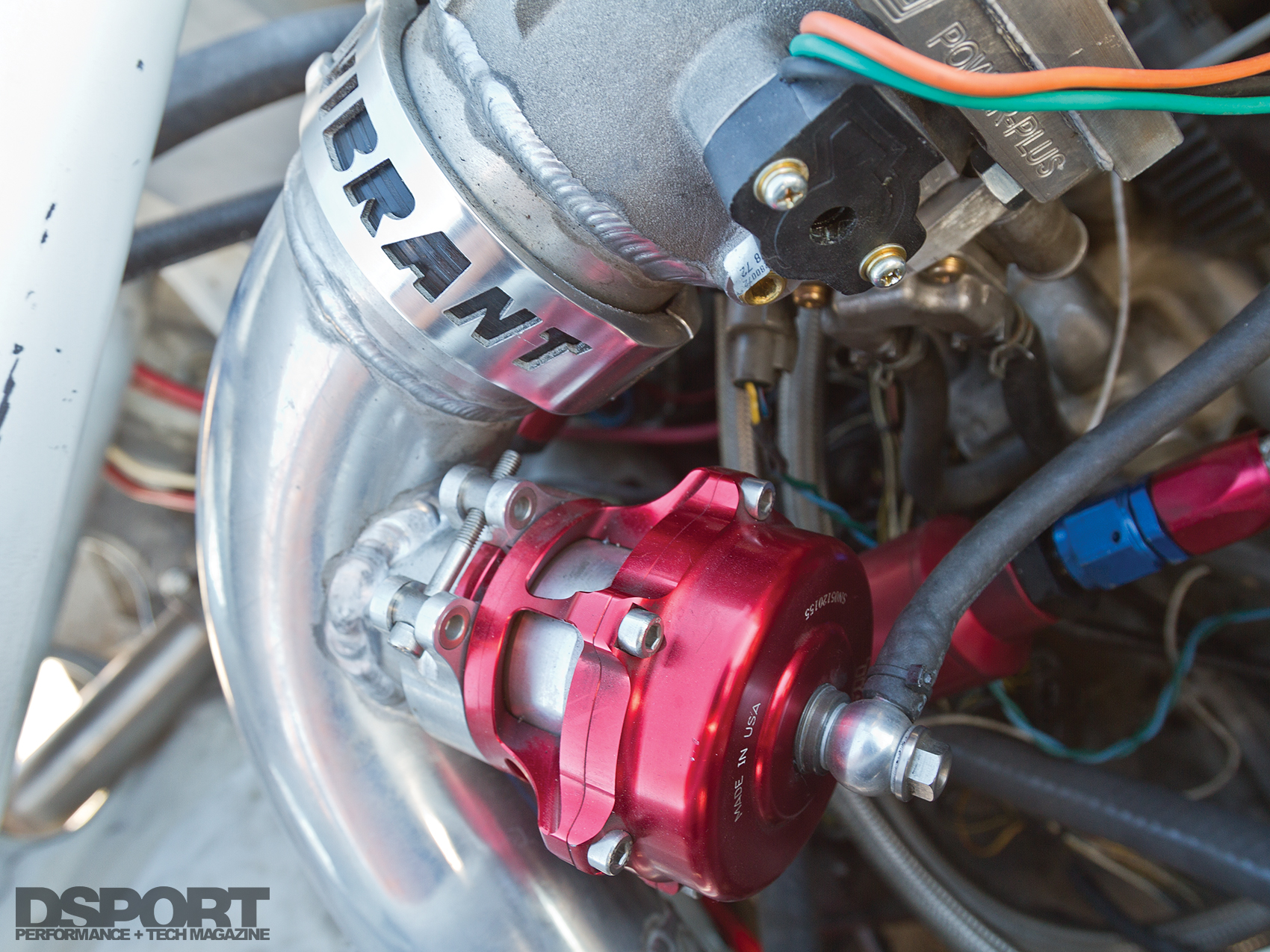

Blow-Off Valve: TiAL Sport Q
Intercooler: Bell Intercoolers Core
LoveFab PPIHC Spec Water/Air Intercooler

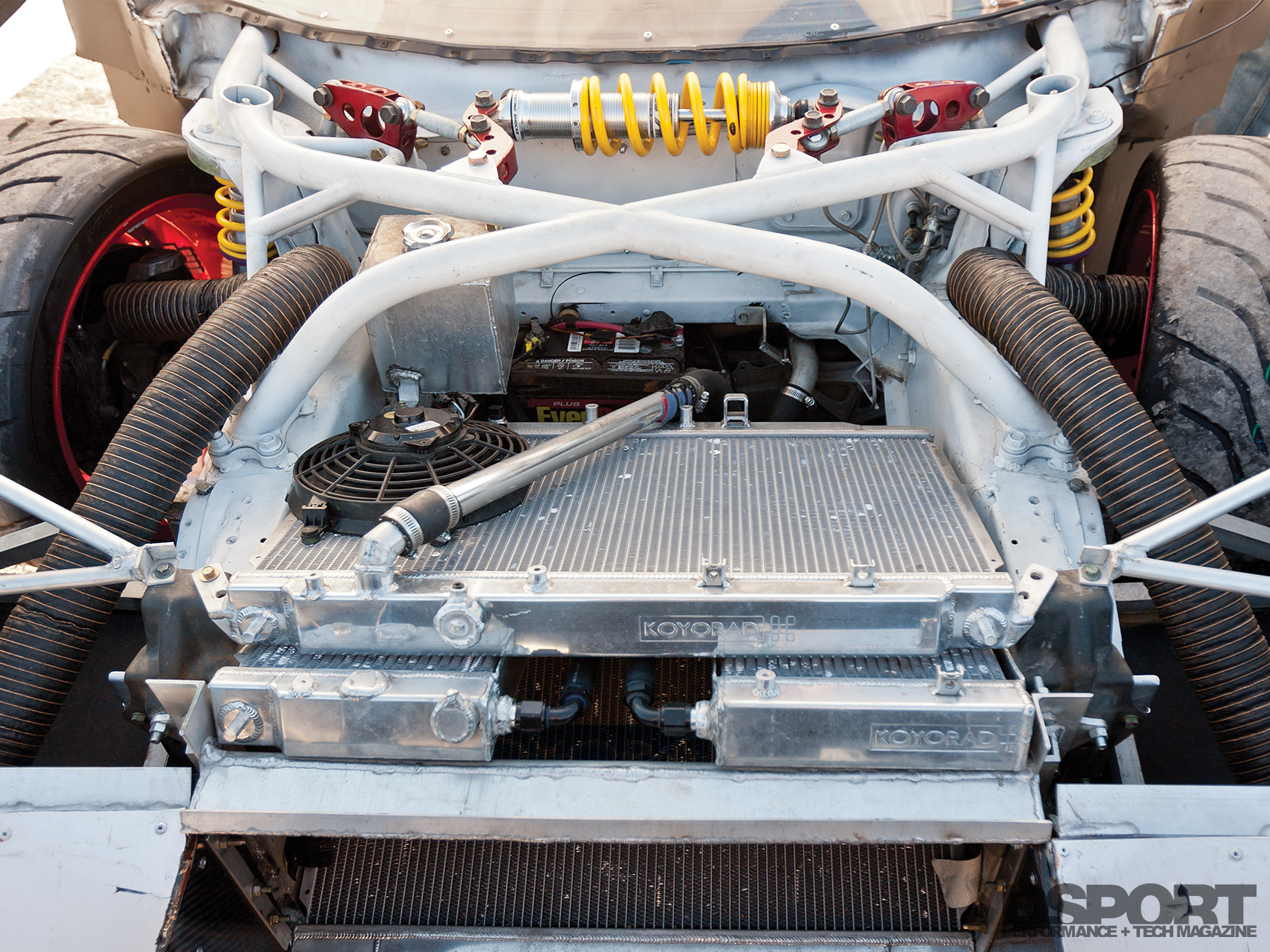

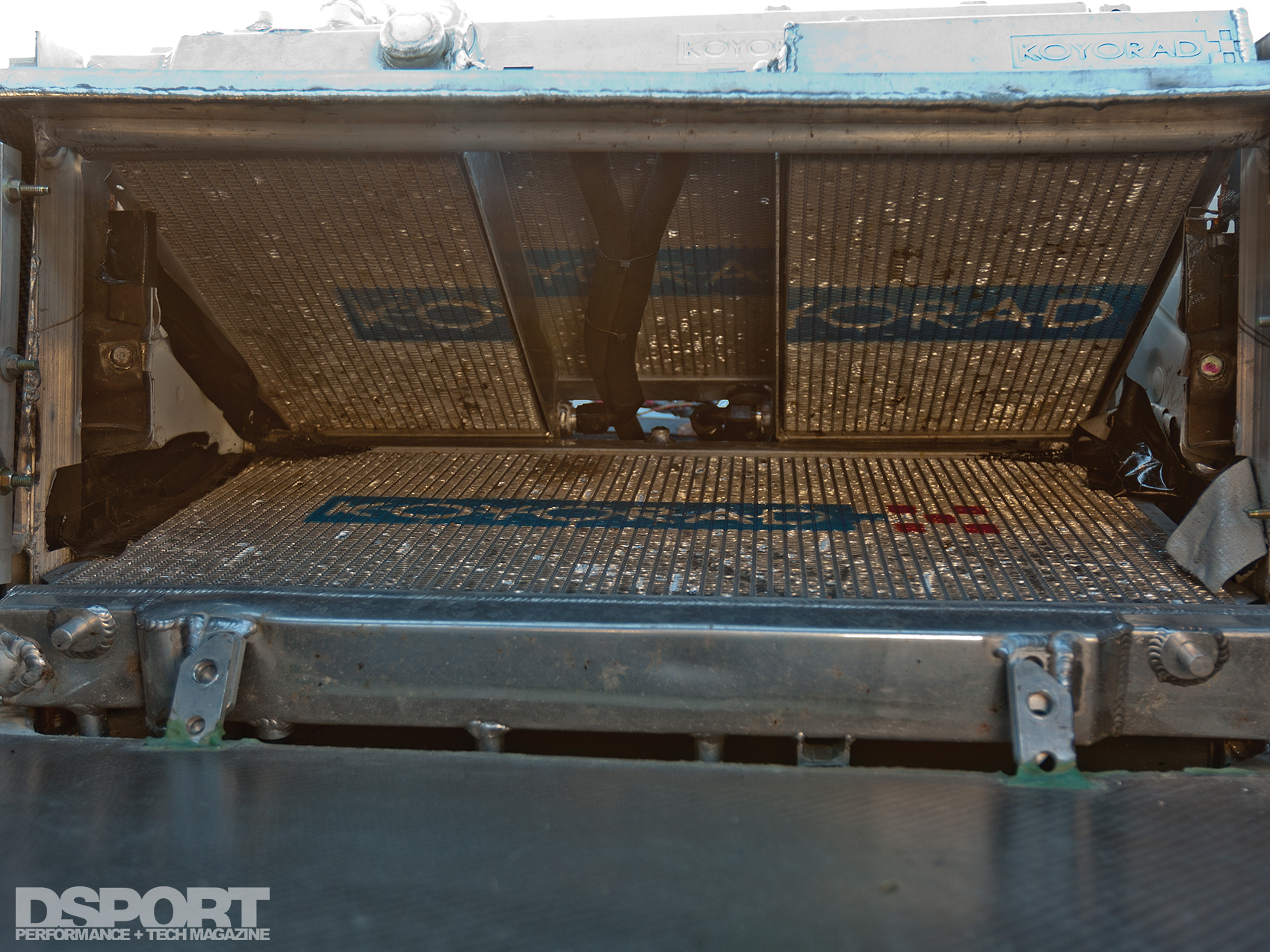

Cooling System: Koyo Radiators (x4)

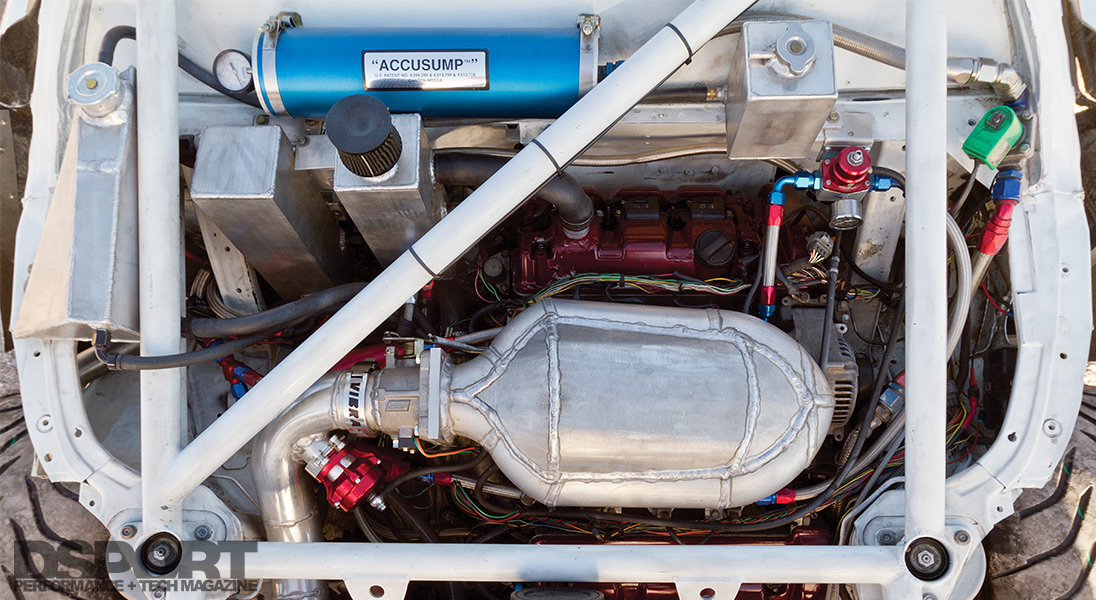

Oil System: Accusump
Fuel Cell: Modified RCI Fuel Cell
Performance Electronics: AEM datalogging, STACK Display

TURBOCHARGER

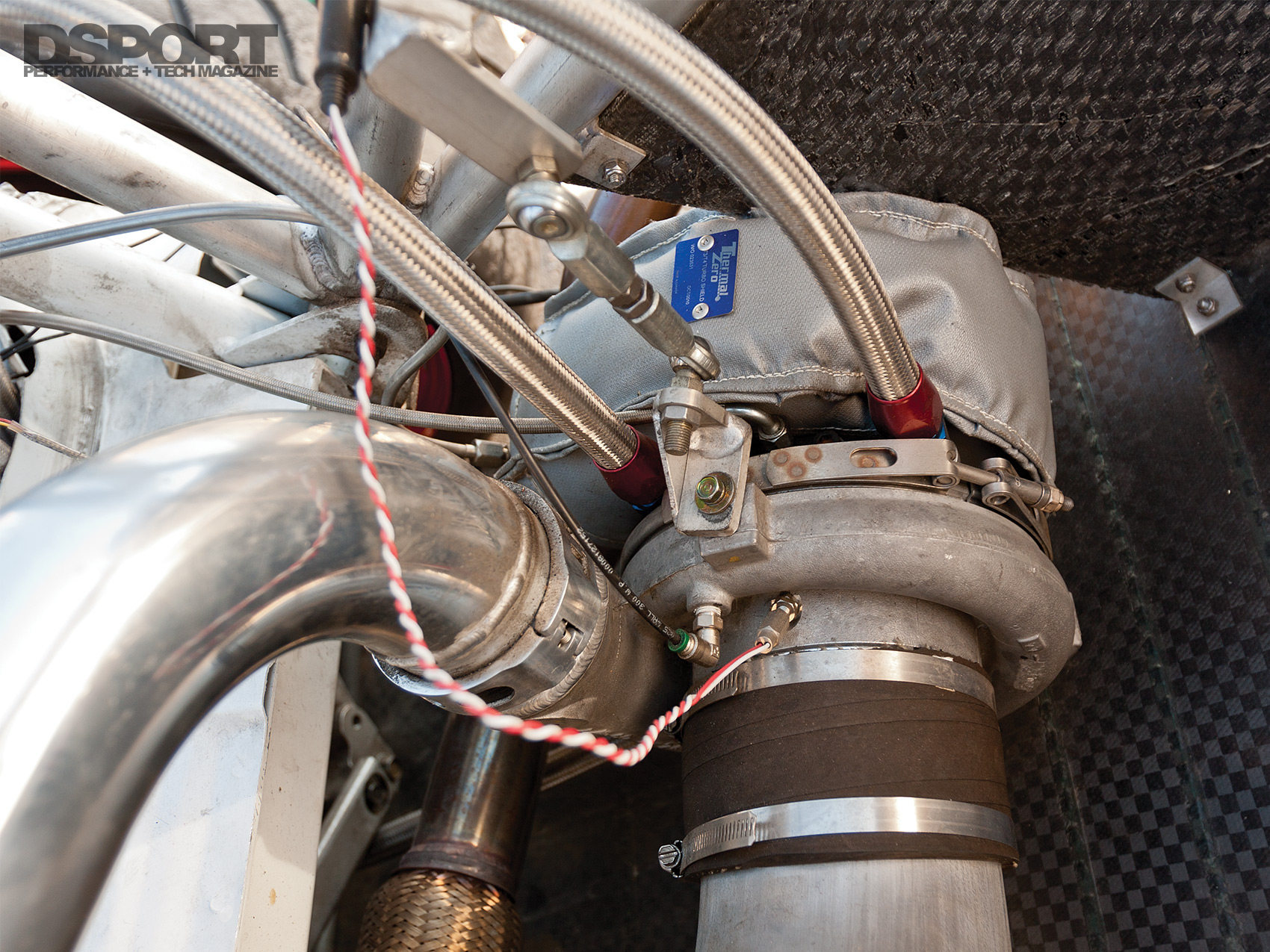

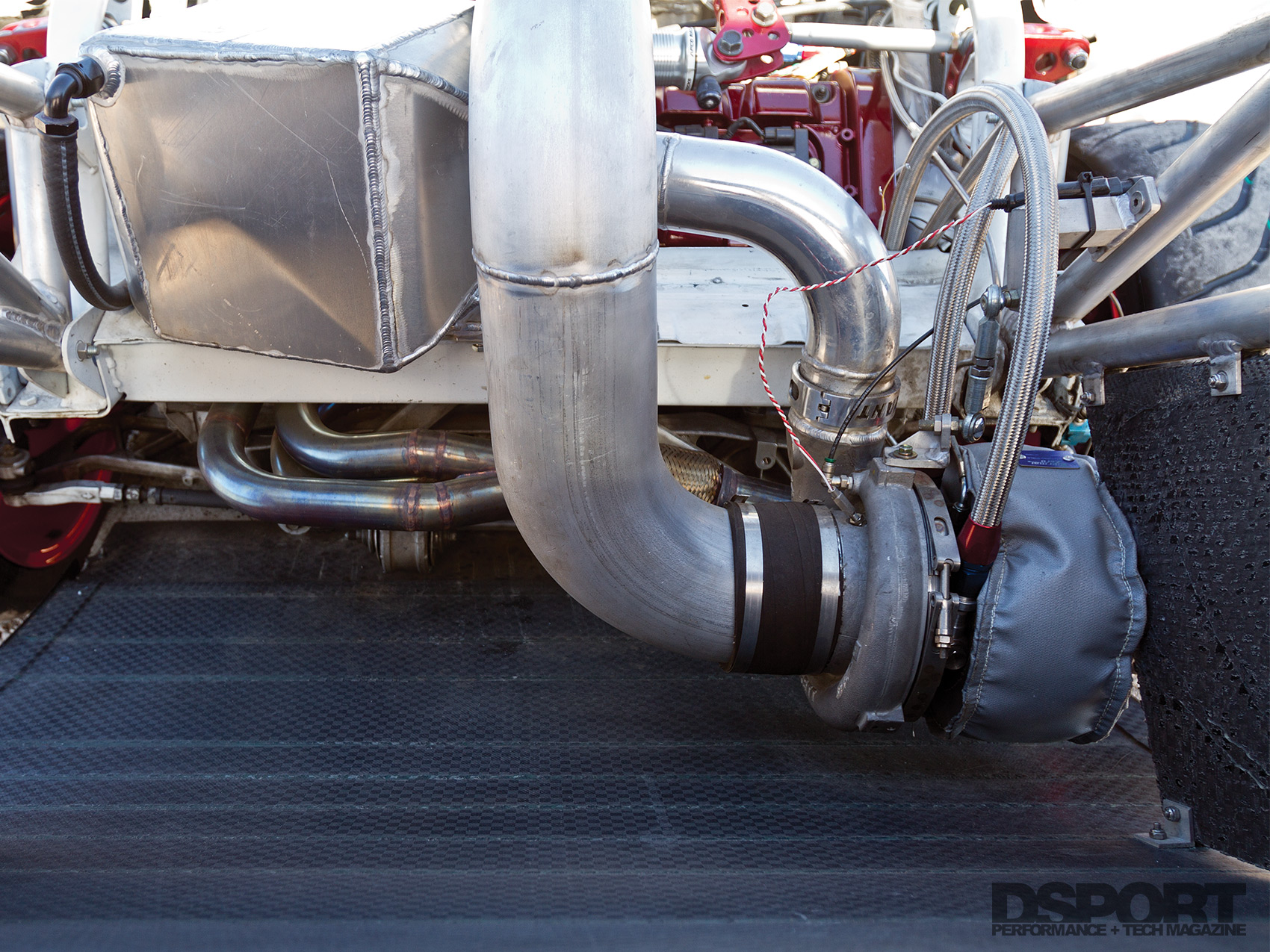

Turbocharger: Garrett GTX429R
Frame: T4
Compressor Wheel Specs: 94mm Major, 70mm Inducer, 56 Trim
Turbine Wheel Specs: 82mm Major, 84 Trim
Turbine Housing: TiAL Stainless Steel V-band, 1.01 A/R

CHASSIS/DRIVELINE
Springs, F&R (Make & Rate): KW, Eibach (345F/550R)

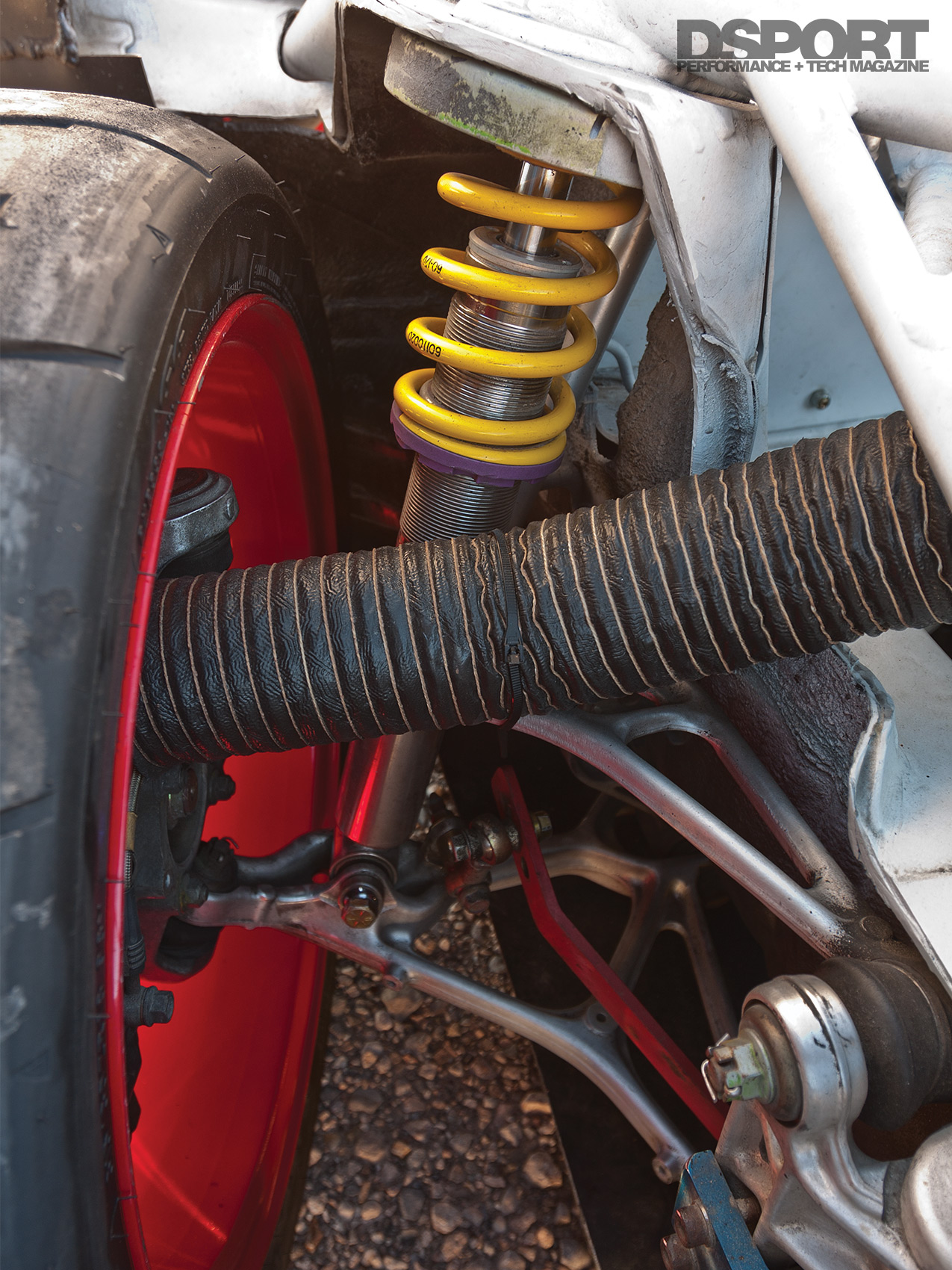

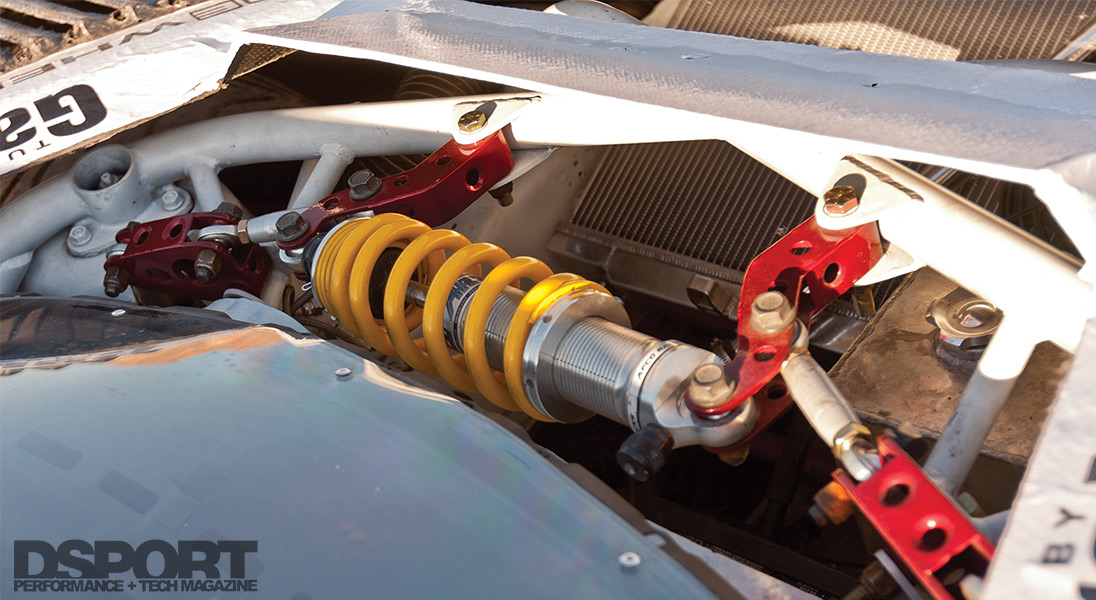

Shocks, F&R (Make & Rate): KW Suspension V3 Adjustable Coilovers
Additional Suspension Components: AFCO Racing shocks, with LoveFab-designed
third element suspension front/rear.
Transmission: Factory 6-Speed
Final Drive: 4.44:1
Clutch / Flywheel: Exedy Twin-Plate Cerametallic
Differential(s) (Make & Type): OS Giken Super Lock 1.5-way LSD
Wheels (Make, Size & Offset): HRE C96S LoveFab Special Edition
18×11-inch (F), 18×13-inch (R)
Tires (Make & Size): Toyo Proxes RS1 285/650/28 (F), 335/710/18 (R)
Brake Calipers (F&R): Stoptech ST40 (F&R)
Brake Rotors (Diameter, F&R): Stoptech 330mm Rotors (F&R)
Brake Pads (Front & Rear): Hawk ST10 (F&R)
Brake Lines: Stoptech Stainless-steel Braided Lines

INTERIOR
Roll Bar / Cage: LoveFab

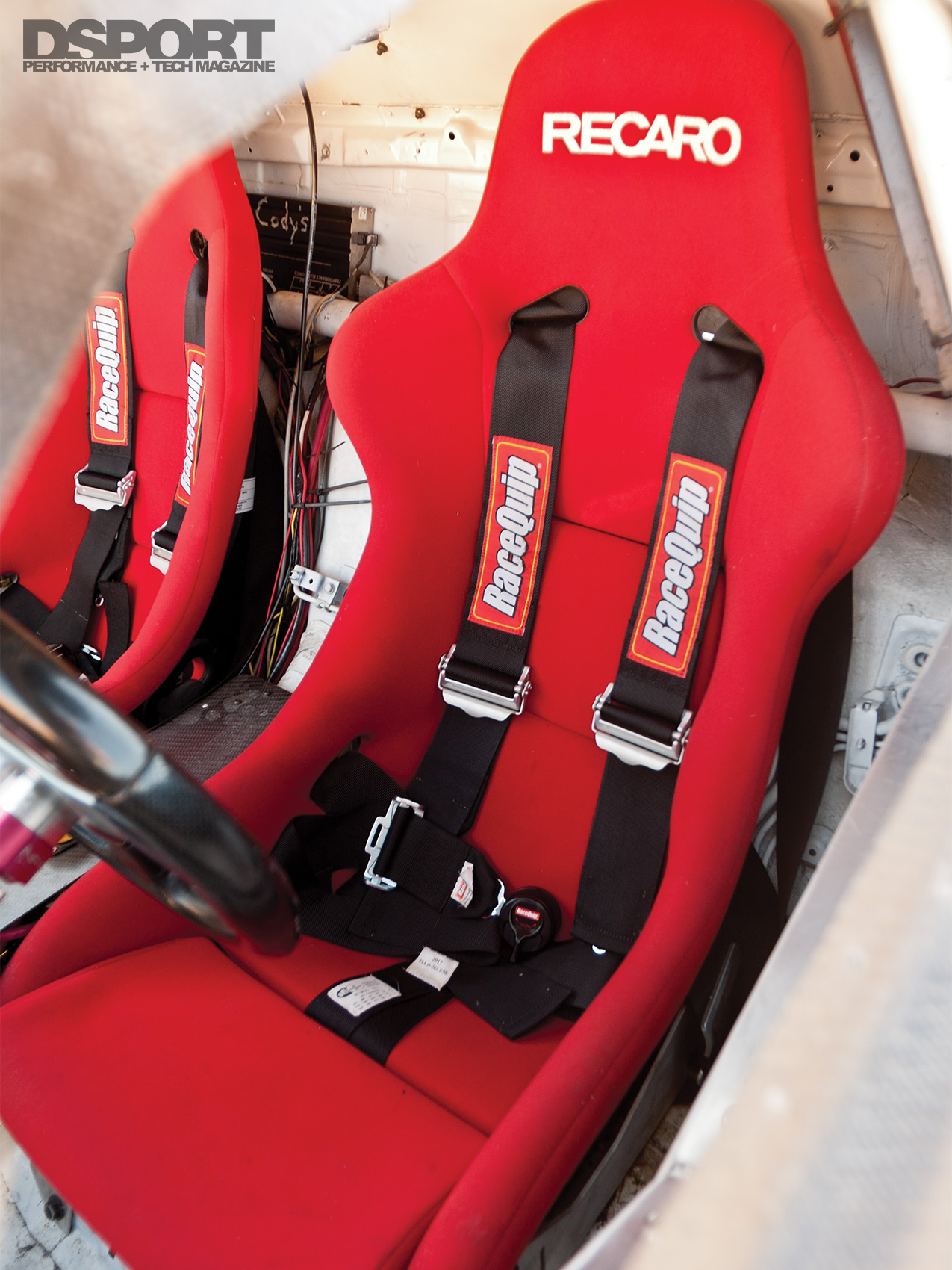

Seats: Recaro
Harnesses: Racequip Camlock 6-point Harnesses

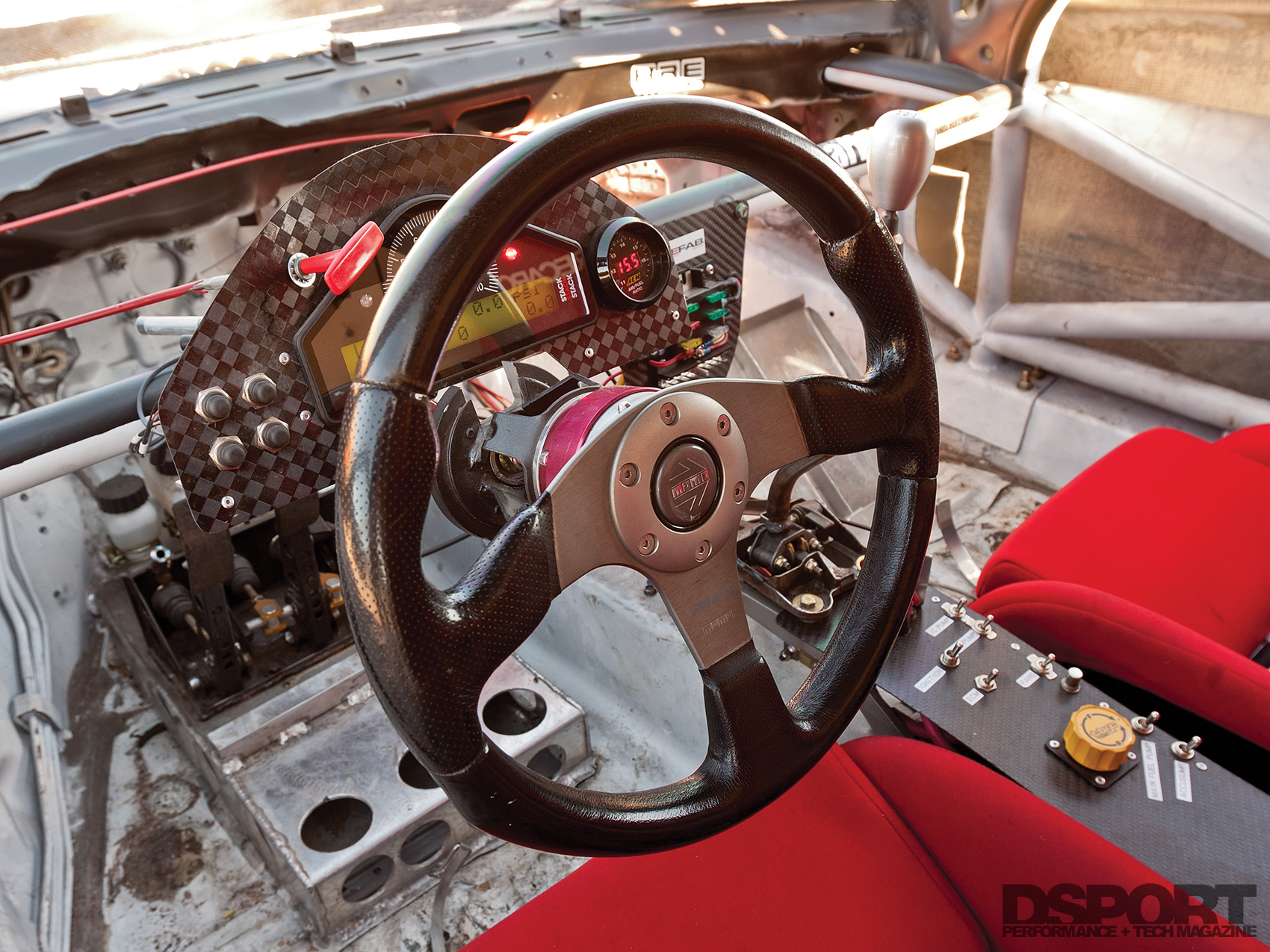

Steering Wheel / Quick Release: Momo Steering Wheel
NRG Innovations Quick Release Hub
Gauges: AEM UEGO Wideband Gauge

EXTERIOR

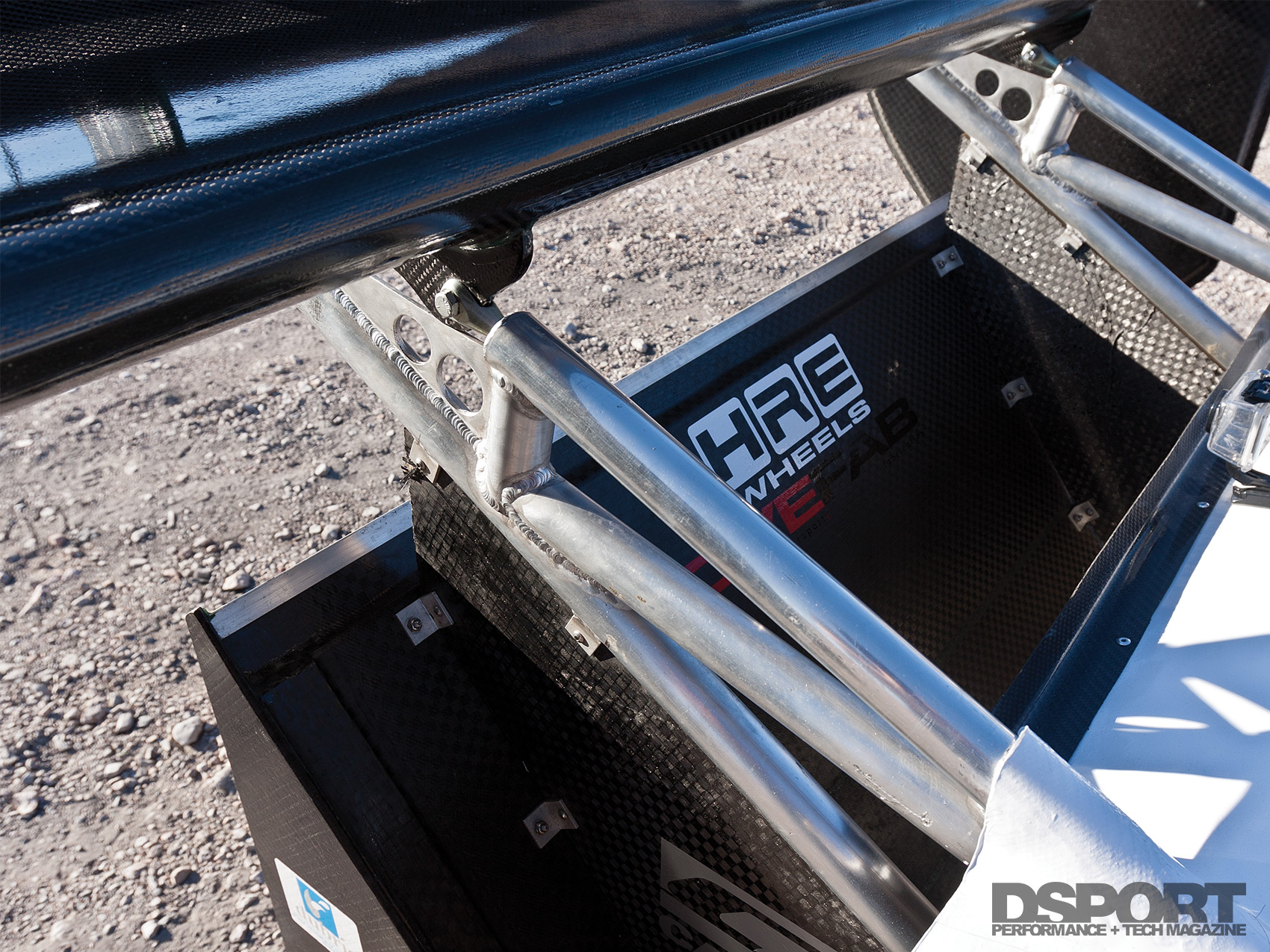

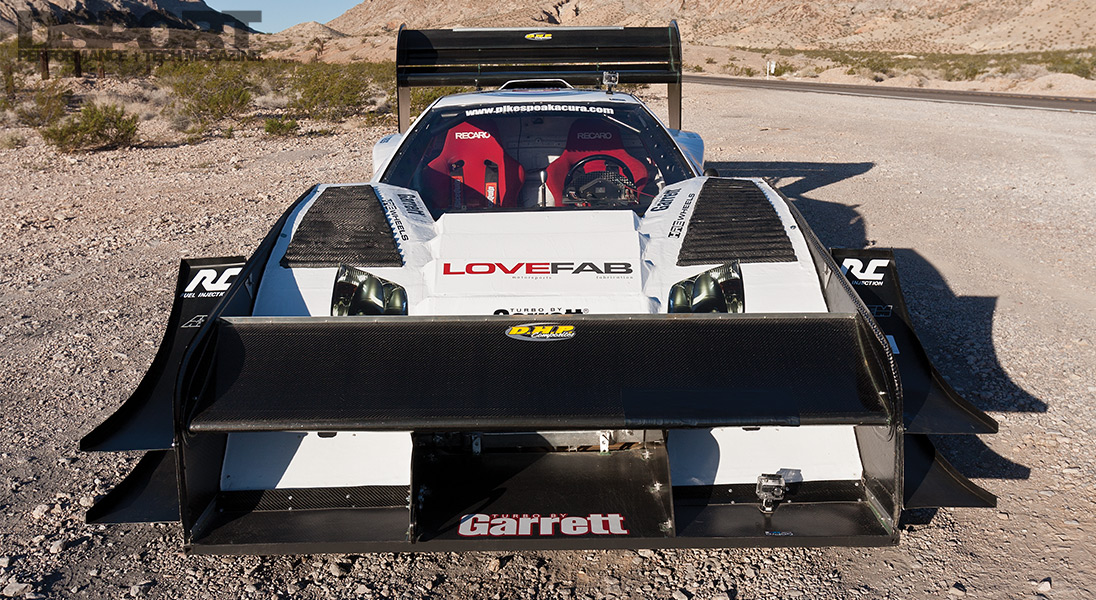

Complete Exterior Aerodynamics: DHP Composites Carbon Fiber
designed by LoveFab

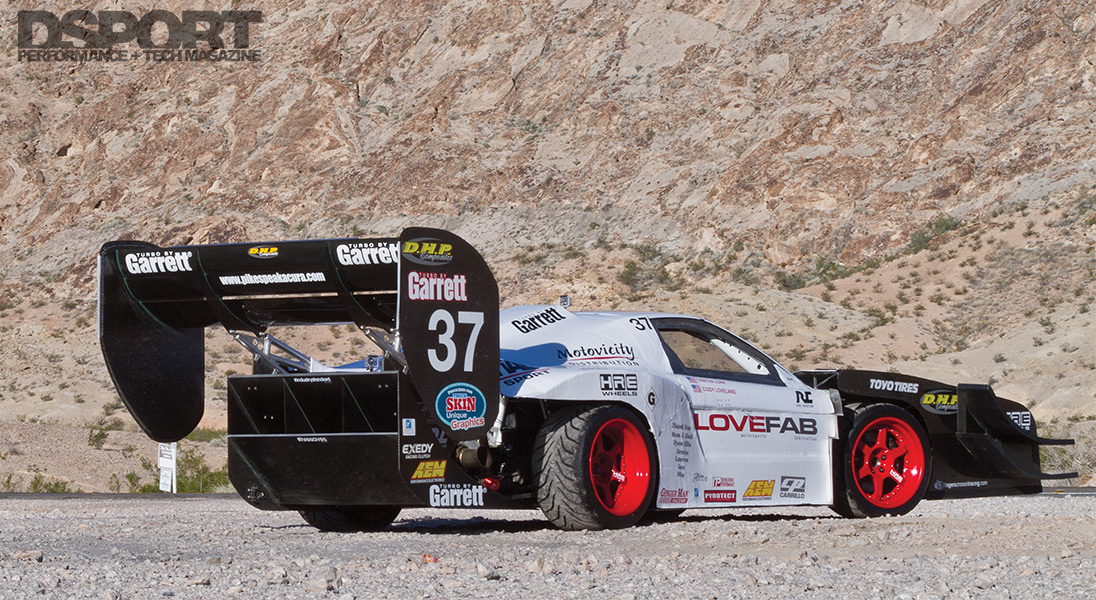

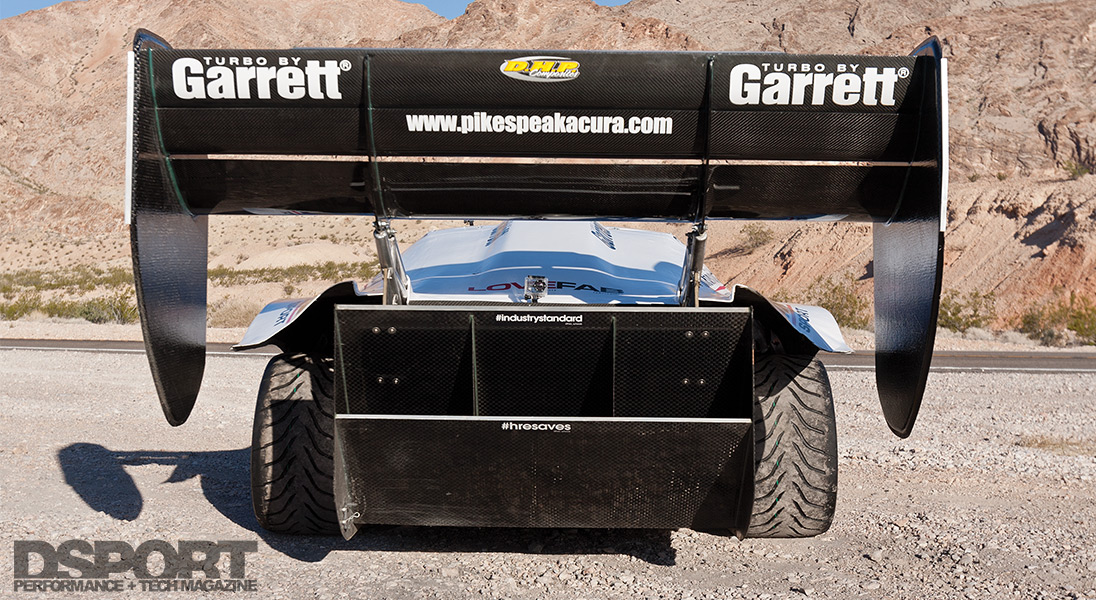

Spoiler / Wing: Carbon Fiber built by DHP Composites
Paint: Wrap by TruckSkin
Custom Body Work: All Carbon fiber body
