SPEC SHEET
| VEHICLE | |
|---|---|

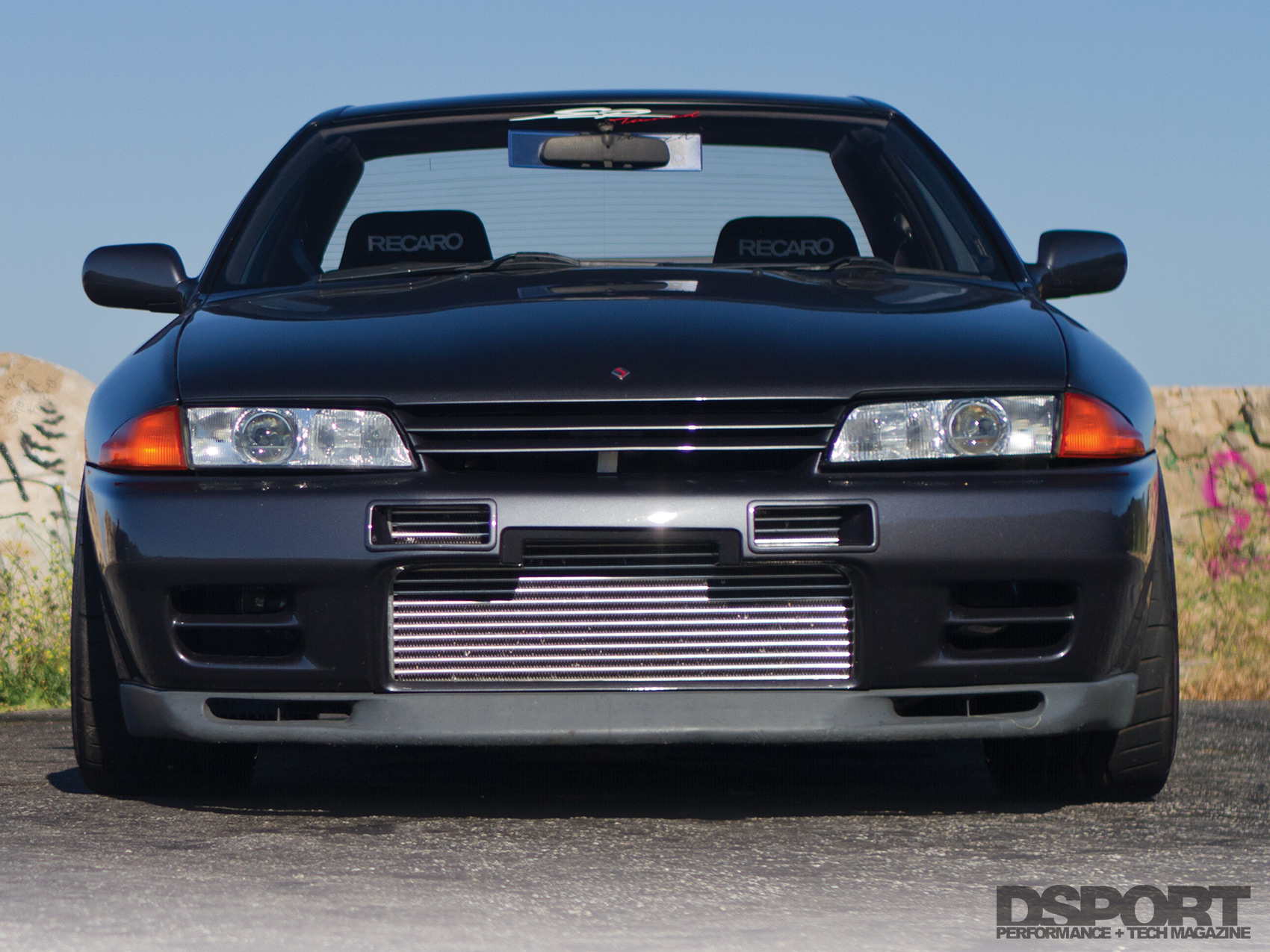

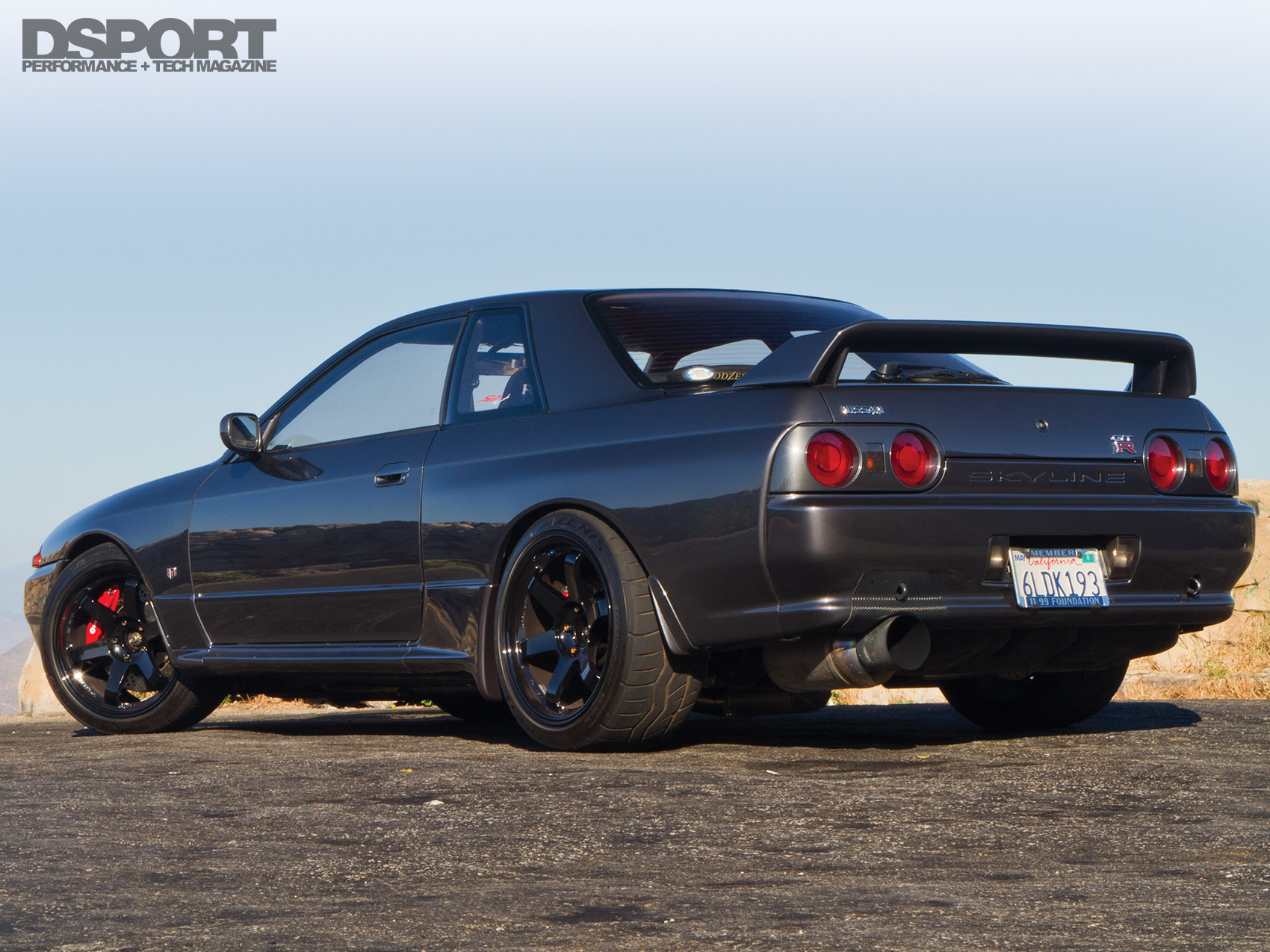

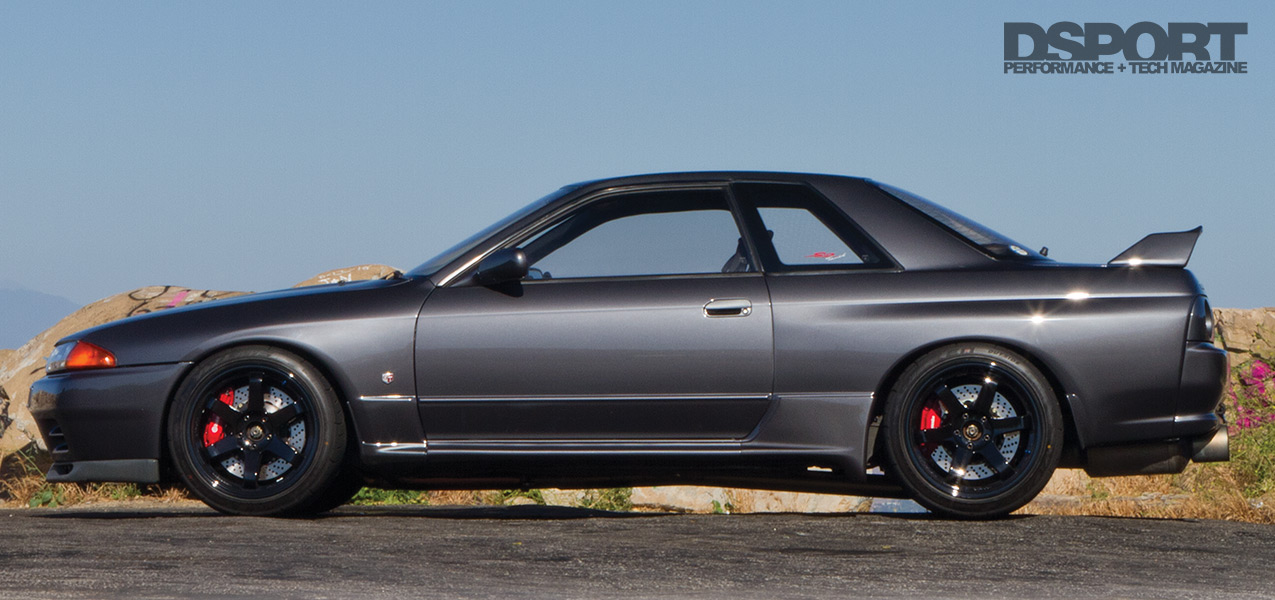

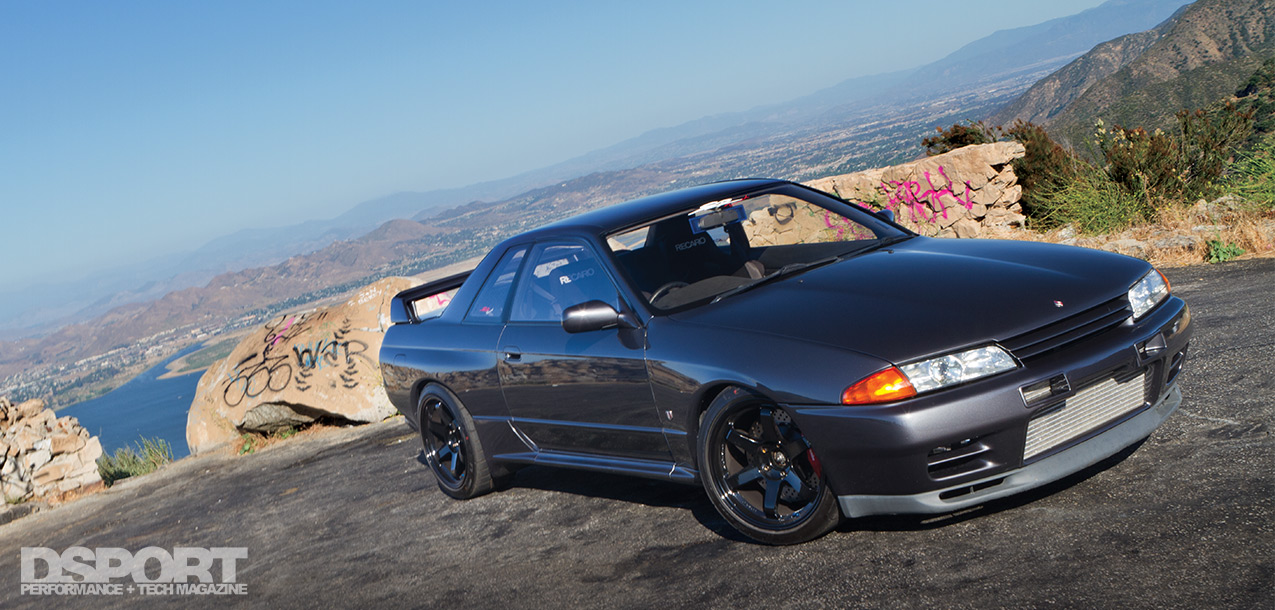

| Year / Make / Model: | 1994 Nissan Skyline GT-R |
| Chassis Code: | R32 |
| Vehicle Weight: | 3,100 lbs |
| Redline RPM: | 8,500 RPM |
| Peak Boost: | 25 psi |
| Fuel: | 91-octane or 110-octane |
| ENGINE | |
|---|---|

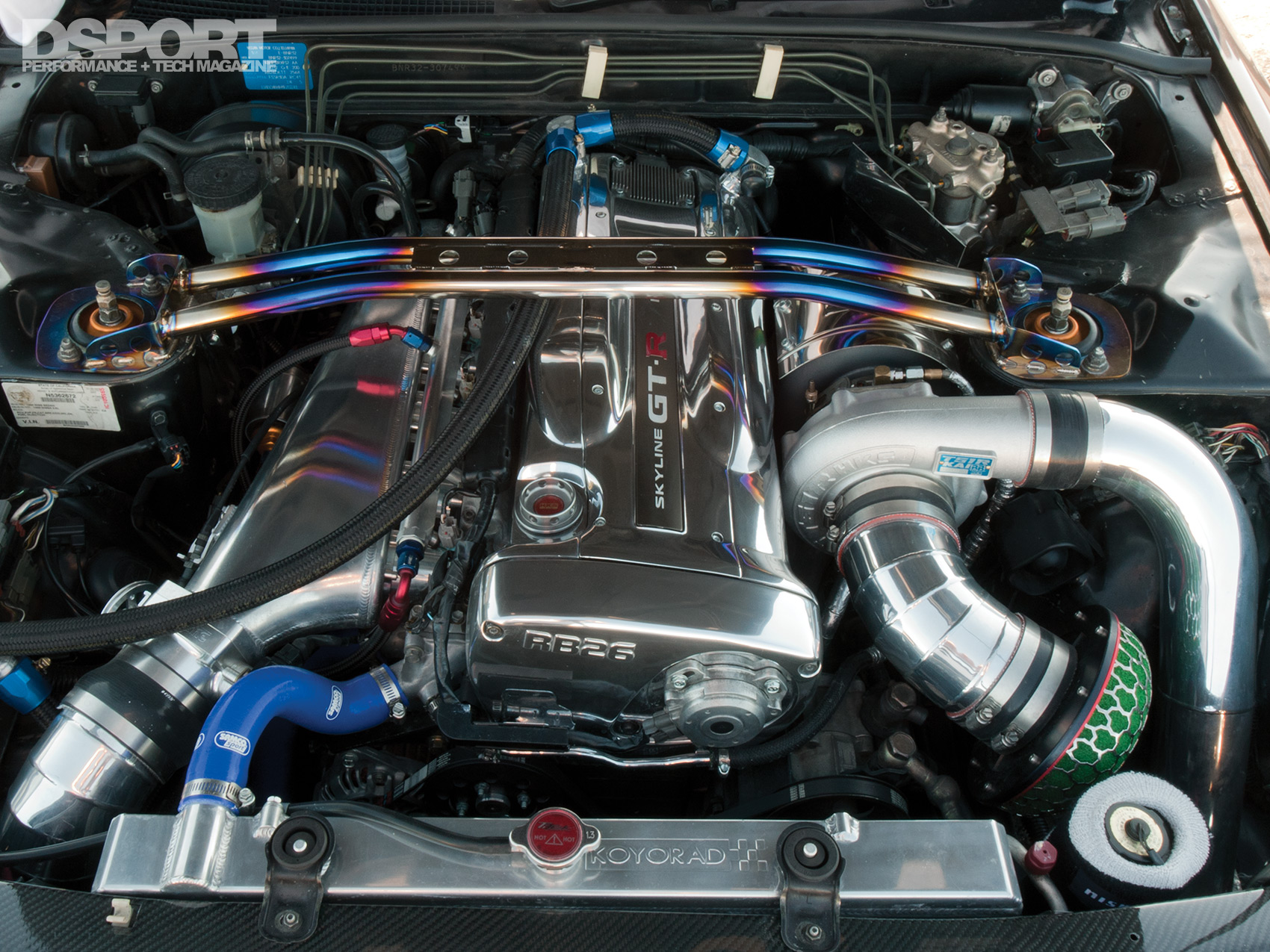

| Engine Code: | RB26DETT |
| Displacement (cc): | 2,771cc |
| Bore & Stroke (mm): | 87mm x 77.7mm |

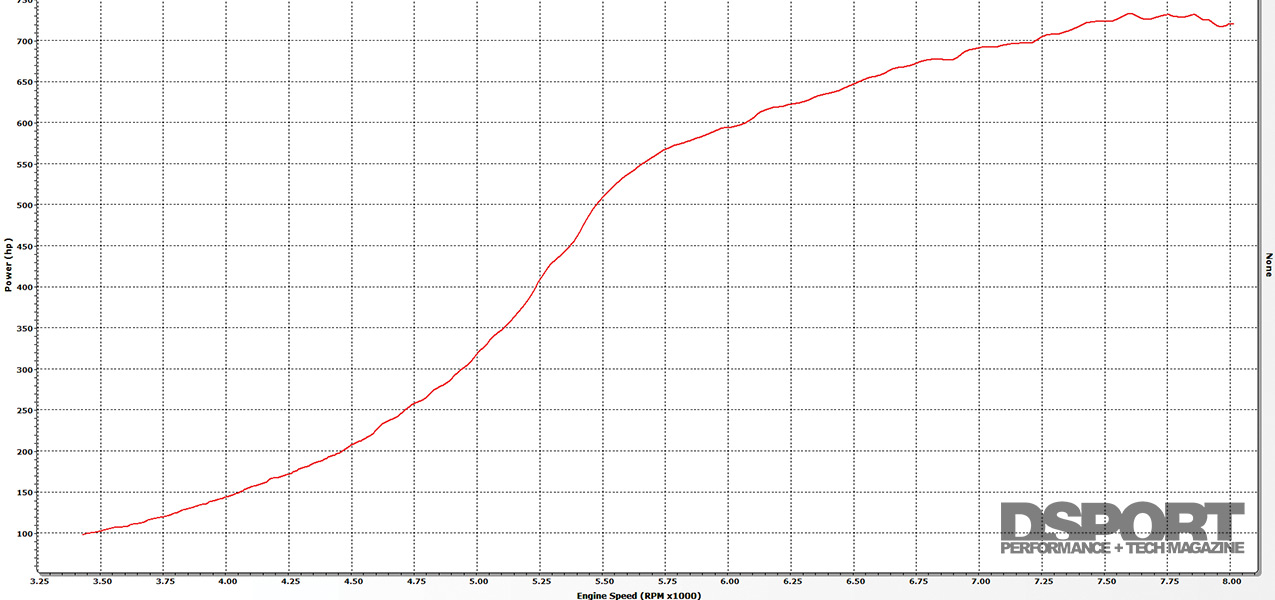

| Peak Horsepower (@ RPM): | 732 whp @ 7,600RPM |
| Peak Torque (@ RPM): | 525 lb-ft @ 6,150RPM |
| Dyno Type: | Dynojet Dynamometer |
| Engine Builder: | SP Engineering |
| Block Modifications: | Overbored 1mm |
| Machine Work | SP Engineering |
| Pistons/Compression Ratio: | HKS 8.7:1 Compression Forged-Aluminum Pistons |
| Connecting Rods / Crank: | HKS Forged and Balanced Crankshaft |
| HKS H-Beam Connecting Rods | |
| Camshafts: | HKS 272-degree Camshafts (IN & EX) |
| Valves / Springs / Retainers: | Ferrea Valves, Springs and Ti Retainers |
| Cylinder Head Modifications: | Port Work & Valvetrain Install by Port Flow |
| Cylinder Head Gasket: | HKS 1.2mm MLS Head Gasket |
| Head / Main Studs: | ARP Head Studs |
| Intake Manifold / Throttle Body: | Hypertune Manifold and 90mm Throttle Body |
| Air Induction System: | HKS Super Mega Flow Reloaded |
| Fuel Injectors: | BLITZ 1,000 cc/min Injectors (x6) |
| Fuel Delivery System: | Hypertune Fuel Rail |
| Engine Management System: | HKS F-CON VPRO |
| Engine Management Tuner: | Hiro @ SP Engineering |
| Boost Controller: | HKS EVC |
| Spark Plugs: | Denso Iridium |
| Exhaust Manifold: | HKS Stainless-steel Manifold |
| Exhaust System / Downpipe: | HKS Downpipe |
| /strong> | Custom 4-inch Titanium Exhaust |
| Wastegate: | HKS Racing Wastegate |
| Blow-Off Valve: | HKS SSQV Blow-off Valve |
| Intercooler: | GReddy Spec-R FMIC |
| Performance Electronics: | HKS A/F Knock Amp |
| TURBOCHARGER | |
|---|---|

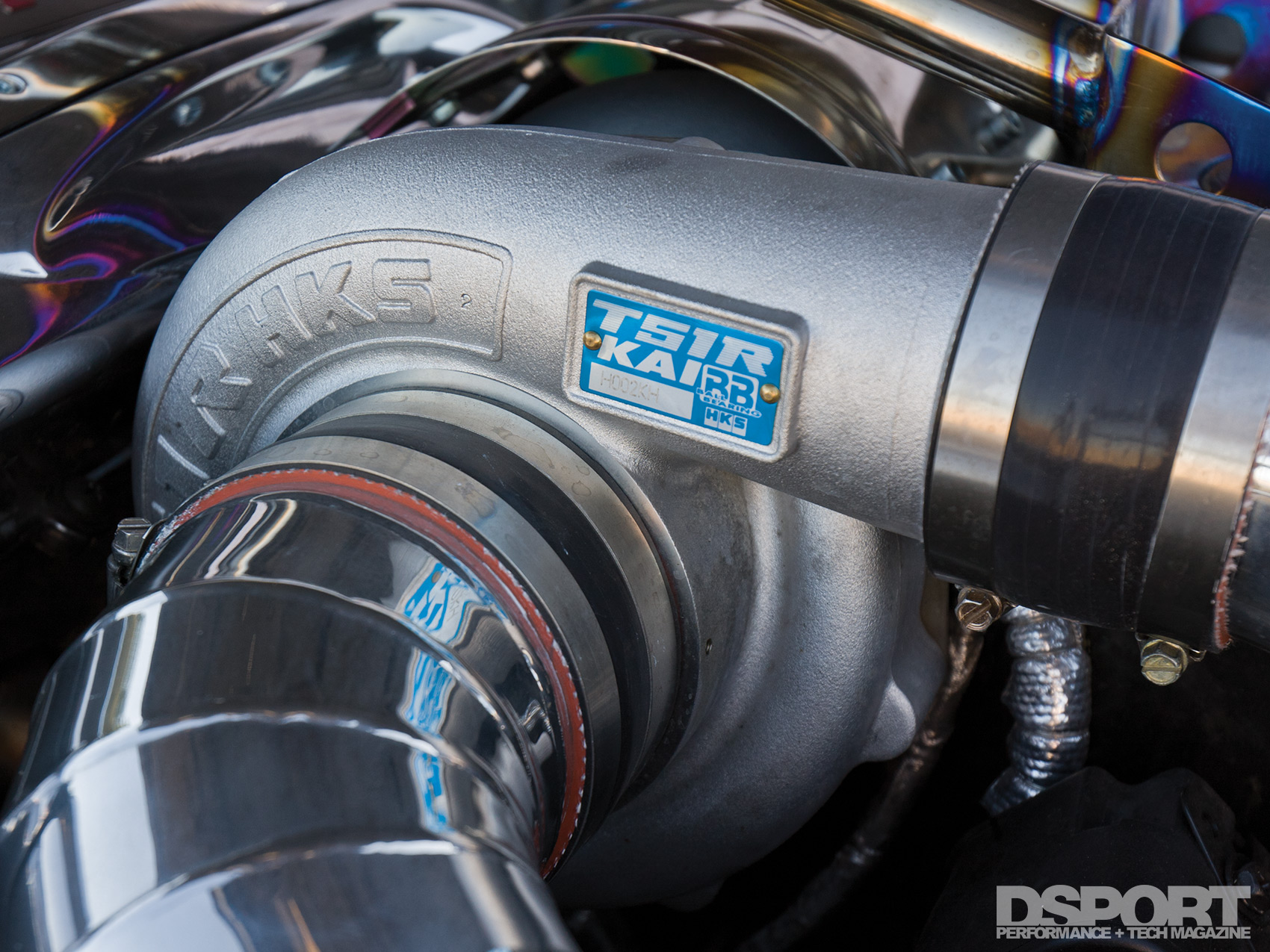

| Turbocharger: | HKS T51 KAI |
| Compressor Wheel Specs: | 94mm Major, 70.3mm Inducer |
| Turbine Wheel Speds: | 82mm Major, 71.4mm Exducer |
| Turbine Housing: | 1.00 A/R |
| CHASSIS/DRIVELINE | |
|---|---|
| Springs, F&R (Make & Rate): | Swift Springs |
| Shocks, F&R (Make & Rate): | Öhlins FLAG-R Adjustable Dampers |
| Additional Suspension Components: | NISMO Circuit Link Set, Tension Rods, |
| Rear Lower Control Arms, Upper Link Sets (F&R) | |
| Transmission Gearing: | OS Giken 5-speed Gear Set |
| Clutch / Flywheel: | OS Giken R3C Triple-Plate Clutch |
| Differential(s) (Make & Type): | OS Giken Super-Lock LSD (F&R) |
| Wheels (Make, Size & Offset): | BBS LMS 18X10-inch+20 (F&R) |
| Tires (Make & Size): | Nitto Tire NT05 265/35R18 (F&R) |
| Brake Calipers (F&R): | Brembo GT Upgrade Kit (F&R) |
| Brake Rotors (Diameter, F&R): | Brembo |
| Brake Pads (Front & Rear): | Brembo |
| Brake Lines: | Brembo Stainless-steel Braided Lines |
| INTERIOR | |
|---|---|

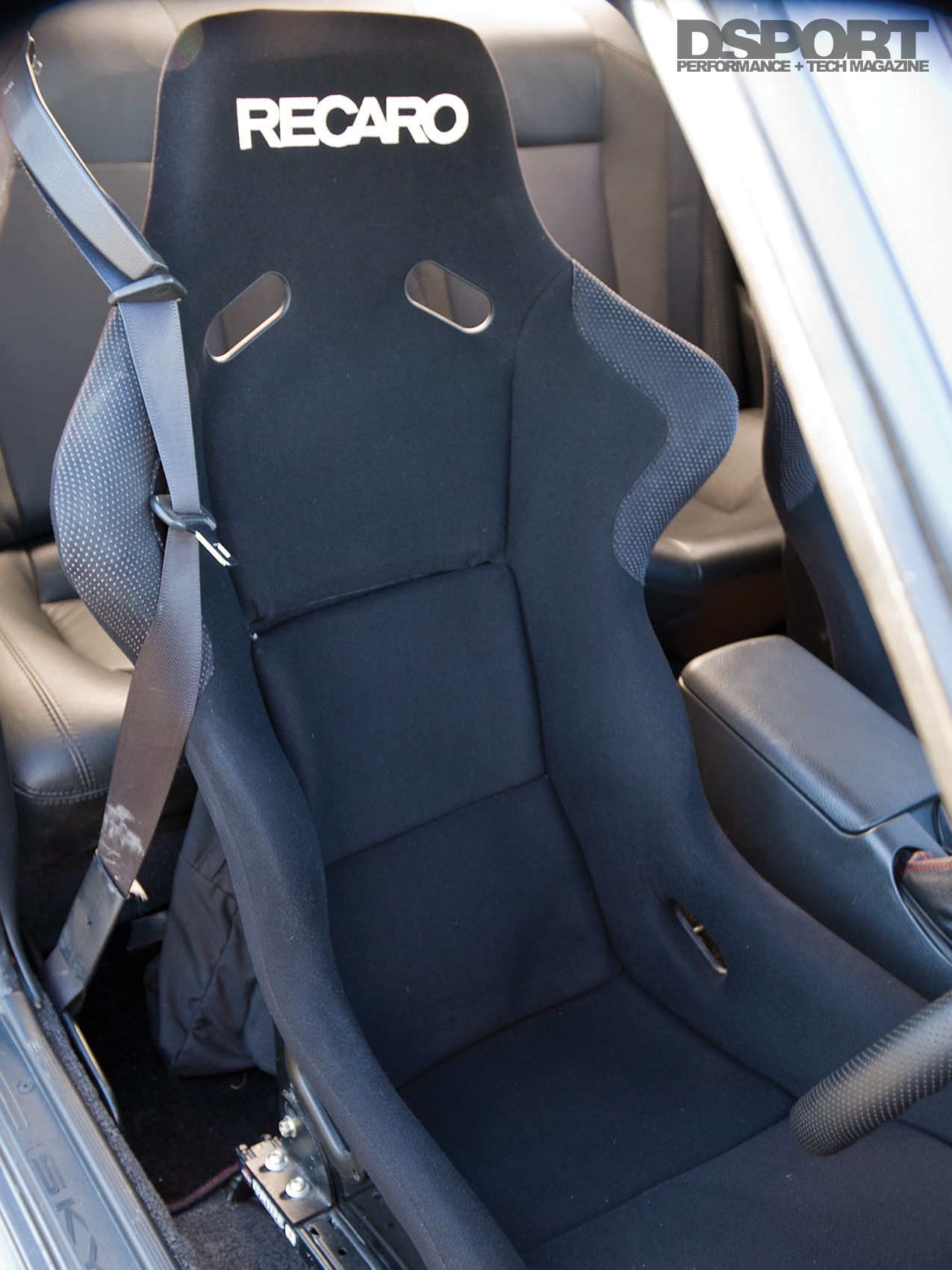

| Seats: | RECARO SPG Seats |
| BRIDE Seat Rails | |

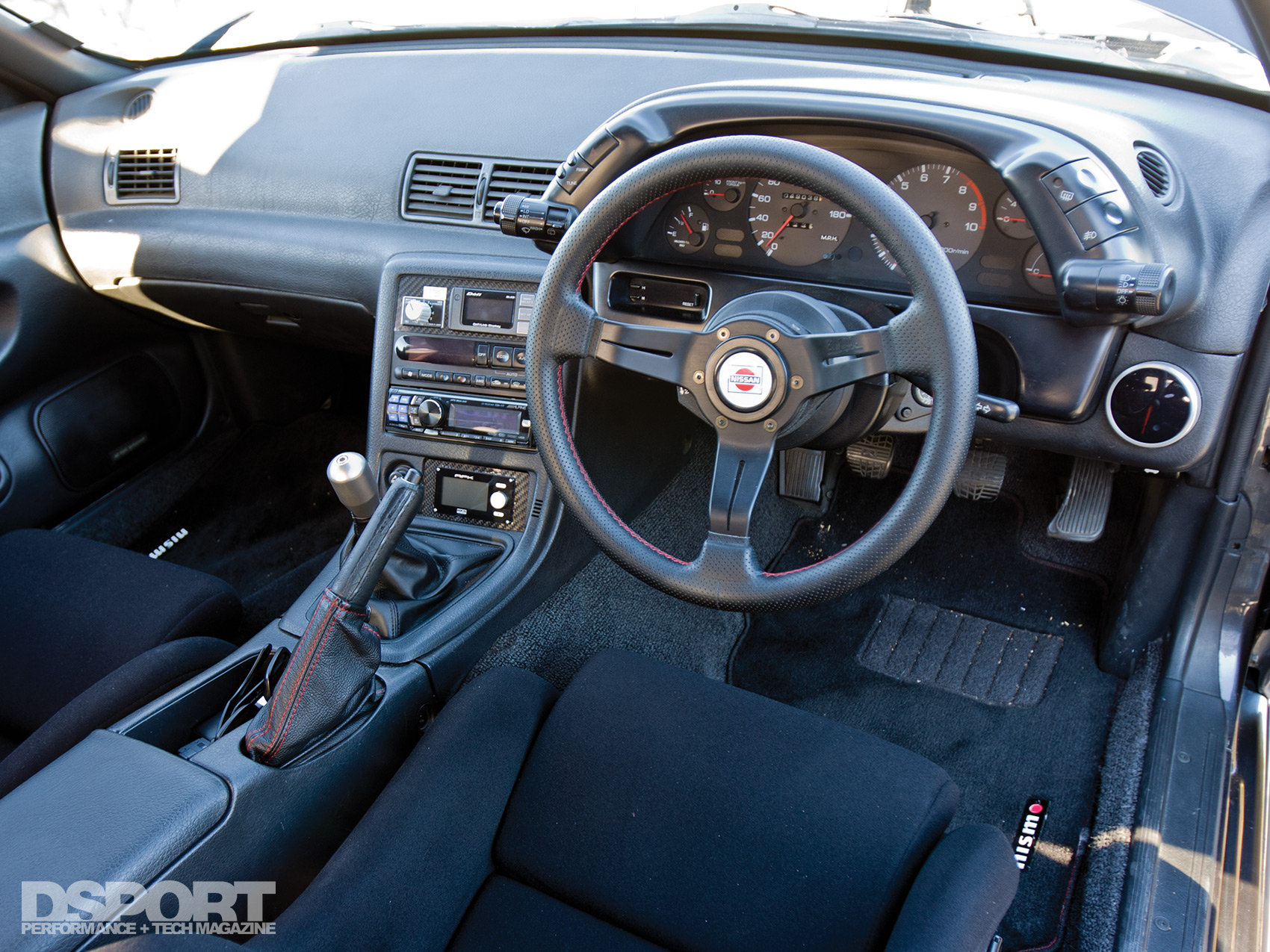

| Steering Wheel / Quick Release: | NARDI Deep Corn Steering Wheel |
| Works Bell Quick Release Hub | |
| Gauges: | DEFI Link Display & Boost Gauge |
