983WHP Civic EK Runs 8s, Wants More | Bad-Ass B-Series

SPEC SHEET

VEHICLE

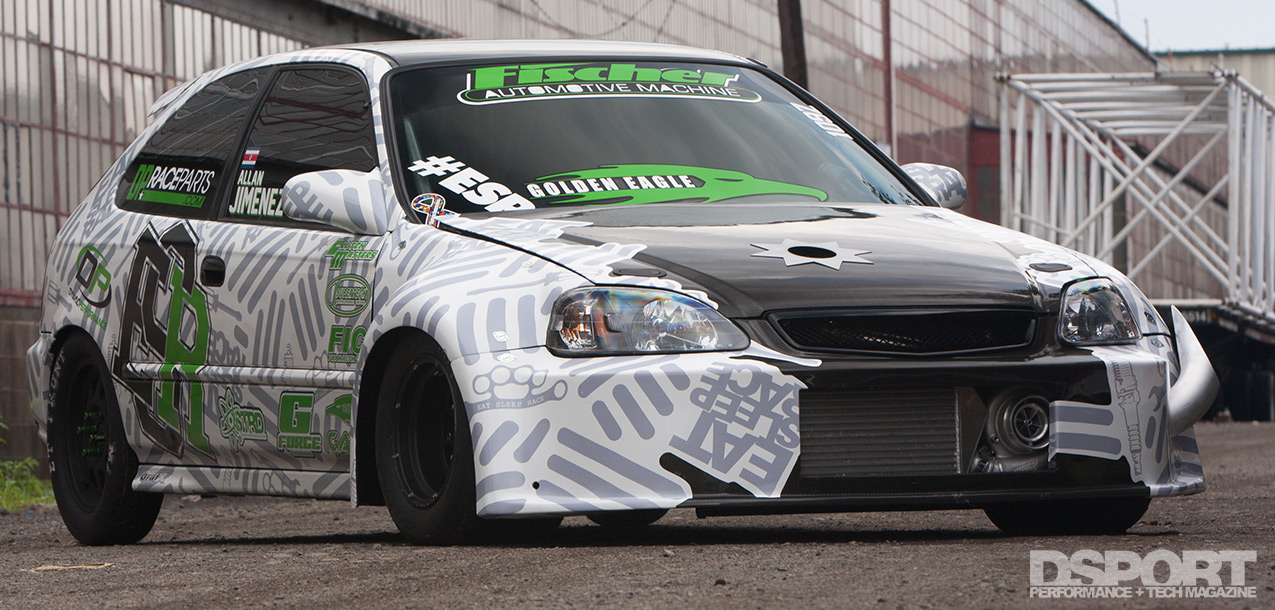

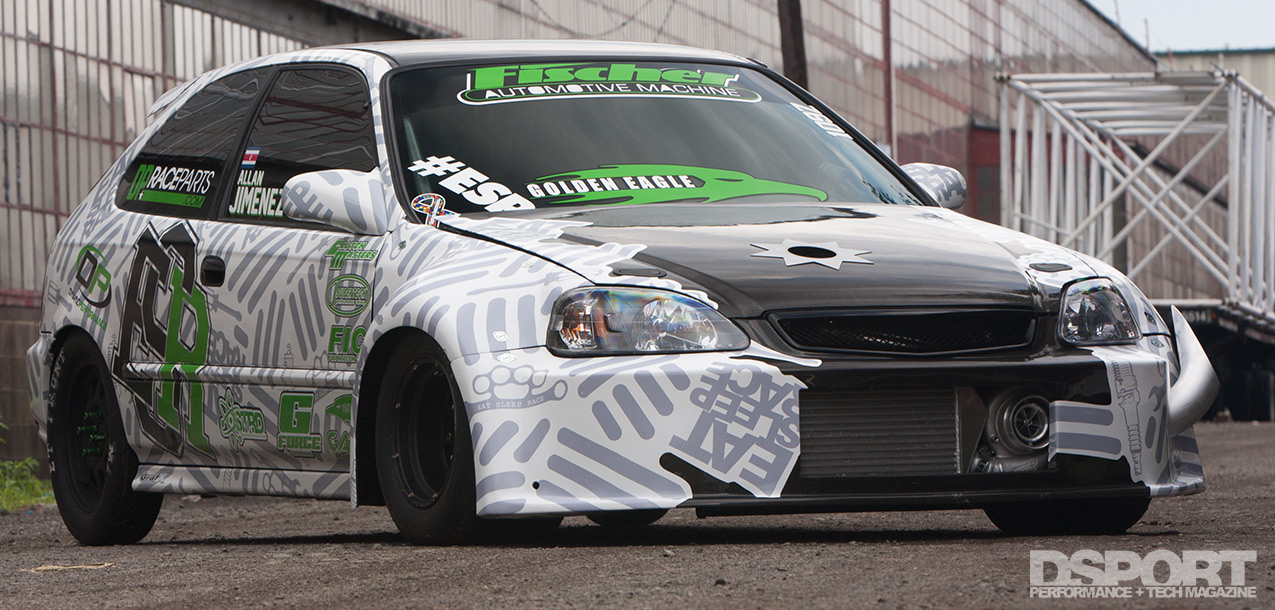

Year / Make / Model: 1997 Honda Civic CX
Chassis Code: EK
Competition Class: SFWD
Vehicle Weight: 2,480 lbs.
Launch RPM: 7,800 RPM
Shift RPM: 10,300 RPM
Redline RPM: 10,500 RPM
Peak Boost: 45 psi
Fuel: Ignite 114

ENGINE

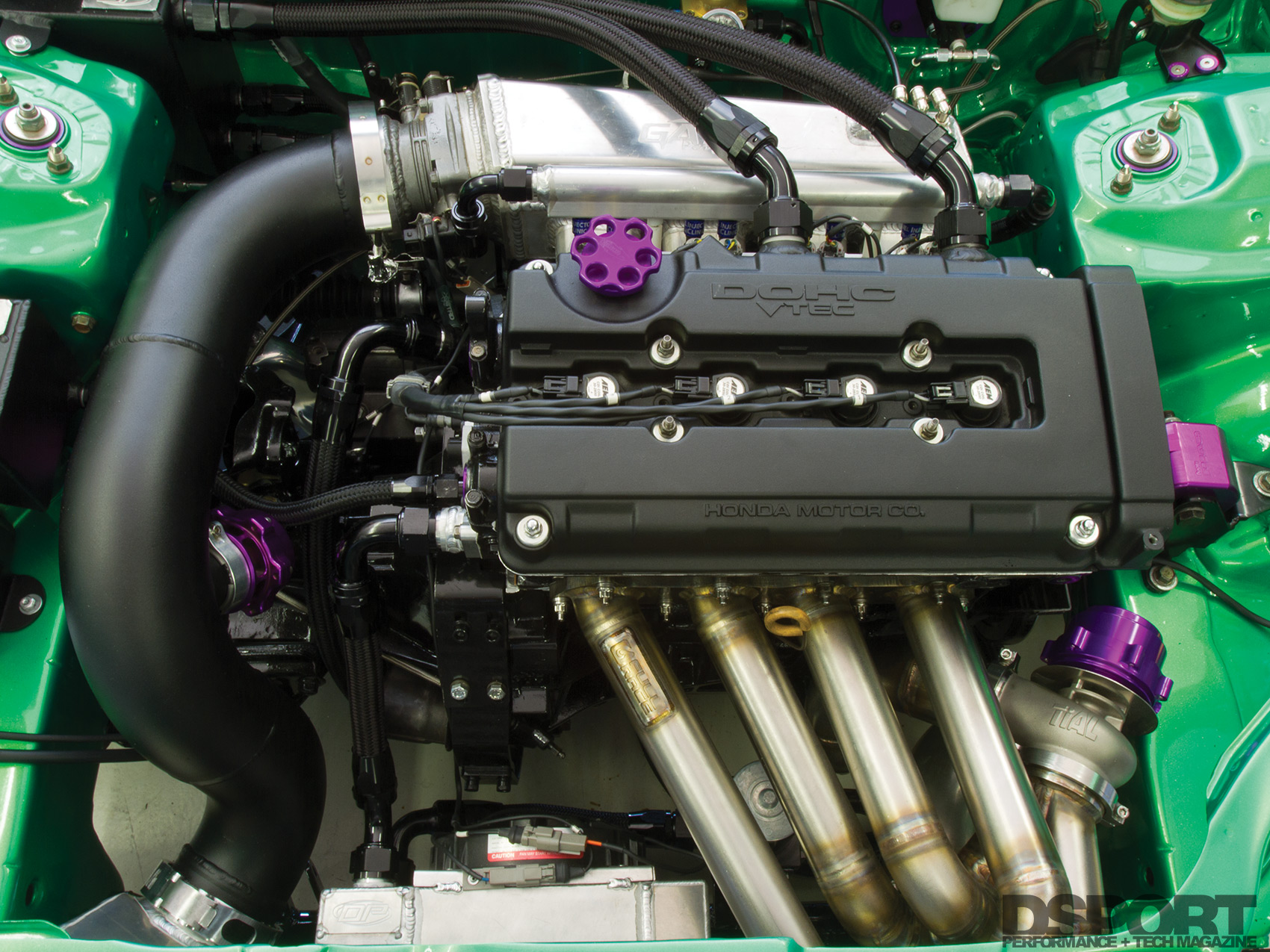

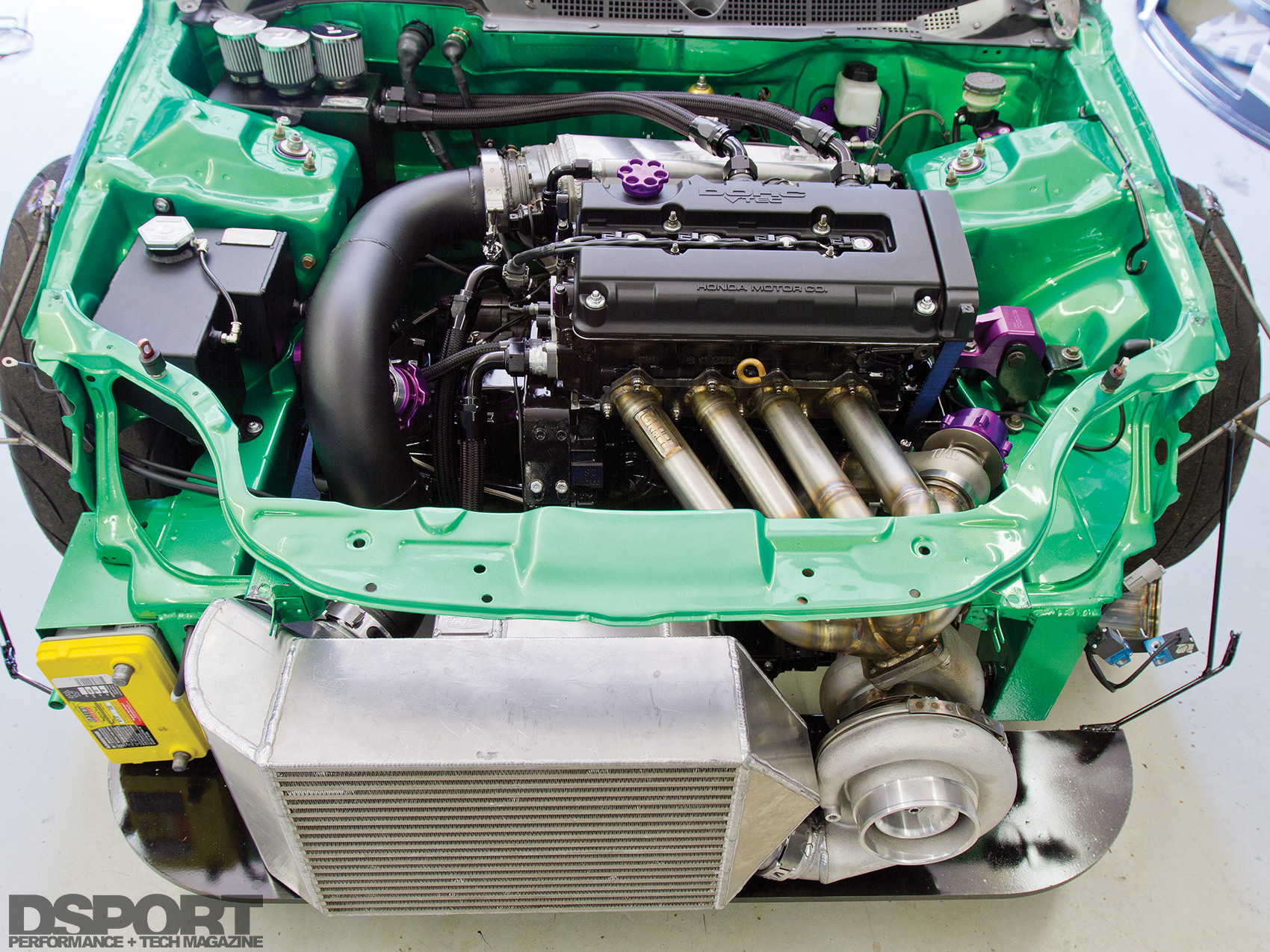

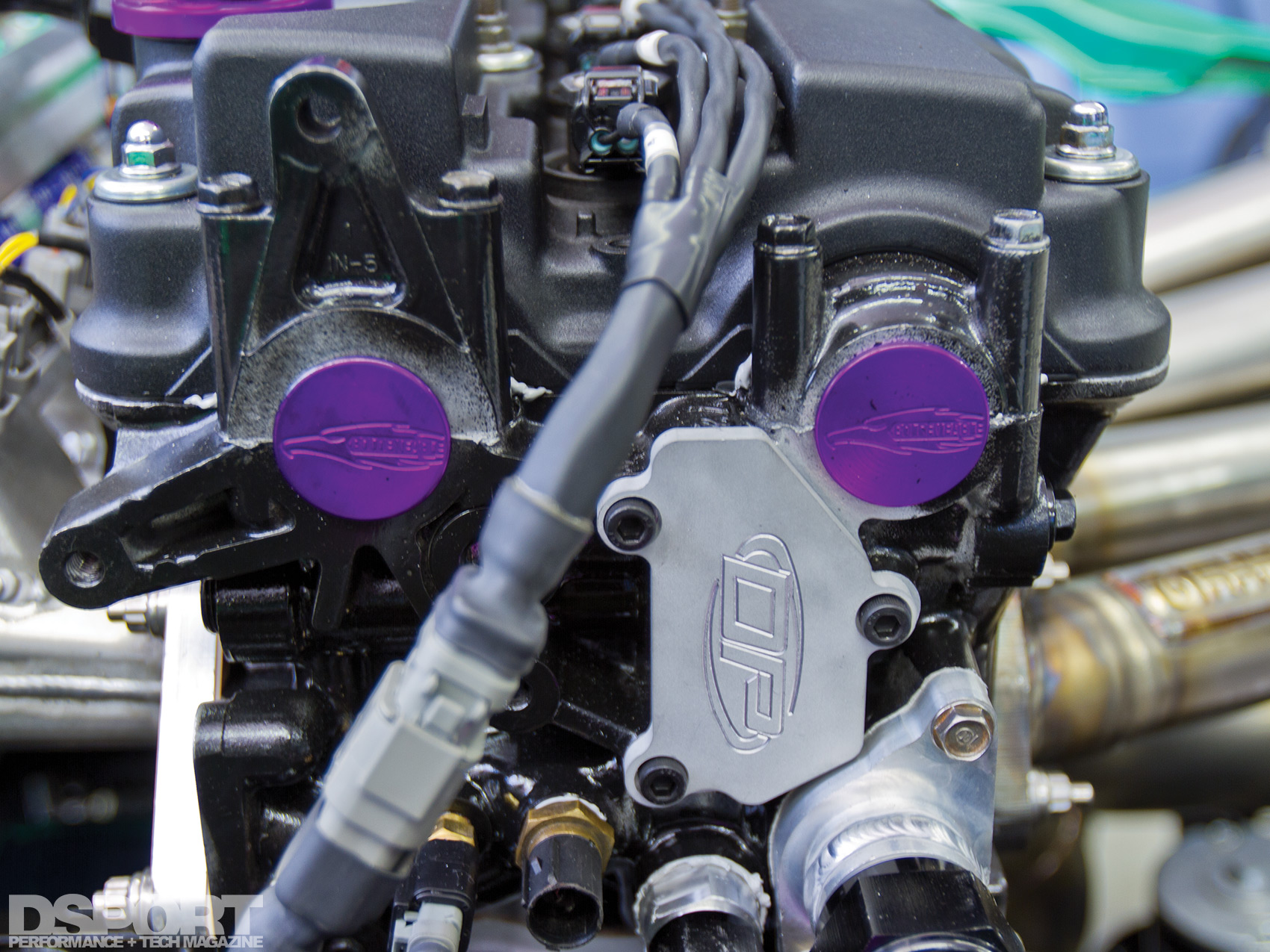

Engine Code: B18C1
Displacement (cc): 1,926cc
Bore & Stroke (mm): 83mm x 89mm
Peak Horsepower (@ RPM): 983 whp @ 7,800 RPM
Peak Torque (@ RPM): 545 lb-ft @ 9,150 RPM

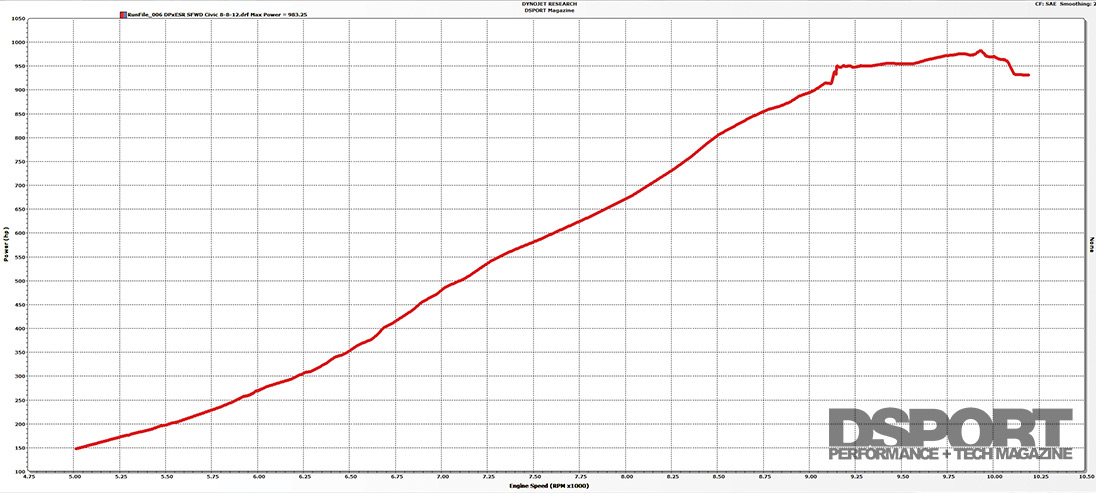

Dyno Type: Dynojet Dynamometer
Engine Builder: Bart Weiss
Block Modifications: Golden Eagle Sleeves
Machine Work: Fischer Automotive Machine
Pistons/Compression Ratio: Dynamic Performance-spec CP Pistons,
10.5:1 Compression
Connecting Rods / Crank: GRP Aluminum Rods
Factory B18B Crankshaft

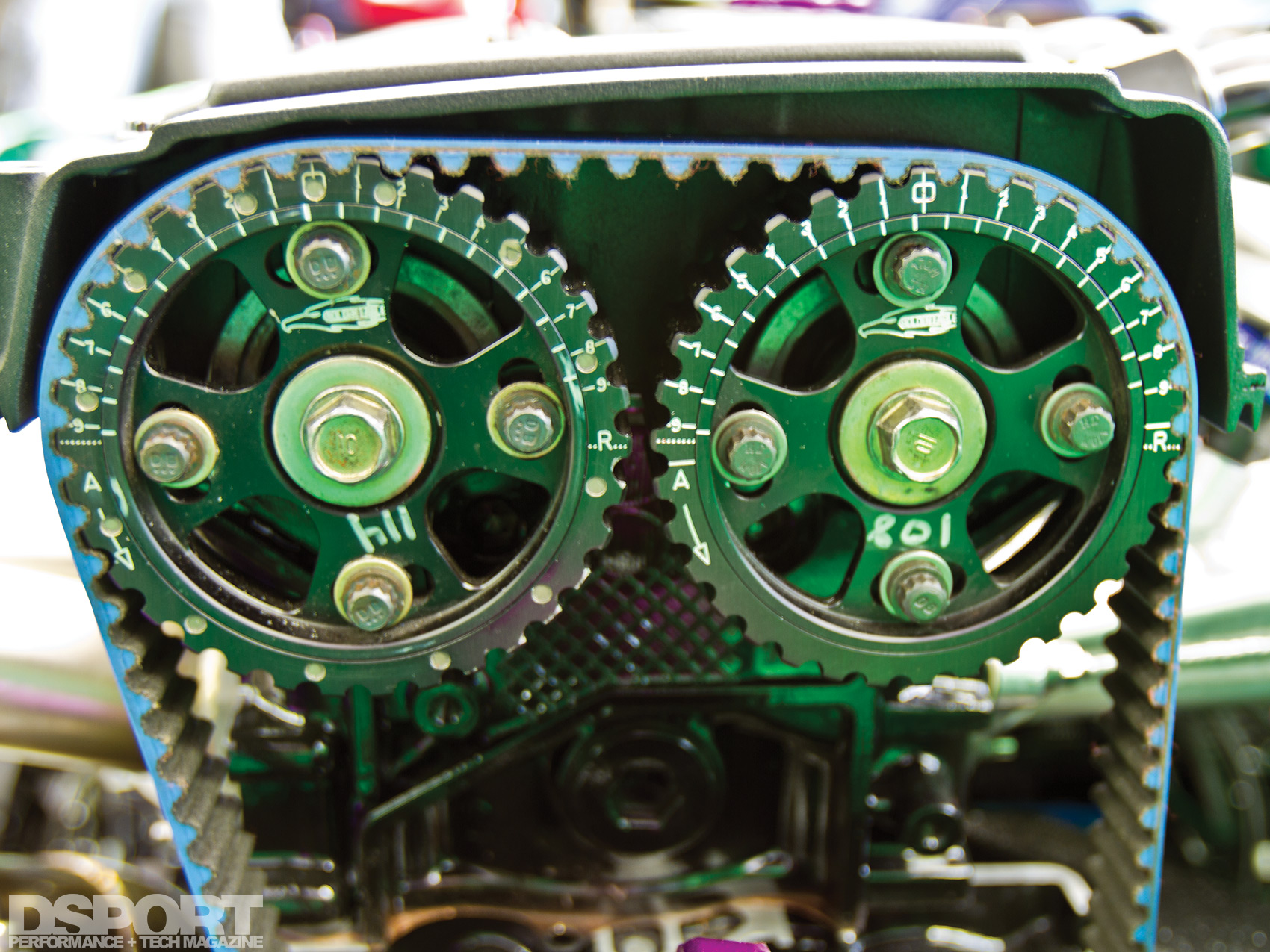

Camshafts: Web Cams Pro series
Valves / Springs / Retainers: Supertech Valves, Springs, Ti Retainers
Cylinder Head Mods: TG Port & Polish
Head/Main Studs: Golden Eagle Head Studs
ARP Main Studs
Cylinder Head Gasket: Golden Eagle MLS Gasket
Intake Manifold: Gato Performance Intake Manifold
Throttle Body: Q45 Throttle Body

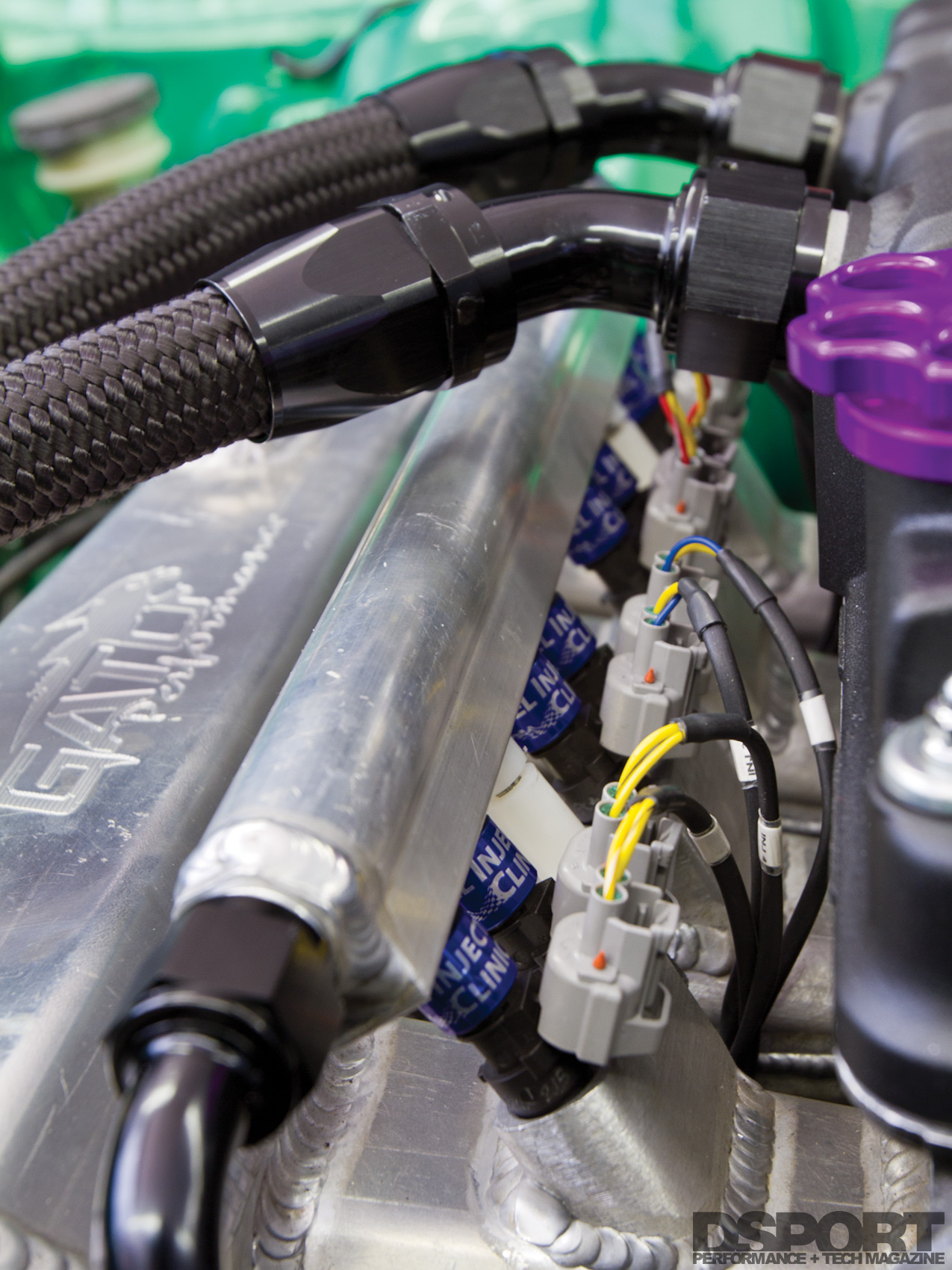

Fuel Injectors: Fuel Injector Clinic 2,150 cc/min, (x8)
Fuel Delivery System: Weldon 2345-A Fuel Pump

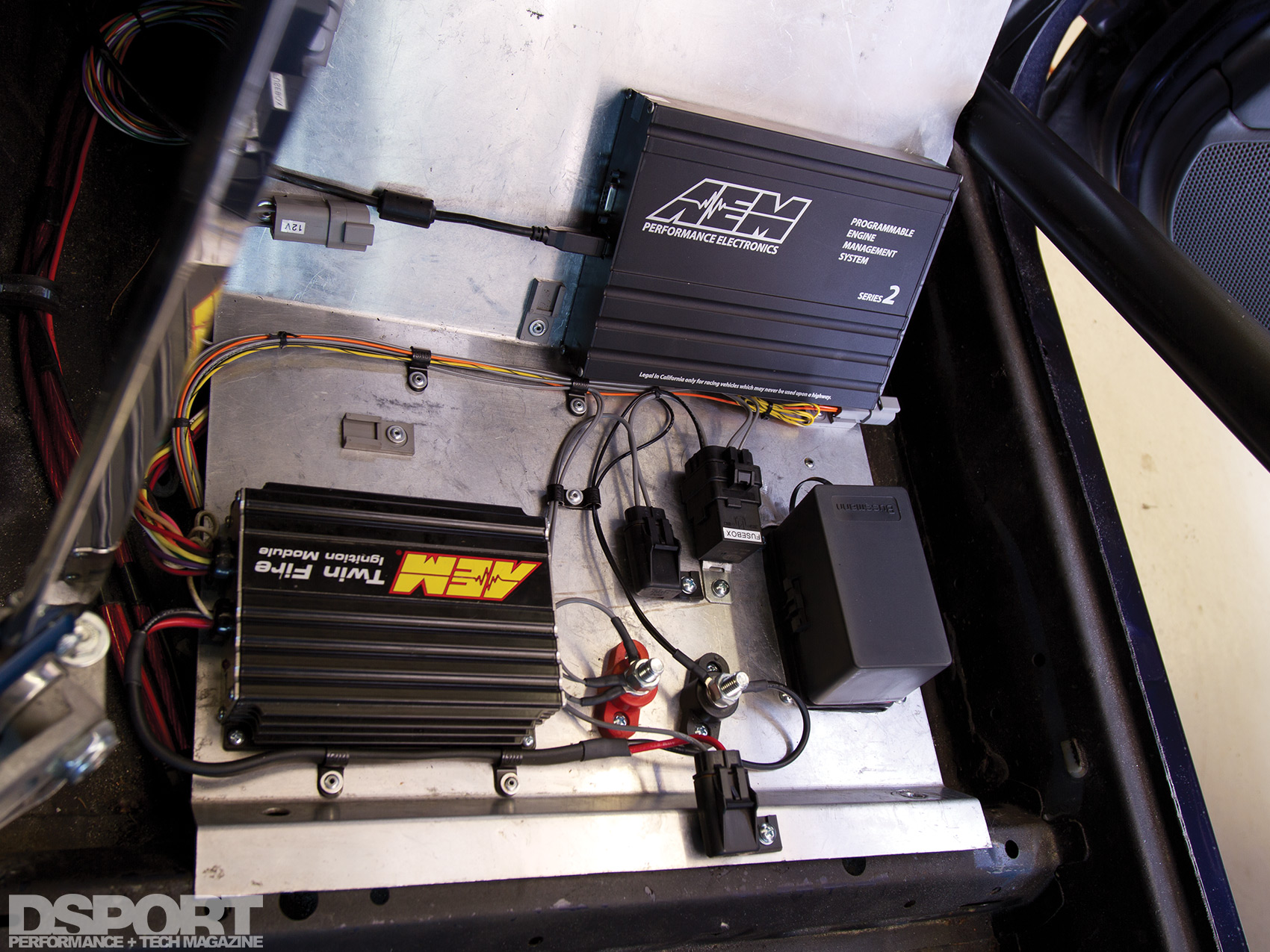

Engine Management System: AEM EMS Series 2 ECU
Engine Management Tuner: Felix Medina
Boost Controller: AEM Boost (by speed)

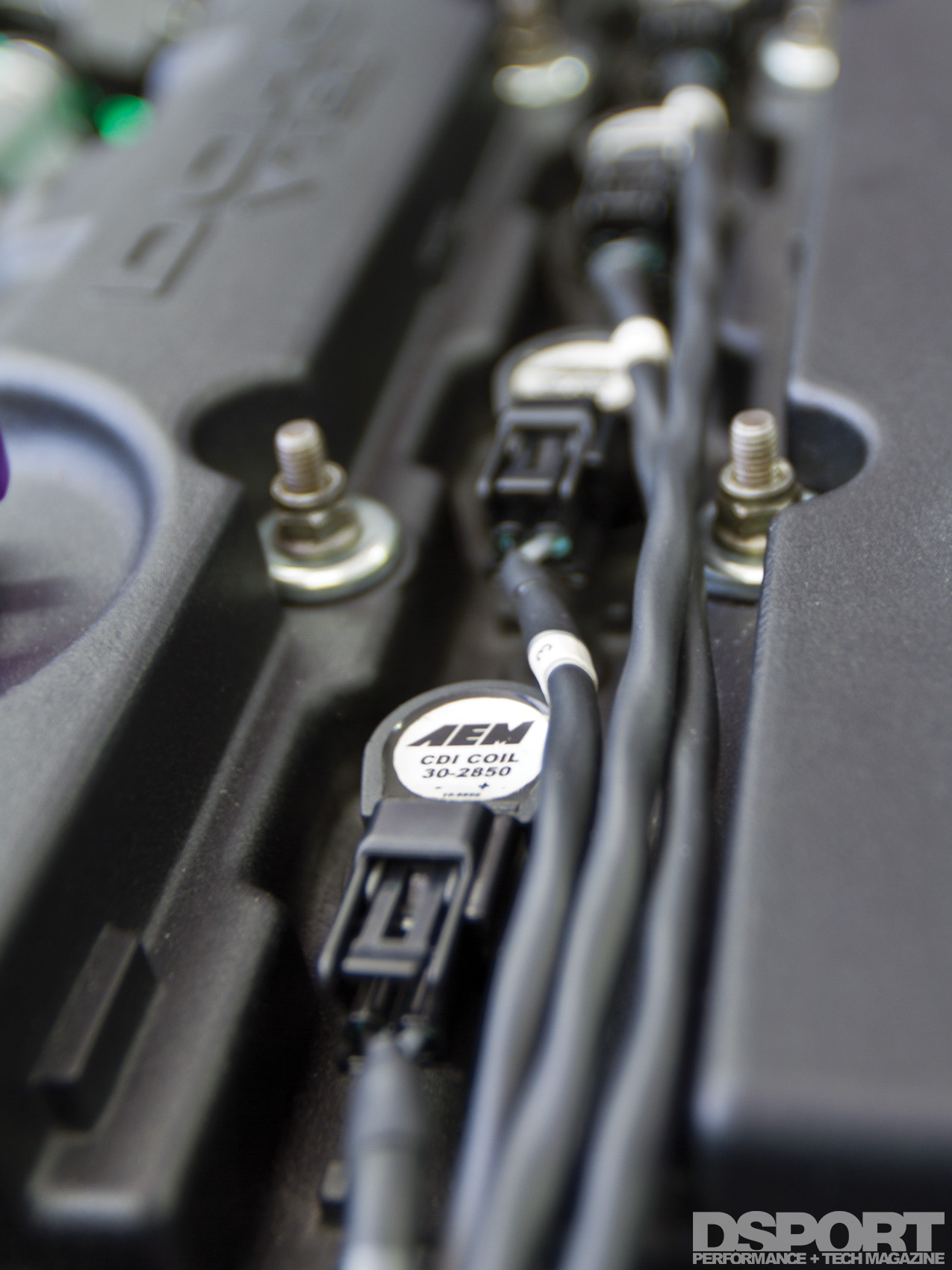

Ignition: AEM Twin Fire Ignition and Pencil Coils
Spark Plugs: NGK BKR9
Exhaust Manifold: Full-Race Twin-Scroll Forward Facing
Exhaust System: Dynamic Performance Custom
Downpipe: Aluminum Pro-mod Downpipe
Wastegate: TiAL Sport V60 Wastegate
Blow-Off Valve: TiAL Sport BV 50mm Blow Off Valve

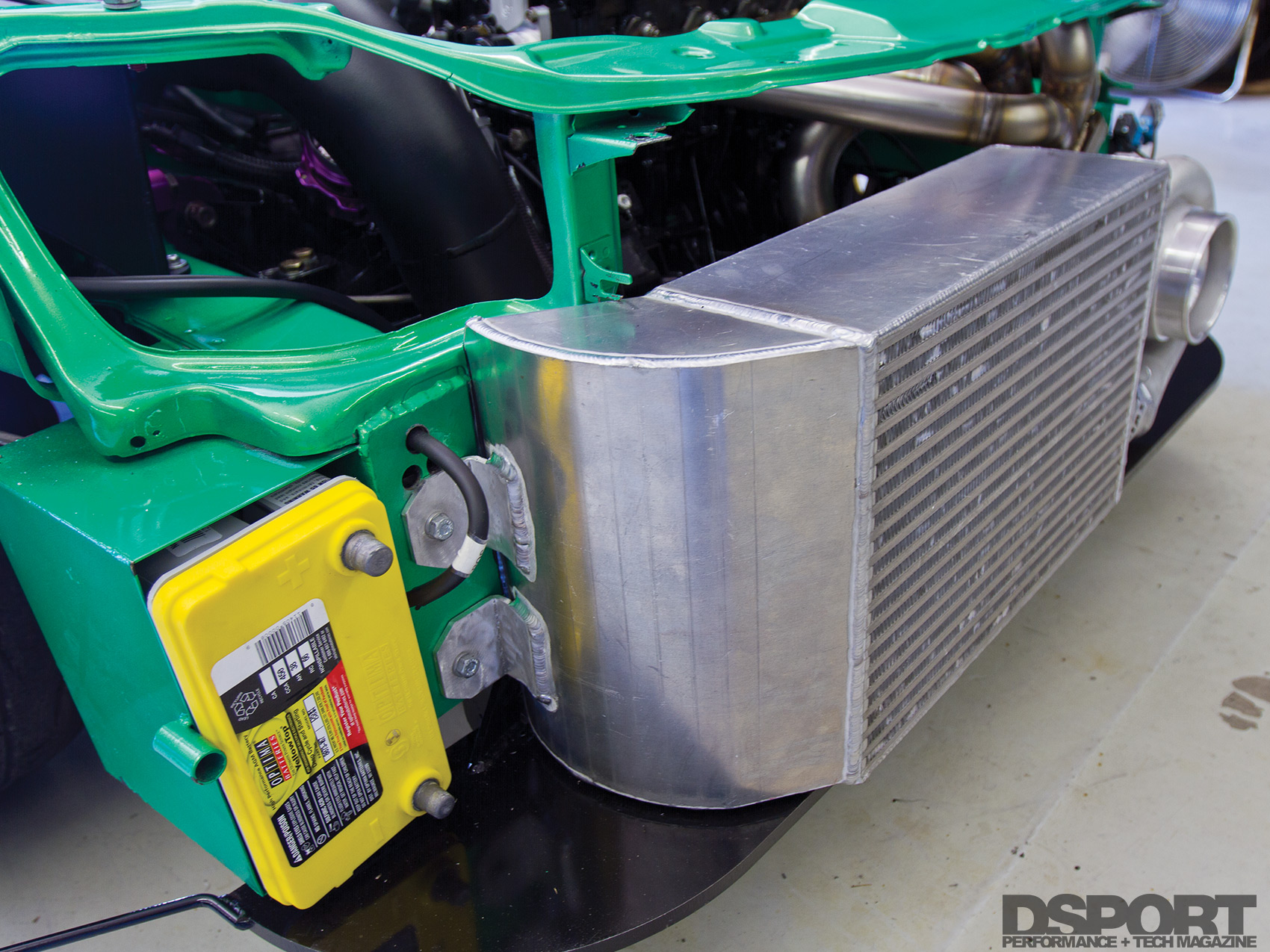

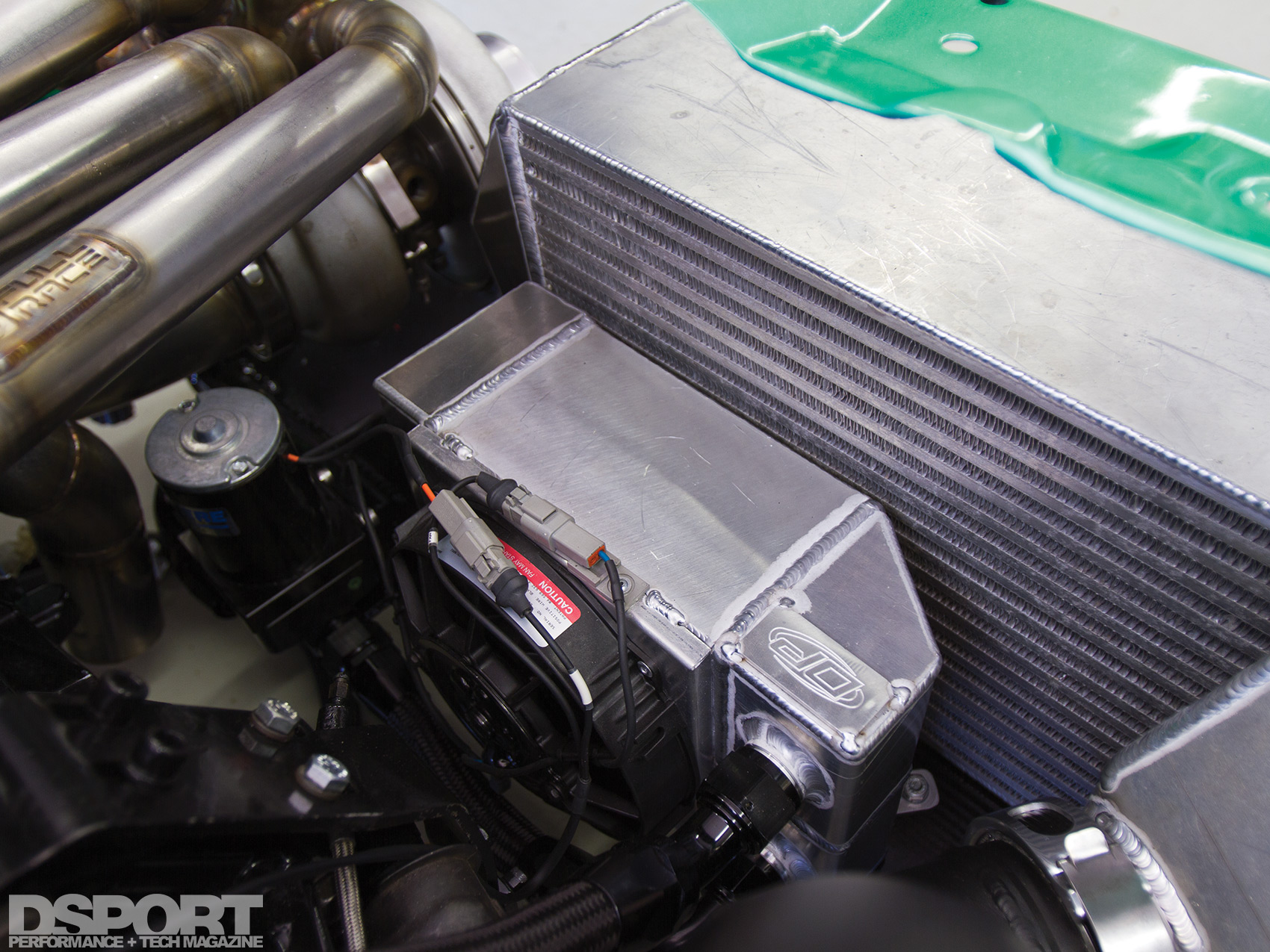

Intercooler: Dynamic Performance Custom 18x12x6-inch
Cooling System: Dynamic Performance Custom Radiator,
Electric water pump and Expansion Tank
Oil System: Circuitworx Oil Pump Gear
Fuel Cell: FCS 5-gallon Fuel Cell

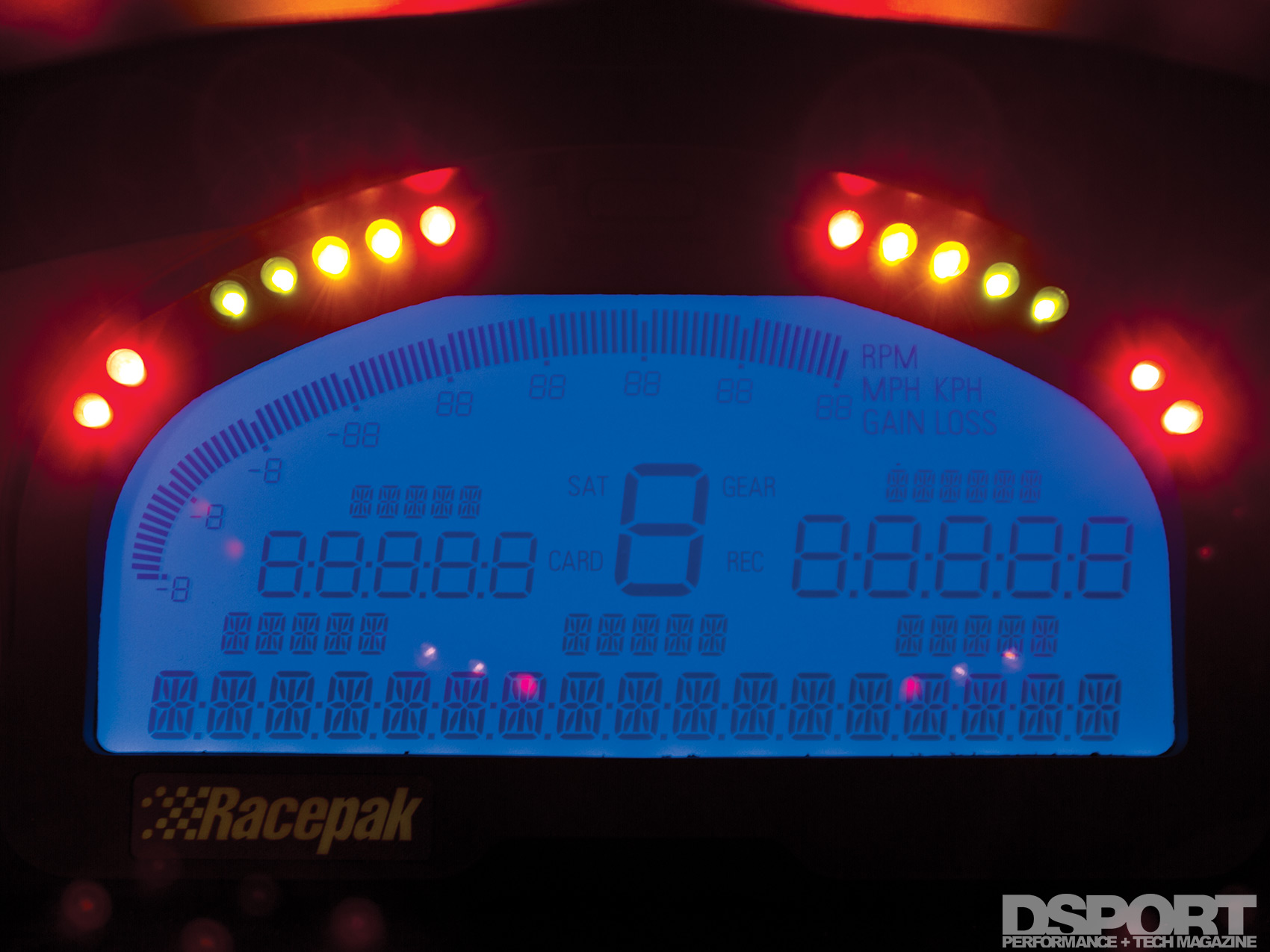

Performance Electronics: Racepak IQ3 Dash Logger, Speed Theory Racing
Development RACE-spec Engine and Chassis Harness
TURBOCHARGER

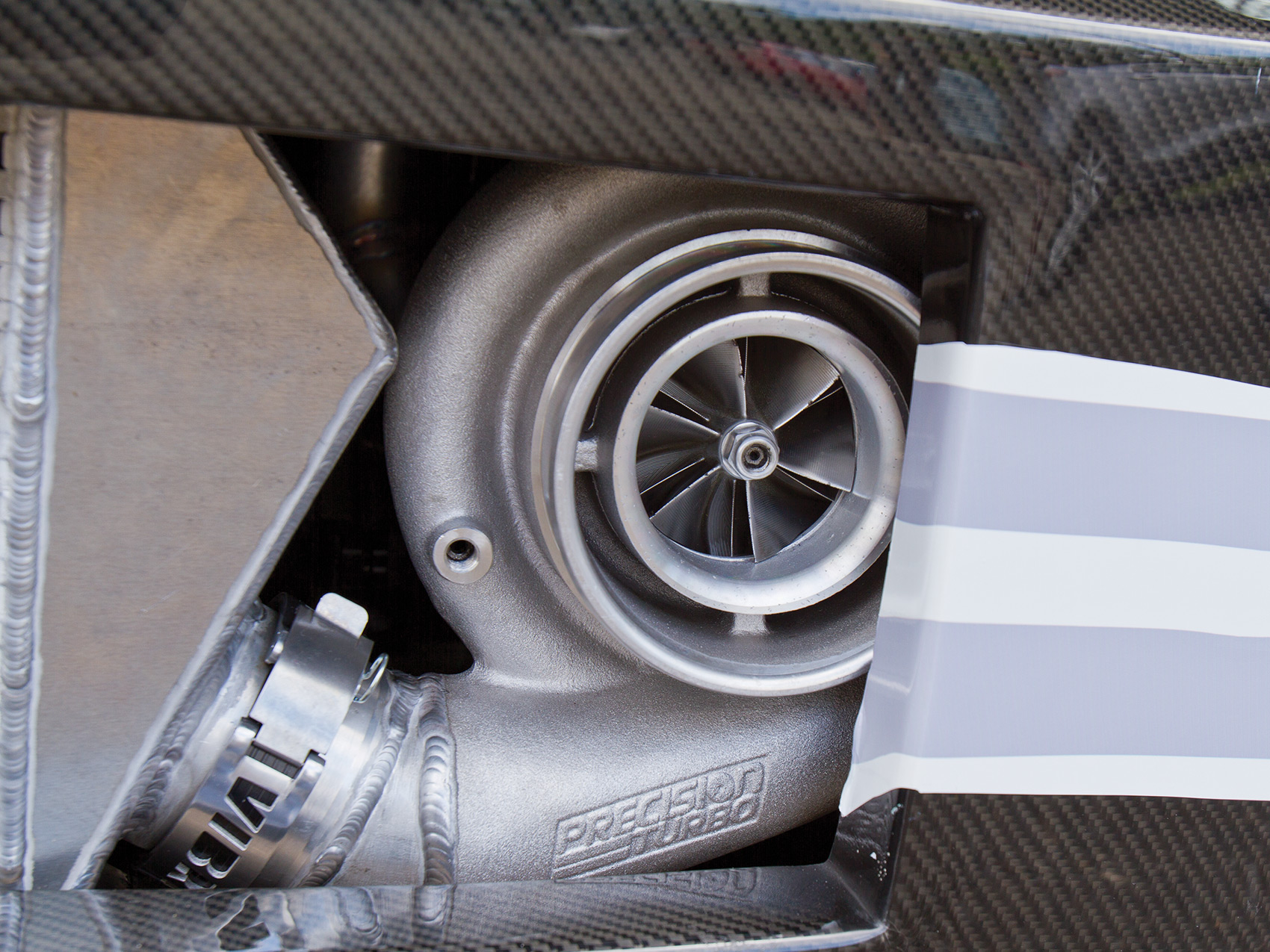

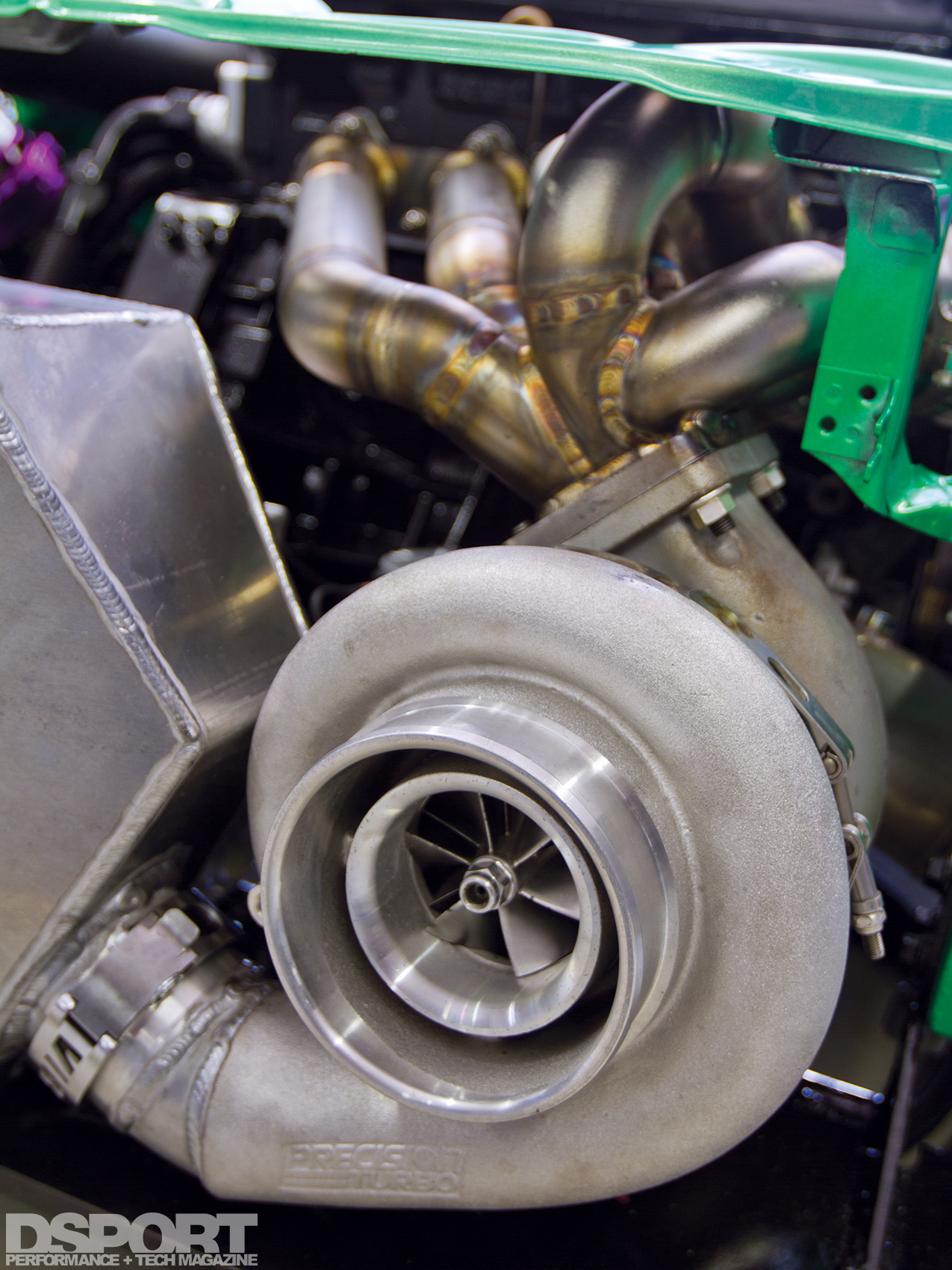

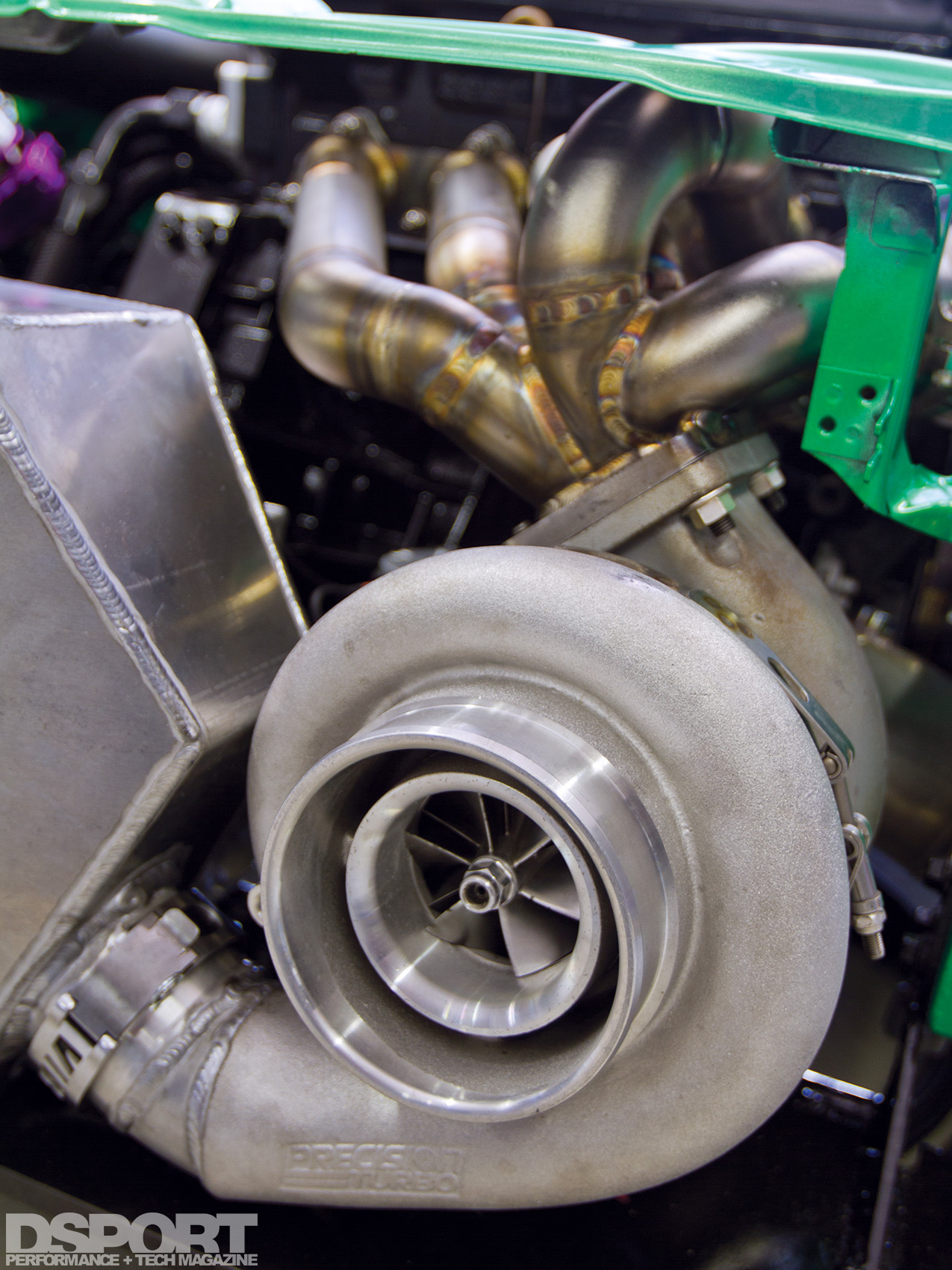

Turbocharger: Precision Turbo & Engine PTE 7280
Frame: T4
Compressor Wheel Specs: 72mm Inducer
Turbine Wheel Specs: 80mm Exducer
Turbine Housing: 1.28 A/R
CHASSIS/DRIVELINE
Springs, F&R (Make & Rate): D2 Drag
Shocks, F&R (Make & Rate): D2 Drag
Additional Suspension Components: Dynamic Performance Custom Rear Suspension

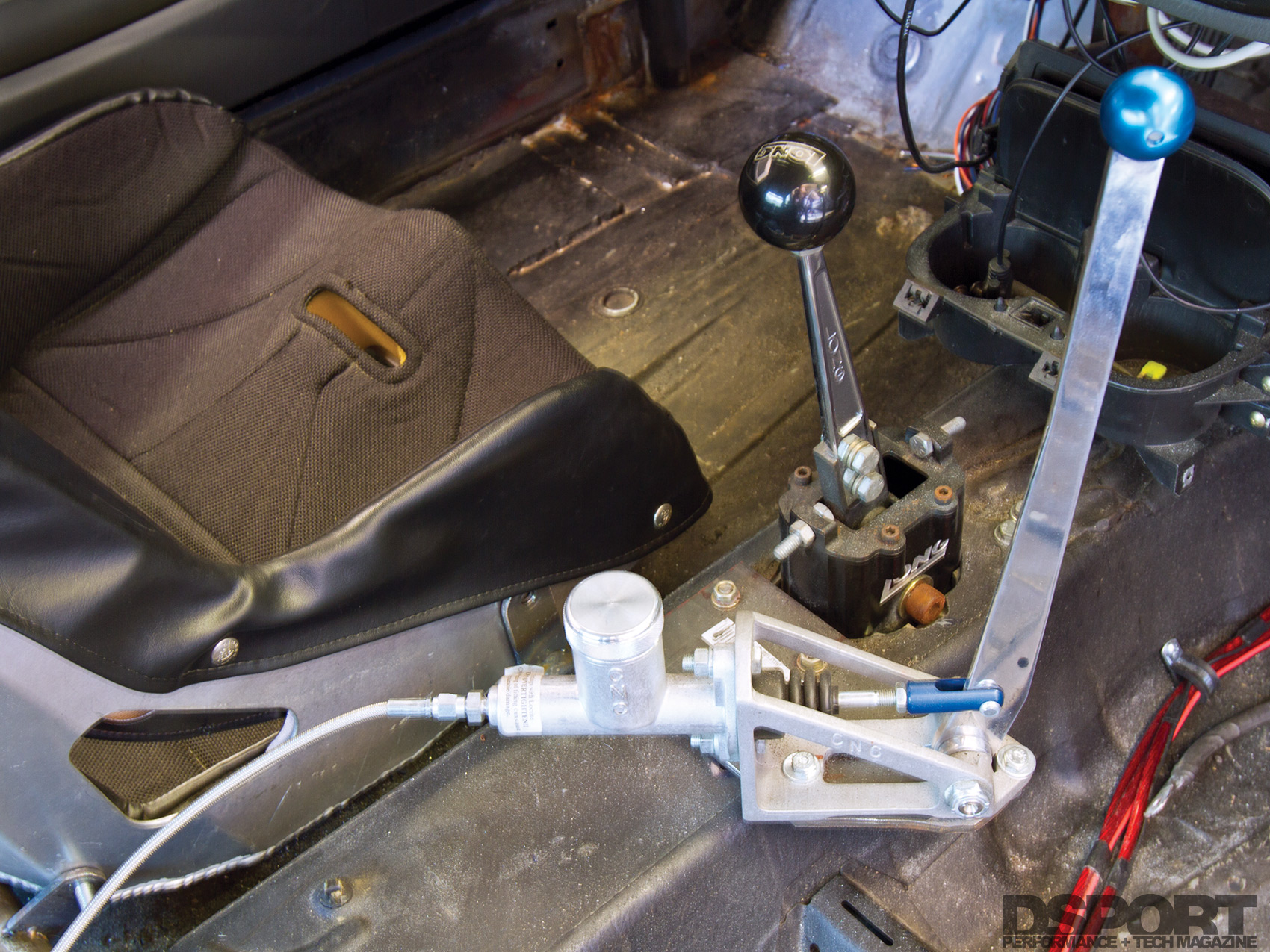

Transmission: GForce Dog Box
Transmission Gearing: 2.92:1, 1.88:1, 1.35:1, 1.0:1
Final Drive: 4.33:1
Clutch / Flywheel: Clutch Masters 725-series Twin-disc
Center Iron w/HD Pressure Plate
Differential(s) (Make & Type): Quaife Torque Biasing LSD
Axles / Driveshaft: Drive Shaft Shop Stage 5.9 Axles

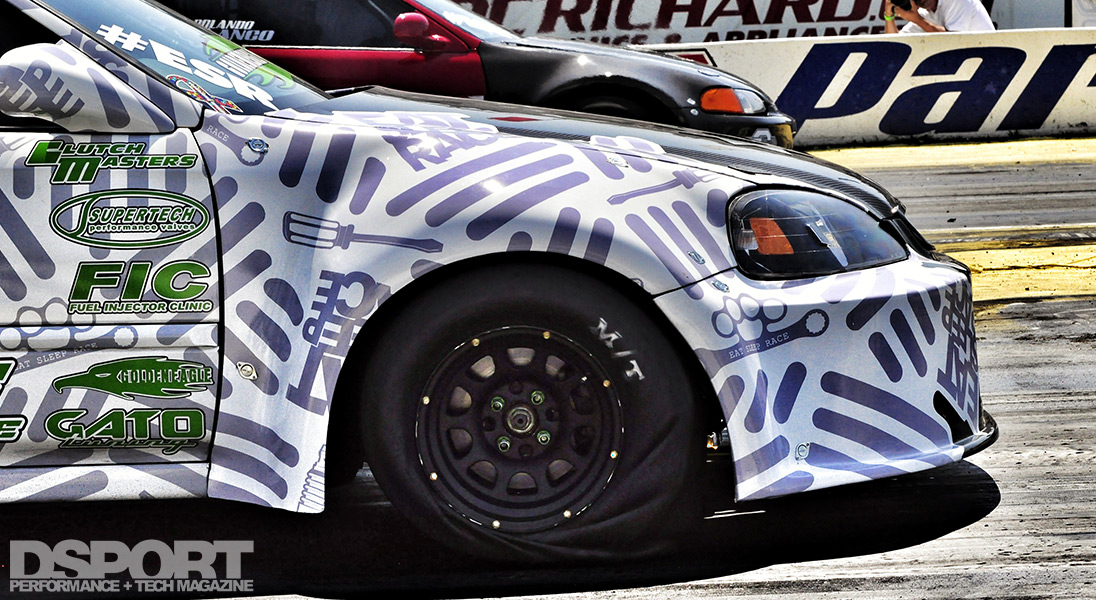

Wheels (Make, Size & Offset): Spinwerks 13×10-inch, 5-inch Backspace
Tires (Make & Size): M/T 24.5x9x13-inch
Brake Lines: Steel Braided

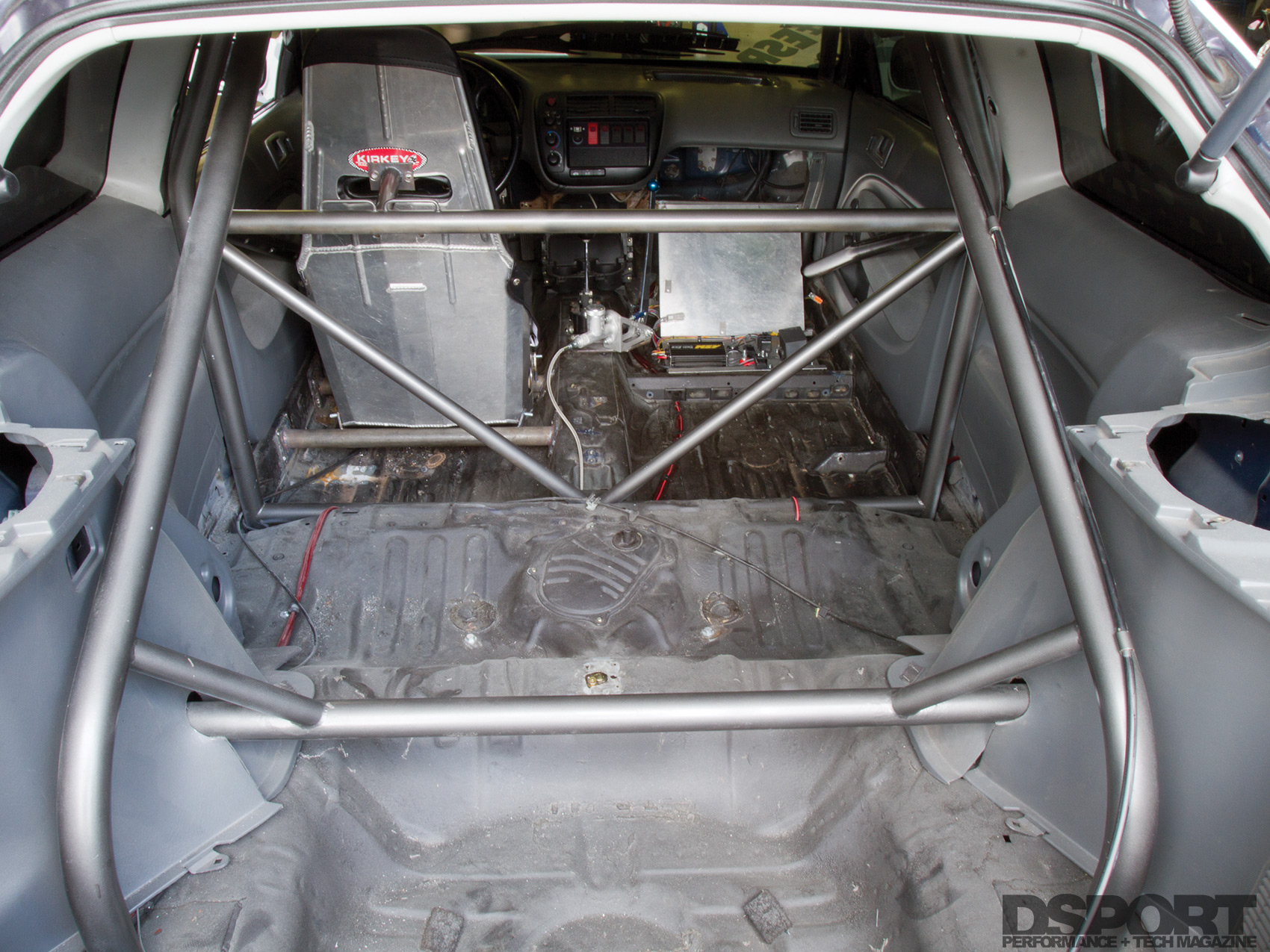

Roll Bar / Cage: By Tom at NRG
Seats: Kirkey Aluminum
Harnesses: G-Force Harnesses
Gauges: Auto Meter Boost Gauge
NGK AFX Wideband
EXTERIOR

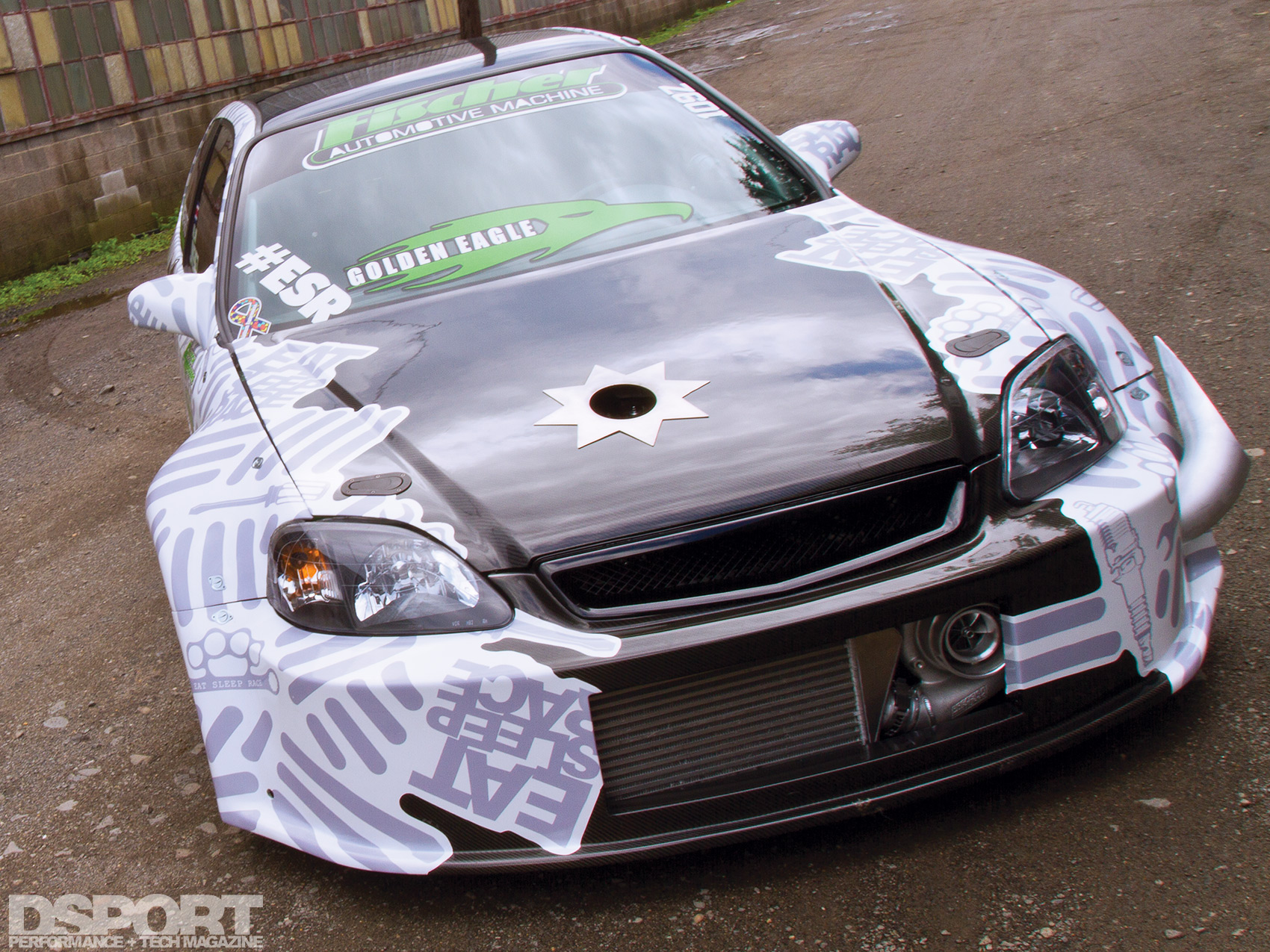

Front End: Dynamic Performance Custom 3-piece
Hood: Seibon Carbon-fiber

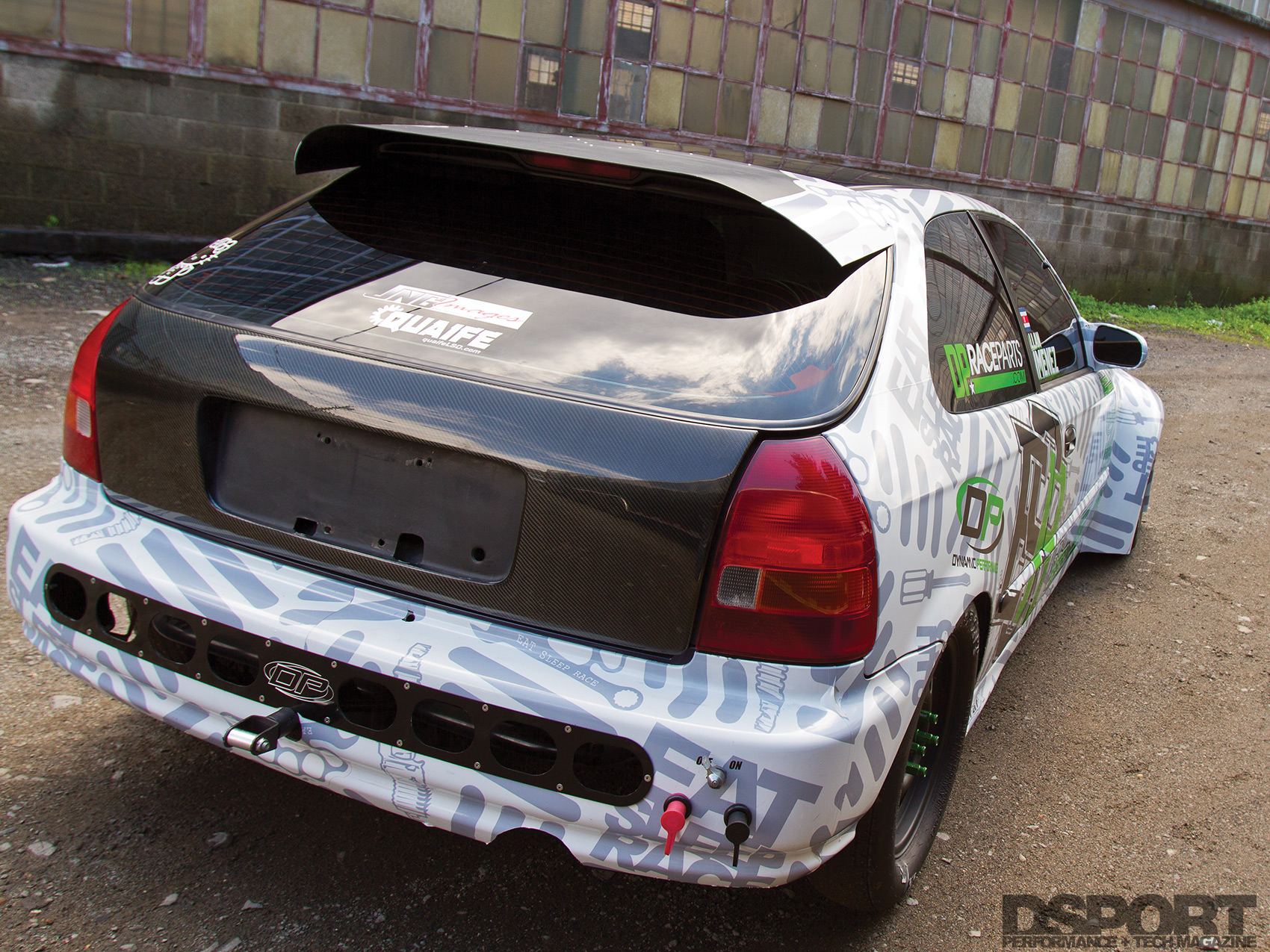

Trunk Lid: Seibon Carbon-fiber
Spoiler / Wing: Dynamic Performance Drag Wing

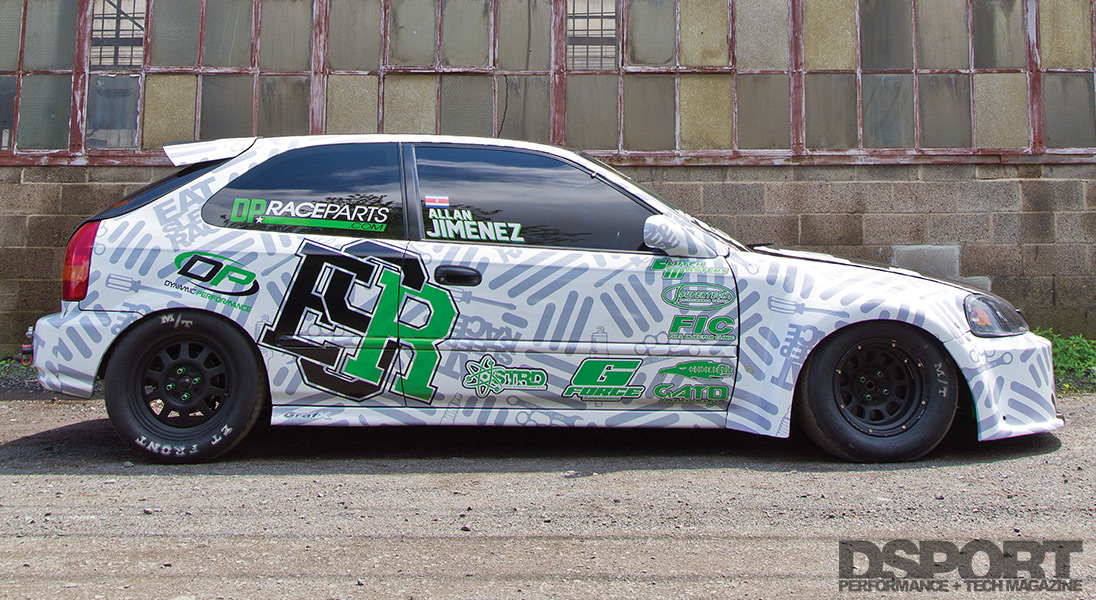

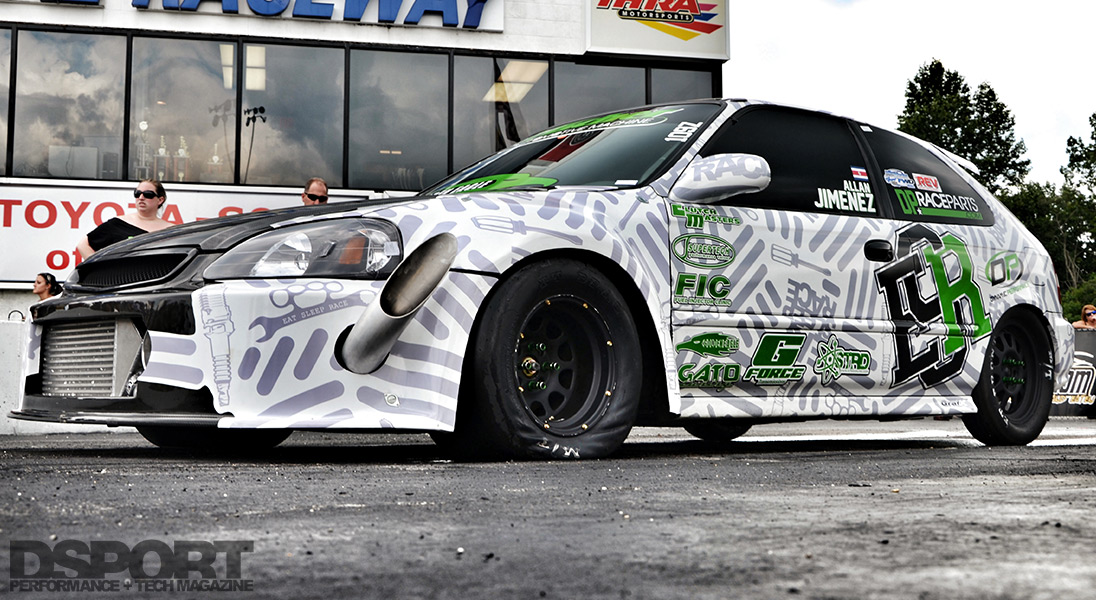

Paint: Graphix Custom ESR vinyl Wrap
