Rebirth of this Iconic S30 Legend

The best for less. This desire to offer the best sportscar performance for less money is what drove Nissan’s engineers in the 1960’s as design concepts came flying off the drafting boards. In 1969, the Nissan S30Z debuted on Japan’s showroom floors, the first with the “Z” designation. The design, which introduced the Fairlady Z namesake, featured a 2-liter inline six-cylinder engine with a single over-head camshaft. A five-speed manual transmission accompanied the 150 horsepower mill as the standard driveline for the rear-wheel drive hatchback. The next year, this model came to American shores as the Datsun 240Z. Various changes and designations were made and by 1978, Nissan’s Fairlady 280Z sported a 2.8-liter, single-cam inline six-cylinder engine. Known as the L28, this enlarged mill generated approximately 168 horsepower.

Text and Photos by Richard Fong

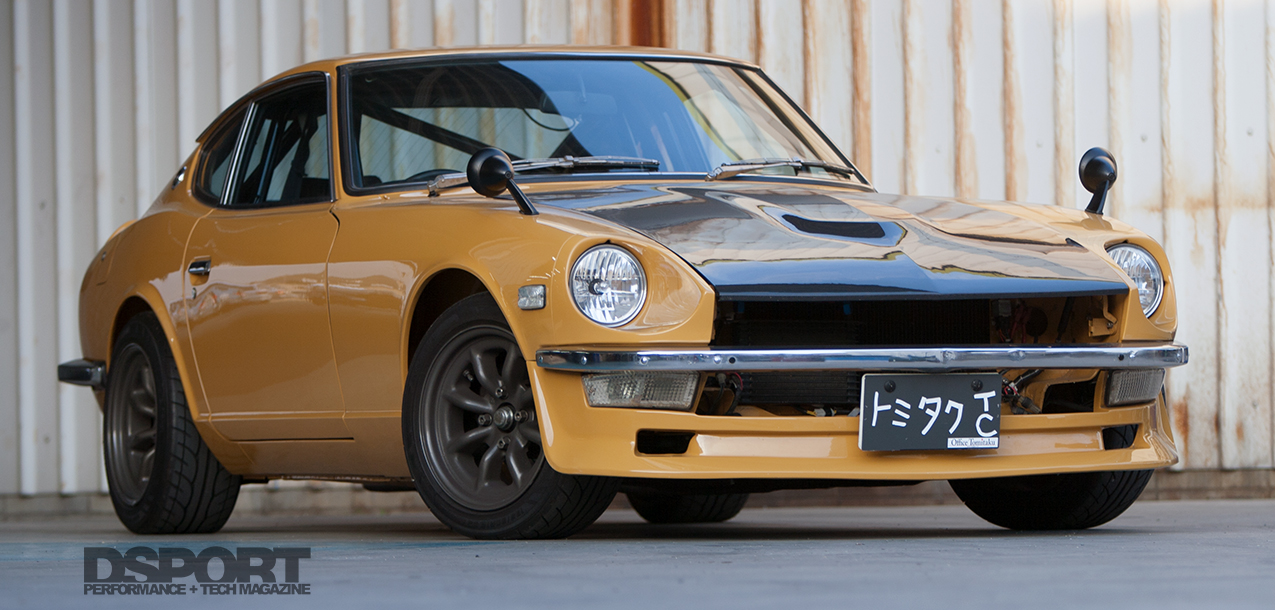

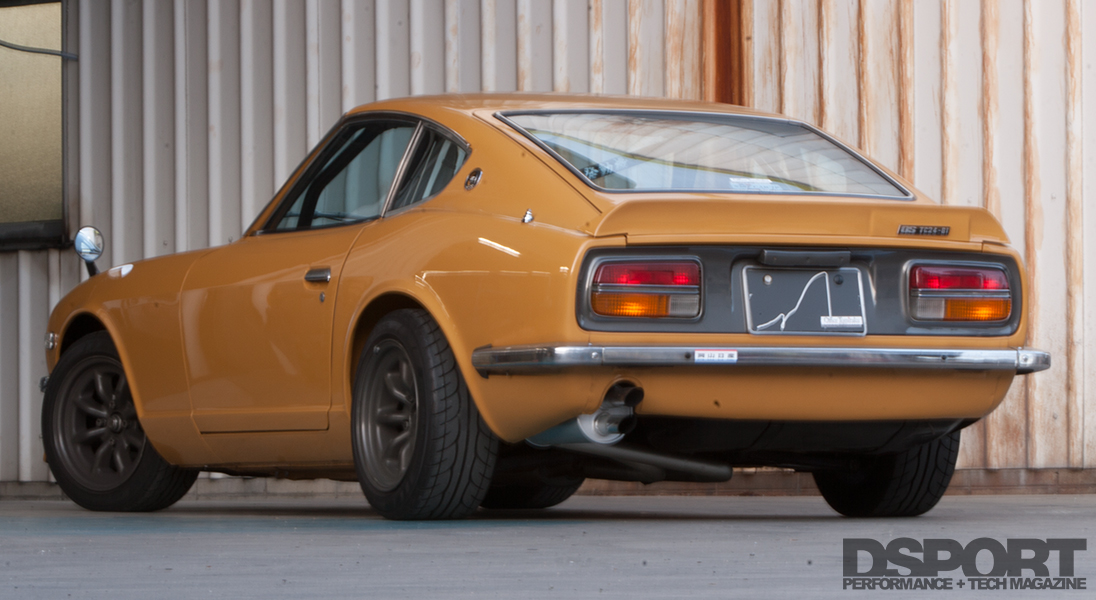

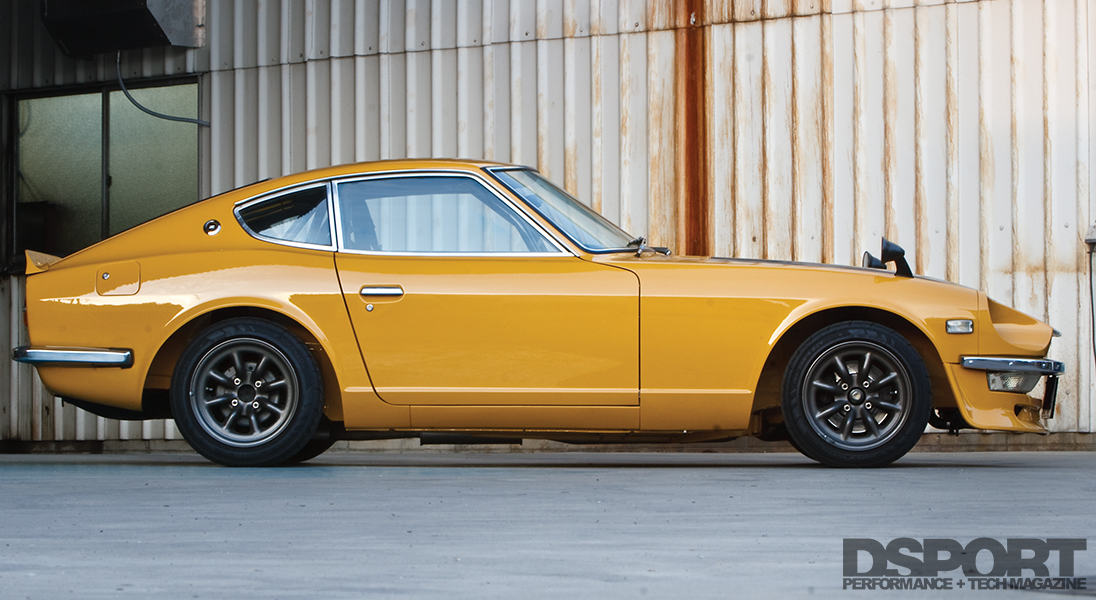

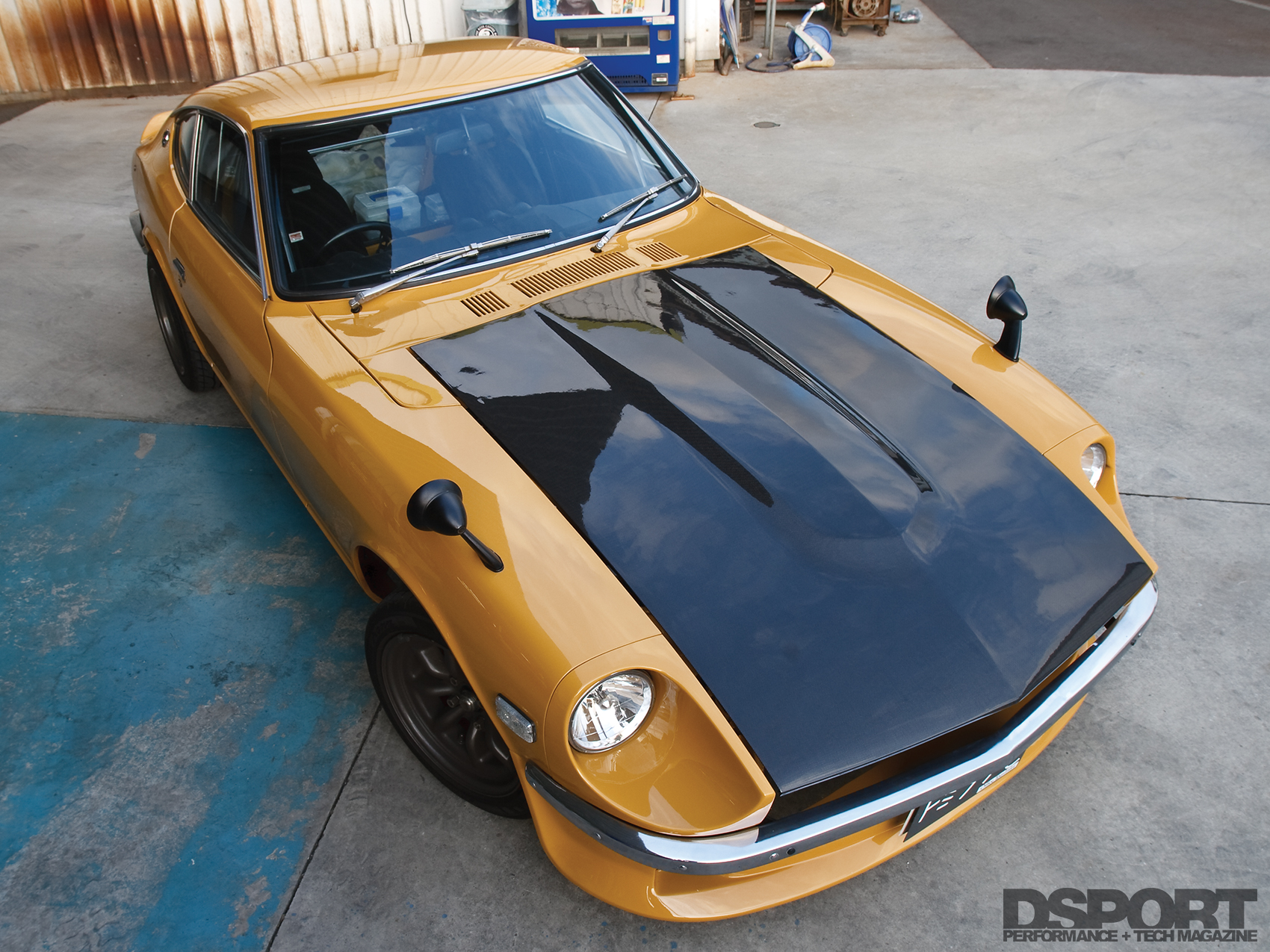

Side shot of Tomitaku's Datsun 240Z

A Rare Gem

The legendary heritage of Nissan’s Z is shared with another motorsports legend, OS Giken’s president Osamu Okazaki. Okazaki designed the TC16- MAII cylinder head for the Datsun 510 Blue Bird in the early 1970’s. This cylinder head featured a pent roof-style combustion chamber and four-valves per cylinder. These TC16-equipped Blue Birds were making around 232 horsepower and were practically unchallenged on the streets of Japan. In the late 70’s, Okazaki took it upon himself to improve on the L28 engine of the 280ZX. The performance benchmark of the time was the 1977 Porsche 930 Turbo, and the objective was to improve the L28 to surpass the Porsche’s performance. Okazaki designed a new cylinder head for the L28, dubbed the OS Giken TC24-B1. The total number of heads manufactured was nine. Even so, the heads were sold and promised power was delivered but the comparison between the Z and Porsche didn’t happen. At the time, 930 Turbos were exceptionally rare in Japan, making a heads-up comparison difficult to arrange.

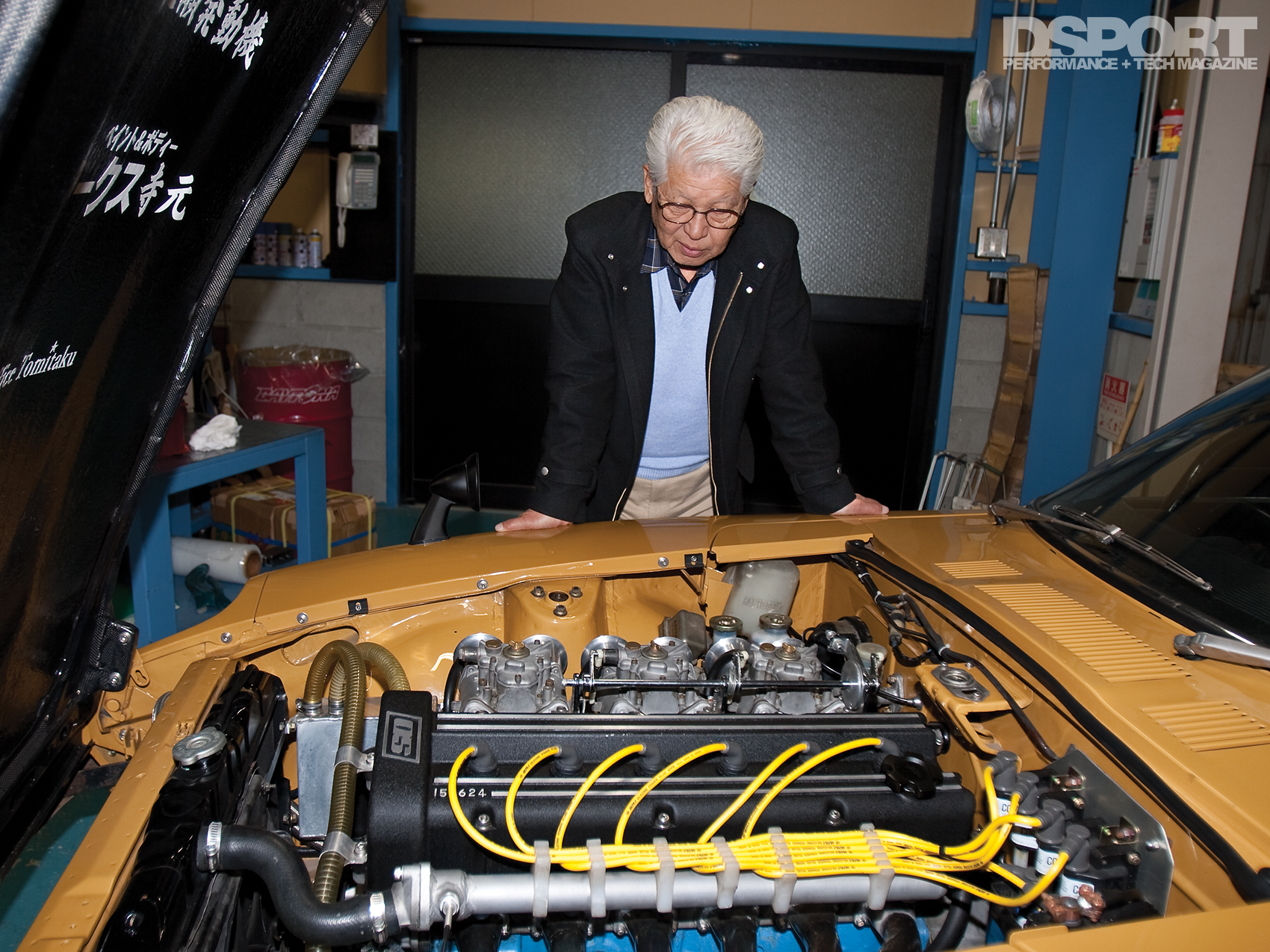

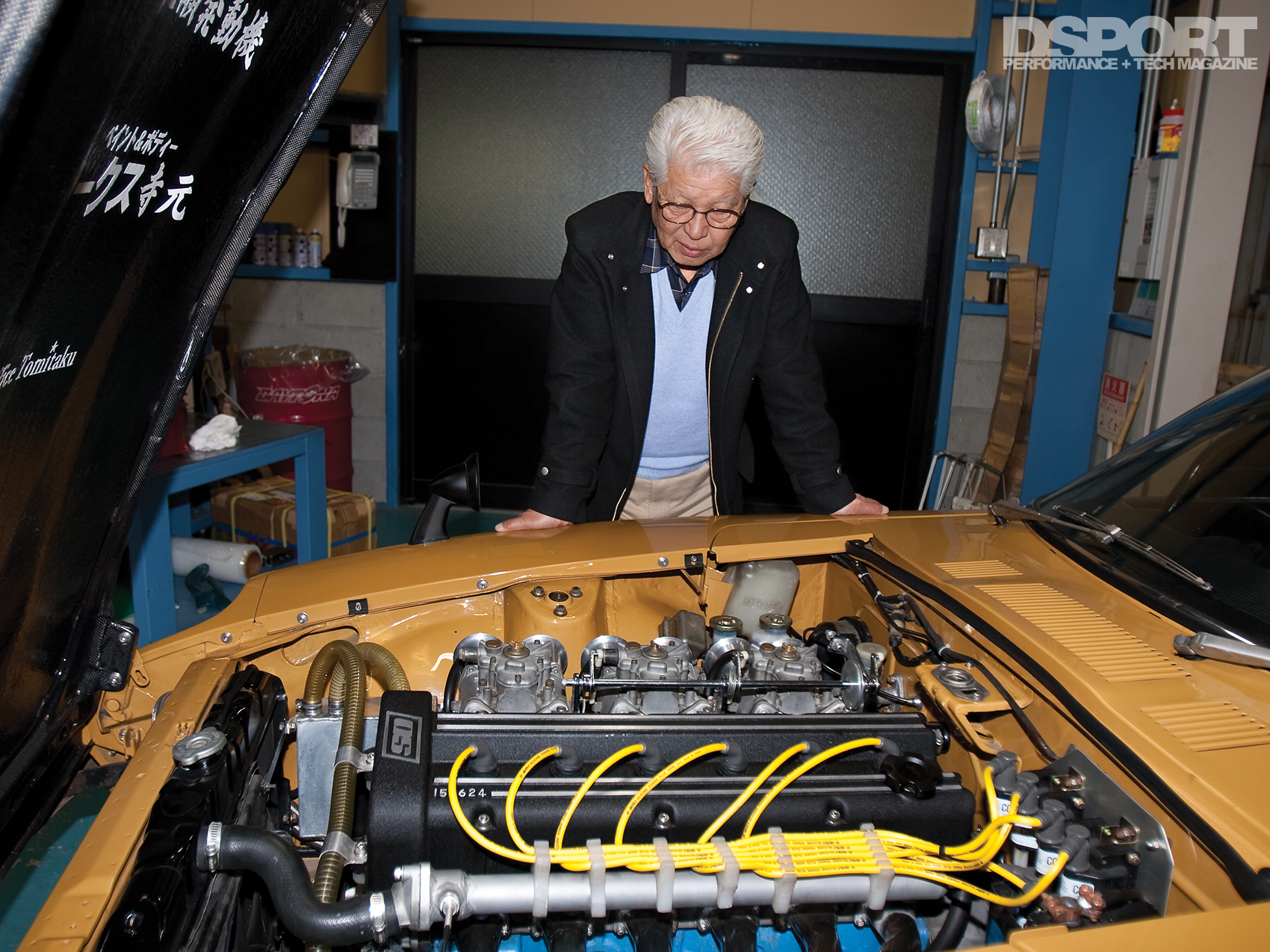

Osamu Okazaki looks over Tomitaku's Datsun 240Z

OS Giken’s President Osamu Okazaki humbly reminisces about the TC24-B1 development.

Challenge Revisited

Takuya “Tomitaku” Tomimatsu, one of OS Giken’s top engineers, has a love for the classics; especially the Fairlady Z. Tomitaku uncovered a veritable treasure trove in an OS Giken warehouse, including a forgotten TC24-B1 cylinder head among other L28 racing components. Not long after, he was reminded of Okazaki’s old challenge objectives as he reminisced with classic car aficionados. He then became obsessed with comparing the 930 Turbo to a Z with a TC24-equipped L28. Given the rarity of the challengers, he had his work cut out. After finally locating and restoring a 1979 Porsche 930 Turbo to factory fresh condition, Tomitaku found a 1974 S30 chassis to build upon. He began building his S30 contender in the quest to see the challenge come to fruition.

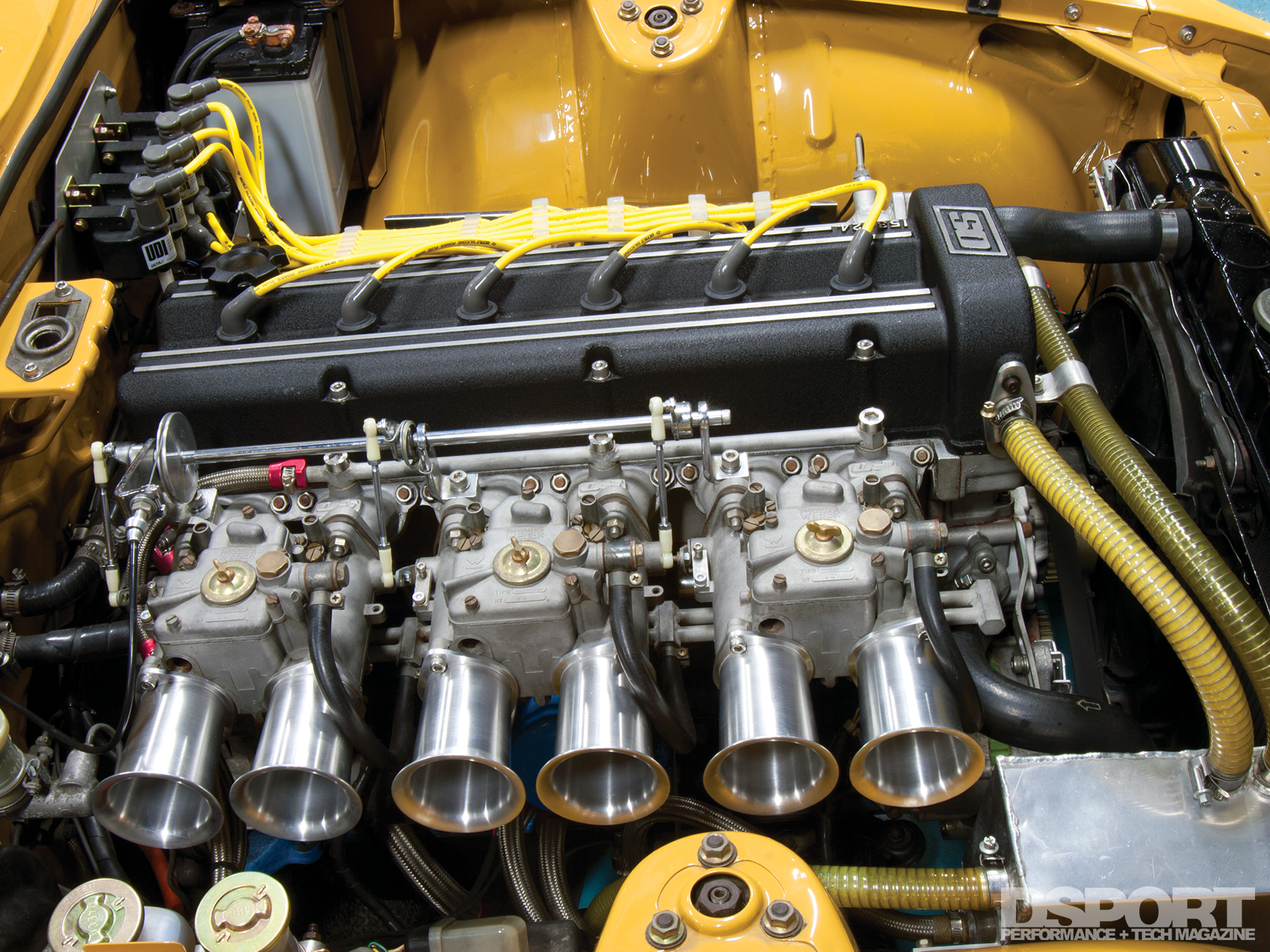

Tomitaku's Datsun 240Z L28 engine

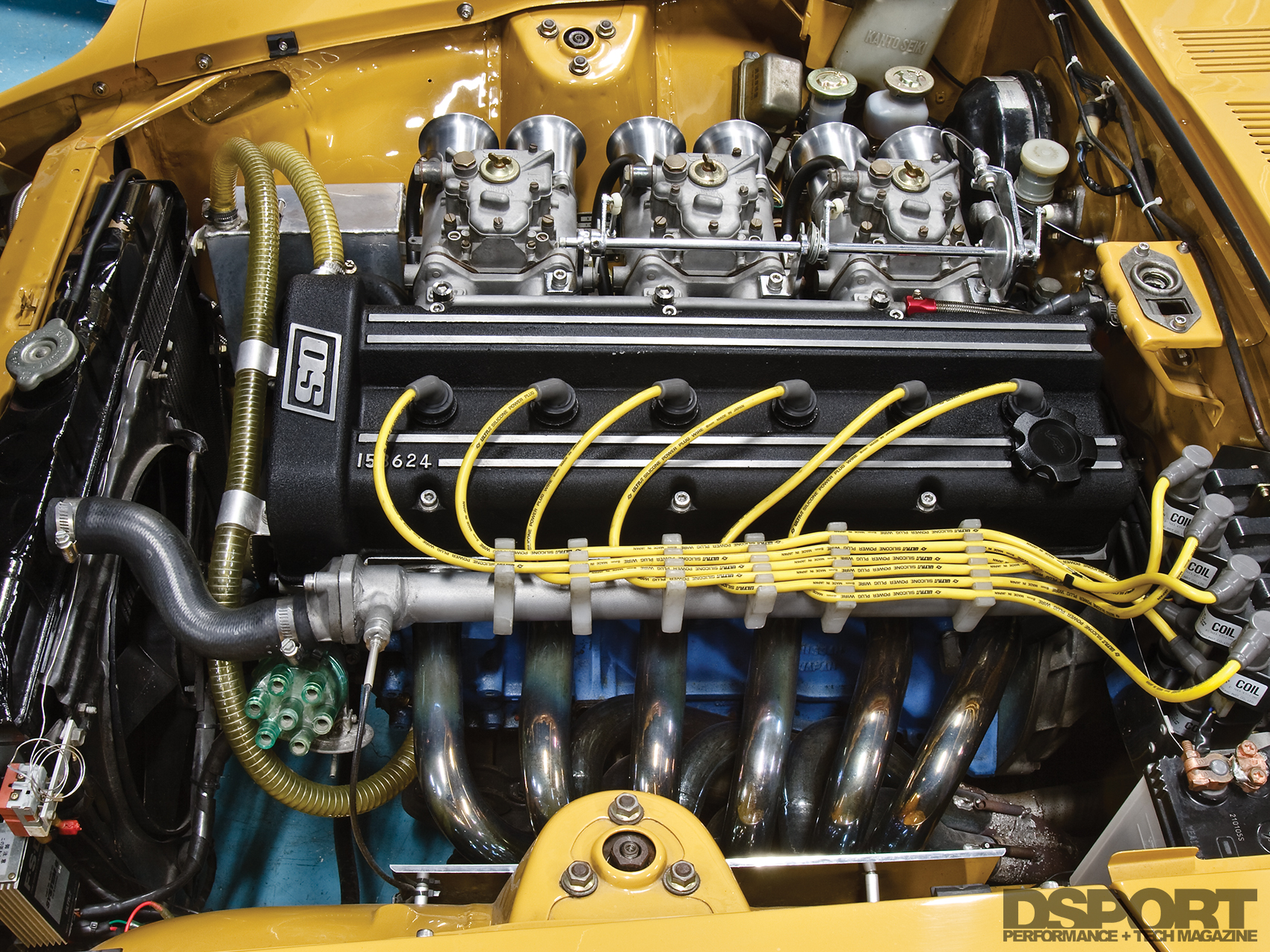

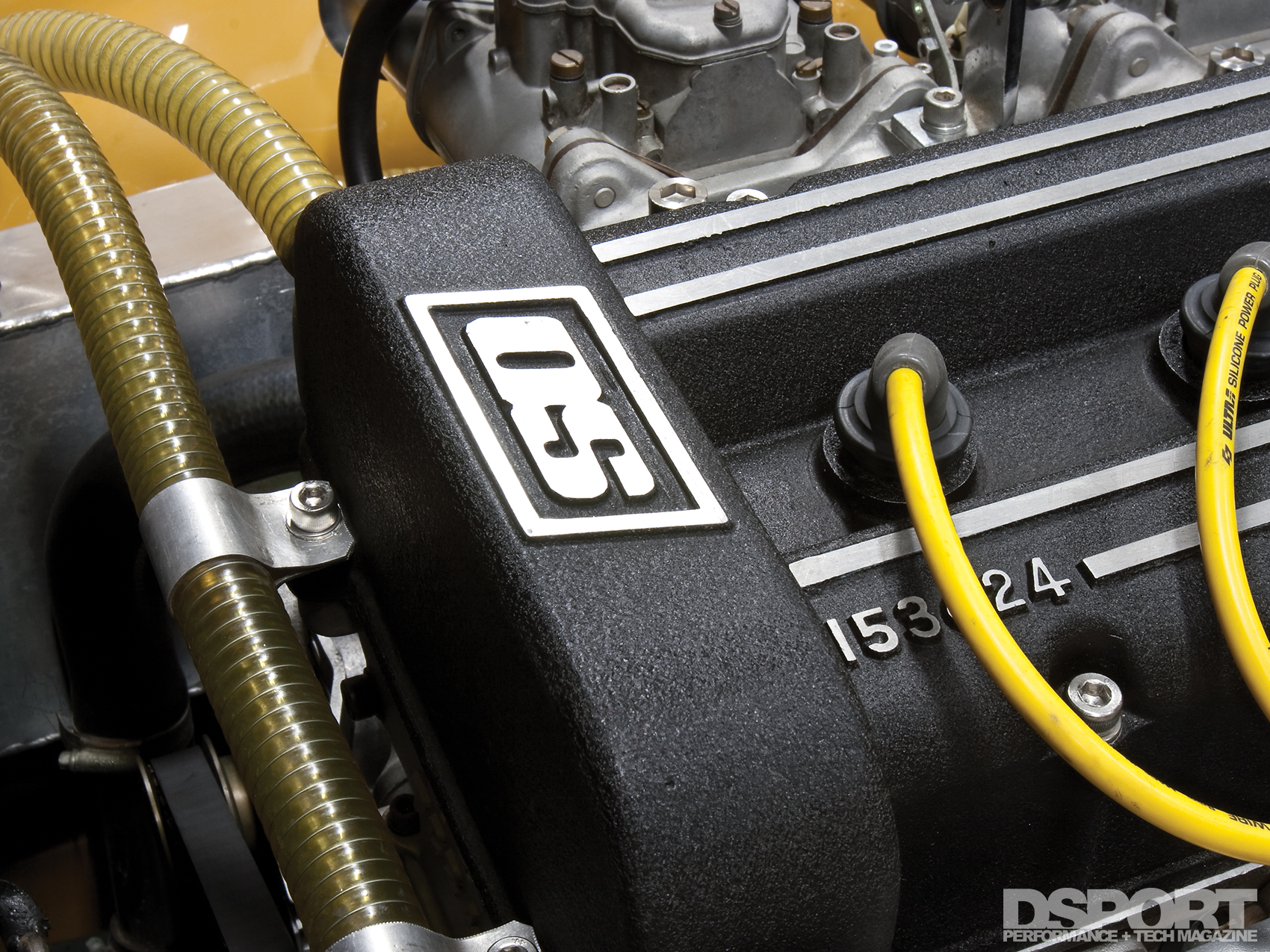

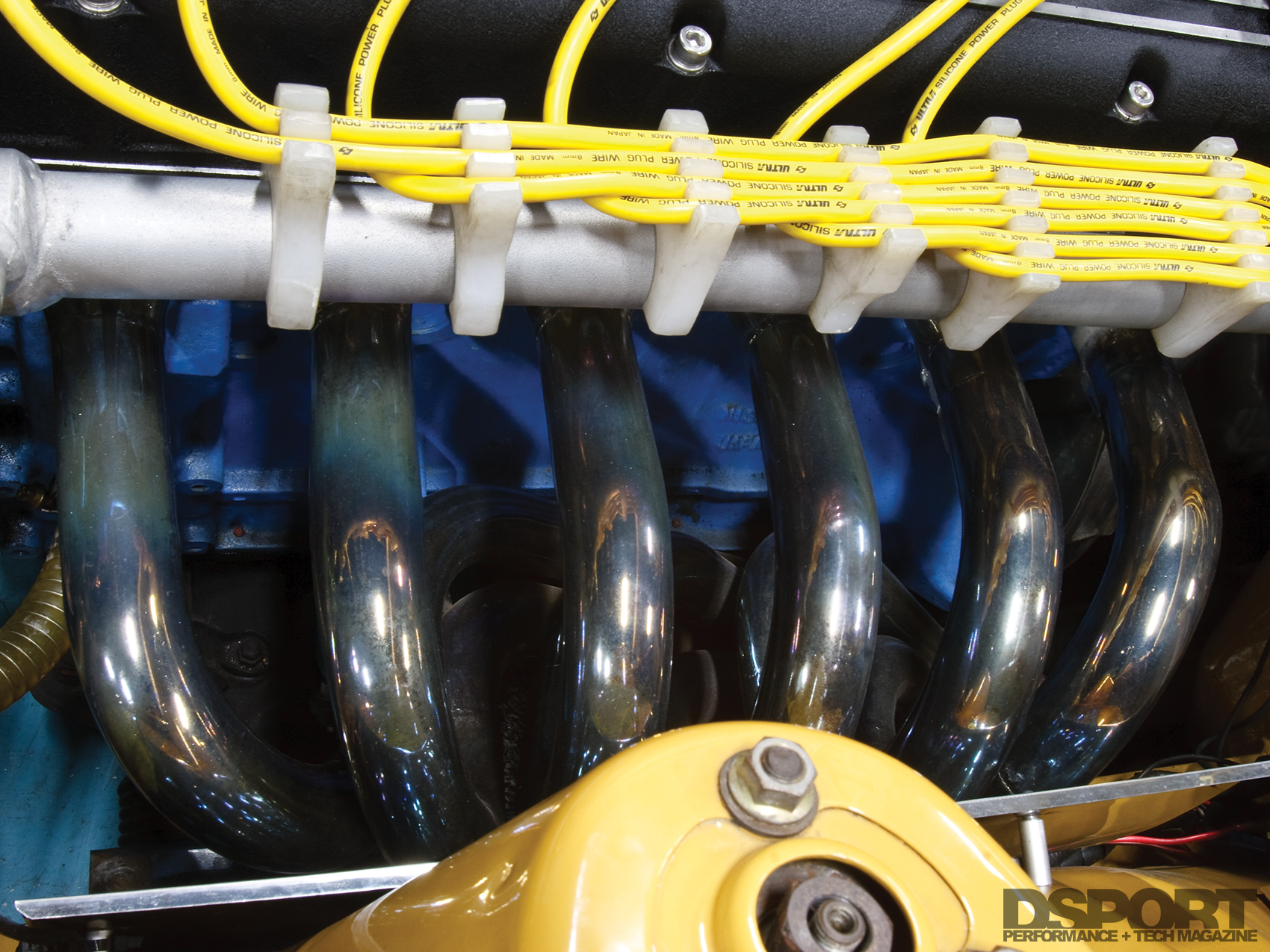

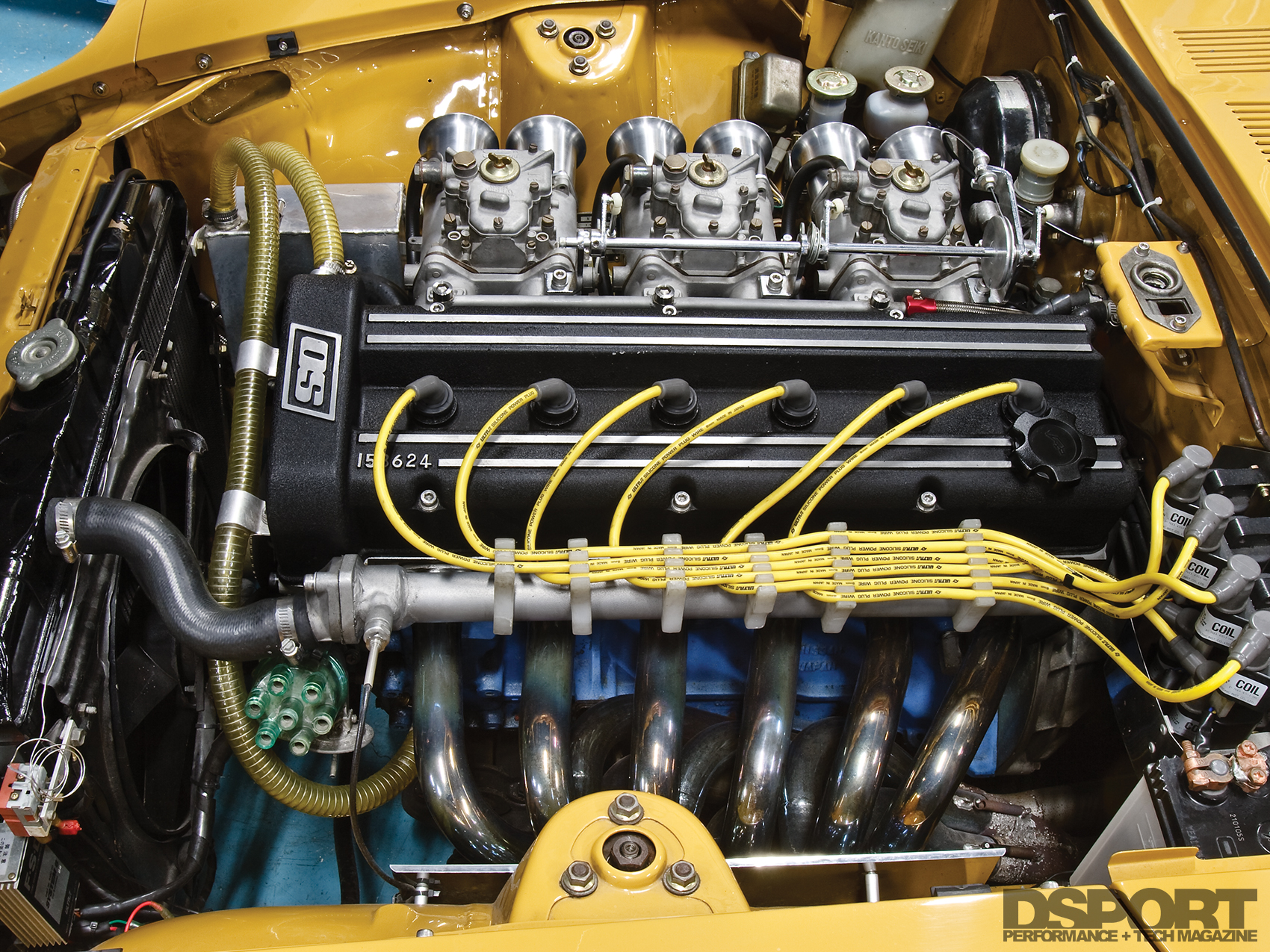

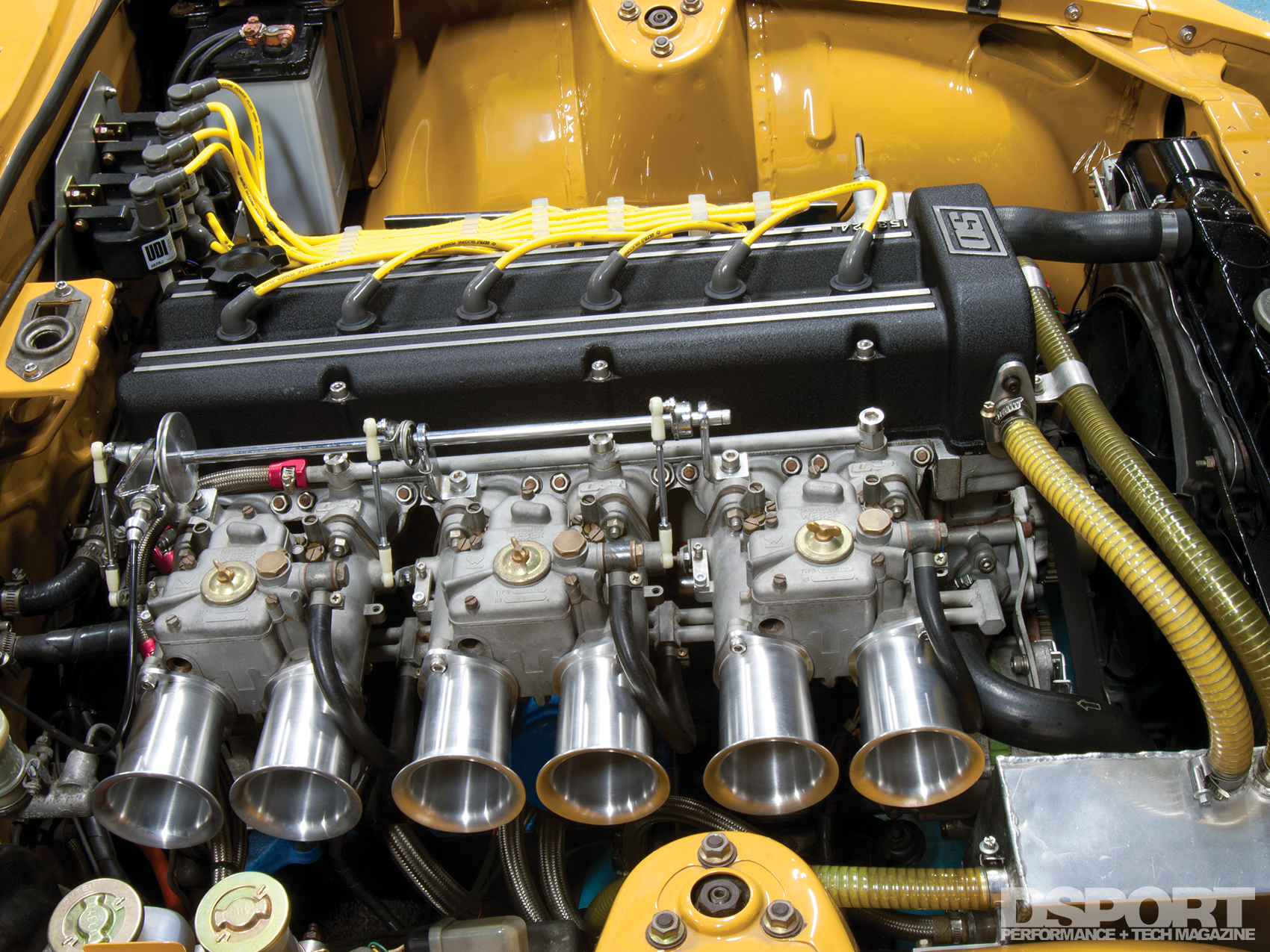

The TC24-B1-equipped L28 features Ultra CDI ignition coils supplying spark energy to the NGK plugs. Tomitaku fabricated an equal-length stainless-steel header to channel exhaust gasses through a custom exhaust to the rear of the chassis.

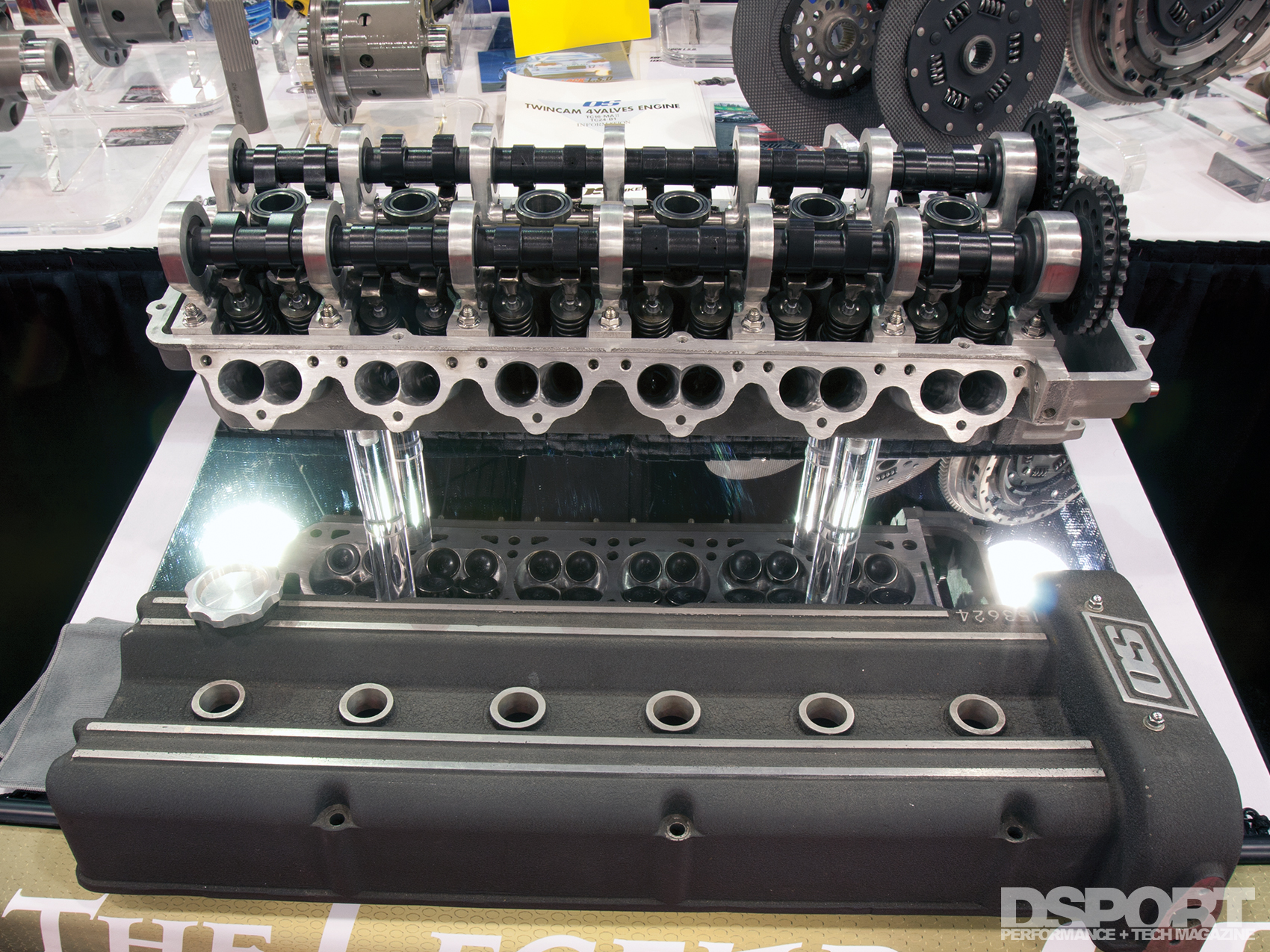

OS Giken TC24B1 DisplayOS Giken’s TC24-B1 – Proving That Four Are Better Than Two

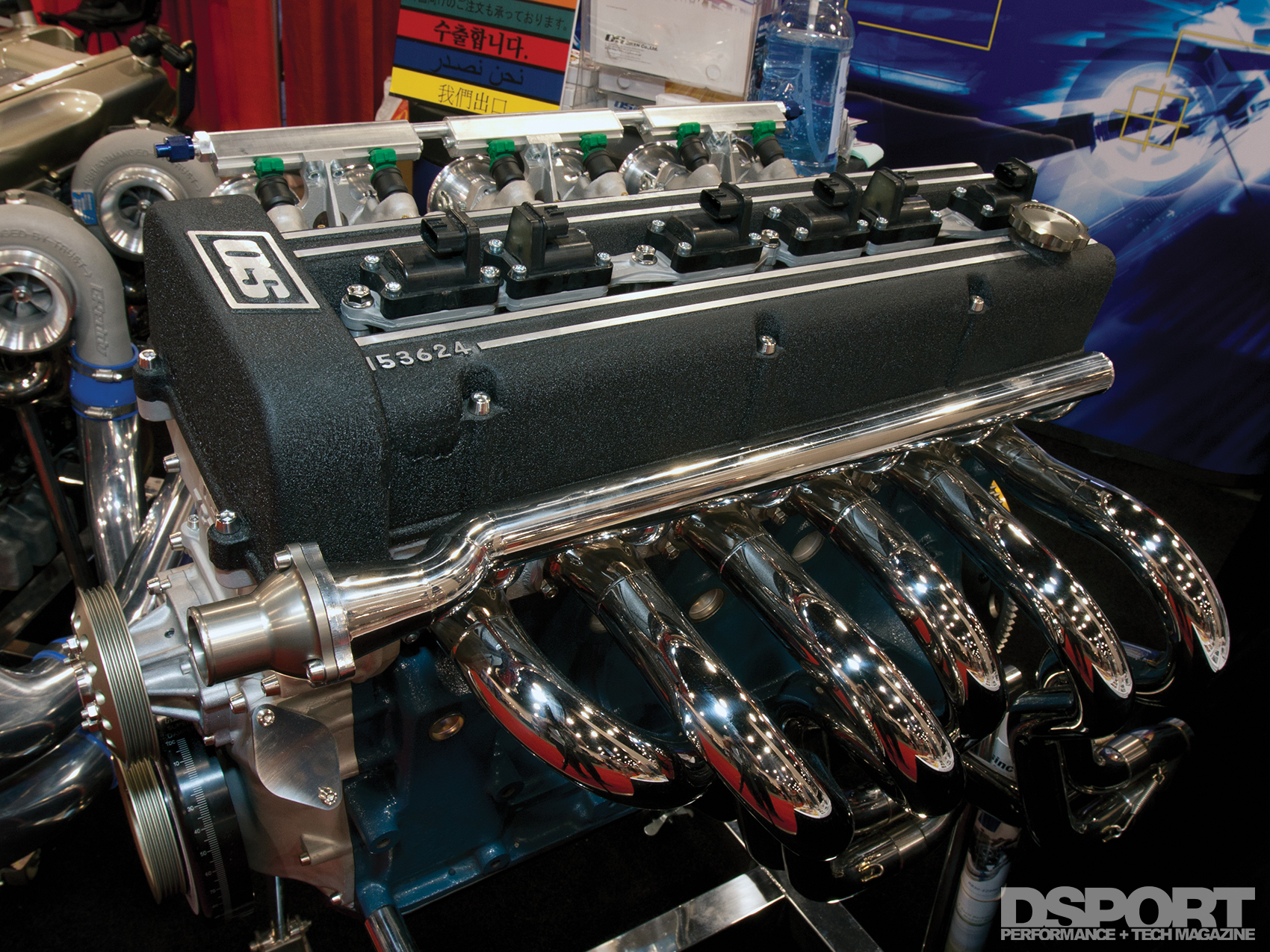

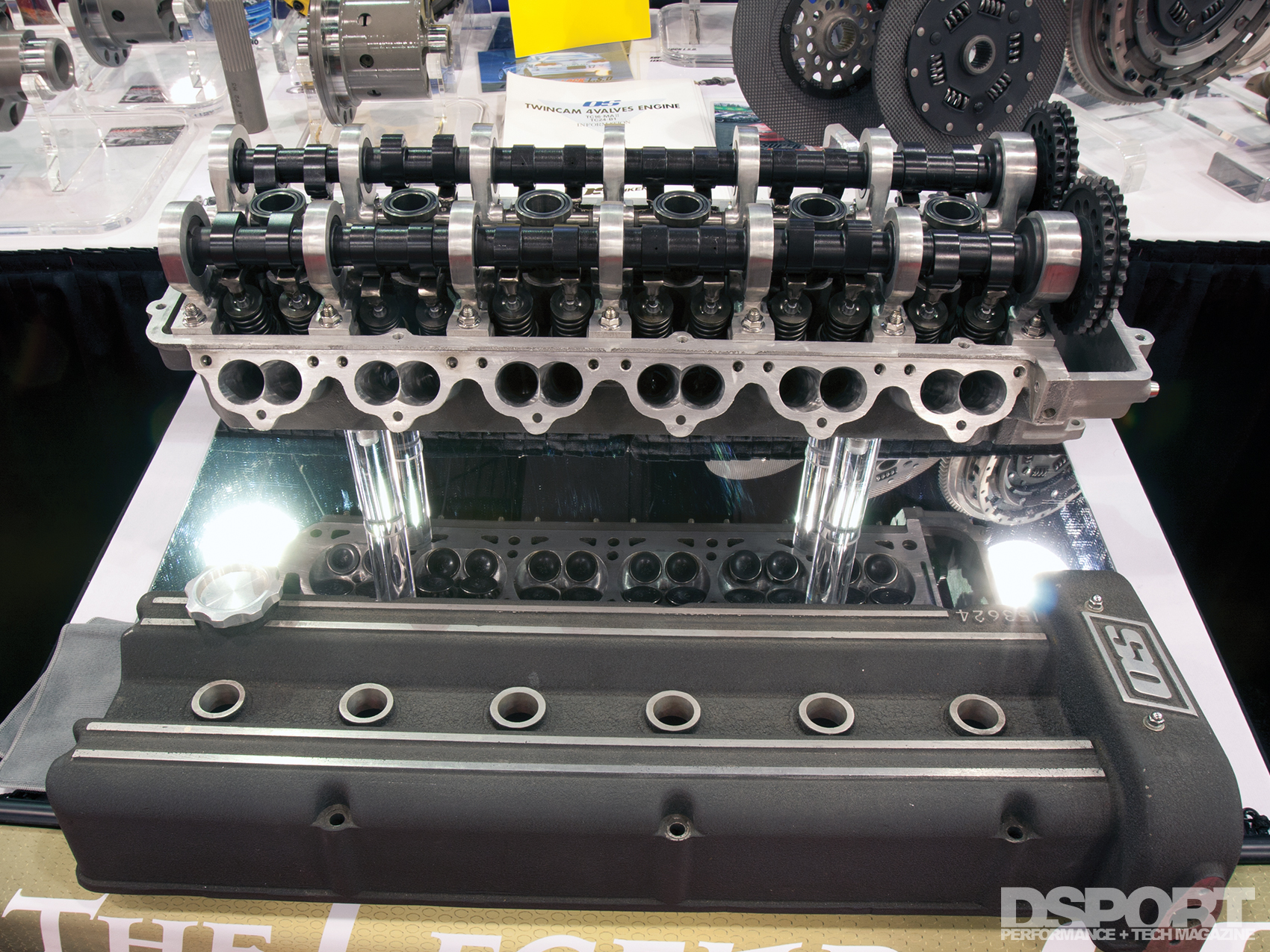

Nissan’s six cylinder, 2.8-liter L28 engine came from the factory with two-valves per cylinder and a wedge-shaped combustion chamber. OS Giken’s TC24-B1 cylinder head features dual overhead cams, a pent- roof combustion chamber and four valves-per-cylinder. The volumetric efficiency of four valve-per-cylinder technology along with the pent- roof’s combustion chamber quench pads that improve air and fuel mixing and combustion prove an effective combination, elevating the L28 horsepower output. In Tomitaku’s case, nearly double the horsepower was generated.

S30 Prize Fighter

Tomitaku wasted little time sourcing an L28 block, the cornerstone of the engine bay. A six pack of OS Giken (OS) 12.5:1 compression forged aluminum pistons filled the cylinders while a set of Tomitaku’s own custom-made connecting rods join the pistons to the factory L28 crankshaft. Up top, Tomitaku’s custom-made head studs secure the TC24-B1 cylinder head to the block. Long-duration 320- degree camshafts actuate the valvetrain, making best use of all four valves-per-cylinder and Okazaki’s pent-roof combustion-chamber design.

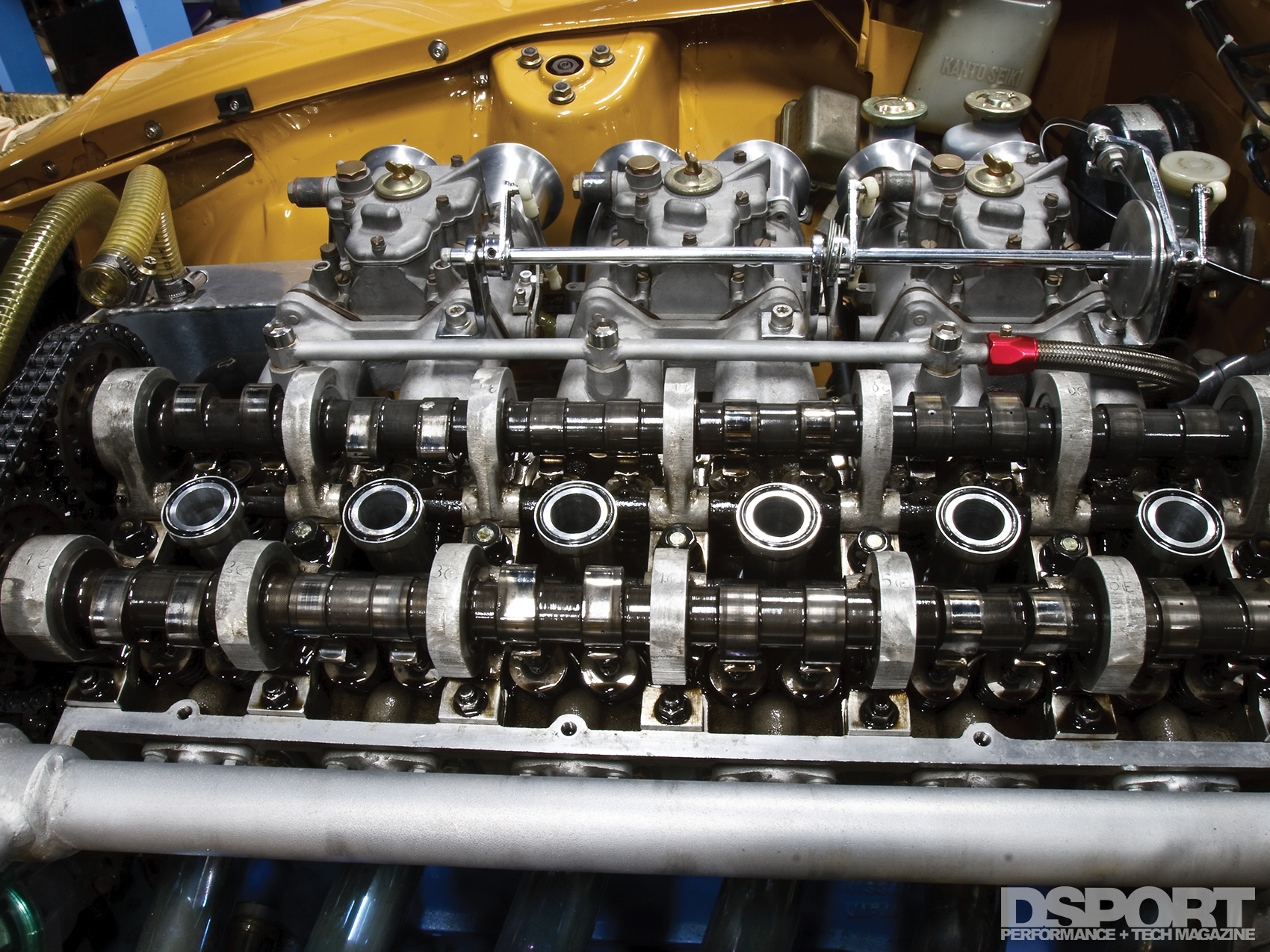

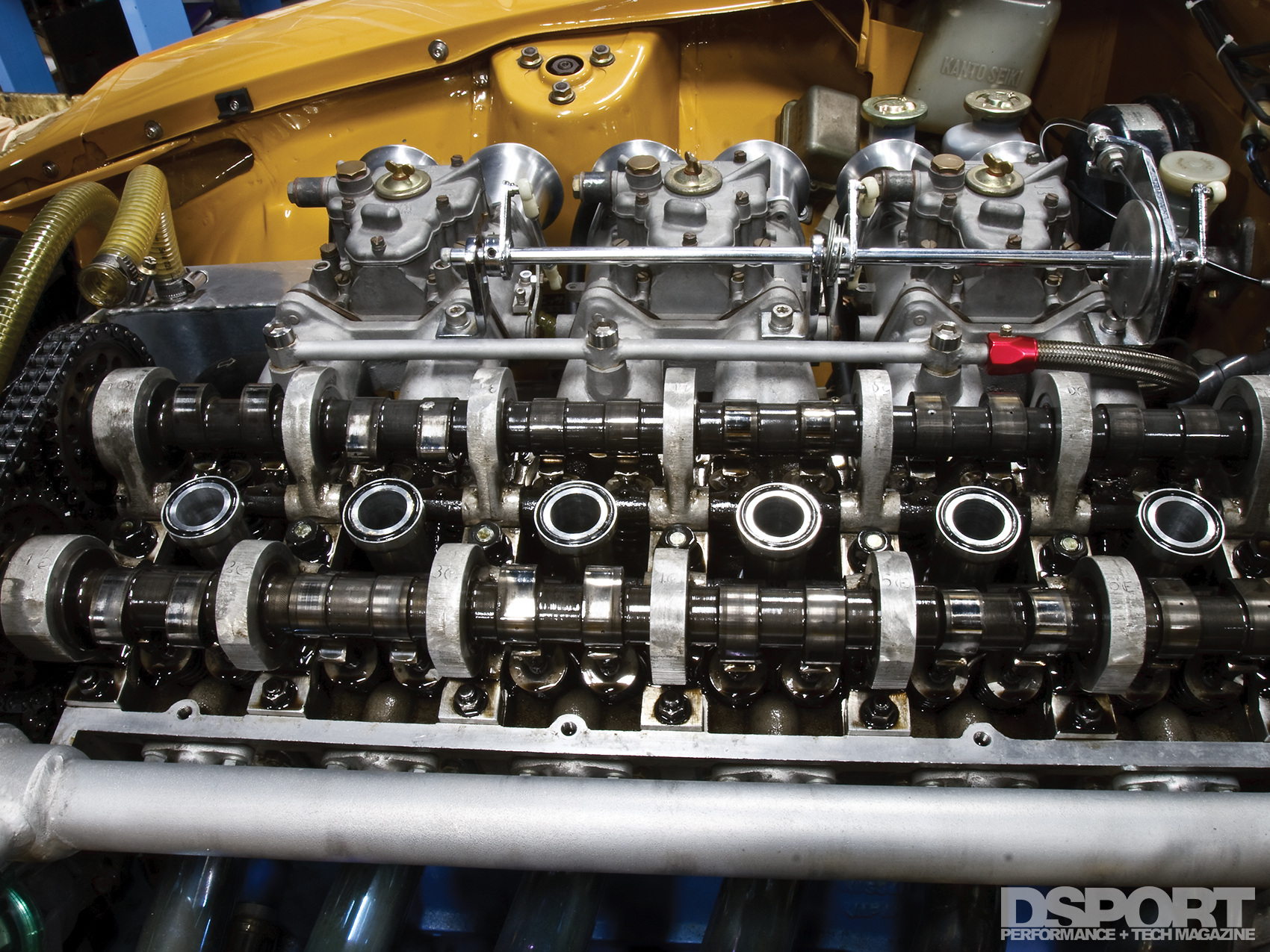

Cams on Tomitaku's Datsun 240Z

Weber carburetors for Tomitaku's Datsun 240Z

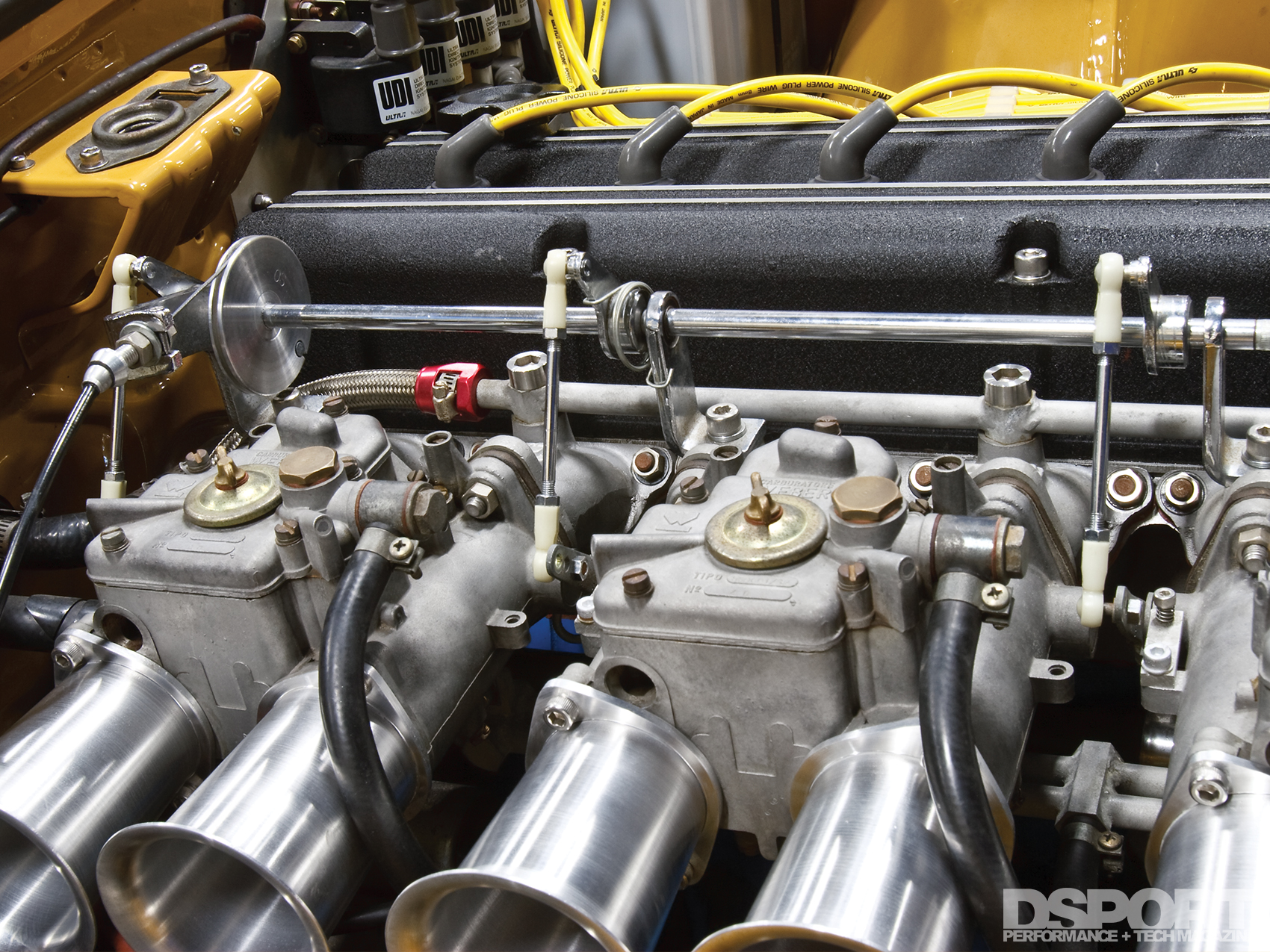

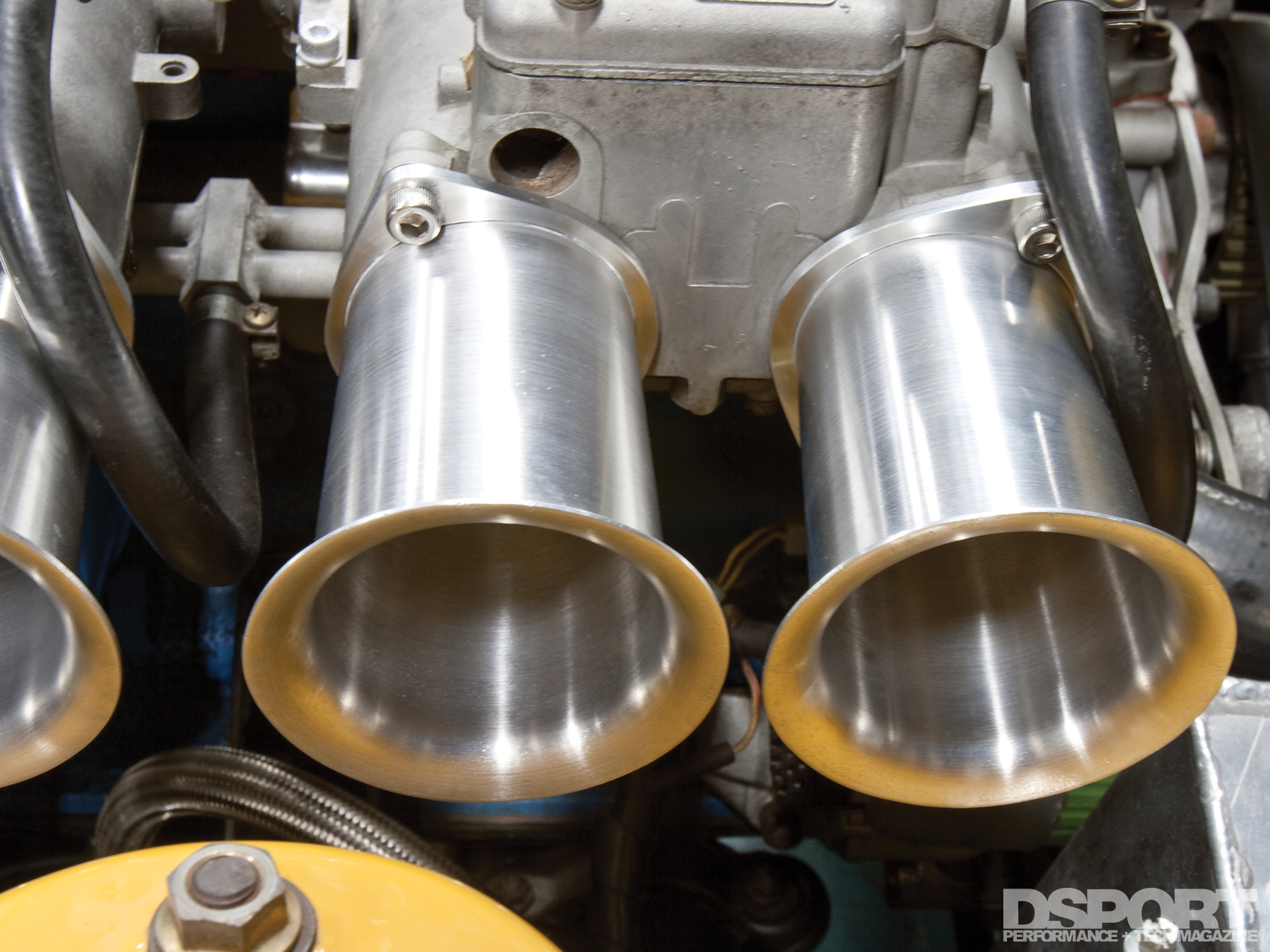

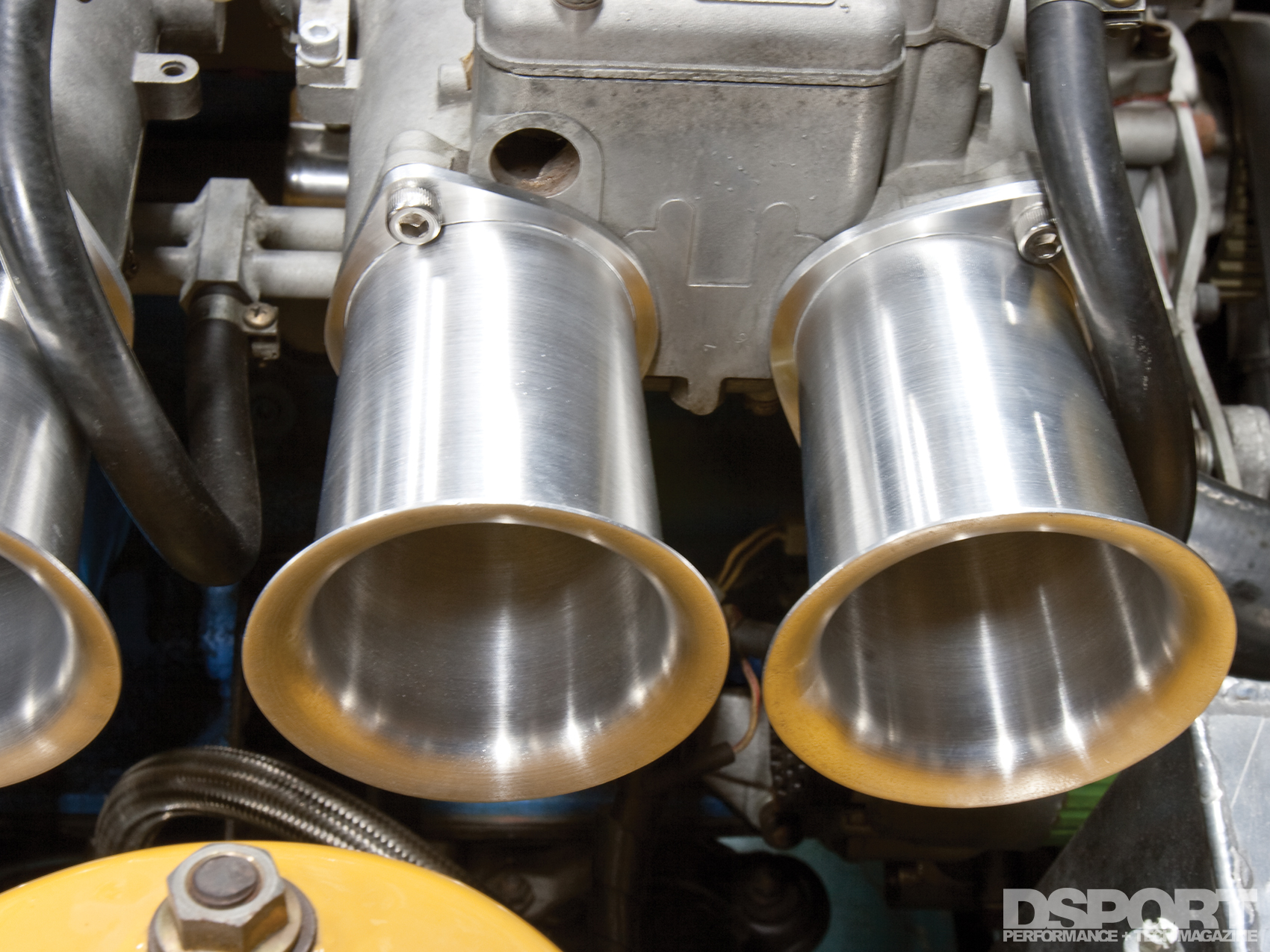

Weber carburetors mate to the head by way of OS Giken aluminum adapters, while Tomitaku’s custom linkage synchronizes the carbs to a single throttle cable.

Fab Fanatic

Tomitaku’s fabrication ability made the build process much smoother, especially since there are few companies that manufacture performance parts for the L28. Induction duties fall on the shoulders of a set of Weber carburetors synced with custom linkage and a custom fuel delivery system. An Ultra CDI dual ignition system supplies the spark energy to the NGK plugs for combustion. On the exhaust side, Tomitaku designed an equal-length stainless-steel header and exhaust system to channel spent gasses to the rear. When rocking the rollers, Tomitaku tuned the TC24- equipped L28 to a best pull of 325 horsepower.

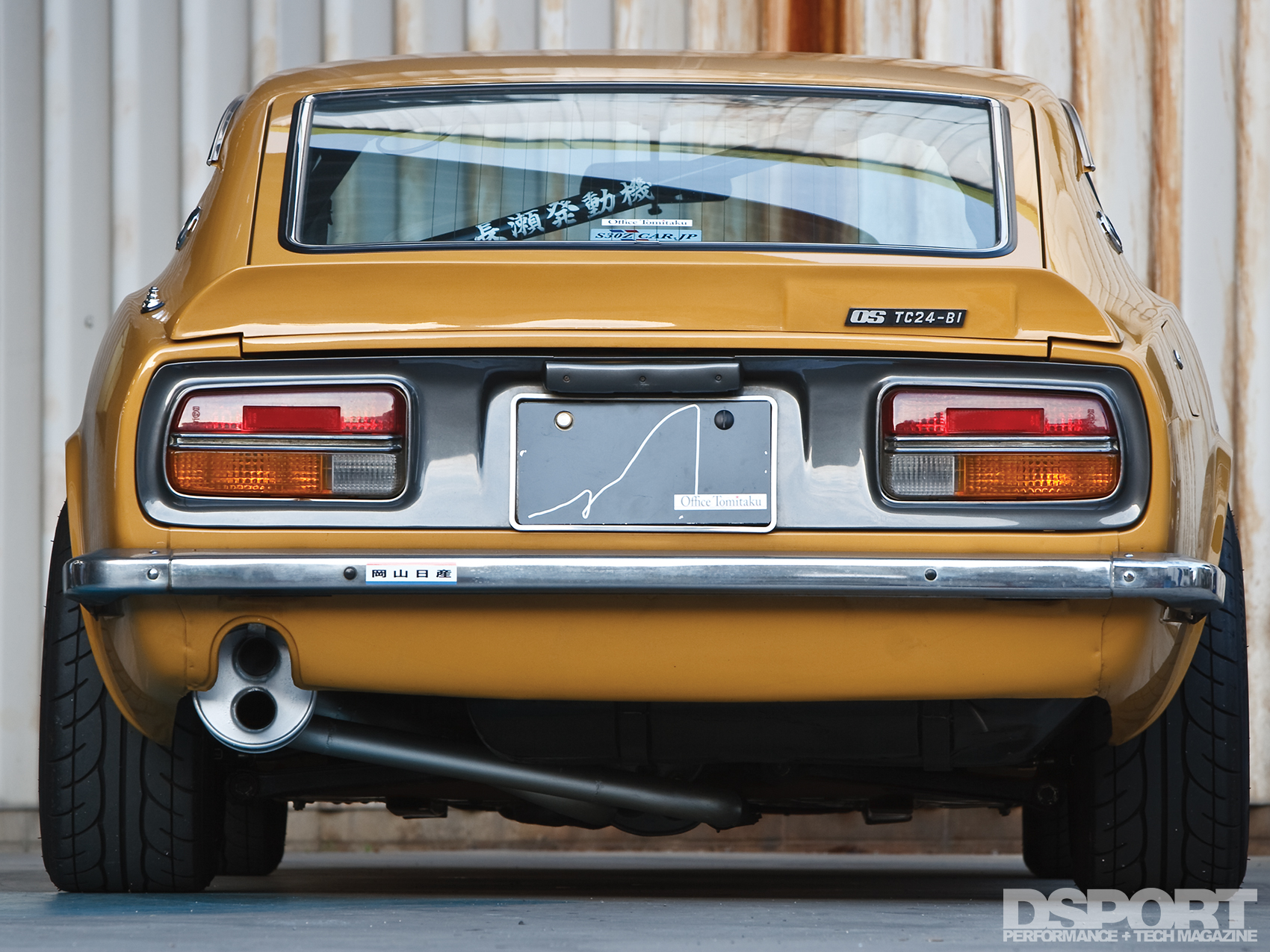

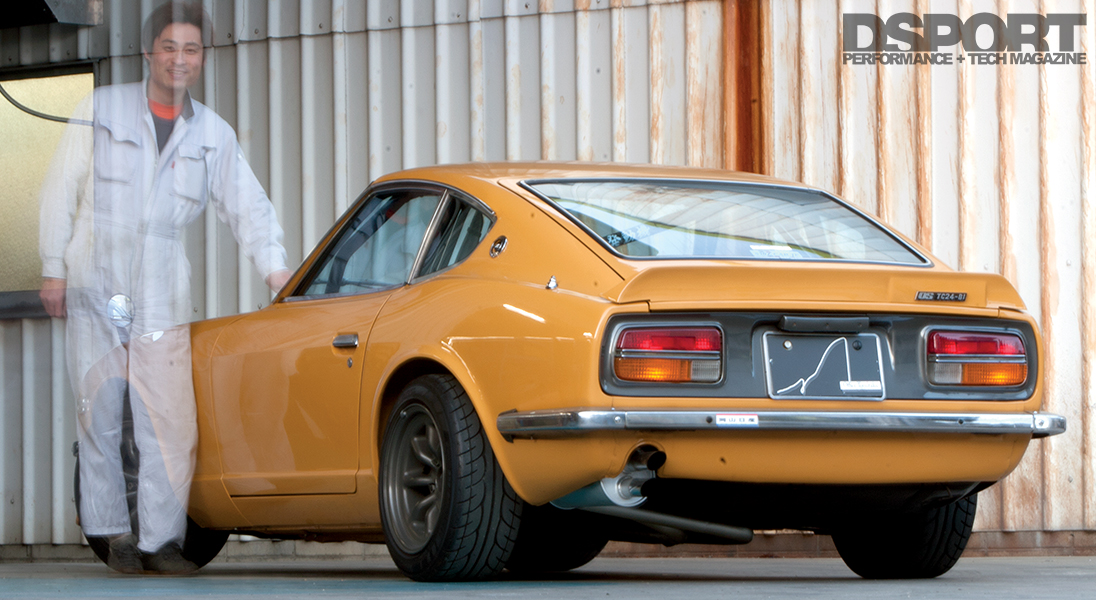

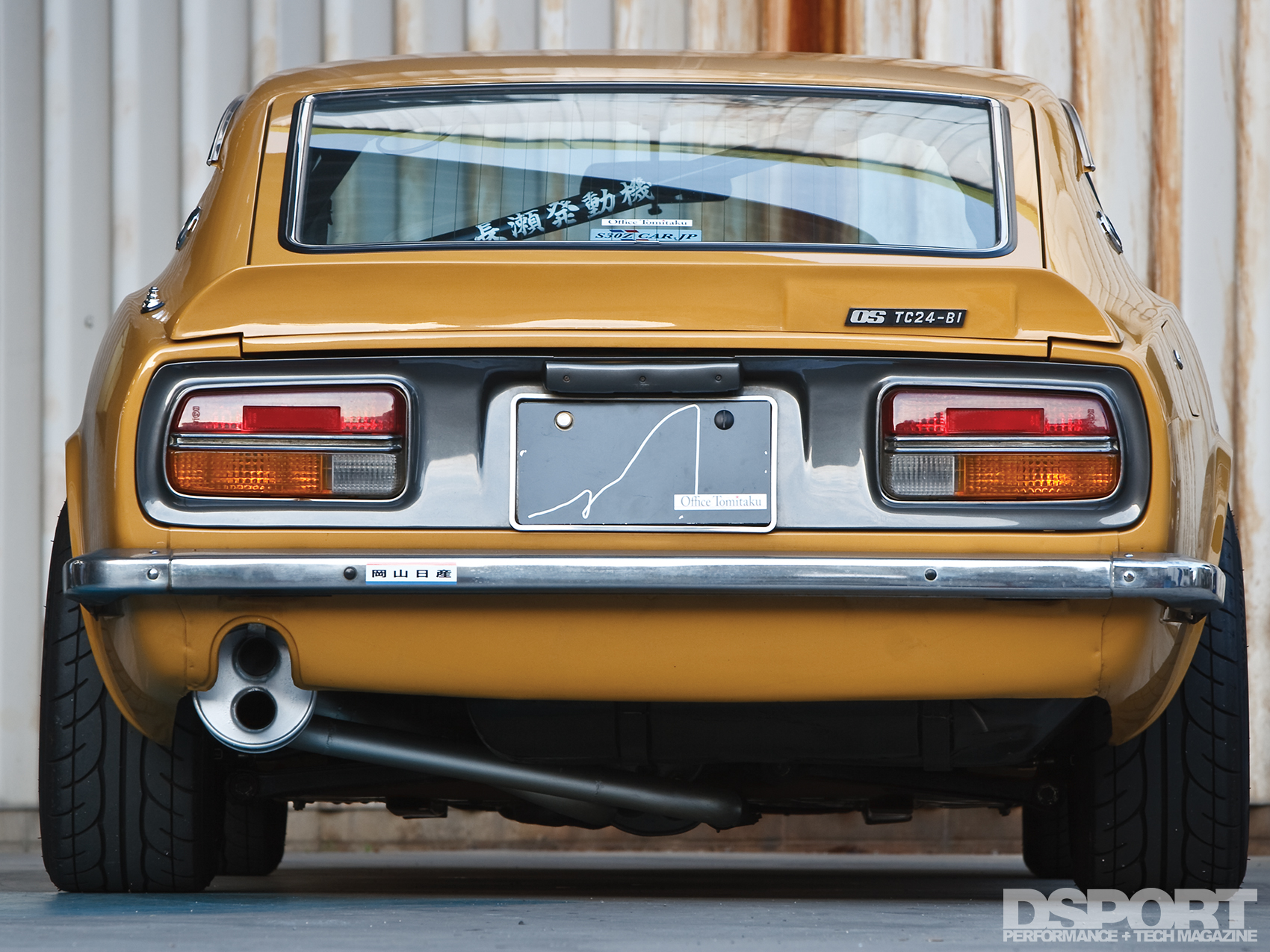

Rear shot of Tomitaku's Datsun 240Z

More Than Just Horsepower

A full complement of OS driveline components harness the power of the refreshed and rebuilt L28 engine. An OS R3A triple-plate clutch mated to the crankshaft transfers power to the input shaft of an OS SR20DET 5-speed close- ratio gearset. A custom propeller shaft turns an OS R180 Super Lock LSD that splits the power between the RS Watanabe wheels. Vintage Nissan “Sports Option” Mk63 4- piston brakes replace the factory pieces for improved braking performance while Energy Suspension bushings and Tokico HTS dampers keep the Yokohama Advan tires planted.

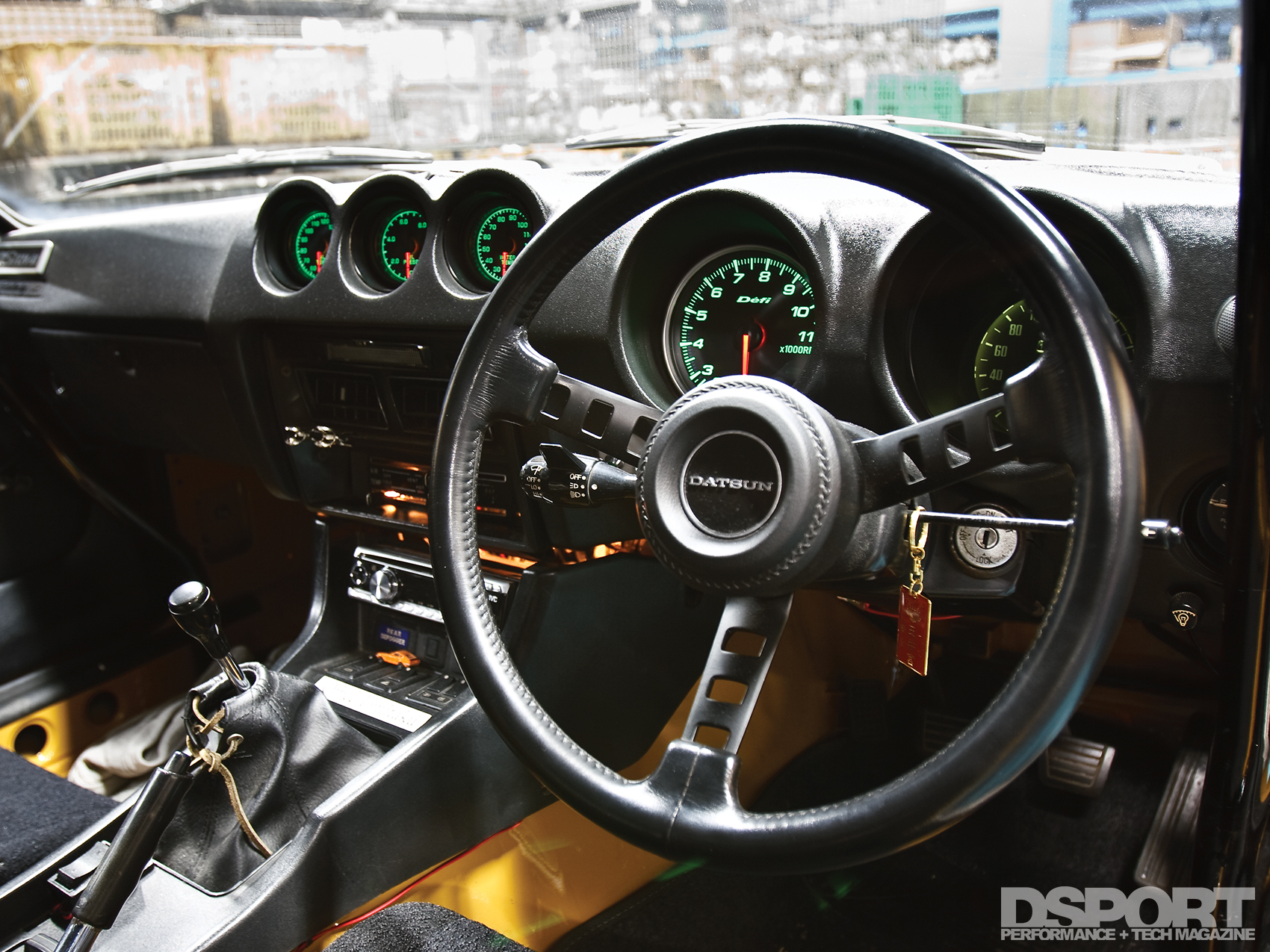

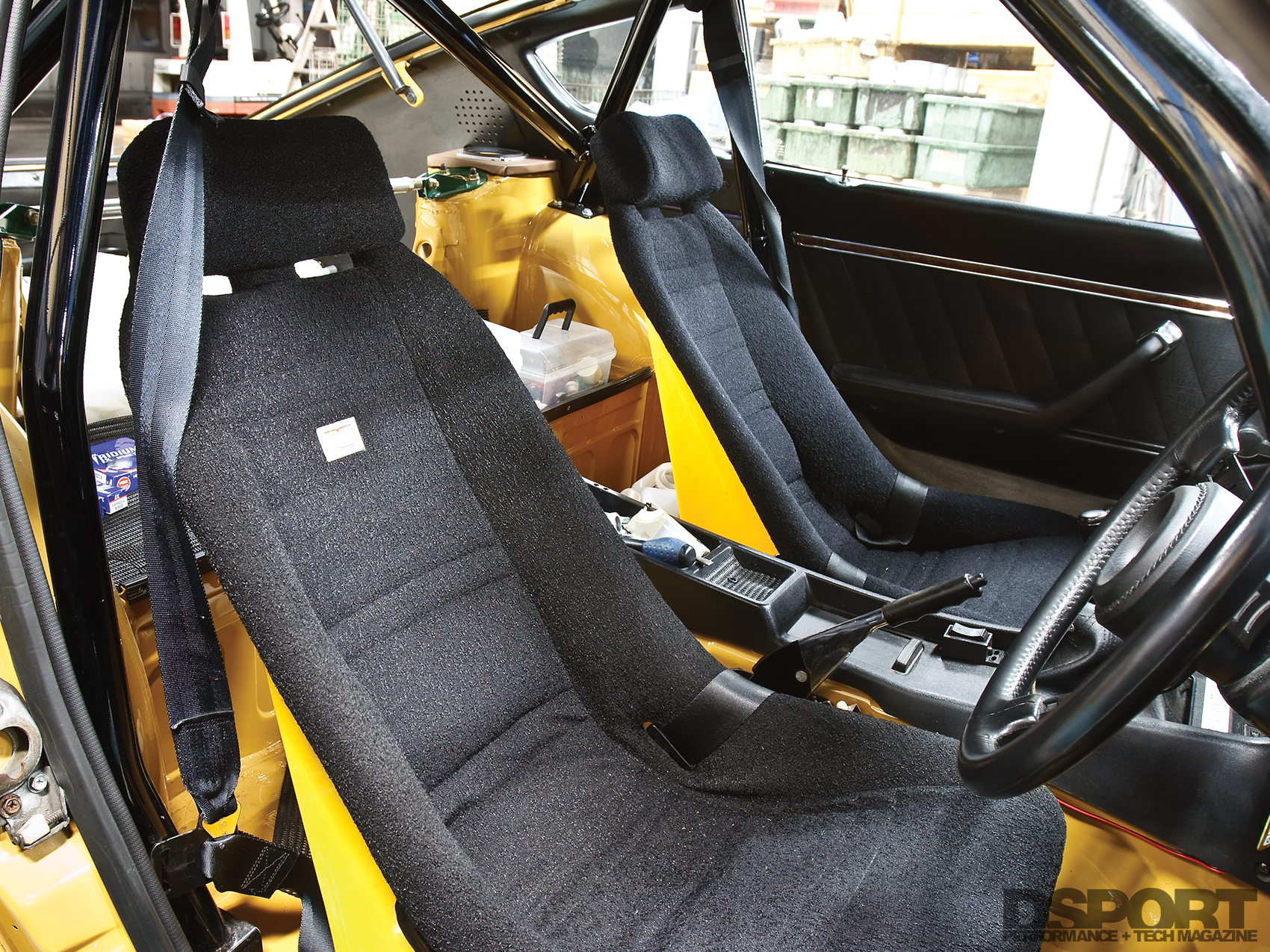

Interior of Tomitaku's Datsun 240Z

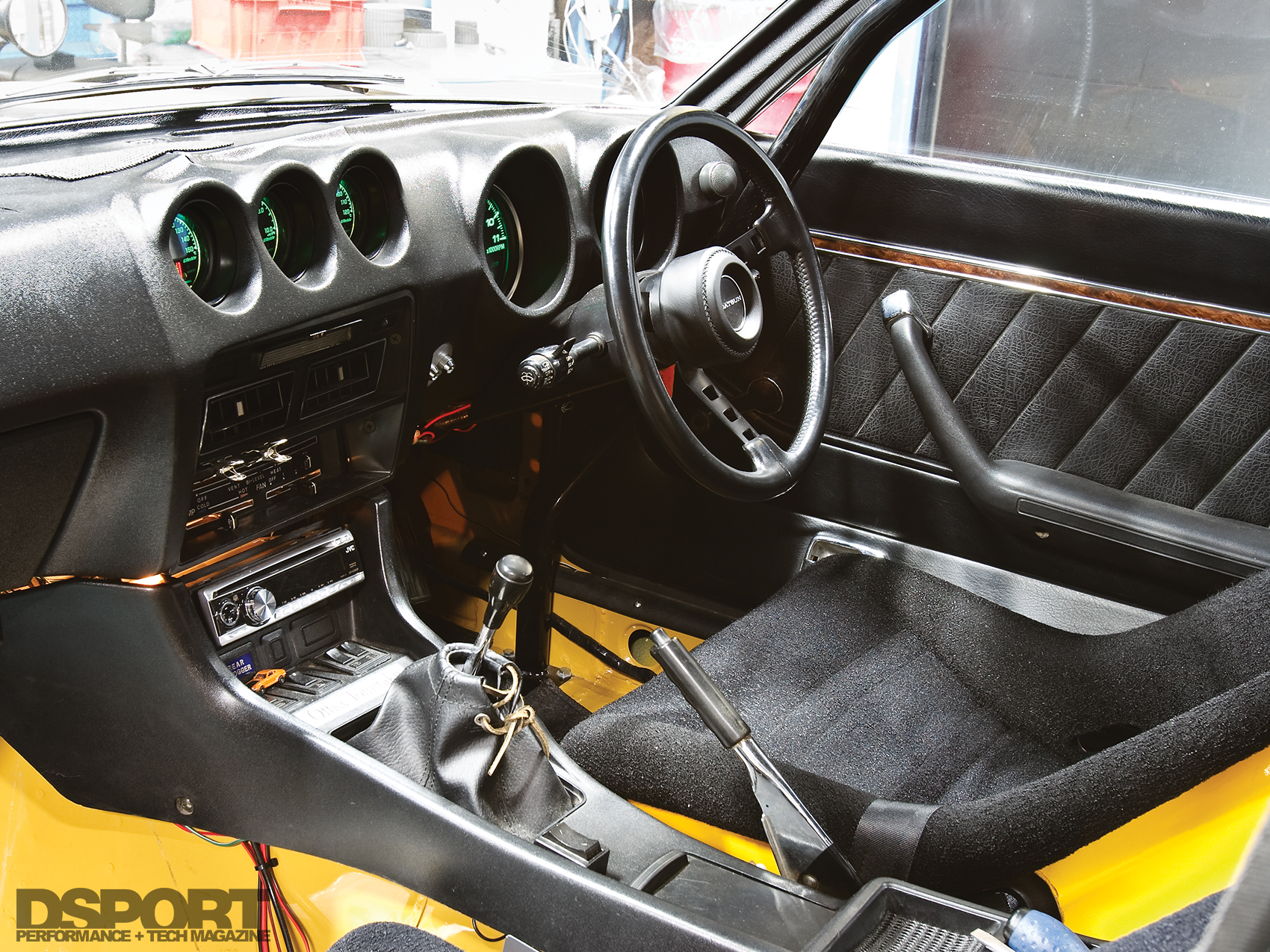

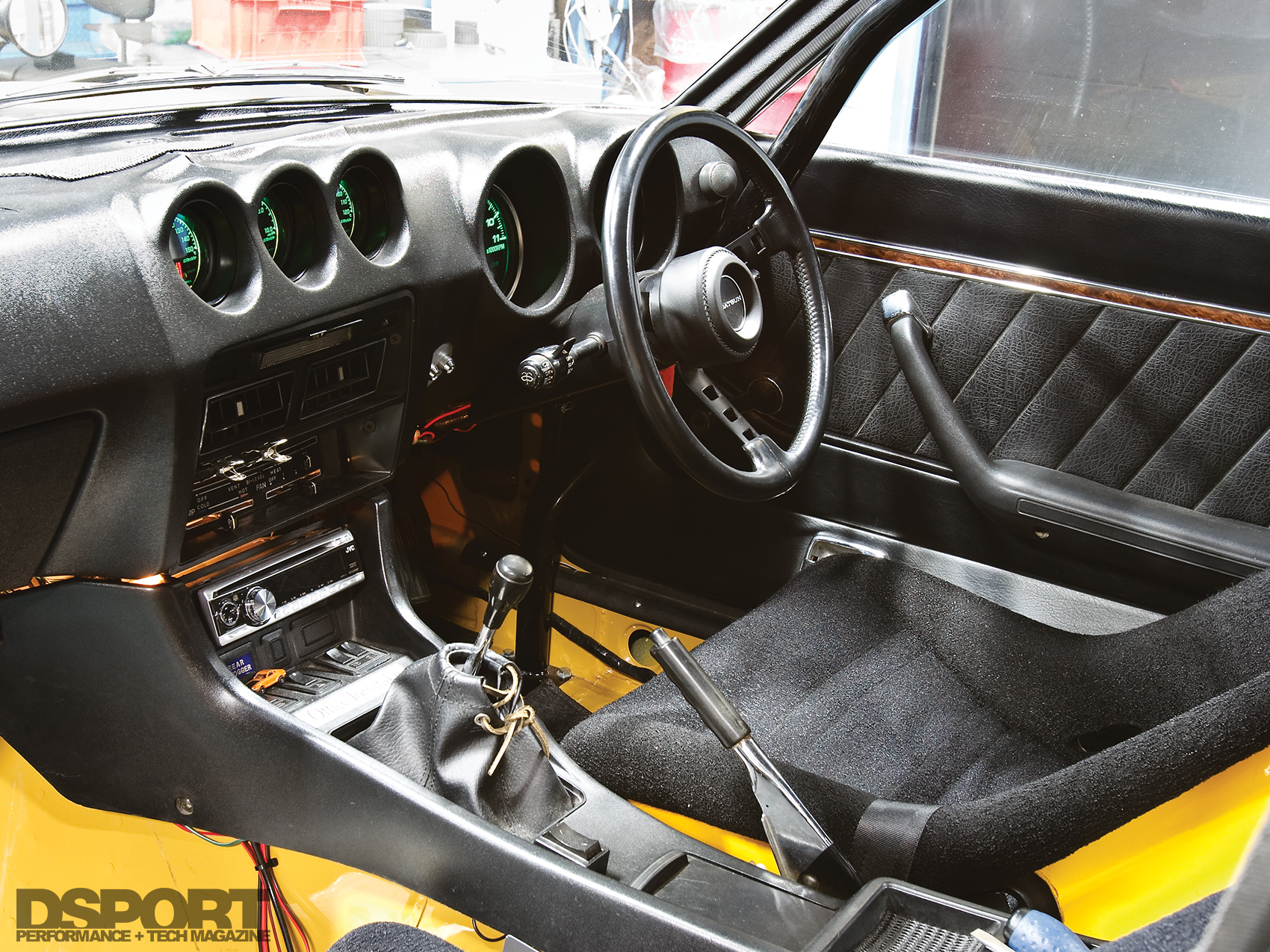

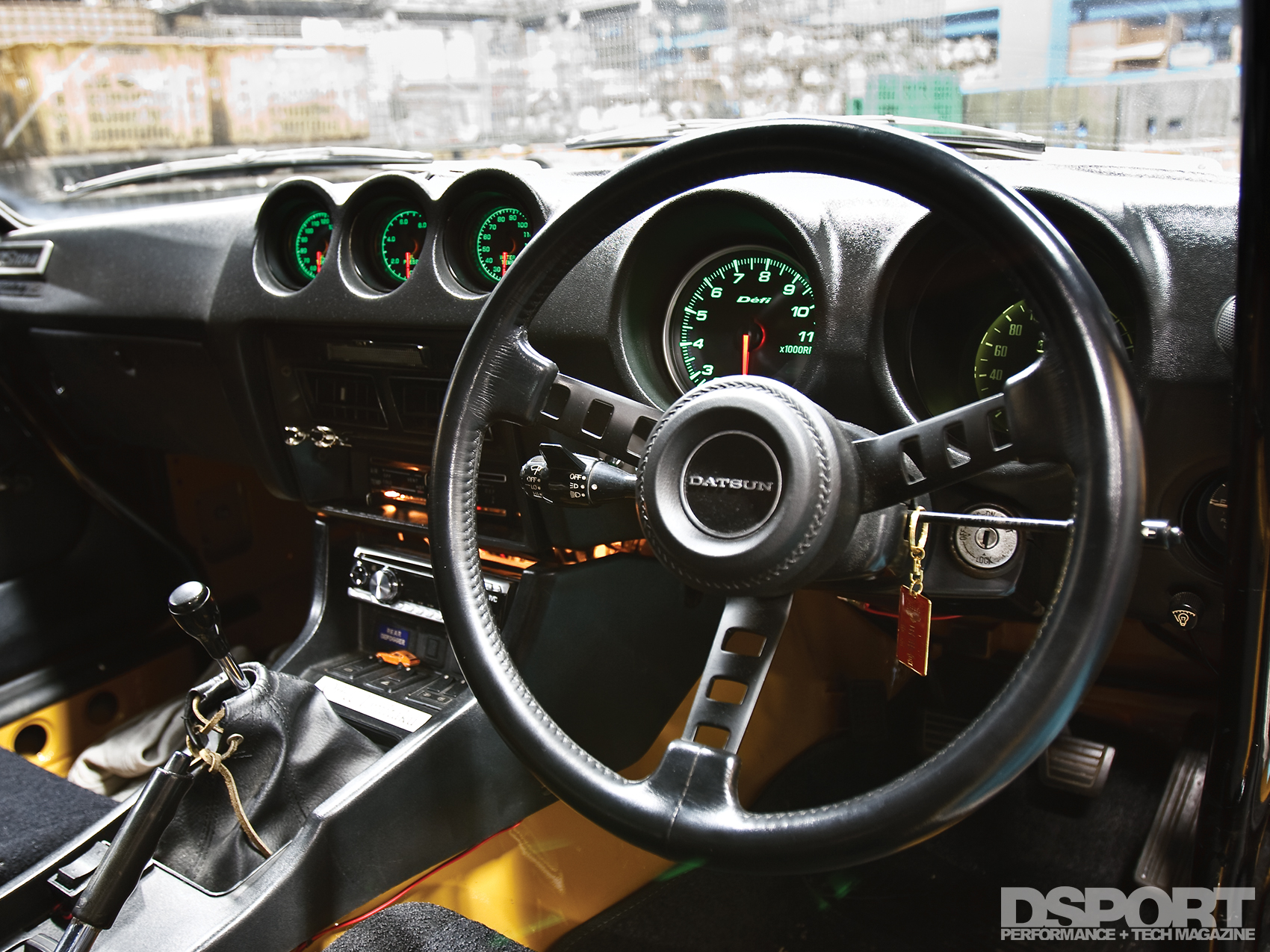

DEFI gauges, including an 80mm tachometer, fit perfectly in the holes and put a modern twist on a classic dash.

Nissan “Sports Option” Mk63 Brakes

Before Nissan Motorsports International (NISMO) ever existed, Nissan performance fanatics had but a few performance options available from the factory. One upgrade was known as the Nissan “Sports Option” Mk63 brakes. These Sumitomo four-piston calipers were the FIA- approved design that could be found on most of the works 240Z and 260Z rallycars, works circuit cars as well as Skyline, Sunny and Violet race cars. The upgraded calipers employ larger brake pads that offer 50% more pad area than the stock units.

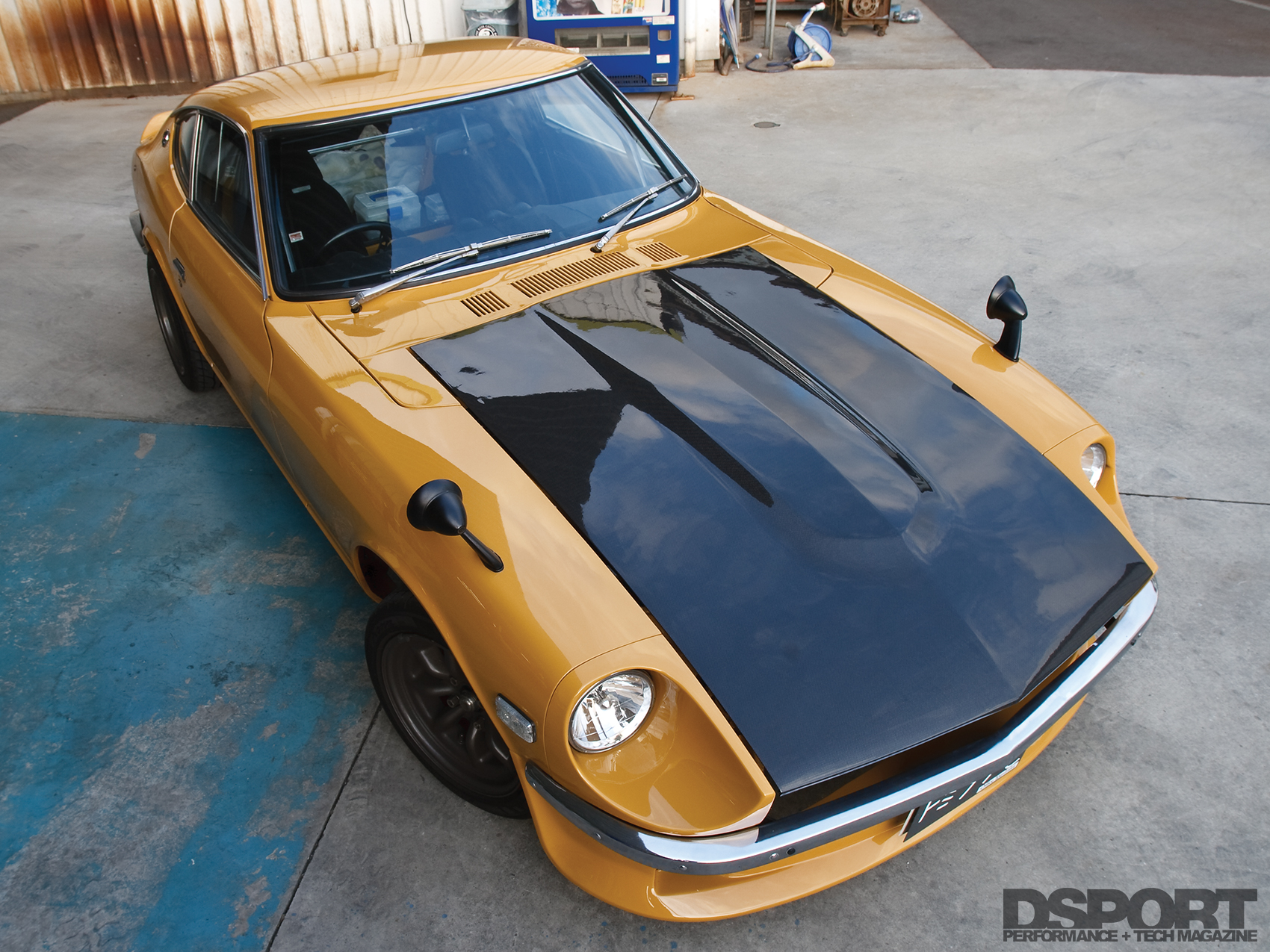

High angle shot of Tomitaku's Datsun 240Z

The Verdict

OS Giken TC24B1 DisplayWith his S30 build completed, Tomitaku finally had the chance to make Okazaki’s personal challenge a reality. He evaluated the S30 and the 930 turbo on the dyno, the drag strip and the street. Tomitaku noted that the S30 bested the benchmark Porsche by 25 horsepower on the dyno and over half-a-second in the quarter mile, validating Okazaki’s design and answering the challenge question. Tomitaku comments, “The built L28 with the TC24-B1 cylinder head exceeded the 3.3-liter Porsche engine output without turbocharging and propelled the S30 down the quarter mile in under 12 seconds. Okazaki-san successfully achieved his goal of beating the Porsche. Admittedly, the 930 turbo is a more refined chassis to drive on the streets, but it is more exciting to drive the Z.”

Of the nine TC24-B1 heads that were manufactured, many were raced and have since fallen into the depths of obscurity. Only three functioning examples are known of in Japan and possibly in the world, and Tomitaku is one of the lucky owners. He even maintains the other two, keeping them on the road and the racetracks. He was proud to be able to finally bring closure to a challenge that was posed over 30 years ago, showing Okazaki that he succeeded in his venture. Whenever asked about the challenge outcome, the humble and reserved Okazaki just smiles with a hint of pride.

Click here to check out Tomitaku’s build process in detail

Tomitaku appearing with his iconic Datsun 240Z

Takuya “Tomitaku” Tomimatsu makes a cameo appearance with his Fairlady.

Check out the OS Giken Behind the Scenes Tour [Article + Video]




SPEC SHEET

VEHICLE
Year / Make / Model: 1974 Nissan Fairlady Z
Chassis Code: S30
Vehicle Weight: 2,156 lbs.
Weight Bias (F/R): 51/49
Launch RPM: 3,000 RPM
Shift RPM: 9,100 RPM
Redline RPM: 9,100 RPM
Fuel: 97-octane

ENGINE
Engine Code: L28
Displacement (cc): 2,870cc
Bore & Stroke (mm): 87.8mm x 79mm
Peak Horsepower (@ RPM): 320whp @ 7,400 RPM
Peak Torque (@ RPM): 246 lb-ft @ 6,100 RPM
Machine Work: Tomitaku
Pistons/Compression Ratio: OS Giken 12.5:1 compression
Forged-Aluminum Pistons
Connecting Rods / Crank: Tomitaku Billet-Steel Connecting Rods/
Factory Crankshaft/NISMO Bearings
Camshafts: OS Giken 272-degree, 11mm lift (IN&EX)
Valves/Springs/Retainers: OS Giken Valves, Springs & Retainers OS Giken TC24-B1 Race Head
L28 1.2mm Head Gasket
Head/Main Studs: Tomitaku Custom Head Studs
Fuel Delivery System: Weber 2-Barrel 55mm Carburetors (x3)
Tomitaku Custom Fuel Delivery
Ignition: Ultra C.D.I. Dual Ignition System
Spark Plugs: NGK-R D9EVX
Exhaust Manifold: Tomitaku Custom Header
Exhaust System / Downpipe: Nagase Engine Works/Tomitaku Custom Exhaust
Oil System: Tomitaku 16-Row Oil Cooler

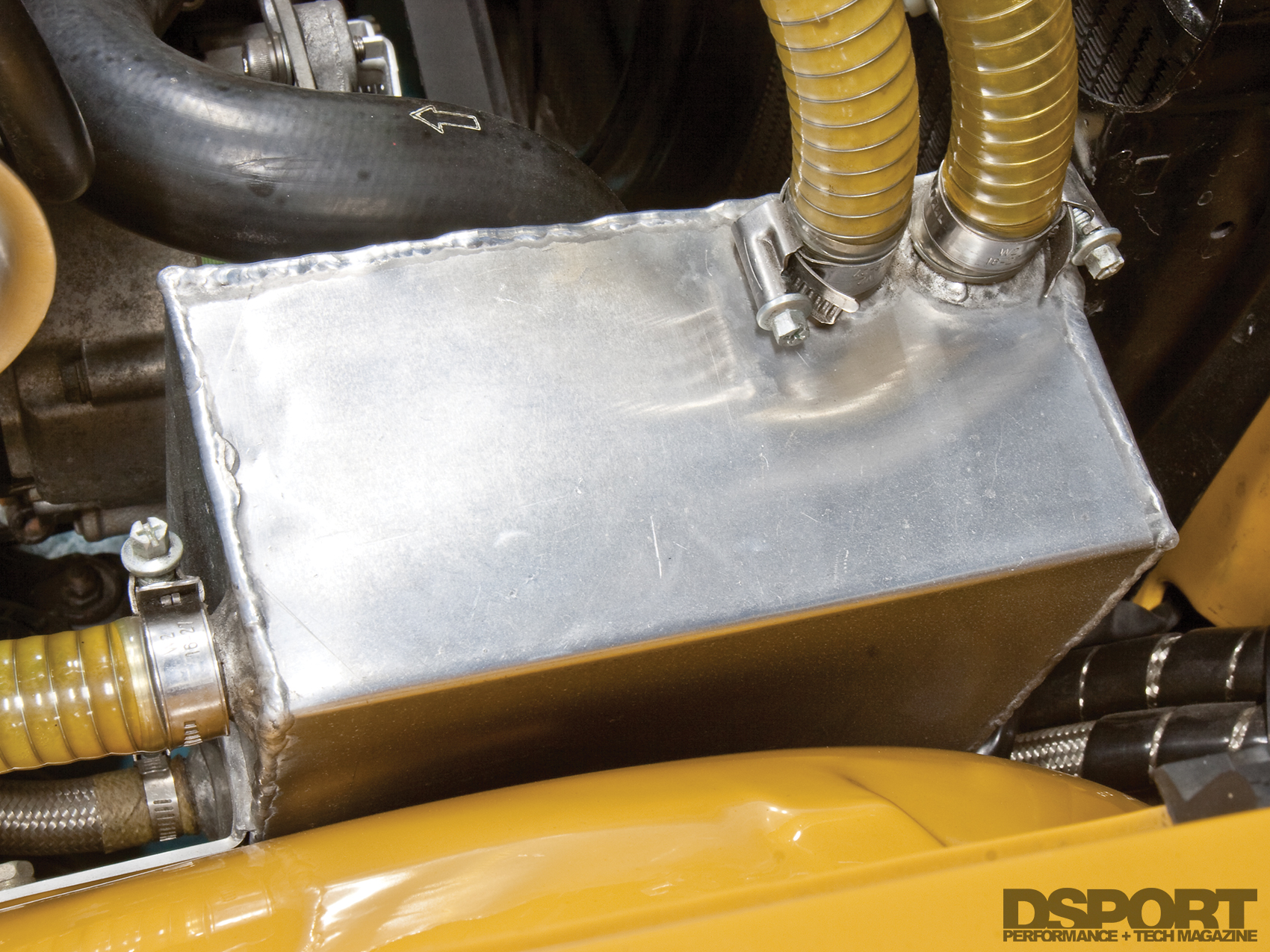

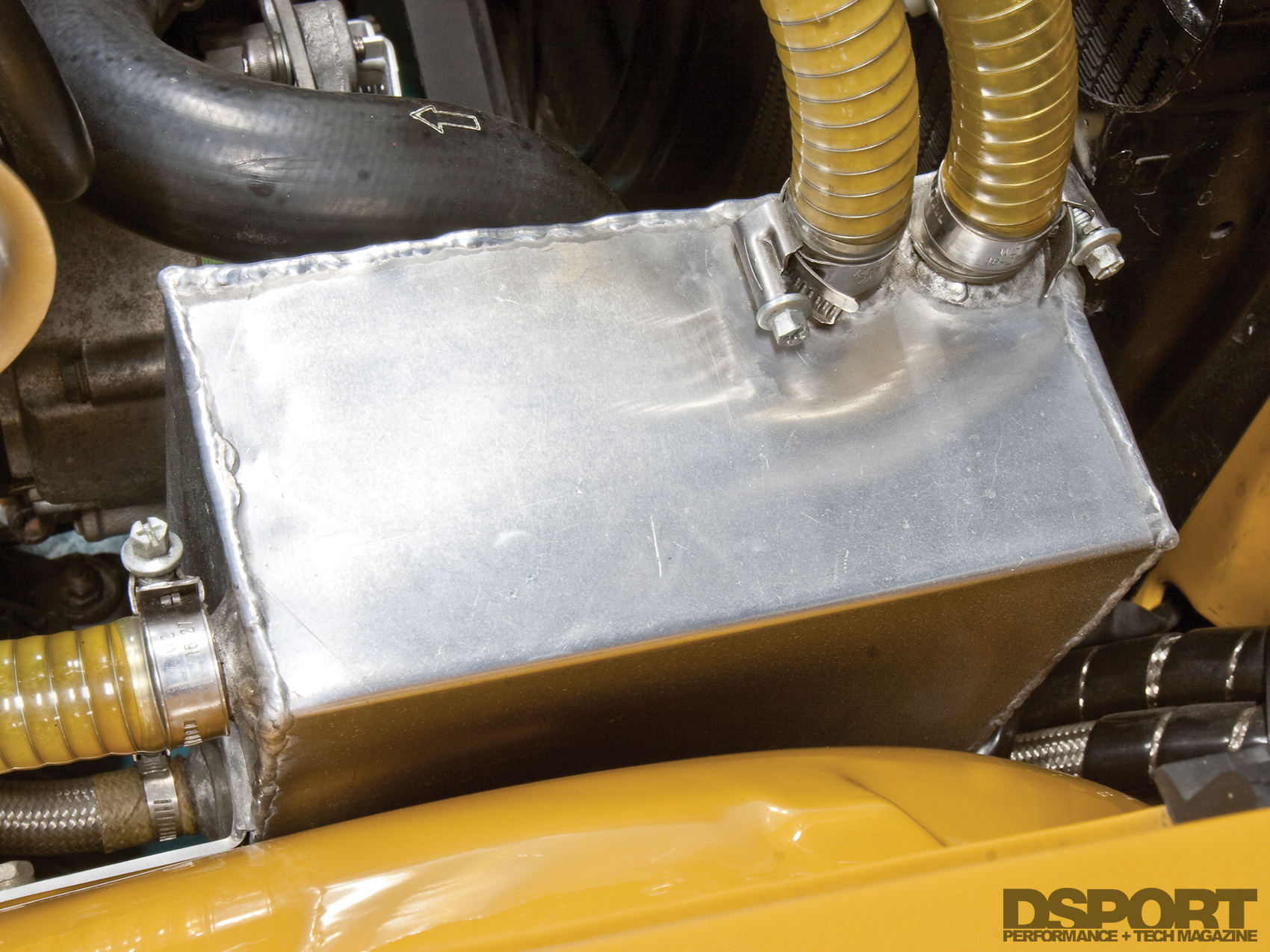

Tomitaku Oil Catch Tank

CHASSIS/DRIVELINE
Springs, F&R (Make & Rate): Nissan Race Springs
Shocks, F&R (Make & Rate): Tokico H.T.S. Dampers
Additional Suspension Components: Energy Suspension Bushings – Full Kit
Transmission: OS Giken SR20 Close-ratio Gearset
Transmission Gearing: 2.717, 1.722, 1.232, 1.000, 0.835
71B Transmission Case
Final Drive: 4.111
Clutch / Flywheel: OS Giken R3A Triple-plate Clutch
Differential(s) (Make & Type): OS Giken Super-Lock LSD R180
Wheels (Make, Size & Offset): RS Watanabe
15×7-inch (F), 15×8-inch (R)
Tires (Make & Size): Yokohama Neova
195/55R15 (F), 215/50R1
Brake (F&R): Nissan Race Option Mk63

INTERIOR
Roll Bar / Cage: Cusco 4-point Bolt-in Cage

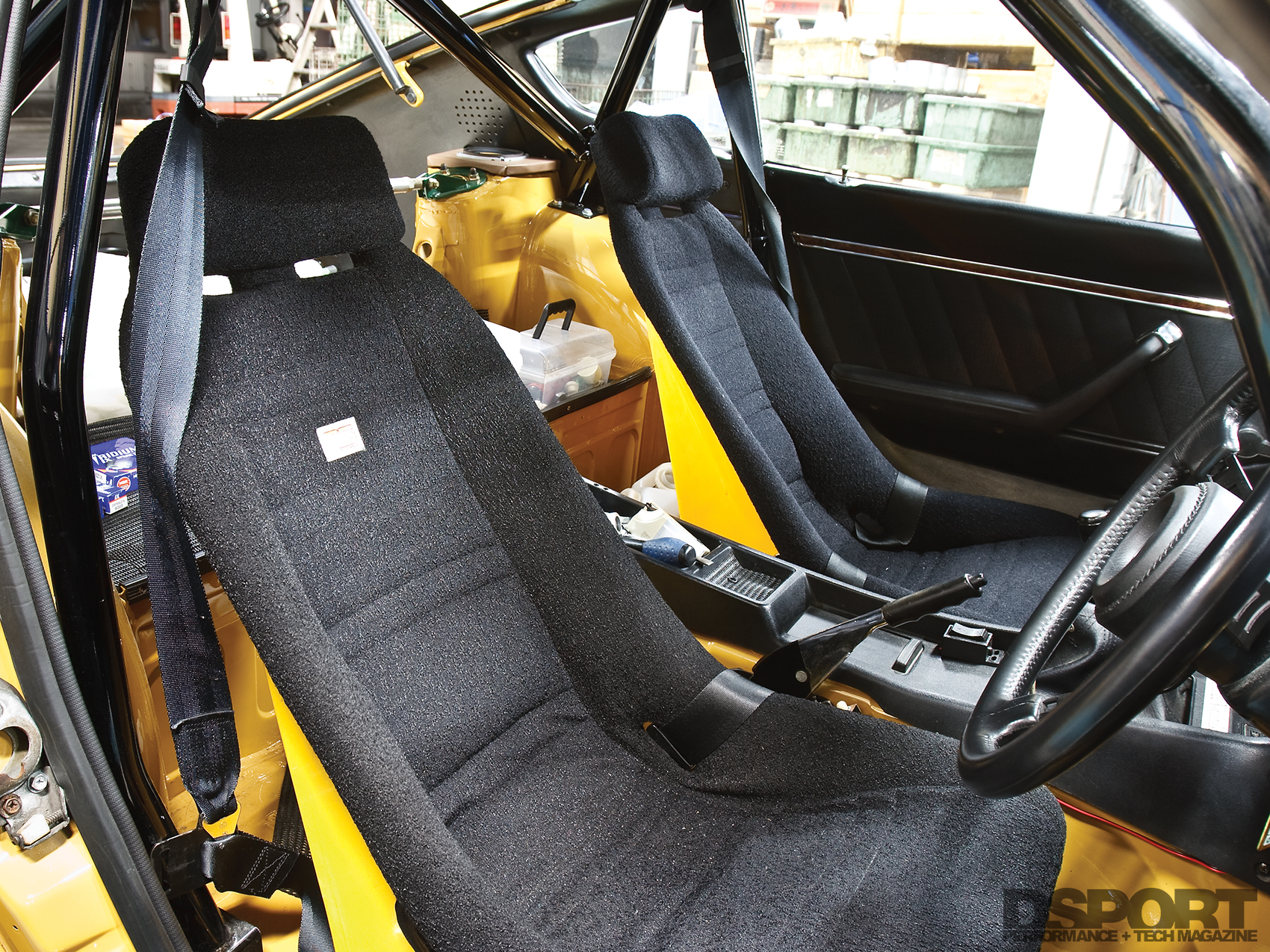

Seats: Autolook Bucket Seats
Gauges: DEFI Gauges

EXTERIOR
Hood: Restored Co. Carbon-fiber Hood
