High-powered modified Subaru engines tend to generate excessive blow-by oil and gasses. In these cases, an ordinary small catch can may quickly fill with oil and not be adequate. Like the Radium Engineering Subaru Dual Cath Can Kit, the AOS (Air Oil Separator) kit is responsible for keeping blow-by oil and other pollutants out of the intake pipe, manifold, turbocharger, and intercooler during all engine loads. The main difference is that an AOS system returns what is collected back into the oil pan so there is no servicing required. The built-in heater keep water from condensing in the AOS, making sure ONLY oil is returned back to the oil pan, not a milky sludge.
Photos by Radium Engineering

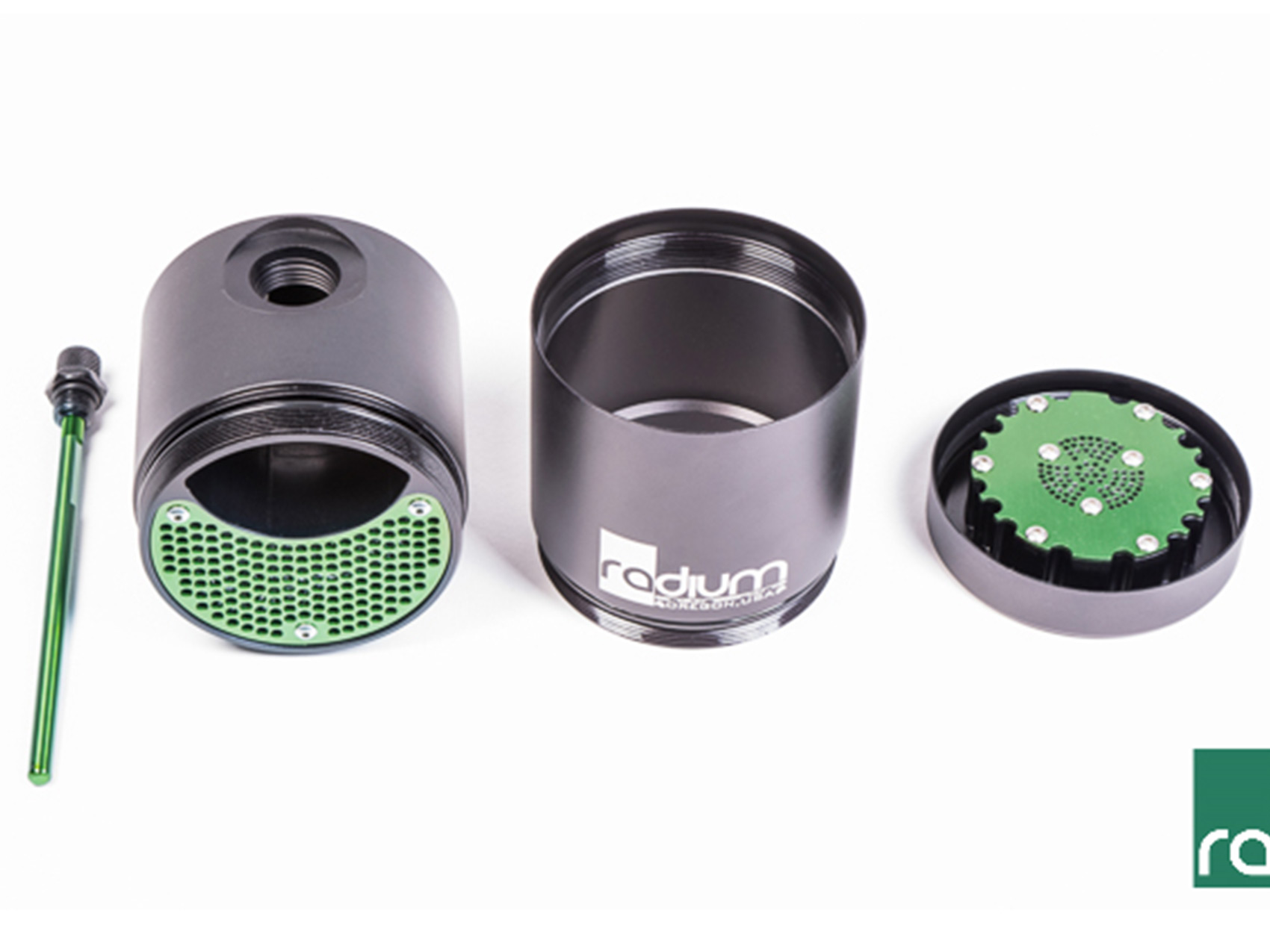

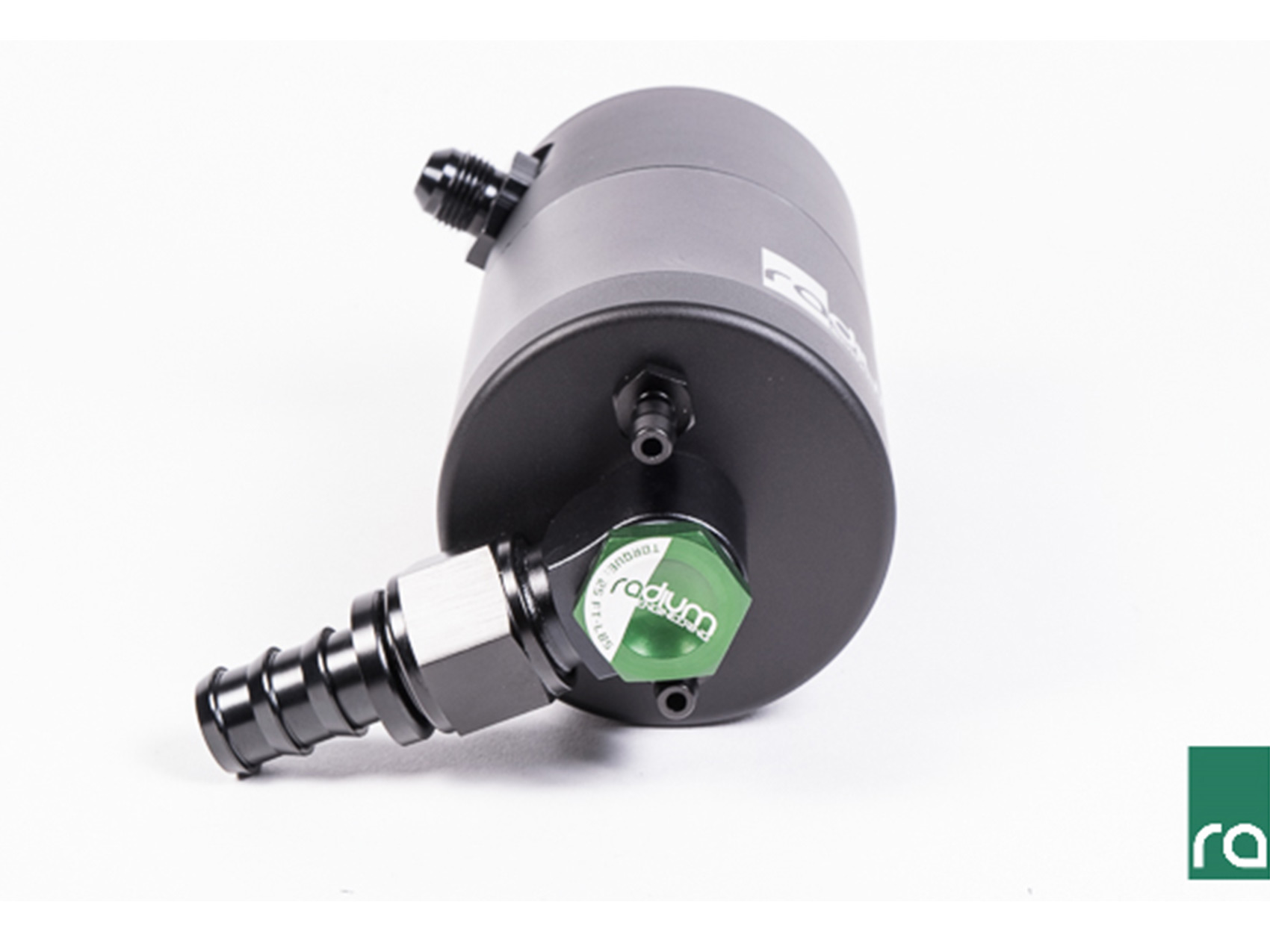

The Radium AOS is constructed of three CNC machined sections that screw together and are sealed with O-rings.
Benefits
-Effectively raises the octane and increases engine performance with cleaner inlet air
-Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc.
-Lowers hydrocarbon emissions
2015+ Subaru WRX Installation

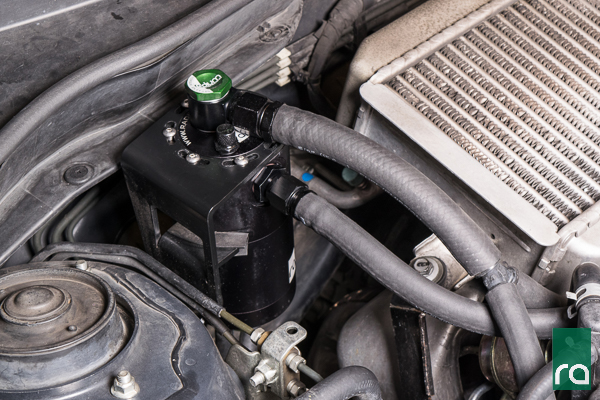

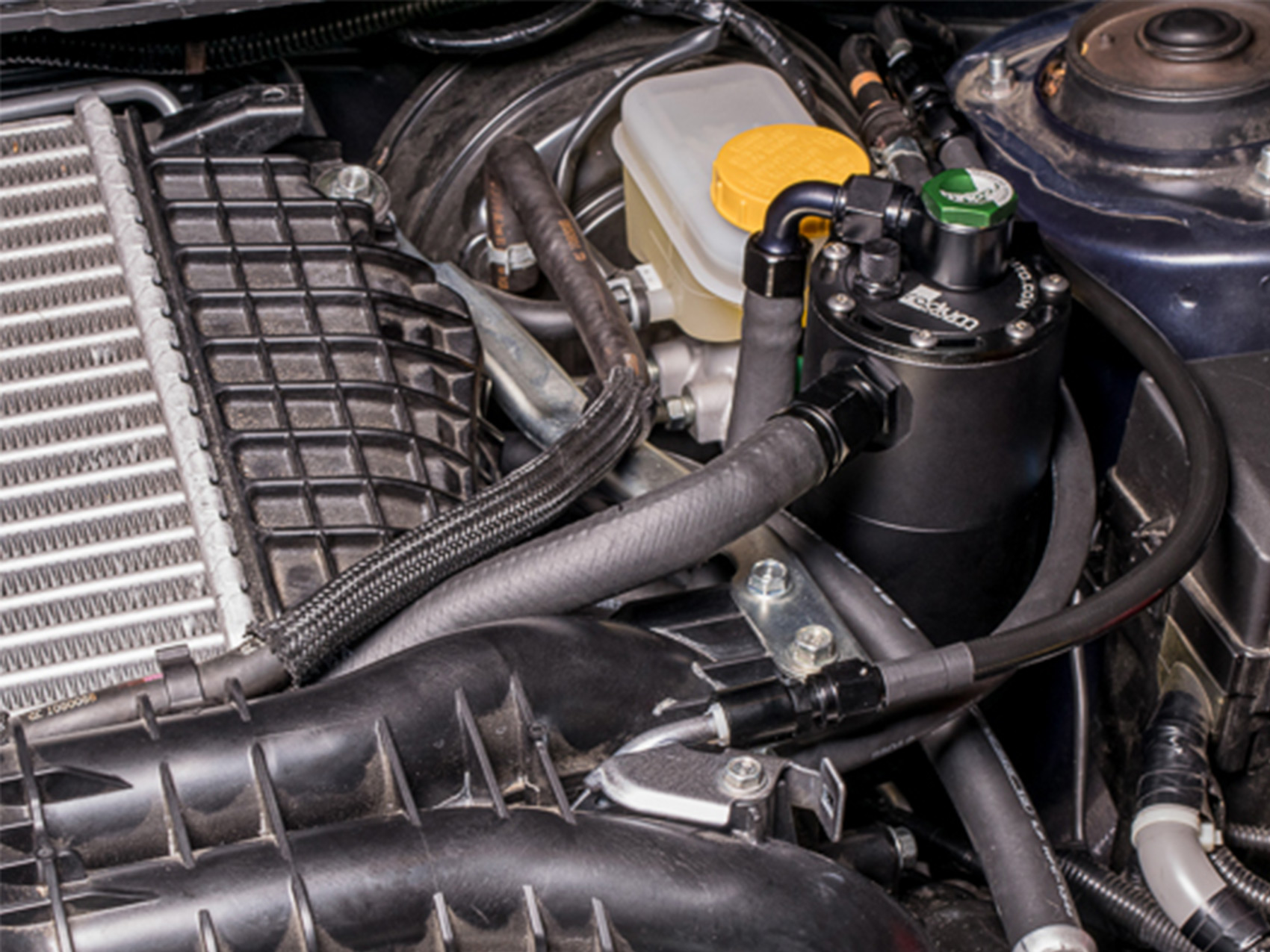

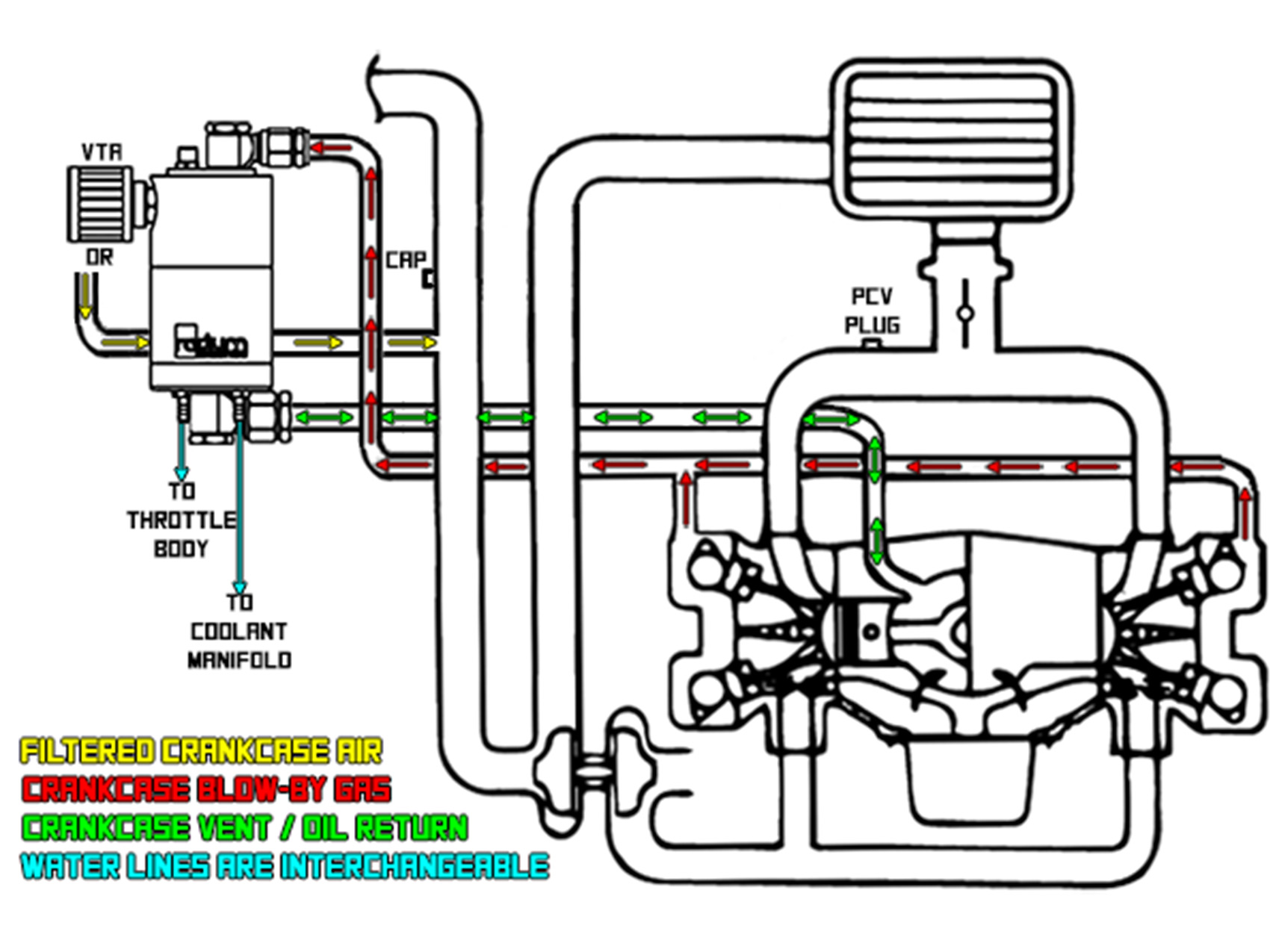

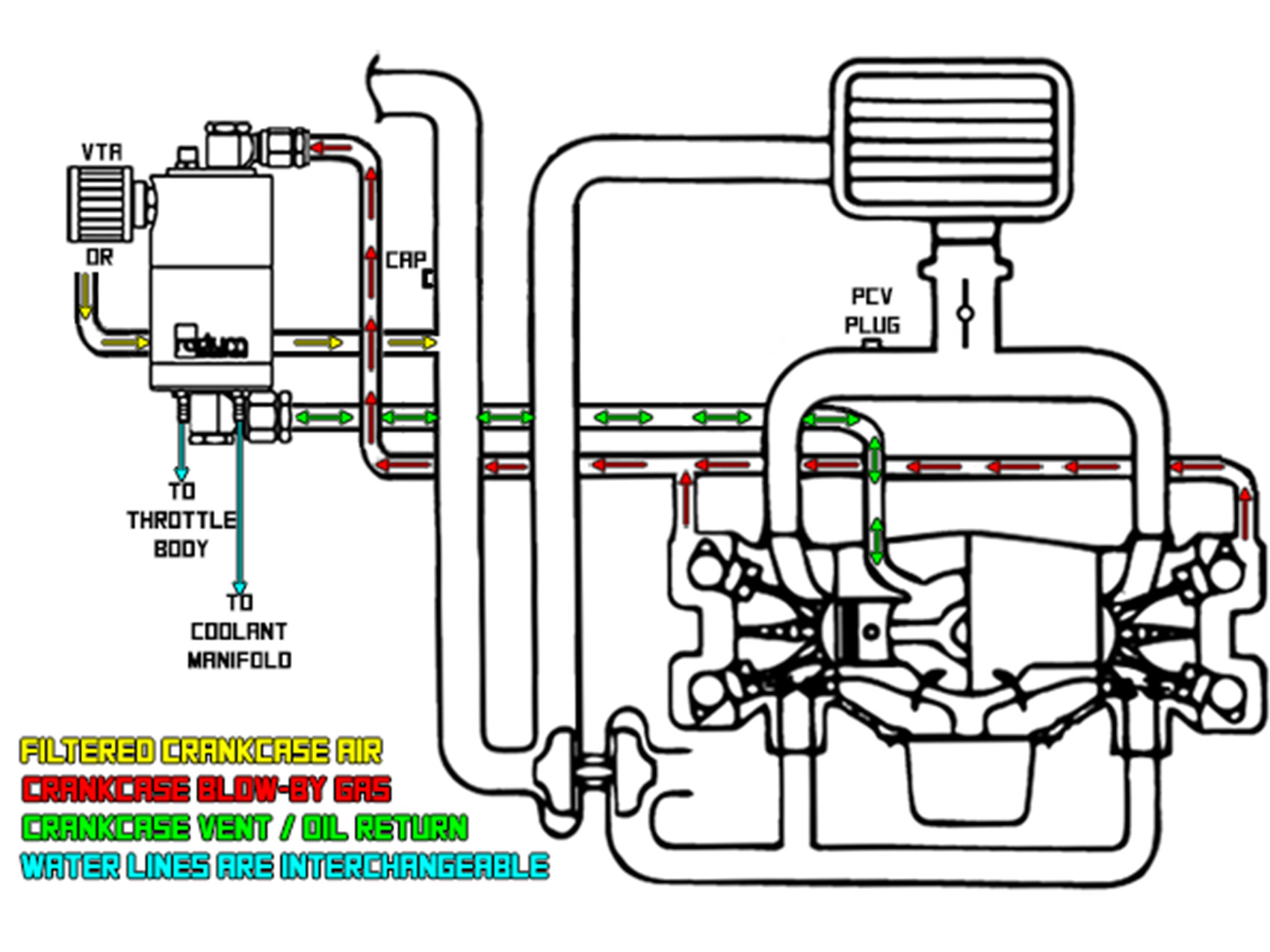

The Radium Engineering AOS kit installs on the LH side of the engine bay, near the brake master cylinder. The outlet (side port) of the AOS is plumbed back to the turbo inlet pipe, creating a completely sealed system.

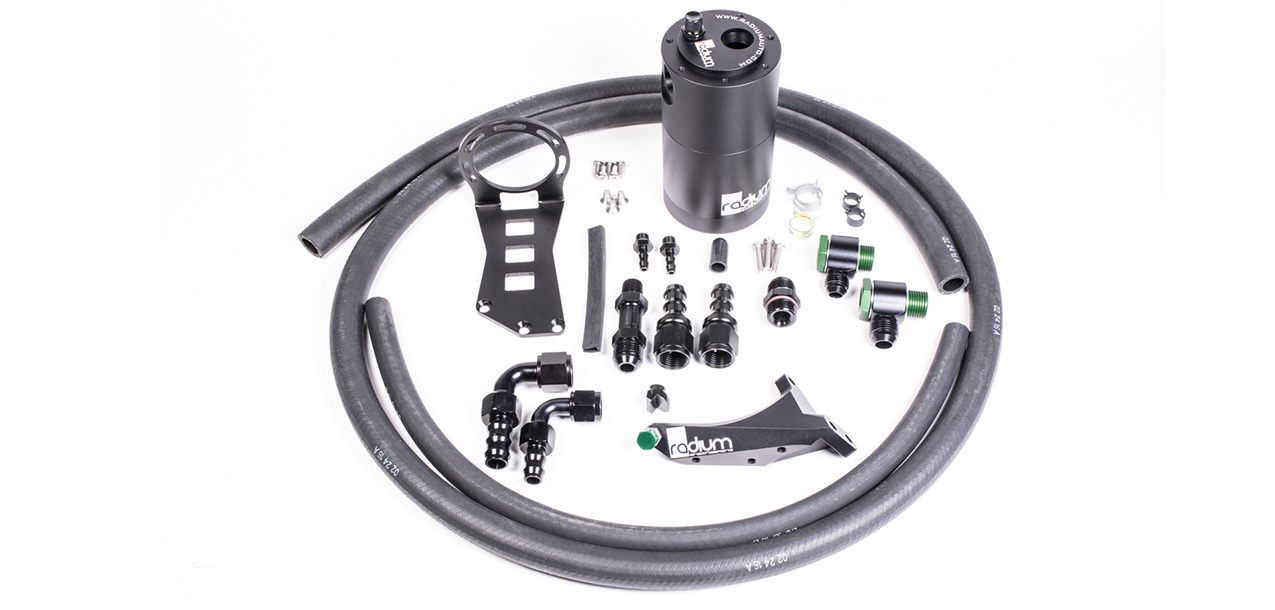

Kit Contents
-Machined aluminum Radium Engineering Air/Oil Separator
-Specially designed mounting bracket
-All necessary SAE J30R7 rated PCV/Emissions hose
-Coolant hoses and fittings
-PCV delete fitting
-All necessary aluminum fittings and hose-ends
-Stainless steel mounting hardware
-20-0255 Master Cylinder Brace (20-0258-00 only)
The Radium Engineering AOS kit installs on the LH side of the engine bay, near the brake master cylinder. The outlet (side port) of the AOS is plumbed back to the turbo inlet pipe, creating a completely sealed system.
