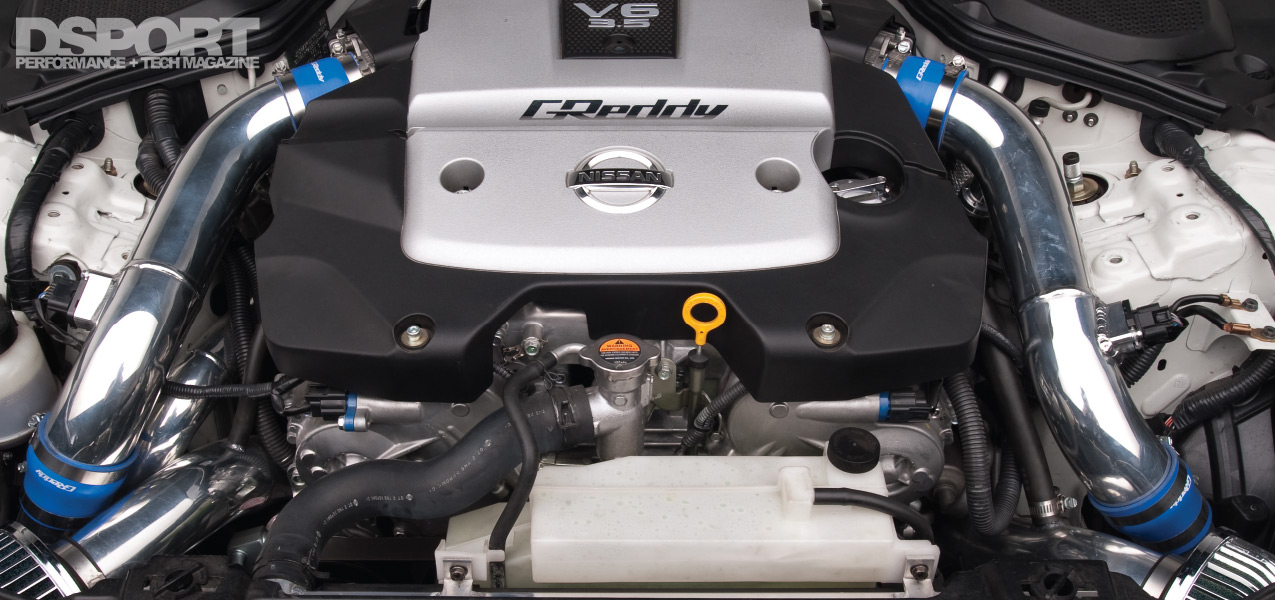

| Engine Code: |
VQ35HR |
| Displacement (cc): |
4,170cc |
| Bore & Stroke (mm): |
96mm x 96mm |

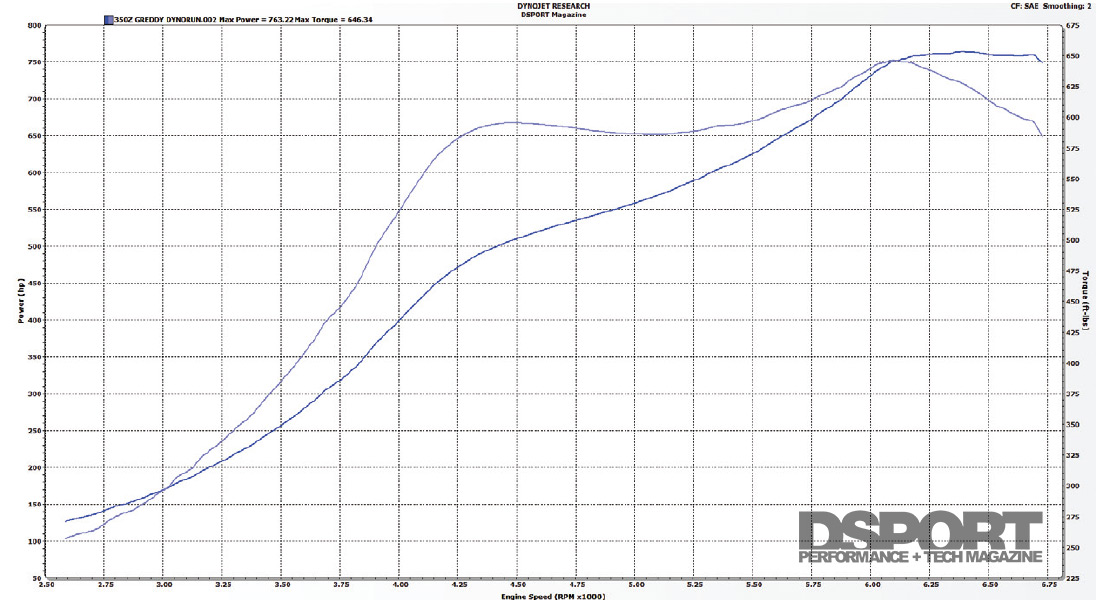

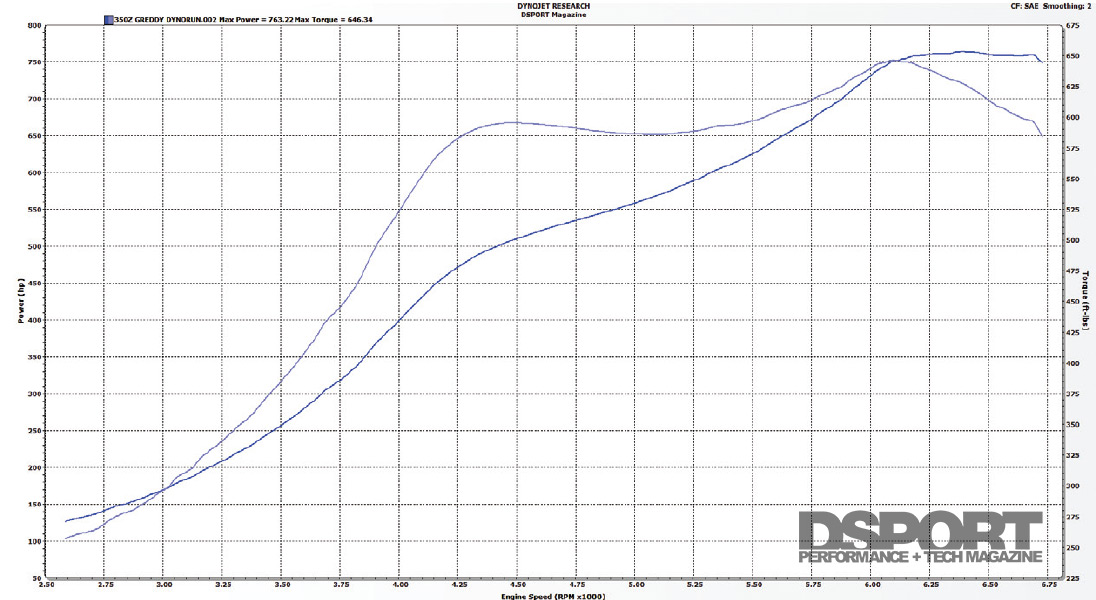

| Peak Horsepower (@ RPM): |
763.2 whp @ 6,300 RPM |
| Peak Torque (@ RPM): |
646.3 lb-ft @ 5,600 RPM |
| Dyno Type: |
Dynojet |
| Engine Builder: |
GReddy Performance Products (GPP) |
| Block Modifications: |
Darton M.I.D. Sleeves |
| Machine Work: |
Millennium Motorsports |
| Pistons/Compression Ratio: |
8.0:1 GPP Prototype Pistons |
| Connecting Rods / Crank: |
GPP Prototype Crank & Rods |
| Camshafts: |
GPP Easy Camshafts |
|
264-degree, 11mm lift (IN) |
|
267-degree, 11mm lift (EX) |
| Cylinder Head Gasket: |
GPP Metal Head Gaskets 0.7mm |

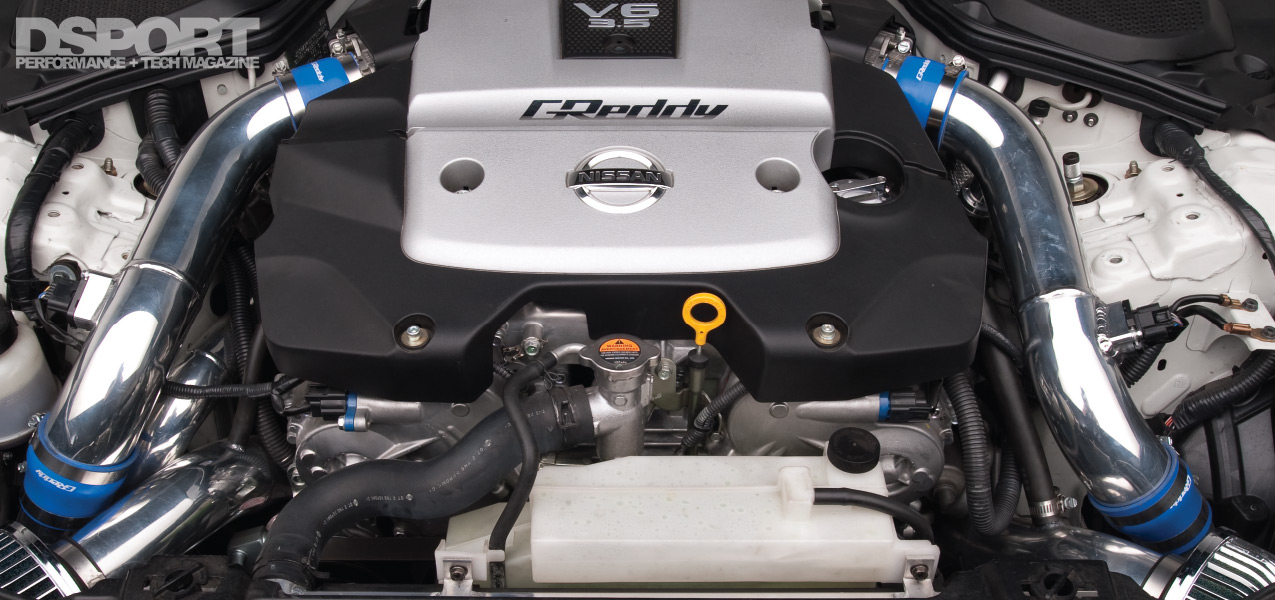

| Air Induction System: |
GPP Twin Airinx AY-SB |
| Fuel Injectors: |
RC Engineering 750 cc/min (x6) |

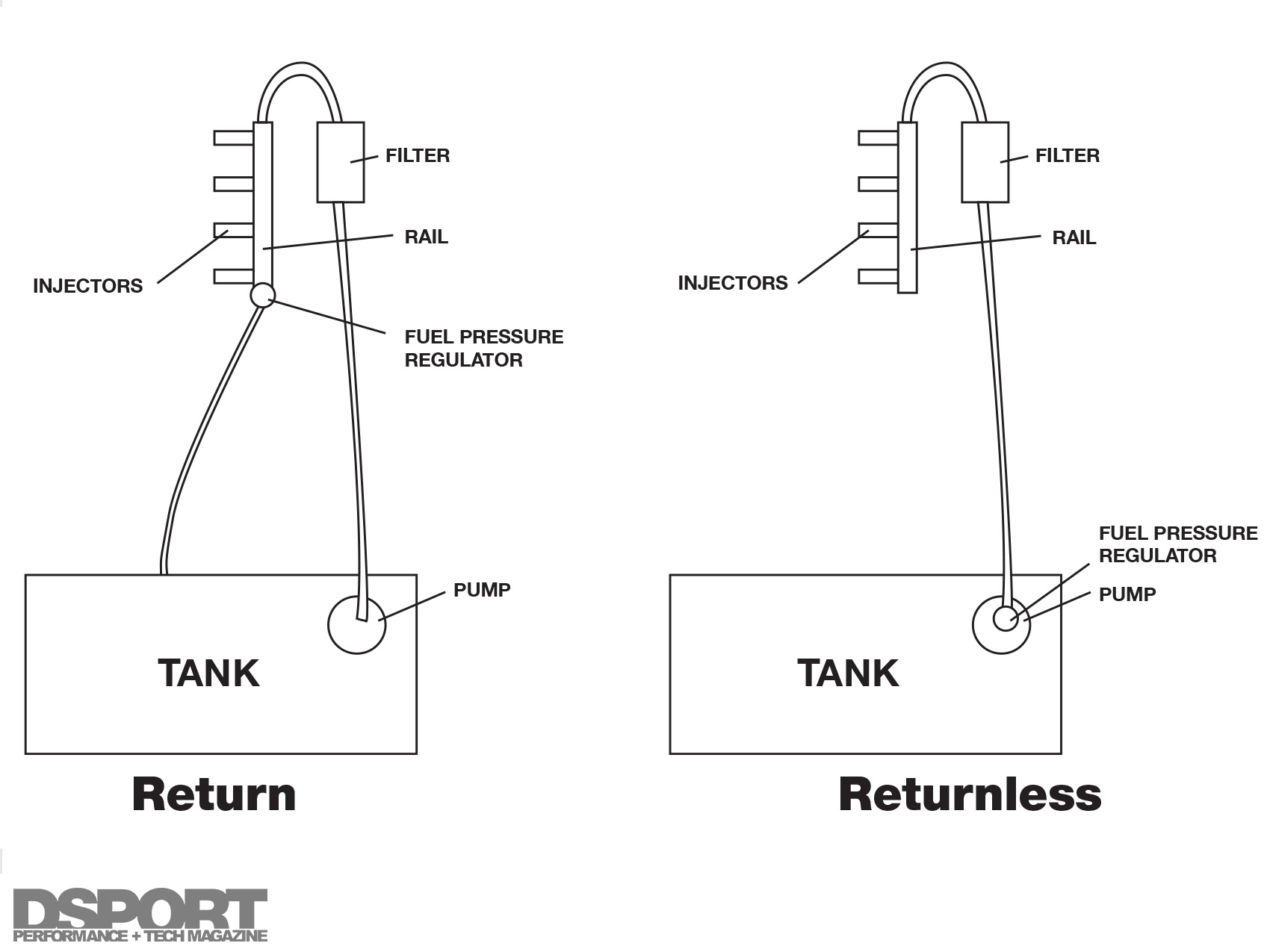

| Fuel Delivery System: |
Custom GPP Dual In-tank Pump System |
|
Modified In-tank Pressure Regulator |
|

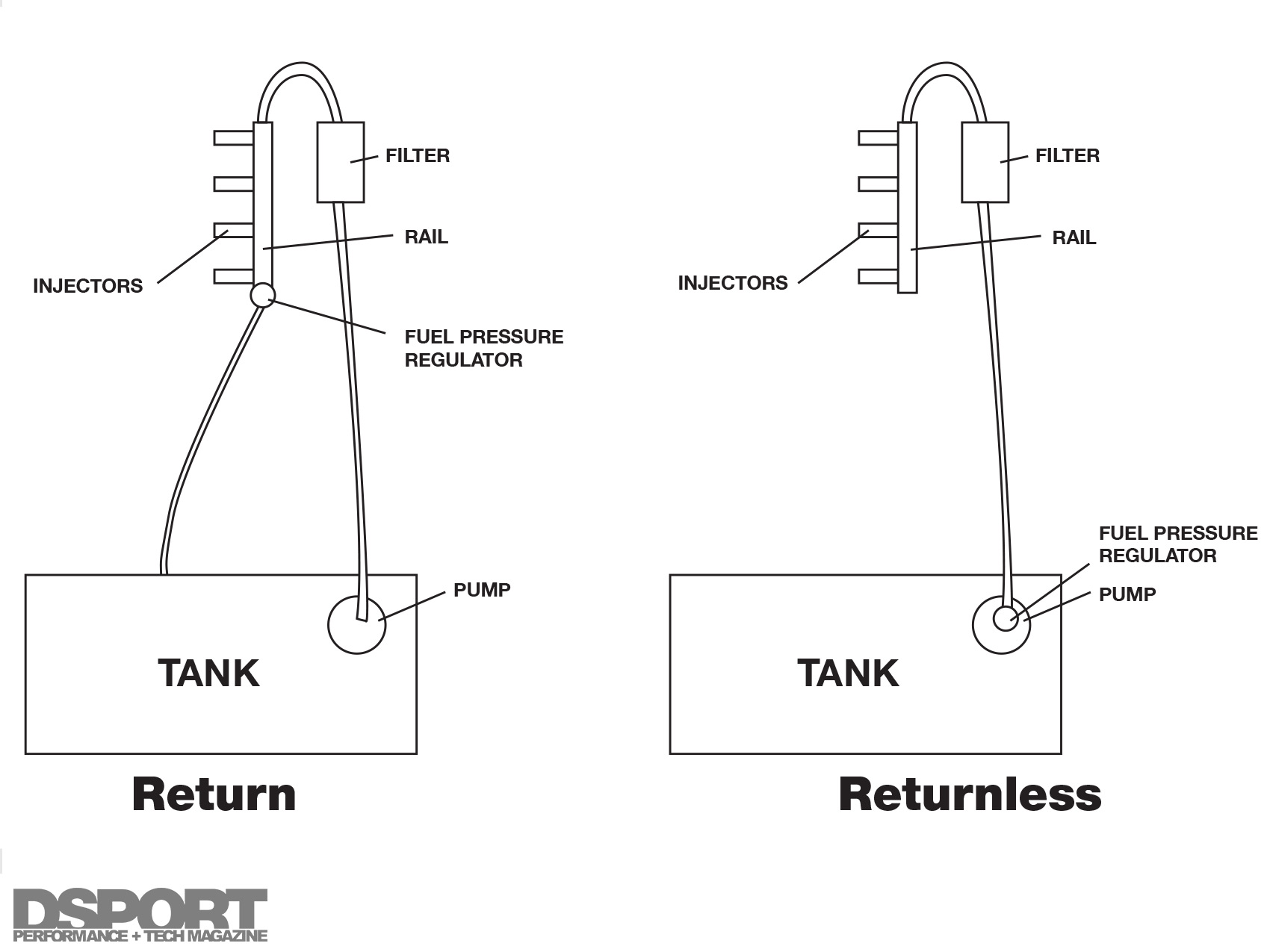

GPP Fuel Return System |
|

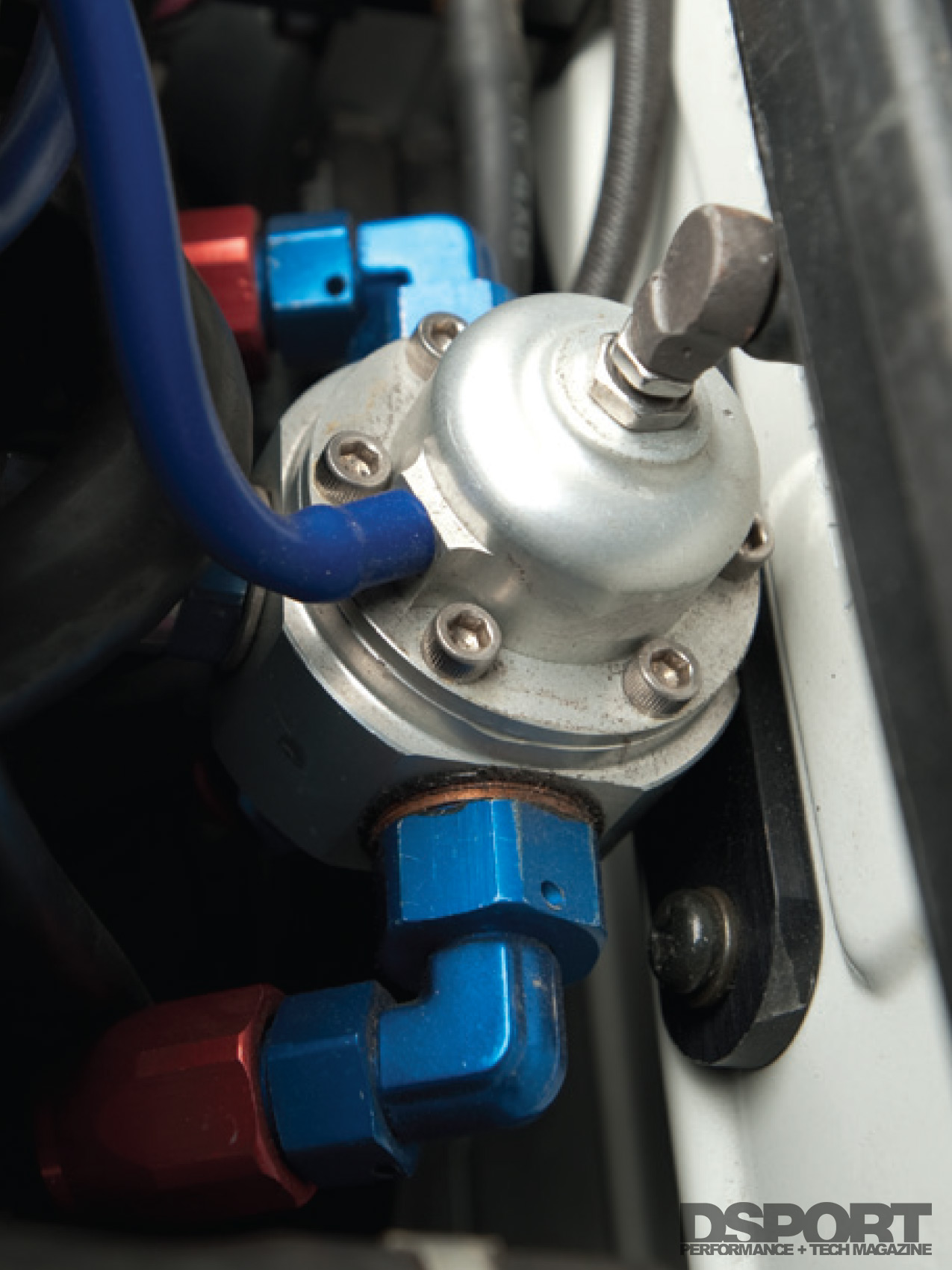

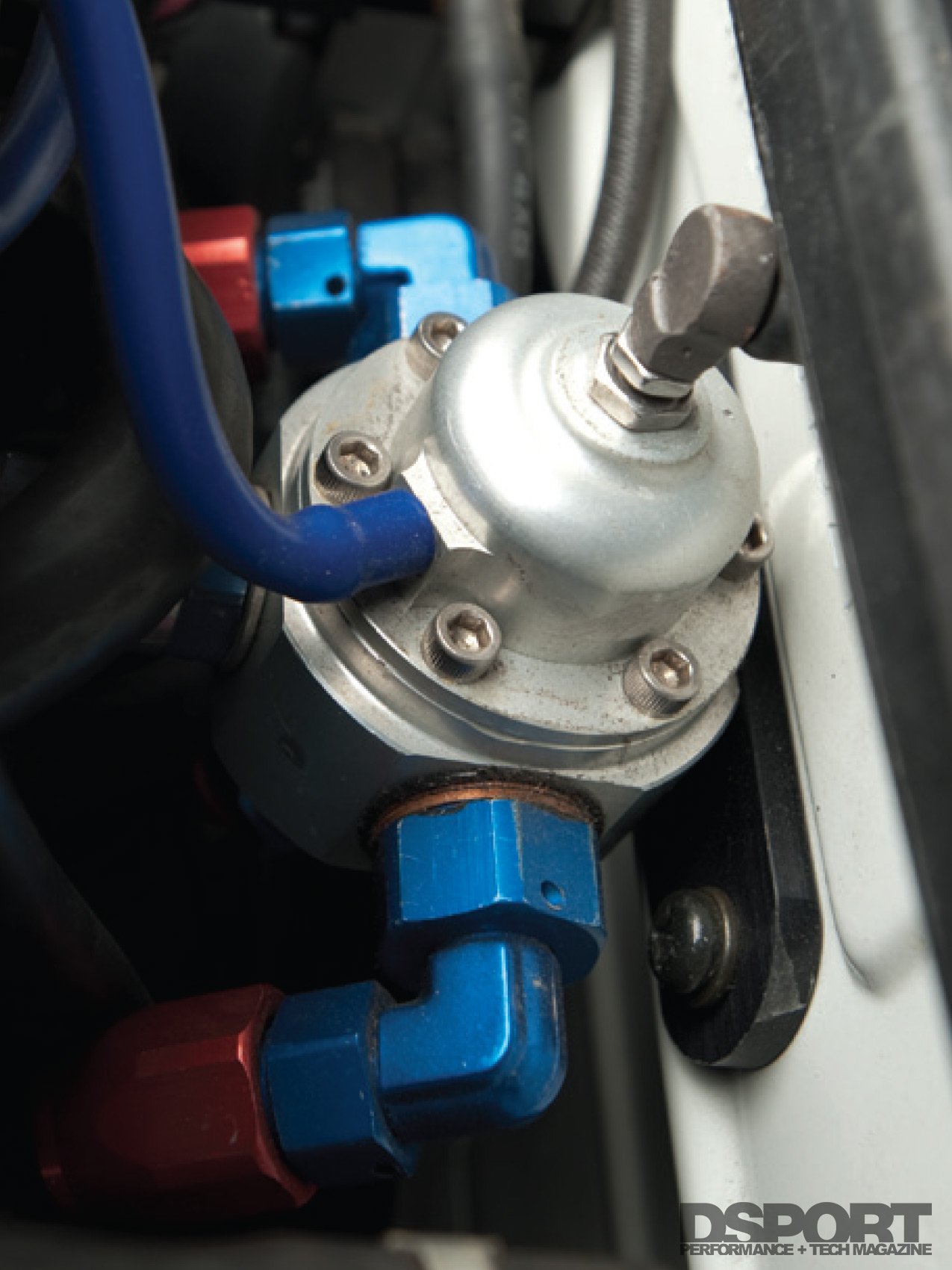

1:1 Fuel Pressure Regulators At Rails |
| Engine Management System: |
Haltech Platinum Series Plug & Play |
| Engine Management Tuner: |
GPP |

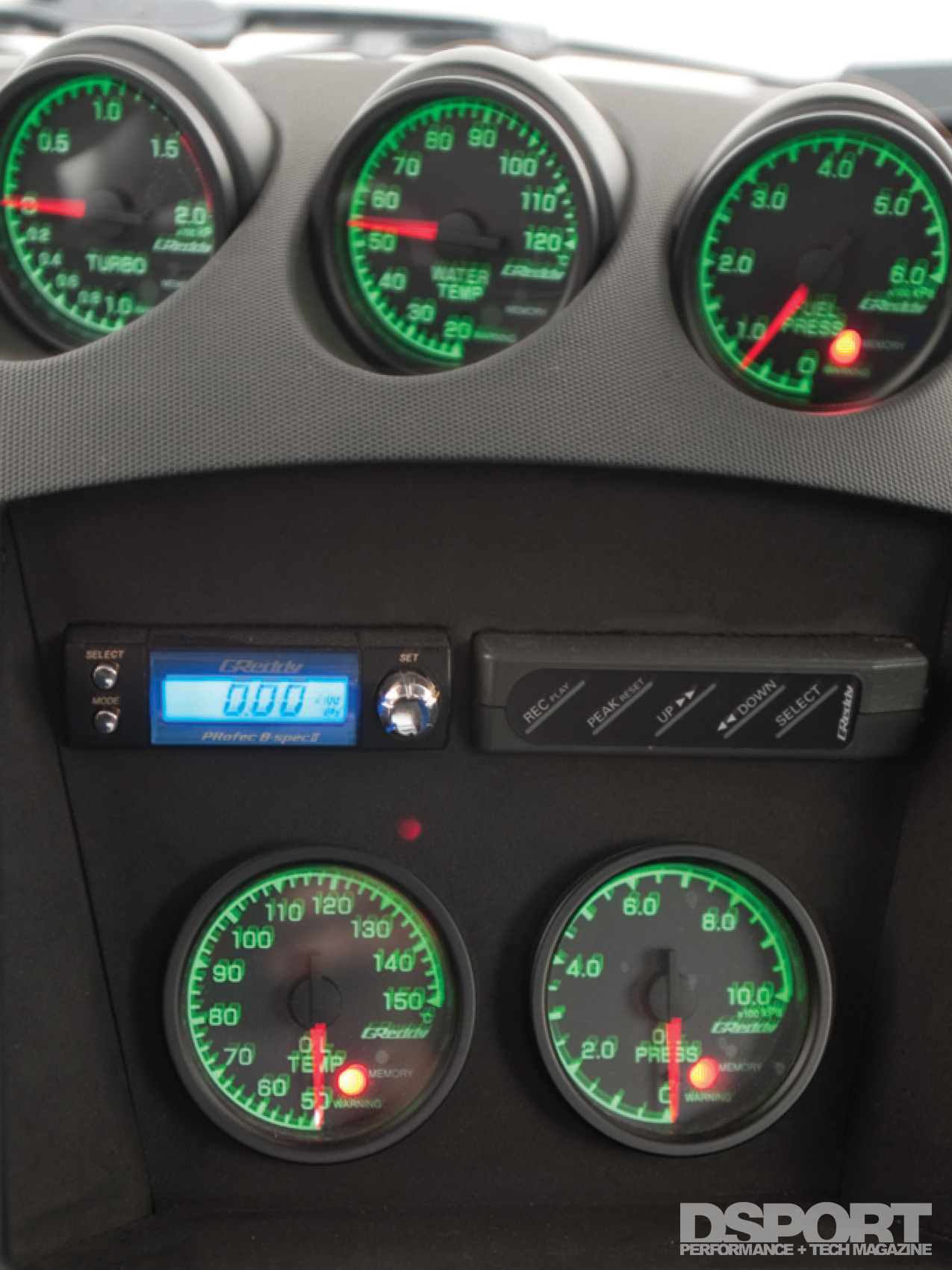

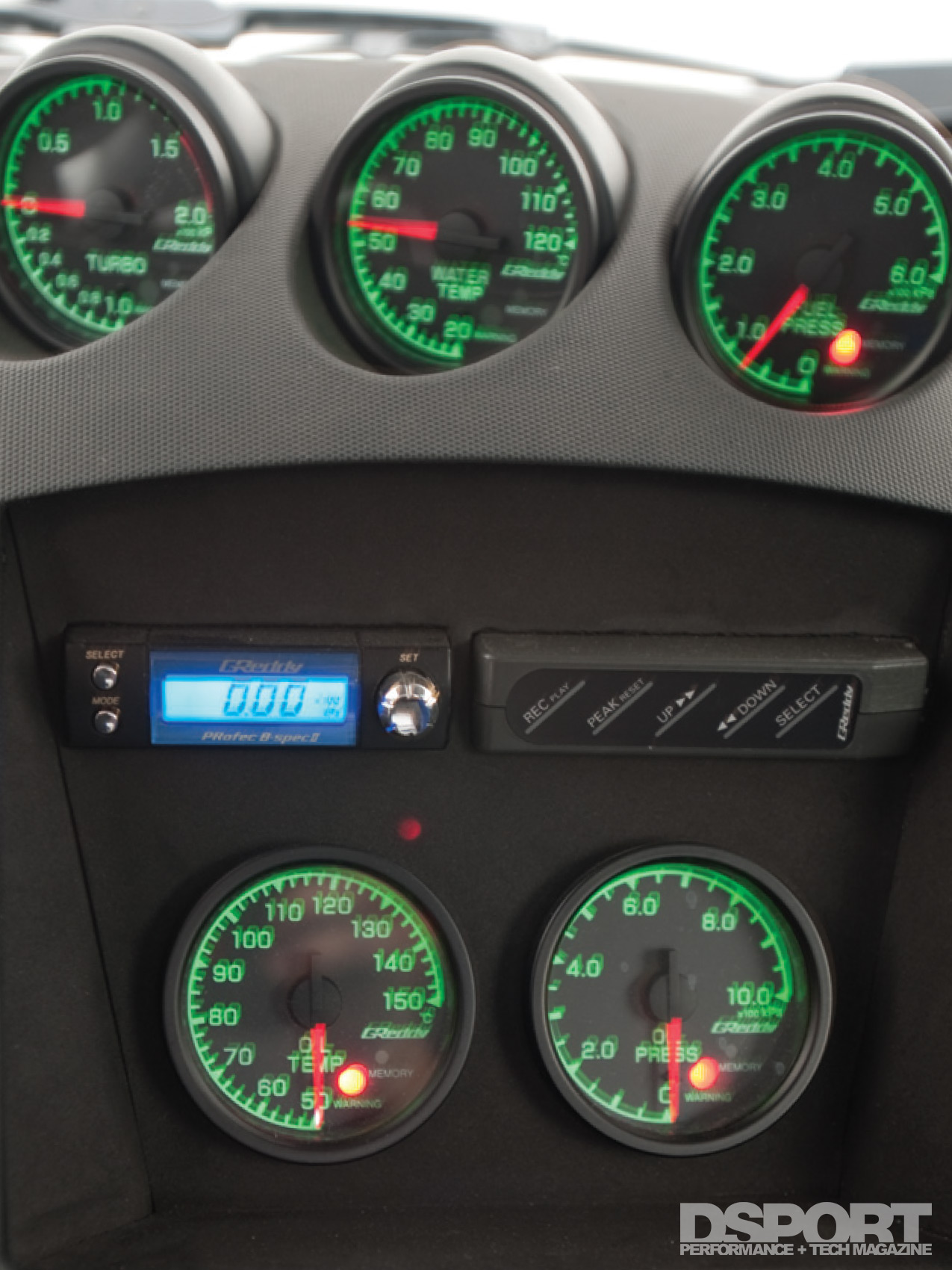

| Boost Controller: |
GPP PRofec B-Spec2 |
| Spark Plugs: |
GPP L-8 Iridium |
| Exhaust Manifold: |
GPP Cast Ductile-Iron Manifolds |
| Exhaust System: |

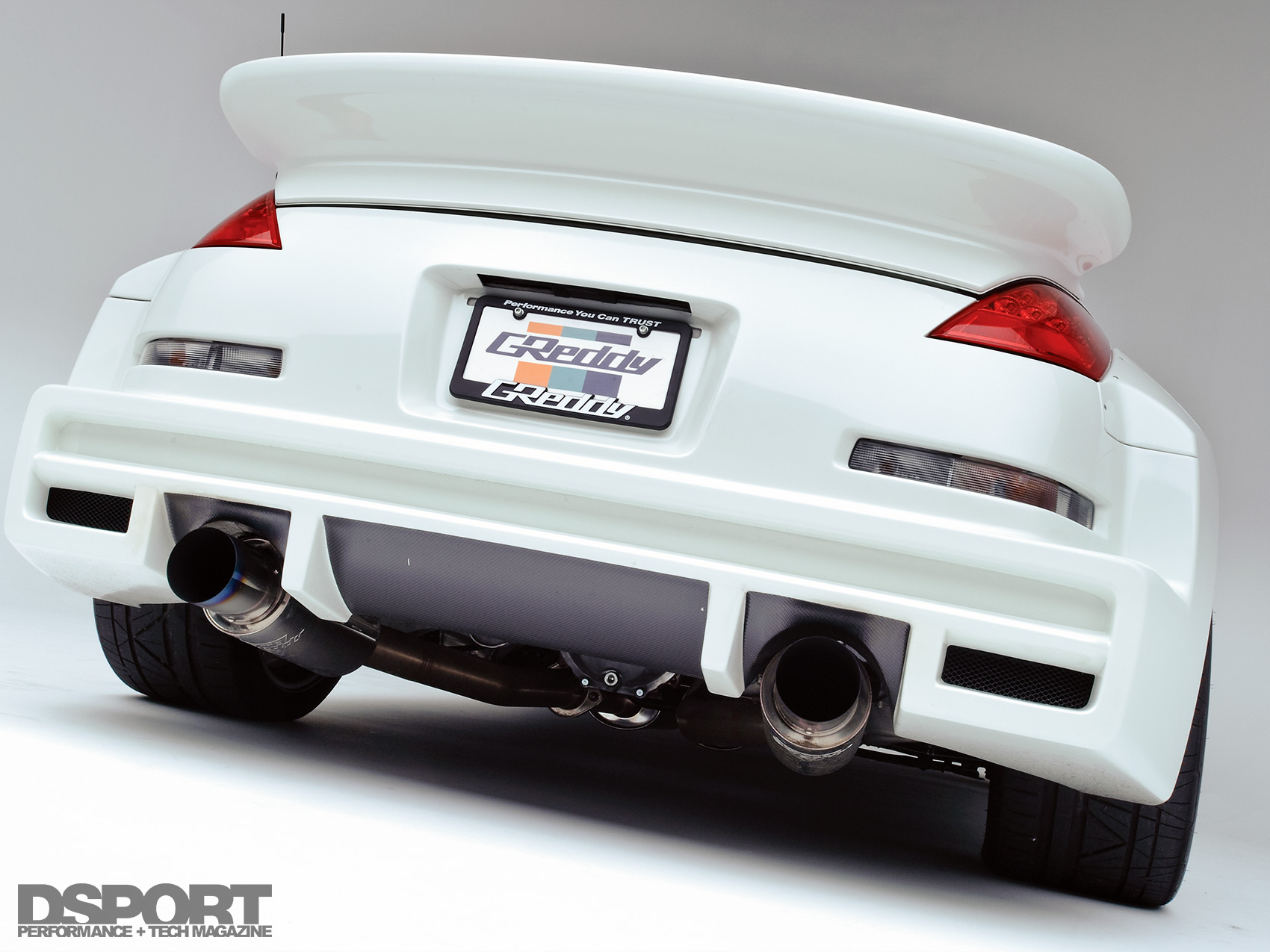

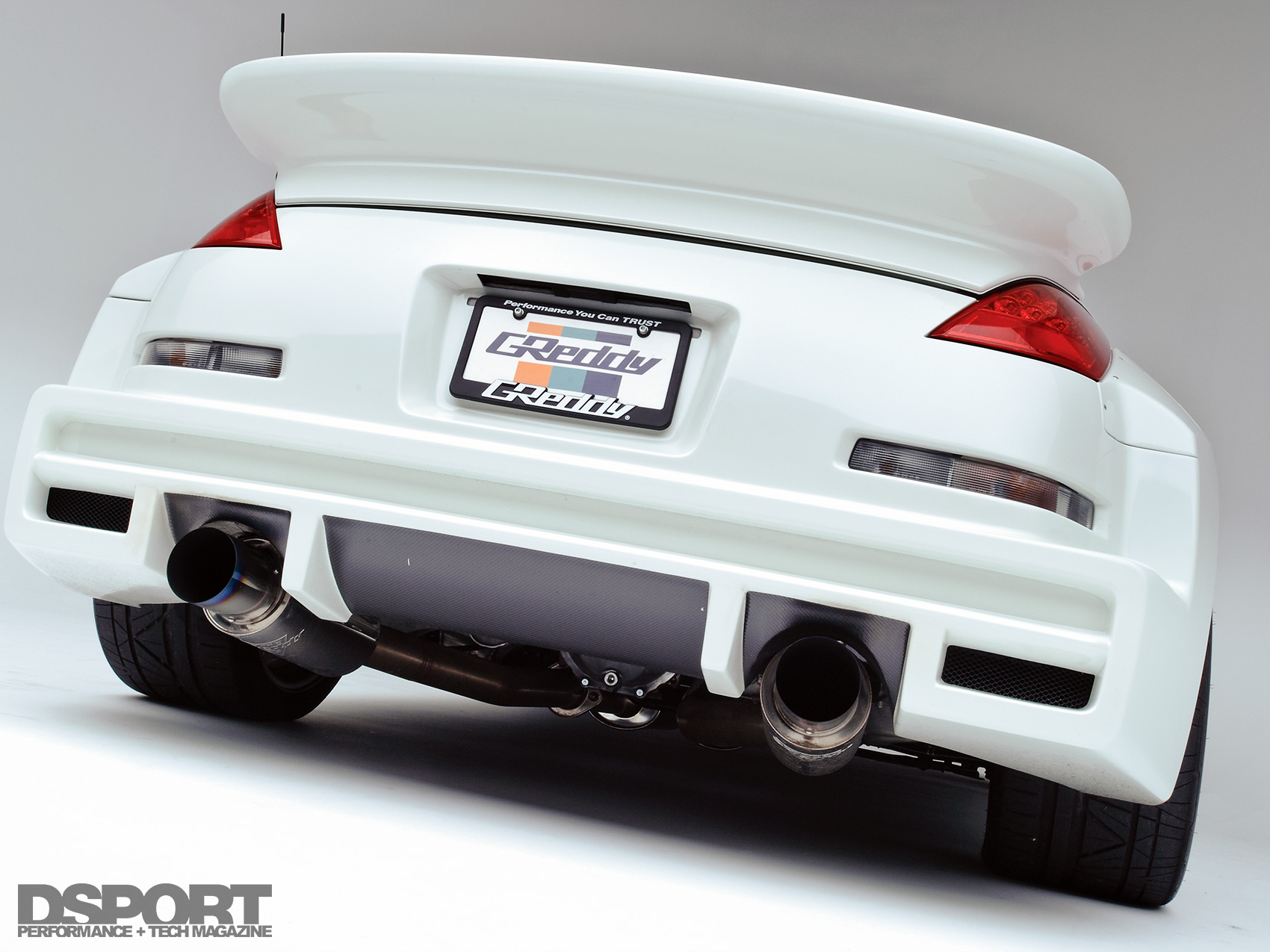

GPP Turbo Ti-C True Dual Exhaust |
| Downpipe: |
GPP Downpipe |
| Wastegate: |
Dual GPP Type-T |
| Blow-Off Valve: |
Dual GPP Type RZ BOV |

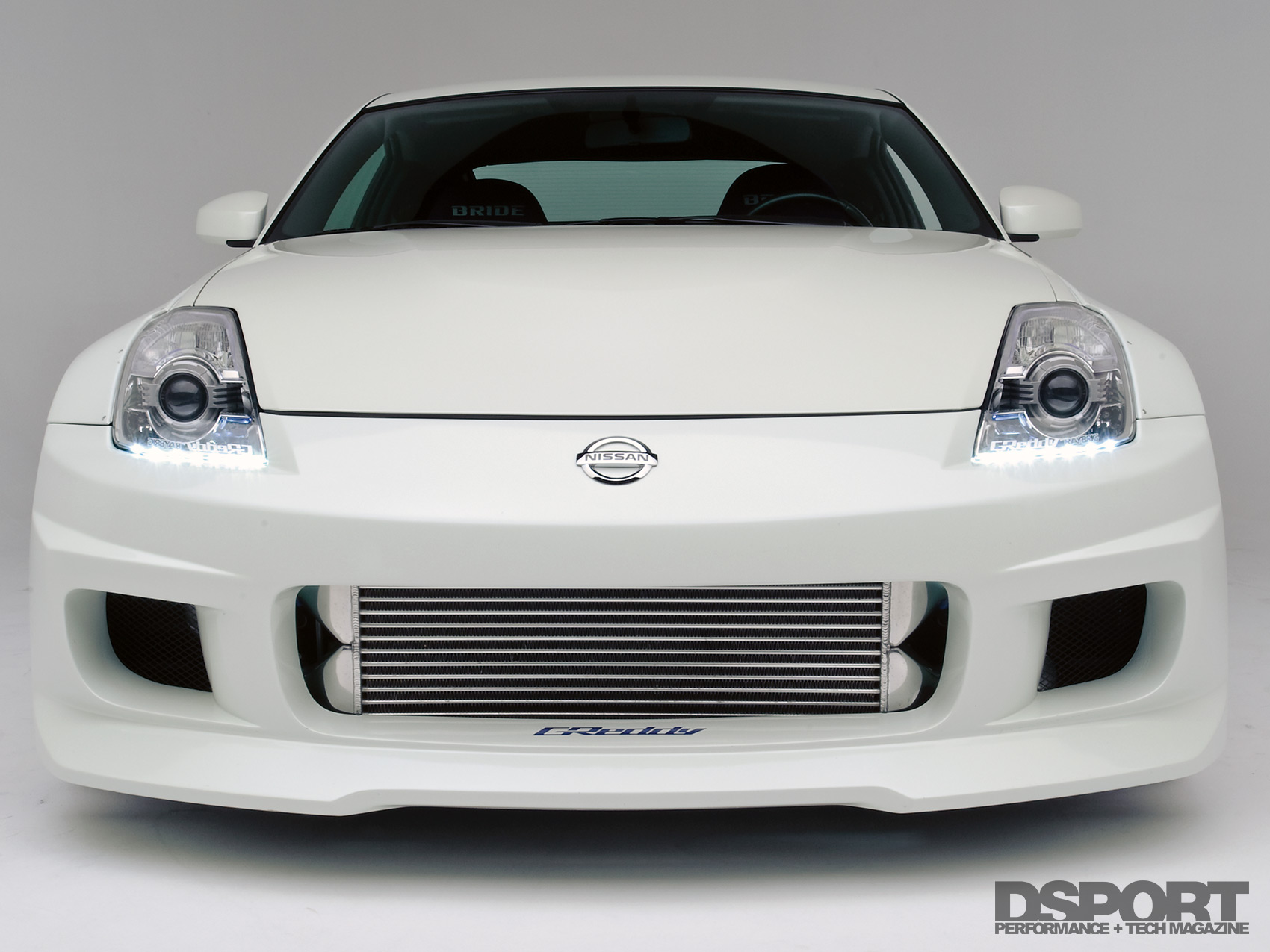

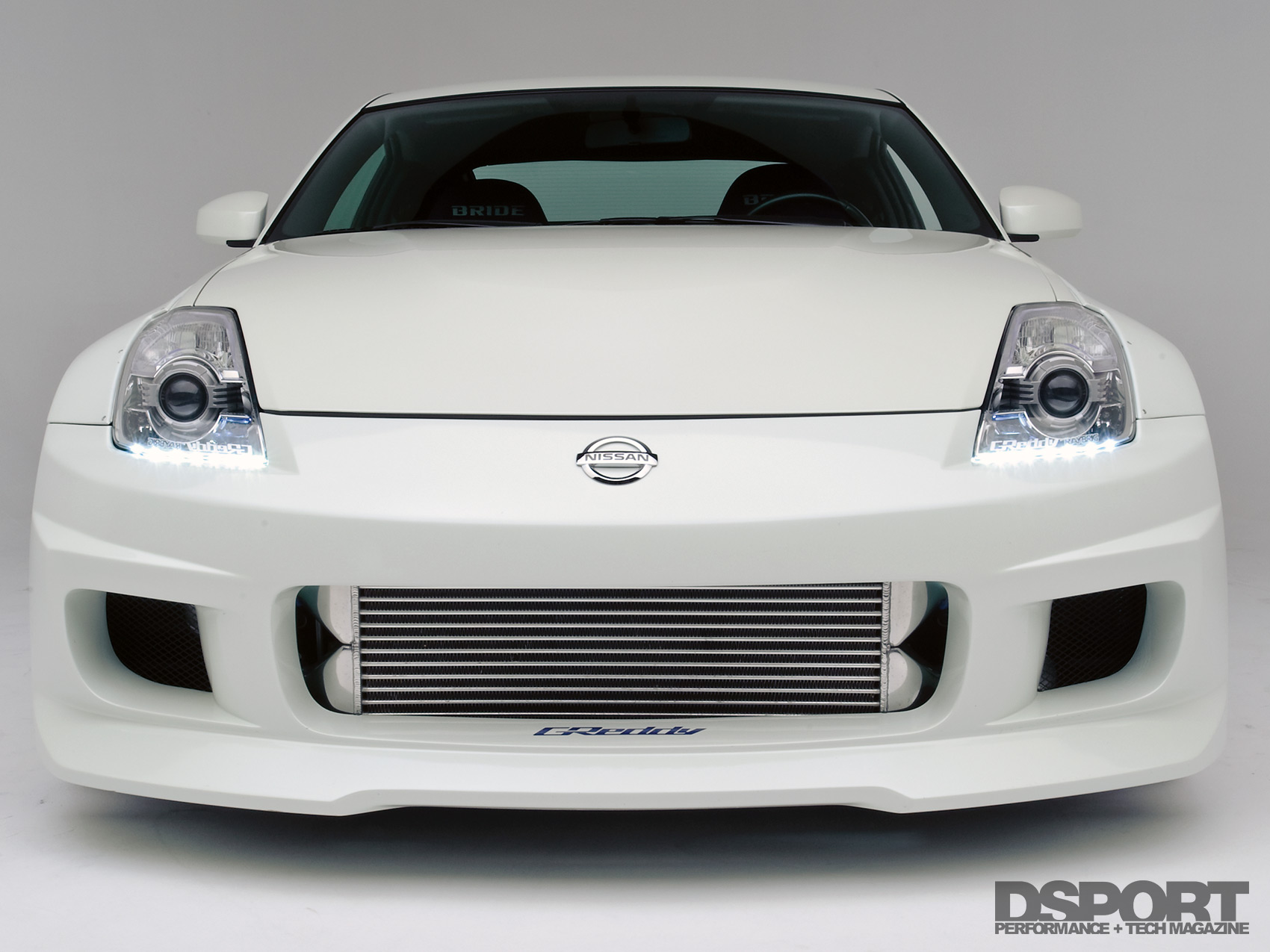

| Intercooler: |
GPP Type-29 R-Spec FMIC |
| Cooling System: |
GPP Racing Aluminum Radiator |
| Oil System: |
GPP 13-row Oil Cooler Kit |
|
GPP GR-1 Full Synthetic Oil |
|
GPP Sports Oil Filter |
|
GPP Custom Breather Tank |
| Performance Electronics: |
Innovate LC-1 wideband A/F meter |
| Springs, F&R (Make & Rate): |
GPP 10 kgf/mm (F), 8 kgf/mm (R) |
| Shocks, F&R (Make & Rate): |
GPP Type-S Adjustable Coilovers |
| Clutch / Flywheel: |
OS Giken R3C Triple-Plate Clutch & Flywheel |
| Differential(s) (Make & Type): |
NISMO GT LSD 1.5 Way |

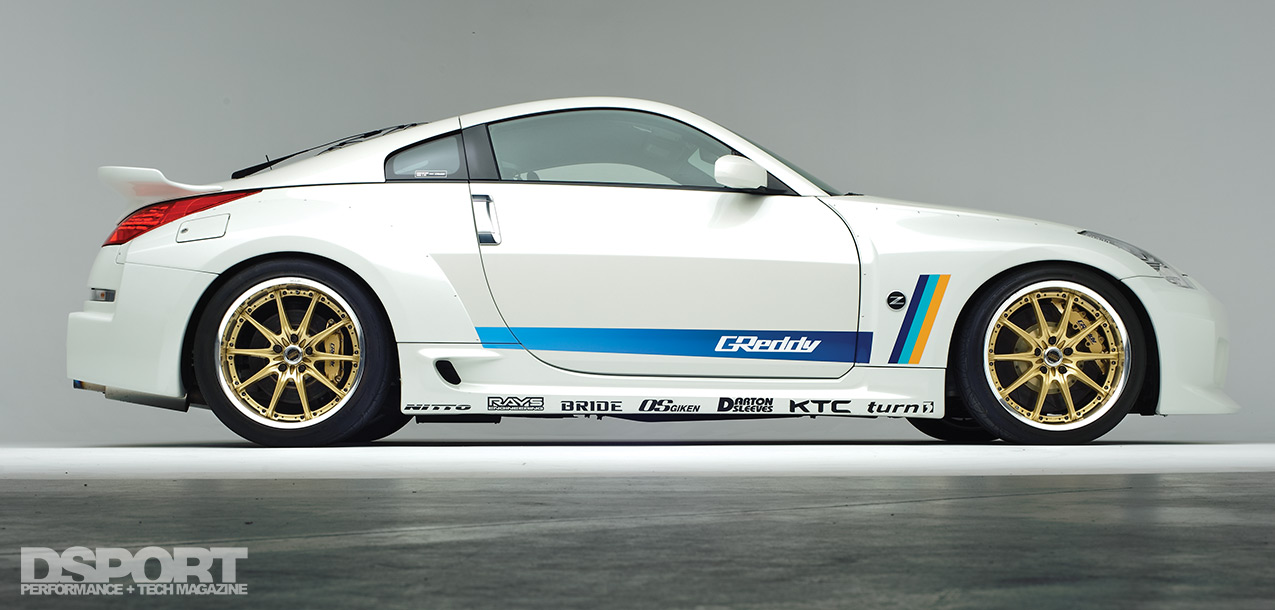

| Wheels (Make, Size & Offset): |
Volk Racing GT-F |
|
19×9.5-inch (F), 19×10.5-inch (R) |
| Tires (Make & Size): |
Hankook Ventus V12 Evo |
|
255/30R20 (F), 275/35R20 (R) |
| Brake Calipers: |

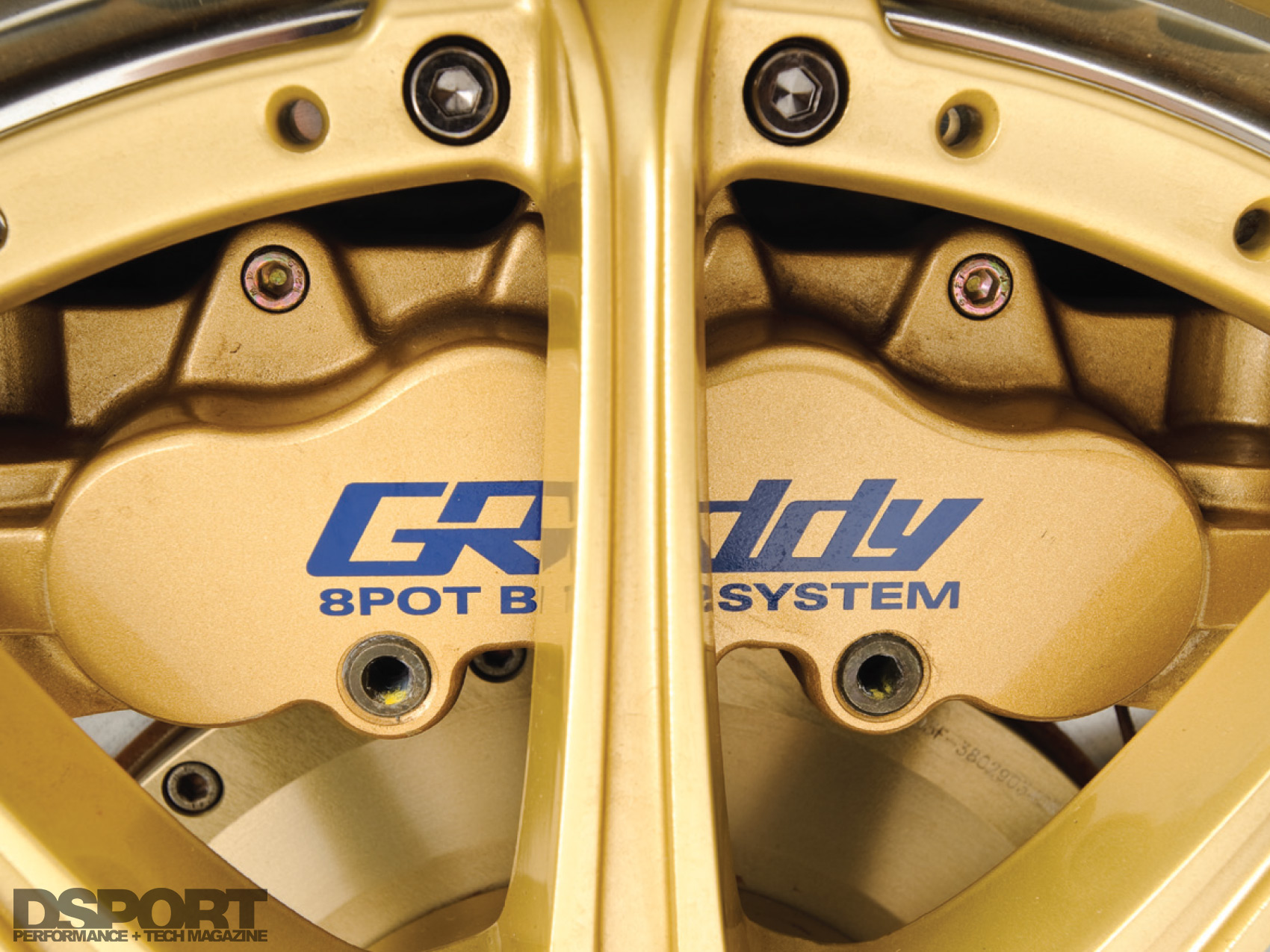

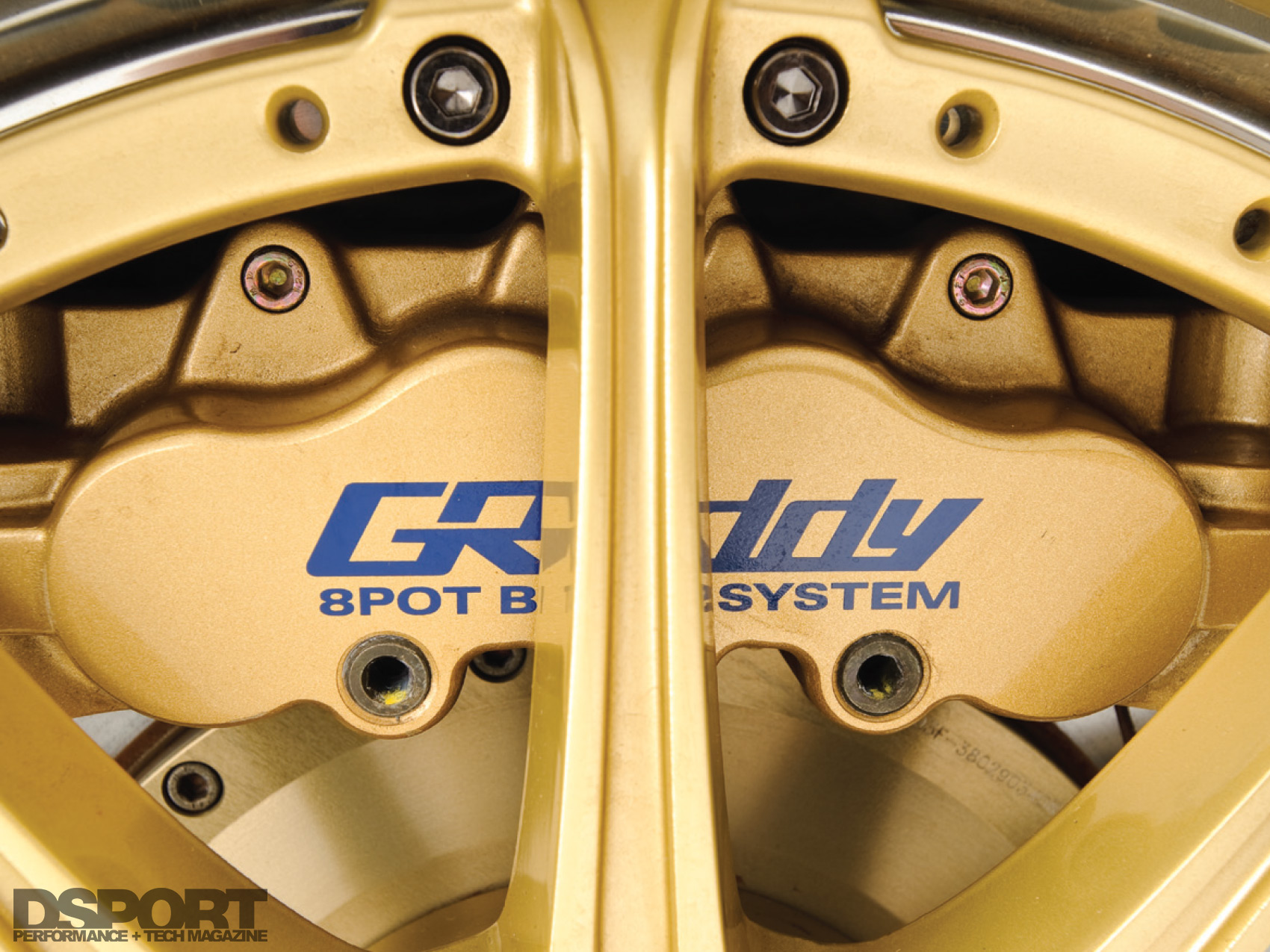

GPP 8-piston Caliper (F) |
|
GPP 6-piston Caliper (R) |
| Brake Rotors: |
355mm (F), 330mm (R) |
| Brake Pads: |
GPP Pads |
| Brake Lines: |
GPP Stainless-steel Braided Lines |
