711 WHP K24-Powered Turbo Honda Civic CX

SPEC SHEET

VEHICLE

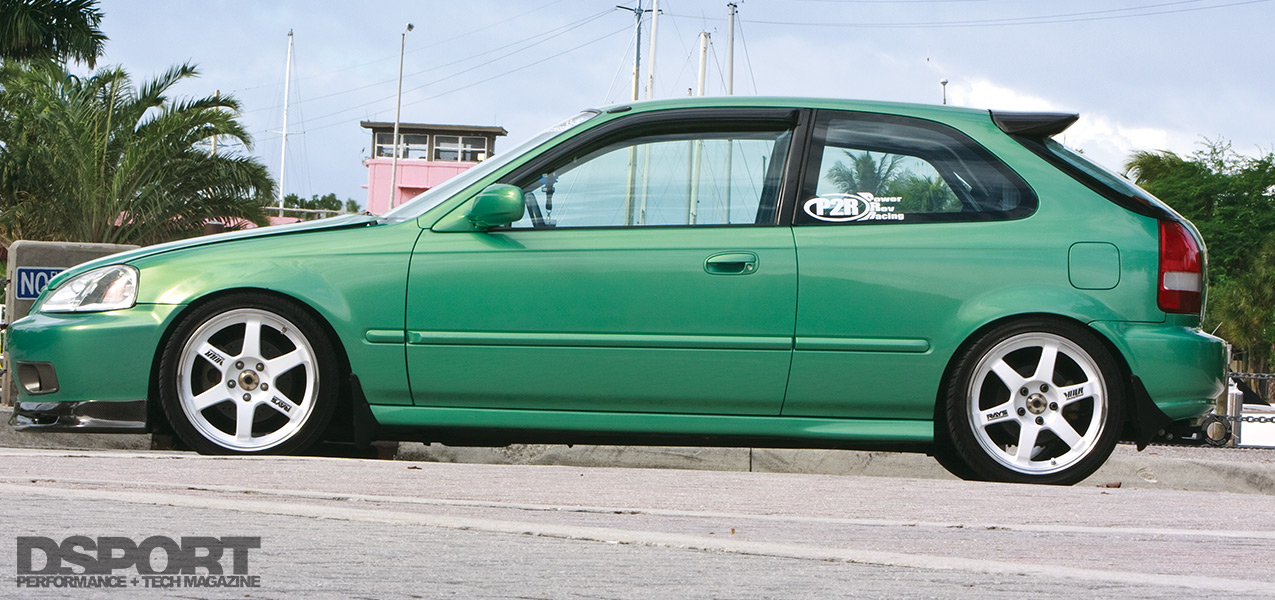

Year / Make / Model: 1996 Honda Civic CX Hatchback
Chassis Code: EK9
Vehicle Weight: 2,450 lbs.
Redline RPM: 9,000 RPM
Peak Boost: 32 psi
Fuel: VP Racing C16 Race Fuel

ENGINE

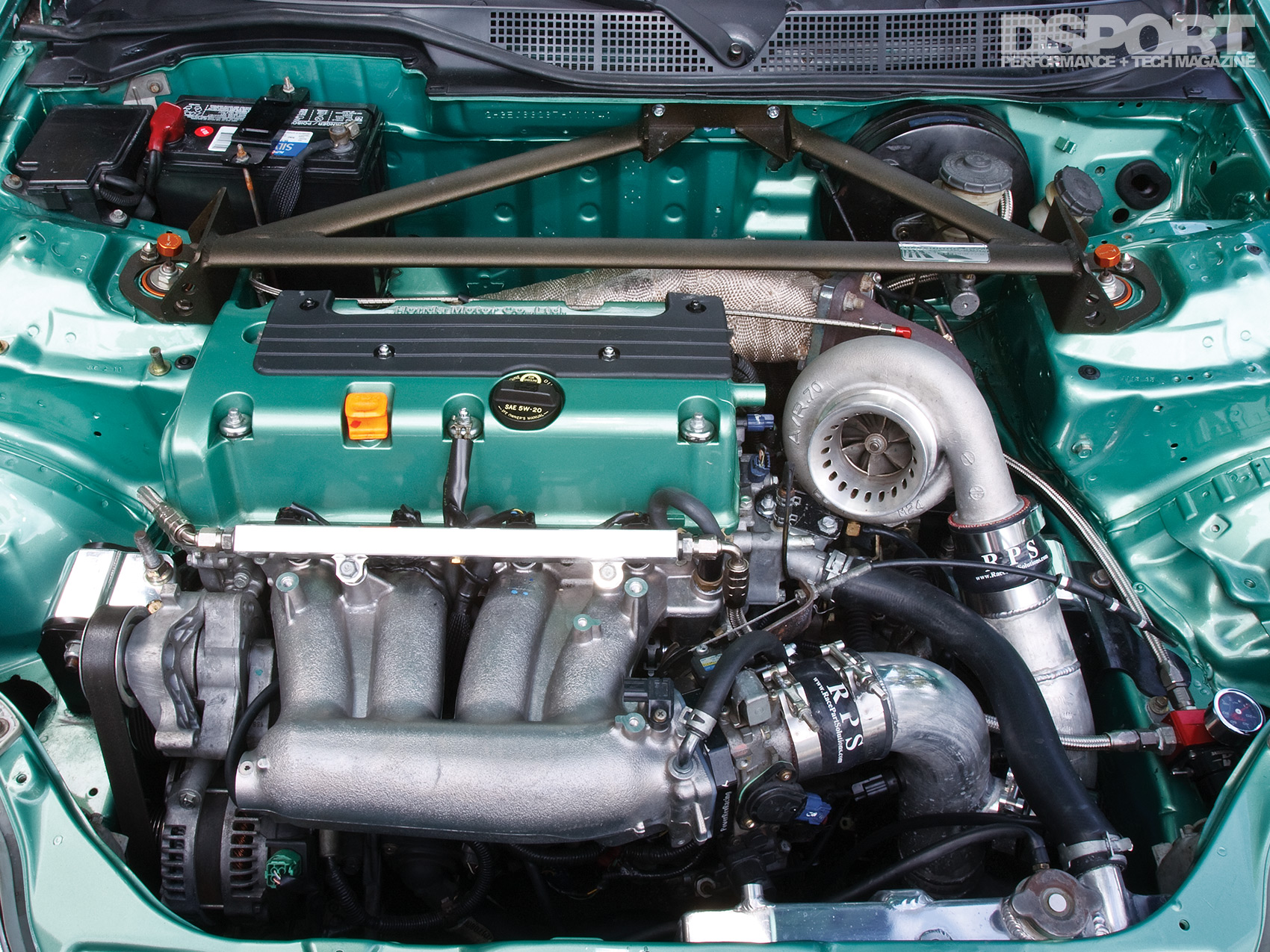

Engine Code: K24A1
Displacement (cc): 2,381.5cc
Bore & Stroke (mm): 87.5mm x 99mm

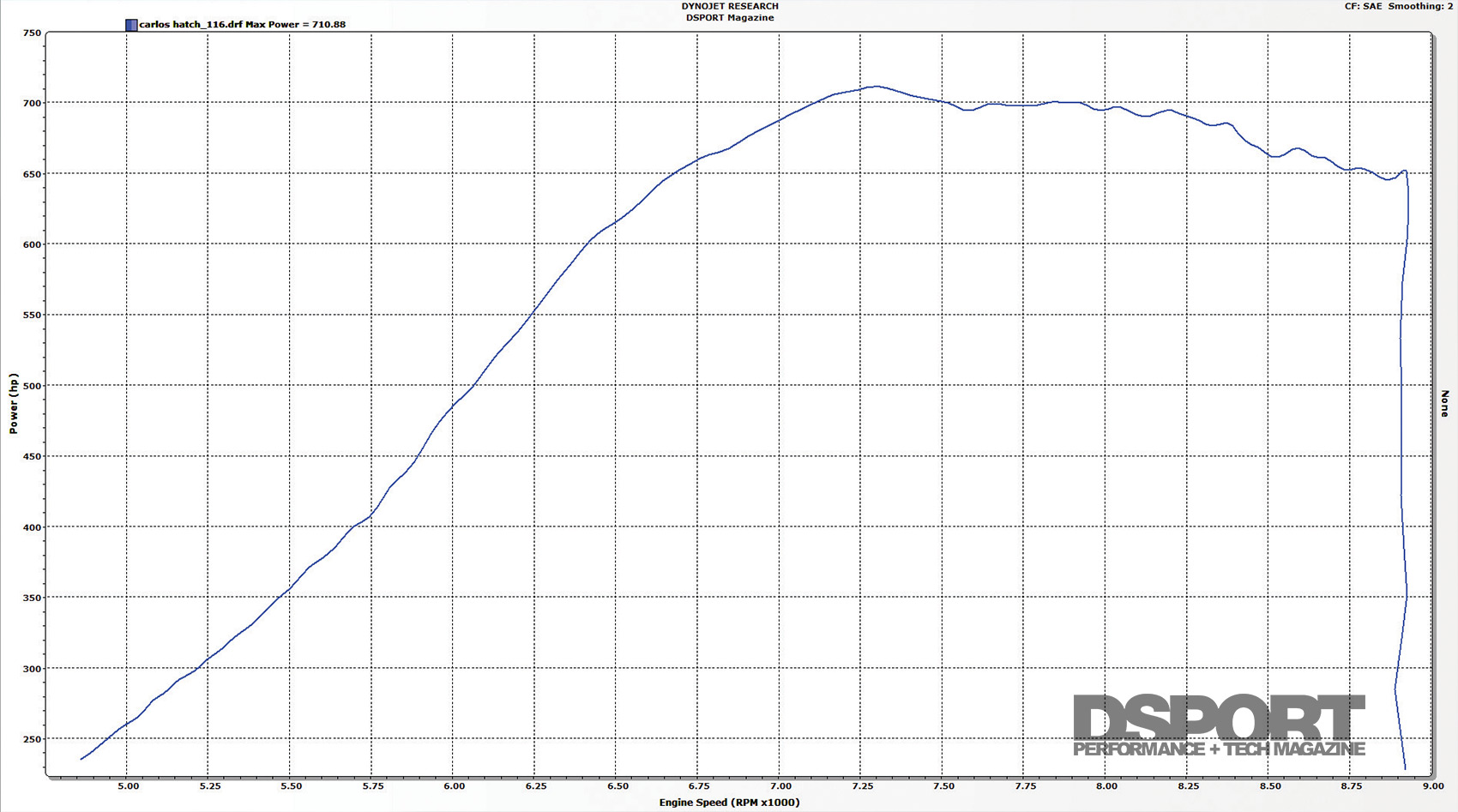

Peak Horsepower (@ RPM): 711 whp @ 7,300 RPM
Peak Torque (@ RPM): 517 lb-ft @ 7,200 RPM
Dyno Type: Dynojet 248C Dynamometer
Machine Work: Redline Automotive Machine
Pistons/Compression Ratio: Wiseco 10.2:1 Compression Forged Pistons
Camshafts: K20Z1 Camshafts
Valves / Springs / Retainers: Race Engine Valves (REV) Stainless Valves
REV Valve Springs & Retainers
Cylinder Head Mods: K20A2 Cylinder Head
Head/Main Studs: Golden Eagle Head Studs
Cylinder Head Gasket: Cometic Head Gasket

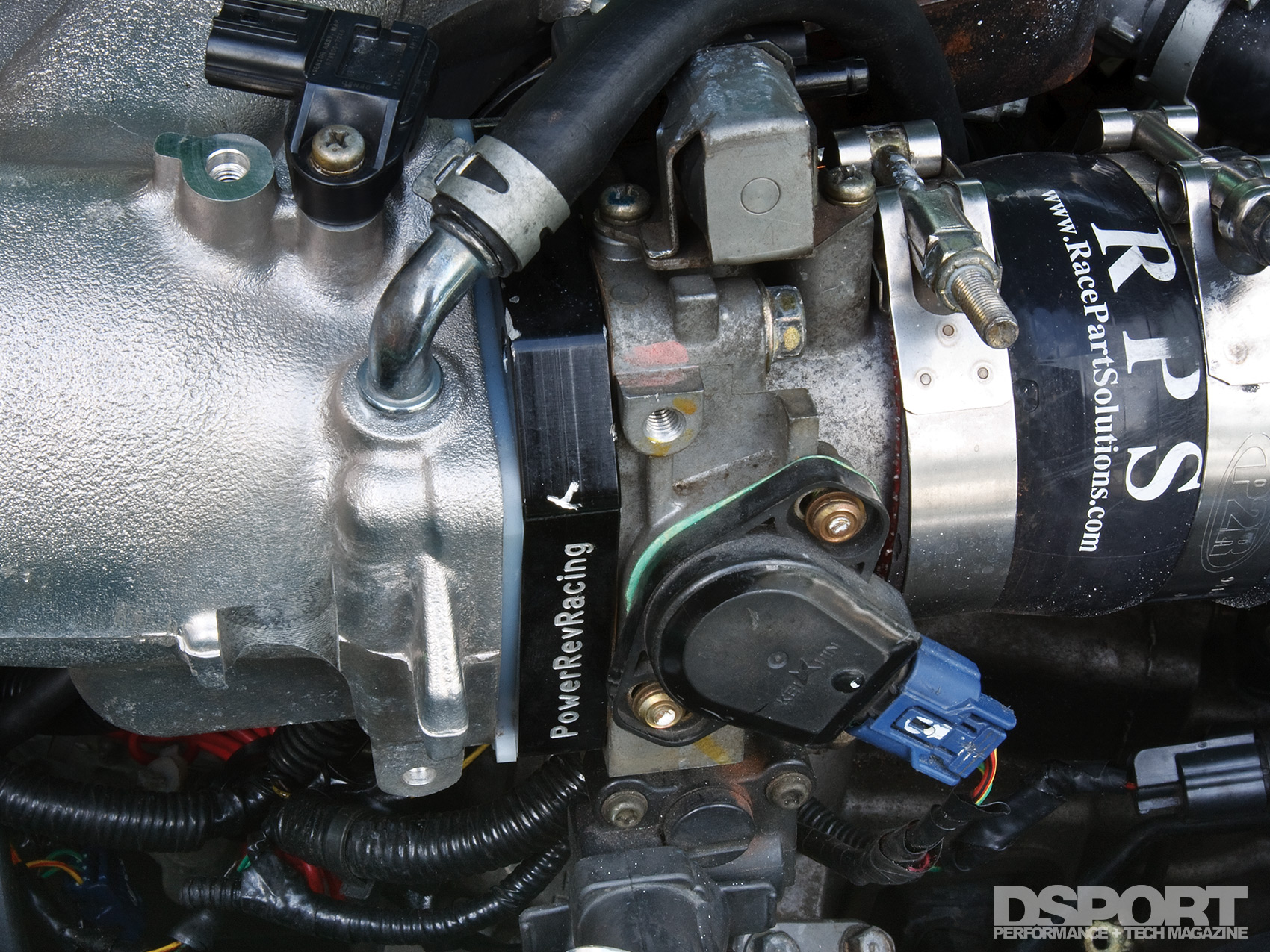

Intake Manifold / Throttle Body: RBC Intake Manifold (2006-07 Civic Si)
Power Rev Racing (P2R) Adapter Plate
Fuel Injectors: Precision Turbo & Engine (T&E)
1,200 cc/min Injectors (x4)
Fuel Delivery System: Walbro 255-lph In-tank Fuel Pumps (x2)
Engine Management System: Hondata K-Pro Engine Management
Boost Controller: Hondata K-Pro
Spark Plugs: NGK Iridium Plugs
Exhaust Manifold: Fab-worx Custom Stainless-steel Manifold
Exhaust System: R.A.W. Racing 3-inch Turbo-back Exhaust

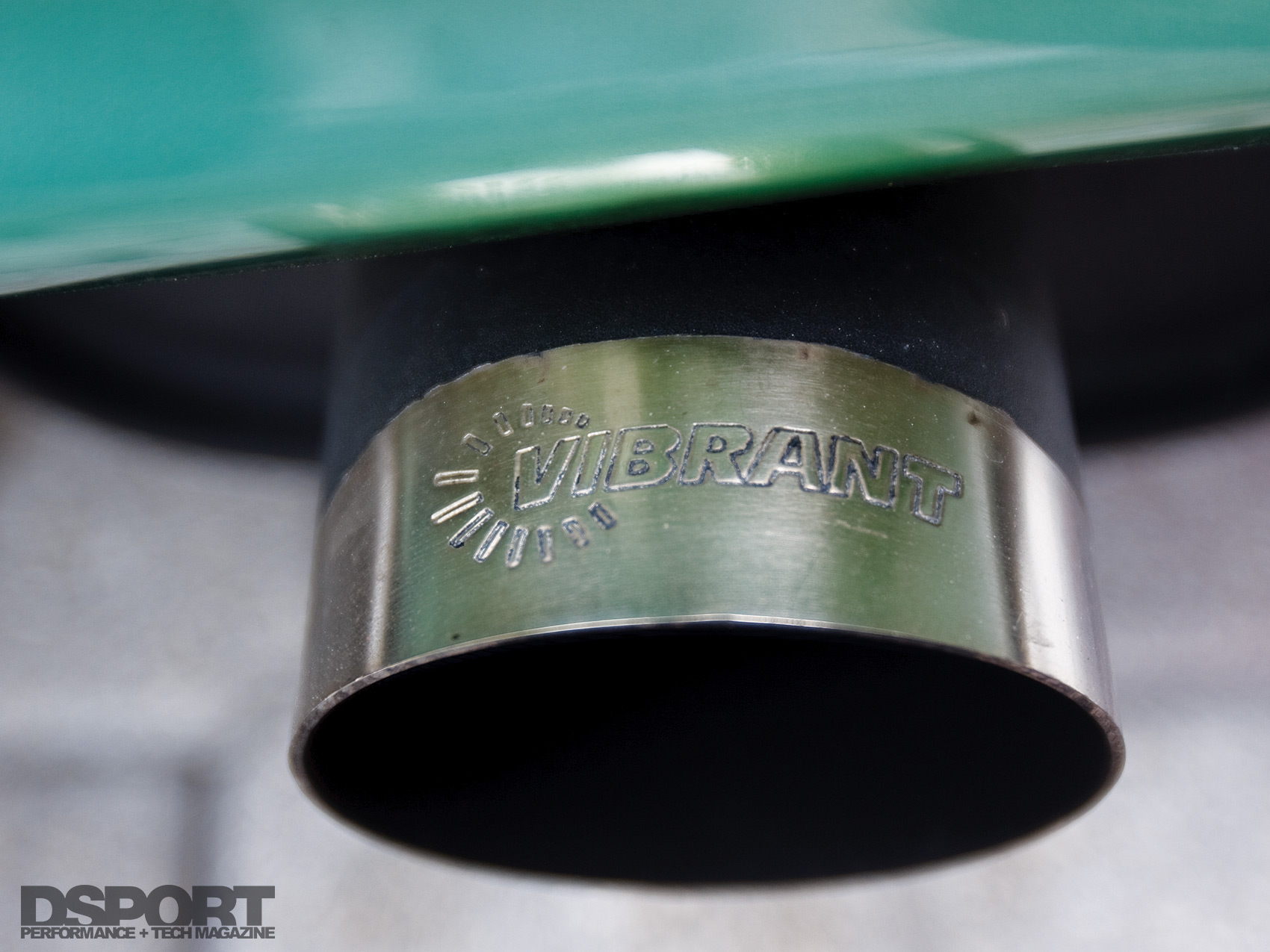

Vibrant Performance Muffler

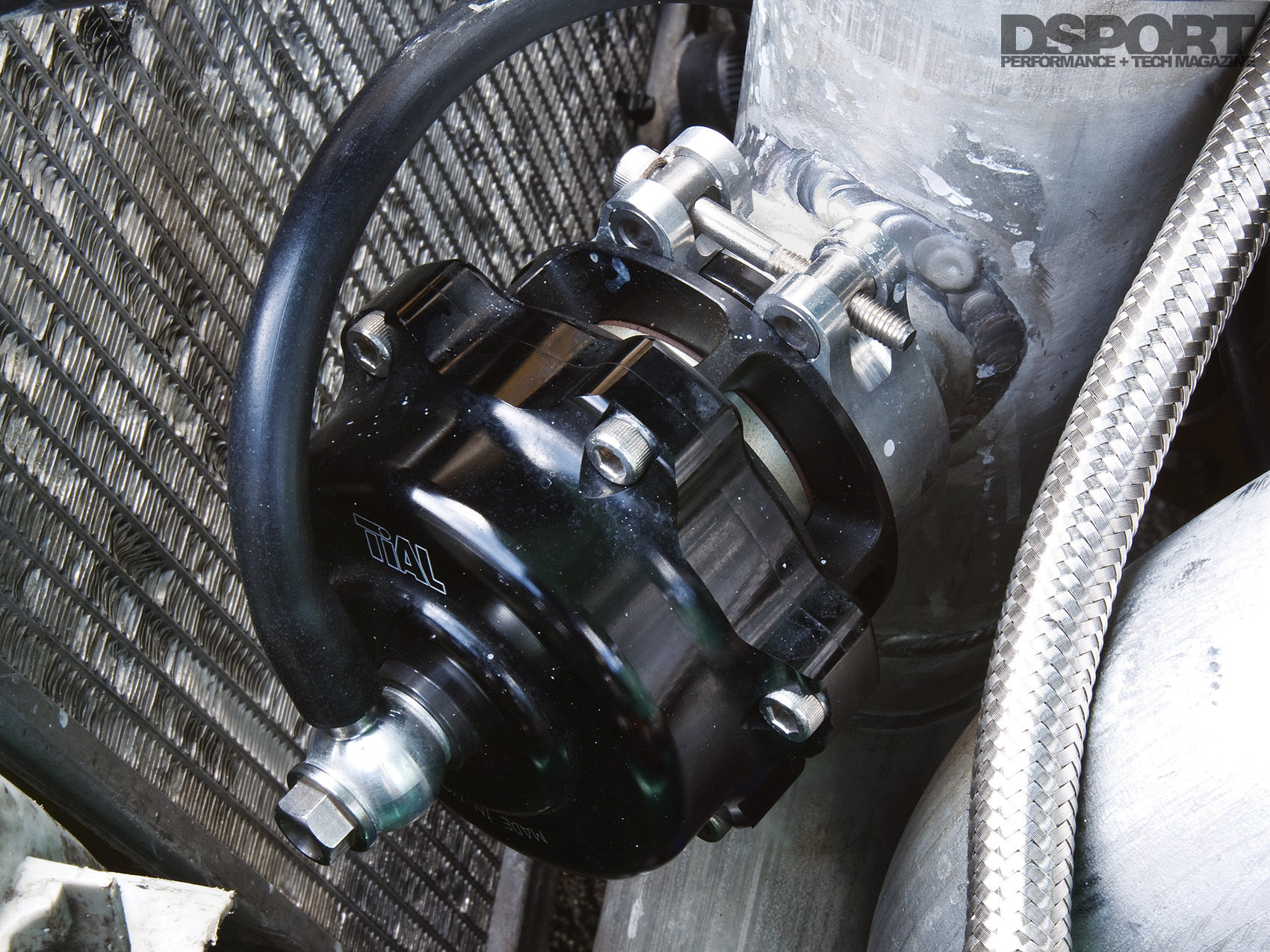

Wastegate: TiAL Sport 44mm Wastgate
Blow-Off Valve: TiAL Sport 50mm Blow-off Valve

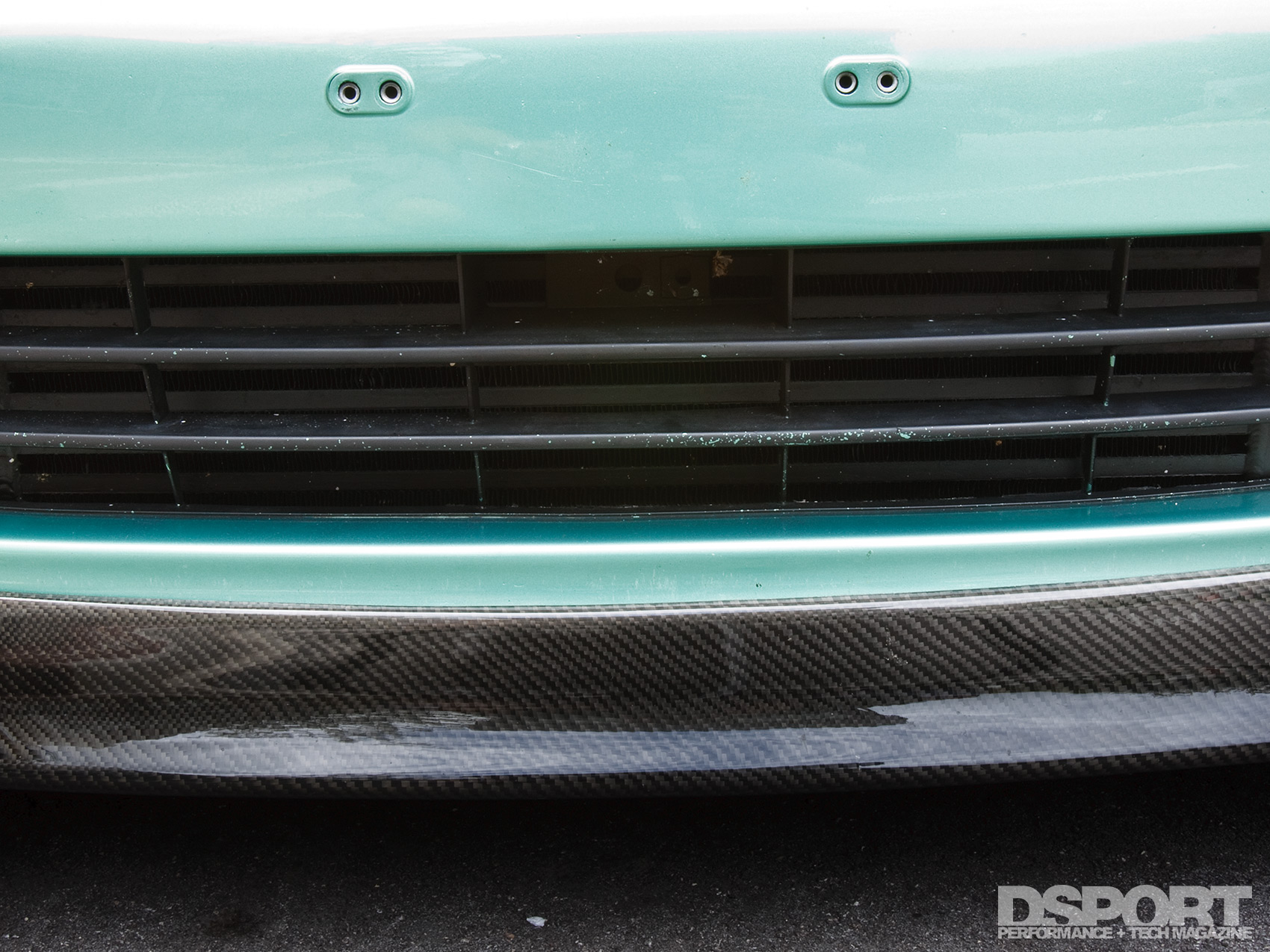

Intercooler: BMPC Front-mount Intercooler
Cooling System: Fluidyne Custom Aluminum Radiator
TURBOCHARGER

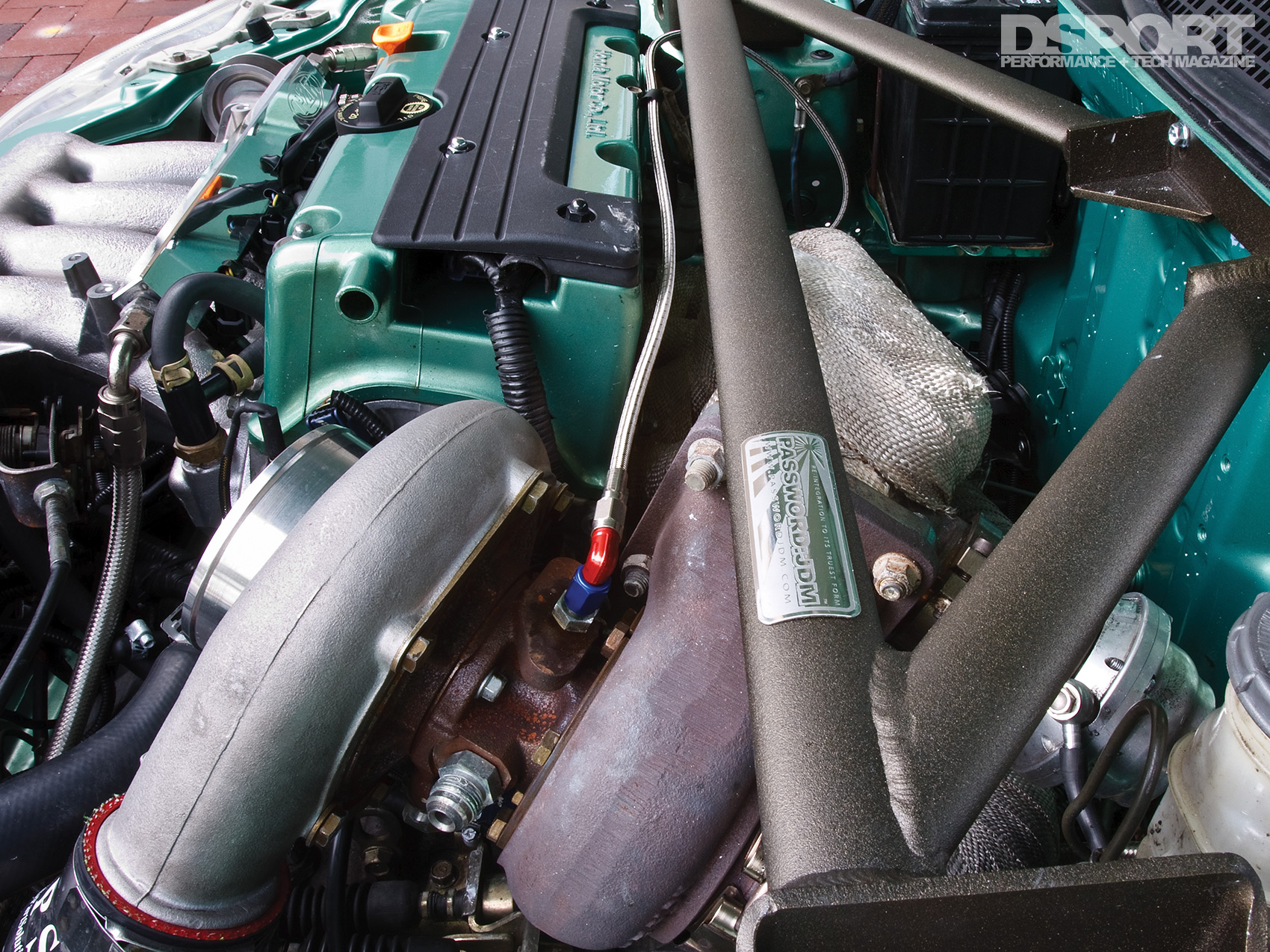

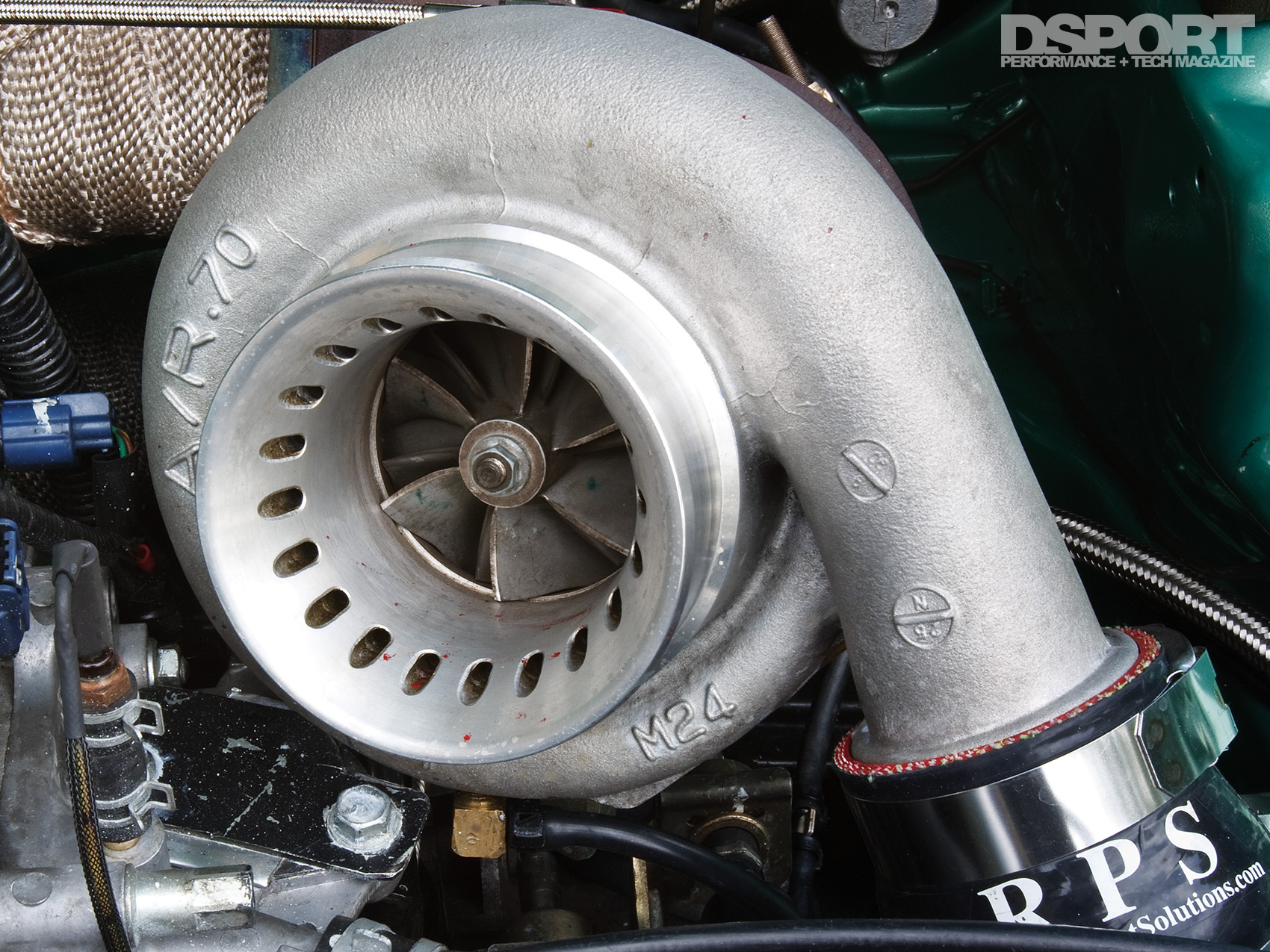

Turbocharger: Precision T&E 6776 Turbocharger
Frame: T67
Compressor Wheel Specs: 67mm Inducer, 84mm Major
Turbine Wheel Specs: 64.5mm Exducer, 74mm Major
CHASSIS/DRIVELINE
Springs, F&R (Make & Rate): Ksport Springs
10 kgf/mm (F), 6 kgf/mm (R)
Shocks, F&R (Make & Rate): Ksport Kontrol Pro Dampers (F&R)
Additional Suspension Components: Skunk2 Front & Rear Camber Kit
Full-Race Traction Bars
Function7 Rear Lower Control Arms
ASR Rear Brace
Transmission: 2002-04 Civic Si Factory 5-speed
Clutch / Flywheel: Carbonetic Twin Clutch
Differential(s) (Make & Type): 2006 Civic Si LSD
Axles / Driveshaft: Drive Shaft Shop 5.9 Axles

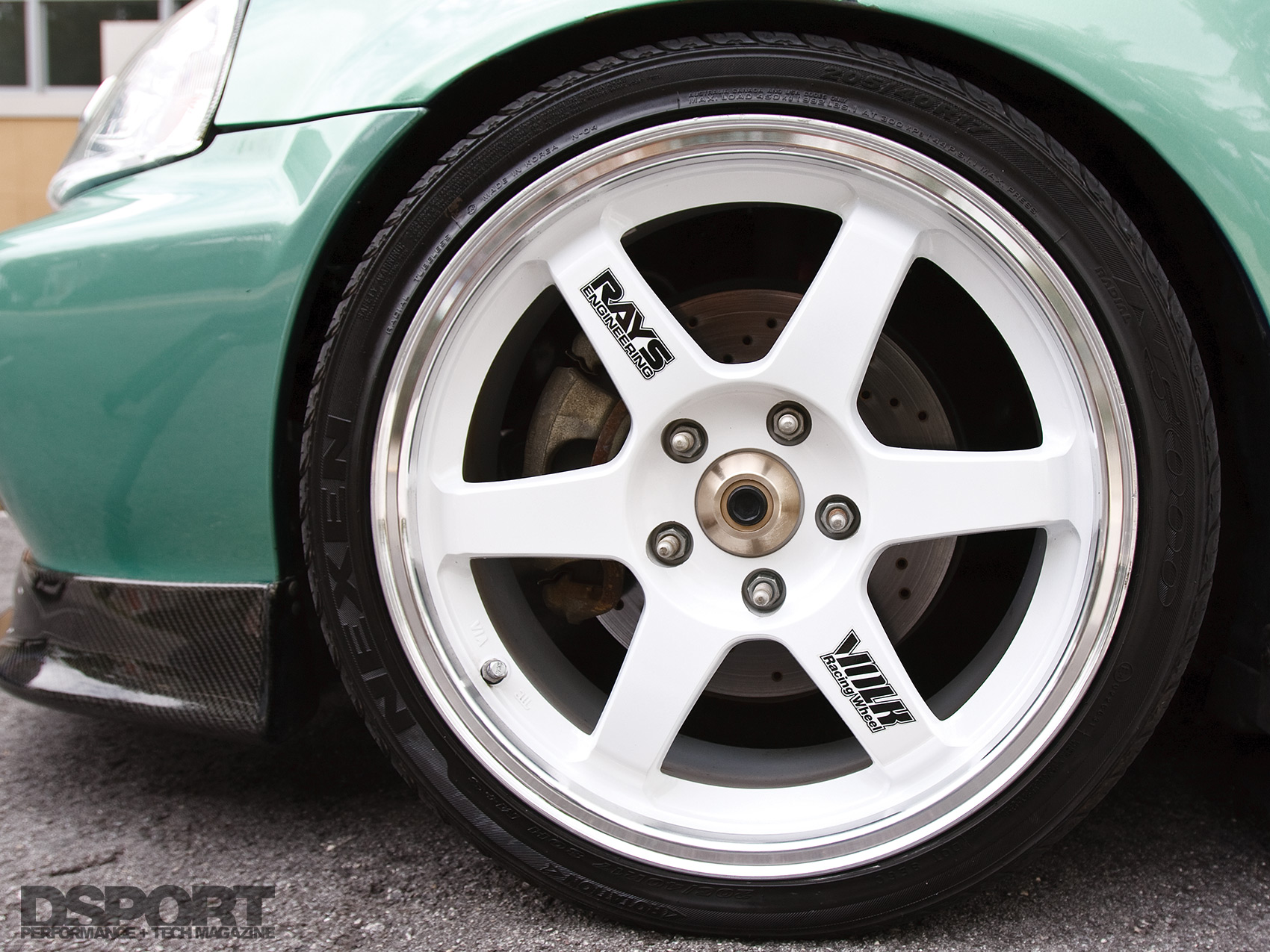

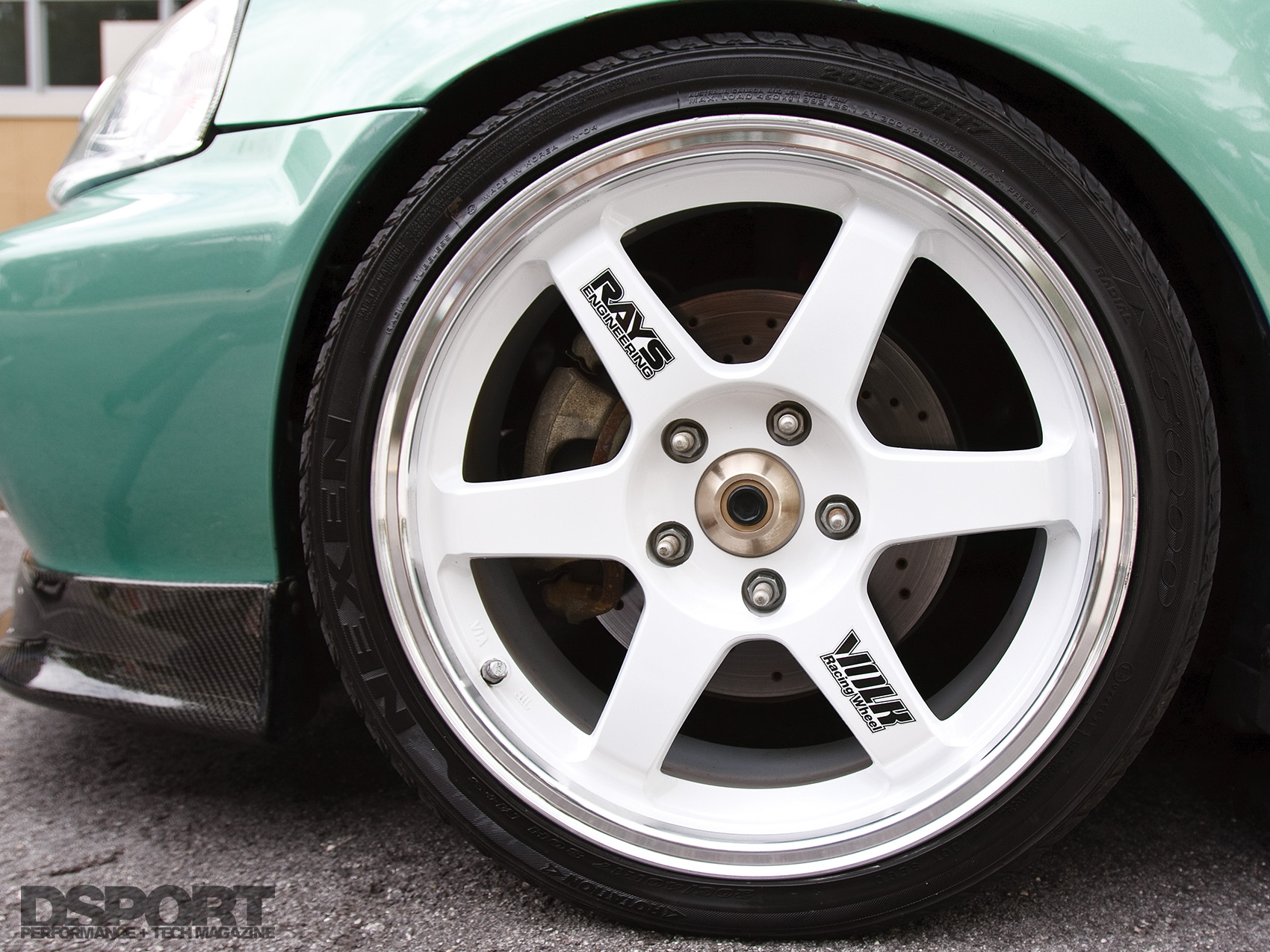

Wheels (Make, Size & Offset): Volk Racing TE37 Wheels
17×7.5-inch +42mm (F&R)
Tires (Make & Size): Nexen 205/40R17 (F&R)
Brakes: USDM Type-R Brakes w/ 5-lug
Conversion (F&R)
Brake Lines: Russell Stainless-braided Lines
Roll Bar / Cage: Chassis Engineering 4-point Cage

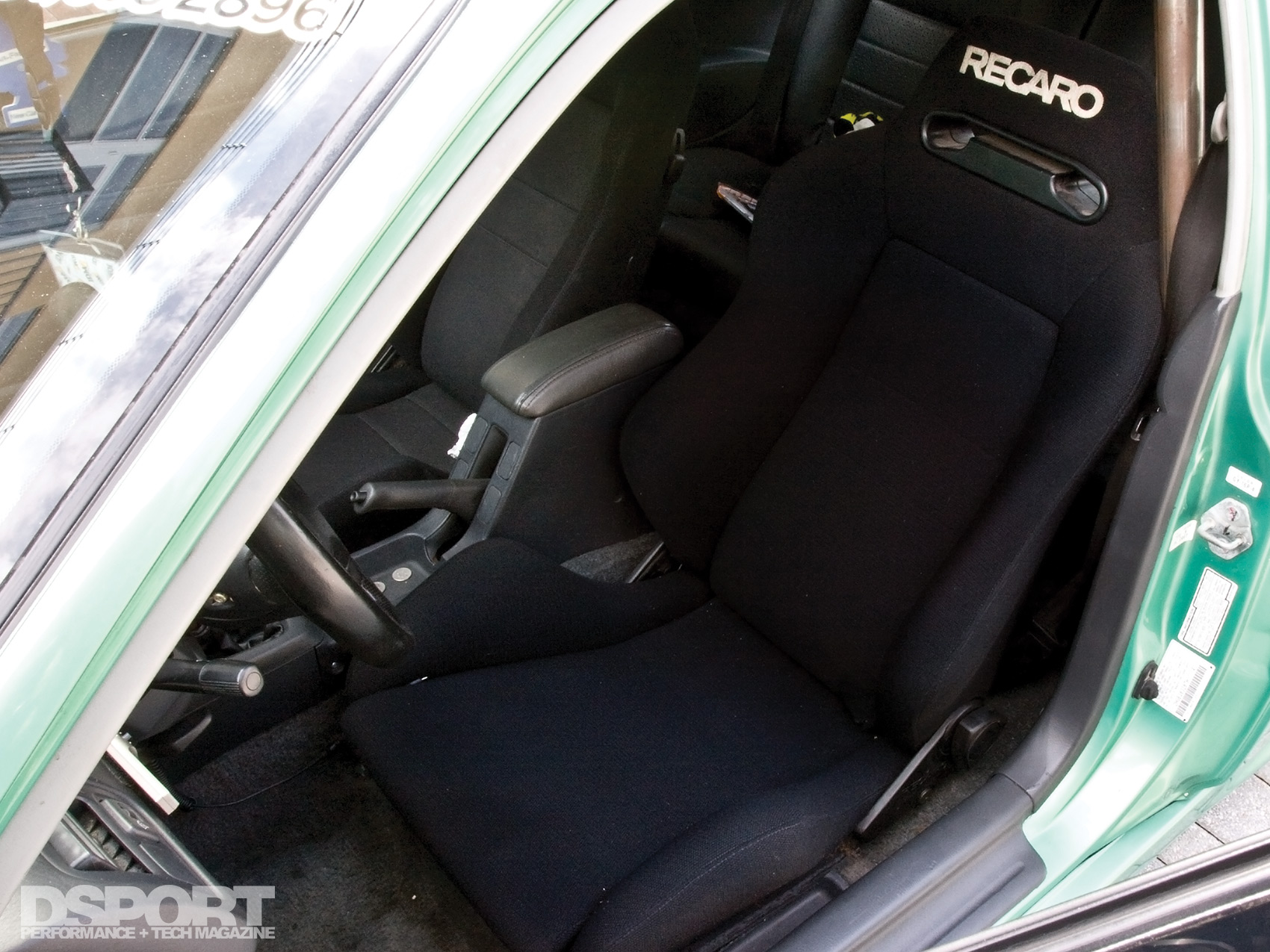

Seats: Recaro Speed Race Seats
Harnesses: Simpson 5-point Harnesses

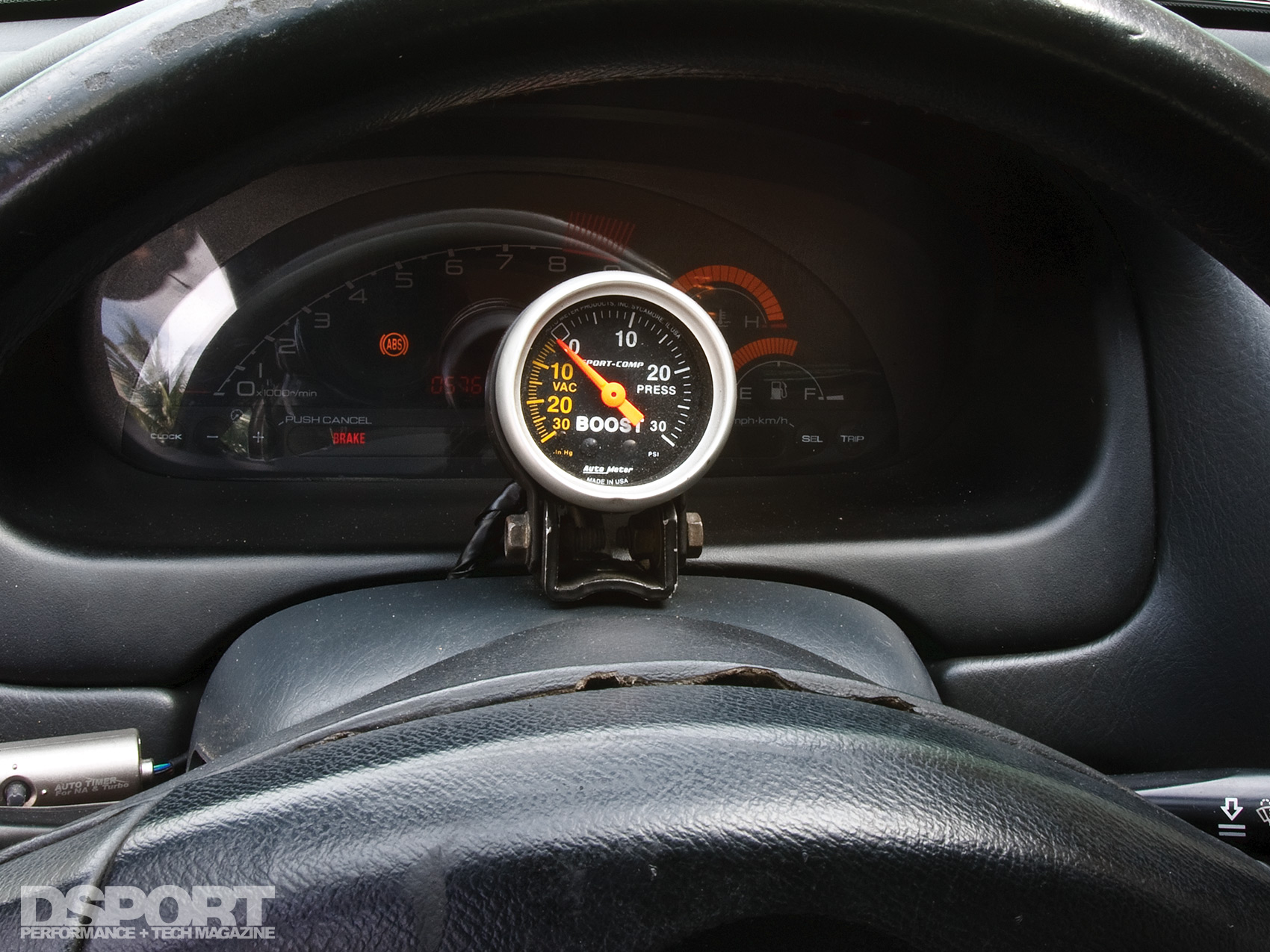

Gauges: Autometer Boost Gauge
Honda S2000 AP2 Cluster
Etc: Civic Type-R Steering Wheel
EXTERIOR

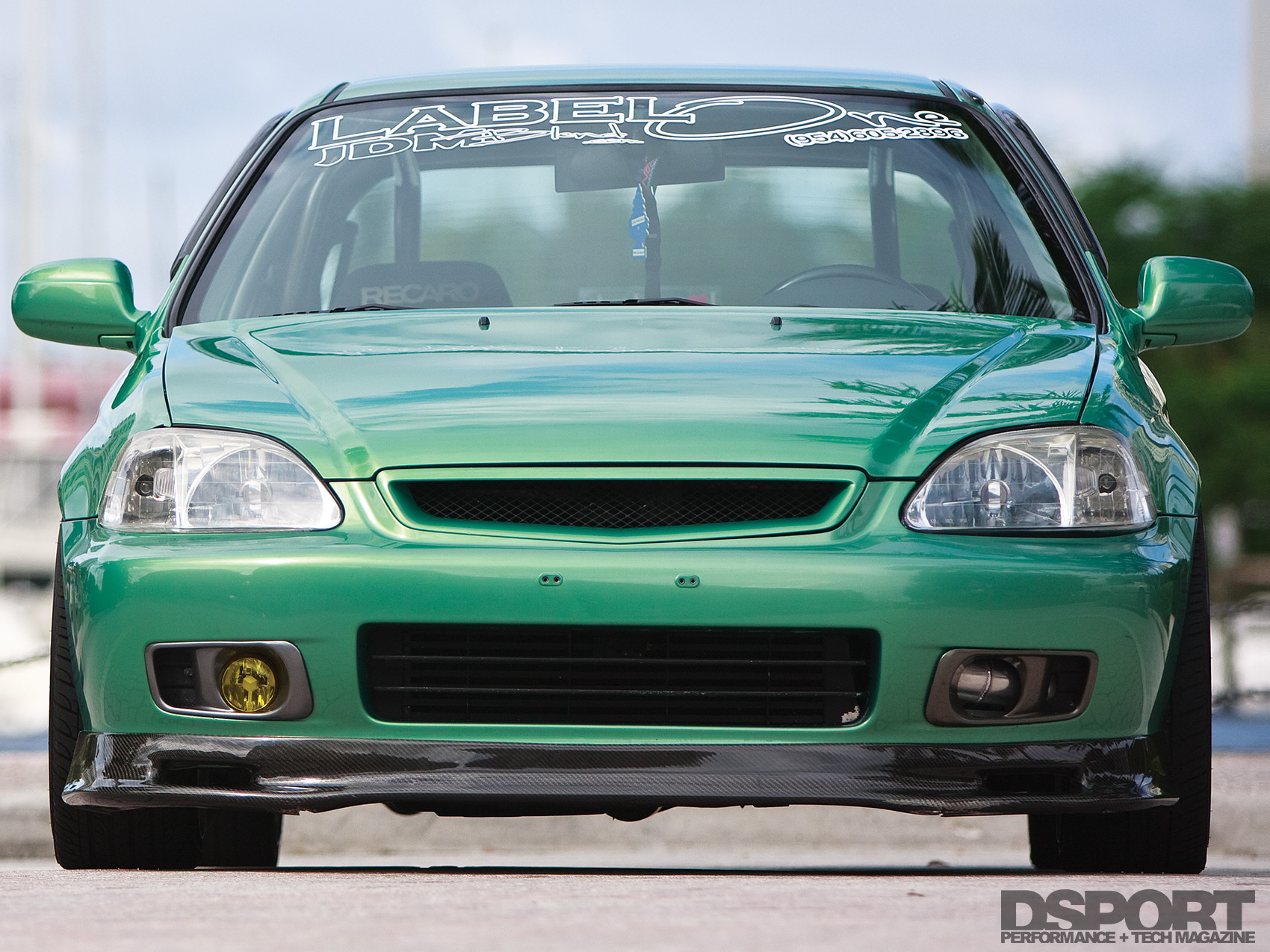

Front Lip Spoiler: Seibon Spoon-style CF Lip Spoiler
Spoiler: CF Spoon-style Spoiler
Mirrors: Civic Type-R Mirrors
Paint: DuPont Midori Green
