A Skyline Inspired by the RH9 R33

You don’t know what you’re missing out on in overseas markets. In the early 1990s, many enthusiasts had never heard of the GT-R, until mainstream and enthusiast publications began featuring it. The fascination with the Nissan Skyline GT-R gained even more momentum once the (now defunct) Motorex Corporation started importing them legally to the USA for a short time from the late 90s to the early 2000s. DSPORT’s publisher, Michael Ferrara, was among the first to buy one and his R33 GT-R became the flagship project car for the magazine and an inspiration to JDM performance fanatics.

Text and Photos by Richard Fong

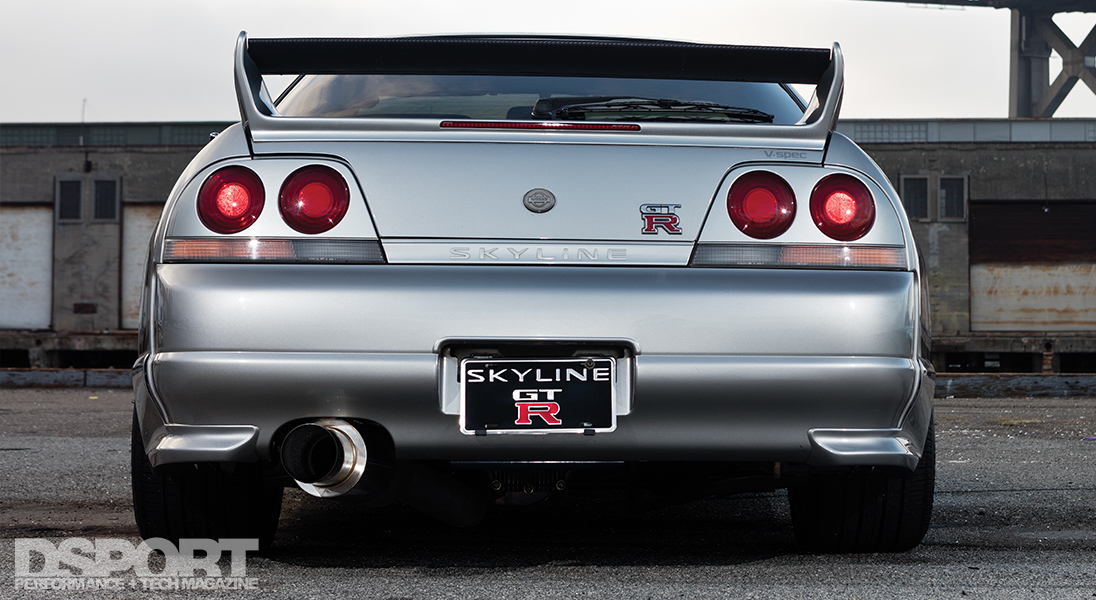

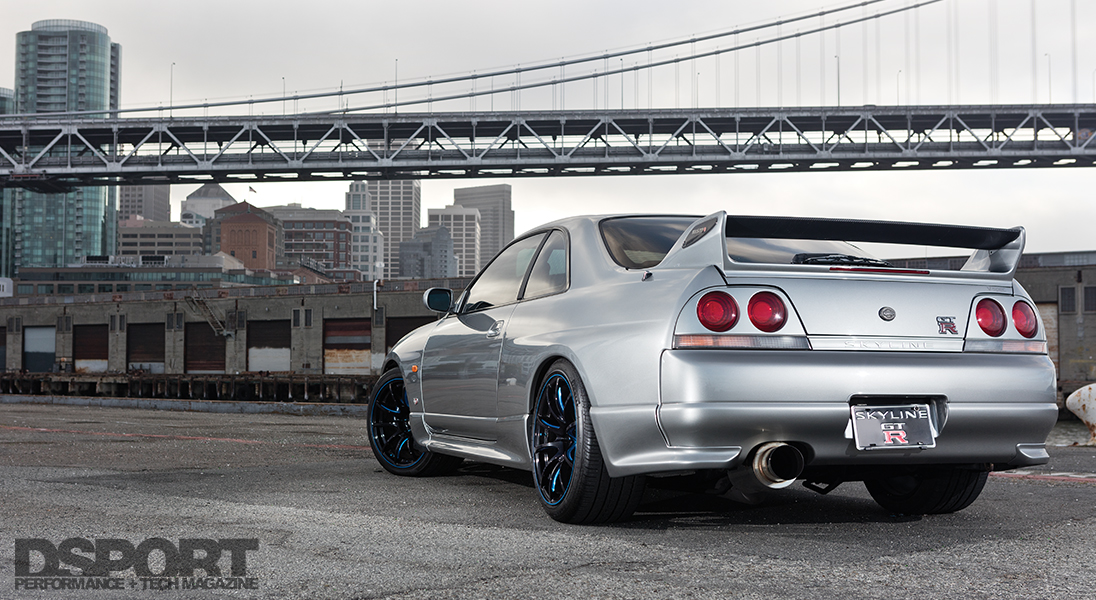

Rear view of the R33 by the bridge

Digging Up a Gem

When Craig D. saw the GT-R in the pages of DSPORT, he became an instant fan, putting the R33 at the top of his want list. Unfortunately, the number of Skylines properly federalized were far and few between. This made Craig’s search an even more challenging one. His perseverance eventually paid off in 2010 when he became the fourth owner of this fully federalized and street legal Motorex R33 Skyline GT-R.

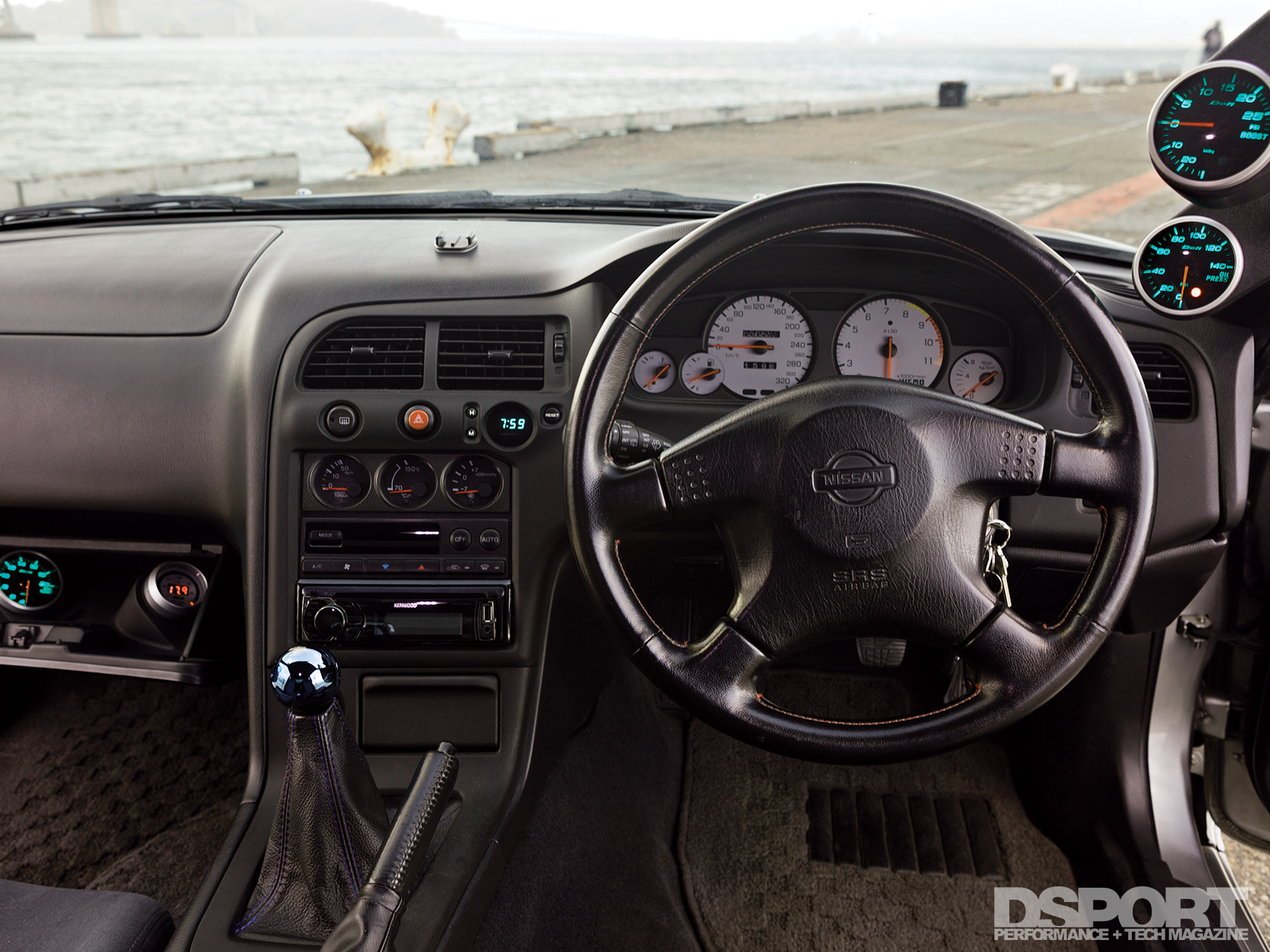

Interior of the R33

Inspired By R33 Performance

Years of tuning and development in the Japanese car scene have proven the GT-R’s performance potential. This fact is further characterized by the amount of support the aftermarket, giving owners plenty of options to choose from. Since Craig had followed the DSPORT R33 GT-R project from the beginning, he made use of this knowledge base to pave the path of his own build. Aiming to double his horsepower output, he began his quest for more performance.

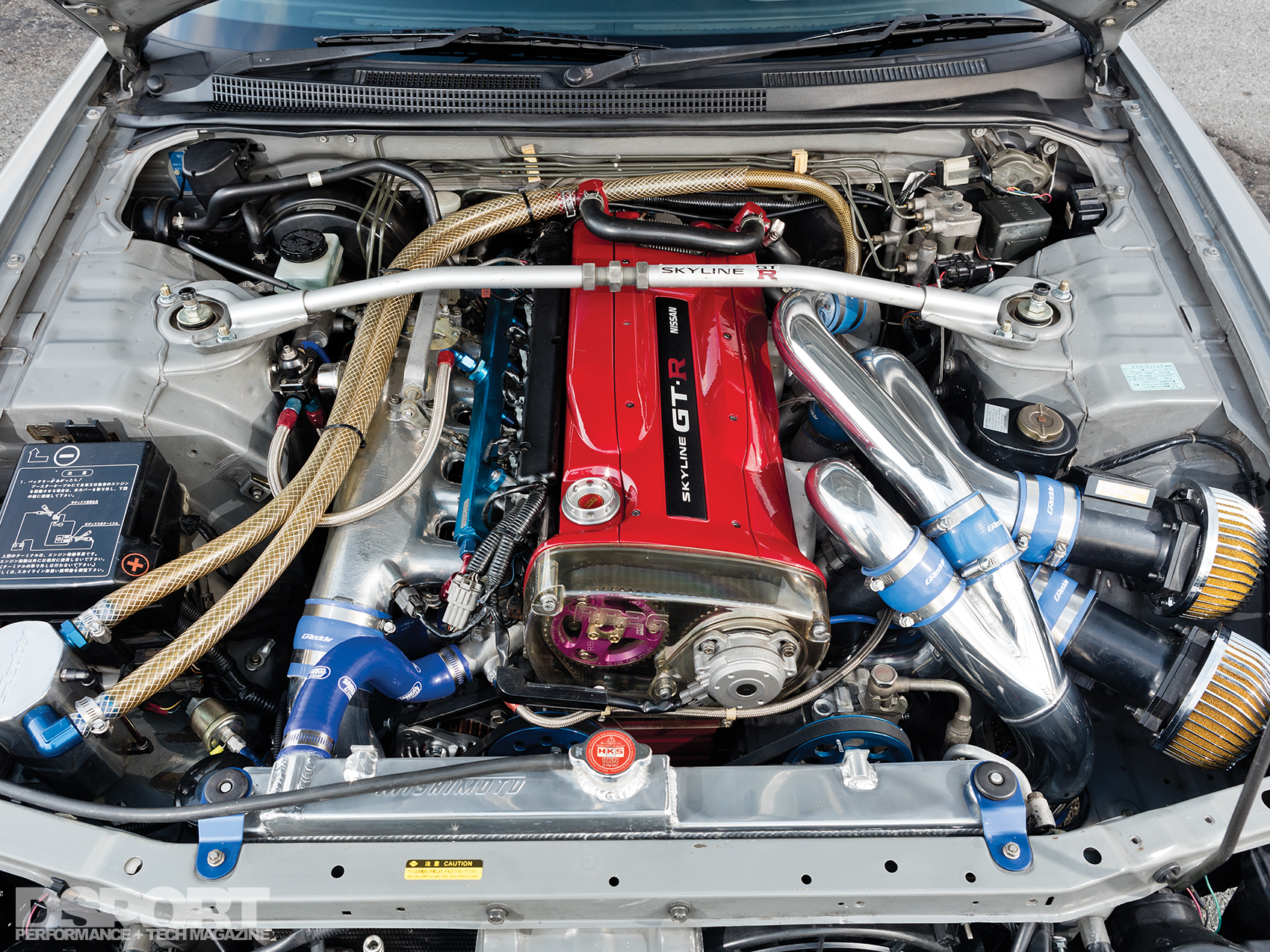

RB26 in the R33

Sourced From a Swap

In order to mitigate downtime, Craig sourced another engine to swap into his GT-R. The freshly-constructed RB26 engine he purchased was originally going to be swapped into a 240SX. It came fortified with 8.5-to-1 compression CP Pistons and Manley Turbo Tuff connecting rods. The cylinder head featured a complete TOMEI Powered valvetrain actuated by TOMEI’s PONCAM Type B camshafts.

The GT-R then took a trip to FFTEC in Hayward, California to be calibrated by its resident tuner, Sean Burgess. To start, Burgess began the break-in process on FFTEC’s Mustang Dynamometer. Once he was satisfied that the rings were seated, he began dialing up the boost and making adjustments to the tables. Sadly, this engine only enjoyed a short life beyond break in. The engine reached a humble 500 horsepower before a heartbreaking sound started coming from the block. It was the all too familiar sound of rod knock.

The Sandman Brings Nightmares

The cause of the rod knock traced back to a common oversight. The shop that powdercoated the valve covers didn’t clean out the sandblast media used to remove the factory finish from behind the baffle plates. Once the oil circulated through the valve covers, the trapped media got into the sump, oil galleys, bearings and everywhere else requiring lubricant. The result was spun bearings, characterized by the rod knock that could be easily heard. This damage forced another engine build. Craig commented, “This was an unbelievable and costly mistake. Everything suffered damage, from the crankshaft, rotating assembly and oil pump all the way up to the cams, oil cooler and valvetrain. A few hundred dollars worth of vanity turned into several thousand in repairs. This was by far the lowest of lows with this build.”

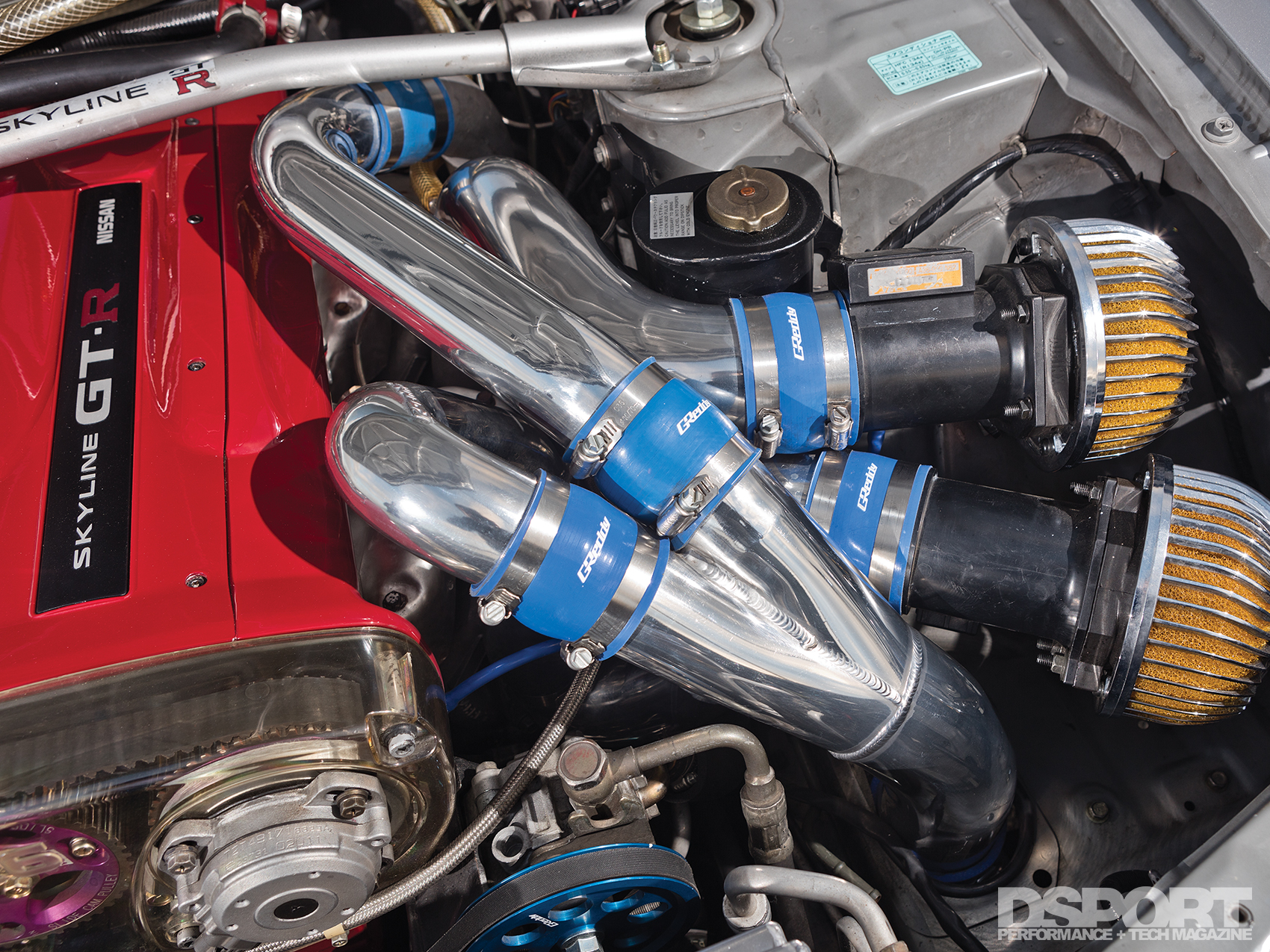

RB26 manifolds

Repeating the RB26 Build

Craig ended up trashing his turbochargers, oil cooler cores, the lines and other irreparably contaminated or damaged parts before work began on the RB26 engine. After a thorough cleaning, the bores increased by 0.5mm before a fresh set of CP pistons filled the cylinders. Manley Turbo Tuff connecting rods make the connection between the pistons and the factory crankshaft, completing the rotating assembly. The cylinder head also went through a reconstruction process, with fresh seals and new TOMEI Powered valves, springs and titanium retainers.

After finishing the longblock build, Craig looked for a pair of stock replacement turbochargers to provide a balance of response and increased output. He decided on a pair of Garrett GT2860R turbochargers, which were bolted up to the factory exhaust manifolds. The Garrett turbos feed compressed air into a GReddy front-mount intercooler. As the heat is drawn out of the air charge, the cooler, denser air makes its way to the factory intake plenum and individual throttle bodies. As the air charge flows past the throttle plates, Injector Dynamics ID1000 injectors spray fuel into the intake ports as the air/fuel mixture fills the cylinders.

Ethanol for More Power

To further raise the ceiling of performance, Craig elected to do a flex fuel conversion on his Skyline. Using an ethanol content analyzer in conjunction with an AEM V2 EMS engine management system, Burgess once again dialed in the fuel and ignition tables, this time with scaling for E85. This added the flexibility to run 91, E85 or any mixture of the two at any time. With E85 in the tank and the tables optimized, the GT-R put down 649 horsepower and 521 lb-ft torque to the rollers of FFTEC’s Mustang AWD Dynamometer.

R33 Dyno chart

Street Beat

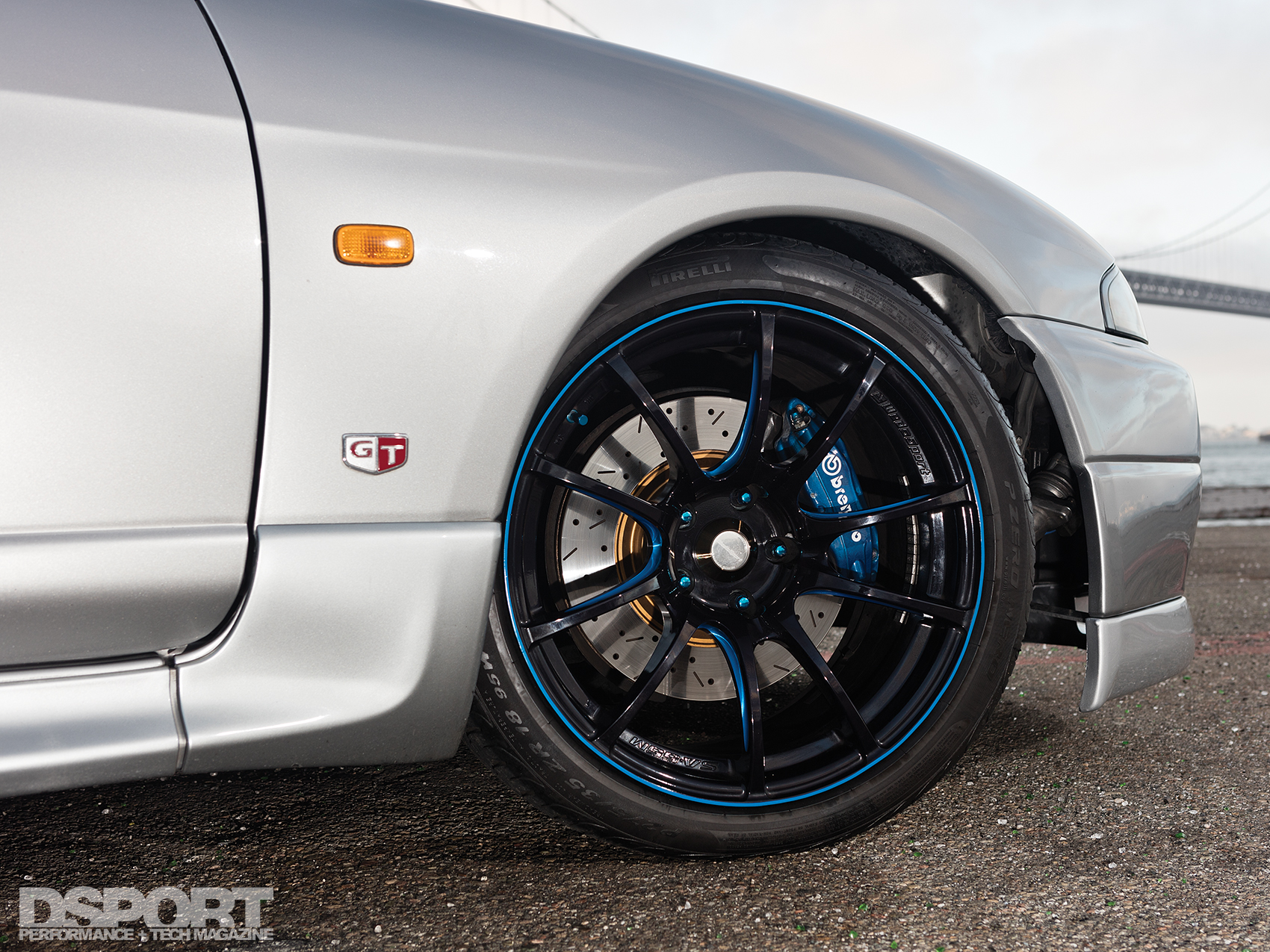

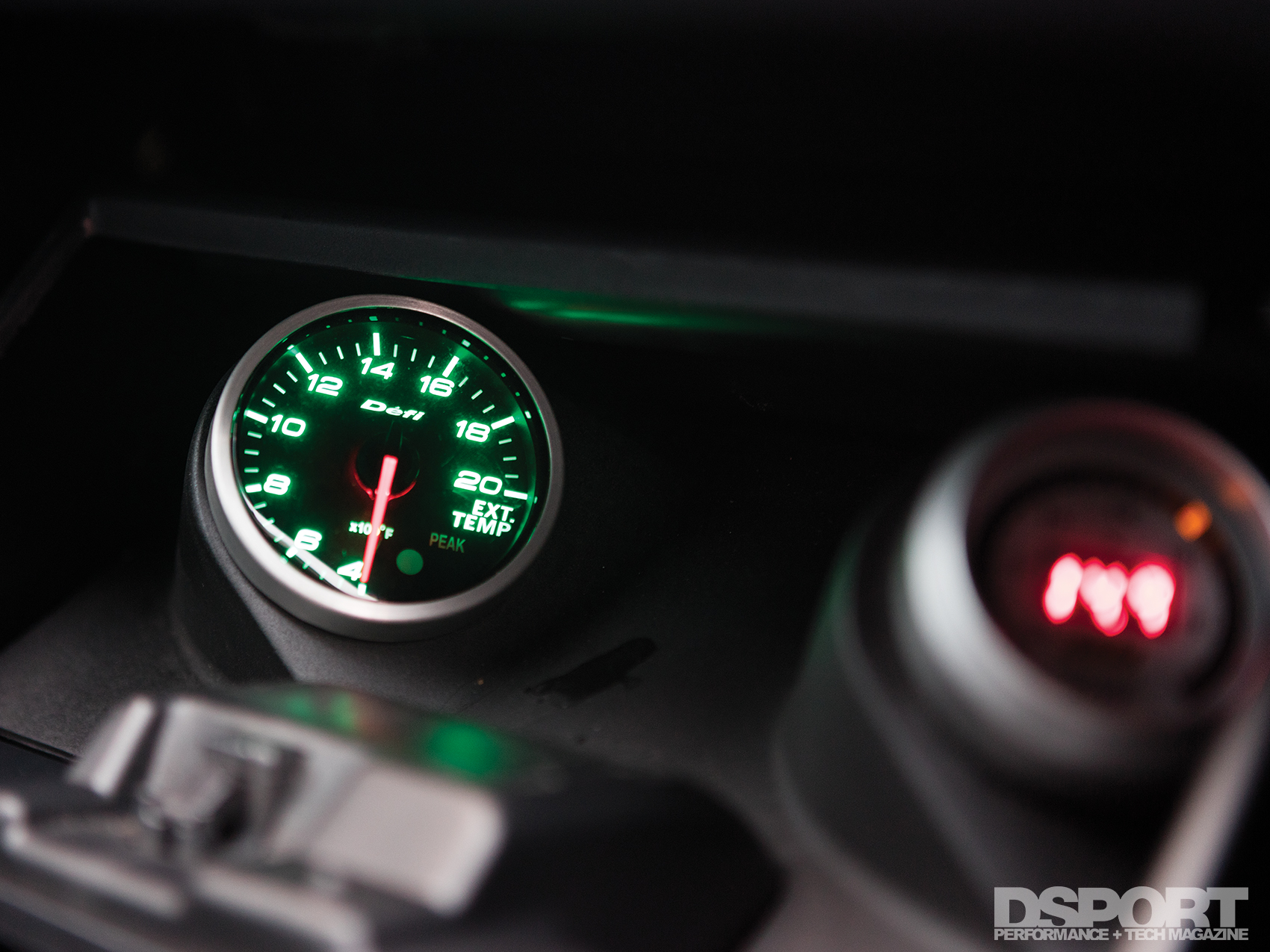

Producing more than twice the factory horsepower output took the Skyline to the next level for Craig. Now he wanted the R33 to look the part. BC Racing adjustable coilovers dropped the chassis over a set of WedsSport SA55 wheels mounted with Pirelli P Zero rubber, closing the gap between the arches and the tires. Inside the cabin, Craig risked information overload as a host of DEFI gauges on the A-pillar and in the glove box supplement the NISMO gauge cluster in front of the steering wheel.

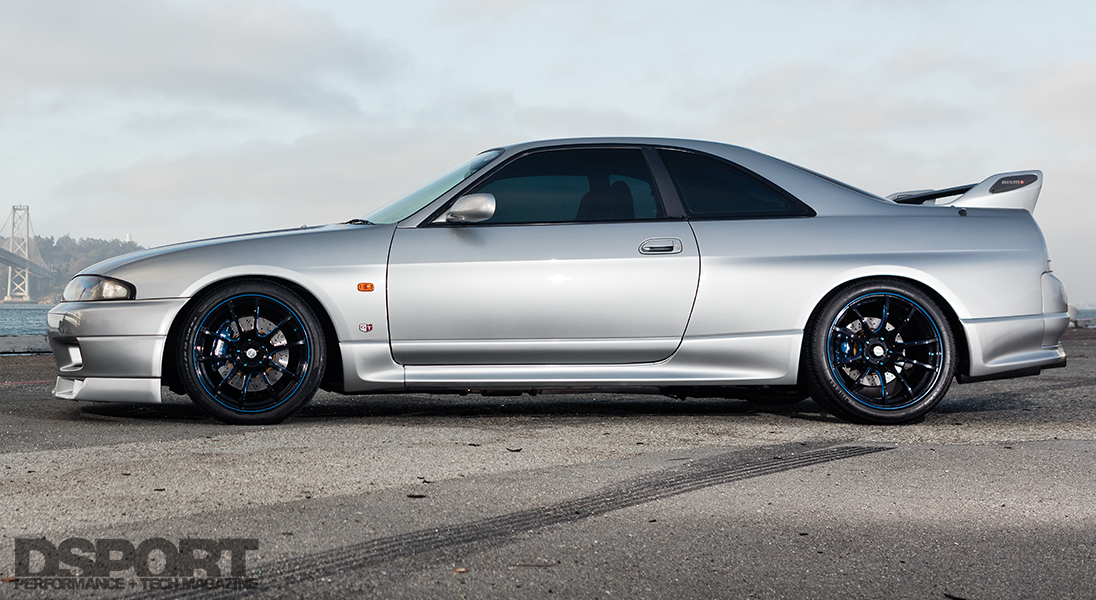

Side of the R33

From Dream to Driven

Craig’s path to owning an R33 Skyline GT-R took almost a decade to come to fruition, but he stated that it was well worth the wait. From the first time he read about the GT-R to finally finding one, building it and earning a feature in the very magazine that he first learned about GT-Rs, Craig’s path with this car has come full circle. But Craig isn’t one to sit idle and content. He’s already researching his next round of improvements. He plans to enhance the volumetric efficiency of the engine with some cylinder head work, followed by a switch to a larger single turbocharger aimed at hitting the 800 horsepower mark. He’s also going to have a new bumper and lip spoiler painted and installed by Vince at Marina Auto Body. Ultimately, the greatest satisfaction comes from being able to street drive a rare car that some still haven’t heard about. To Craig, they have no idea what they’re missing out on.

R33 "pulled over" by the police




SPEC SHEET

VEHICLE
Year / Make / Model: 1996 Nissan Skyline GT-R V-Spec
Chassis Code: BNR33
Shift RPM: 8,000 RPM
Redline RPM: 8,000 RPM
Peak Boost: 20 psi
Fuel: 91/E85 Flex Fuel

ENGINE
Engine Code: RB26DETT
Displacement (cc): 2,599cc
Bore & Stroke (mm): 86.5mm x 73.7mm
Peak Horsepower (@ RPM): 649whp @ 7,420 RPM
Peak Torque (@ RPM): 521 lb-ft @ 5,720 RPM
Dyno Type: Mustang Dynamometer
Pistons/Compression Ratio: CP Pistons, 8.5:1 Compression
Connecting Rods / Crank: Manley Turbo Tuff Connecting Rods
Camshafts: TOMEI Powered PONCAM Type B
(260° Duration, 9.15mm Lift)

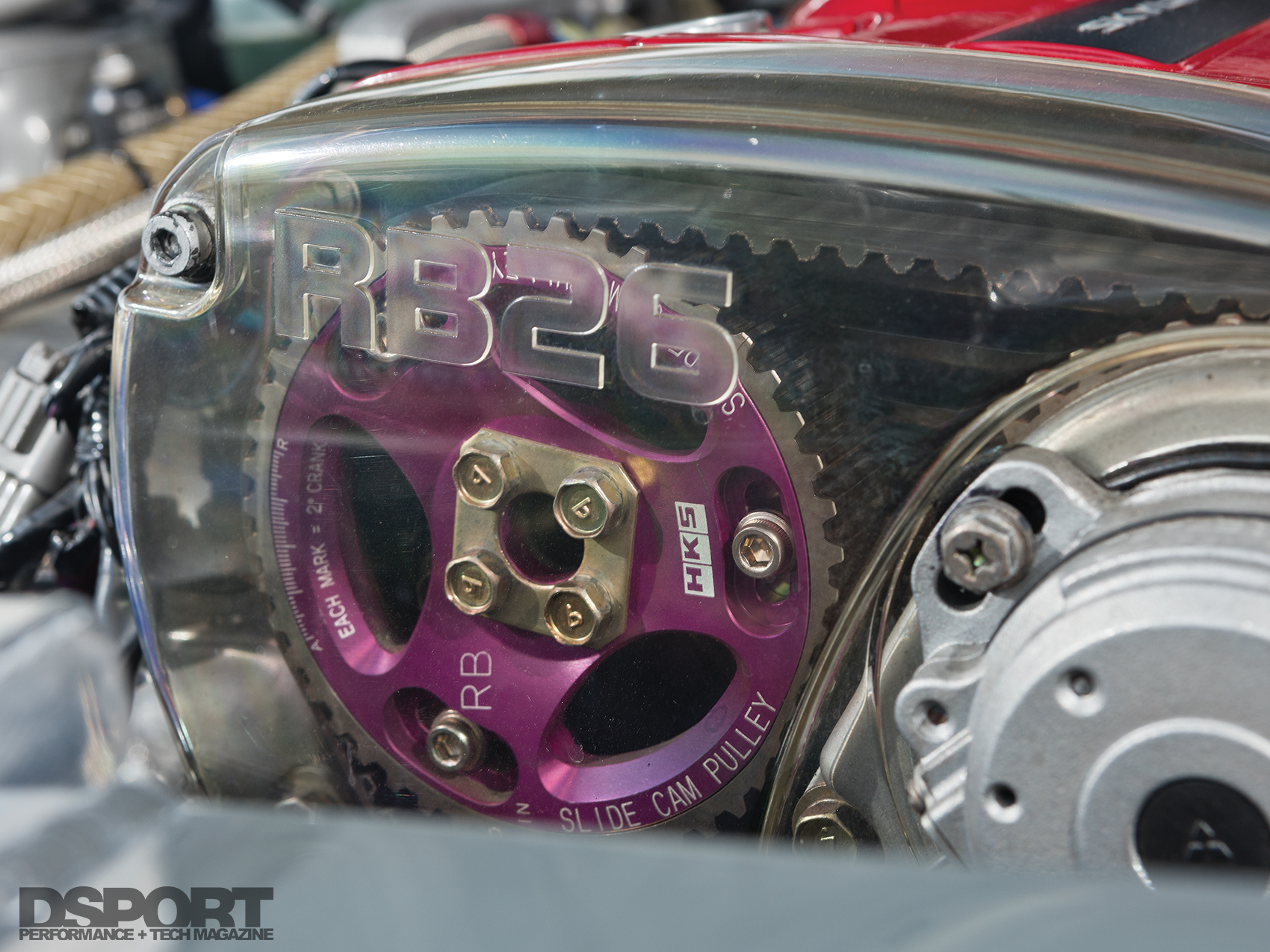

HKS Adjustable Cam Gears
Valves/Springs/Retainers: TOMEI Powered Valves, Springs & Ti Retainers
Cylinder Head Gasket: TOMEI Powered MLS Head Gasket
Head/Main Studs: ARP
Air Induction System: GReddy Airinx Intake System
Fuel Injectors: Injector Dynamics ID1000 Injectors (x6)
Fuel Delivery System: Walbro 450lph E85 pumps (x2)

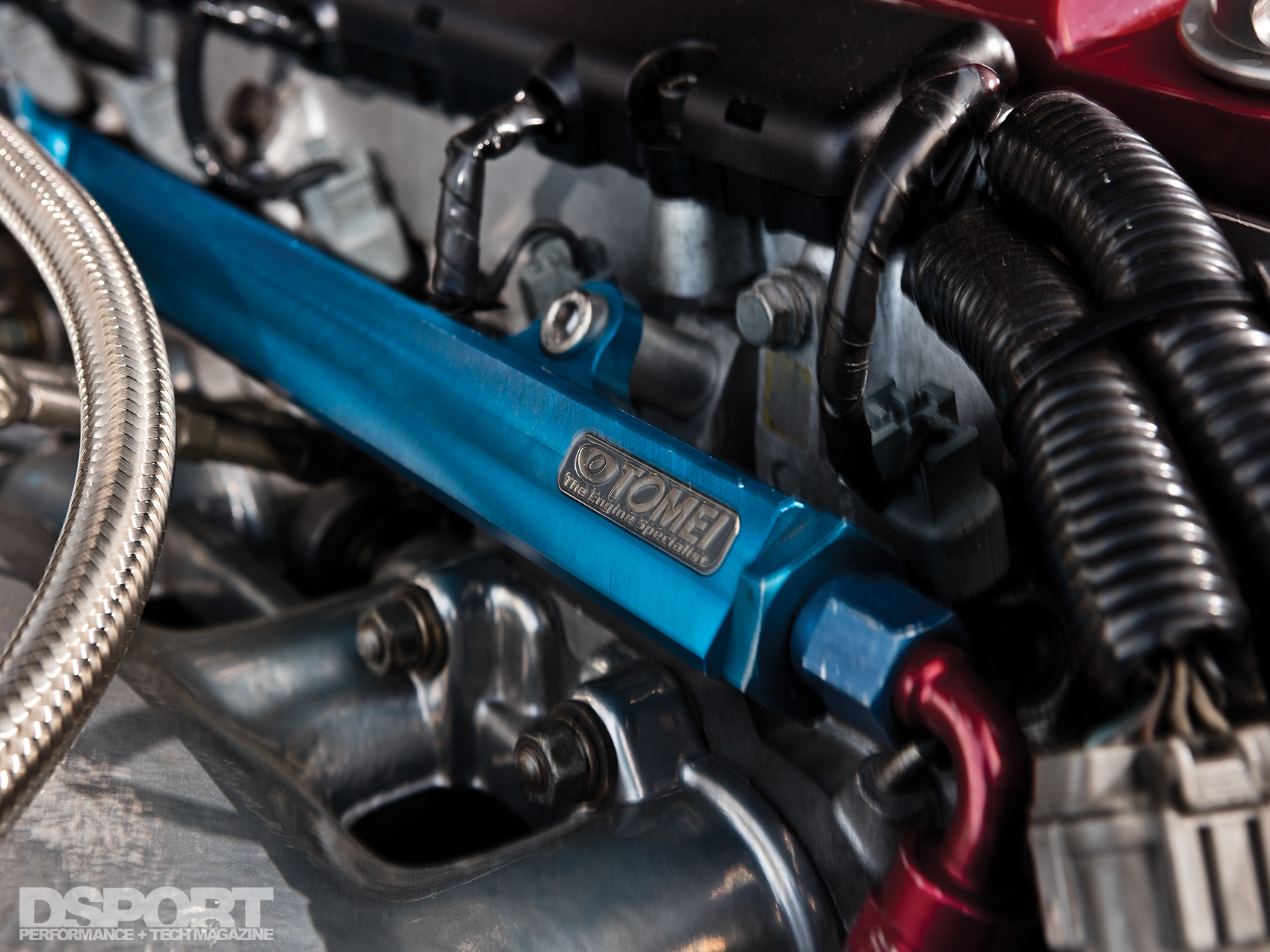

TOMEI Powered Aluminum Fuel Rail

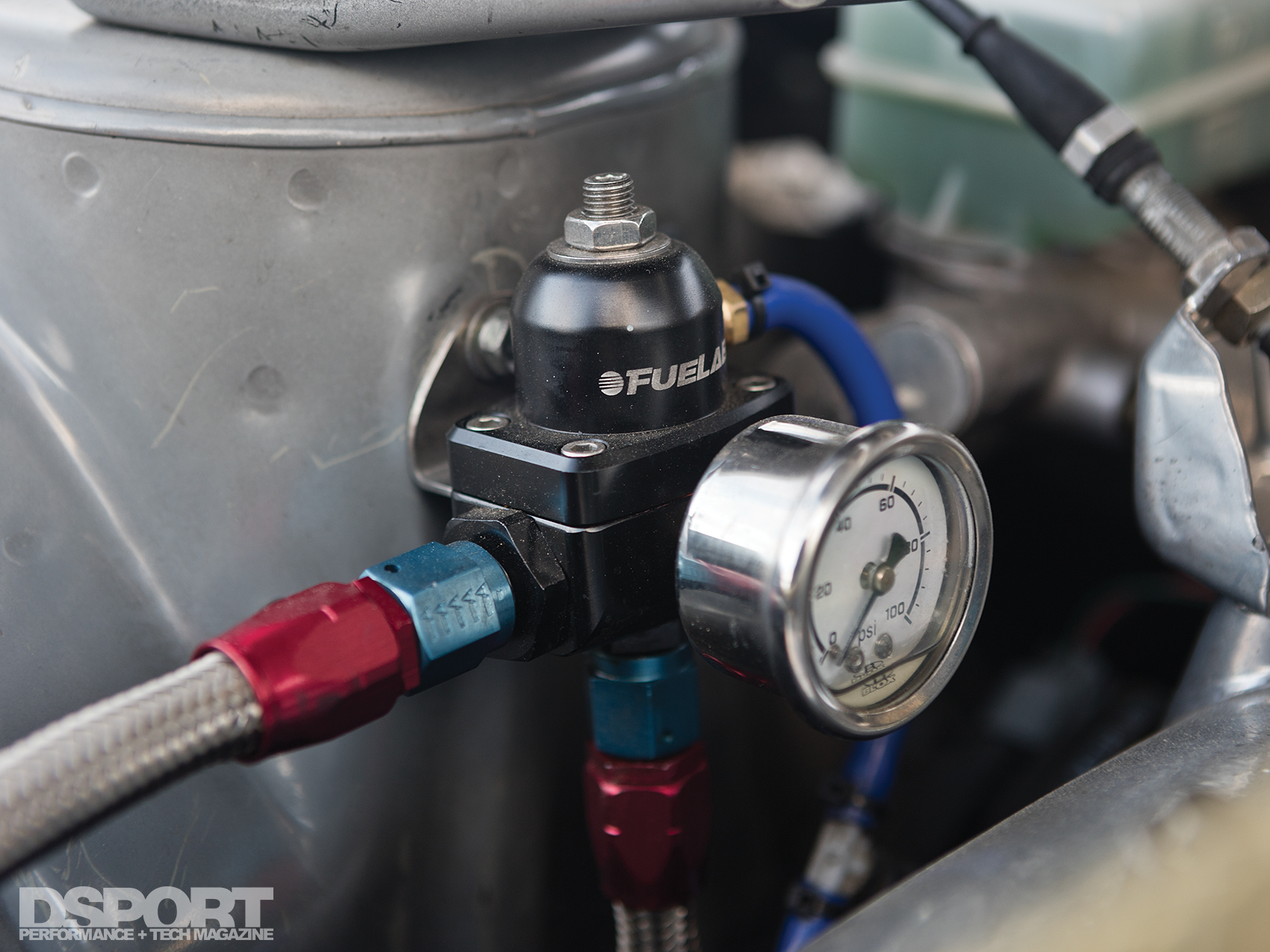

Fuelab Fuel Pressure Regulator
Engine Management System: AEM Series 2 EMS
Engine Management Tuner: Sean Burgess from FFTEC
Boost Controller: AEM Boost Control Solenoid
Spark Plugs: NGK
Exhaust System / Downpipe: A’PEXi GT Spec Exhaust
Wastegate: HKS Wastegate Actuators (x2)
Blow-Off Valve: Blitz Super Sound Blow Off Valve
Intercooler: GReddy Front Mount Intercooler
Cooling System: Mishimoto Radiator
Samco Hoses
Oil System: NISMO Oil Pump

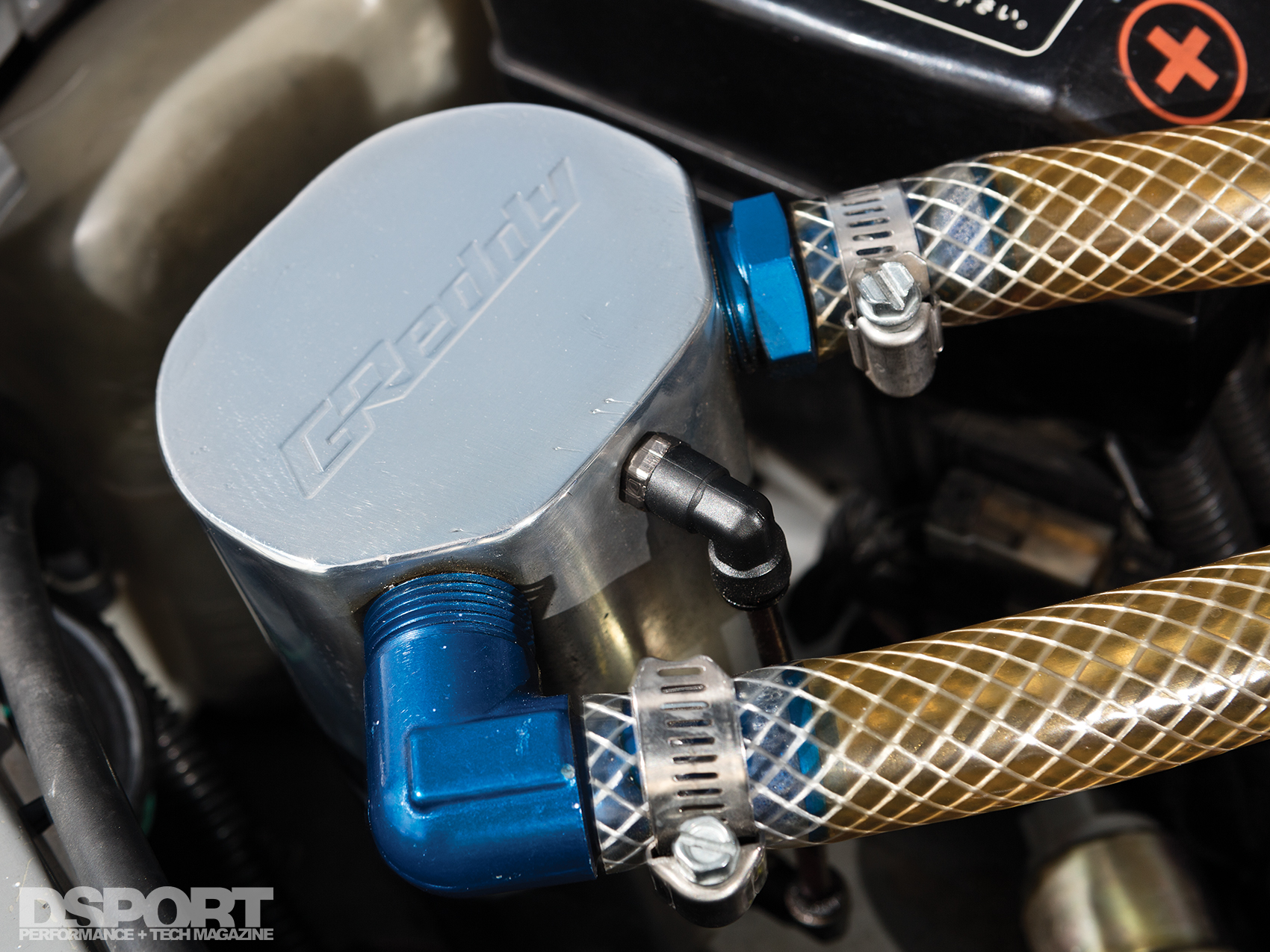

GReddy Oil Catch Tank

TURBOCHARGER
Turbocharger: Garrett GT2860R -5 (x2)
Frame: T28
Compressor Wheel Specs: 60.1mm Major, 47.2mm Inducer, 62 Trim
Turbine Wheel Speds: 53.9mm Exducer, 76 Trim
Turbine Housing: .64 A/R

CHASSIS/DRIVELINE
Springs, F&R (Make & Rate): BC Racing Springs
Shocks, F&R (Make & Rate): BC Racing Adjustable Dampers
Clutch / Flywheel: NISMO Triple Plate Clutch
Wheels (Make, Size & Offset): WedsSport SA55 18×10-inch +22 (F&R)
Tires (Make & Size): Pirelli PZero 275/35R18 (F&R)
Brake Calipers (F&R): Powder Coated Blue Stock Brembo Calipers
Brake Rotors (Diameter, F&R): DBA Cross-drilled and Slotted Rotors
Brake Pads (Front & Rear): EBC Yellow Pads

INTERIOR
Gauges: NISMO Gauge Cluster
Defi Oil Pressure, Boost, EGT
AEM Wideband UEGO

EXTERIOR
Rear Bumper: NISMO Rear Spats

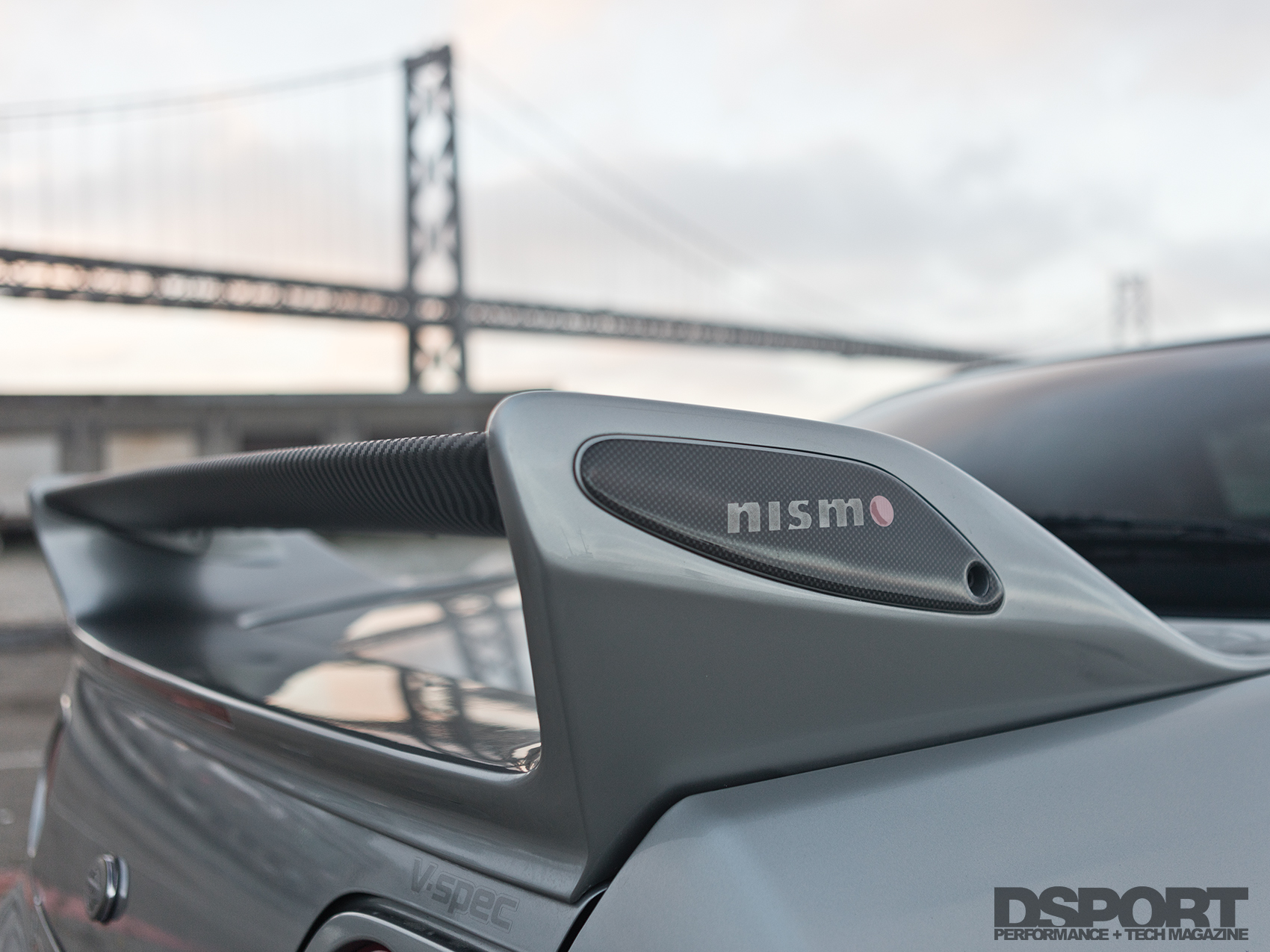

Spoiler / Wing: Carbon Wrapped
Paint: Vincent from Marina Auto
