Lose A Street Fight, Build A 1,096whp Supra

WHAT DO YOU DO WHEN YOU LOSE A STREET BATTLE? If you can’t beat them, do you join them? About 12 years ago, Dusty Womack was on the prowl in his modified 1998 Mitsubishi Eclipse GSX. Tuned to deliver 400 all-wheel horsepower, the GSX broke off Corvettes and Mustangs at will. There were no cars on the streets that could challenge the 4G63 rocket. It was the ultimate street predator. At least that’s what Dusty believed until he attempted to pounce upon a large-winged import on the highway. Positioned broadside to the vehicle, Dusty downshifted and mashed the gas. The Toyota did the same. In a matter of seconds, that shopping-cart wing became smaller and smaller as it pulled away toward the horizon. The predator had become the prey to a JZA80 Supra Turbo.

Text and Photos by Richard Fong


After seeing Jaws, the “we’re gonna need a bigger boat” mentality took over. Dusty located a Supra Turbo less than one week after the incident. Unfortunately, this new project car was nowhere near where Dusty wanted or expected it to be. Perhaps, the red racing stripe and missing exhaust tip were meant to steer performance enthusiasts to another car. To truly dominate the local streets, the Supra would need attention in nearly every department.

Building It Right

While stock-block 2JZ-GTE engines can deliver phenomenal power increases with the proper mix of bolt-on components, increasing the strength and displacement of the engine pays dividends. MVP bored and honed the 2JZ- GTE’s cylinders to 87mm, decked the block to ensure a perfectly-flat mating surface for the cylinder head and line honed the main journals to ensure a perfect axis for the crankshaft to rotate. MVP Motorsports also reworked the oil passages for improved lubrication. For the rotating assembly, HKS 8.75:1 compression forged-aluminum pistons connect to the HKS stroker crankshaft by way of HKS forged-steel connecting rods. The larger bore combined with the longer 94mm stroke increase the total displacement by 3,353cc (an 11-percent increase). The bump in displacement not only increases the torque output of the 2JZ engine, it also increases the mass of high-enthalpy exhaust gasses available to drive the turbocharger for improved response.

Keys to Efficiency

Adding displacement to an engine will increase torque output, but improving an engine’s volumetric efficiency (VE) will help it to produce more power-per- liter of displacement. To enhance the VE of the engine, the cylinder head, valvetrain and camshafts were all addressed. Powerhouse Racing (PR) treated the cylinder head to its CNC-porting program. The CNC-porting process ensures that each and every port is optimized for equal and additional flow. A set of PR +1mm stainless-steel valves supported by dual valve springs and titanium retainers take advantage of the enlarged ports. Custom-ground PR camshafts lift the larger valves higher and longer than the factory bumpsticks. To contain the incredible cylinder pressures that result from 1,000-plus horsepower operation, ARP L19-alloy studs and an HKS 1.6mm head gasket ensure a positive seal between the head and the block.

BRING-IT-ON BEAUTY

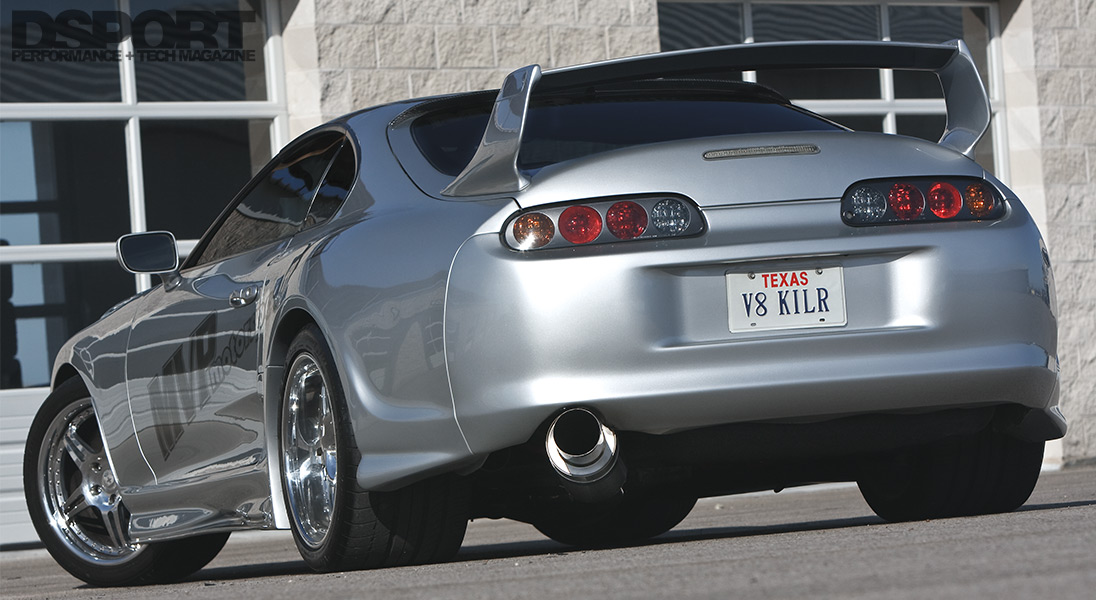

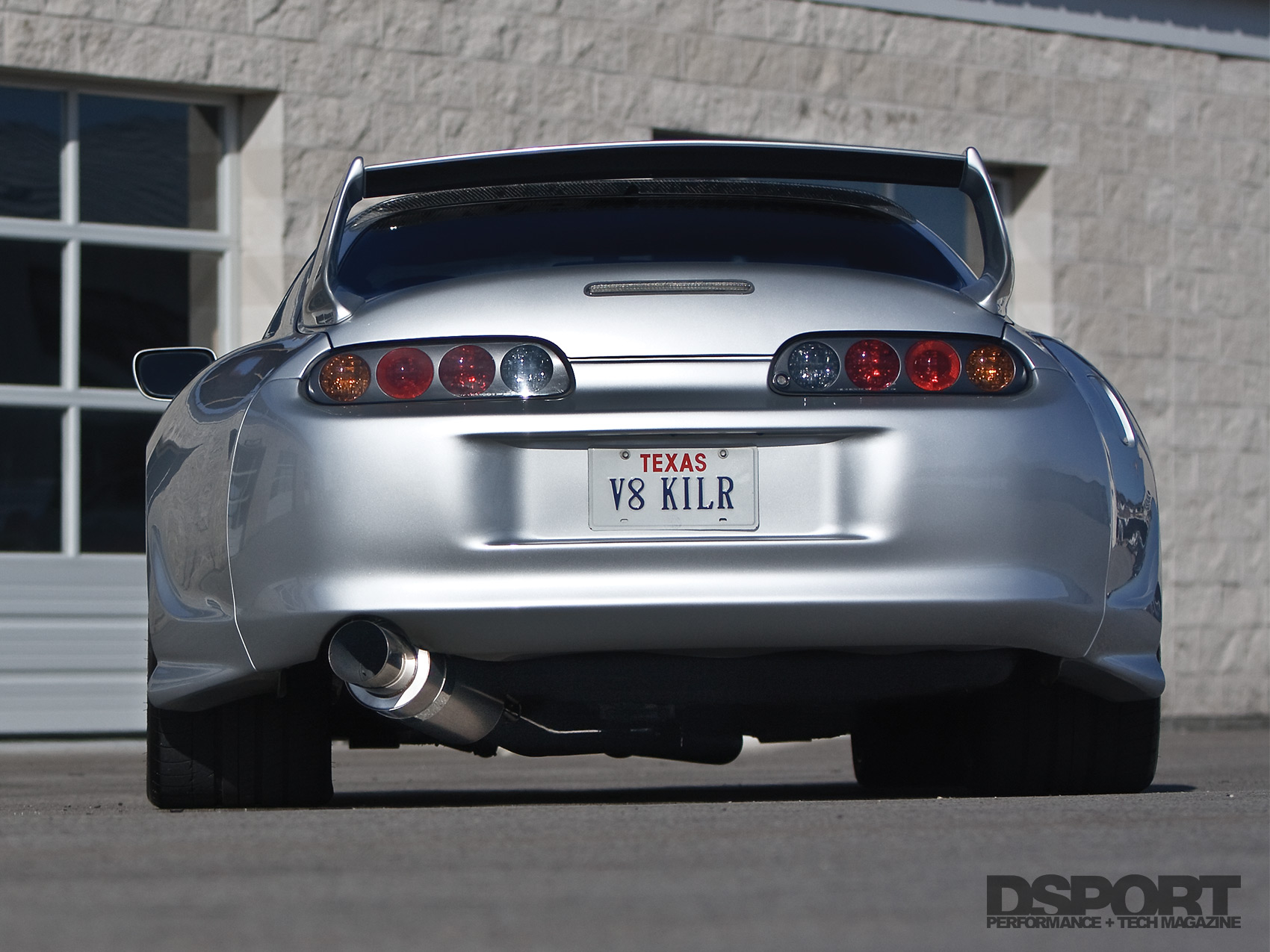

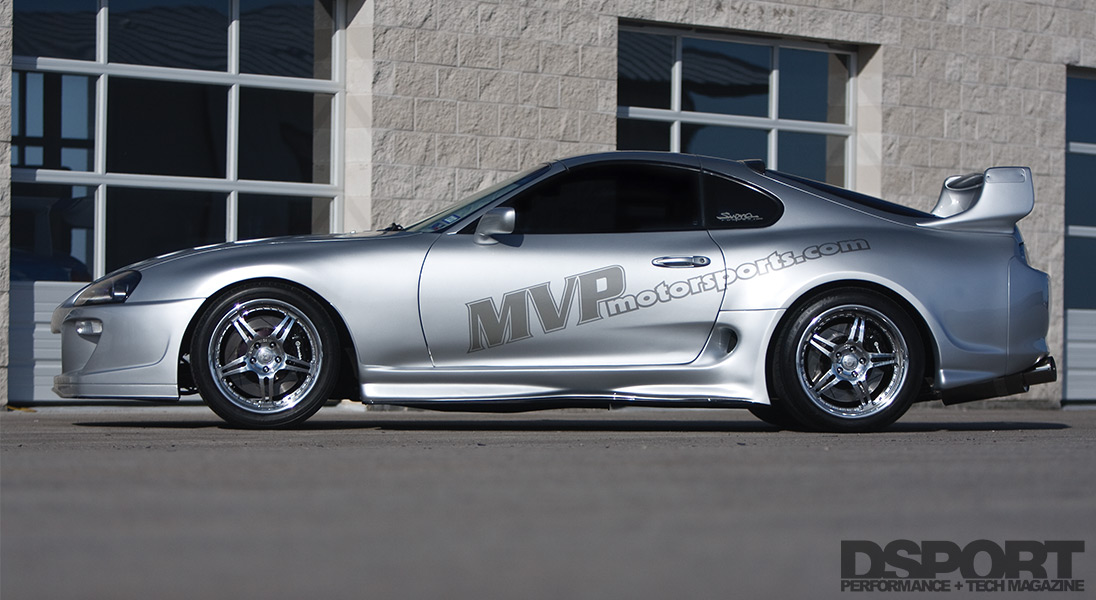

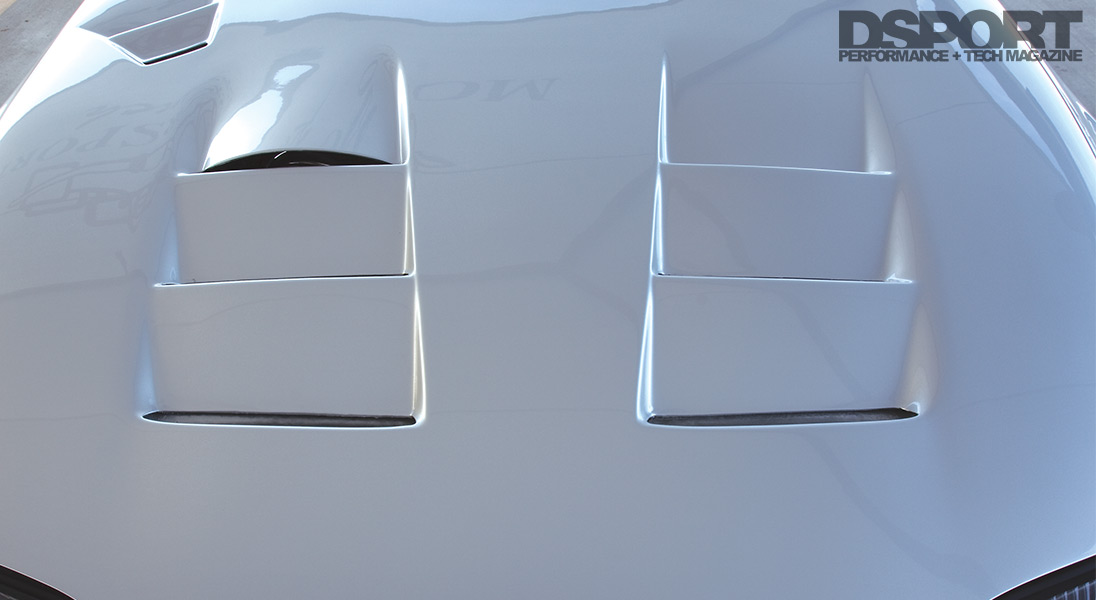

In order to be satisfied with his build, Dusty looked for a unique appearance that would set his Supra apart from all others on the road. He decided on a full Ridox wide-body kit from Japan. Ridox, a brand affiliated with Japanese professional driver and Supraphile Manabu “Max” Orido, set this quicksilver Supra apart while staying true to much of the original factory bodylines. A TOP SECRET hood was customized with a slight bulge to accommodate the large compressor housing of the PR turbocharger. As a finishing touch, a Rod Millen Motorsports carbon-fiber wing replaced the stock unit on the hatch lid, delivering additional downforce over the rear wheels.

Air Delivery

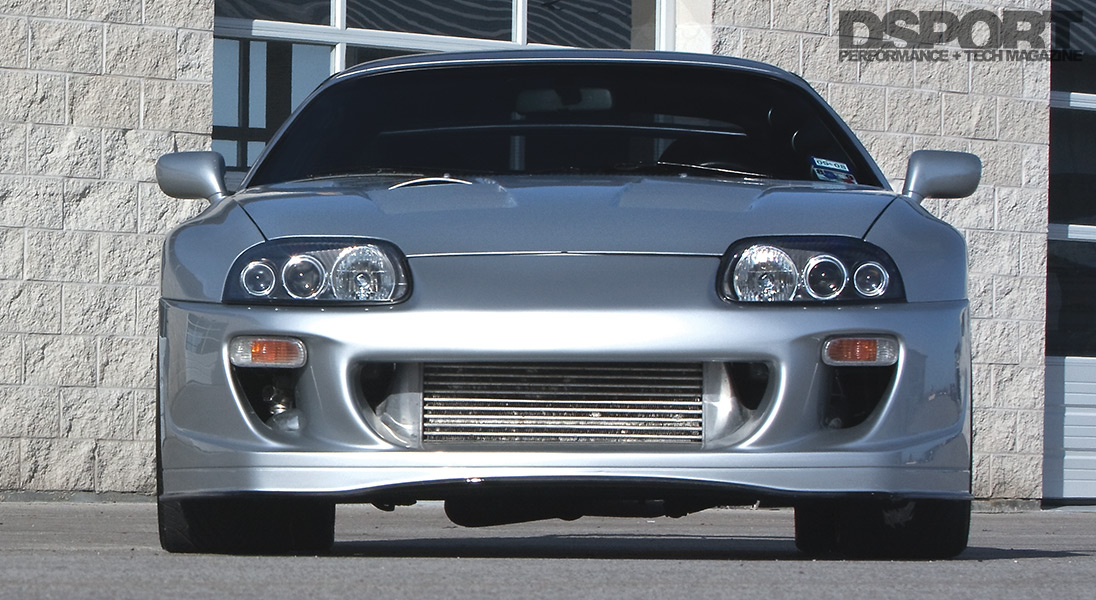

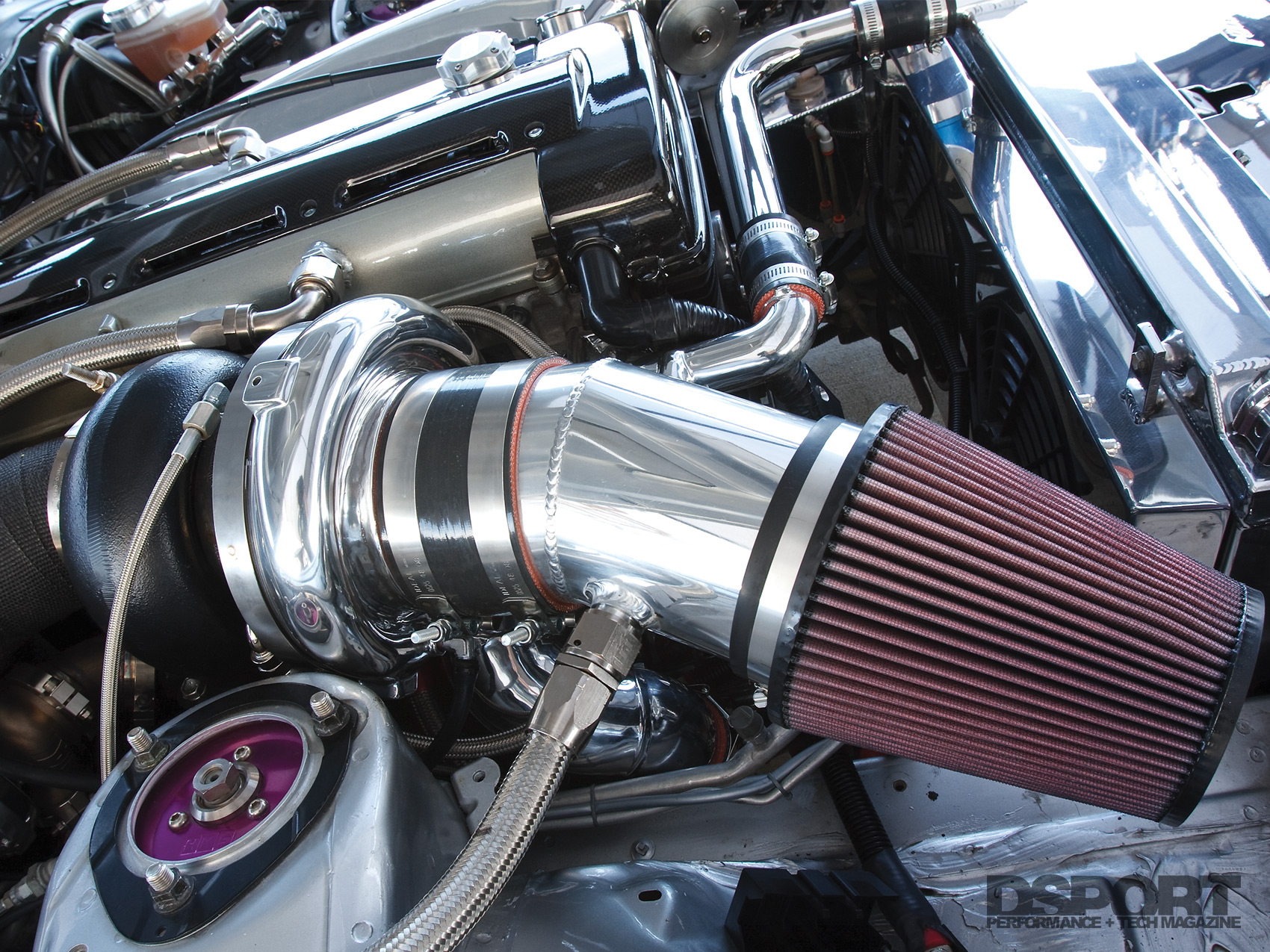

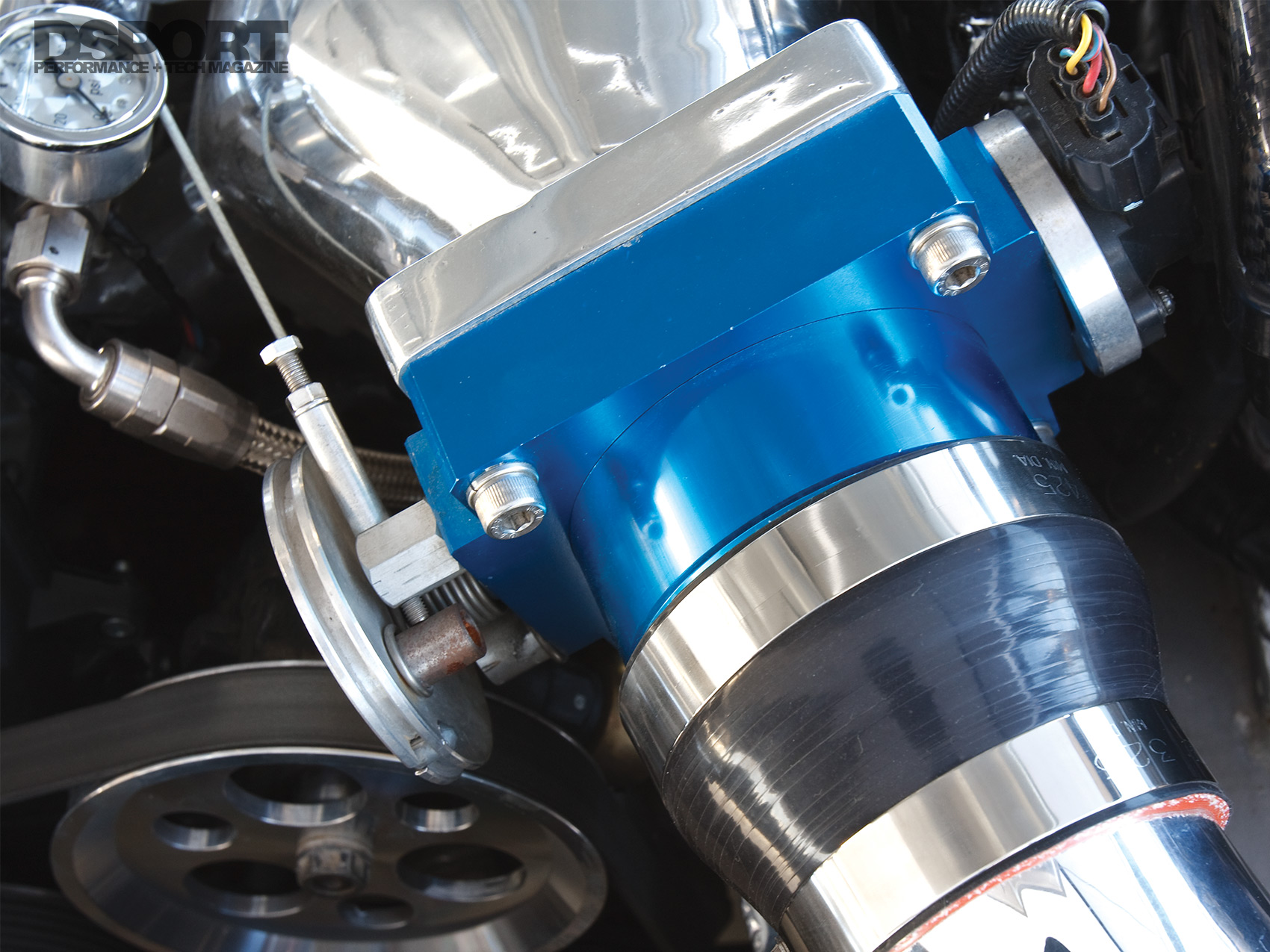

Big power requires a big turbo. An equal-length Full Race manifold collects and channels the exhaust gasses into the inlet of the PR GT80 DBB turbocharger. To cool the pressurized charge air generated by the mammoth compressor, a GReddy 4-row front-mount intercooler takes its place in the front bumper. Once chilled, the cooler, denser air reaches the 100mm throttle body of the Veilside intake manifold. The Veilside manifold delivers the air evenly across all six intake ports.

Fuel & Spark Management

While delivering the airflow required for quad-digit horsepower is the big challenge, not having an adequate fuel supply can wreak havoc. To avoid these issues, this Supra relies upon an in-tank triple-pump system from MVP. The in- tank triple pumps offer an adequate supply of fuel without the noise associated with external fuel pumps. The pumps feed a six-pack of RC Engineering 1,200 cc/min injectors. An HKS F-CON V Pro engine management system was mapped to provide the proper injector pulsewidths based on engine RPM and boost pressure. The V Pro also triggers the ignition system. Since high cylinder pressures dramatically increase the voltage requirements at the spark plug, the factory ignition system wouldn’t be up to spec. Instead, an HKS Twin Power DLI II ignition amplifier charges the MVP coil packs. The coils deliver the high-voltage  energy to the NGK BCPR 7ES spark plugs to ignite the air/fuel mixture. With the HKS EVC EZ boost control regulating the dual 44mm TiAL Sport wastegates to 36 psi, this Supra spun the rollers of the Dynojet dyno to the tune of 1,096 horsepower and 945 lb-ft of torque to the wheels.

True Street

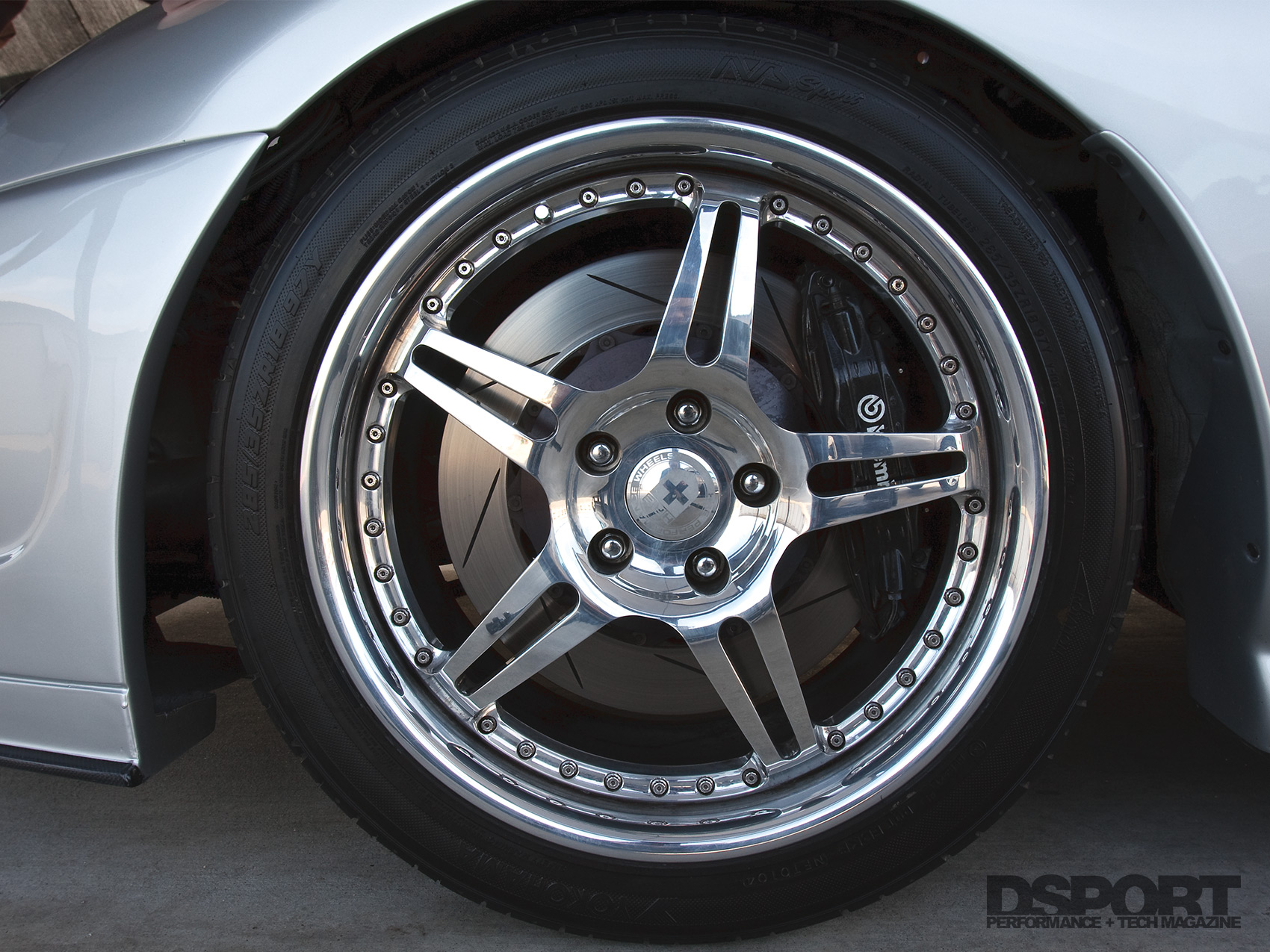

Harnessing nearly 1,100 horsepower requires significant driveline improvements. After testing several different clutch options, an RPS billet triple-carbon clutch proved to deliver the power while offering near-stock drivability. RPS claims that its lightweight billet clutch cover combined with the triple carbon-carbon disc setup can handle 1,200 lb-ft of torque. Once transfered through the clutch, the power is then fed to the factory Getrag transmission. A PR driveshaft links the transmission to the TRD LSD that splits power between the 12.5-inch wide HRE 597 wheels wrapped with 345/30R18 Michelin Pilot Sport tires on the street.

Supra In The 9s

While building a vehicle that rules the street was the objective, a trip to the strip is a must for all street cars that claim to be fast. Best of all, its safer and legal to go as fast as you can. Running on drag slicks and 116-octane leaded race fuel Dusty drove the Supra into the nine’s, collecting a 9.31 @ 152 MPH timeslip at San Antonio Raceway. Dusty comments, “I’ve clocked over 140,000 street miles on this car just commuting and running errands. Even after going through numerous body kits, wheels, gauges, engines and clutches, I’m happy with the outcome of my build. Would I do it again? Absolutely. This truly is a daily driver and a testament to the potential of the Supra.” Taking his worst defeat in stride enabled Dusty to return to the streets with a real MVP.

SPEC SHEET

VEHICLE
Year / Make / Model: 1994 Toyota Supra Turbo
Chassis Code: JZA80
Vehicle Weight: 3,500 pounds
Weight Bias (F/R): 51/49
Launch RPM: 6,000 RPM
Shift RPM: 8,600
Redline RPM: 9,000 RPM
Peak Boost: 36 psi
Fuel: 116-octane Race Fuel

ENGINE
Engine Code: 2JZ-GTE
Displacement (cc): 3,353cc
Bore & Stroke (mm): 87mm x 94mm
Peak Horsepower (@ RPM): 1,096whp @ 6,800 RPM
Peak Torque (@ RPM): 945 lb-ft @5,800 RPM
Dyno Type: Dynojet
Engine Builder: MVP Motorsports (MVP)
Pistons/Compression Ratio: HKS Pistons 8.75:1 Compression
Connecting Rods / Crank: HKS Connecting Rods
HKS Stroker Crankshaft
Block Modifications: Bored, Honed, Reworked Oil Passages
Machine Work: Decked, Line Honed
Camshafts: Powerhouse Racing Custom Grind
Valves / Springs / Retainers: Powerhouse Racing +1mm Valves, Dual Springs, Titanium Retainers
Cylinder Head Mods / Gasket: Powerhouse Racing CNC-Machined Head with 7 angle port/polish
HKS 1.6mm Metal Head Hasket
Head / Main Studs: ARP Fasteners L19 Head Studs
Intake Manifold / Throttle Body: Veilside Intake Manifold
Veilside 100mm Throttle Body
Intake System: Powerhouse Racing
Fuel Injection: Powerhouse Racing Fuel System
RC Engineering 1,200 cc/min Injectors (x6)
Fuel Delivery System: MVP Triple-Pump Hanger
3 x OEM Supra Denso Fuel Pumps
Engine Management System: HKS F-CON Pro Engine Management
Engine Management Tuner: Chris @ MVP
Boost Controller: HKS EVC EZ
Ignition: HKS Twin Power DLI-II Ignition Amplifier
MVP Coil Packs (x6)
Spark Plugs: NGK BCPR-7ES
Exhaust Manifold: Full-Race Stainless Manifold
Wastegate: Dual TiAL Sport 44mm Wastegates
Blow-Off Valve: Dual Blitz Super Sound BOVs

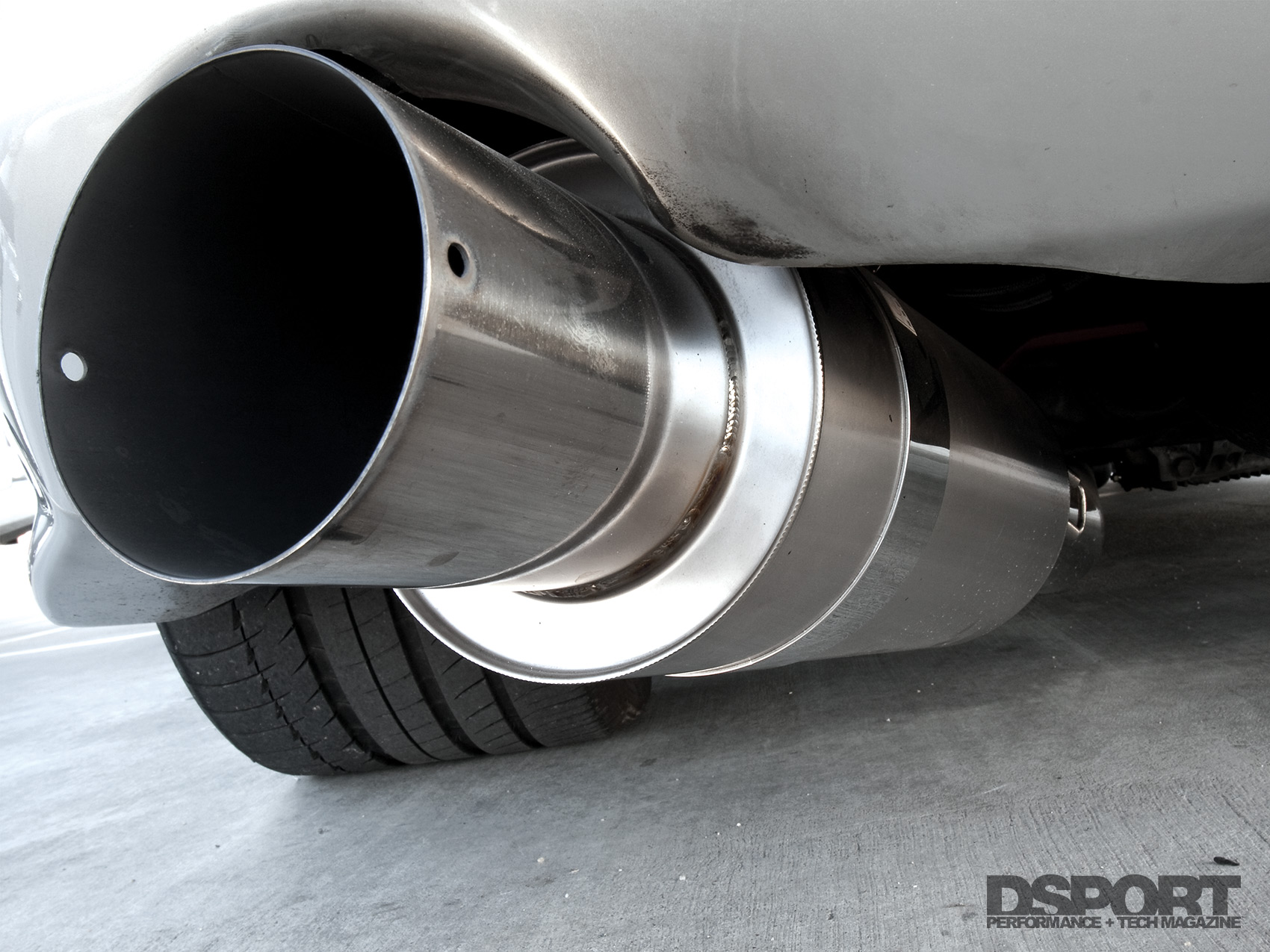

Exhaust System / Downpipe: HKS 102mm Titanium Exhaust
Intercooler: GReddy 4-row FMIC
Cooling System: MVP Twin Fan Kit
Spal 13-inch pusher fan
Fluidyne Radiator
Powerhouse Racing Radiator Shield
MVP Power Steering Cooler w/ 7.5-inch Spal Fan
Oil System: GReddy 16-row Oil Cooler

TURBOCHARGER
Turbocharger: Powerhouse Racing GT80 DBB
Compressor Wheel Specs: Classified
Turbine Wheel Specs: Classified

CHASSIS/DRIVELINE
Springs, F&R (Make & Rate): HKS 9 kg-f/mm (F), 5 kg-f/mm (R)
Shocks, F&R (Make & Rate): HKS Drag Coilovers
Additional Suspension Components: TRD Sway Bars
Do-Luck Rear Cross Bar
R2 Racing Control Arm Bushings (F&R)
Powerhouse Racing Adjustable Control Arms
Transmission: Factory Getrag 6 Speed Transmission
Clutch / Flywheel: RPS Billet Carbon/Carbon Triple Clutch
Chromoly Flywheel
Differential Type: TRD LSD
Axles / Driveshaft: Powerhouse Racing Axles & Driveshaft
Wheels (Make, Size & Offset): HRE 597 Wheels 18×10-inch (F), 18×12.5-inch (R)
Tires (Make & Size): Michelin Pilot Sport 285/35R18 (F), 345/30R18 (R)
Brakes(F&R): Brembo Big Brake Kit
Brake Pads (Front & Rear): Brembo
Brake Lines: Custom MBP lines from Master Cylinder to calipers

INTERIOR / EXTERIOR

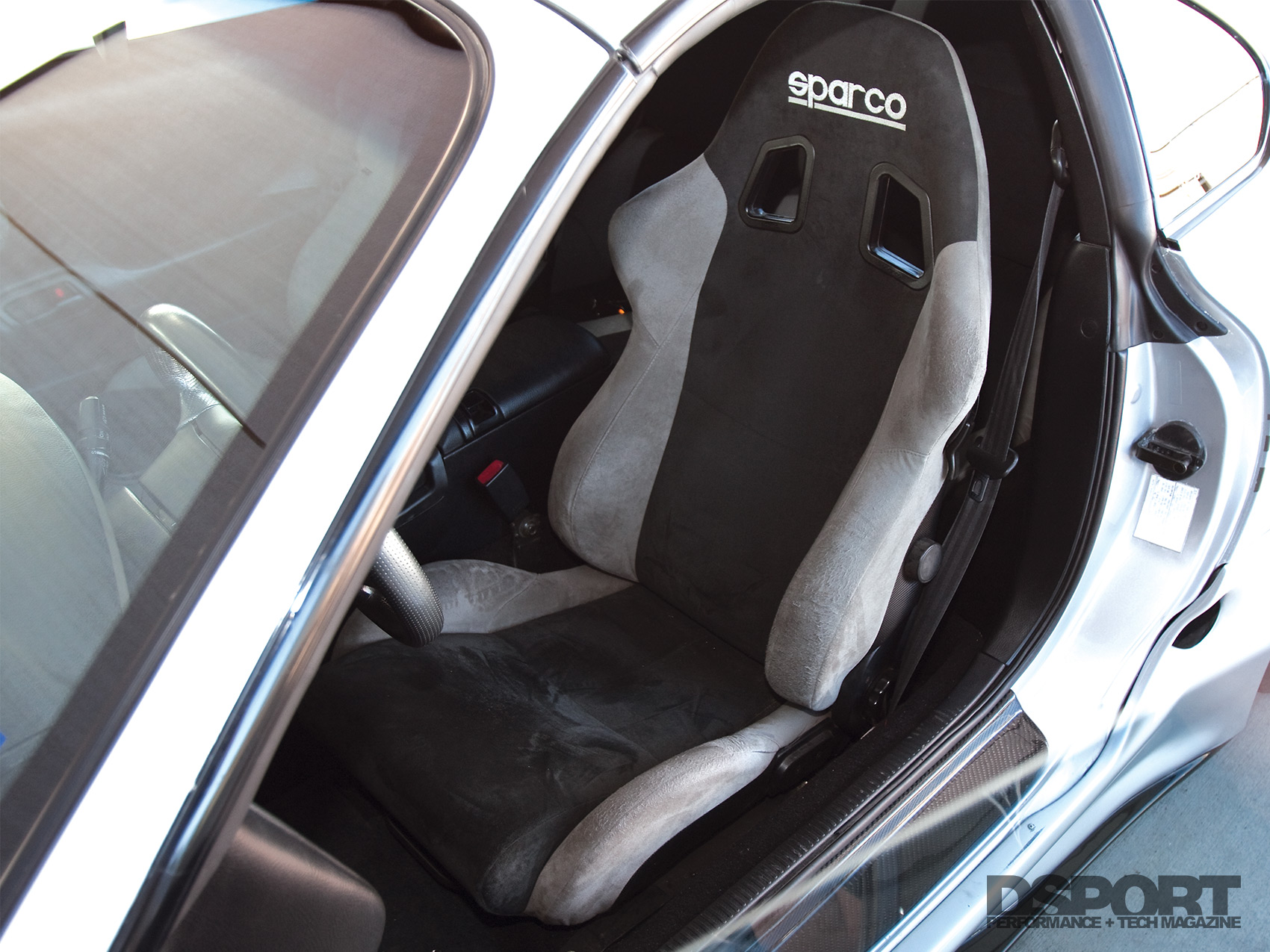

Seats: Sparco Milano
Gauges: TRD 10K Tachometer

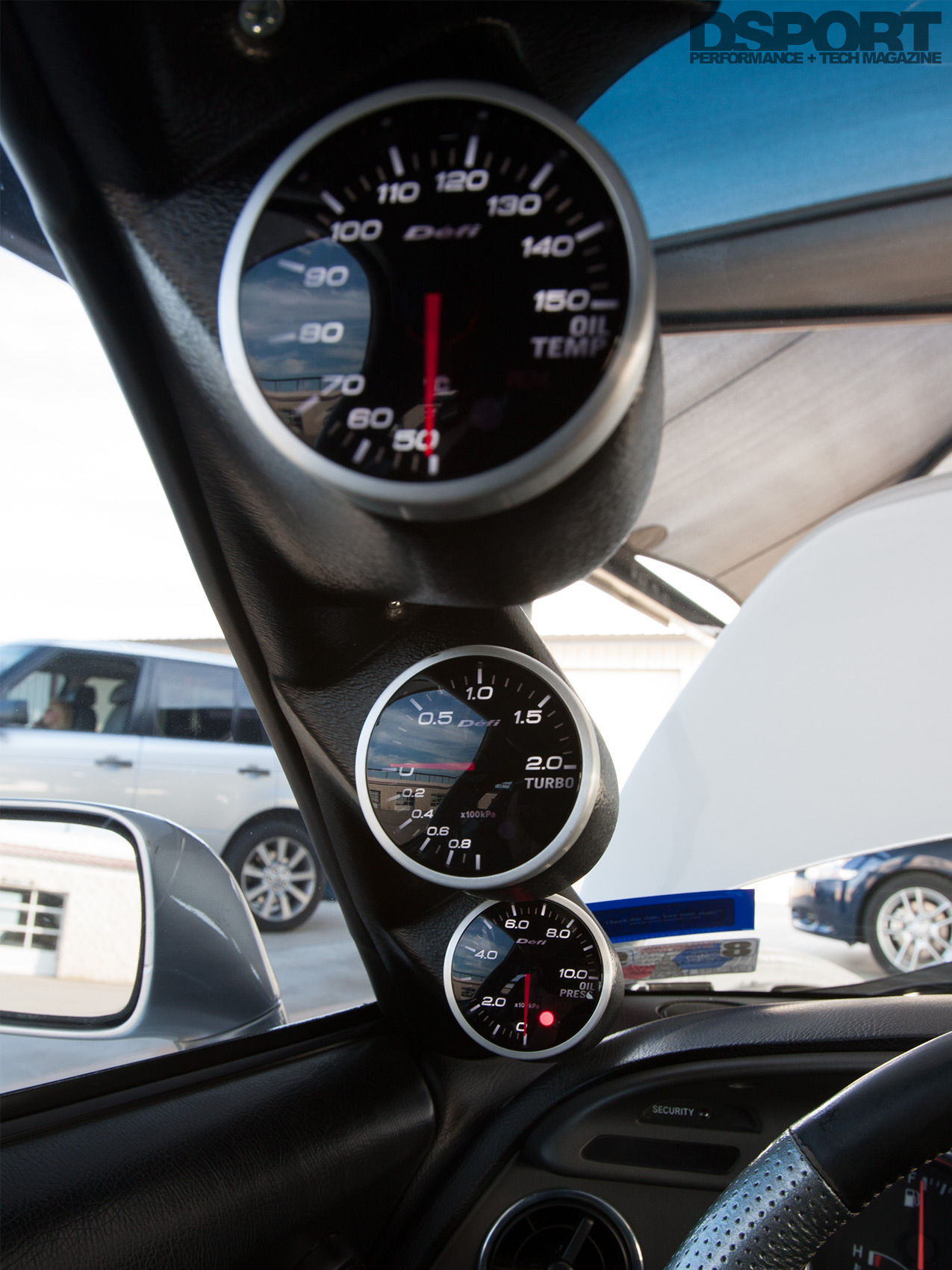

Defi BF Boost, Fuel Pressure, Oil Temp
Front Bumper: Ridox Carbon-fiber
Front Fenders: Ridox +30mm Fenders
Hood: TOP SECRET
Side Skirts: Ridox Carbon-fiber
Rear Fenders: Ridox +50mm Fenders
Spoiler: Rod Millen Motorsports Carbon-fiber
Paint: Custom
