Mishimoto's 558 Horsepower Super Silvia S13 - Page 2 of 2 - DSPORT Magazine

SPEC SHEET

VEHICLE

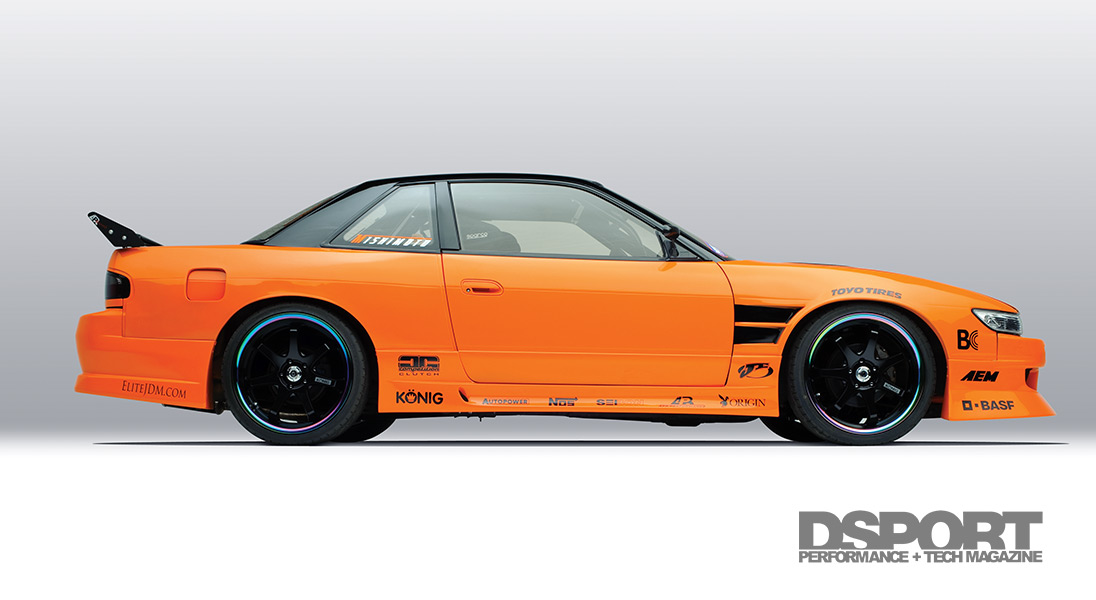

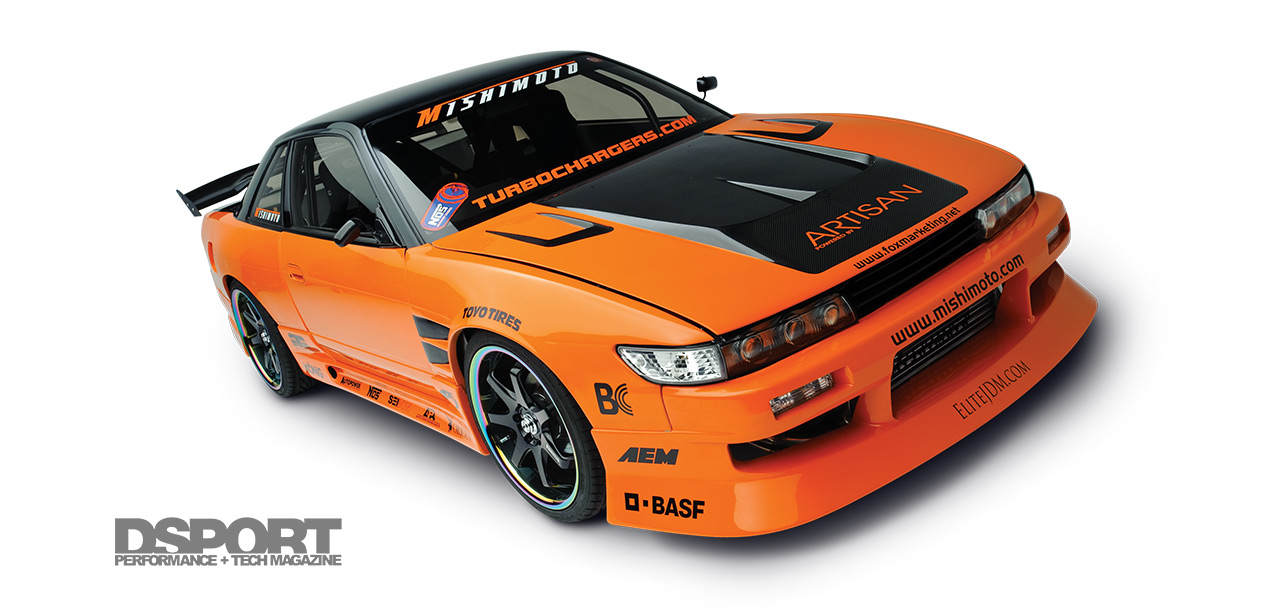

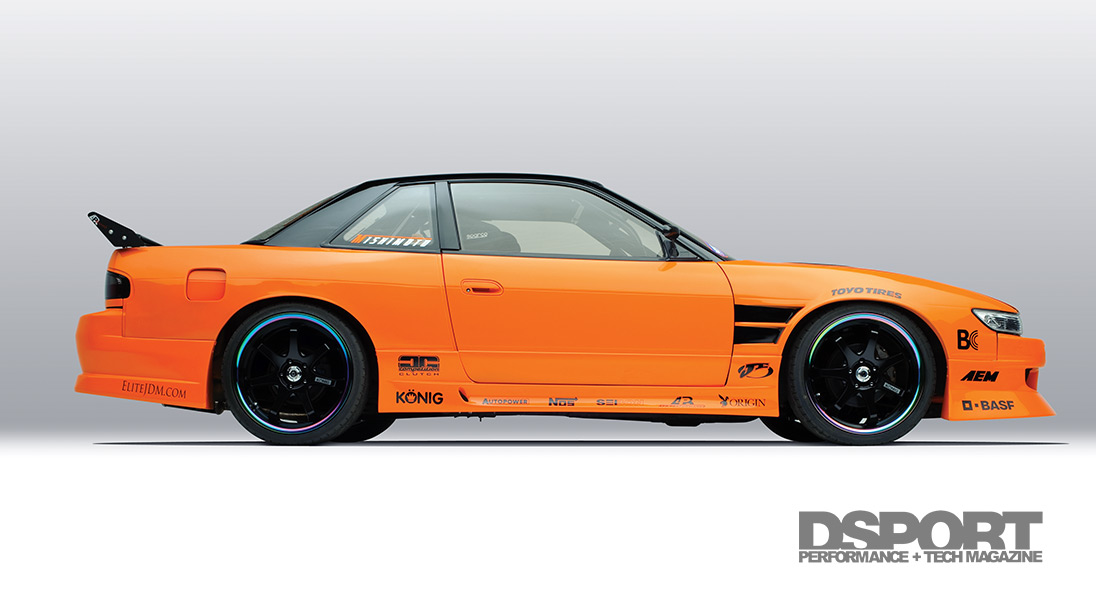

Year / Make / Model: 1991 Nissan 240SX
Chassis Code: V35
Redline RPM: 9,500 RPM
Peak Boost: 28 psi
Fuel: 91-octane Unleaded
ENGINE

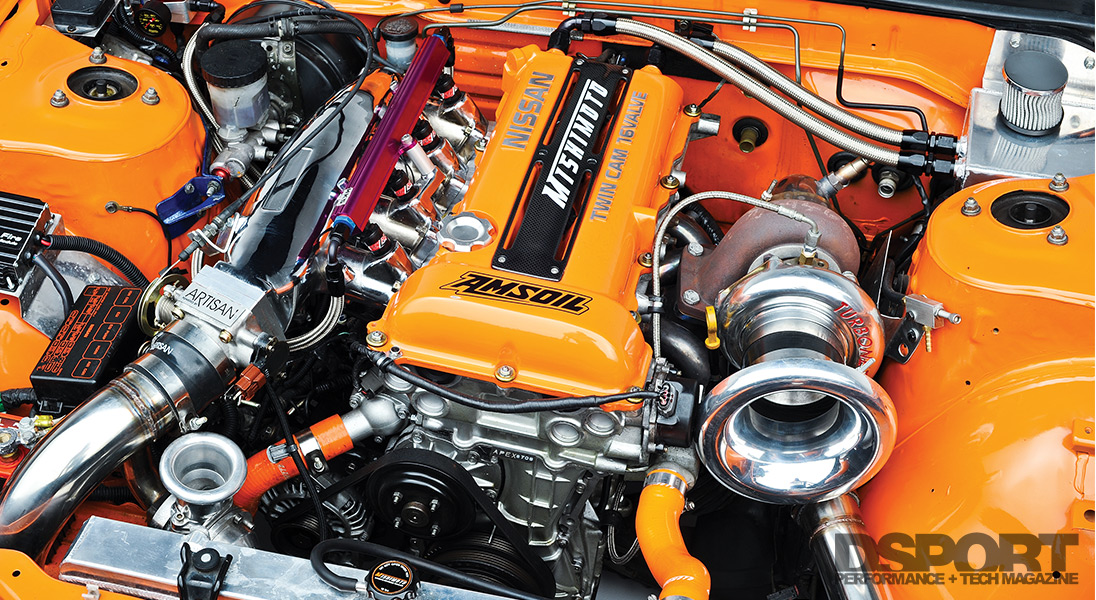

Engine Code: SR20DET
Displacement (cc): 2,164cc
Bore & Stroke (mm): 87mm x 91mm
Peak Horsepower (@ RPM): 558 whp @ 7,650 RPM
Peak Torque (@ RPM): 387 lb-ft @ 7,600 RPM
Dyno Type: Mustang
Pistons/Compression Ratio: JE Pistons 8.5:1 Compression / Total Seal Rings
Connecting Rods / Crank: BC Brian Crower (BC) Connecting Rods
BC 4340 Billet Steel Crankshaft (91mm)
Block Modifications: Bore and Hone
Machine Work: Late Model Engines
Camshaft: BC 272-degree Camshafts
HKS Adjustable Cam Gears
Valves / Springs / Retainers BC Springs and Retainers
TOMEI POWERED Solid Lifters
Cylinder Head Mods / Gasket: APEX Head Gasket
ARP Head Studs
Intake Manifold / Throttle Body: Artisan Intake Manifold and Throttle Body
Fuel Injectors: Deatchwerks 810 cc/min Fuel Injectors (x4)
Fuel Delivery System: Dual Walbro 255-lph Fuel Pumps
HKS Fuel Rail
Engine Management System: AEM EMS
Engine Management Tuner: Turbochargers.com
Boost Controller: Artisan Manual Boost Controller

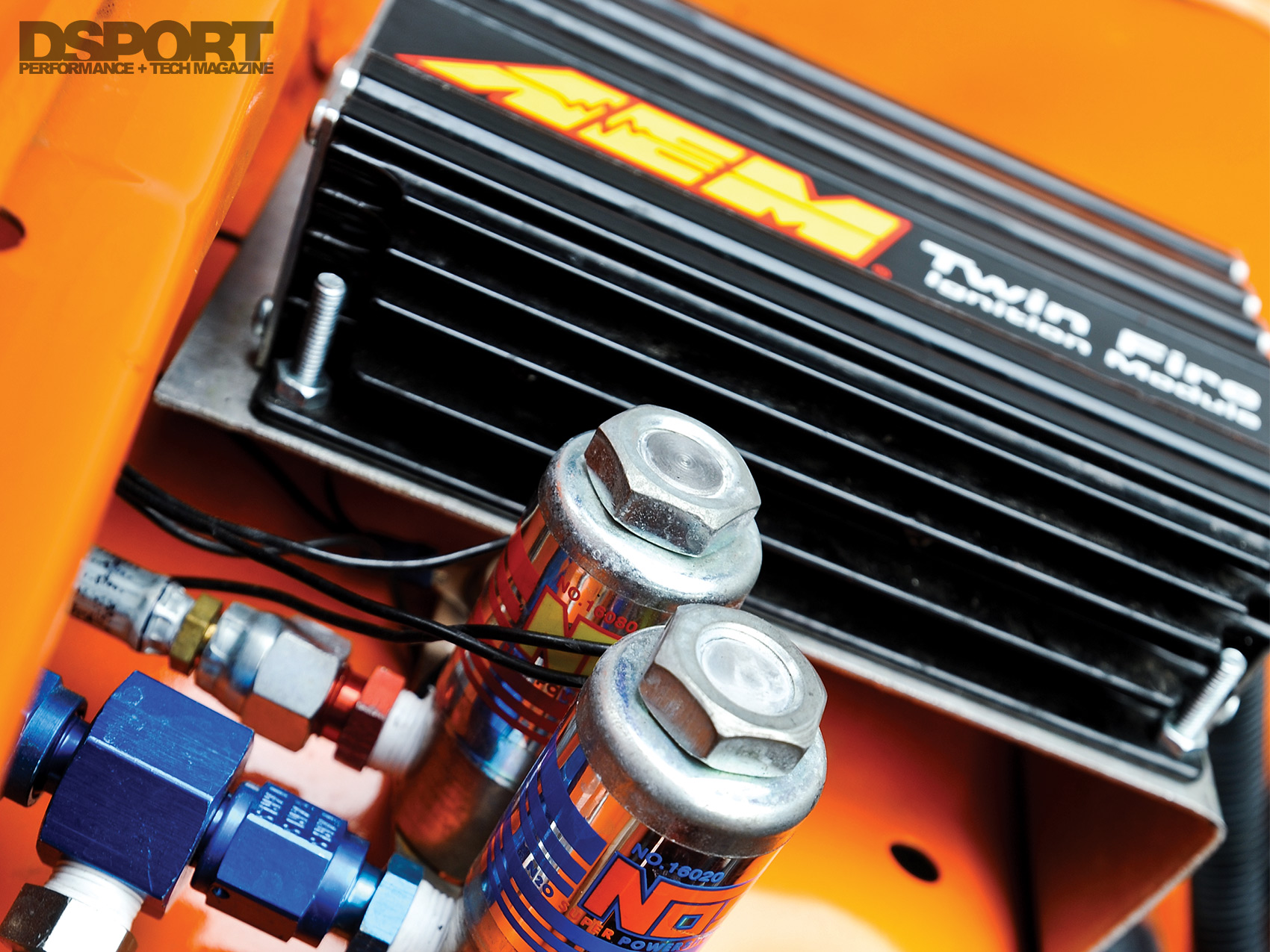

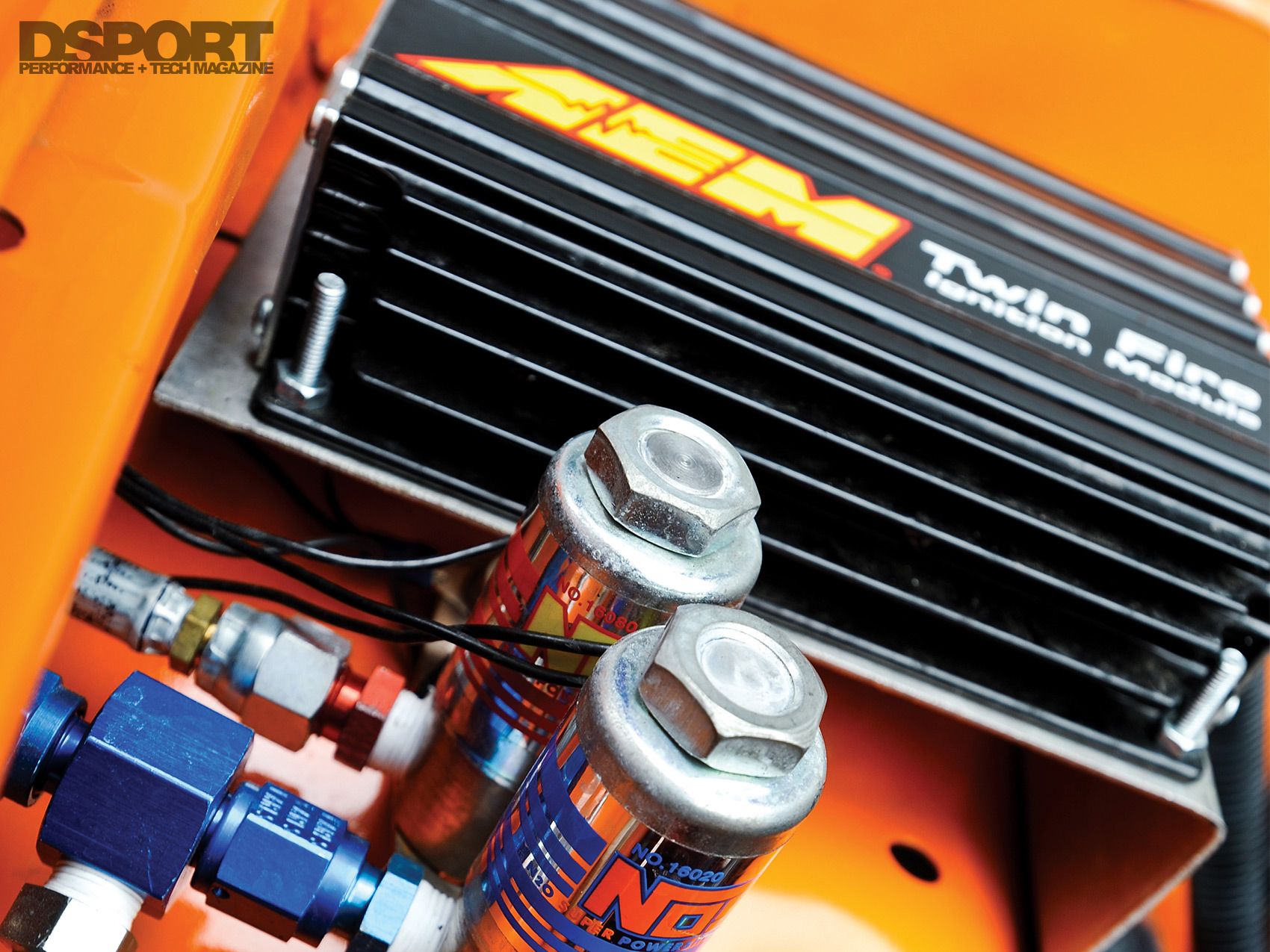

Ignition: AEM Digital Ignition System
Spark Plugs: NGK

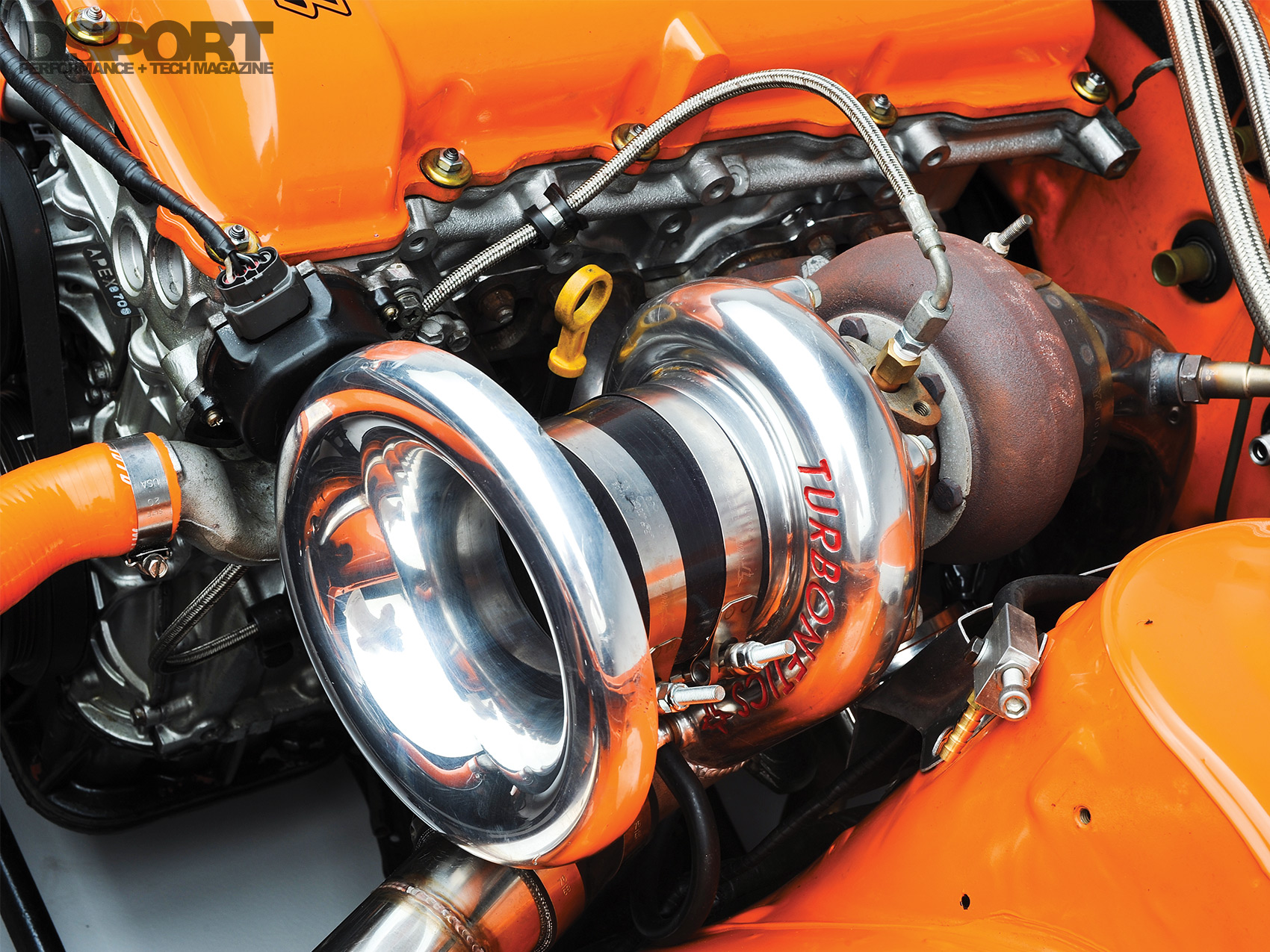

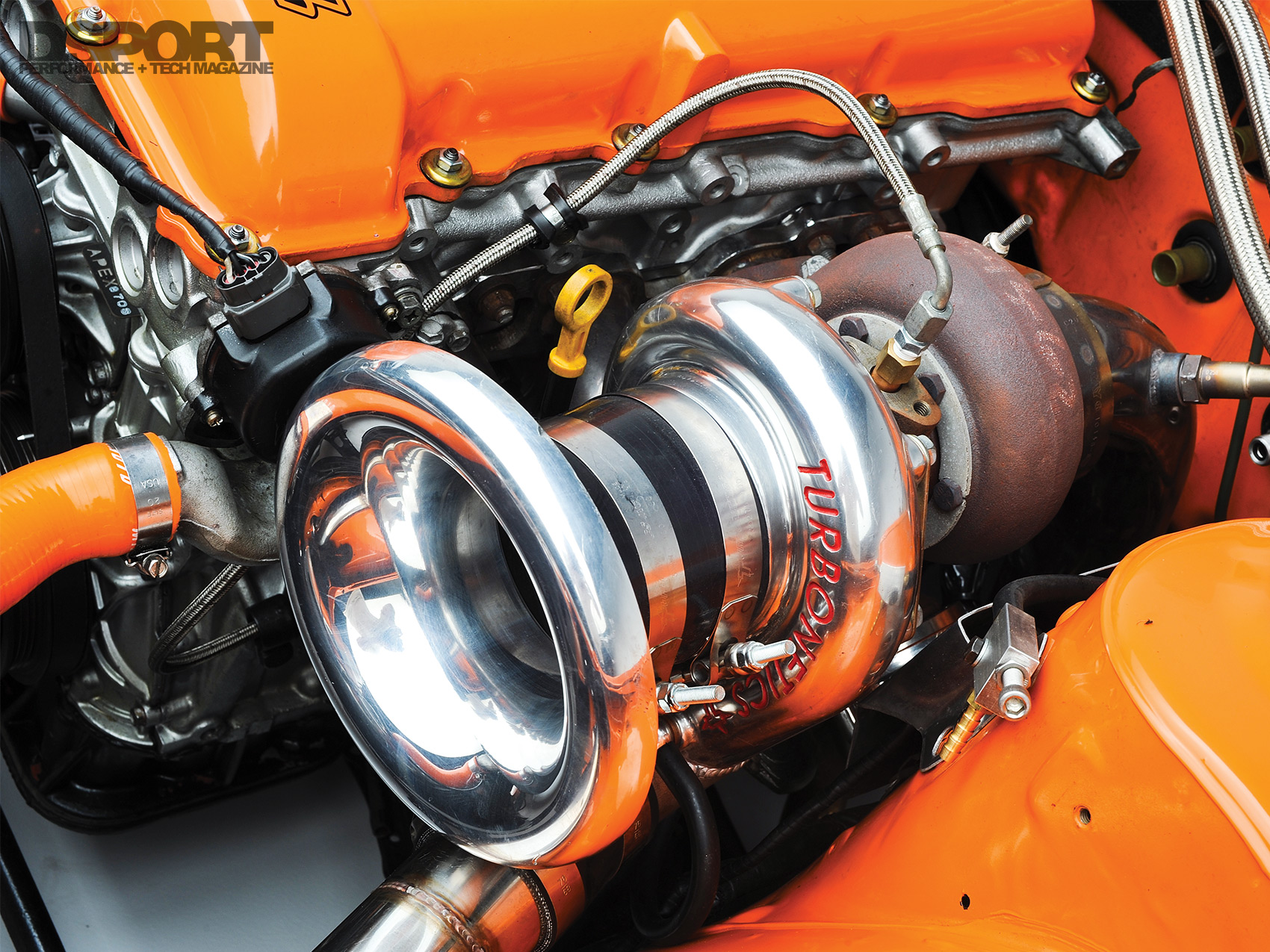

Turbocharger: Turbonetics GTK-650 Turbo
Compressor Wheel Specs: 88mm
Turbine Wheel Specs: Stage 5
Turbine Housing: .81 A/R

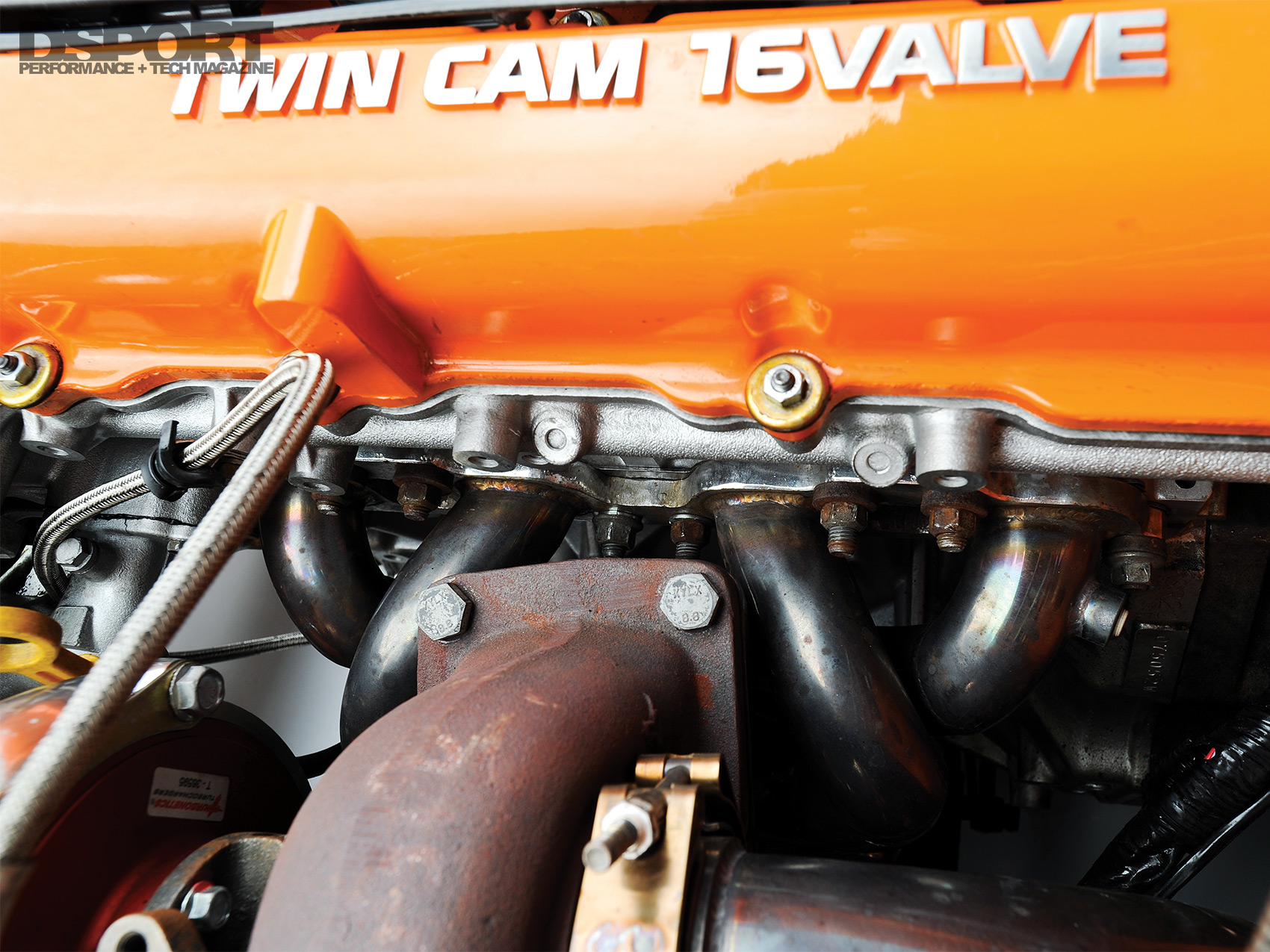

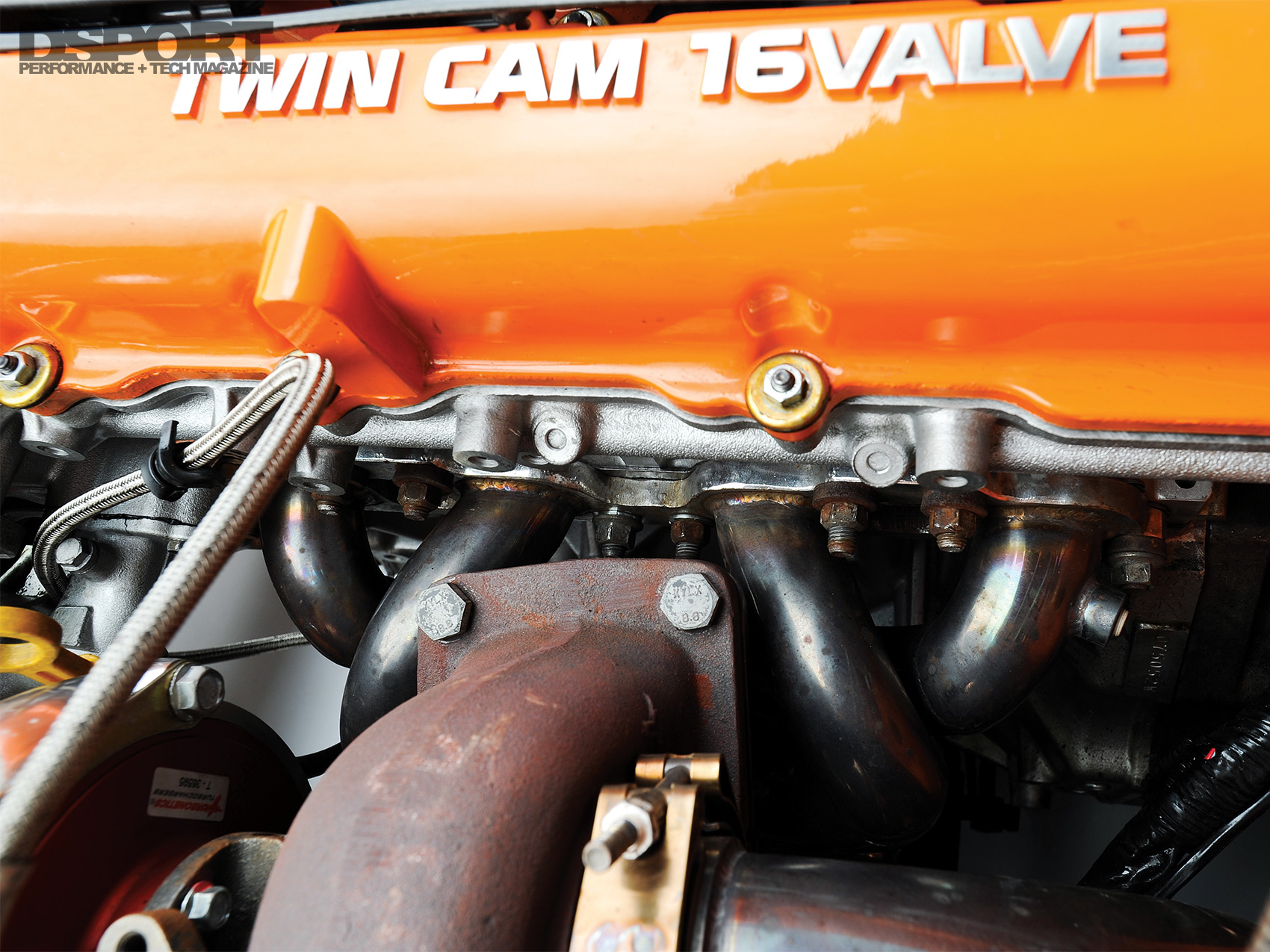

Exhaust Manifold: Artisan Equal-length Exhaust Manifold
Exhaust System / Downpipe: Artisan Cat-Back Race Exhaust
Wastegate: Turbonetics Wastegate

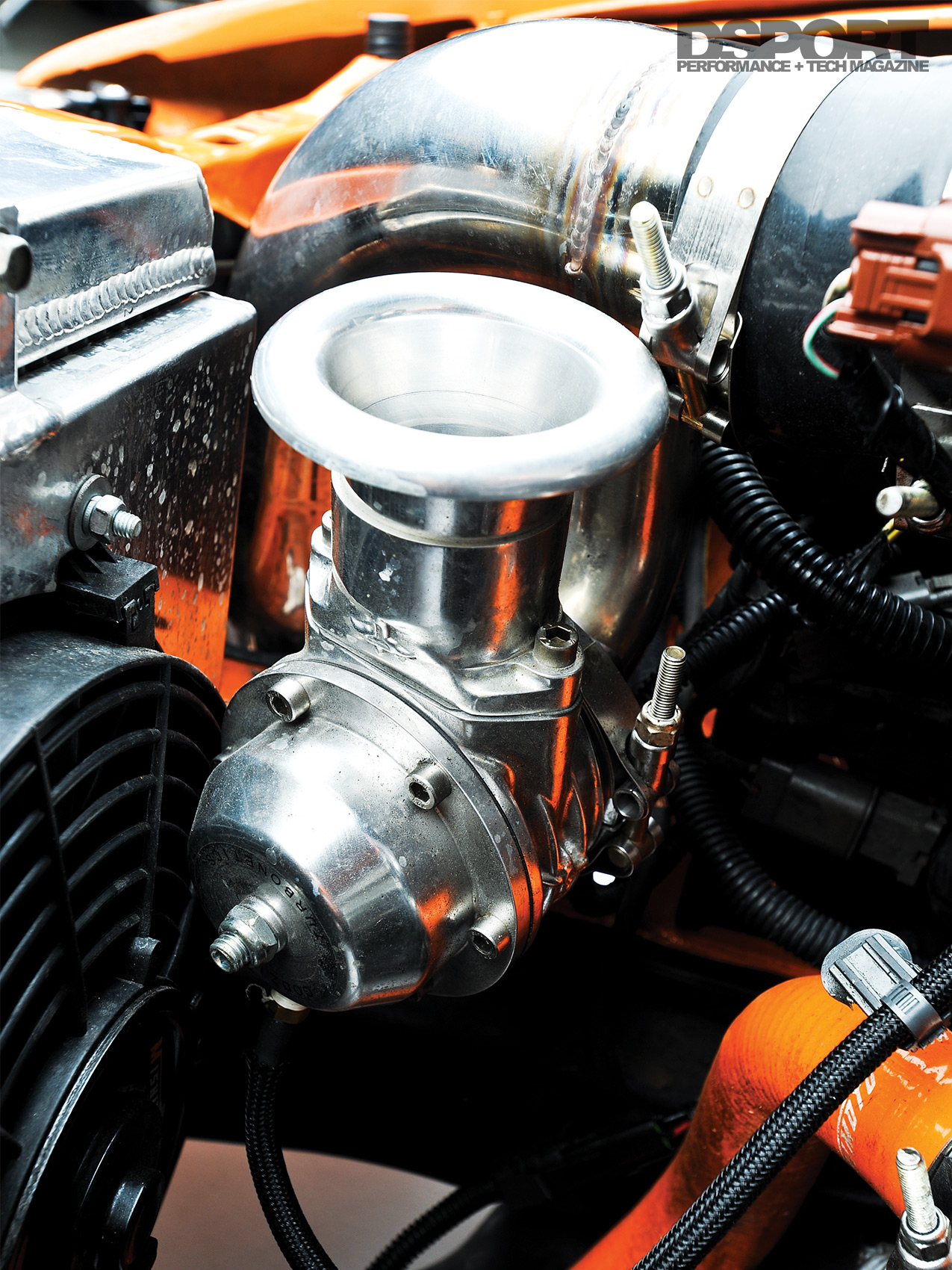

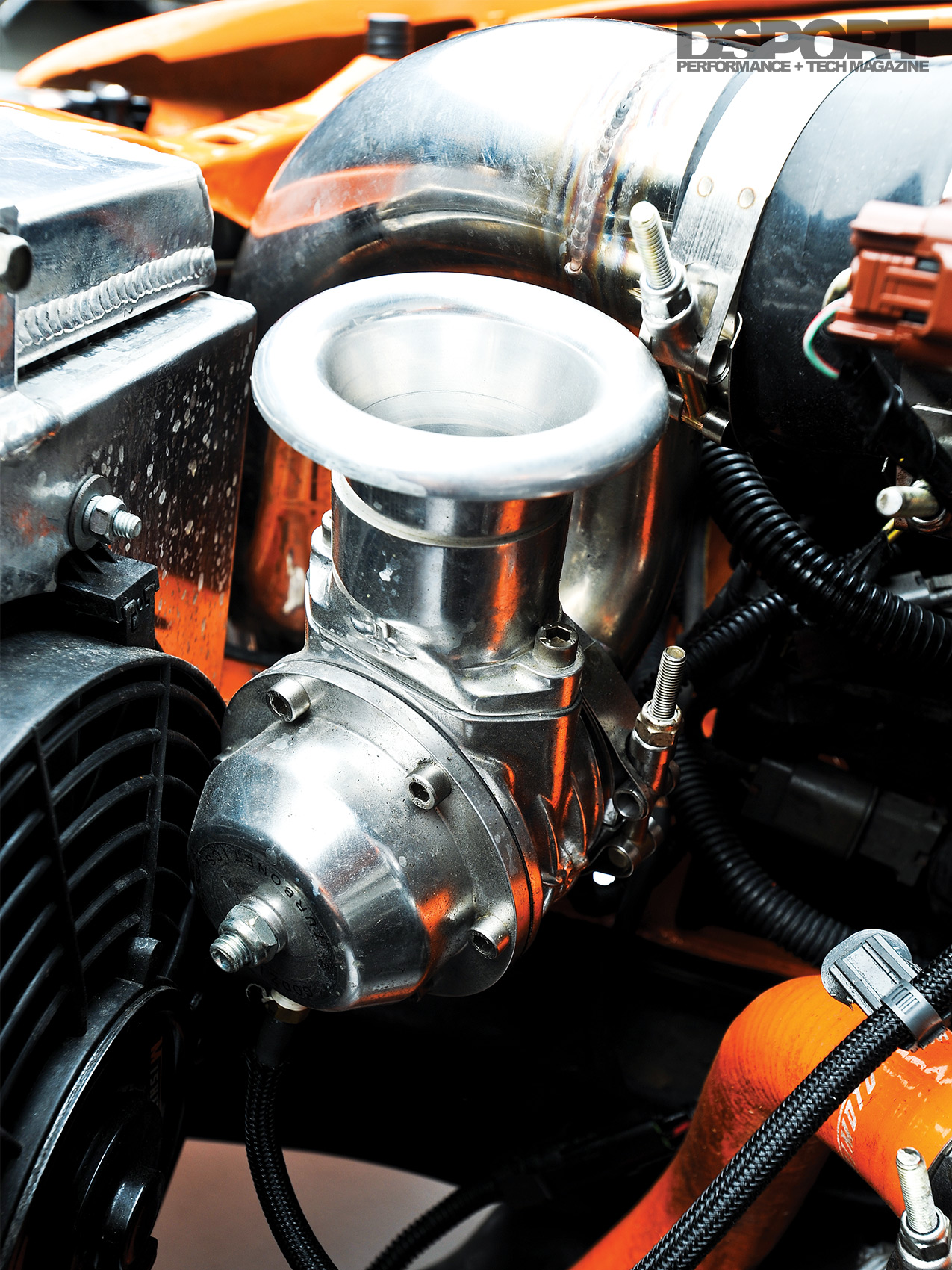

Blow-Off Valve: Turbonetics Godzilla BOV

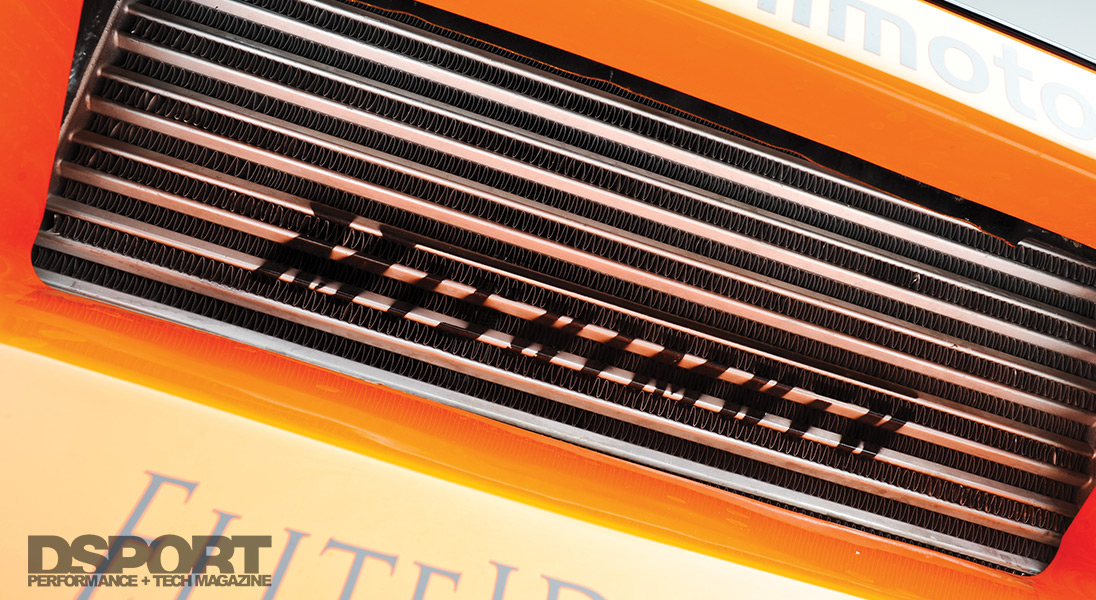

Intercooler: Mishimoto M Line Intercooler

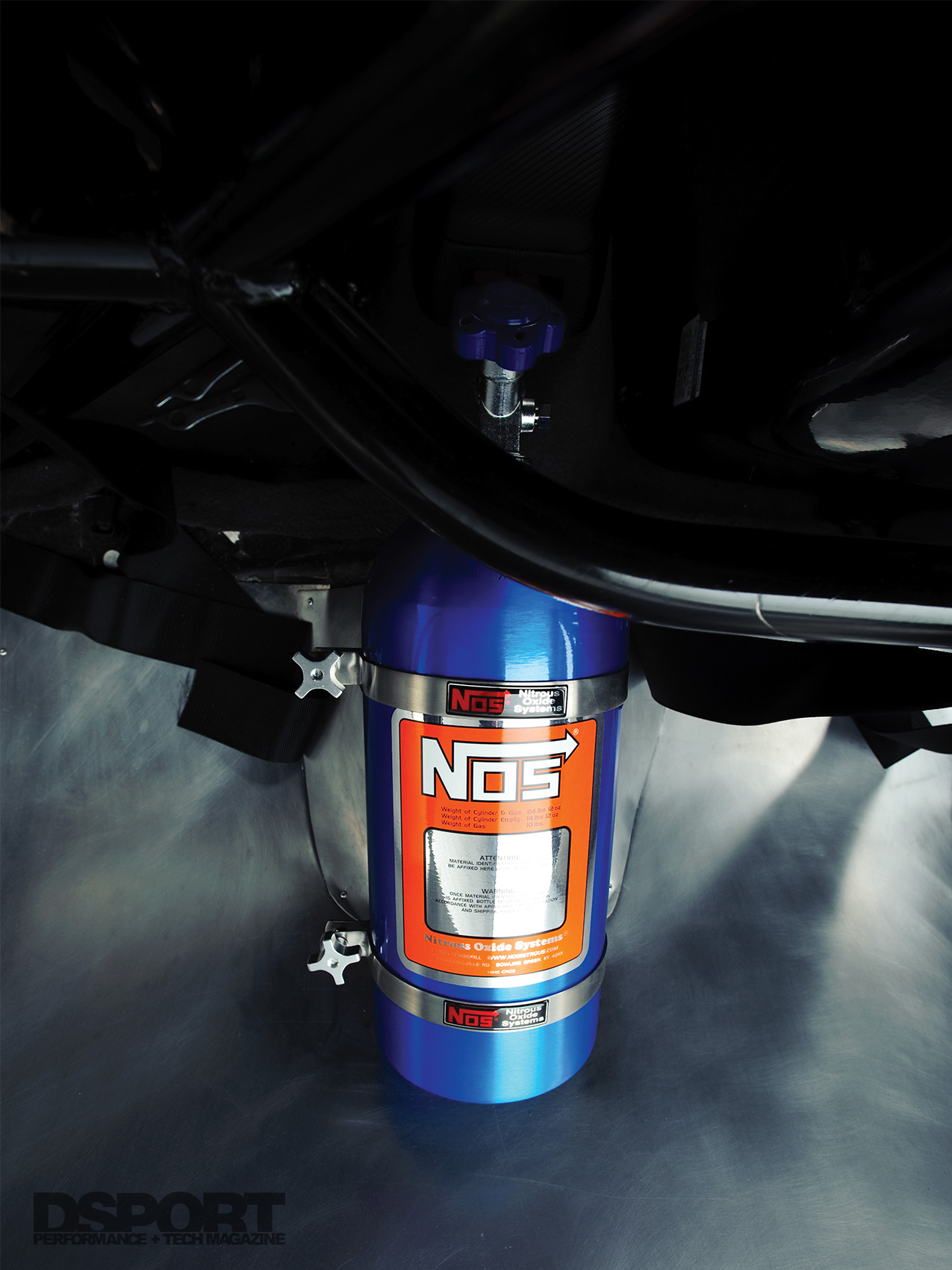

Nitrous Oxide: NOS Nitrous Kit with Intercooler Sprayer

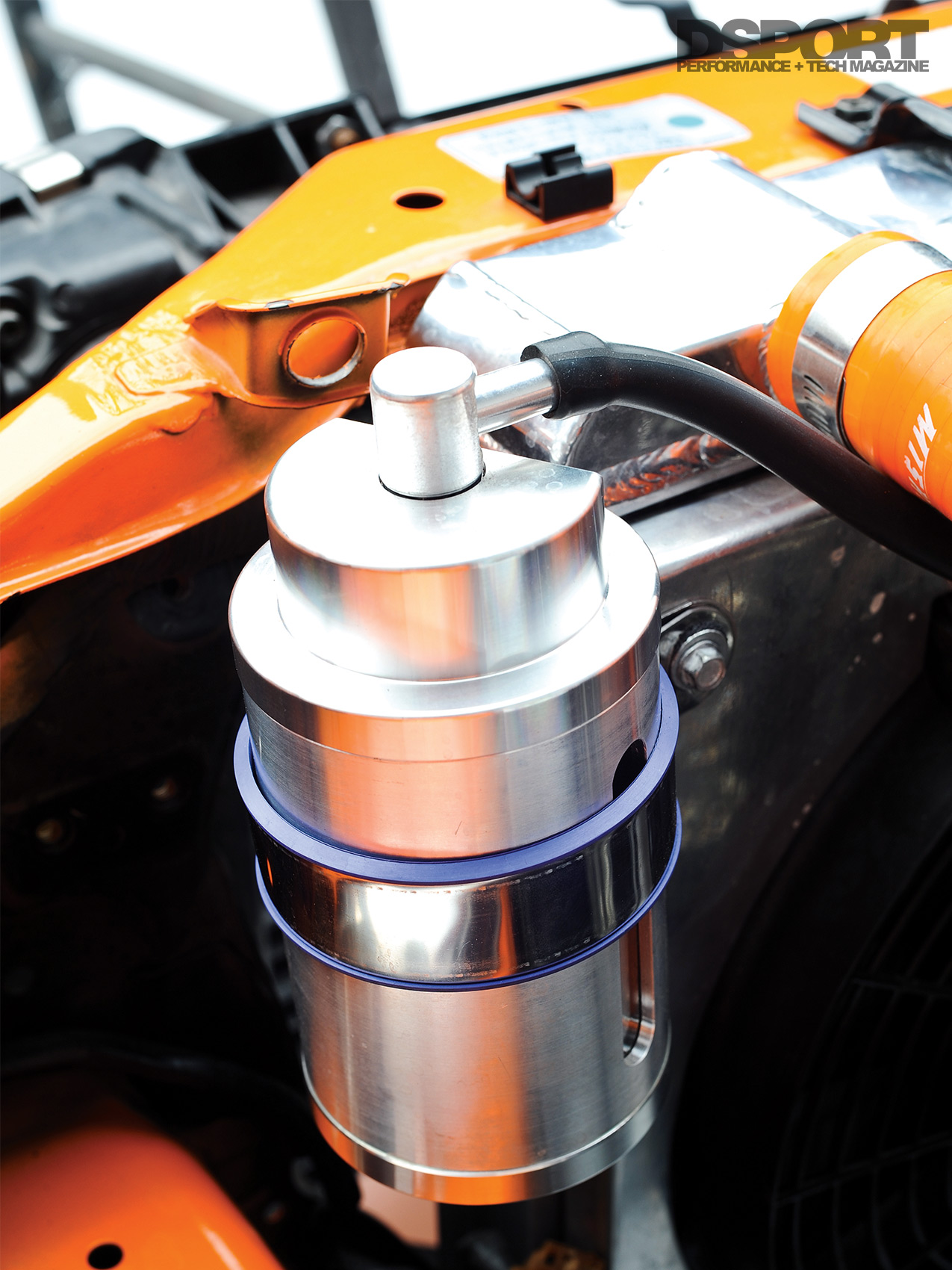

Cooling System: Mishimoto radiator, silicone hose kit, custom
radiator overflow, intercooler piping,
transmission cooler, oil cooler, fan shroud and
fans, oil catch can, and radiator cooling plate
Oil System: AMSOIL 0w-30 Synthetic Oil and Filter
CHASSIS/DRIVELINE
Springs, F&R (Make & Rate): TEIN 7 kgf/mm (F), 7 kgf/mm (R)
Shocks, F&R (Make & Rate): TEIN Flex Adjustable Coilovers
Additional Suspension Components: TEIN Sway Bars
Clutch / Flywheel: Competition Clutch Twin-Disk Clutch and
Aluminum Flywheel
Differential(s) (Make & Type): KAAZ 2-Way Limited Slip Differential
Axles / Driveshaft: Reinforced Drive Shafts

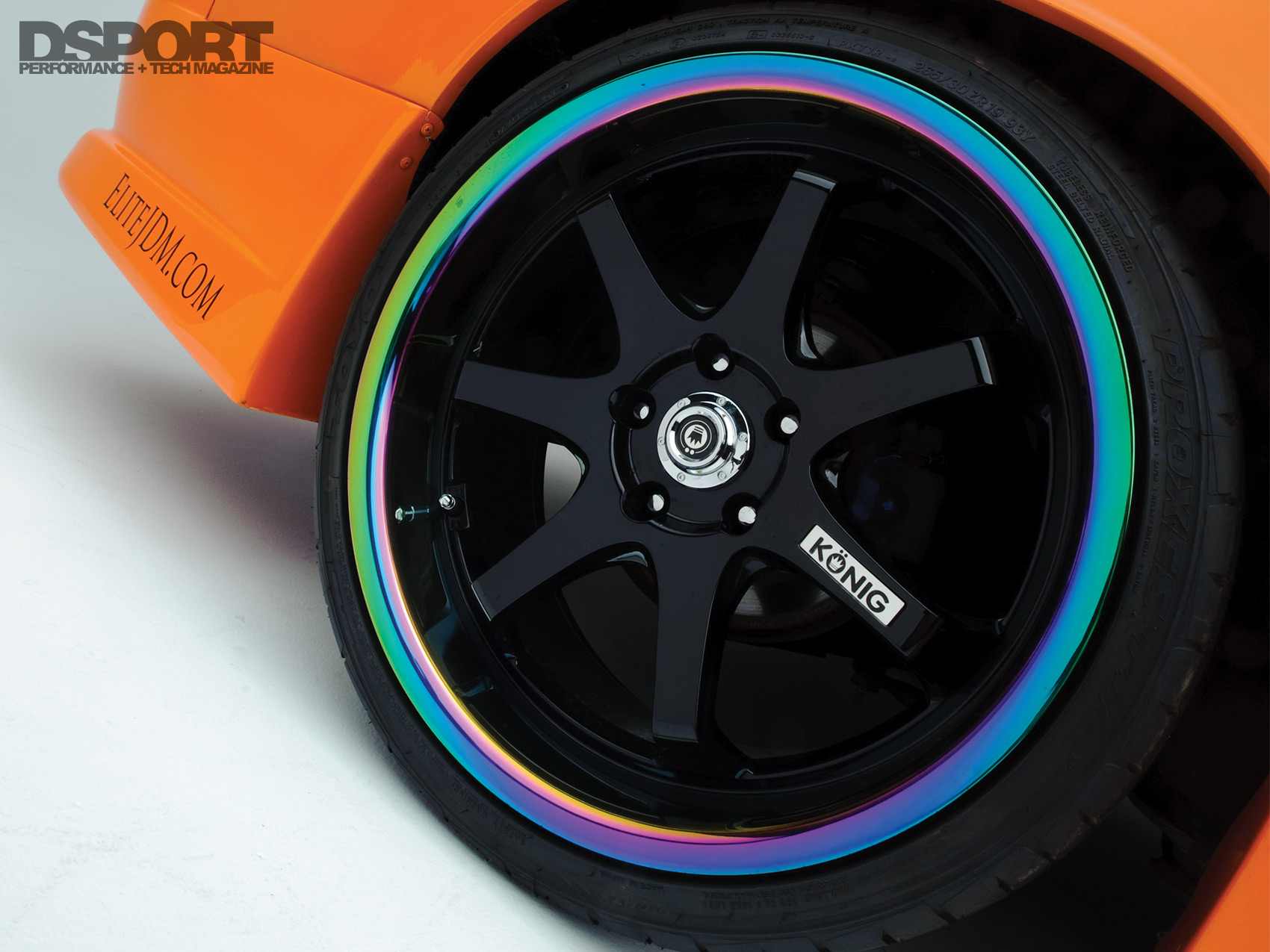

Wheels (Make, Size & Offset): König Afterburner Wheels:
19×8.5-inch (F)/19×10.5-inch (R)
Tires (Make & Size): Toyo Tires T1R: 235/35R19 (F), 265/30R19 (R)
Brakes: Z32 brakes w/upgraded rotors and pads, 5-lug conversion

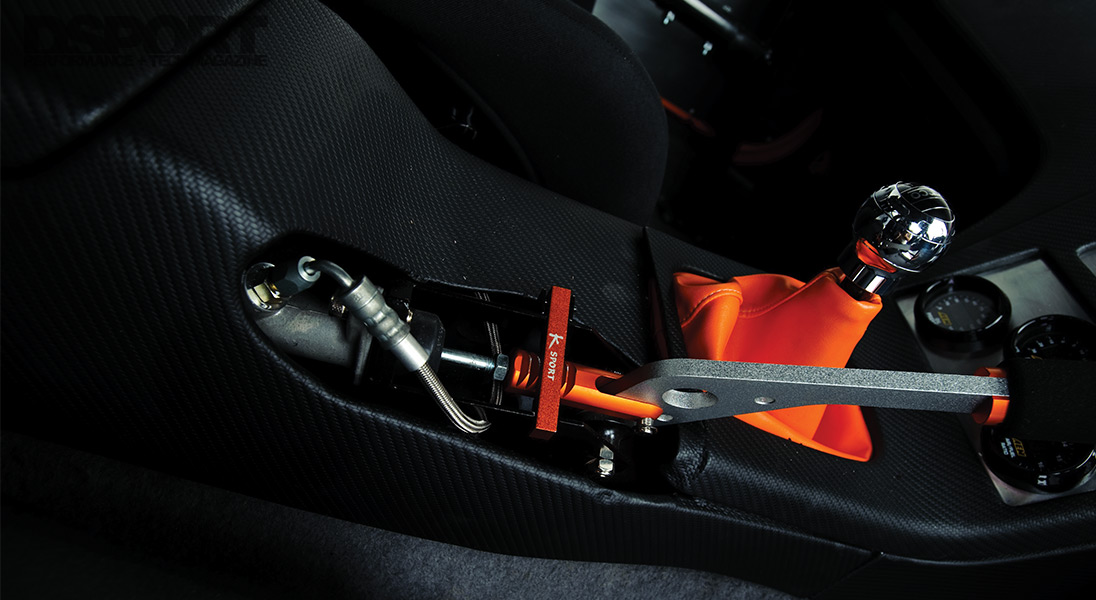

Etc.: Ksport Hydraulic E-Brake
INTERIOR
Roll Bar / Cage: AutoPower 6-point Roll Cage

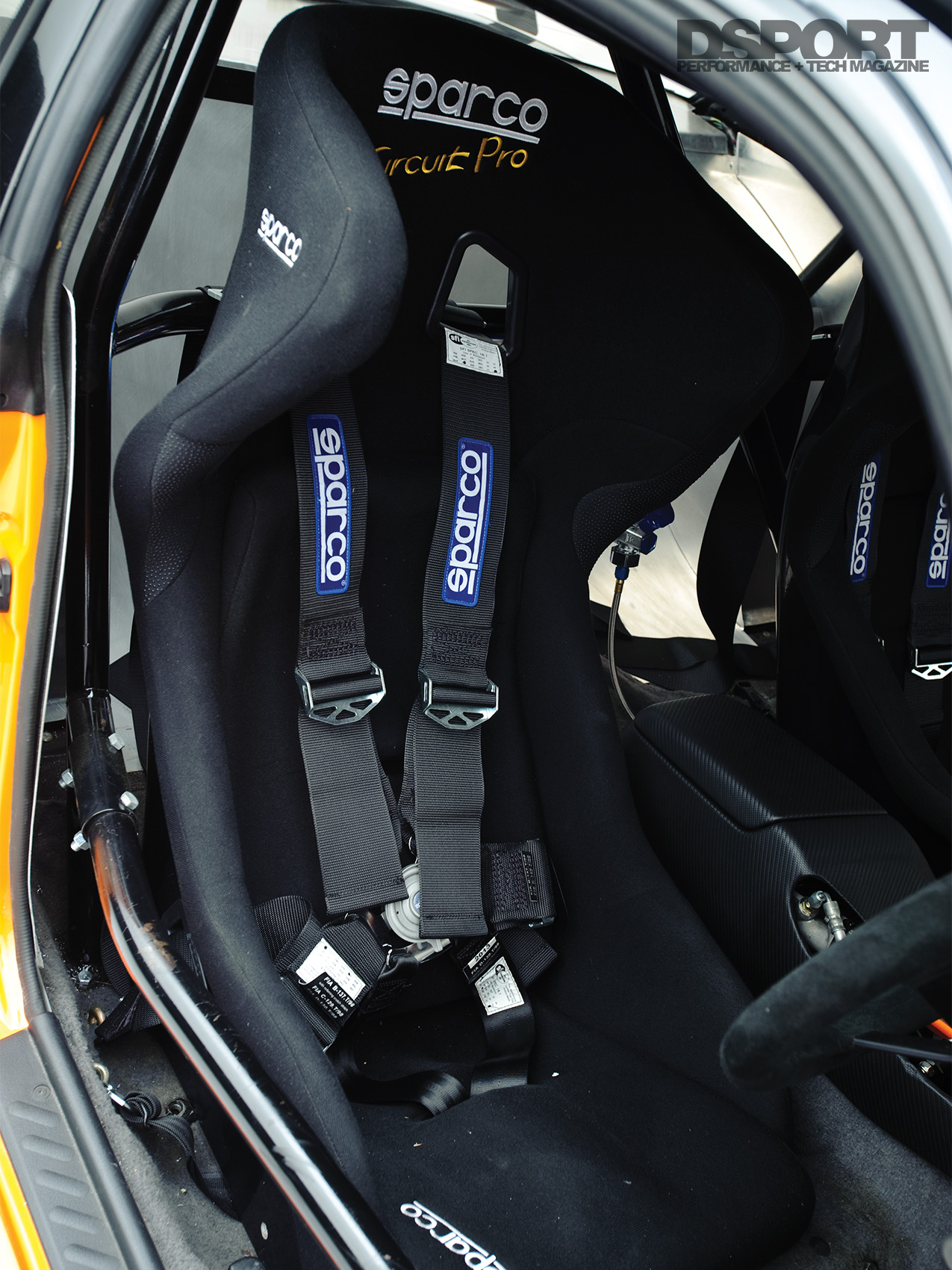

Seats: Sparco Circuit Pro Seats
Harnesses: Sparco Harnesses
Gauges: AEM Boost and Oil Pressure Meters
AEM UEGO wideband A/F Meter

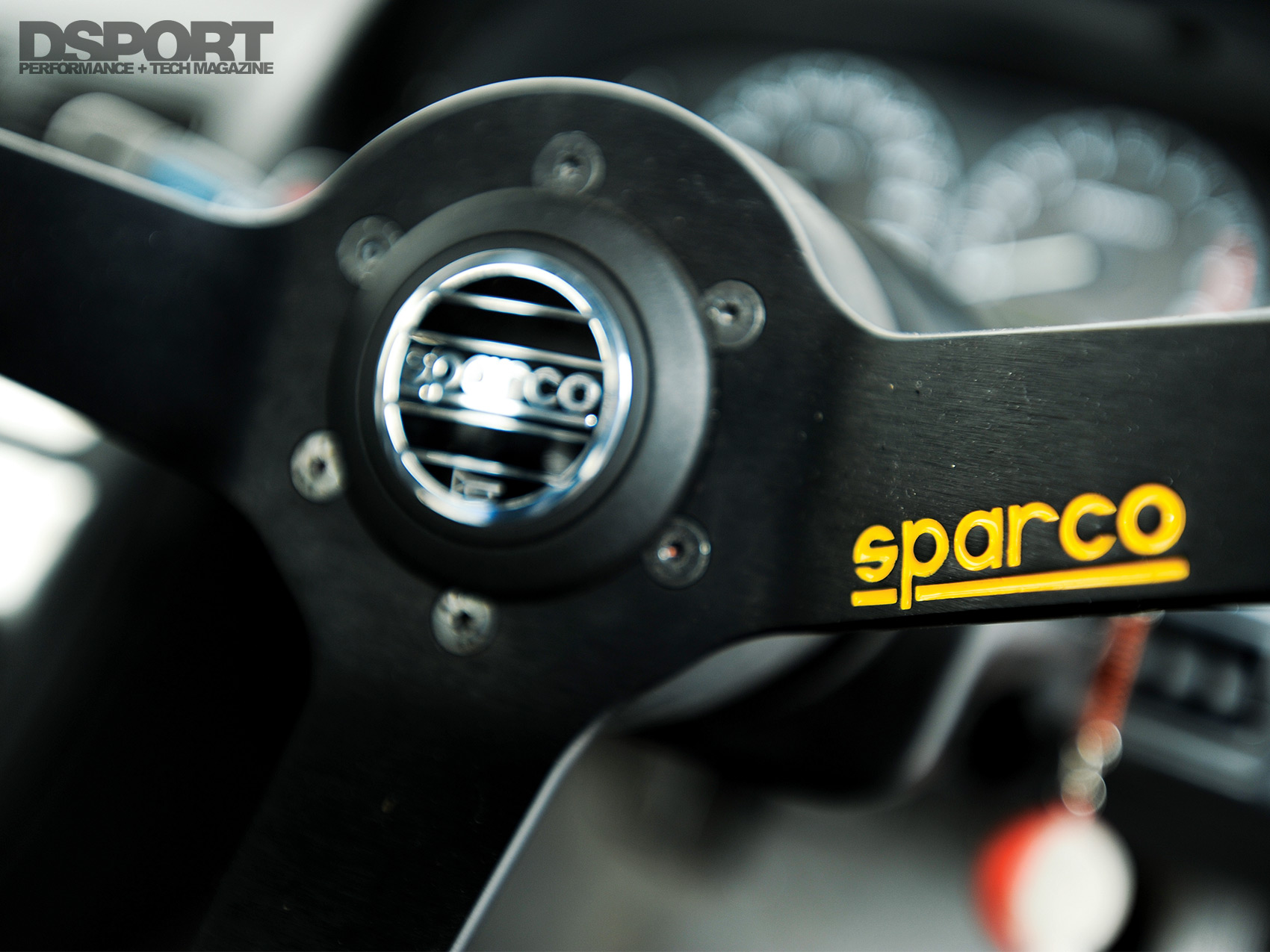

Etc.: Sparco Steering Wheel, Aluminum door panels
and Carbon Dash
EXTERIOR

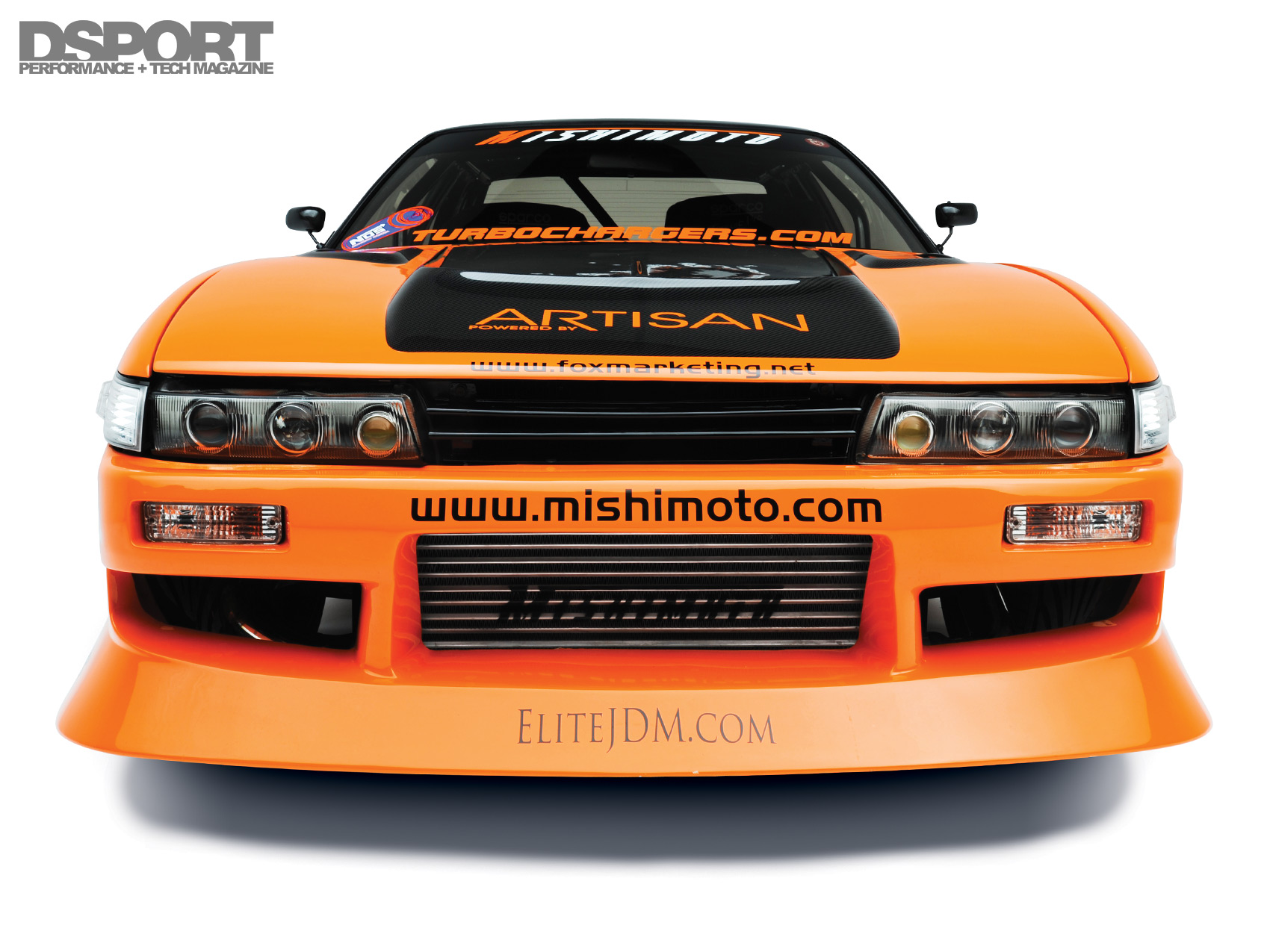

Bumper (F&R): Origin Lab

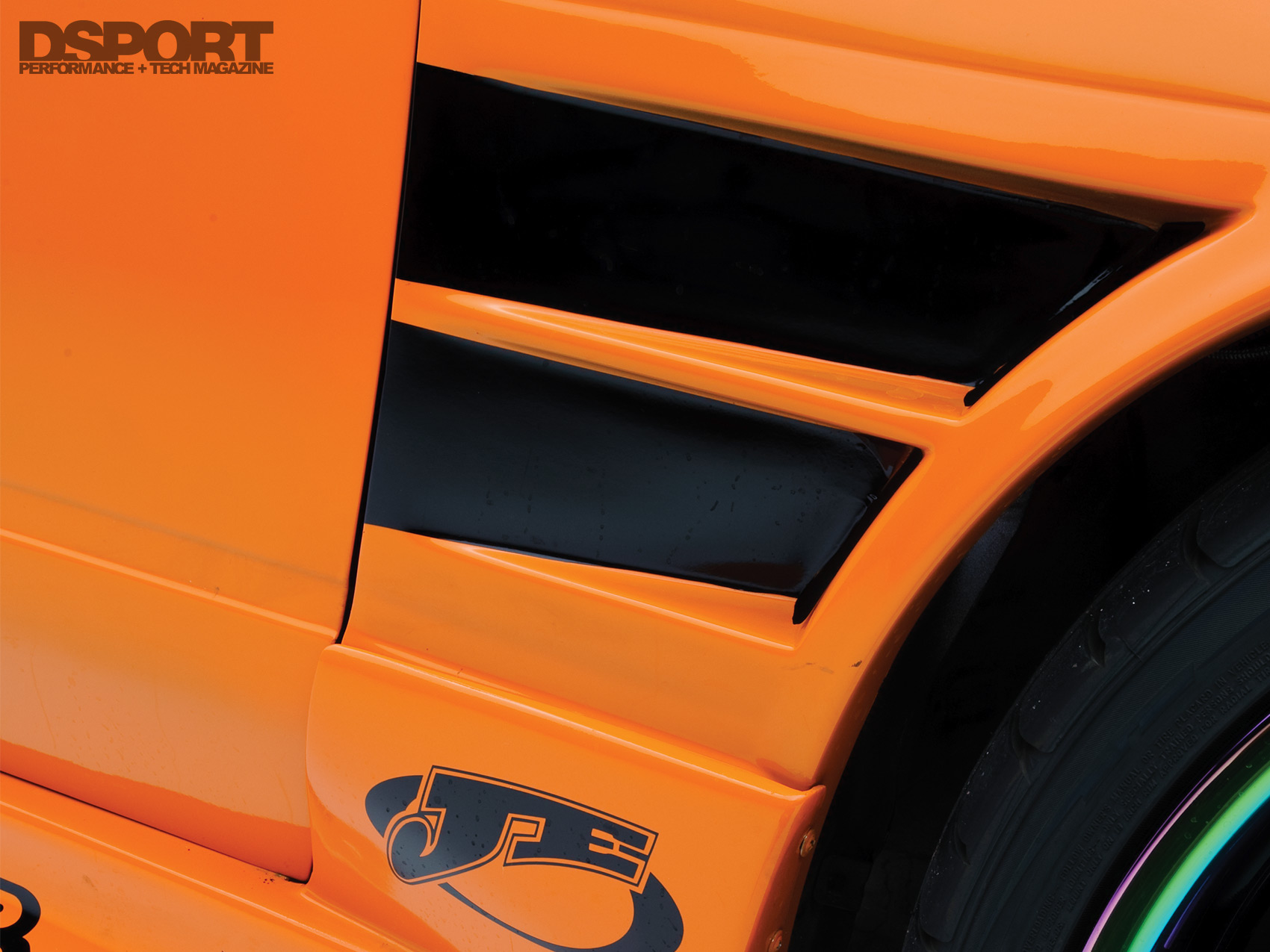

Fenders: Origin Lab +40mm (F), +50mm (R)

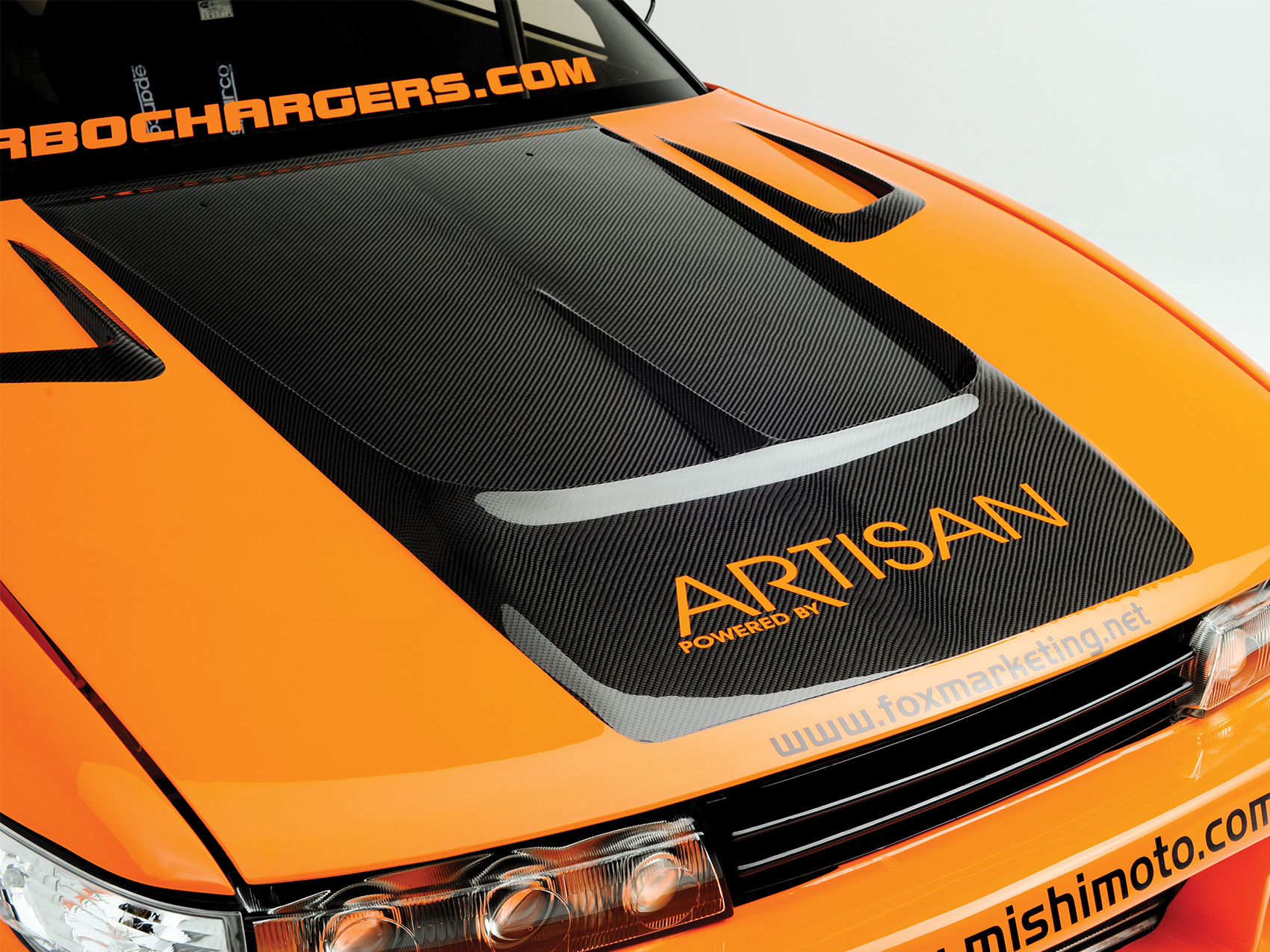

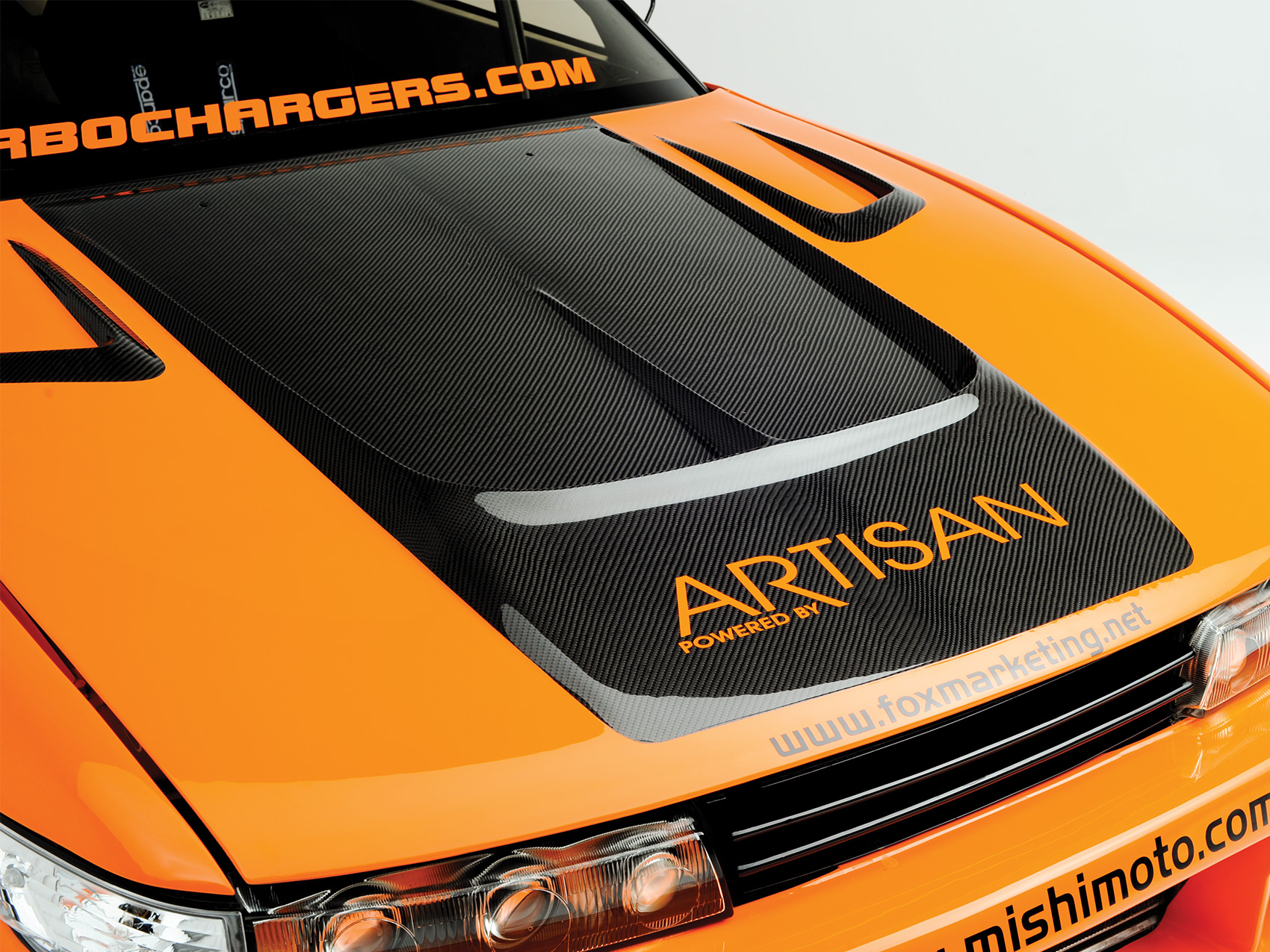

Hood: Seibon Carbon Hood
Side Skirts: Bodykits.com

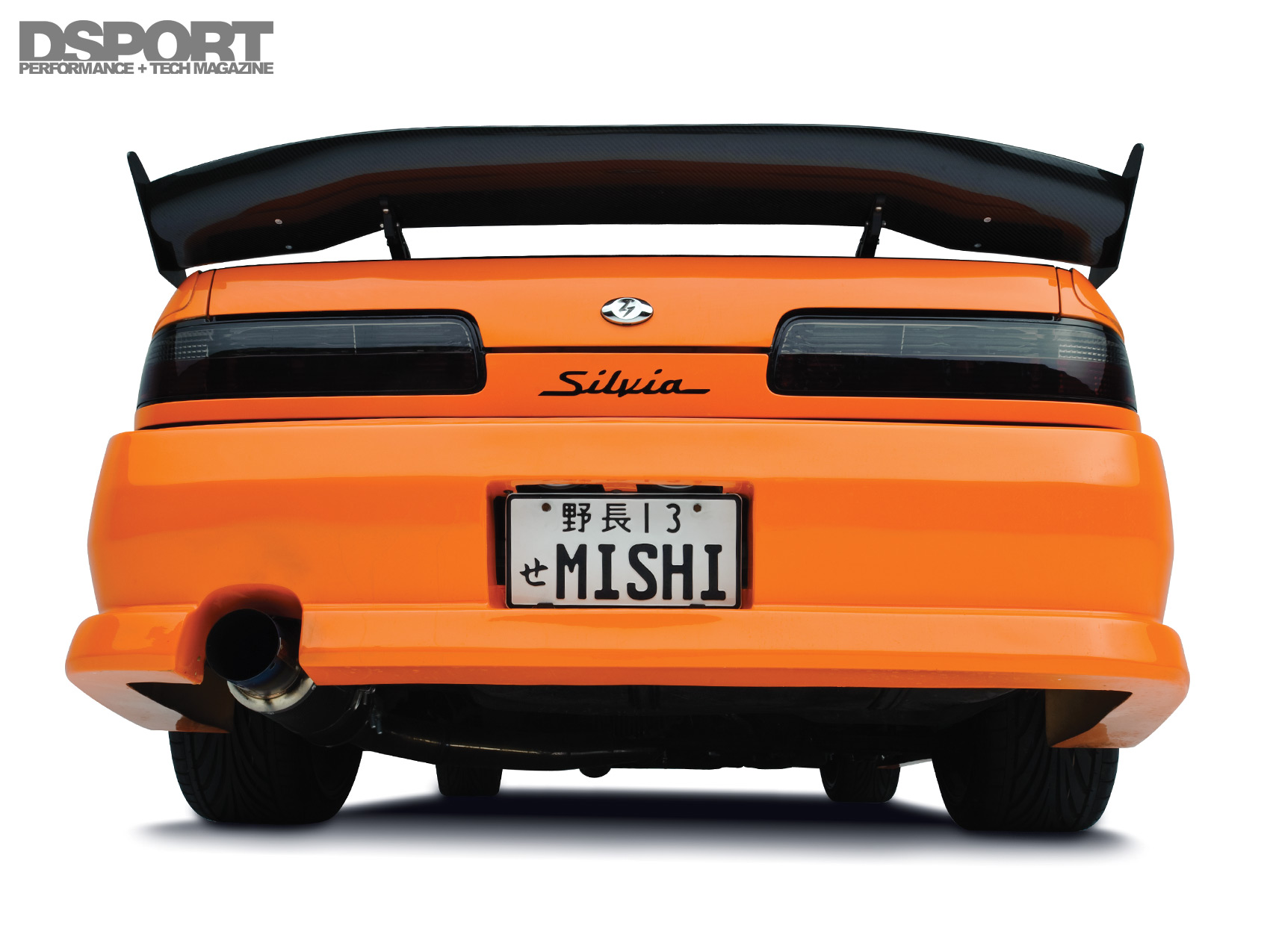

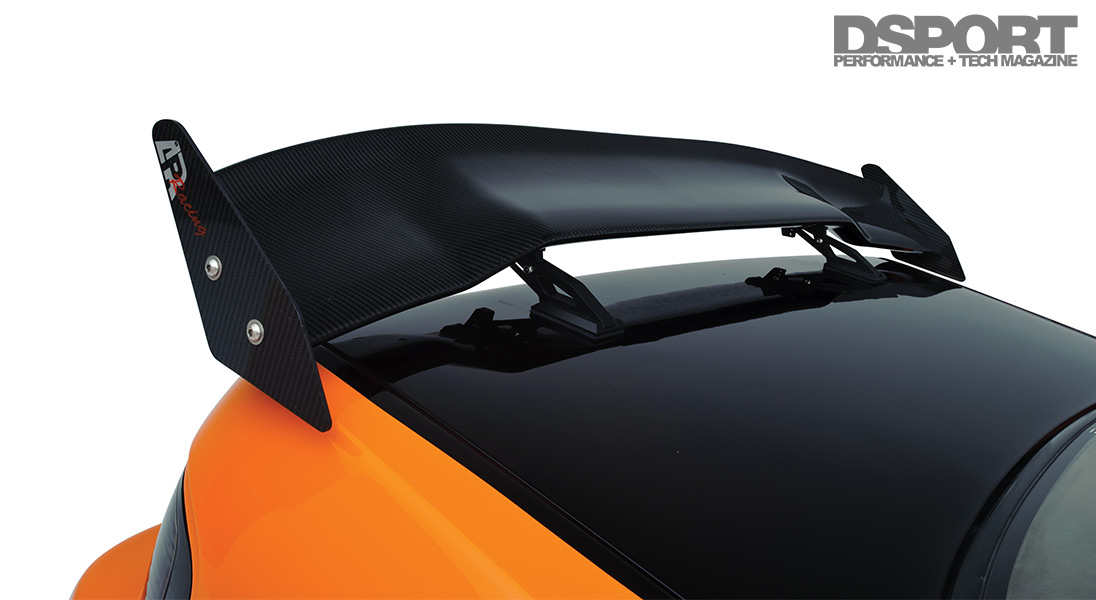

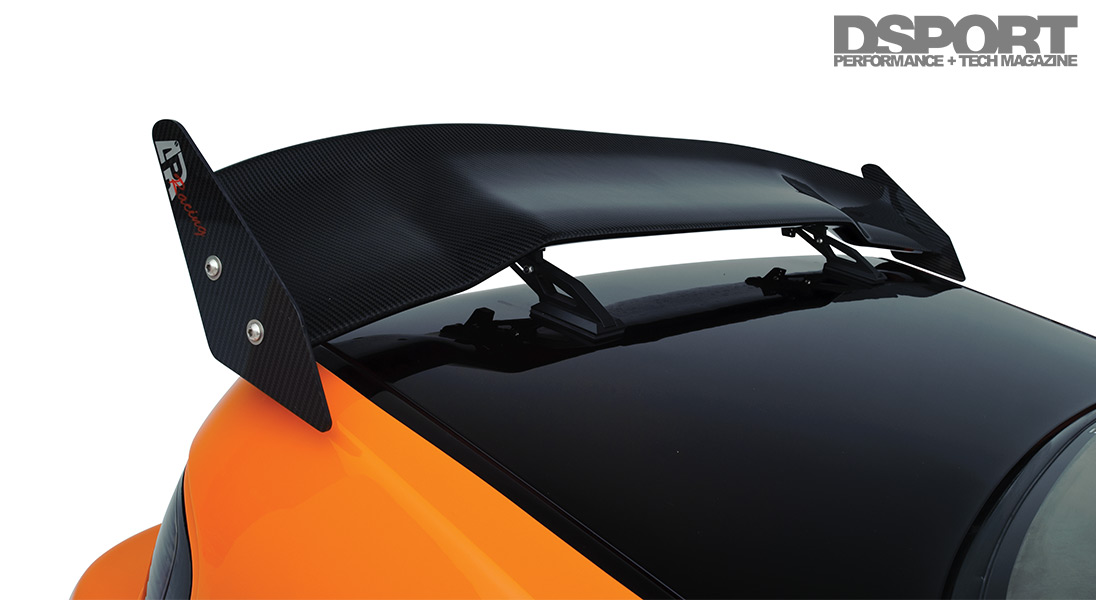

Spolier: APR Performance Carbon-fiber Wing

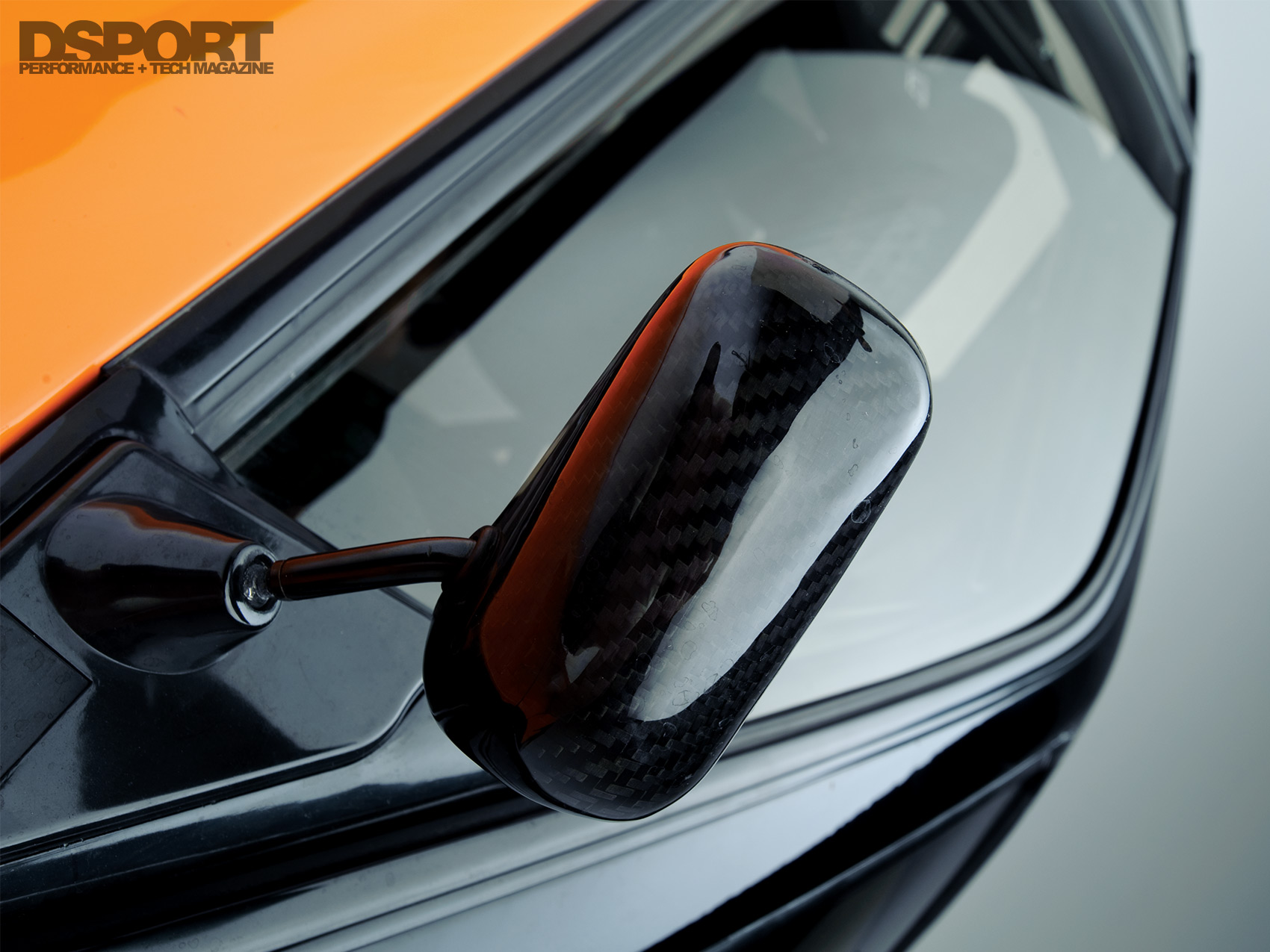

Mirrors: TCS Carbon-fiber Mirrors
Paint: BASF R-M
