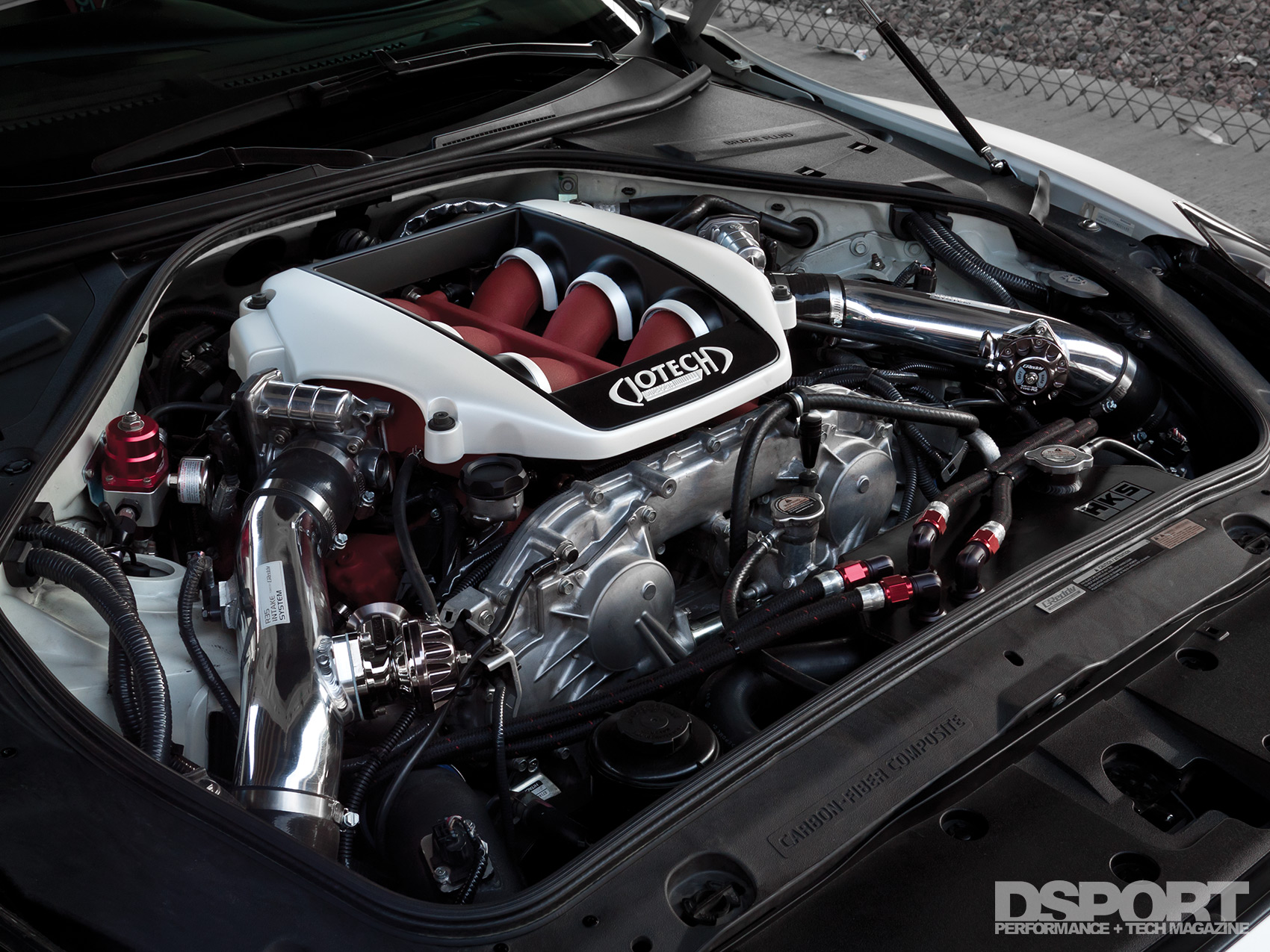

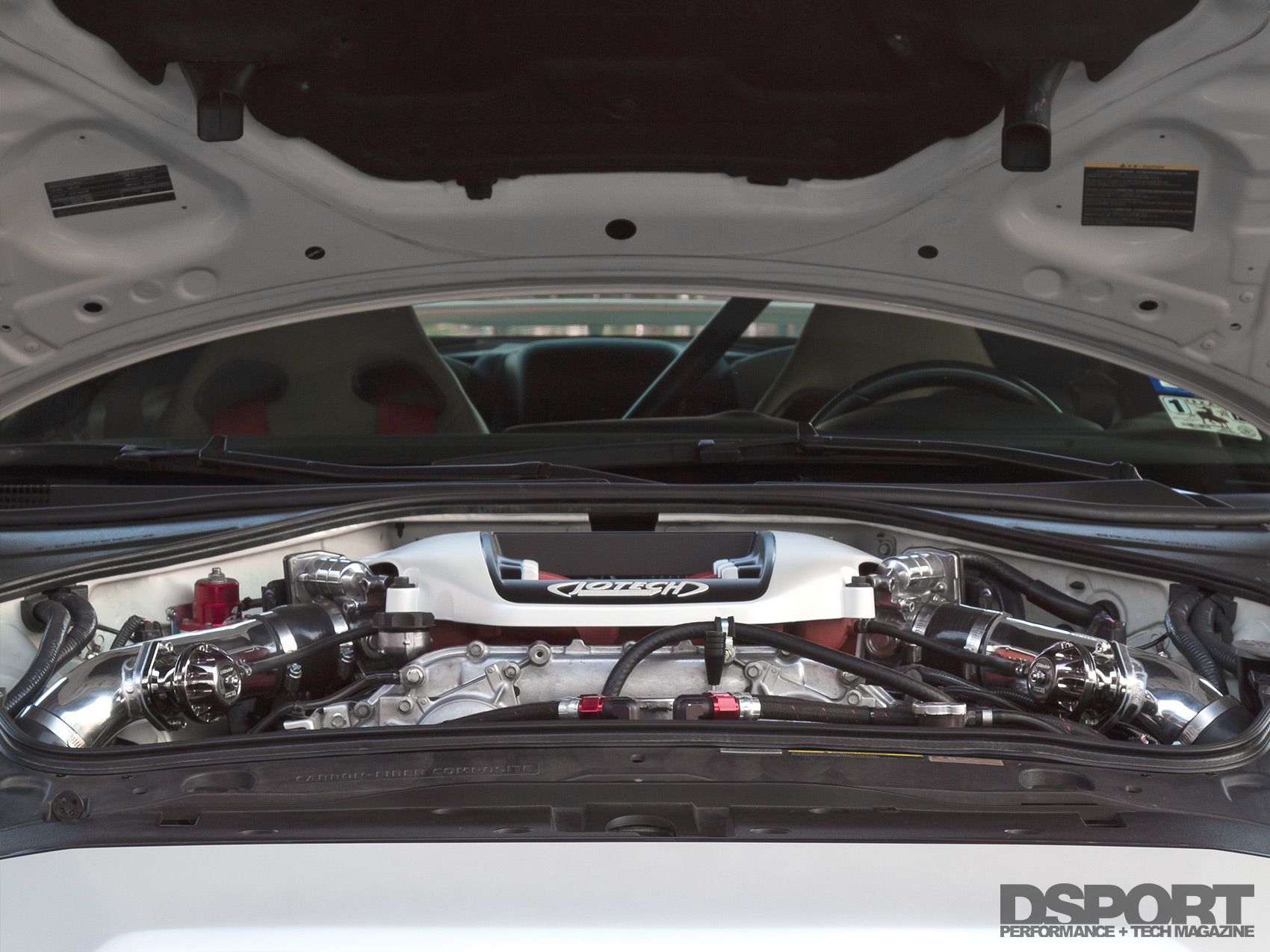

| Engine Code: |
VR38DETT |
| Displacement (cc): |
3,880cc |
| Bore & Stroke (mm): |
96.5mm x 88.4mm |

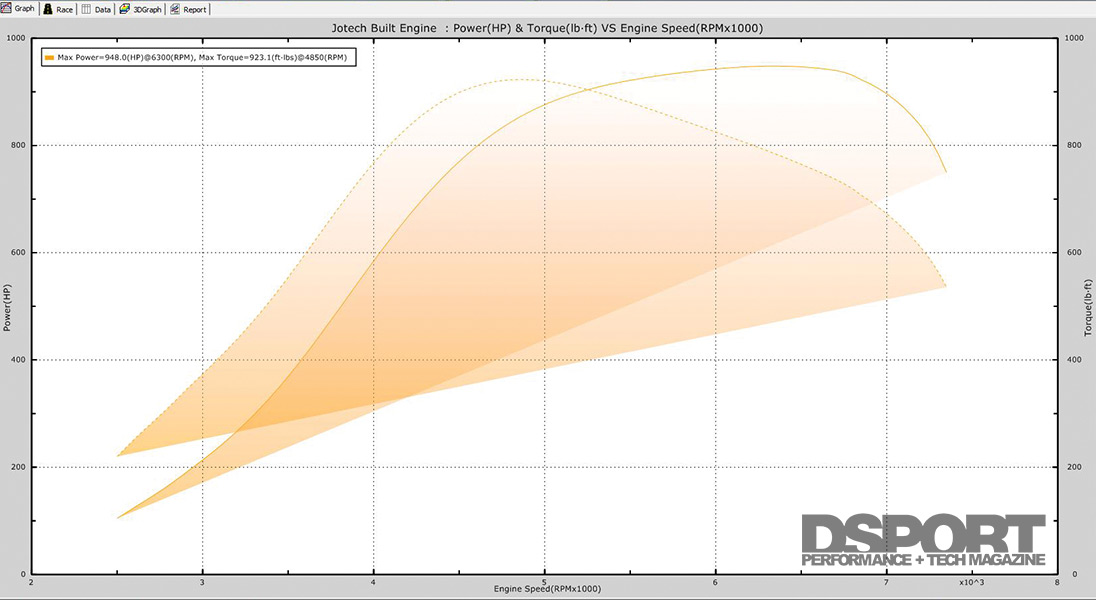

| Peak Horsepower (@ RPM): |
948 whp @ 6,300 RPM |
| Peak Torque (@ RPM): |
923 lb-ft @ 4,850 RPM |
| Dyno Type: |
Dynocom Dynamometer |
| Engine Builder: |
Kenny Tran |
| Block Modifications: |
Darton Sleeves |
| Machine Work: |
Kim Barr Racing |
| Pistons/Compression Ratio: |
Arias Pistons, 9.0:1 Compression |
| Connecting Rods / Crank: |
Pauter Rods |
| Camshafts: |
TOMEI POWERED PONCAMS (IN&EX) |
|
(256°,10.25mm Lift, 264°,10.50mm Lift) |
| Valves / Springs / Retainers: |
Ferrea Valves, Springs, Titanium Retainers |
| Cylinder Head Mods: |
Jotech Racing Port |
| Head/Main Studs: |
ARP Head Studs |
| Cylinder Head Gasket: |
GReddy MLS Head Gaskets |
| Air Induction System: |
Akuma 3-inch Induction System |
| Fuel Injectors: |
Injector Dynamics ID2000 Injectors (x6) |
| Fuel Delivery System: |
AMS Fuel Pump Assembly |
|
Dual Bosch 044 Fuel Pumps |
|

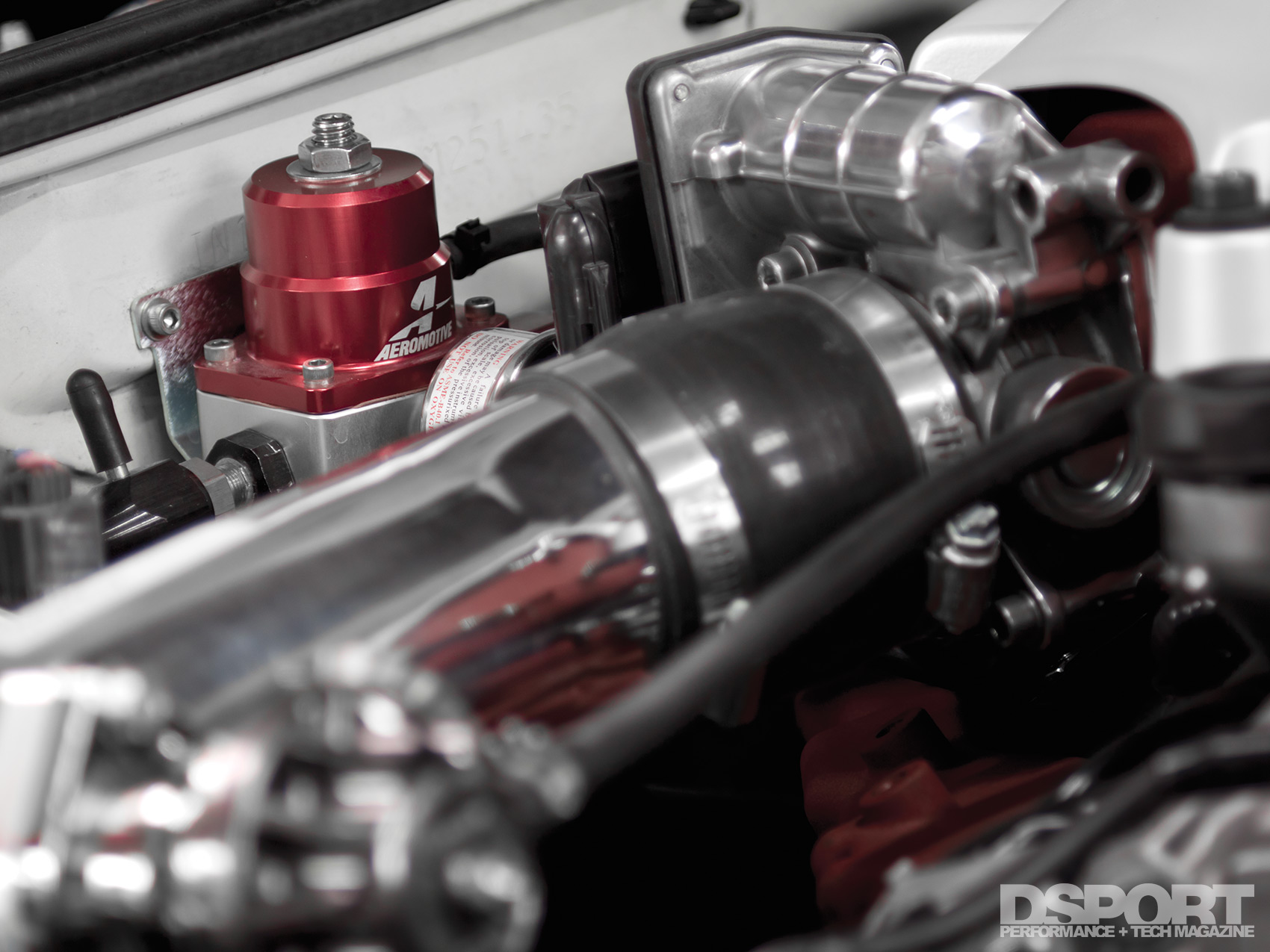

Aeromotive FPR |
|
Aeroquip -8AN Braided Lines |
|
GReddy Fuel Rails |
| Engine Management System: |

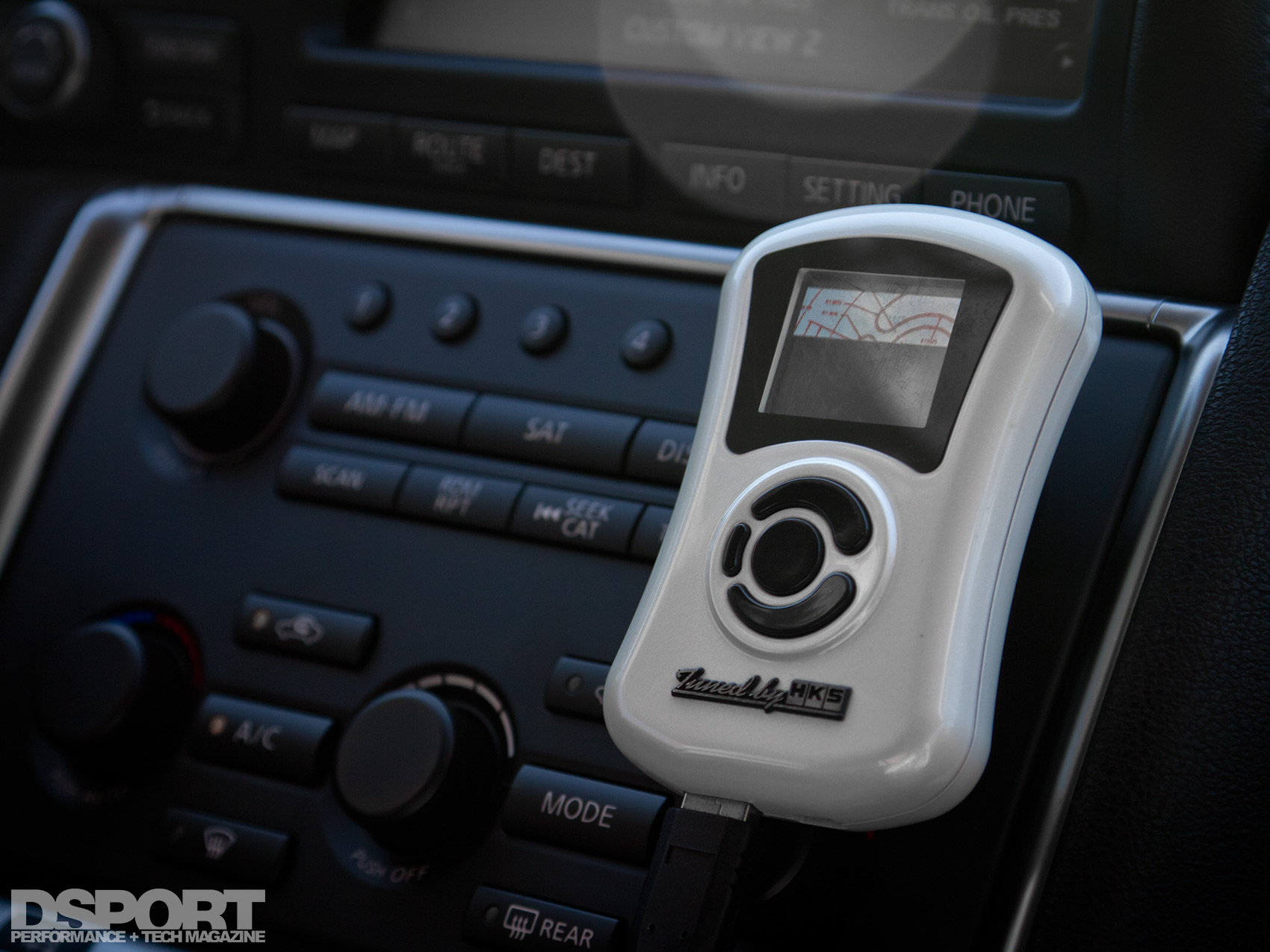

Cobb Accessport / Pro EFI |
| Engine Management Tuner: |
Kenny Tran |
| Boost Controller: |
HKS EVC VI |
| Spark Plugs: |
HKS Iridium Spark Plugs |

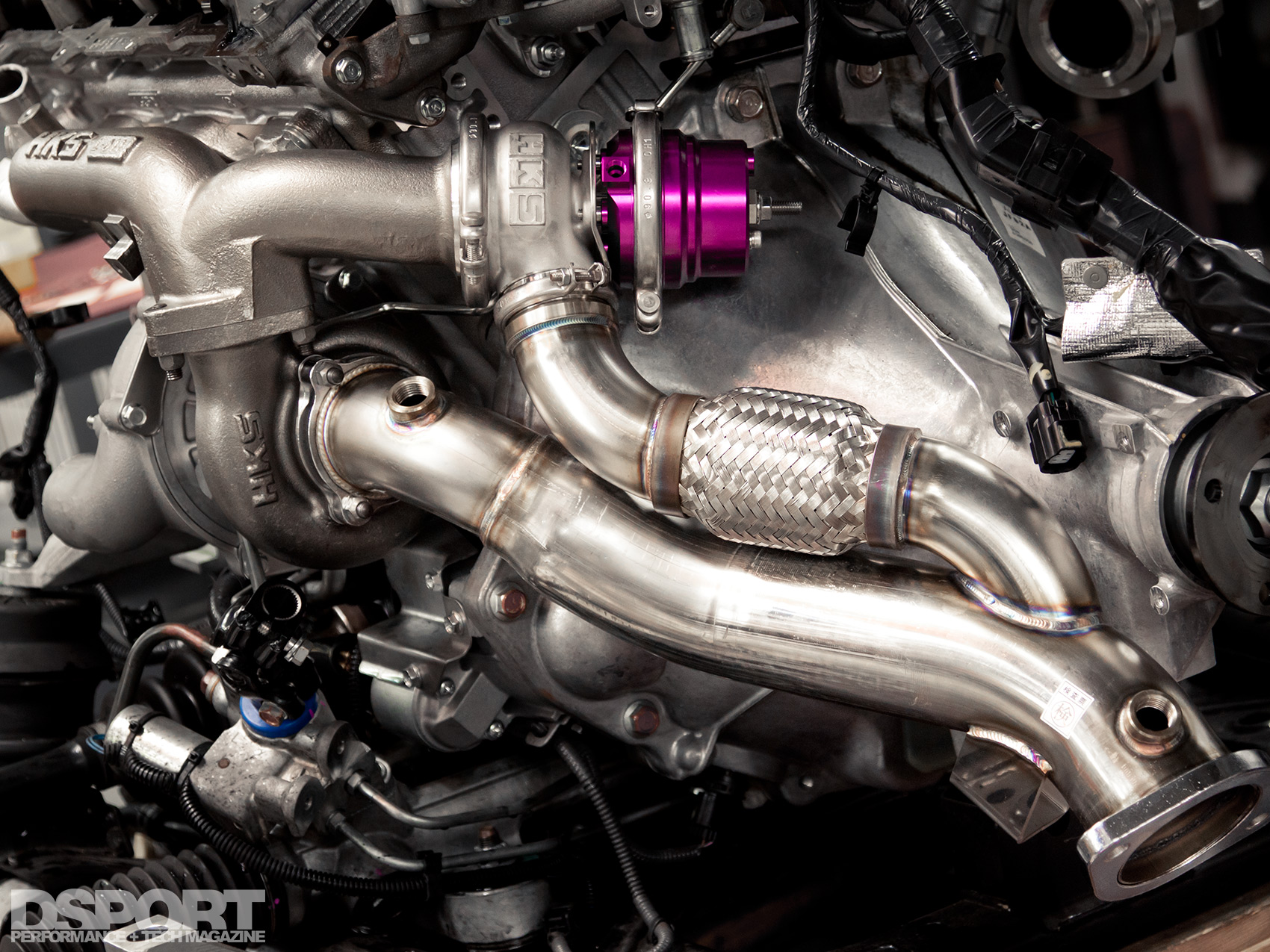

| Exhaust Manifold: |
HKS Cast Manifolds |
| Exhaust System: |

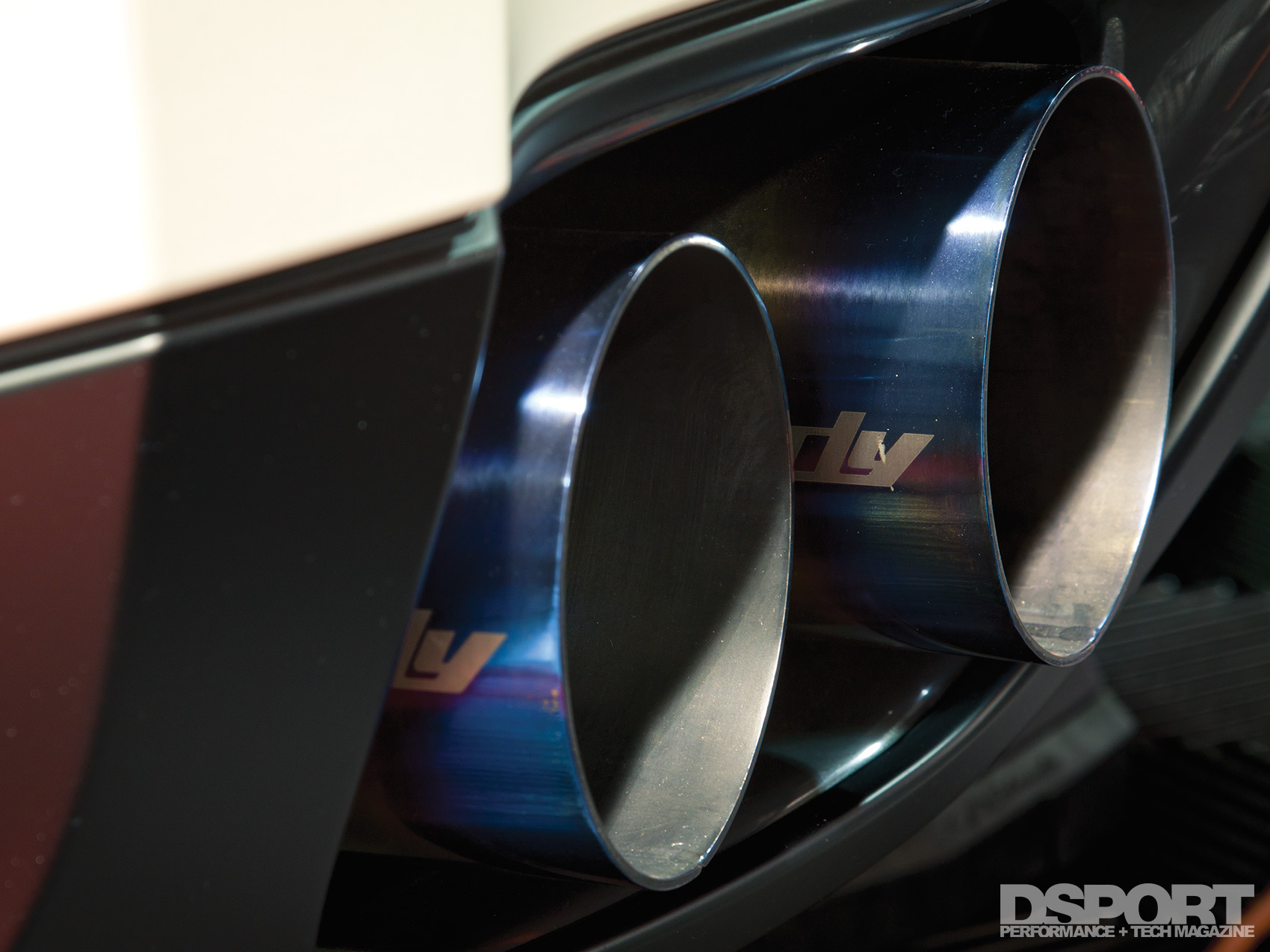

GReddy 4-inch Racing Titanium Exhaust |
| Wastegate: |
HKS GTII 50mm (x2) |

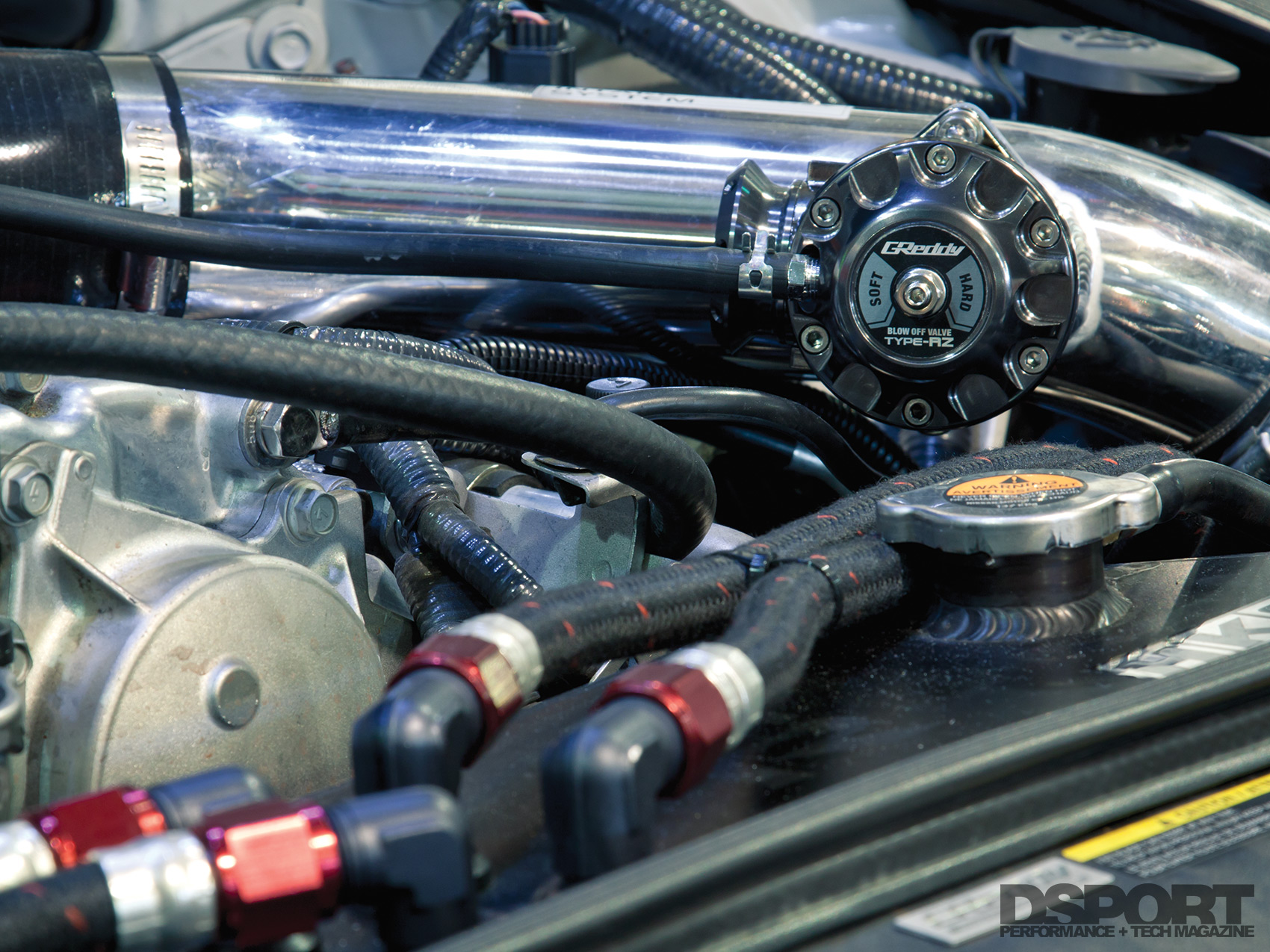

| Blow-Off Valve: |
GReddy Type RS BOV (x2) |
| Intercooler: |

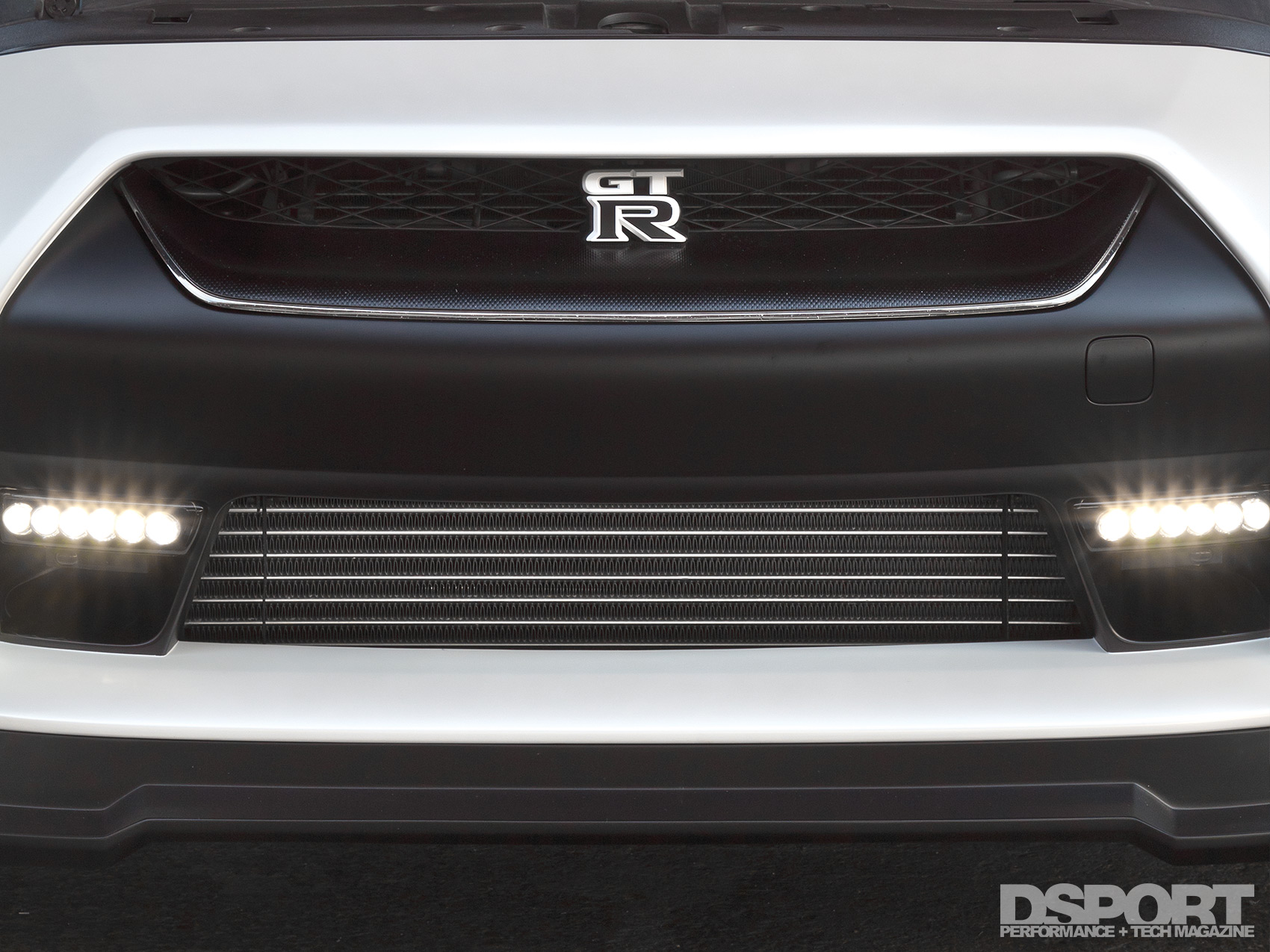

GReddy XL Intercooler Kit |
| Cooling System: |
GReddy DCT Transmission oil cooler |
| Springs, F&R (Make & Rate): |
Eibach Pro Kit 948 lbf/in & 485 lbf/in |
| Additional Suspension Components: |
Whiteline Sway Bars |
| Transmission: |

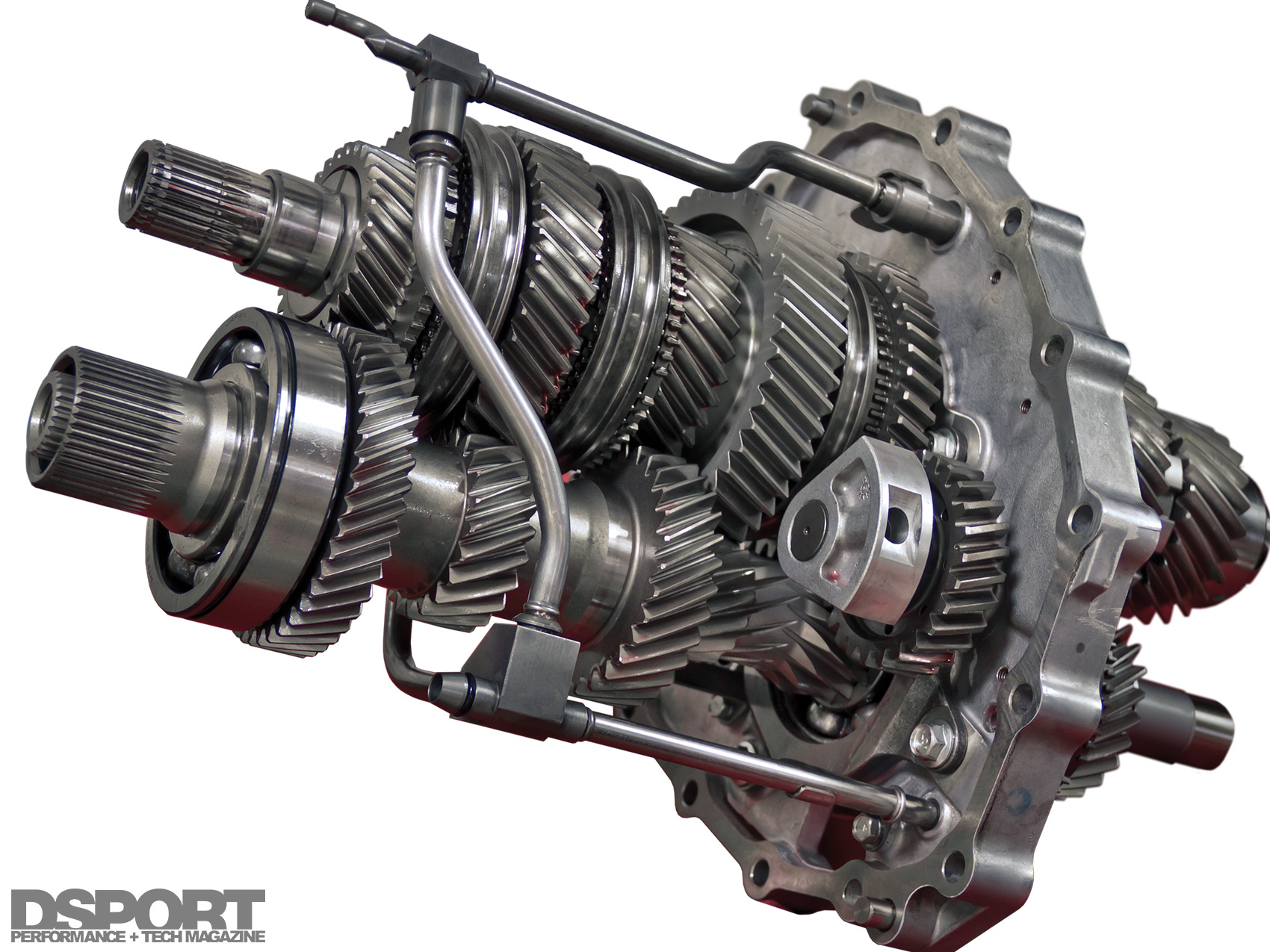

Pfitzner Performance Gearbox 1st Gear Set |
| Clutch / Flywheel: |
Dodson Motorsports/Exedy Clutch |
|
Sportsman 8-Plate Clutch with baskets |
| Wheels (Make, Size & Offset): |

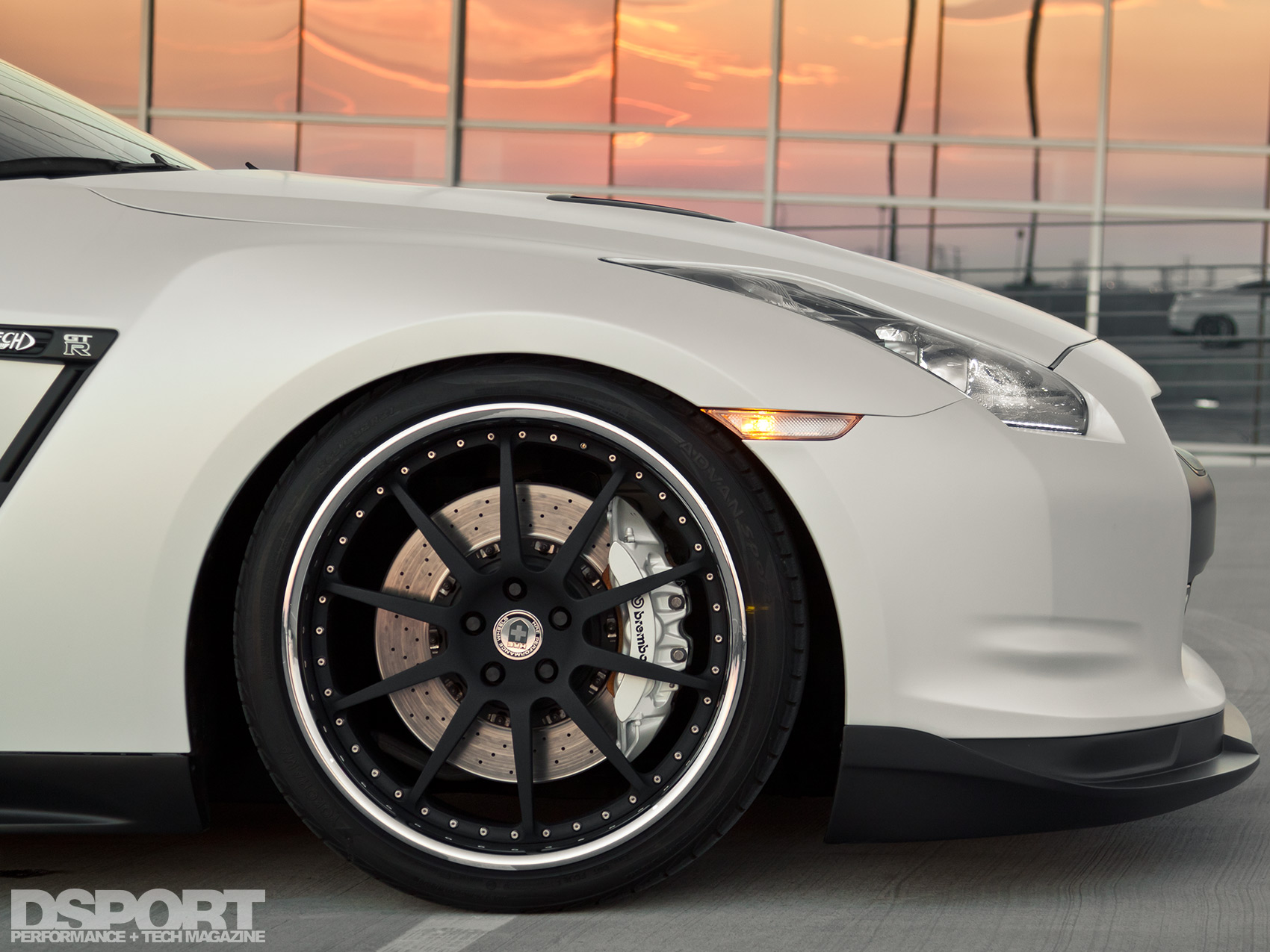

HRE 593R 21×10.5-inch (F), 21×12-inch (R) |
| Tires (Make & Size): |
Yokohama Advan 255/35ZR21, 295/30ZR21 |
| Brake Rotors: |
15.75-inch (F), 15.16-inch (R) |
| Brake Pads: |
Carbon Lorraine R5 Brake Pads |
| Brake Lines: |
STILLEN Stainless-steel Braided Lines |
