SPEC SHEET

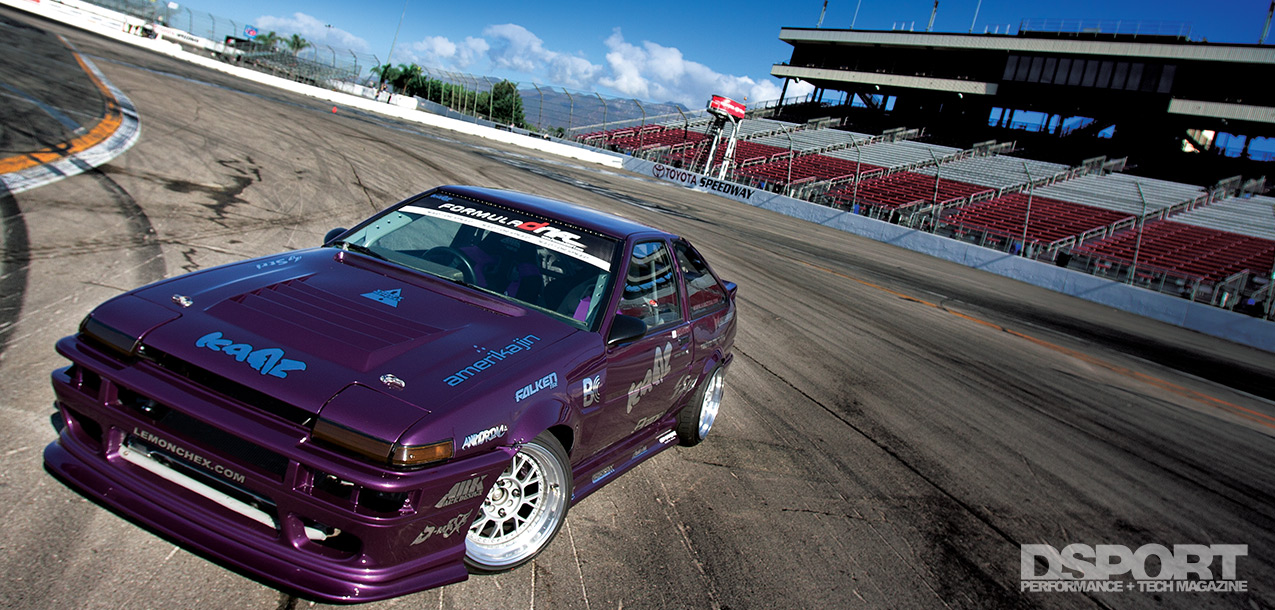

| VEHICLE | |
|---|---|

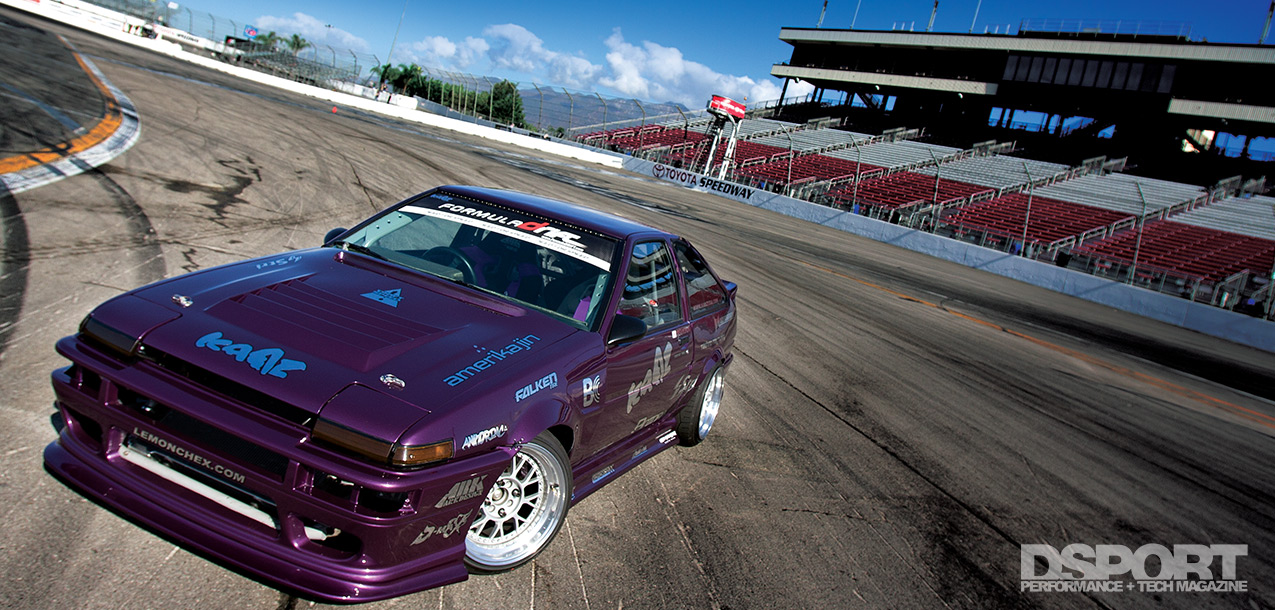

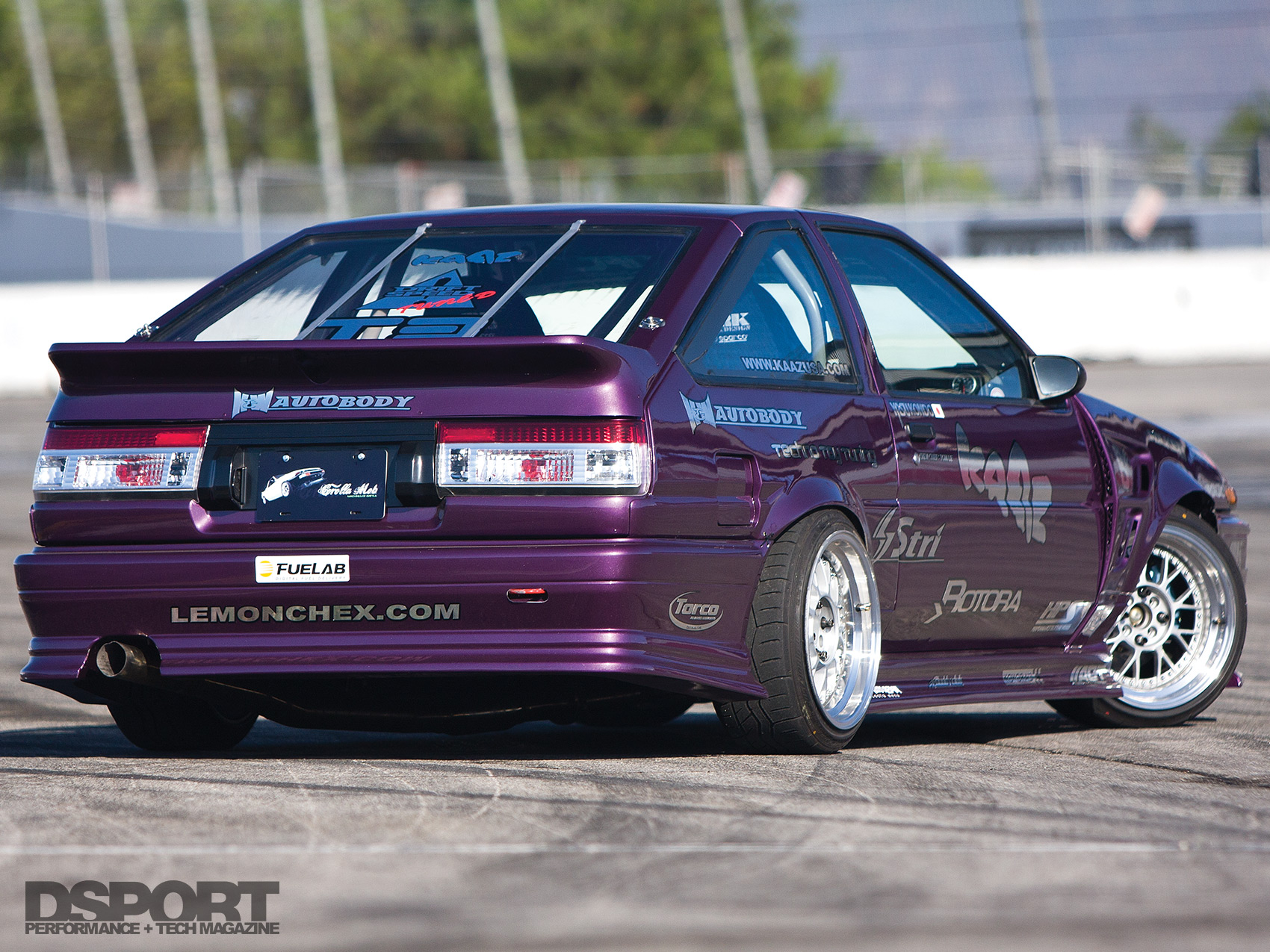

| Year / Make / Model: | 1986.5 Toyota Corolla |
| Chassis Code: | AE86 |
| Competition Class: | Formula Drift Pro Drifting |
| Vehicle Weight: | 1,980 lbs |
| Weight Bias (F/R): | 53/47 |
| Launch RPM: | 4,800 RPM (2nd gear) |
| Shift RPM: | 7,800 RPM |
| Redline RPM: | 8,000 RPM |
| Peak Boost: | 20.3 psi |
| Fuel: | Sunoco 110 Leaded |
| ENGINE | |
|---|---|

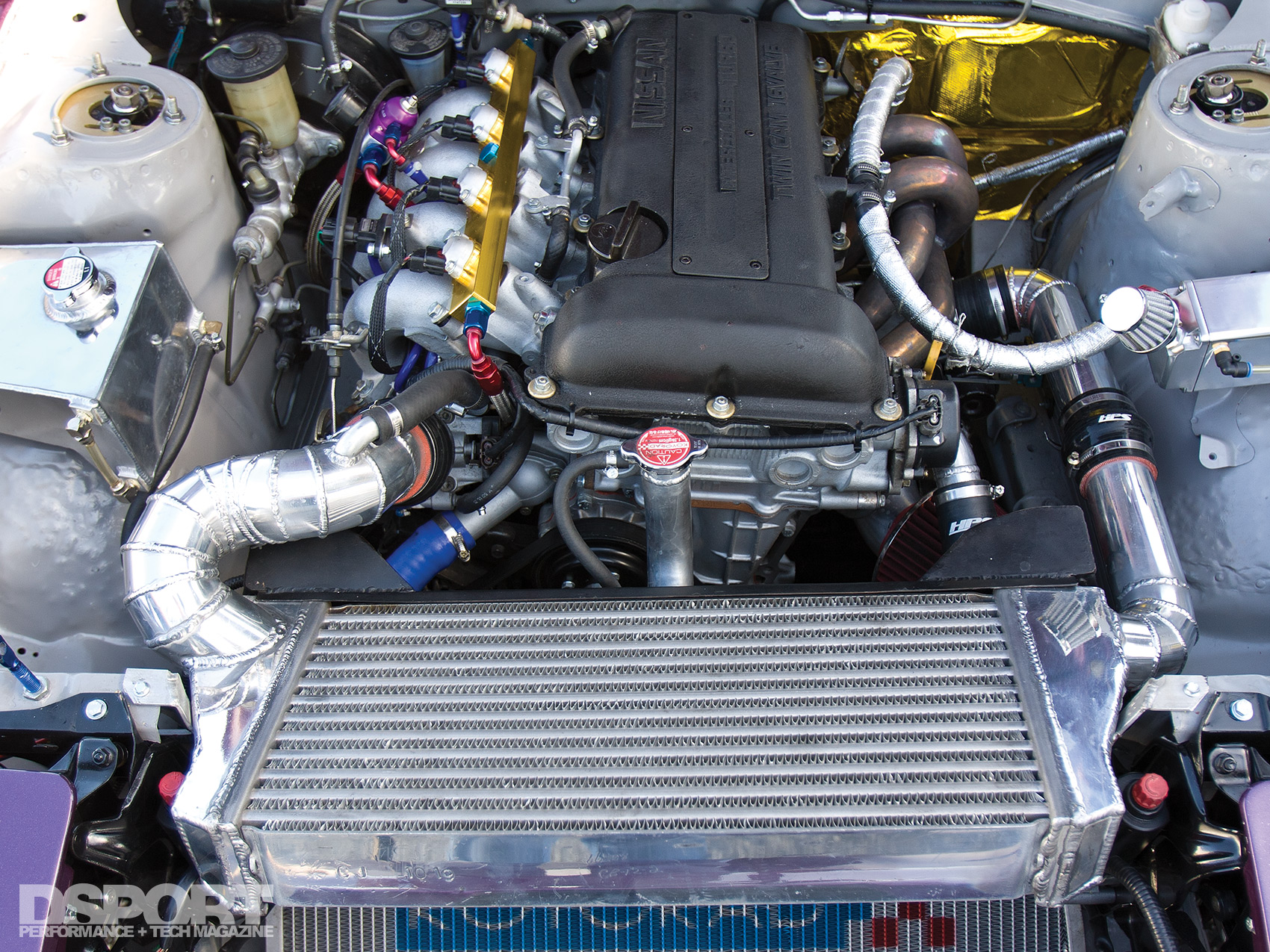

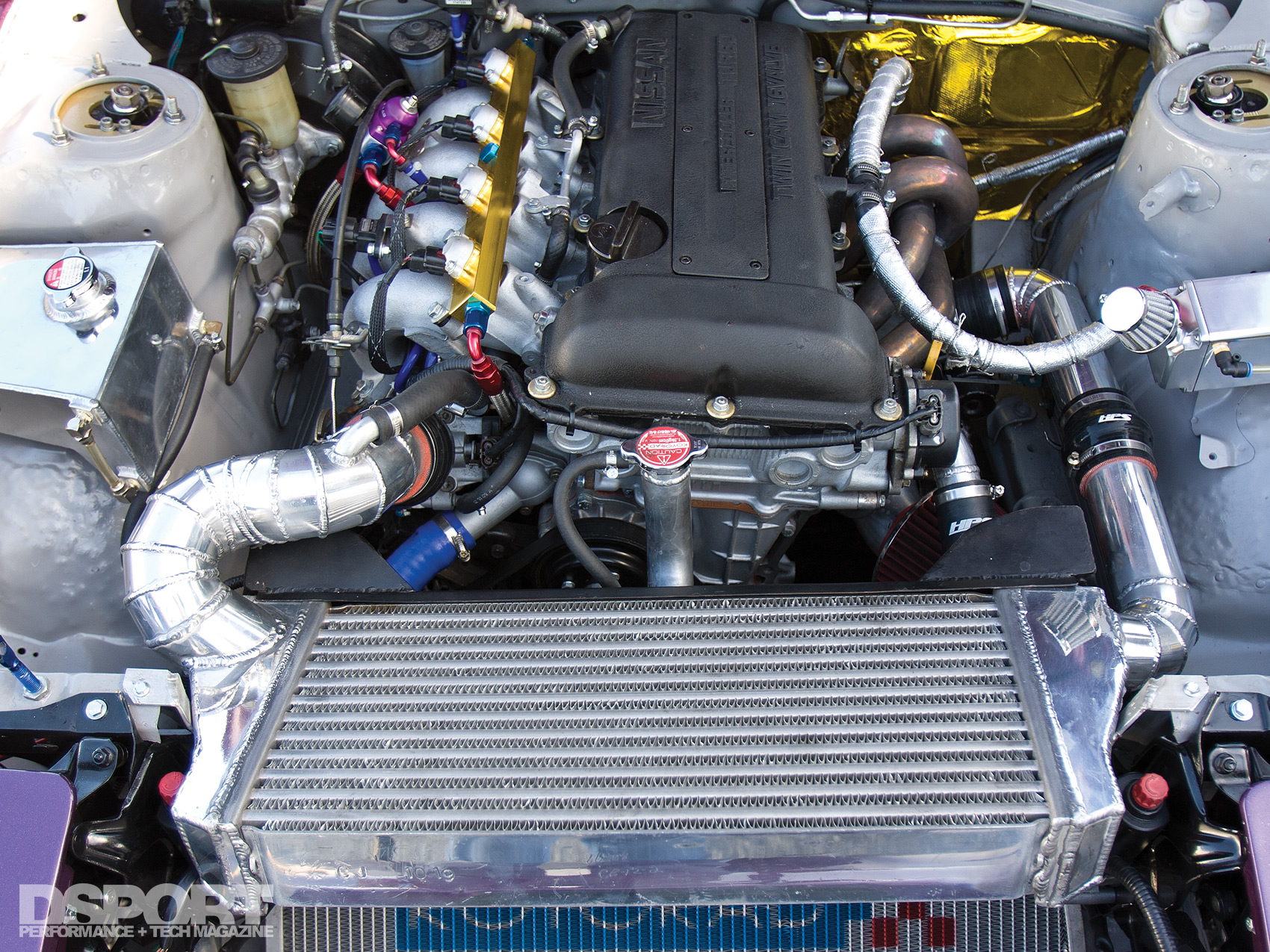

| Engine Code: | SR20DET |
| Displacement (cc): | 1,998cc |
| Bore & Stroke (mm): | 86mm x 86mm |

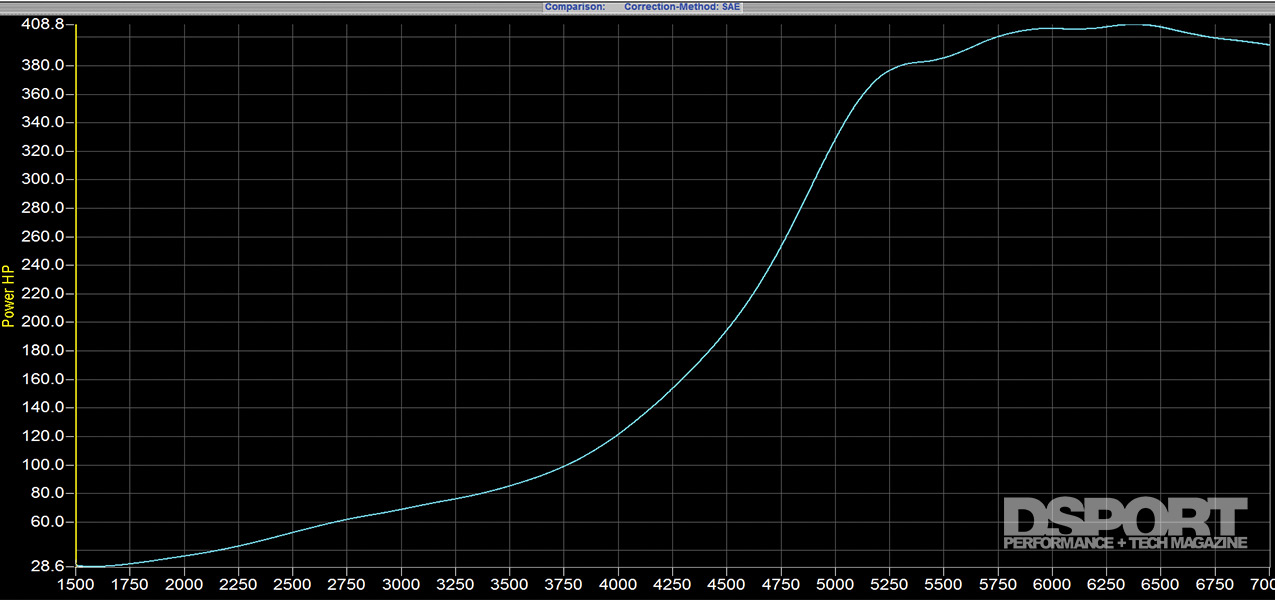

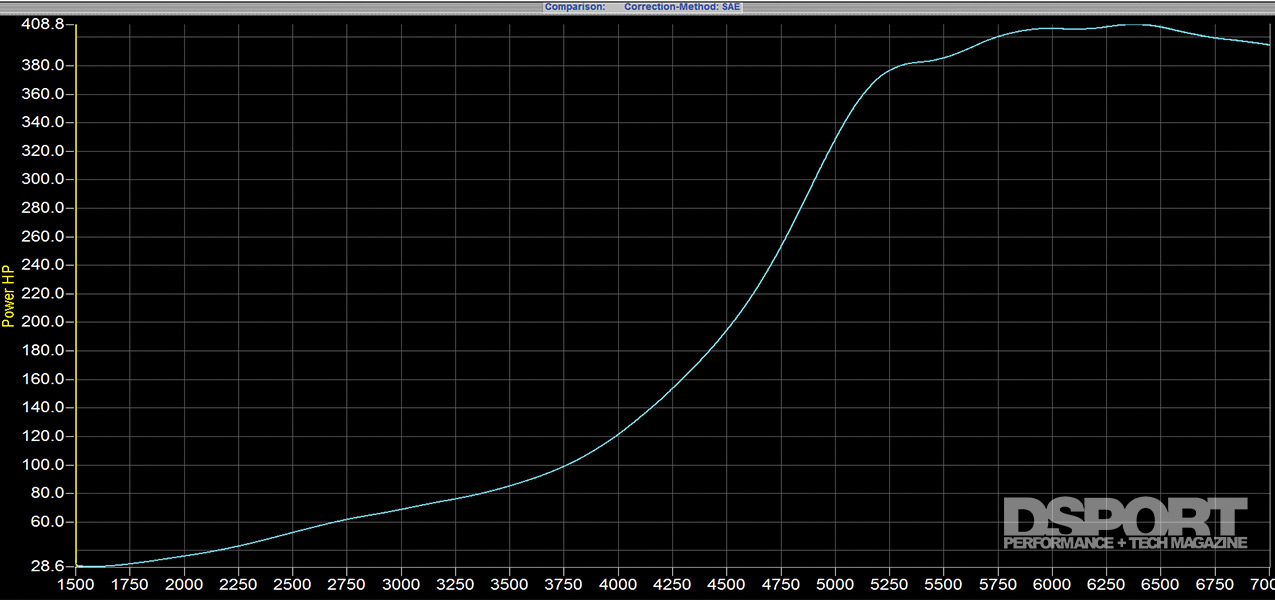

| Peak Horsepower (@ RPM): | 408whp @ 6,370 RPM |
| Peak Torque (@ RPM): | 376.6 lb-ft @ 5,240 RPM |
| Dyno Type: | Dynapack Dynamometer – Drift Speed |
| Engine Builder: | KAAZUSA-TomLe/HMG |
| Machine Work: | R&D Costa Mesa, deck head |
| Camshafts: | BC Brian Crower (BC) 272-degree |
| Stage 3 Camshafts, HKS Cam Sprockets | |
| Cylinder Head Gasket: | Cosworth Metal Head Gasket, 1.8mm |
| Valves / Springs / Retainers: | BC Valves, Springs, Titanium retainers |

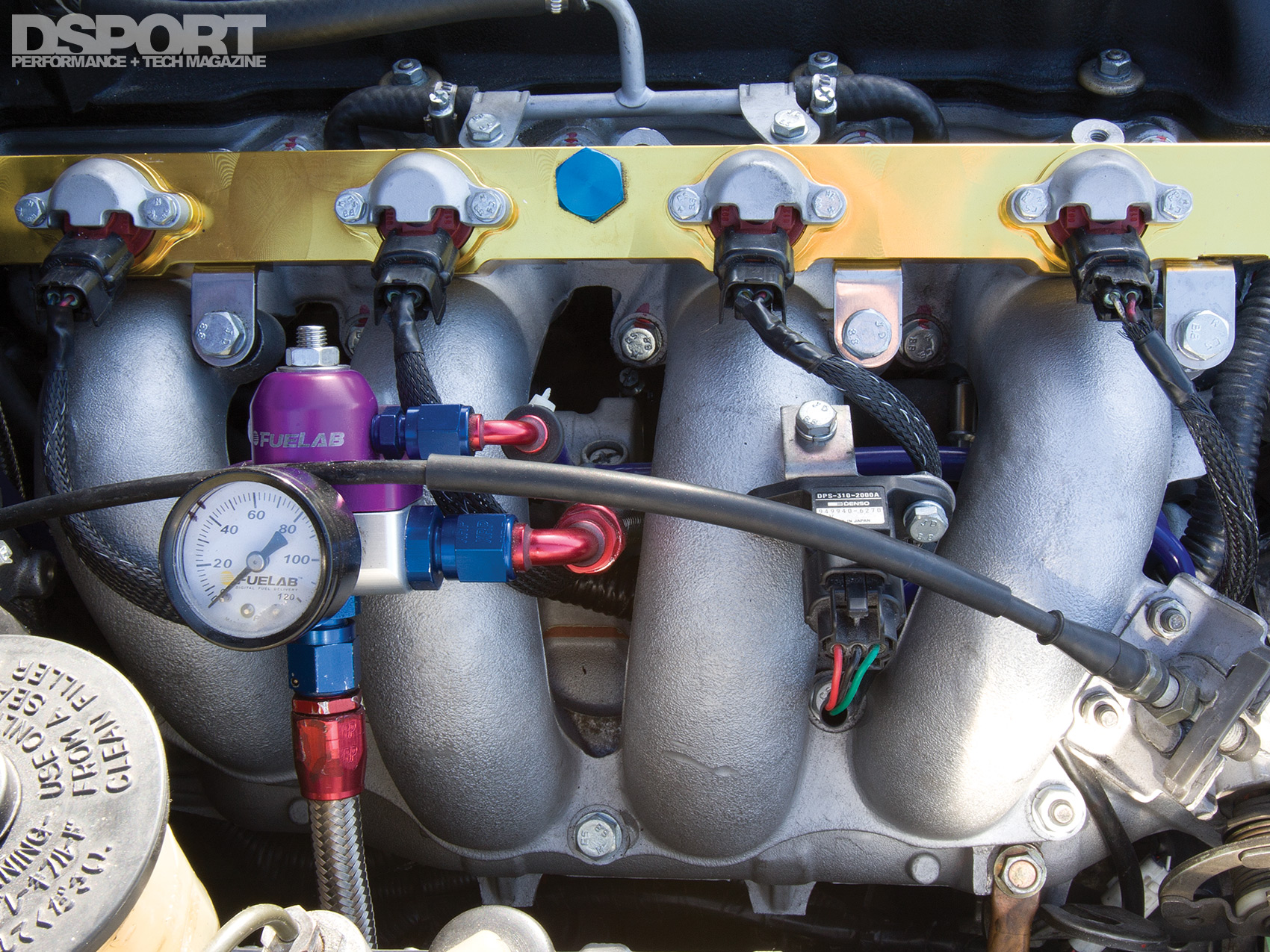

| Fuel Injectors: | NISMO 740cc/min Injectors (x4) |
| Head / Main Studs: | ARP Main and Head Studs |

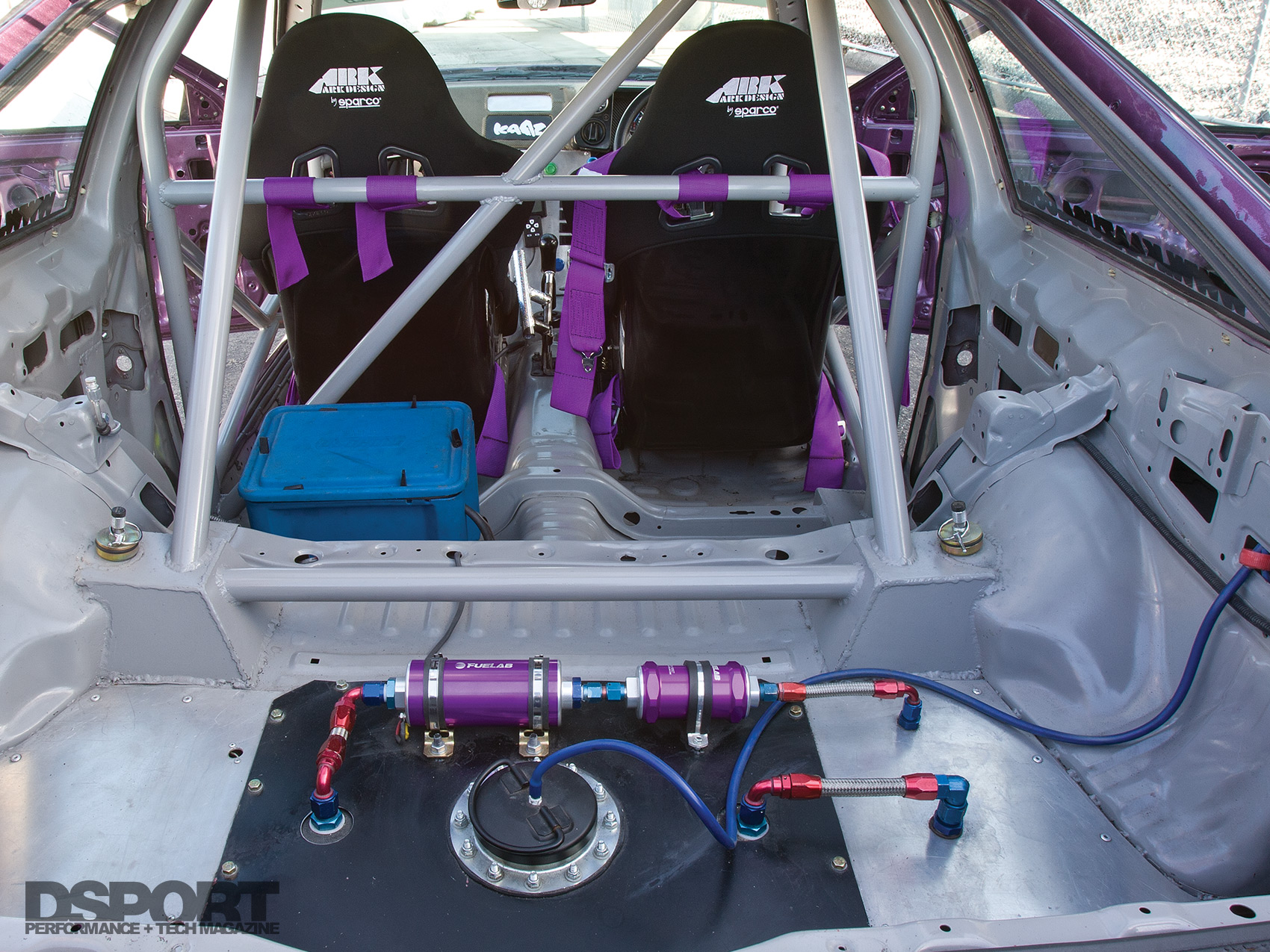

| Fuel Delivery System: | Fuelab FPR, 1000HP Pump, Filter |

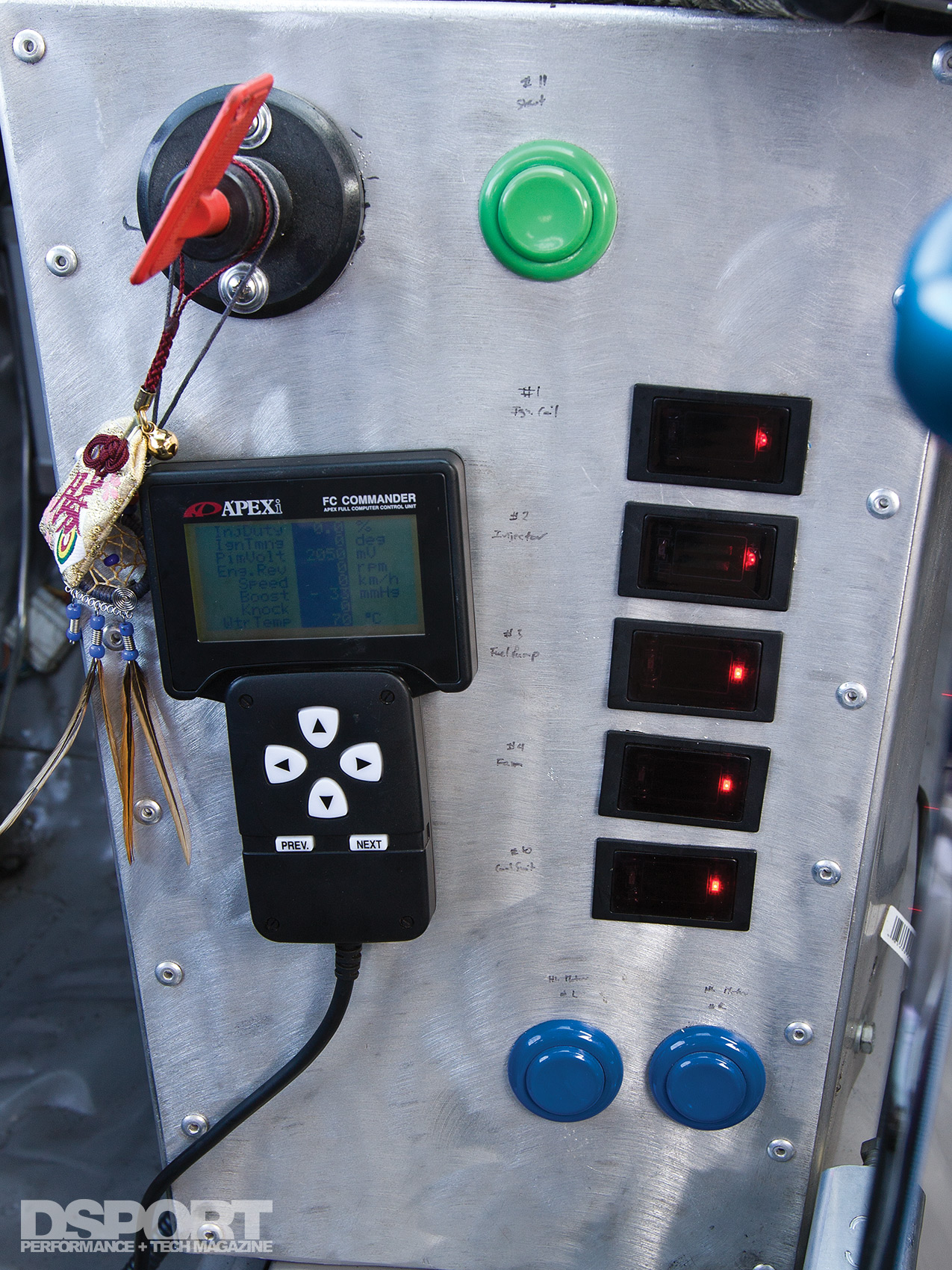

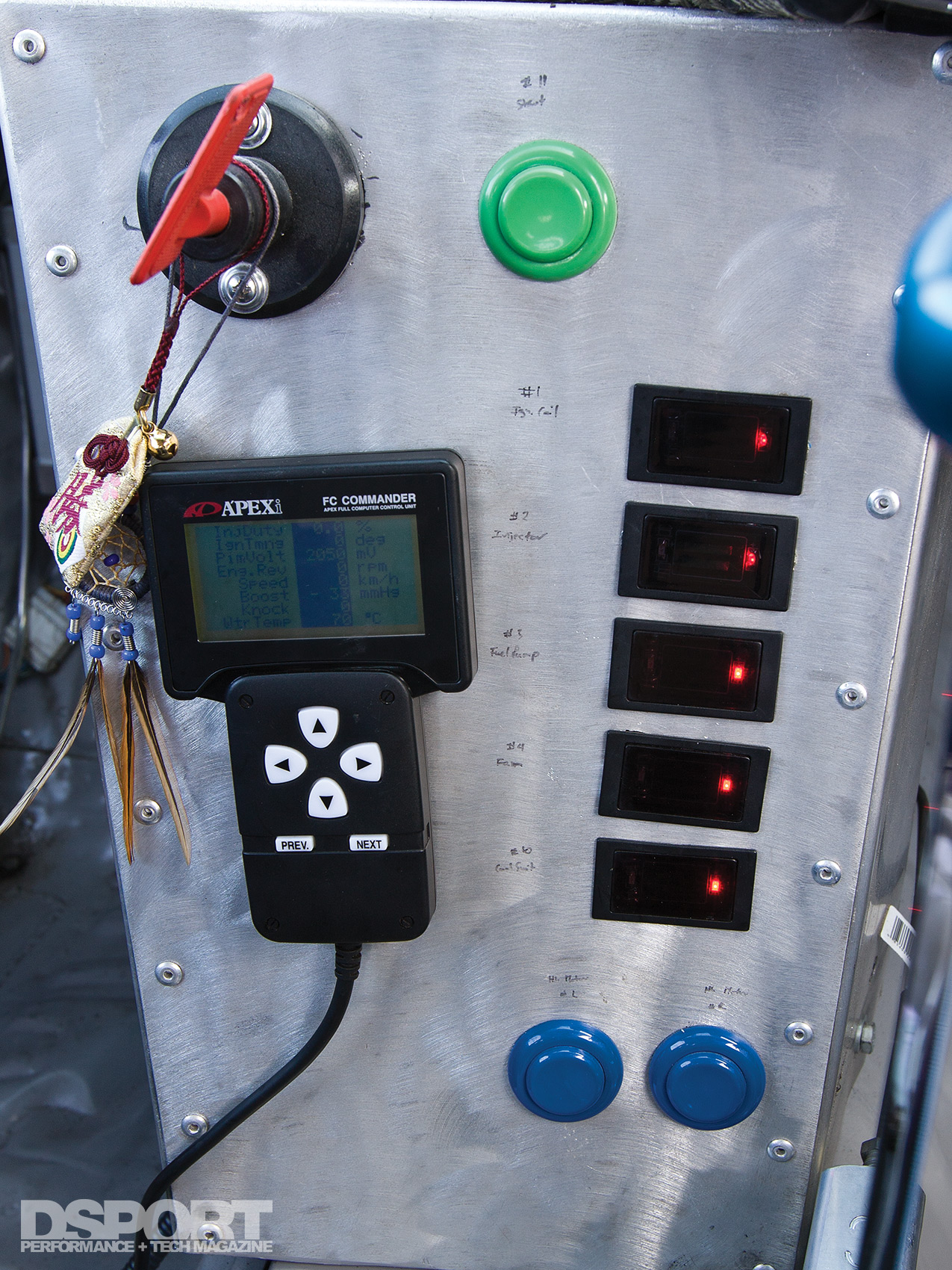

| Engine Management System: | A’PEXi Power FC |
| Engine Management Tuner: | Koji Arai @ Drift Speed |
| Boost Controller: | ARK Design Advanced Boost Controller |
| Spark Plugs: | Denso Iridium Plugs |

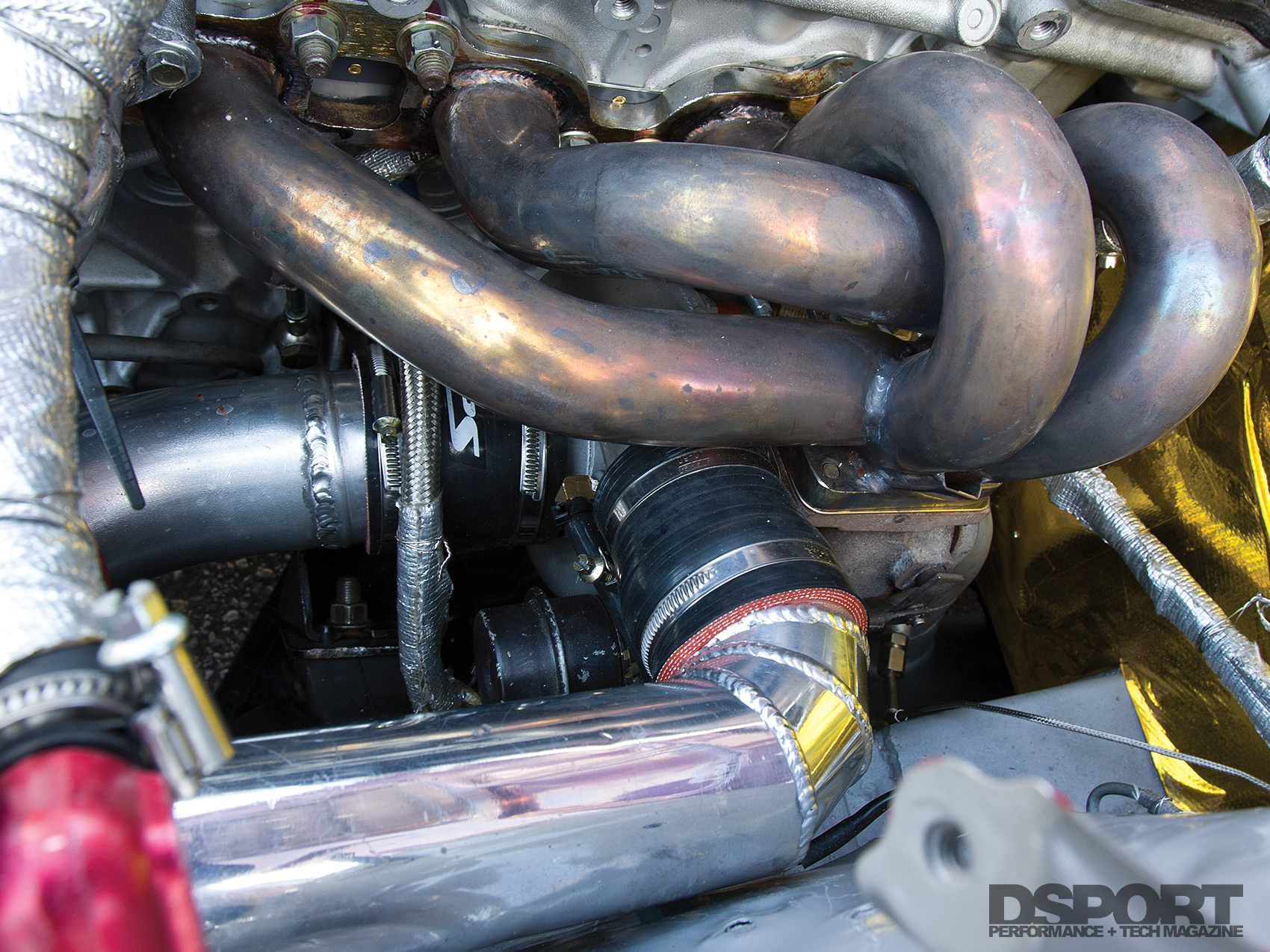

| Exhaust Manifold: | Aworks Race Balance |
| Exhaust System / Downpipe: | Aworks Race Balance |
| Wastegate: | HKS Dual-Diaphragm Adjustable |

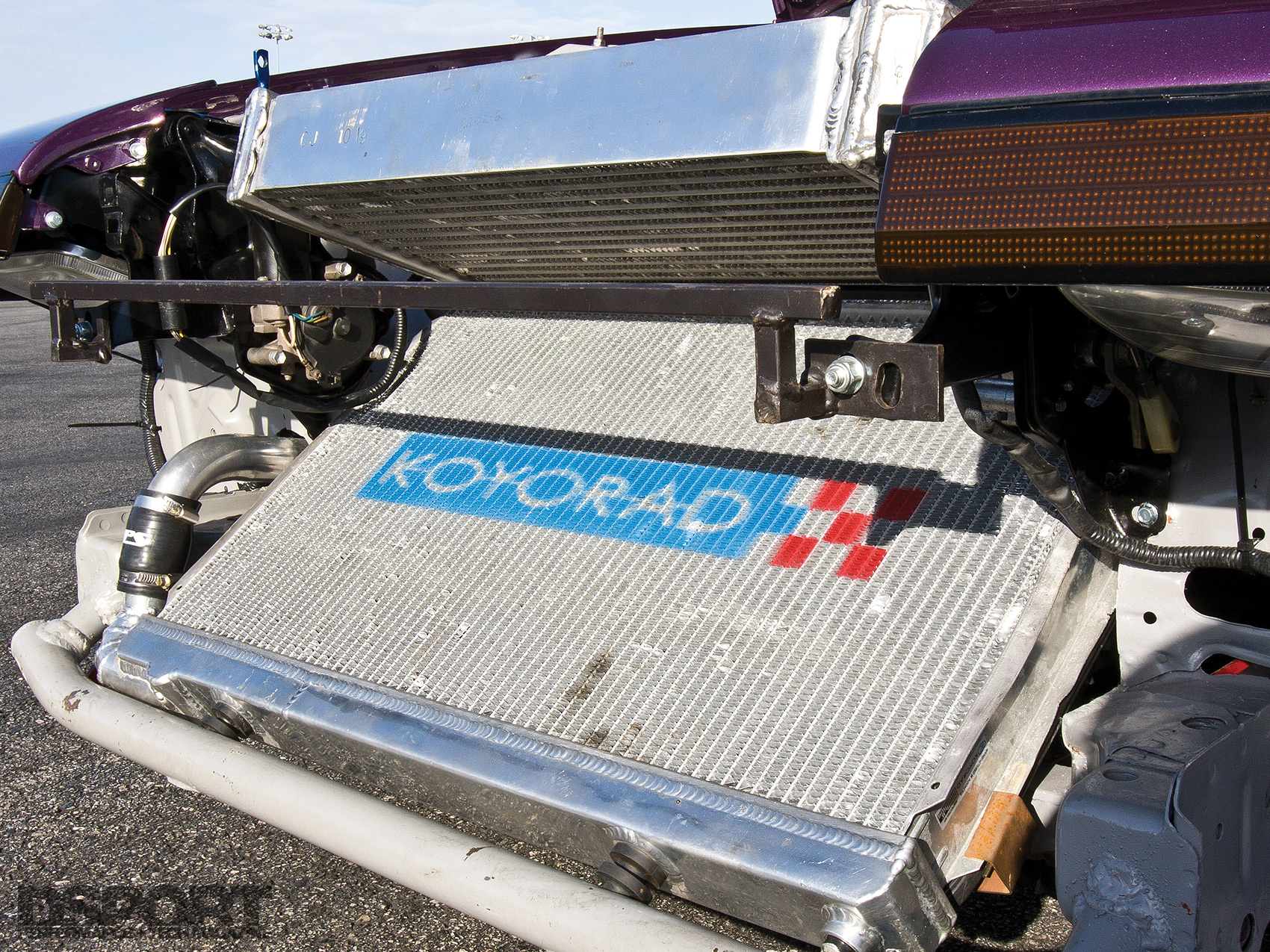

| Intercooler: | XS Engineering 500HP Intercooler Core |

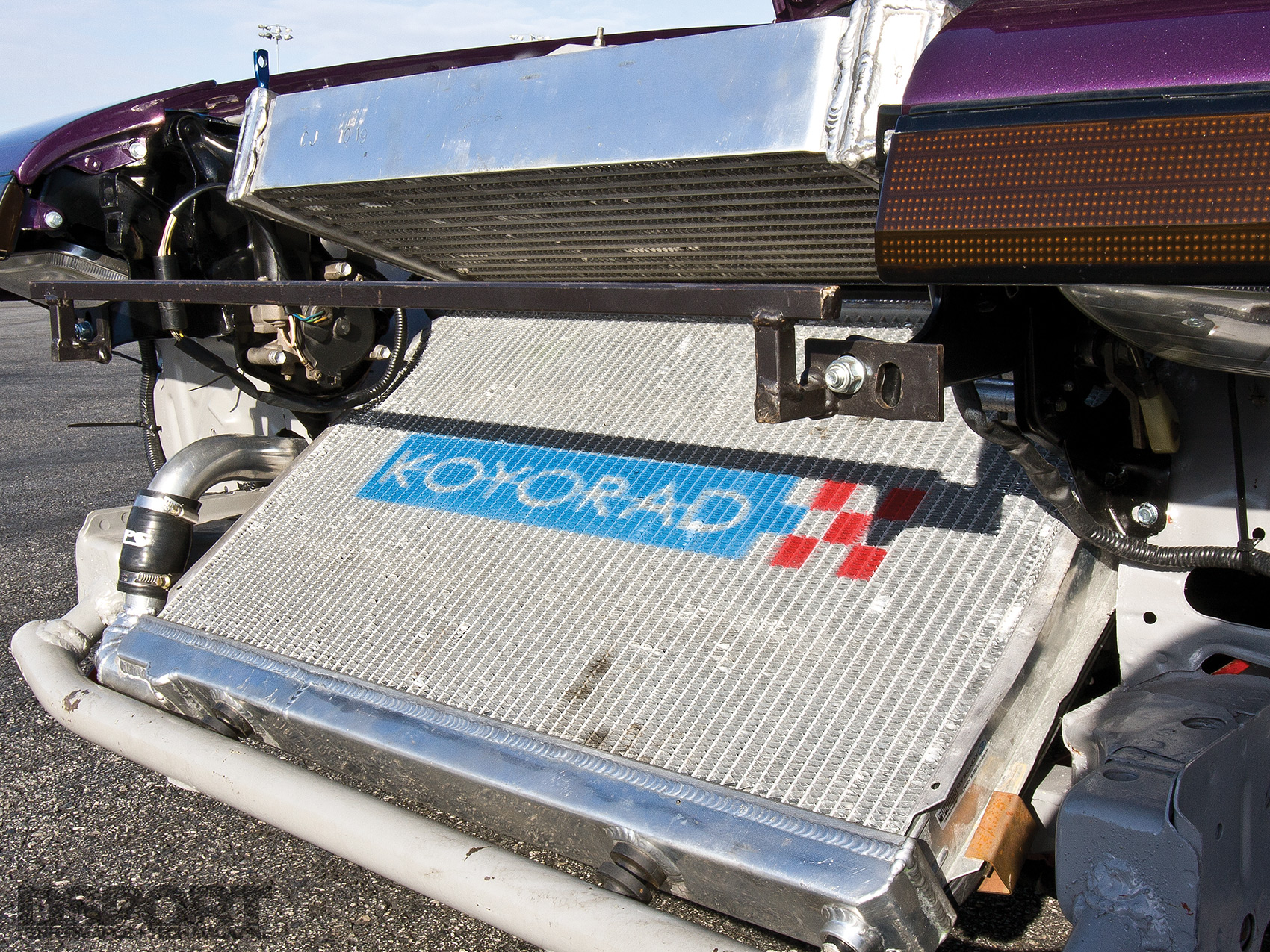

| Cooling System: | Koyo N-FLOW Aluminum radiator |
| Oil System: | Torco Racing Oils SR-5 Synthetic |
| Fuel Cell: | Custom TLF cell |
| Performance Electronics: | STRI gauges |
| TURBOCHARGER | |
|---|---|

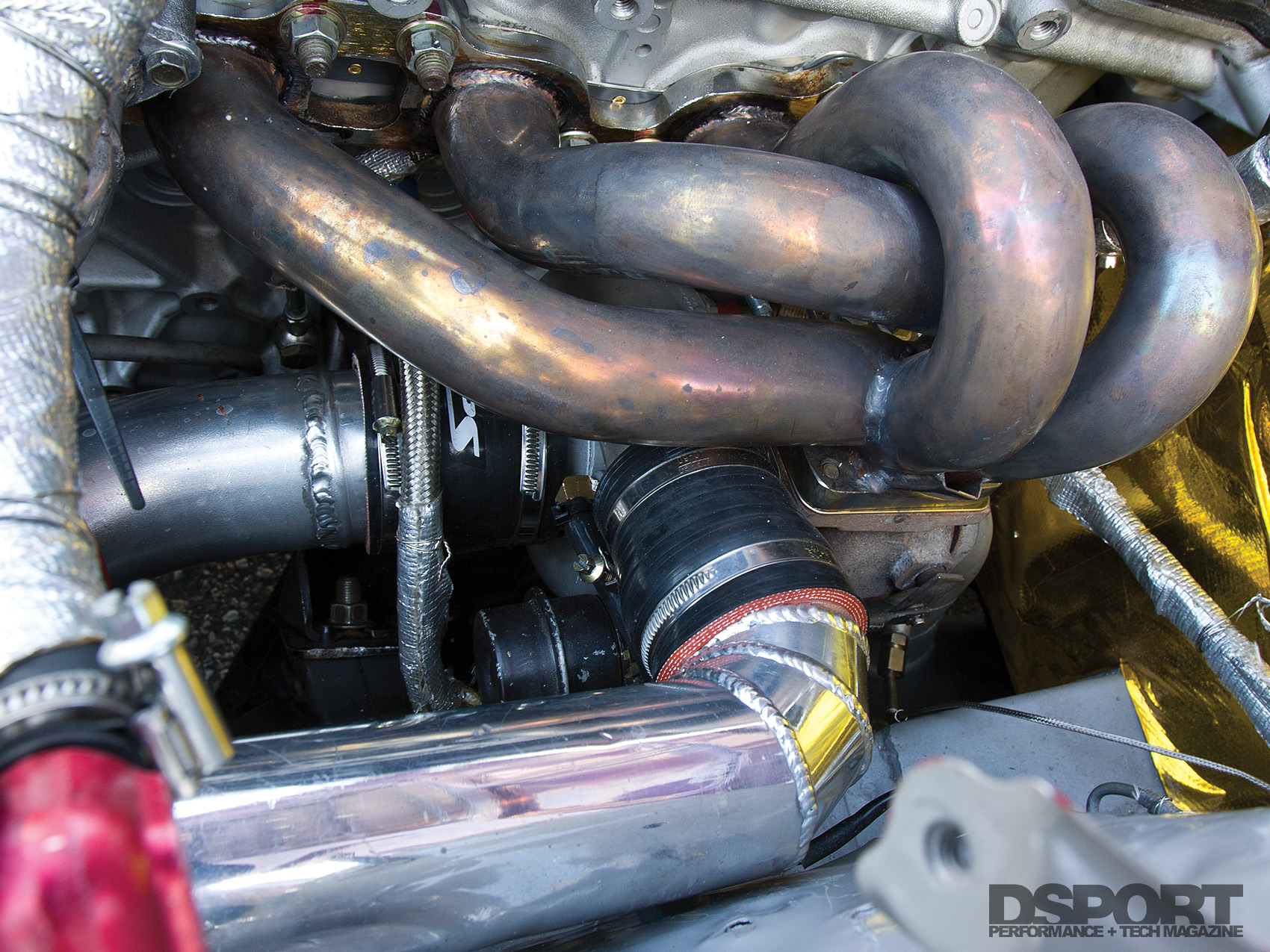

| Turbocharger: | Garrett GT2871R |
| Frame: | T28 |
| Compressor Wheel Specs: | 56 trim, 71mm |
| Turbine Wheel Speds: | 76 trim, 53.85mm |
| Turbine Housing: | Cold 0.60 AR, Hot: 0.86 |
| CHASSIS/DRIVELINE | |
|---|---|
| Springs, F&R (Make & Rate): | Hayaimoto Custom 9kgf/mm (F), 7kgf/mm (R) |
| Shocks, F&R (Make & Rate): | GReddy Type S Dampers |
| Additional Suspension Components: | Techno Toy Tuning front lower control arms, |
| tension rods, 4 link system, pan-hard bar, | |
| tri-strut bar | |

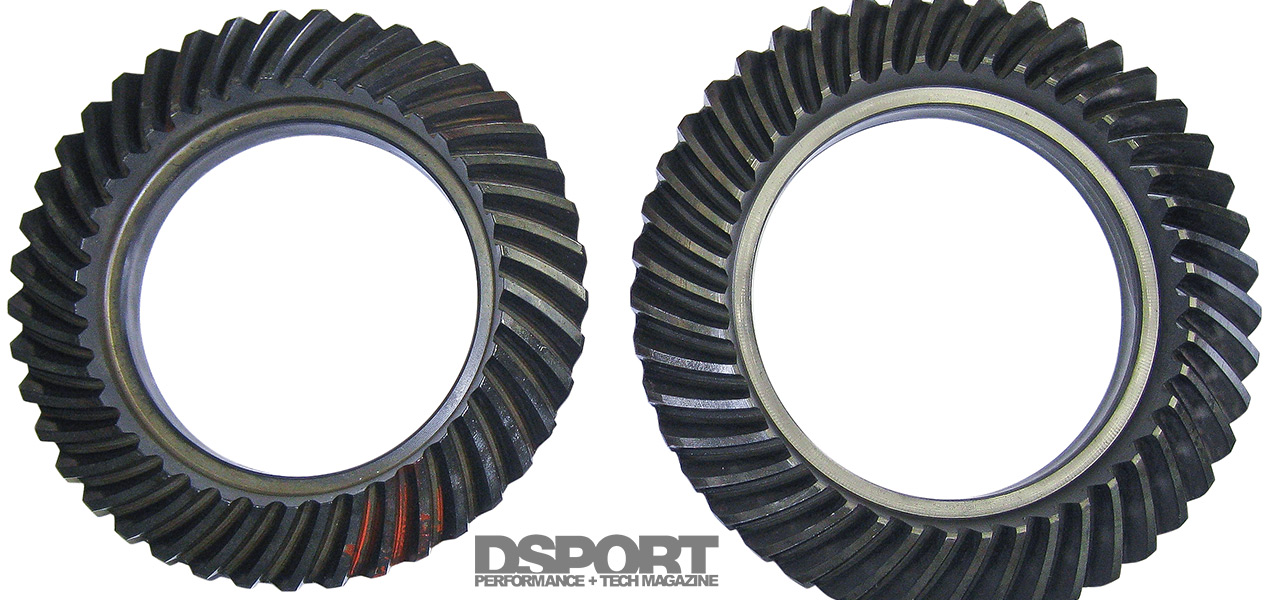

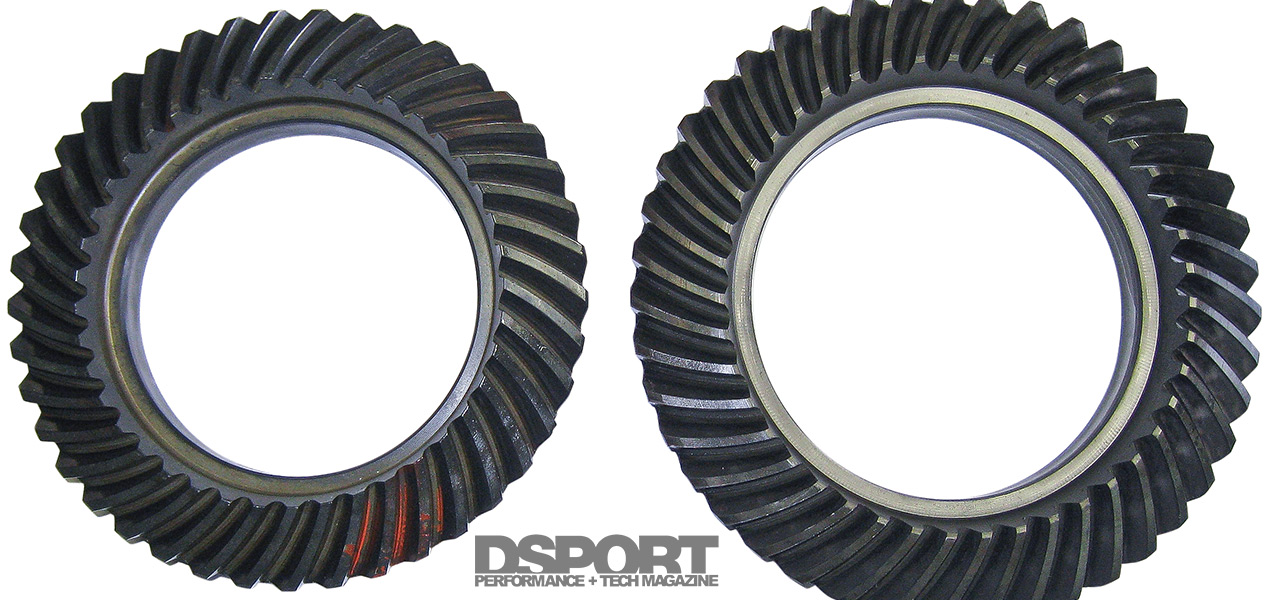

| Final Drive: | 3.9, 4.5, 4.7, 5.1-track specific |
| Clutch / Flywheel: | ACT 6-puck sprung hub |
| ACT Prolite flywheel | |
| Differential(s) (Make & Type): | KAAZ Super Q Clutch-type LSD |
| Axles / Driveshaft: | OEM Supra 7.5-inch Axles & Diff Housing, |
| adapted for AE86 Aworks Race Balance | |
| 1-piece Driveshaft | |
| Wheels (Make, Size & Offset): | MiRo Design STP-1 Wheels |
| 16×9-inch +0 Offset (F&R) | |
| Tires (Make & Size): | Falken Azenis RT-615 |
| 205/40R16 (F), 215/45R16 (R) | |

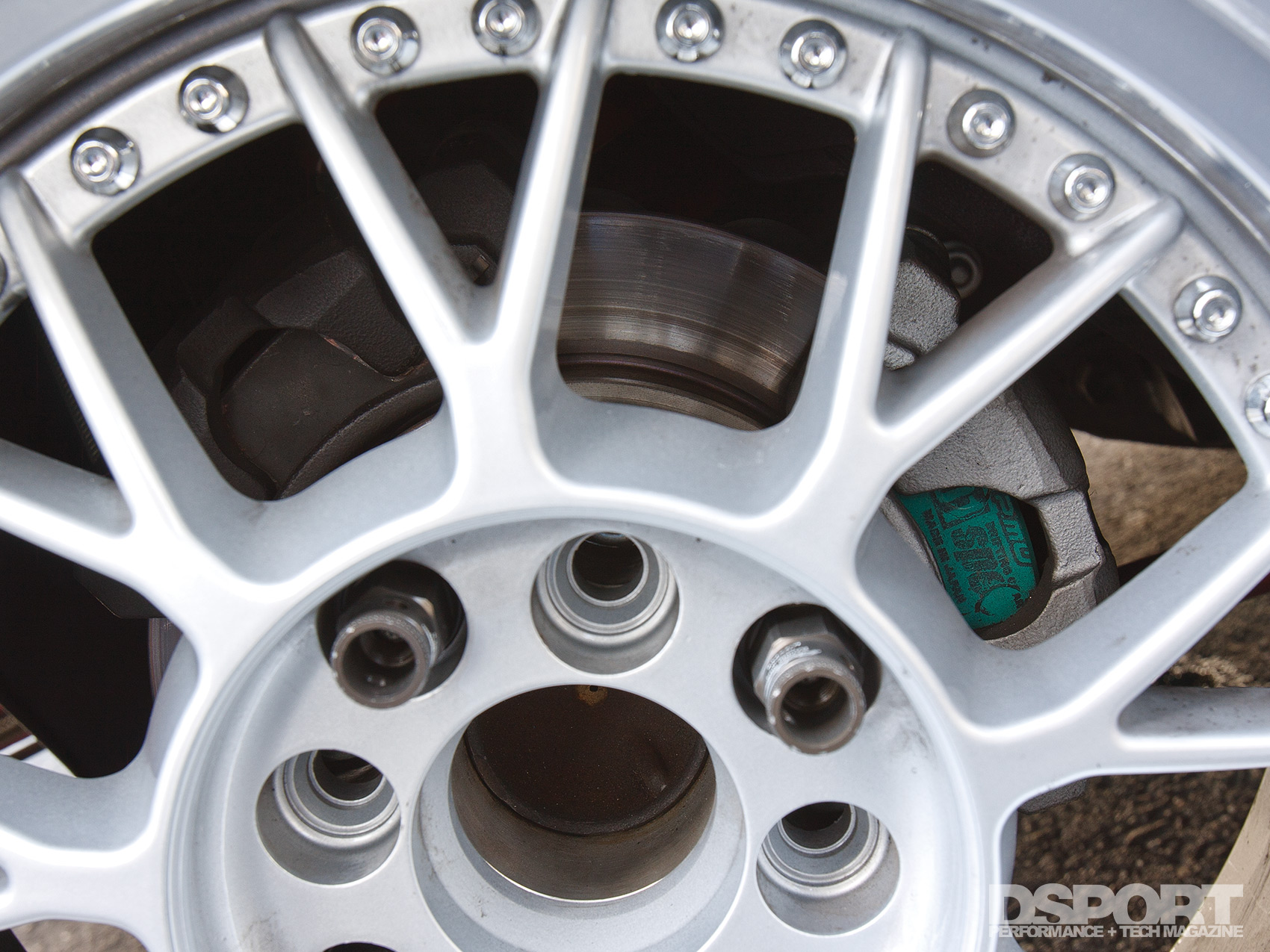

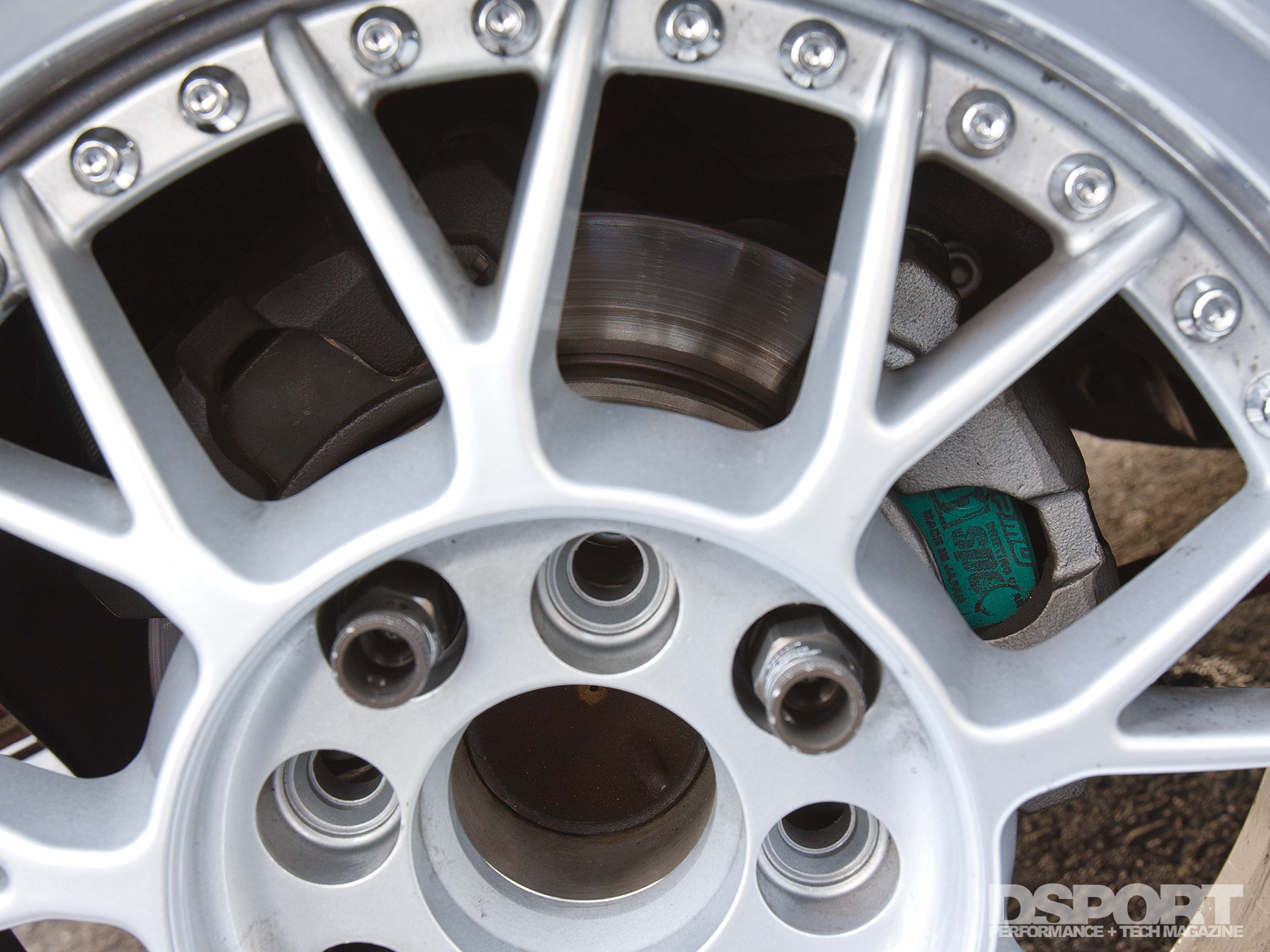

| Brake Calipers (F&R): | Rotora 4-piston Calipers (F) |
| Brake Rotors (Diameter, F&R): | Rotora (F) |
| Brake Pads (Front & Rear): | Rotora |
| Brake Lines: | Earl’s Stainless-steel Braided Lines |
| Etc.: | CNC Hydraulic E-brake Lever |

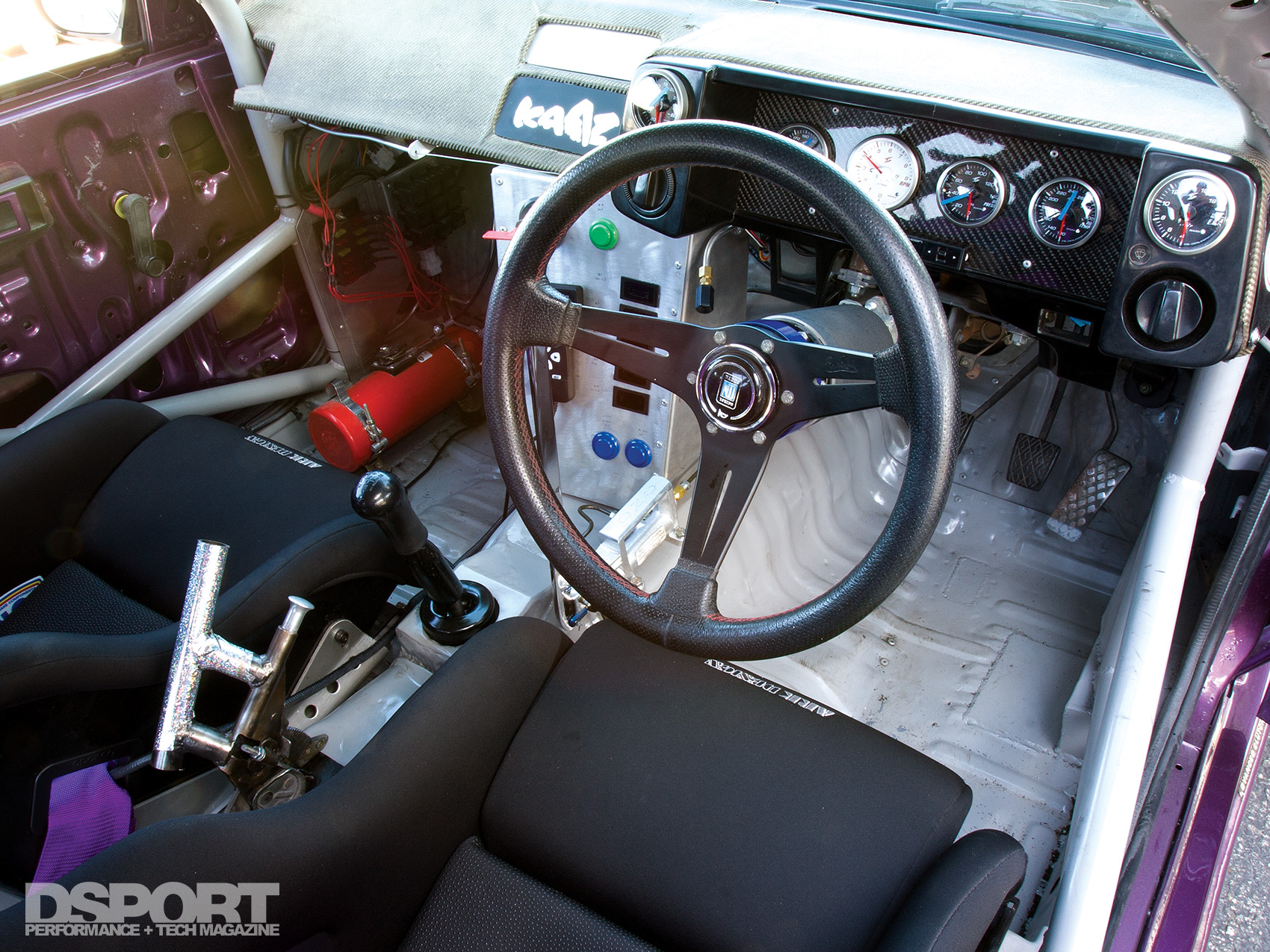

| INTERIOR | |
|---|---|
| Roll Bar / Cage: | Amerikajin Fabrication 8-point Cage |
| Seats: | ARK Design Pro Series Bucket Seats |
| Harnesses: | Crow Enterprizes 5-point Harness |
| Steering Wheel / Quick Release: | Nardi Deep-corn Steering Wheel |
| Aworks Race Balance Quick-release Hub | |
| Gauges: | STRI Gauges |
| Etc: | Custom LED buttons, Arcade style push buttons |

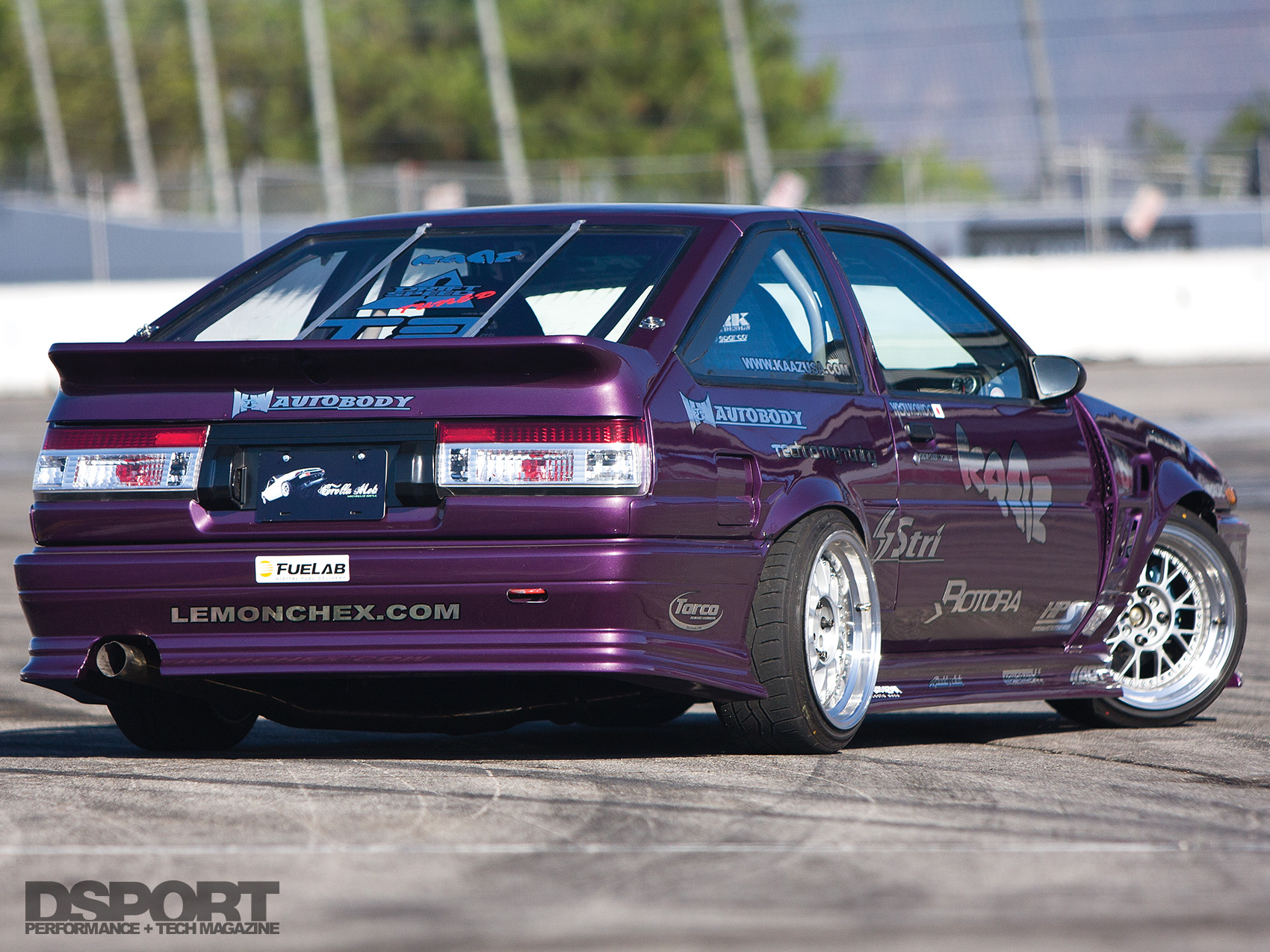

| EXTERIOR | |
|---|---|
| Spoiler: | TRD |
| Complete Widebody Aero, Hood, Taillights: | DMAX |
| Trunk Lid: | Seibon FRP Hatch |
| Headlights: | OEM Kouki Trueno |
| Mirrors: | Crystal Body Yokohama (CBY) |
| Paint: | Custom “Barney Metallic Purple” |
| Custom Body Work.: | K&W Autobody |
