SPEC SHEET
| VEHICLE | |
|---|---|

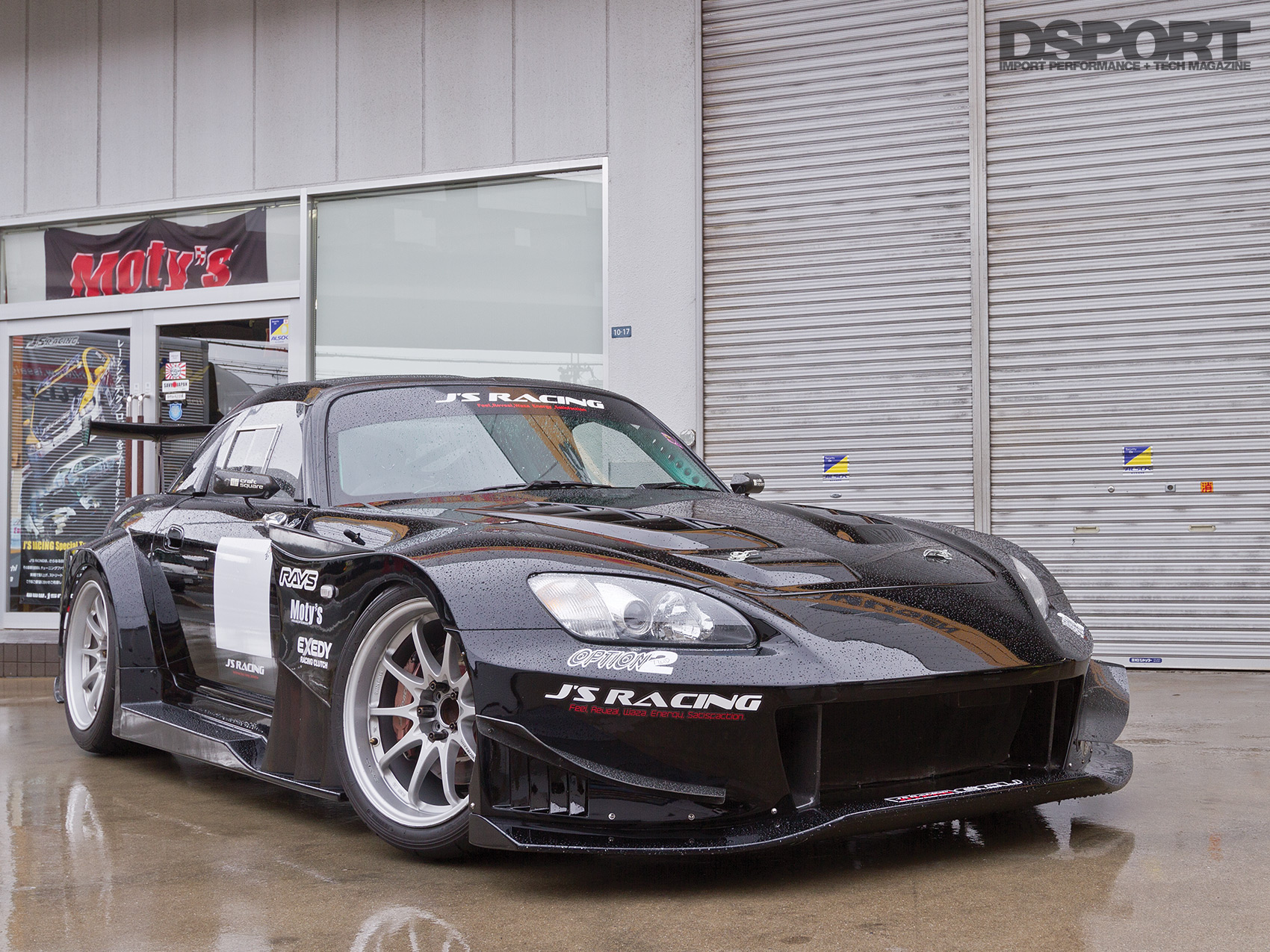

| Year / Make / Model: | 2000 Honda S2000 |
| Chassis Code: | AP1 |
| Vehicle Weight: | 2,420 lbs. |
| Redline RPM: | 8,200 RPM |
| Fuel: | 100 octane Unleaded |

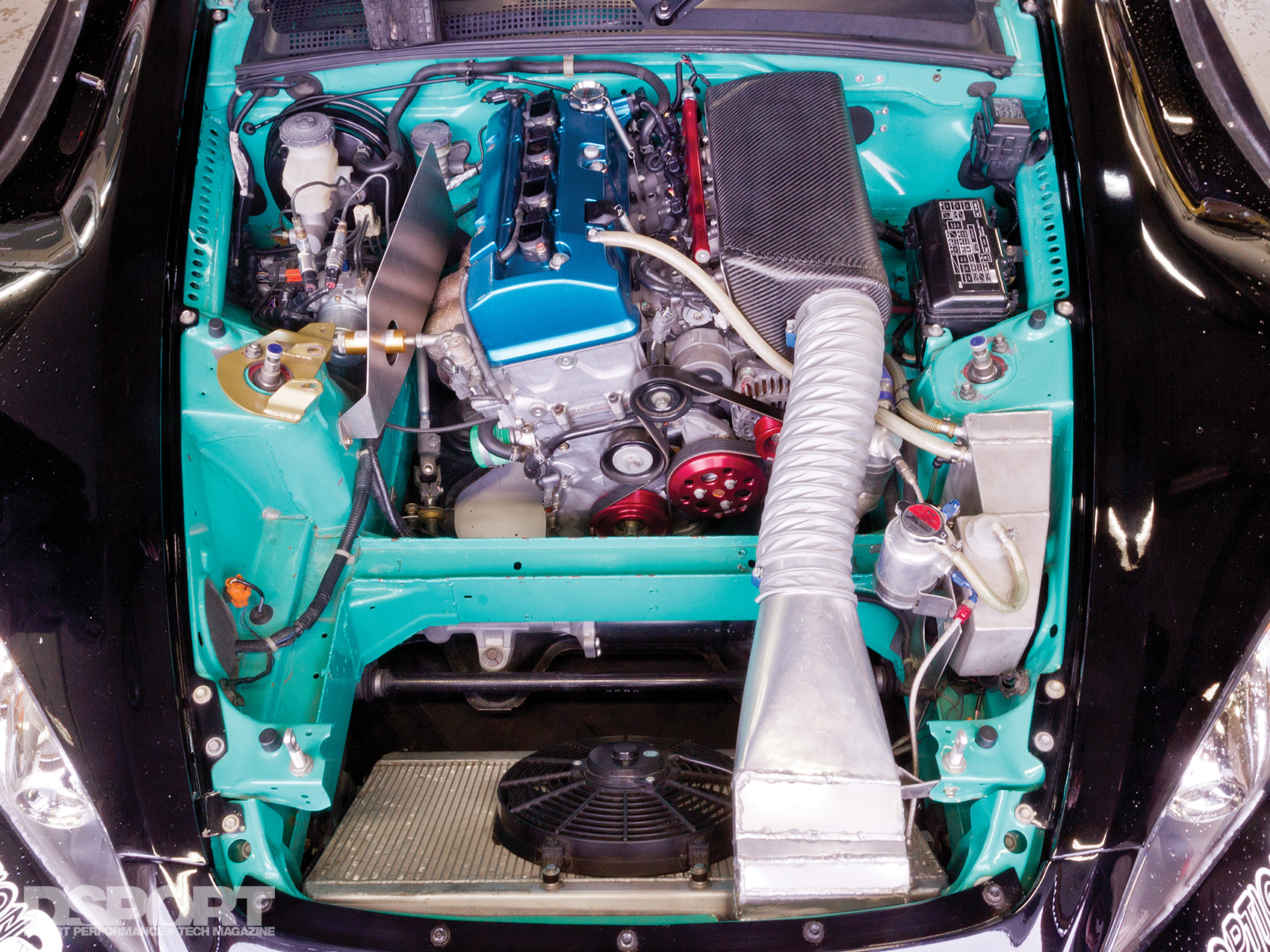

| ENGINE | |
|---|---|

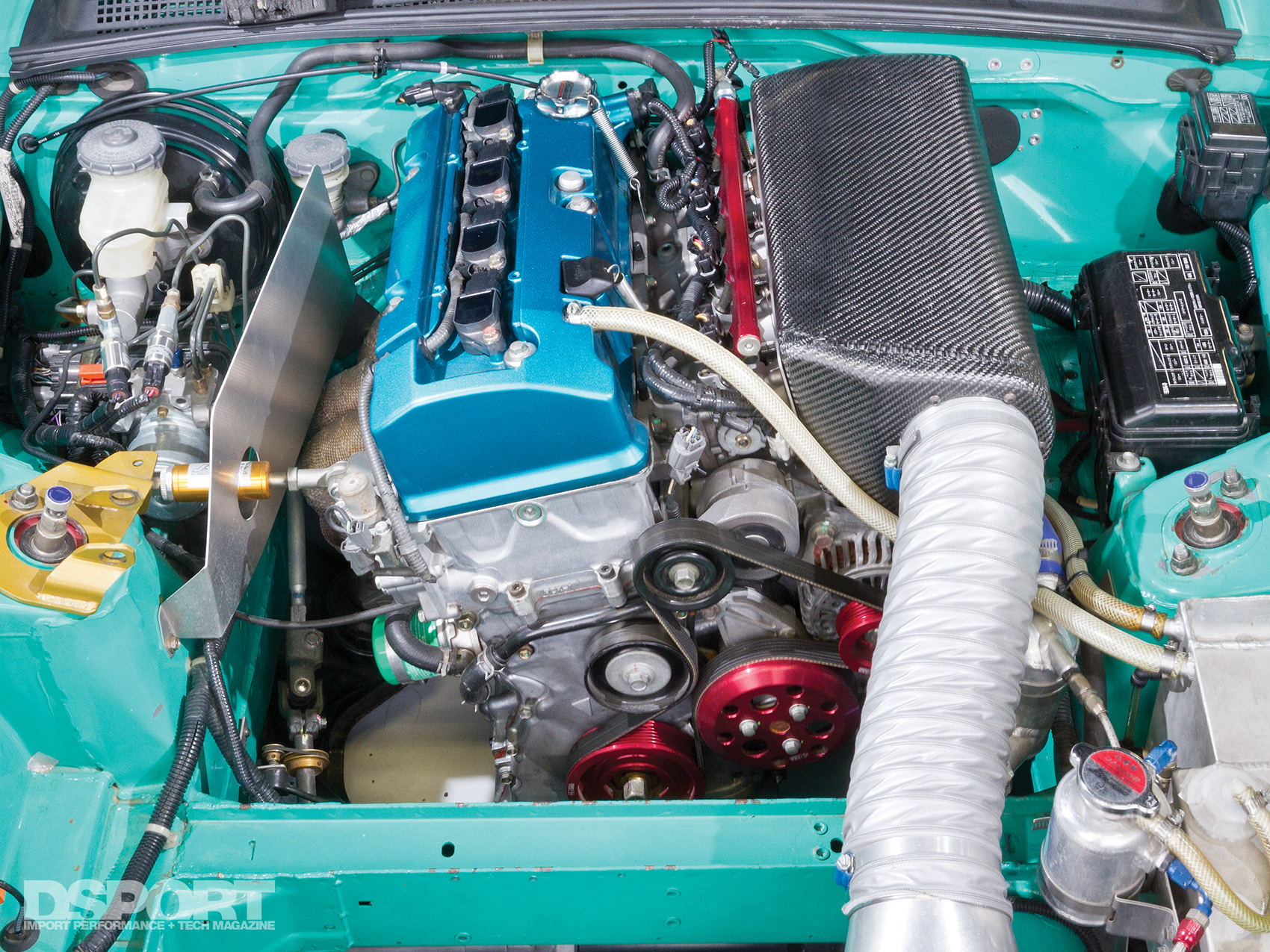

| Engine Code: | F20C |
| Displacement (cc): | 2,378cc |
| Bore & Stroke (mm): | 87mm x 100mm |
| Peak Horsepower (@ RPM): | 335 whp @ 7,880 RPM |
| Peak Torque (@ RPM): | 231 lb-ft @ 6,283 RPM |
| Dyno Type: | Dynapack Dyno |
| Engine Builder: | J’s Racing |
| Pistons/Compression Ratio: | TODA Racing 13.0:1 Compression Pistons |
| Connecting Rods / Crank: | TODA Racing Connecting Rods |
| TODA Racing Stroker Crankshaft | |
| Camshafts: | TODA Racing Type B2 Camshafts |
| Cylinder Head Modifications: | J’s Racing Port and Polish Service |
| Intake Manifold / Throttle Body: | TODA Racing Individual Throttle Body Kit |
| Fuel Delivery System: | Bosch 044 Fuel Pumps in Series (x2) |
| Engine Management System: | MoTeC M400 |
| Engine Management Tuner: | J’s Racing |
| Exhaust Manifold: | J’s Racing SPL Exhaust Manifold |
| Spark Plugs: | NGK |
| Exhaust Manifold: | J’s Racing SPL Exhaust Manifold |
| Exhaust System / Downpipe: | J’s Racing Custom Exhaust |

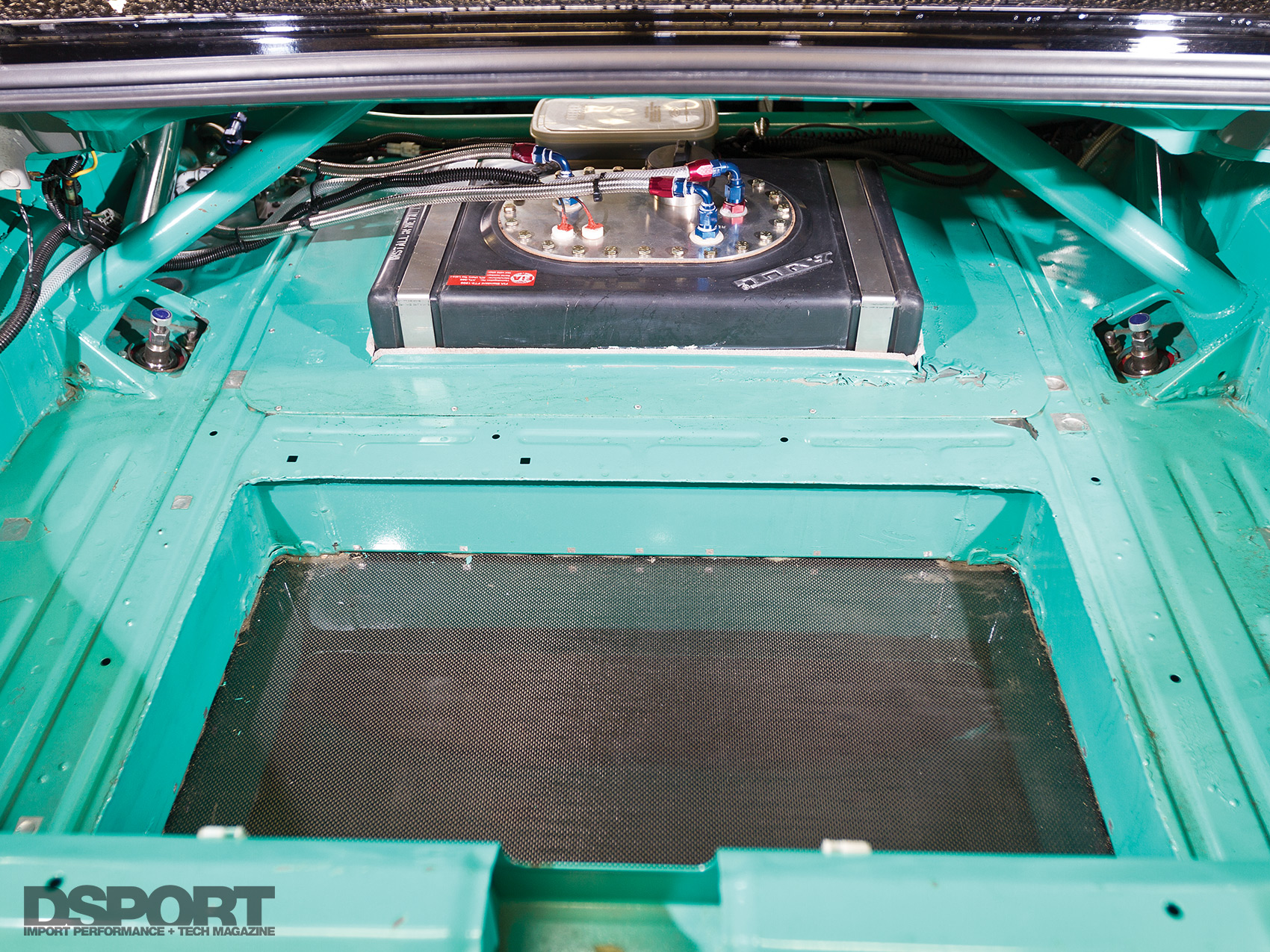

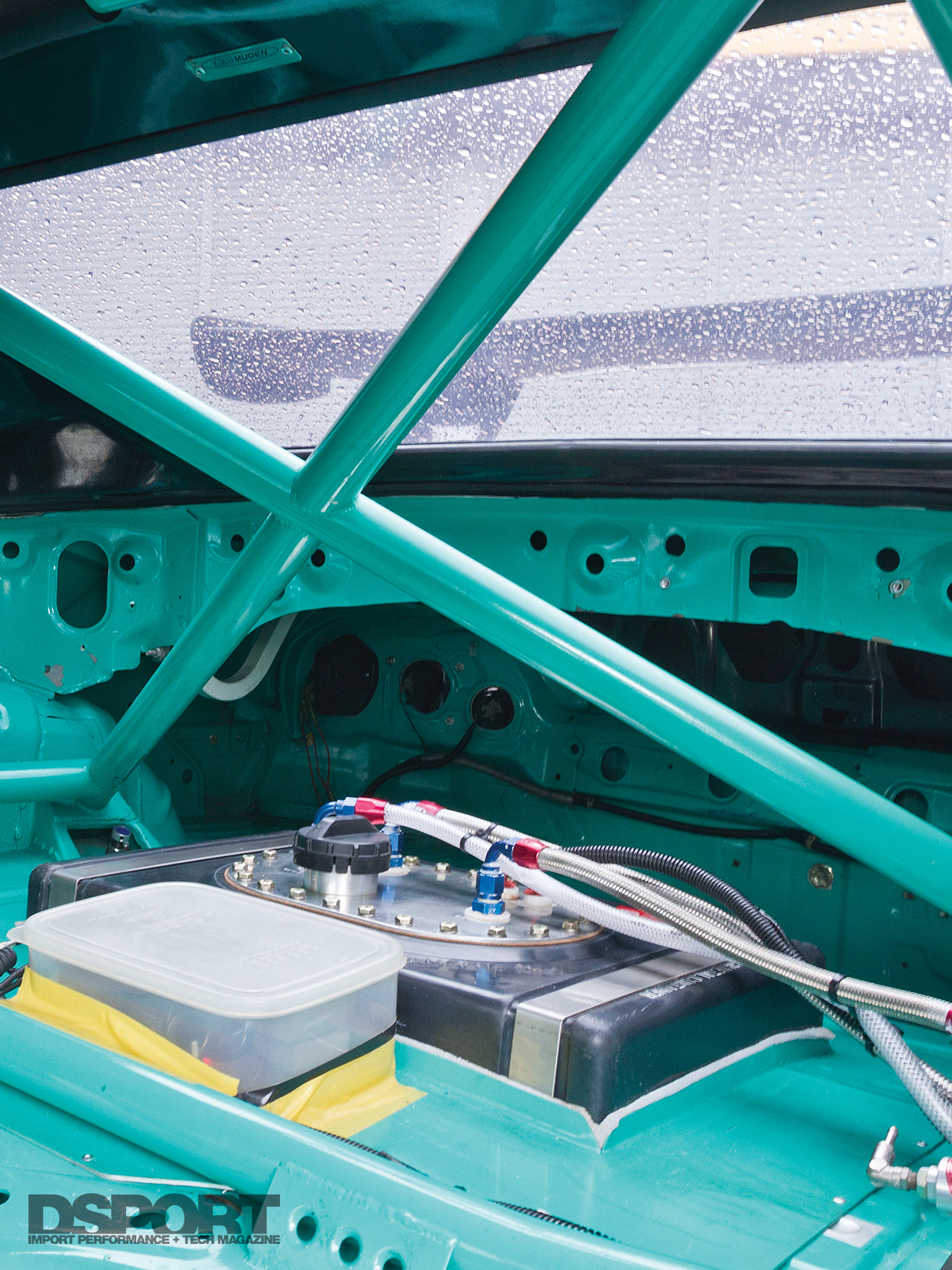

| Fuel Cell: | ATL Fuel Cell (Relocated) |
| Cooling System: | J’s Racing V-mounted SPL Aluminum Radiator |
| Oil System: | J’s Racing Oil Cooler |
| CHASSIS/DRIVELINE | |
|---|---|
| Springs, F&R (Make & Rate): | Swift Springs, 20kgf/mm, 20kgf/mm |

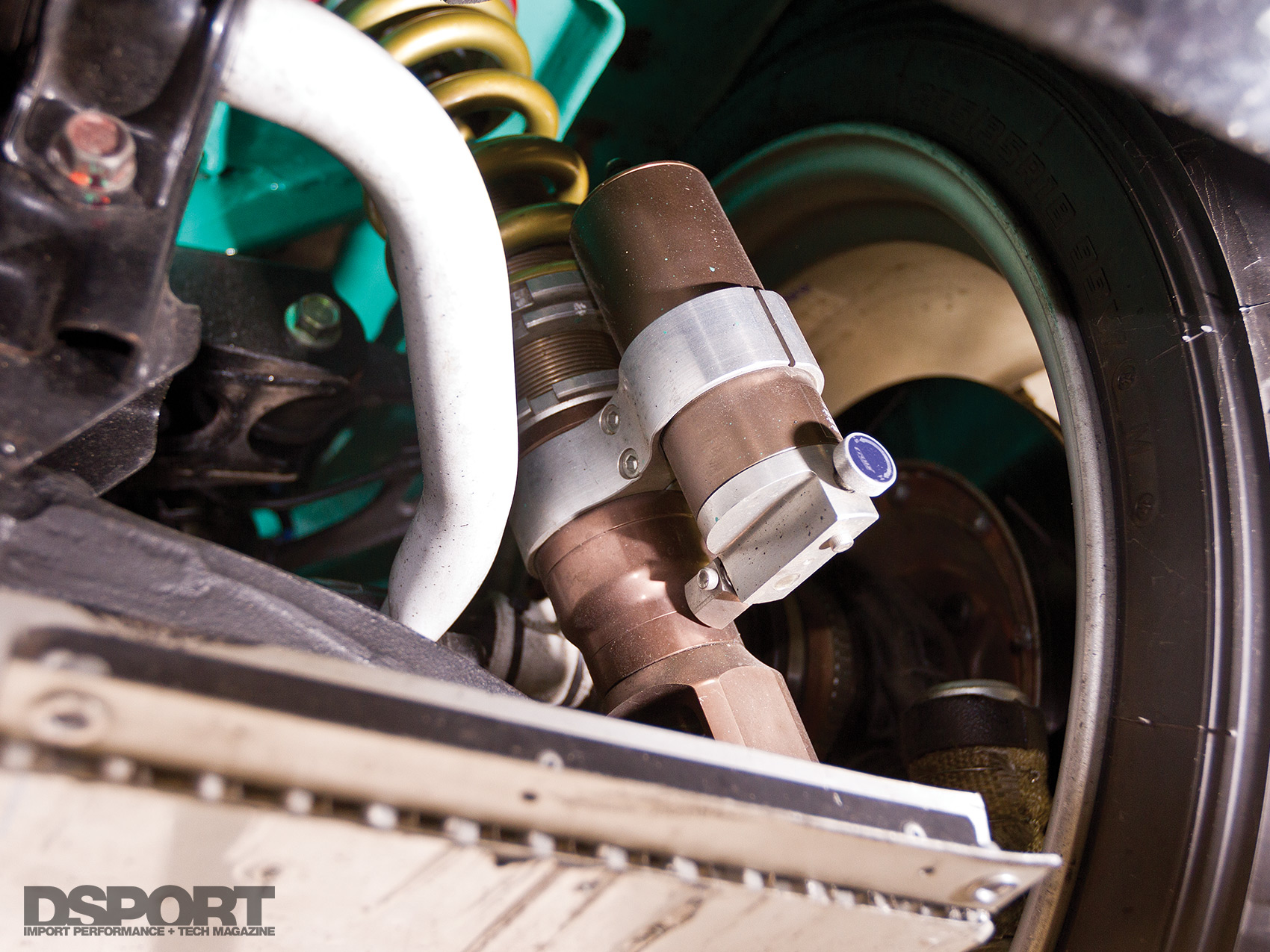

| Shocks, F&R (Make & Rate): | J’s Racing CRUX Suspension Dampers, 2-way |
| Additional Suspension Components: | J’s Racing Roll Center Adjuster / |
| Camber Joint / Tie Rod End / Control Arms | |
| Final Drive: | 4.4:1 |
| Clutch / Flywheel: | Exedy Hyper Single Clutch |
| Differential(s) (Make & Type): | J’s Racing 2-way LSD |
| Axles / Driveshaft: | J’s Racing Drive Shaft Spacer |
| Wheels (Make, Size & Offset): | Volk Racing CE28N Wheels |
| 18×9.5-inch +22 (F), 18×10.5-inch +18 (R) | |
| Tires (Make & Size): | Yokohama Advan A050, 265/35R18(F), |
| 295/35R18(R) | |

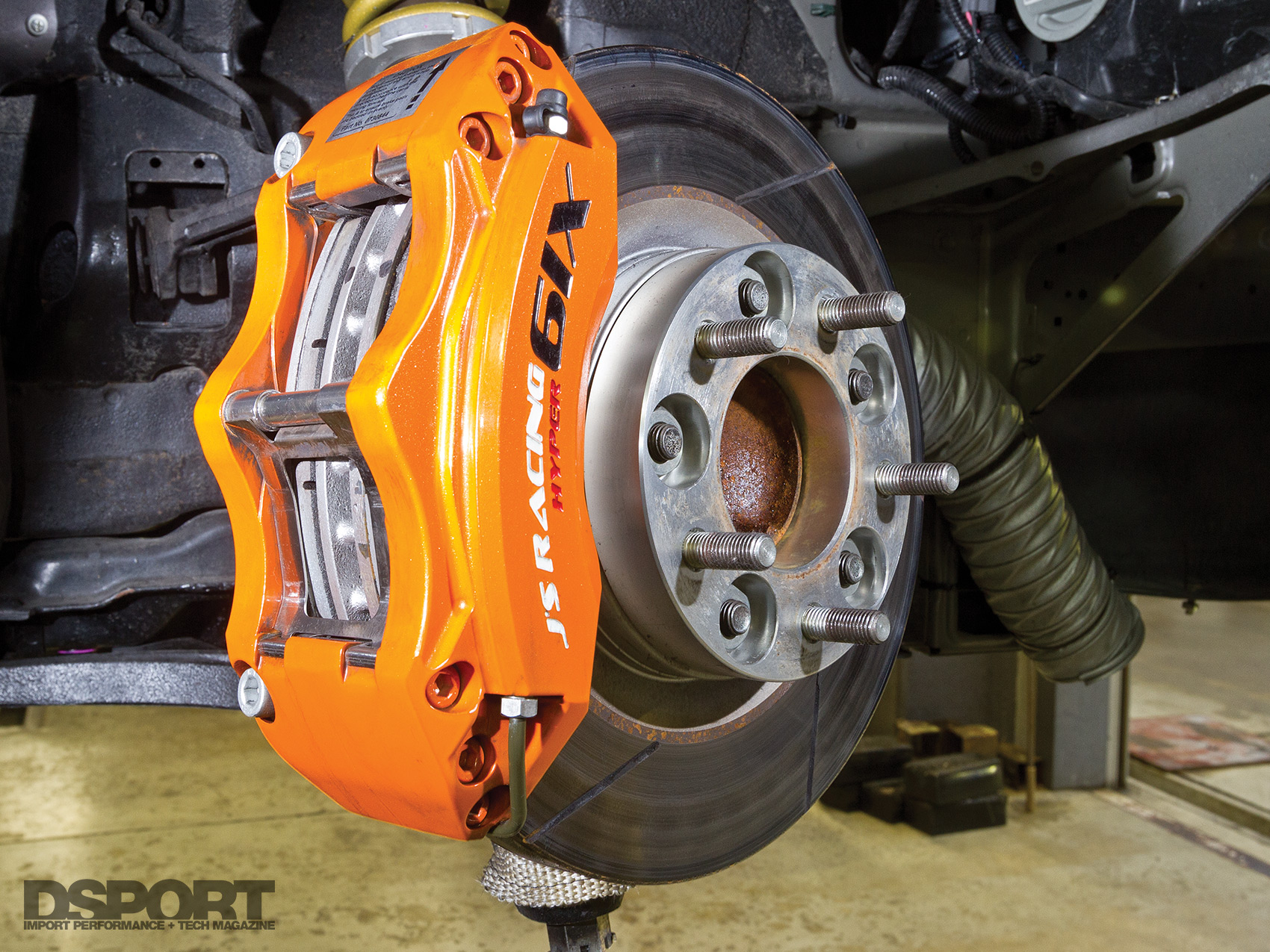

| Brake Calipers (F&R): | J’s Racing Hyper 6IX 6-piston Calipers (F) |
| Brake Rotors (Diameter, F&R): | J’s Racing Slotted Rotors (F&R) |
| Brake Pads (Front & Rear): | Seidoya Pads |
| Brake Lines: | J’s Racing Stainless-steel Braided Lines |
| INTERIOR | |
|---|---|
| Roll Bar / Cage: | J’s Racing 9-point Cage |
| Seats: | Recaro Pro Racer SP-A |
| Harnesses: | Takata MPH-341W |
| Steering Wheel / Quick Release: | J’s Racing Steering Wheel, Flip Hub |
| Gauges: | MoTeC Dash Logger |
| EXTERIOR | |
|---|---|

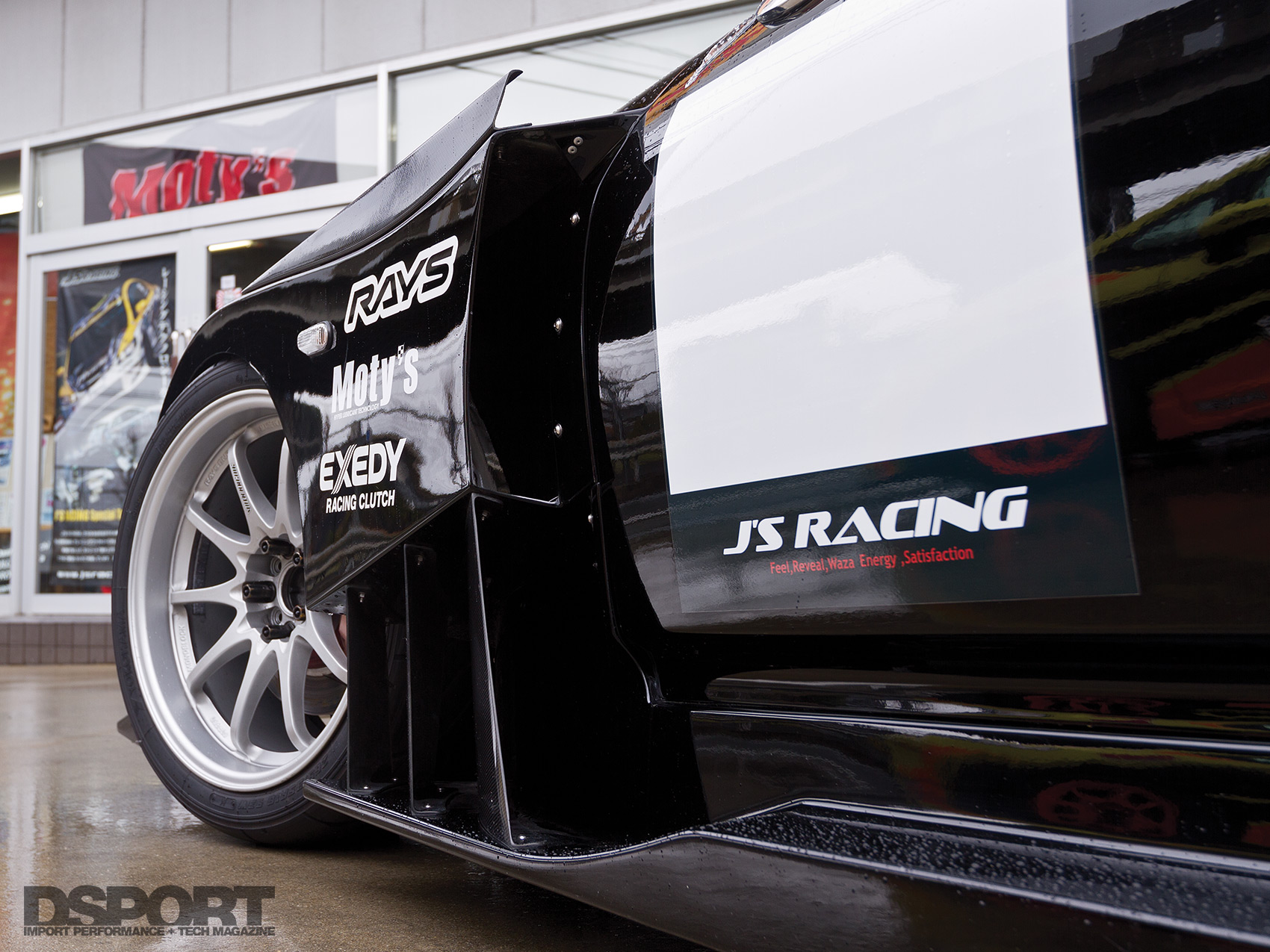

| Bumpers (F&R), Fenders (F&R), Skirts : | J’s Racing Type GT CFRP |

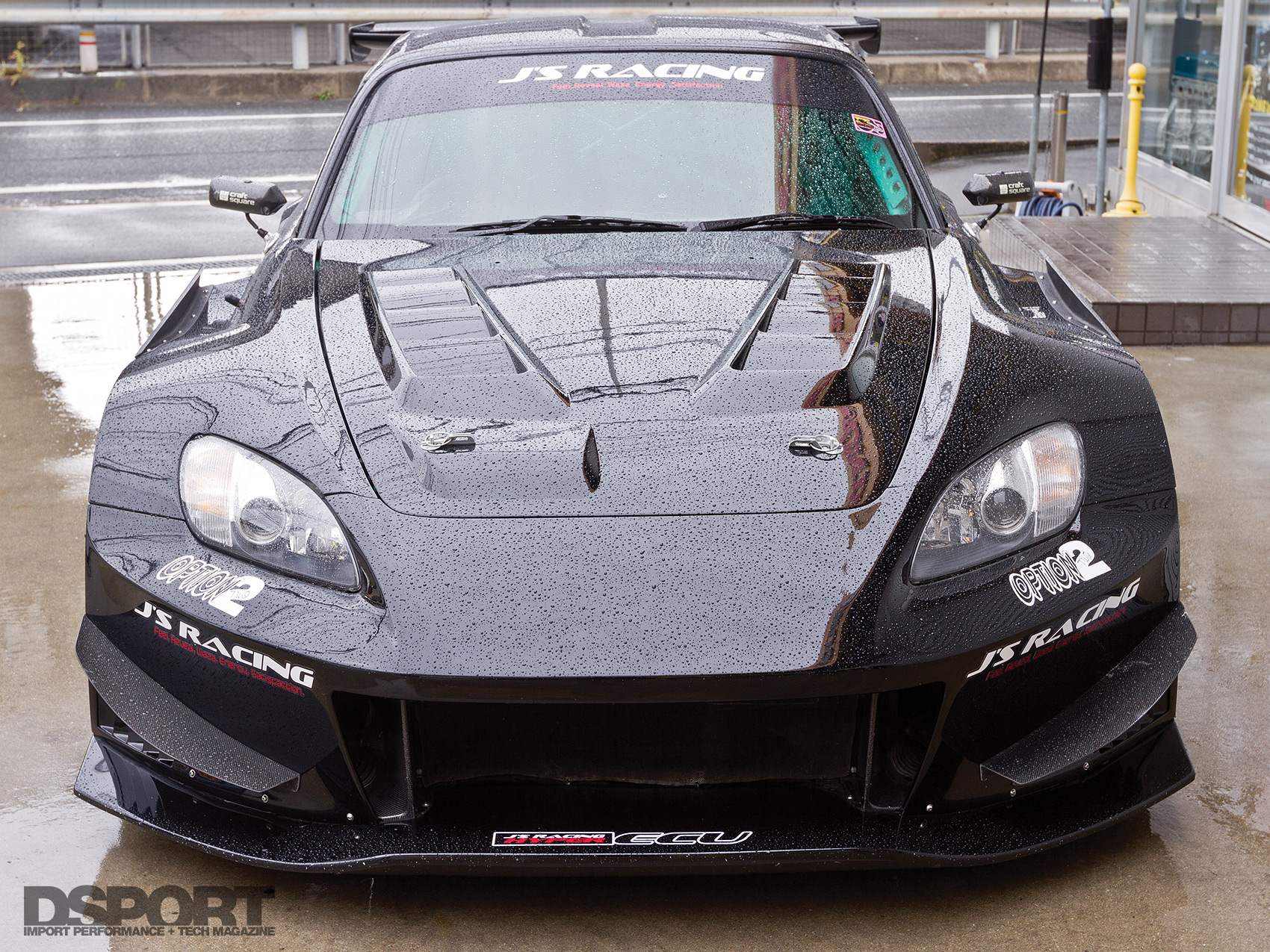

| Hood: | J’s Racing Type V CFRP |

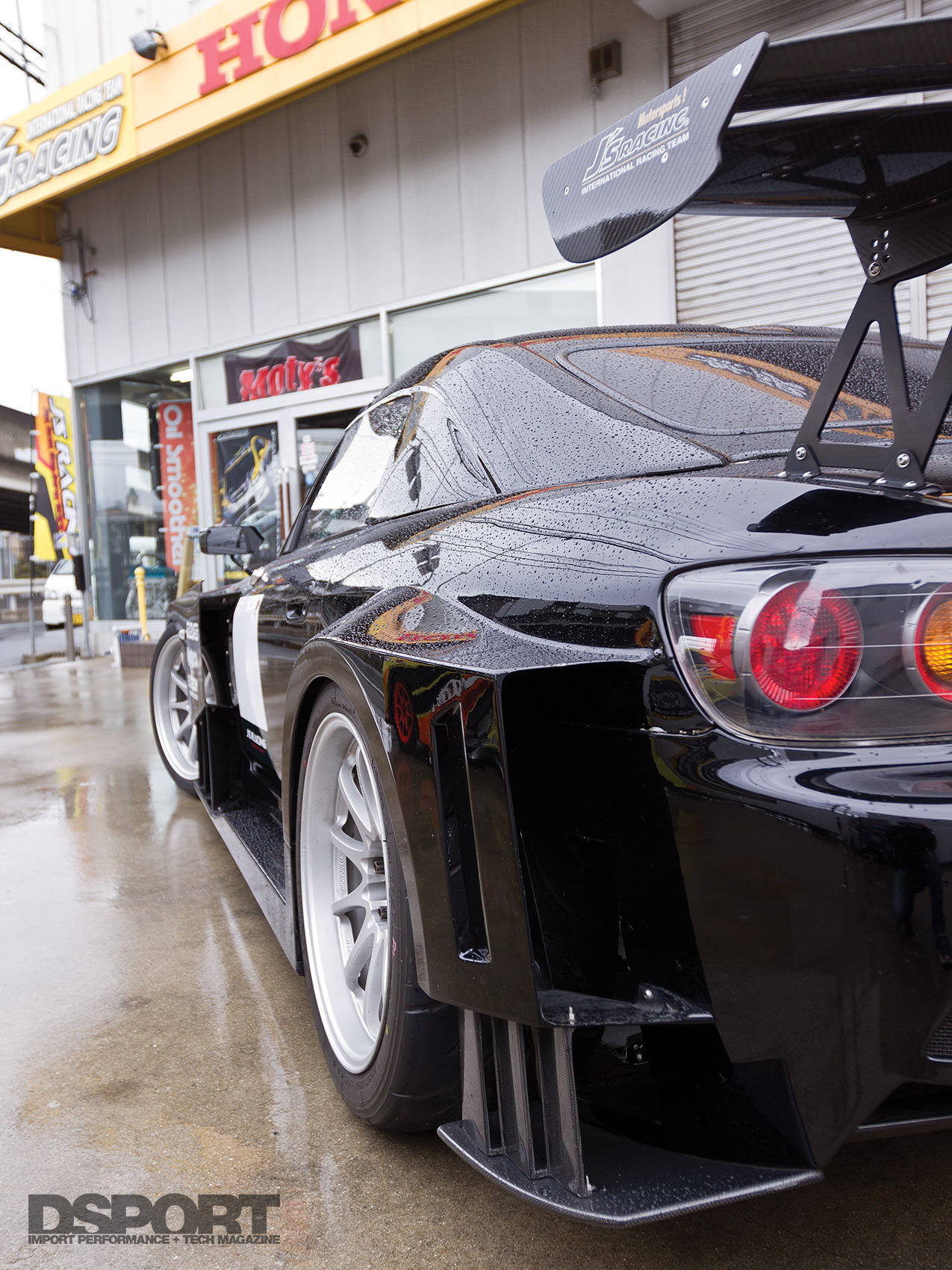

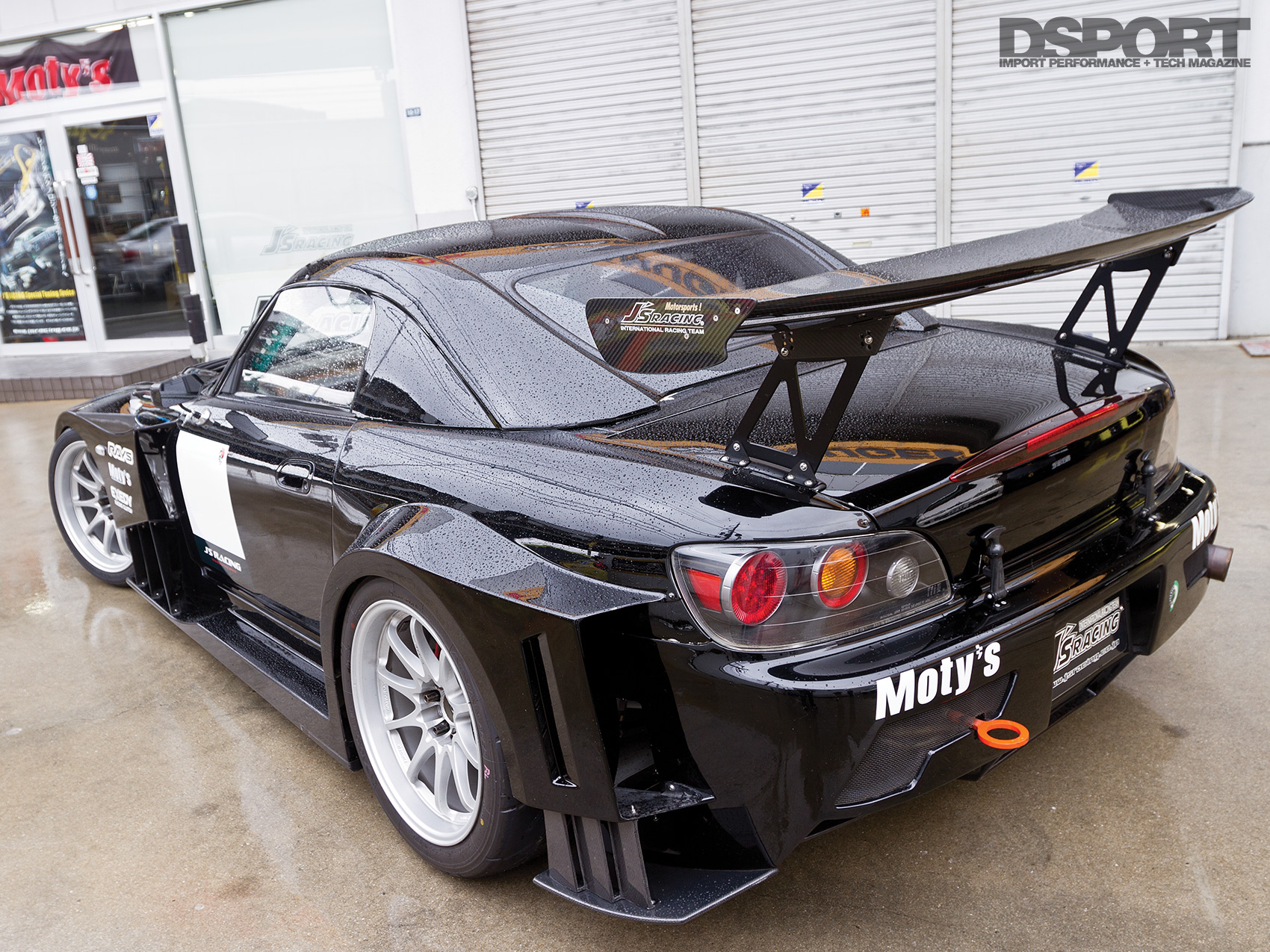

| Spoiler / Wing: | J’s Racing 1,700mm Wet Carbon Fiber GT Wing |
| Mirrors: | Craft Square GT Mirrors |

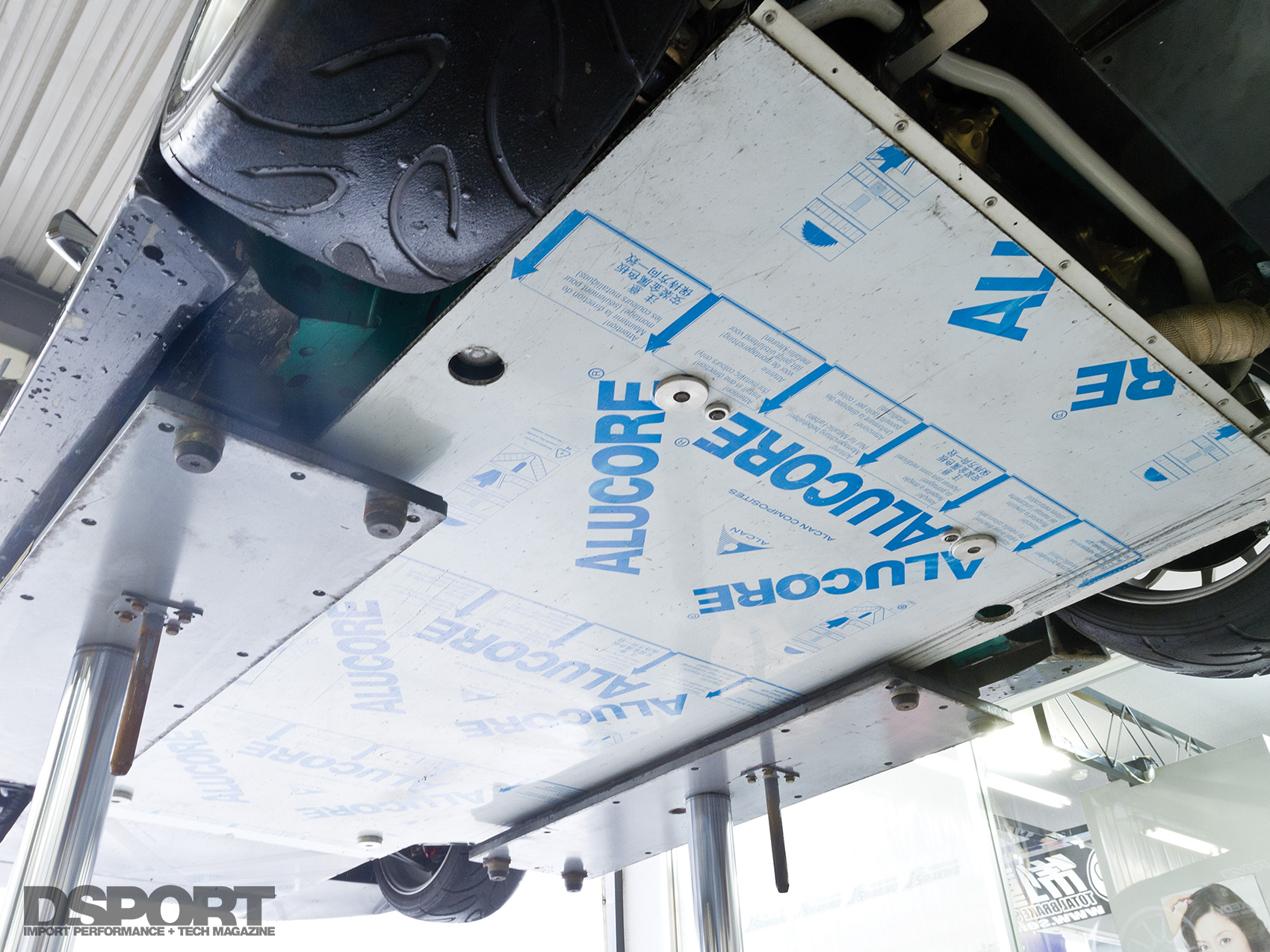

| Custom Body Work: | J’s Racing Flat Bottom Under Panel |
