SPEC SHEET
| VEHICLE | |
|---|---|

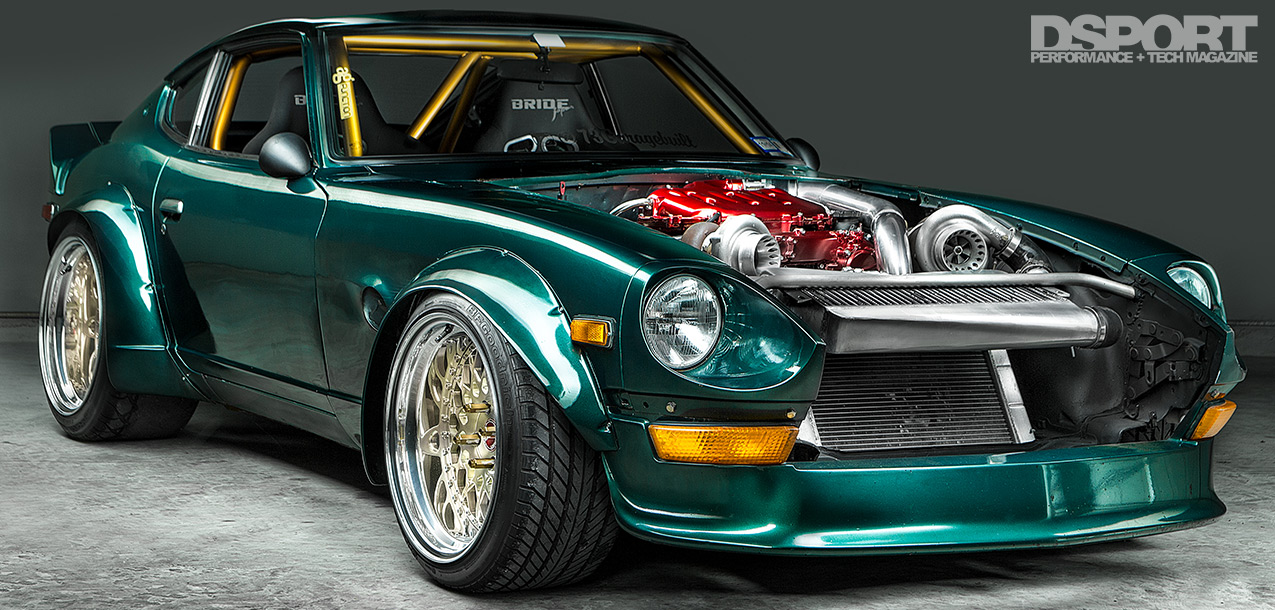

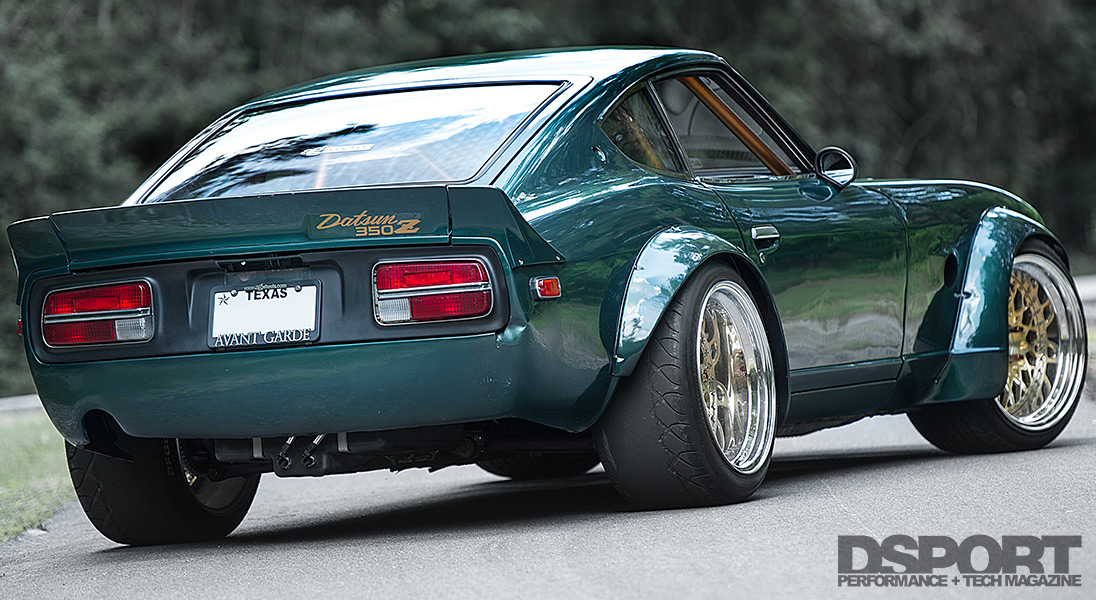

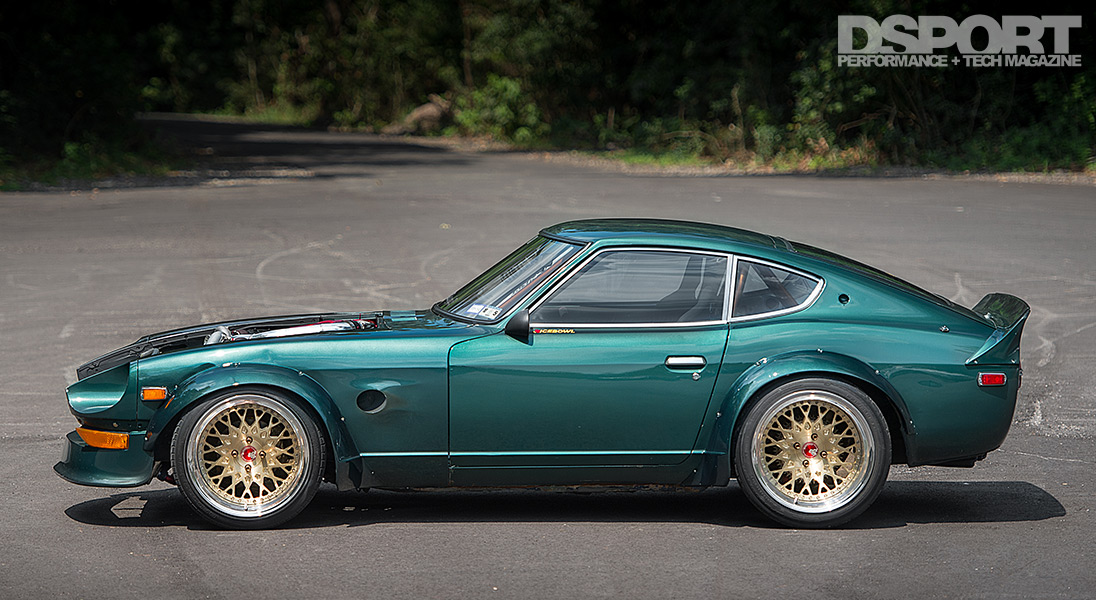

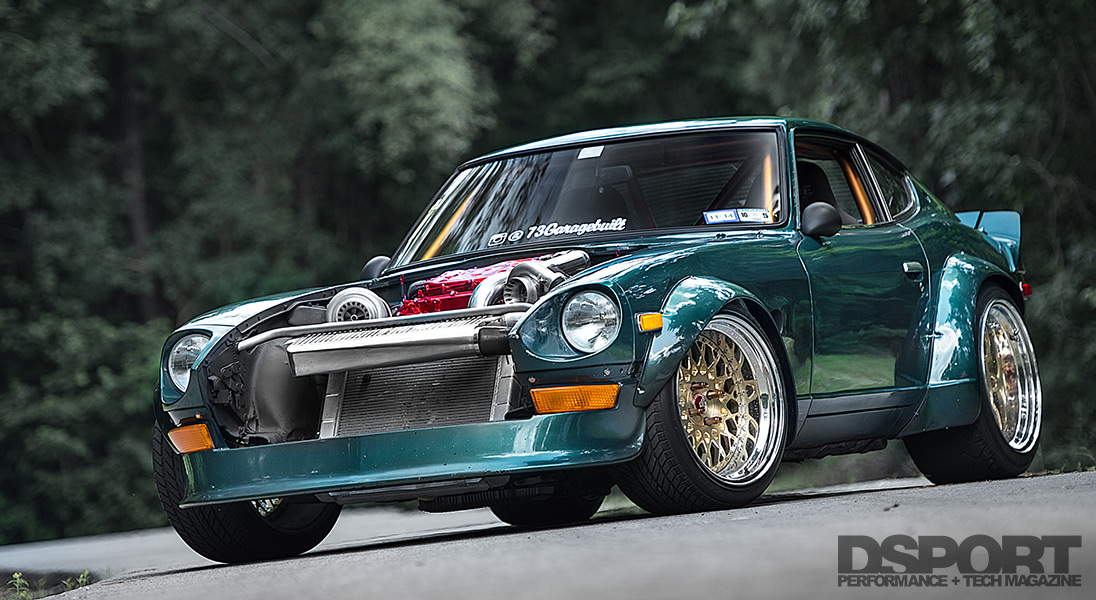

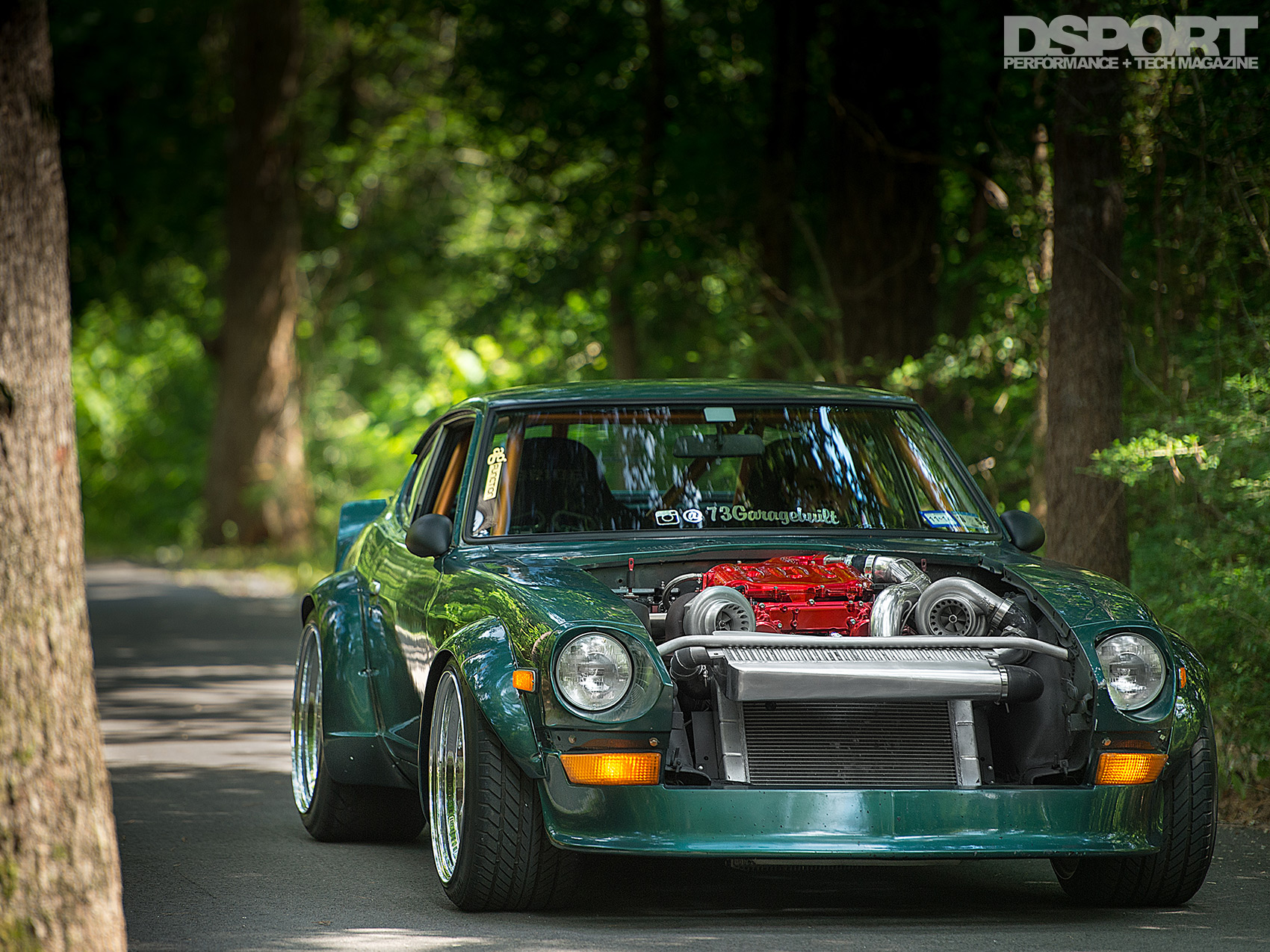

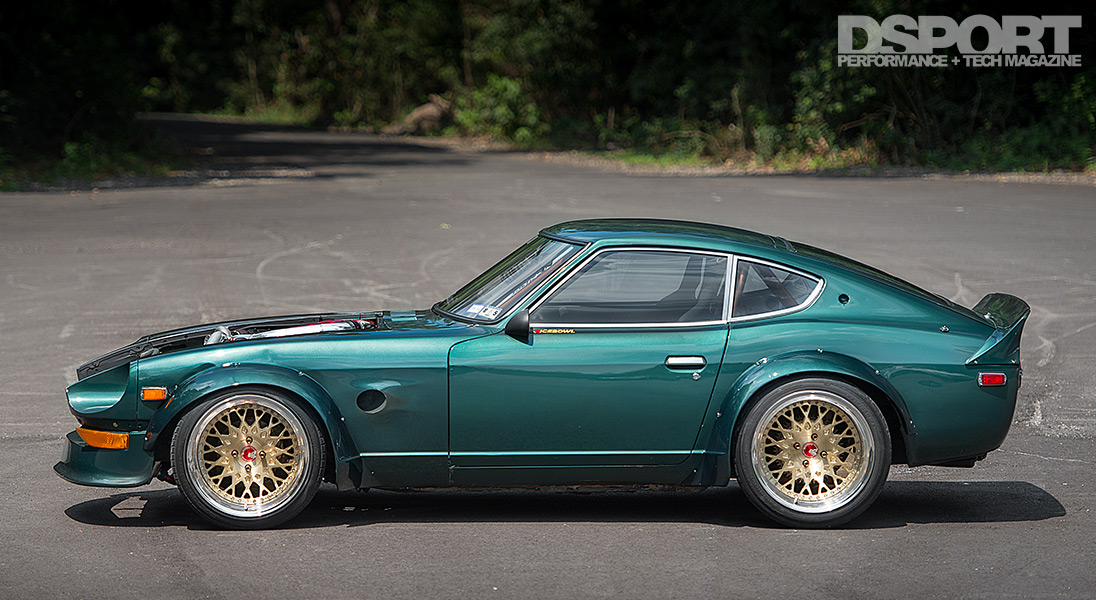

| Year / Make / Model: | 1973 Datsun 240Z |
| Chassis Code: | S30 |
| Vehicle Weight: | 2,100 lbs. |
| Launch RPM: | 3,500 RPM |
| Shift RPM: | 6,500 RPM |
| Peak Boost: | 10 psi |
| Fuel: | 93 Octane |

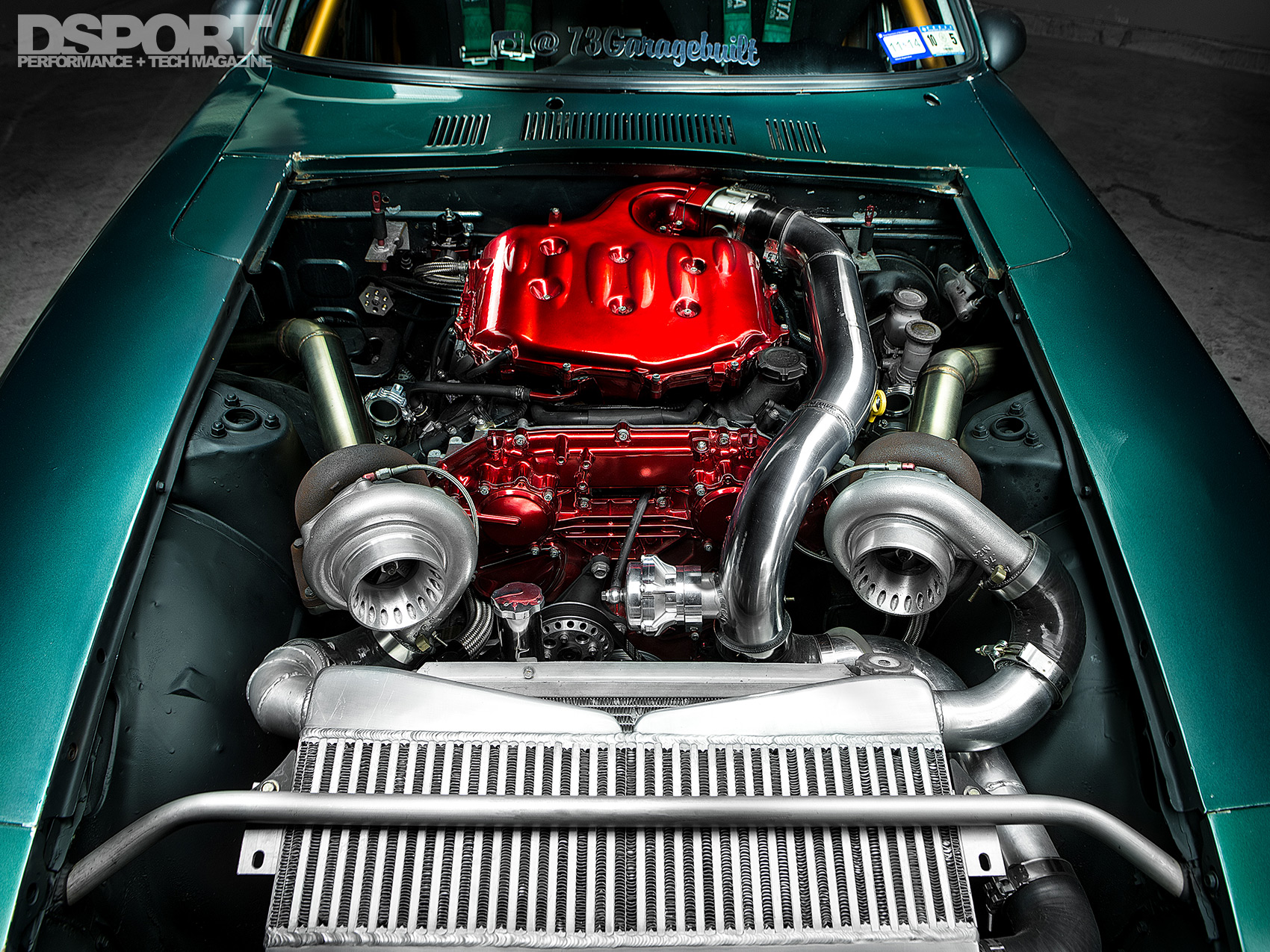

| ENGINE | |
|---|---|
| Engine Code: | VQ35DE |
| Displacement (cc): | 3,499cc |
| Bore & Stroke (mm): | 95.5mm x 81.4mm |
| Fuel Injectors: | DeatschWerks 600cc/min Injectors (x6) |

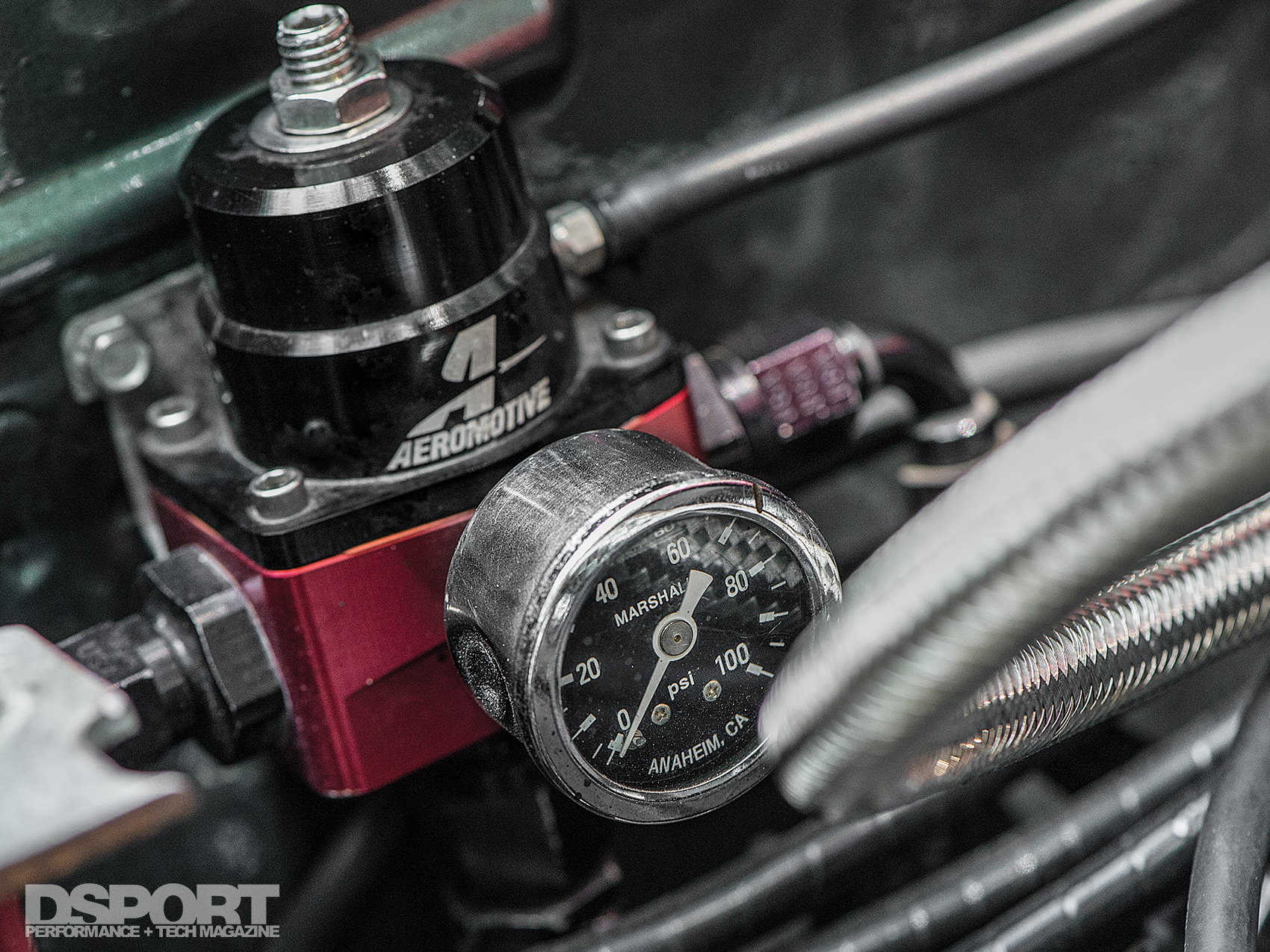

| Fuel Delivery System: | Bosch 044 Fuel Pump |
| Engine Management System: | Factory |
| Engine Management Tuner: | UpRev Reflash |
| Spark Plugs: | NGK |
| Exhaust Manifold: | Custom Turbo Manifolds |
| Exhaust System: | Custom Fender-exit Exhaust |
| Wastegate: | TiAL Sport 38mm Wastegates |

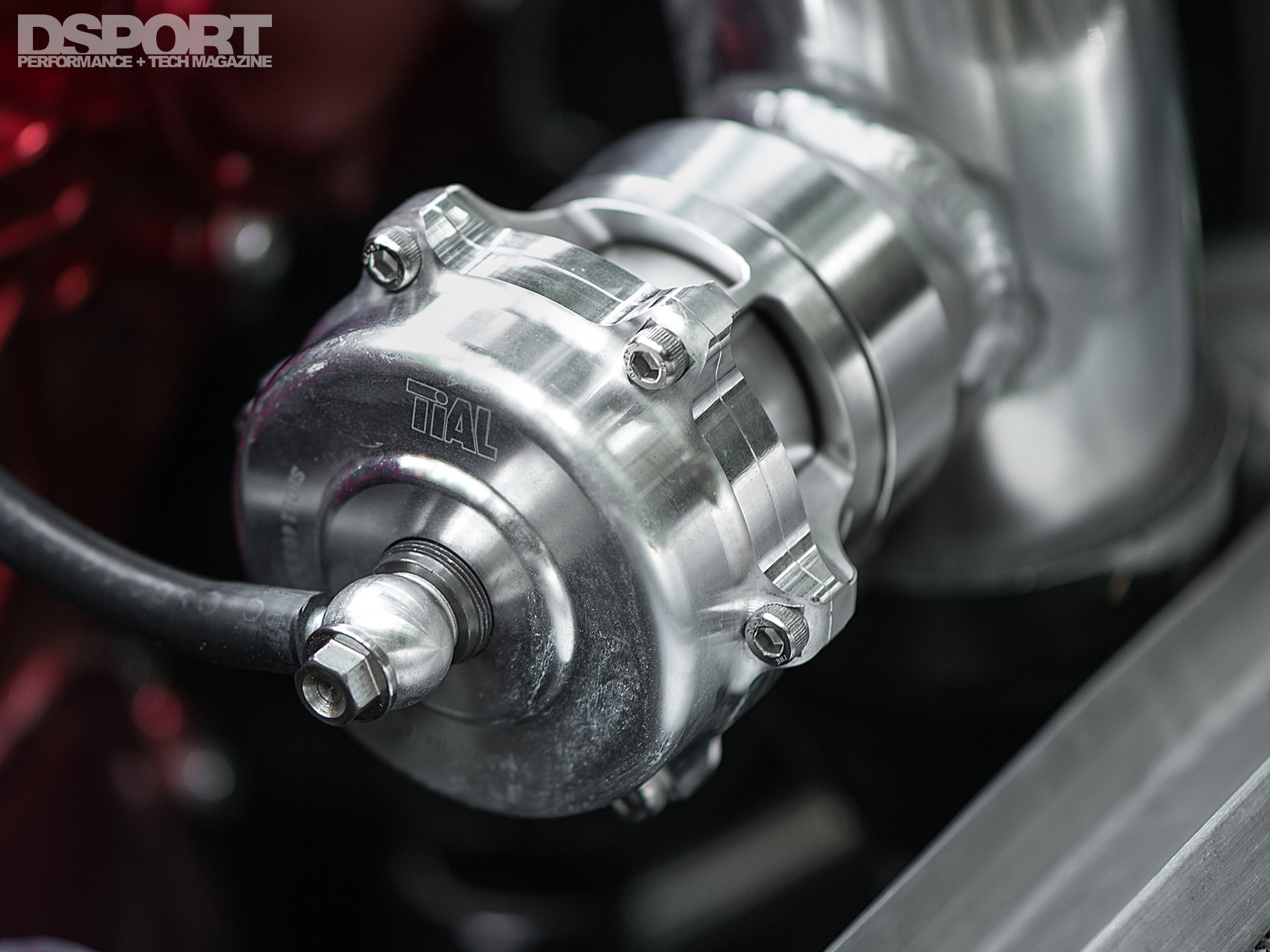

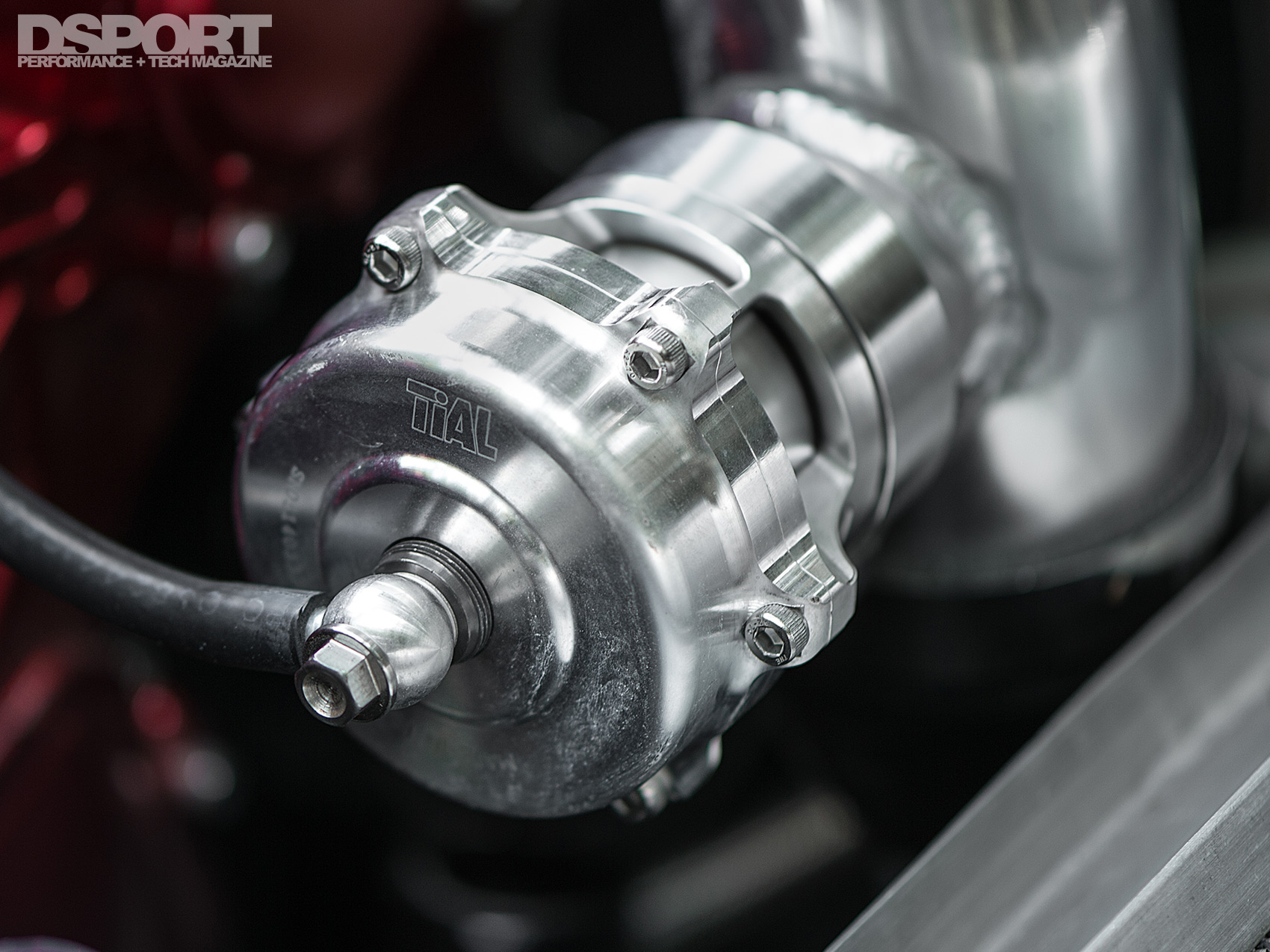

| Blow-Off Valve: | TiAL Sport 50mm Blow Off Valves |

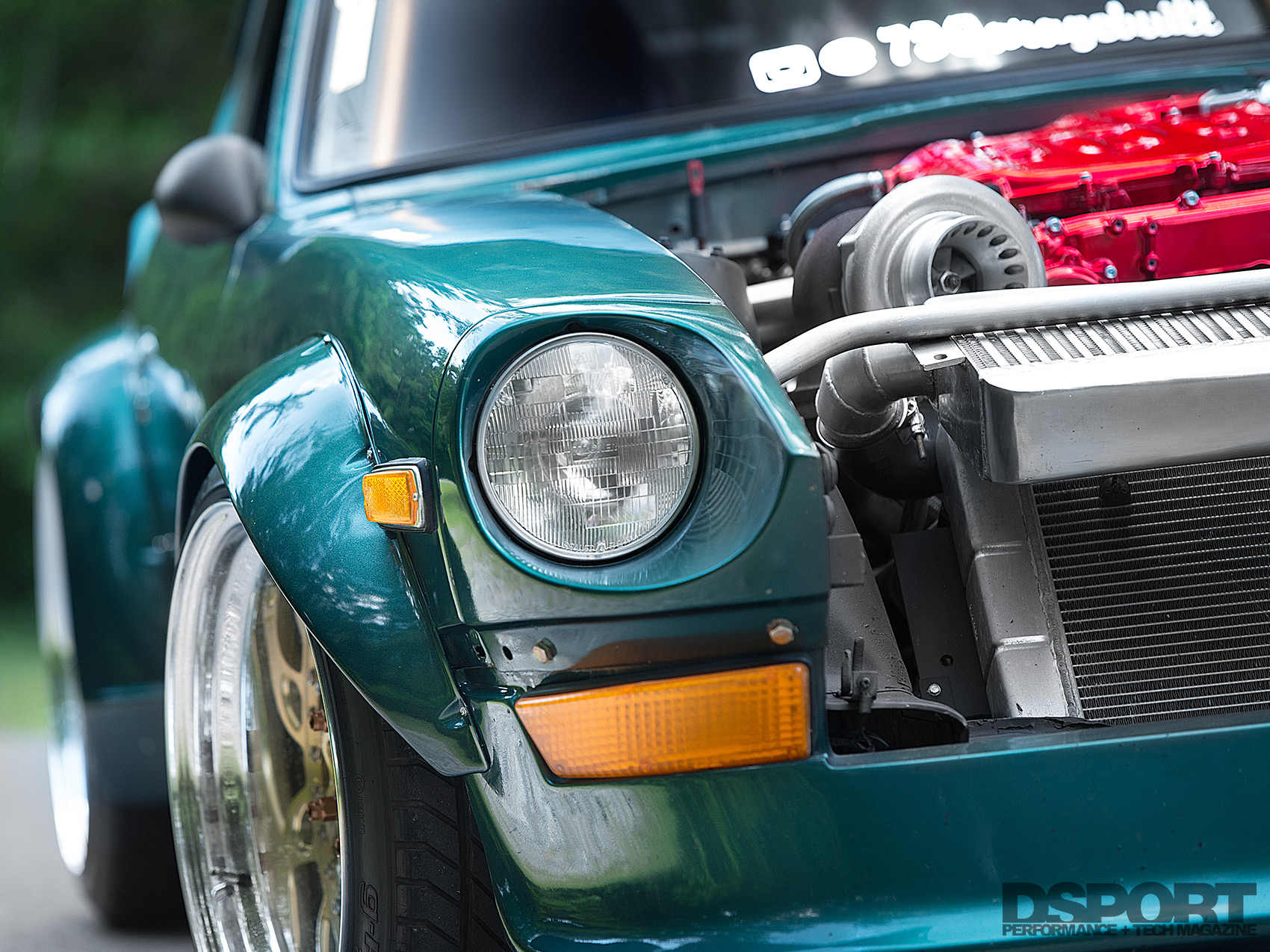

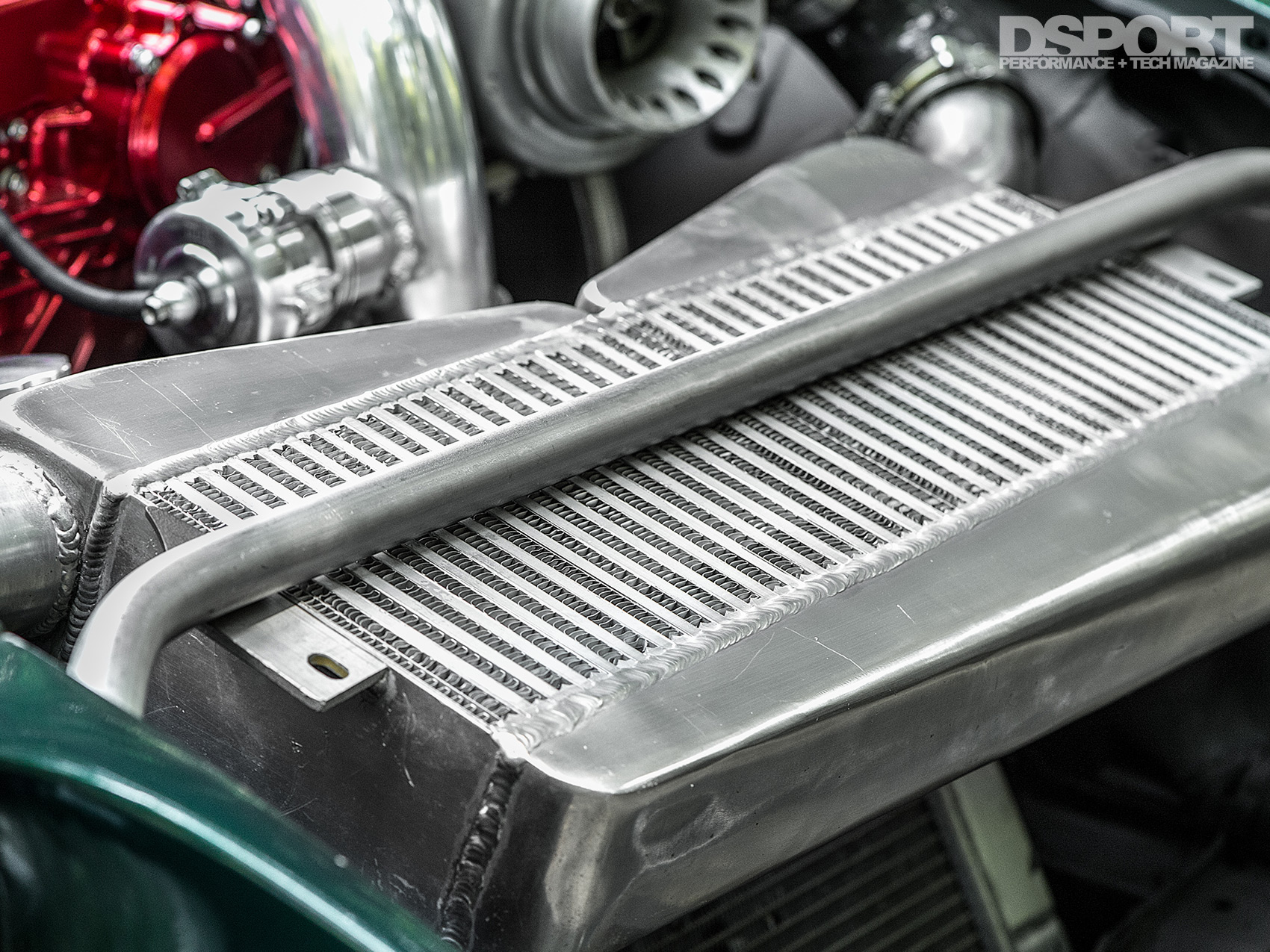

| Intercooler: | CXRacing Intercooler |
| Cooling System: | Custom 3-inch V-mounted Radiator |
| Fuel Cell: | Jaz 16-Gallon Tank |
| TURBOCHARGER | |

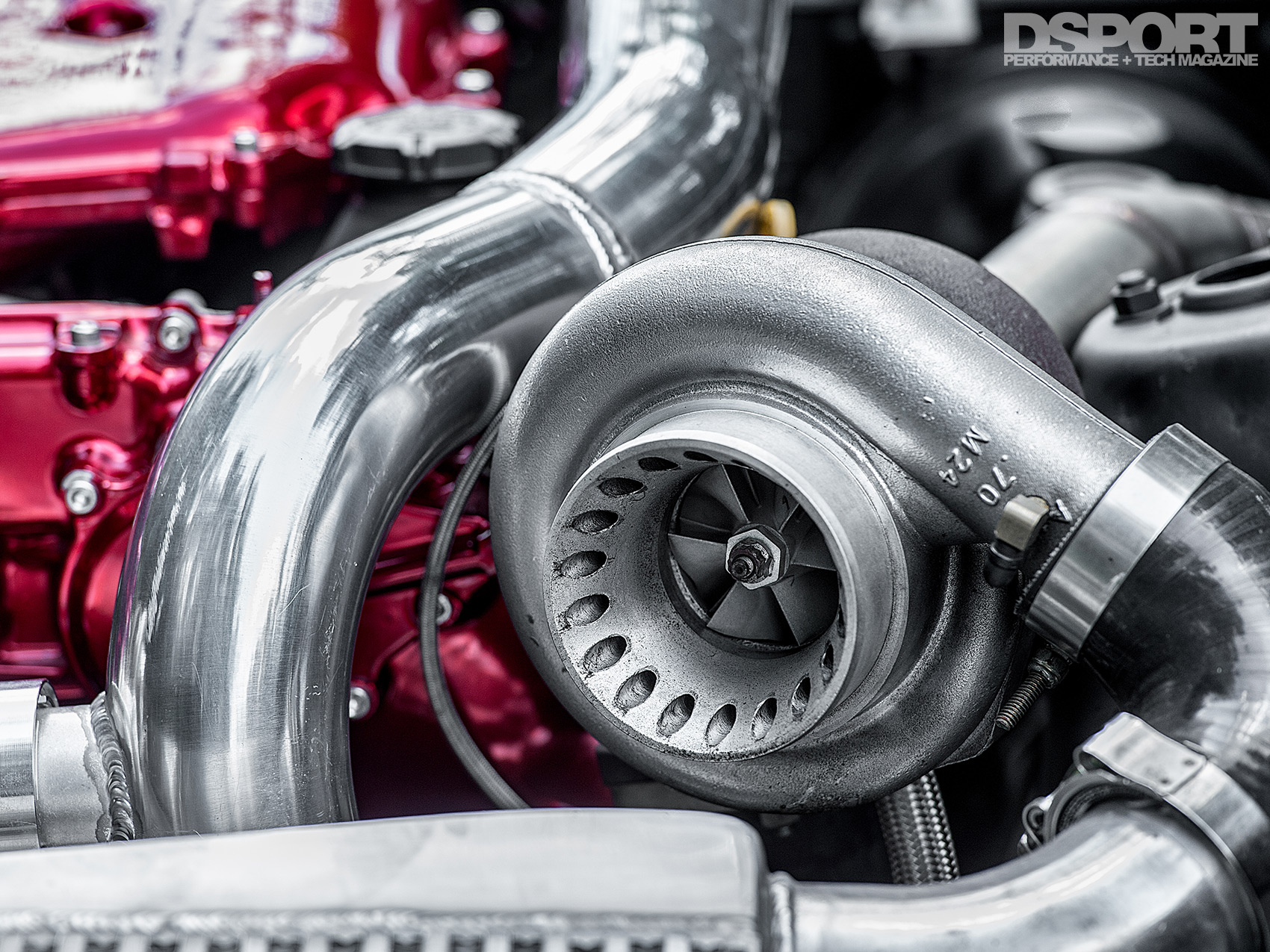

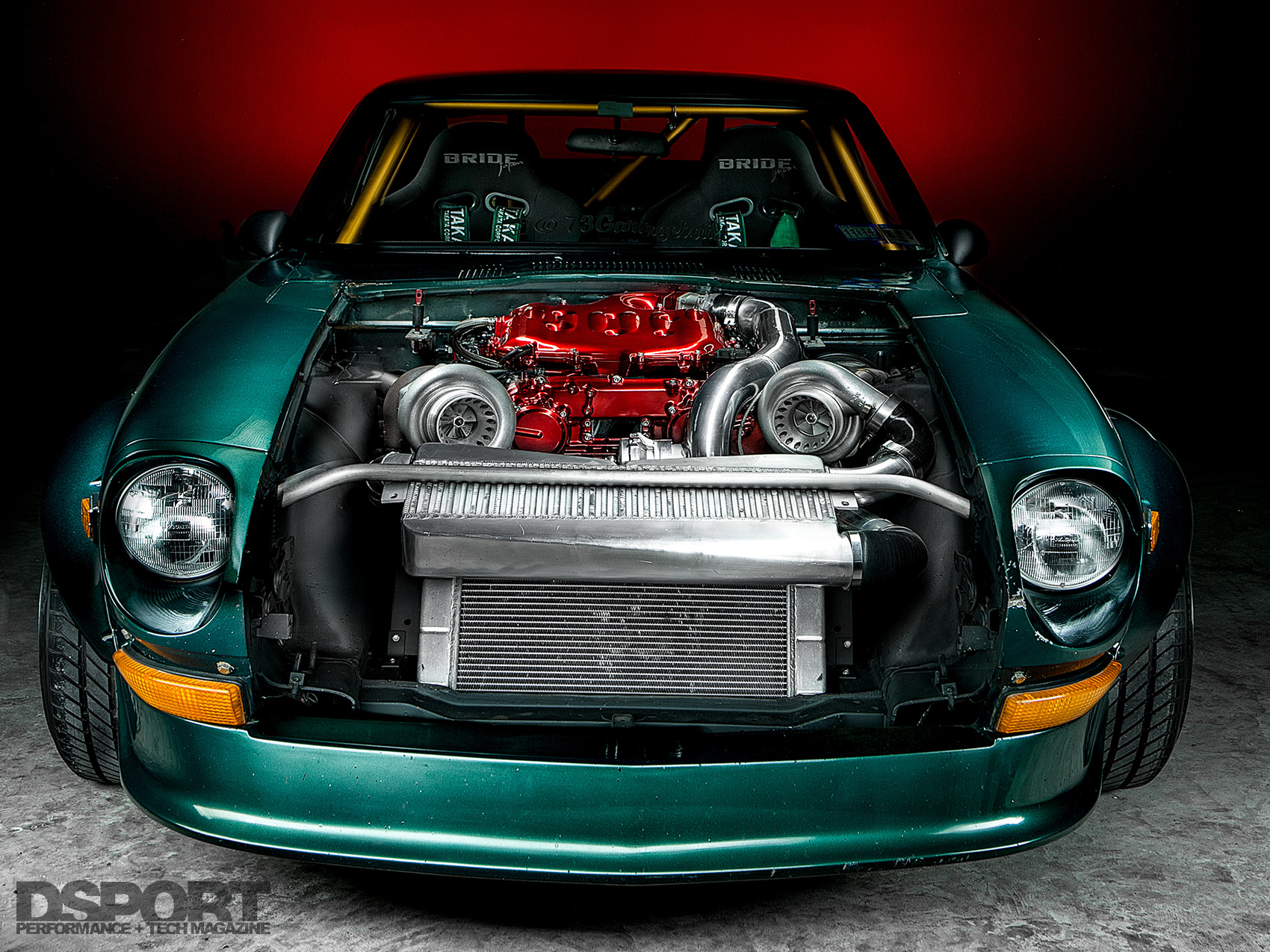

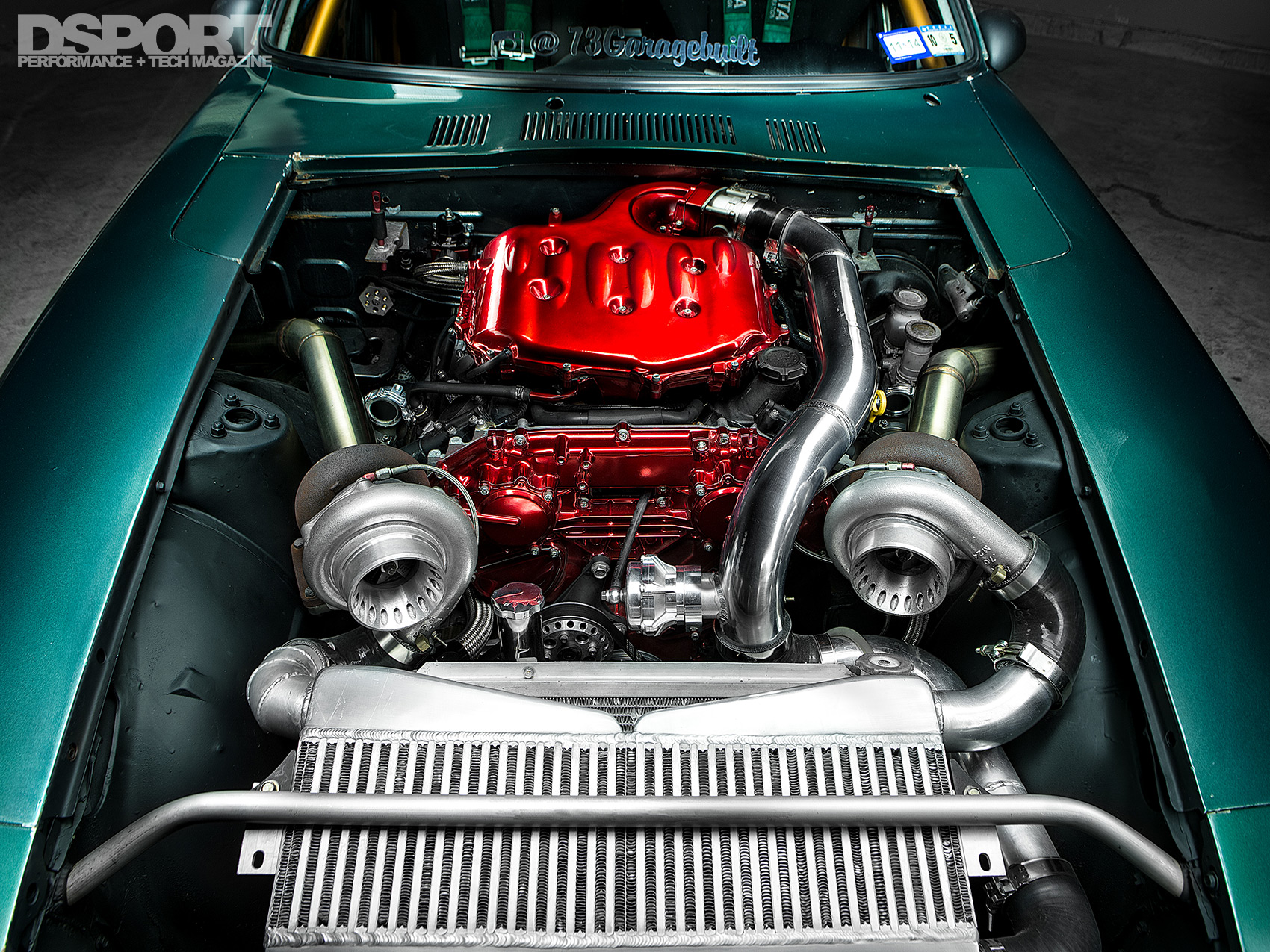

| Turbocharger: | CXRacing (x2) |
| Frame: | GT35 |
| Compressor Wheel Specs: | 82mm Major, 61.3mm Inducer |
| Turbine Wheel Specs: | 67.8mm Major, 62mm Exducer |
| Turbine Housing: | T3 |
| CHASSIS/DRIVELINE | |
| Springs, F&R (Make & Rate): | Ground Control Coilovers |
| Transmission: | Factory Z33 |
| Final Drive: | 3.54:1 |
| Clutch / Flywheel: | ACT Clutch |
| Differential(s) (Make & Type): | Factory Z33 Differential and Carrier |
| Axles / Driveshaft: | Custom Axles |

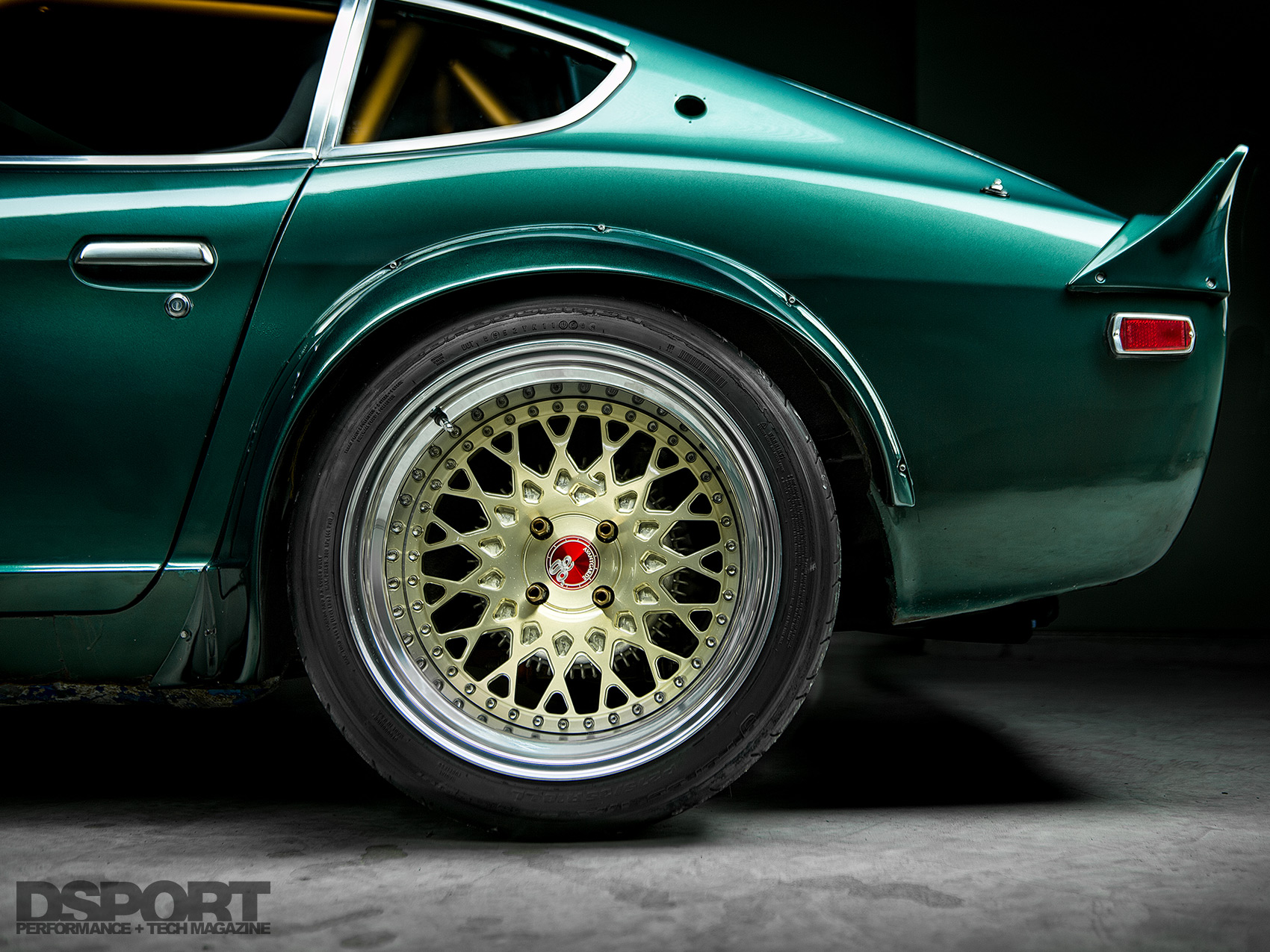

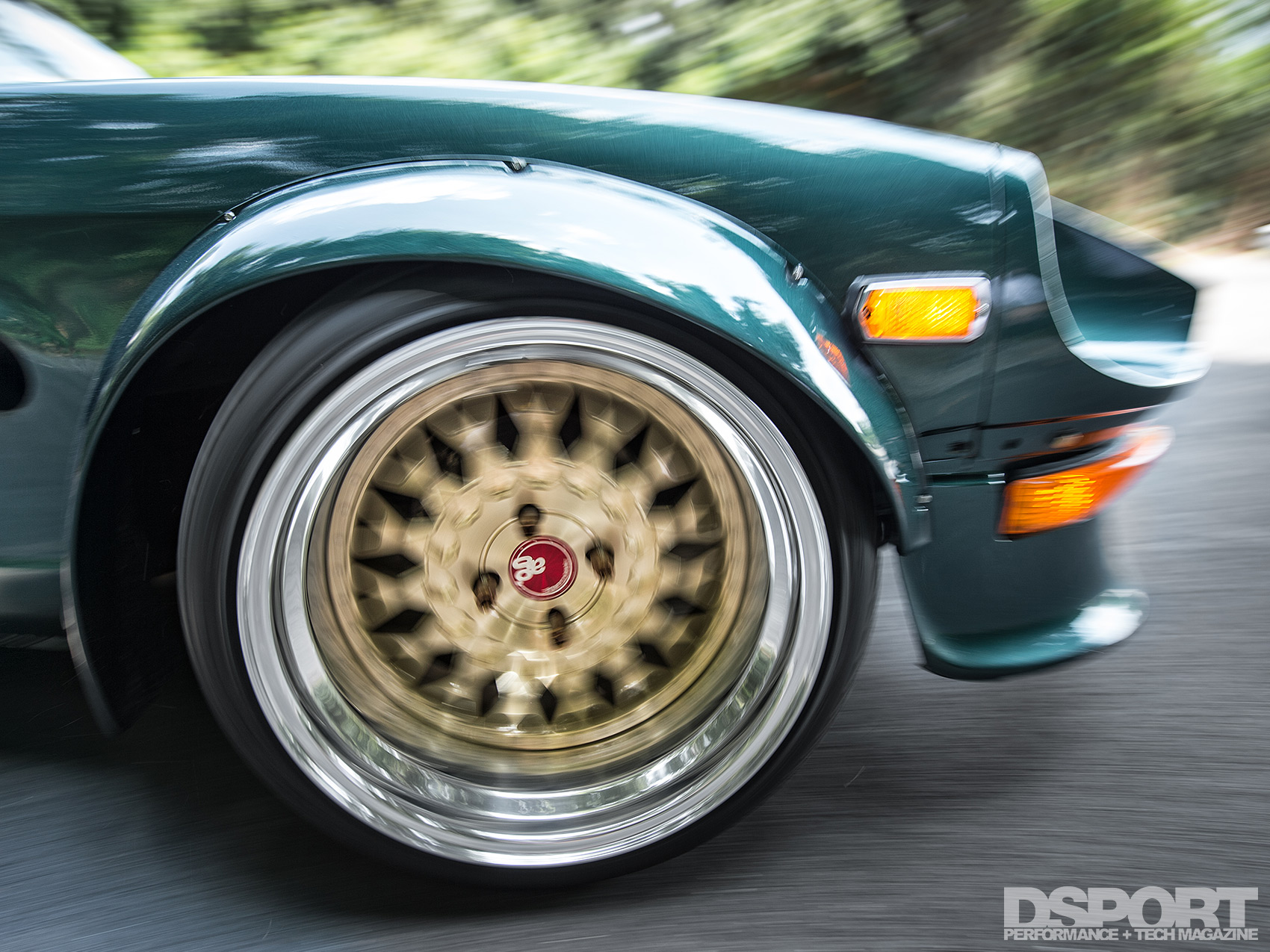

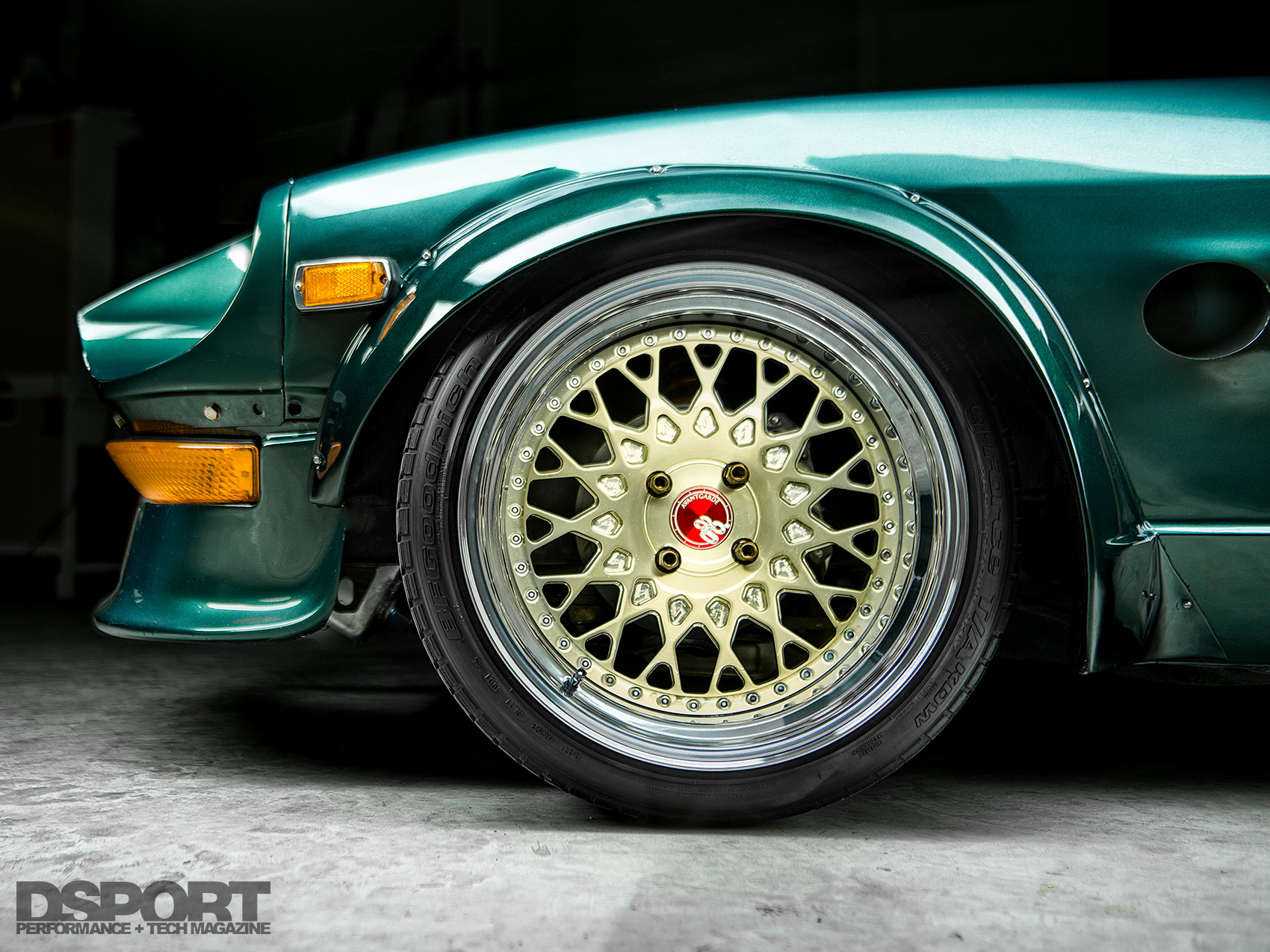

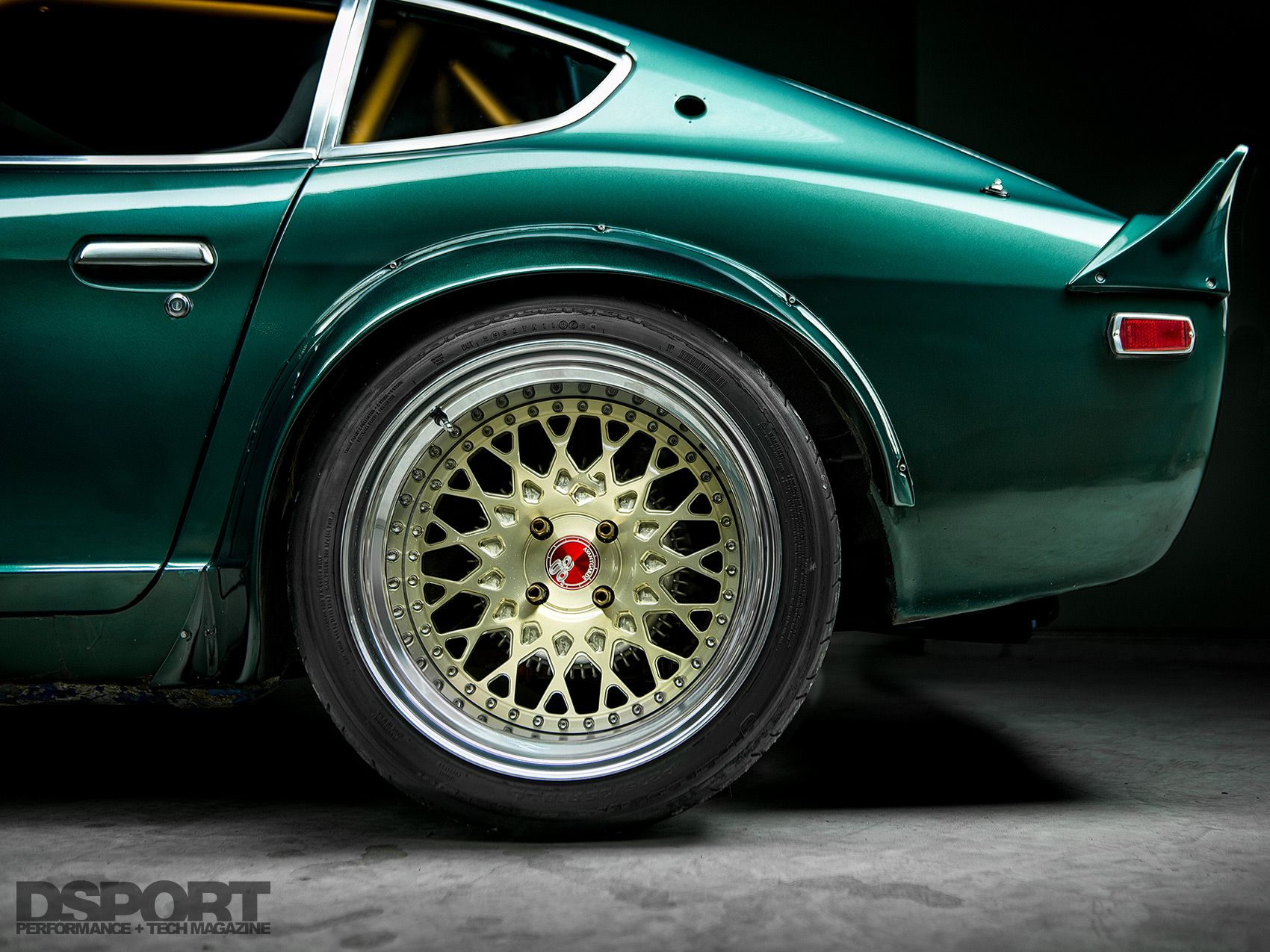

| Wheels (Make, Size & Offset): | Avant Garde 18×11-inch -10 (F), 18×12-inch -45 (R) |
| Tires (Make & Size): | BFGoodrich KDW 265/35R18, 275/35R18 |
| Brake Calipers: | Toyota Calipers (F) |
| Brake Lines: | Goodridge Stainless Steel Braided Lines |

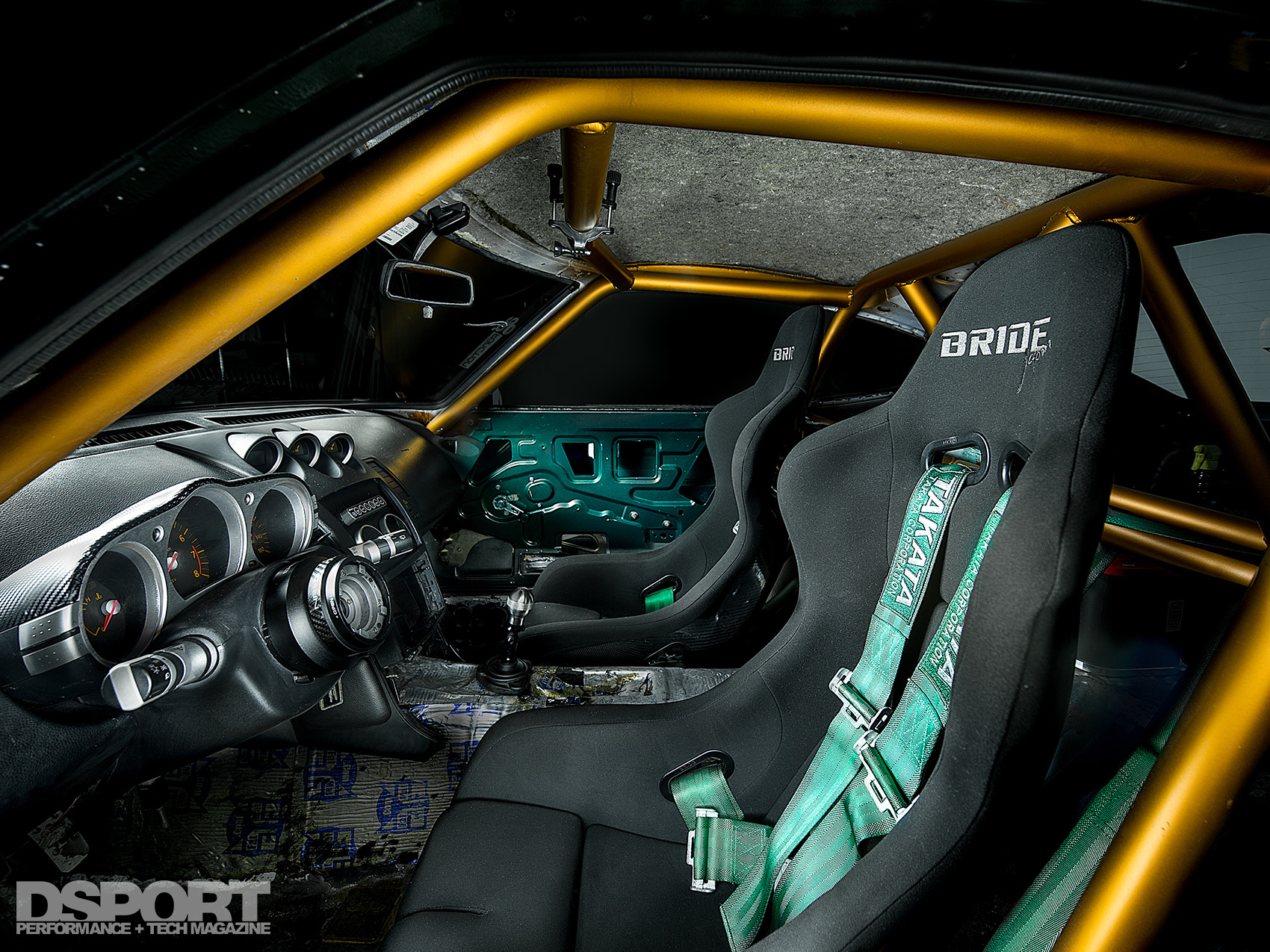

| Roll Bar / Cage: | Kirk Racing 6-point Cage |
| Seats: | BRIDE VIOS III Japan Carbon-fiber Bucket Seats |
| Harnesses: | Takata 4-Point Harnesses |
| Steering Wheel / Quick Release: | NRG Innovations Quick Release Hub |
| Gauges: | DEFI |

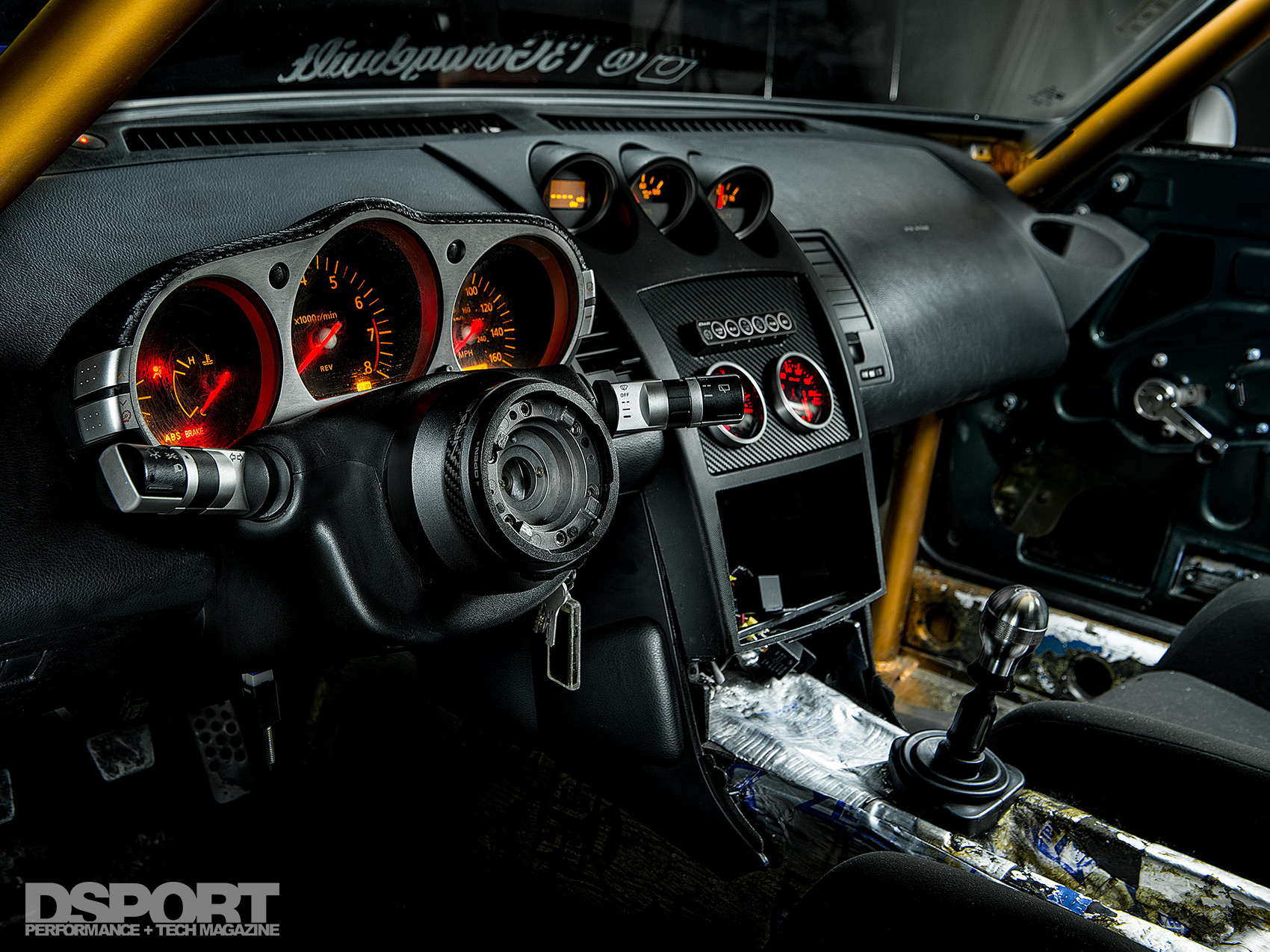

| Etc: | 350Z Dash and Column Conversion |
| EXTERIOR | |
| Front Lip Spoiler: | MSA |

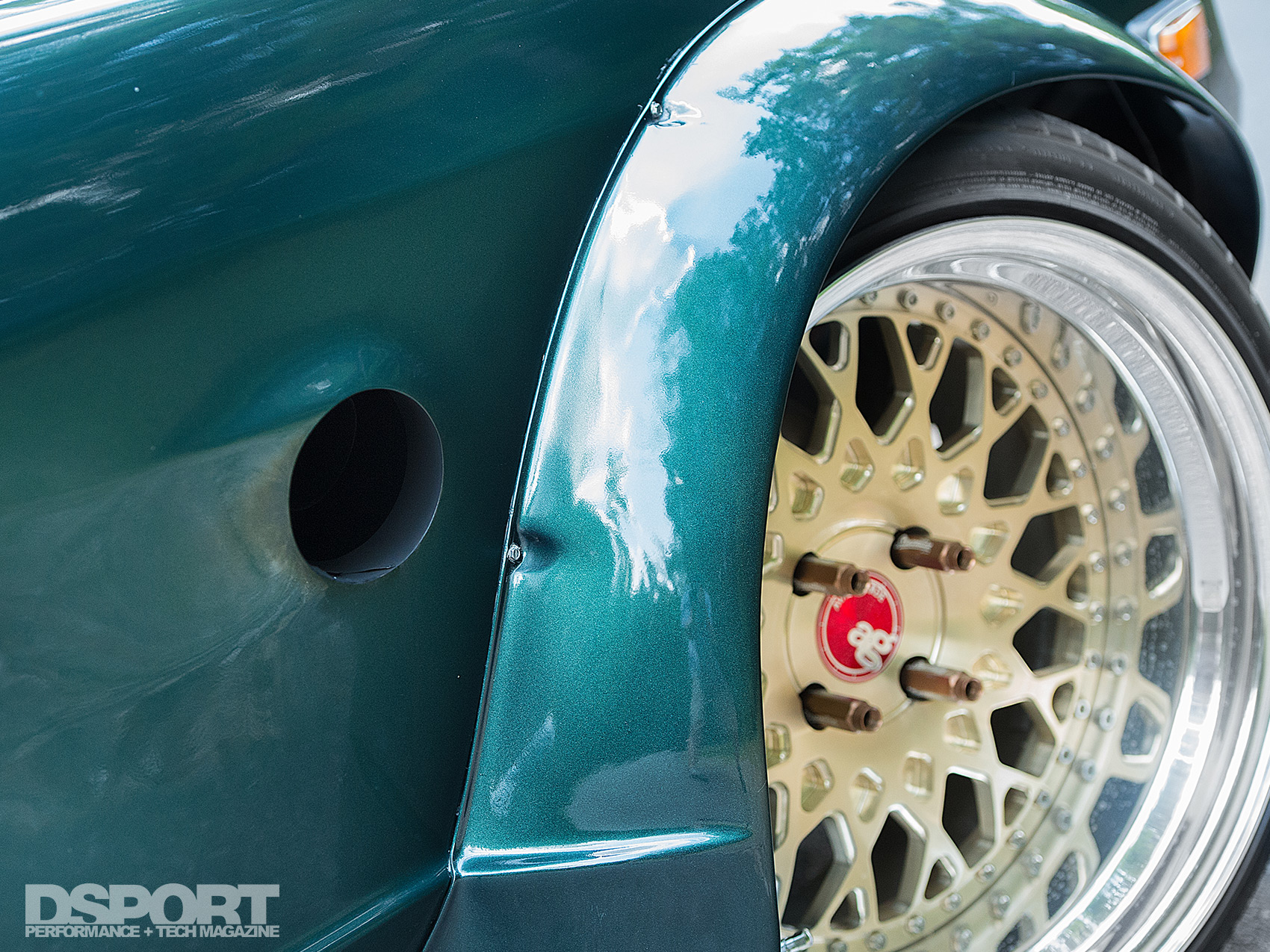

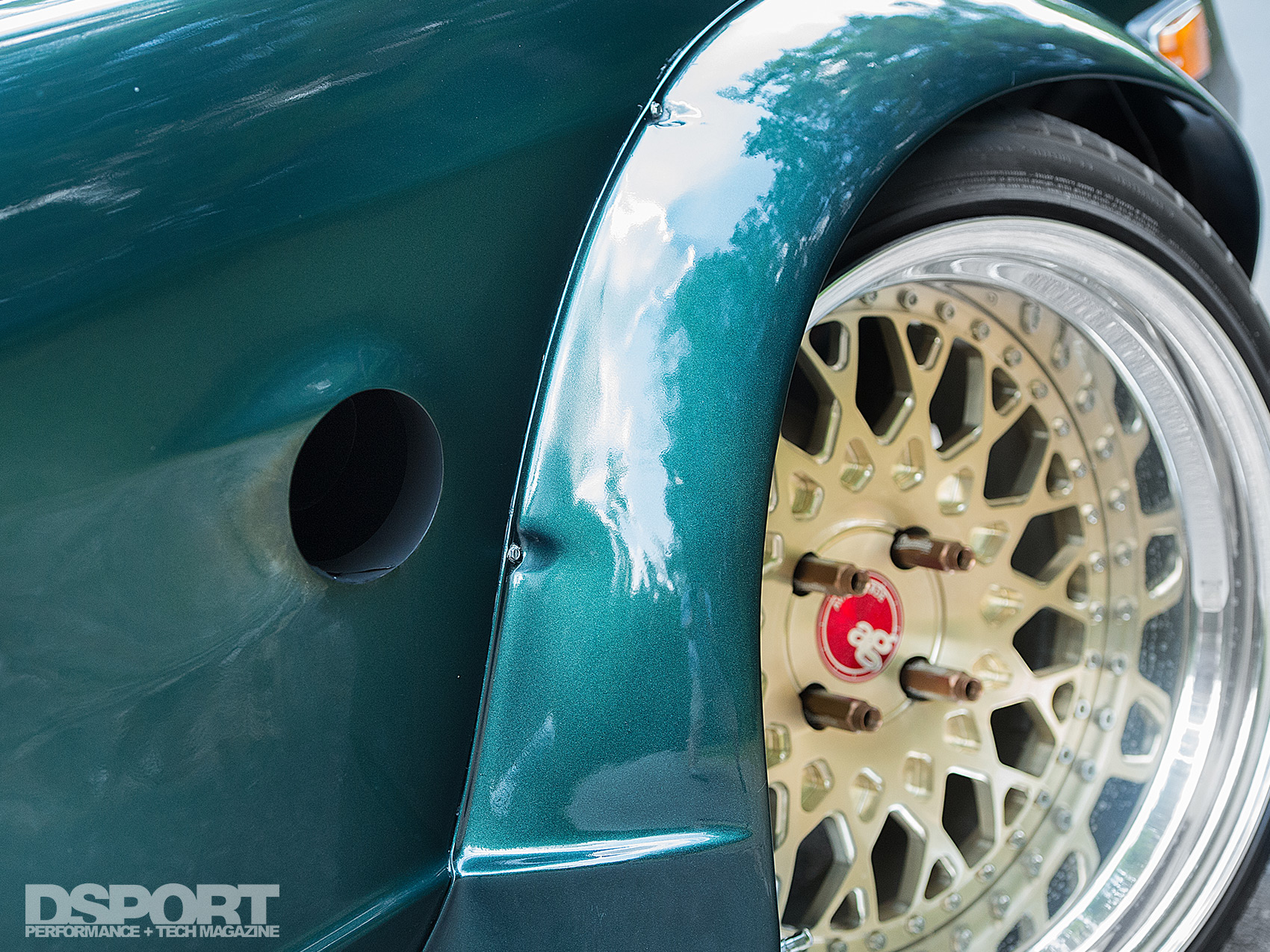

| Fenders: | Marugen Shoukai Works Over Fenders |

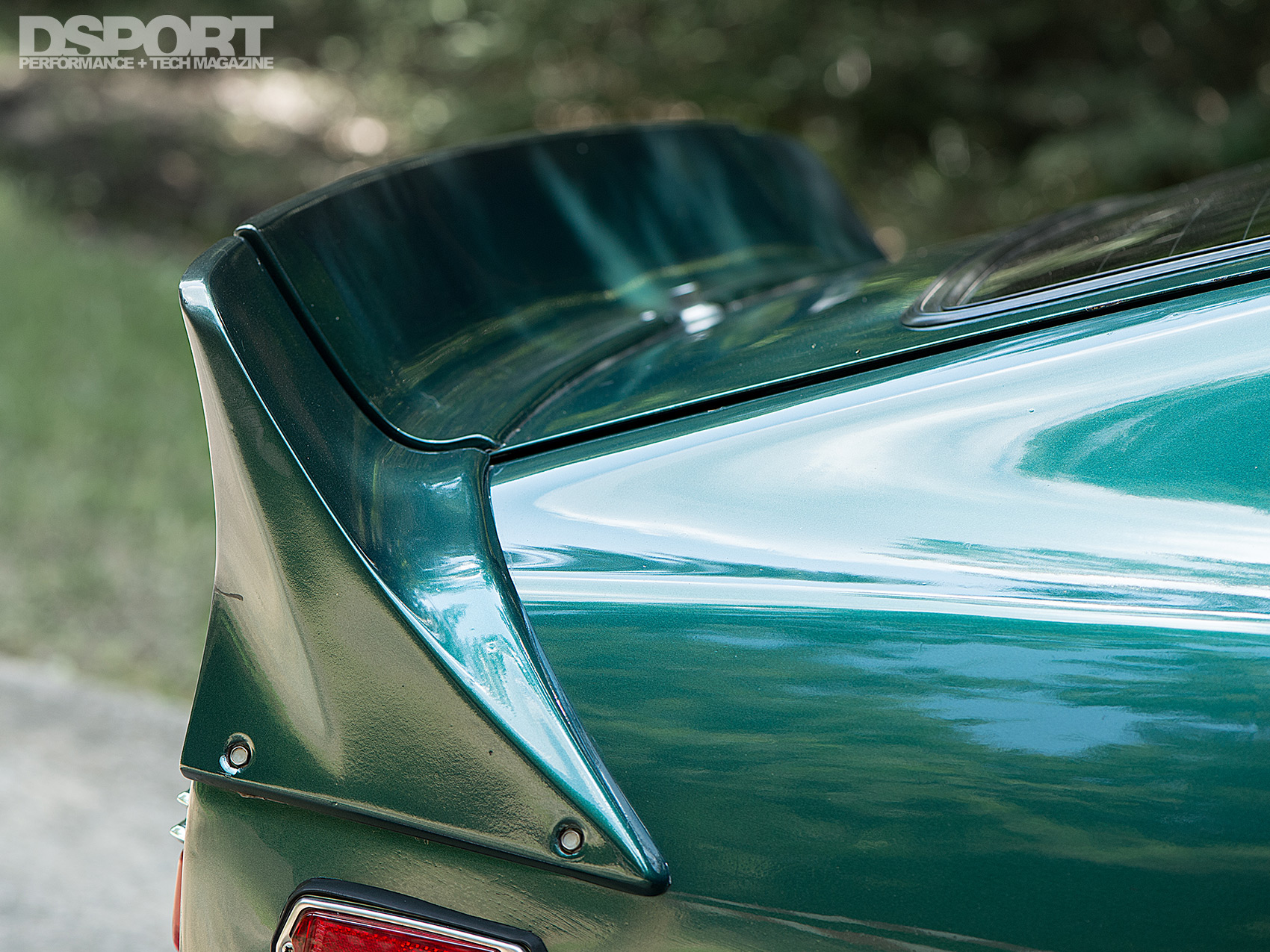

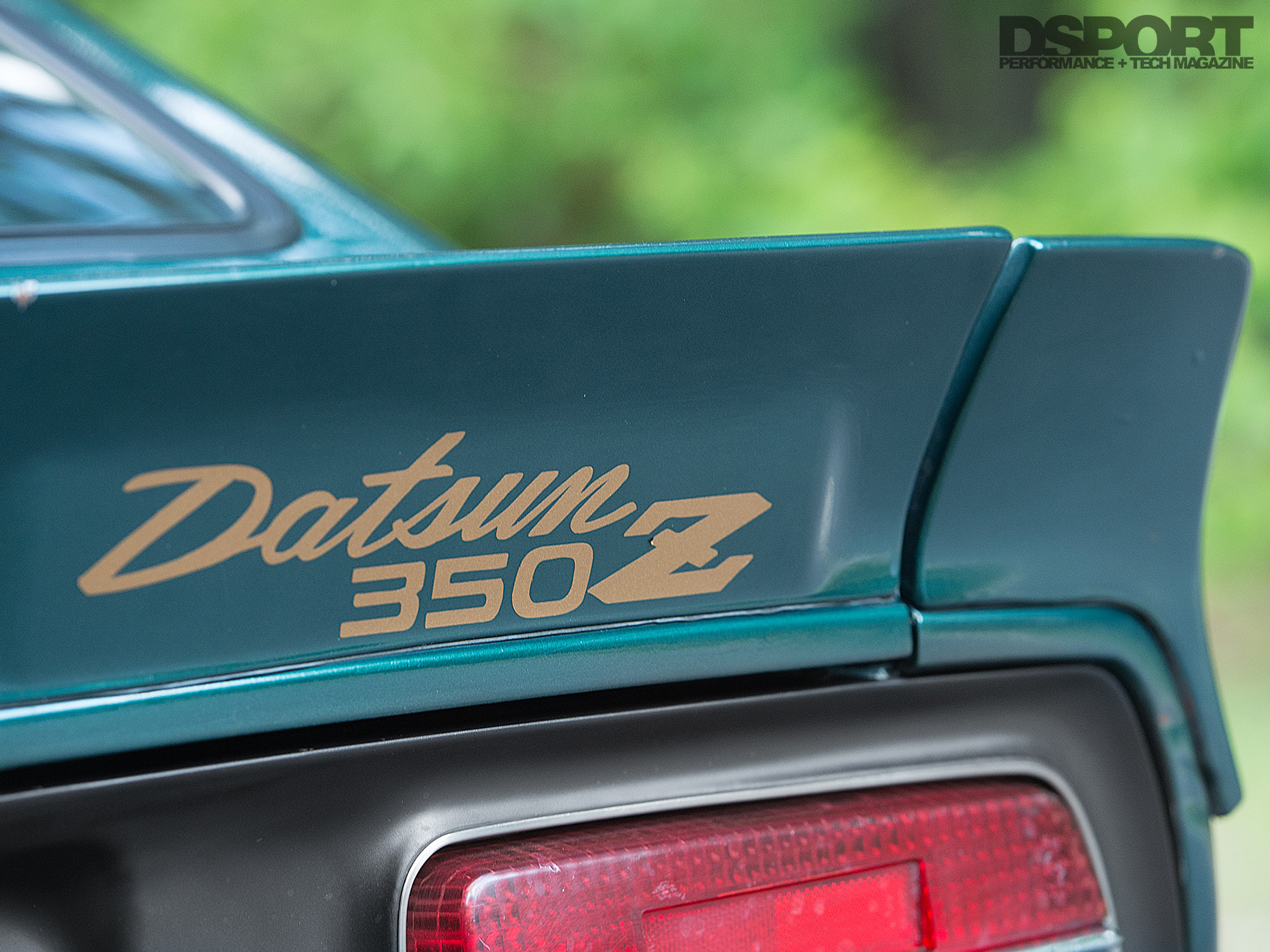

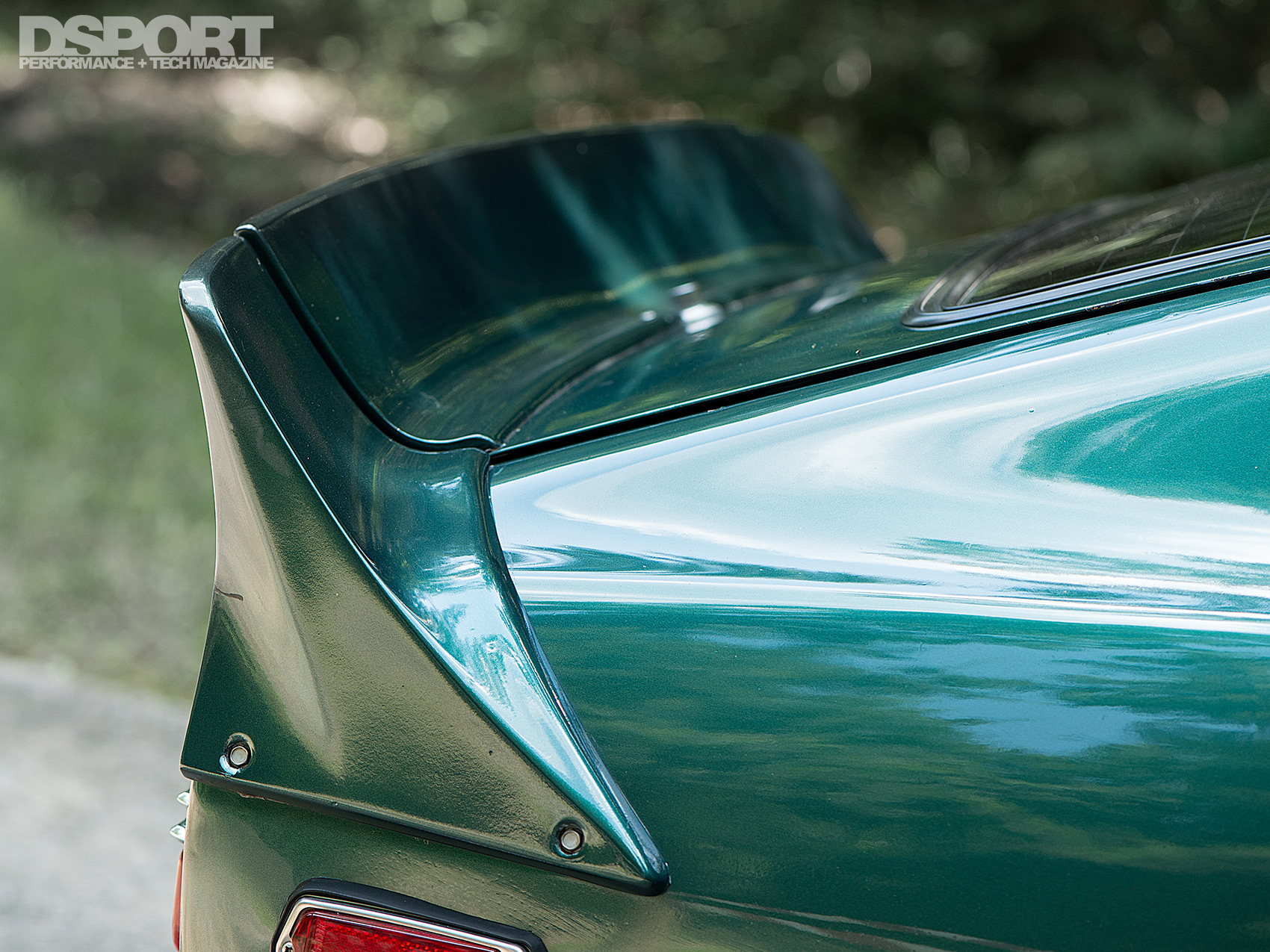

| Spoiler / Wing | 3-piece Wing (Vintage 1970s IMSA) |

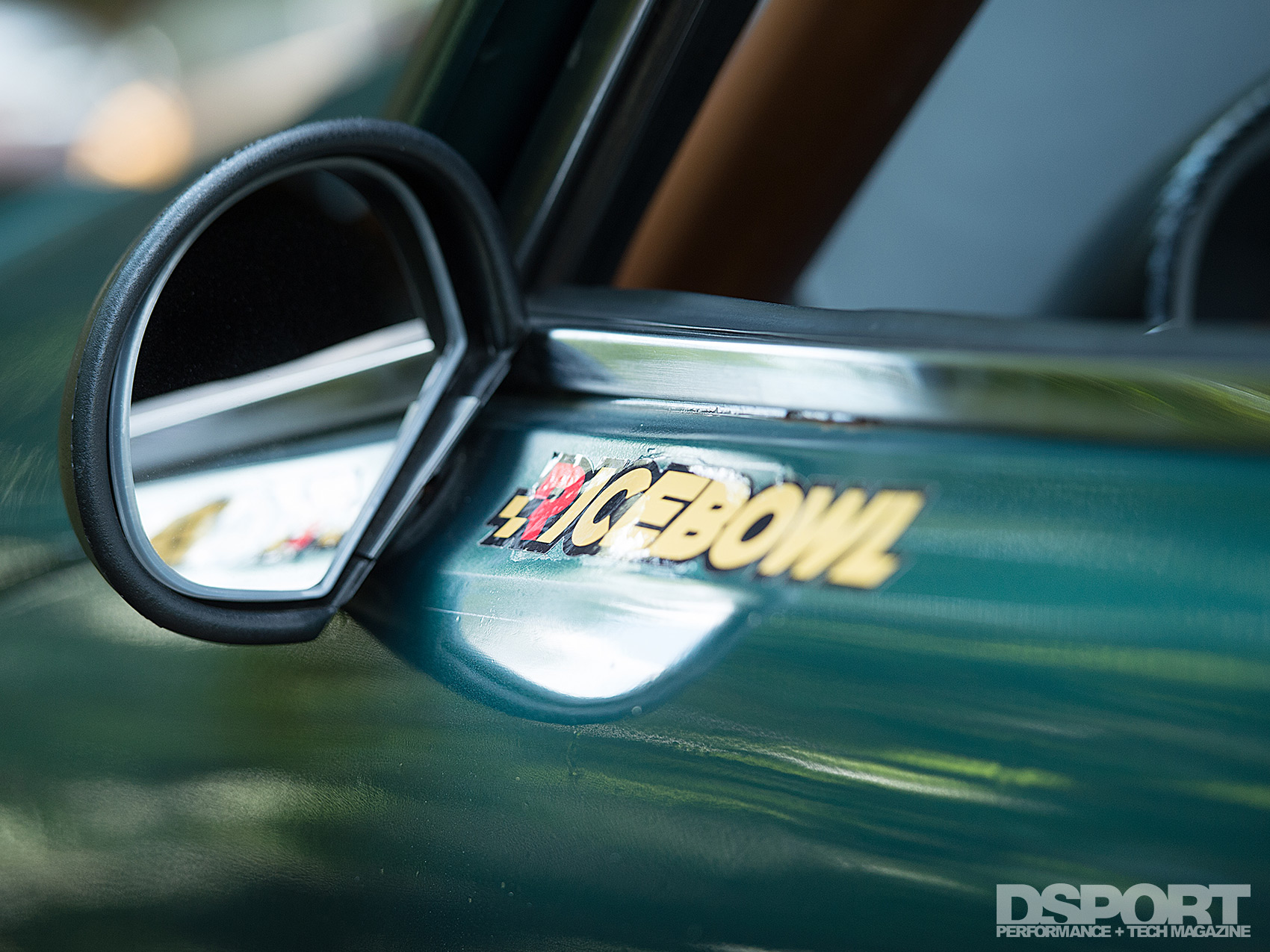

| Mirrors: | Vitaloni Sebring Mach 1 |
| Paint: | Mercedes Aspen Green |
