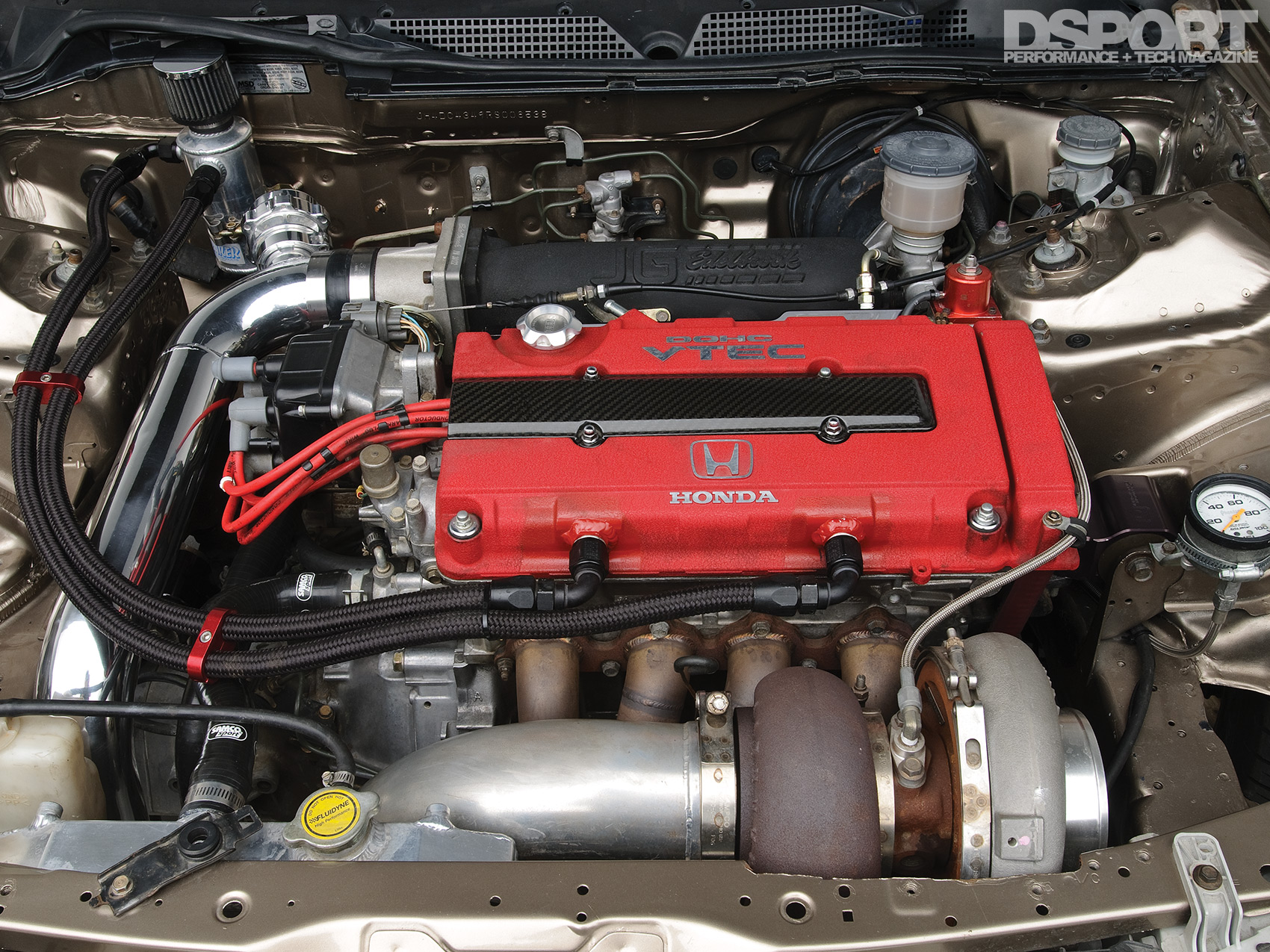

| Engine Code: |
B18A |
| Displacement (cc): |
1,972cc |
| Bore & Stroke (mm): |
84mm x 89mm |

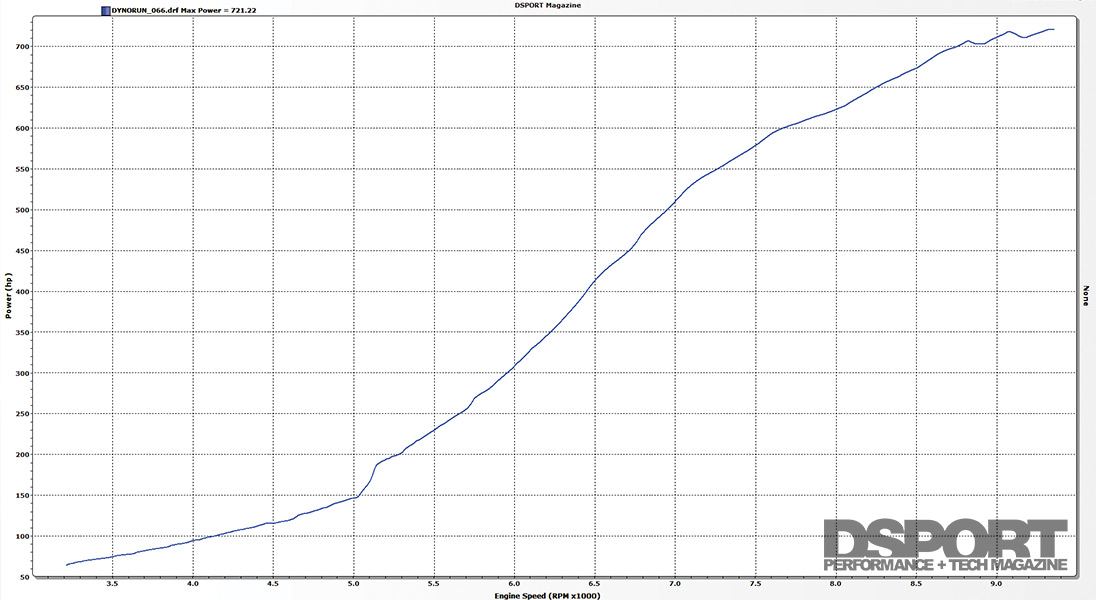

| Peak Horsepower (@ RPM): |
715 whp @ 9,800 RPM |
| Peak Torque (@ RPM): |
480 lb-ft @ 8,820 RPM |
| Dyno Type: |
Dynojet 224X |
| Engine Builder: |
Lucky Mike |
| Block Modifications: |
RS Machine Sleeves |
| Machine Work: |
RS Machine |
| Pistons/Compression Ratio: |
Arias Pistons 9.5:1 Compression |
| Connecting Rods / Crank: |
Eagle Forged Connecting Rods |
| Camshafts: |
Comp Cams 284-degree Camshafts |
| Valves / Springs / Retainers: |
Portflow Valves, Springs & Retainers |
| Cylinder Head Mods: |
Portflow Port Work |
| Head/Main Studs: |
ARP Head Studs |
| Cylinder Head Gasket: |
Honda Factory Head Gasket |

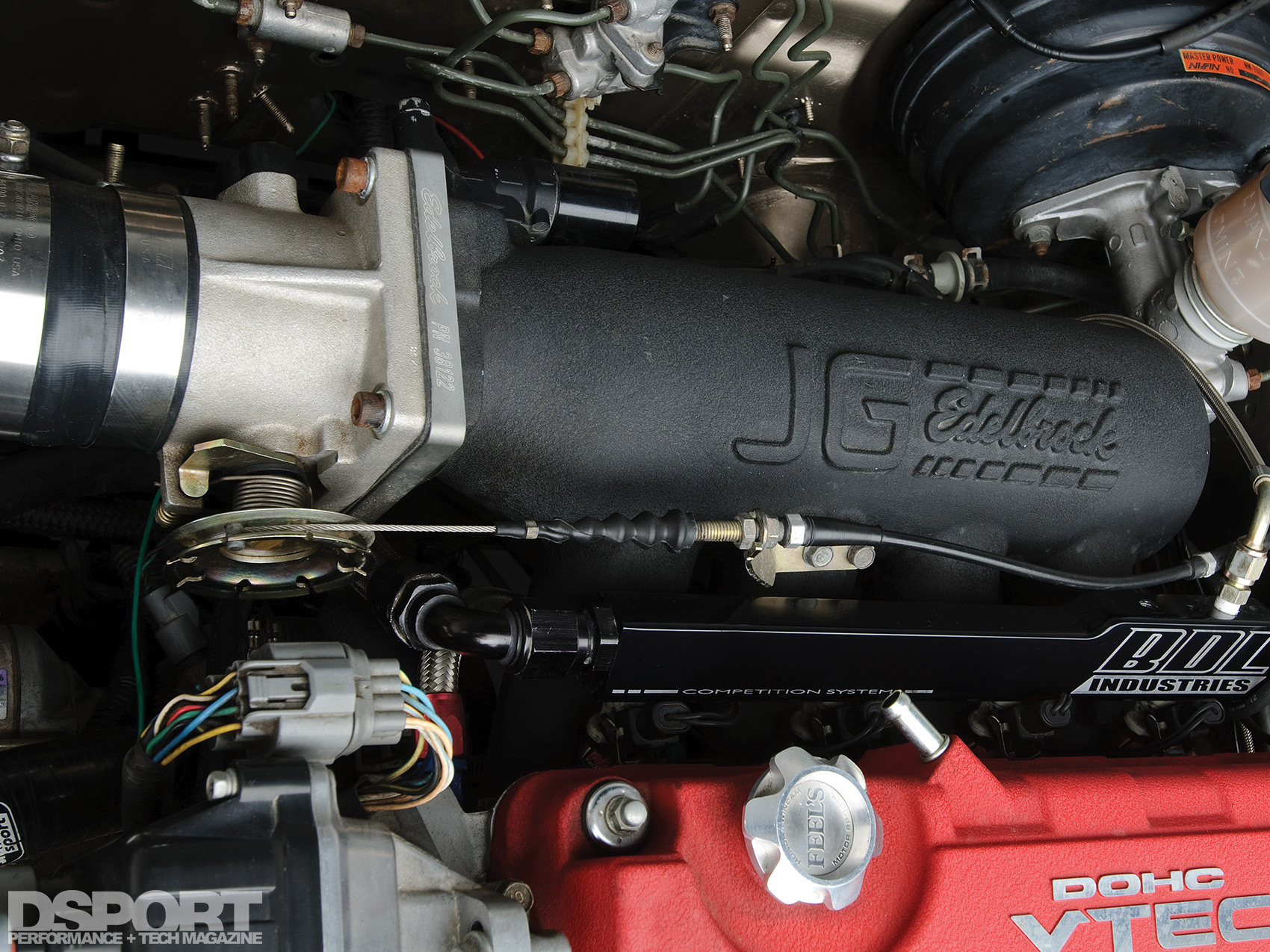

| Intake Manifold: |
JG Edelbrock VictorX Intake Manifold |
| Throttle Body: |
Edelbrock 75mm Throttle Body |
| Air Induction System: |
Power Pros |
| Fuel Injectors: |
RC Engineering 1,600 cc/min (x4) |
| Fuel Delivery System: |
Aeromotive A-1000 Fuel Pump |
| Engine Management System: |
Hondata S300 |
| Engine Management Tuner: |
Power Pros |
| Boost Controller: |
Hondata |
| Ignition: |
MSD 6AL |
| Spark Plugs: |
NGK 9 |
| Exhaust Manifold: |
Power Pros Top-Mount Divided |
| Exhaust System and Downpipe: |
Burns Stainless 4-inch Downpipe and Muffler |
| Wastegate: |
Dual TiAL Sport 44mm Wastegates |
| Blow-Off Valve: |
50mm TiAL Sport |

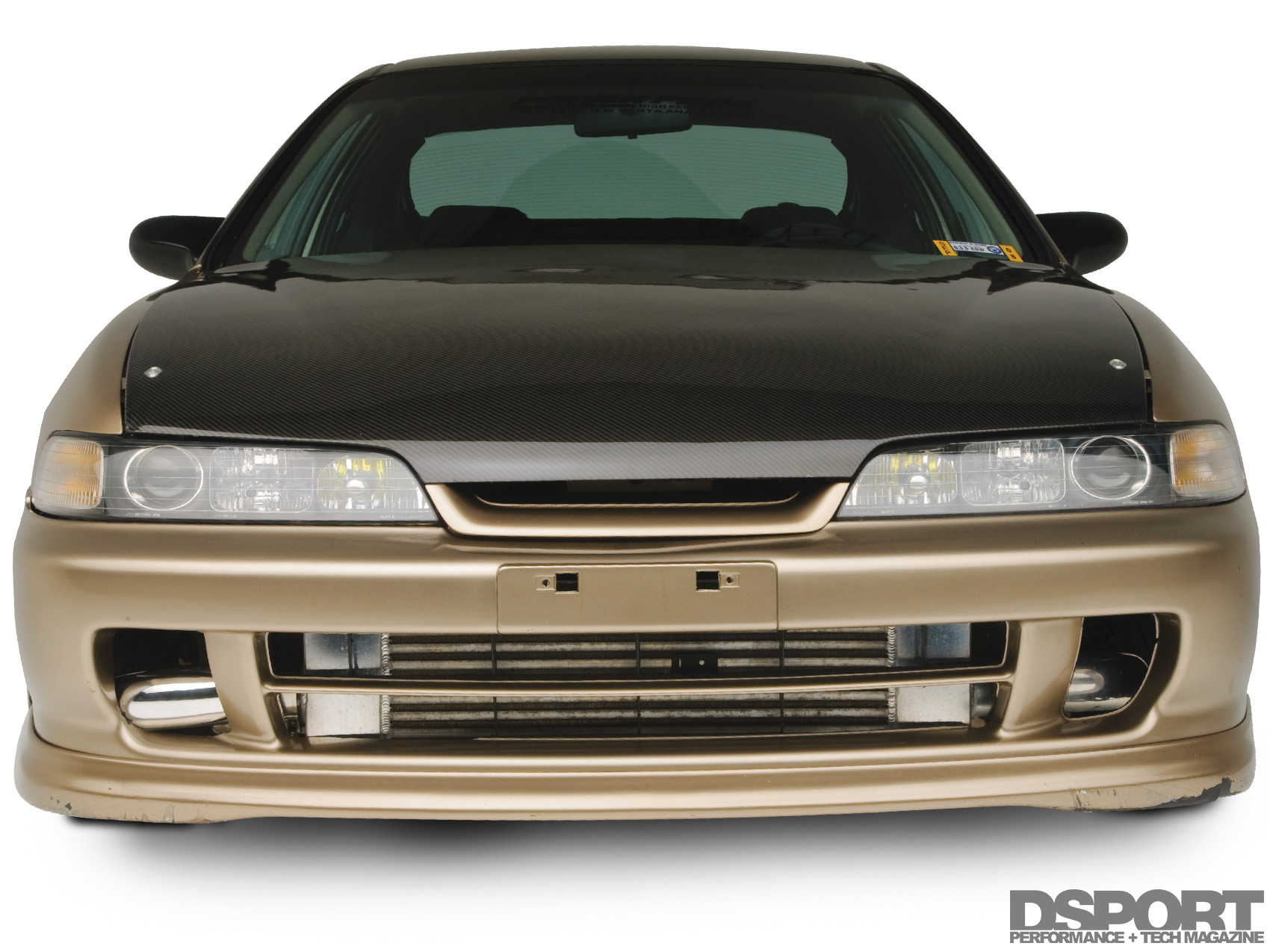

| Intercooler: |
Garrett Front-Mount Intercooler |
| Cooling System: |
Fluidyne Radiator |
|
Samco Silicone Hoses |

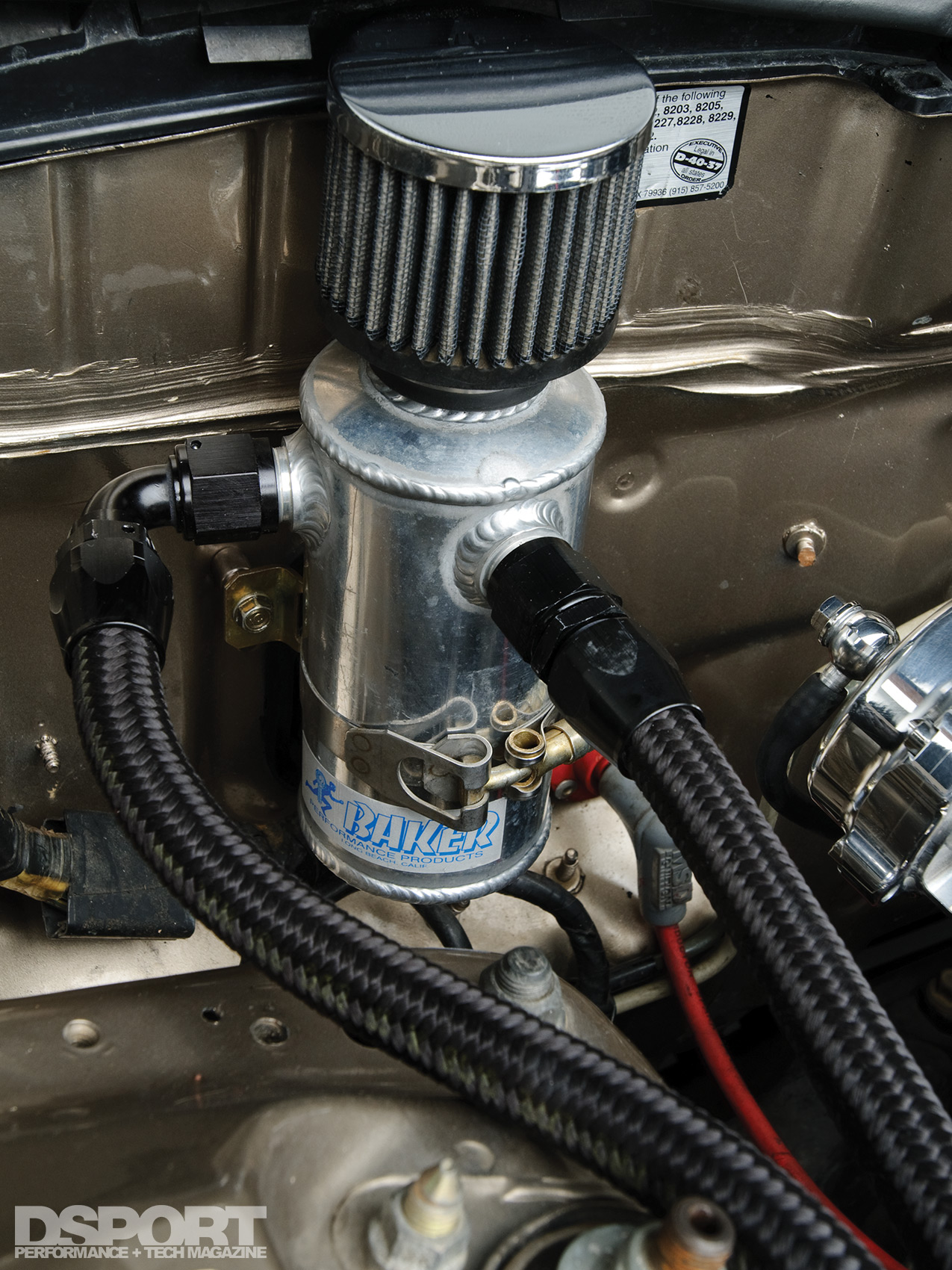

| Oil System: |
Toda Oil Pump Gear |
| Fuel Cell: |
JEGS Fuel Sump |
| Performance Electronics: |

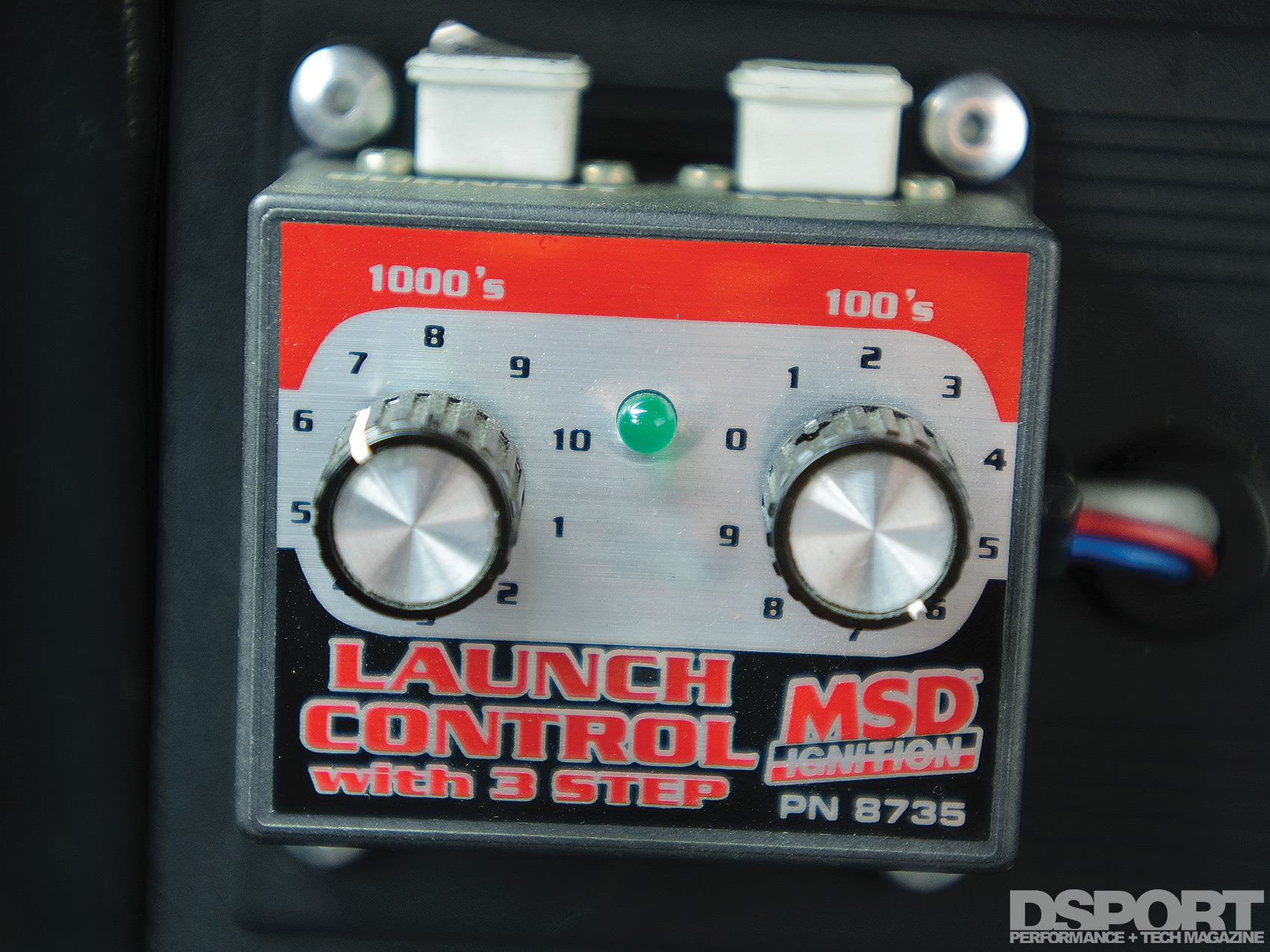

MSD 3-Step w/ Launch Control |
| Springs, F&R (Make & Rate): |
Omni Power Drag Springs 18kgf/mm, 12kgf/mm |
| Shocks, F&R (Make & Rate): |
Omni Power Drag Dampers |
| Additional Suspension Components: |
Traction Bar |
| Transmission: |
Factory ‘96 Integra Type-R (ITR) |
| Final Drive: |
4.4:1 |
| Clutch / Flywheel: |
Clutchmasters FX700 |
| Differential(s) (Make & Type): |
Factory Helical LSD |
| Axles / Driveshaft: |
DriveShaft Shop 3.9 Axles |

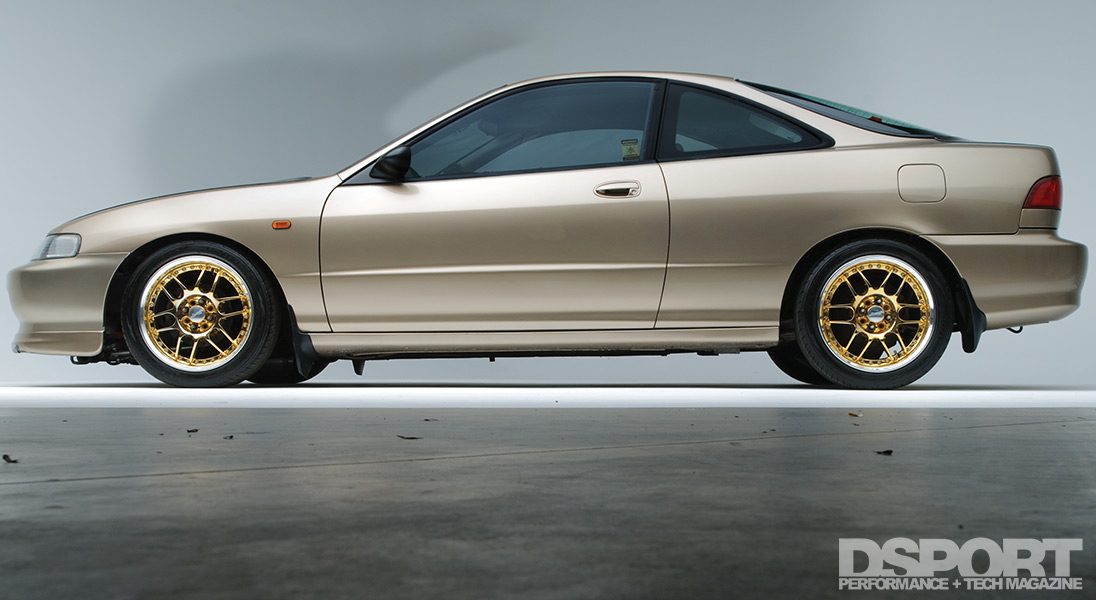

| Wheels (Make, Size & Offset): |

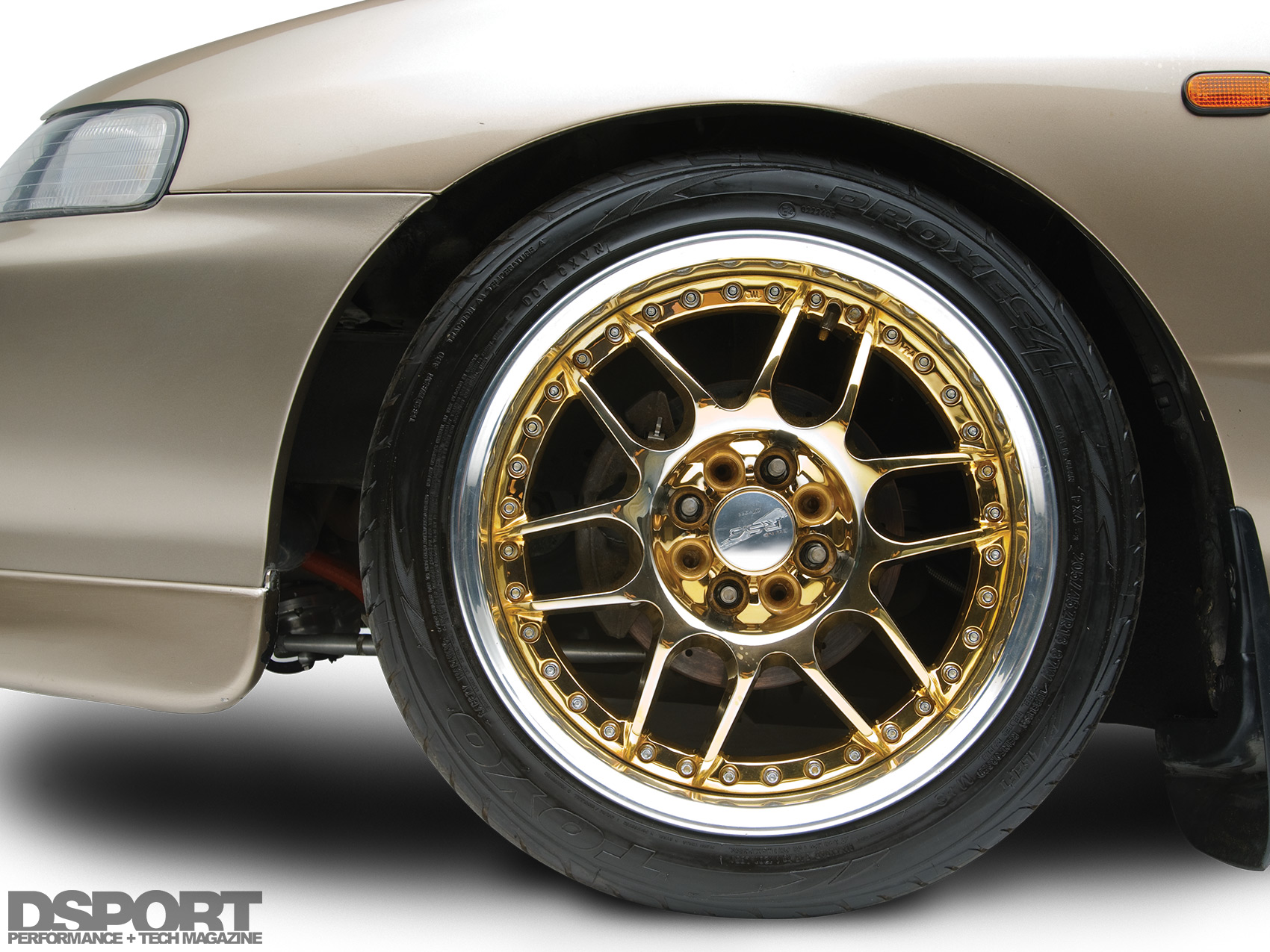

Work RS Beta 16×8-inch (F&R) |
| Tires (Make & Size): |
Toyo Proxes 4 205/45R16 |
| Brake Rotors: |
Brembo Rotors |
