| Engine Code: |
EJ257 |
| Displacement (cc): |
2,520cc |
| Bore & Stroke (mm): |
99.5mm x 81mm |

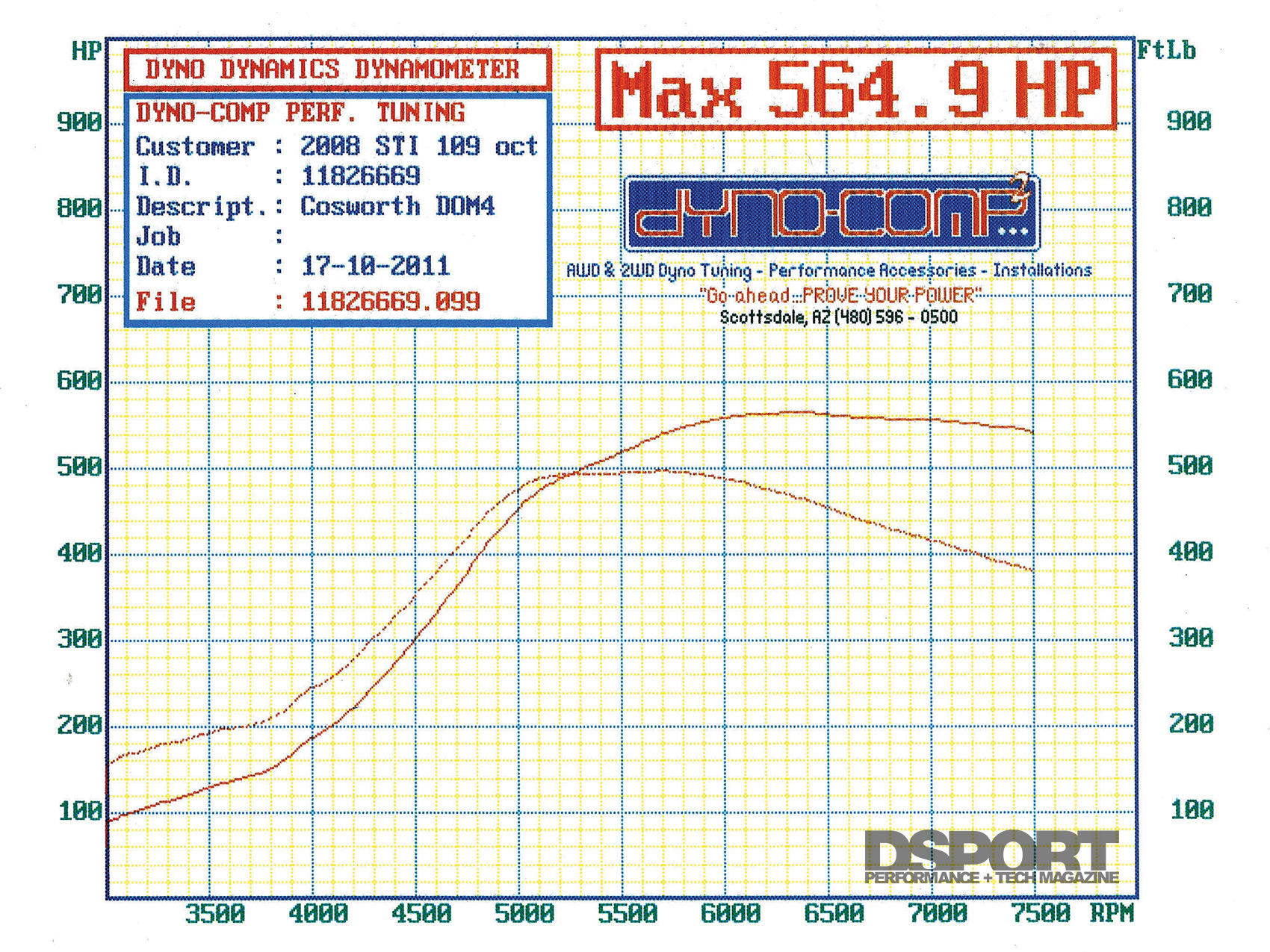

| Peak Horsepower (@ RPM): |
565 whp @ 7,500 RPM |
| Peak Torque (@ RPM): |
500 lb-ft @ 5,500 RPM |
| Dyno Type: |
Dyno Dynamics AWD Dynamometer |
| Engine Builder: |
Cosworth Racing |
| Machine Work: |
Cosworth Racing Cylinder Hone |
| Pistons/Compression Ratio: |
Cosworth 9.2:1 Compression Pistons |
| Connecting Rods / Crank: |
Cosworth Forged-steel Connecting Rods |
|
Cosworth Billet Steel 81mm Stroker |
| Camshafts: |
Cosworth S2 Camshafts |
| Valves / Springs / Retainers: |
Cosworth +1mm Valves (Stainless-steel Intake, |
|
Inconel Exhaust), Dual Valve Springs, Titanium Retainers |
| Cylinder Head Mods: |
Cosworth CNC-ported Heads TGV Delete |
| Head/Main Studs: |
ARP 11mm Head Studs |
| Cylinder Head Gasket: |
Cosworth MLS Head Gaskets |
| Air Induction System: |
Custom 85mm Intake |
| Fuel Injectors: |
Dyno-Comp 1,000 cc/min Injectors (x4) |
| Fuel Delivery System: |
DeatschWerks 320-lph Fuel Pump |
| Engine Management System: |
ECUTeK Racerom |
| Engine Management Tuner: |
Richard Garcia of Dyno Comp |
| Boost Controller: |
Prodrive 3-port Solenoid |
| Spark Plugs: |
NGK LFR7AIX |
| Exhaust Manifold: |
TOMEI POWERED Equal-Length Manifold |

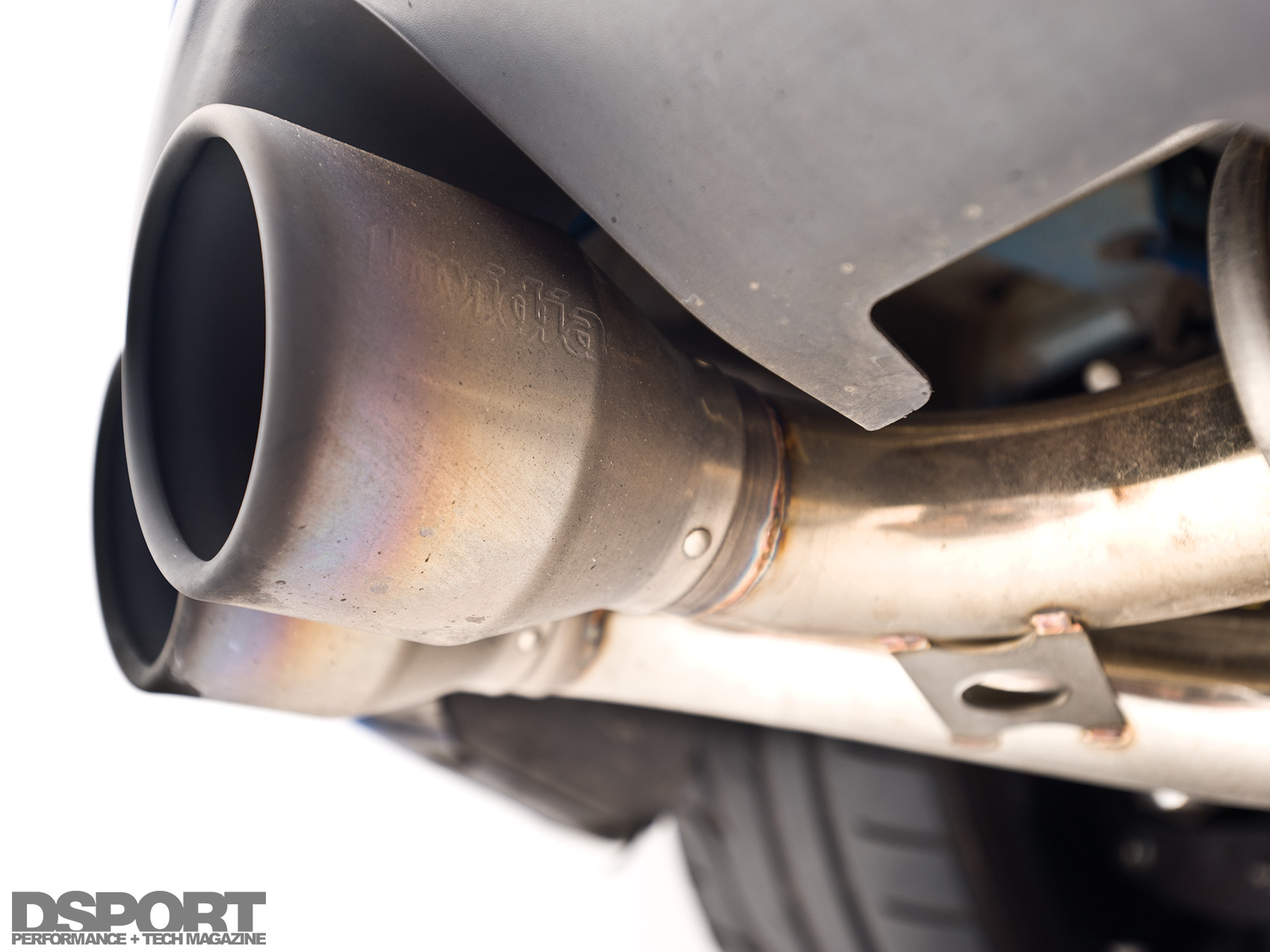

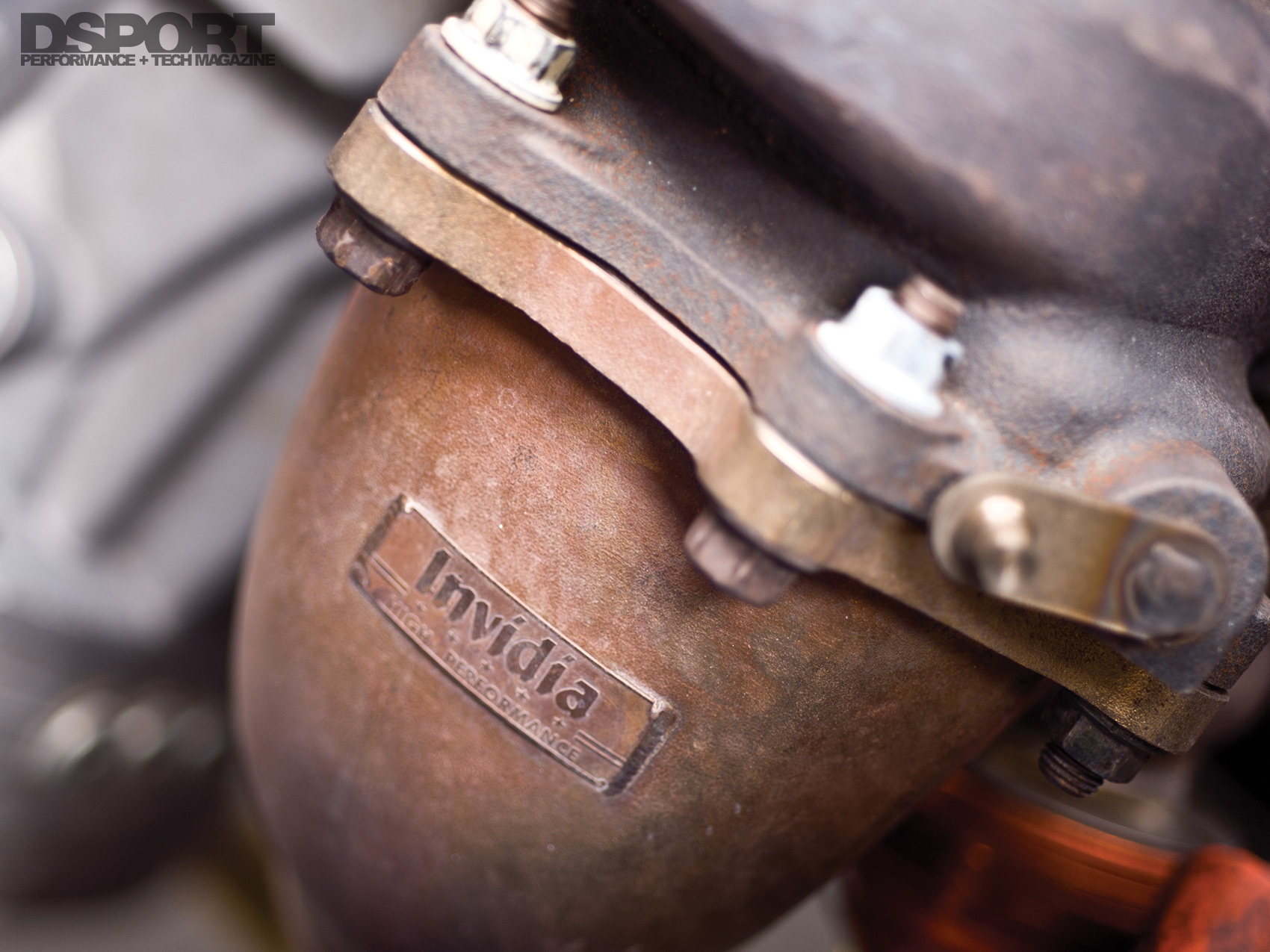

| Exhaust System: |

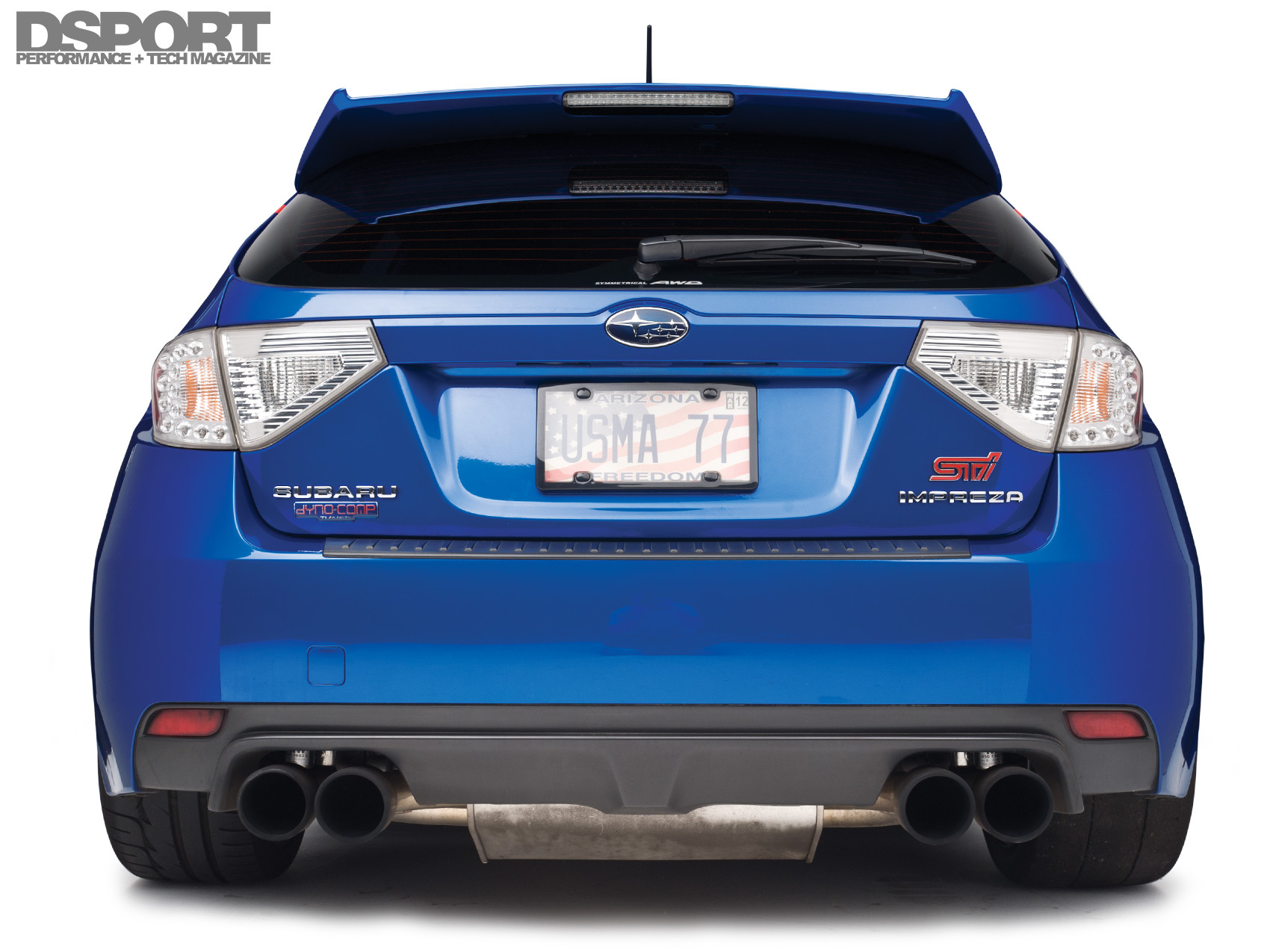

Invidia Q300 Exhaust |
| Downpipe: |
Catless Downpipe |
| Wastegate: |
TiAL Sport 38mm External Wastegate |
| Blow-Off Valve: |
Perrin Performance Blow-off Valve |
| Intercooler: |

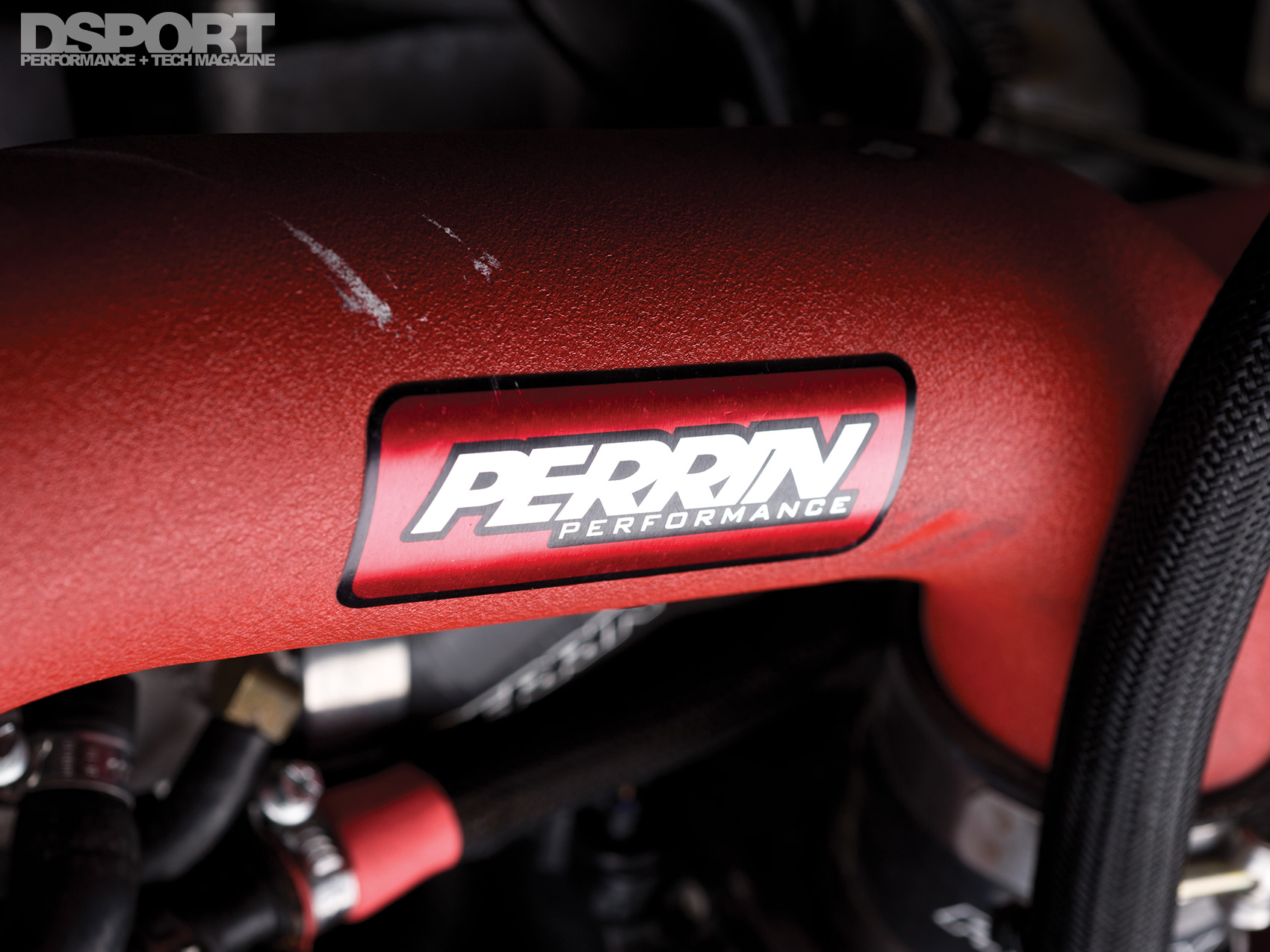

Perrin Performance Front-mount Intercooler |

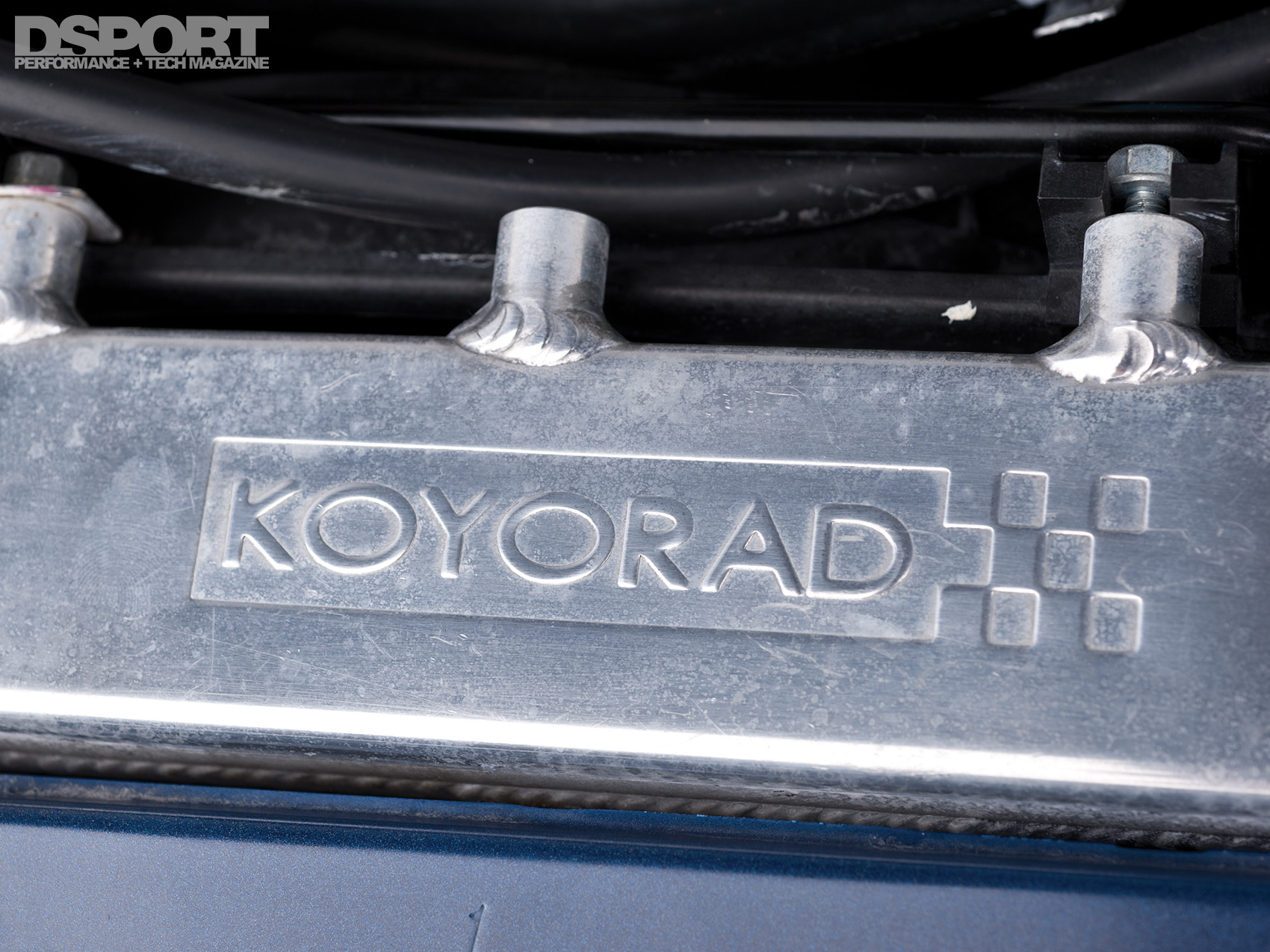

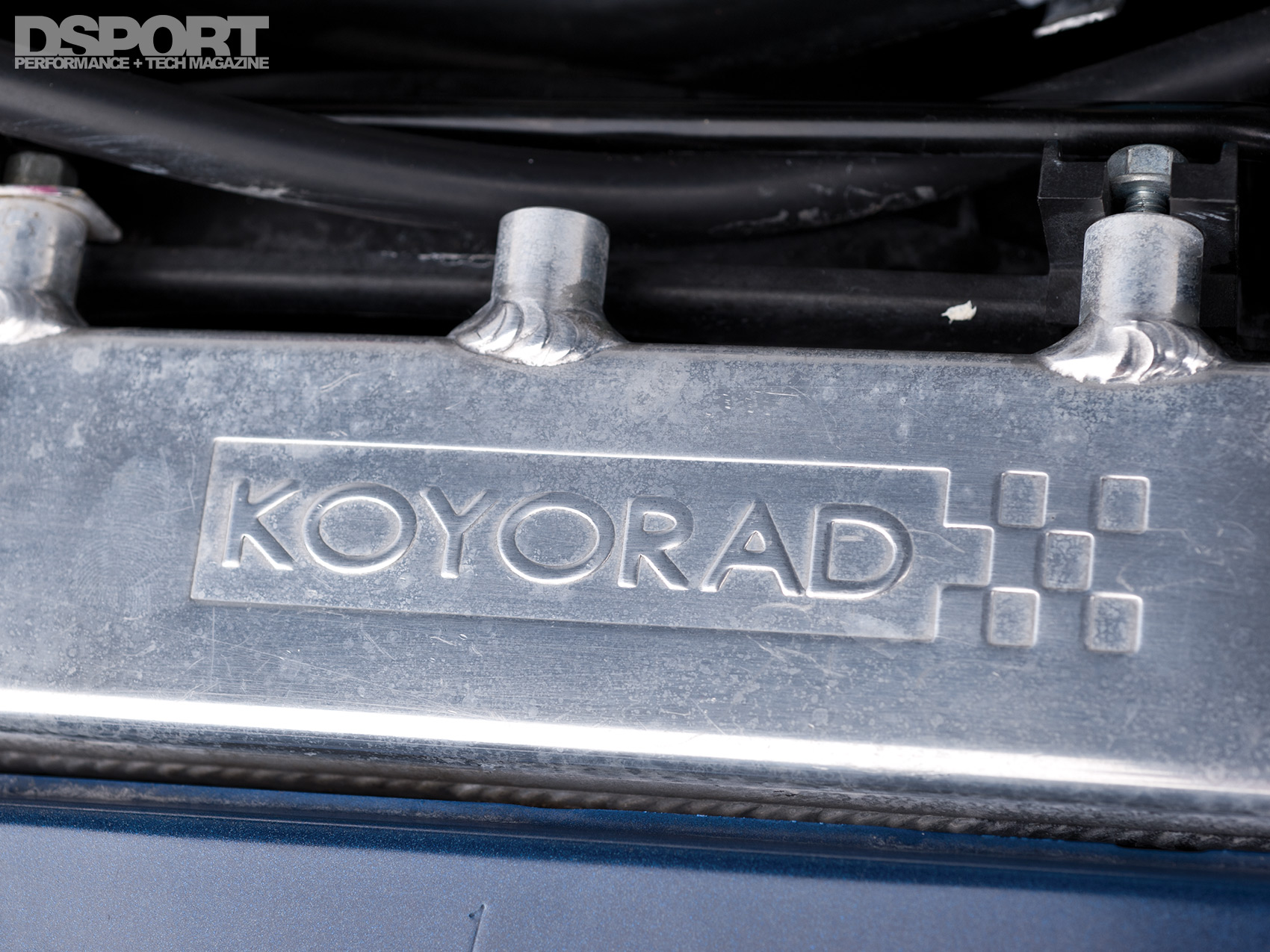

| Cooling System: |
Koyo Aluminum Radiator |
| Oil System: |
Cosworth High Volume/ High Pressure Oil Pump, |
|
Cosworth Oil Baffle |
| Springs, F&R (Make & Rate): |
KW Suspension Springs |
| Shocks, F&R (Make & Rate): |

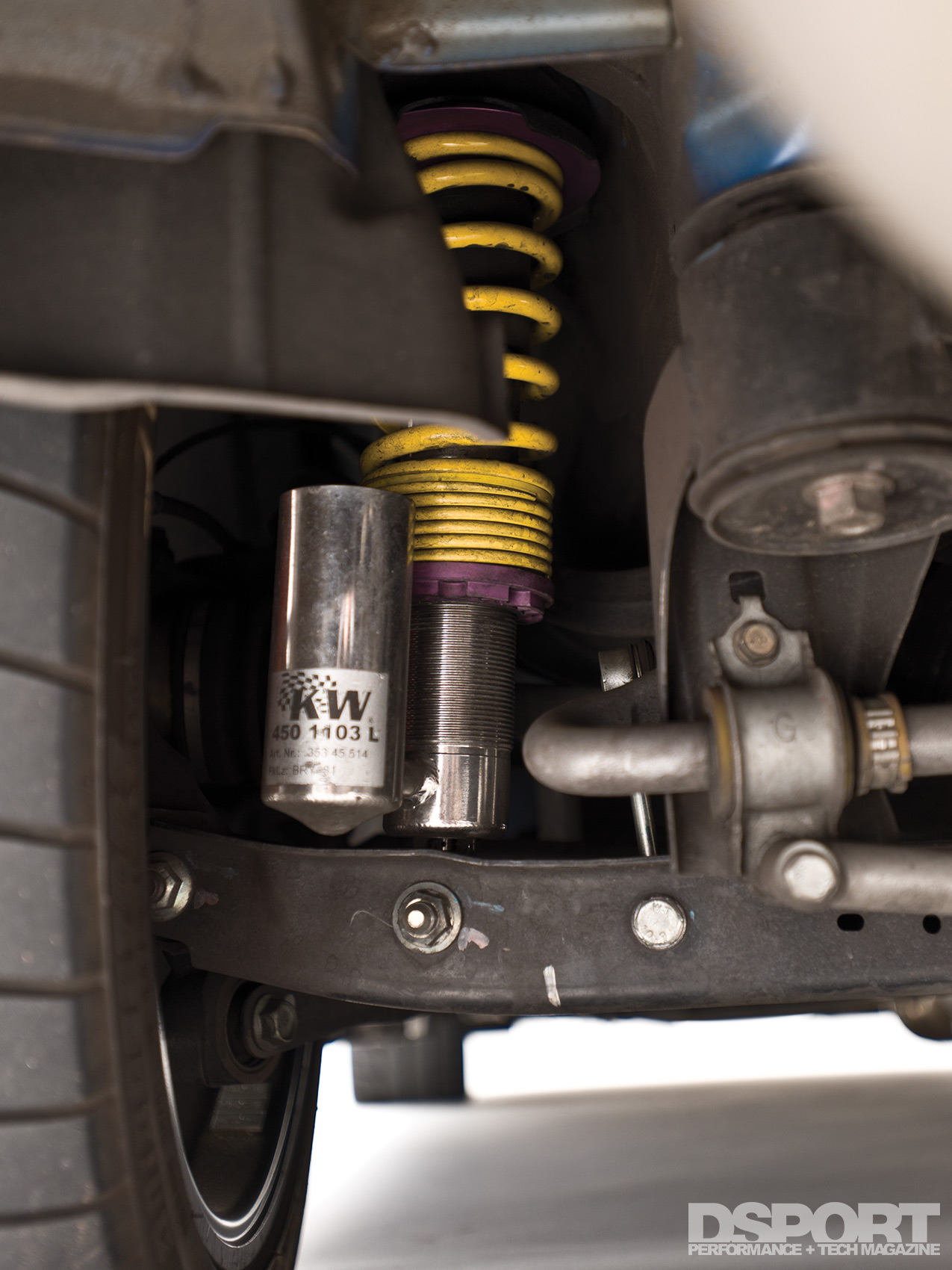

KW Suspension V3 Coilovers |
| Additional Suspension Components: |
Vorshlag Camber Kit, Whiteline Sway Bars (F&R), |
|
Strut Tower Brace (F), Front Lower Control Arm Brace |
| Clutch / Flywheel: |
ACT Stage-2 Clutch, Extreme Pressure Plate |
|
& Lightweight Flywheel |
| Wheels (Make, Size & Offset): |

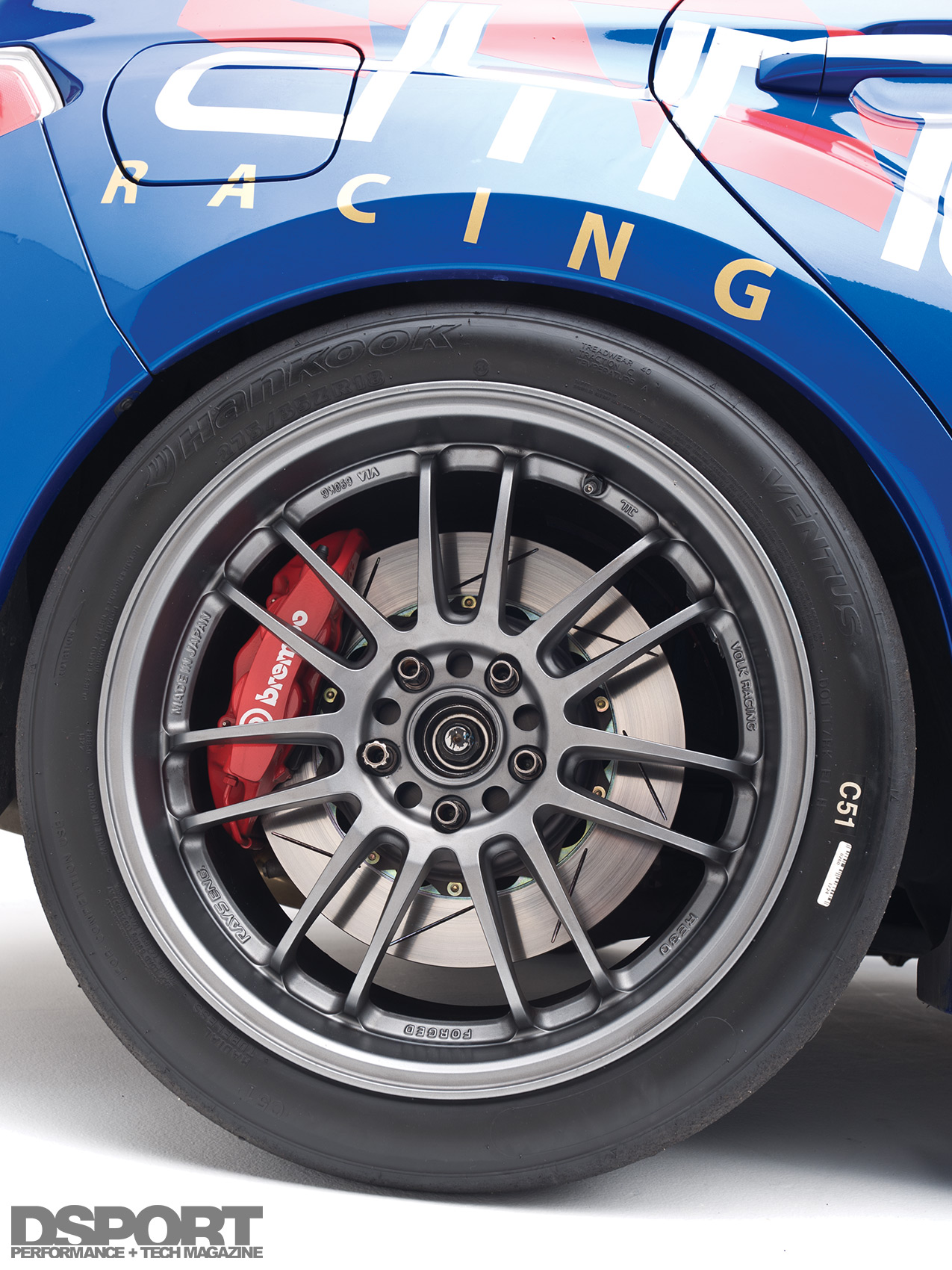

Volk Racing RE30 Wheels, 18×9.5-inch +42 |
| Tires (Make & Size): |
Hankook Ventus Z214 (C51) 275/35R18 (F&R) |
| Brakes: |
Brembo High Thermal GT Kit, Forged Monoblock |
|
6-piston (F), 4-piston (R) |
| Brake Rotors: |
Brembo 350mm x 34mm (F), 345mm x 28mm (R) |
| Brake Pads: |
Hawk HP Plus Track Compound |
| Brake Lines: |
TechnaFit Stainless-steel Braided Lines |
| Etc: |
Motul Brake Fluid |
