E85-Fueled Street/Strip Toyota Supra Defies Altitude with Attitude

SPEC SHEET

VEHICLE

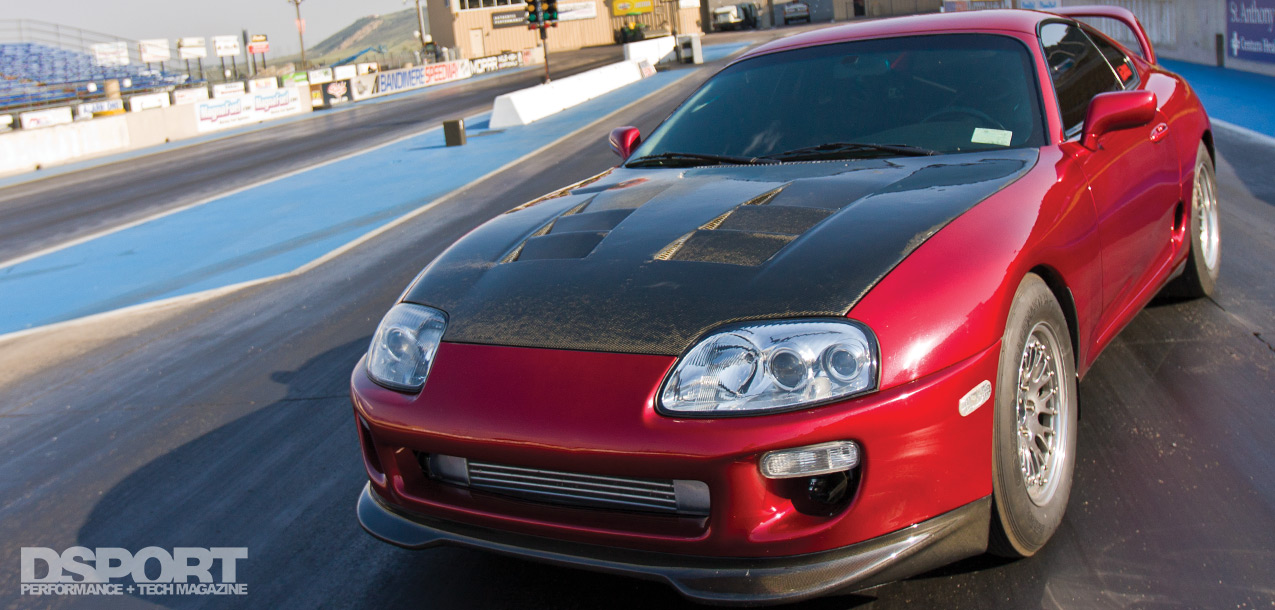

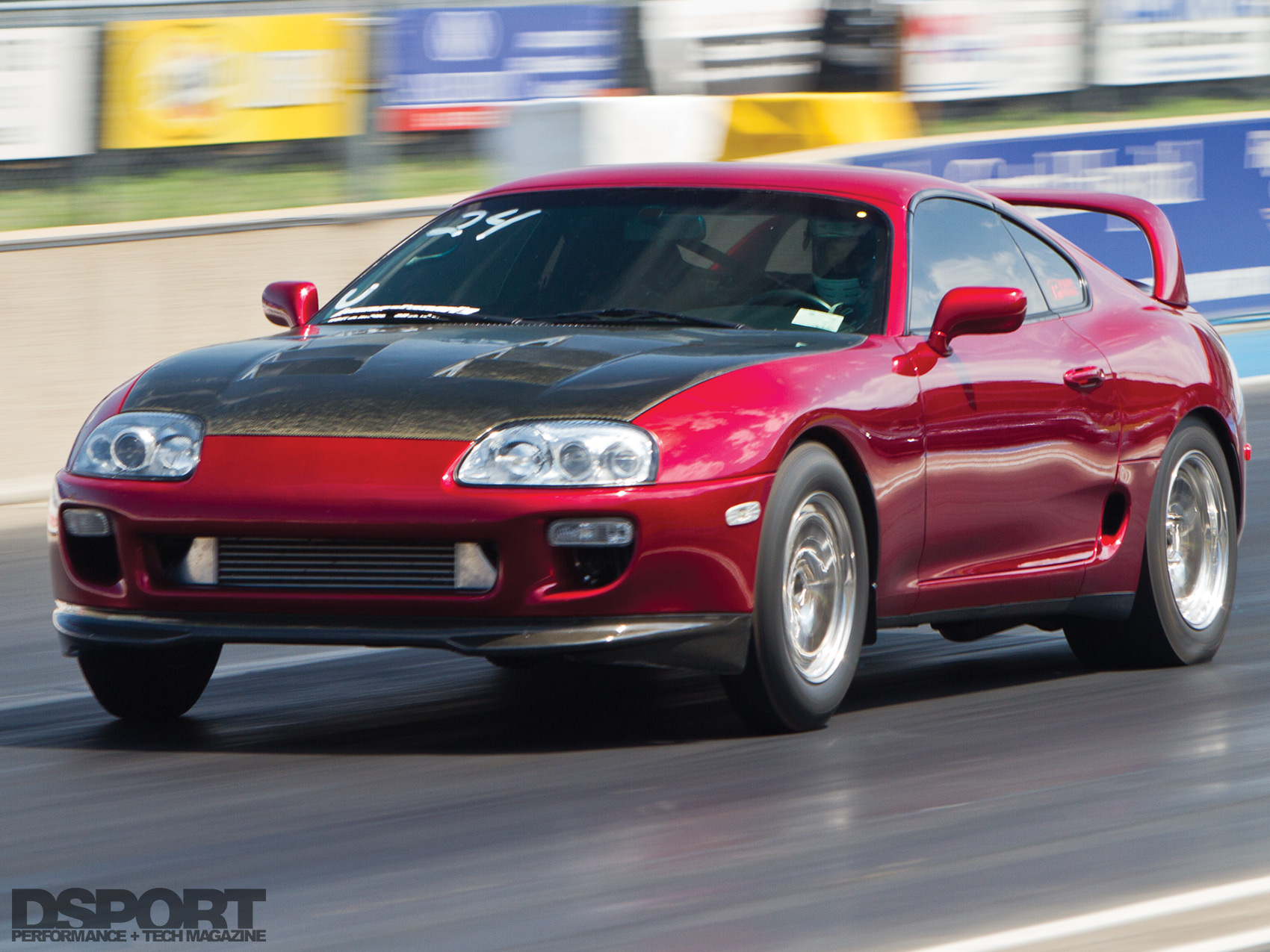

Year / Make / Model: 1994 Toyota Supra
Chassis Code: JZA80
Vehicle Weight: 3,500 lbs. With Driver
Launch RPM: 6,000 RPM
Shift RPM: 8,000 RPM
Redline RPM: 8,000 RPM
Peak Boost: 32 psi
Fuel: E85

ENGINE

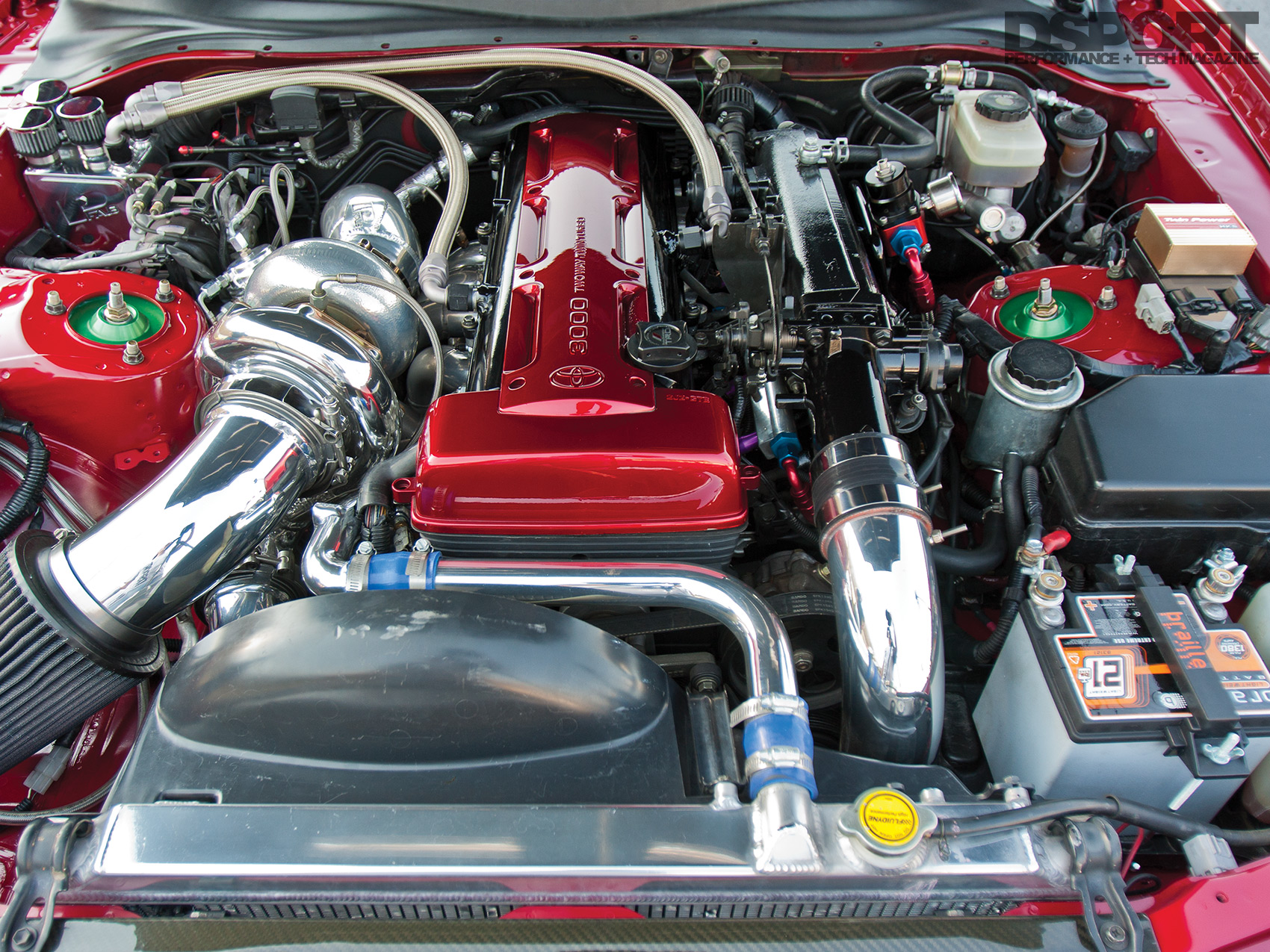

Engine Code: 2JZ-GTE
Displacement (cc): 2,998cc
Bore & Stroke (mm): 86.5mm x 86mm

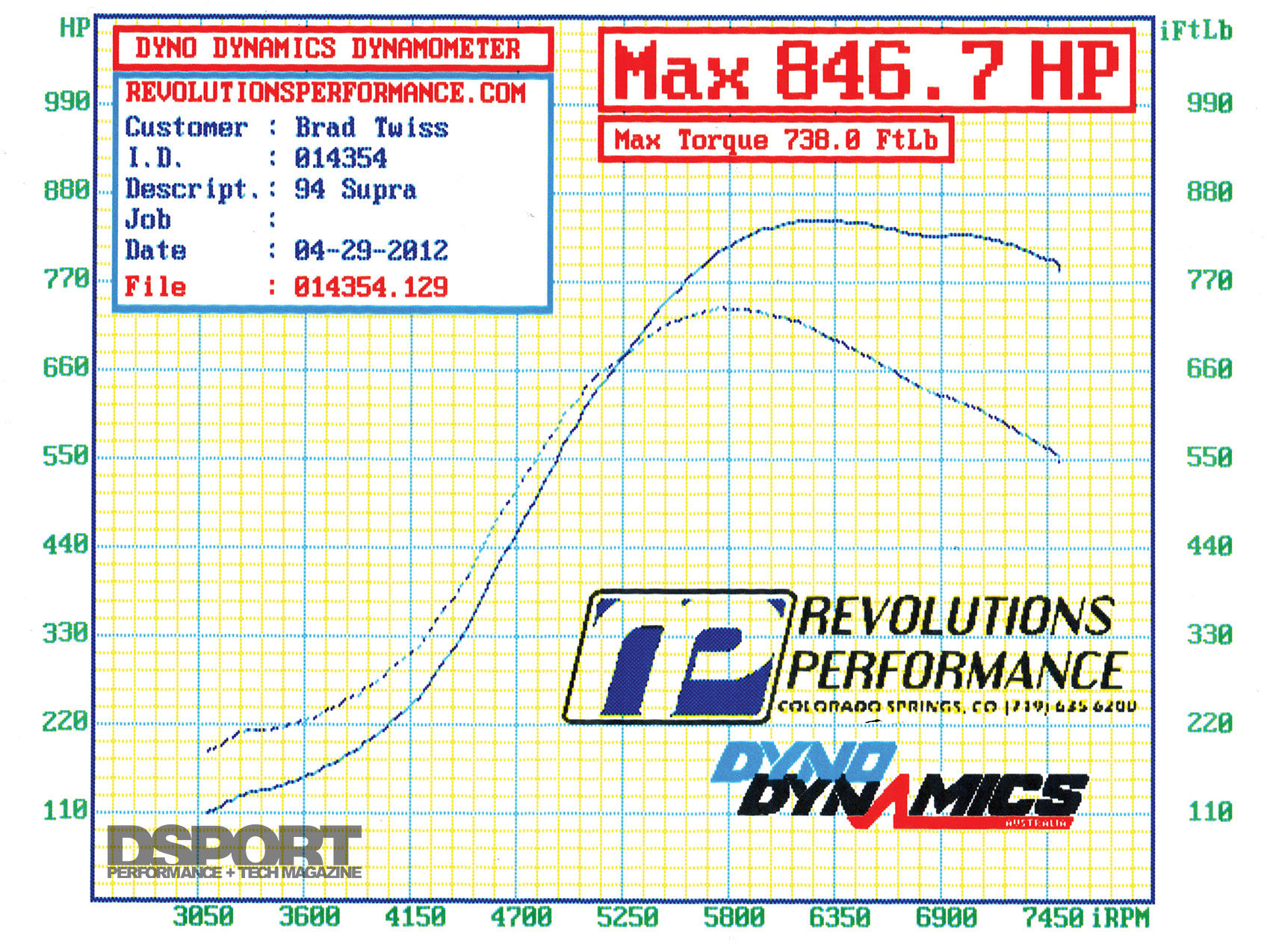

Peak Horsepower (@ RPM): 847 whp @ 6,100 RPM
Peak Torque (@ RPM): 738 lb-ft @ 5,750 RPM
Dyno Type: Dyno Dynamics
Engine Builder: Revolutions Performance
Block Modifications: Greeley Automotive Machine 0.5mm overbore
Pistons/Compression Ratio: CP Pistons Custom 9.75:1 Compression
Connecting Rods / Crank: Eagle Connecting Rods
Camshafts: HKS 264-degree Camshafts (IN&EX)
Valves / Springs / Retainers: BC Brian Crower Valves, Springs, Ti Retainers
Head/Main Studs: ARP Head Studs
Fuel Injectors: Injector Dynamics ID2200 Injectors (x6)
Fuel Delivery System: Walbro 255-lph In-tank Pumps (x2)
Engine Management System: AEM EMS1
Engine Management Tuner: Jeremy Leisy at Servion Tuning
Boost Controller: AEM Electronic Boost Controller
Ignition: Super Spark Coils
Spark Plugs: NGK 4644
Exhaust Manifold: PFab Custom Twin-Scroll Equal Length Manifold
Downpipe: PFab Custom 4-inch Down Pipe

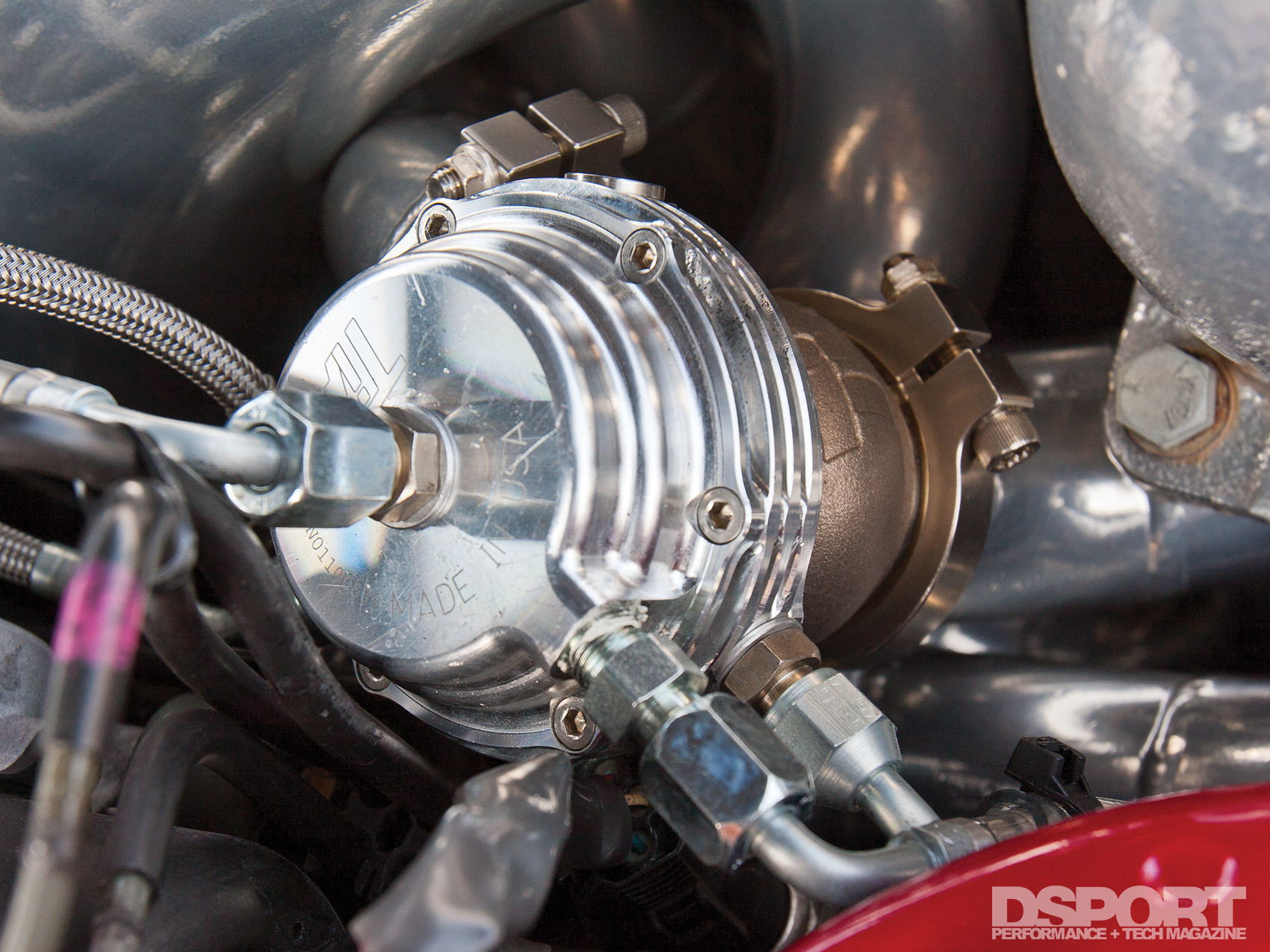

Wastegate: Dual TiAL Sport 38mm
Blow-Off Valve: HKS Super Sequential BOV
Intercooler: GReddy 4-row Front-mount Intercooler
TURBOCHARGER

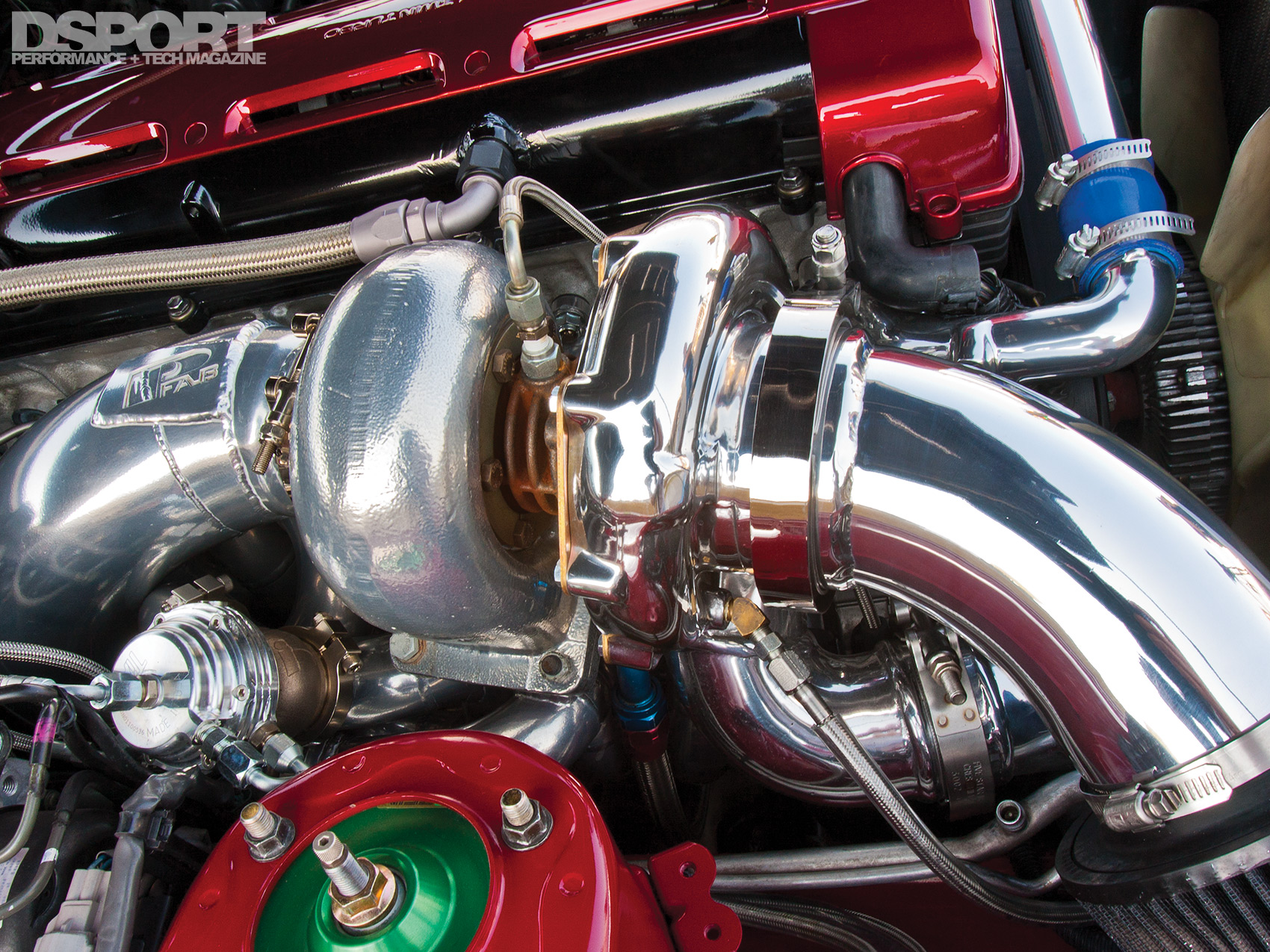

Turbocharger: Precision Turbo & Engine CEA 6766 BB
Frame: T4
Compressor Wheel Specs: 67mm Inducer
Turbine Wheel Specs: 66mm Exducer, 76 trim
Turbine Housing: T4 Divided
CHASSIS/DRIVELINE
Springs, F&R (Make & Rate): TEIN 12kgf/mm, 7kgf/mm
Damperss, F&R (Make & Rate): TEIN H1 Dampers
Transmission: Getrag Rebuilt by Jacks Transmissions
Clutch / Flywheel: RPS Twin Disk Carbon Carbon
Differential(s) (Make & Type): TRD LSD

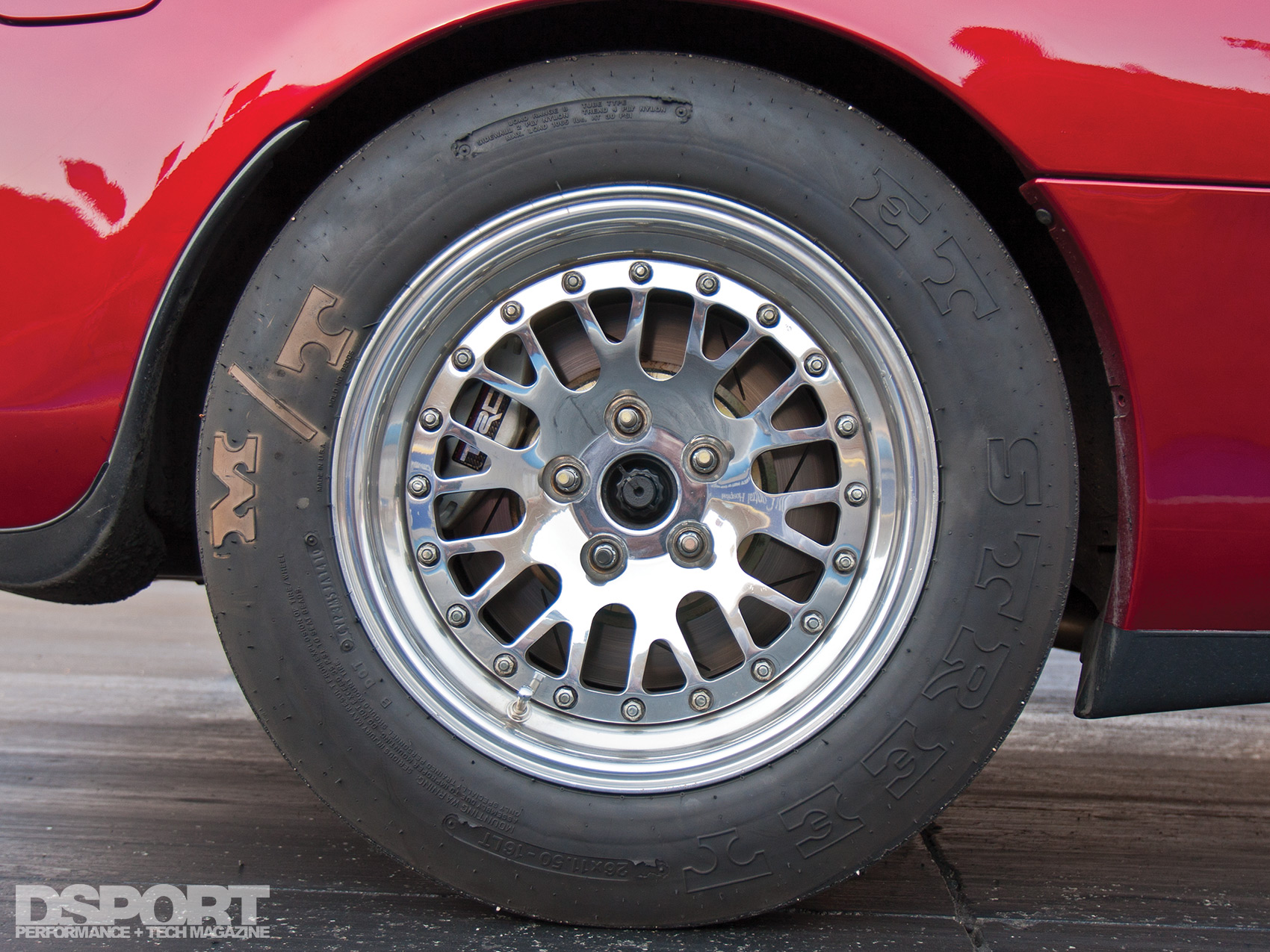

Wheels (Make, Size & Offset): CCW Drag Package
16×4.5-inch, 16×10-inch (F&R)
Tires (Make & Size): 4.5-inch M&H Skinnys
11.5-inch Mickey Thompson ET Streets

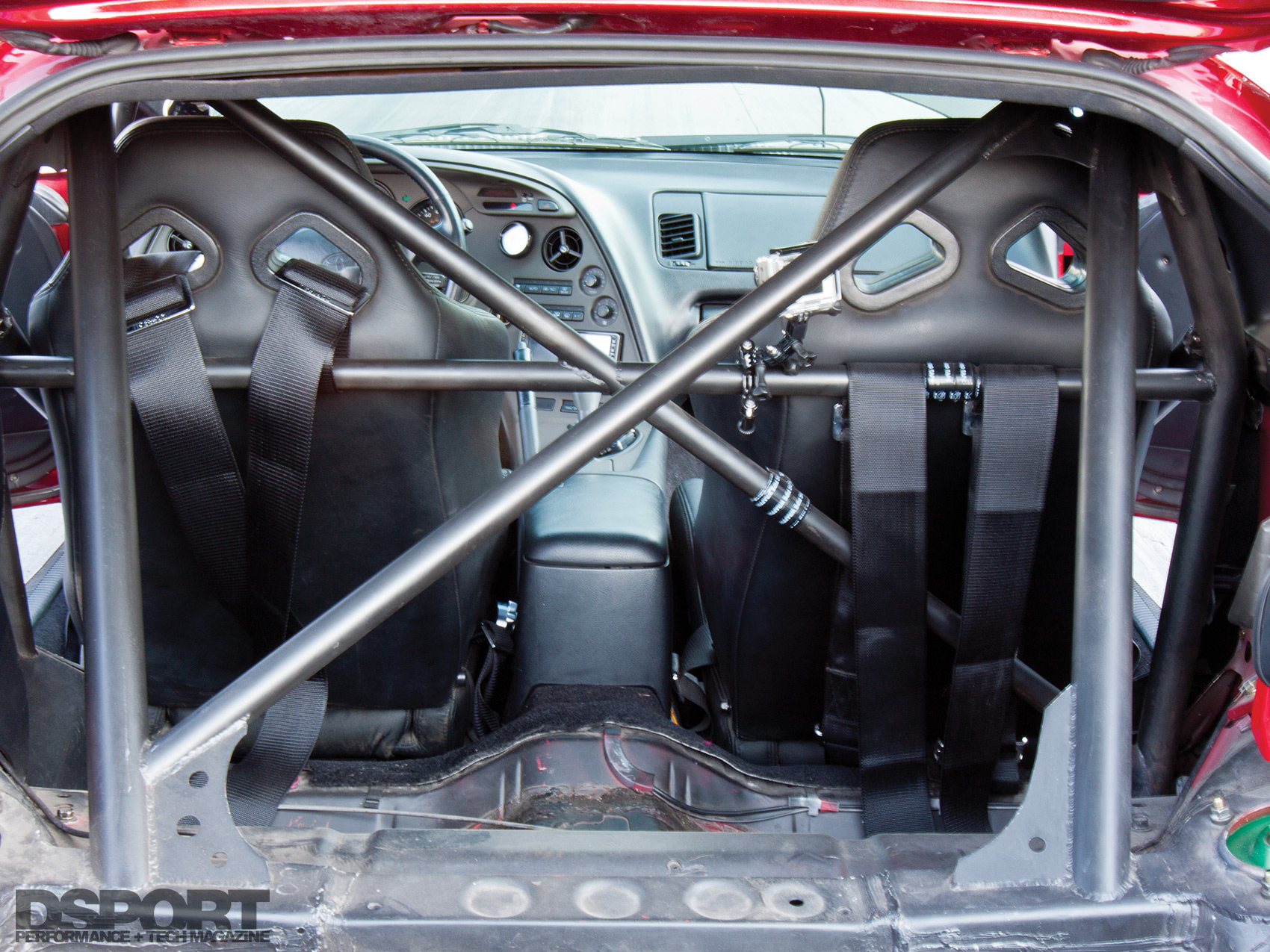

Roll Bar / Cage: 6-Point Cage

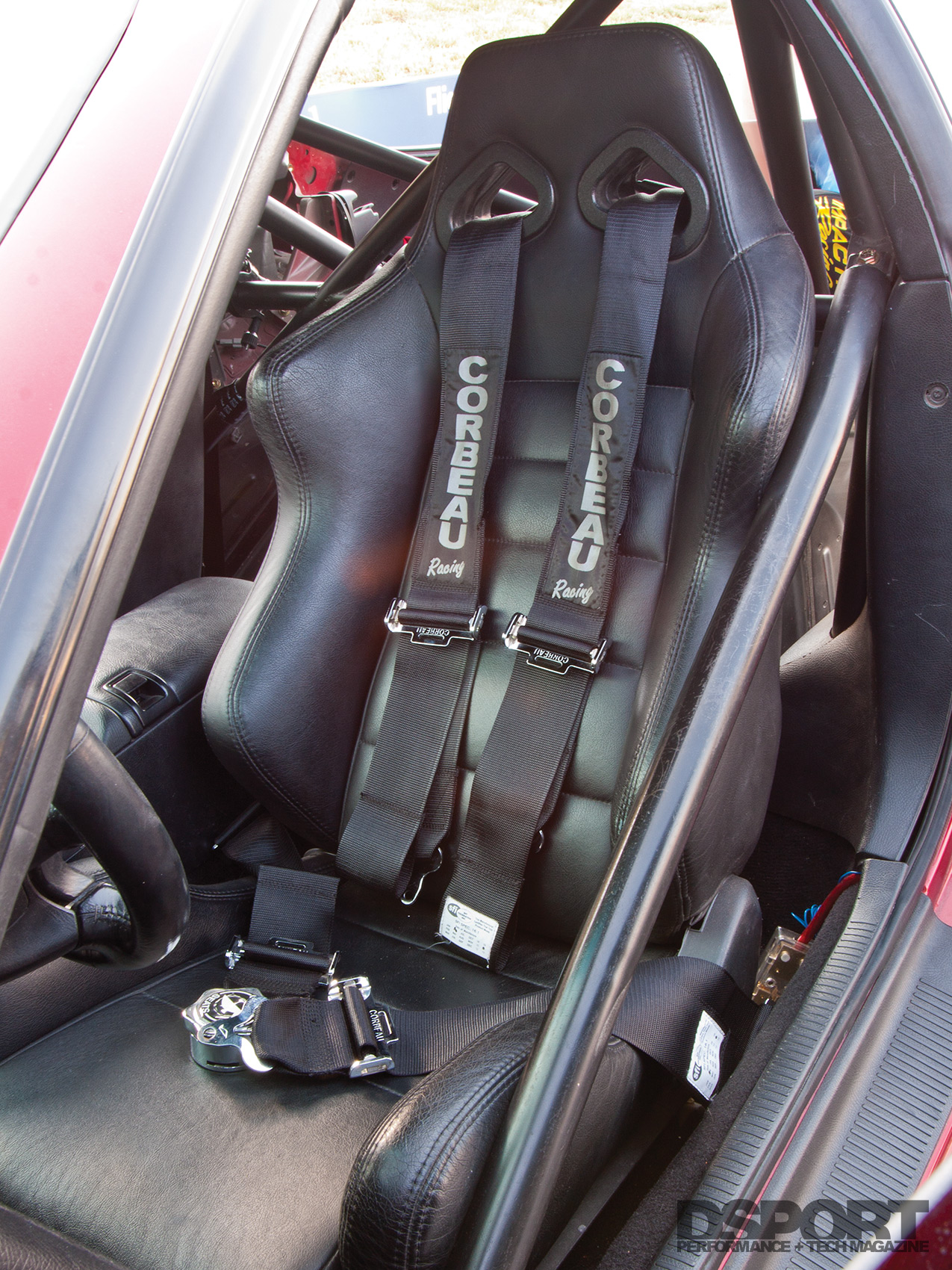

Seats: Corbeau
Harnesses: Corbeau

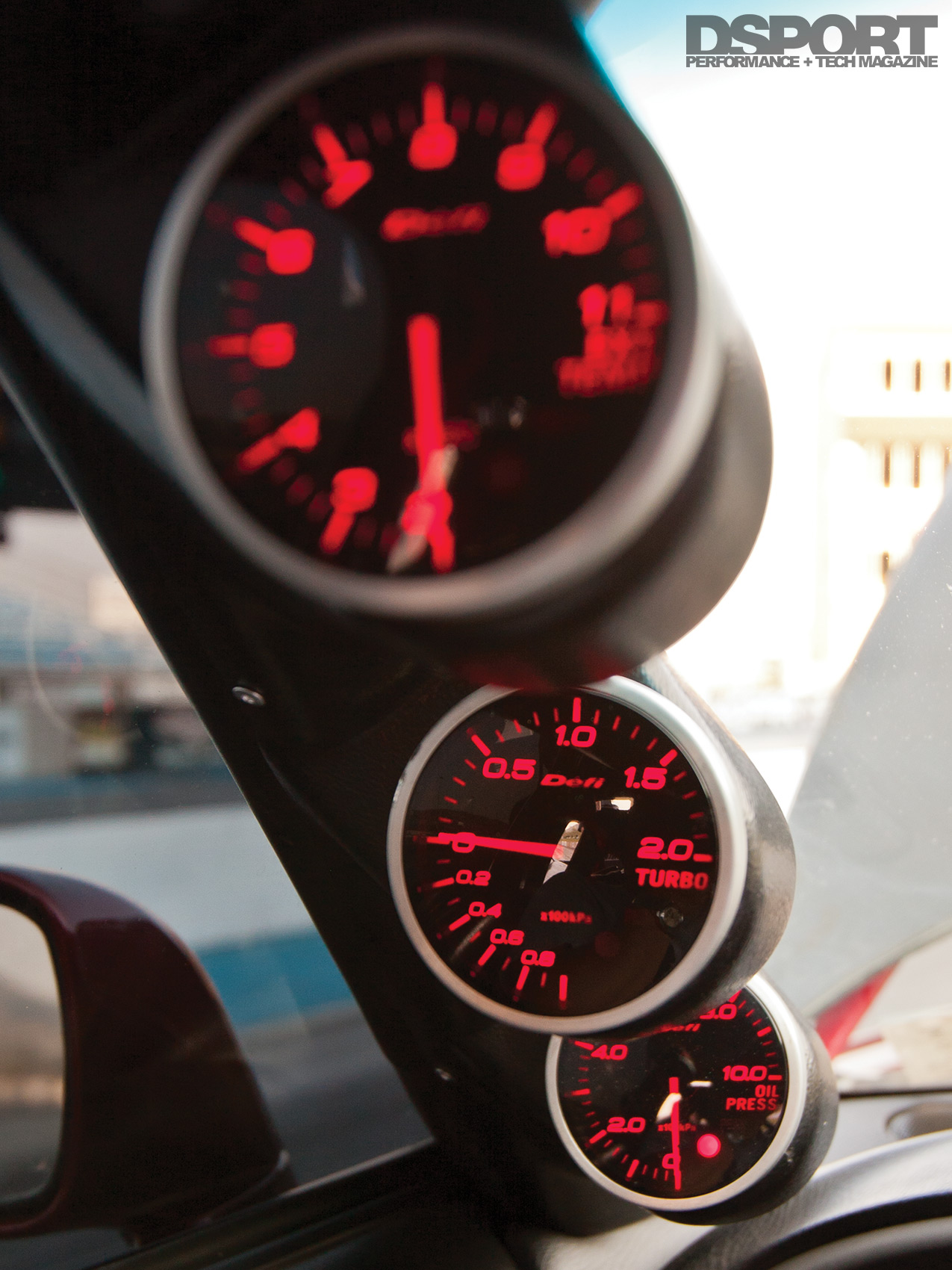

Gauges: Defi Boost, Oil Pressure, EGT
Etc: GoPro Hero
EXTERIOR
Front Lip Spoiler: Titek Lip
Hood: Seibon Carbon Fiber Hood
Headlights: European-spec Factory Glass
Paint: Candy Apple Red
