SPEC SHEET
| VEHICLE | |
|---|---|
| Year / Make / Model: | 1985 Audi Sport Quattro |
| Vehicle Weight: | 2,337 lbs. |
| Launch RPM: | 5,400 RPM |
| Shift RPM: | 8,200 RPM |
| Redline RPM: | 8,400 RPM |
| Peak Boost: | 49 psi |
| Fuel: | E85/Q16 |

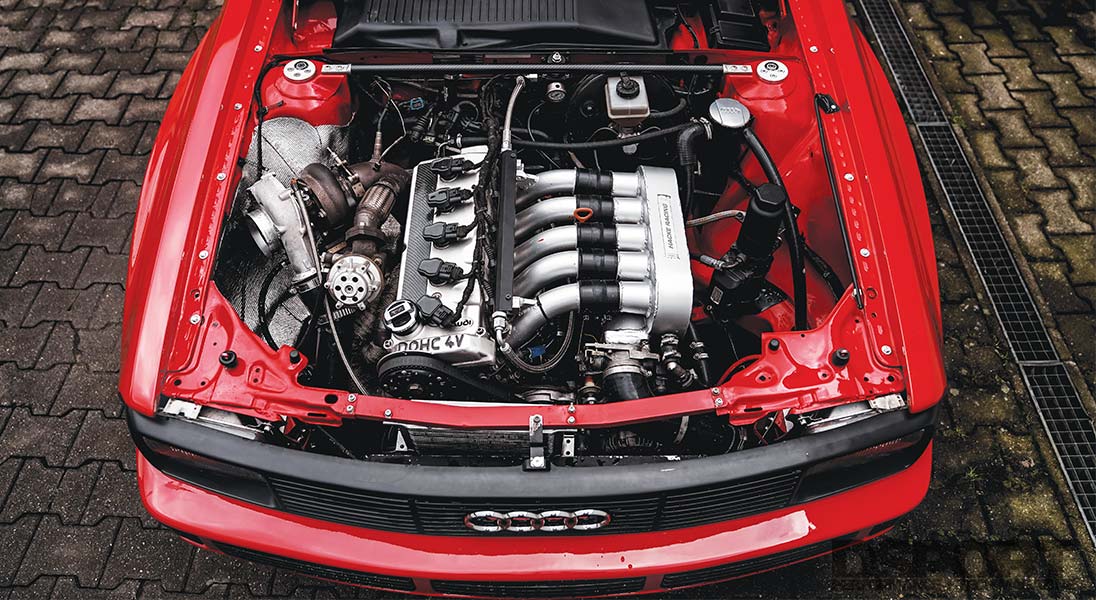

| ENGINE | |
|---|---|
| Displacement (cc): | 2,500cc |
| Bore & Stroke (mm): | 82.00mm x 92.8mm |
| Peak Horsepower (@ RPM): | 1,081whp @6,890 RPM |
| Peak Torque (@ RPM): | 1,017 lb-ft @6,240 RPM |
| Dyno Type: | Dynojet |
| Block Modifications: | Audi A6 2.5 TDI Modified |
| Compression Ratio: | 7.8:1 |
| Pistons: | Coated Forged Pistons |
| Connecting Rods: | H Connecting Rods (Custom) |
| Crank: | 92.8mm from South African VW T4 Bus |
| Bearings, Main and Rod: | H-Beam Rods 165mm |
| Camshafts: | 288/276 Degree Camshaft (Custom), Adjustable Camshaft Sprockets |
| Valves/Springs/Retainers: | Inconel Valves / Schrick Springs and Spring Retainers |
| Cylinder Head Modifications: | Modified Audi S2 Cylinder Head |
| Cylinder Head Gasket: | Metal |
| Head/Main Studs: | ARP |
| Intake Manifold: | TTE Bumper Manifold |
| Throttle Body: | 72mm |
| Exhaust Manifold: | TTE-Racing Header |
| Exhaust System / Downpipe: | 3.5-inch Exhaust System (Custom) from the Turbocharger |
| Wastegate: | Audi RS2 Wastegate |
| Intercooler: | Wagner Tuning Intercooler |
| Fuel Injectors: | Injector Dynamics 1,600cc Injectors |
| Fuel Pump(s): | Dual Bosch 044 Fuel Pumps |
| Additional Fuel Delivery: | Catch Tank |
| Fuel Cell: | Modified |
| Engine Management System: | Free Programmable VEMS |
| Spark Plugs: | TTRS |
| Cooling System: | Wagner |
| Oil System: | PK Motorsport |
| TURBOCHARGER | |
|---|---|

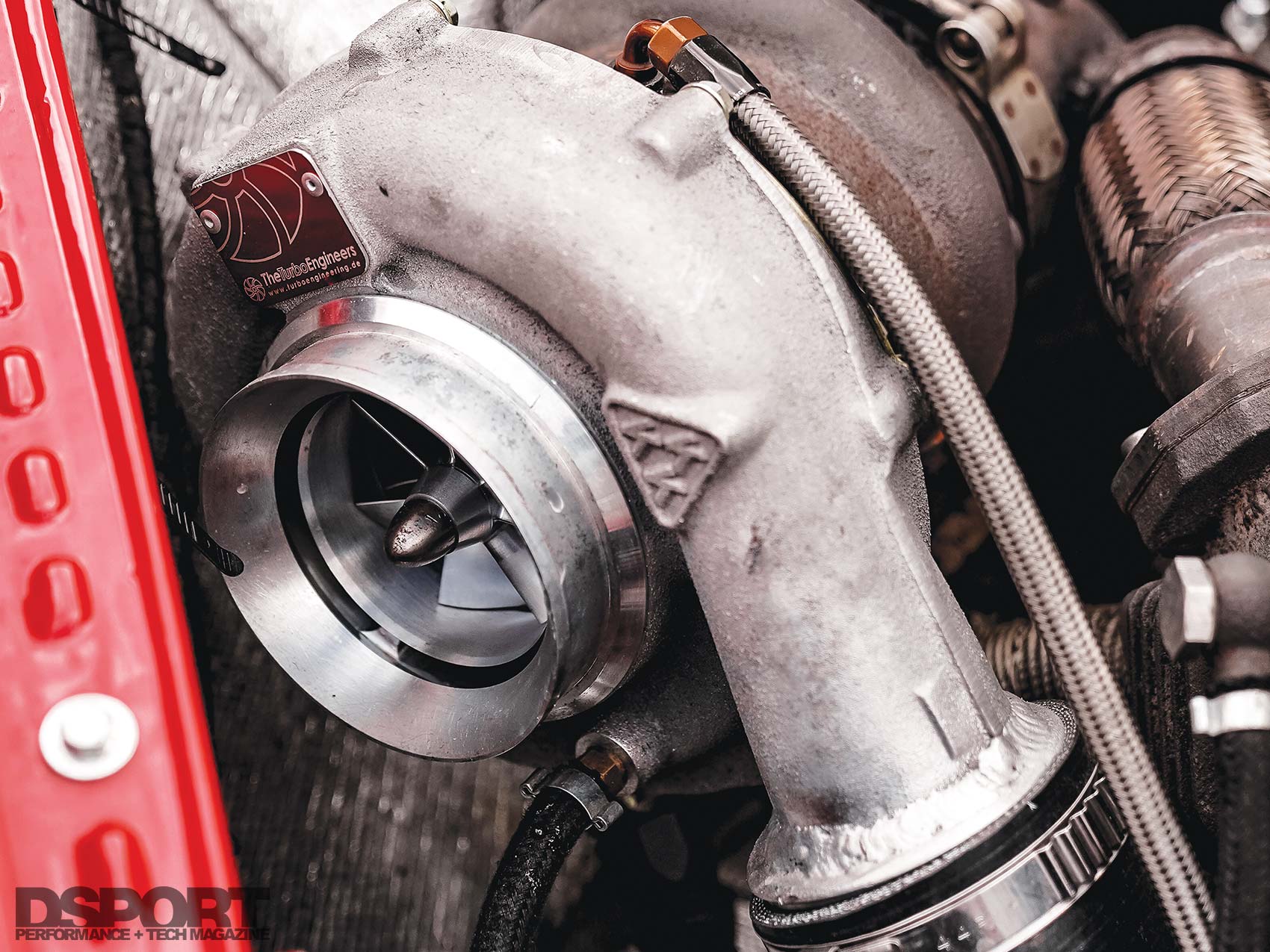

| Turbocharger: | TTE1200 Turbocharger |
| Frame: | KKK K27 |
| Compressor Wheel Specs: | 102mm |
| Turbine Wheel Specs: | 89mm |
| Turbine Housing: | 1.16 A/R |
| CHASSIS/DRIVELINE | |
|---|---|
| Springs & Shocks: | KW Suspension |
| Additional Suspension Components: | Modified KW Suspension Adjustable Rebound and Compression Damping |

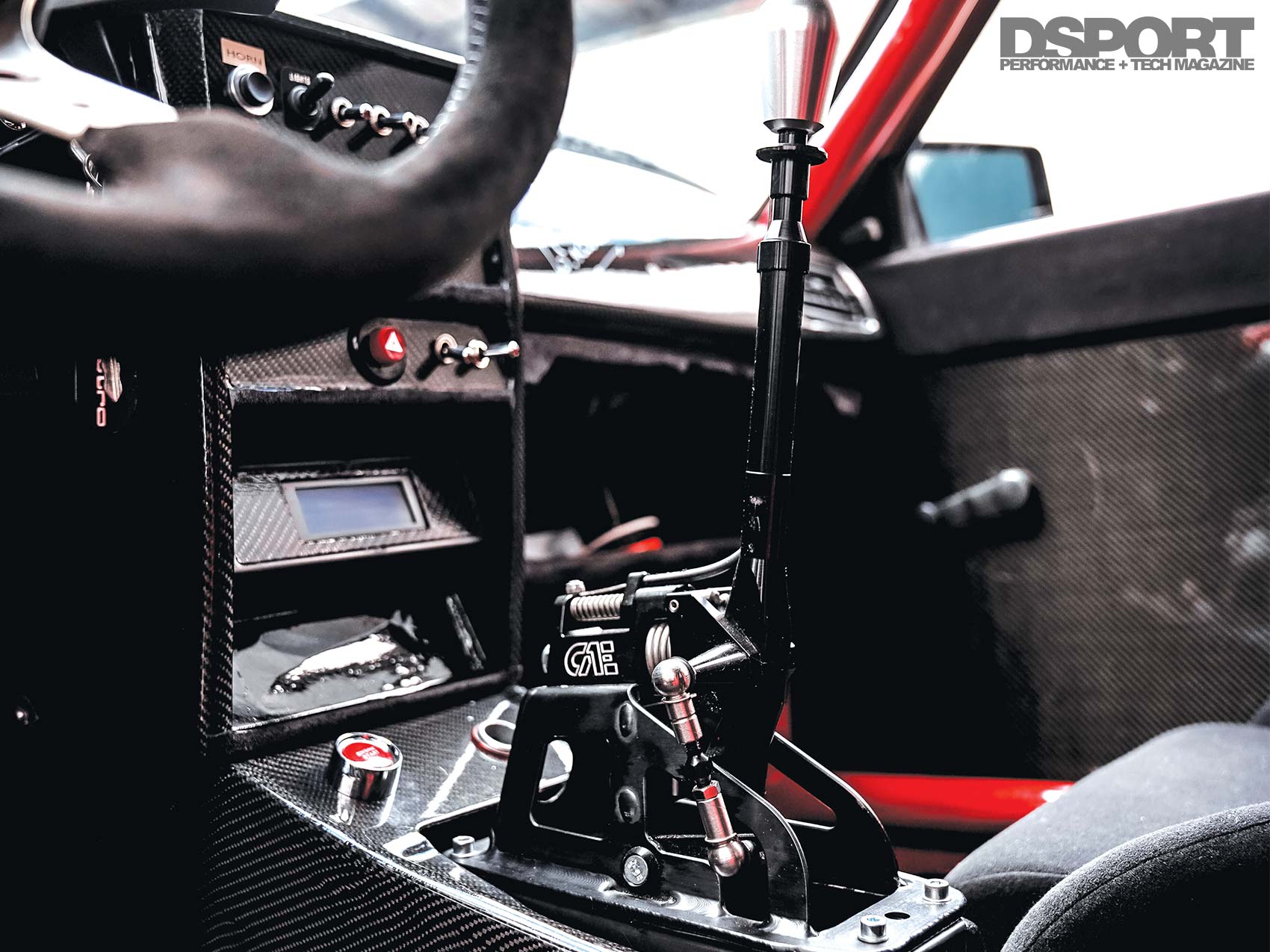

| Transmission: | 6-Speed from the Audi RS2 with CAE Shifter |
| Transmission Gearing: | 6th Gear Extended |
| Clutch: | Sachs 2-Disc Sinter Metal Clutch |
| Flywheel: | Custom Made Steel |
| Differential(s) (Make & Type): | Audi RS2 Modified |
| Axles / Driveshaft: | Audi S2 Axles / Audi S2 Driveshaft |

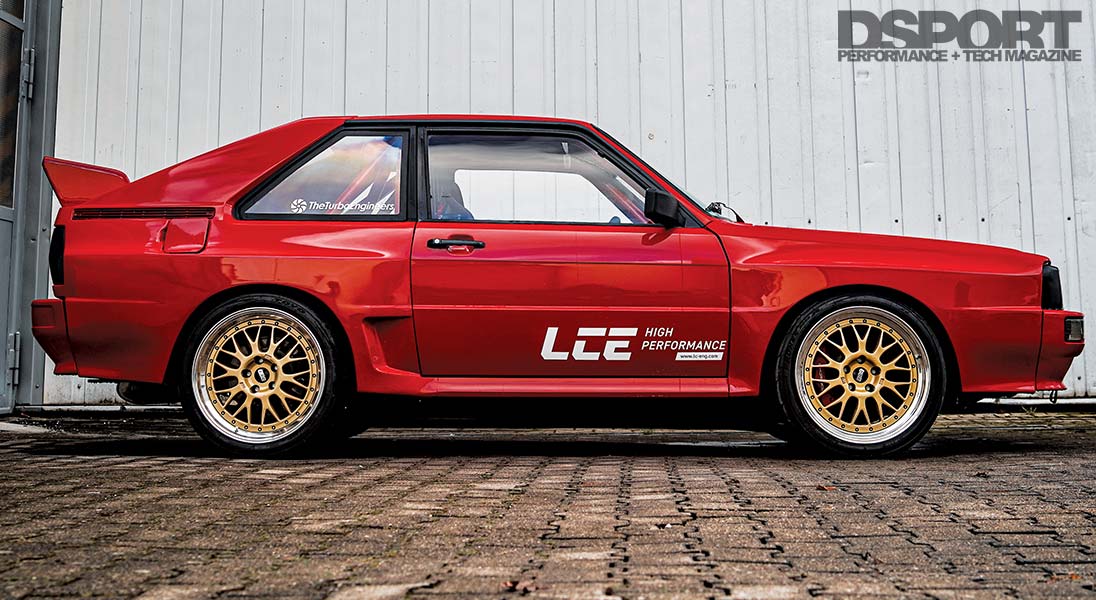

| Wheels (Make, Size & Offset): | BBS E28 10-inch x18-inch |
| Tires (Make & Size): | Toyo Proxes R888R-Semi-slicks |
| Brake System (F&R): | Porsche 996 GT3 RS |
| Front 6-Piston Saddle with 365x34mm Rotors | |
| Rear 1-Piston Saddle with 310mm Rotors | |
| Brake Lines: | Steel Braided |
| INTERIOR | |
|---|---|
| Roll Bar / Cage: | Cage Built-in |

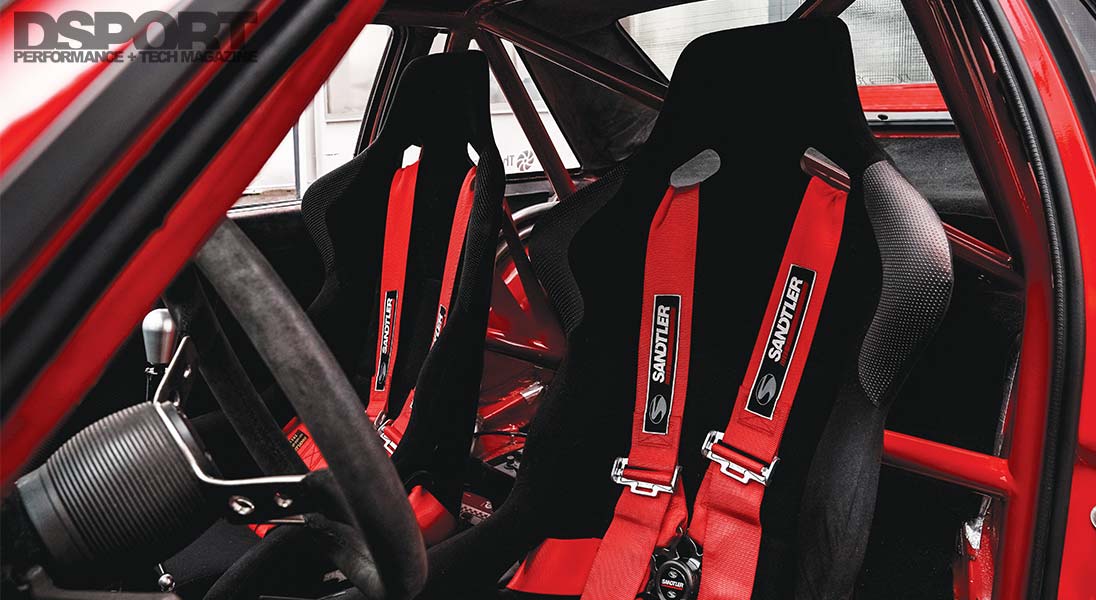

| Seats: | Recaro SGP Full Bucket Seat |
| Harnesses: | Sandtler |
| Steering Wheel: | Bowl-Shaped Sports Steering Wheel |
| Gauges: | Stack |

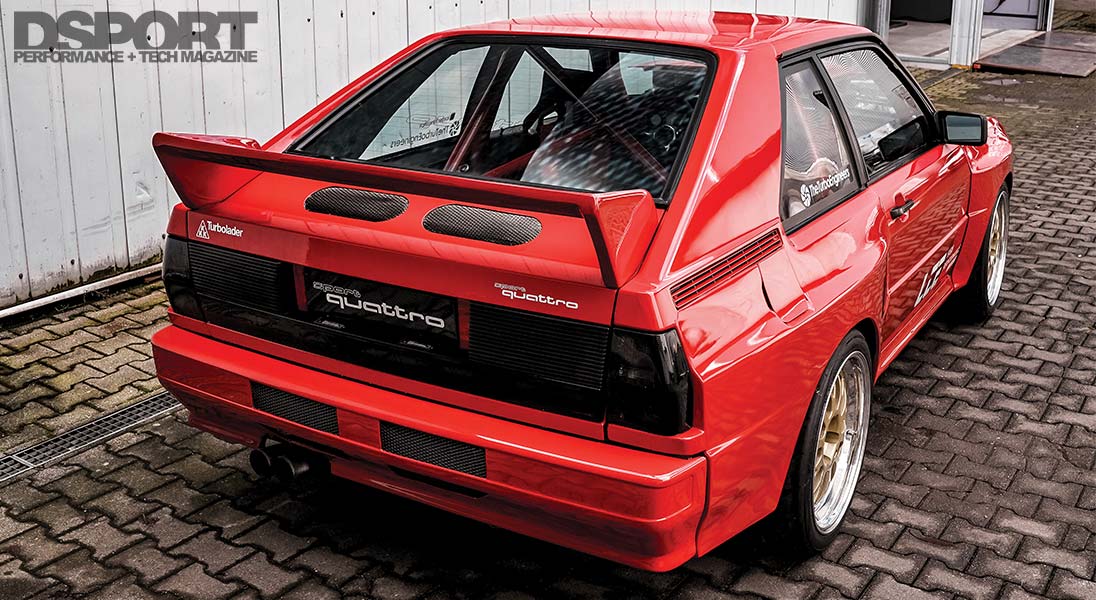

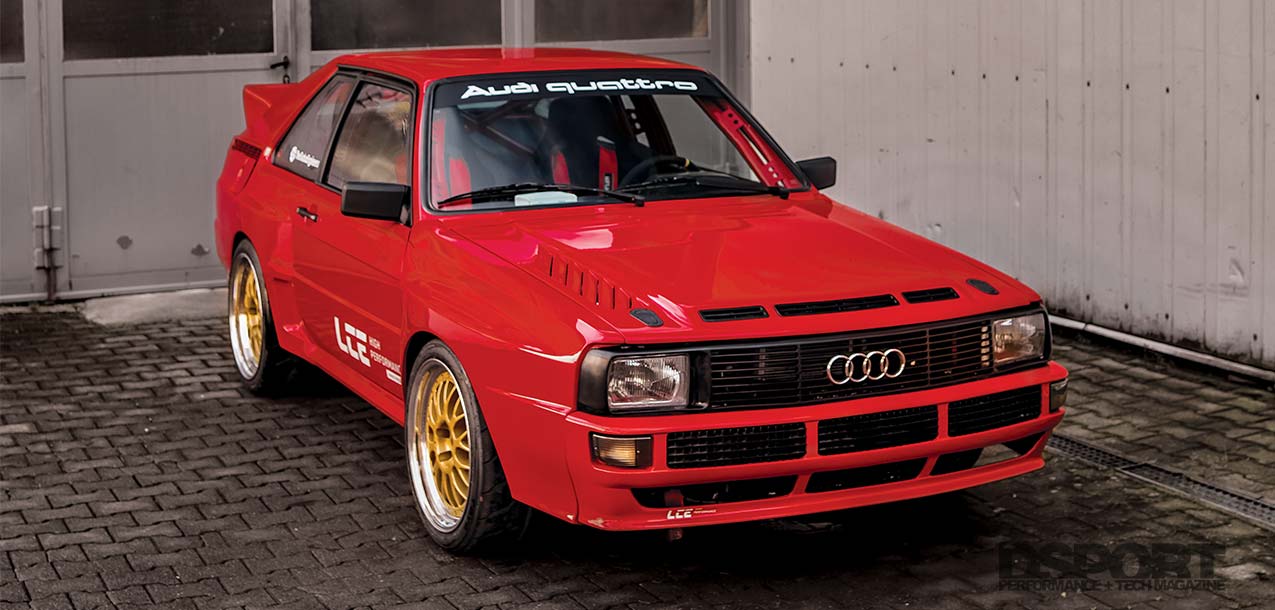

| EXTERIOR | |
|---|---|
| Front Bumper: | Full Carbon |
| Front Fenders: | Full Carbon |
| Hood: | Full Carbon |
| Side Skirts: | Full Carbon |
| Rear Fenders: | Full Carbon |
| Rear Bumper: | Full Carbon |
| Doors: | Stock Doors for TÜV |
| Headlights:/strong> | Passat 32B |
| Grill: | Sport Quattro Carbon Fiber |
| Paint: | Tornado Red |
| Custom Body Work: | Audi Type 85 (320mm Shortened) |
