Mitsubishi Evo IX Lead

SPEC SHEET

VEHICLE
Year / Make / Model: 2006 Mitsubishi Evolution IX GSR
Chassis Code: CT9A
Vehicle Weight: 3,274 lbs.
Launch RPM: 5,500 RPM
Shift RPM: 8,300-8,500 RPM
Redline RPM: 8,500 RPM
Peak Boost: 40 psi @5,300 RPM
Fuel: Pump E85
ENGINE
Engine Code: 4G64
Displacement (cc): 2,429cc
Bore & Stroke (mm): 87mm x 100mm
Peak Horsepower (@ RPM): 781whp @7,797 RPM
Peak Torque (@ RPM): 644 lb-ft @5,562 RPM
Dyno Type: Dyno Jet
Engine Builder: Elijah Moon (Moon Performance)
Block Modifications: .20 over bore
Machine Work: Brian (Gen2 Automotive Machine)
Compression Ratio: 10.5:1
Pistons: Manley 87mm
Piston Rings: Manley
Connecting Rods: Manley 150mm I Beam
Crank: OEM 100mm stroke crank
Bearings, Main and Rod: King XP rod & main bearings
Camshafts: Kelford 272 cams
Valves/Springs/Retainers: GSC Beehive Springs and Titanium Retainers
Cylinder Head Gasket: Cometic
Head / Main Studs: ARP 625+ Head Studs / ARP Main Studs
Intake Manifold: MAP Ported Intake Manifold
Air Induction System: N/A Forward Facing Turbo

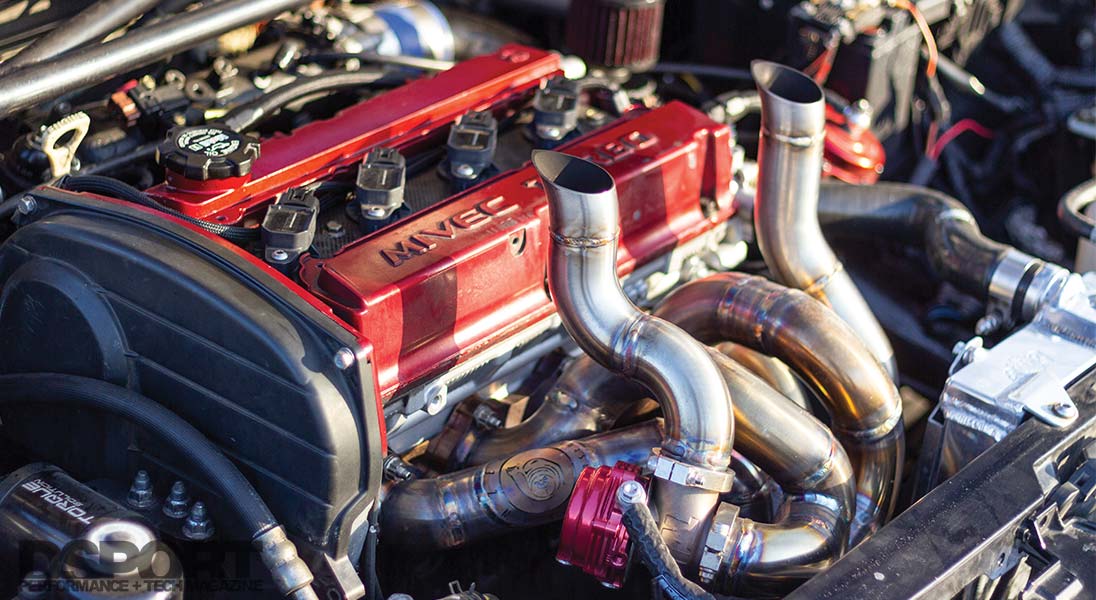

Exhaust Manifold: Gonzevo Forward Facing by Gonzevo Motorsports LLC

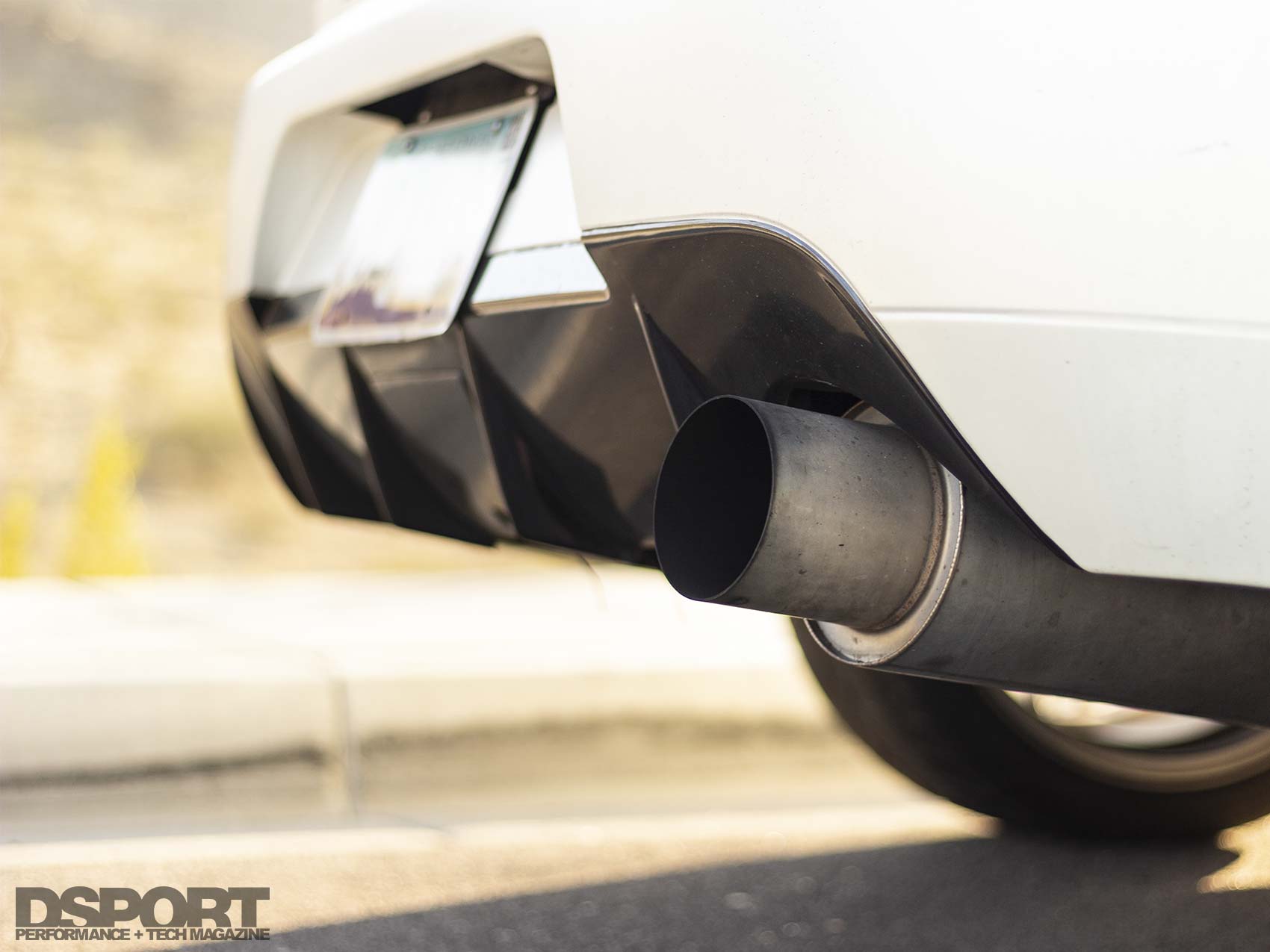

Exhaust System / Downpipe: Buschur’s Exhaust/ Gonzevo Downpipe
Wastegate: TiAL MV-S x 2 External Wastegates

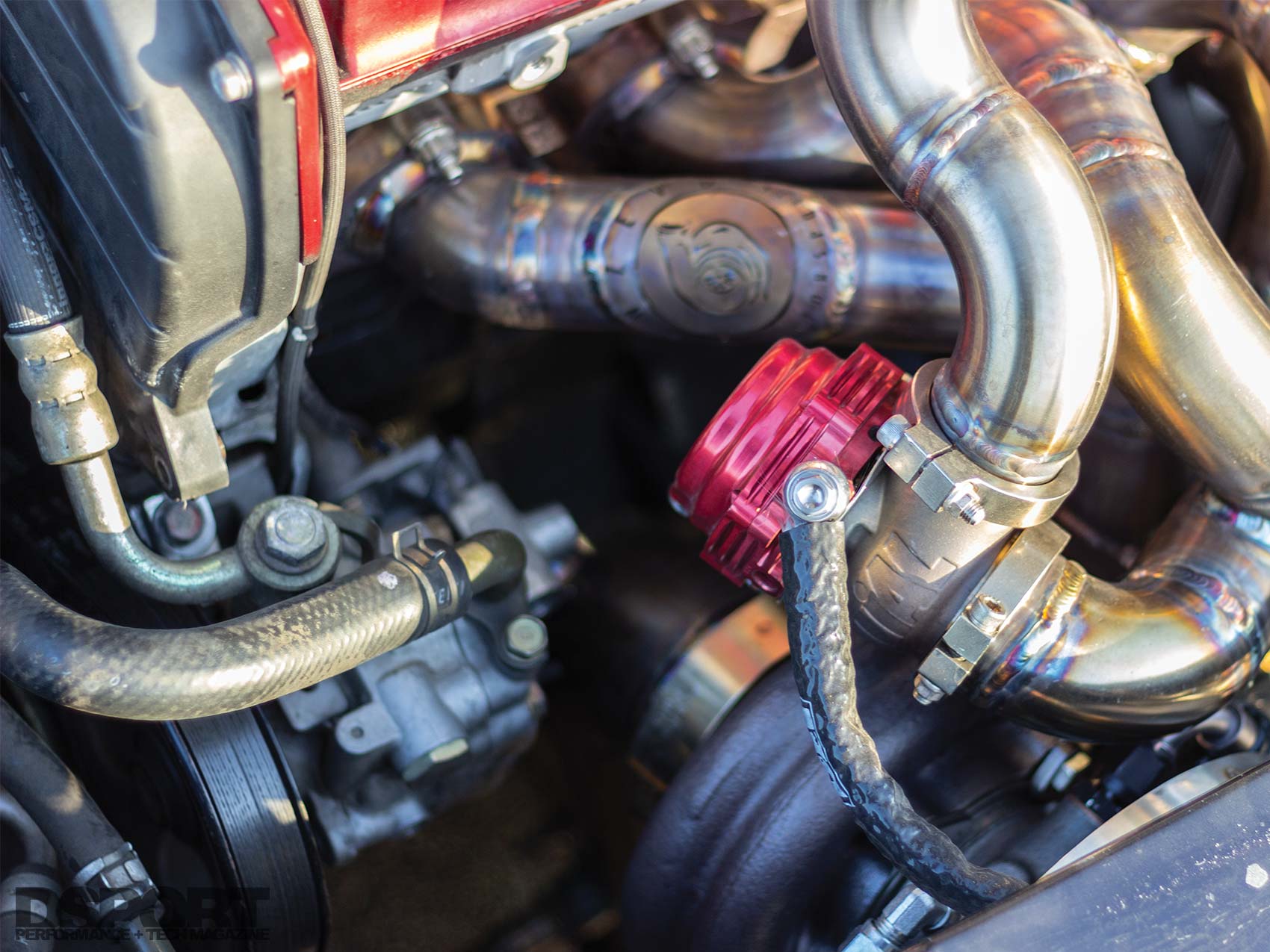

Blow-Off Valve: TiAL 50mm
Intercooler: APS intercooler
Fuel Injectors: FIC 2150cc
Fuel Pump(s): Buschur’s Walbro 255 Double Pumper
Additional Fuel Delivery: Aeromotive Fuel Pressure Regulator
Engine Management System: OEM Stock ECU
Engine Management Tuner: Phuong @Wingz Performance
Boost Controller: Grimmspeed 3 Port Electronic Boost Controller
Ignition System: STM COP
Spark Plugs: OEM EVO 9 Plugs
Cooling System: CFS Radiator
Oil System: OEM

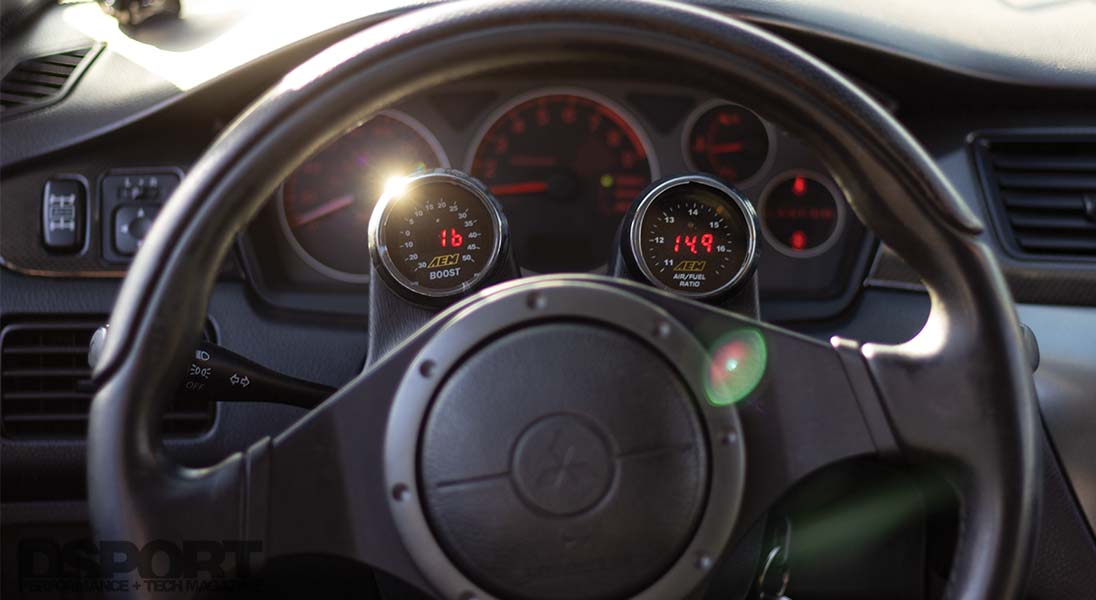

Performance Electronics: BorgWarner Turbo Speed Gauge, AEM Boost + AFR
TURBOCHARGER
Turbocharger: BorgWarner
Frame: EFR 8474
Compressor Wheel Specs: 68mm Inducer Wheel / 84mm Exducer Wheel
Turbine Wheel Specs: 74mm
Turbine Housing: 1.05 AR T4 Twin Scroll
CHASSIS/DRIVELINE
Suspension: TEIN Coilovers
Ride Height: 55-inches
Transmission: PPG Dogbox by Db_Trans_and Performance
Transmission Gearing: 2.486/1.937/1.388/1.000
Final Drive: 4.30
Clutch: Quarter Master Twin Disc
Flywheel: Quarter Master
Axles: Driveshaft Shop Axles

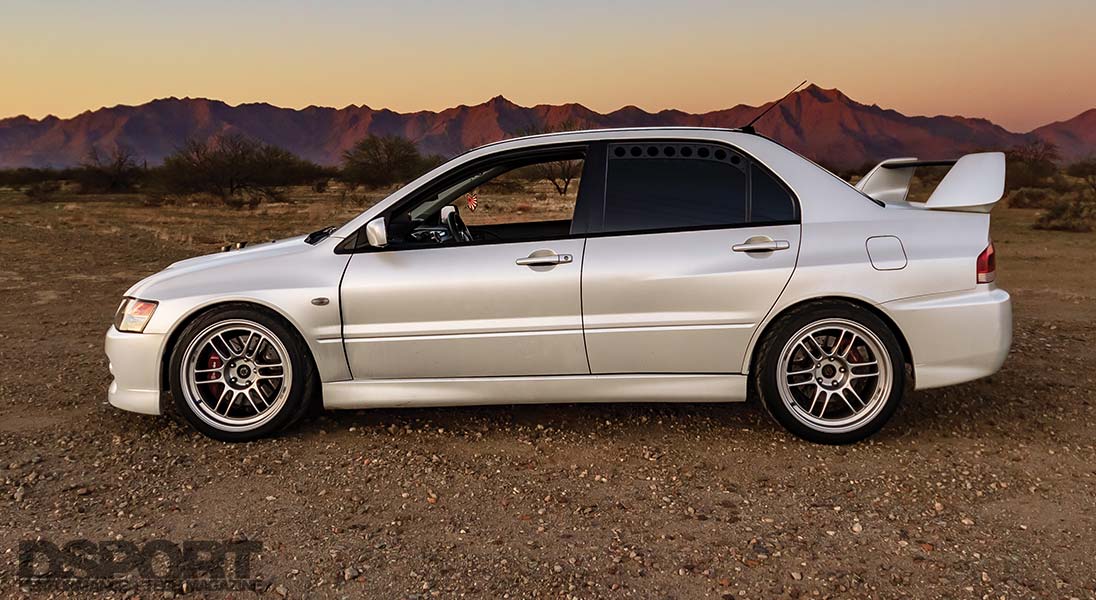

Wheels (Make, Size & Offset): Enkei RPF1 18-inch x 9-inch +15
Tires (Make & Size): Federal Tires 245/45/18
Brake Calipers (F&R): Brembo
Brake Rotors (Diameter, F&R): Stoptech Slotted Drilled
Brake Pads (Front & Rear): Hawk Performance
Brake Lines: Stoptech
Additional Components: Torque Solution Solid Rear Differential Mounts
INTERIOR
Seats: Recaro

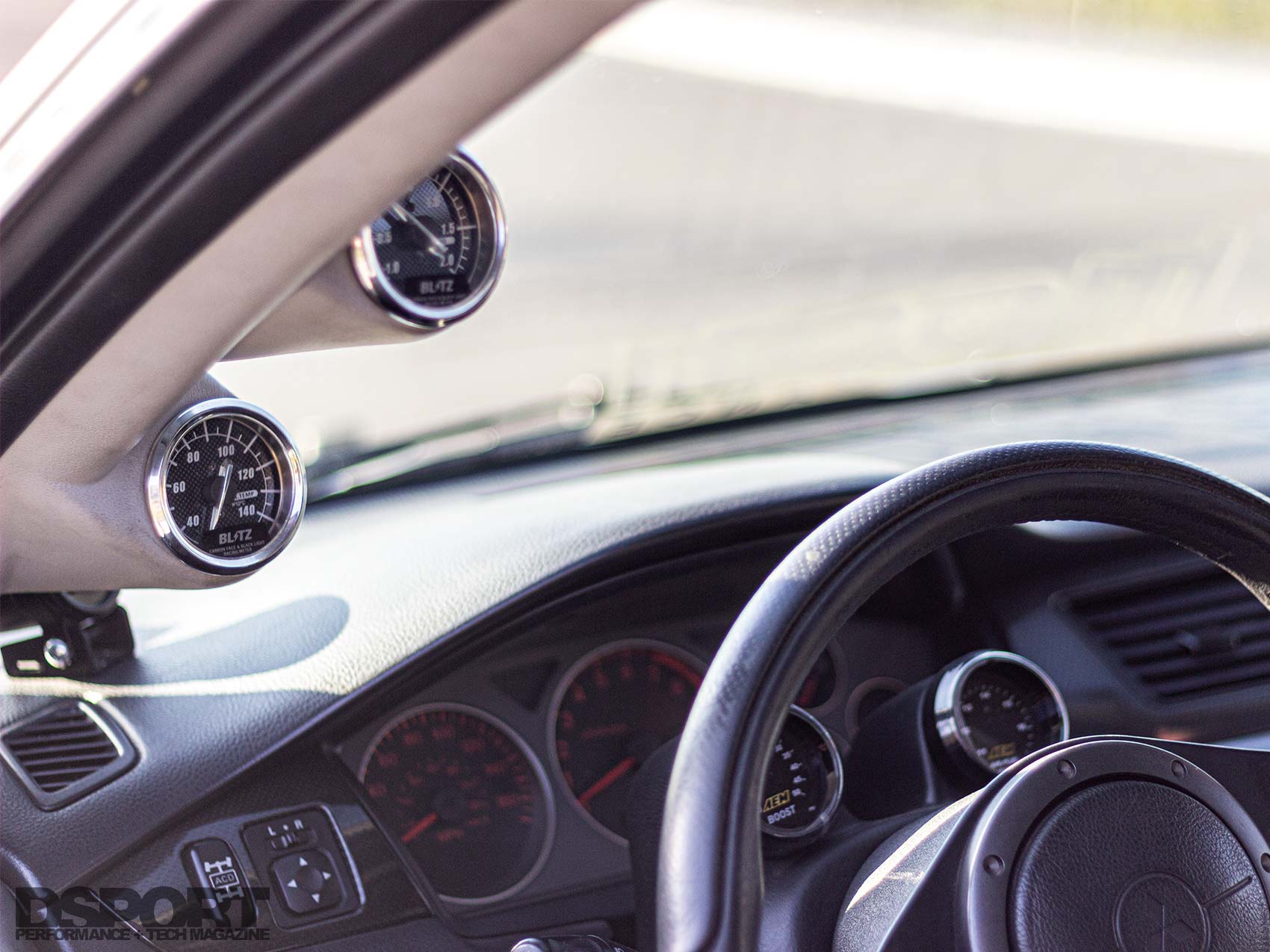

Gauges: AEM Boost/Oil Pressure/AFR/BorgWarner Turbo Speed
Etc.: Ikeya Formula Sequential Shifter

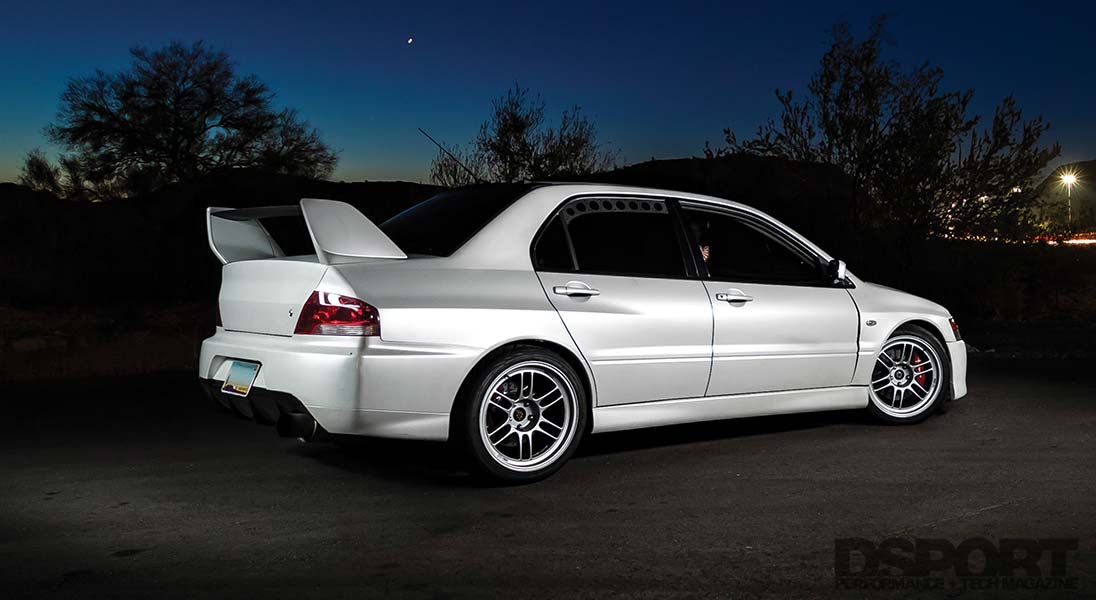

EXTERIOR
Front Bumper: Stock
Rear Bumper: JDM Rear Bumper
Taillights: EVO 7 JDM Lights
Paint: Satin Pearl White Wrap
