| Engine Code: |
B18C5 |
| Displacement (cc): |
1842cc |
| Bore & Stroke (mm): |
82mm x 87.2mm |
| Peak Horsepower (@ RPM): |
490whp @ 9000rpm |
| Dyno Type: |
Dynamic Test Systems (DTS) 9500 4wd |
| Pistons/Compression Ratio: |
Wiseco 82mm, 9.1-to-1 2618-alloy |
| Connecting Rods / Crank: |
4340 Manley Forged Steel Turbo Tuff |
| Block Modifications: |
Benson’s Signature Gapless Sleeves |
|
Power Enterprise Kevlar Timing Belt/td> |
|

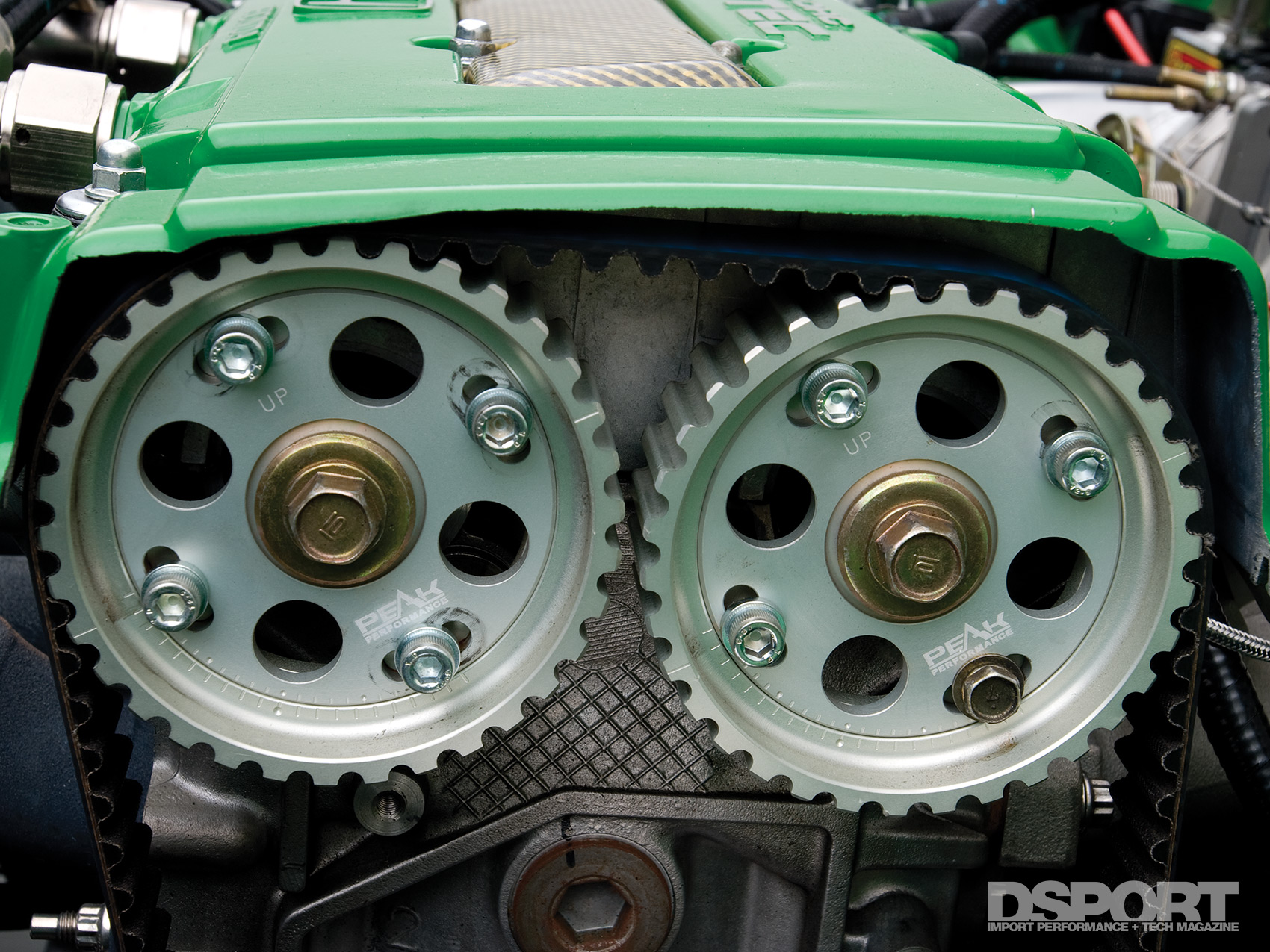

Peak Performance Adjustable Cam Gears |
|
Fluidampr Harmonic Balancer |
|
Clevite Bearings |
| Machine Work: |
Benson’s Automotive Machine |
| Camshafts: |
BLOX Type-A |
| Valves / Springs / Retainers: |
SI Valves / SI Dual Springs/ SI Retainers |
| Cylinder Head Mods: |
Dart CNC-ported Cylinder Head |
|
Cometic Gasket 83mm MLS .030 |
| Head/Main Studs: |
ARP Fasteners Head and Main Studs |
| Intake Manifold: |
BLOX Intake Manifold |

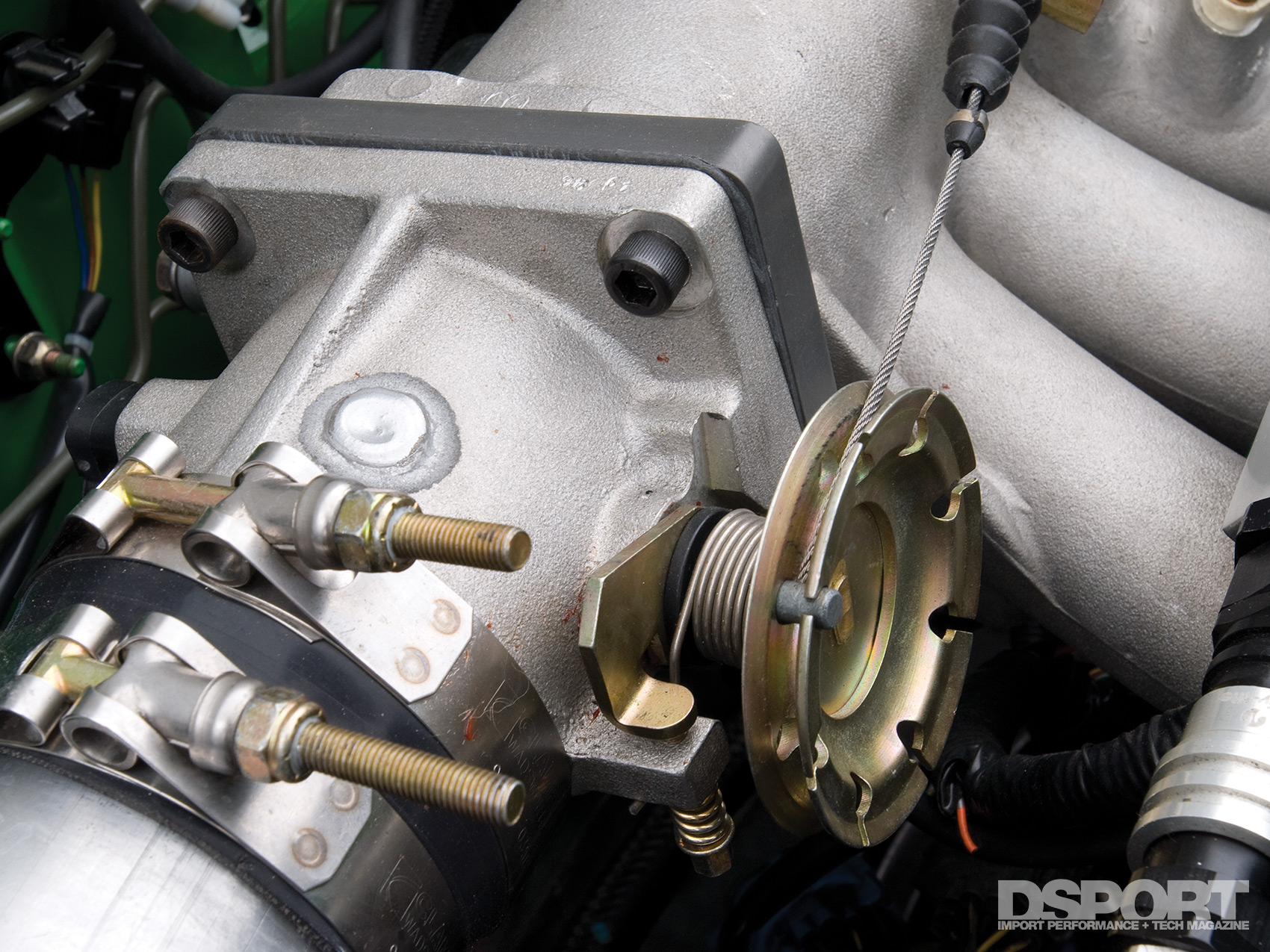

| Throttle Body: |
Edelbrock 75mm Throttle-Body |
| Fuel Injectors: |
4 x RC Engineering 1000cc/min |

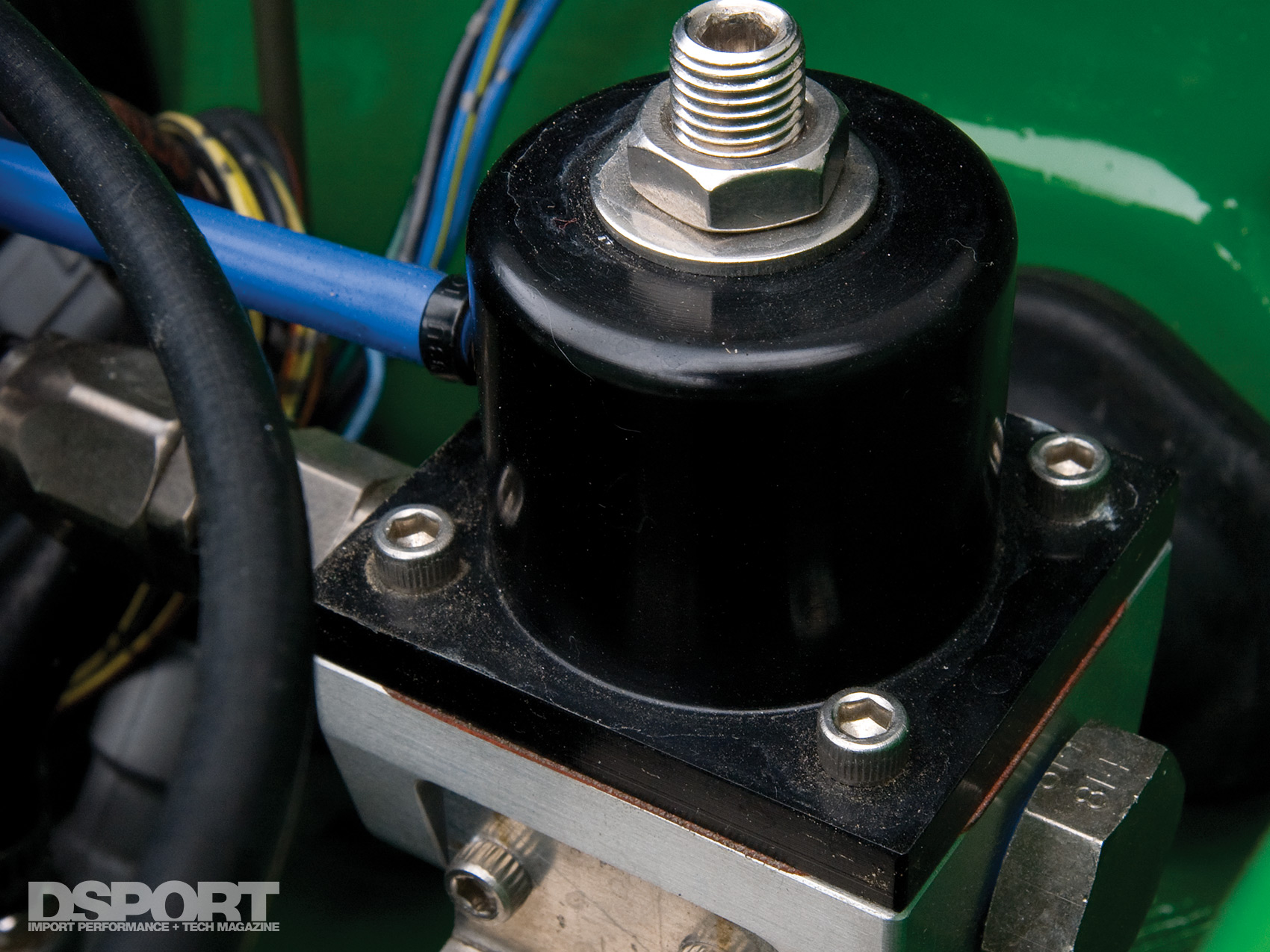

| Fuel Delivery System: |
Walbro 255lph/ Edelbrock FPR |

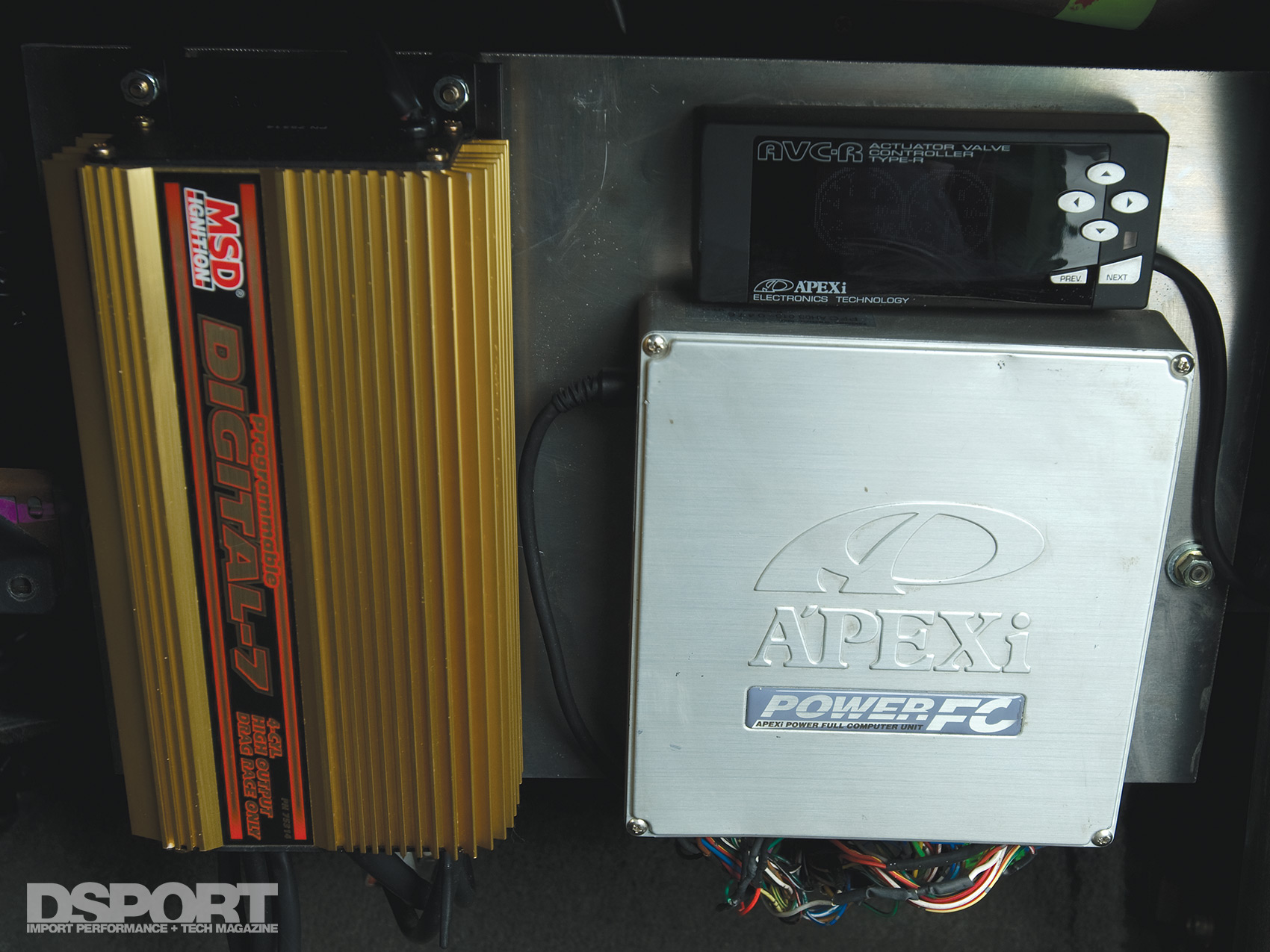

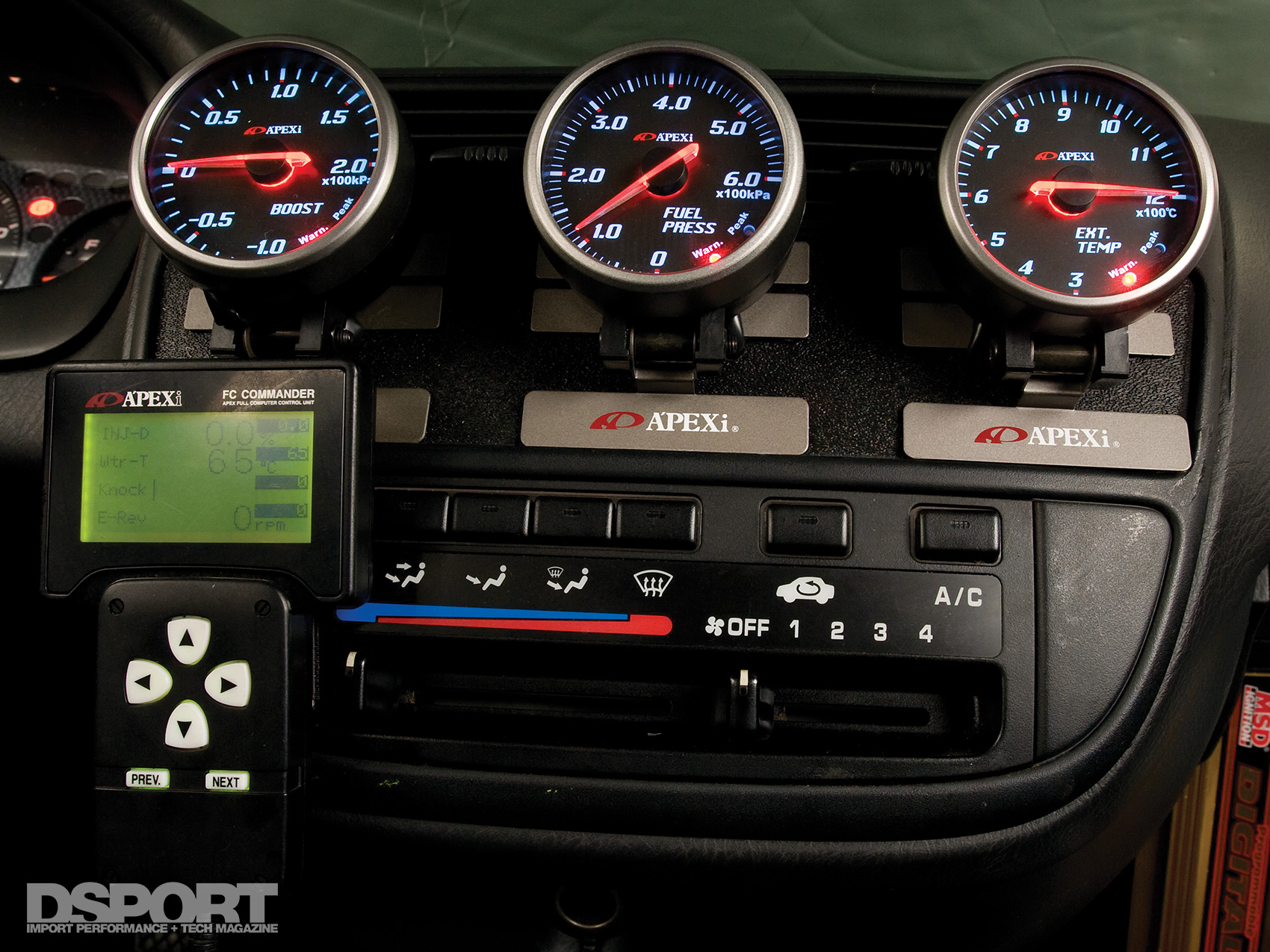

| Engine Management System: |
A’PEX Integration Power FC |
| Boost Controller: |
A’PEX Integration AVC-R |

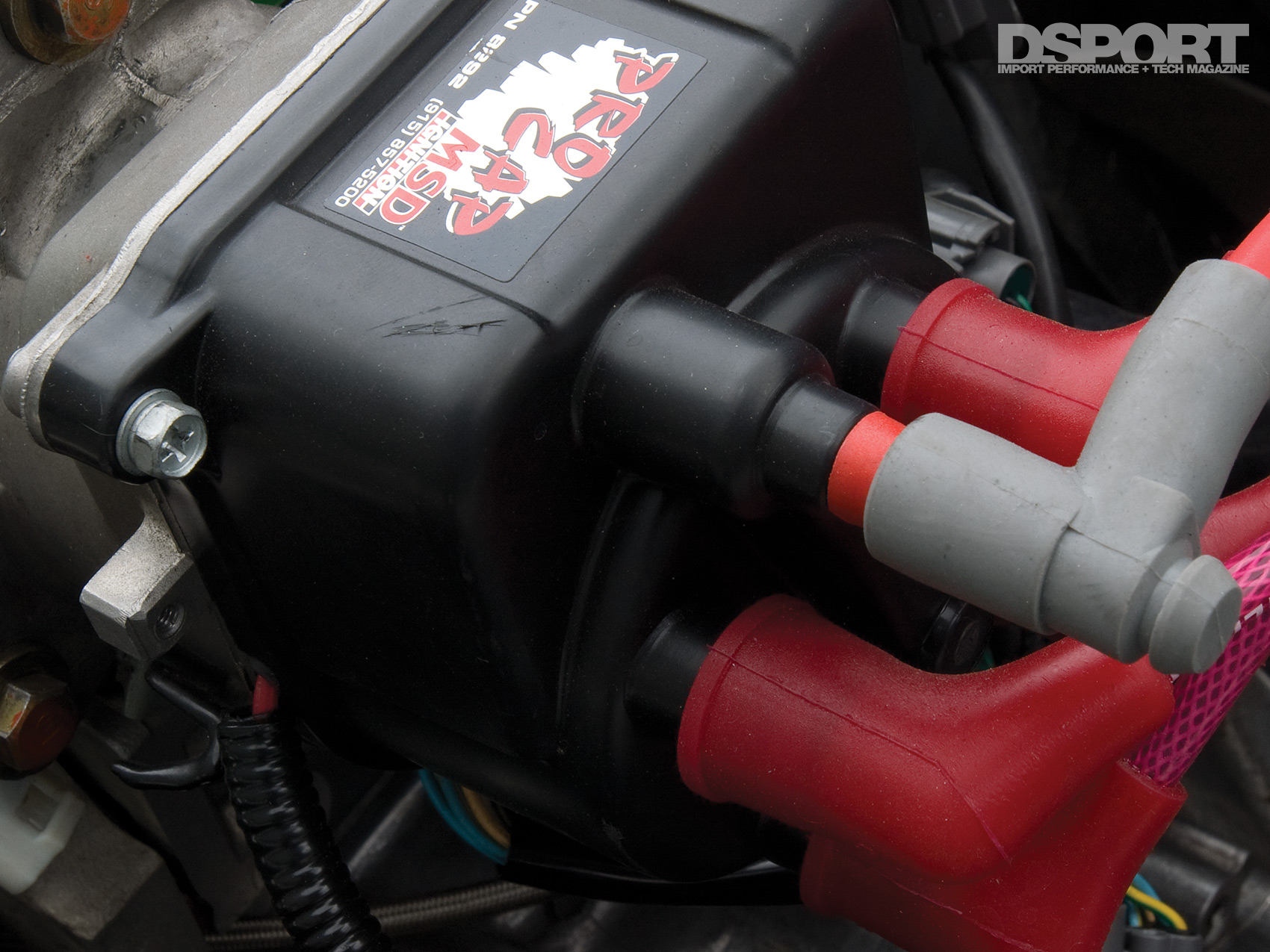

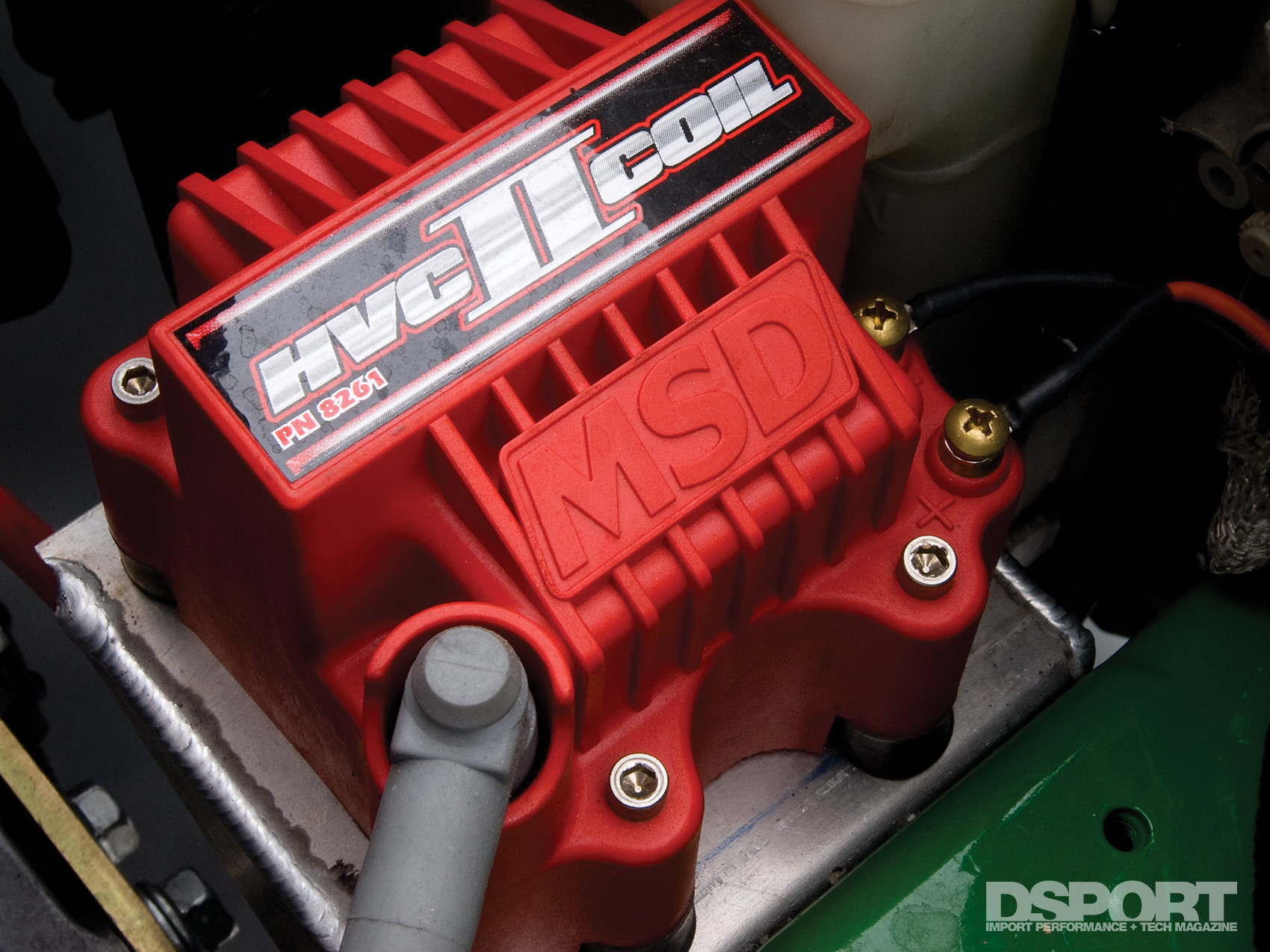

| Ignition: |
MSD Programmable Digital-7 HVC-II Coil |
| Spark Plugs: |
NGK Iridium BKR8EIX (2688) |
| Exhaust Manifold: |
Peak Boost Original-Style Bottom Mount |

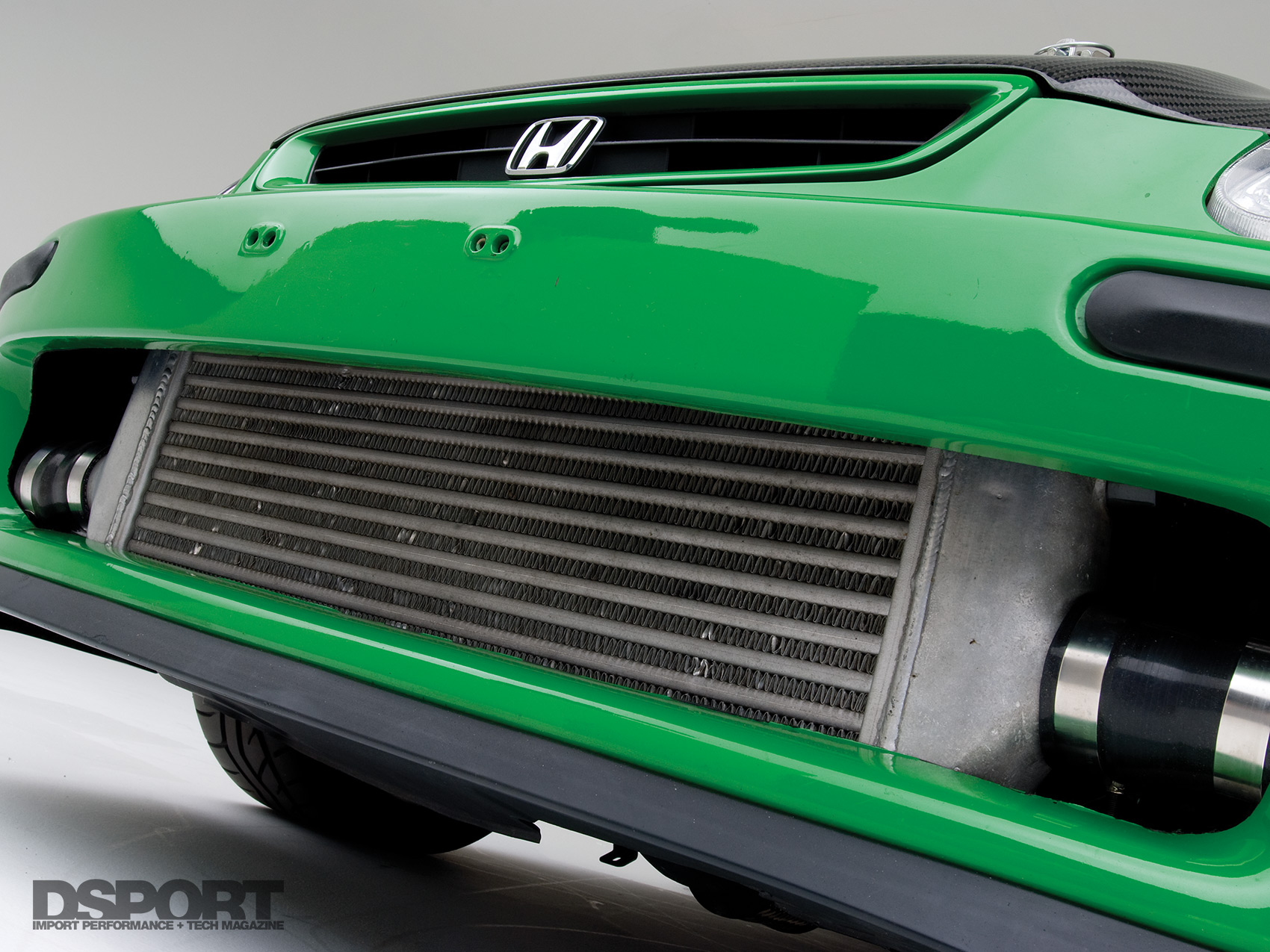

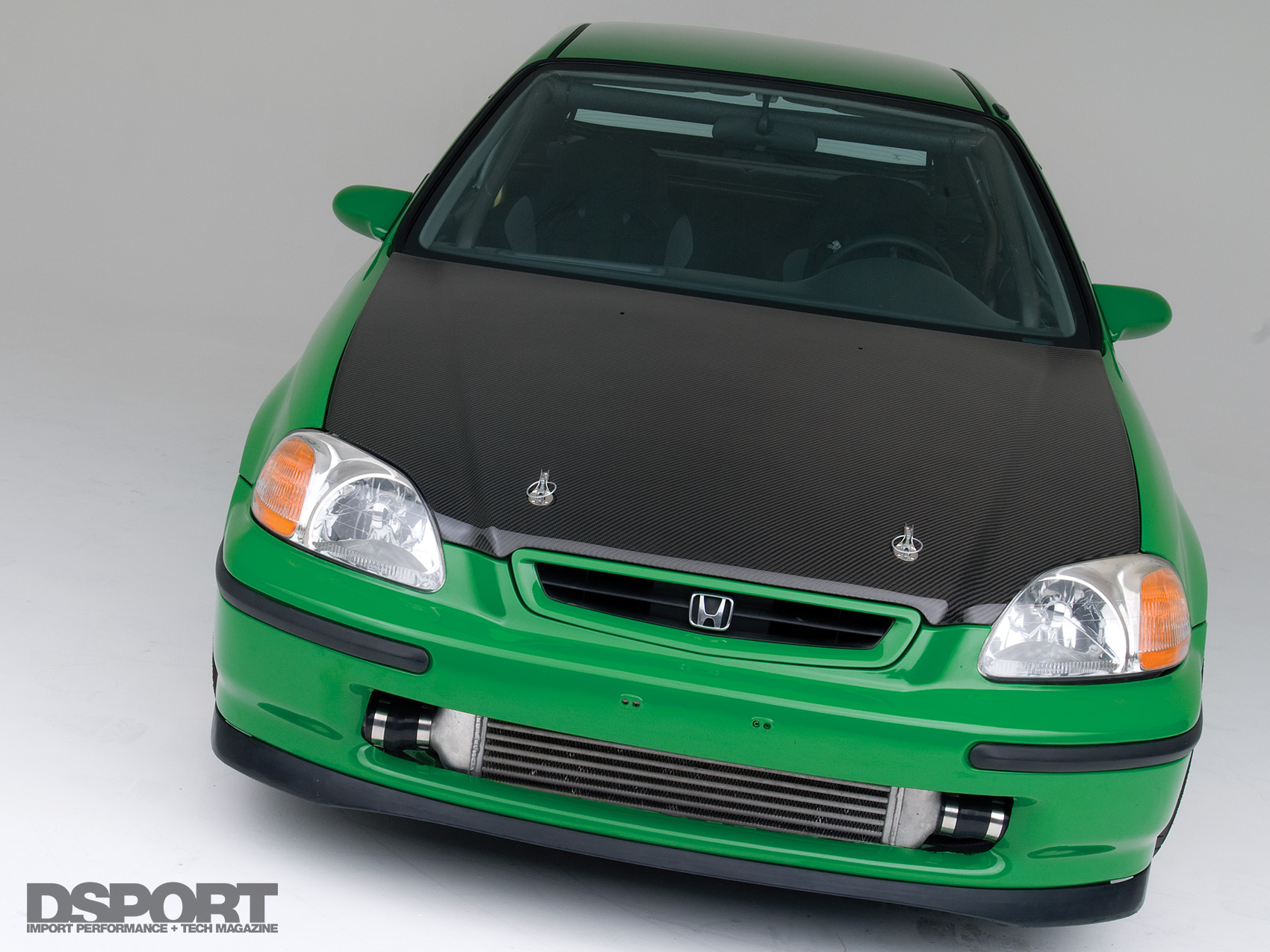

| Intercooler: |
XS Engineering Power IC Core – GTR |
| Cooling System: |
PWR Aluminum Radiator |
| Oil System: |
Evolution Industries HP Oil Pump |
| Etc: |
Custom Intercooler Piping & Catch Can |
|
Made by Evolution Racewerks |
|
3.0-inch Downpipe with QTP Cut Out |
|

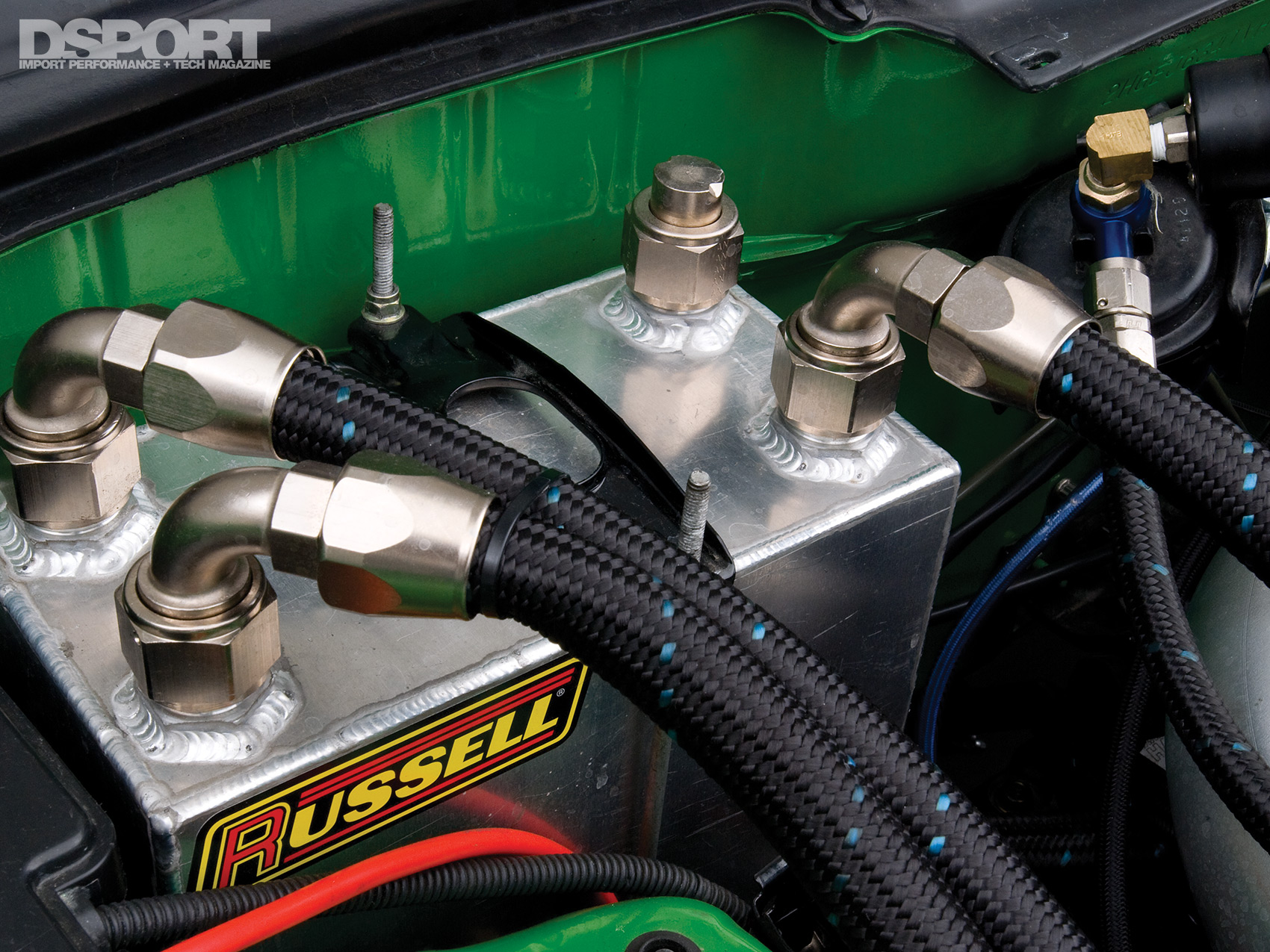

Russell Performance -AN Lines and Fittings |
| Springs, F&R (Make & Rate): |
A’PEX Integration 12kgf/mm (F) |
|
A’PEX Integration 5kgf/mm (R) |

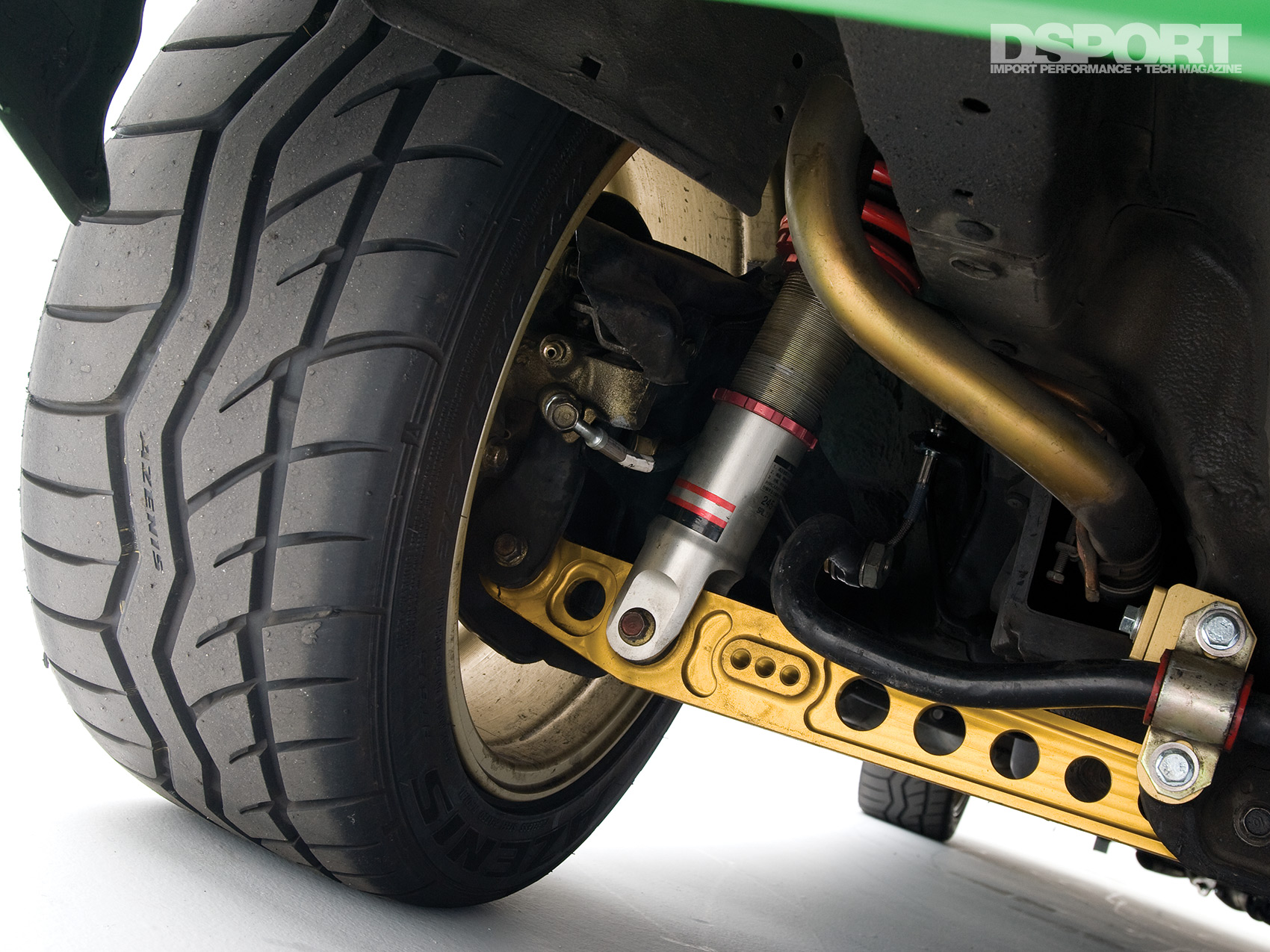

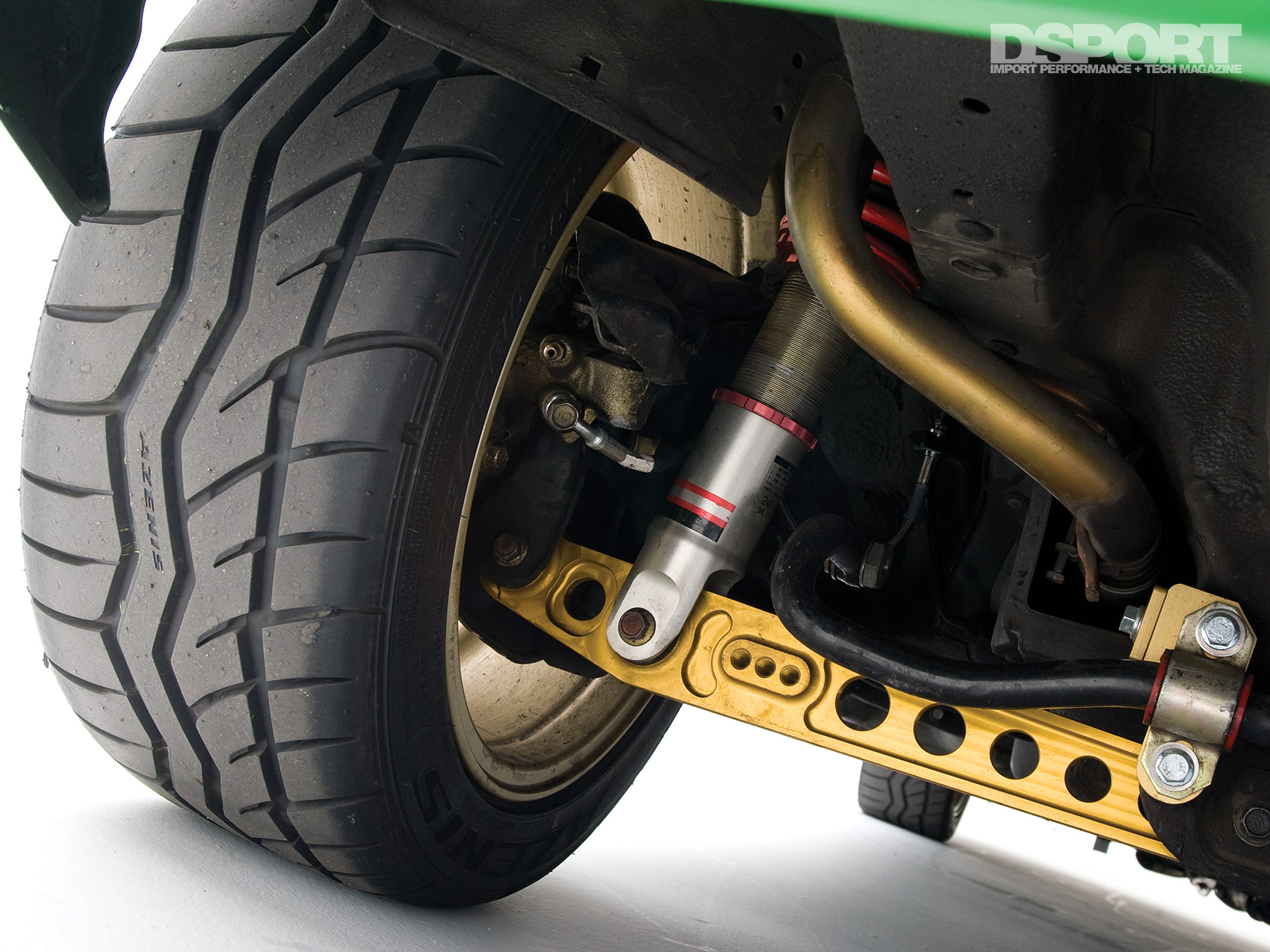

| Shocks, F&R (Make & Rate): |
A’PEX Integration N1-Type Pro 99Spec |
| Additional Suspension Components: |
Ingalls Front & Rear Camber Kit |
| Transmission: |
Gearspeed-built B16A |
|

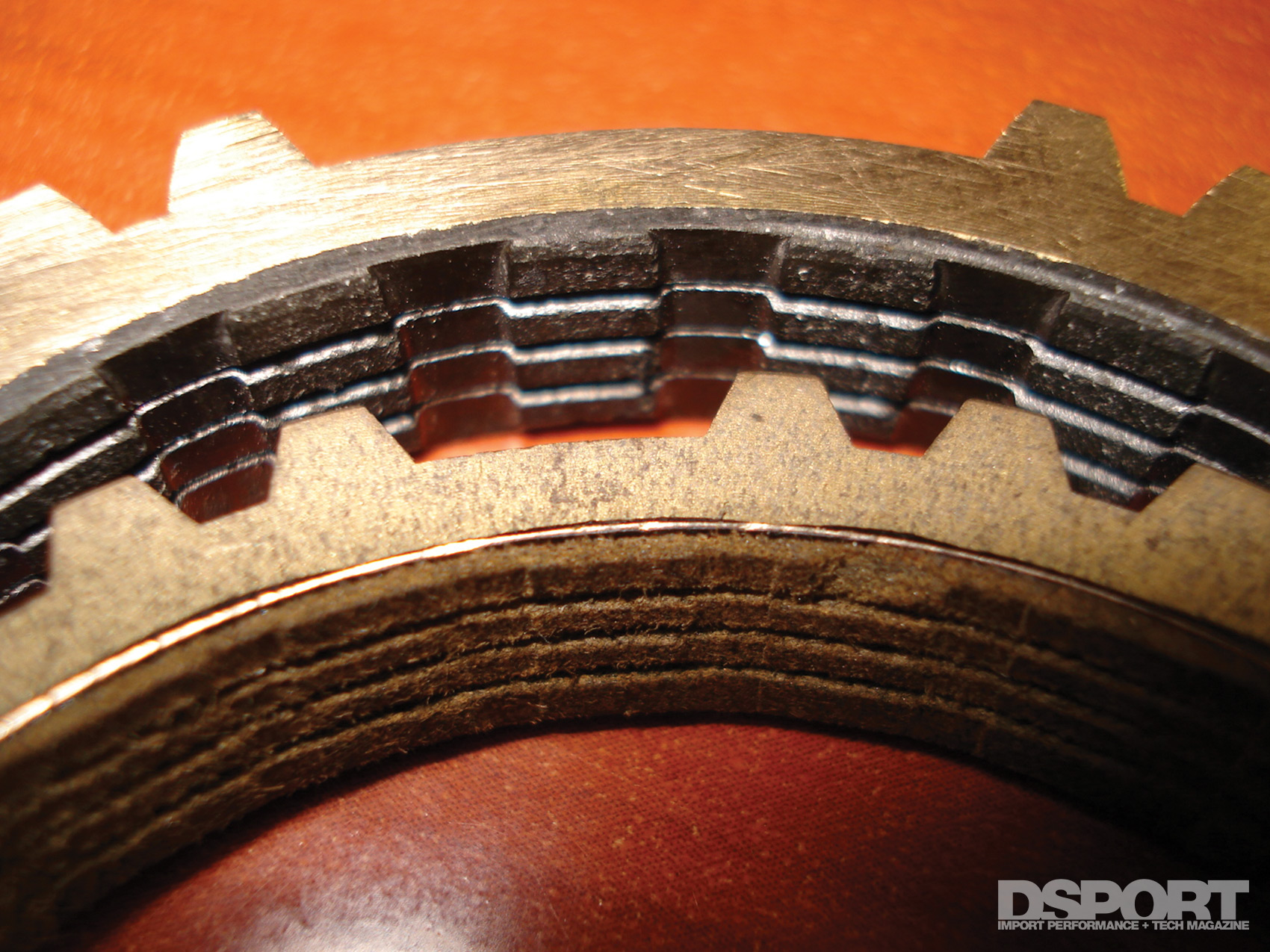

w/Carbon-Coated Synchros |
| Clutch / Flywheel: |
EXEDY Twin-Disc Cerametallic |
| Differential(s) (Make & Type): |

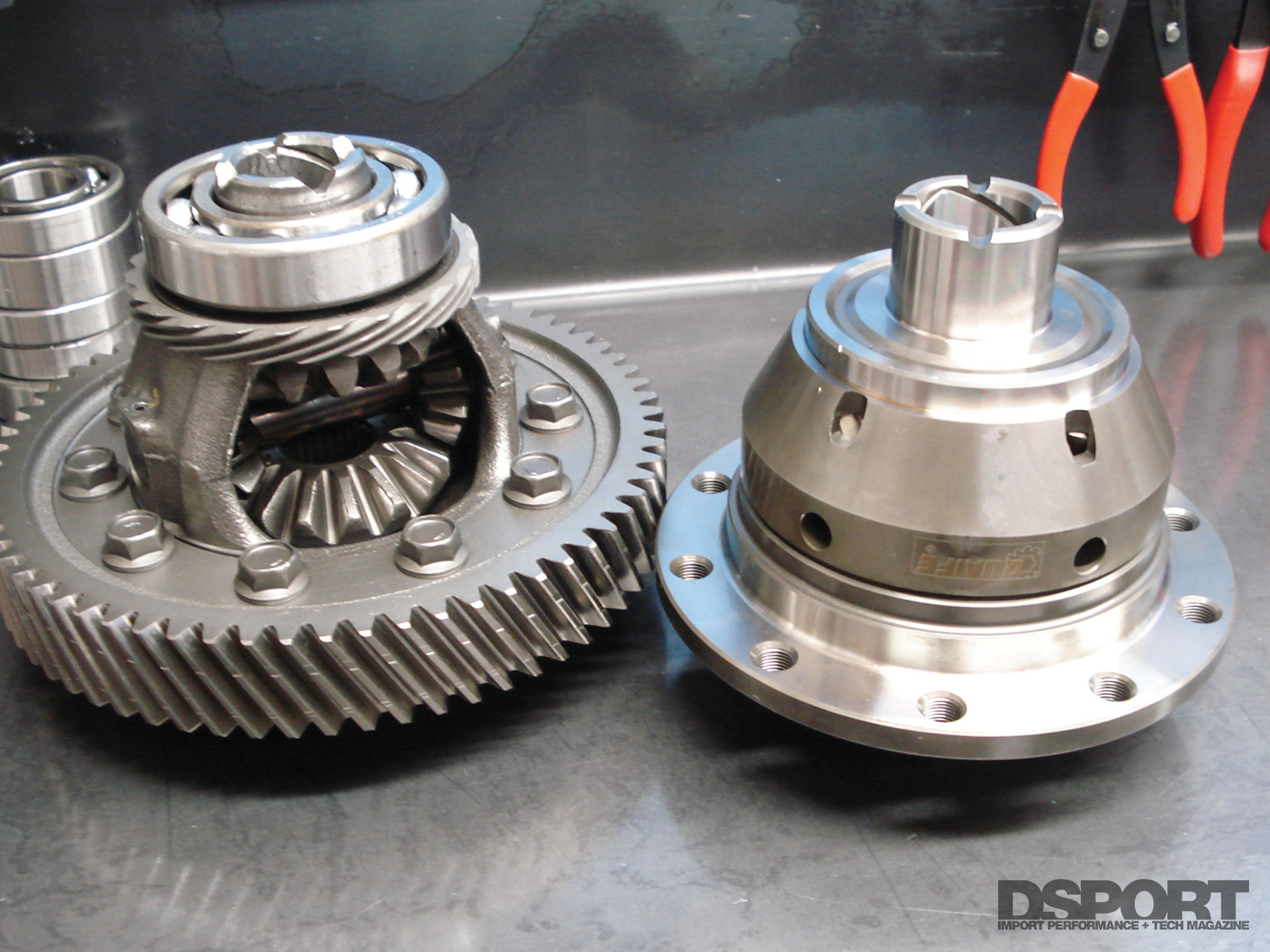

Quaife ATB Helical-Gear-Type LSD |
| Axles / Driveshaft: |
The Driveshaft Shop Stage-5.9 System |

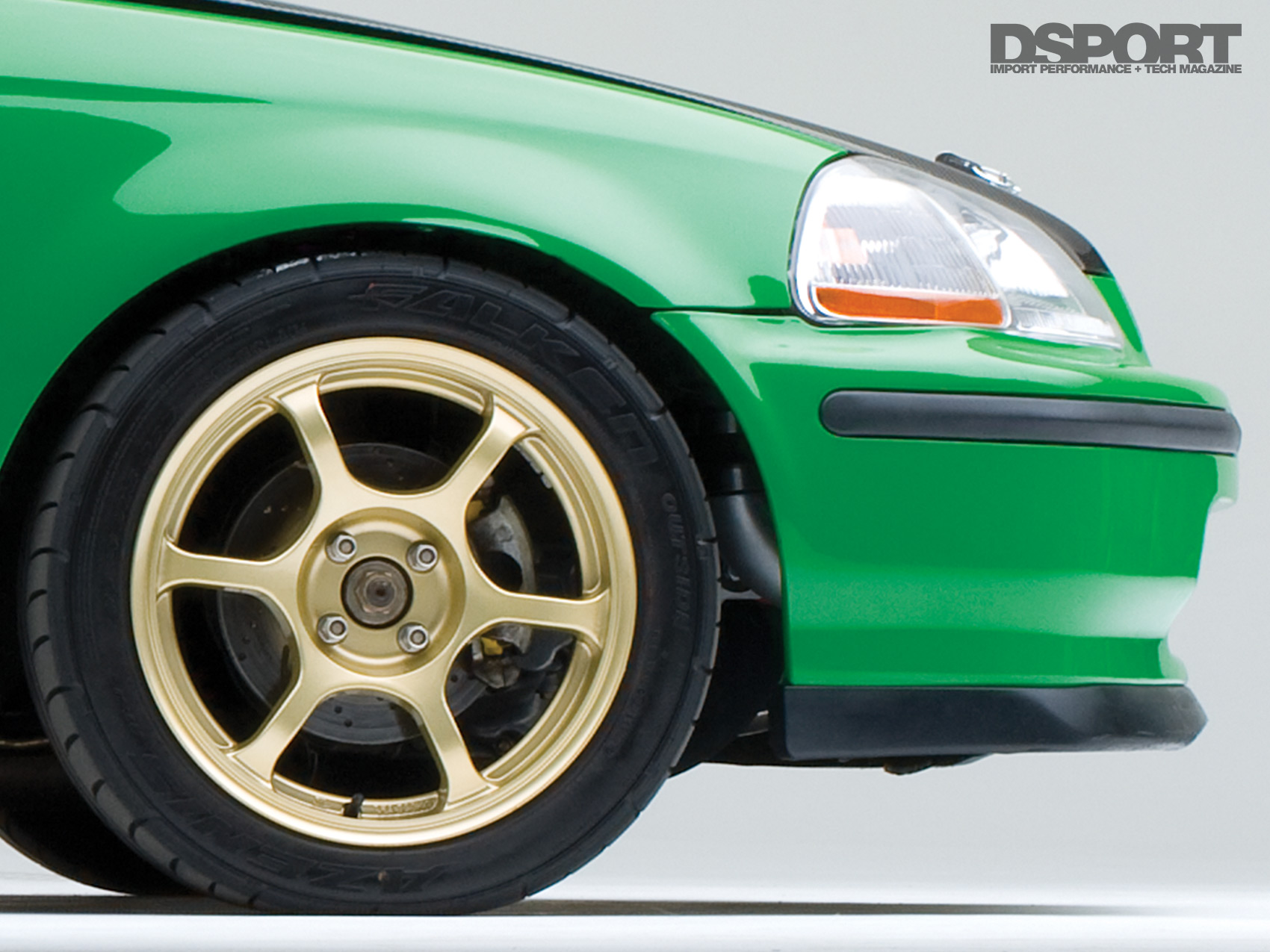

| Wheels (Make, Size & Offset): |
ROTA 16×7-Inch Boost Wheels |
| Tires (Make & Size): |
Falken AZENIS RT-615 215/45R16 |
| Brakes: |
EBC Yellow-Stuff Pads |
| Brake Rotors: |
EBC 3GD Sport Rotors |
