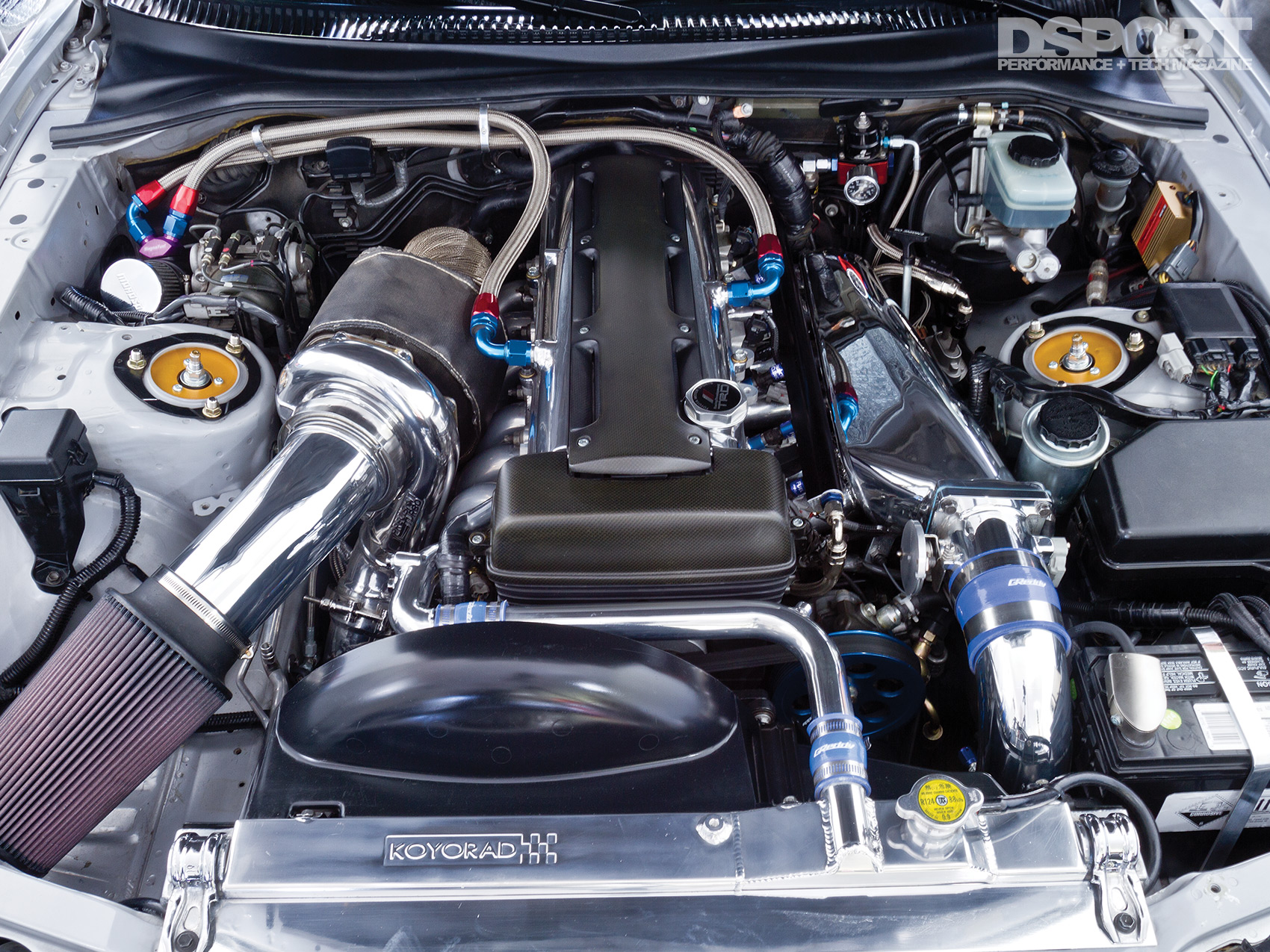

| Engine Code: |
2JZ-GTE |
| Displacement (cc): |
3,032.7cc |
| Bore & Stroke (mm): |
86.5mm x 86mm |

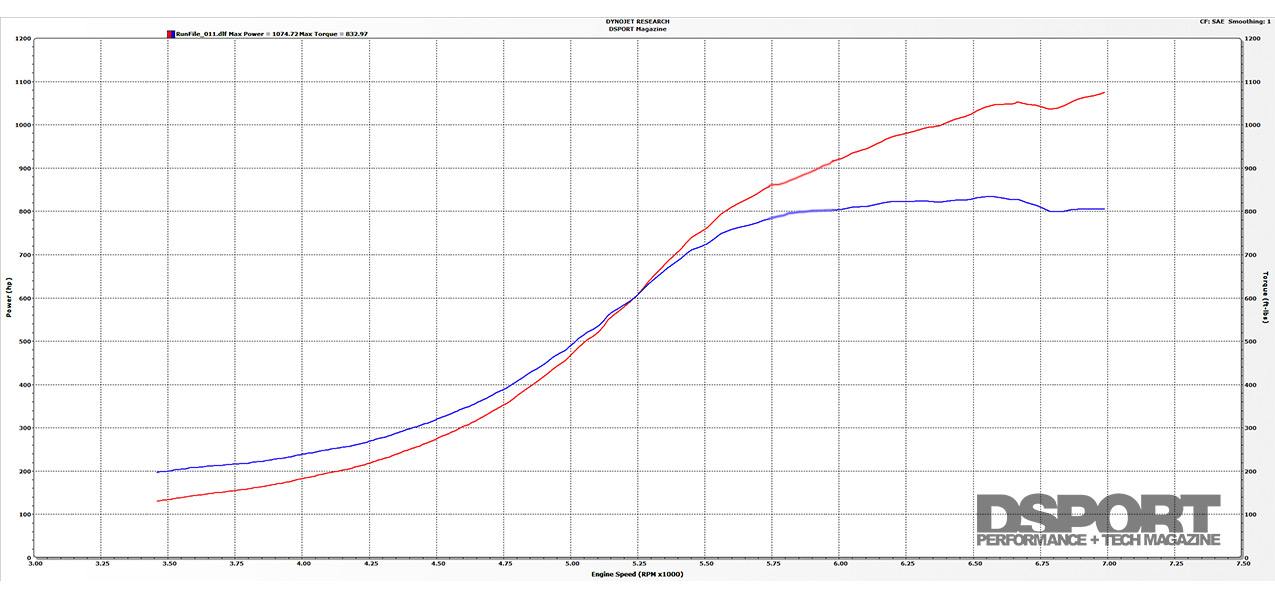

| Peak Horsepower (@ RPM): |
1074.72 whp @ 7,000 RPM |
| Peak Torque (@ RPM): |
832.97 lb-ft @ 6,500 RPM |
| Dyno Type: |
DynoJet |
| Engine Builder: |
Andy Ramseier |
| Block Modifications: |
0.5mm overbore |
| Machine Work: |
Andy Ramseier |
| Pistons/Compression Ratio: |
Sound Performance/Wiseco Pistons, 10.0:1 |
| Connecting Rods / Crank: |
Eagle Connecting Rods |
| Camshafts: |
GSC Power Division S2 Camshafts |
| Valves / Springs / Retainers: |
SuperTech +1mm Valves, |
|
Dual Valve Springs & Titanium Retainers |
| Head/Main Studs: |
Custom Age ARP, ARP Mains |
| Intake Manifold: |
Sound Performance Race Intake Manifold |
| Throttle Body: |
Wilson 75mm Throttle Body |
| Air Induction System: |
K&N Cone Filter |
| Fuel Injectors: |
Fuel Injector Clinic 2,150cc/min (x6) |
| Fuel Delivery System: |
Staged Walbro 465 (x2) |
|
Single -10AN to Dual -8AN Lines |
|
Sound Performance Billet Fuel Rail |
| Engine Management System: |
ProEfi 128 EMS |
| Engine Management Tuner: |
John Firth Axoman Tuning |
| Boost Controller: |
Iboost 5-Step controlled by ProEf |

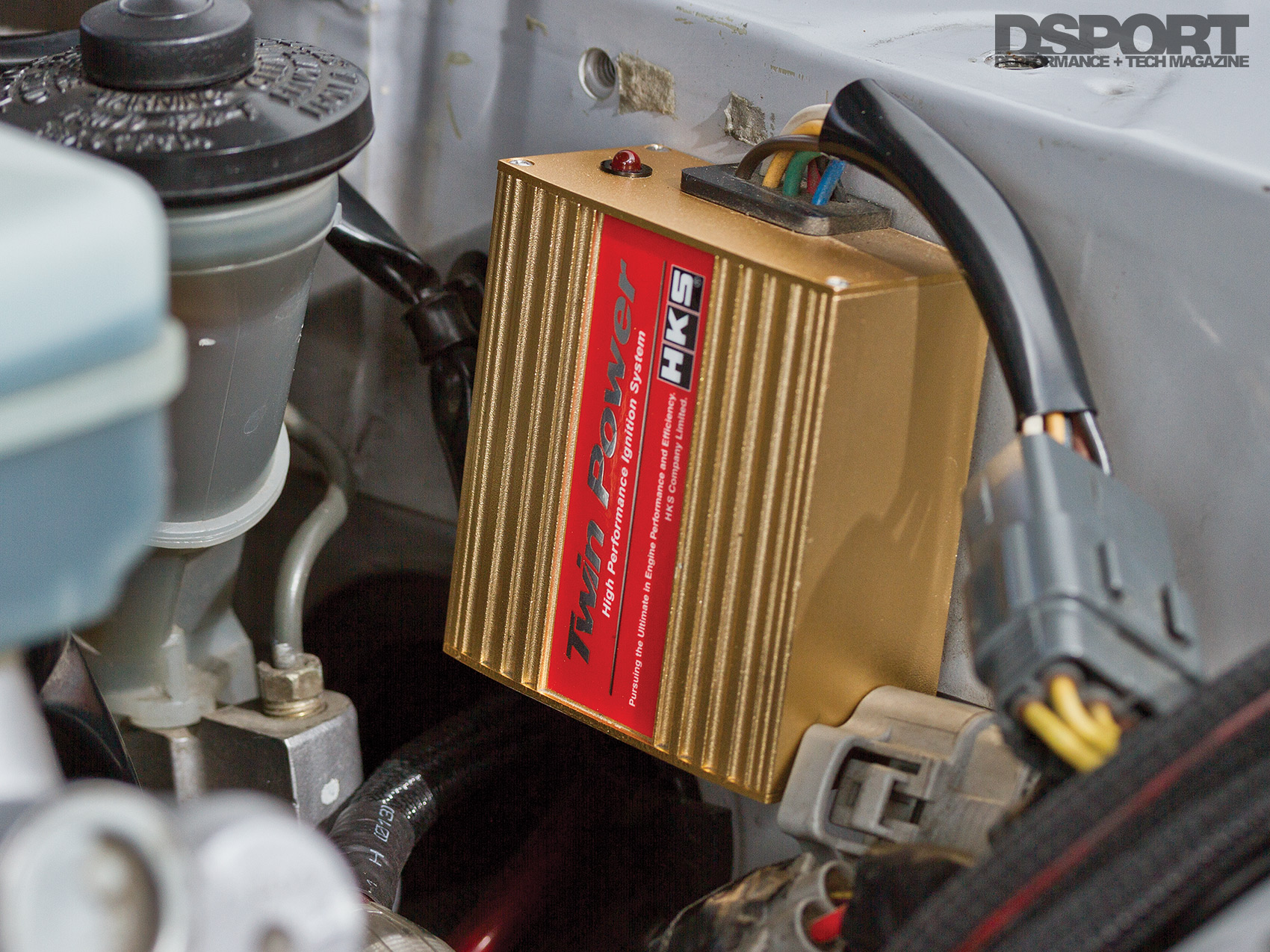

| Ignition: |
HKS DLI |
| Spark Plugs: |
NGK 4644 |
| Exhaust Manifold: |
Sound Performance Race 6-1 T4 |
| Exhaust System: |
Sound Performance Mid Pipe |
|

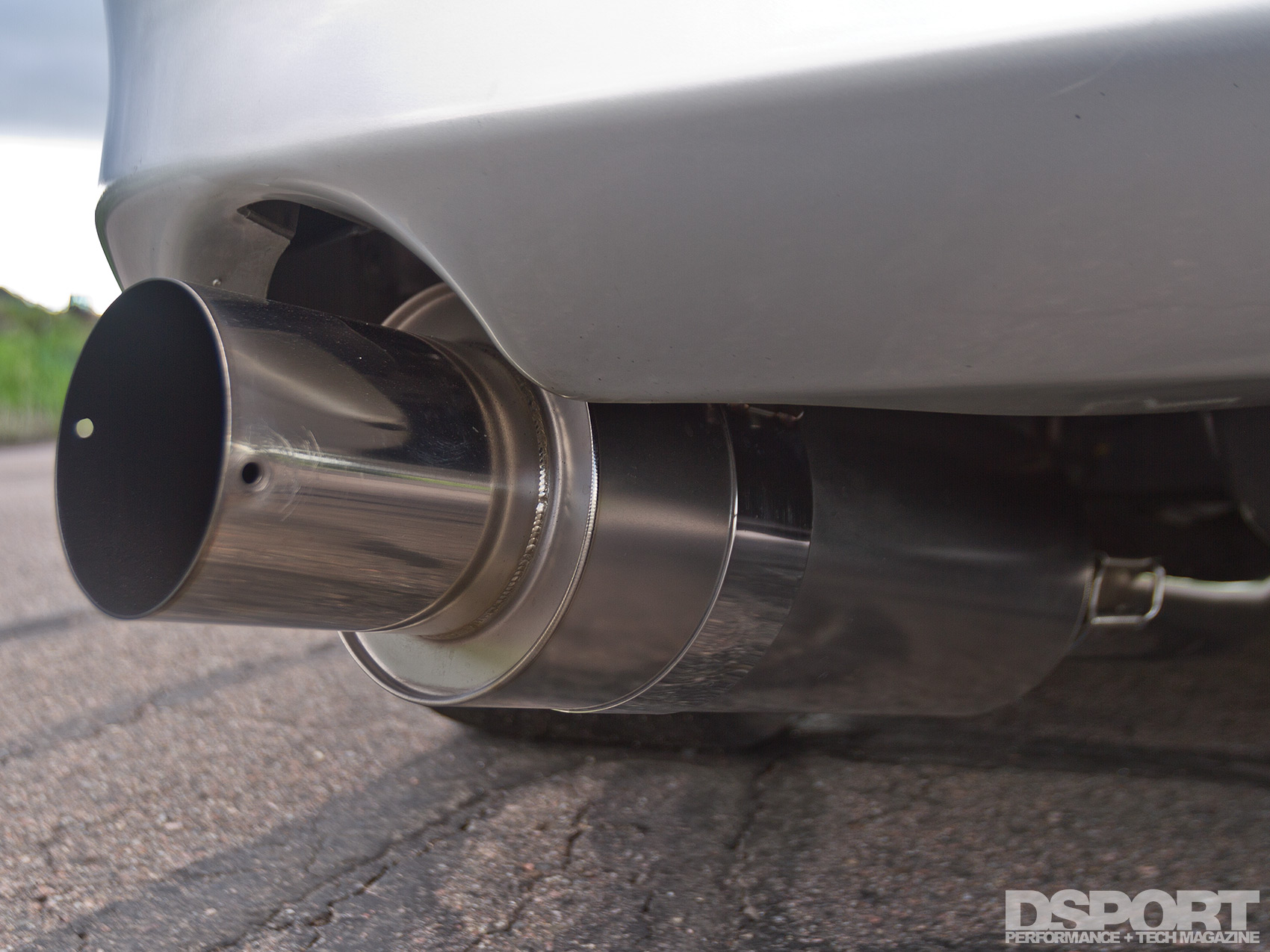

HKS Titanium 4-inch Exhaust |
| Downpipe: |
PFAB 4-inch Down Pipe |
| Wastegate: |
TiAL Sport 44mm |
| Blow-Off Valve: |
TiAL Sport 50mm |

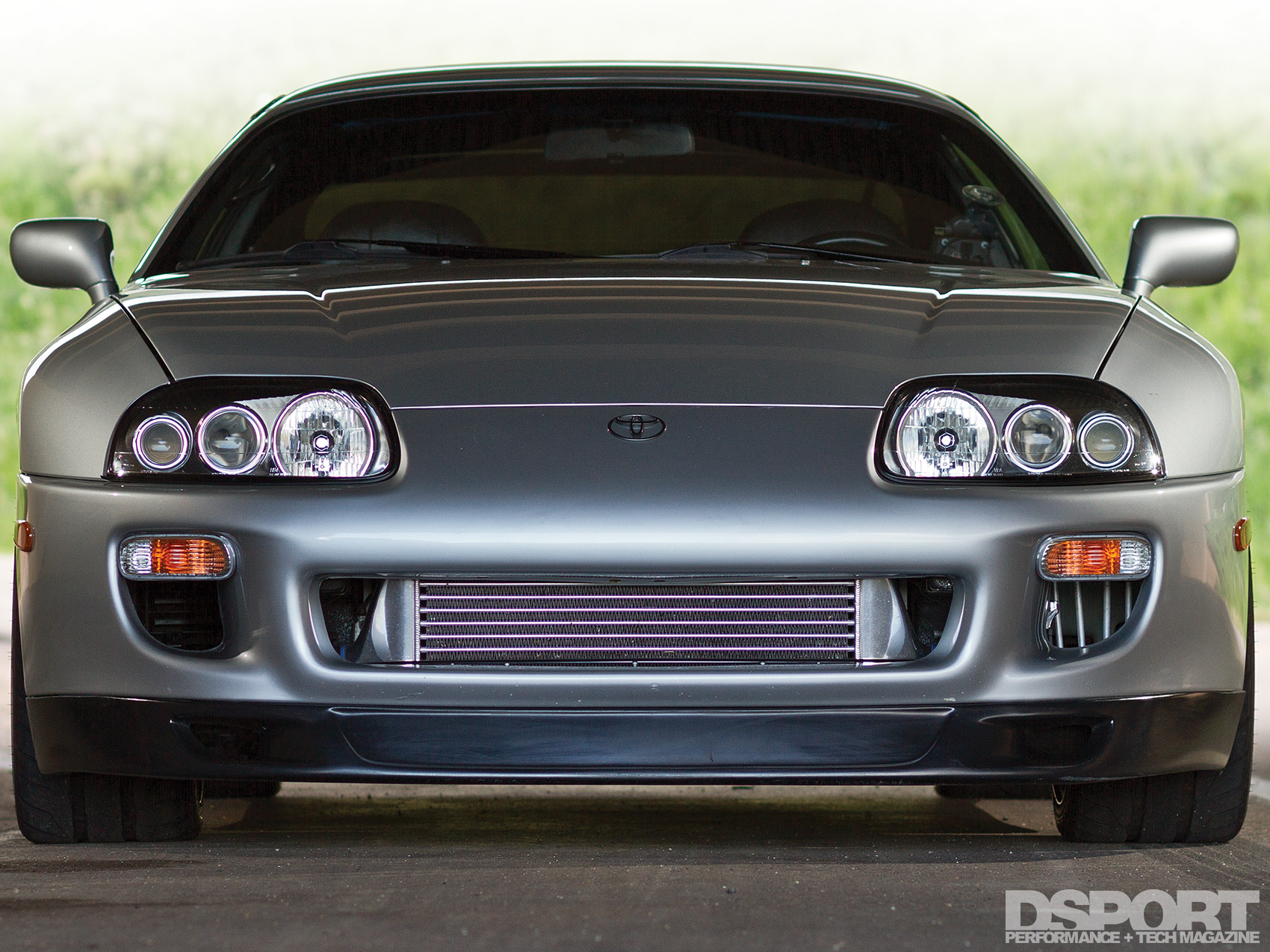

| Intercooler: |
GReddy 4-Row Intercooler |
| Cooling System: |
Koyo Radiator |
| Performance Electronics: |
ProEfi Color Can Bus Gauge with Data Logging |
| Springs, F&R (Make & Rate): |
HKS 14 kgf/mm (F), 8 kgf/mm (R) |
| Shocks, F&R (Make & Rate): |
HKS HiperMax IV GT Spec Dampers |
| Transmission: |
Factory Getrag V160 |
| Final Drive: |
3.13:1 |
| Clutch / Flywheel: |
RPS Twin Billet Carbon, Aluminum Flywheel |
| Differential(s) (Make & Type): |
John Firth Racing Billet Diff Cover |

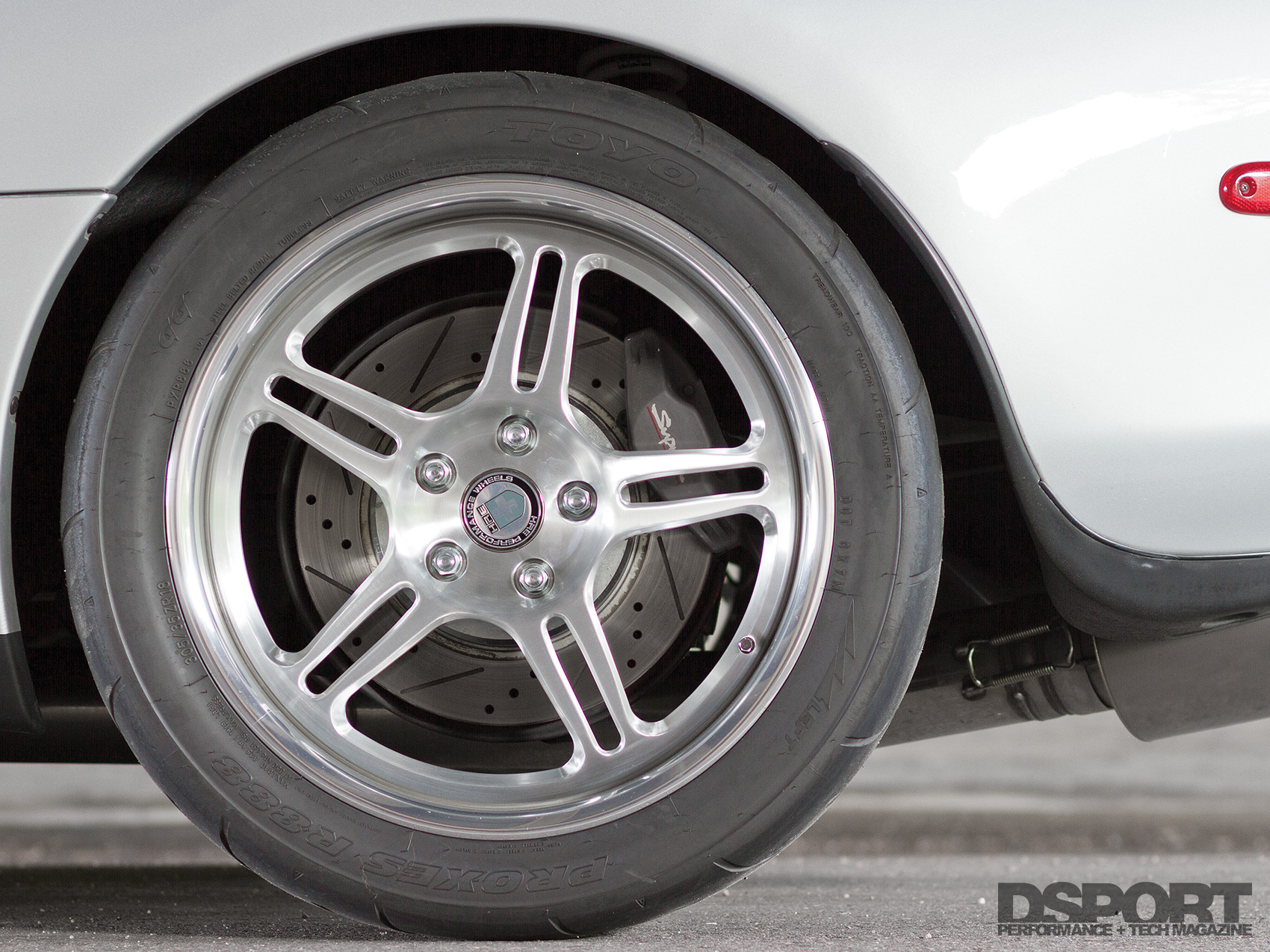

| Wheels (Make, Size & Offset): |
HRE 567R 18X10-inch (F), 18X11.5-inch (R) |
| Tires (Make & Size): |
Nitto NT05 265/30R18 (F) |
|
Toyo R888 305/35R18 (R) |
| Brake Pads: |
Hawk Blue Street Pads |
| Brake Lines: |
Goodridge Stainless-steel Braided Lines |
