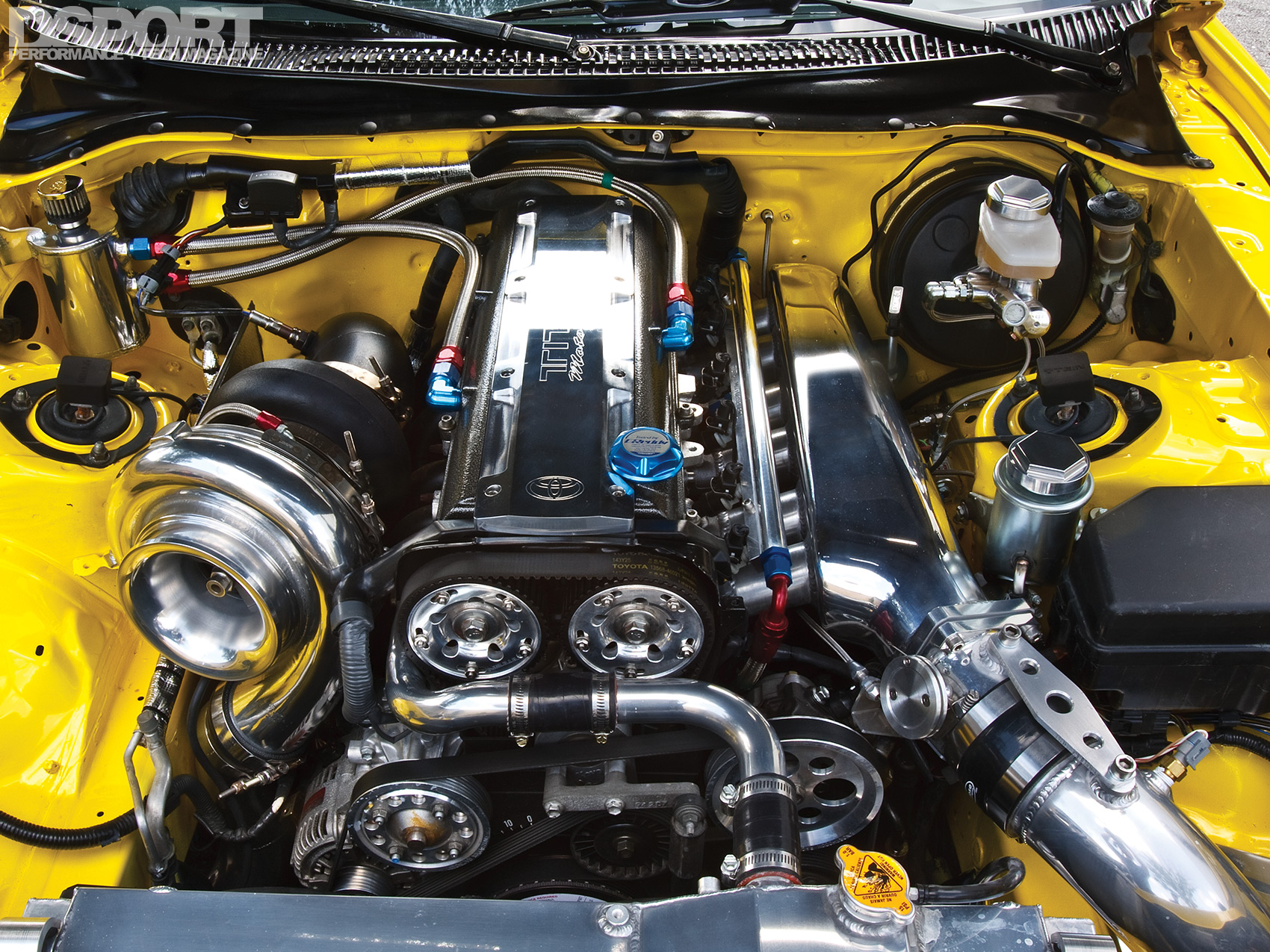

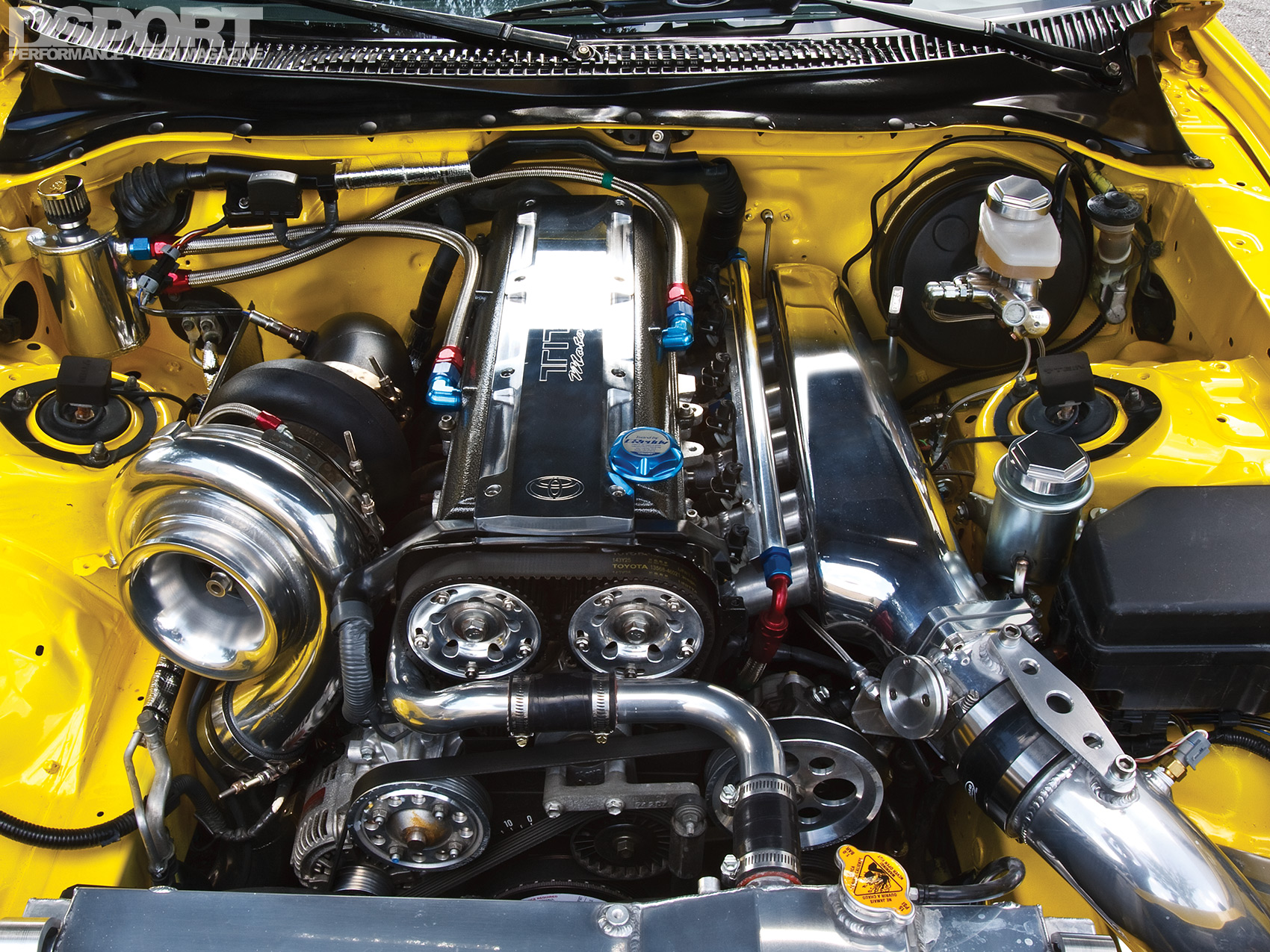

| Engine Code: |
2JZ-GTE |
| Displacement (cc): |
3,353cc |
| Bore & Stroke (mm): |
87mm x 94mm |

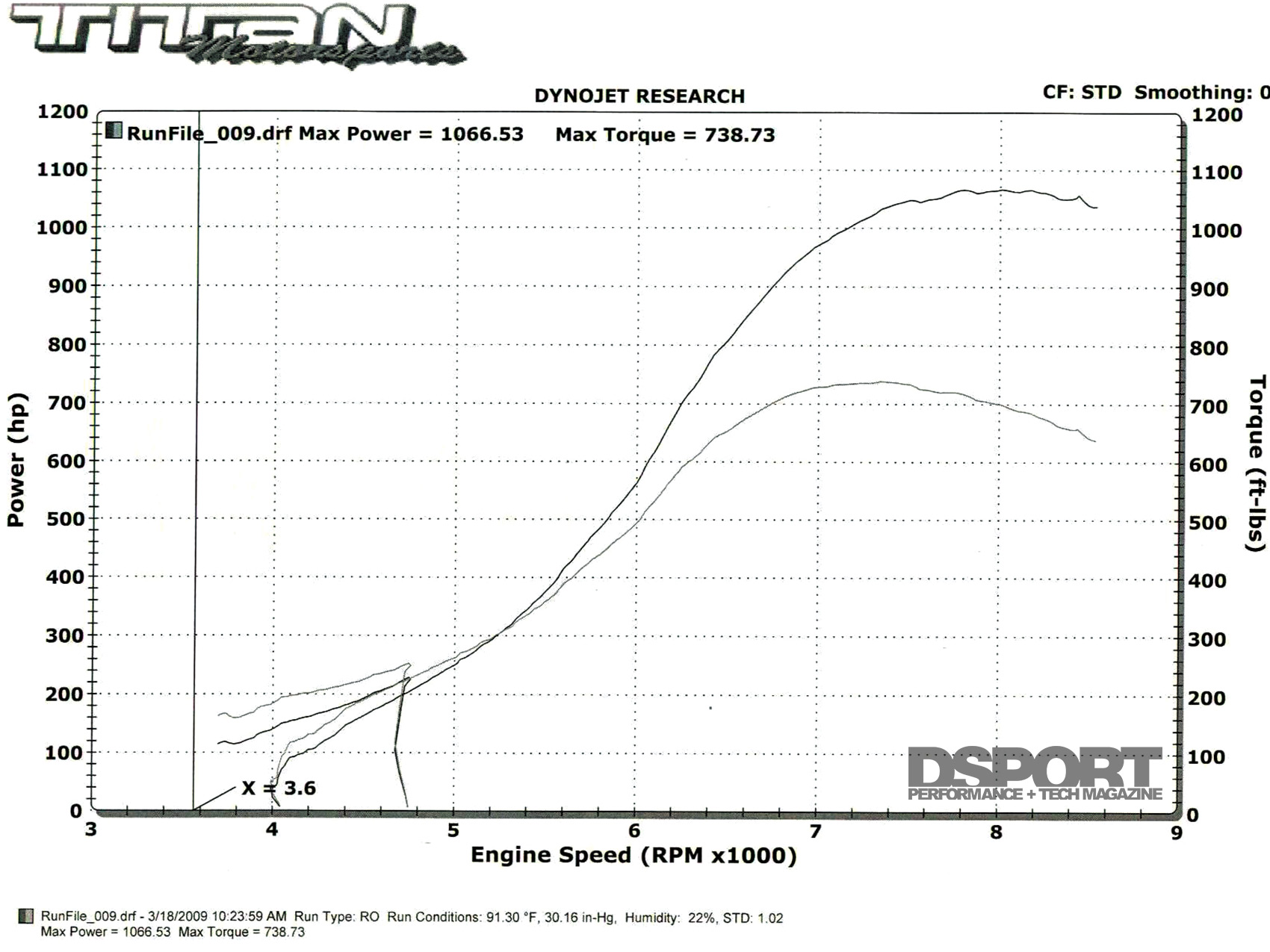

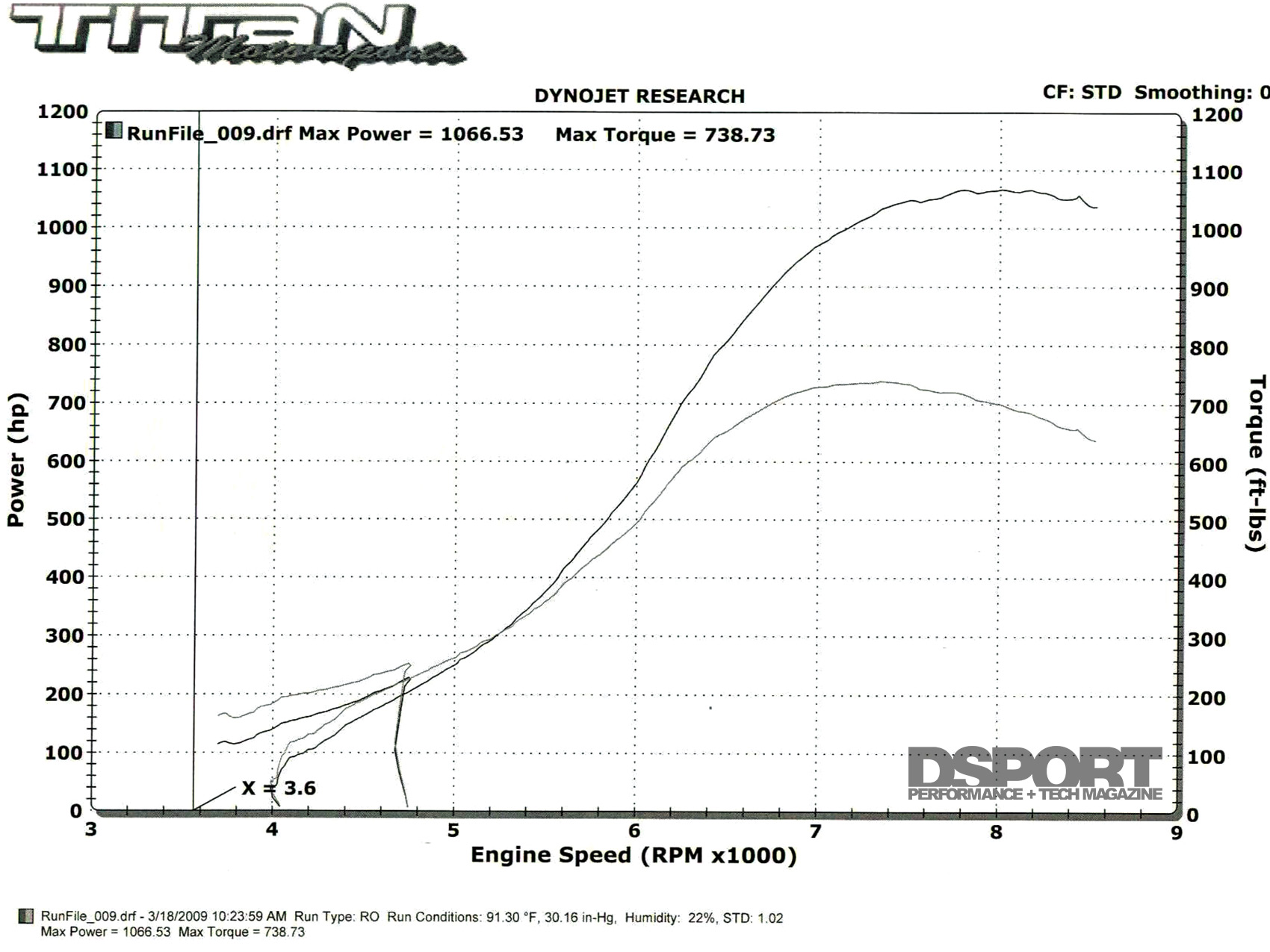

| Peak Horsepower (@ RPM): |
1067 whp @ 8,000 RPM |
| Peak Torque (@ RPM): |
738 lb-ft @ 7,4000 RPM |
| Dyno Type: |
Dynojet 248C |
| Block Modifications: |
Bore and Hone |
| Machine Work: |
Titan Motorsports (TM) |
| Pistons/Compression Ratio: |
CP Pistons Forged-Aluminum |
| Connecting Rods / Crank: |
Carrillo H-Beam Connecting Rods |
|
Titan Motorsports Custom Billet-Steel Crankshaft |
| Camshafts: |
HKS 272-degree Camshafts (In & Ex) |
| Valves / Springs / Retainers: |
Ferrea Complete Valvetrain Kit |
| Cylinder Head Mods: |
TM Race Head (Brand New Toyota Core) |
| Head/Main Studs: |
1⁄2-inch ARP 8740 Head Studs |
| Cylinder Head Gasket: |
TM Race Head (Brand New Toyota Core) |
| Intake Manifold: |
Virtual Work Intake Manifold |
| Throttle Body: |
Accufab 90mm Throttle Body |
| Intake System: |
TM Hardpipe kit |
| Fuel Injectors: |
TM 1,600 cc/min Injectors (x6) |
| Fuel Delivery System: |
TM Triple-Pump Fuel System |
| Engine Management System: |
MoTeC M800 Engine Management w/TM Adapter Harness |
| Ignition: |
MoTeC with Factory Coils |
| Spark Plugs: |
NGK-2668 |
| Exhaust Manifold: |

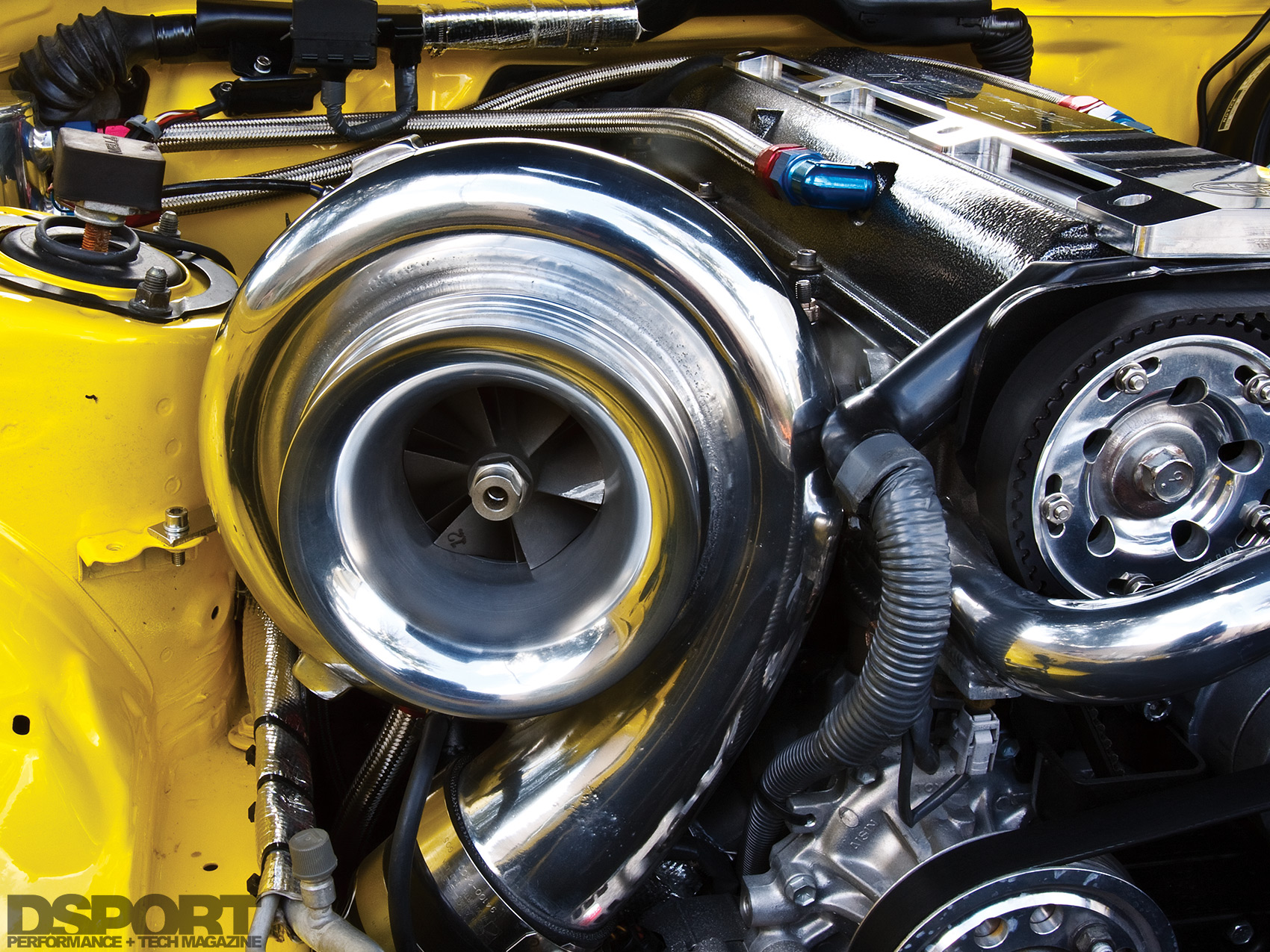

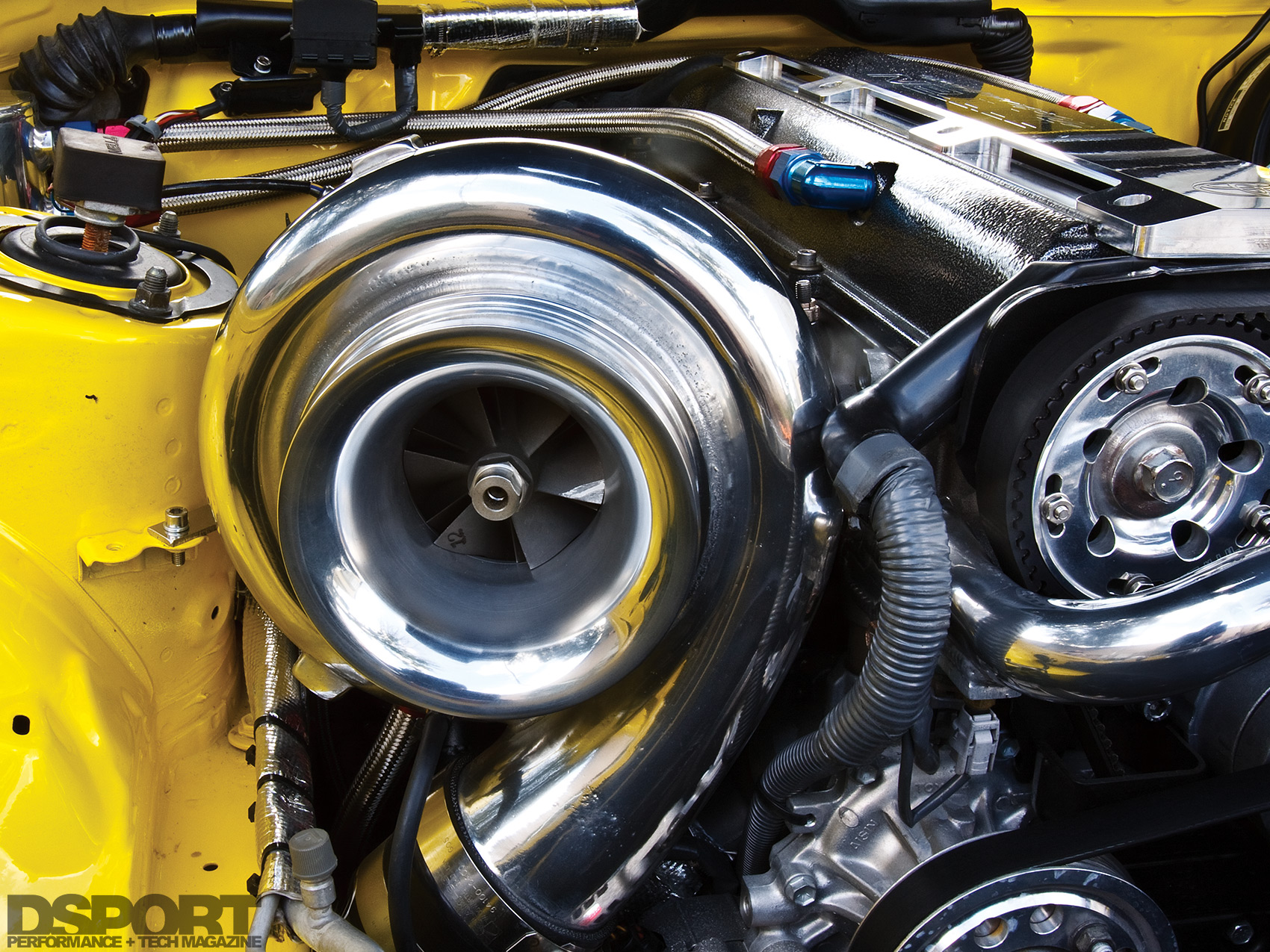

Virtual Works T6 Turbo kit |
| Exhaust System: |

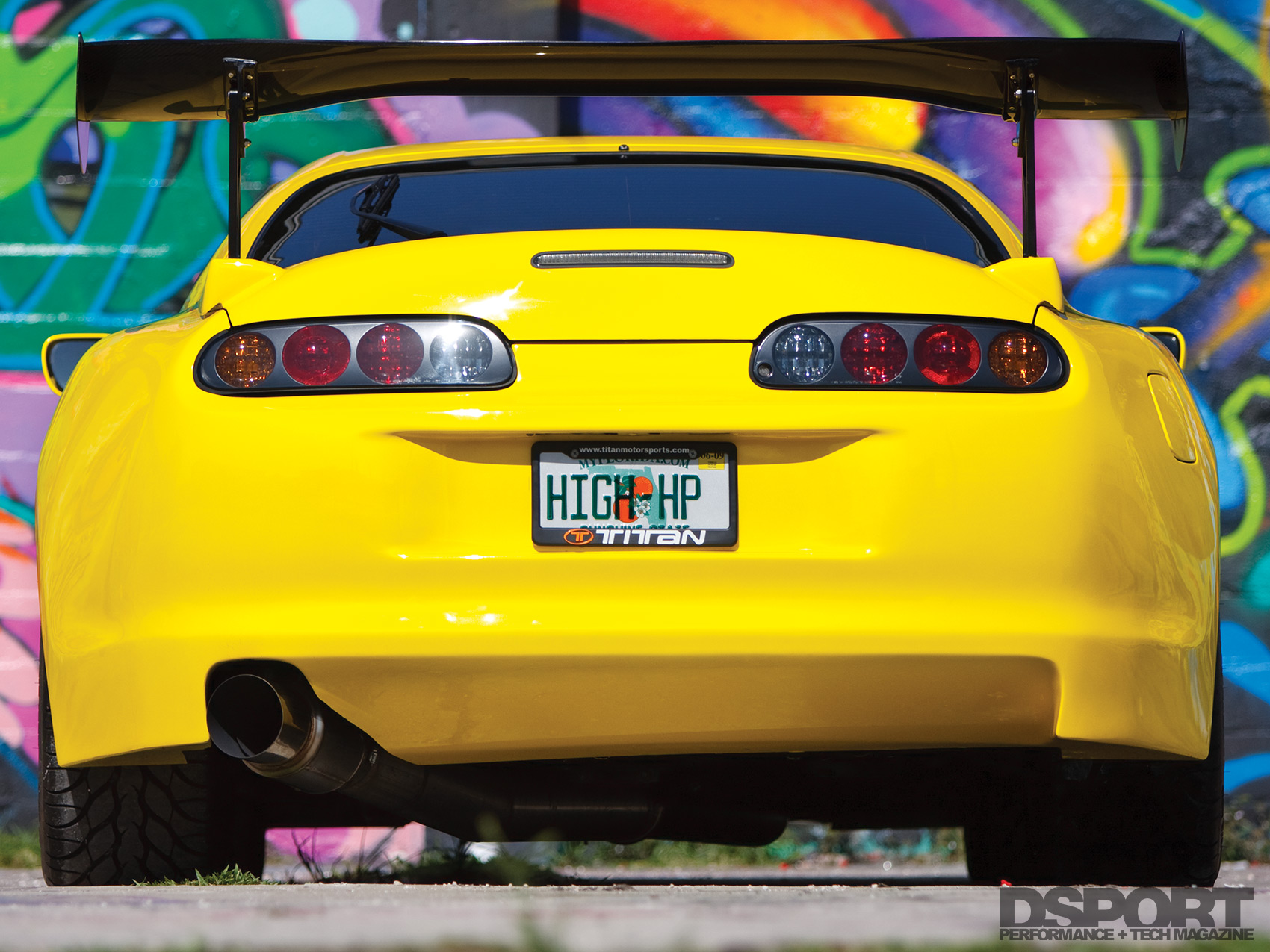

TM 4.5-inch Exhaust with Burns Stainless Muffler |
| Downpipe: |
Virtual Works Downpipe |

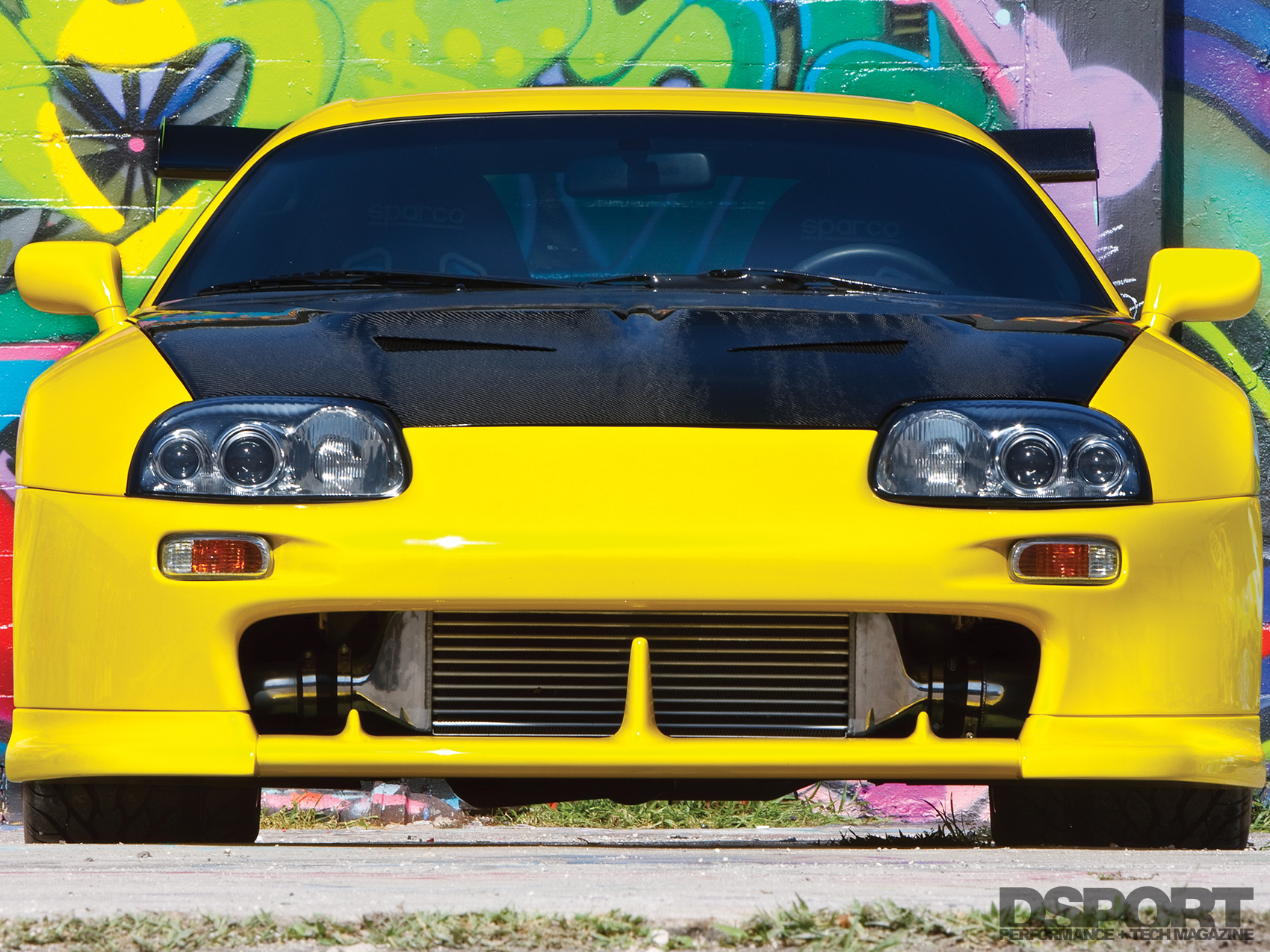

| Intercooler: |
GReddy 4-row Intercooler |
| Nitrous Oxide: |
Nitrous Express 75-shot Single Fogger |
| Cooling System: |
Fluidyne Radiator |
|
SPAL High-Output Fan Kit |
| Springs, F&R (Make & Rate): |
TEIN 14 kgf/mm(F), 8 kgf/mm (R) |
| Shocks, F&R (Make & Rate): |
TEIN Flex Coilovers |
| Additional Suspension Components: |
TM Sway Bars, Differential Mounts |
| Transmission: |
Getrag 6-speed |
| Clutch / Flywheel: |
Tilton Engineering Triple-Disc Carbon Clutch w/Flywheel |
| Differential(s) (Make & Type): |
TRD Limited-slip Differential |
| Axles / Driveshaft: |
TM Driveshaft |

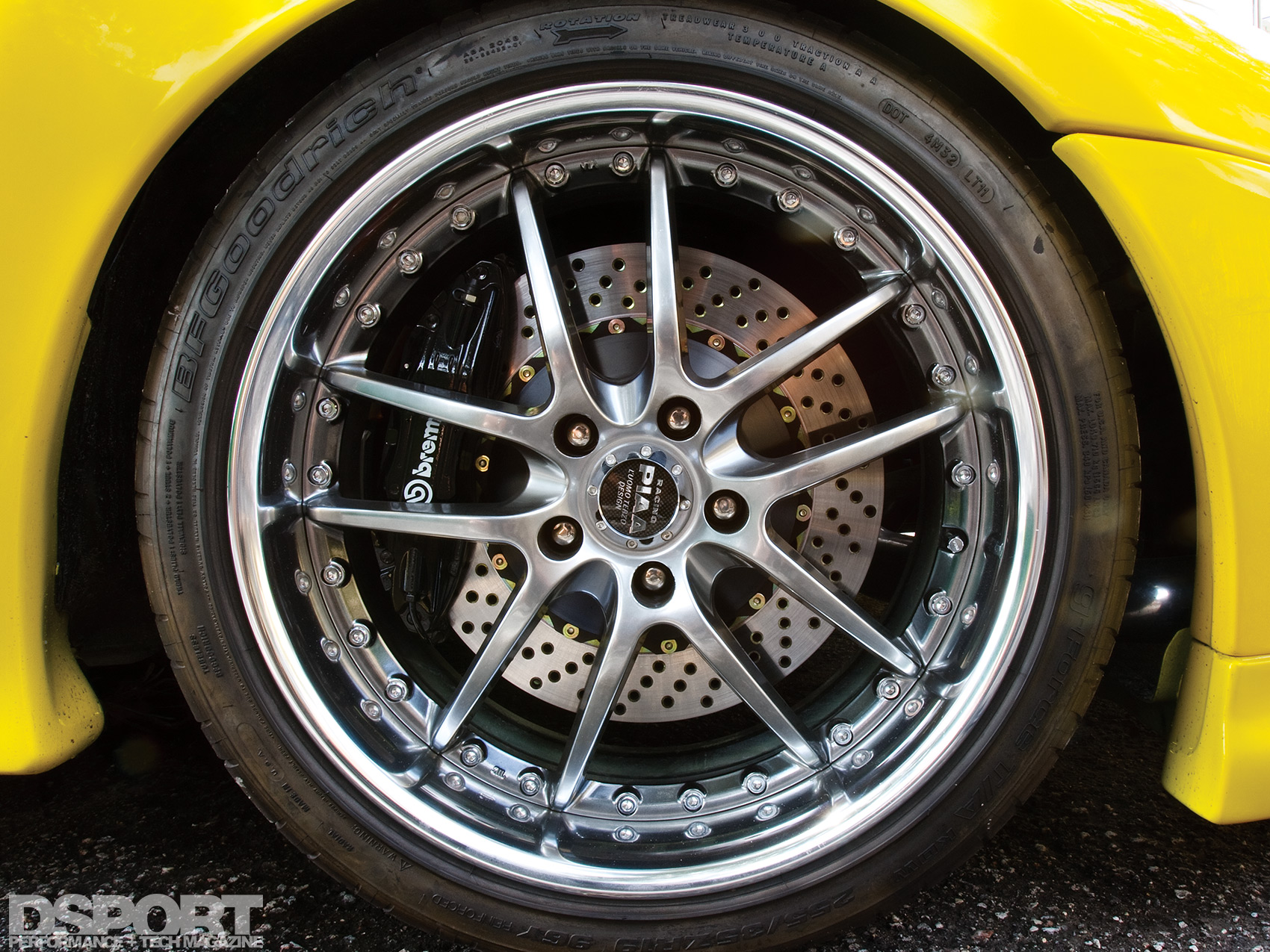

| Wheels (Make, Size & Offset): |

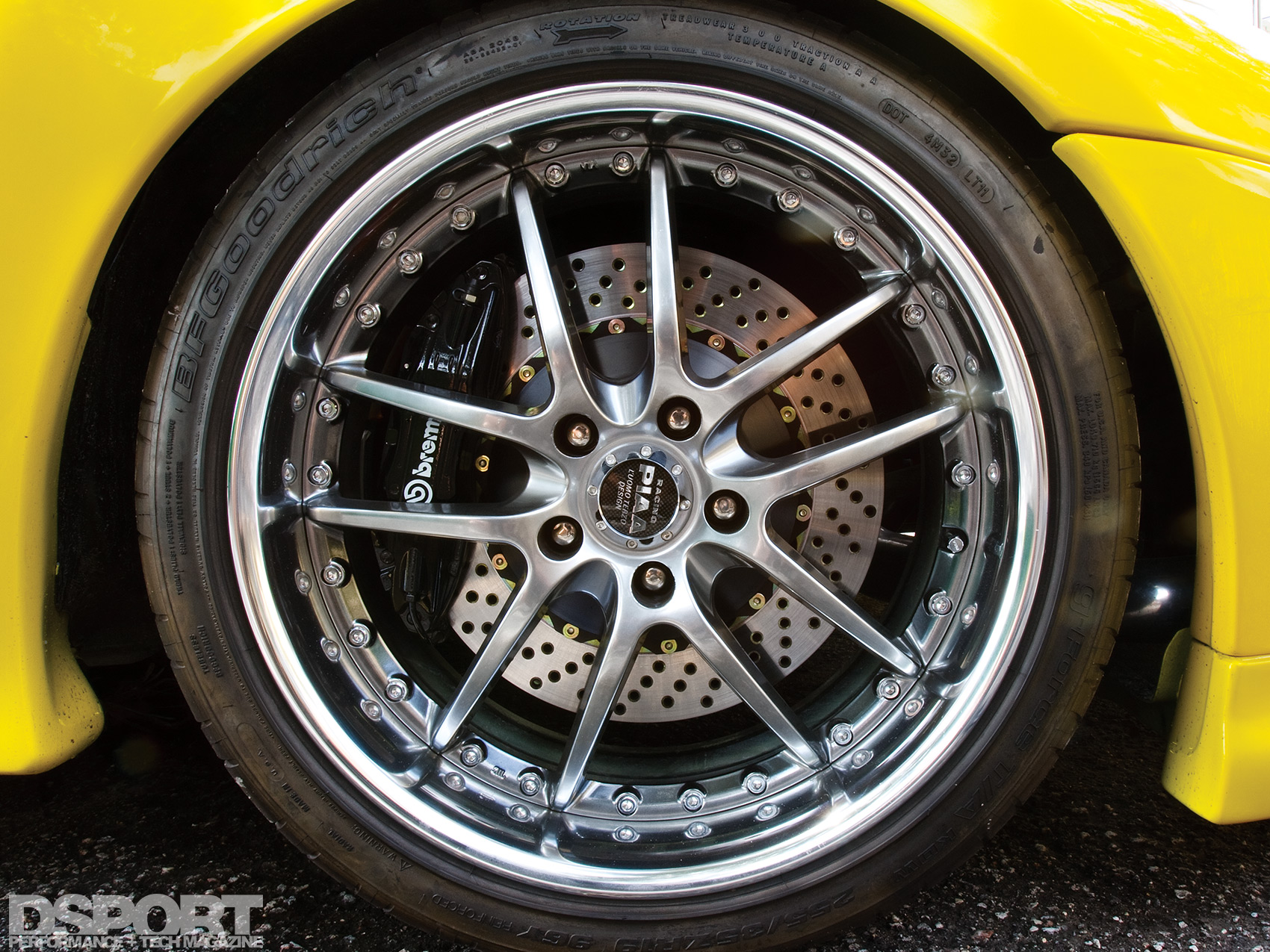

PIAA Super Rozza 2-piece 18×9-inch(F), 18×10-inch(R) |
| Tires (Make & Size): |
BFGoodrich g-Force T/A KDW 255/35R19(F), 295/35R19(R) |
| Brakes: |
Brembo 6-piston (F), 4-piston (R) |
| Brake Rotors: |
14.1-inch (F), 13.2-inch (R) |
| Brake Pads: |
Brembo |
| Brake Lines: |
Brembo Steel-braided Lines |
