SPEC SHEET
| VEHICLE | |
|---|---|
| Year / Make / Model: | 1992 Acura NSX |
| Chassis Code: | NA1 |
| Weight Bias (F/R): | 42/58 |
| Launch RPM: | 3,800 RPM |
| Shift RPM: | 7,800 RPM |
| Redline RPM: | 8,000 RPM |
| Peak Boost: | 8 psi |
| Fuel: | 91 Octane |
| ENGINE | |
|---|---|
| Engine Code: | C30A |
| Displacement (cc): | 2,978cc |
| Bore & Stroke (mm): | 90mm x 78mm |
| Peak Horsepower (@ RPM): | 407 whp |
| Peak Torque (@ RPM): | 378 lb-ft |
| Dyno Type: | Dynojet Dynamometer |
| Engine Builder: | Factory |
| Air Induction System: | Insane Speed Turbo System |
| Fuel Injectors: | Injector Dynamics ID 1,000 cc/min (x6) |
| Fuel Delivery System: | Bosch 044 In-Tank Pump |
| Engine Management System: | HKS F-CON VPRO |
| Engine Management Tuner: | Mike Angel of Insane Speed |
| Boost Controller: | TurboSmart Eboost2 |
| Spark Plugs: | NGK |
| Exhaust Manifold: | Insane Speed Modified Manifold |
| Exhaust System / Downpipe: | Insane Speed Stainless-steel Downpipe |
| Wastegate: | Turbosmart |
| Blow-Off Valve: | Turbosmart Race BOV |
| Intercooler: | Insane Speed Air to Water System |

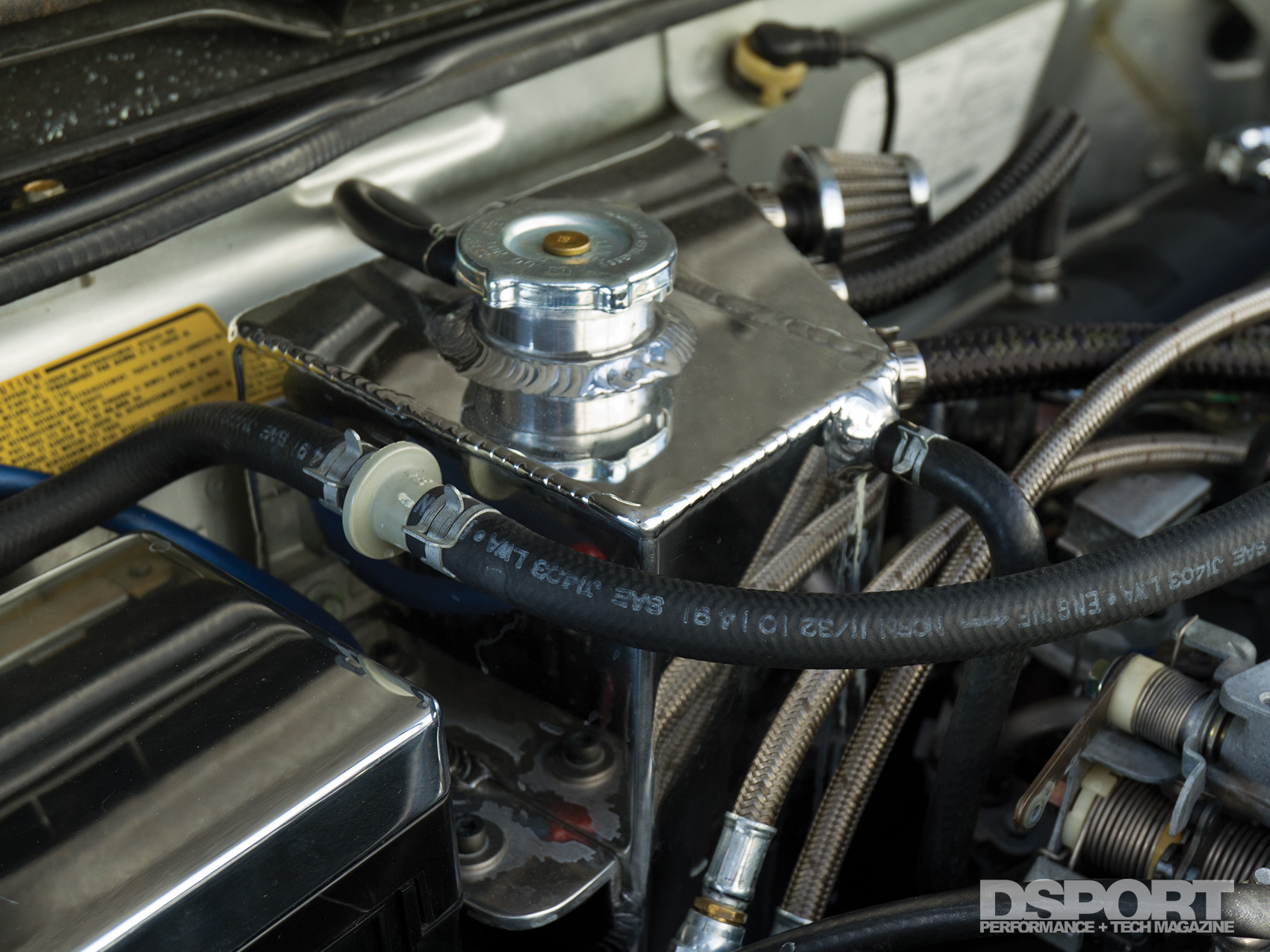

| Cooling System: | Koyo Radiator |
| Oil System: | Insane Speed Oil Cooler |
| Performance Electronics: | AEM Gauges |
| TURBOCHARGER | |
|---|---|
| Turbocharger: | Precision 6265 |
| Frame: | T4 |
| Compressor Wheel Specs: | 82mm Major, 62mm Inducer |
| Turbine Wheel Speds: | 74mm Major, 64.6mm Exducer |
| CHASSIS/DRIVELINE | |
|---|---|
| Springs, F&R (Make & Rate): | KW Suspension Springs |
| Shocks, F&R (Make & Rate): | KW Suspension Variant 3 Adjustable Dampers |
| Additional Suspension Components: | Zinardi Sway Bars, KW V3 Coilovers |
| Clutch / Flywheel: | Exedy Twin Carbon |
| Wheels (Make, Size & Offset): | Volk Racing CE28, 17×8-inch (F), 18×10-inch (R) |
| Tires (Make & Size): | Yokohama Advan AD08 |
| 245/40R17 (F) 295/30R18 (R) | |
| Brake Rotors (Diameter, F&R): | Stoptech |
| Brake Pads (Front & Rear): | Hawk Performance HPS Pads |
| Brake Lines: | Stoptech Stainless-steel Braided Lines |
| INTERIOR | |
|---|---|

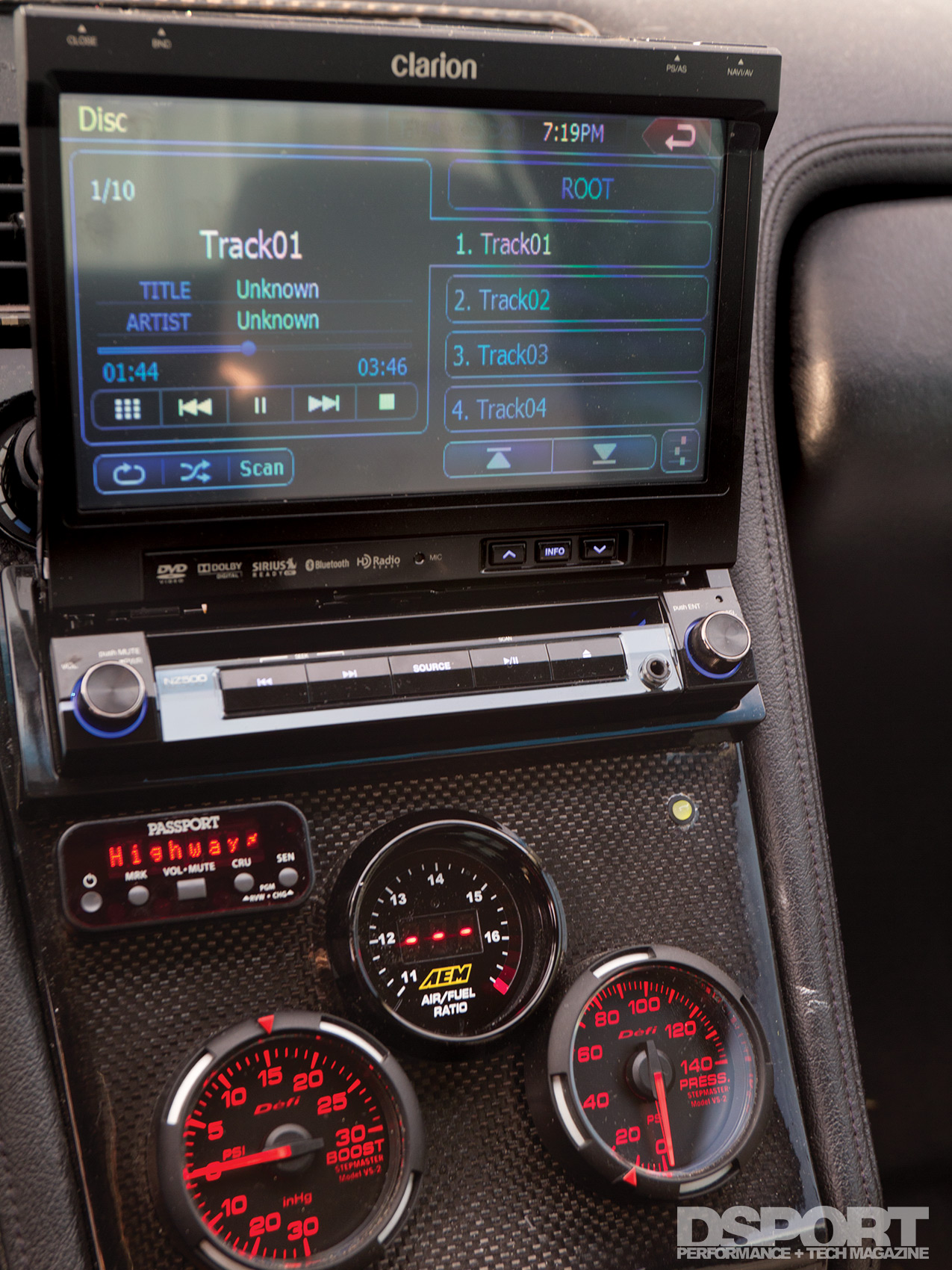

| Gauges: | AEM |
| Etc: | Insane Speed 1200watt competition stereo |
| system with custom dash integration. | |
| Passport integrated front | |
| and rear laser/radar detection system |
