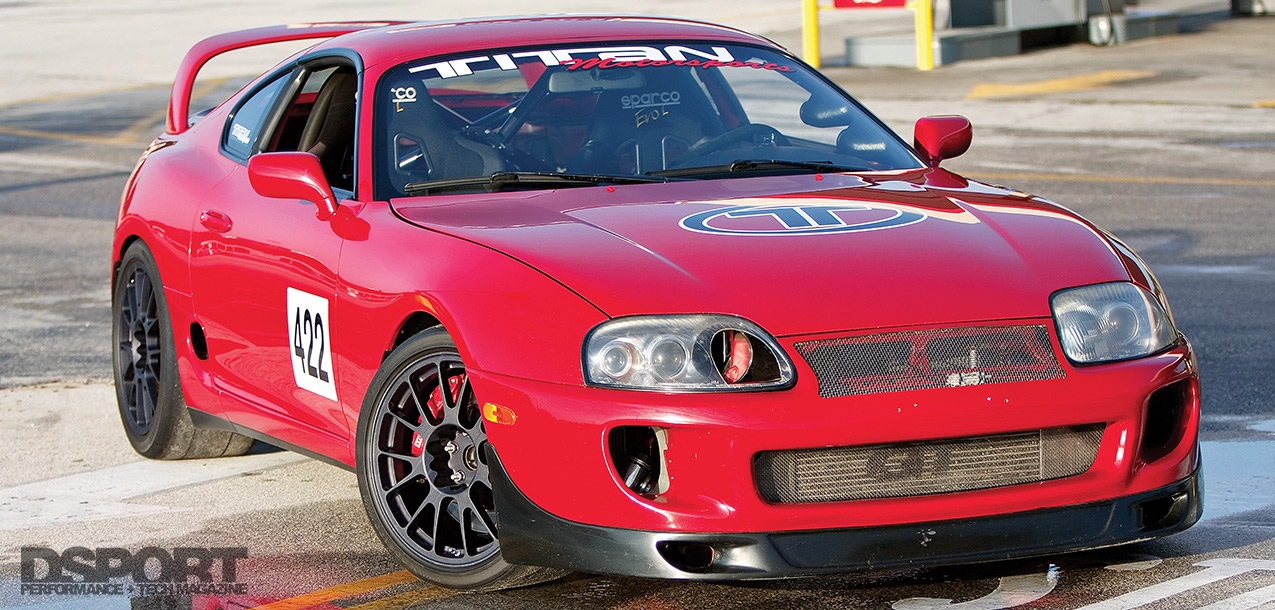

560WHP Track Carving Single Turbo Toyota Supra

SPEC SHEET

VEHICLE

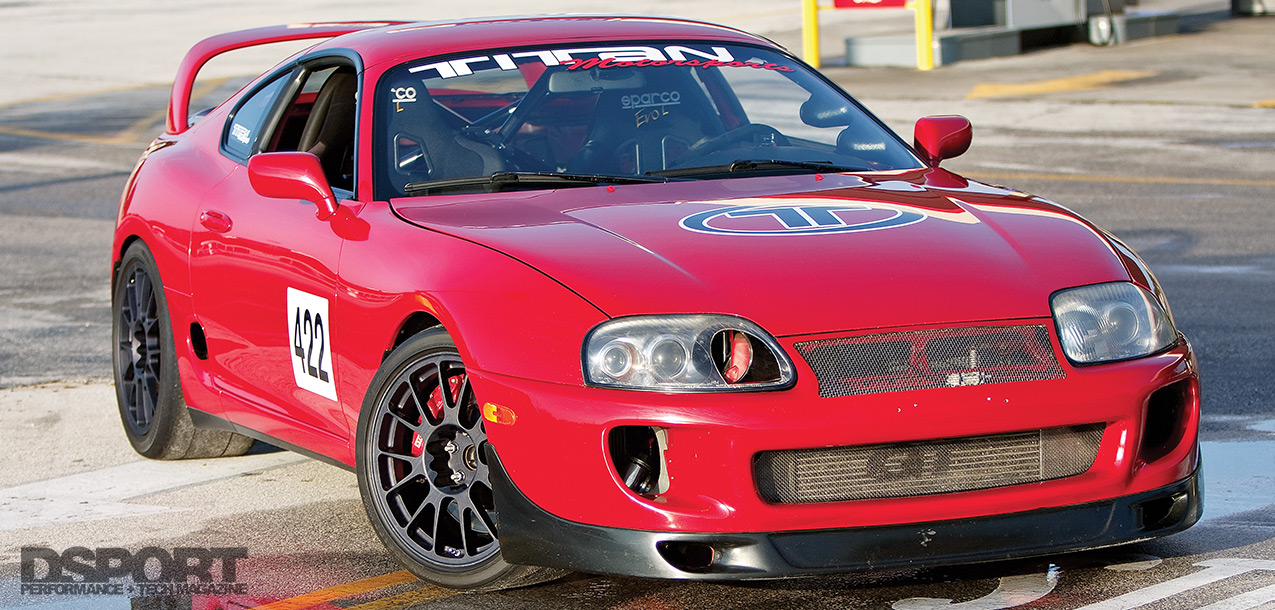

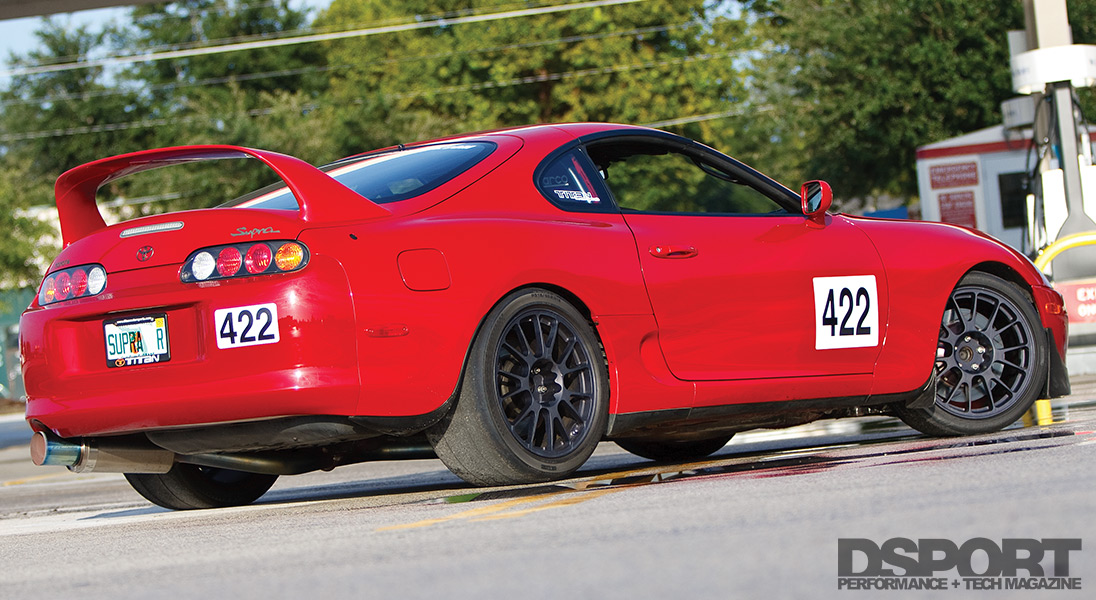

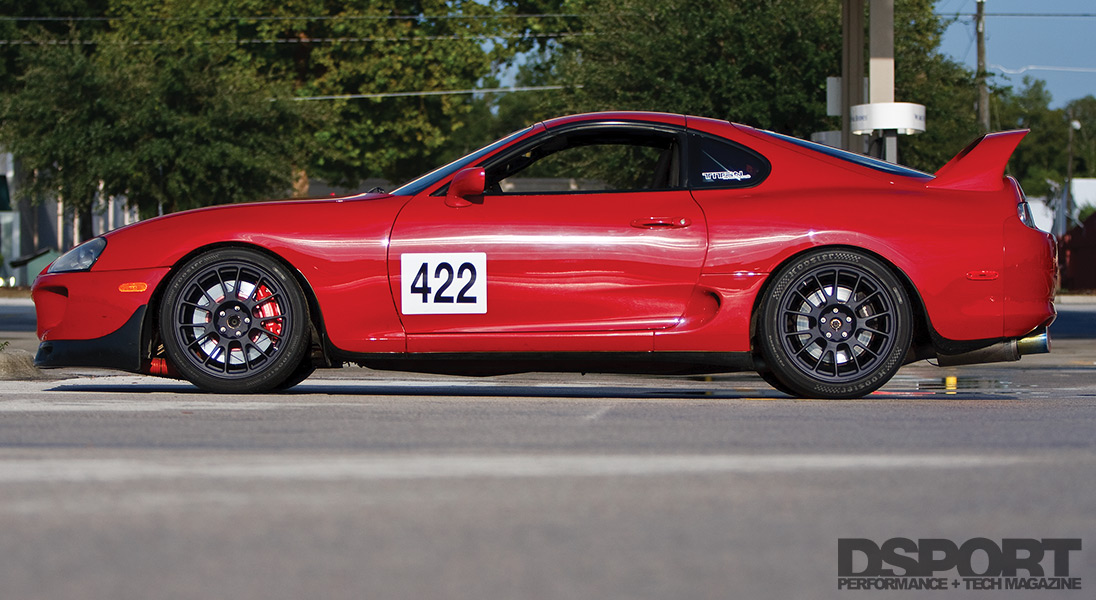

Year / Make / Model: 1994 Toyota Supra Turbo
Chassis Code: JZA80
Vehicle Weight: 3,143 lbs.
Weight Bias: 52/48
Redline RPM: 7,800 RPM
Peak Boost: 22 psi
Fuel: 110-octane

ENGINE

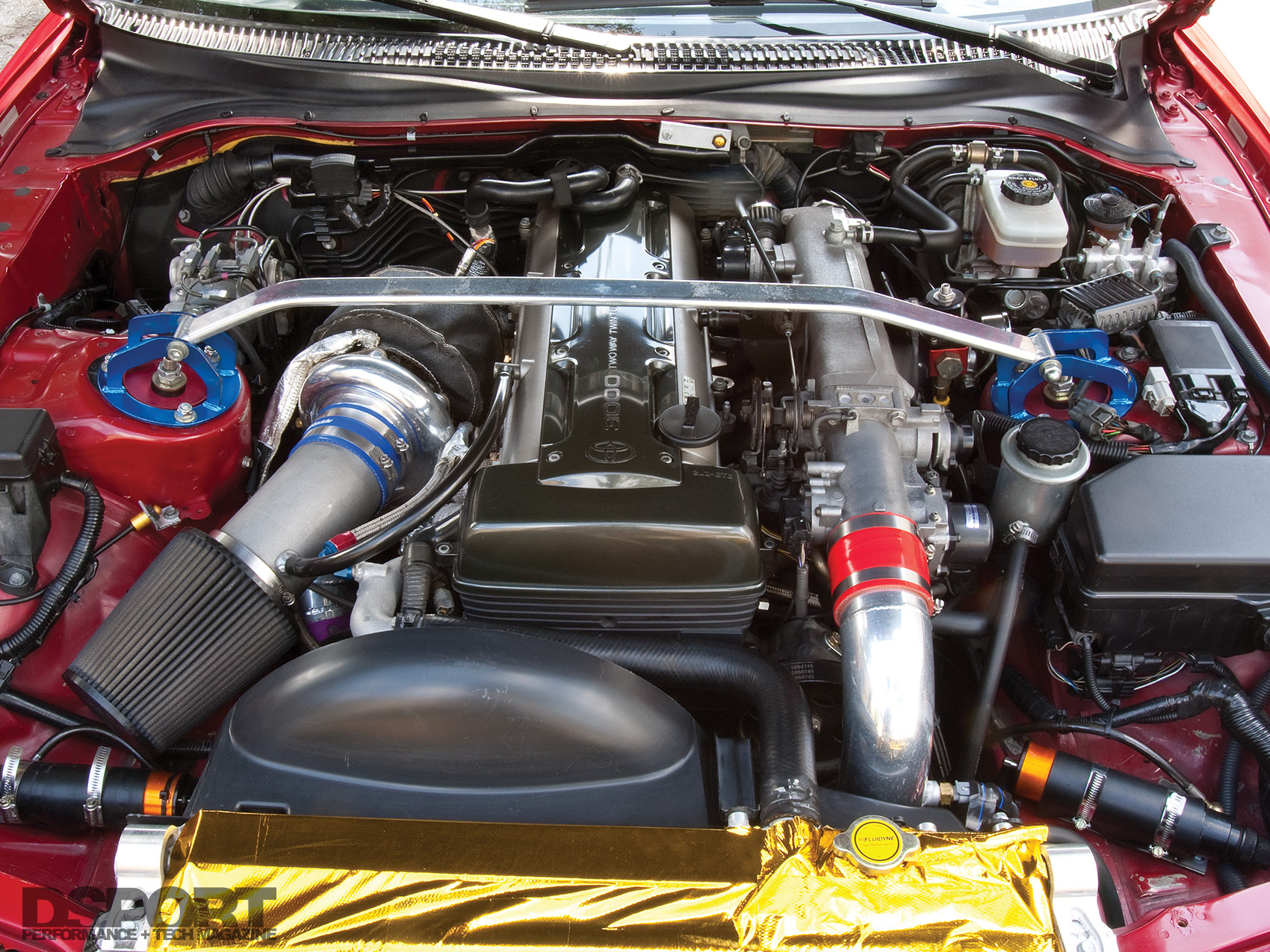

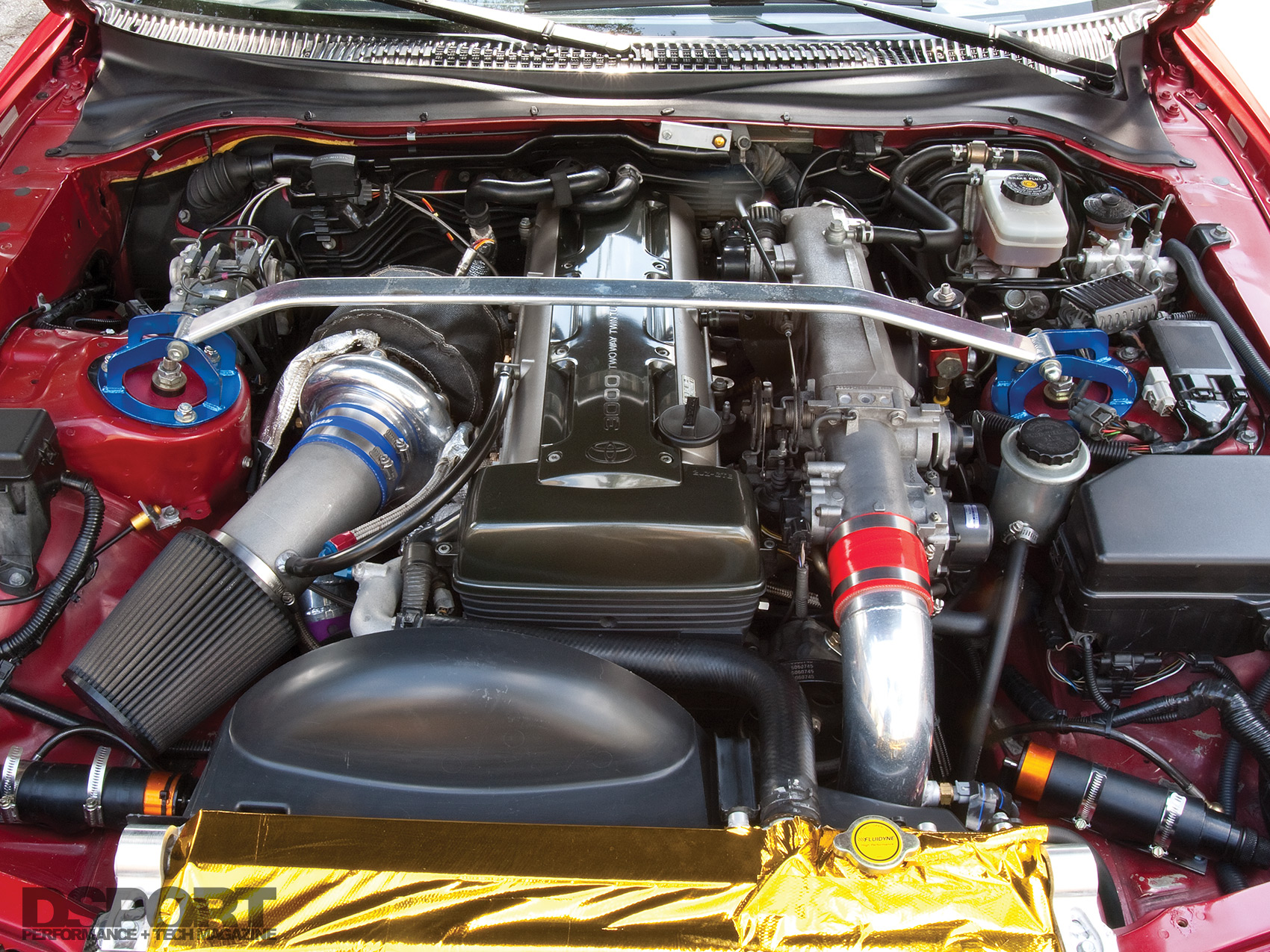

Engine Code: 2JZ-GTE
Displacement (cc): 2,998cc
Bore & Stroke (mm): 86mm x 86mm
Peak Horsepower (@ RPM): 560 whp @ 5,200 RPM
Peak Torque (@ RPM): 470 lb-ft @ 4,800 RPM
Dyno Type: Dynojet
Pistons/Compression Ratio: Factory 8.5:1 compression

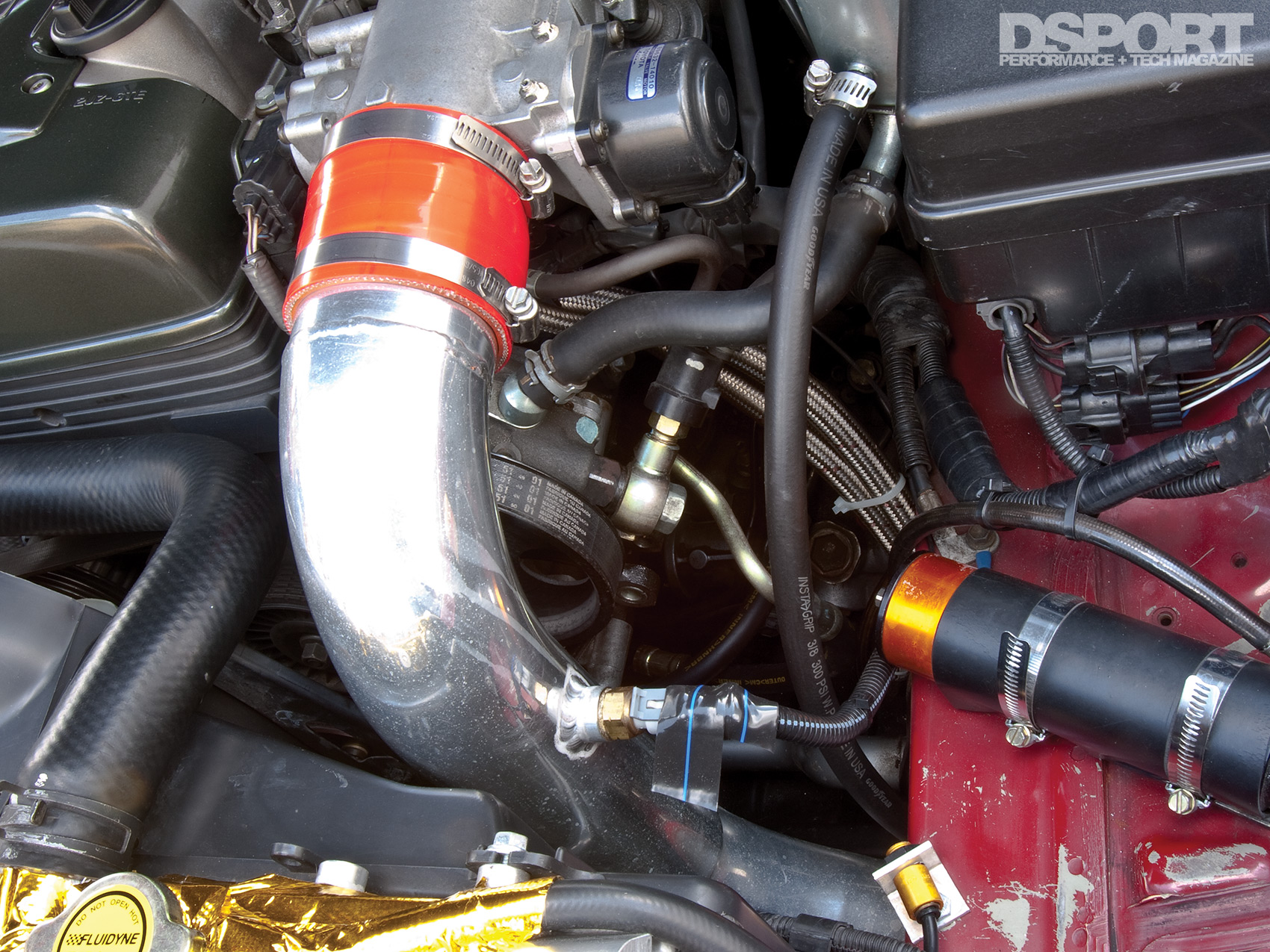

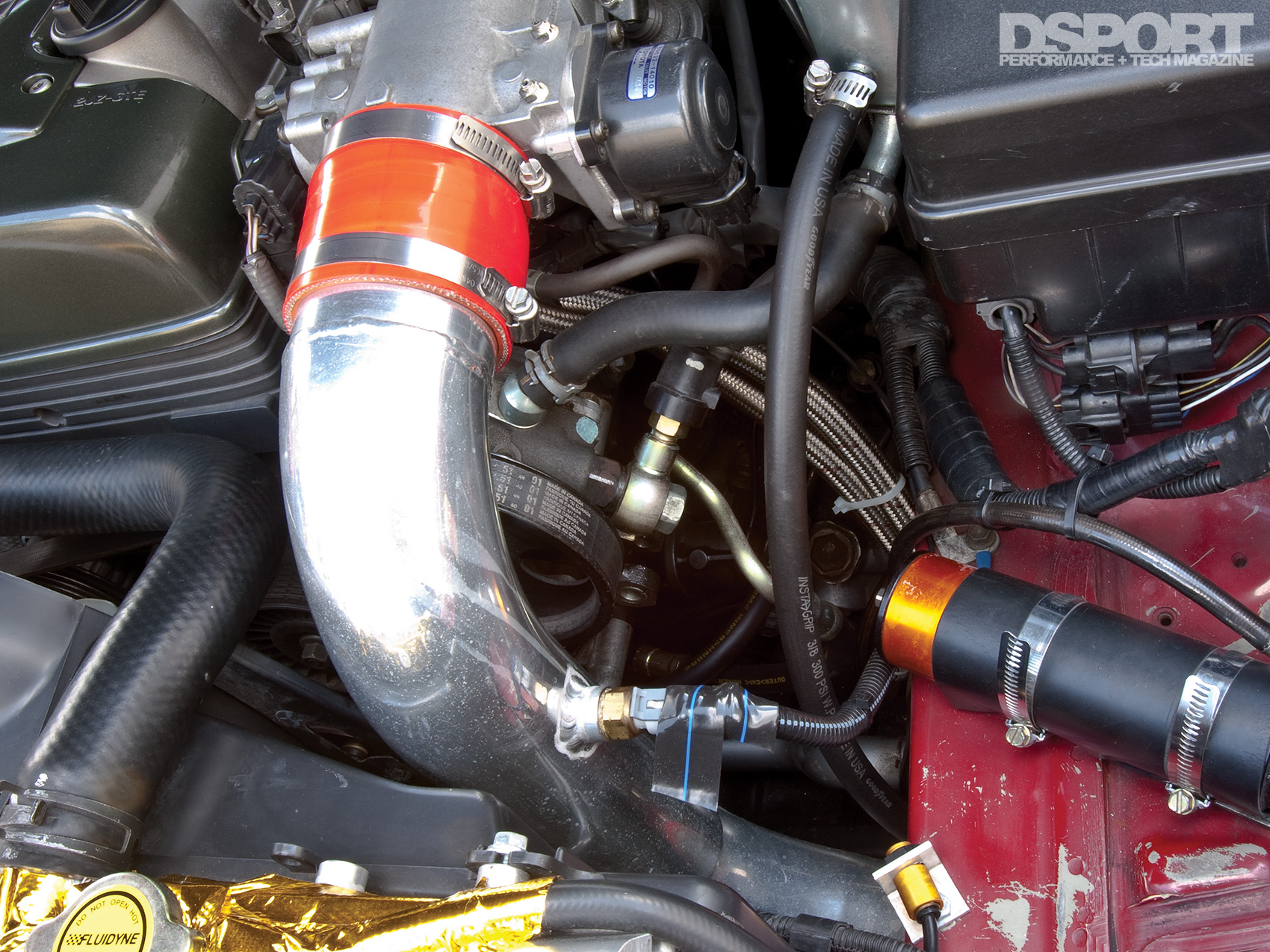

Air Induction System: Titan Motorsports (TM) Air Intake
Fuel Injectors: TM 720 cc/min Injectors (x6)
Fuel Delivery System: Triple Walbro 255-lph In-tank
Fuel Pump System
TM Fuel Rail
Aeromotive Fuel Pressure Regulator
Engine Management System: AEM EMS
Boost Controller: AEM Boost Control Solenoid
Ignition: HKS DLI
Spark Plugs: NGK 3330
Exhaust Manifold: GReddy Stainless Exhaust Manifold

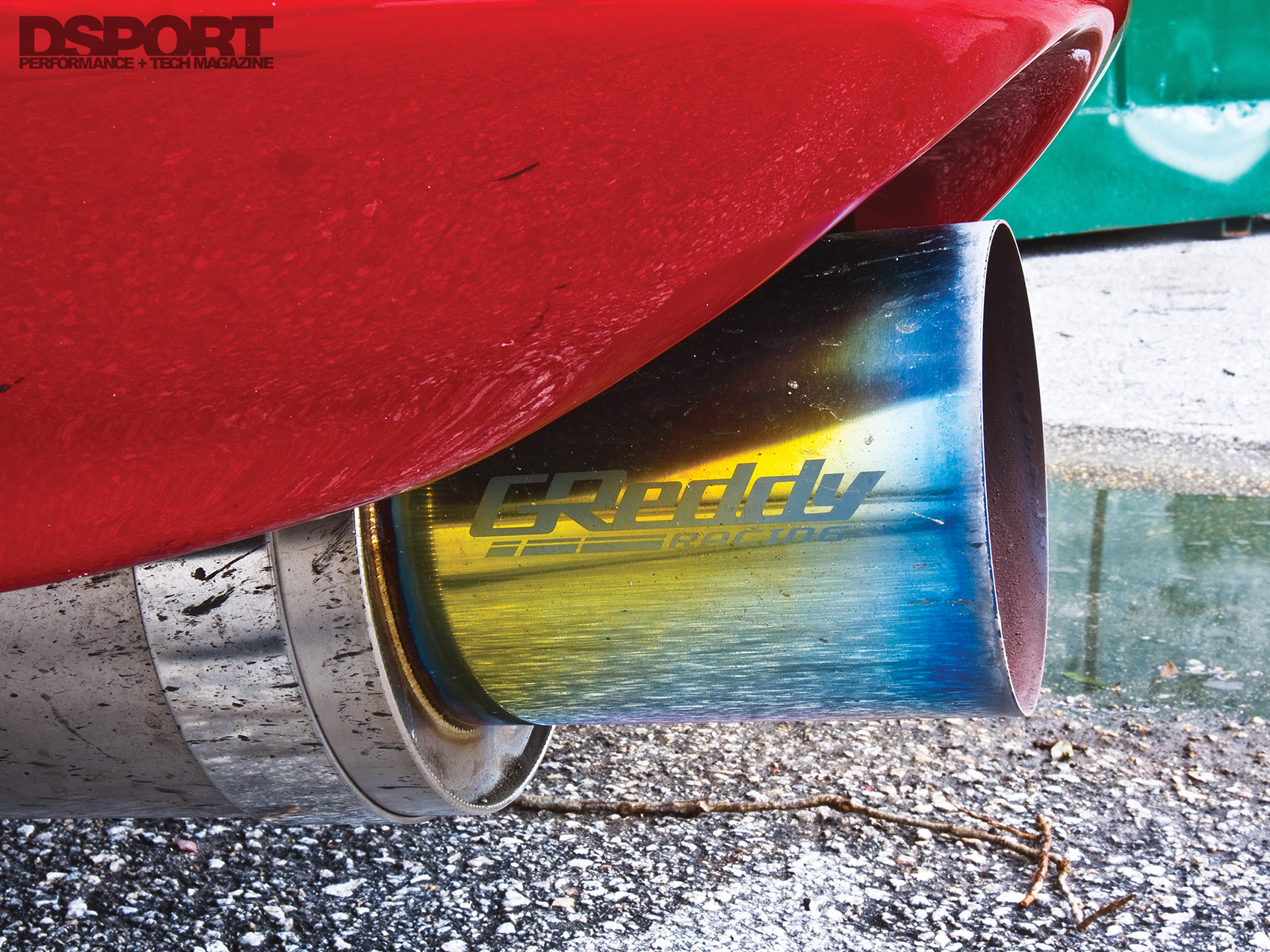

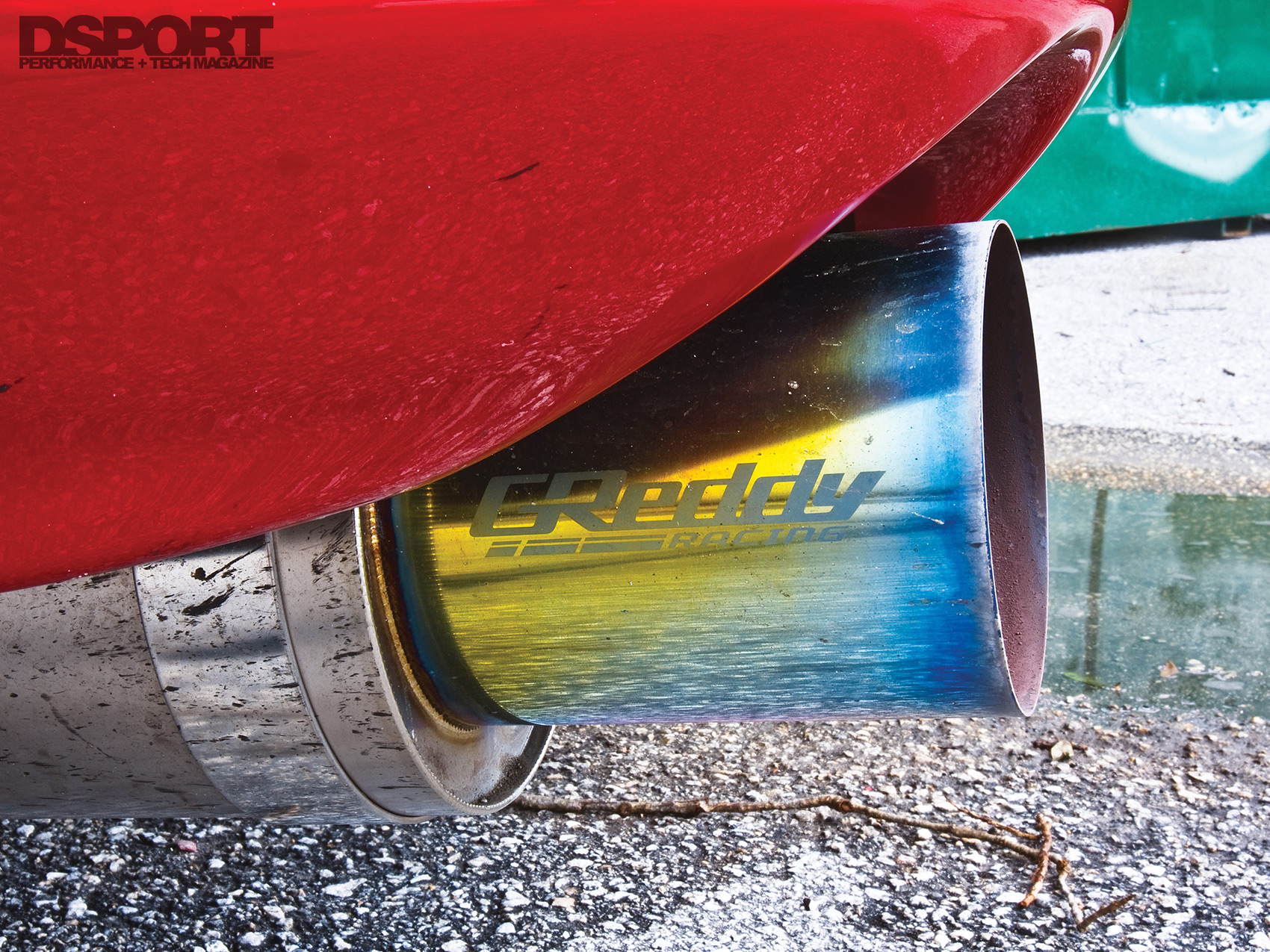

Exhaust System: GReddy Racing Titanium Exhaust
Swain Tech White Lightning Coating
Downpipe: Custom Downpipe
Wastegate: GReddy Type R External Wastegate
Blow-Off Valve: HKS Super Sequential BOV
Intercooler: HKS GT-R Intercooler
Cooling System: Fluidyne Radiator
Oil System: TM Oil Cooler & Ducting
TURBOCHARGER

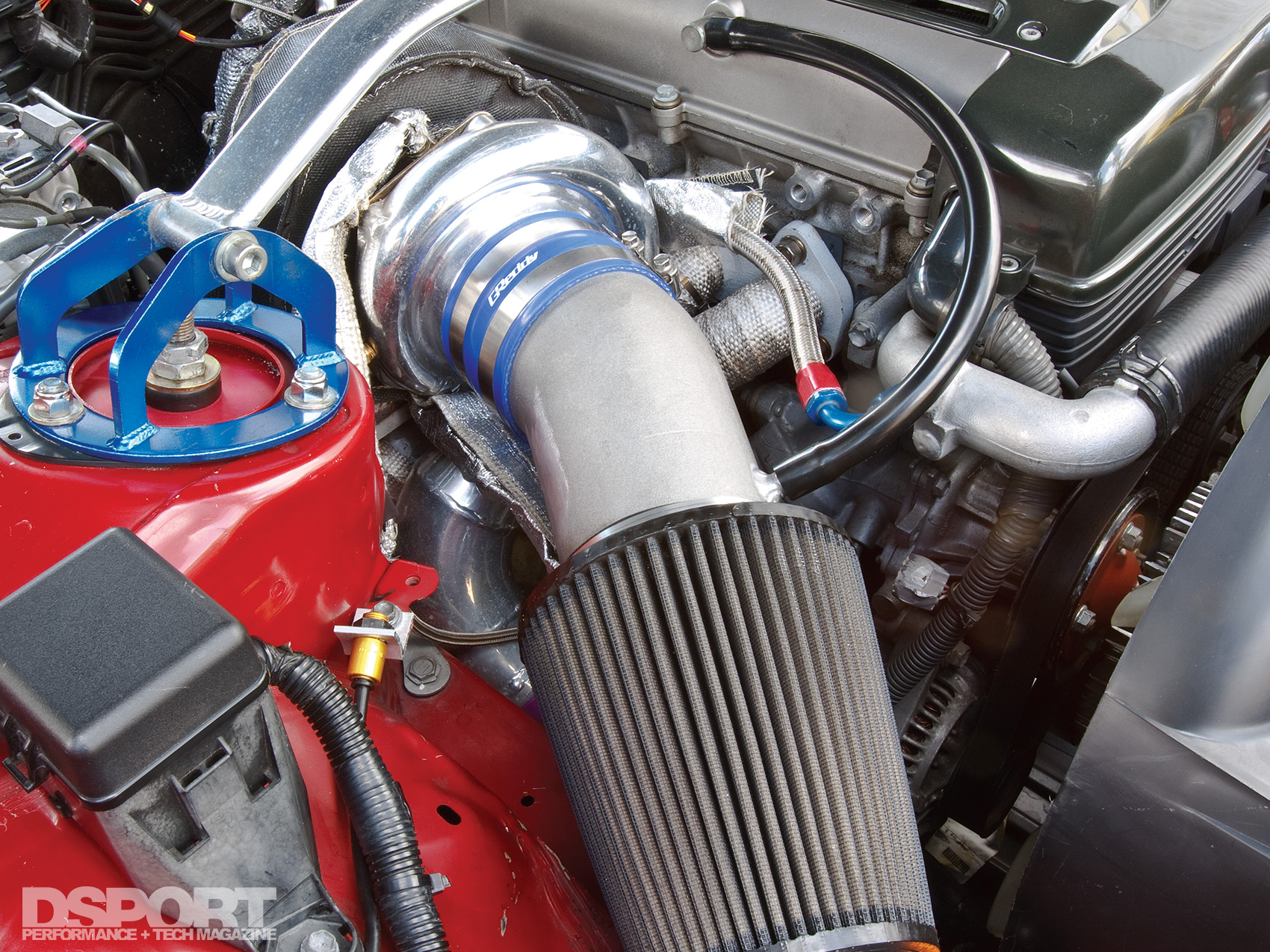

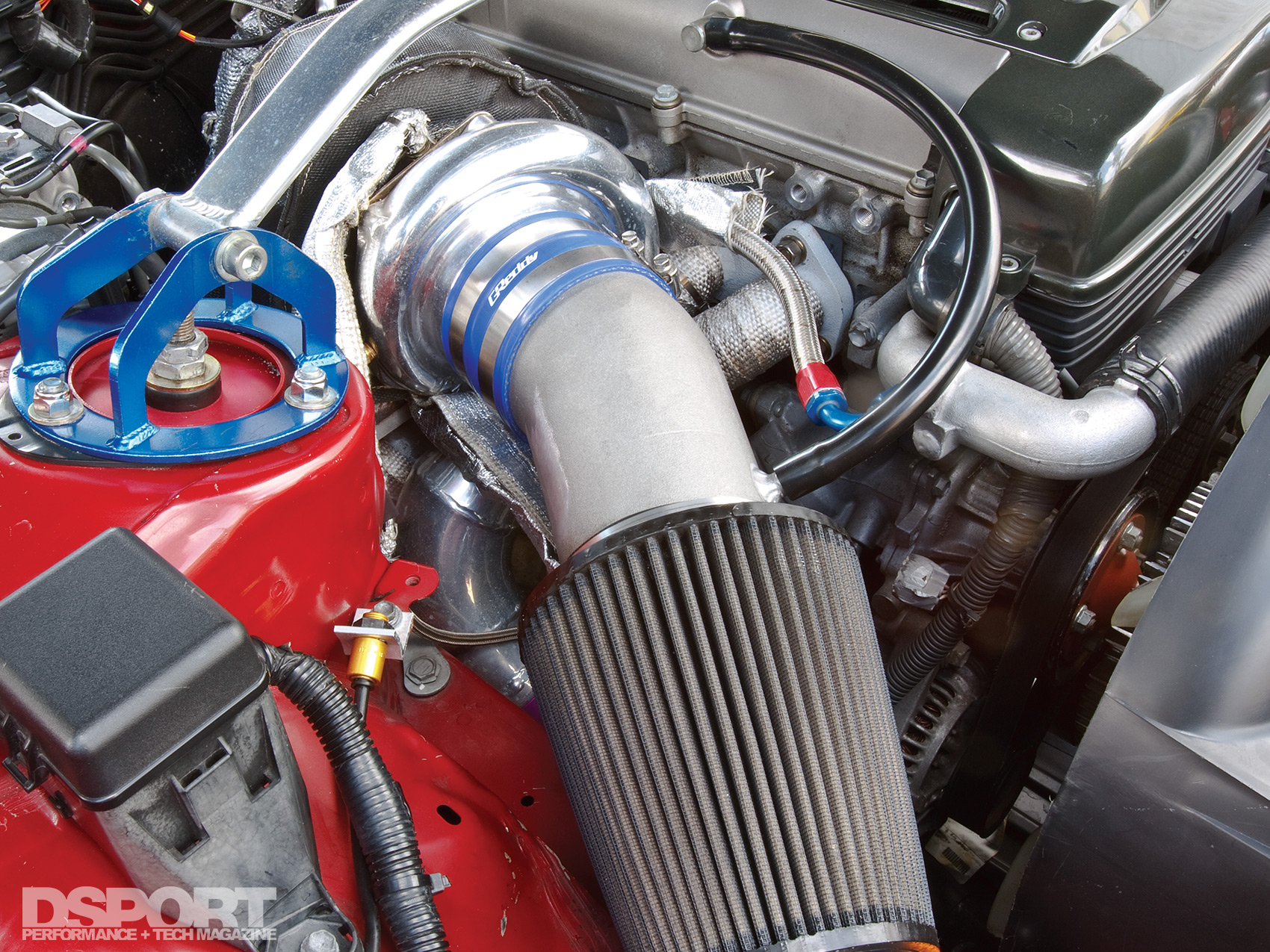

Turbocharger: Garrett GT3582R
Frame: GT35R
Compressor Wheel Specs: 61.4mm lesser, 82mm greater
Turbine Wheel Specs: 68mm
Turbine Housing: .63 A/R
CHASSIS/DRIVELINE
Springs, F&R (Make & Rate): Hyperco 1,300 lbf/in Springs (F)
Hyperco 950 lbf/in Springs (R)

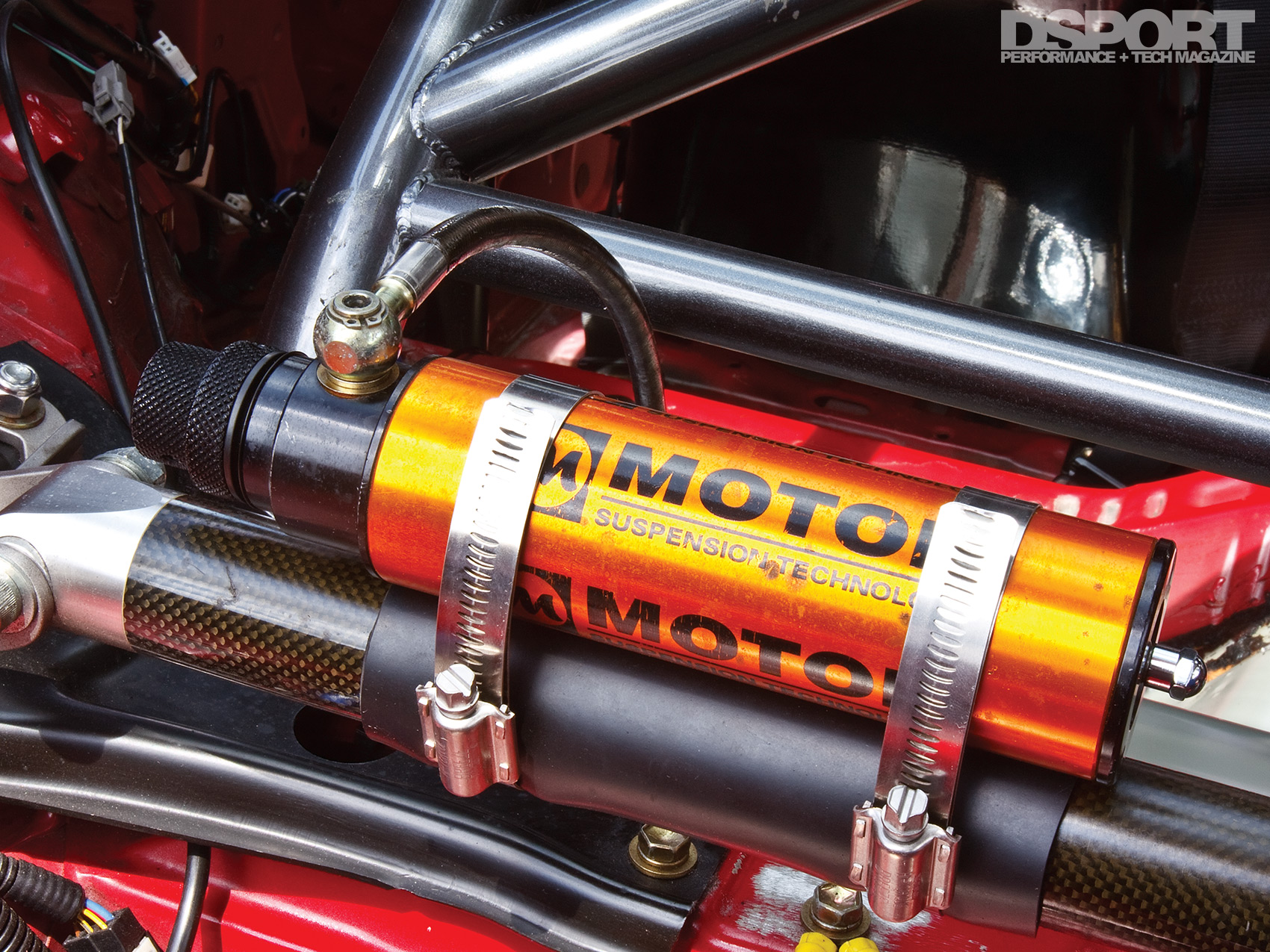

Shocks, F&R (Make & Rate): Moton Suspension 3-Way Adjustable
Coil-over Dampers
Additional Suspension Components: TM Sway Bar (F)
Solid Rear Sub-frame and Diff Mounts
JIC Magic Adjustable Front Upper
Control Arms
R2 Racing Control Arm Bushings (R)
Clutch / Flywheel: Tilton Triple-Disc Carbon/Carbon Clutch
Differential(s) (Make & Type): TRD Limited-slip Differential

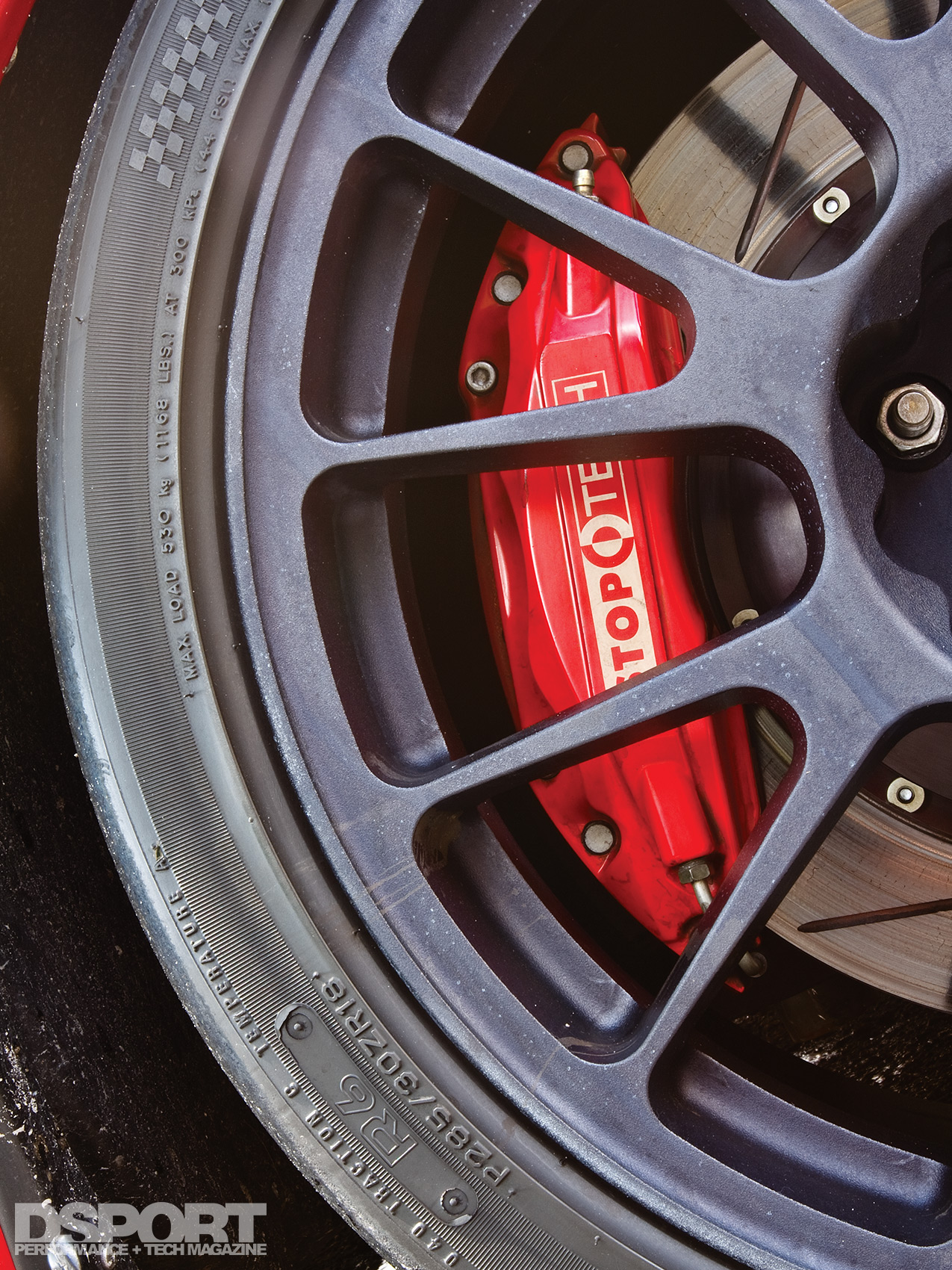

Wheels (Make, Size & Offset): CCW Corsair 18X10-inch (F)
CCW Corsair 18X11-inch (R)
Tires (Make & Size): Hoosier 285/30R18 (F)
315/30R18 (R)

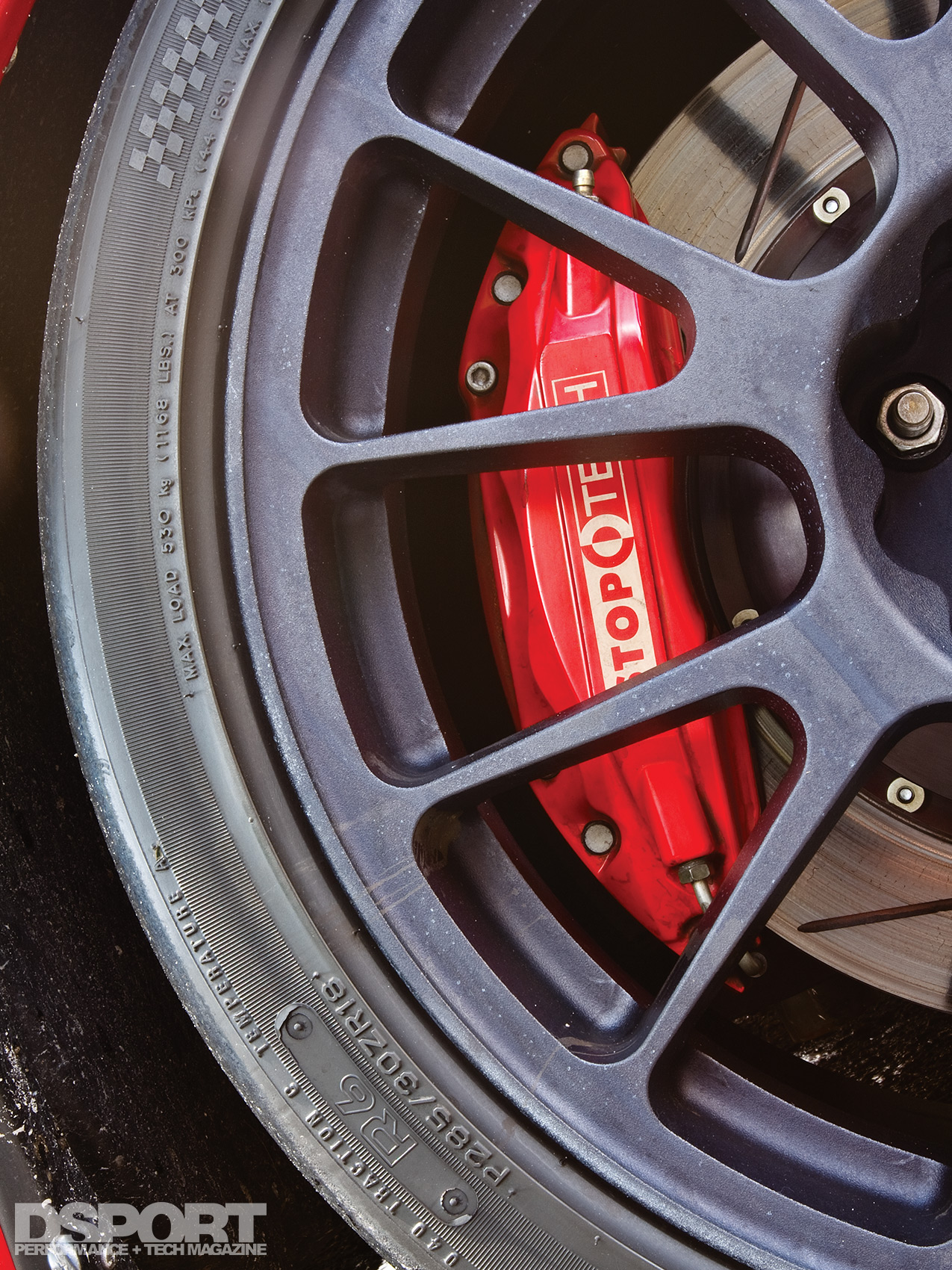

Brake Calipers: Stoptech 6-Piston Calipers (F)
Brake Rotors: Stoptech 355mm Rotors (F)
TM Custom Brake Ducts
Brake Pads: Hawk DTC70 Pads (F)
Hawk Blue Pads (R)
Brake Lines: Stoptech Stainless-braided Lines (F)
TRD Stainless-braided Lines (R)
Etc: Castrol SRF Brake Fluid
ARP Wheel Studs

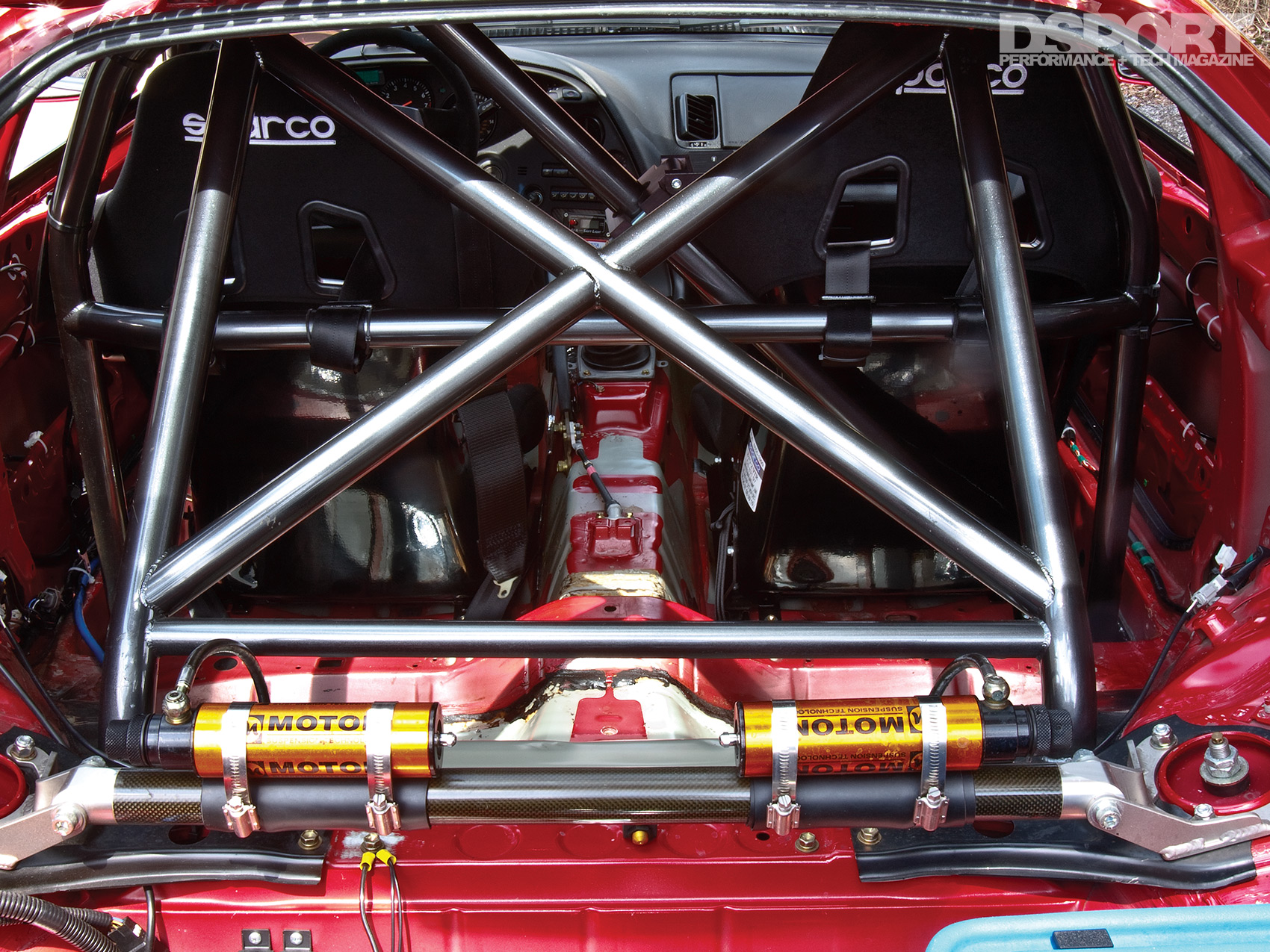

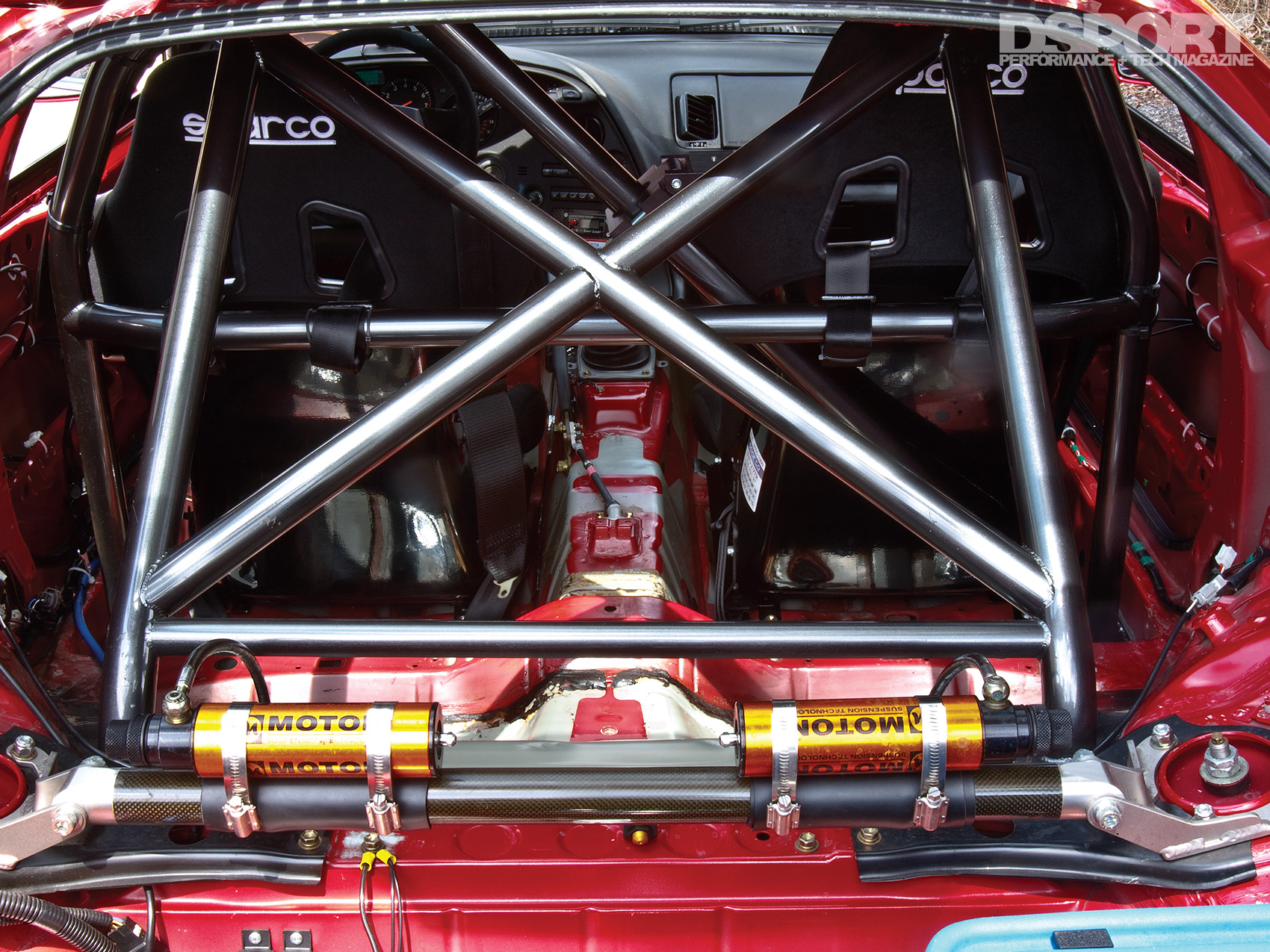

Roll Bar / Cage: Custom 6-point Roll Bar

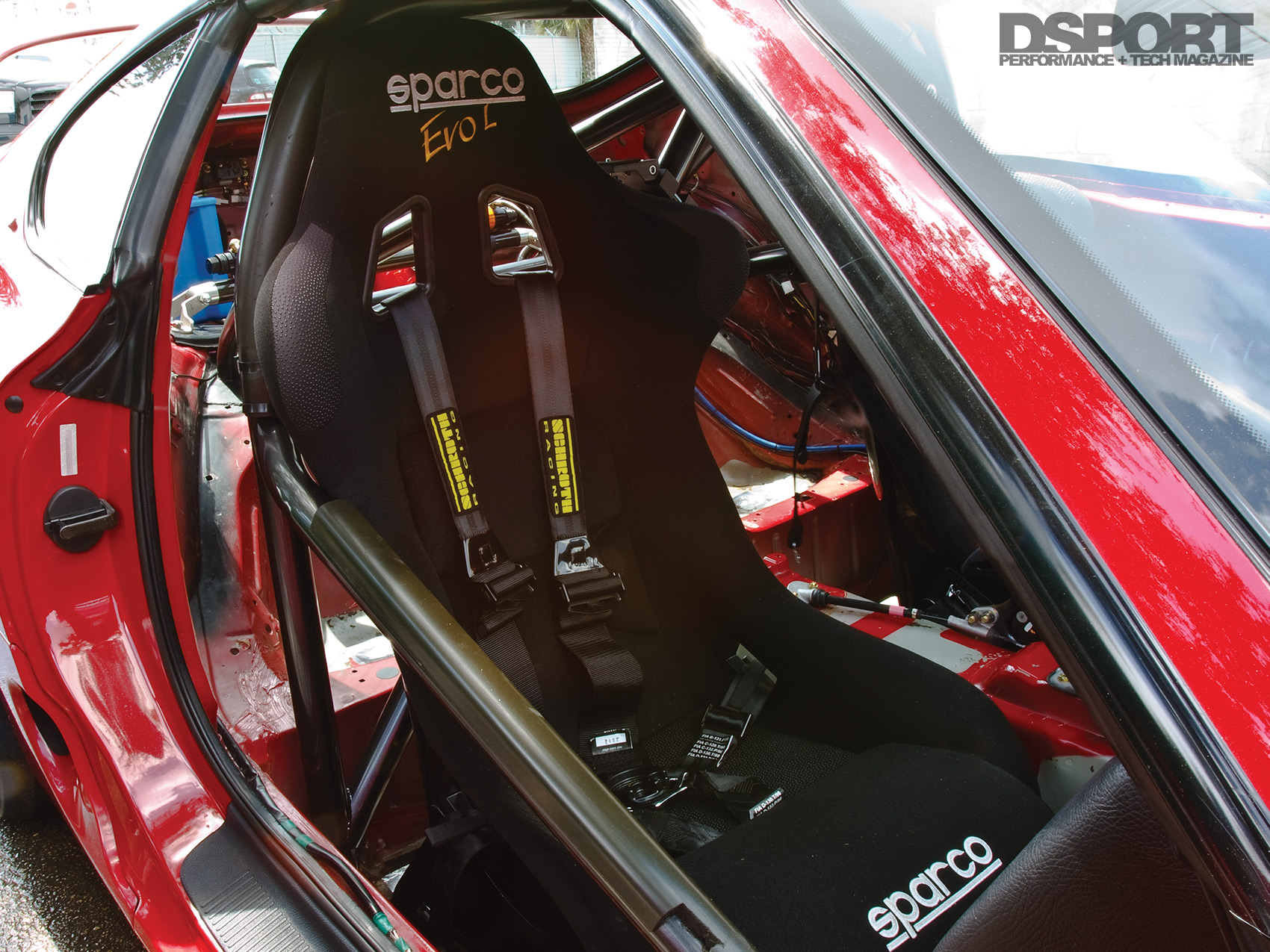

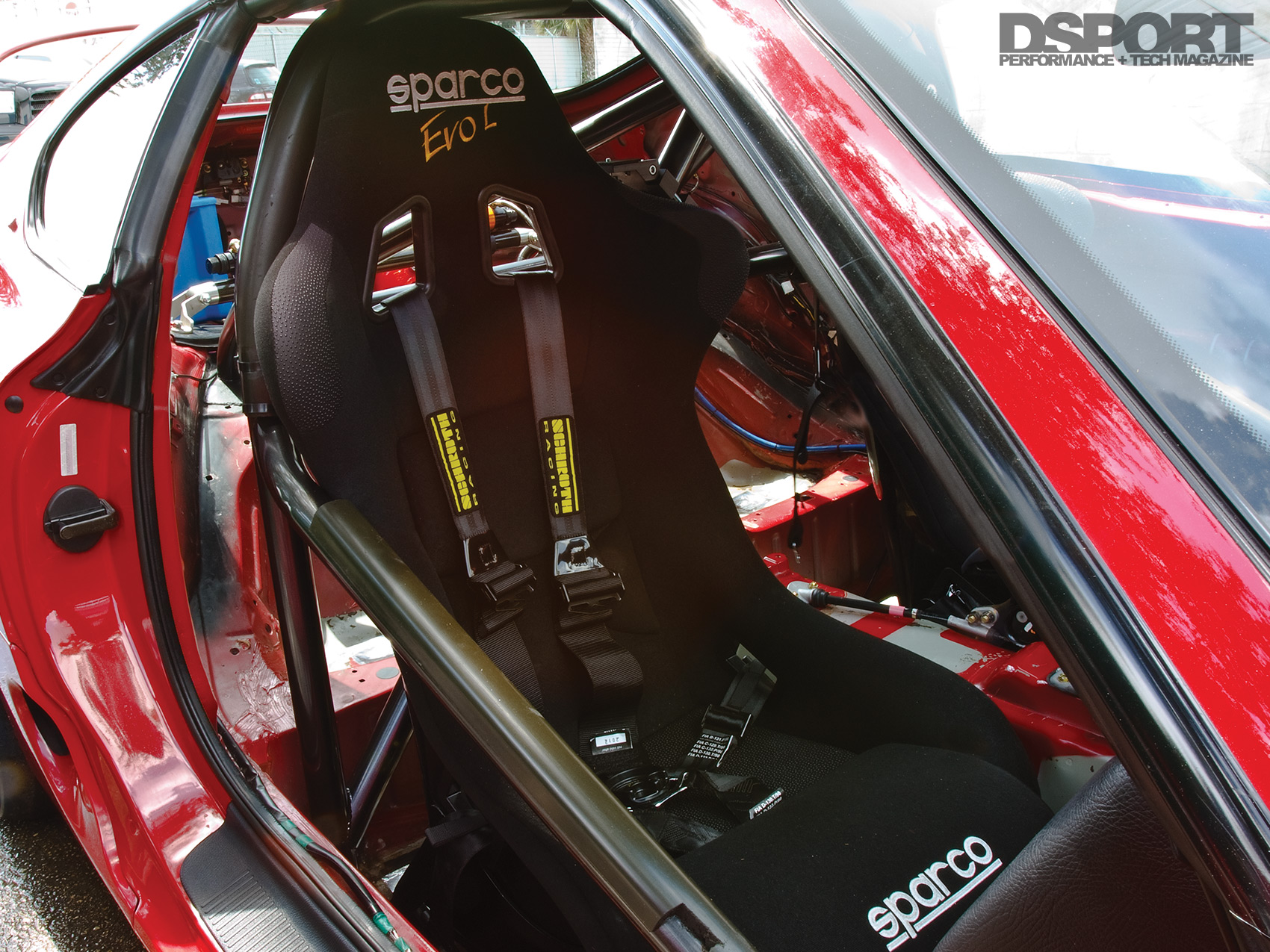

Seats: Sparco EVO2 Race Seats
Harnesses: Schroth Profi II Hans 6-Point Harnesses

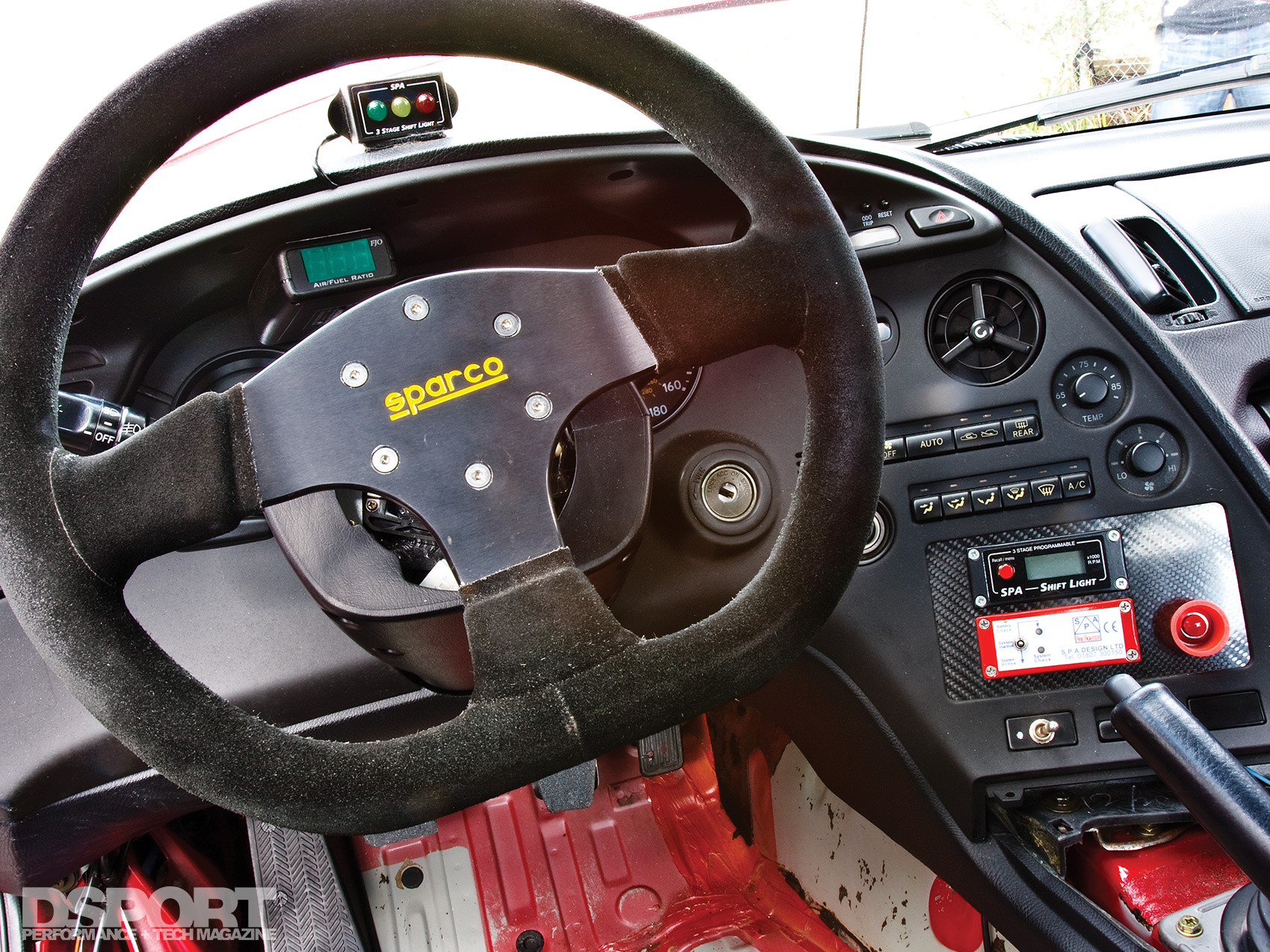

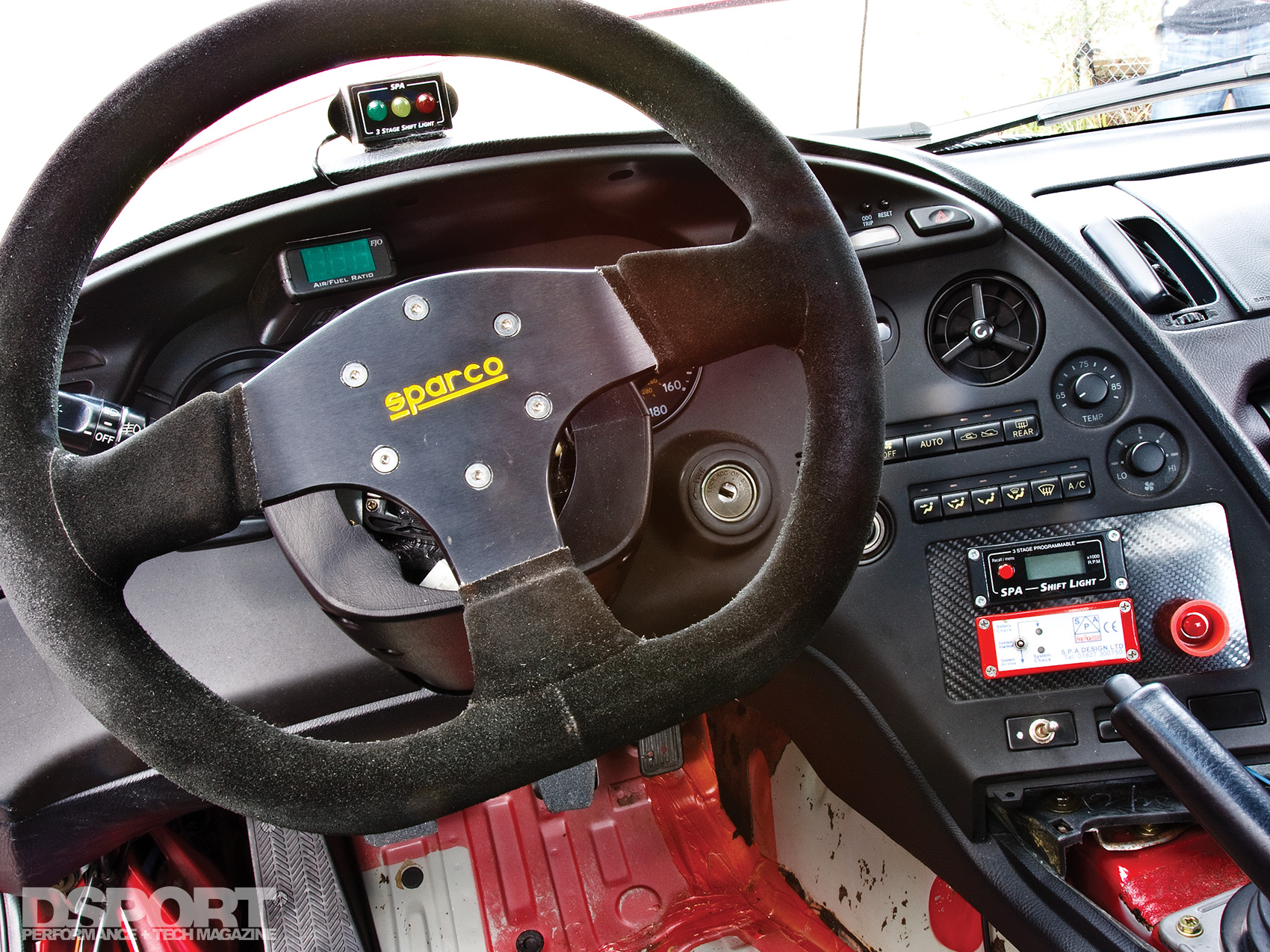

Gauges: SPA Techniques Sequential Shift Light
FJO Wideband Air/Fuel Ratio Gauge

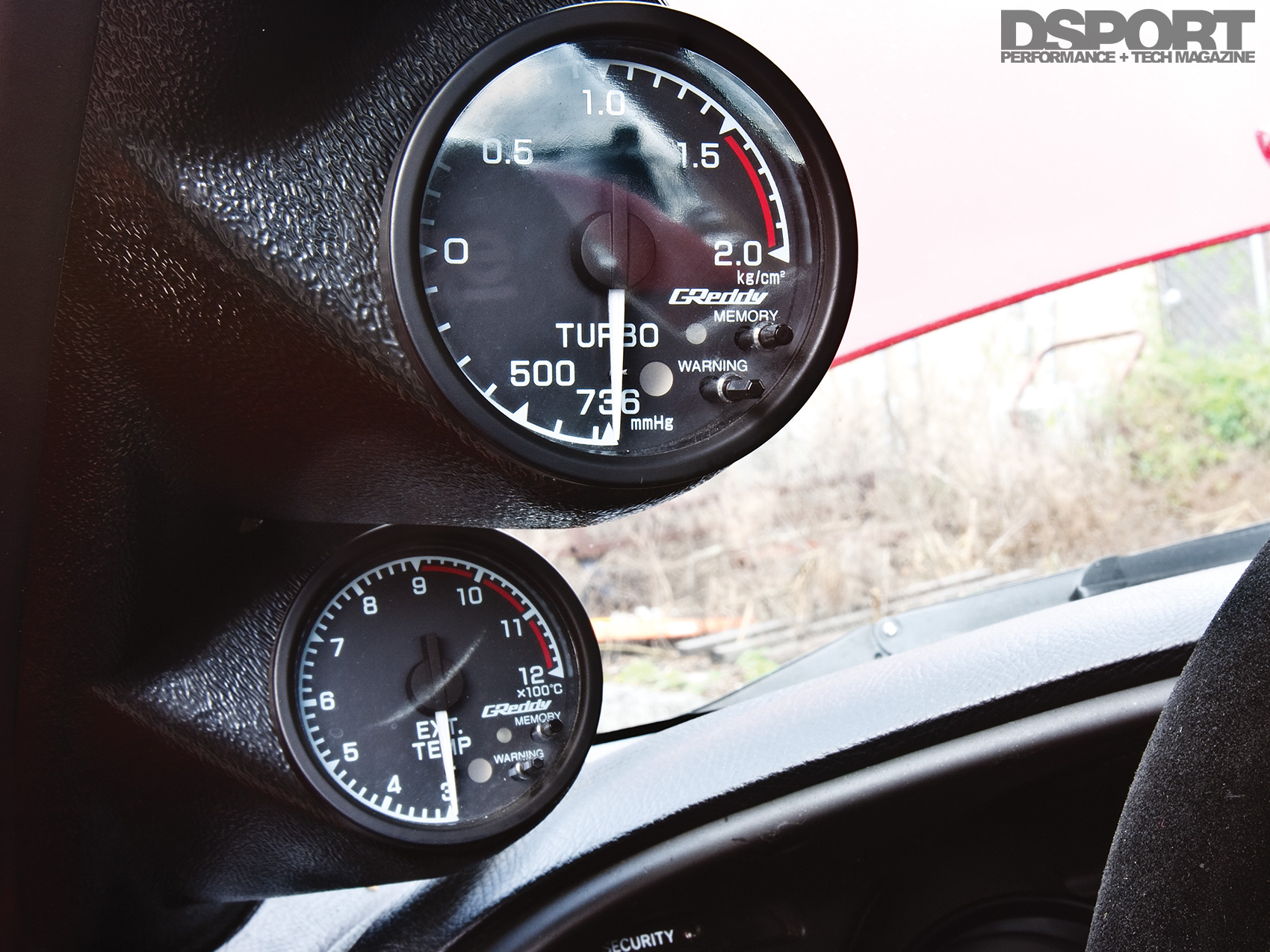

GReddy Boost and EGT gauges

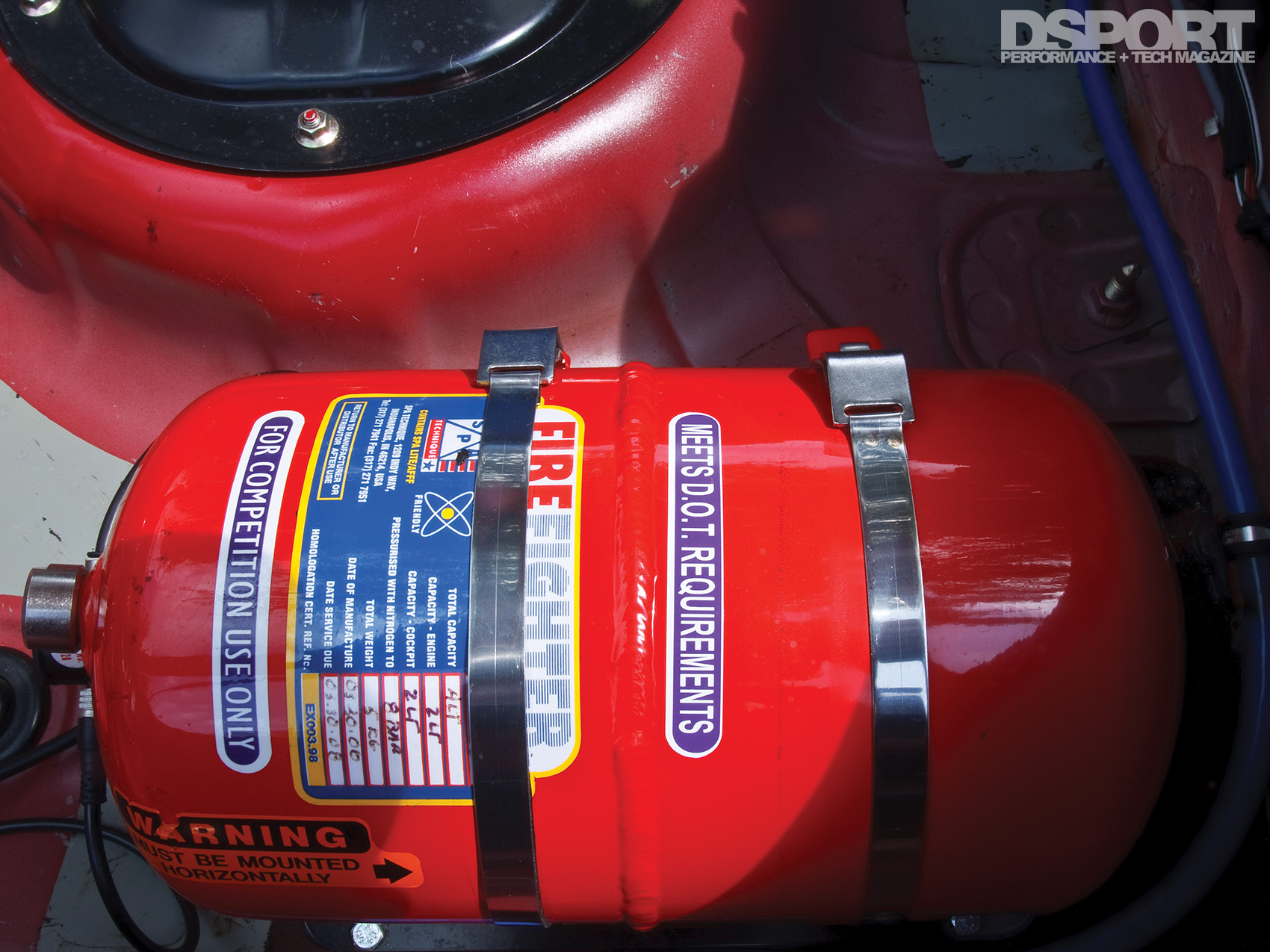

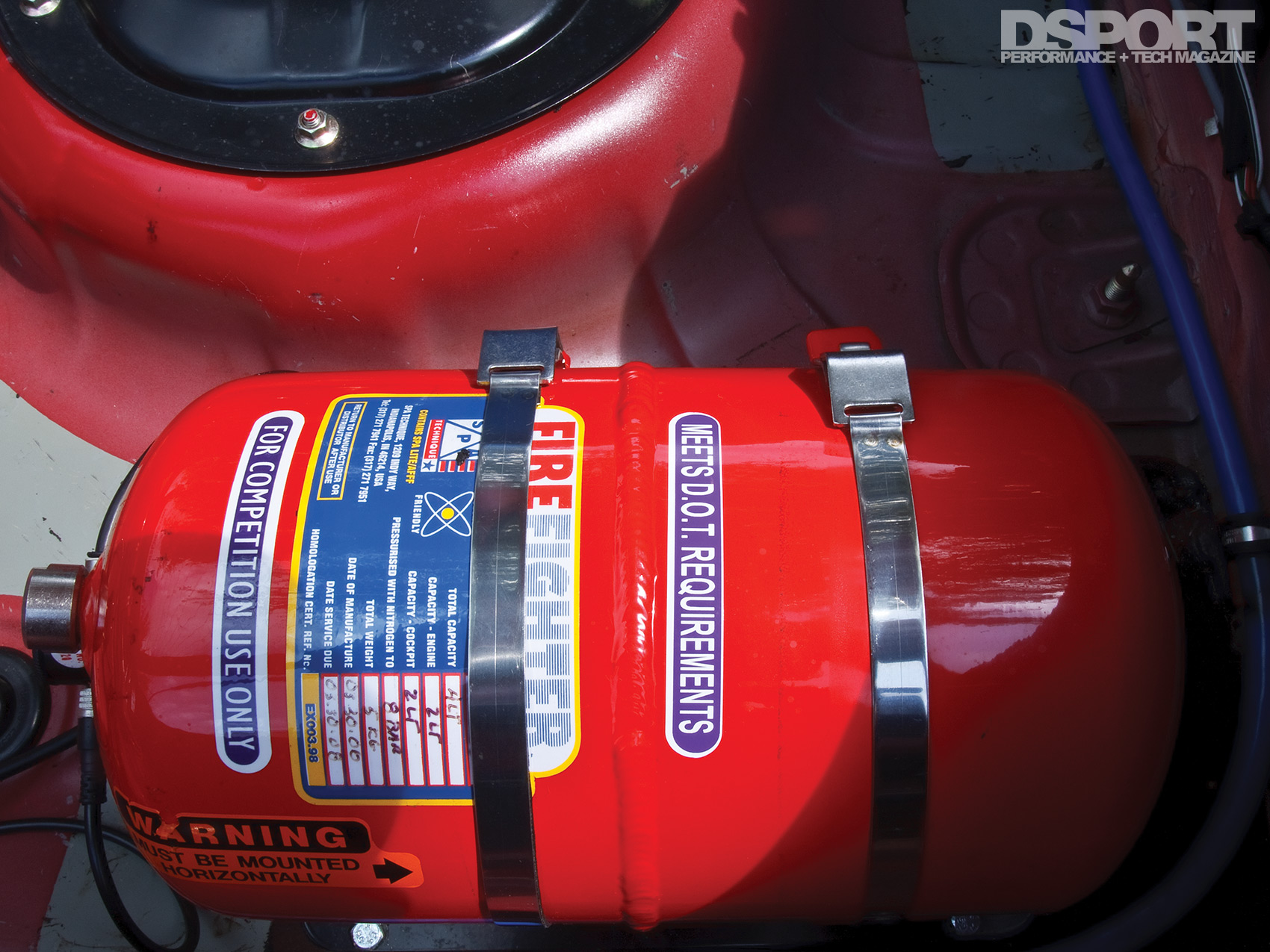

Etc: SPA Techniques 6-point Fire Suppression System
VS-Billet Camcorder Roll-Bar Mount
Moroso Battery Relocation Kit & Box
Odyssey PC680 Battery
