SPEC SHEET

VEHICLE

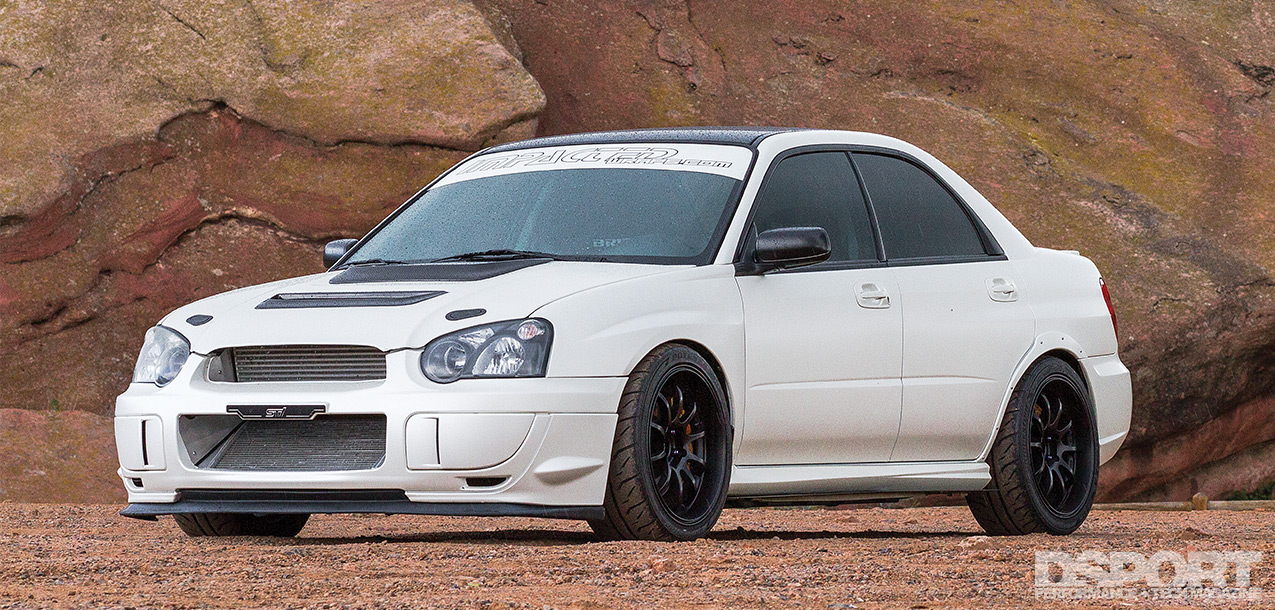

Year / Make / Model: 2005 Subaru WRX STi
Chassis Code: GDB
Launch RPM: 5,500 RPM
Shift RPM: 7,000 RPM
Redline RPM: 7,200 RPM
Peak Boost: 25 psi
Fuel: E85

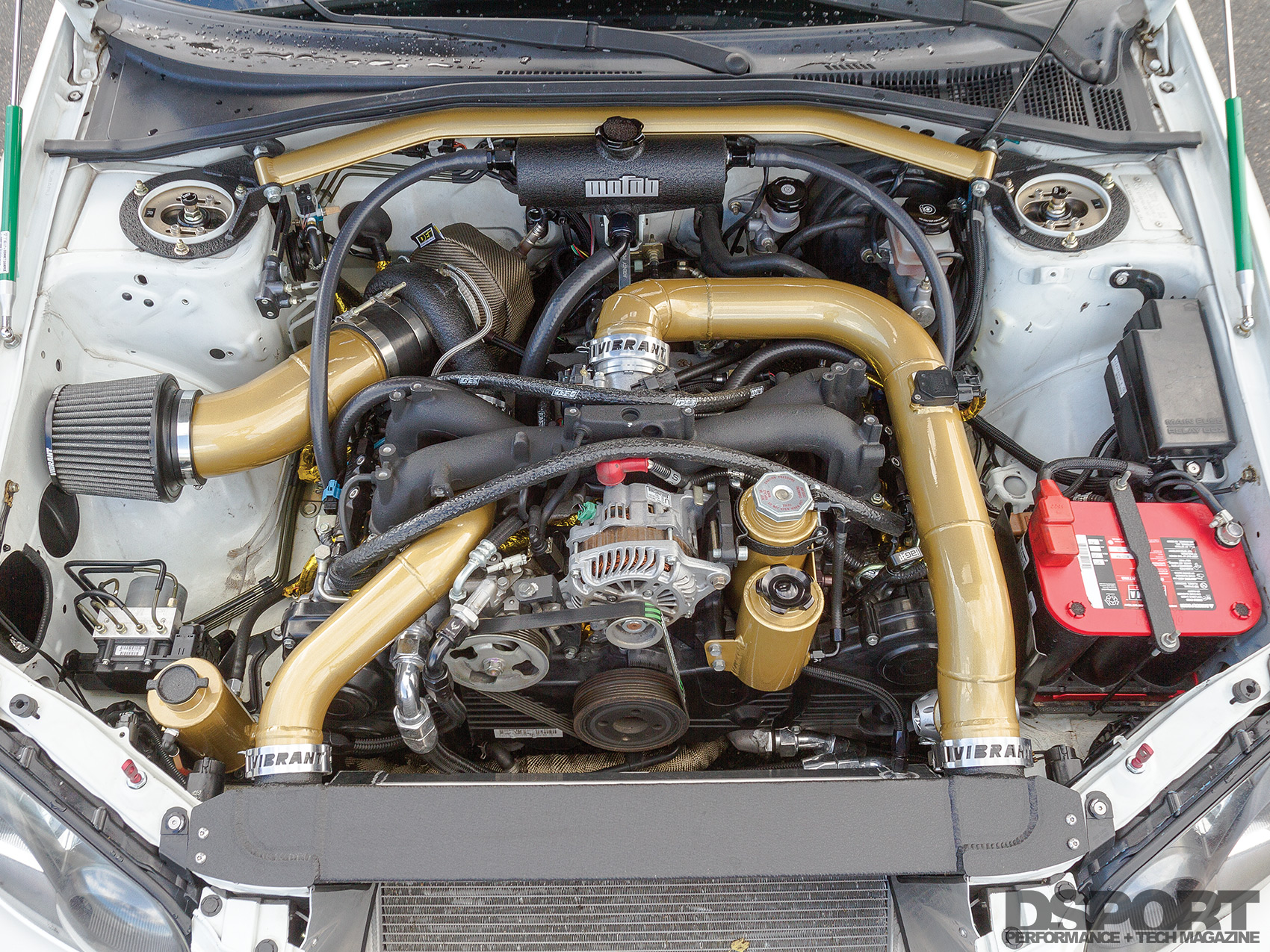

ENGINE
Engine Code: EJ257
Displacement (cc): 2,457cc
Bore & Stroke (mm): 99.75mm x 79mm
Peak Horsepower (@ RPM): 585 whp @ 6,300 RPM
Peak Torque (@ RPM): 566 lb-ft @ 4,300 RPM
Dyno Type: Dynojet
Engine Builder: Suba Performance
Block Modifications: Overbored Cylinders
Pistons/Compression Ratio: CP Pistons 9.0:1
Connecting Rods / Crank: Manley Rods, Nitrided Crank
Cylinder Head Mods: Heads by Drew 3-angle Valve Job
Head/Main Studs: ARP
Air Induction System: Mofab Custom 4-inch

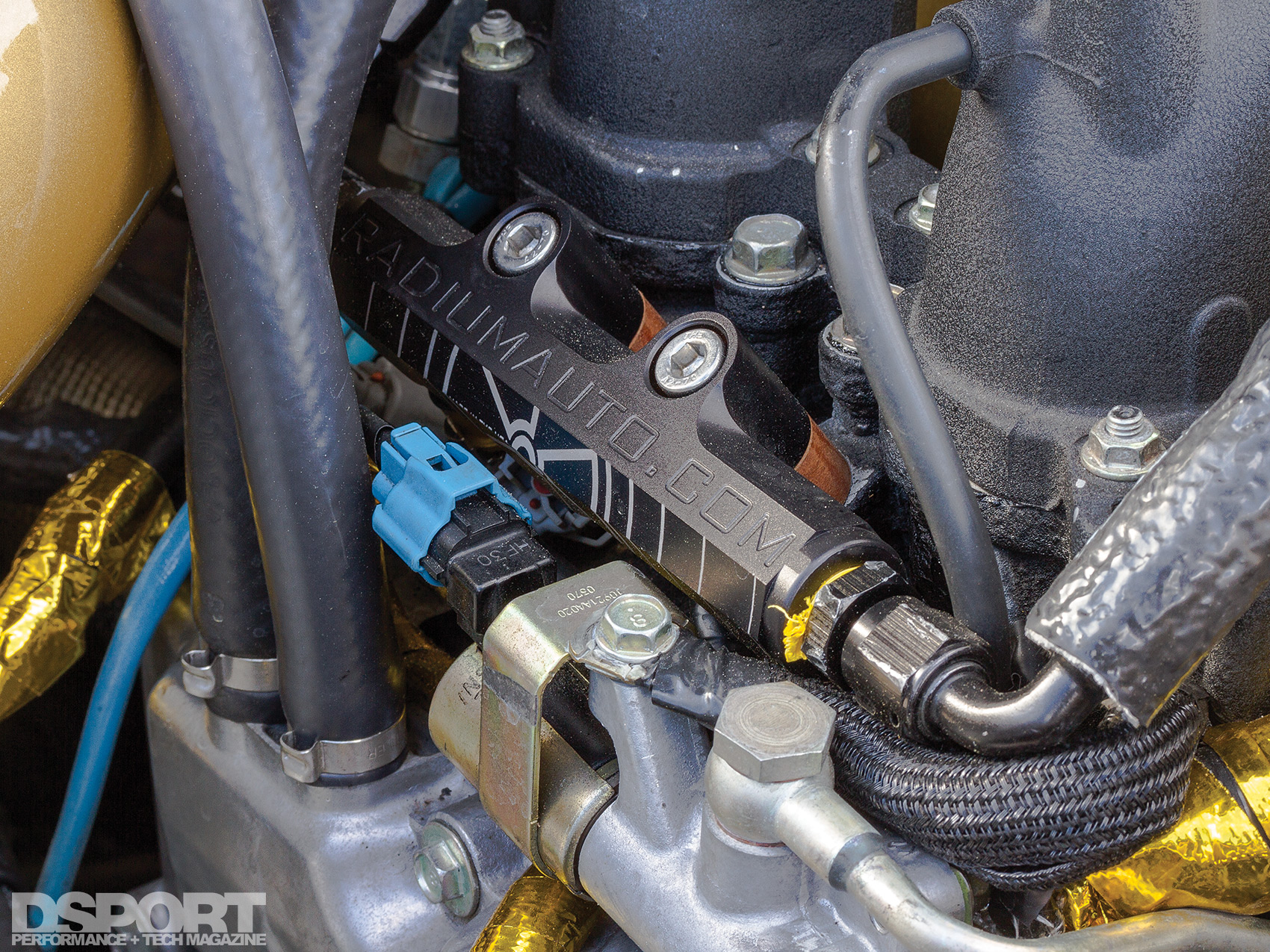

Fuel Injectors: Injector Dynamics ID2000 Injectors (x4)
Fuel Delivery System: Bosch 044 Fuel Pump
Engine Management System: AEM EMS Series 2
Engine Management Tuner: Nick @ MAC Autosport
Boost Controller: AEM Boost Control Solenoid
Spark Plugs: NGK
Exhaust Manifold: HKS
Exhaust System / Downpipe: Perrin Performance Up & Down Pipe
Tanabe Concept Blue Exhaust
Wastegate: TiAL Sport 44mm
Blow-Off Valve: HKS Super Sequential Blow-off Valve

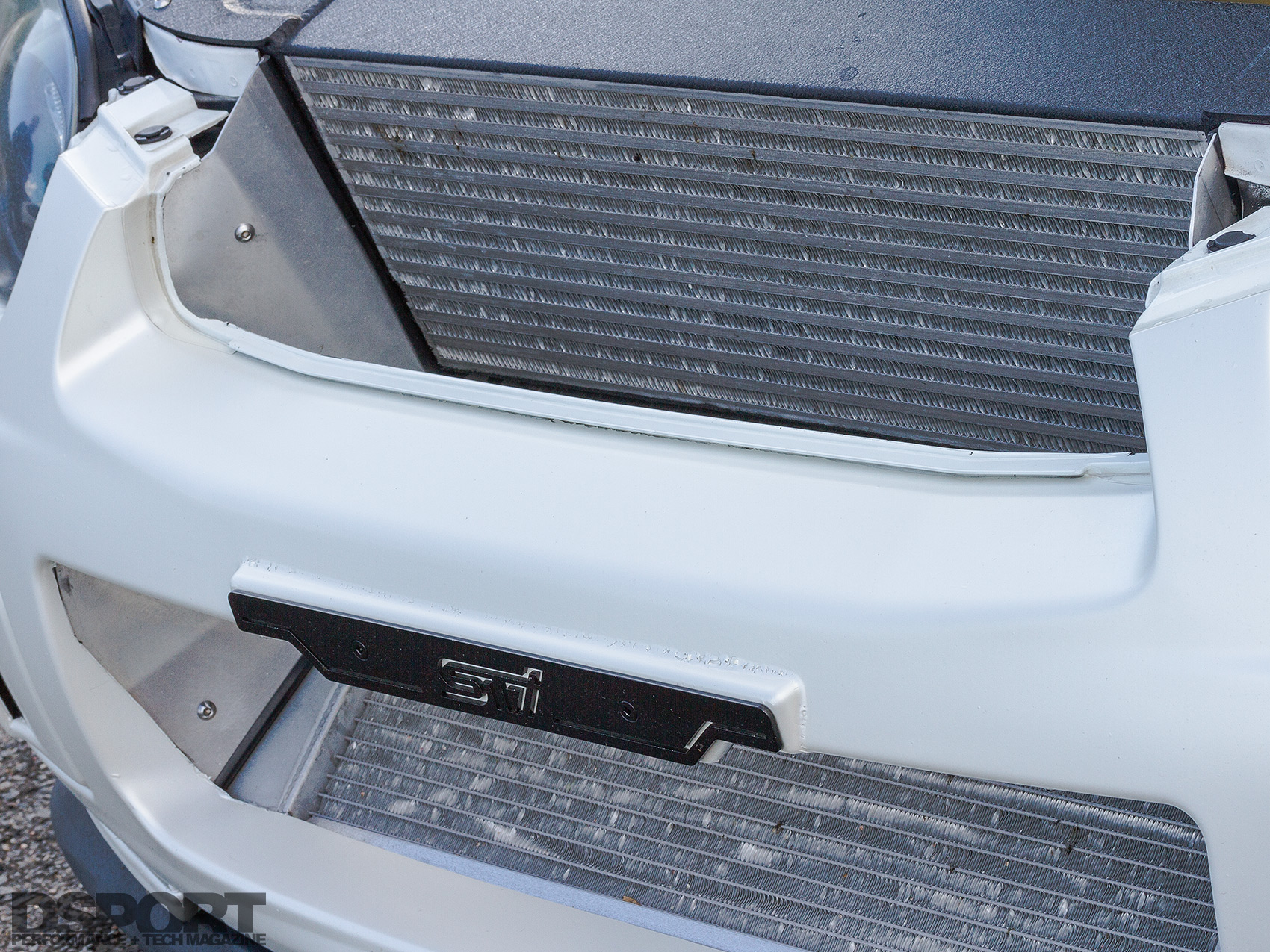

Intercooler: Mofab Custom V-Mount Intercooler
Cooling System: Mofab Custom Dual-pass AFCO Radiator and
Coolant Pressure Tank with Overflow

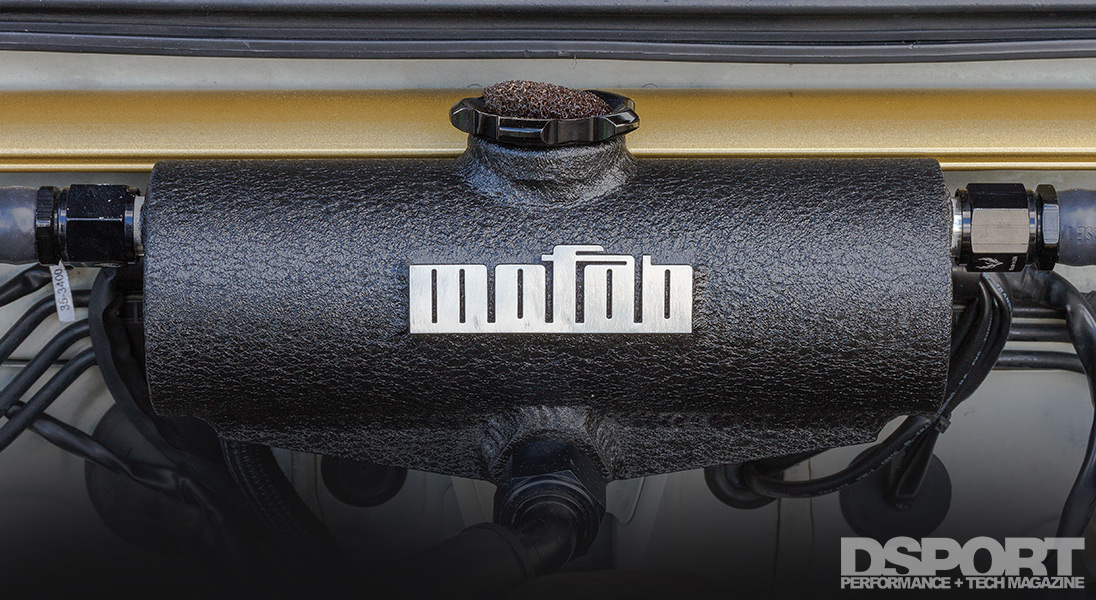

Oil System: Mofab Air Oil Separator
Moroso High-volume Oil Pan
Cosworth Oil Baffle
TURBOCHARGER

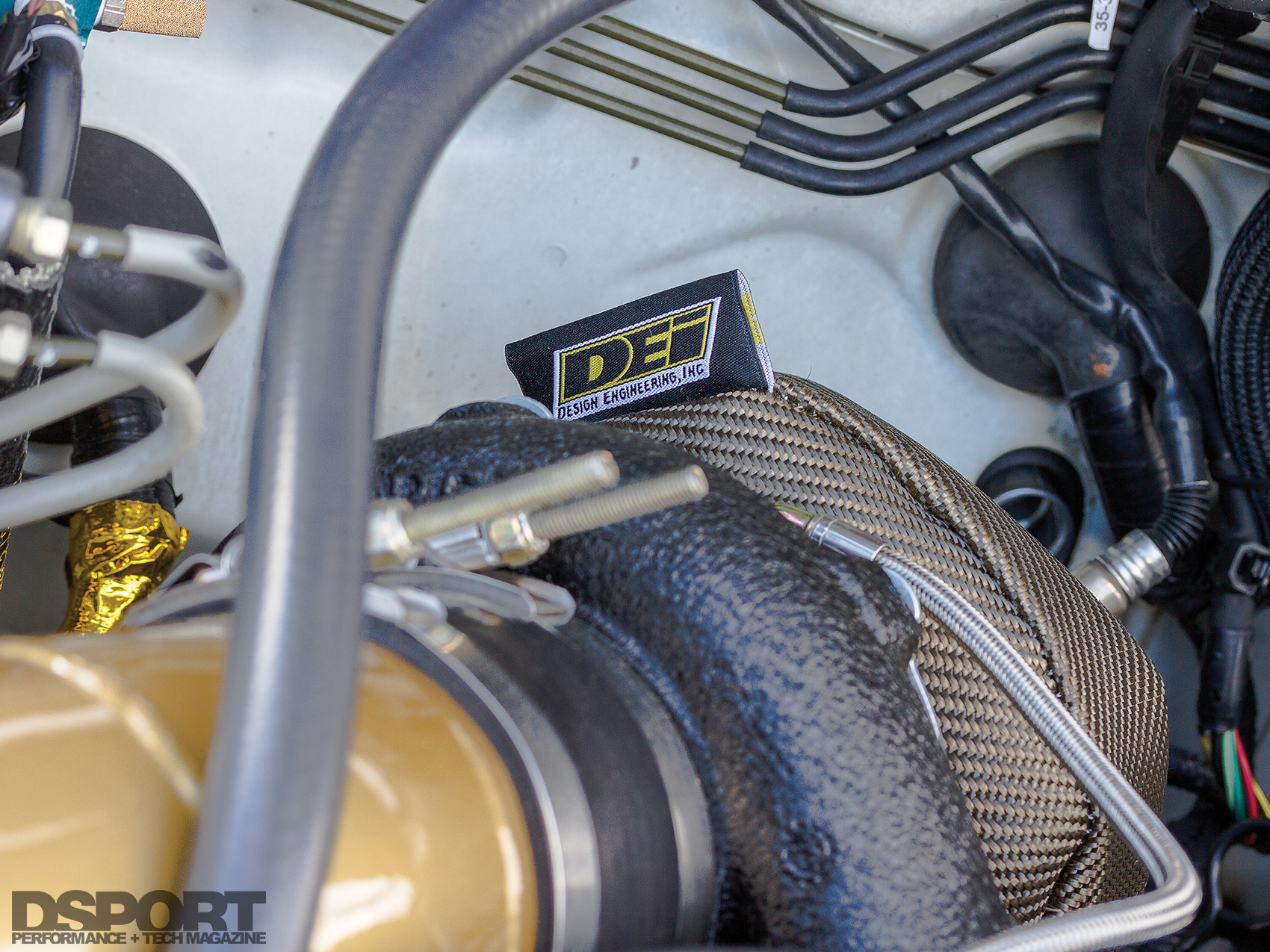

Turbocharger: Garrett GTX3076R
Frame: T3
Compressor Wheel Specs: 58mm inducer/ 76.6mm exducer
Turbine Wheel Specs: 60mm, 84 Trim
Turbine Housing: 0.63 A/R
CHASSIS/DRIVELINE
Springs, F&R (Make & Rate): BC Racing Springs, 8 kgf/mm, 6 kgf/mm
Shocks, F&R (Make & Rate): BC Racing Type-BR Coilovers

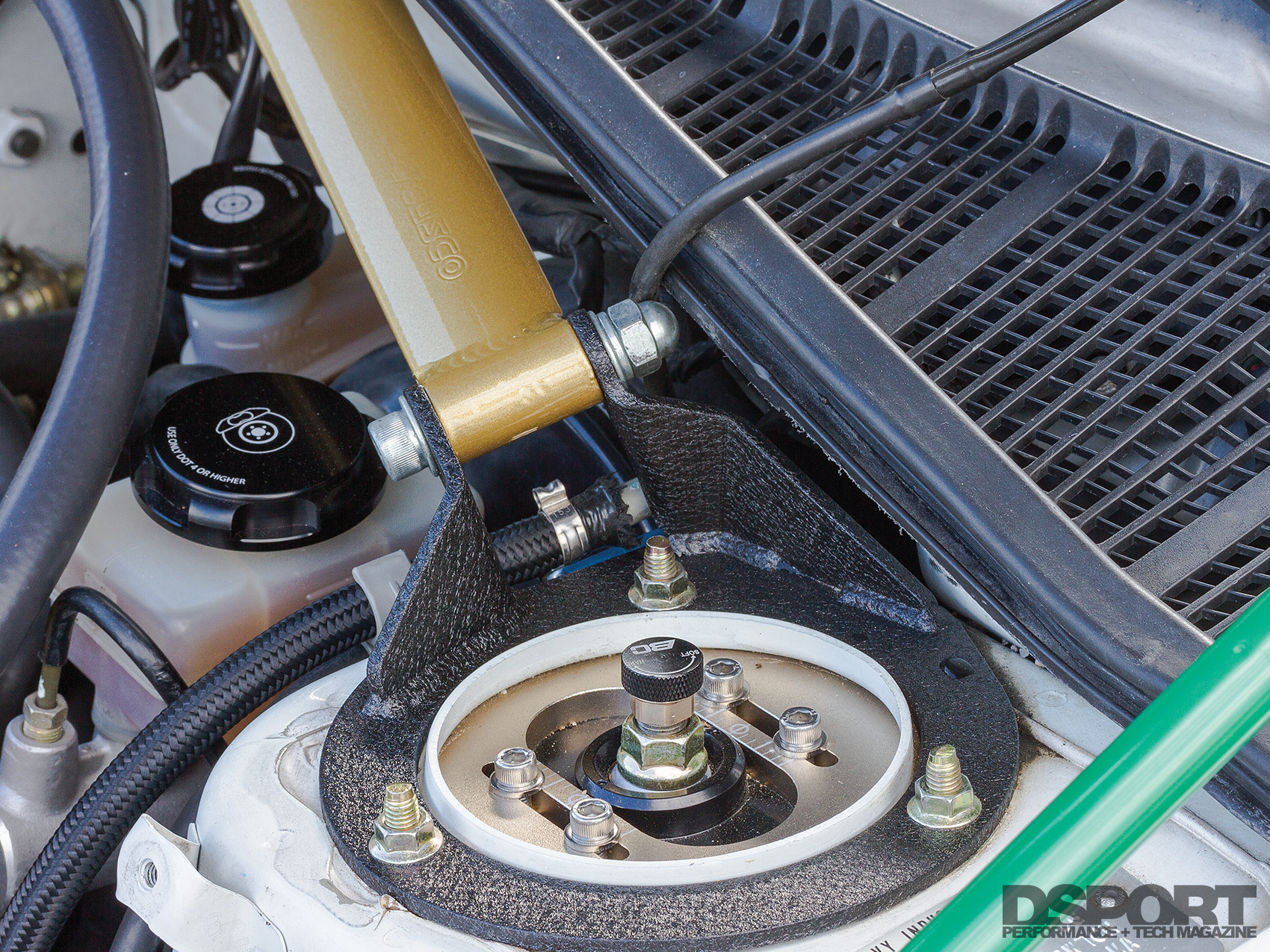

Additional Suspension Components: Cusco 22mm F&R Sway Bars, Strut Bar (F),
Triangle Strut Bar (R)
Final Drive: 3.90:1
Clutch / Flywheel: Exedy Twin-disc Ceramic Clutch and Flywheel

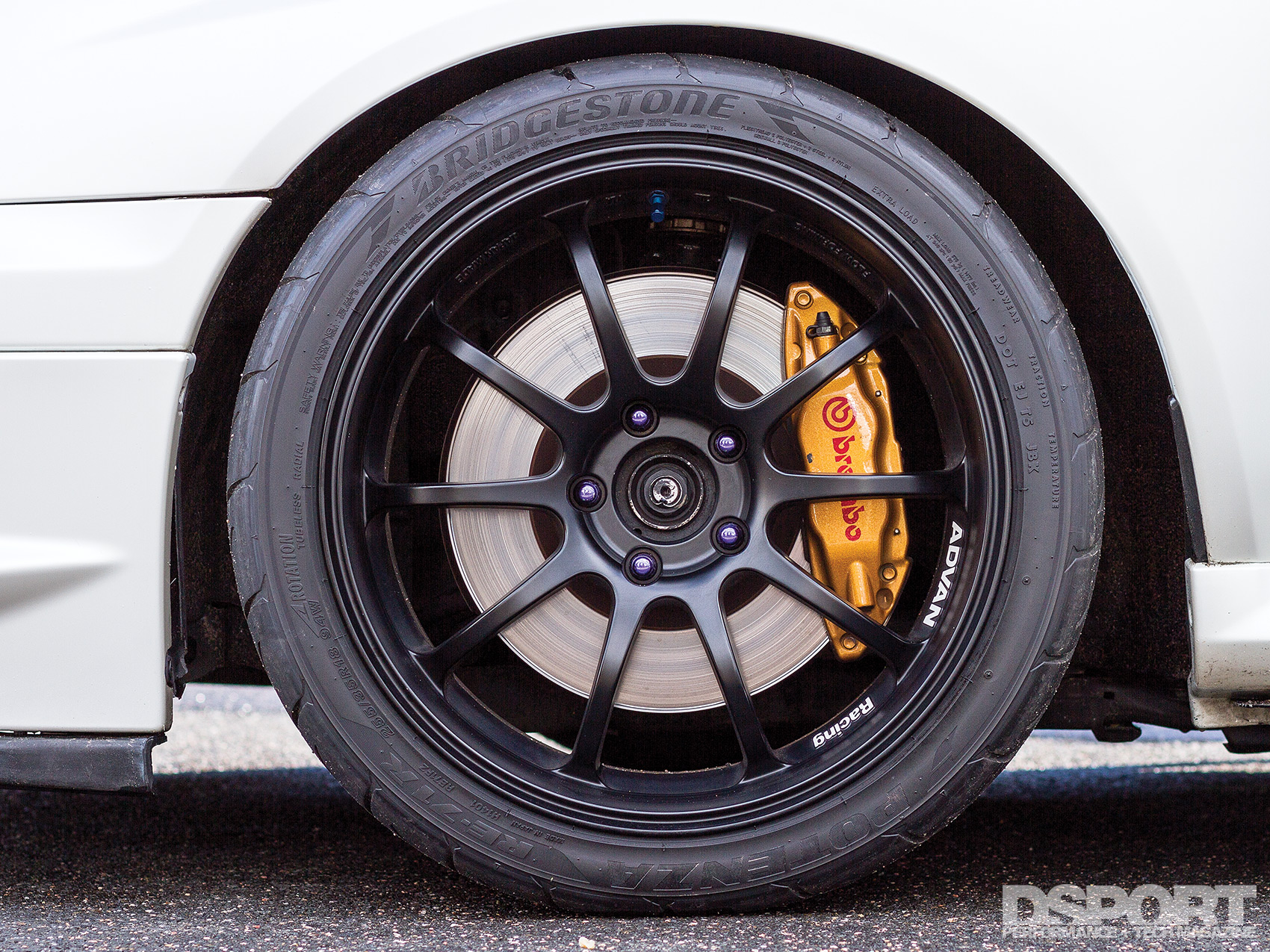

Wheels (Make, Size & Offset): Advan RS-D 18×9.5 +10 (F&R)
Tires (Make & Size): Bridgestone Potenza RE71-R, 255/40R18
Brake Pads: Hawk HPS Pads (F&R)
Roll Bar / Cage: Sparco Harness Bar

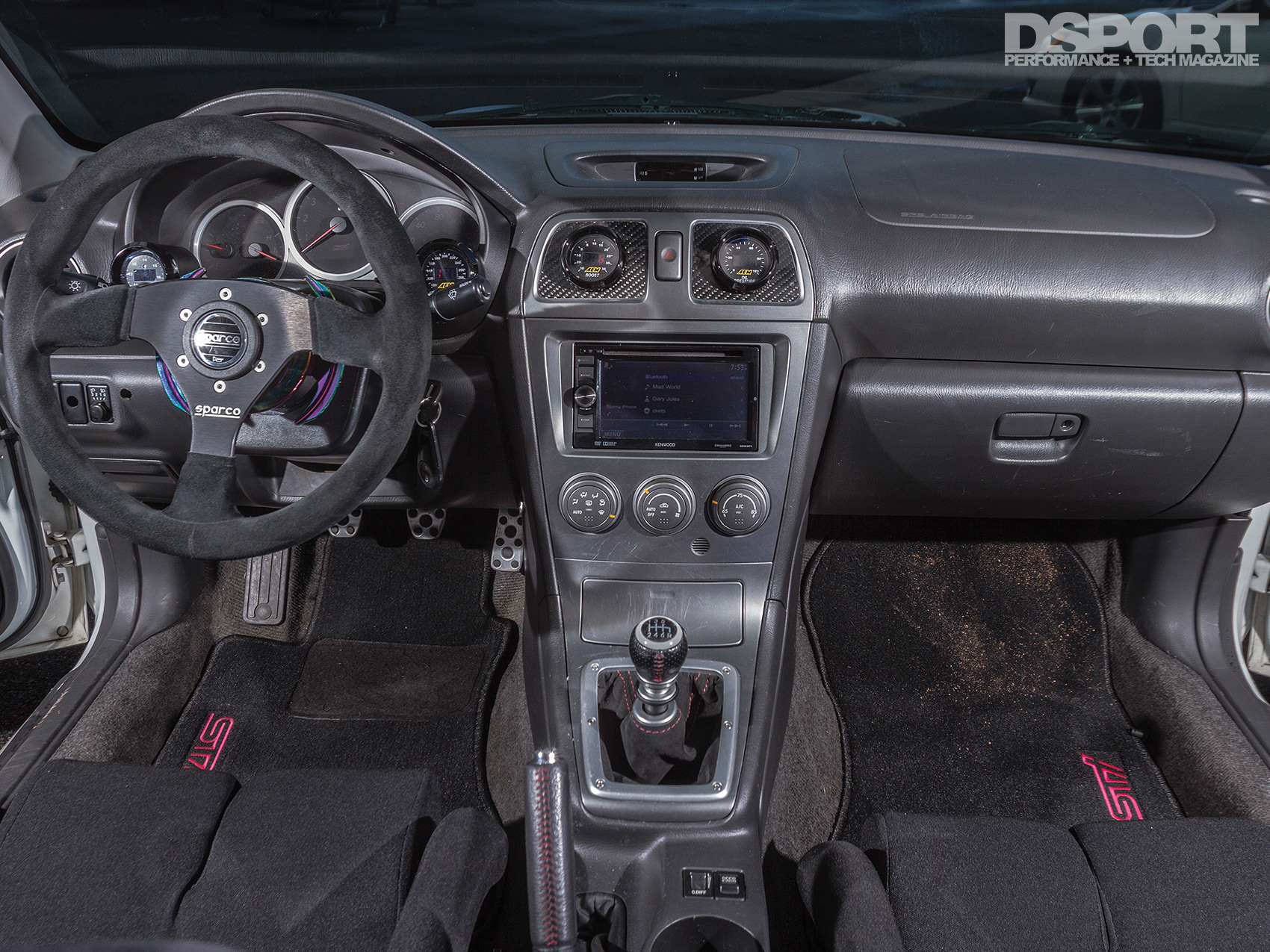

Seats: BRIDE Vios III Seats
Harnesses: Team Tech 5-point Harnesses

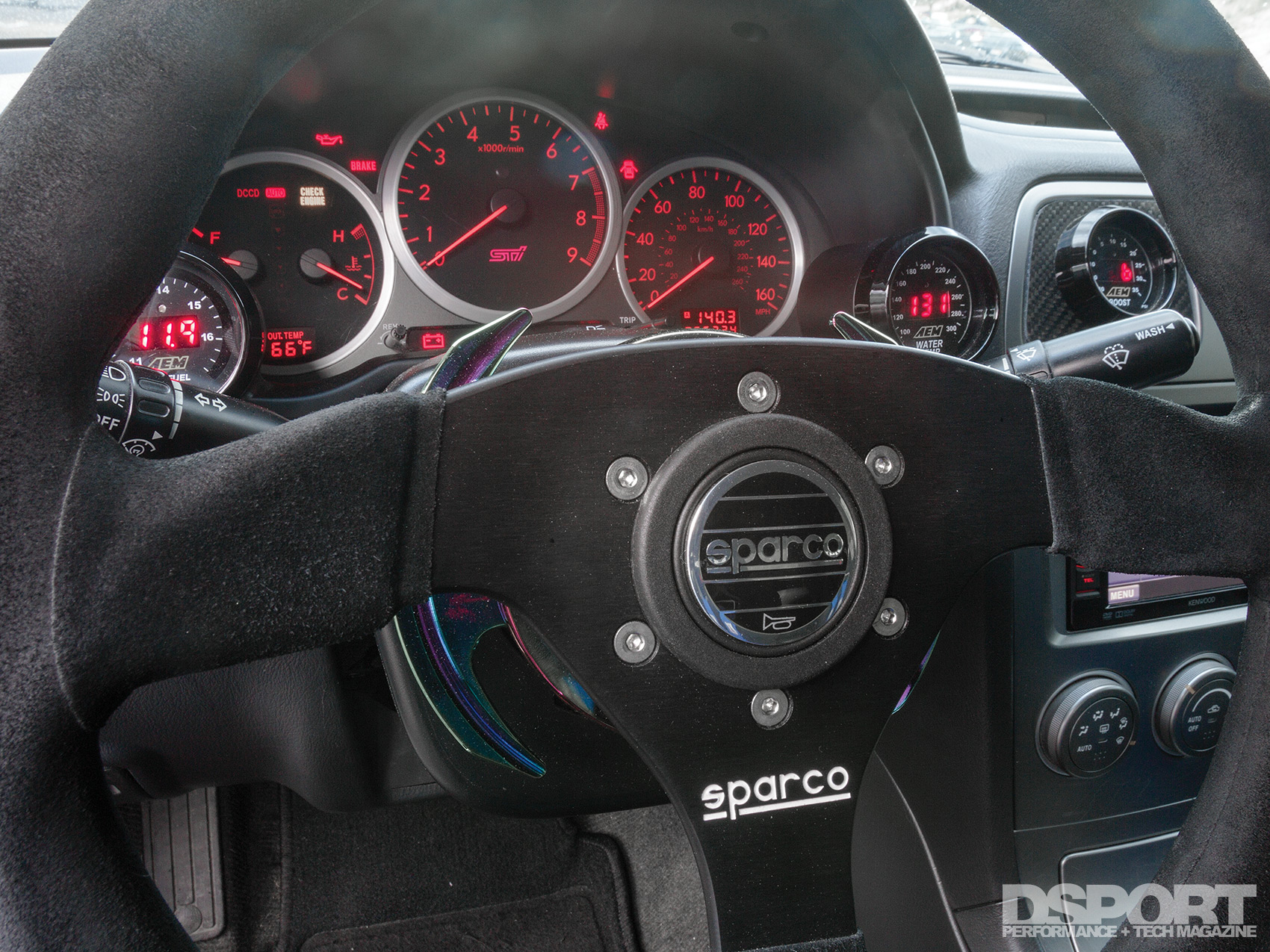

Steering Wheel / Quick Release: NRG Gen 3.0 ss/ Sparco R383 steering wheel
Gauges: AEM Electronics Gauges (Coolant Temp, Boost,
Wideband AFR, Oil Pressure)
SMY Performance ClusterMaker Gauge Pod
Mofab Custom sdiber console vent gauge pod
EXTERIOR

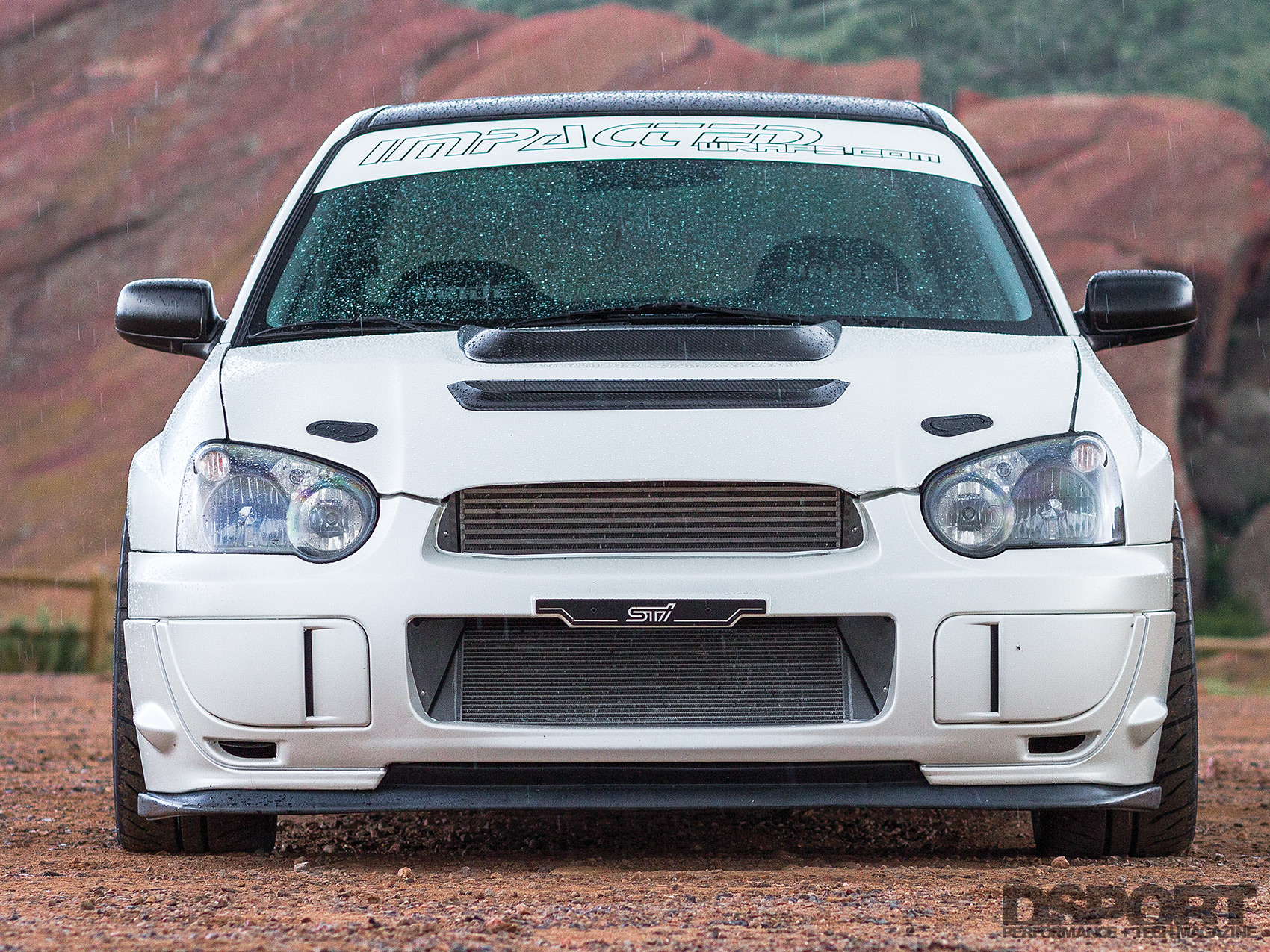

Front Bumper: Factory, Modified for V-mount setup
Front Lip Spoiler: 2007 STi Limited Lip
Hood: Seibon Carbon RC-style w/ Reverse Hood Scoop
Side Skirts: Aeroflow V1
Rear Fenders: Factory, Modified Flares
Trunk Lid: 2007 STi Limited
Etc.: Satin Pearl White Wrap
