SPEC SHEET
| VEHICLE | |
|---|---|

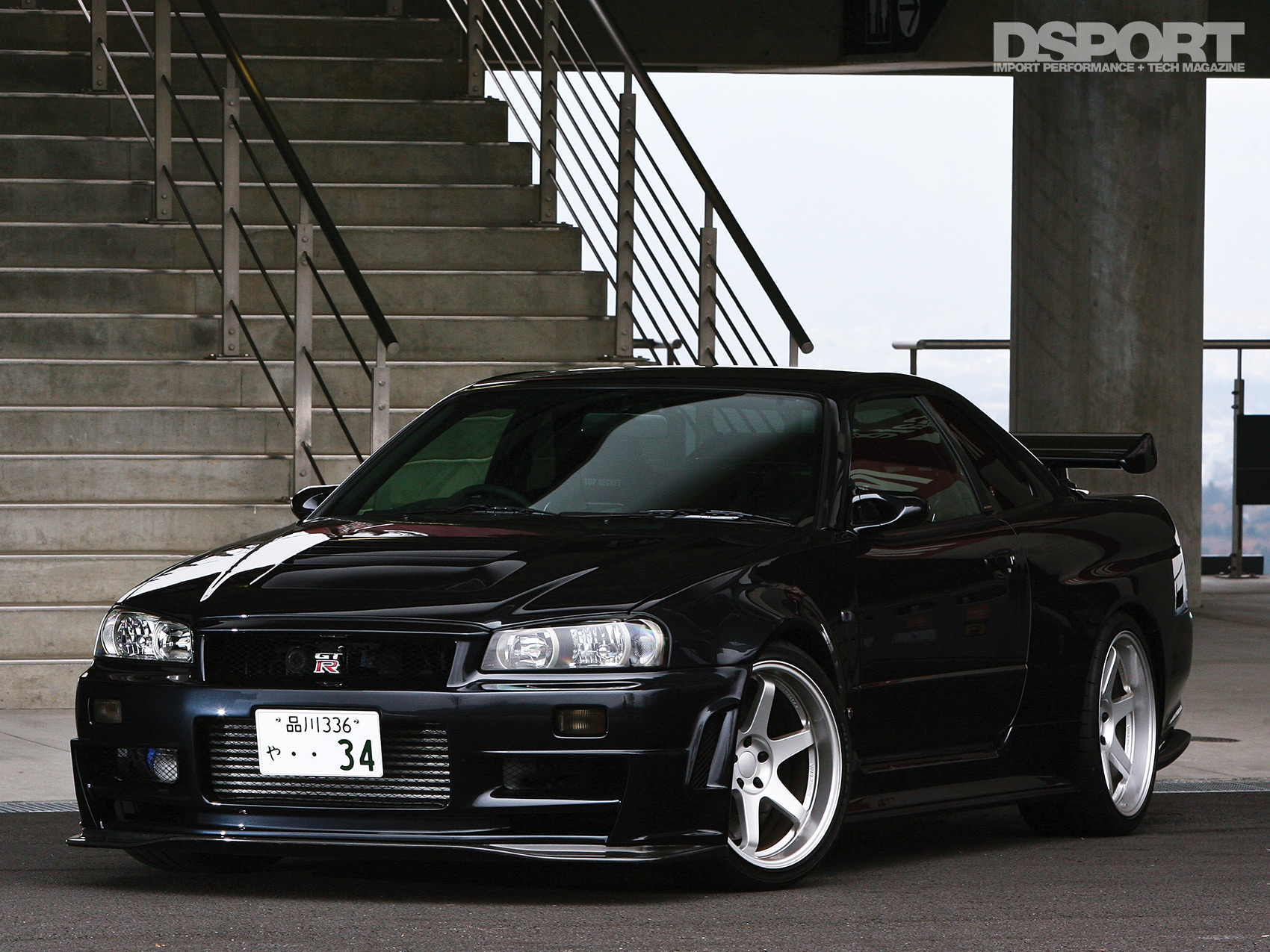

| Year / Make / Model: | 2000 Nissan Skyline GT-R |
| Chassis Code: | BNR34 |
| Vehicle Weight: | 3,395 lbs. |
| Redline RPM: | 9,000 RPM |
| Peak Boost: | 24 psi |
| Fuel: | 100-octane |

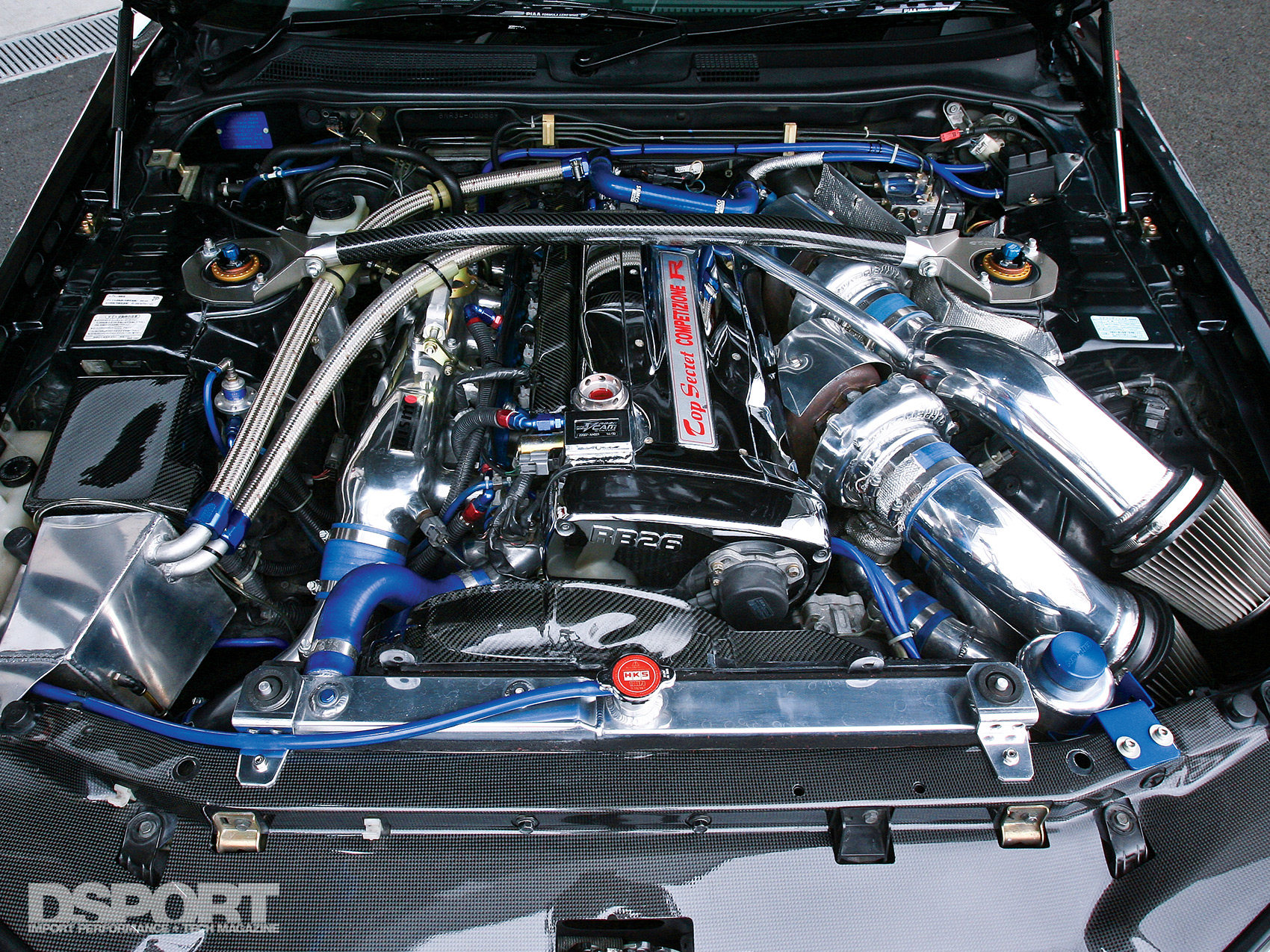

| ENGINE | |
|---|---|
| Engine Code: | RB26DETT |
| Displacement (cc): | 2,771cc |
| Bore & Stroke (mm): | 87mm x 77.7mm |
| Peak Horsepower (@ RPM): | 730 whp @ 7,400 RPM |
| Peak Torque (@ RPM): | 571 lb-ft @ 6,700 RPM |
| Engine Builder: | Top Secret |
| Pistons/Compression Ratio: | HKS 8.8:1-compression Pistons |
| Connecting Rods: | HKS Forged Connecting Rods |
| Crankshaft: | HKS Billet Crankshaft |
| Bearings and Seals: | NISMO N1 Bearings and Seals |
| Cylinder Head Modifications: | Top Secret Hand Ported and Polished |
| Cylinder Head Gasket: | HKS 1.2mm Head Gasket |
| Intake System: | HKS Metal Flow Air Filters |
| Intake Manifold/Throttle Body: | NISMO GT Surge Tank |
| Custom NAPREC 49mm Individual | |
| Throttle Bodies | |
| HKS Manifold Gasket | |
| Fuel Injectors: | Top Secret/SARD 1,000 cc/min Injectors (x6) |
| Fuel Delivery System: | NISMO 255-lph In-tank Fuel Pump |
| Bosch Motorsports 550 Inline Fuel Pumps (x2) | |
| GReddy GRex Fuel Rail | |
| Top Secret Fuel Surge Tank | |
| SARD Fuel Pressure Regulator | |
| Engine Management System: | HKS F-CON V-Pro Engine Management |
| Engine Management Tuner: | Kazuhiko “Smokey” Nagata |
| Boost Controller: | Blitz Type-R Dual SBC |
| Spark Plugs: | Blitz Spark Plugs |
| Exhaust Manifold: | HKS Exhaust Manifolds (x2) |
| HKS Manifold Gaskets (x2) | |
| Exhaust System / Downpipe: | Top Secret 80mm Down Pipes |
| GReddy Ti-R 90mm Exhaust | |
| Wastegate: | HKS GT Wastegates (x2) |
| Intercooler: | ARC Twin-entry Front-mount Intercooler |
| Cooling System: | NISMO N1 Water Pump |
| Tabata RR Race Radiator | |
| HKS Radiator Cap | |
| SARD Type-D Thermostat | |
| Samco Silicone Radiator Hoses | |
| Garage Defend Carbon-Fiber Air Guide | |
| Robson Carbon-Fiber Fan Shroud | |
| Oil System: | HKS 15-row Oil Cooler |
| GReddy Extended Oil Pan, Baffle, Pick Up and | |
| Filter Relocation Kit | |
| GReddy Oil Pump | |

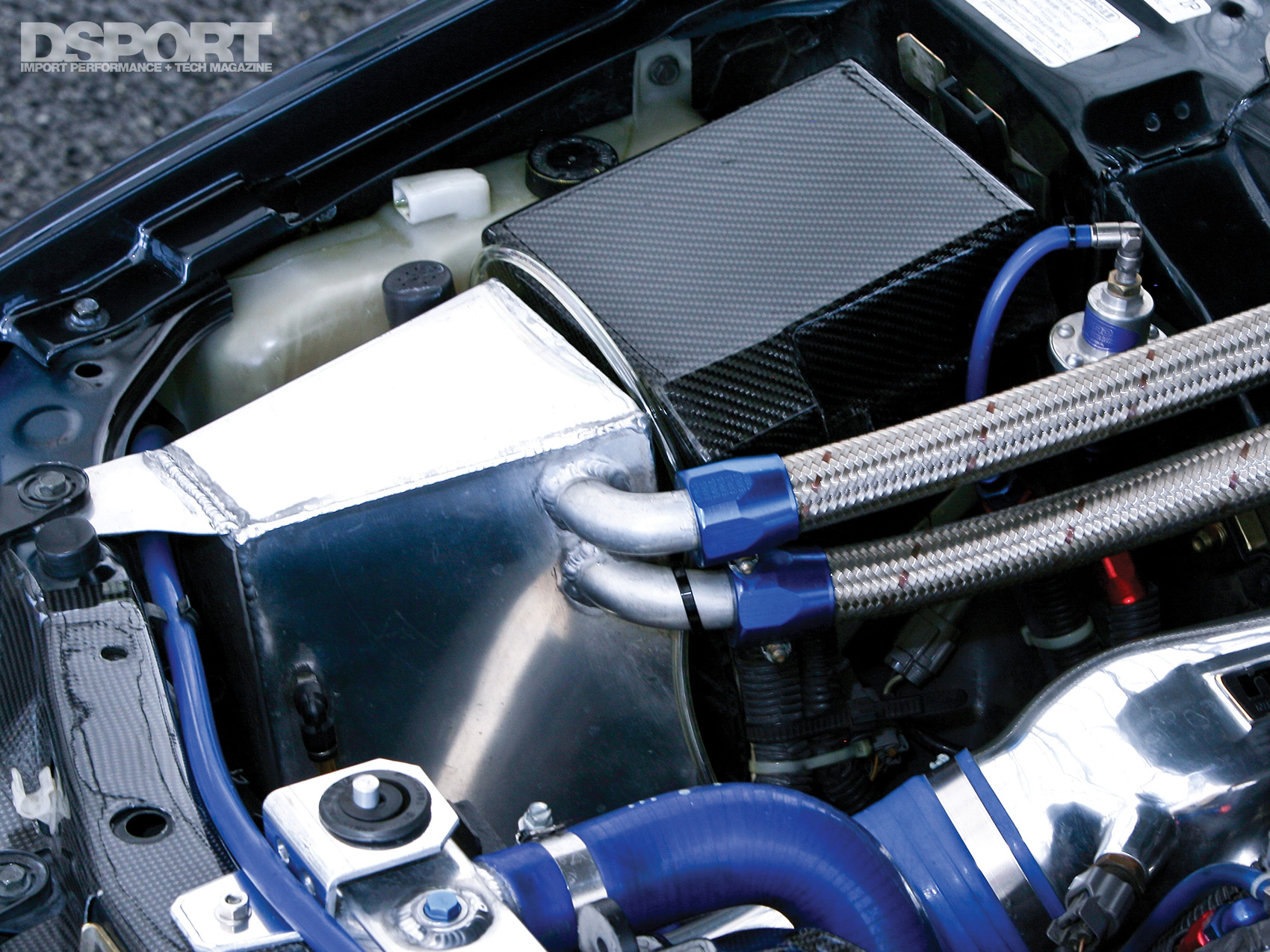

| Top Secret Oil Catch Tank |
| TURBOCHARGER | |
|---|---|

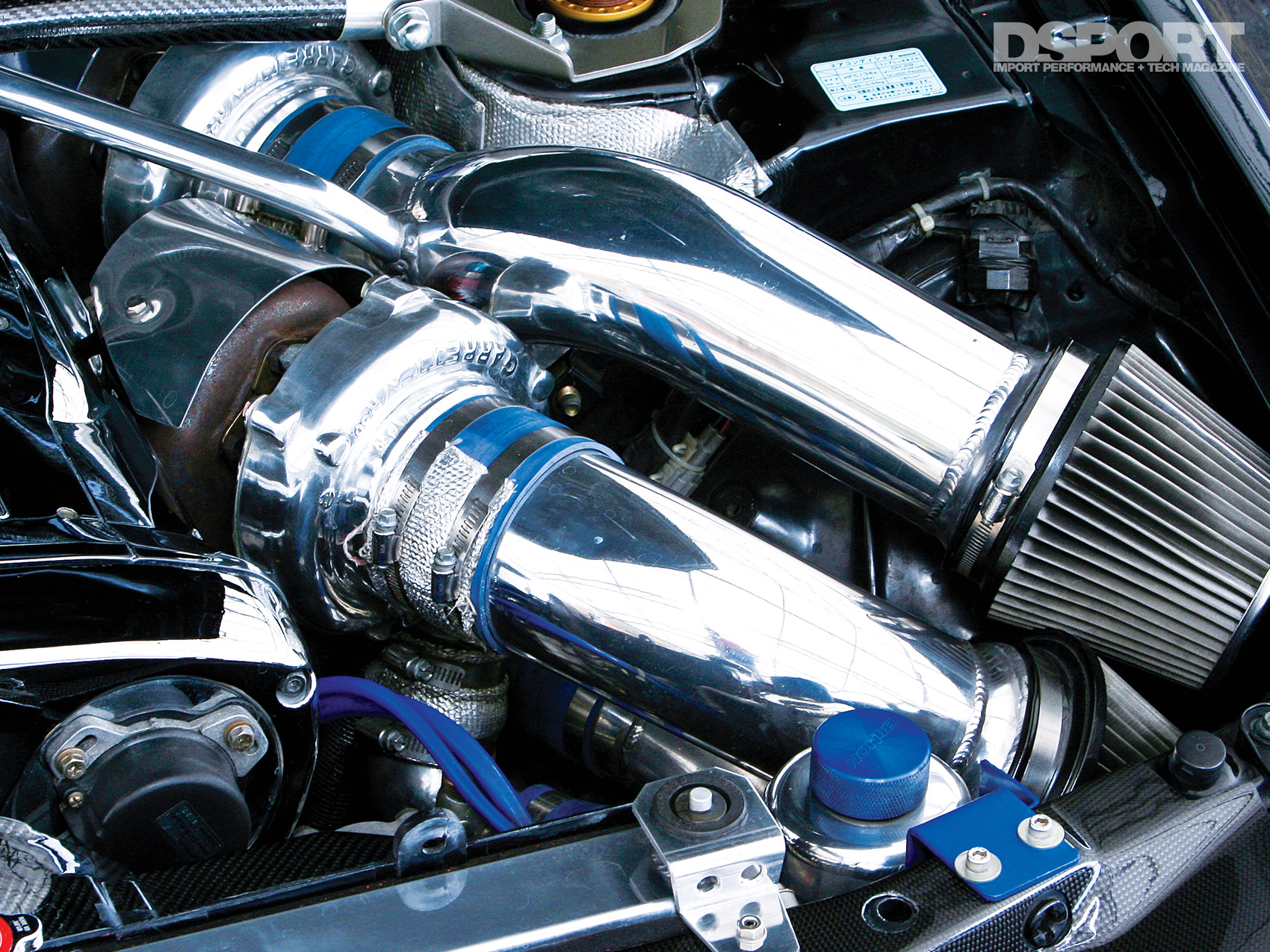

| Turbocharger: | HKS GT2835R (x2) |
| Frame: | T28 |
| Compressor Wheel Specs: | 53.1mm Inducer, 71.1 Major |
| Turbine Wheel Specs: | 53.6 Exducer, 56.5 Major |
| Turbine Housing: | A/R 0.73 |
| CHASSIS/DRIVELINE | |
|---|---|

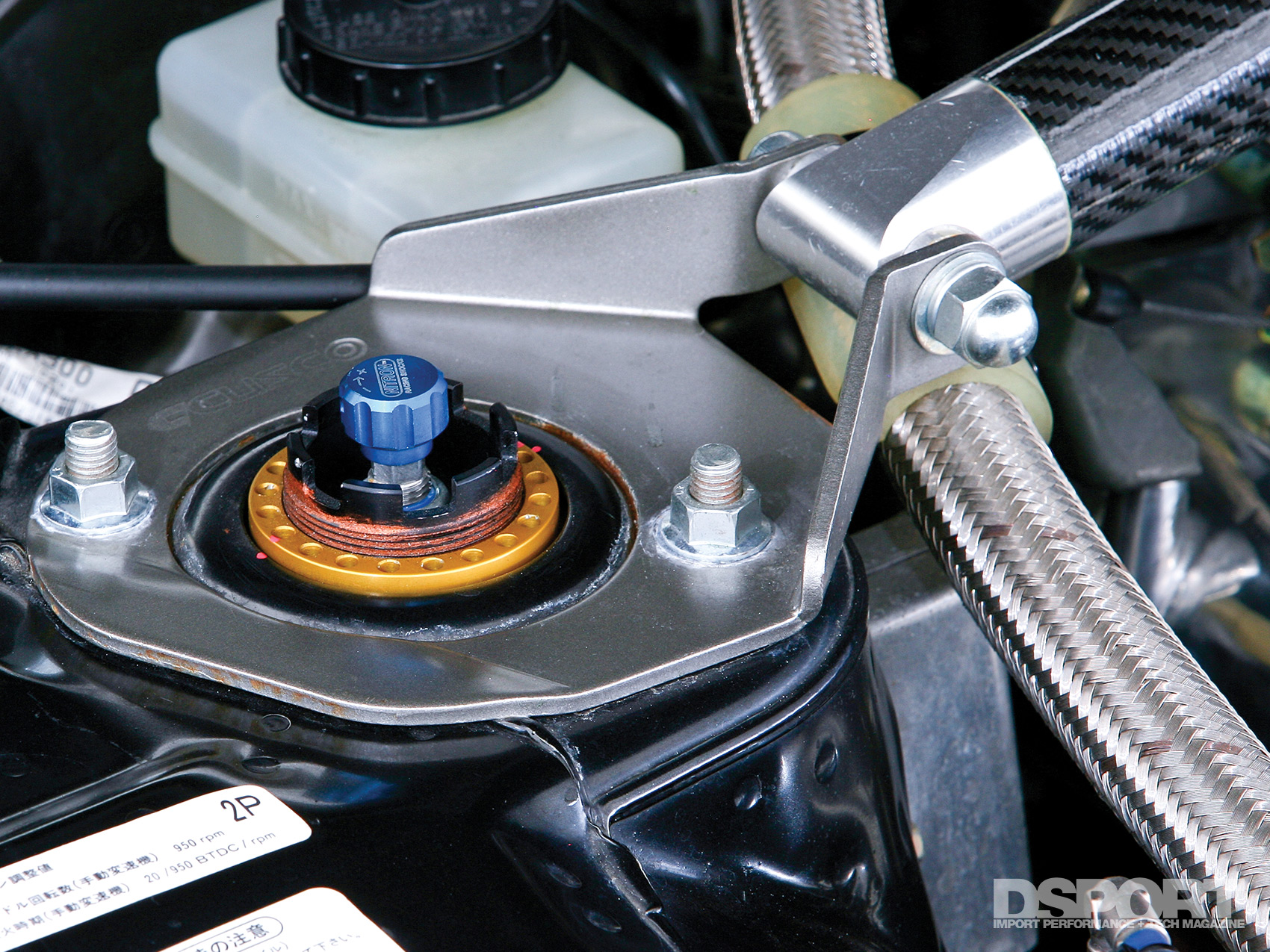

| Coilover Suspension: | Nitron Pro NTCNIO12R 3-way |
| Adjustable Racing Coil-over Suspension | |
| Additional Suspension Components: | Top Secret HICAS Eliminator |
| Ikeya Formula Pillow Adjuster Links, | |
| Upper Links, Roll Center Adjuster, | |
| Tie Rod Ends, Multi-Link Spacers, | |
| Rear Lower Arms, Rear Camber Arms, | |
| Traction Rods and Rear Knuckle Pillow Bushes | |
| Cusco Rear Upper Arms and Carbon-fiber | |
| Pro Strut Tower Brace | |
| Transmission: | NISMO Large Diameter Input Shaft |
| Clutch / Flywheel: | Active Traction Service (ATS) |
| Twin-plate Carbon Clutch | |
| (1,350 kg pressure plate) | |
| ATS Lightened and Balanced Flywheel | |
| NISMO Spec III Slave Cylinder | |
| Top Secret Super Release Fork | |
| Differential(s) (Make & Type): | Cusco Type-RS LSD (R) |

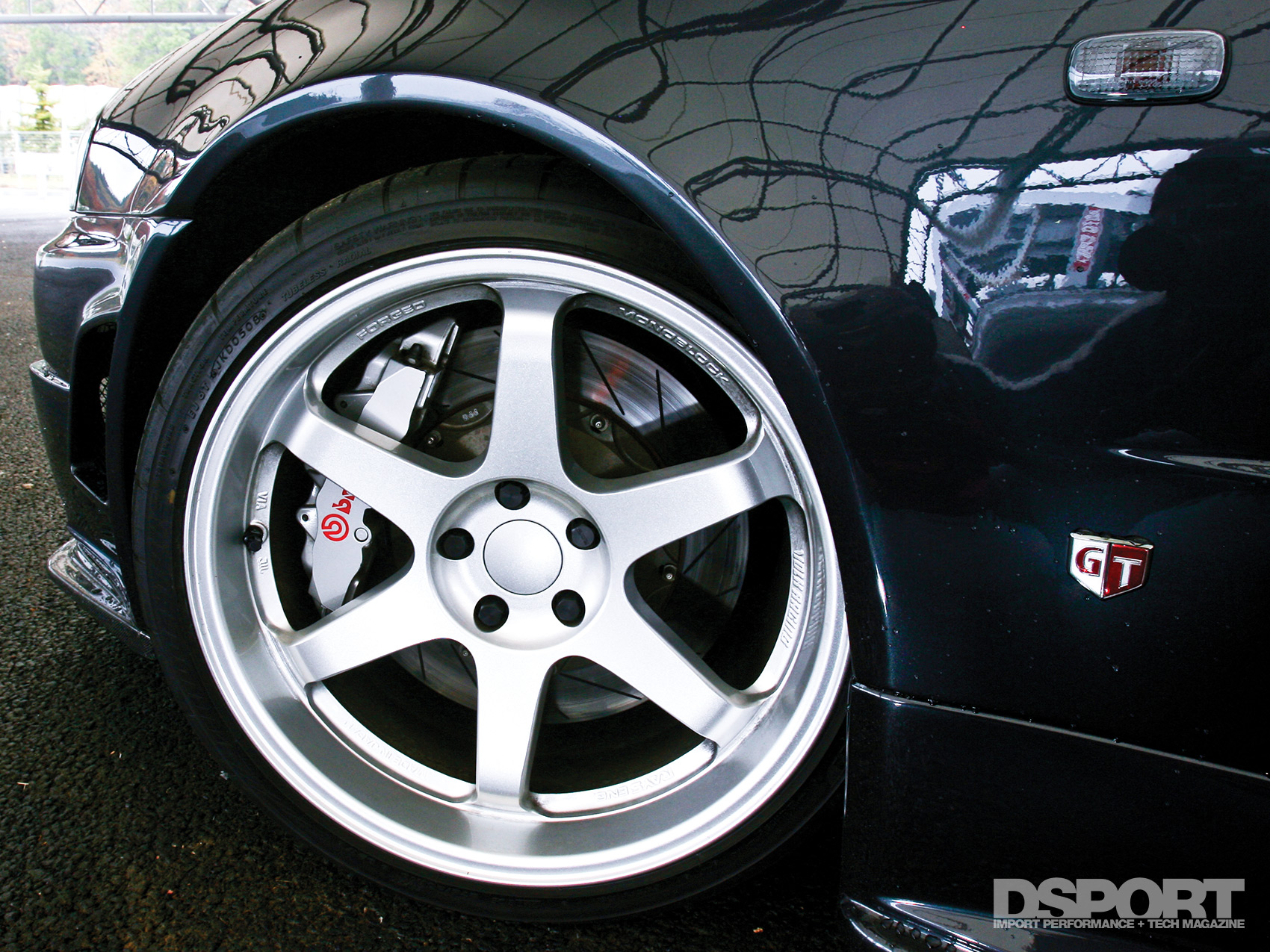

| Wheels (Make, Size & Offset): | Volk Racing TE37 19×9.5-inch +12 (F&R) |
| Tires (Make & Size): | Bridgestone Potenza RE-11 275/30R19 (F&R) |
| Brake Calipers (F&R): | Brembo 8-piston Calipers (F) |
| Brembo 4-piston Calipers (R) | |
| Brake Rotors (Diameter, F&R): | 380mm 2-piece Rotors (F) |
| Brake Rotors (Diameter, F&R): | 355mm 2-piece Rotors (R) |
| Brake Pads (Front & Rear): | Endless CC-R Brake Pads (F&R) |
| Brake Lines: | Top Secret Stainless-braided Lines |
| INTERIOR | |
|---|---|

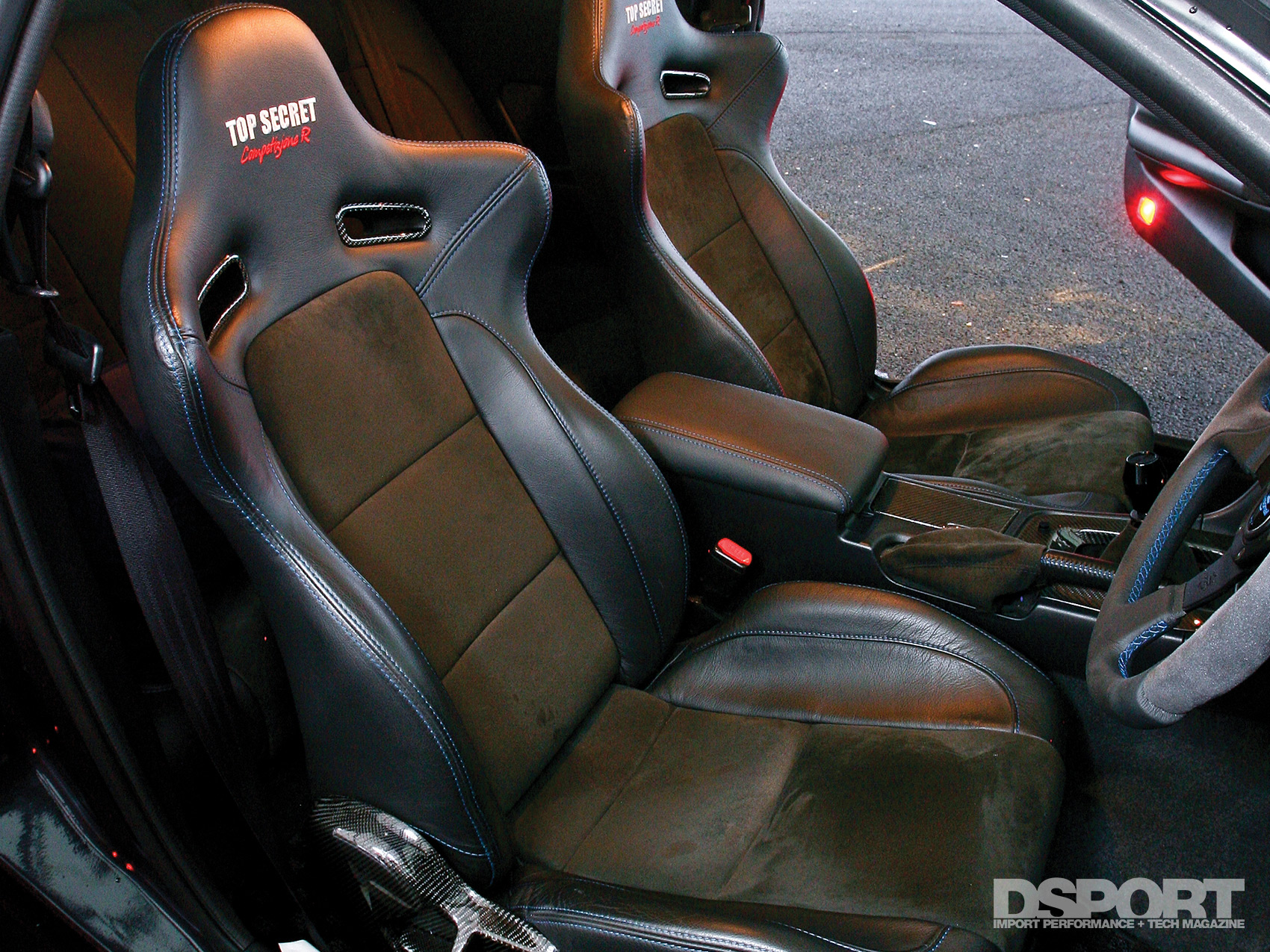

| Seats: | Robson Custom Alcantara Upholstery |

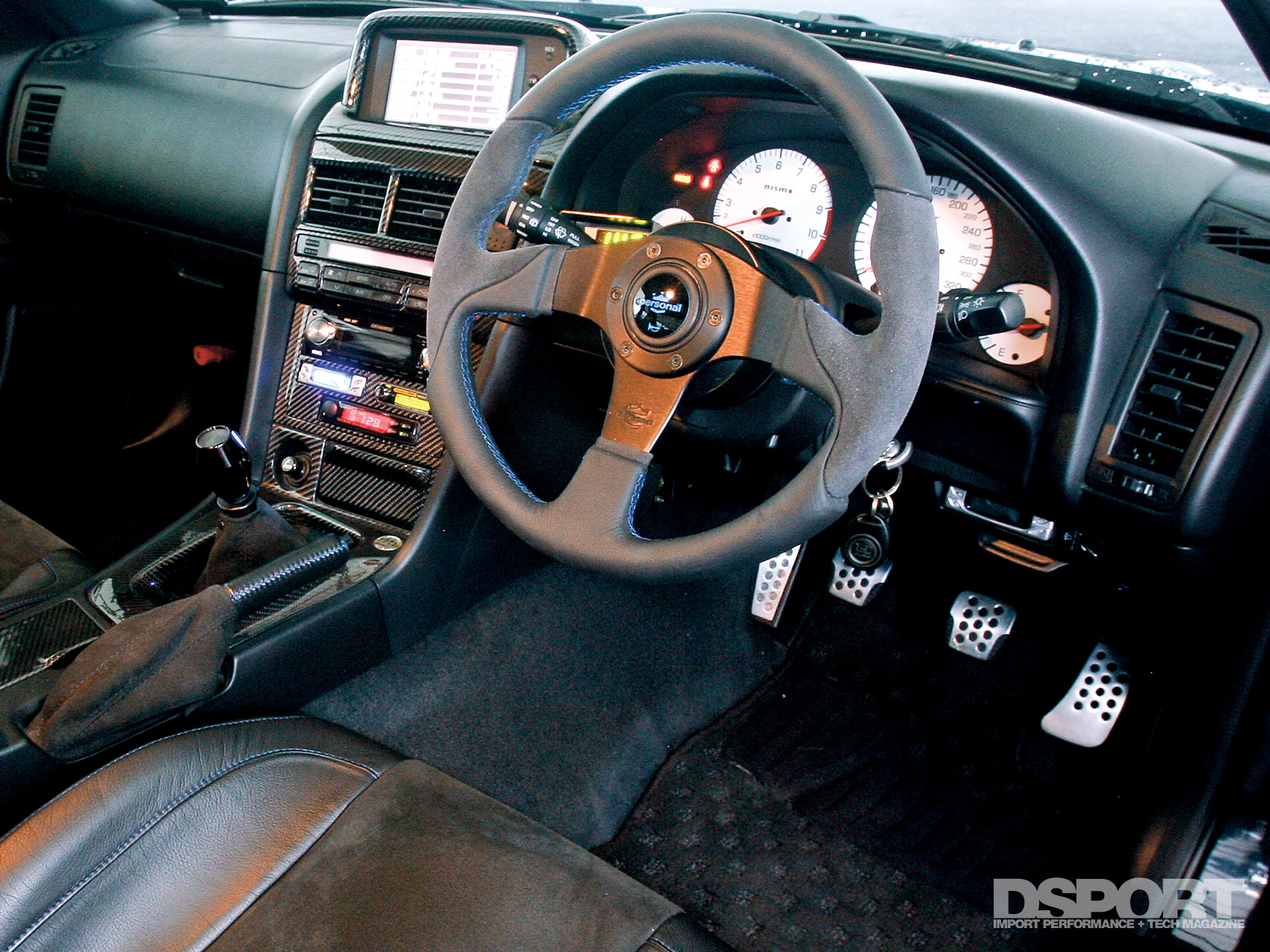

| Steering Wheel: | Top Secret/Personal Steering Wheel |
| w/ Robson Alcantara Leather | |
| Gauges: | NISMO Gauge Cluster |
| NISMO Multi-function Display V2 | |
| Xanavi Birdview Navigation System | |
| Etc: | Pioneer DEH-P919 Head Unit |
| EXTERIOR | |
|---|---|
| Front Bumper: | NISMO Z-tuned |
| Front Fenders: | NISMO Z-tuned |
| Hood: | NISMO R-tuned Carbon-fiber Vented |
| Top Secret Carbon-fiber Hood Dampers | |
| Side Skirts: | Do-Luck Side Skirts |
| Rear Diffuser: | Top Secret Carbon-fiber Rear Diffuser |

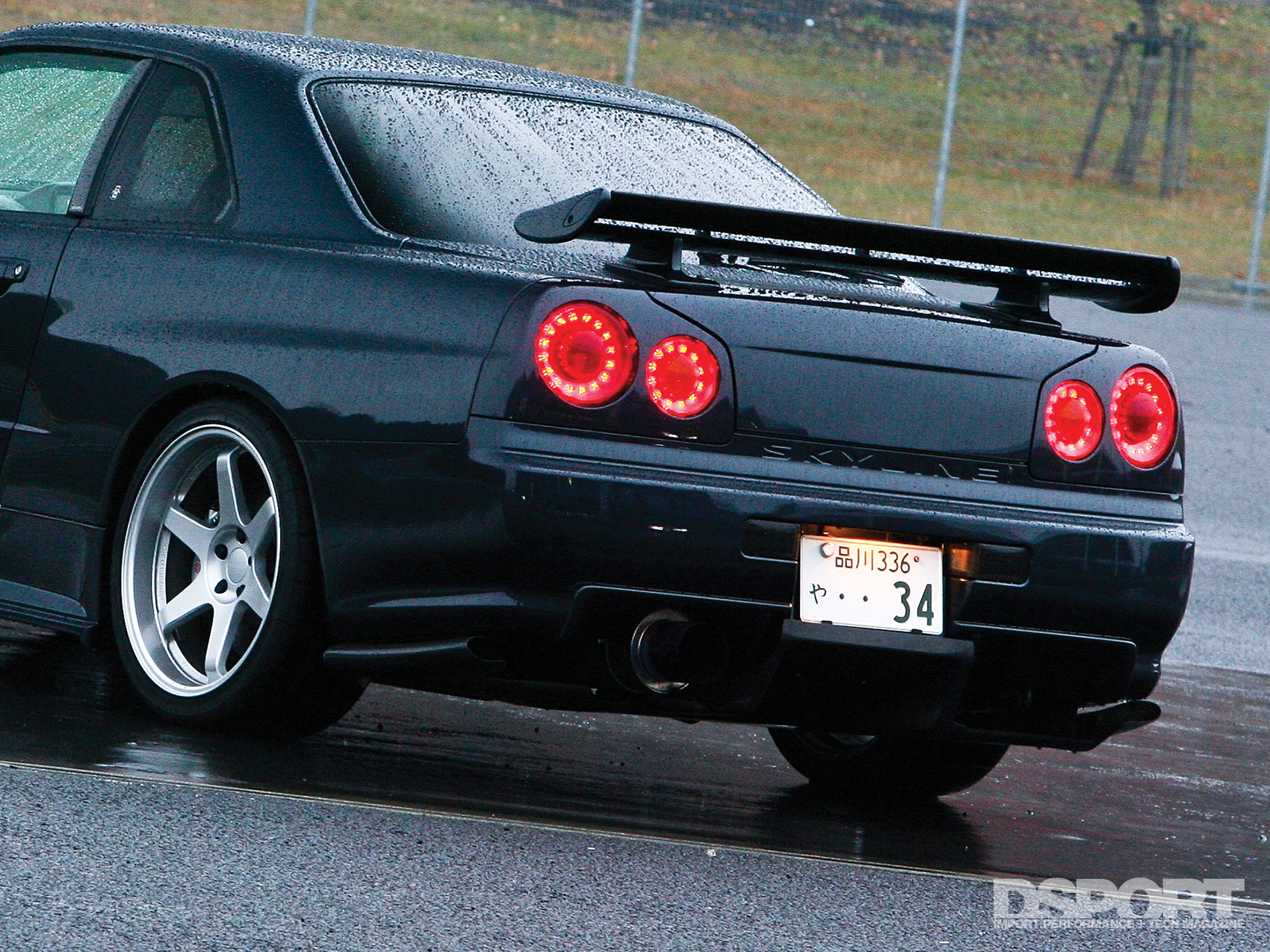

| Spoilers: | NISMO Dry Carbon-Fiber Wing Plane |
| Top Secret Custom Carbon-Fiber Wing Mounts | |
| Spoilers: | Top Secret Carbon-fiber Vortex Generator |
| Taillights: | Sunline Racing V.2 LED Taillights |
| Paint: | Top Secret Custom Dark Grey Blue Pearl Paint |
| Grill: | R35 GT-R Grill Emblem |
| Mirrors: | Ganador Super Mirrors |
