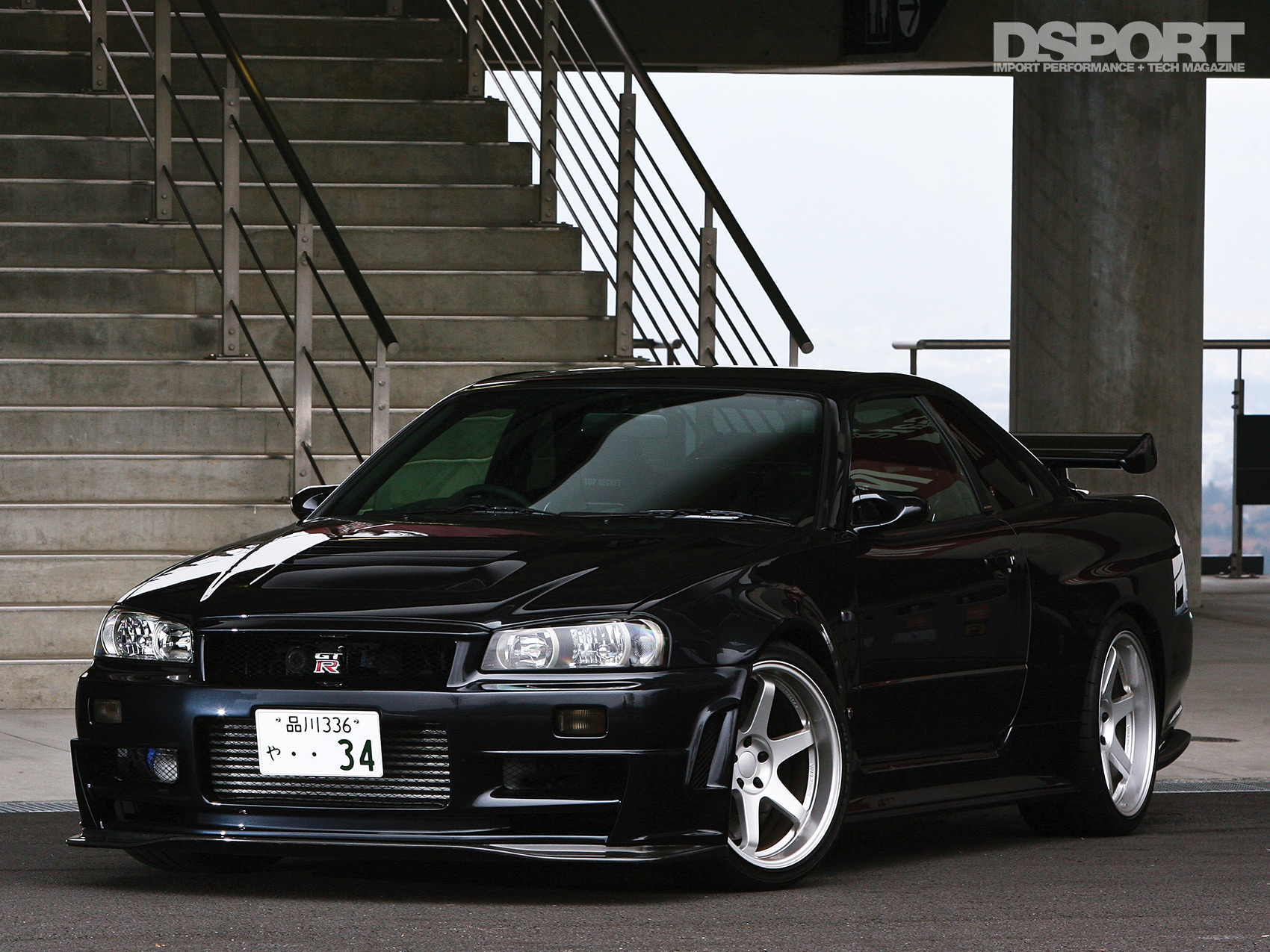

Top Secret-built R34 GT-R Rocks Fuji Speedway with 730 Horsepower

SPEC SHEET

VEHICLE
Year / Make / Model: 2000 Nissan Skyline GT-R
Chassis Code: BNR34
Vehicle Weight: 3,395 lbs.
Redline RPM: 9,000 RPM
Peak Boost: 24 psi
Fuel: 100-octane

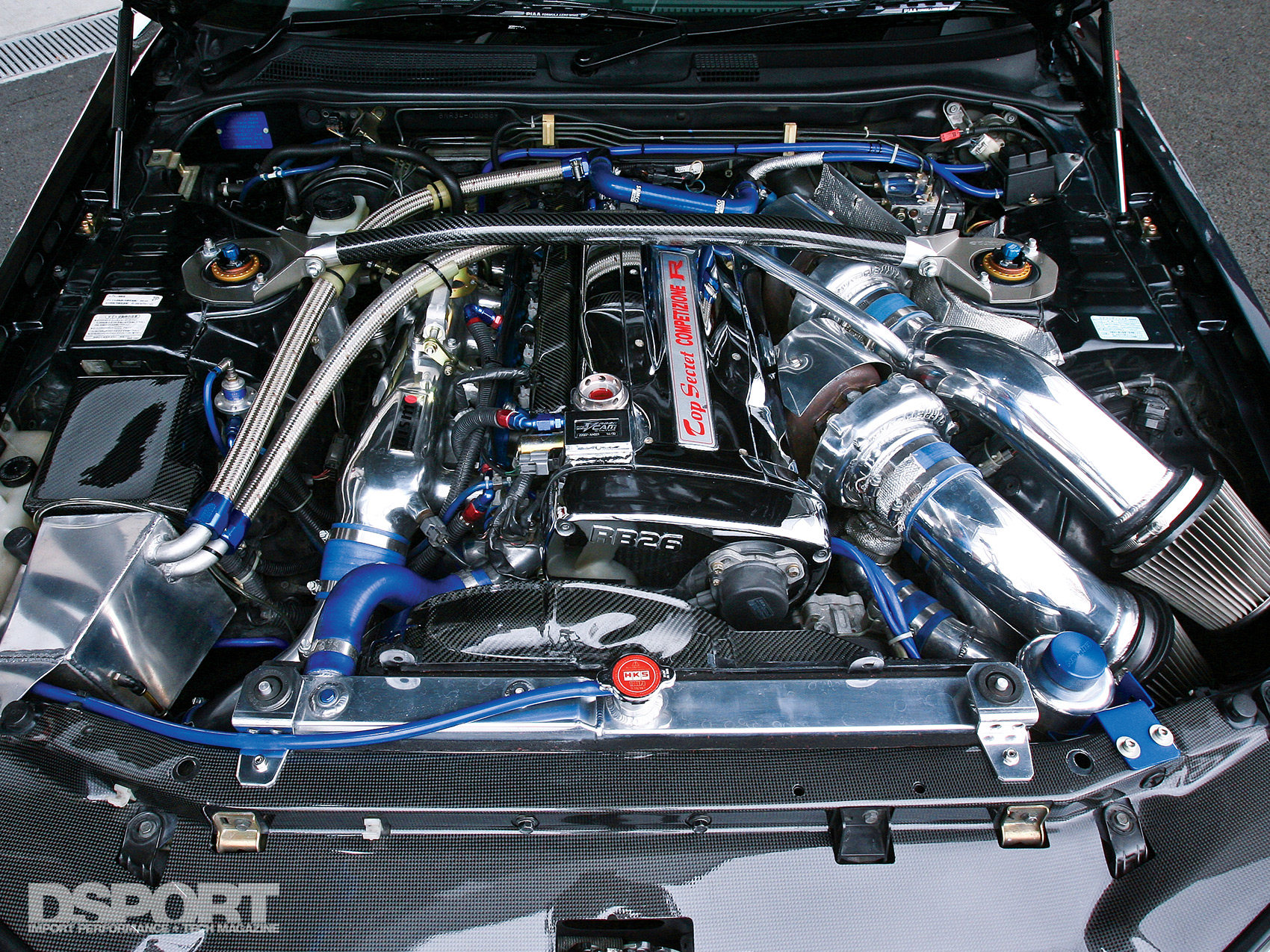

ENGINE
Engine Code: RB26DETT
Displacement (cc): 2,771cc
Bore & Stroke (mm): 87mm x 77.7mm
Peak Horsepower (@ RPM): 730 whp @ 7,400 RPM
Peak Torque (@ RPM): 571 lb-ft @ 6,700 RPM
Engine Builder: Top Secret
Pistons/Compression Ratio: HKS 8.8:1-compression Pistons
Connecting Rods: HKS Forged Connecting Rods
Crankshaft: HKS Billet Crankshaft
Bearings and Seals: NISMO N1 Bearings and Seals
Cylinder Head Modifications: Top Secret Hand Ported and Polished
Cylinder Head Gasket: HKS 1.2mm Head Gasket
Intake System: HKS Metal Flow Air Filters
Intake Manifold/Throttle Body: NISMO GT Surge Tank
Custom NAPREC 49mm Individual
Throttle Bodies
HKS Manifold Gasket
Fuel Injectors: Top Secret/SARD 1,000 cc/min Injectors (x6)
Fuel Delivery System: NISMO 255-lph In-tank Fuel Pump
Bosch Motorsports 550 Inline Fuel Pumps (x2)
GReddy GRex Fuel Rail
Top Secret Fuel Surge Tank
SARD Fuel Pressure Regulator
Engine Management System: HKS F-CON V-Pro Engine Management
Engine Management Tuner: Kazuhiko “Smokey” Nagata
Boost Controller: Blitz Type-R Dual SBC
Spark Plugs: Blitz Spark Plugs
Exhaust Manifold: HKS Exhaust Manifolds (x2)
HKS Manifold Gaskets (x2)
Exhaust System / Downpipe: Top Secret 80mm Down Pipes
GReddy Ti-R 90mm Exhaust
Wastegate: HKS GT Wastegates (x2)
Intercooler: ARC Twin-entry Front-mount Intercooler
Cooling System: NISMO N1 Water Pump
Tabata RR Race Radiator
HKS Radiator Cap
SARD Type-D Thermostat
Samco Silicone Radiator Hoses
Garage Defend Carbon-Fiber Air Guide
Robson Carbon-Fiber Fan Shroud
Oil System: HKS 15-row Oil Cooler
GReddy Extended Oil Pan, Baffle, Pick Up and
Filter Relocation Kit
GReddy Oil Pump

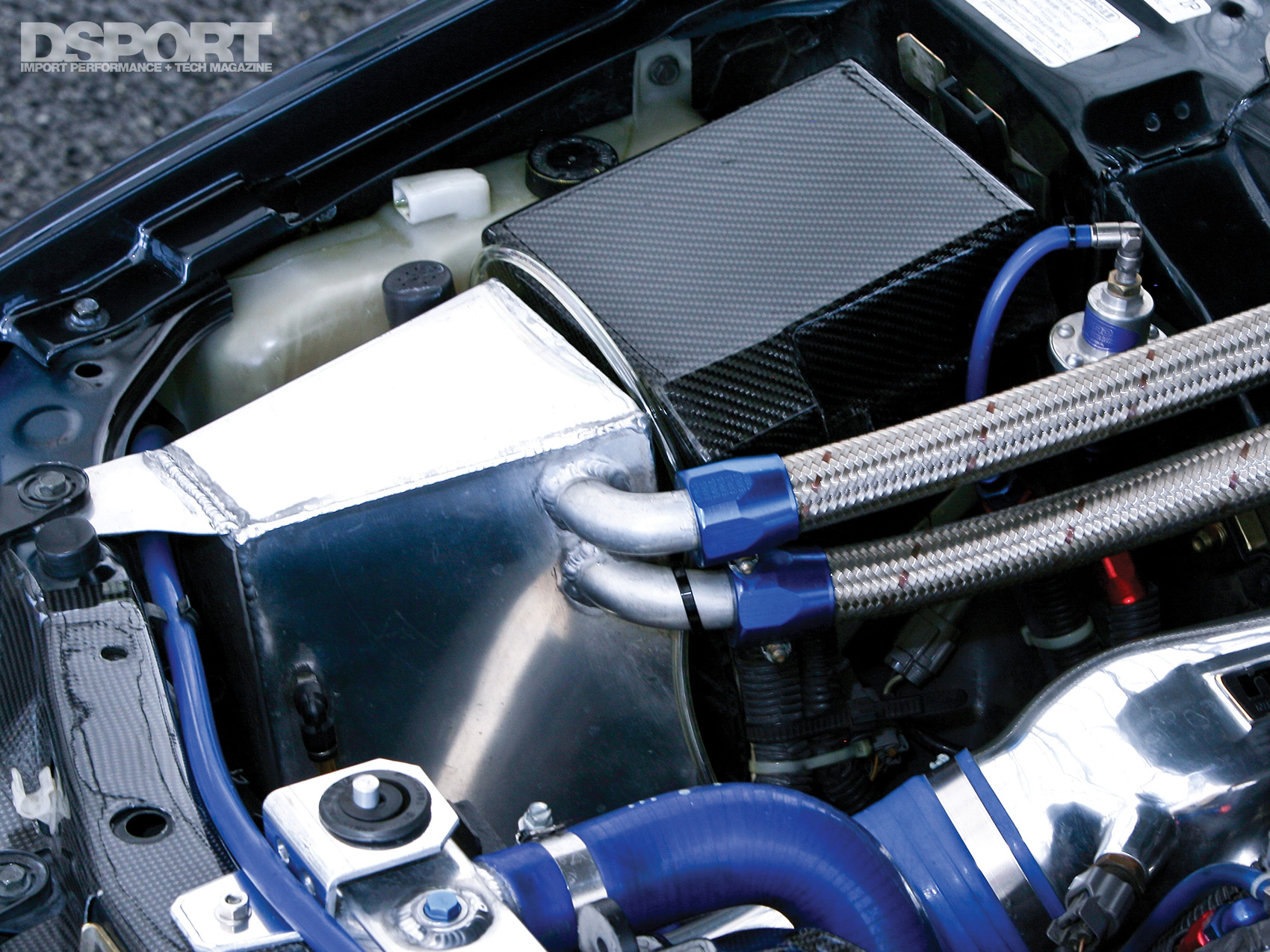

Top Secret Oil Catch Tank

TURBOCHARGER

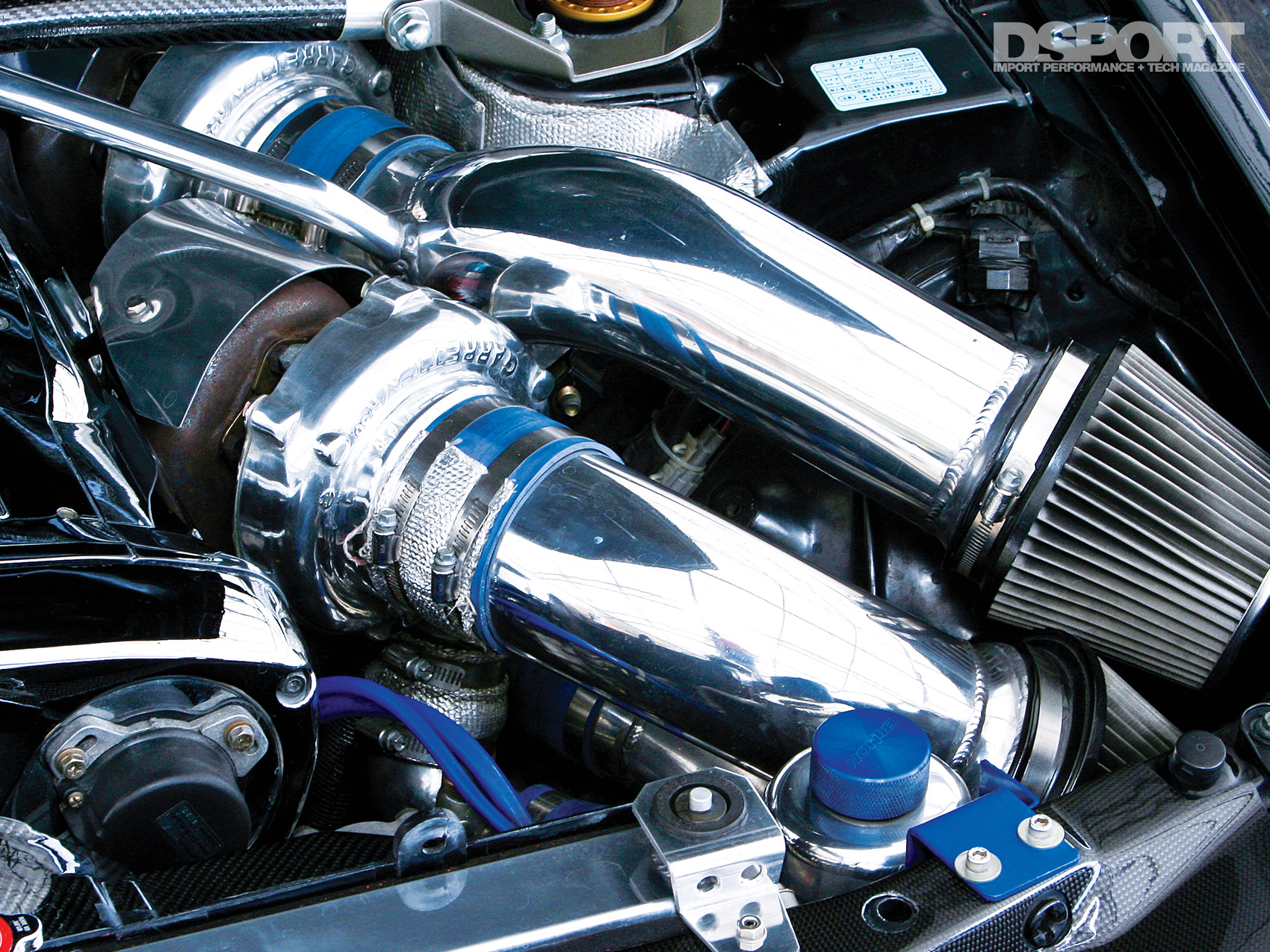

Turbocharger: HKS GT2835R (x2)
Frame: T28
Compressor Wheel Specs: 53.1mm Inducer, 71.1 Major
Turbine Wheel Specs: 53.6 Exducer, 56.5 Major
Turbine Housing: A/R 0.73

CHASSIS/DRIVELINE

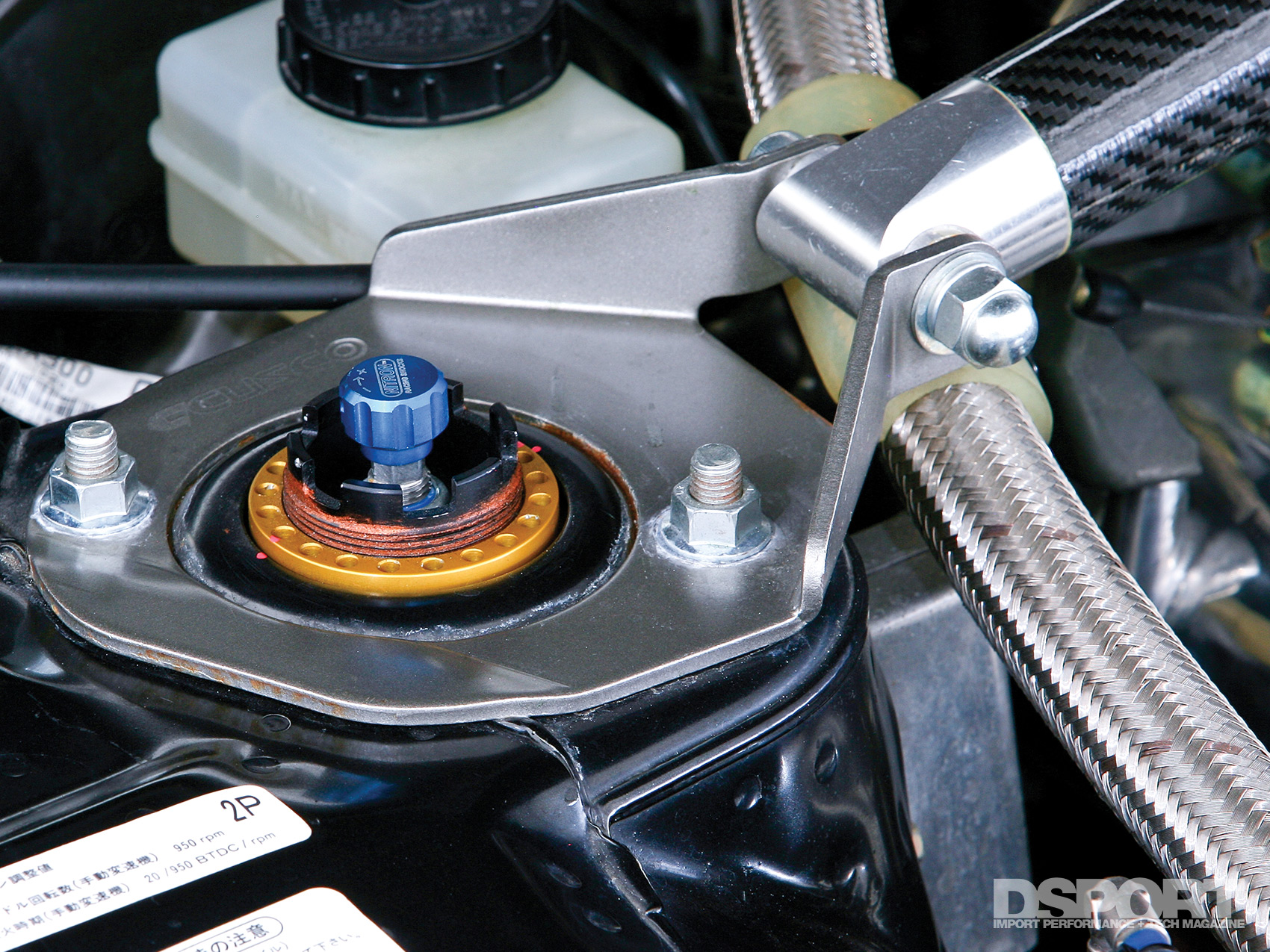

Coilover Suspension: Nitron Pro NTCNIO12R 3-way
Adjustable Racing Coil-over Suspension
Additional Suspension Components: Top Secret HICAS Eliminator
Ikeya Formula Pillow Adjuster Links,
Upper Links, Roll Center Adjuster,
Tie Rod Ends, Multi-Link Spacers,
Rear Lower Arms, Rear Camber Arms,
Traction Rods and Rear Knuckle Pillow Bushes
Cusco Rear Upper Arms and Carbon-fiber
Pro Strut Tower Brace
Transmission: NISMO Large Diameter Input Shaft
Clutch / Flywheel: Active Traction Service (ATS)
Twin-plate Carbon Clutch
(1,350 kg pressure plate)
ATS Lightened and Balanced Flywheel
NISMO Spec III Slave Cylinder
Top Secret Super Release Fork
Differential(s) (Make & Type): Cusco Type-RS LSD (R)

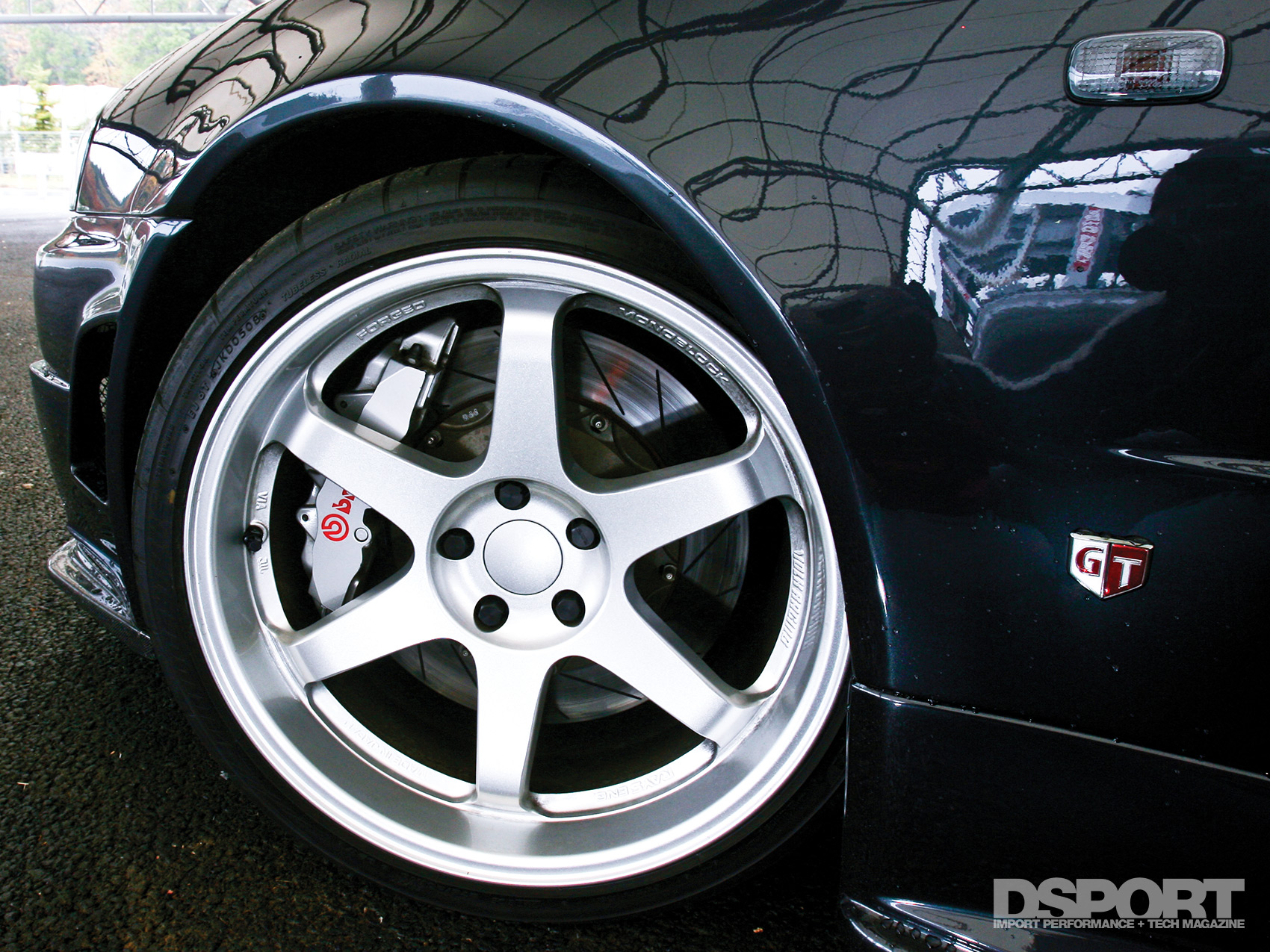

Wheels (Make, Size & Offset): Volk Racing TE37 19×9.5-inch +12 (F&R)
Tires (Make & Size): Bridgestone Potenza RE-11 275/30R19 (F&R)
Brake Calipers (F&R): Brembo 8-piston Calipers (F)
Brembo 4-piston Calipers (R)
Brake Rotors (Diameter, F&R): 380mm 2-piece Rotors (F)
Brake Rotors (Diameter, F&R): 355mm 2-piece Rotors (R)
Brake Pads (Front & Rear): Endless CC-R Brake Pads (F&R)
Brake Lines: Top Secret Stainless-braided Lines

INTERIOR

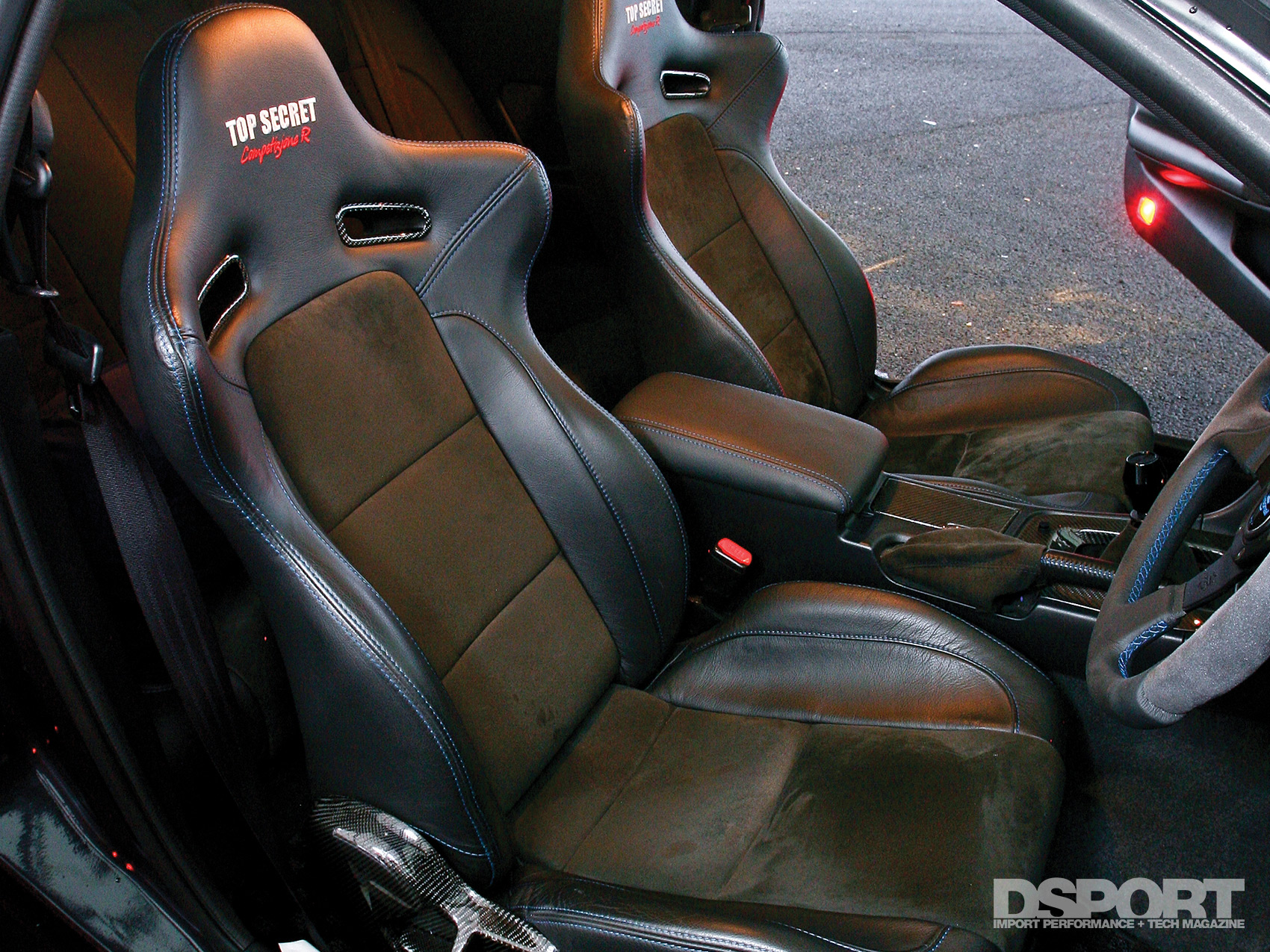

Seats: Robson Custom Alcantara Upholstery
Steering Wheel: Top Secret/Personal Steering Wheel
w/ Robson Alcantara Leather

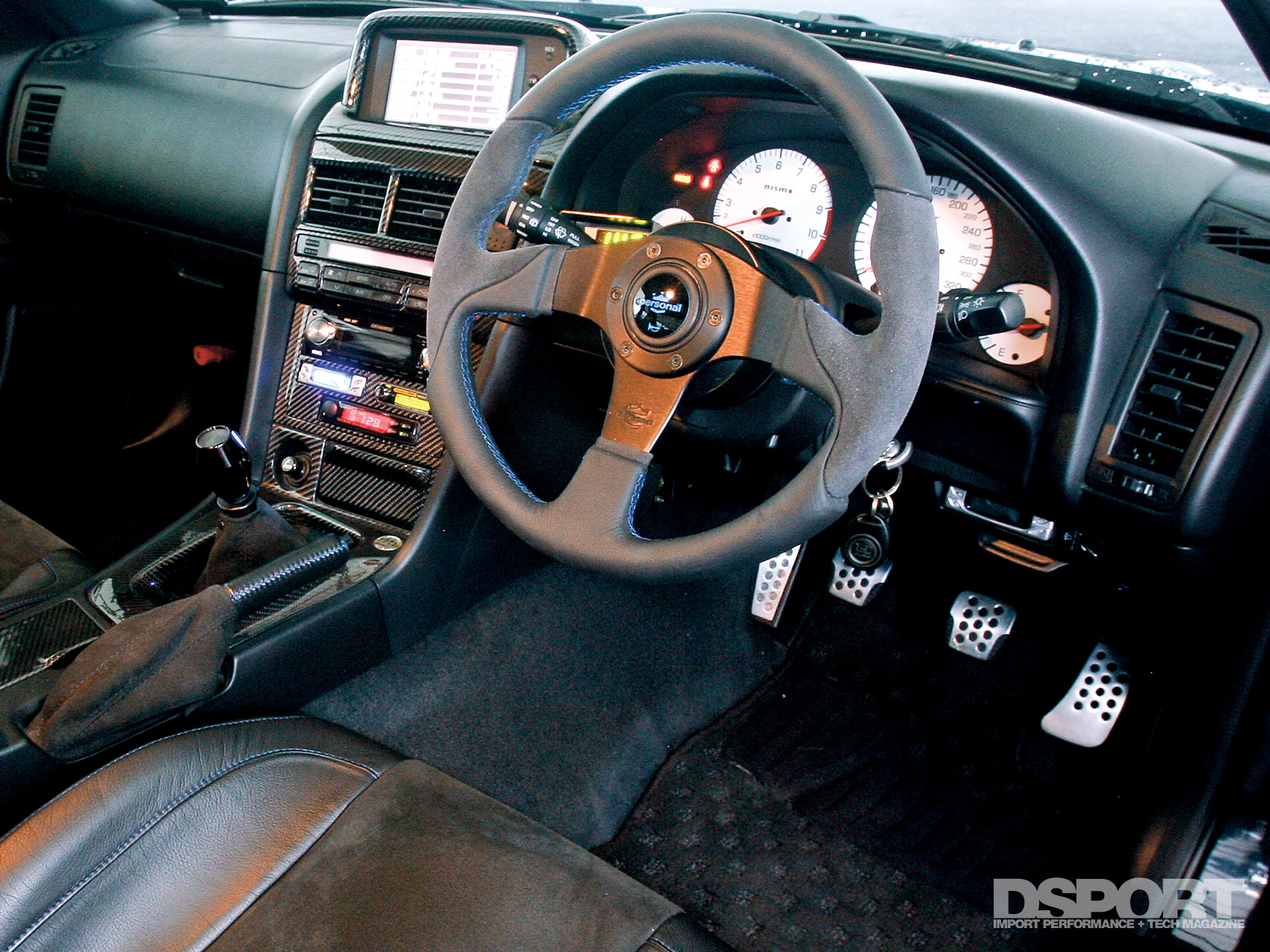

Gauges: NISMO Gauge Cluster
NISMO Multi-function Display V2
Xanavi Birdview Navigation System
Etc: Pioneer DEH-P919 Head Unit

EXTERIOR
Front Bumper: NISMO Z-tuned
Front Fenders: NISMO Z-tuned
Hood: NISMO R-tuned Carbon-fiber Vented
Top Secret Carbon-fiber Hood Dampers
Side Skirts: Do-Luck Side Skirts
Rear Diffuser: Top Secret Carbon-fiber Rear Diffuser

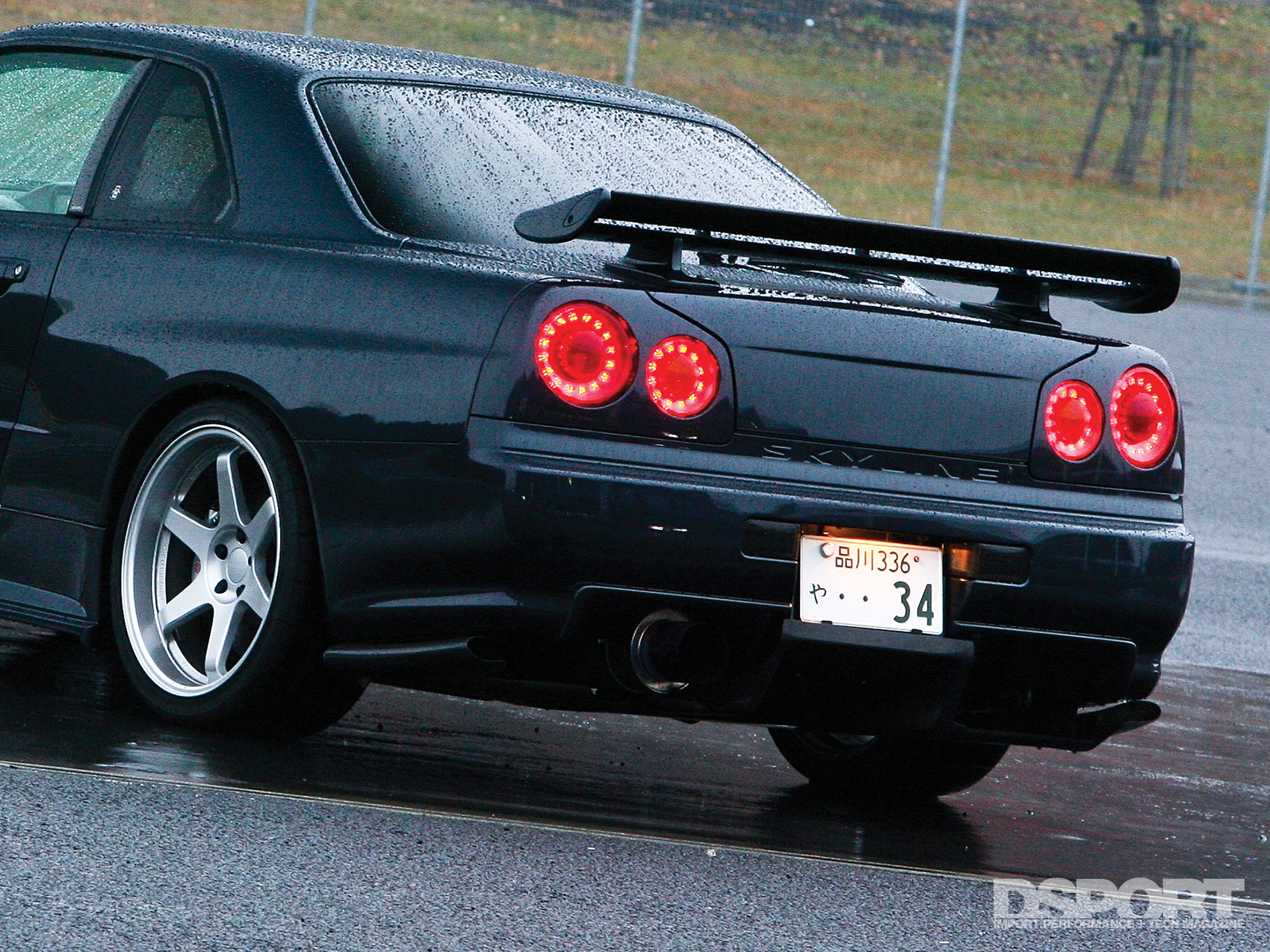

Spoilers: NISMO Dry Carbon-Fiber Wing Plane
Top Secret Custom Carbon-Fiber Wing Mounts
Spoilers: Top Secret Carbon-fiber Vortex Generator
Taillights: Sunline Racing V.2 LED Taillights
Paint: Top Secret Custom Dark Grey Blue Pearl Paint
Grill: R35 GT-R Grill Emblem
Mirrors: Ganador Super Mirrors
