When it comes to increasing your vehicle’s power output, forced-induction systems are the pinnacle of bolt-on performance. Out of all the bolt-on modifications available for today’s popular vehicles, forced-induction kits can offer the greatest gains in horsepower and torque. High-quality turbocharger or supercharger kits can bump power output by 40- to 50-percent. When paired with an upgraded engine foundation, forced-induction kits can double, triple or even quadruple the power production of an engine. The bottom line is forced-induction systems offer the best solution for maximum power increases.

By Sami Sharaf

DSPORT Issue #171


forced injection

Decision Time

If you’ve decided that a forced-induction system is in the plan for your vehicle, you’ll first want to answer a few questions. How much horsepower do you want to make? Will you be modifying the engine or running a stock block? Is response or high-end power your ultimate goal? What is your budget? Do you need an emissions-legal system? Will you want more power in the future? Answering these questions and establishing the final goals will make your purchasing decision much easier and ensure that you don’t have to buy the same parts over again later down the line.

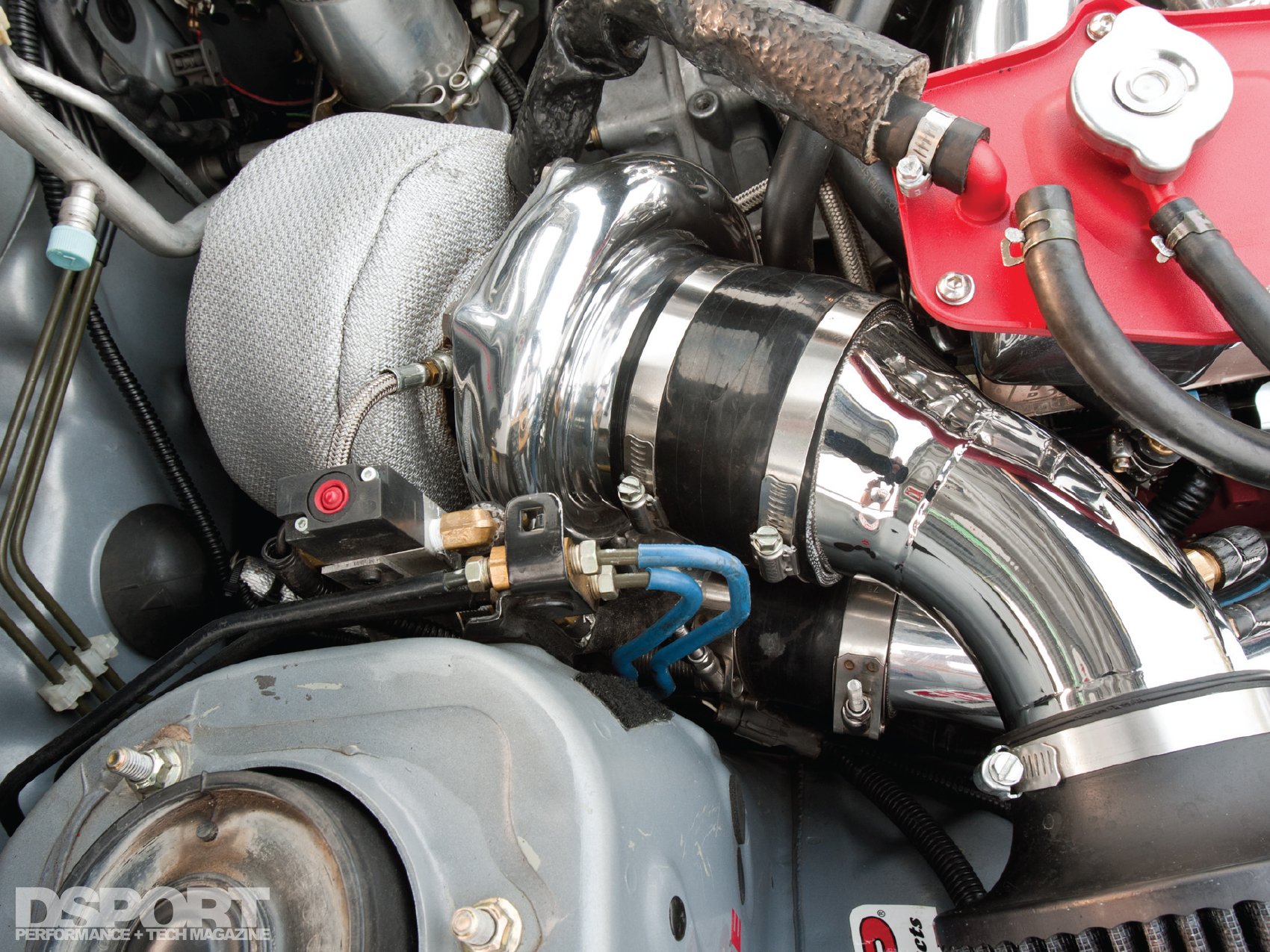

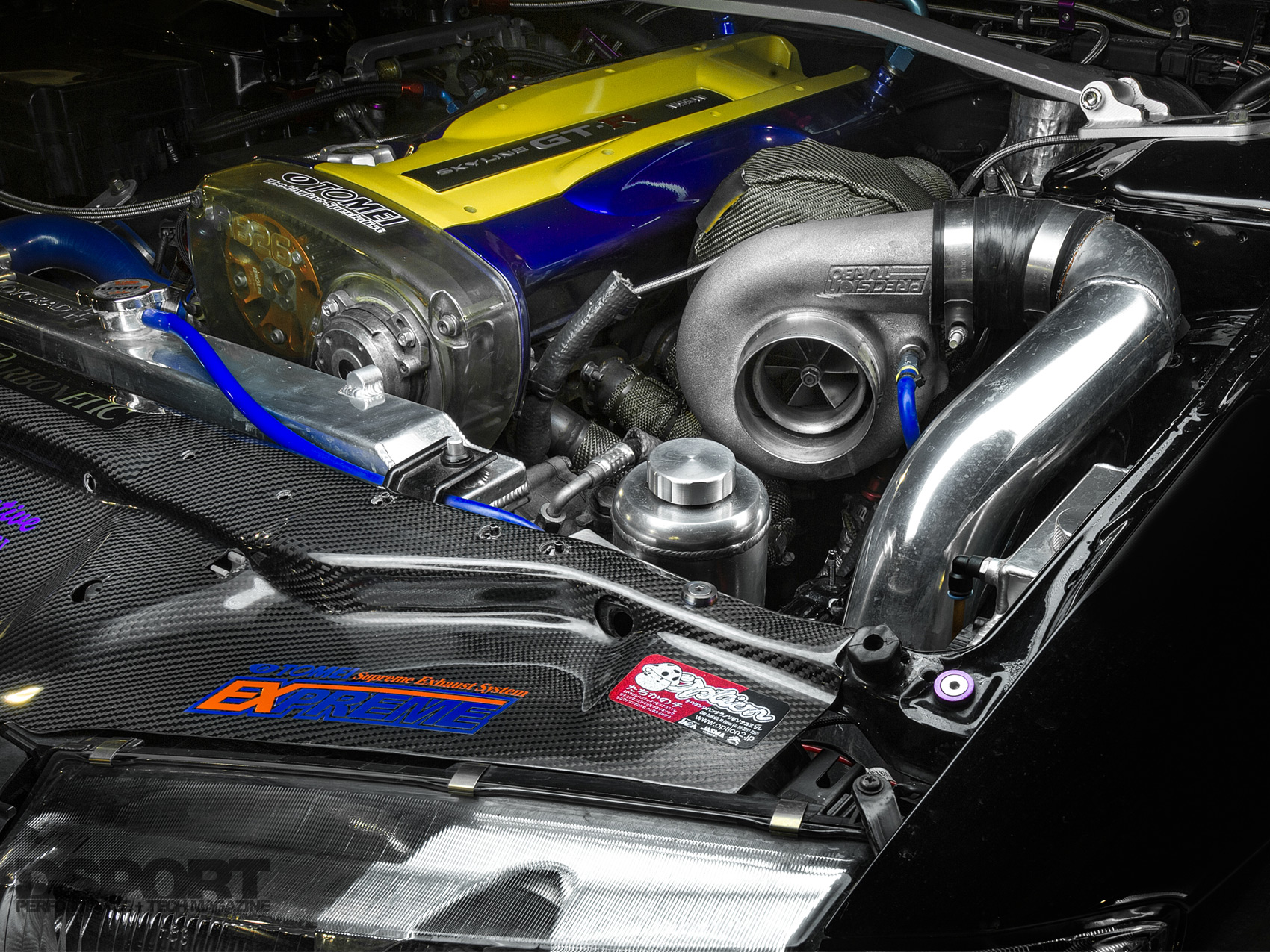

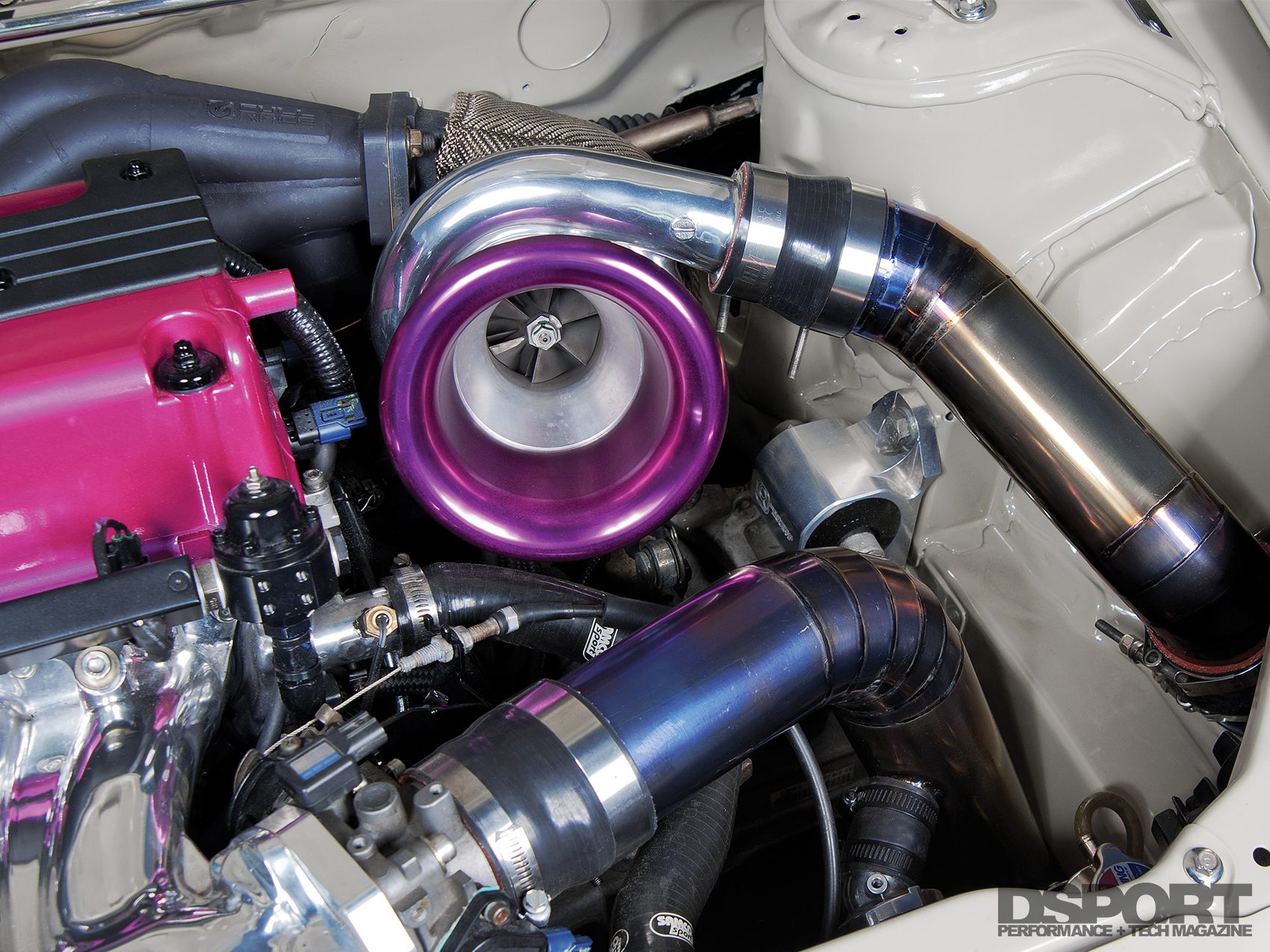

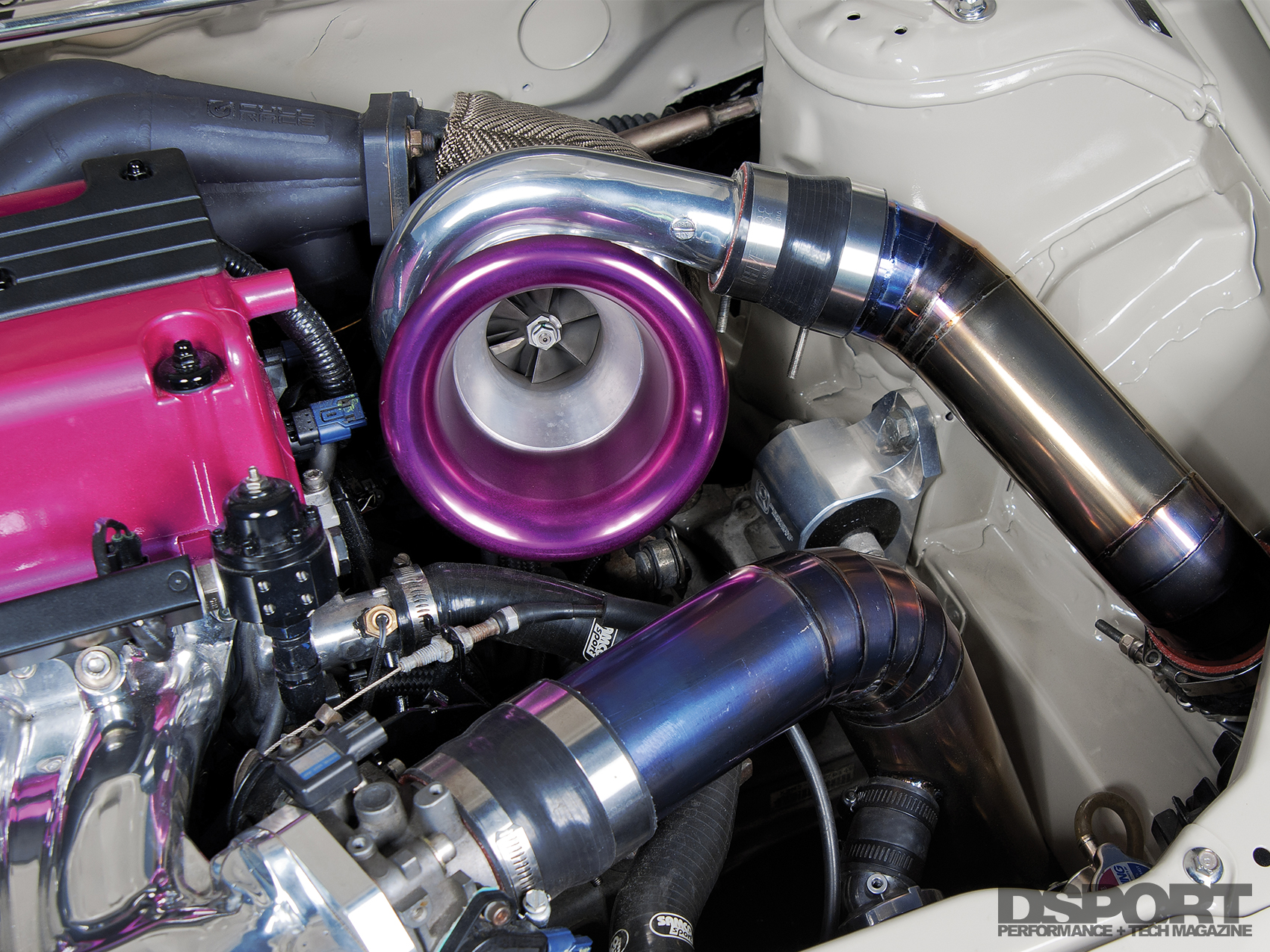

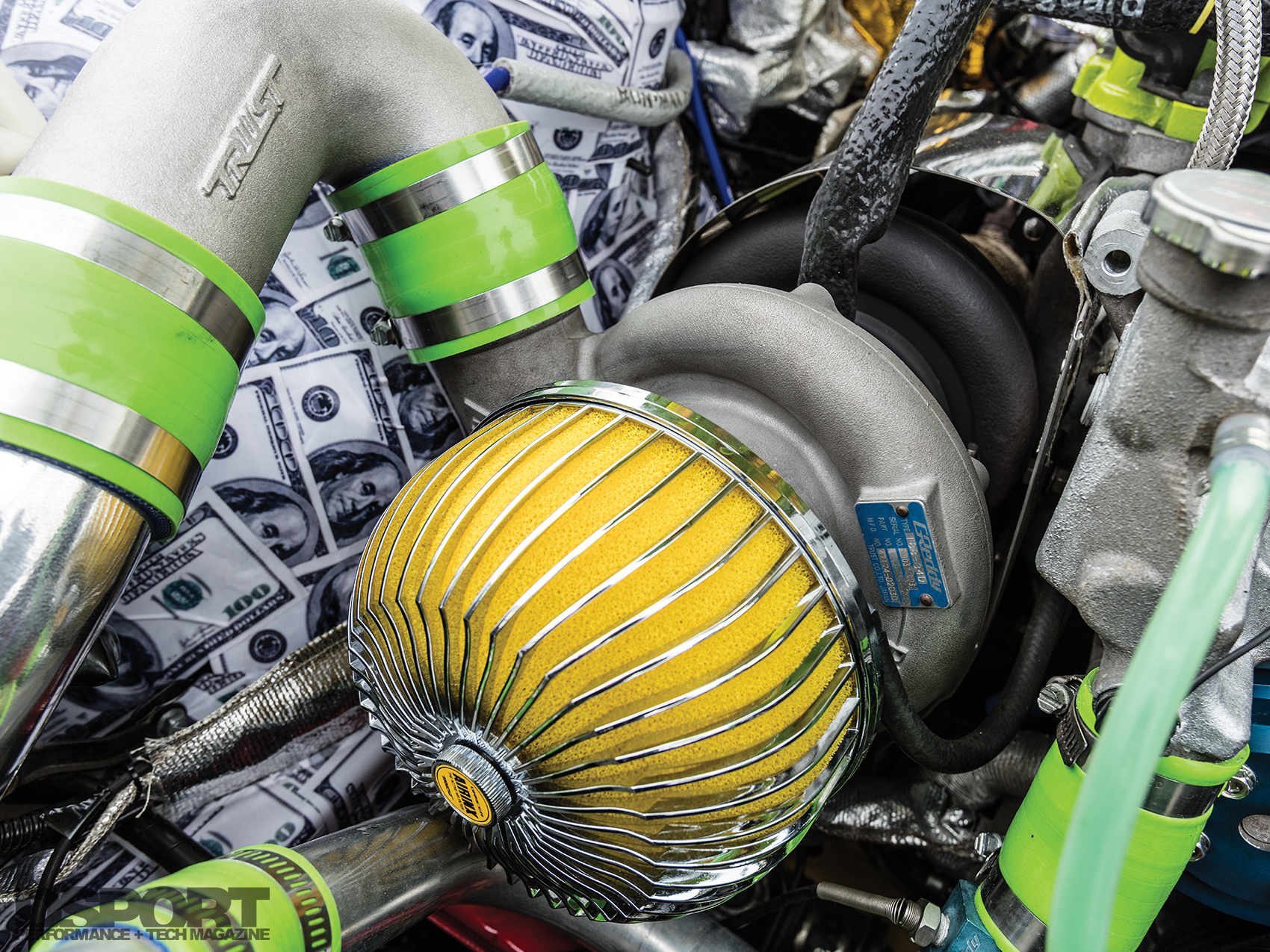

Alberto Casas Civic Turbocharger

Knowledge is Power

Before putting down big bucks for a turbo or supercharger kit, it’s best to understand the fundamentals of how these power adders work. To accomplish this, we will outline the basics of power production in internal-combustion engines, explain how a forced-induction system can generate additional power and analyze the individual components that make up turbo and supercharger kits.

forced injection

Power Basics

Automotive internal-combustion engines convert the chemical energy stored in fuel into kinetic energy. The input is fuel (gasoline, ethanol or methanol), while the output is work (horsepower). Simply put, when more fuel can be input and combusted, more horsepower can be generated. While this seems straightforward, making more power is not as easy as just adding more fuel. To make additional power, a greater amount of fuel needs to be matched with a greater amount of air. Luckily, forced-induction systems do exactly that – force a greater amount of air into the cylinders of the engine.

forced injection

This cutaway illustrates the two separate sections of a turbocharger. Each wheel in each housing spins at the same speed due to being linked by one shaft.

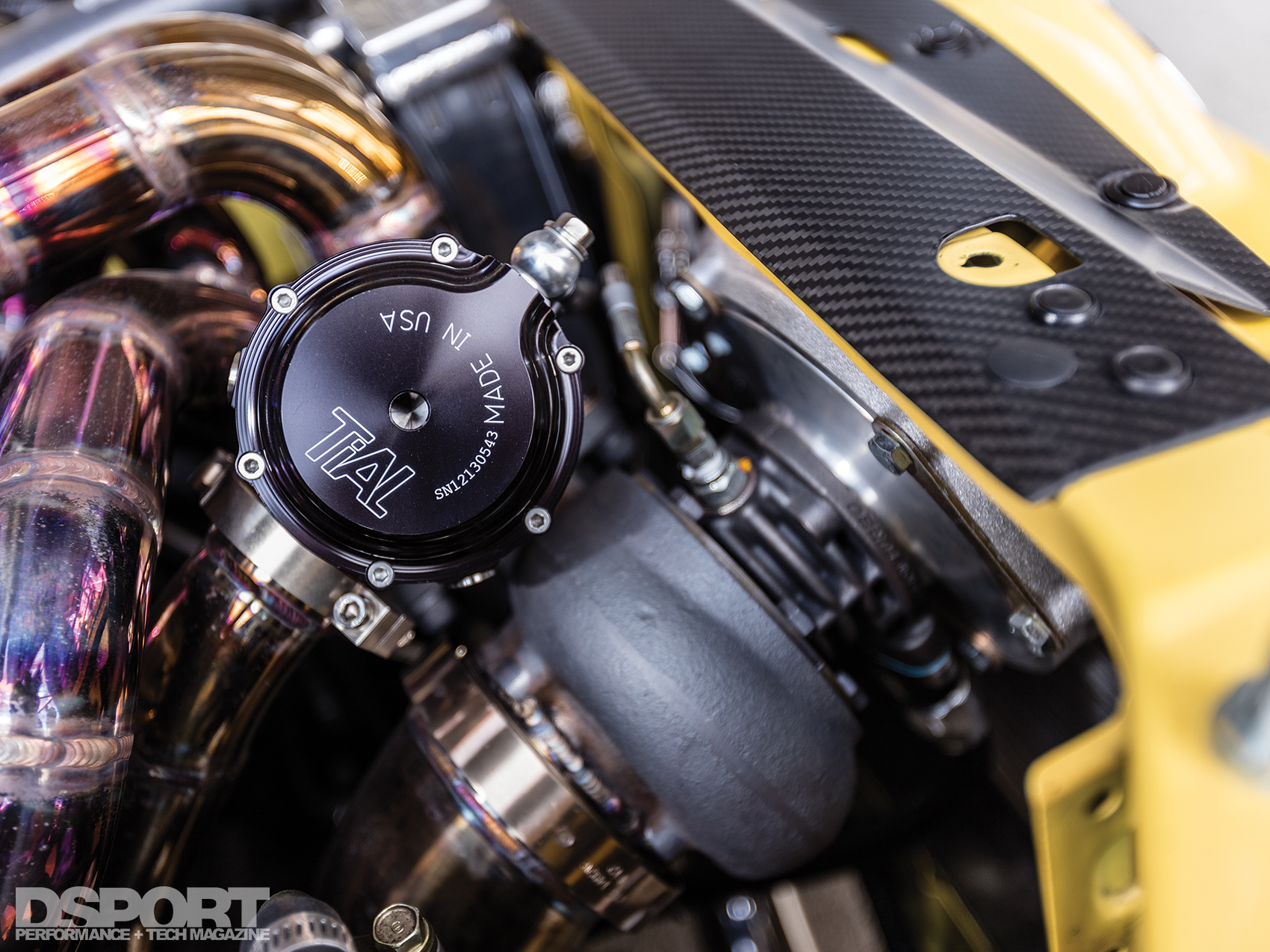

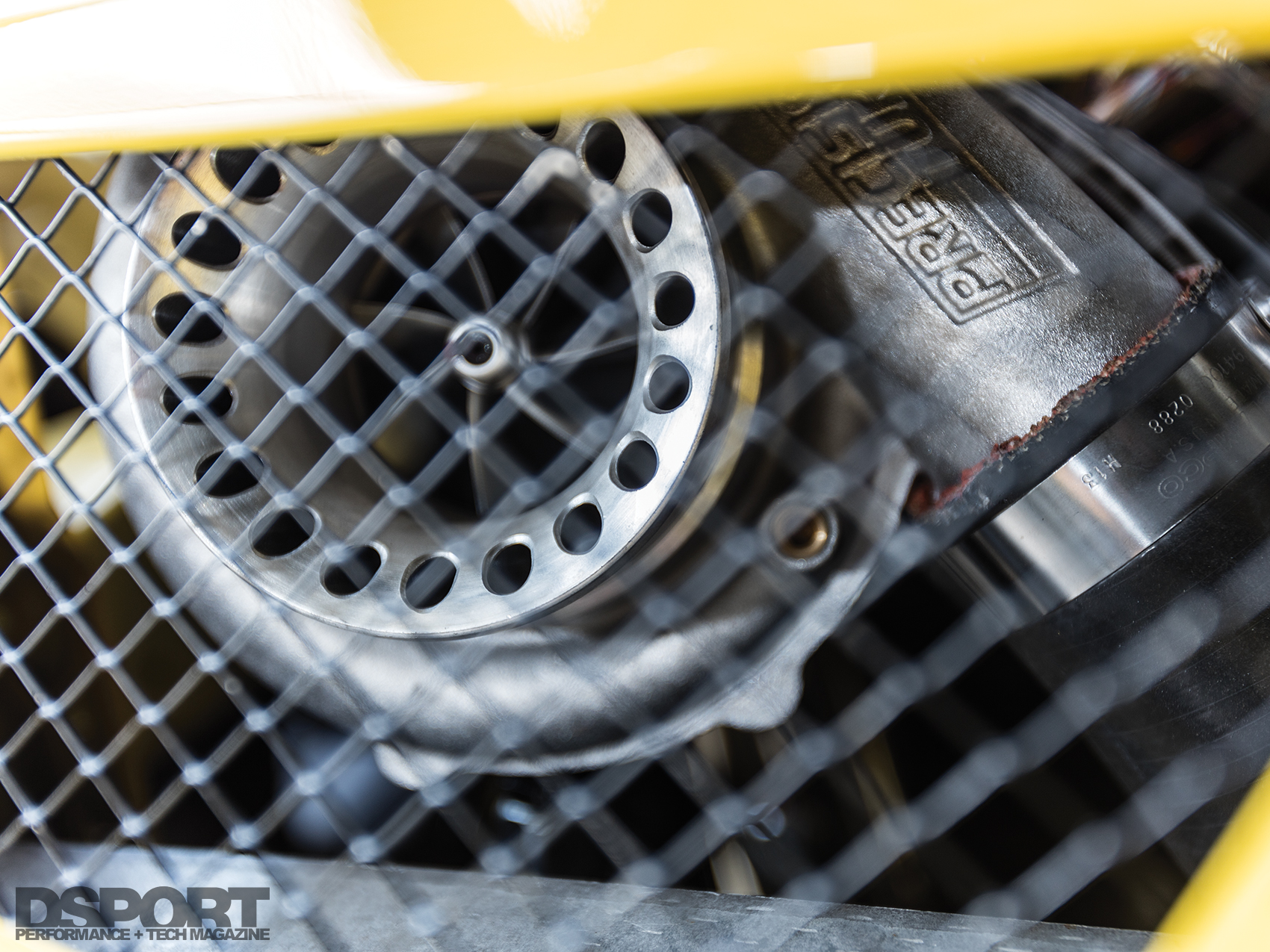

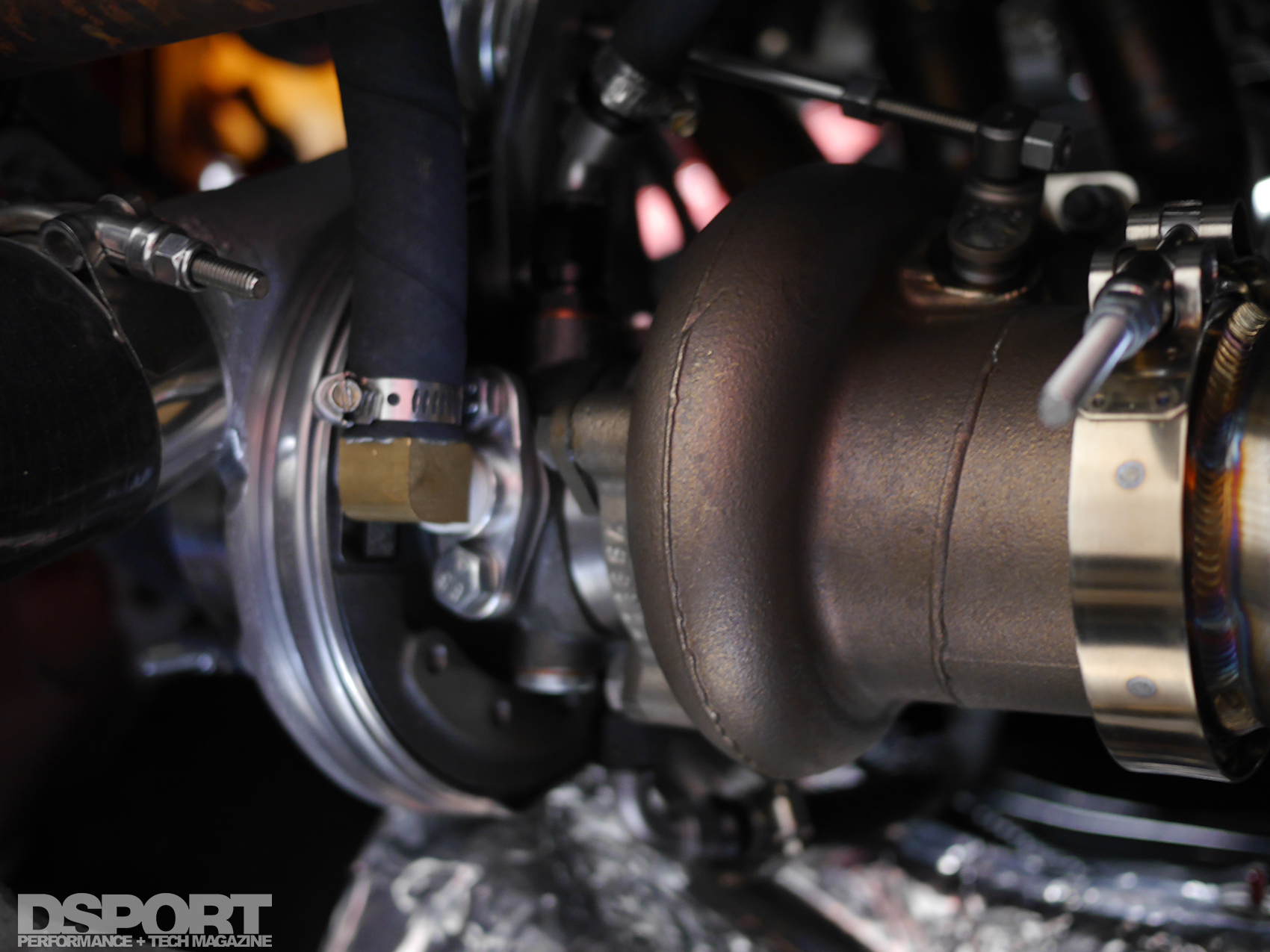

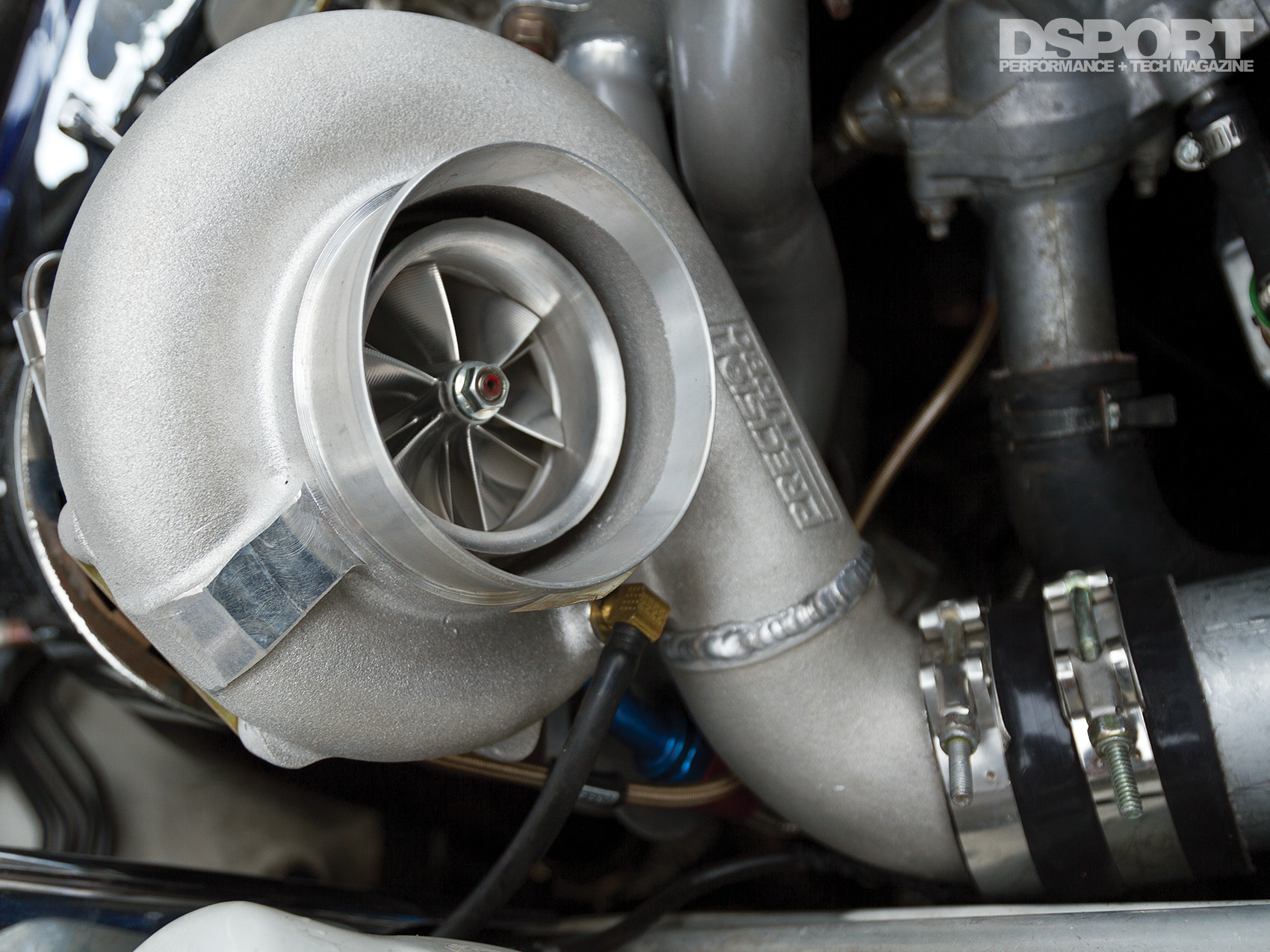

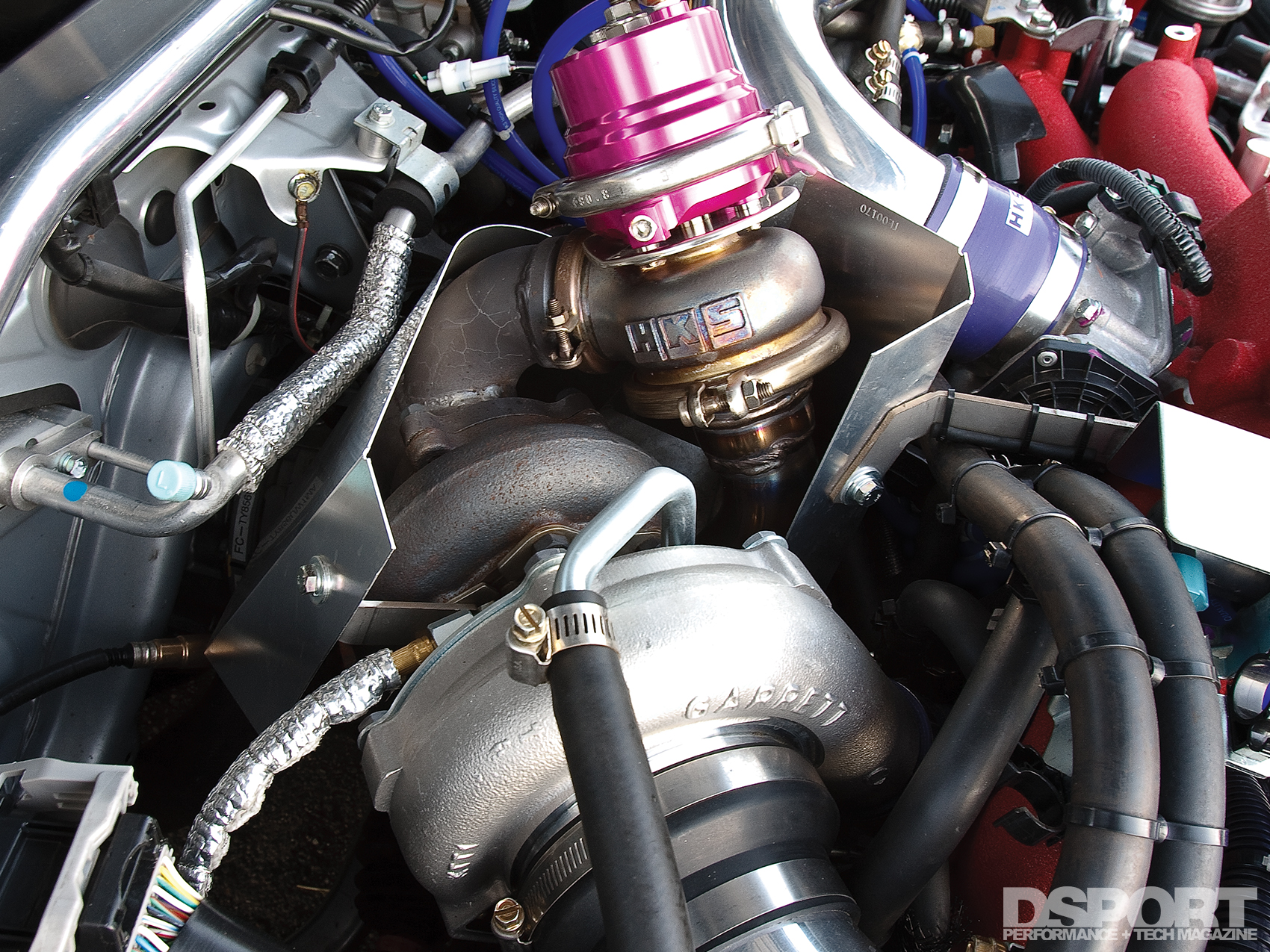

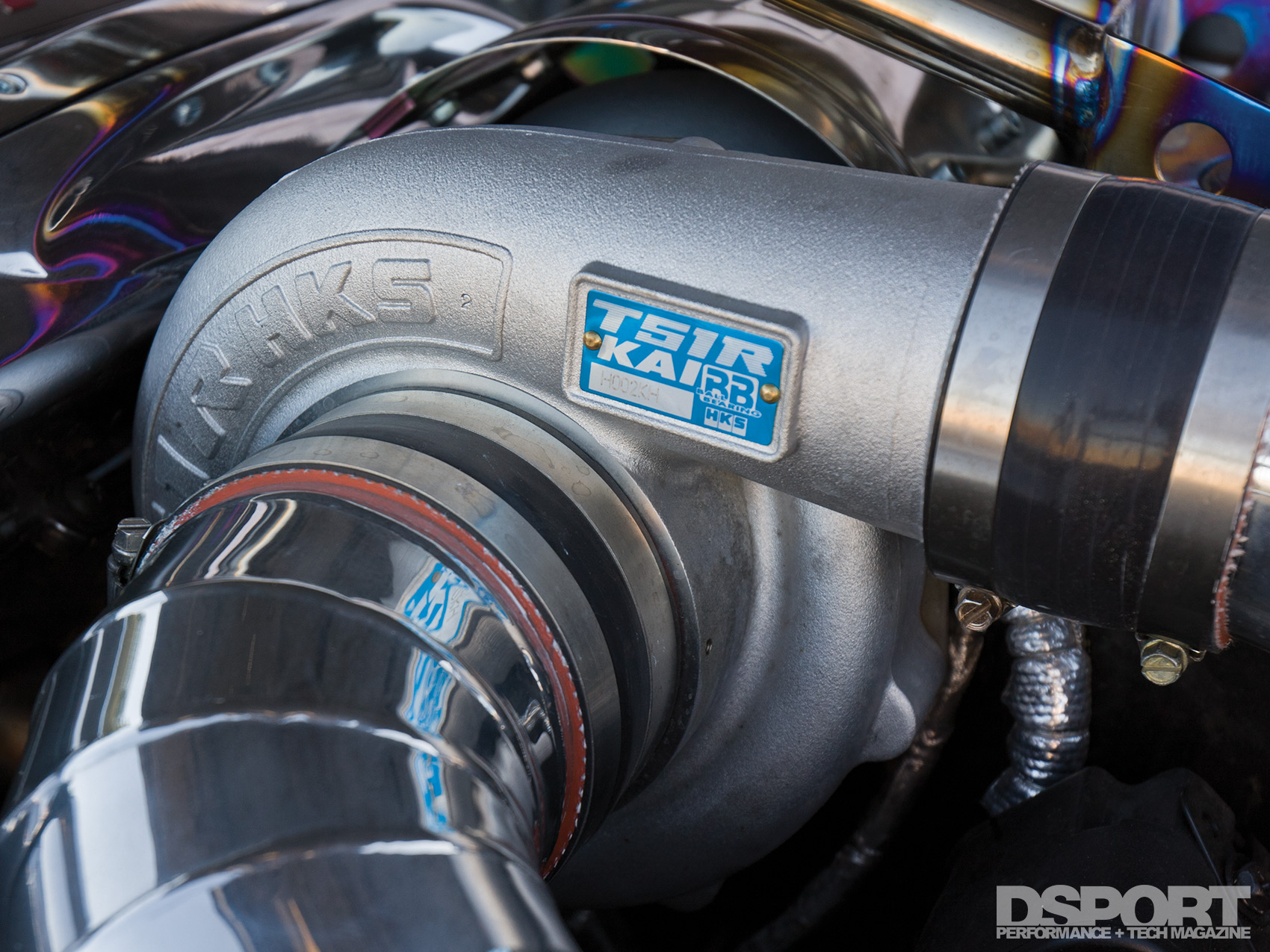

Turbocharging

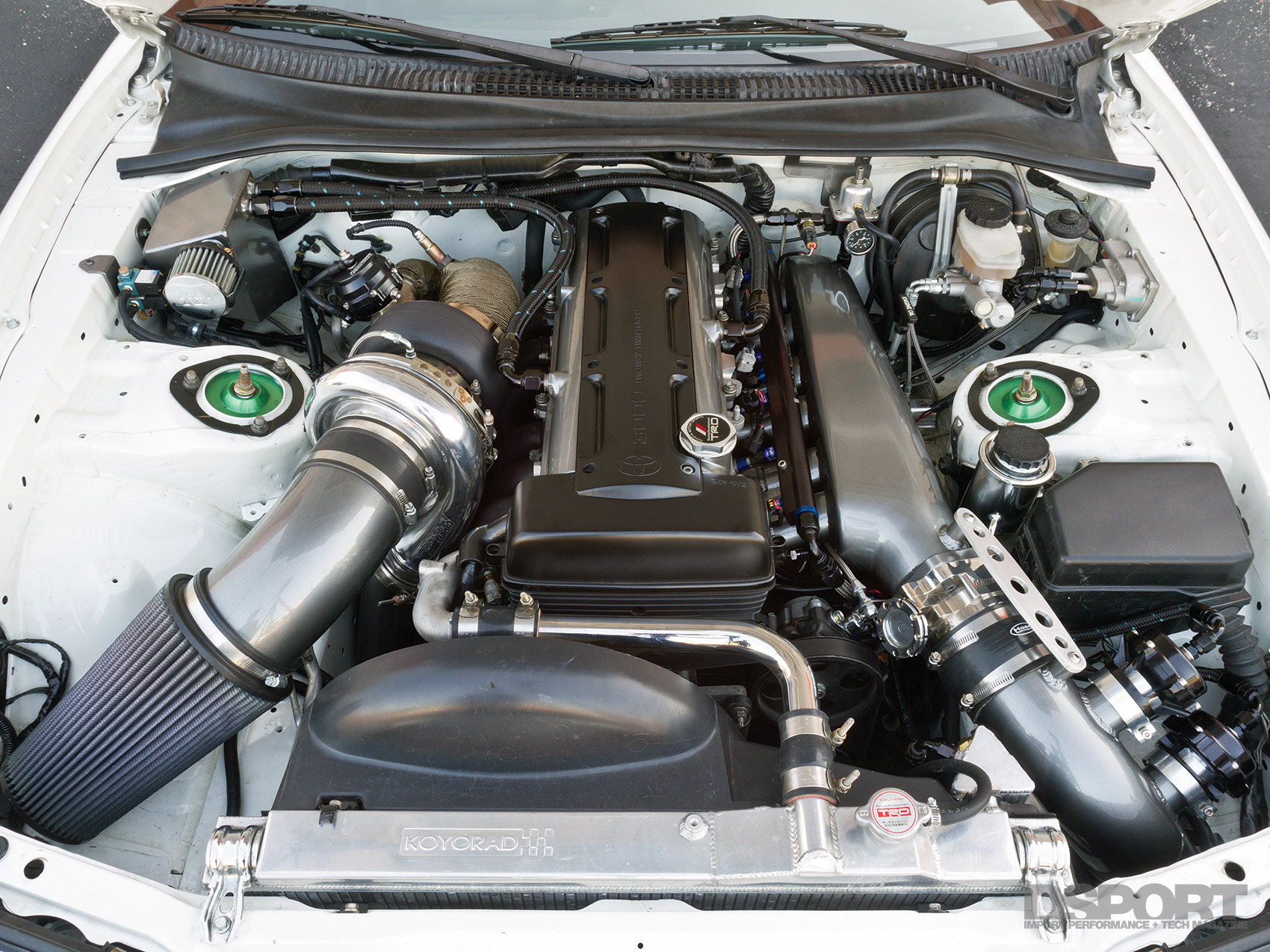

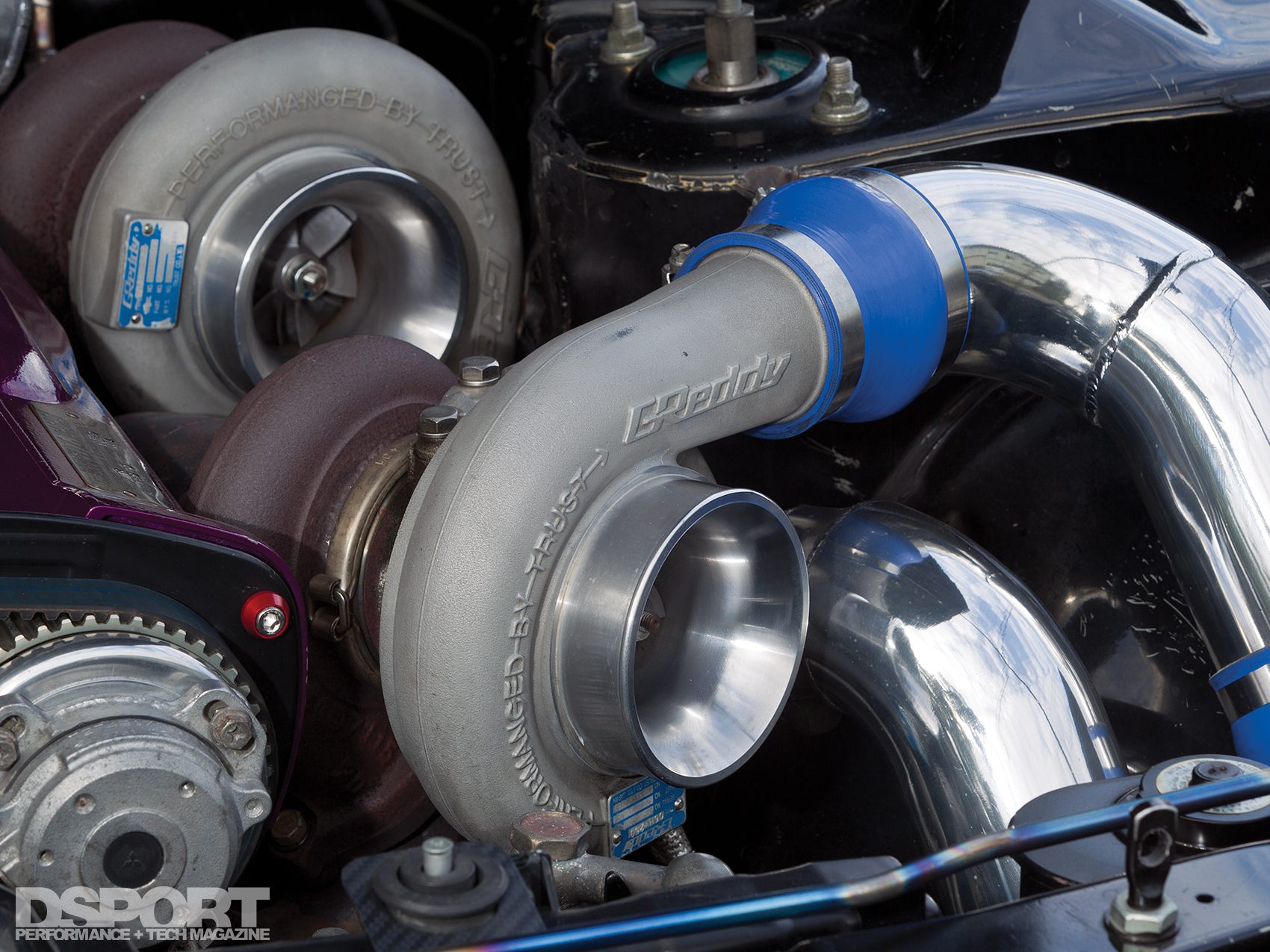

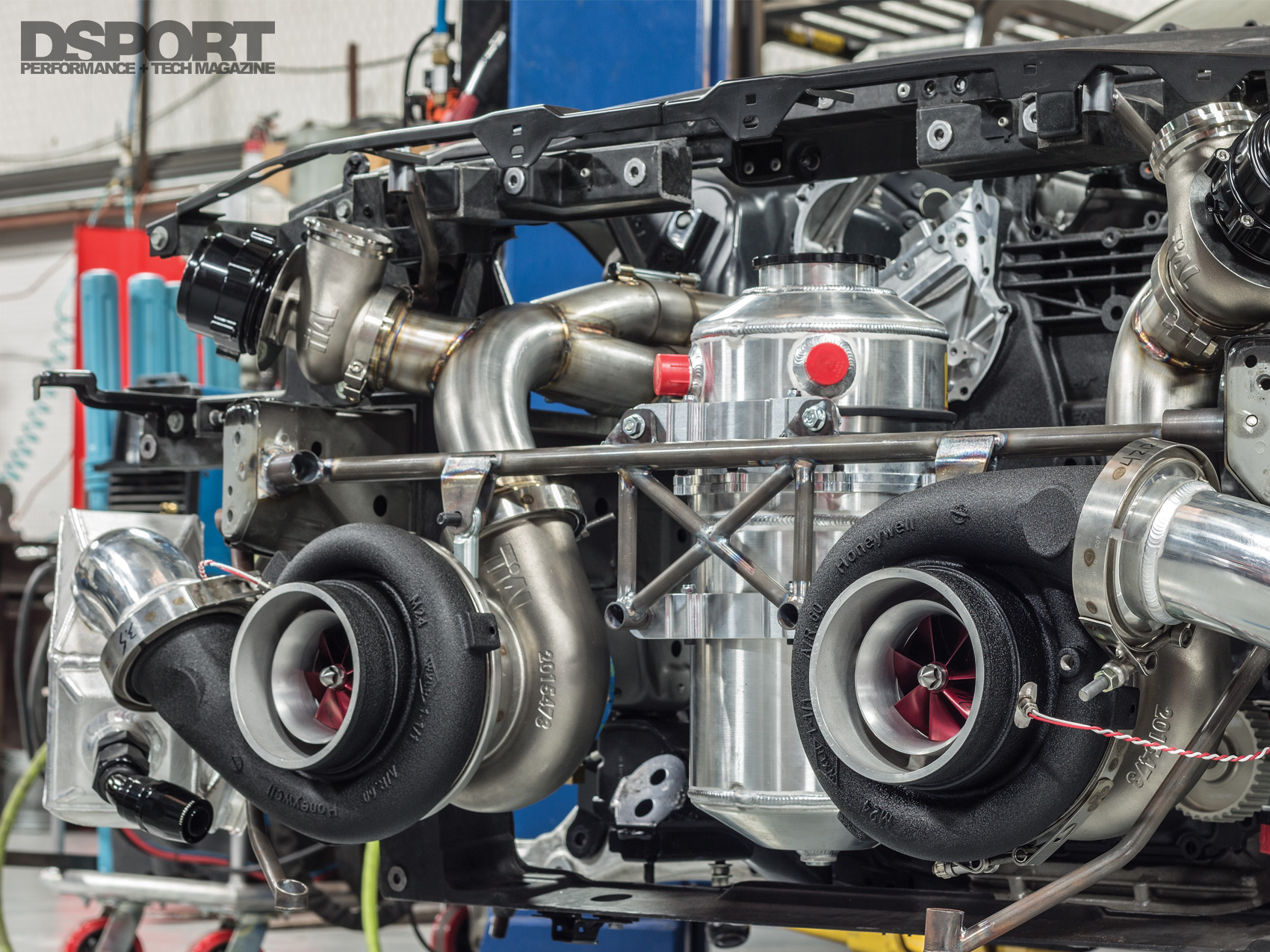

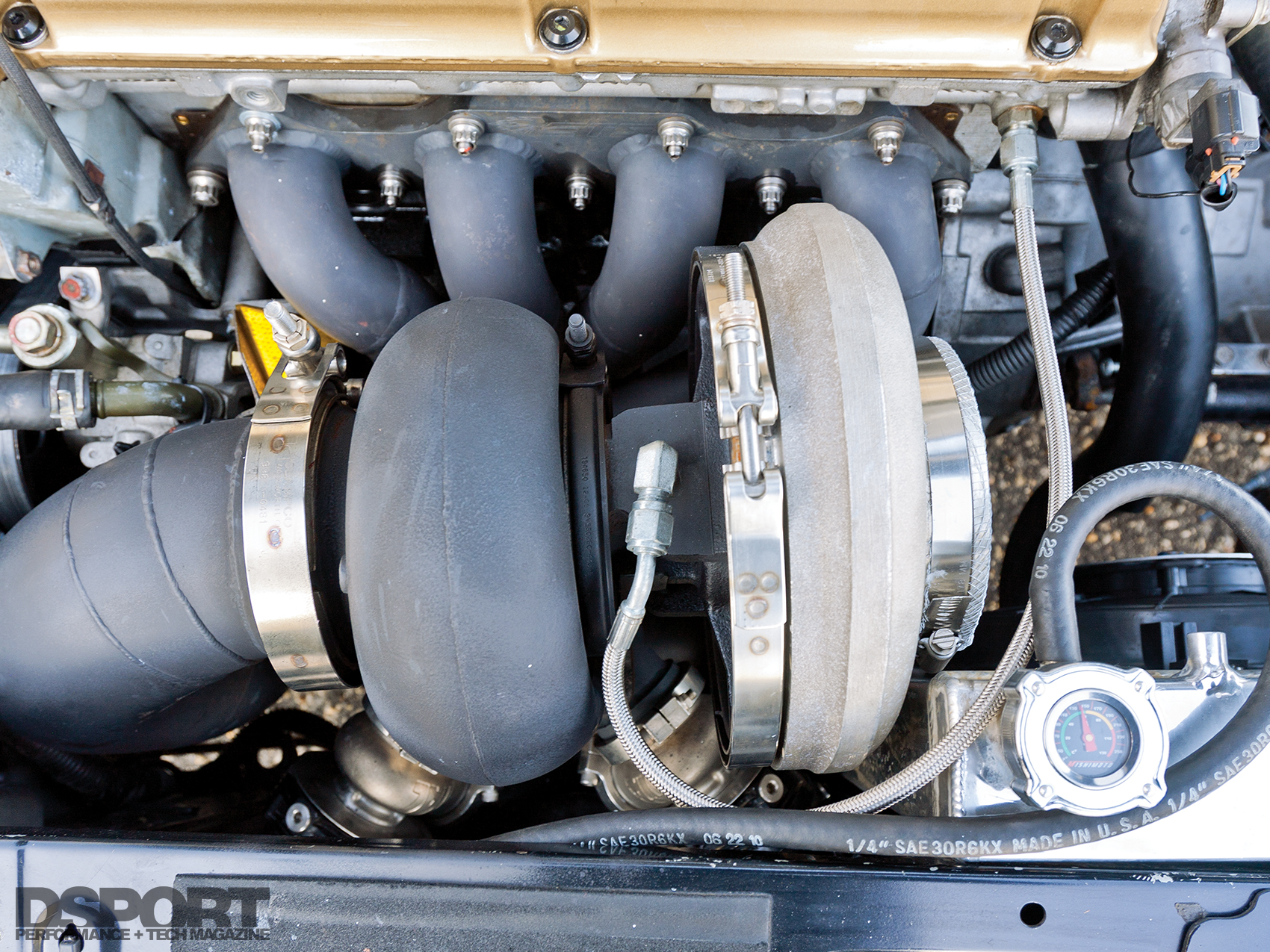

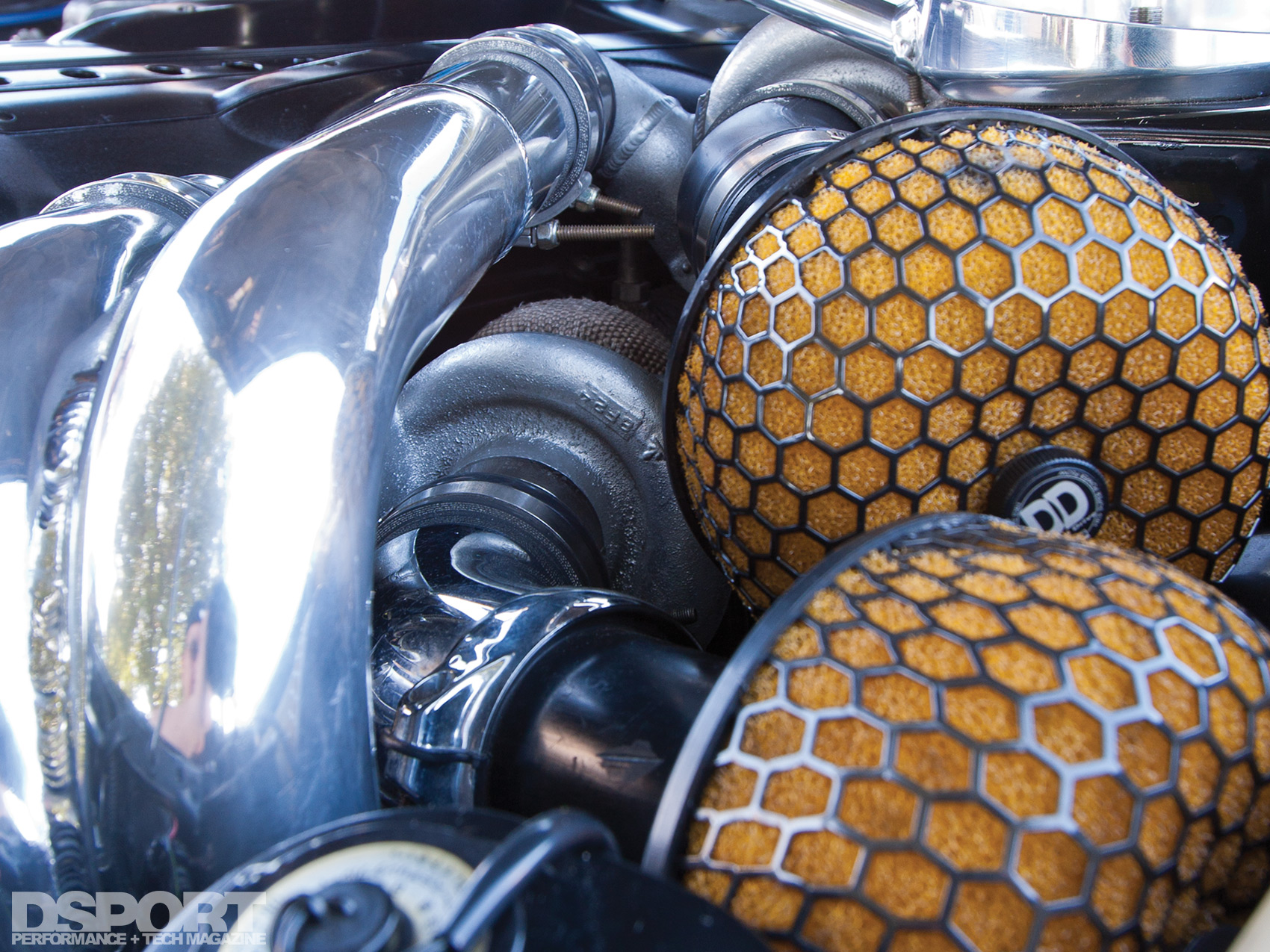

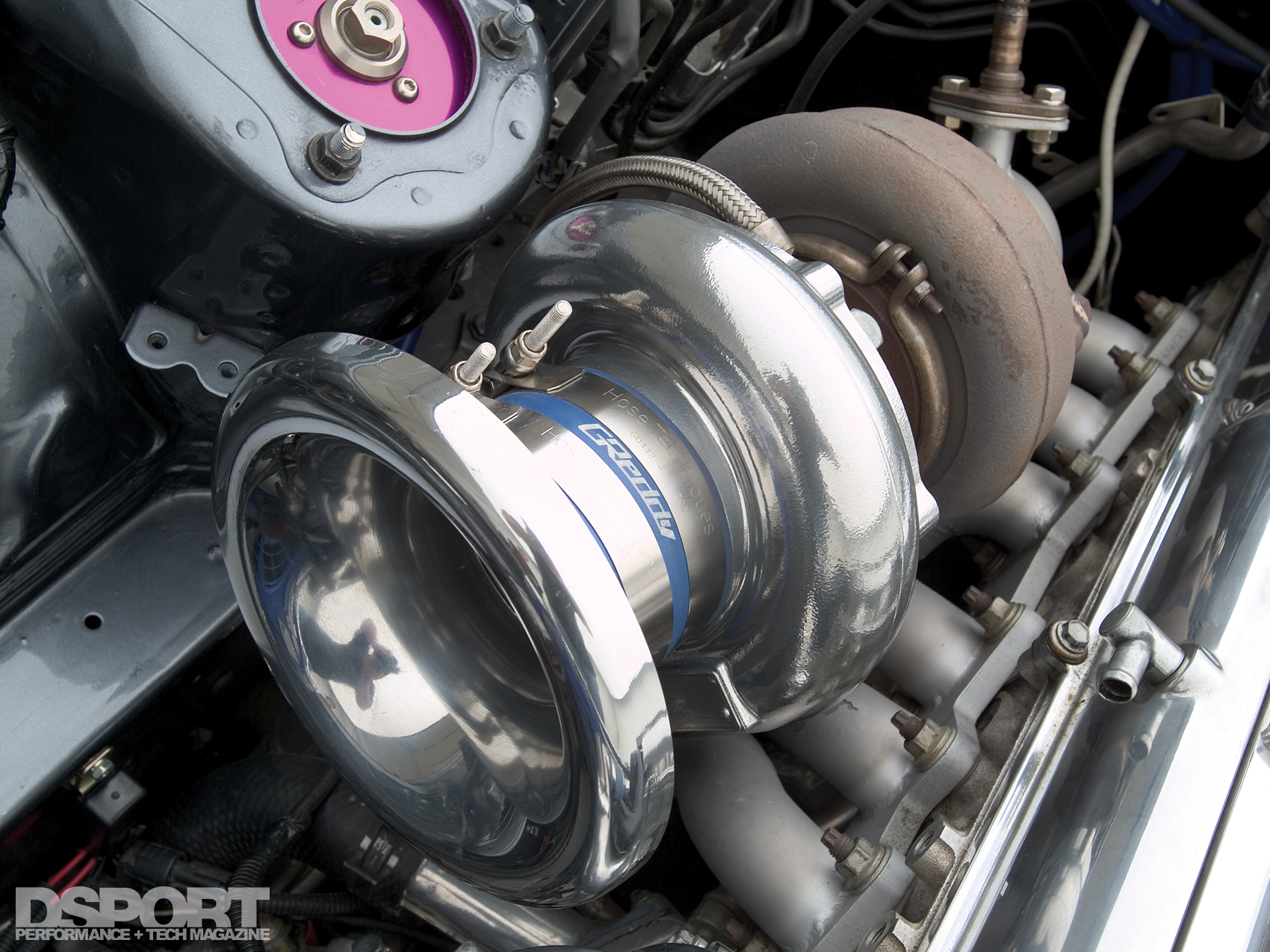

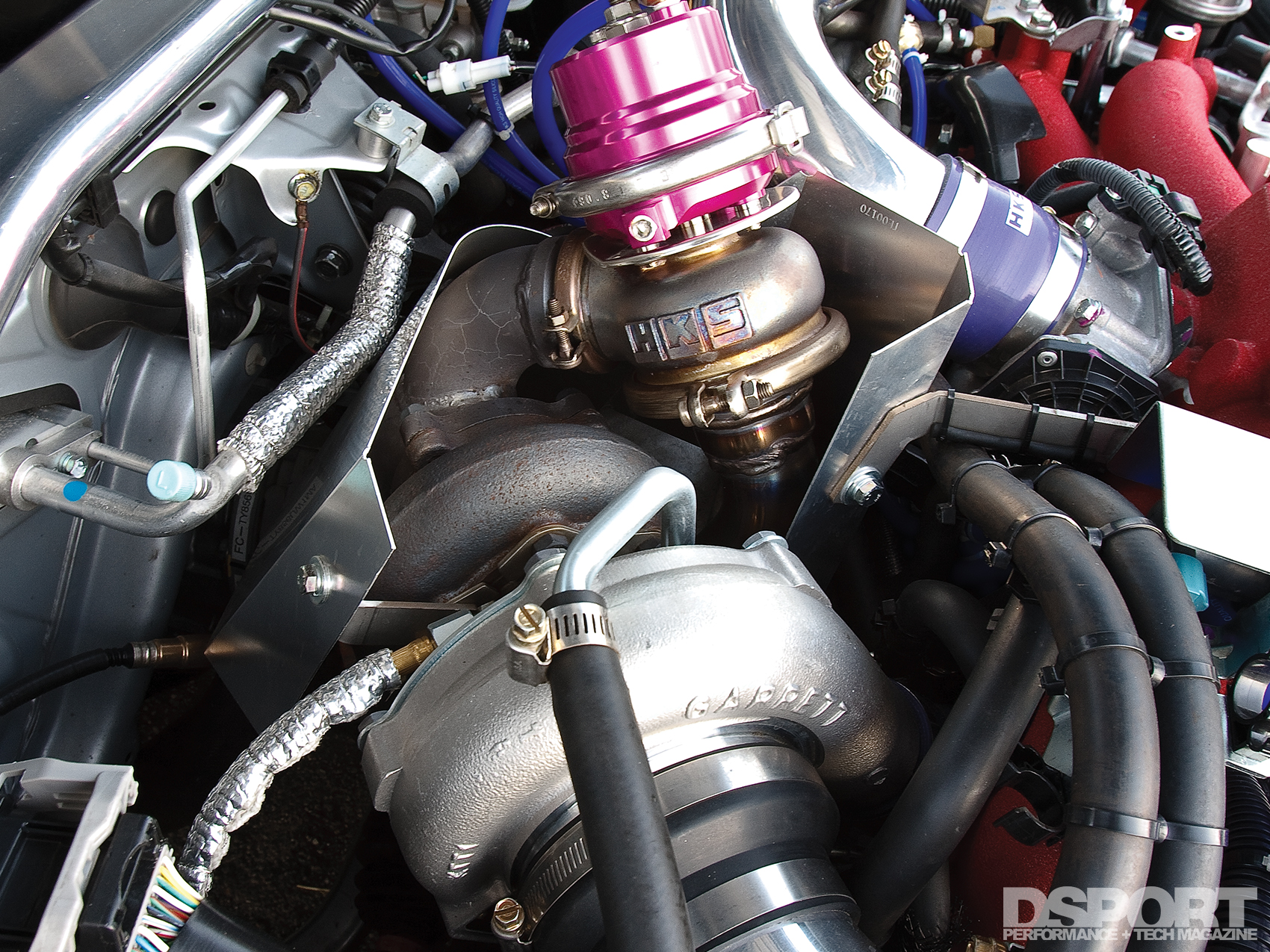

Twin turbos on the "Big Red" Toyota SupraThe starting point for many turbo systems is figuring out a way to mount the turbocharger to the engine. Exhaust manifolds accomplish this task. In addition to attaching the turbocharger to the engine, an exhaust manifold also feeds exhaust gas into the turbine housing of the turbocharger. There are two types of exhaust manifolds, cast or tubular. Cast exhaust manifolds are generally known for their durability while tubular manifolds are known for their increased turbo response due to their influence on exhaust gas velocity. The trade-offs are increased weight with cast and increased cost with tubular.

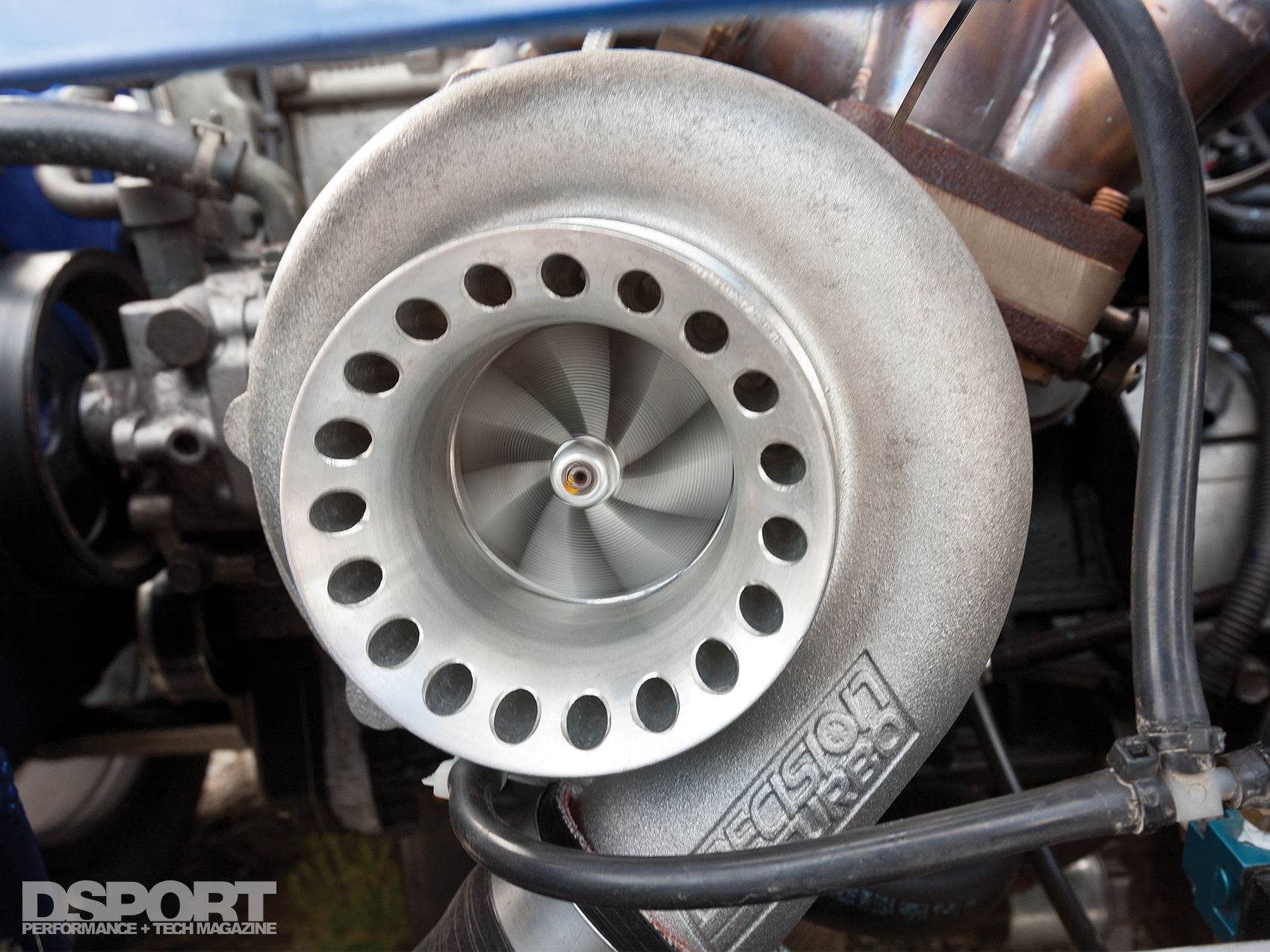

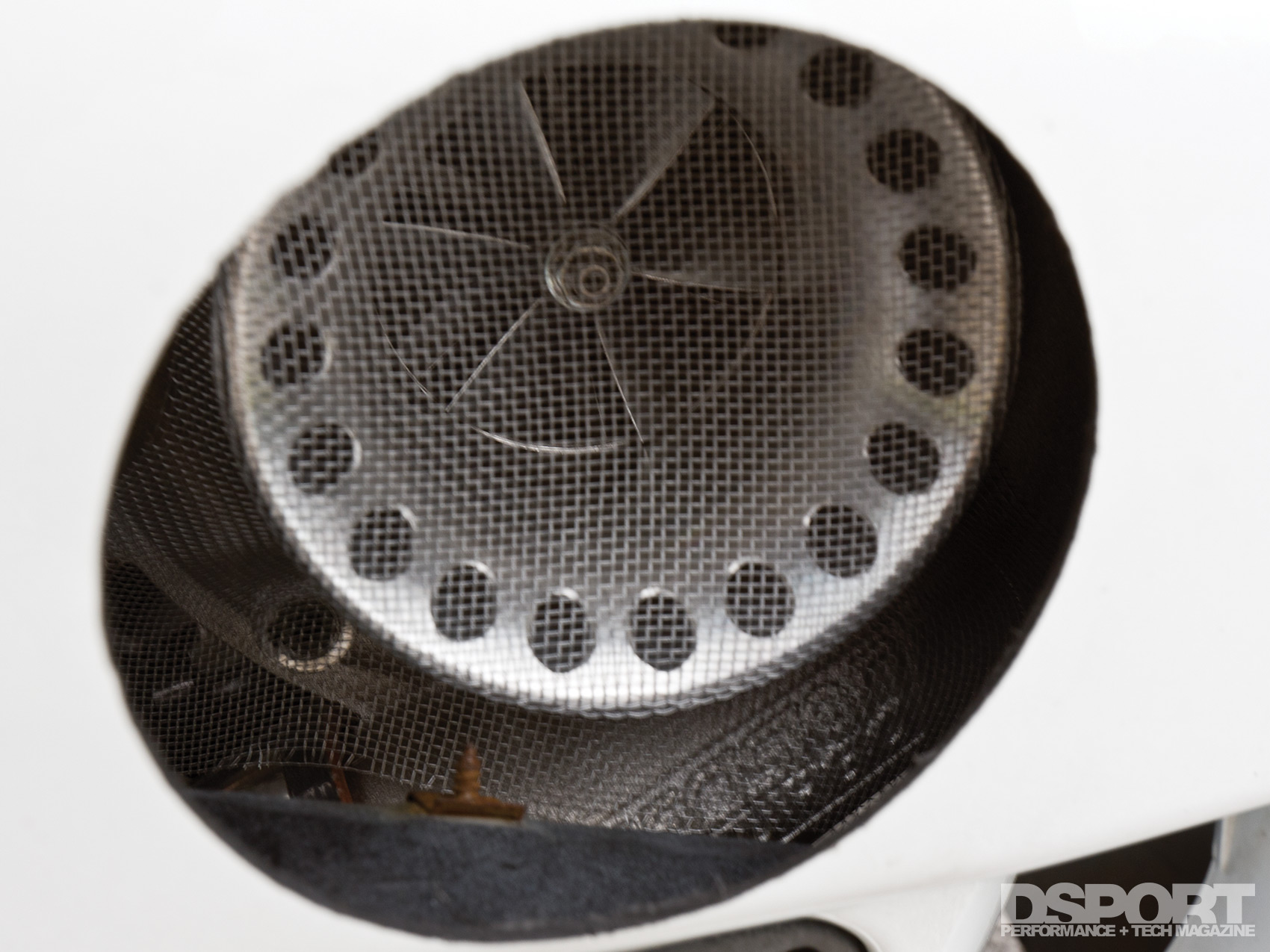

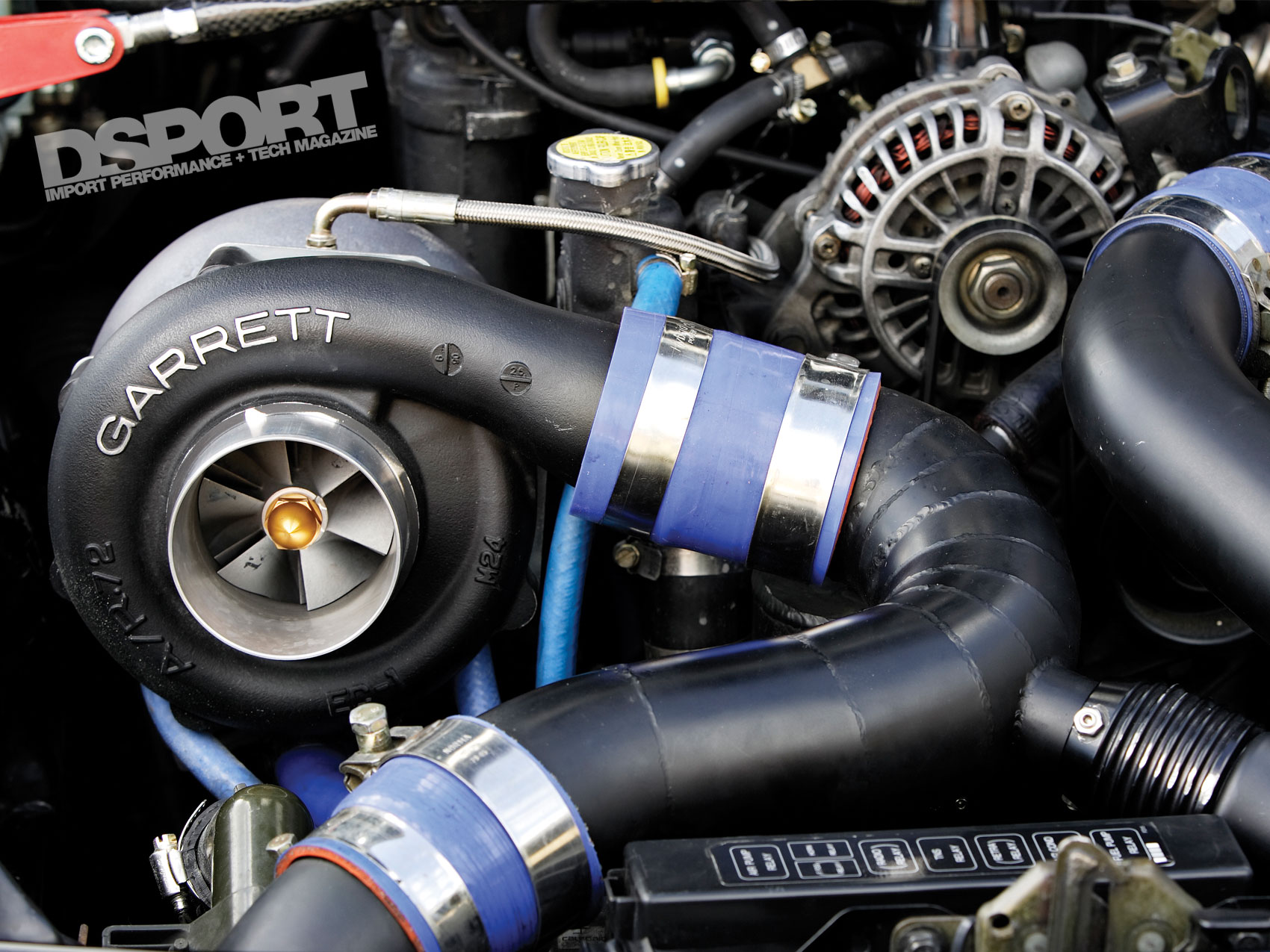

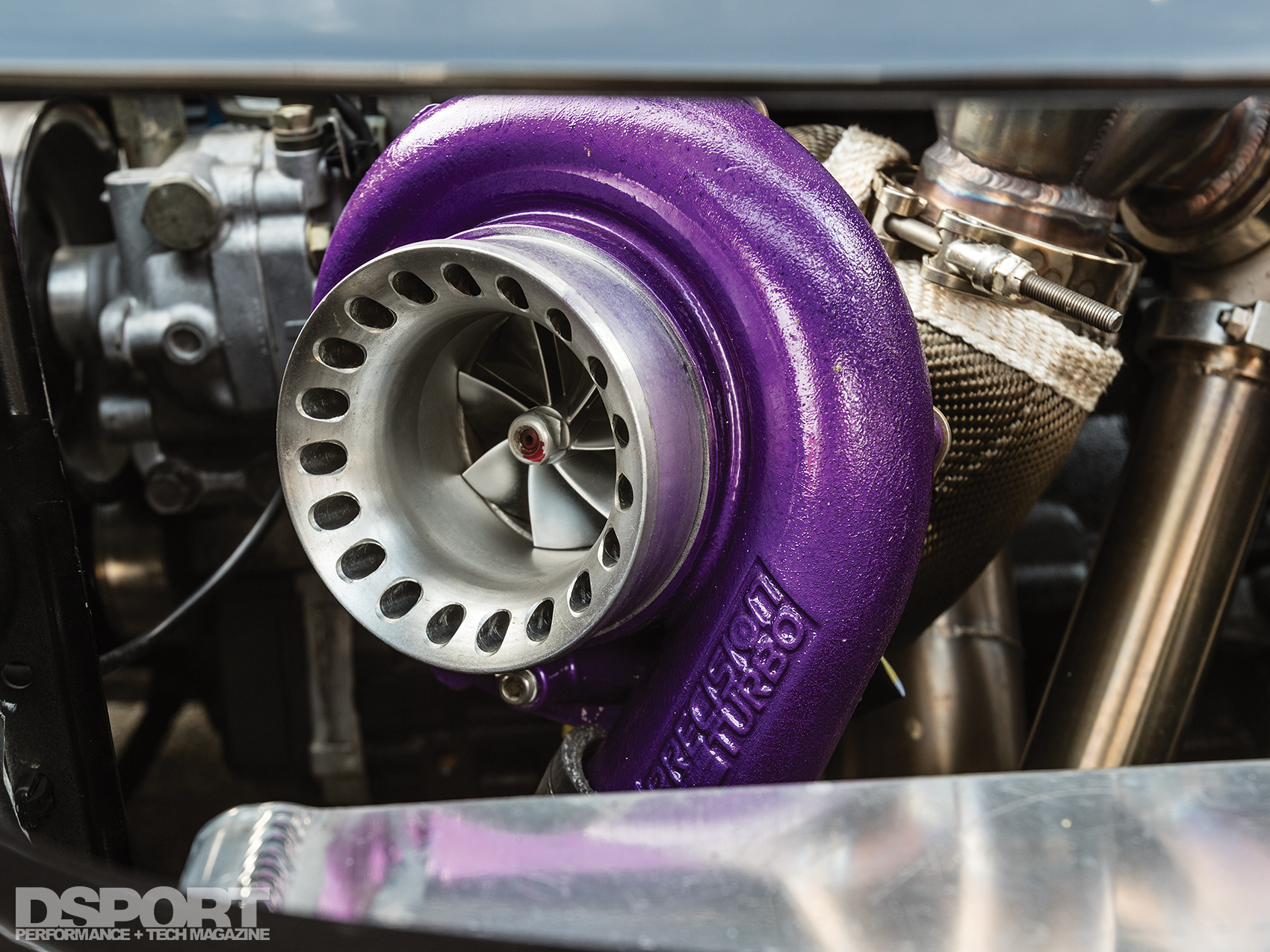

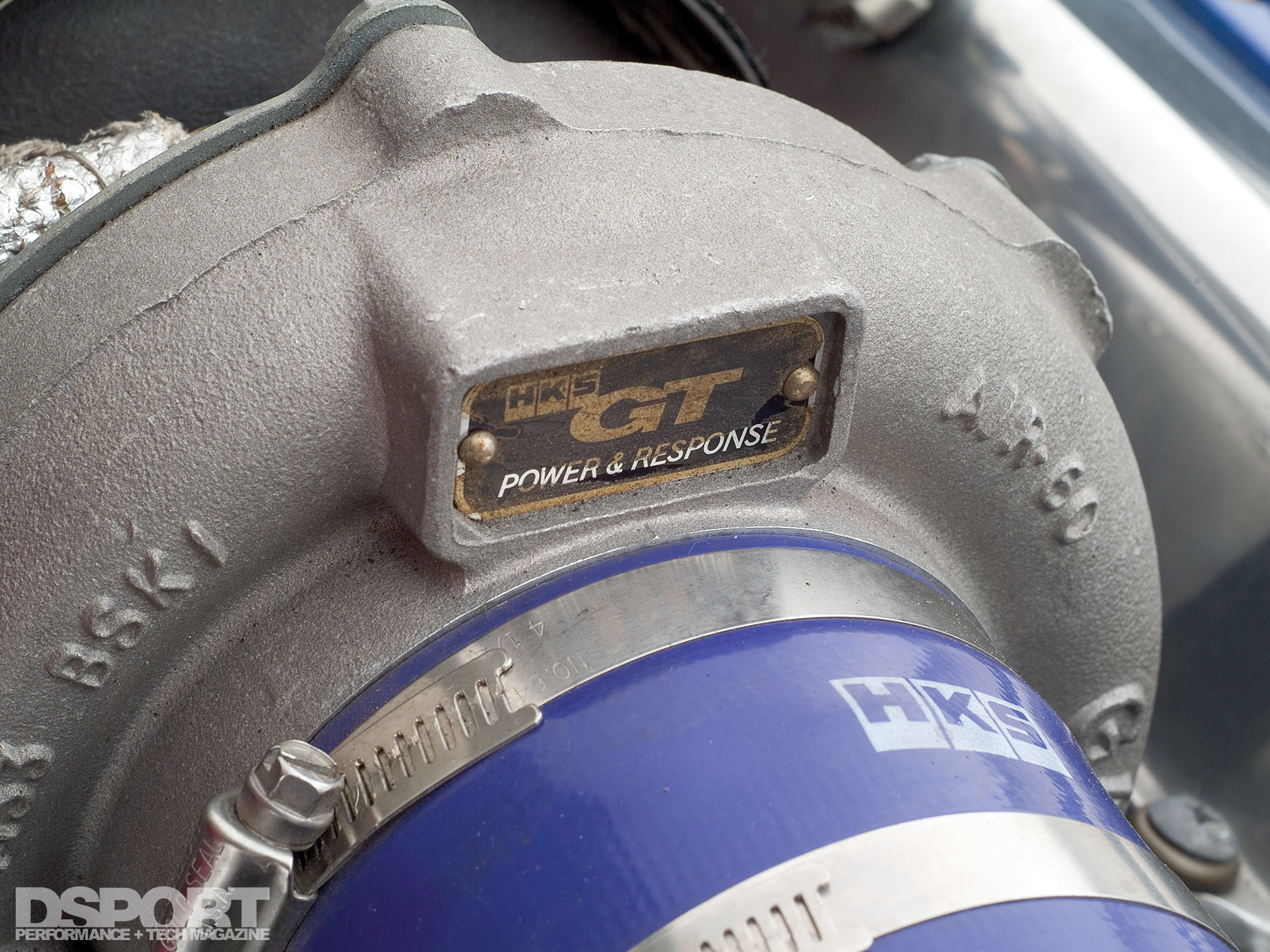

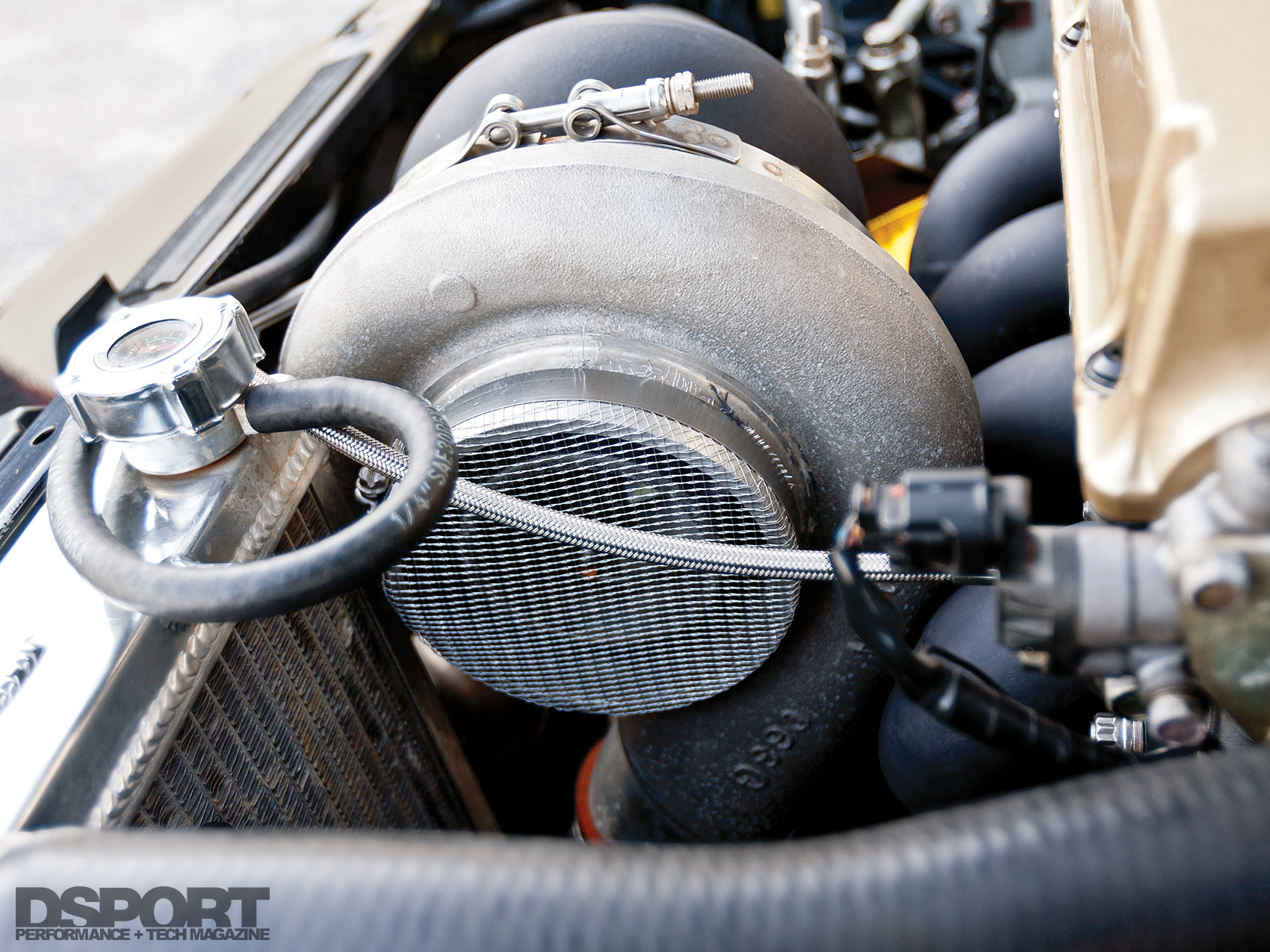

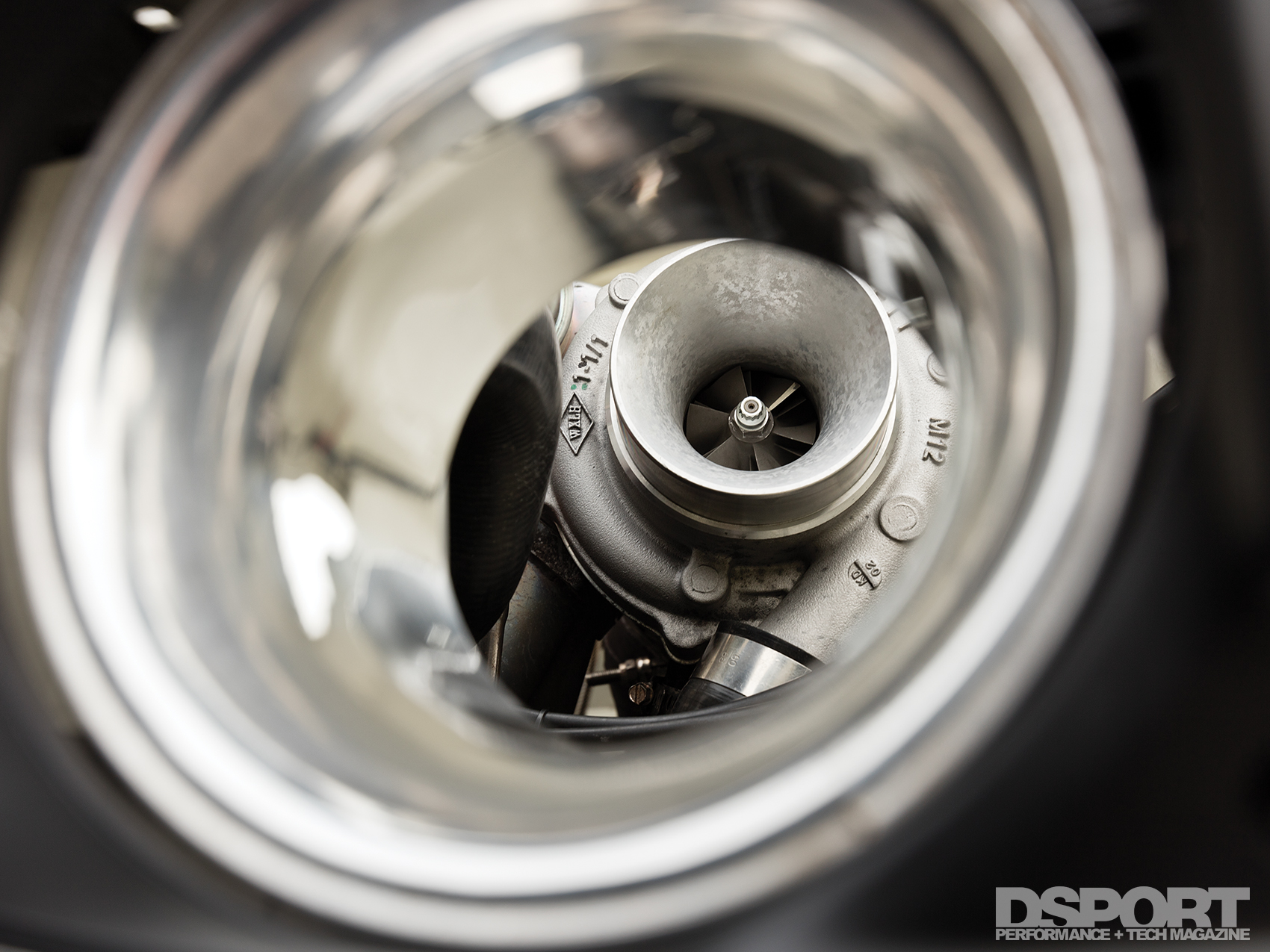

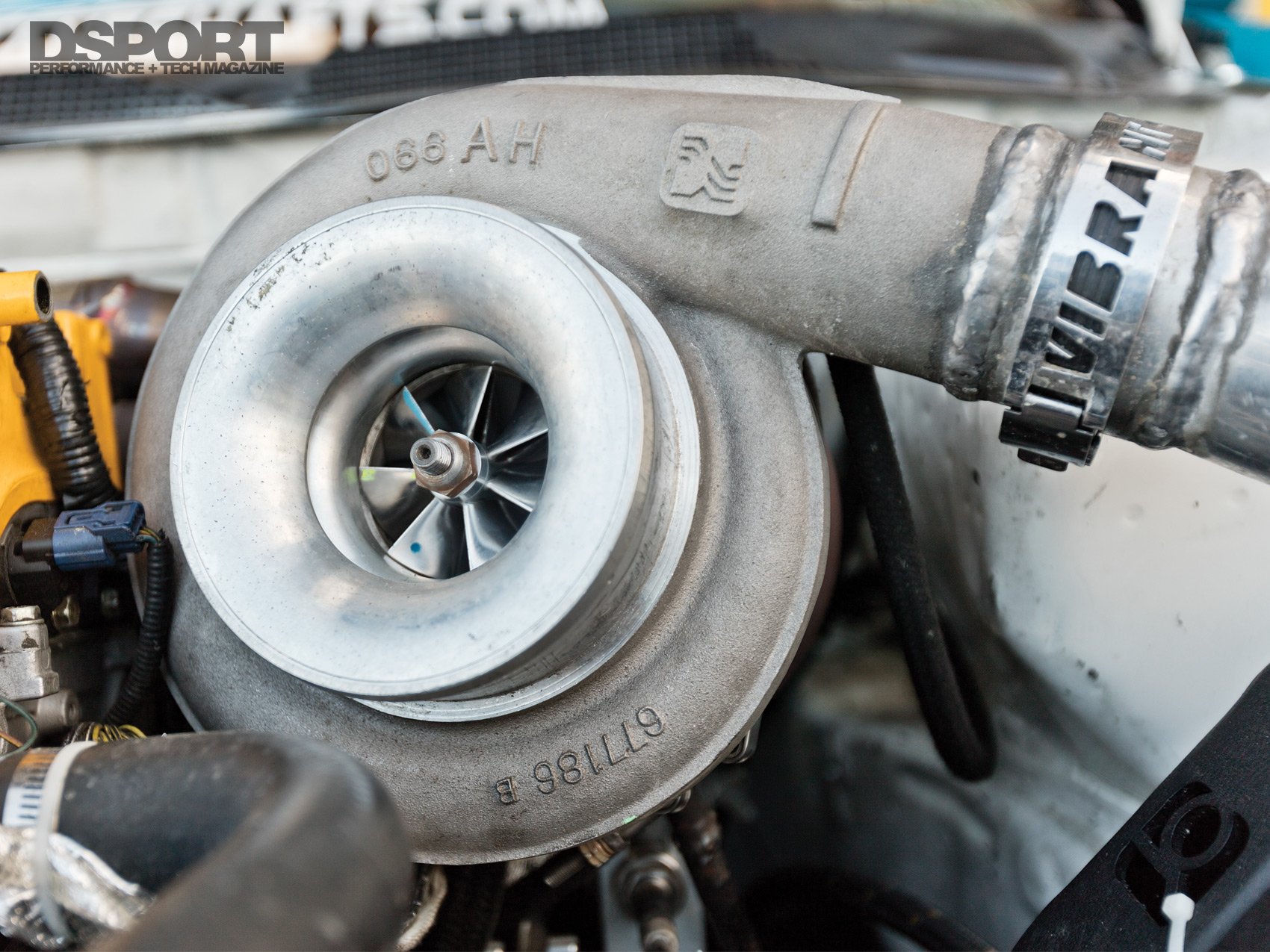

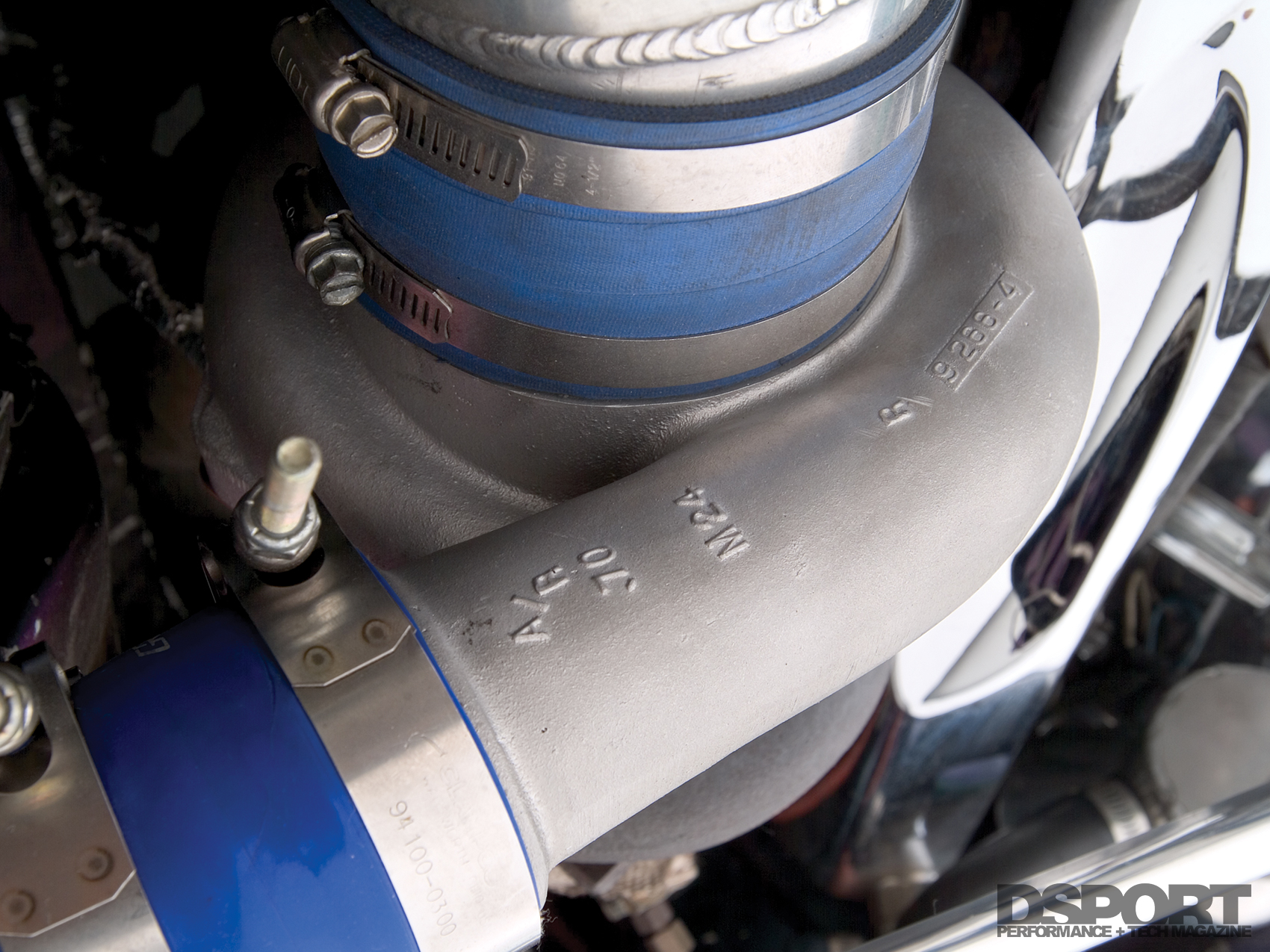

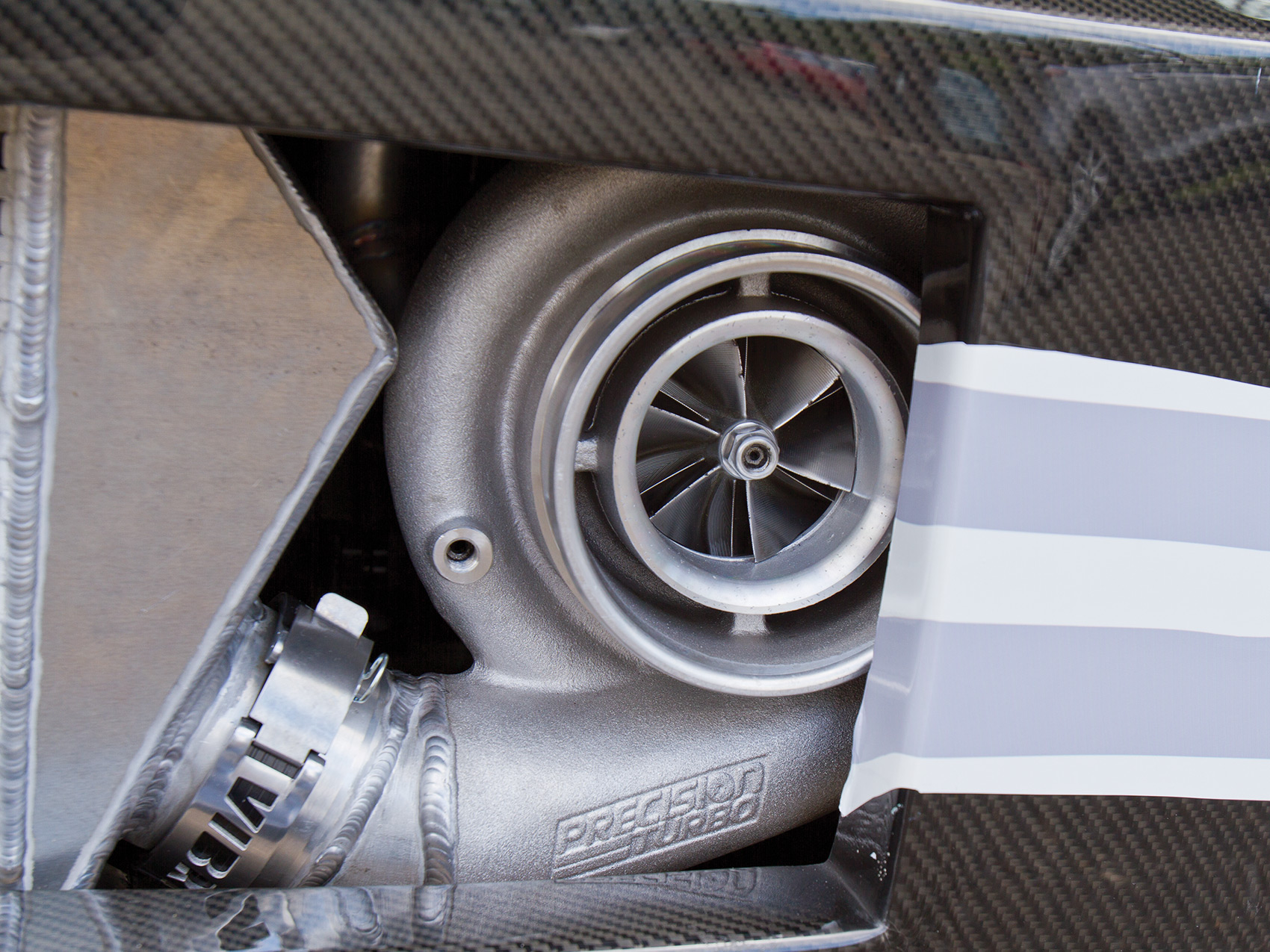

With the exhaust manifold directing exhaust gas from the ports of the cylinder head to the turbocharger, we can follow the path that the gasses take to understand how the turbo generates more power. Turbochargers have two distinct sections connected by one common shaft. On one side, a turbine section uses the energy of the exhaust gas flow to spin the shaft. On the other side, a compressor wheel within the compressor housing funnels in and compresses ambient air before directing the pressurized air charge toward the engine’s throttle body.

Intercooler for the Magnus built EVO XSince pressure and temperature are directly related, compressed air undergoes an increase in temperature. To maximize efficiency and performance, the incoming air charge needs to be cooled. This is where an intercooling solution comes into play. In most applications, an air-to-air intercooler is used. In this type of intercooling, the charge air moves across a core that dissipates heat across the fins of the intercooler. Typically, the intercooler is mounted at the front of the vehicle. By virtue of the vehicle’s forward movement, air passes through the fins, which leads to subsequent convectional cooling.

Intercooling piping makes the connection between the turbo, intercooler and engine. In general, a high-quality system will feature aluminum mandrel-bent piping that keeps the length of the pipes to a minimum, minimizes the number of bends and selects a diameter that’s well matched for the engine and its intended usage. Fitment is the key to quality intercooling piping.

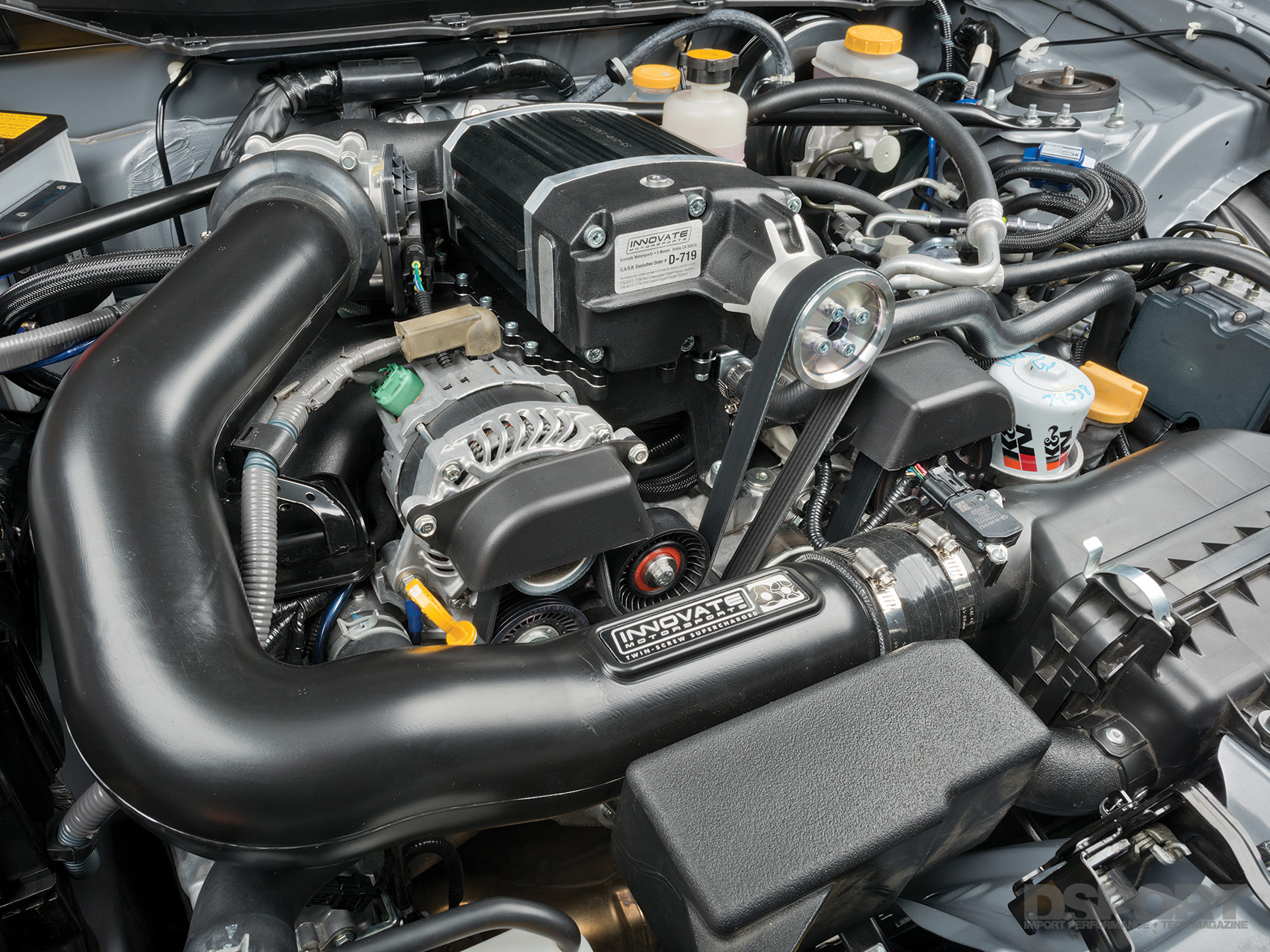

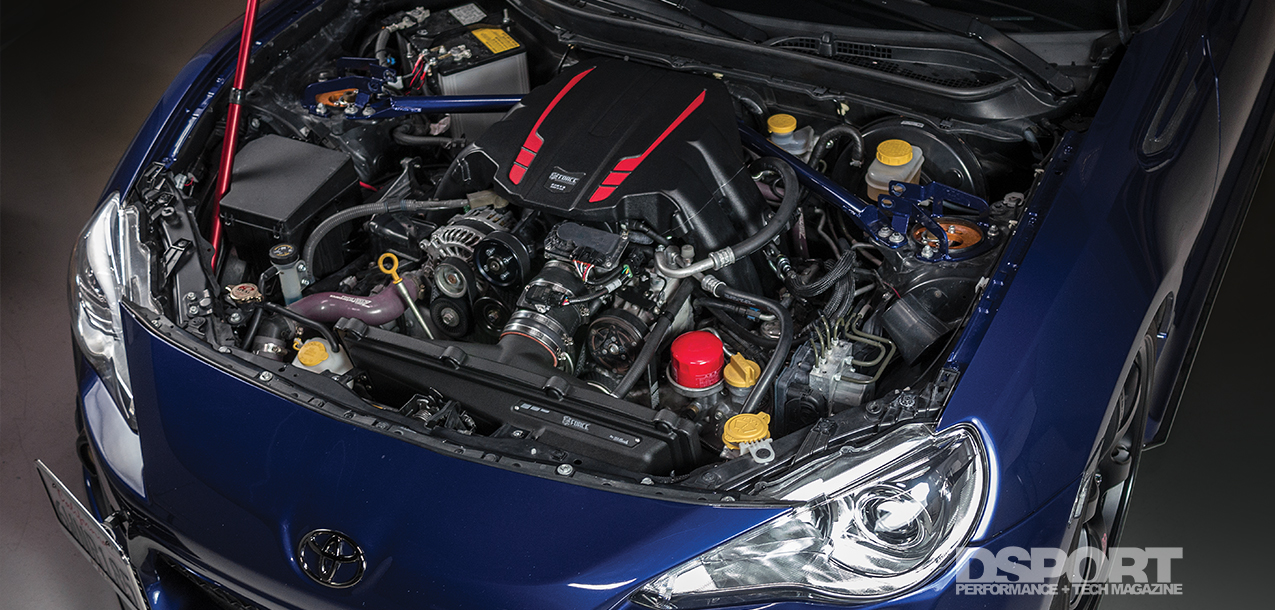

Supercharging

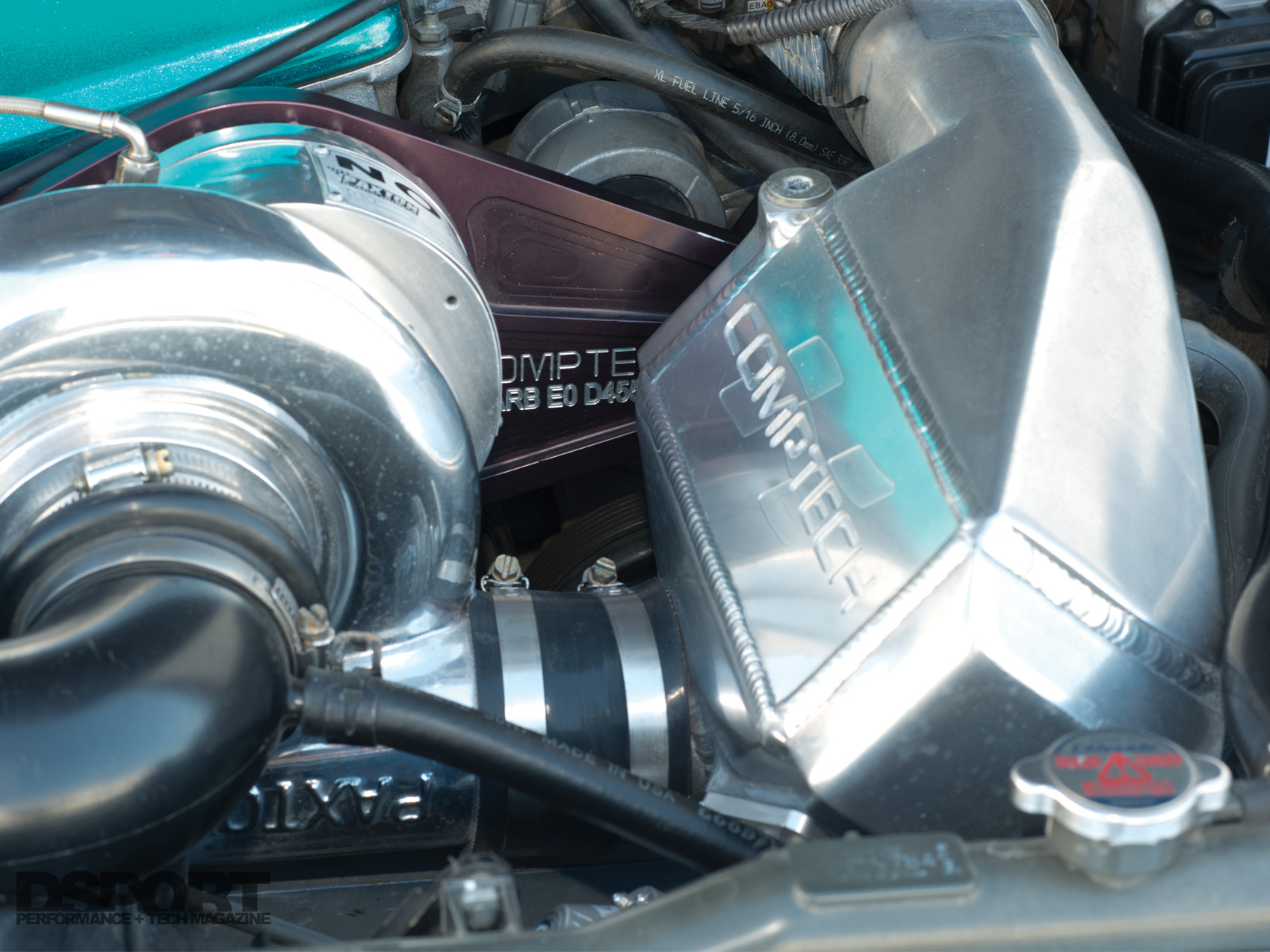

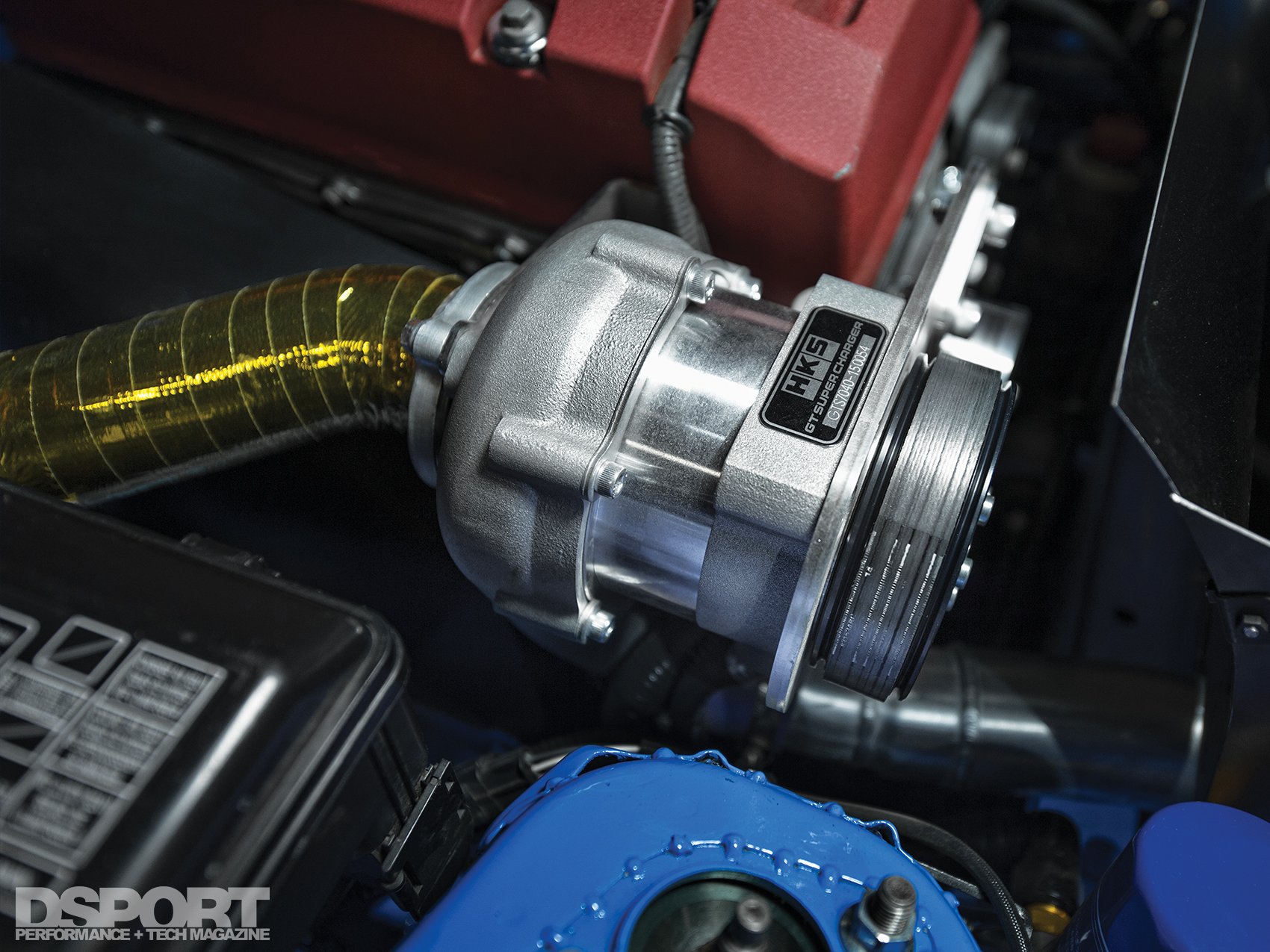

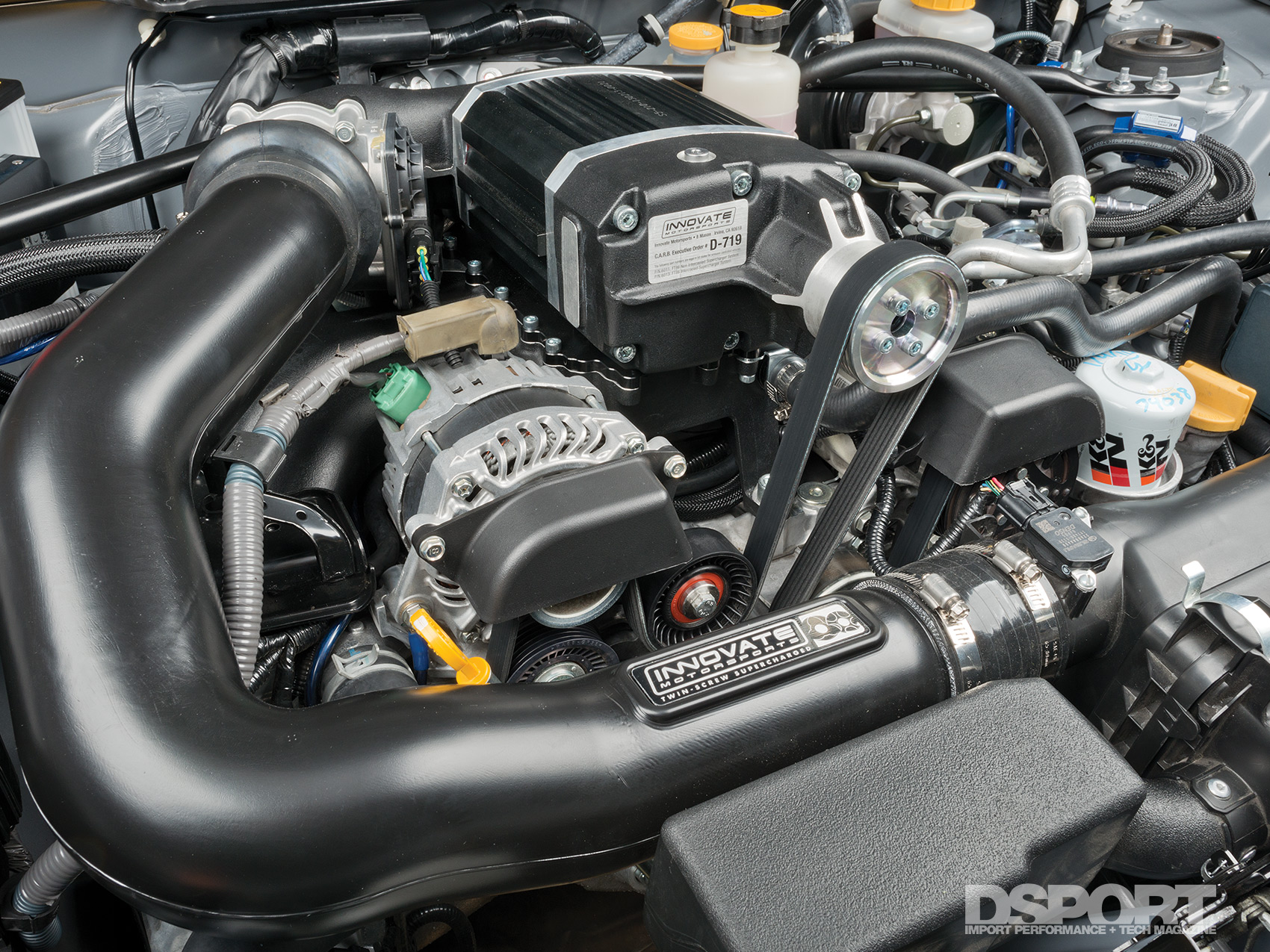

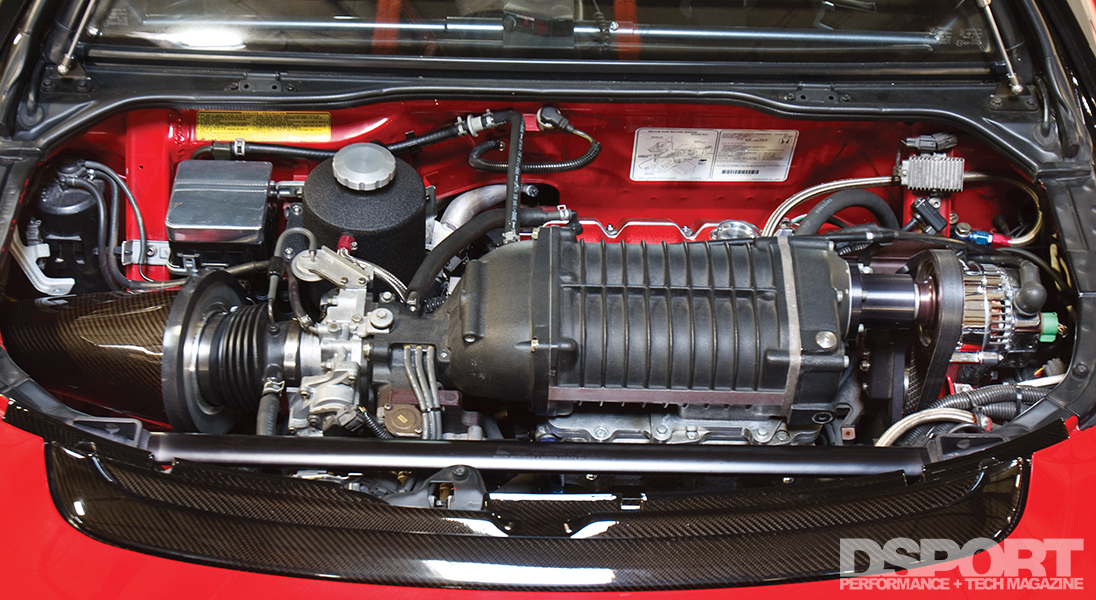

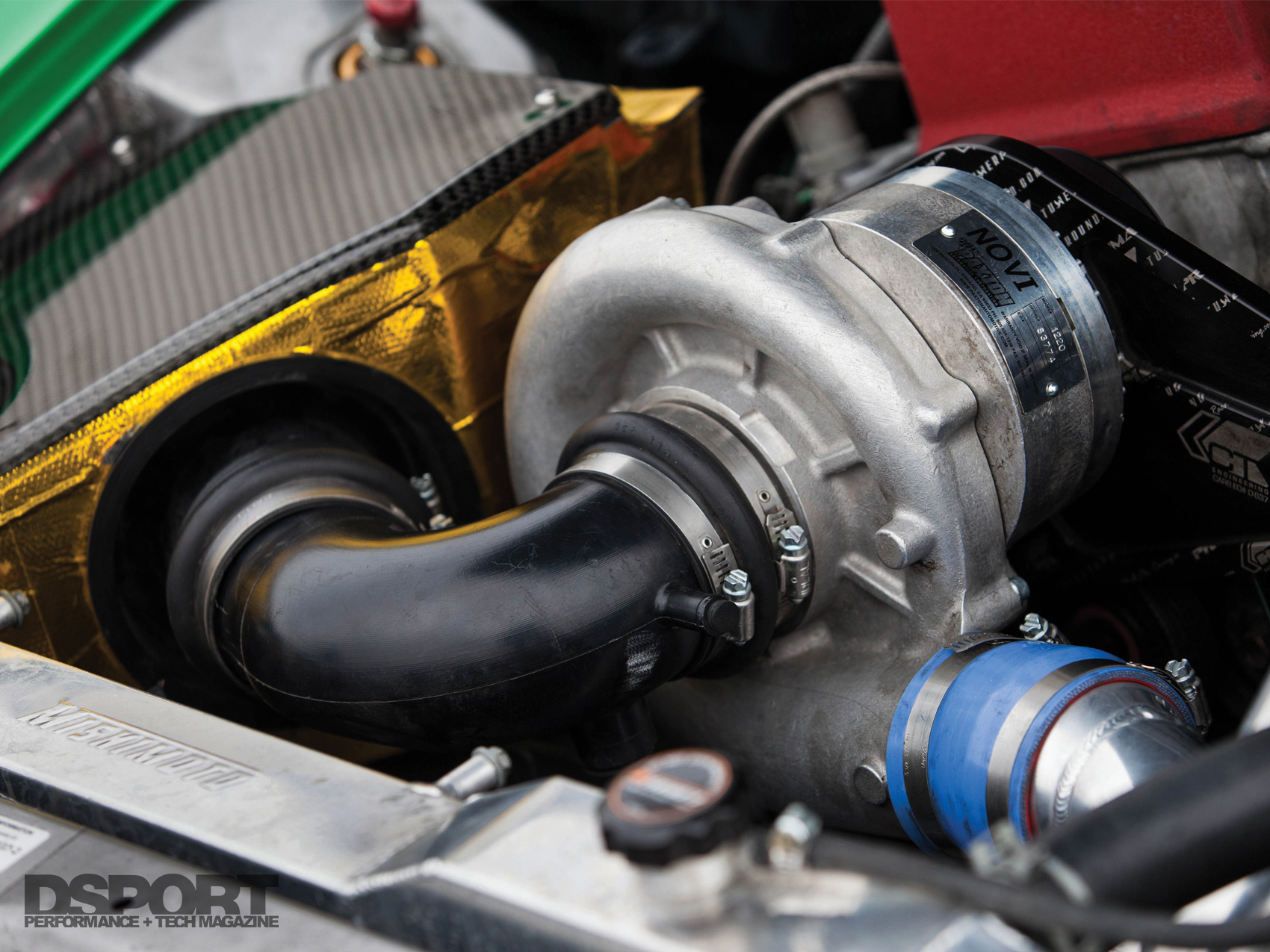

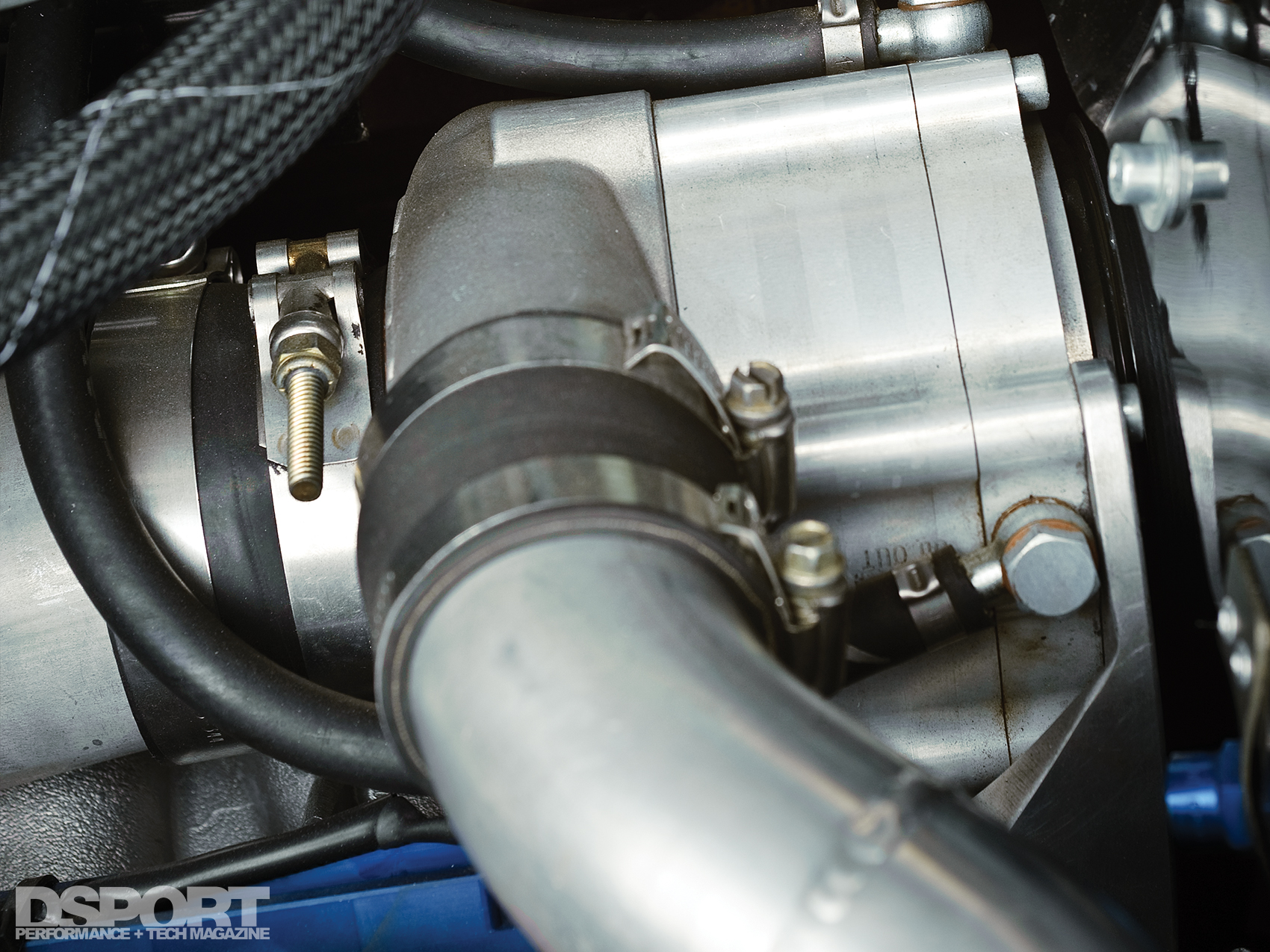

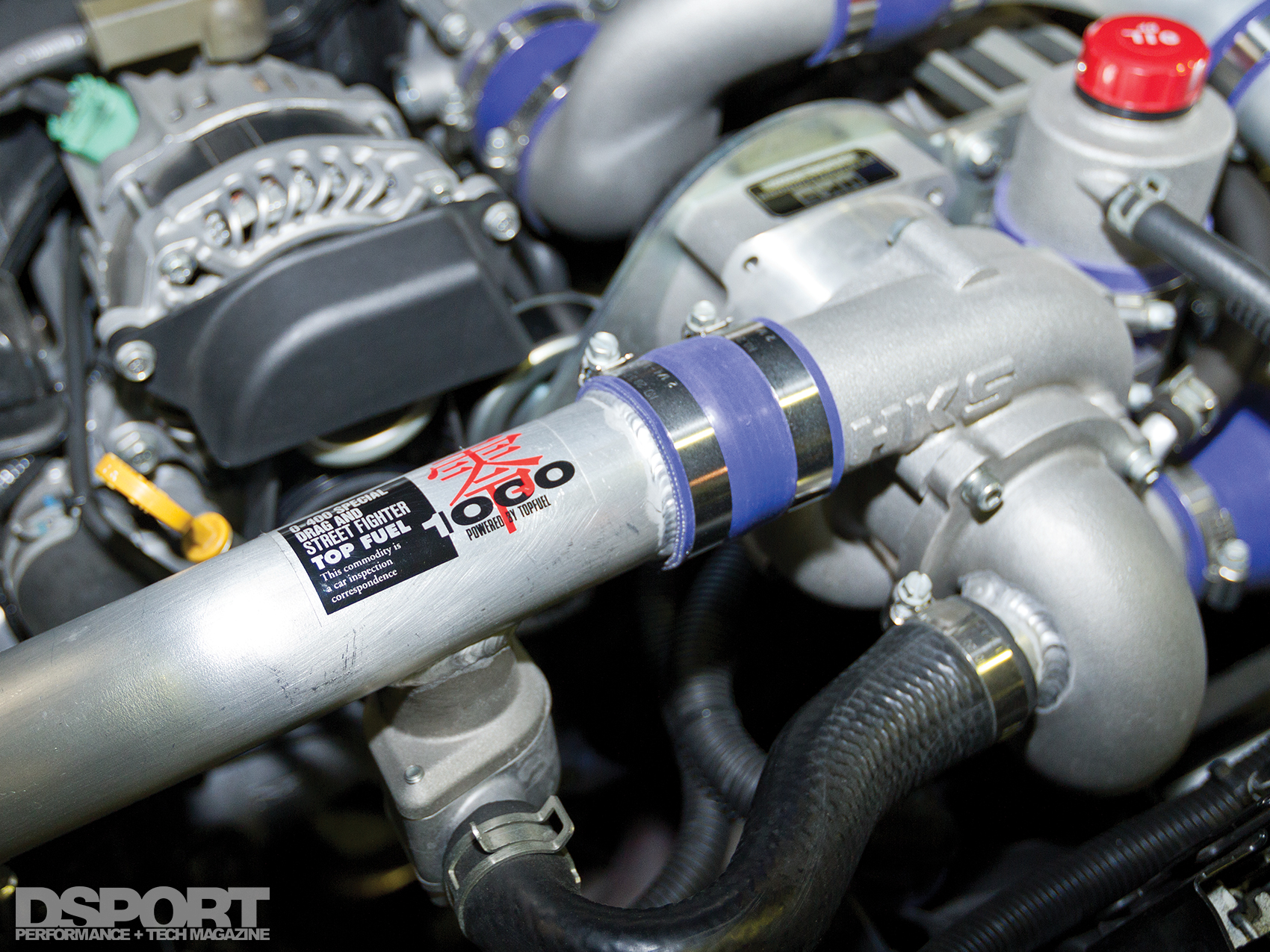

Evasive Motorsports Honda S2000 HKS GT SuperchargerLike turbochargers, superchargers pressurize the air intake and force it into the engine. Unlike turbochargers, superchargers don’t use the exhaust gas but instead achieve their rotational power by adding a belt driven by the engine’s crankshaft.

Supercharger systems include a number of components beginning with the supercharger itself, mounting brackets or mounting intake manifold, pulleys and belts. There are two main categories of superchargers: positive-displacement or centrifugal.

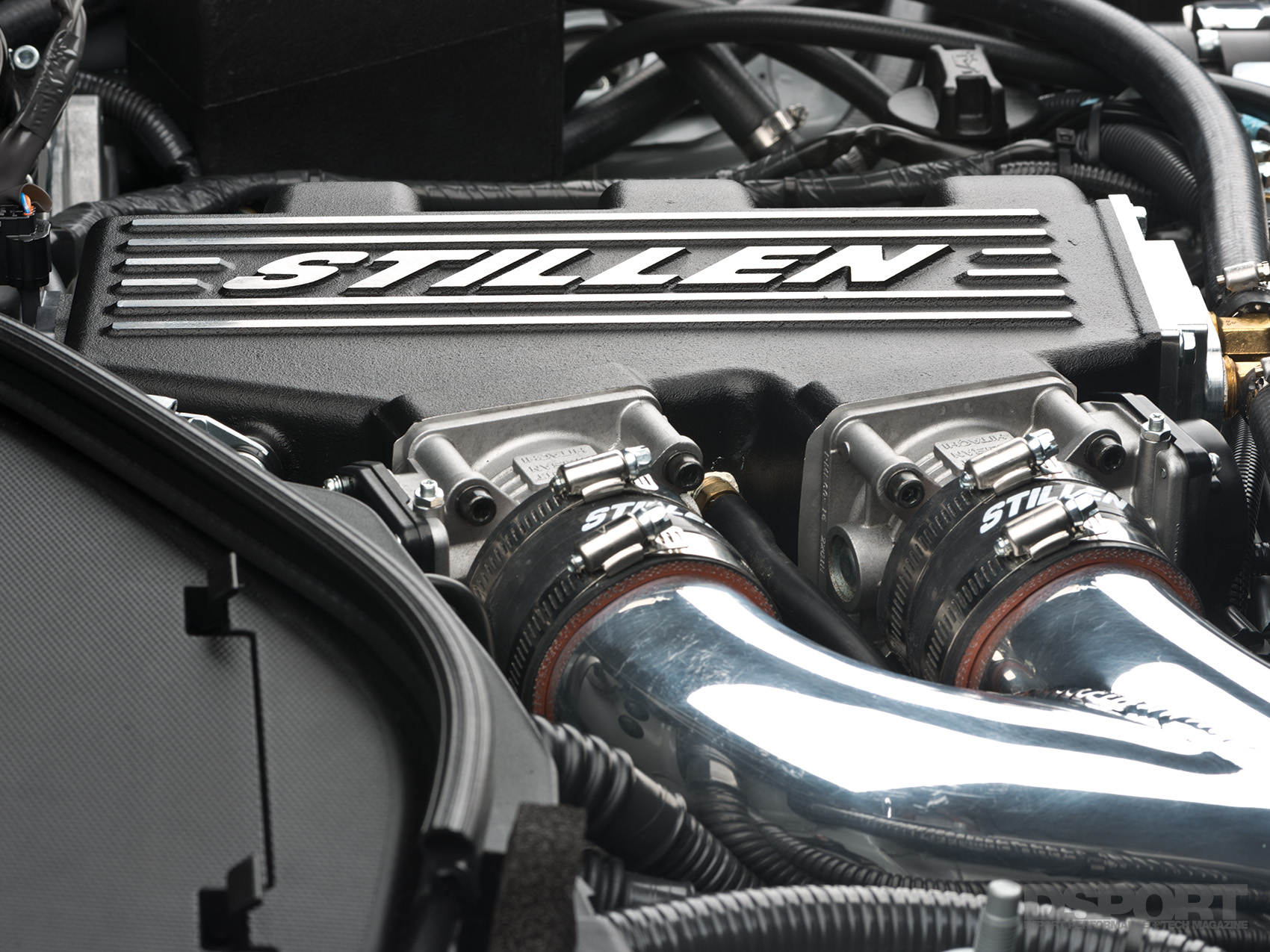

Positive-displacement superchargers are often integrated into a new intake manifold. These types of superchargers are known for reaching peak boost pressure almost immediately after the accelerator is depressed. With near instantaneous response, positive-displacement superchargers deliver great low-end and mid-range torque.

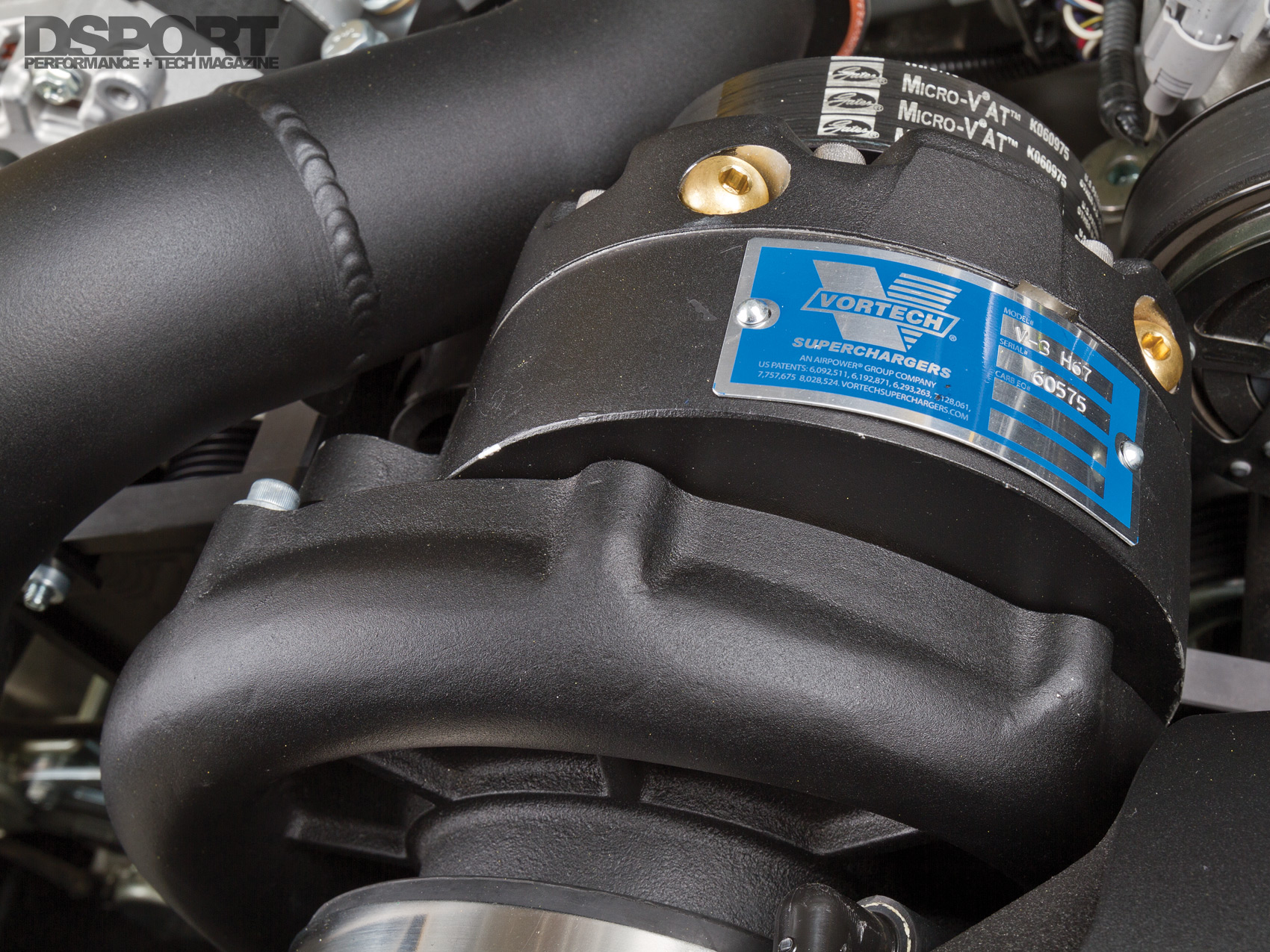

While boost response from positive-displacement superchargers is superior to centrifugal superchargers, centrifugal units are typically more efficient and draw less crankshaft horsepower to produce the same peak boost pressure. Centrifugal superchargers build boost pressure as the engine revs through its RPM range. This is beneficial for cars with limited traction since the boost curve is linear.

forced injectionEdelbrock’s E-Force Supercharger kit underwent extensive computer modeling.

Air + Fuel

Of course when the amount of incoming air charge is optimized, the engine’s fuel management needs to be addressed as well. This is true for both turbocharged and supercharged applications. To this end, the simplest solution is a boost-dependent, rising-rate fuel pressure regulator and in-line booster fuel pump. This type of circuit raises the fuel pressure to the injectors as the turbo generates boost. More sophisticated arrangements include larger fuel injectors, piggyback ECUs, reflash software or standalone engine management systems. Most advanced forced-induction kits come either standard or optionally with some type of fuel management solution. Regardless of the fuel enrichment option, safe and reliable fuel delivery is of the utmost importance with forced-induction systems.



Chemical Boost

nitrous bottleIn addition to turbochargers and superchargers, the last power adder to the list is nitrous oxide. Nitrous-oxide injection systems are an easy bolt-on solution to add substantial power. When a nitrous-oxide system is activated, a mixture of nitrous-oxide and gasoline is injected into the intake. The expansion of the liquid nitrous-oxide into a gaseous form absorbs the heat out of the surrounding air. The result is a decrease in inlet air temperature, which translates to cooler and denser air entering the cylinders. Since cooler air is composed of more oxygen molecules (for a given volume), more fuel can be combusted and more power can be generated. Nitrous-oxide injection (on factory engines) can add a 5- to 10-percent increase in power in just an instant. With a capable engine in place, nitrous-oxide systems can add up to hundreds of horsepower.

Can’t Go Wrong

Whether you choose to go with a turbo kit, supercharger or put your engine on nitrous, big power gains are almost always guaranteed. Make sure you use high-quality components from reputable manufacturers. To make your research a bit easier, we’ve compiled a list of complete forced-induction (turbocharger and supercharger) systems for some of the popular vehicle platforms. Happy boosting!

forced injection

[pdf-embedder url=”https://dsportmag.com/wp-content/uploads/2016/10/171-forced-induction-chart.pdf”]
