SPEC SHEET

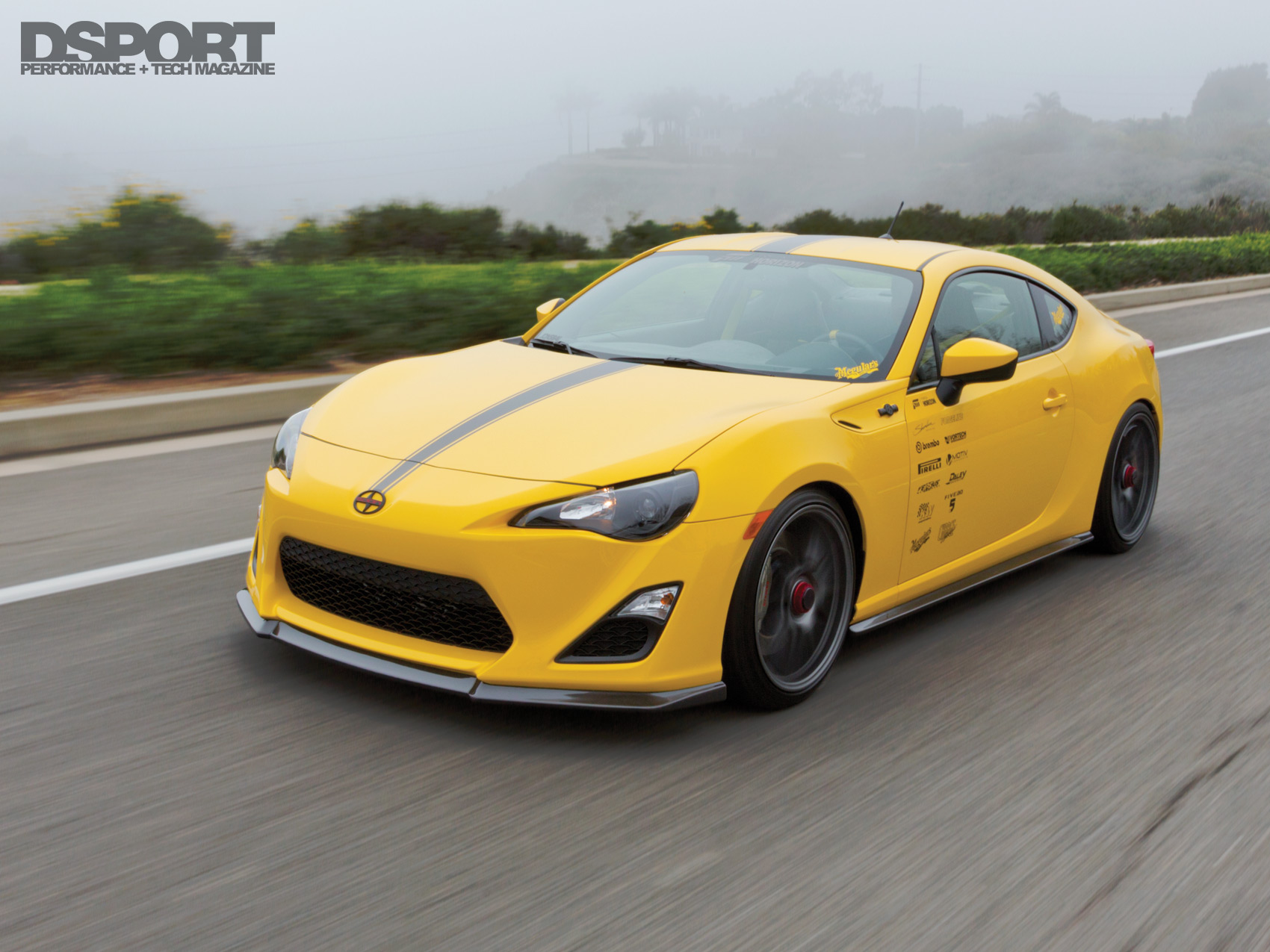

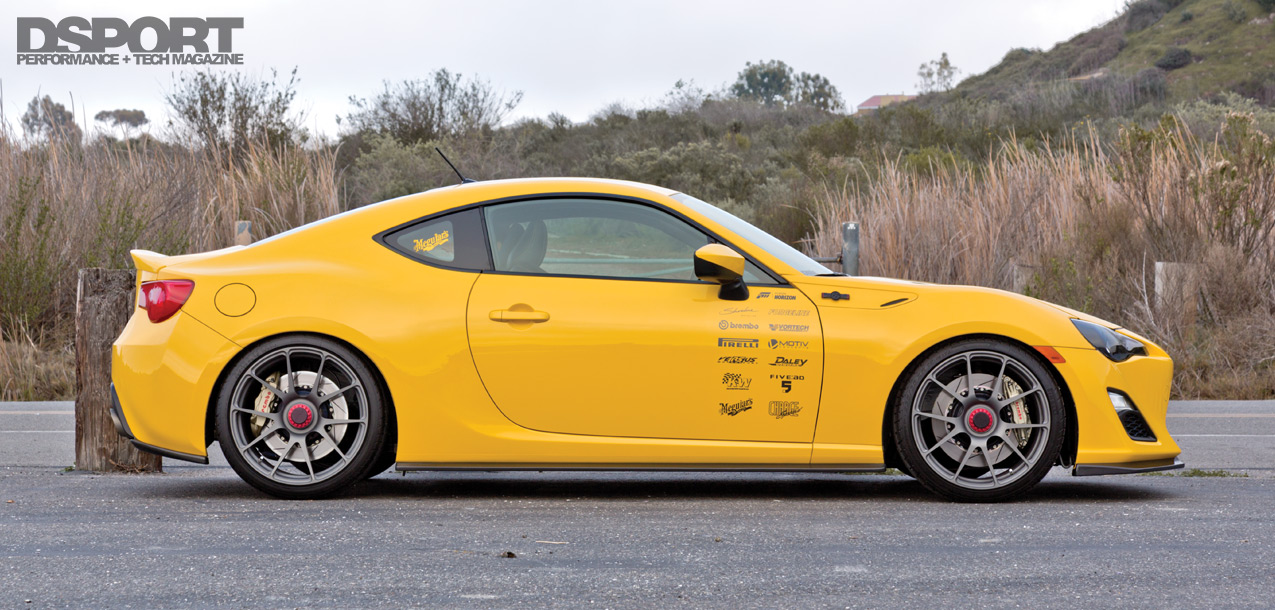

| VEHICLE | |
|---|---|

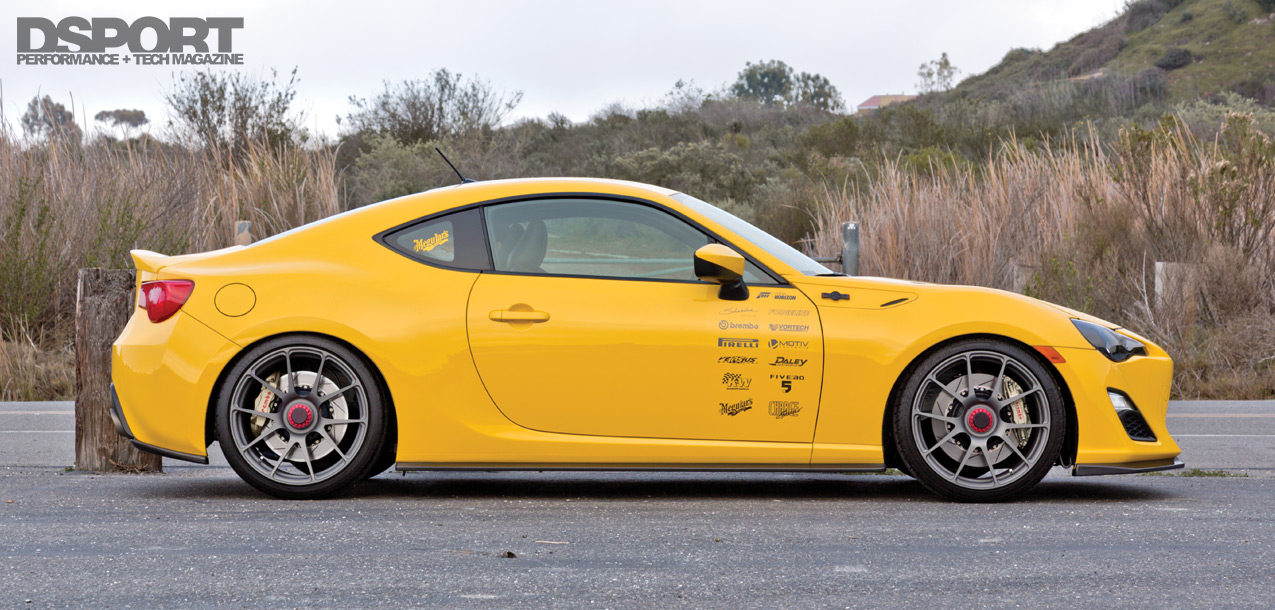

| Year / Make / Model: | 2013 Scion FR-S |
| Chassis Code: | ZN6 |
| Vehicle Weight: | 2,720 lbs. |
| Weight Bias (F/R): | 53/47 |
| Redline RPM: | 7,400 RPM |
| Peak Boost: | 8 psi |
| Fuel: | 91 Unleaded |

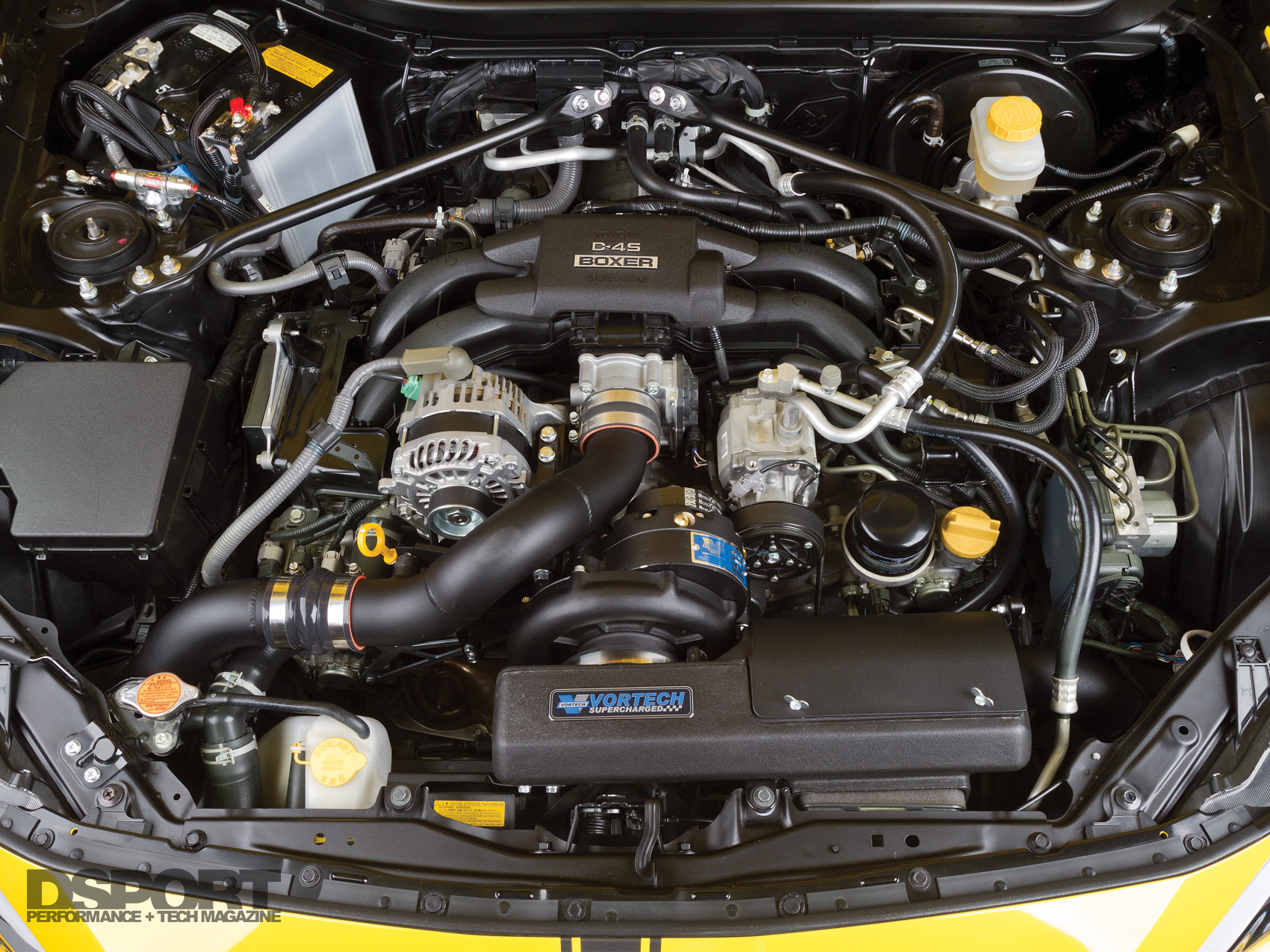

| ENGINE | |
|---|---|
| Engine Code: | 4U-GSE |
| Displacement (cc): | 1,998cc |
| Bore & Stroke (mm): | 86mm x 86mm |
| Peak Horsepower (@ RPM): | 215.76 WHP |
| Peak Torque (@ RPM): | 170.29 lb-ft |
| Dyno Type: | Dynojet 424xLC2 Dynamometer |
| Engine Management System: | EcuTek Software |
| Engine Management Tuner: | Vortech |
| Exhaust System: | Motiv Concepts Custom Stainless Steel Exhaust |
| Intercooler: | Vortech Front Mount |
| SUPERCHARGER | |
|---|---|
| Supercharger: | Vortech V-3, Centrifugal |
| Frame: | V-3, H67BC, (4U-GSE/FA20 Spec) |
| Compressor Wheel Specs: | Billet Aluminum Wheel, 67mm Inducer |
| Step Up Ratio: | 3.6:1 |
| CHASSIS/DRIVELINE | |
|---|---|
| Springs, F&R (Make & Rate): | KW Suspension Springs |

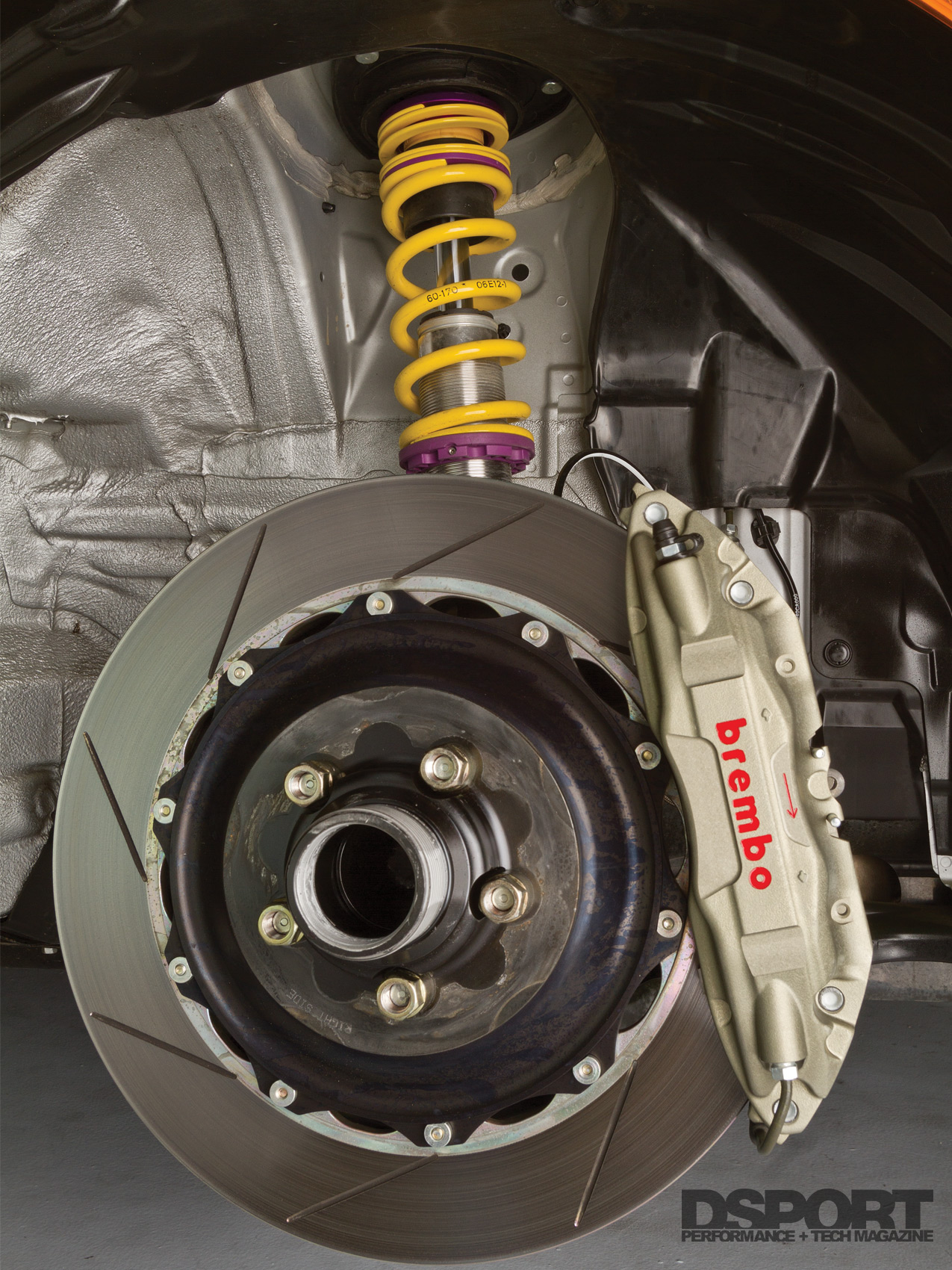

| Shocks, F&R (Make & Rate): | KW Variant 3 Adjustable Dampers |
| Additional Suspension Components: | Cusco Adjustable Lower Control Arms (R) |

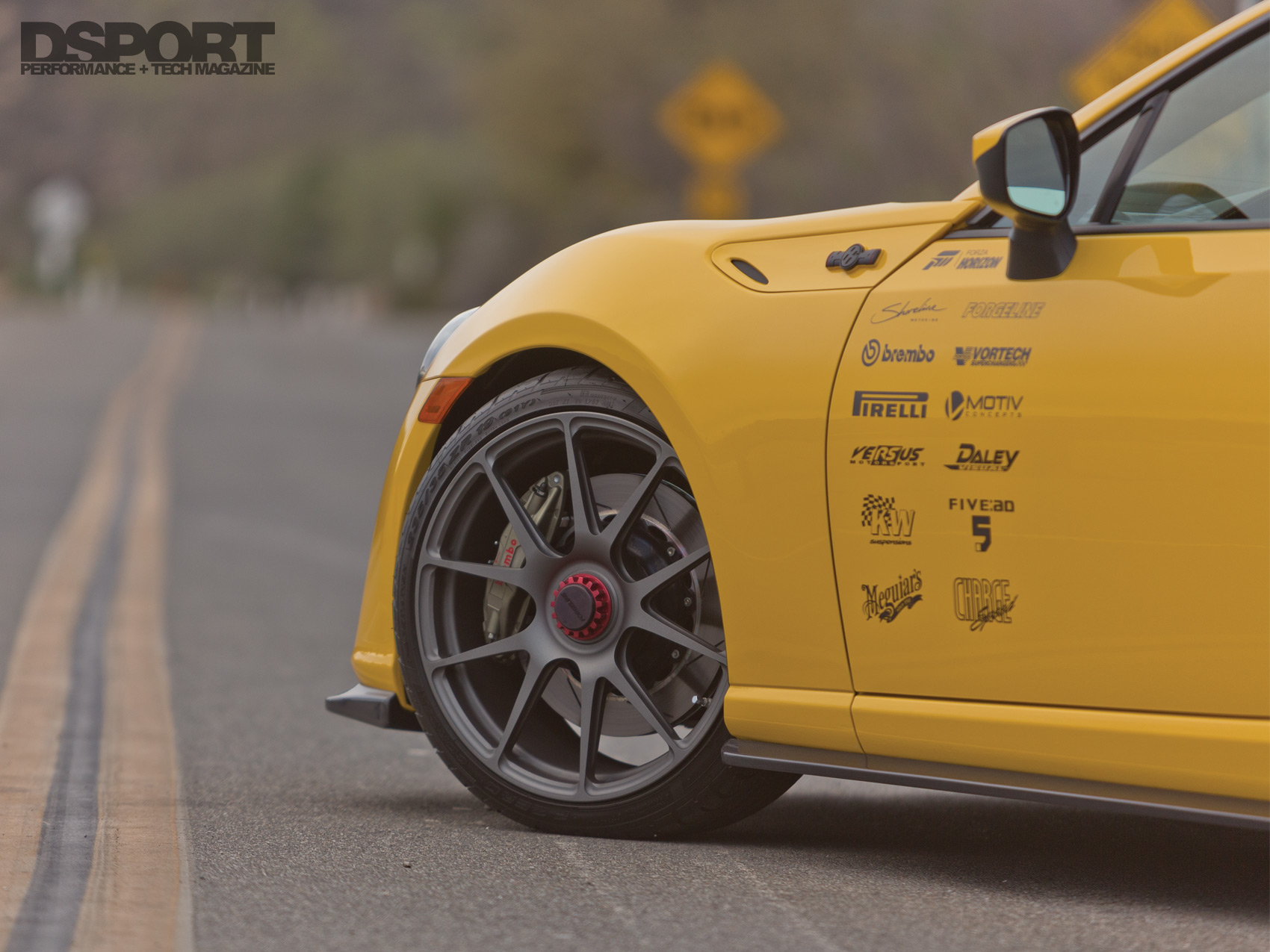

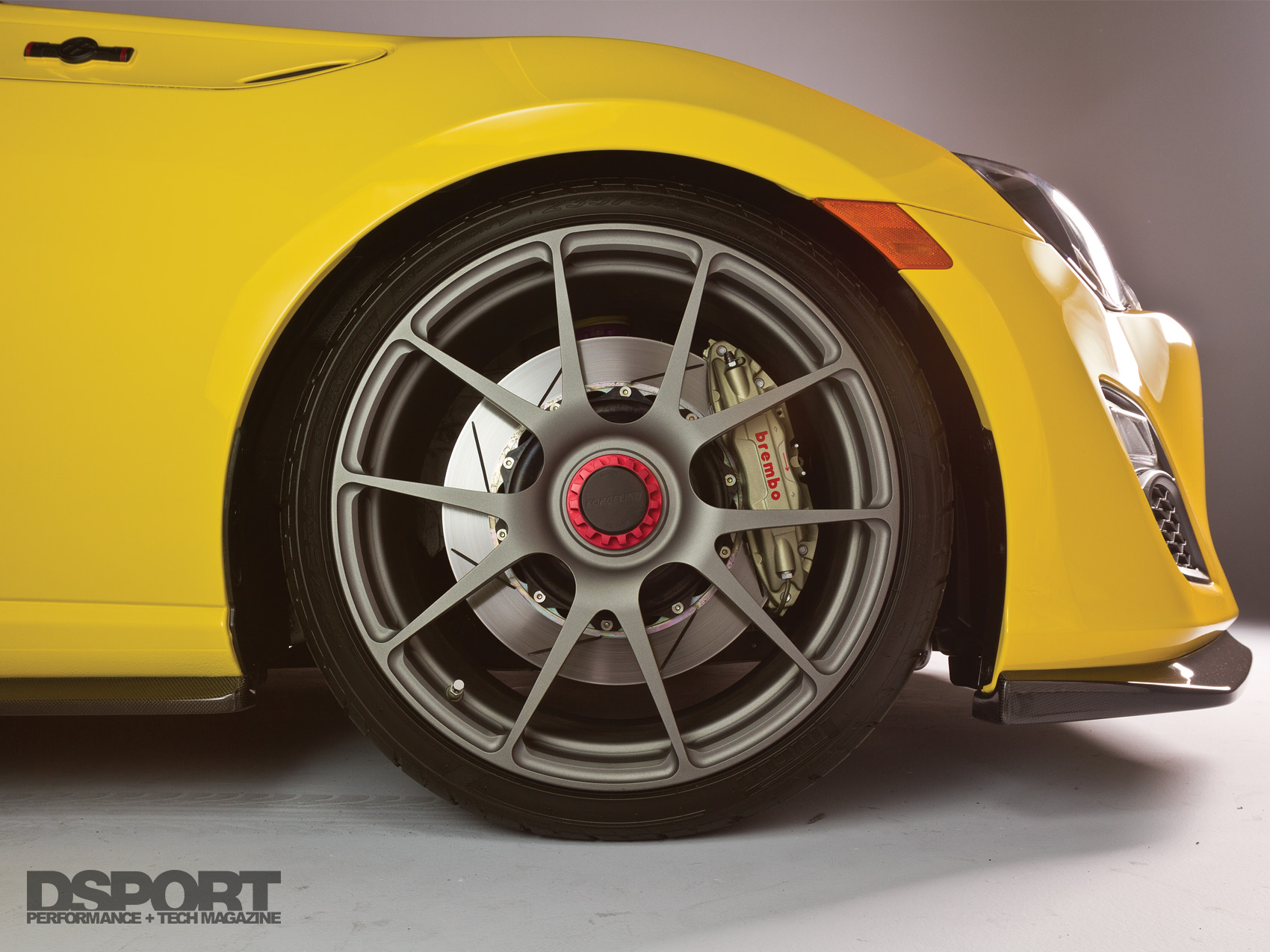

| Wheels (Make, Size & Offset): | Forgeline GA1-R Forged Monoblock |
| 19×9-inch +45 (F), 19×10-inch +53 (R) | |
| Forgeline Single Lug Adapter | |
| Tires (Make & Size): | Pirelli P-Zero Corsa System |
| 235/35R19 (F), 265/30R19 (R) | |
| Brake Calipers (F&R): | Brembo Club Racing (F), GT Calipers (R) |

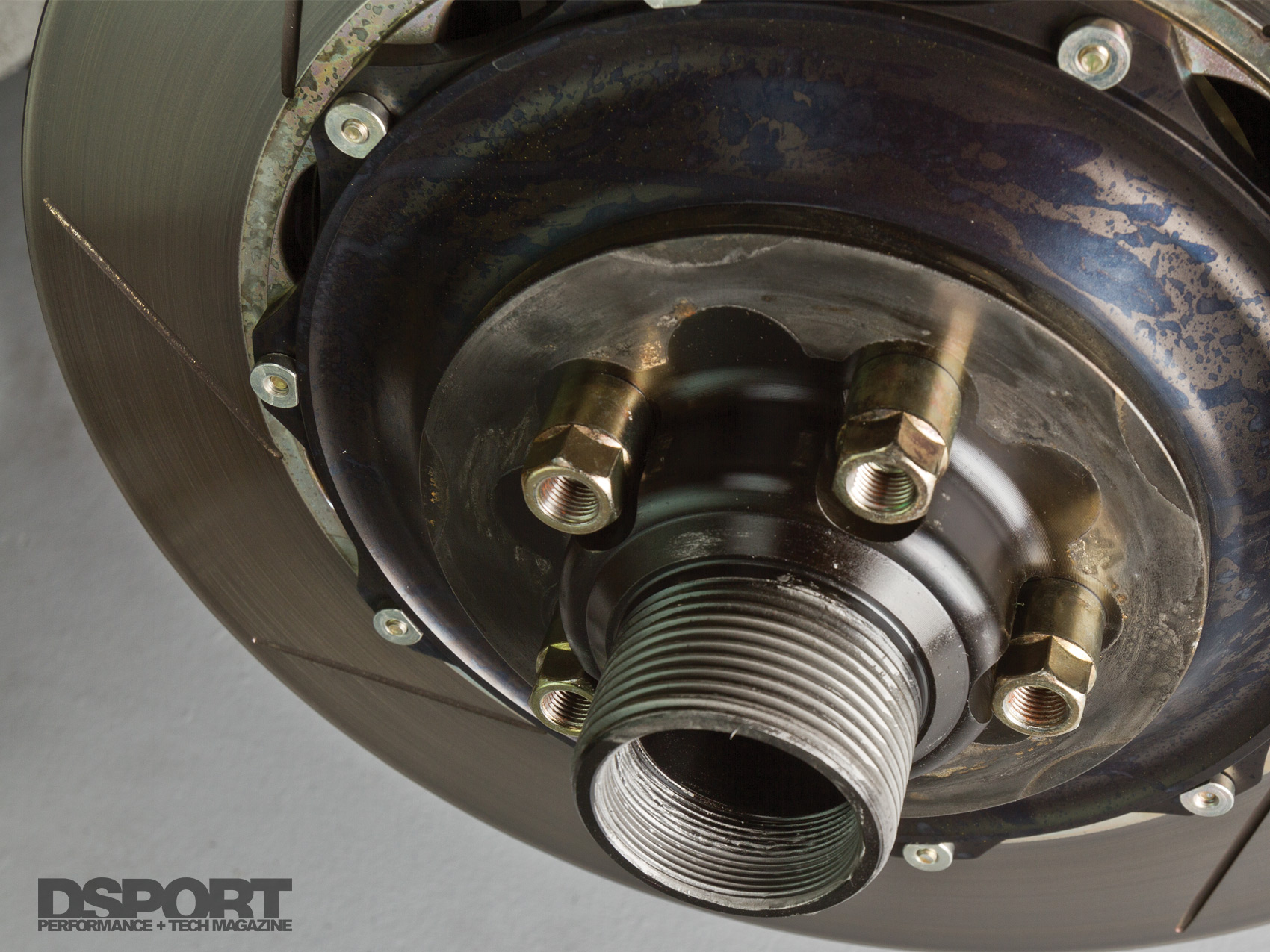

| Brake Rotors (Diameter, F&R): | Brembo Slotted Rotors (F&R) |
| Brake Pads (Front & Rear): | Brembo Pads |
| Brake Lines: | Brembo Stainless Steel Braided Lines |
| Etc.: |

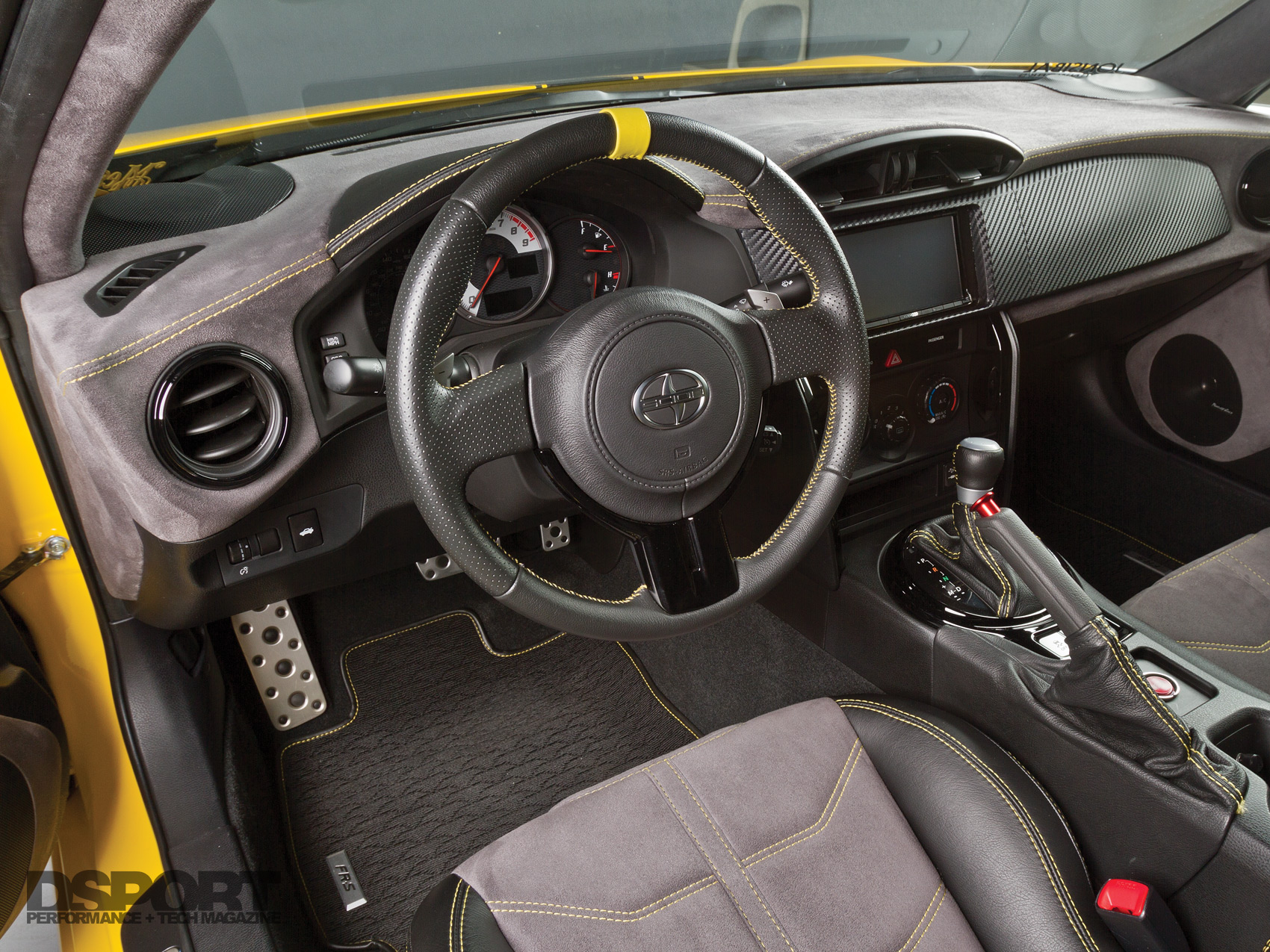

| INTERIOR | |
|---|---|

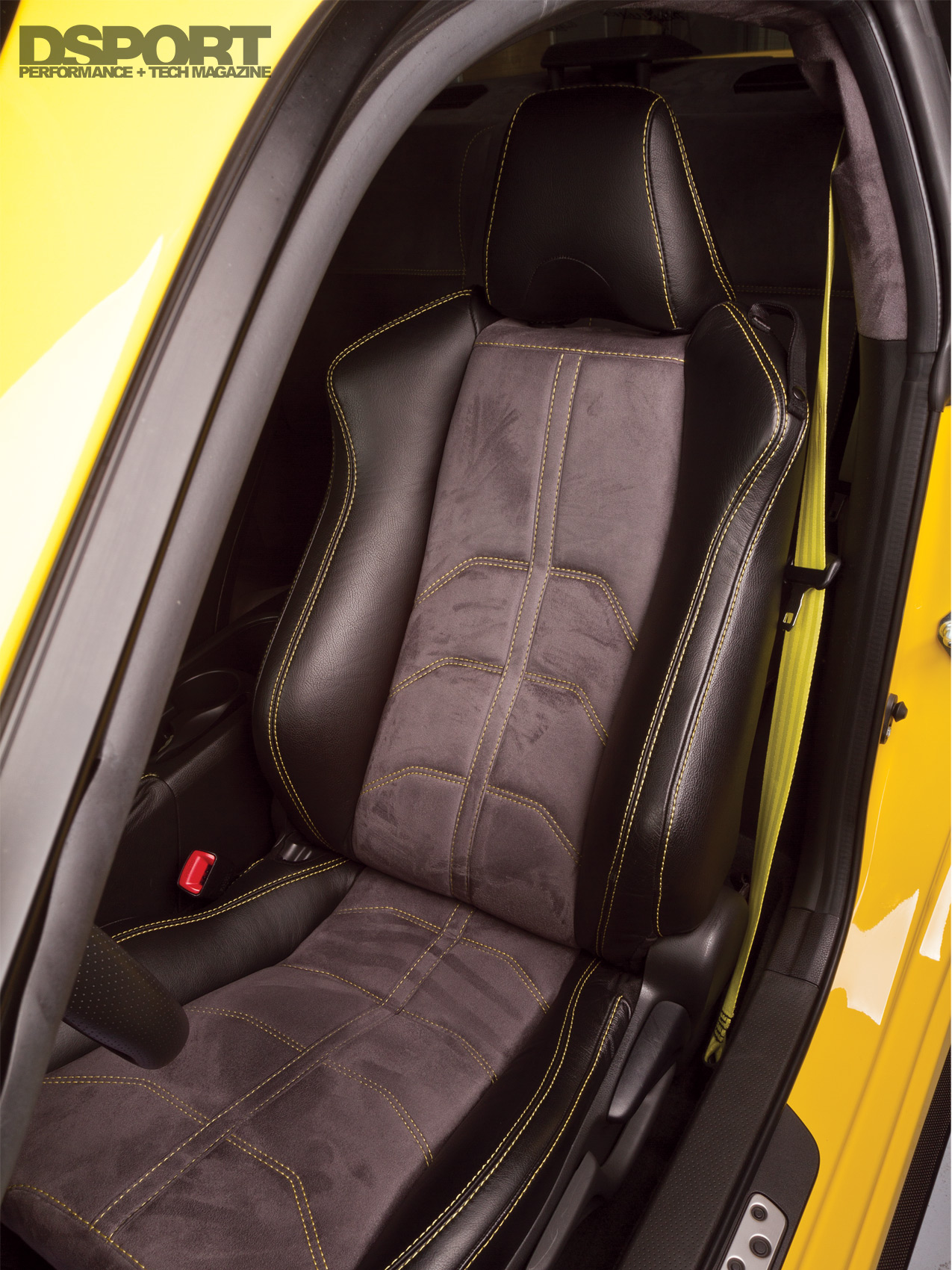

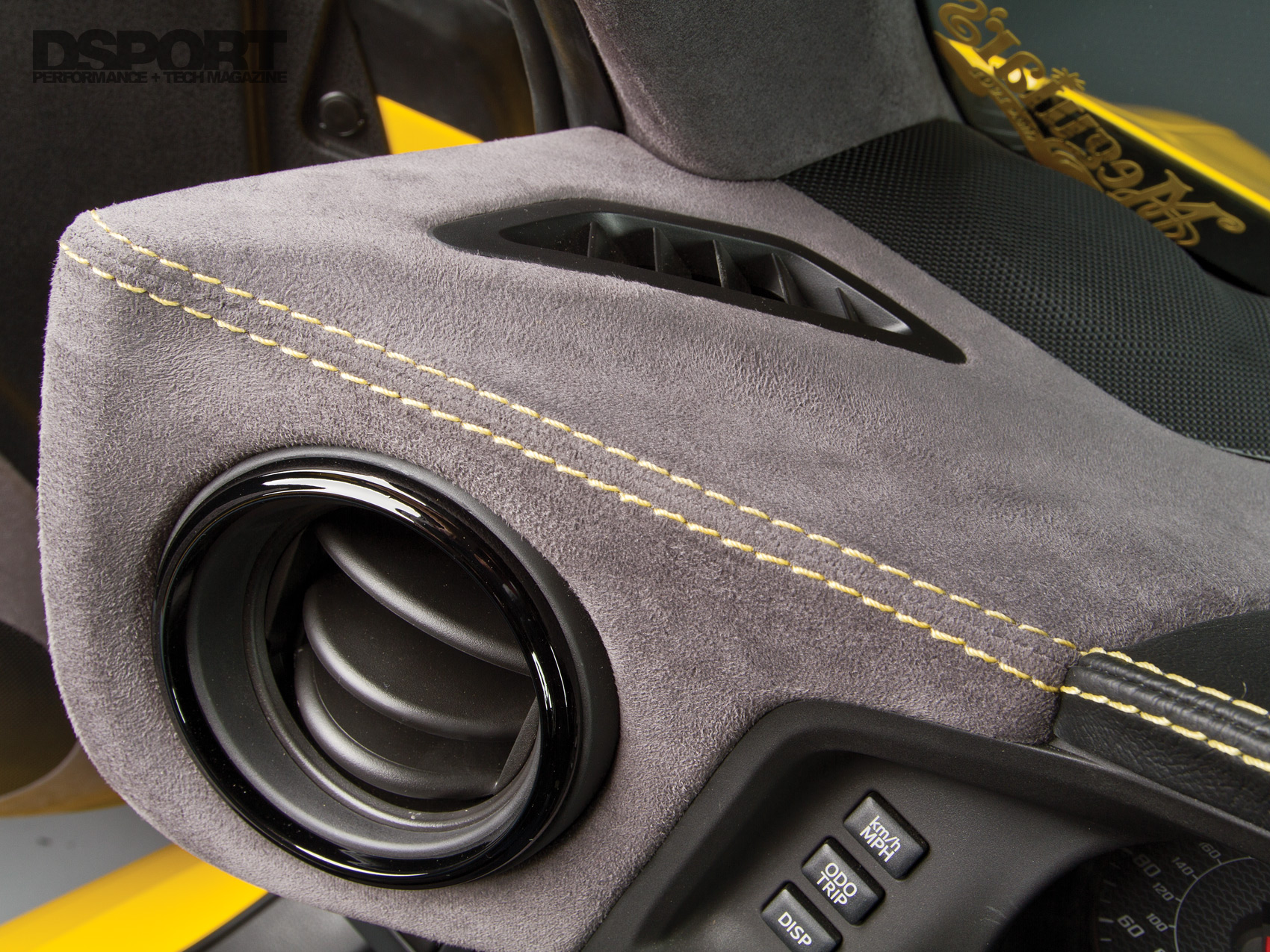

| Seats: | Custom Alcantara w/ Contrast Yellow Stitching |
| Harnesses: | Custom Yellow Seat Belts By Shoreline Motoring |
| Steering Wheel / Quick Release: | Custom Yellow Stitched By Shoreline Motoring |

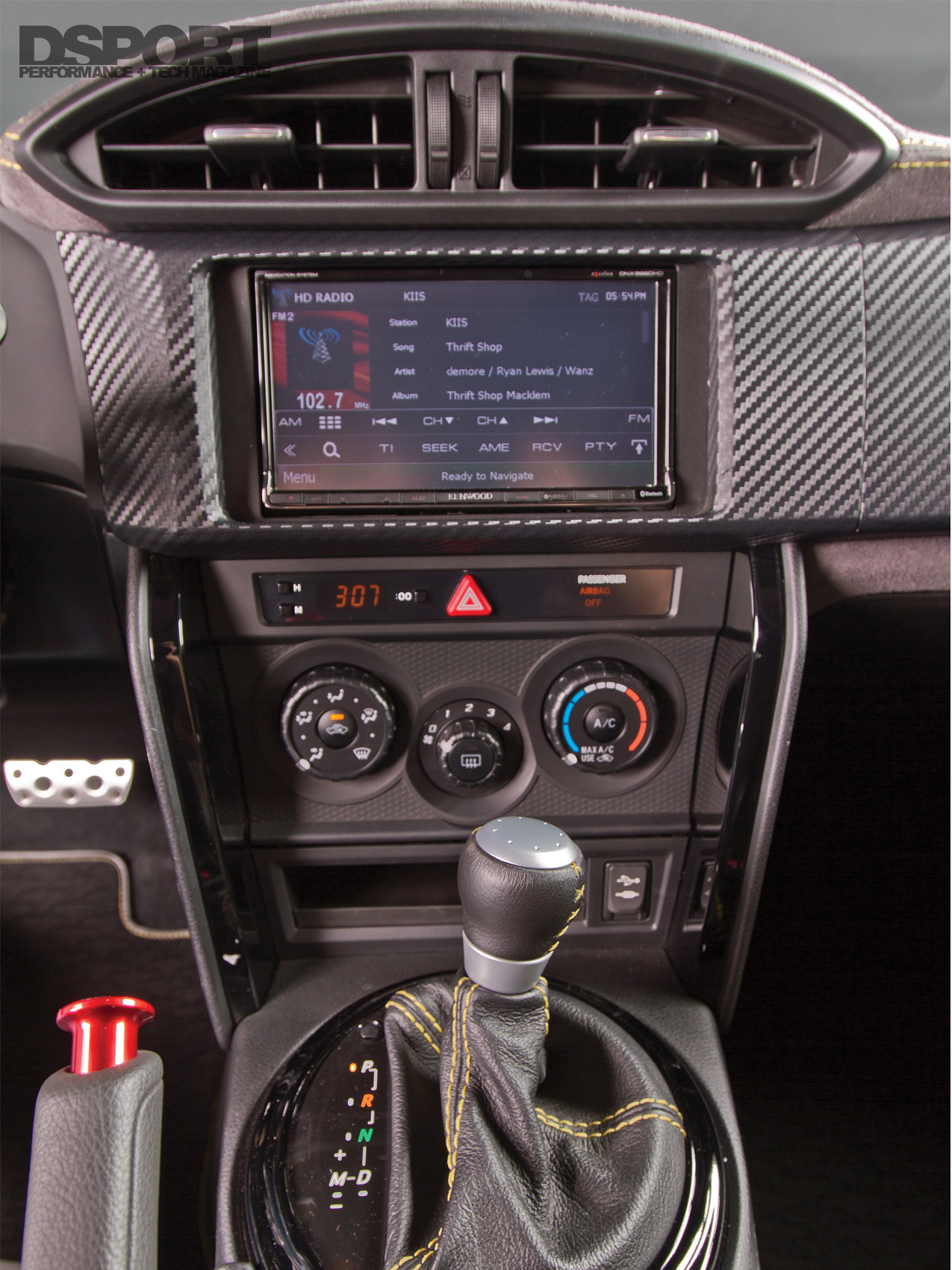

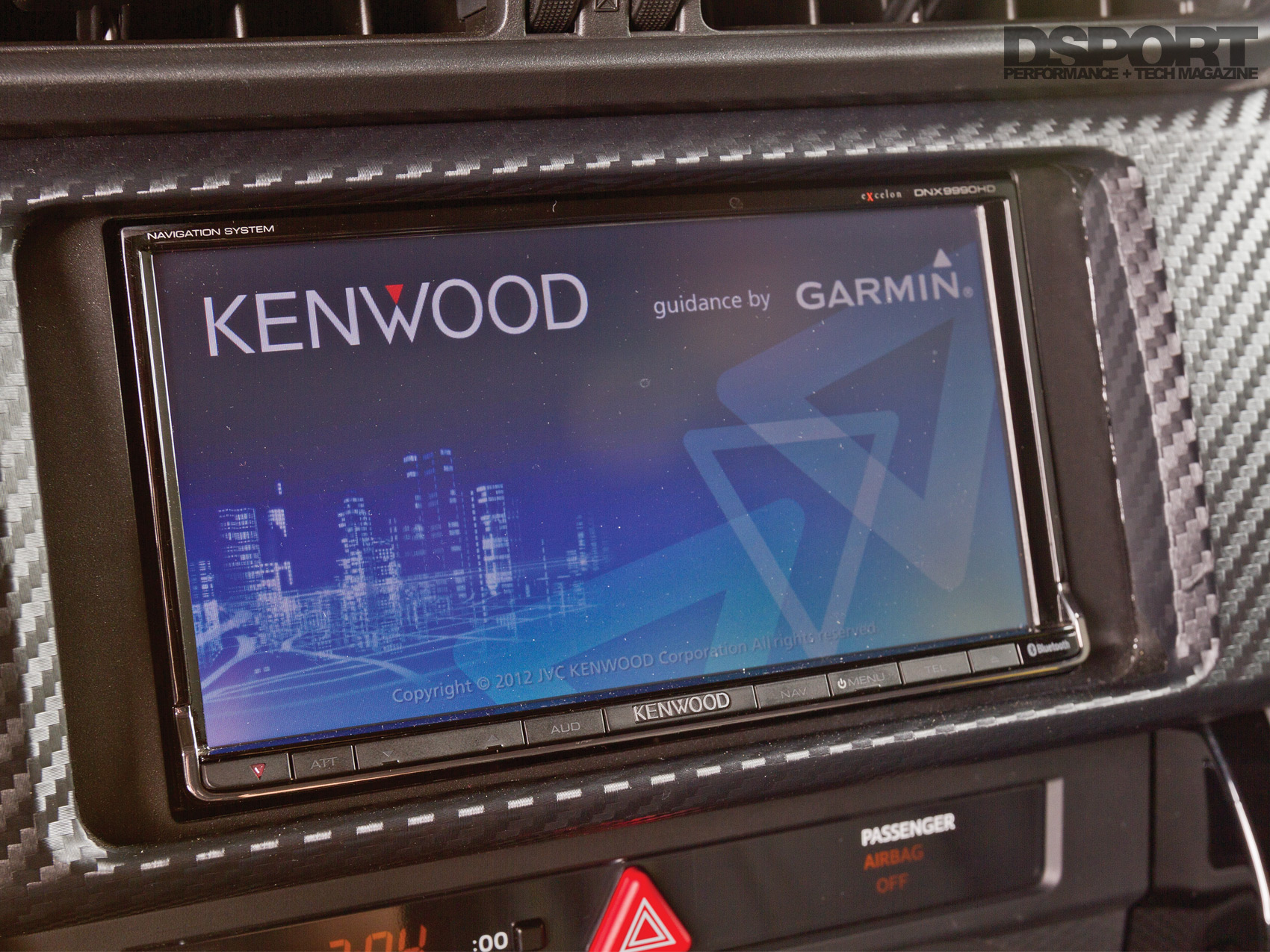

| Etc.: | Kenwood DNX9990HD Navigation Head Unit |

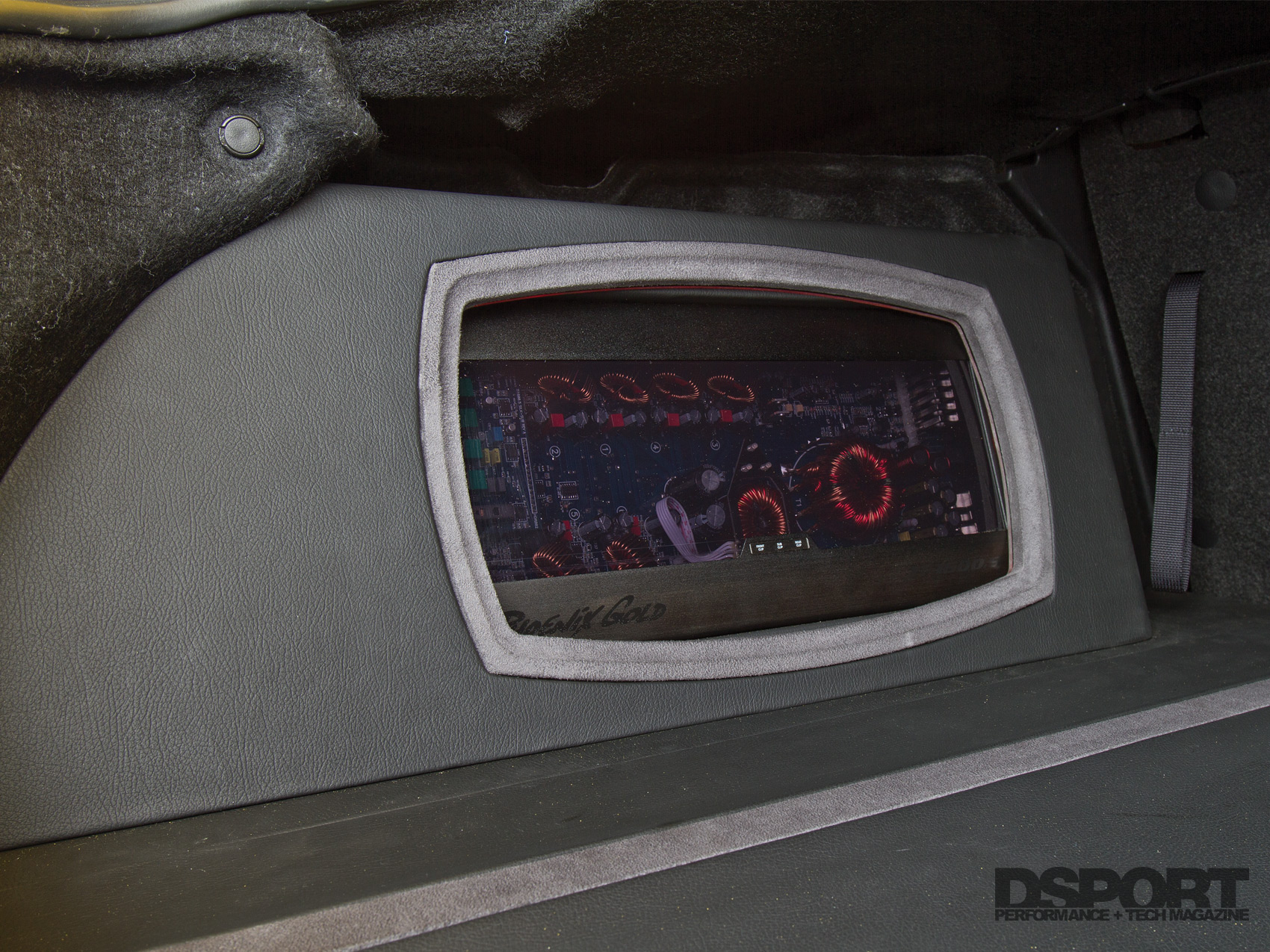

| Phoenix Gold Ti21600.5 Amplifier | |
| Phoenix Gold Component Speaker System | |

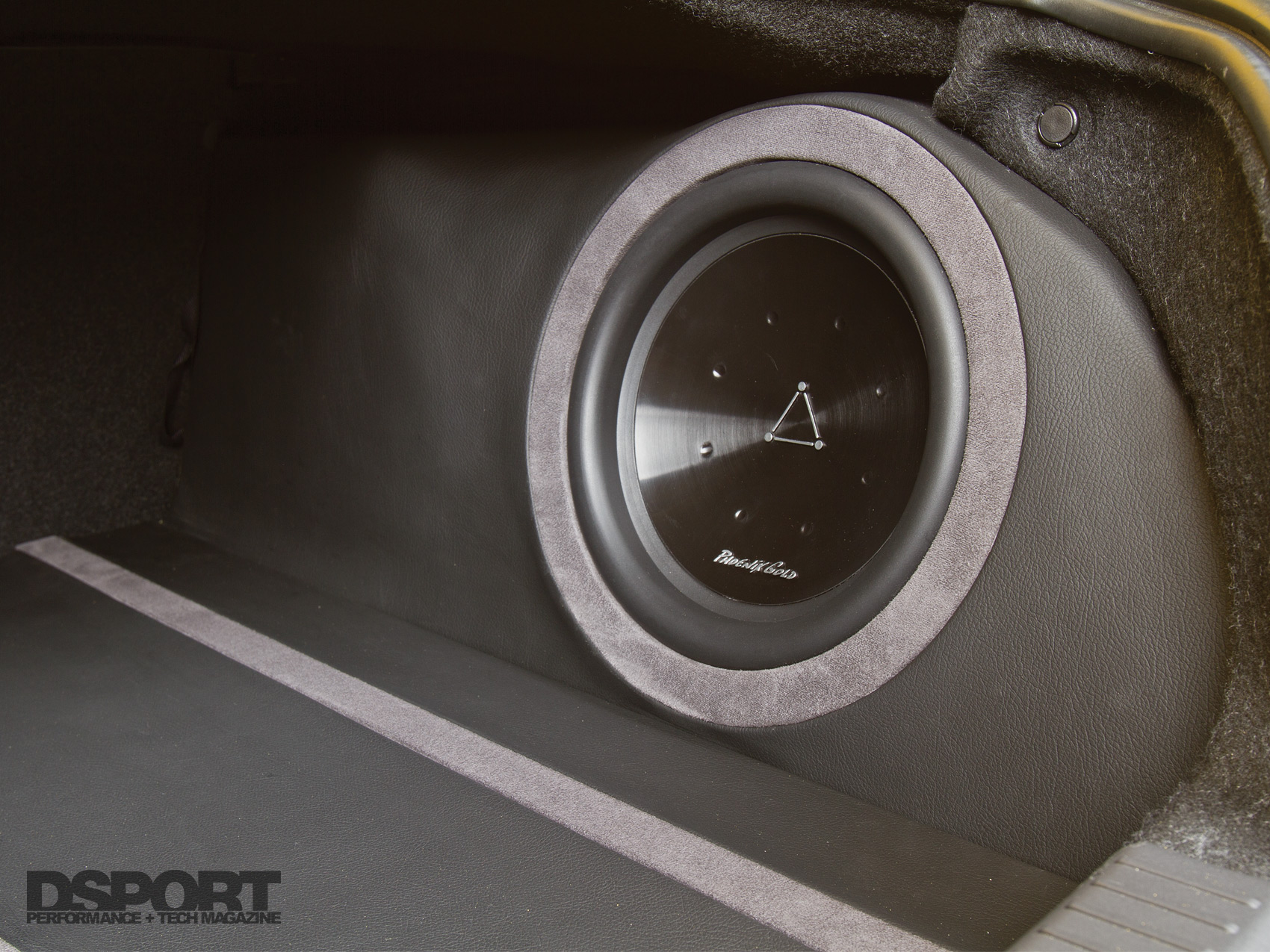

| Phoenix Gold Ti210 10-inch Subwoofer | |
| Custom Enclosures by Shoreline Motoring |

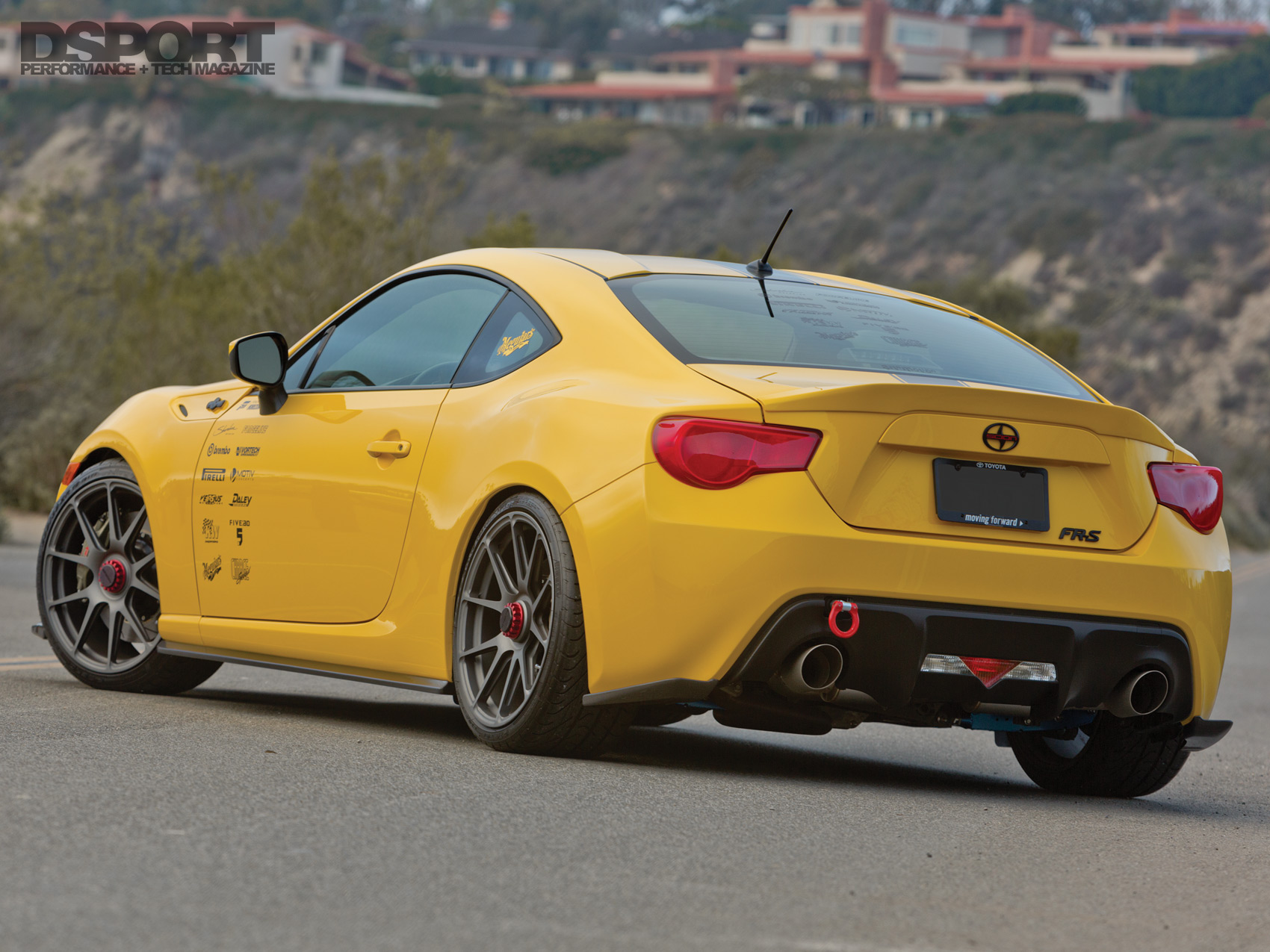

| EXTERIOR | |
|---|---|
| Front Lip Spoiler: | ChargeSpeed Carbon |
| Side Skirts: | ChargeSpeed Carbon |
| Rear Bumper: | ChargeSpeed Carbon |
| Spoiler / Wing: | Five:AD Trunk Spoiler |
| Headlights: | Blackened Housings |
| Taillights: | Candied Lenses |
| Paint: | Meguiar’s Fly Yellow |
| Custom Body Work: | Shoreline Motoring |
| Etc.: | Cusco Tow Hook |
