Scion FR-S/BRZ Intake Test: Pt 1 | Testing with the Factory Programed ECU

AEM logo for the FR-S/BRZ Intake ShowcaseAEM Induction Systems
Electronically Tuned Intake (ETI) SystemAEM Intake System

QUICK FACTS

Positive

+ Second Highest Horsepower in 6,500-7,000 RPM range
+ Second Highest Horsepower in 6,000-6,500 RPM range
+ Great top-end performance
+ Very nice A/F curve that follows stock shape
+ Composite construction resists heat soak
+ Dryflow media technology
+ CARB E.O.

Negatives

– No performance gains below 5,000RPM
– Bolts on airbox are cosmetically challenged



AEM Intake System specsOverview: This AEM Electronically Tuned Intake (ETI) system is designed to use a constant tubing diameter from filter to throttle body. The ETI electronics compensate for the change in MAF signal in the larger tubing. A dry filter requires no oil (and no chance of over oiling) while the composite construction resists heat soak. This is currently the only system that we found with a CARB E.O.

Analysis: The AEM ETI system was well engineered. Fit was exceptional and the air-fuel curve was one of the smoothest seen. Power gains were best at higher engine speeds.

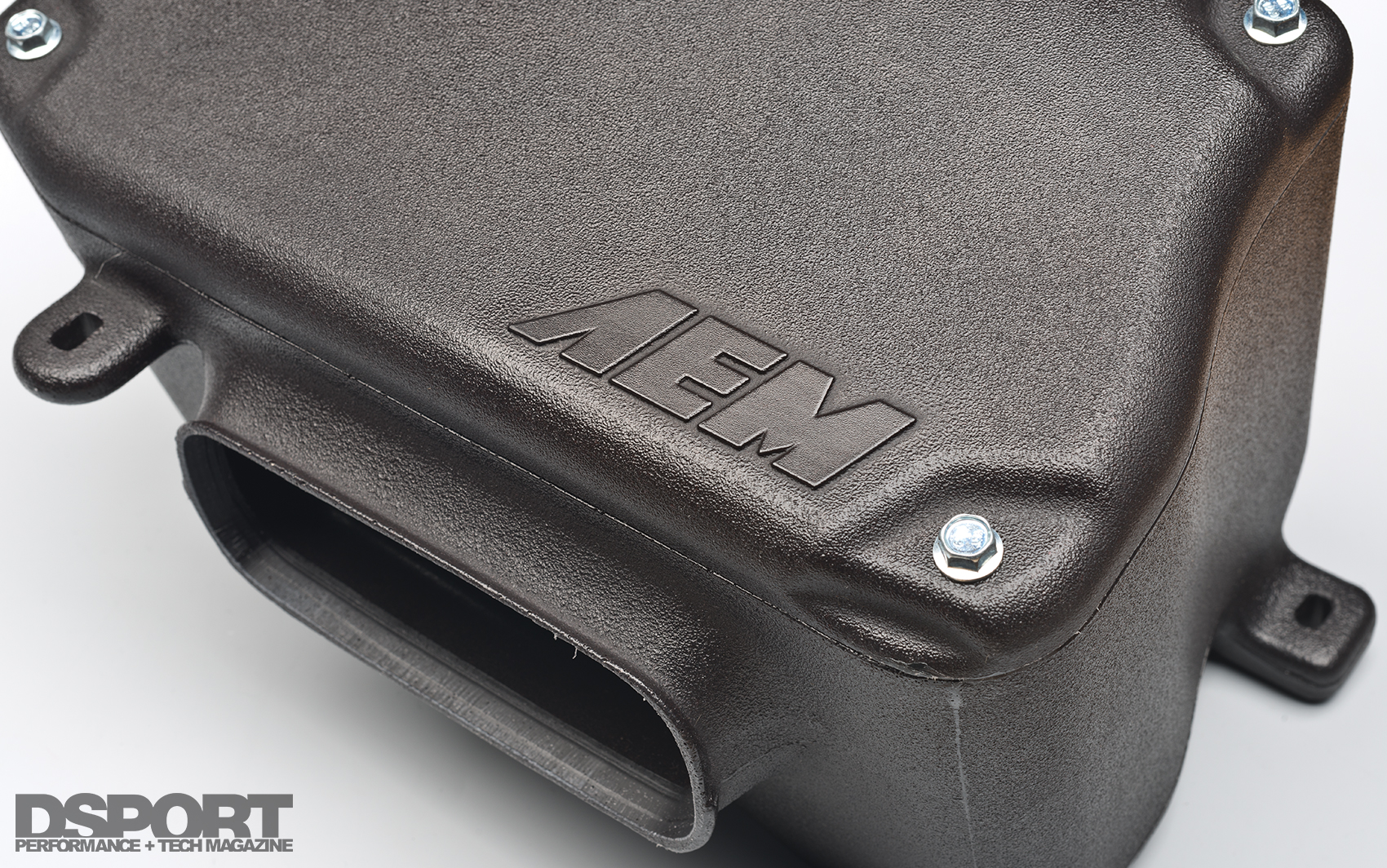

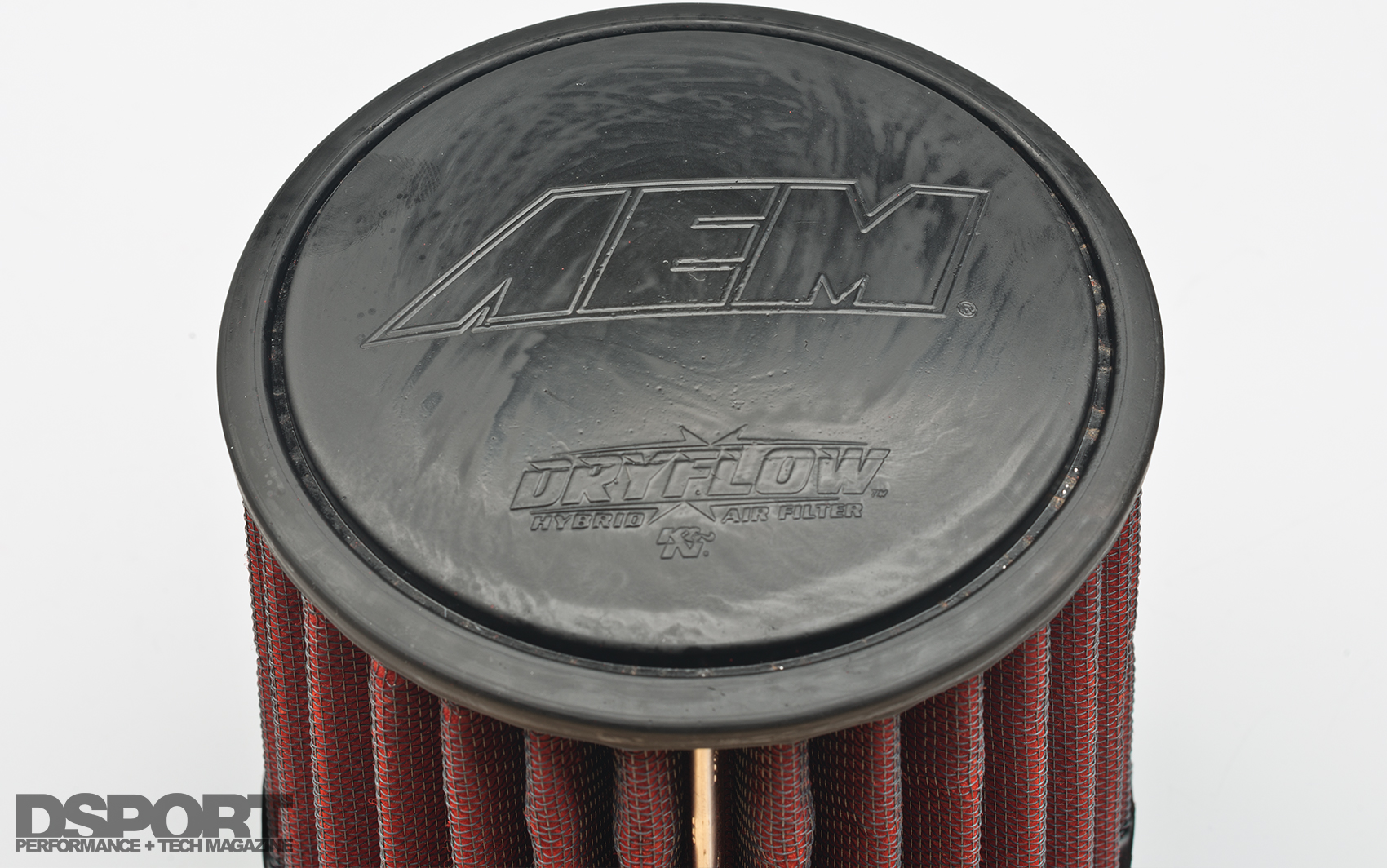

(Left) This molded inlet allows the AEM ETI to draw in cold air. (Right) Dryflow technology means no oil and no chance of over oiling.

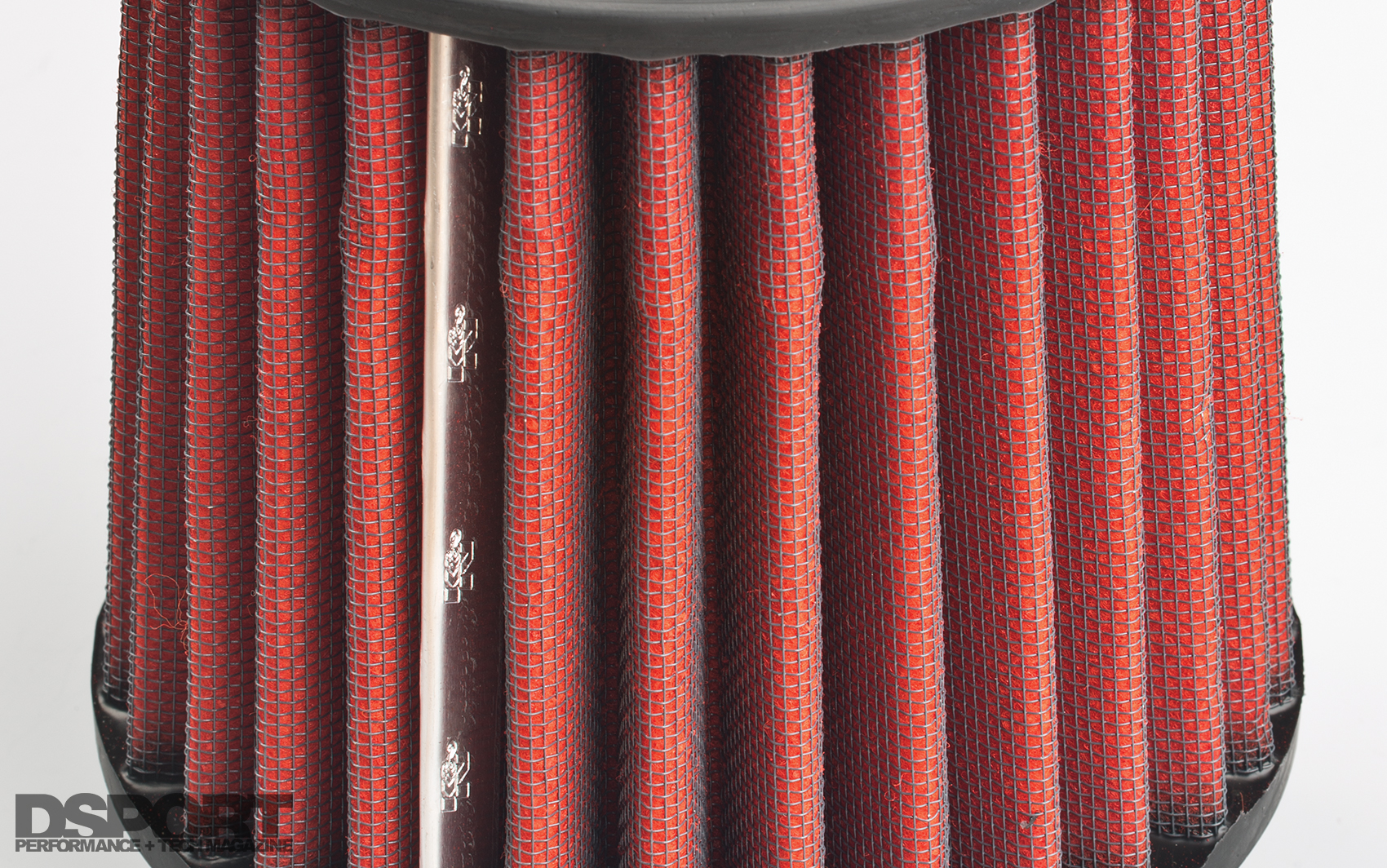

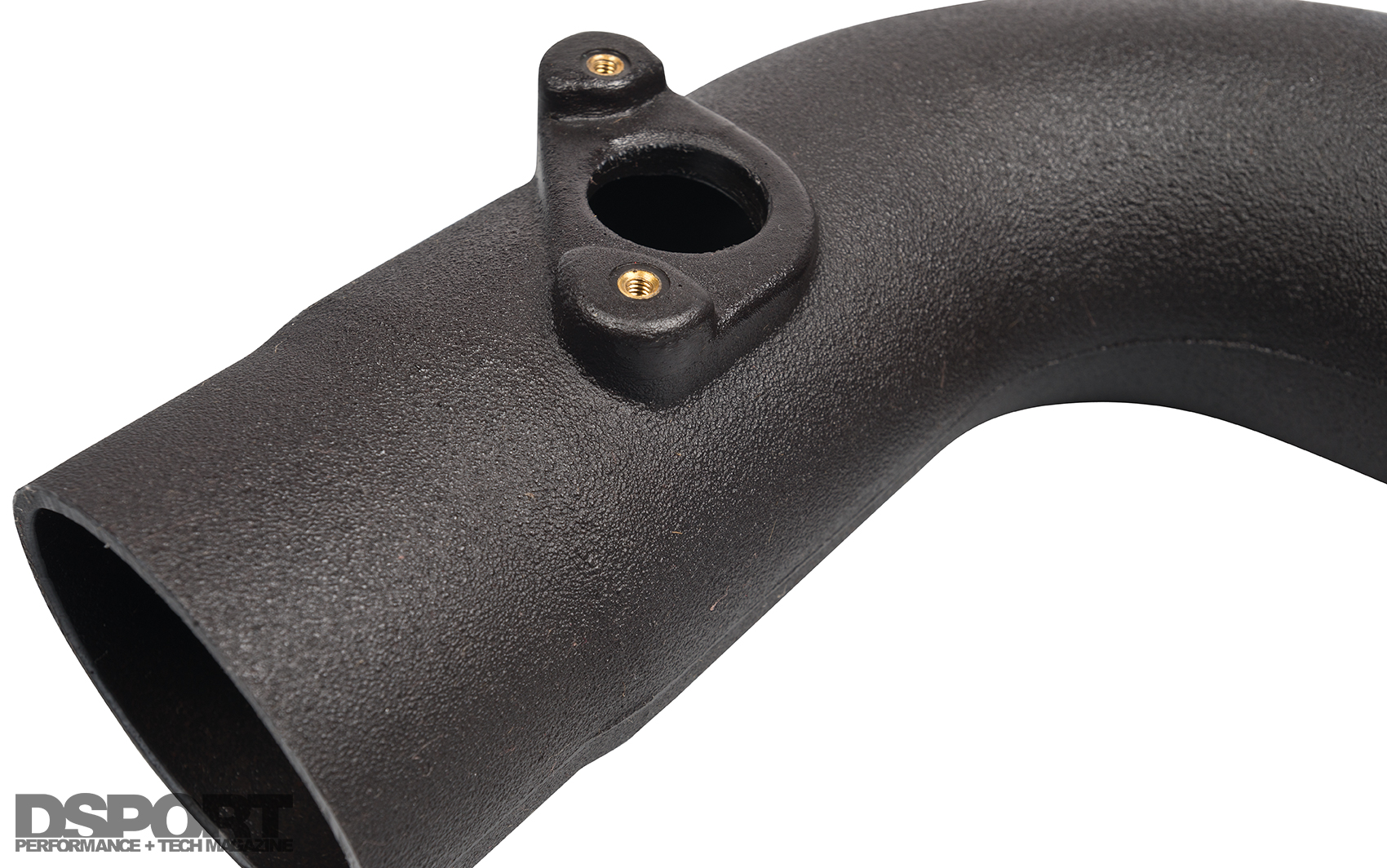

(Left) A stainless-steel screen protects the filter media. (Right) The MAF sensor is placed in a 70mm location. The ETI module corrects the calibration for the larger than stock diameter.

AEM Intake System installed

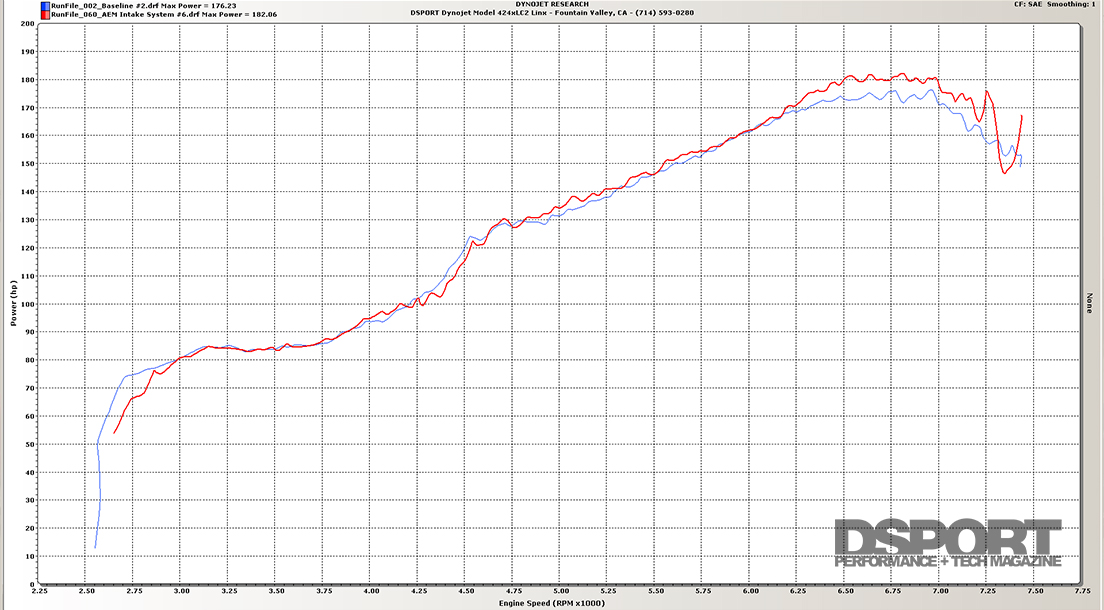

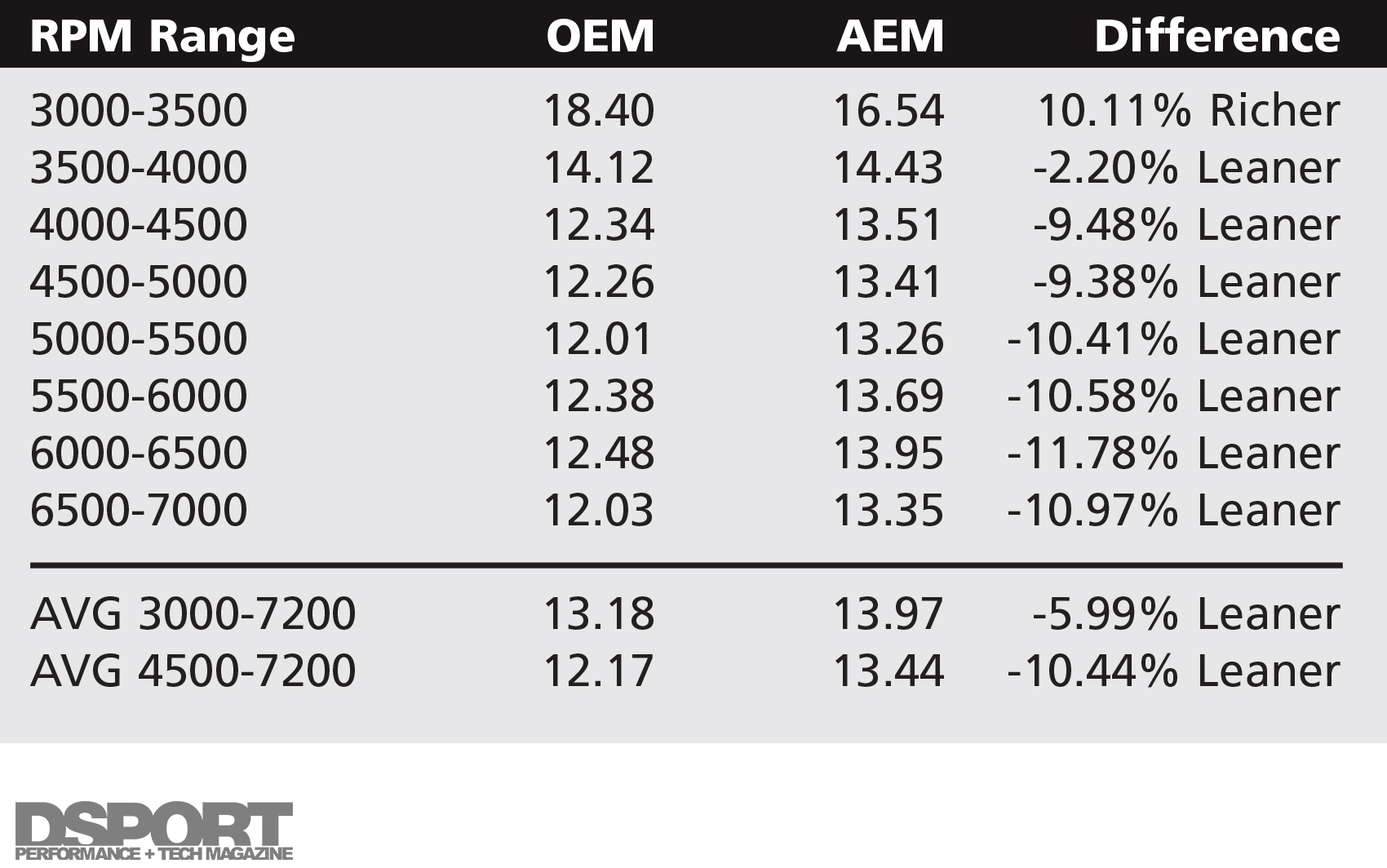

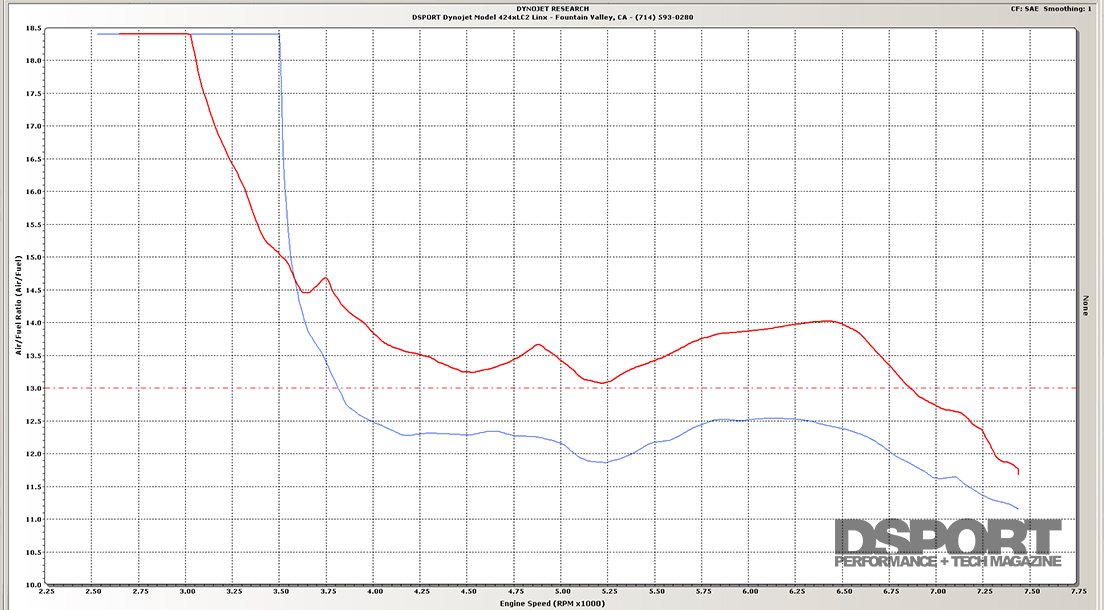

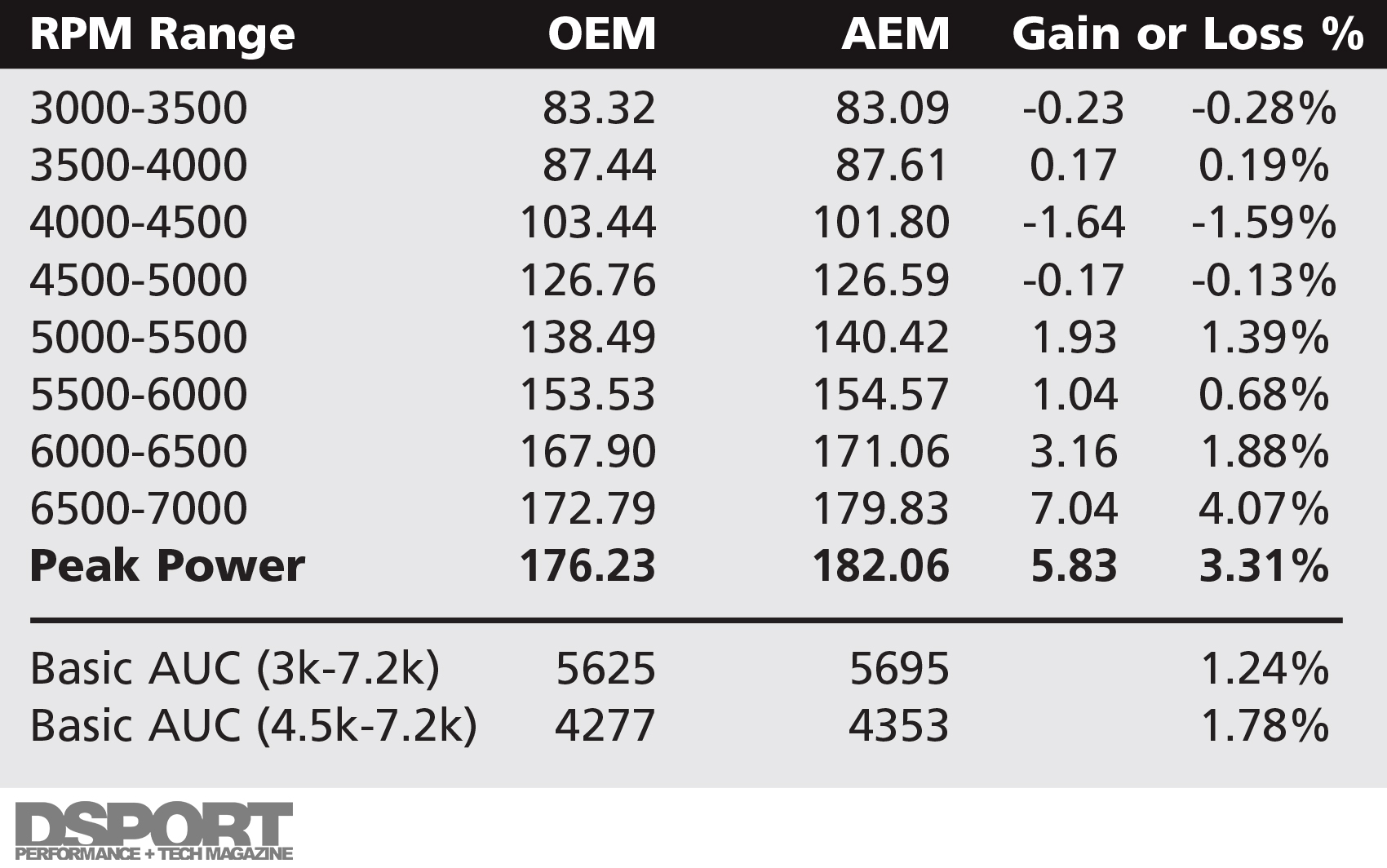

Average Horsepower + Average Air Fuel Ratio
