Weapon R logo for the FR-S/BRZ Intake ShowcaseWEAPON-R

Secret Weapon Intake SystemWeaponR Intake System for the FR-S/BRZ

QUICK FACTS

Positive

+ Highest Horsepower in 5,500-6,000 RPM range
+ Second Highest Horsepower in 4,500-5,000 RPM range
+ Second Highest Horsepower in 4,000-4,500 RPM range
+ Adds power from 3,500 to 6,500 RPM

Negatives

– Fitment is challenging
– MAF sensor needs spacers
– No fixed mount for intake included, rests in airbox
– Too Rich A/F ratio at High RPM for Power Loss
– Couldn’t find a way to use the cold-air tube

WeaponR Intake System for the FR-S/BRZOverview: The Secret Weapon is short ram system with a heat shield. A cold-air feeder hose can attach to the filter. A unique double tube design is used in part of the intake tube.

Analysis: The Secret Weapon intake showed some promise, but fell a bit short on some of the details. Mid-range performance gains were better than average. Unfortunately, the air-fuel ratio achieved at higher RPMs was too rich. The result was a drop in high-RPM and peak power.

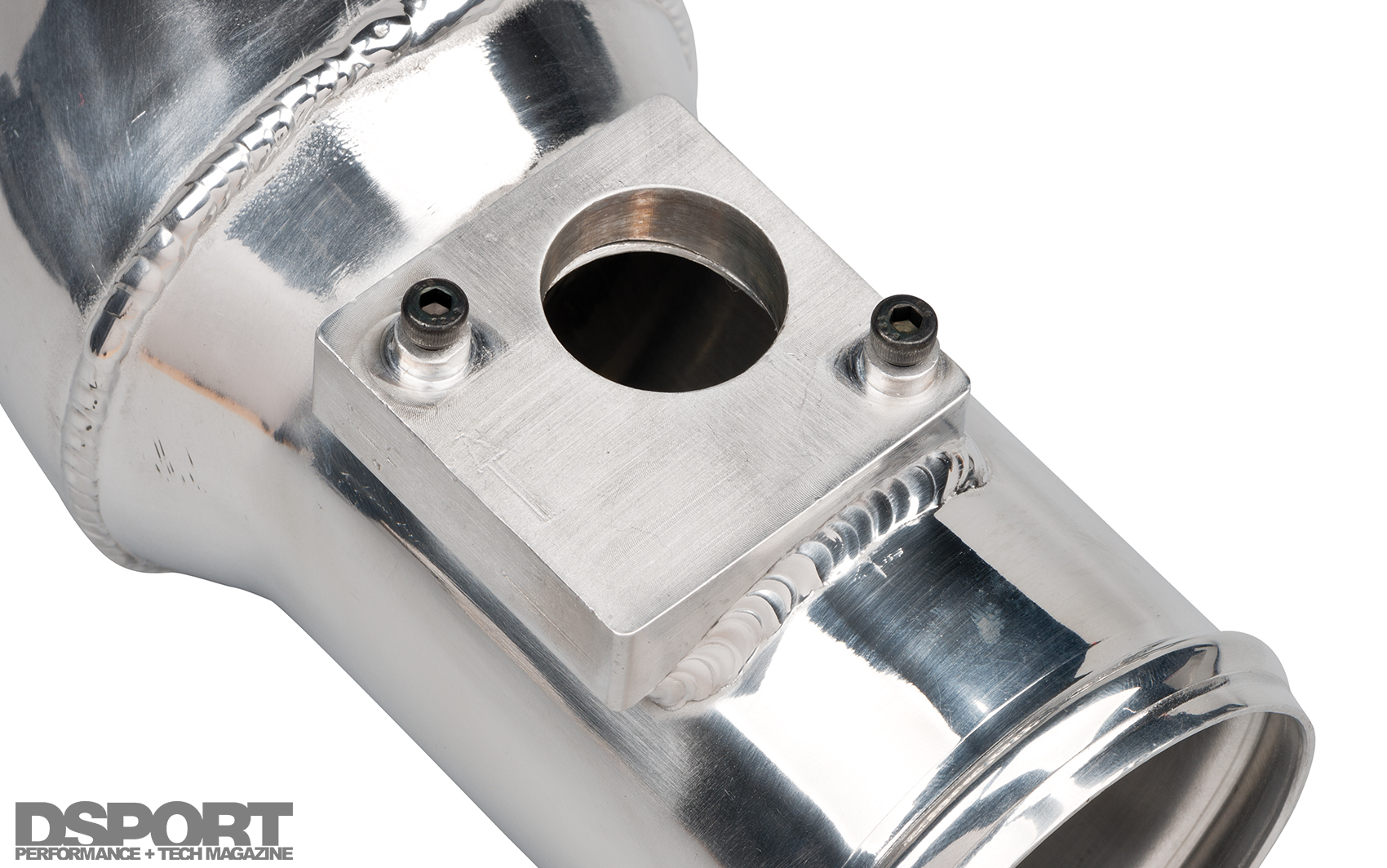

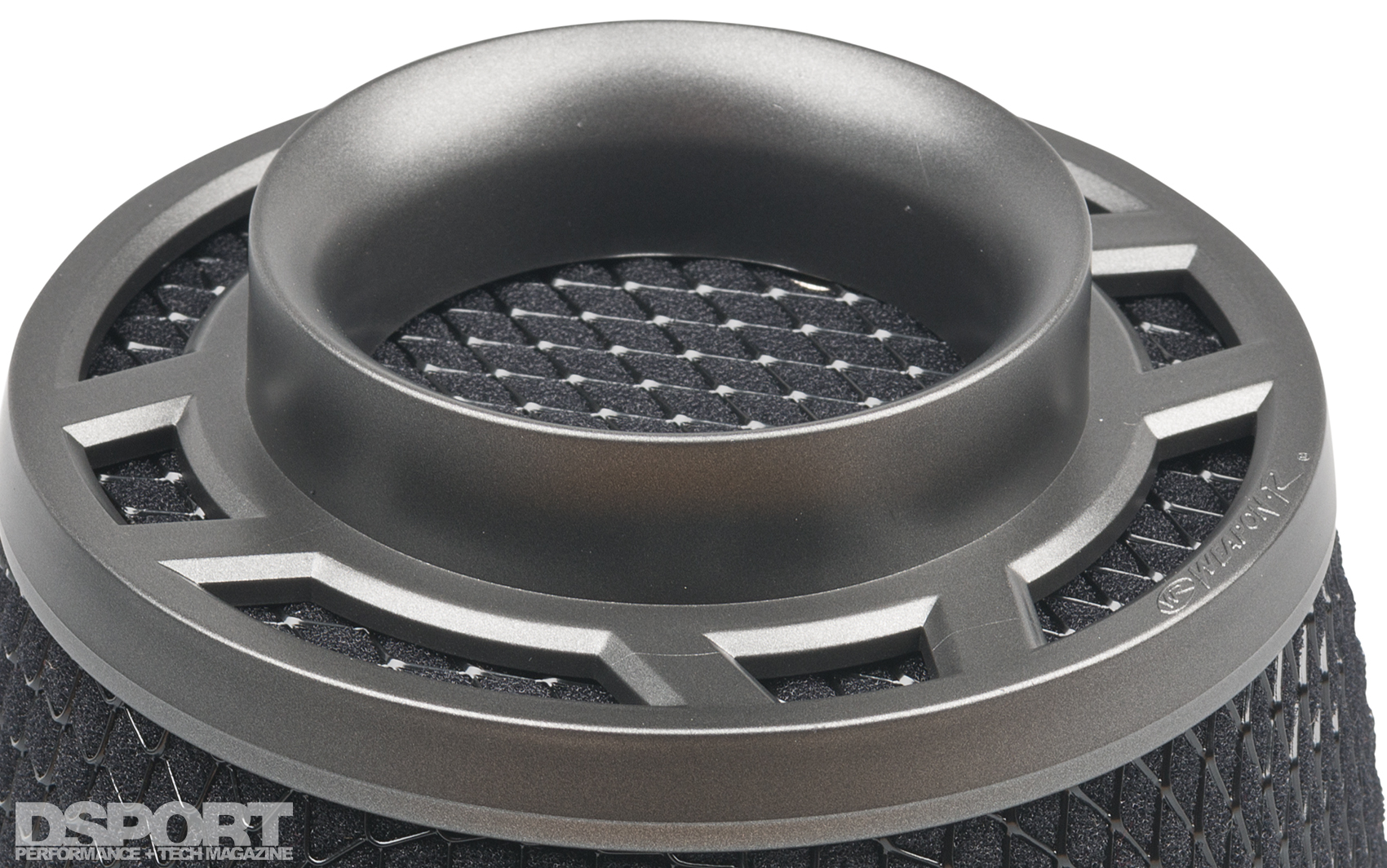

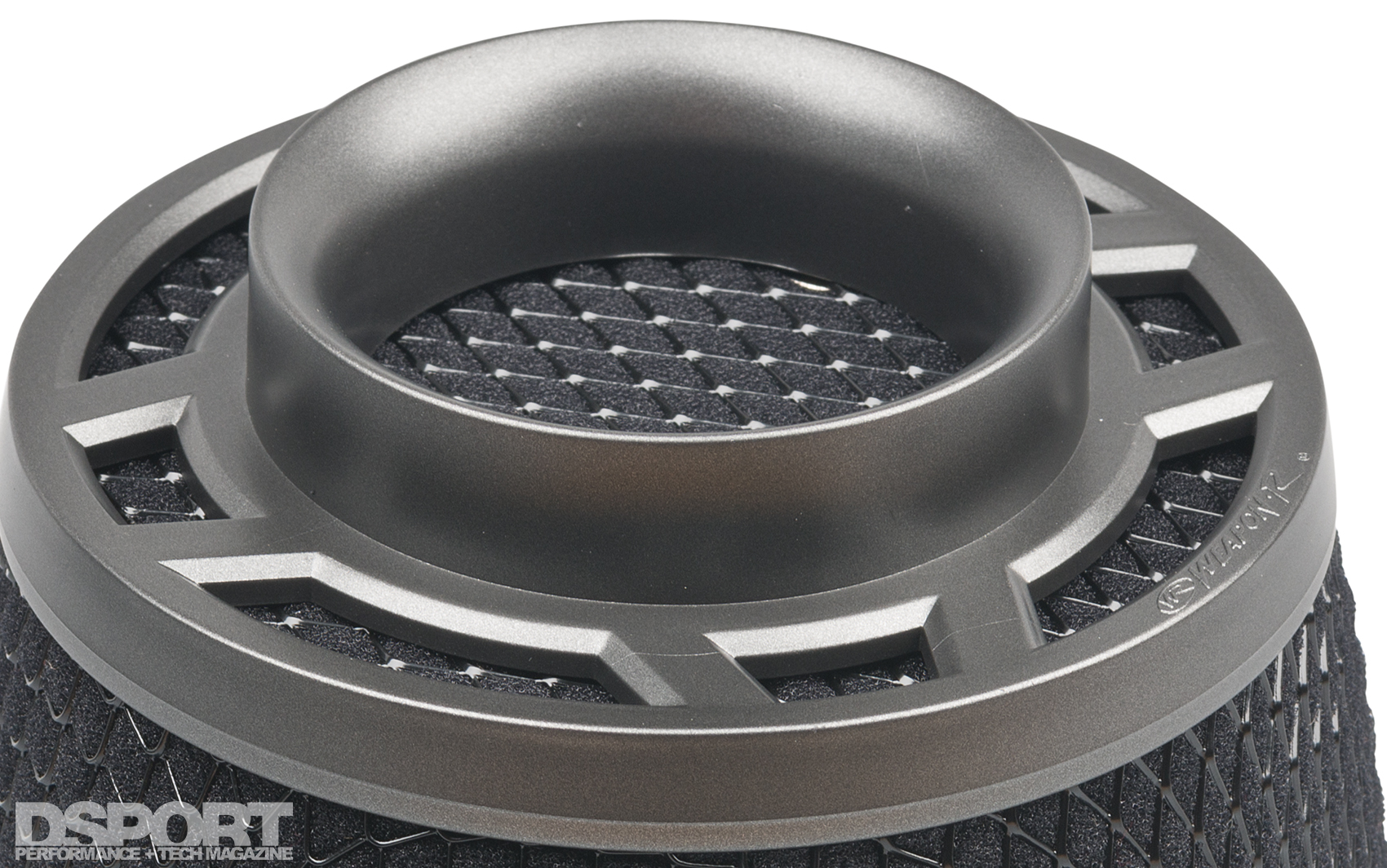

(Left) Our intake needed spacers (not included) to properly mount the sensor. (Right) This top of the filter features a funnel for the cold-air hose feed.

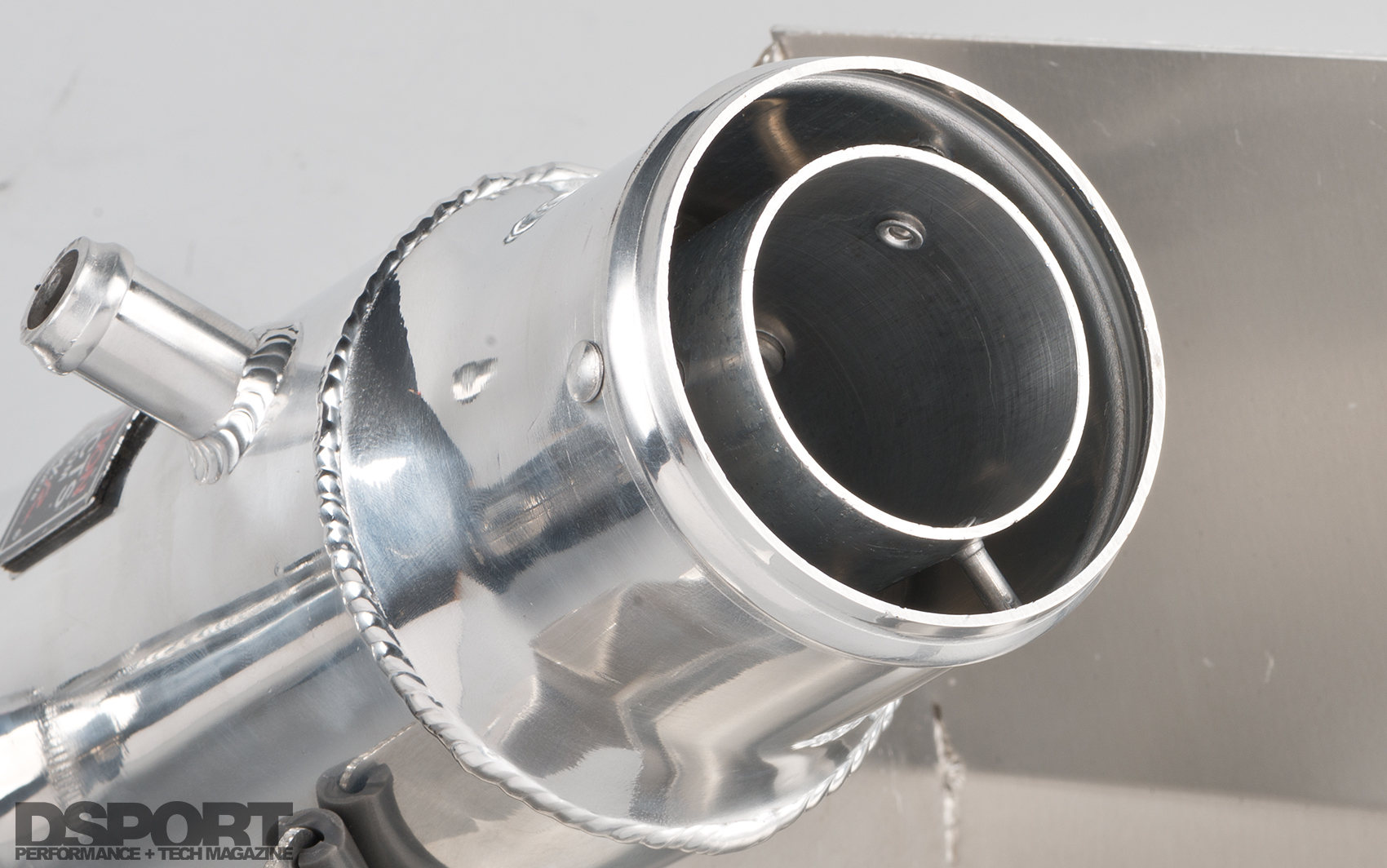

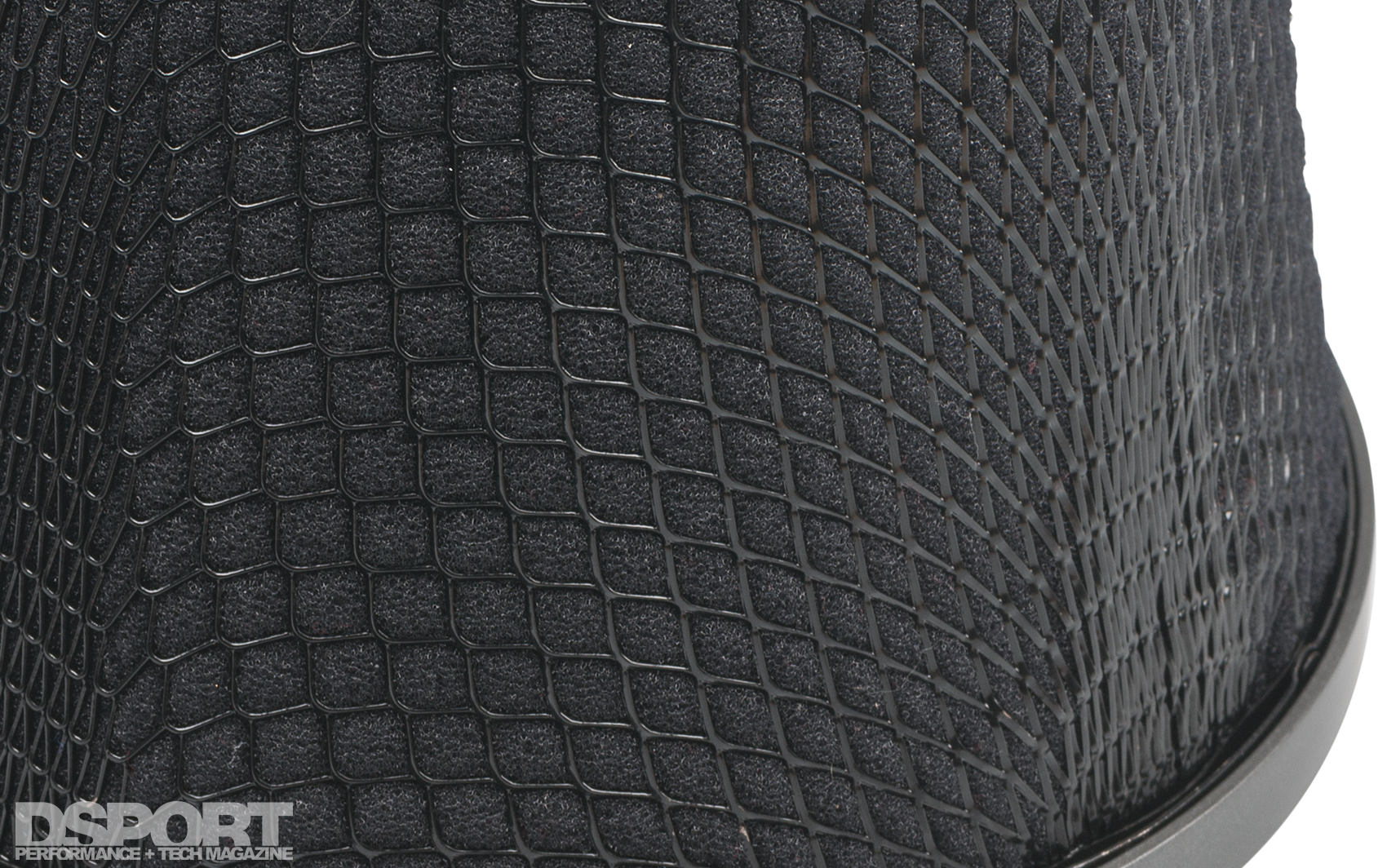

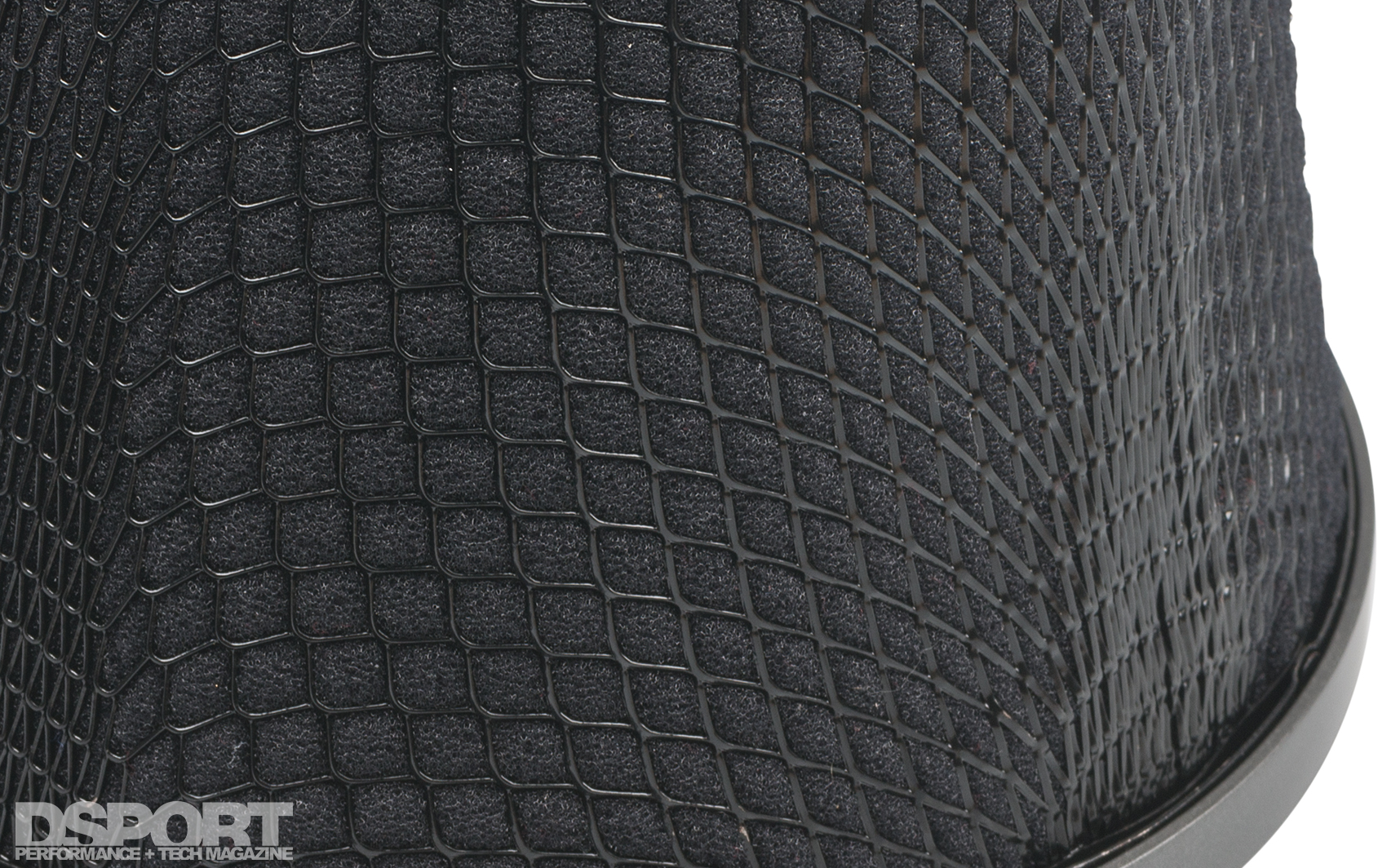

(Left) A poly foam element is supported by a metail mesh outer. (Right) A concentric inner tube is one unique feature of the Secret Weapon.

WeaponR Intake System for the FR-S/BRZ

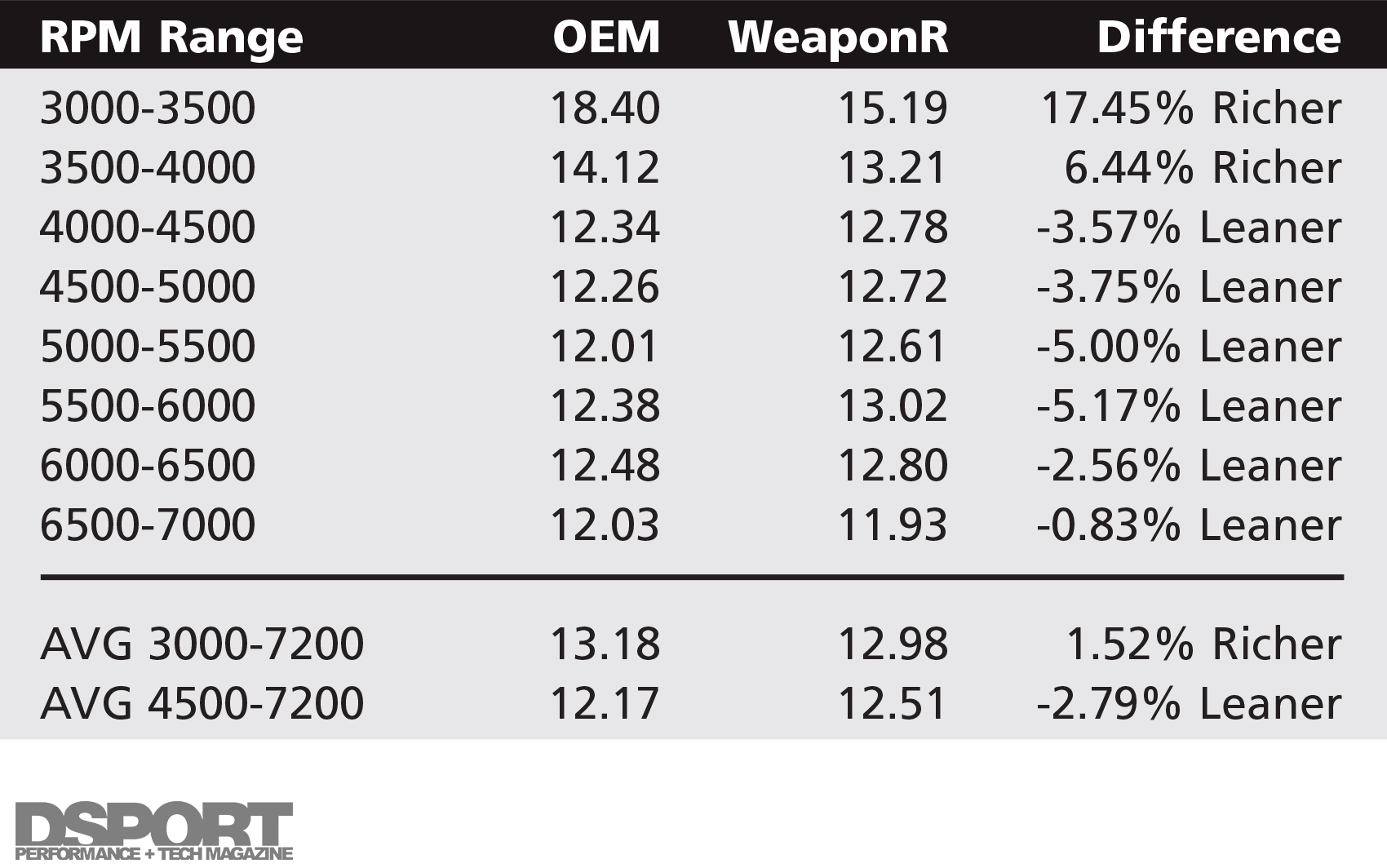

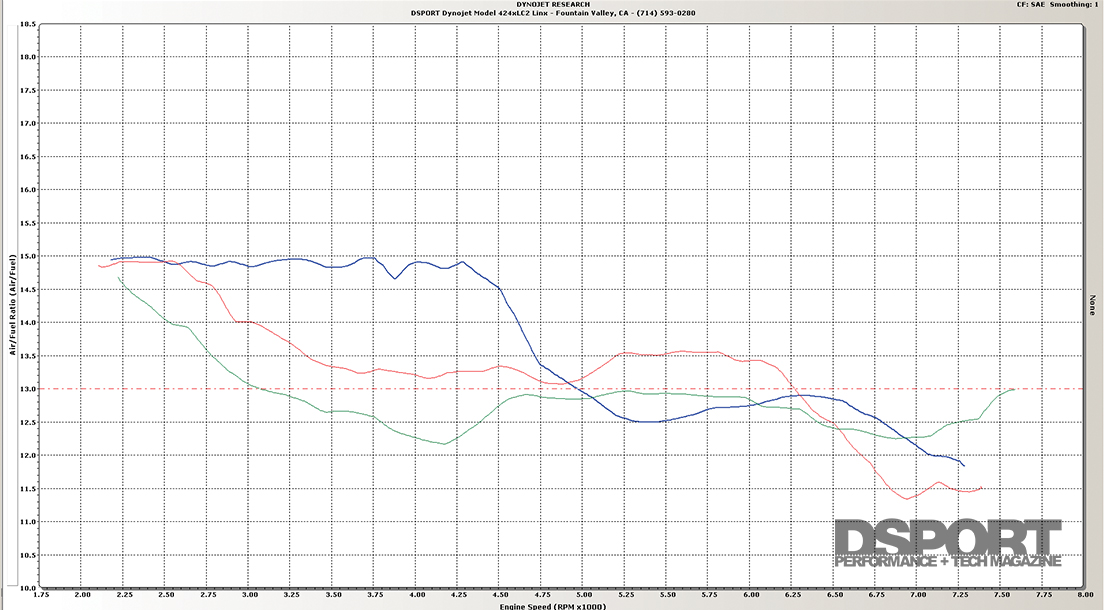

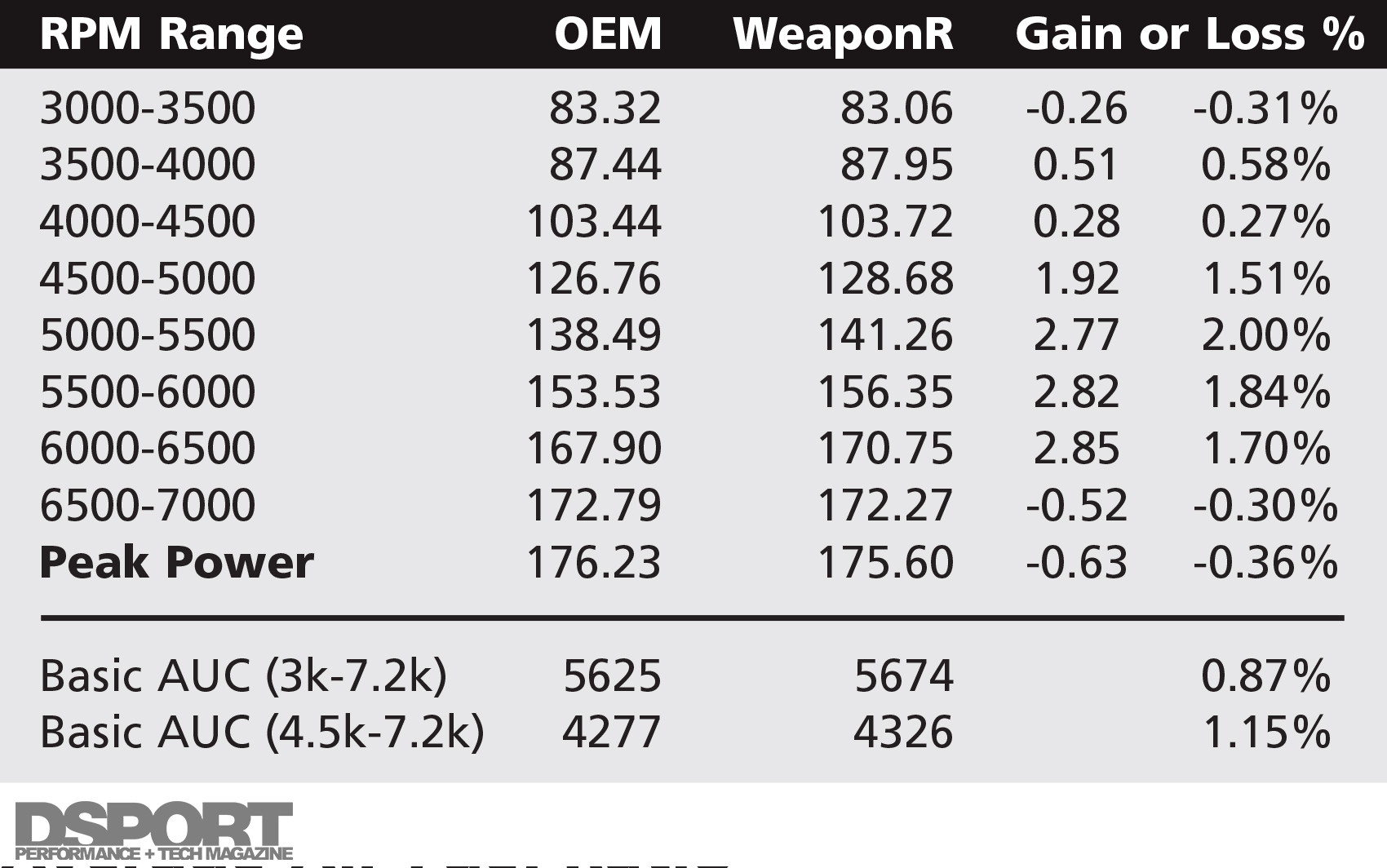

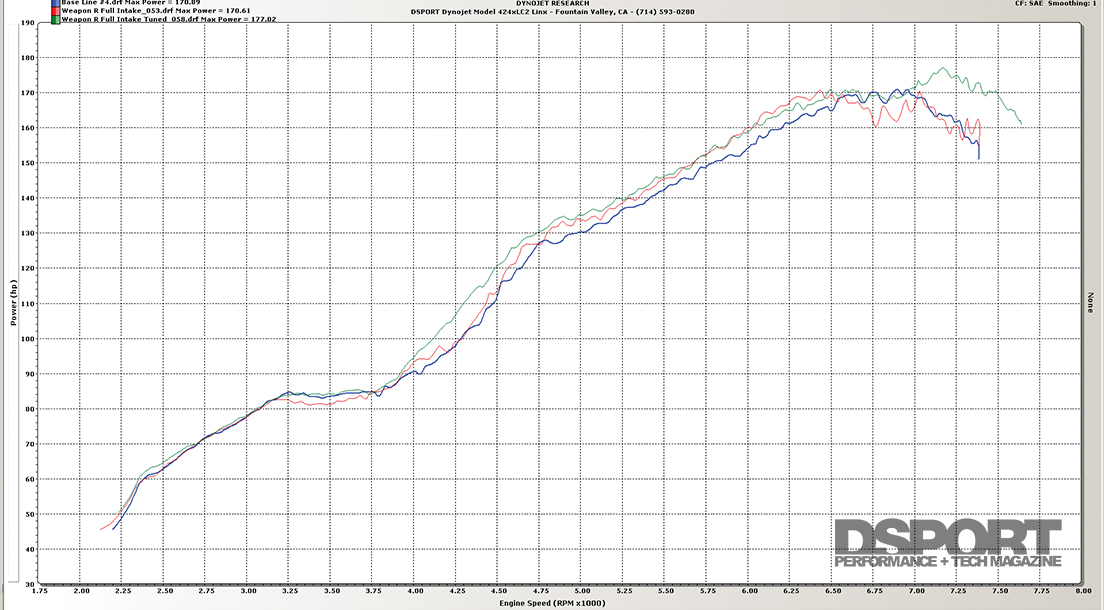

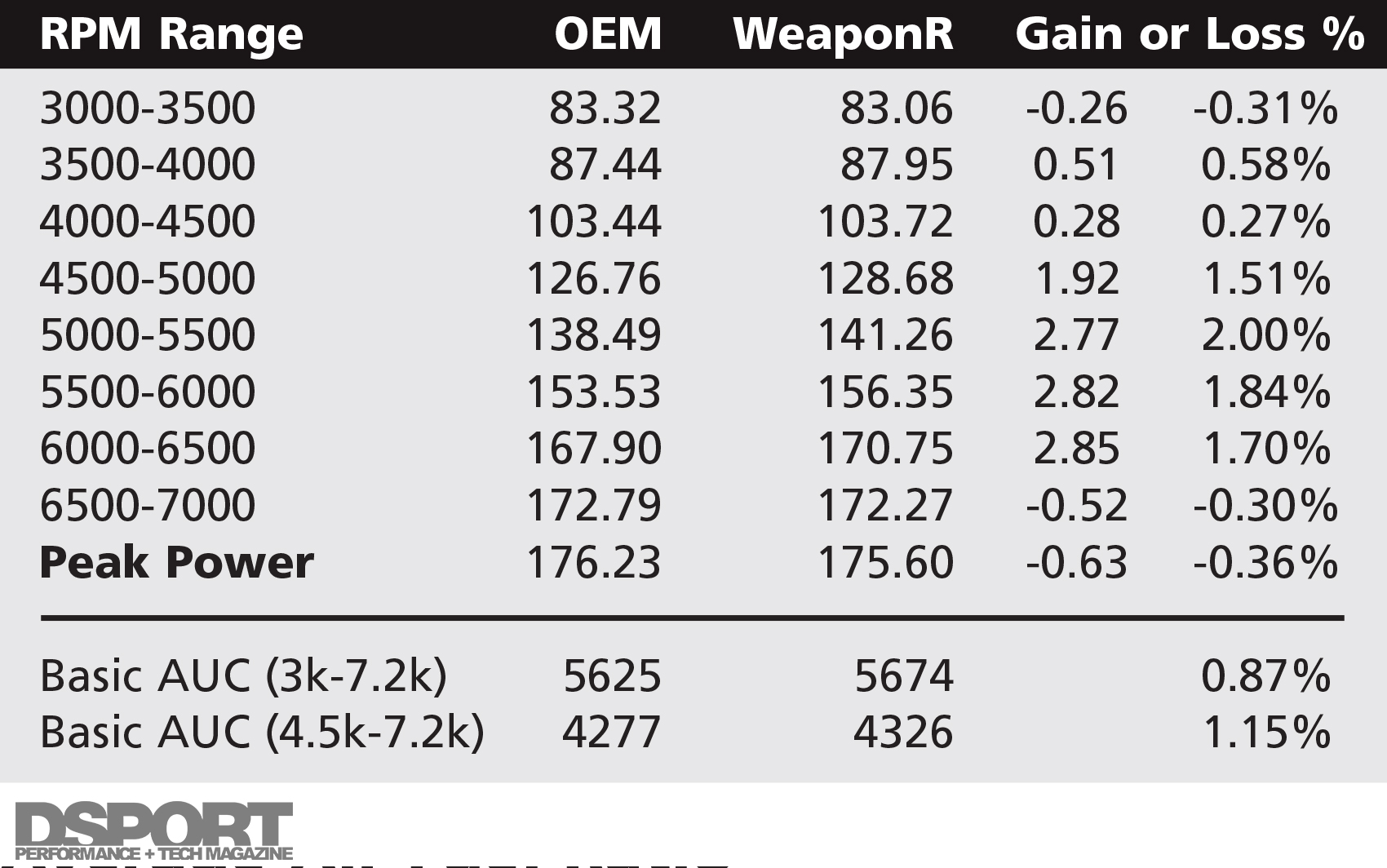

Average Horsepower + Average Air Fuel Ratio
