Scion FR-S/BRZ Intake Test: Pt 1 | Testing with the Factory Programed ECU

Blitz logo for the FR-S/BRZ Intake ShowcaseBLITZ
Advanced Power Air CleanerBlitz Intake System for the FR-S/BRZ

QUICK FACTS

Positive

+ Highest Horsepower in 6,500-7,000 RPM range
+ Highest Peak Horsepower Gain
+ Increased Power from 3,500-to-Redline
+ Very nice A/F curve that follows stock shape
+ Truly Unique Look
+ Option to keep or delete factory “sound tube”

Negatives

– Stainless-steel mesh may sacrifice filtration over OEM
– Mounting may be prone to rattle
– Tie-wrap and one bolt secures heat shield

Blitz Intake System for the FR-S/BRZOverview: The most expensive filter system that we tested has a rather unique look. The Advanced Power Air Cleaner was the only system to use a stainless-steel mesh filter element. The system provided a very fabricated/race look due to the brushed aluminum finish. The racing look was backed up by some of the top performance registered.

Analysis: The performance delivered by this system was impressive. We’d like to see a bit better retention method for the heat shield and perhaps a second filter option for those living in the dust bowl.

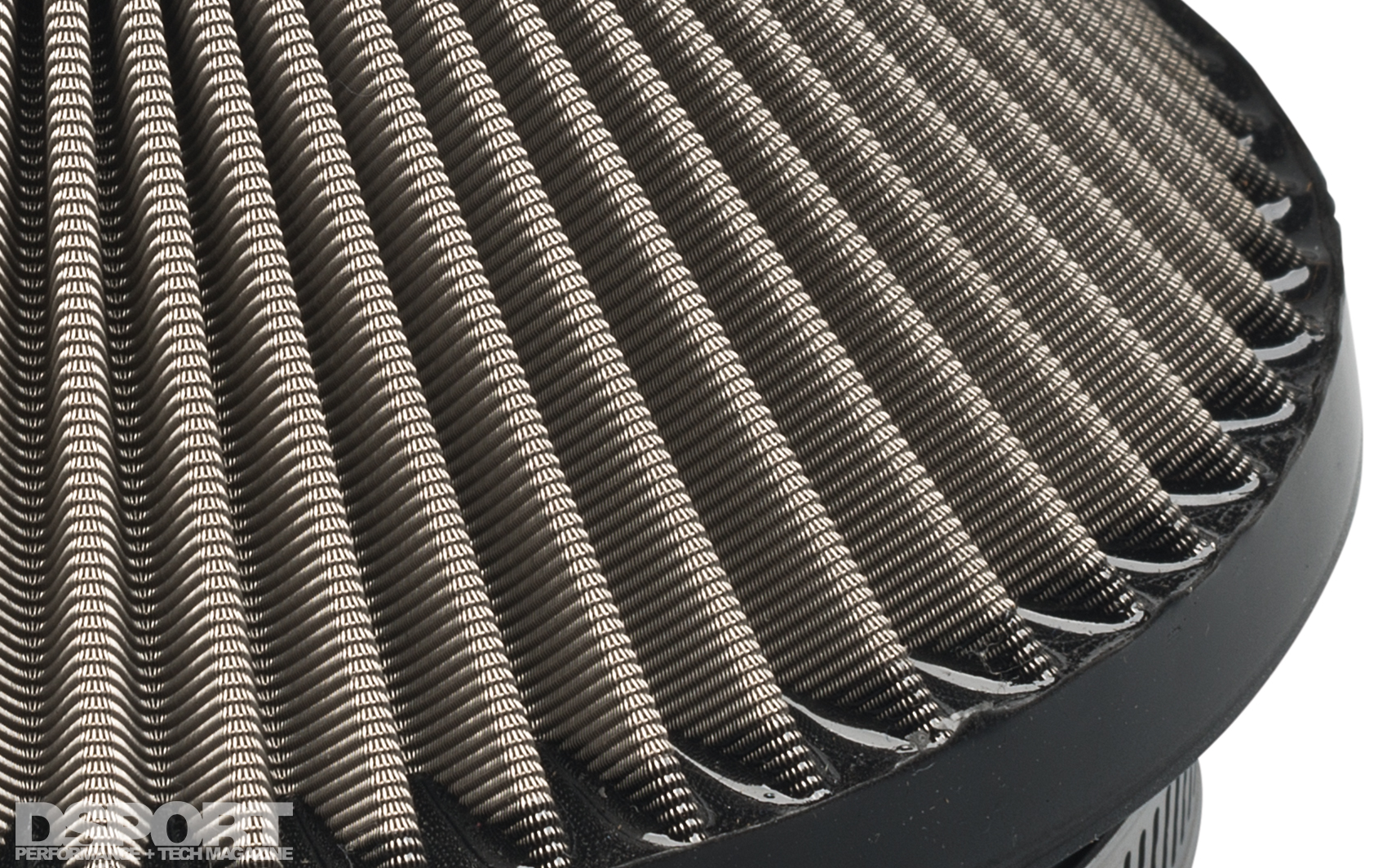

(Left) The filter media is a fine stainless-steel mesh. (Right) The cooling shield protects the filter element from radiated heat.

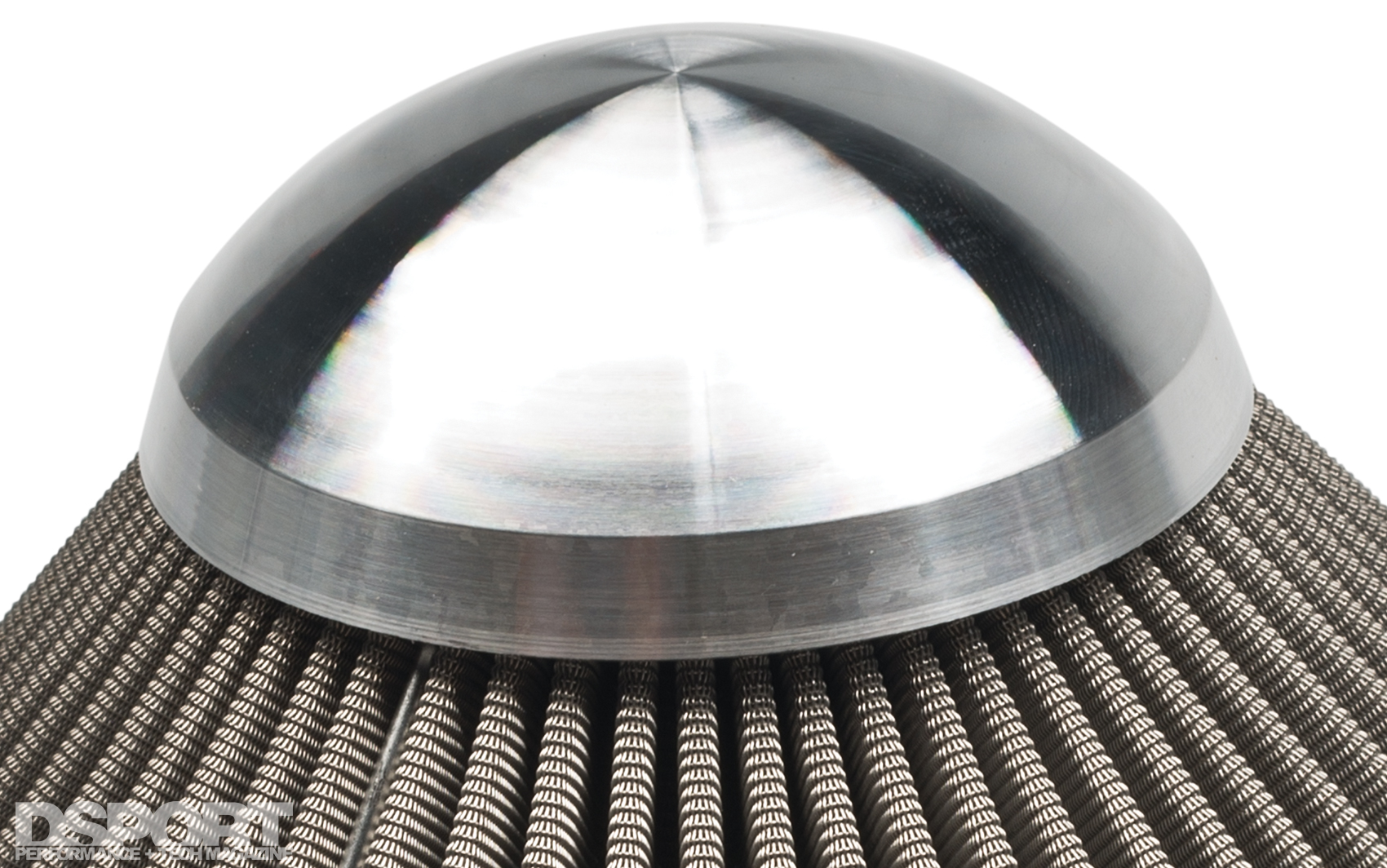

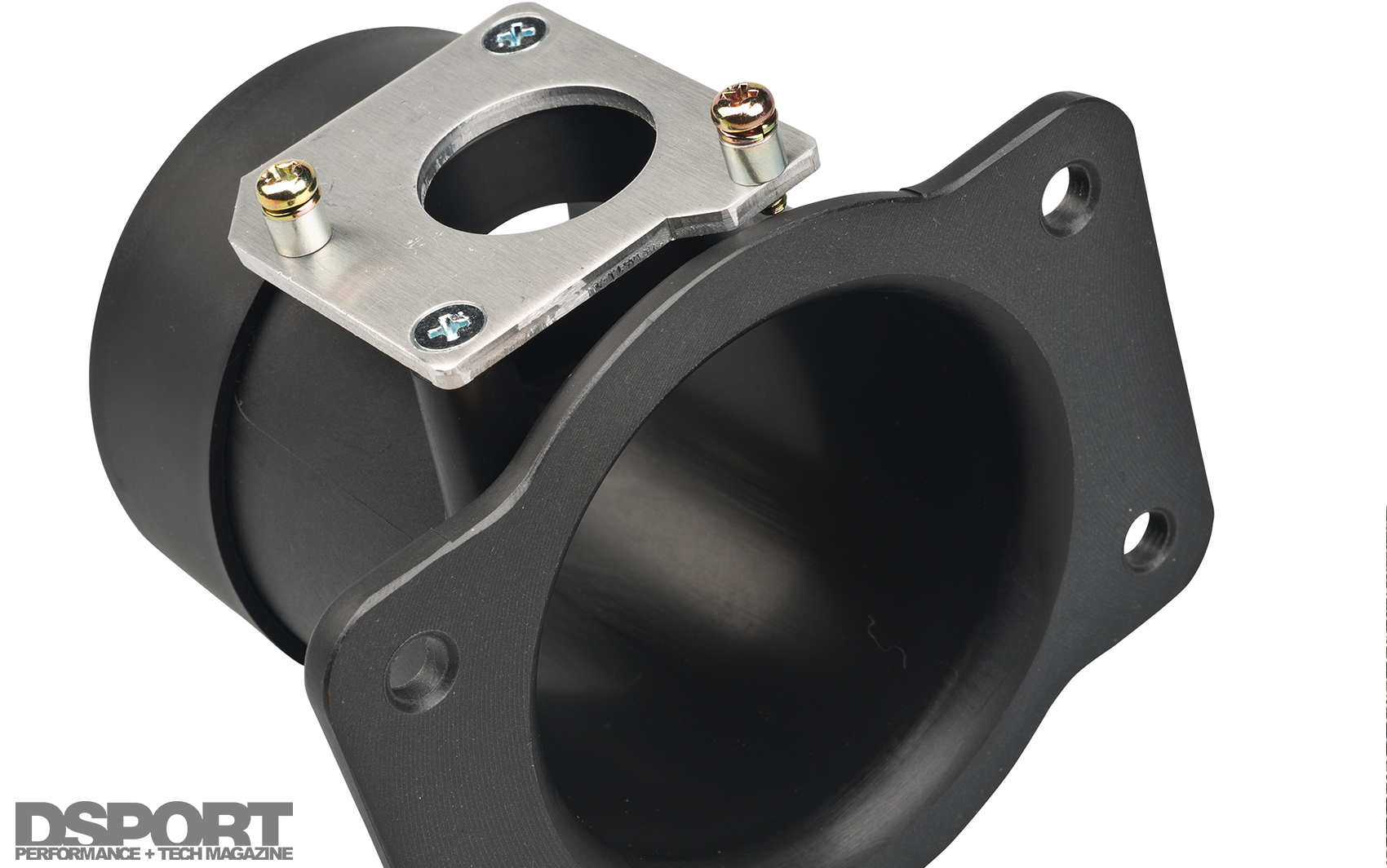

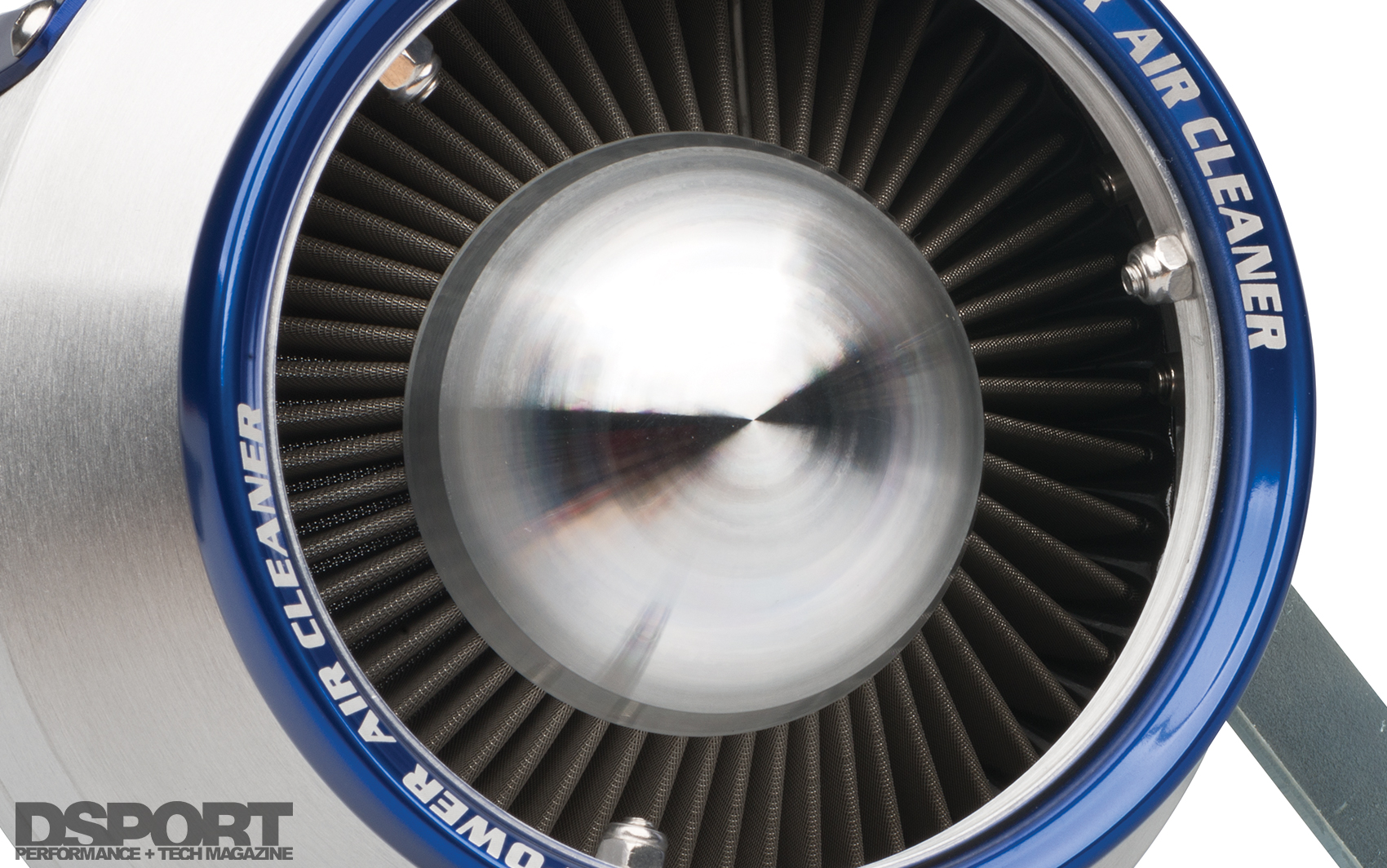

(Left) This “bullet” helps the airflow transition through the filter. (Right) The is the MAF mounting section of the intake.

Blitz Intake System for the FR-S/BRZ

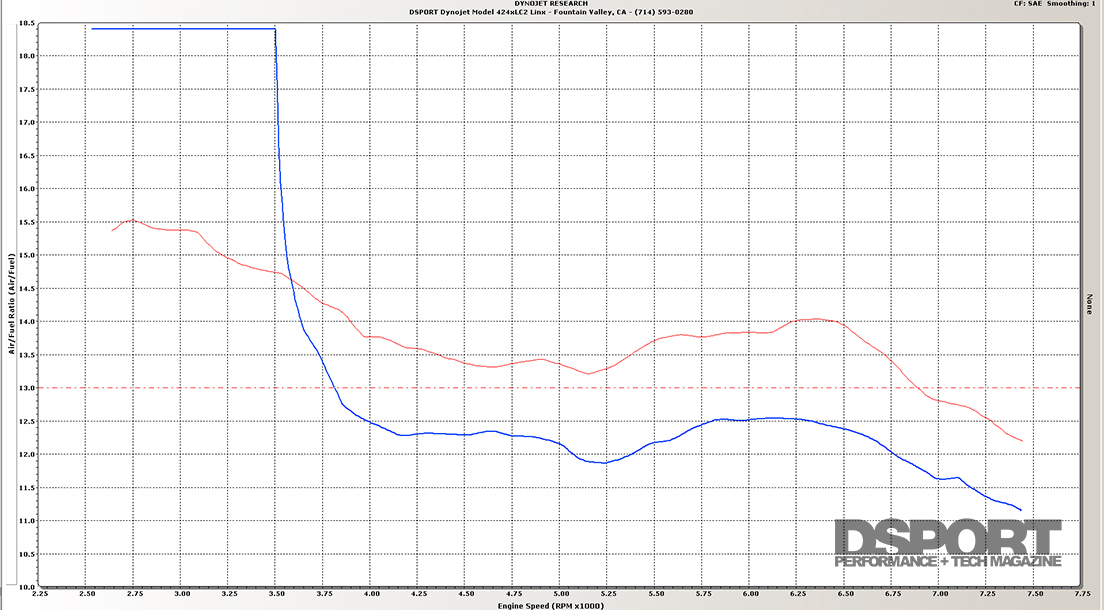

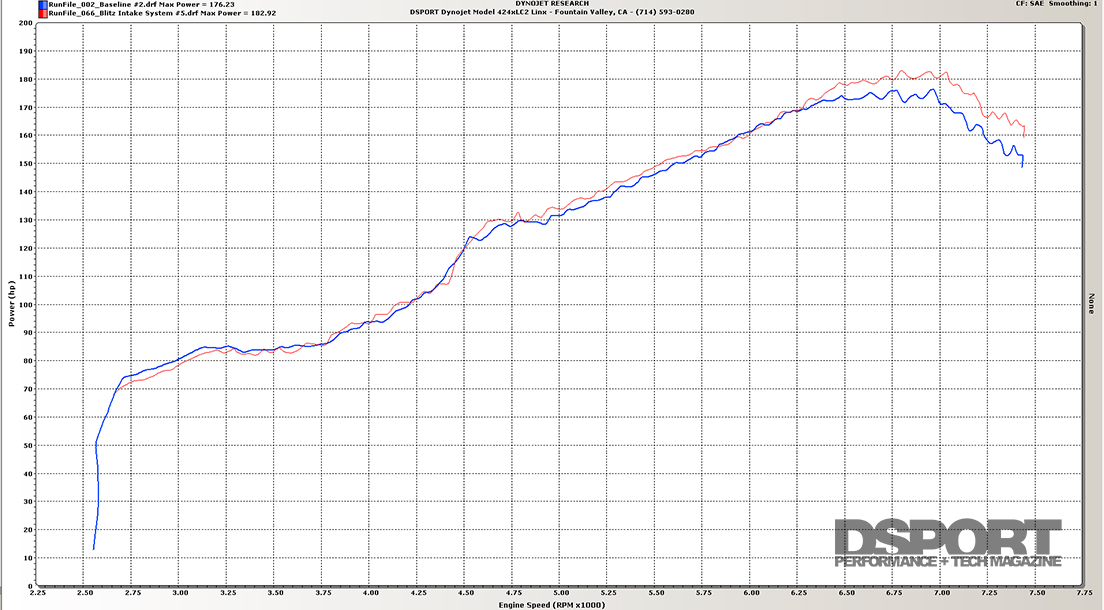

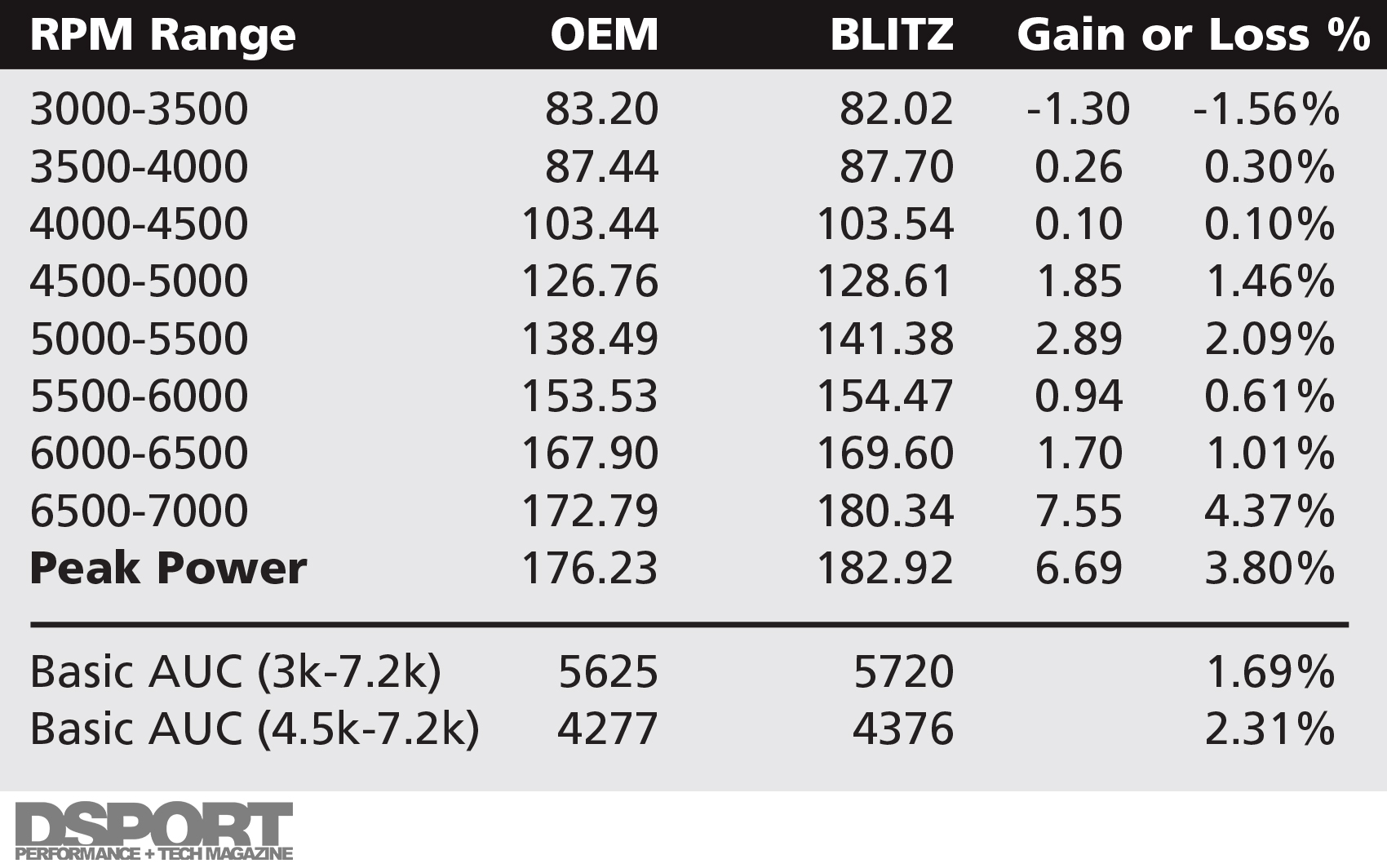

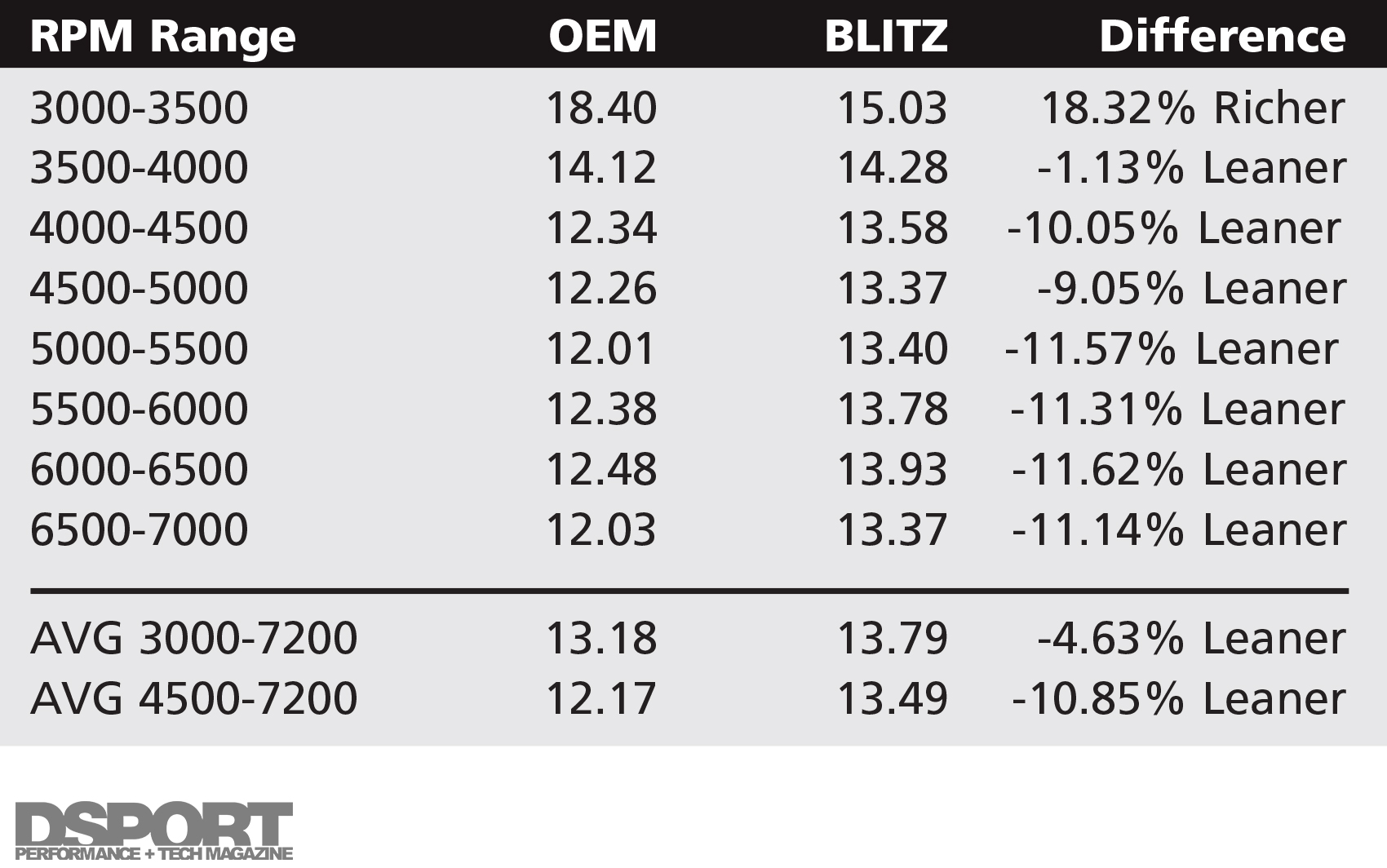

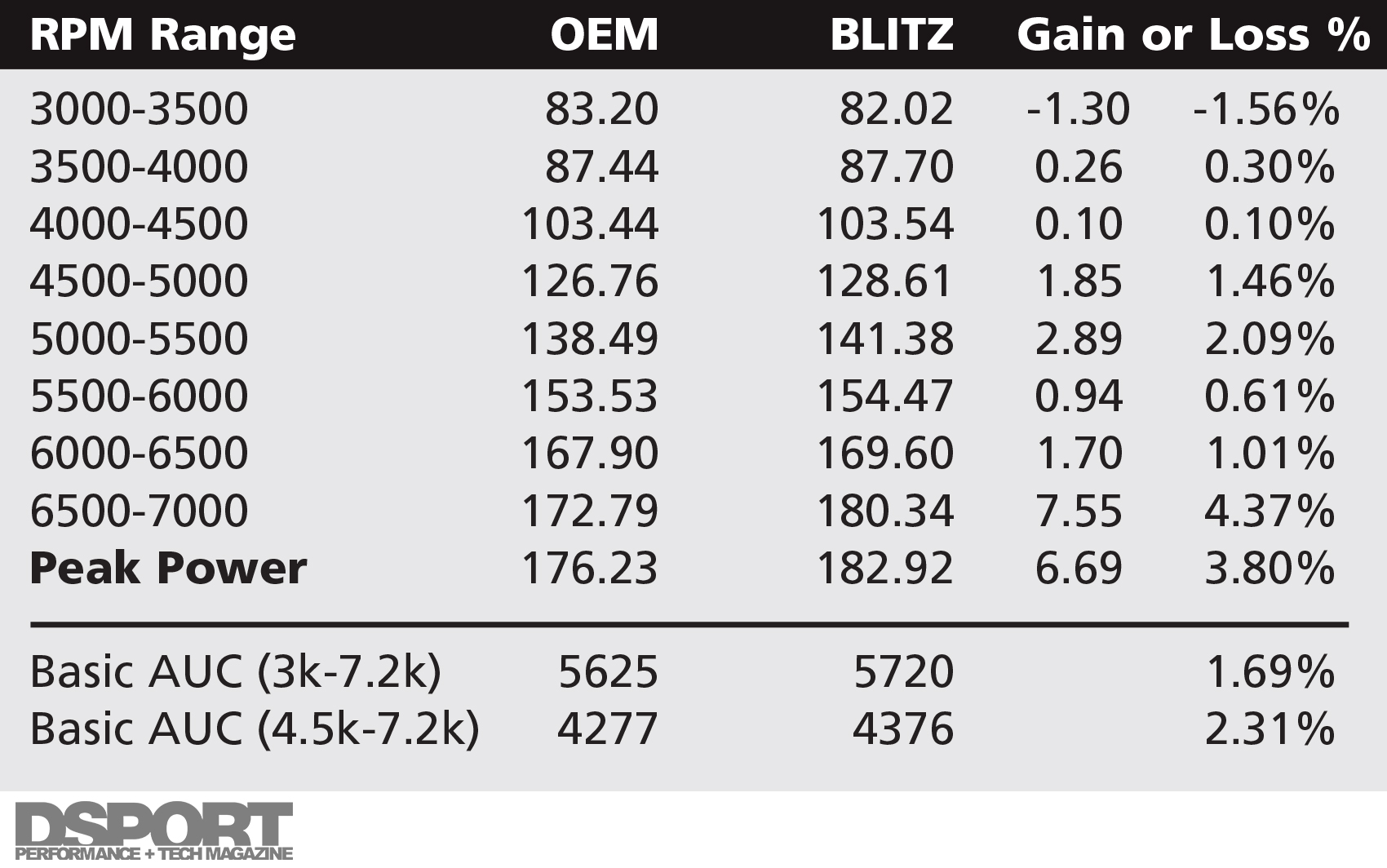

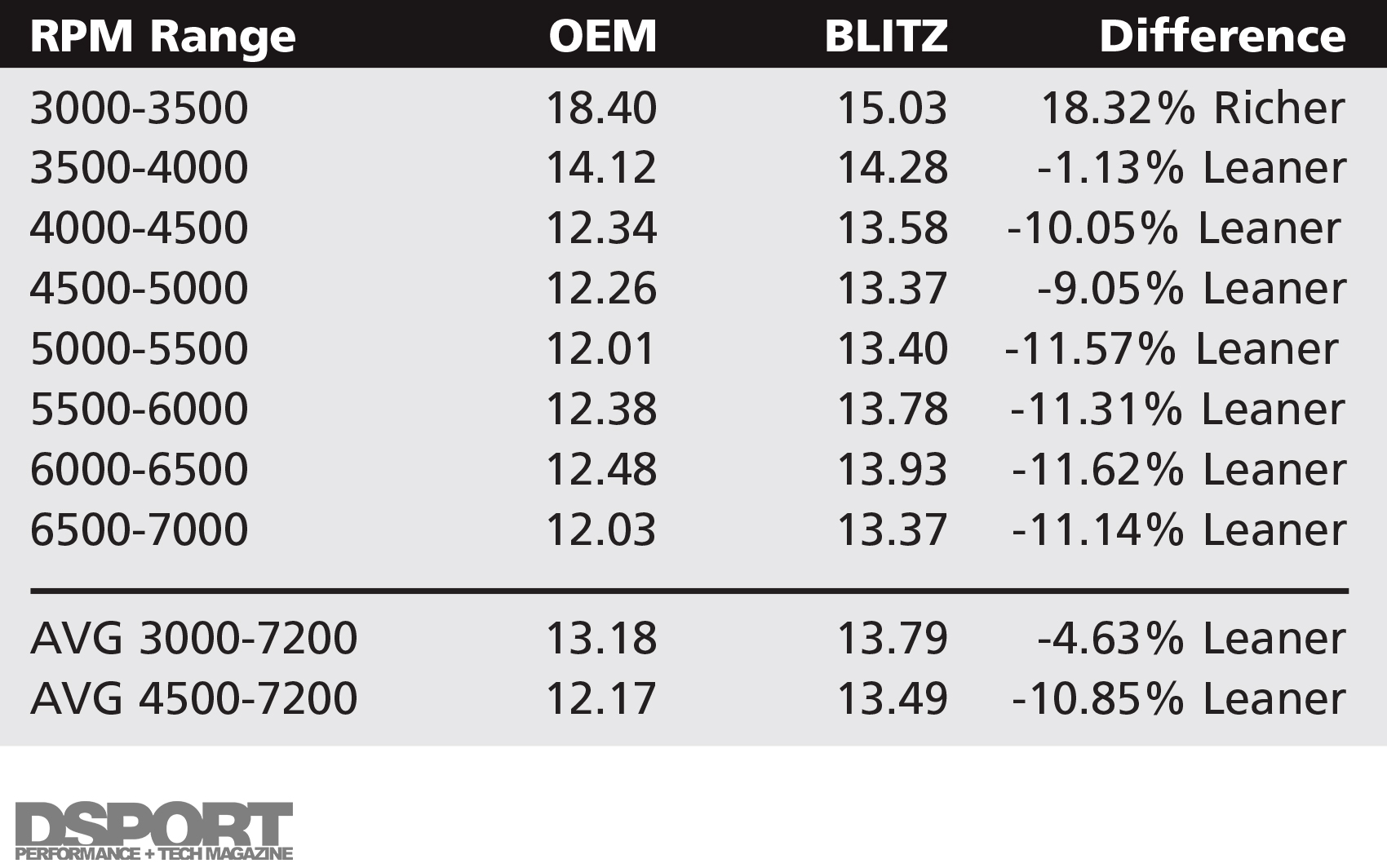

Average Horsepower + Average Air Fuel Ratio
